Technical Manual
MDT IP Router
SCN-IP100.01
Page 2
Technical Manual IP-Router SCN-IP100.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • [email protected] • www.mdt.de
2
Table of contents
1 Introduction .....................................................................................................................................3
1.1 Installation and connection .................................................................................................3
2.1 Coupler function .......................................................................................................................4
2.2 Bus access function (KNXnet/IP Tunneling) ................................................................................6
3 ETS Parameter .................................................................................................................................7
3.1 General .....................................................................................................................................7
3.2 IP –Configuration ......................................................................................................................8
3.3 Routing (KNX --> IP) ................................................................................................................. 10
3.4 Routing (IP -> KNX) .................................................................................................................. 11
4 ETS Connection Manager ............................................................................................................... 13
5 Index .............................................................................................................................................. 14
5.1 Register of illustrations ............................................................................................................ 14
5.2 List of tables ............................................................................................................................ 14
6 Attachment .................................................................................................................................... 15
6.1 Statutory requirements ........................................................................................................... 15
6.2 Routine disposal ...................................................................................................................... 15
6.3 Assemblage ............................................................................................................................. 15
Page 3
Technical Manual IP-Router SCN-IP100.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • [email protected] • www.mdt.de
3
1 Introduction
The KNX IP Router forwards telegrams between different lines via a rapid LAN (IP) backbone. The
KNX IP Router can also be used as an interface for accessing the bus via IP, replacing an RS232 or USB
interface. It has an external 12 V to 24 V power supply or can alternatively be powered via Powerover-Ethernet (IEEE 802.3af).
1.1 Installation and connection
The KNX IP Router is designed for installation in a rack with a depth of 2 units. It contains the
following display and control elements: 2 Areas of application

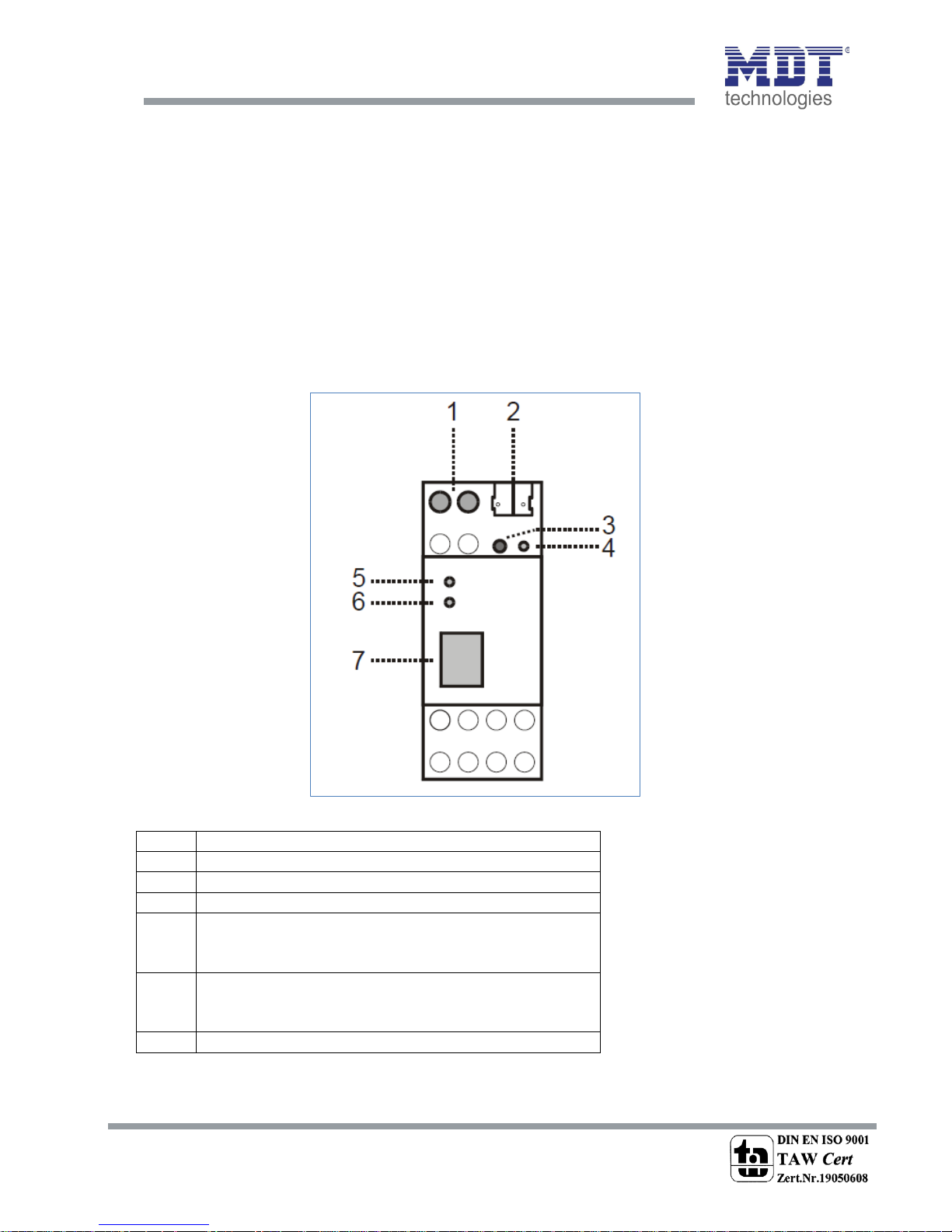

Figure 1: Structure of the hardware device
1:
Connector for external power supply (12 V to 24 V AC/DC)
2:
Connector for KNX/EIB with a bus terminal
3:
Learn key
4:
Learn LED (red)
5:
LED (green):
- Lights up to indicate bus voltage on KNX/EIB
- Flashes to indicate telegram traffic
6:
LED (green):
- Lights up to indicate an Ethernet connection
- Flashes to indicate telegram traffic
7:
RJ 45 socket for connecting an Ethernet patch cable
Chart 1: Structure
Page 4
Technical Manual IP-Router SCN-IP100.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • [email protected] • www.mdt.de
4
2.1 Coupler function
The IP Router can operate as a line and/or backbone coupler. In both cases, the LAN (IP) acts as a
backbone.

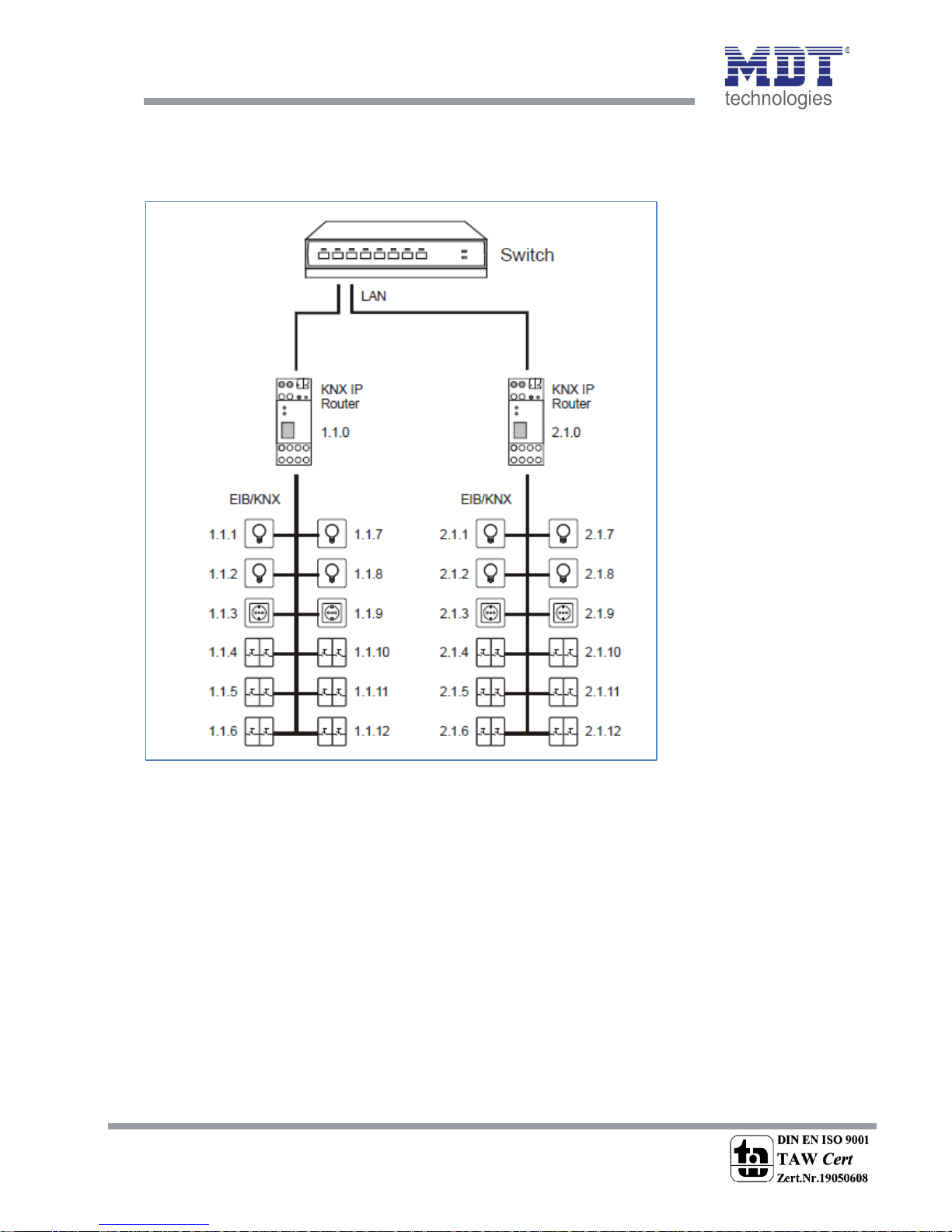

Figure 2: KNX IP Router as Line Coupler
Page 5
Technical Manual IP-Router SCN-IP100.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • [email protected] • www.mdt.de
5

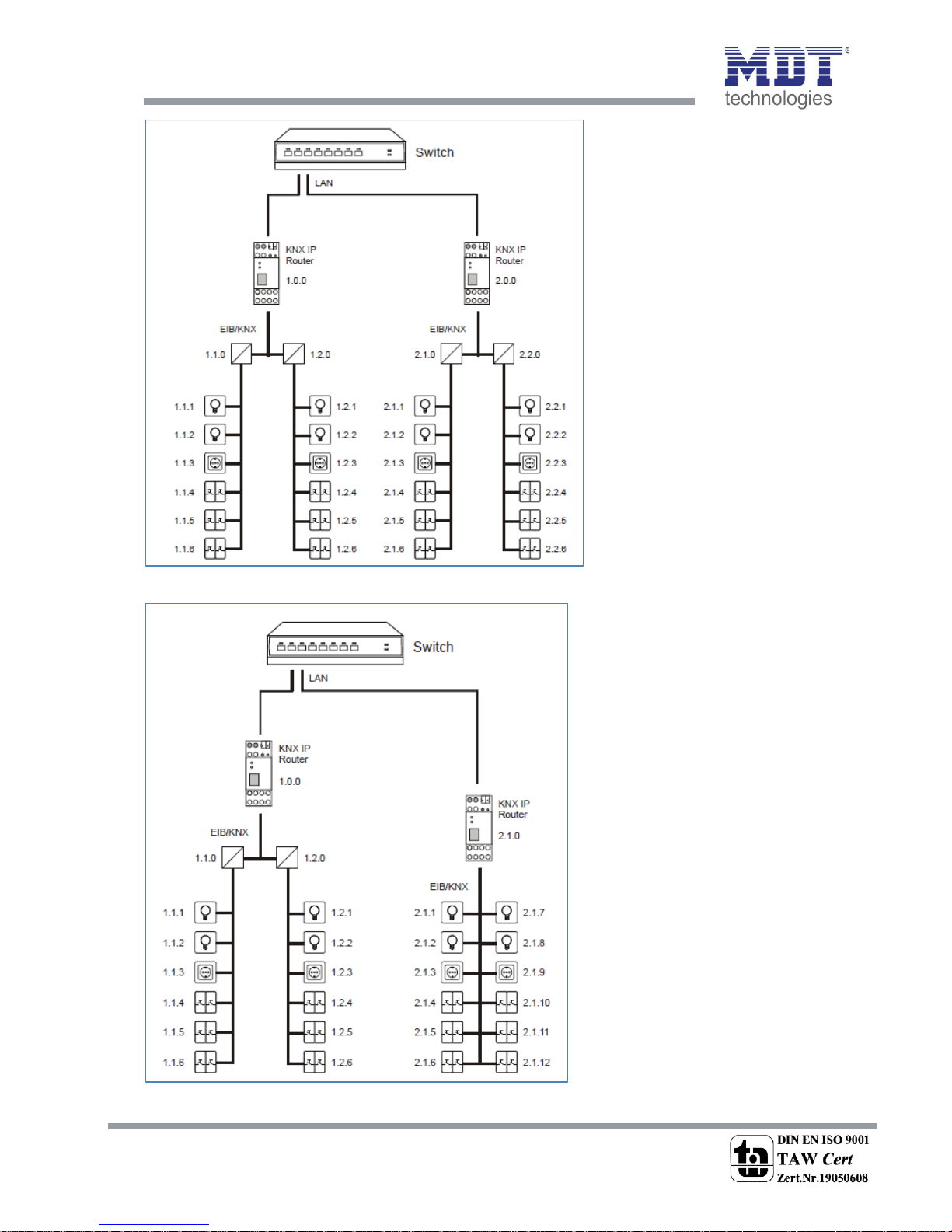

Figure 3: KNX IP Router as a backbone coupler
Figure 4: KNX IP Router as a backbone and line coupler
Page 6
Technical Manual IP-Router SCN-IP100.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • [email protected] • www.mdt.de
6
The physical address assigned to the KNX IP Router determines whether the device operates as a line
or backbone coupler. If the physical address is in the form of x.y.0 (x, y: 1..15), the router operates as
a line coupler. If it is in the form of x.0.0 (x: 1..15), the router acts as a backbone coupler.
Attention:
If the KNX IP Router is used as a backbone coupler (x.0.0), there must be no KNX IP Router in the
topology beneath it. For example, if a KNX IP Router has the physical address of 1.0.0, there must be
no KNX IP Router with the address 1.1.0.
If the KNX IP Router is used as a line coupler (x.y.0), there must be no KNX IP Router in the topology
above it. For example, if a KNX IP Router has the physical address of 1.1.0, there must be no KNX IP
Router with the ad-dress 1.0.0.
The KNX IP Router has a filter table and thus contributes to reducing bus load. The filter table is
automatically generated by the ETS.
Because of the speed difference between the Ethernet (10 Mbit/s) and KNX/EIB (9.6 kbit/s), a far
greater number of telegrams can be transmitted on IP. If several consecu-tive telegrams are
transmitted on the same line, they must be buffered in the router to avoid telegram loss. The KNX IP
Router has a memory for 150 telegrams (from IP to KNX/EIB).
2.2 Bus access function (KNXnet/IP Tunneling)
The KNX IP Router can be used as an interface to KNX/EIB. KNX/EIB can be accessed from any point in
the LAN. For this purpose, a second physical address must be assigned as described in the ETS
Connection Manager section.
Page 7
Technical Manual IP-Router SCN-IP100.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • [email protected] • www.mdt.de
7
3 ETS Parameter
3.1 General
The following parameters can be set at the general settings:

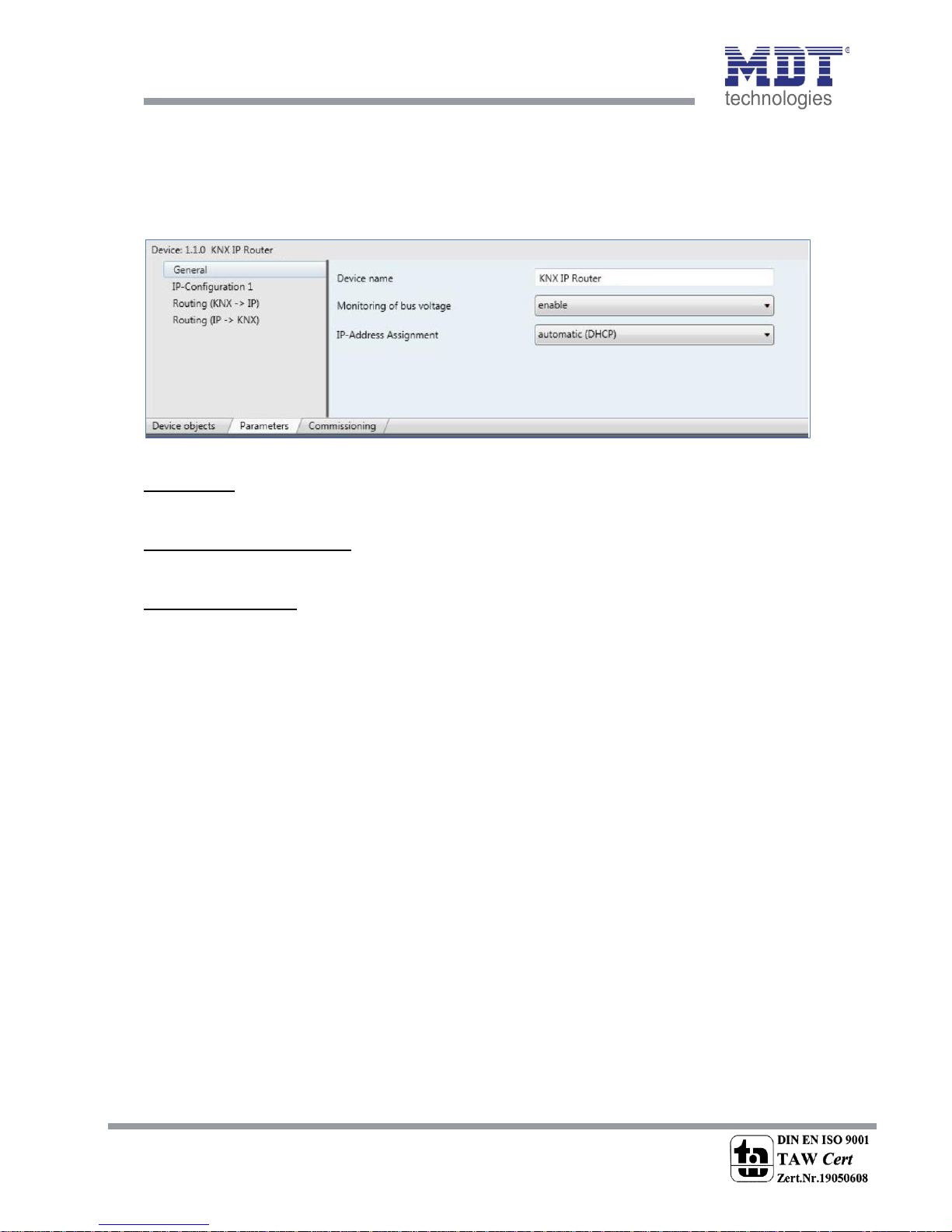

Figure 5: General settings
Device name:
The KNX IP Router can be assigned a name of your choice. The device name should be descriptive
(e.g. Line TF). It is used to search for and recognize a device.
Monitoring bus voltage failure:
If a KNX/EIB failure is detected, it is reported on the IP. Return of the bus voltage is also reported.
Parameters: disable, enable
IP address assignment:
Automatic(DHCP):
The IP address is automatically assigned on the DHCP, i.e. additional settings are not
required. To be able to use this function, there must be a DHCP server in the LAN (many DSL
routers have an integrated DHCP server).
Manual:
In this case, the IP address, the subnet and the gateway IP address must be entered
manually.
Page 8
Technical Manual IP-Router SCN-IP100.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • [email protected] • www.mdt.de
8
3.2 IP –Configuration
The following parameters can be set at the IP-Configuration 1:

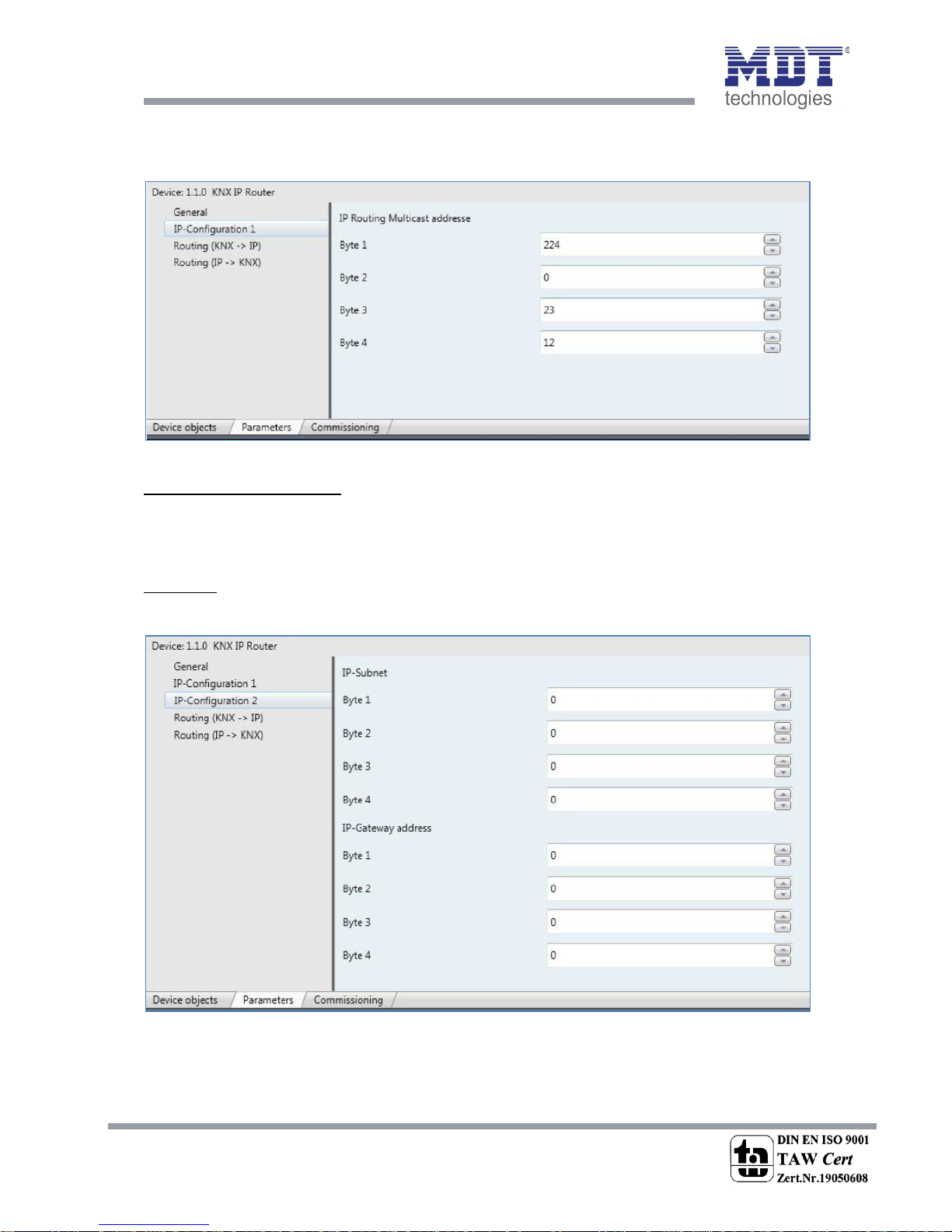

Figure 6: IP configuration 1
IP Routing Multicast Address:
This address is used for routing telegrams on IP. The multicast IP address 224.0.23.12 was reserved
(KNXnet/IP) at the IANA (Internet Assigned Numbers Authority) for this purpose. If a different
multicast IP ad-dress is required, it must lie within the range of 239.0.0.0 to 239.255.255.255.
IP address:
This is the IP address of the KNX IP Router.
Figure 7: IP configuration 2
Page 9
Technical Manual IP-Router SCN-IP100.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • [email protected] • www.mdt.de
9
IP subnet:
Enter the subnet mask here. The device uses the values entered in this mask to determine whether
there is a communications partner in the local network. If there is no partner in the local network,
the device will not send the telegrams directly to the partner but to the gateway that routes the
telegram.
IP gateway address:
Enter the IP address of the gateway here.
Note: If the KNX IP Router will only be used in the local LAN, the entry of 0.0.0.0 can remain
unchanged.
Example of assigning IP addresses:
A PC is to be used to access the KNX IP Router.
IP address of the PC: 192.168.1.30
Subnet of the PC: 255.255.255.0
The KNX IP Router is located in the same local LAN, i.e. it uses the same subnet. The subnet
constrains the IP addresses that can be assigned. In this example, the IP address of the IP router must
be 192.168.1.xx, where xx can be a number from 1 to 254 (with the exception of 30, which is already
in use). It must be ensured that no numbers are assigned twice.
IP address of the IP router: 192.168.1.31
Subnet of the IP router: 255.255.255.0
Page 10
Technical Manual IP-Router SCN-IP100.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • [email protected] • www.mdt.de
10
3.3 Routing (KNX --> IP)
The following parameters can be set at the Routing KNX --> IP:

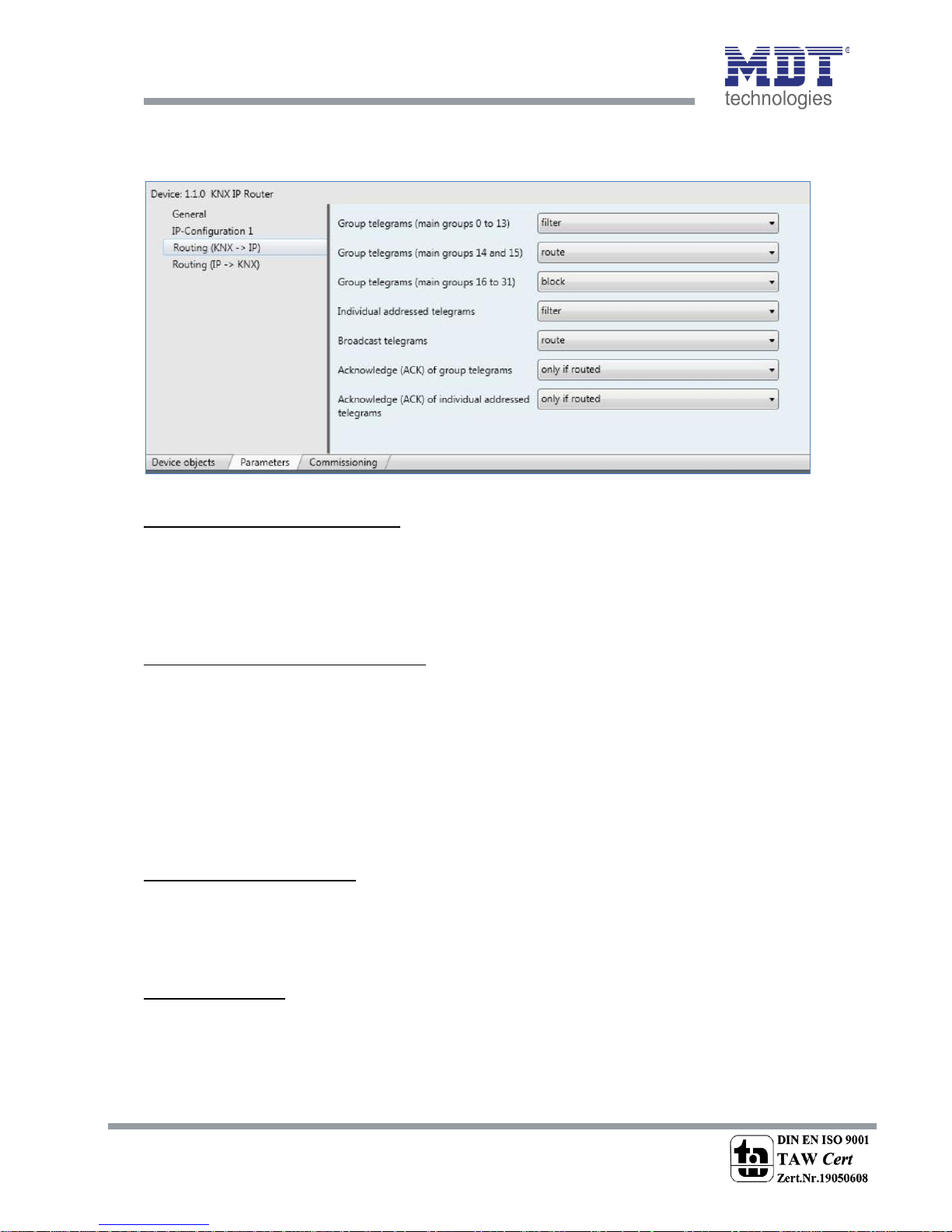

Figure 8: Routing (KNX --> IP)
Group telegrams (main group 0 to 13):
Block: No group telegrams of this main group are routed to IP.
Route: All group telegrams of this main group are routed to IP independent of the filter
table. This setting is for testing purposes only.
Filter: The filter table is used to check whether or not the received group telegram should
be routed to IP.
Group telegrams (main groups 14 and 15):
Block: No group telegrams of main groups 14 and 15 are routed to IP.
Route: All group telegrams of main groups 14 and 15 are routed to IP.
Group telegrams (main groups 16 to 31):
Block: No group telegrams of these main groups are routed to IP.
Route: An additional page appears on which the routing of main groups 16 to 31 can be
disabled or enabled in pairs.
Note:
The group addresses of main groups 16 to 31 are re-served addresses that can be used for special
applica-tions (e.g. in Easy Mode). These group addresses are not available in the ETS.
Physically addressed telegrams:
Block: No physically addressed telegrams are routed to IP.
Route: All physically addressed telegrams are routed to IP.
Filter: The physical address is used to check whether the received physically ad-dressed
telegram should be routed to IP.
Broadcast telegrams:
Block: No received broadcast telegrams are routed to IP.
Route: All received broadcast telegrams are routed to IP.
Page 11
Technical Manual IP-Router SCN-IP100.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • [email protected] • www.mdt.de
11
Acknowledge (ACK) of group telegrams:
Always: An acknowledge is generated for every received group telegram (from
KNX/EIB).
Only if routed: An acknowledge is only generated for received group telegrams (from
KNX/EIB) if they are routed to IP.
Acknowledge (ACK) of physically addressed telegrams:
Always: An acknowledge is generated for every received physically addressed
telegram (from KNX/EIB).
Only if routed: An acknowledge is only generated for received physically addressed group
telegrams (from KNX/EIB) if they are routed to IP.
Answer with NACK: Every received physically addressed telegram (from KNX/EIB) is responded to
with NACK (not acknowledge). This means that communication with physically addressed telegrams on the corres-ponding KNX/EIB line is not possible.
Group communication (group telegrams) is not affected. This setting can be
used to block attempts at manipulation.
3.4 Routing (IP -> KNX)
The following parameters can be set at the Routing KNX --> IP:

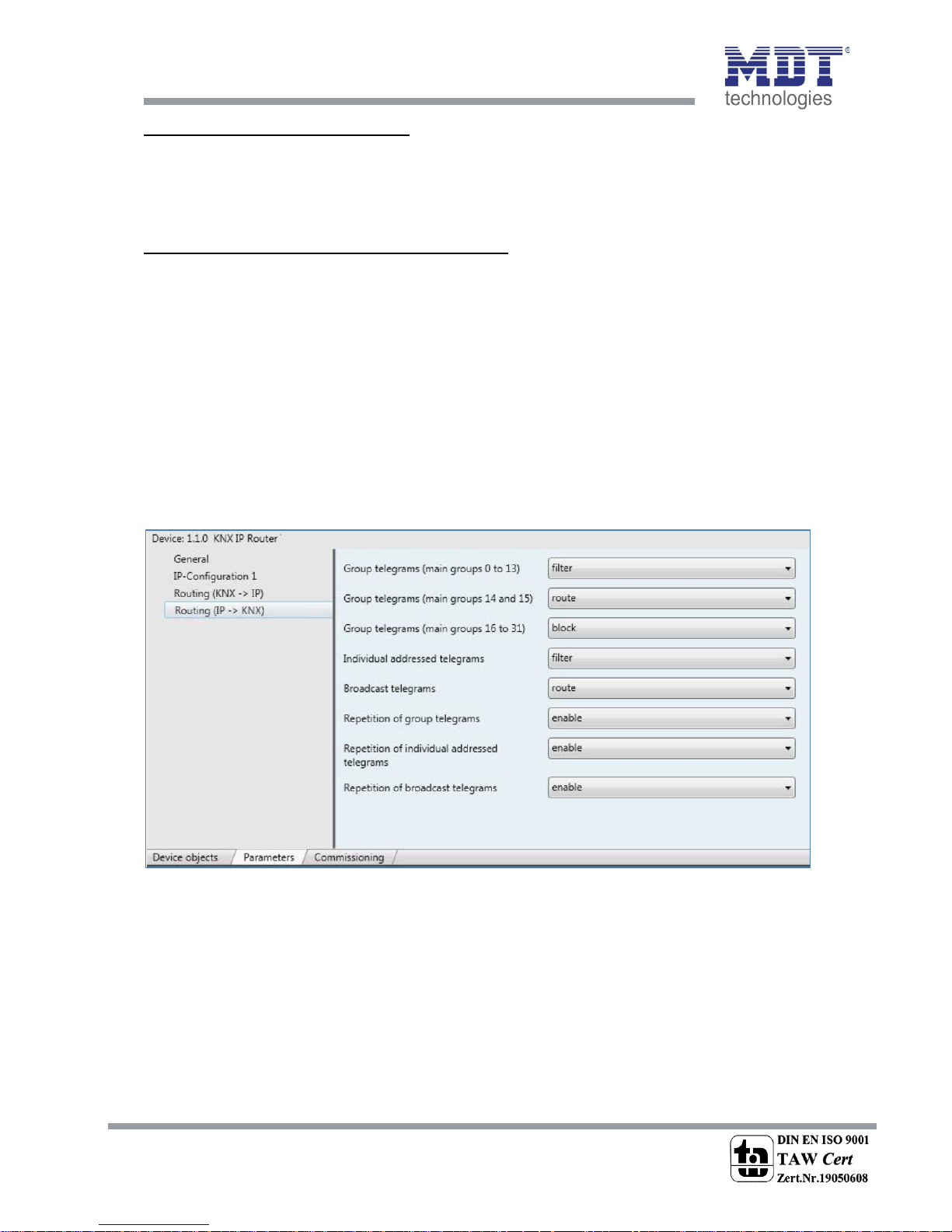

Figure 9: Routing (IP --> KNX)
Page 12
Technical Manual IP-Router SCN-IP100.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • [email protected] • www.mdt.de
12
Group telegrams (main groups 0 to 13):
Block: No group telegrams of these main groups are routed to KNX/EIB.
Route: All group telegrams of this main group are routed to KNX/EIBG independent of the
filter table. This setting is used for testing purposes only.
Filter: The filter table is used to check whether the received group telegram should be
routed to KNX/EIB.
Group telegrams (main groups 14 and 15):
Block: No group telegrams of main groups 14 and 15 are routed to KNX/EIB.
Route: All group telegrams of the main groups 14 and 15 are routed to KNX/EIB.
Group telegrams (main groups 16 to 31):
Block: No group telegrams of these main groups are routed to KNX/EIB.
Route: An additional page appears on which the routing of main groups 16 to 31 can be
disabled or enabled in pairs.
Physically addressed telegrams:
Block: No physically addressed telegrams are routed to KNX/EIB.
Route: All physically addressed telegrams are routed to KNX/EIB.
Filter: The physical address is used to check whether the received physically ad-dressed
telegram should be routed to KNX/EIB.
Broadcast telegrams:
Block: No received broadcast telegrams are routed to KNX/EIB.
Route: All received broadcast telegrams are routed to KNX/EIB.
Resending of group telegrams:
Disable: The received group telegram is not re-sent to KNX/EIB in case of a fault.
Enable: The received group telegram is resent up to three times in case of a fault.
Resending of physically addressed telegrams:
Disable: The received physically addressed tele-gram is not resent to KNX/EIB in case of a
fault.
Enable: The received physically addressed tele-gram is resent up to three times in case of a
fault.
Resending of broadcast telegrams:
Disable: The received broadcast telegram is not resent to KNX/EIB in case of a fault.
Enable: The received broadcast telegram is re-sent up to three times in case of a fault.
Page 13
Technical Manual IP-Router SCN-IP100.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • [email protected] • www.mdt.de
13
4 ETS Connection Manager
If the IP configuration of the KNX IP Router is valid, the router can be used as an interface to KNX/EIB.
The following configuration is necessary:
Select the button Settings and the tab Communication in the main window of ETS4. All available
connections are listed by Configured connections. Select the desired connection.
To be able to access KNX/EIB, the KNX IP Router requires an second physical address. This second
physi-cal address is only used for bus access and must be set up separately.

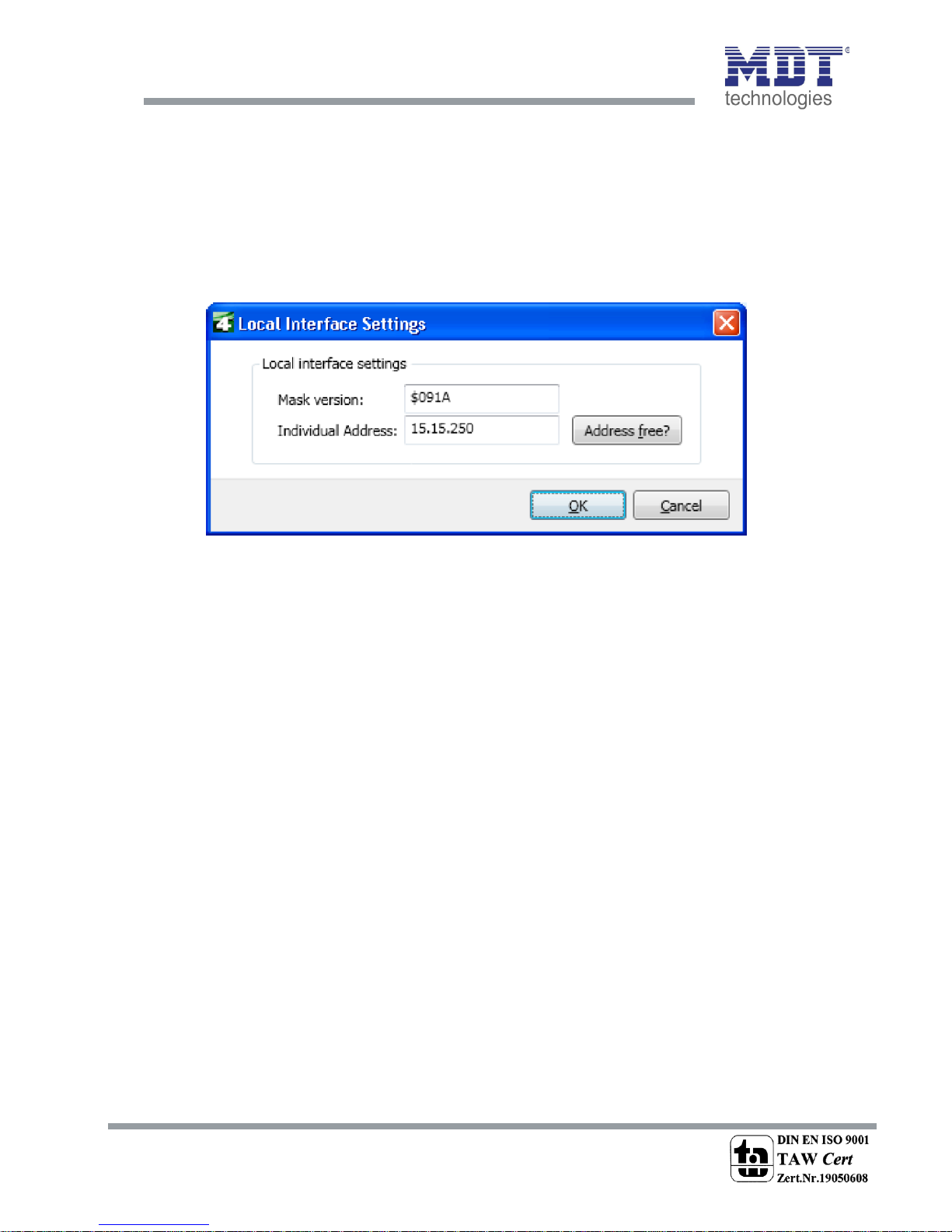

Figure 10: Communication Manager
A dummy device may have to be added to the ETS project to reserve this address.
Page 14
Technical Manual IP-Router SCN-IP100.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • [email protected] • www.mdt.de
14
5 Index
5.1 Register of illustrations
Figure 1: Structure of the hardware device Page 3
Figure 2: KNX IP Router as Line Coupler Page 4
Figure 3: KNX IP Router as a backbone coupler Page 5
Figure 4: KNX IP Router as a backbone and line coupler Page 5
Figure 5: General settings Page 7
Figure 6: IP configuration 1 Page 8
Figure 7: IP configuration 2 Page 8
Figure 8: Routing (KNX --> IP) Page 10
Figure 9: Routing (IP --> KNX) Page 11
Figure 10: Communication Manager Page 13
5.2 List of tables
Chart 1: Structure Page 3
Page 15
Technical Manual IP-Router SCN-IP100.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • [email protected] • www.mdt.de
15
6 Attachment
6.1 Statutory requirements
The above-described devices must not be used with devices, which serve directly or indirectly the
purpose of human, health- or lifesaving. Further the devices must not be used if their usage can
occur danger for humans, animals or material assets.
Do not let the packaging lying around careless, plastic foil/ -bags etc. can be a dangerous toy for kids.
6.2 Routine disposal
Do not throw the waste equipment in the household rubbish. The device contains electrical devices,
which must be disposed as electronic scrap. The casing contains of recyclable synthetic material.
6.3 Assemblage
Risk for life of electrical power!
All activities on the device should only be done by an electrical specialist. The county specific
regulations and the applicable EIB-directives have to be observed.
Page 16

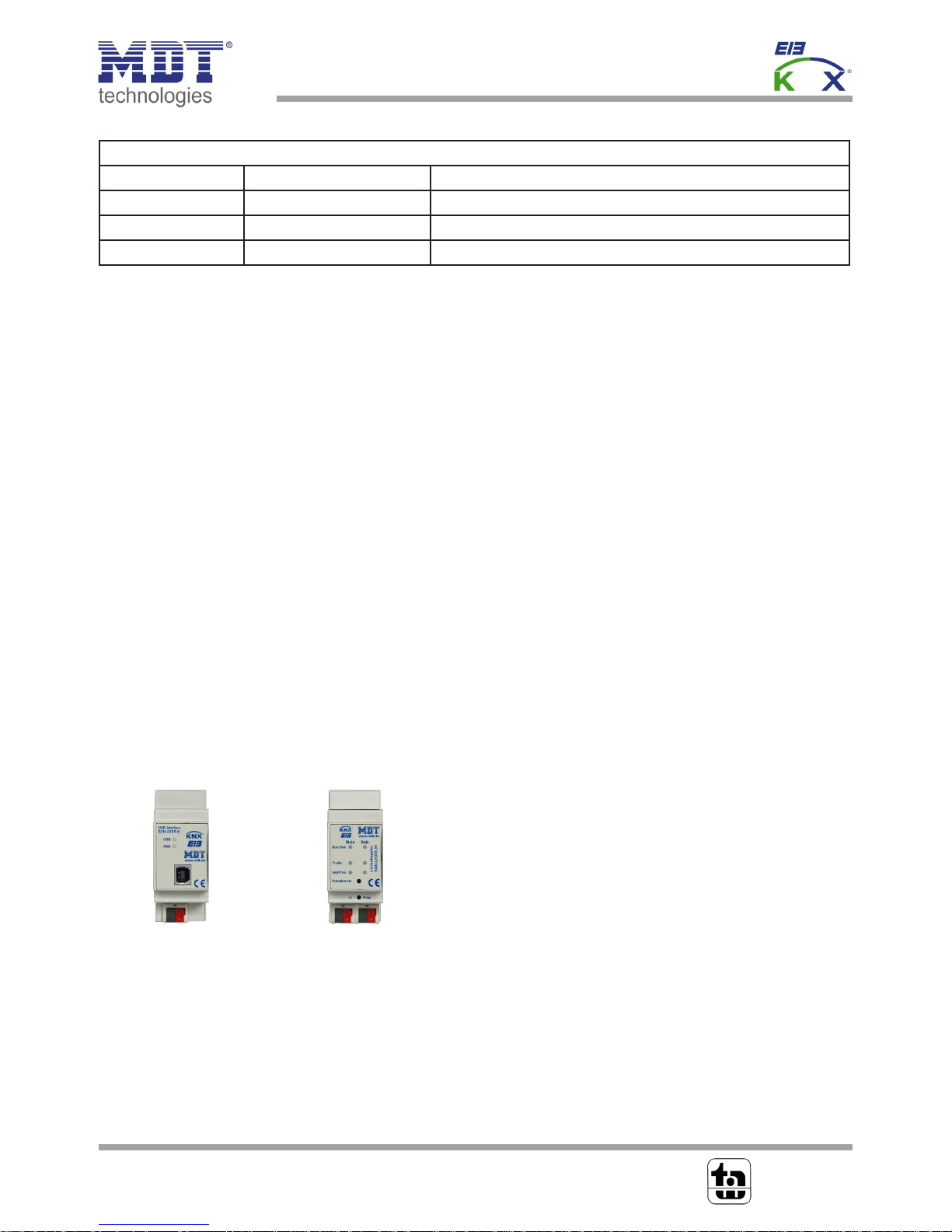

MDT USB/IP Interface
SCN-USBR.01 SCN-LK001.01
MDT Interface, MDRC
Version
SCN-USBR.01 USB Interface 2SU MDRC
SCN-IP000.01 IP Interface 2SU MDRC
SCN-IP100.01 IP Interface with Routing 2SU MDRC
SCN-LK001.01 Line Coupler 2SU MDRC
MDT technologies offers four KNX Interfaces to enable communication between PC and the KNX/EIB system.
KNX USB Interface: The USB Interface enables the communication between the PC and the KNX/EIB system.
The USB interface is galvanically isolated from the KNX/EIB bus.
KNX IP Interface: The IP Interface enables the communication between the PC and the KNX/EIB system via LAN.
5 simultaneous connections possible. An external power supply (12 to 24VAC/DC) or power over ethernet is required.
KNX IP Interface with routing: This interface offers the same functions as the IP Interface, but the device routes
telegrams as a line coupler using the the LAN.
KNX IP Line Coupler: The Line Coupler connects two KNX lines to each other. Electrical isolation between the lines and
reduction of the busload by using the lter function.
The MDT KNX Interfaces are modular installation devices for xed installation in dry rooms. They t on DIN 35mm rails in
power distribution boards or closed compact boxes.
For project design and commissioning of the MDT KNX Interfaces it is recommended to use the ETS3f/ETS4 or later.
Please download the application software at www.mdt.de\Downloads.html
USB Interface:
• To enable bidirectional communication between PC
and the KNX bus via USB
• Fully compatible to ETS3f/4
IP Interface:
• To enable bidirectional communication between PC
and the KNX bus TCP/IP
• 5 simultaneous connections possible (SCN-IP000.01 only)
• Programming the KNX bus via TCP/IP
• External power supply or PoE required
• Modular installation device for DIN 35mm rails
• Integrated bus coupling unit
• 3 years warranty
• Production in Germany, certied according to ISO 9001
• Modern design
• Fully compatible to all KNX/EIB devices
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: + 49 - 2263 - 880
•
Fax: + 49 - 2263 - 4588
•
[email protected] • www.mdt.de
Stand: 0312
DIN EN ISO 9001
TAW Cert
Zert.Nr.1905606
N
Page 17
MDT USB/IP Interface
Electrical Data SCN-USBR.01 SCN-IP000.01 SCN-IP100.01 SCN-LK001.01
Interface USB Ethernet Ethernet KNX
Permitted wire gauge
Screw terminal
--
0,5 - 4,0mm² solid core
0,5 - 2,5mm² nely stranded
--
KNX busconnection terminal
0,8mm Ø, solid core 0,8mm Ø, solid core 0,8mm Ø, solid core 0,8mm Ø, solid core
Power Supply via KNX bus 12 to 24VAC/DC 12 to 24VAC/DC via KNX bus
Power consumption < 0,3W < 0,8W < 0,8W <0,3W each line
Operation temperature range
0 to + 45°C 0 to + 45°C 0 to + 45°C 0 to +45°C
Enclosure
IP 20 IP 20 IP 20 IP 20
Dimensions MDRC (Space Units)
2SU 2SU 2SU 2SU
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: + 49 - 2263 - 880
•
Fax: + 49 - 2263 - 4588
•
[email protected] • www.mdt.de
Stand: 0312
DIN EN ISO 9001
TAW Cert
Zert.Nr.1905606
N
Loading...
