MCZ Swing HYDRO User Manual

INSTALLATION GUIDE EN
PELLET STOVE
SWING HYDRO
PART 1 - REGULATIONS AND ASSEMBLY
Instructions in English
TABLE OF CONTENTS
TABLE OF CONTENTS .................................................................................................. II
1WARNINGS AND WARRANTY CONDITIONS .................................................................2
2INSTALLATION .........................................................................................................9
3DRAWINGS AND TECHNICAL FEATURES ....................................................................18
4INSTALLATION AND ASSEMBLY ...............................................................................20
5HYDRAULIC CONNECTION .......................................................................................31
6ELECTRICAL CONNECTION.......................................................................................36
II
INTRODUCTION
Dear Customer, our products are designed and manufactured in compliance with European reference Standards for construction products (EN13240 wood-burning stoves, EN14785 pellet-burning appliances, EN13229 replaces/wood-burning inserts, EN 12815 wood-burning range cookers), with high quality materials and extensive experience in the transformation processes. The products also meet the essential requirements of Directive 2006/95/EC (Low Voltage) and Directive 2004/108/EC (Electromagnetic Compatibility). To get the best performance, we suggest you read the instructions in this manual carefully. This installation and use manual forms an integral part of the product: ensure that the manual is always supplied with the device, even if the boiler changes owner. If the manual is lost, you can request another copy from the local technical service or download it directly from the company website. All local regulations, including those regarding national and European regulations, must be respected when the device is installed. In Italy, for the installation of devices with biomass lower than 35KW, refer to ministerial decree 37/08, and the qualied installation technician with the appropriate requisites must issue a certicate of compliance for the system installed. (By system one means Stove+Chimney+Air inlet).
REVISIONS TO THE PUBLICATION
The content of this manual is strictly technical and the property of MCZ Group Spa. No part of this manual may be translated into other languages, adapted or reproduced, even in part, in other mechanical or electronic forms, photocopies, recordings or other, without the prior written authorisation from MCZ Group Spa. The company reserves the right to make changes to the product at any time without prior notice. The proprietary company reserves its rights according to the law.
CARE OF THE MANUAL AND HOW TO CONSULT IT
Take care of this manual and keep it in an easily accessible place.
Should the manual be misplaced or ruined, request a copy from your retailer or directly from the authorised Technical Assistance Department. It can be downloaded from the company website.
The "text in bold" must be read with particular care.
The "text in italics" draws attention to other sections in this manual or clarications.
“NOTE” provides the reader with additional information.
SYMBOLS USED IN THE MANUAL
ATTENTION: Read the relative message with care as failure to observe the information provided could result in serious damage to the product and put the persons who use it at risk.
INFORMATION:
failure to comply with these provisions will compromise the use of the product.
OPERATING SEQUENCES:
sequence of buttons to be pressed to access the menus or change settings.
MANUAL
carefully read this manual or the relative instructions.
Technical Dept. - All rights reserved - Reproduction is prohibited
1
1-WARNINGS AND WARRANTY CONDITIONS
SAFETY PRECAUTIONS
Installation, electrical connection, function test and maintenance must only be carried out by authorised and qualied personnel.
Install the product in accordance with all local and national legislation and regulations in force in the region or state.
A bad use or unproper maintainance of the product can bring to a serious risk of explosion in the combustion chamber.
• Only use the fuel recommended by the manufacturer. The product must not be used as an incinerator.
• It is strictly forbidden to use alcohol, petrol, liquid fuel for lanterns, diesel, bio­ethanol, uids for lighting charcoal or similar liquids to light/rekindle the ame in these devices. Keep these ammable liquids well away from the appliance when in use.
• Do not put any fuel other than wood pellets in the hopper.
• The instructions provided in this manual must always be complied with to ensure the product and any electronic appliances connected to it are used correctly and accidents are prevented.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The user, or whoever is operating the product, must read and fully understand the contents of this installation guide before performing any operation. Errors or incorrect settings can cause hazardous conditions and/or poor operation.
• Do not climb on or lean on the product.
• Do not put linen on the product to dry. Any drying racks or similar objects must be kept at a safe distance from the product. Fire hazard.
• All liability for improper use of the product is entirely borne by the user and relieves the Manufacturer from any civil and criminal liability.
2
1-WARNINGS AND WARRANTY CONDITIONS
• Any type of tampering or unauthorised replacement with non-original spare parts could be hazardous for the operator’s safety and relieves the company from any civil and criminal liability.
• Many of the surfaces of the product get very hot (door, handle, glass, smoke extraction pipes, etc.). Avoid coming into contact with these parts
without adequate protective clothing or suitable means, such as gloves with thermal protection or “cold handle” operating systems.
It is forbidden to operate the product with the door open or the glass broken.
The doors/covers on the appliance must remain closed when it is not used.
• The product must be powered by an electrical system that is equipped with an eective earthing device.
• Switch the product o in the event of a fault or malfunction.
• Accumulated unburned pellets in the burner after each “failed start-up” must be removed before lighting again. Check that the burner is clean and positioned properly before lighting again.
• Shut the stove down in the event of a breakdown or bad running and contact the engineer immediately.
• Pellets must not be fed manually into the burner – this wrong behaviour can generate an abnormal amount of unburned gas, with a risk of explosion in the chamber.
• Accumulated unburnt pellets in the burner after a failed ignitions must be removed before lighting.
• Failure too clean and maintain the brazier can result in improper running and explosions within the stove. Make sure you remove and clear the holes in the brazier and any loose encrustations every time you empty the ash from the stove or every time you have a failed ignition.Make sure that the holes in the brazier are never reduced in size as this will aect the safe performance of the stove if not maintained.
• Do not wash the product with water. The water could get inside the unit and damage the electrical insulation and cause electric shocks.
Technical Dept. - All rights reserved - Reproduction is prohibited
3
1-WARNINGS AND WARRANTY CONDITIONS
• A carbon monoxide alarm must be tted in the room where the appliance is sited Refer too ADJ part 2.34 through too 2.36 page 41 (ONLY FOR UK).
• If there is a re in the ue pipe, extinguish the stove, disconnect it from the power supply and never open the door. Then contact the competent authorities.
• Do not light the stove with ammable materials if the ignition system breaks down.
• Do not stand for a long time in front of the product in operation. Do not overheat the room you are in and where the product is installed. This could cause injuries and health problems.
• Install the product in a location that does not present a re hazard and is equipped with power and air supplies and smoke extractors.
• In the event of re in the chimney, turn o the device, disconnect it from the mains electricity and do not open the hatch. Then contact the competent authorities.
• The product and the cladding must be stored in a dry place and must not be exposed to weathering.
• It is recommended not to remove the feet that support the product in order to guarantee adequate insulation, especially if the ooring is made of ammable materials.
• In the event of a malfunction with the ignition system, do not force it to light by using ammable materials.
• Special maintenance must only be performed by authorised and qualied personnel.
• Assess the static conditions of the surface on which the weight of the product will rest and provide suitable insulation if it is made of ammable material (e.g. wood, tted carpet or plastic).
• Live electrical parts: only power the product after completing assembly.
• Disconnect the product from the 230V power supply before performing any maintenance operation.
• IF ANY SMOKE SPILLAGE IS SEEN WITHIN THE ROOM OR THE APPLIANCE SUFFERS FROM AN EXPLOSIVE IGNITION PLEASE TURN OFF THE APPLIANCE, VENTILATE THE ROOM AND CONTACT THE INSTALLER/ SERVICE ENGINEER IMMEDIATELY.
4
1-WARNINGS AND WARRANTY CONDITIONS
INFORMATION
• In case of any problems, get in touch with your dealer, or a qualied engineer authorised by MCZ, and if a repair is necessary, insist on the use of original spare parts.
• Use only the fuel recommended by MCZ (for Italy pellets with a diameter of 6 mm and for other European countries with a diameter of 6-8 mm) and provided only with an automatic supply system.
• Periodically check and clean the smoke outlet ducts (connection to the ue pipe).
• Accumulated unburnt pellets in the burner after repeated failed ignitions must be removed before lighting.
• The pellet stove is not a cooking appliance.
• Always keep the cover of the fuel hopper closed.
• Keep this instruction manual carefully because it must stay with the stove throughout its working life. If the stove is sold or transferred to another user, always make sure that the booklet goes with the product.
• If it gets lost, ask MCZ or your authorised dealer for another copy.
INTENDED USE
The product only works with wood pellets and must be installed indoors.
WARRANTY CONDITIONS
The company guarantees the product, with the exception of elements subject to normal wear (listed on the following page), for a period of 2 (two) years from the date of purchase attested by:
a document to serve as proof of purchase (invoice and/or receipt) that shows the name of the vendor and the date on which the purchase was made;
forwarding of the completed certicate of guarantee within 8 days of purchase.
Furthermore, the product must be installed and started by specialised personnel who must, where provided, issue a declaration of conformity of the plant and of the proper functioning of the product, for the warranty to be valid and eective. We recommend functionally testing the product before completion with the relevant nishes, where provided (claddings, painting of walls, etc.). Installations not meeting the current standards, improper use and lack of maintenance as expected by the manufacturer, void the product warranty. The guarantee is valid on the condition that the instructions and warnings contained in the use and maintenance manual are observed, and therefore the product is used correctly. The replacement of the entire system or the repair of one of its components does not extend the guarantee period, and the original expiry date remains unchanged. The guarantee covers the replacement or free repair of parts recognised as being faulty at source due to manufacturing defects.
In order to activate the product warranty the commissioning document which is supplied with the appliance and also is available as a download from the Specue website must be lled in correctlty and returned within 14 days (ONLY FOR UK).
Technical Dept. - All rights reserved - Reproduction is prohibited
5
1-WARNINGS AND WARRANTY CONDITIONS
EXCLUSIONS
The guarantee does not cover malfunctions and/or damage to the appliance that arise due to the following causes:
Damage caused during transportation or relocation
all parts that develop faults due to negligence or improper use, incorrect maintenance, installation that does not comply with the manufacturer's instructions (always refer to the installation and use manual provided with the appliance)
incorrect dimensioning with regards to the use or faults in the installation or failure to adopt the necessary devices to guarantee proper execution
improper overheating of the equipment, use of fuels not conforming to the types and quantities indicated in the instructions provided
further damage caused by incorrect user interventions in an attempt to x the initial fault
worsening of the damage due to the continued use of the equipment by the user, once the defect has been noticed
in the presence of a boiler, any corrosions, incrustations or breaks caused by water ow, condensation, hardness or acidity of the water, improperly performed descaling treatments, lack of water, mud or limescale deposits
ineciency of chimneys, ues or parts of the plant aecting the equipment
damage caused by tampering with the appliance, atmospheric agents, natural disasters, vandalism, electrical discharges, res, faults in the electric and/or hydraulic system.
Failure to have the stove cleaned on an annual basis by an authorised technician or qualied personnel will result in the loss of the warranty.
Also excluded from this guarantee are:
parts subject to normal wear such as gaskets, glass, claddings and cast iron grids, painted, chrome-plated or gilded parts, handles and electric cables, bulbs, indicator lights, knobs, all parts which can be removed from the hearth.
Variations in colour of the painted or ceramic/serpentine parts and craquelure ceramics as they are natural characteristics of the material and product use.
masonry work
plant parts (if present) not supplied by the manufacturer
Any technical interventions on the product to eliminate the above-said defects and consequent damages must be agreed upon with the Technical Assistance Centre, who reserves the right to accept the relative appointment or not. However, said interventions will not be carried out under warranty but as technical assistance to be granted at part of any eventual and specic agreed conditions and in accordance with the fee in force for the work to be carried out. The user will also be charged for any costs incurred to remedy the incorrect technical interventions, tampering or damage to the appliance, not attributable to original faults. Save for the legal or regulatory limits, the guarantee does not cover the containment of atmospheric and acoustic pollution.
The company declines all liability for any damage which may be caused, directly or indirectly, to persons, animals or objects as a consequence of non compliance with any prescription specied in the manual, especially warnings regarding installation, use and maintenance of the appliance.
6
1-WARNINGS AND WARRANTY CONDITIONS
SPARE PARTS
In the event of a malfunction, consult the retailer who will forward the call to the Technical Assistance Service.
Use only original spare parts. The retailer or service centre can provide all necessary information regarding spare parts. We do not recommend waiting for the parts to be worn before having them replaced. It is important to perform regular maintenance.
The company declines all liability if the product and any other accessory is used improperly or modied without authorisation. All parts must be replaced with original spare parts.
WARNINGS FOR THE CORRECT DISPOSAL OF THE PRODUCT.
The owner is the sole party responsible for demolishing and disposing of the product. This must be performed in compliance with laws related to safety and environmental protection in force in his/her country. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special dierentiated waste collection centre set up by the local authorities or to a retailer that provides this service. Separating and recycling prevents potential negative eects on the environment and health (often caused by inappropriately disposing of product parts). It also allows materials to be recovered in order to obtain signicant savings in energy and resources.
Technical Dept. - All rights reserved - Reproduction is prohibited
7
1-WARNINGS AND WARRANTY CONDITIONS
RULES FOR INSTALLATION
The product in question is a stove that uses wood pellets. Below is a list of the European regulations regarding the installation of the product:
EN 12828 Heating systems design. IEC 64-8 Electrical systems with rated voltage not exceeding 1000 V AC and 1500 V DC. EN 1443 General chimney regulation EN 1856-1 metal smoke ducts EN 1856-2 metal smoke extraction channels EN 1457 chimneys - Interior terracotta / ceramic ues EN 13384-1 Chimneys - Thermal and dynamic uid calculation methods - Part 1: Chimneys connected to a single appliance
Below are some applicable regulations for Italy: UNI 10683:2012 Heat generators fuelled by wood or other solid bio-fuels - Test, installation, control and maintenance (for thermochemical power at the rebox lower than 35kW)
UNI/TS 11278 general technical regulation for the choice of smoke duct/ue UNI 10847:2000 Smoke extractor systems for liquid and solid fuelled generators - Maintenance and control - Guidelines and procedures UNI 8065 water treatment in civil plants. UNI 9182 Hot and cold (domestic) water supply and distribution systems.
Installation must be carried out with reference to the diagram of the heating system prepared in accordance with the standards and local recommendations in force:
In any case, respect: For the heating system ­Local requirements concerning the chimney connection. Local requirements for re-ghting standards. For electrical parts - EN 60335 ''Safety of electrical household appliances and similar'' Part 1 - General requirements Part 2 - Special regulations for appliances with gas, gas oil and solid fuel burners with electrical connections.
8
2-INSTALLATION
The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683. In any case, always observe the domestic regulations in force.
PELLETS
Wood pellets are manufactured by hot-extruding compressed sawdust which is produced during the working of natural dried wood. The compactness of the material is guaranteed by the lignin contained in the wood itself and allows pellets to be produced without glue or binders. The market oers dierent types of pellets with characteristics that vary according to the wood mixtures used. The most common diameter on the market is 6 mm (although 8 mm diameter is available too) with a length, on average, of between 3 and 40 mm. A good quality pellet has a density of between 600 and 750 or more kg/metres cubed and a water content that accounts for 5 to 8% of its weight. Pellets have technical advantages besides being an ecological fuel, as the wood residue is used completely, thereby achieving cleaner combustion than that of fossil fuels. Good-quality wood has a caloric value of 4.4 kW/kg (15% moisture, after about 18 months of seasoning), whereas that of pellets is 4.9 kW/kg. To ensure good combustion, the pellets must be stored in a dry place and protected from dirt. Pellets are usually supplied in 15 kg bags, therefore, storing them is very convenient.
15 Kg BAG OF FUEL
Good quality pellets guarantee good combustion, thereby decreasing harmful emissions into the atmosphere.
The poorer the quality of the fuel, the more often the internal parts of the brazier and combustion chamber must be cleaned.
The main quality certications for pellets currently available on the European market guarantee that the fuel complies with class A1/A2 according to EN14961-2. These certications include, for example, ENPlus, DINplus, Ö-Norm M7135, and in particular, guarantee the following characteristics:
caloric value: 4.6 ÷ 5.3 kWh/kg.
Moisture content: ≤ 10% of the weight.
Percentage of ash: max 1.5% of the weight.
Diameter: 6±1/8±1 mm.
Length: 3÷40 mm.
Content: 100% untreated wood without the addition of binding substances (max 5% bark).
Packaging: in sacks made from ecologically compatible or biologically decomposing material.
The company strongly recommends using certied fuel for its products (ENplus, DINplus, Ö-Norm M7135). Poor quality pellets or others that do not comply with the characteristics specied previously may compromise the operation of your product and can therefore render the guarantee and product liability invalid.
Technical Dept. - All rights reserved - Reproduction is prohibited
9
2-INSTALLATION
FOREWORD
The installation position must be chosen according to the room, to the smoke extraction system, to the chimney ue. Check with local authorities whether there are any restrictive regulations in force regarding the combustion air inlet, the smoke outlet system, the ue or the chimney cap. The manufacturer declines all responsibility in the event of installations that do not comply with the laws in force, incorrect room air exchange, electrical connection non-compliant with the standards and inappropriate use of the appliance. The installation must be carried out by a qualied technician, who must issue a declaration of conformity of the system to the purchaser and will assume full responsibility for nal installation and consequent good operation of the product. In particular one must ensure that:
there is a suitable combustion air inlet and smoke outlet in compliance with the type of product installed
other stoves or devices installed do not cause depression in the room where the product is installed (for sealed appliances only, a maximum of 15 Pa of depression in the room is allowed)
when the product is switched on there is no reux of smoke in the room
fumes extraction takes place in total safety (sizing, smoke seal, distances from ammable materials..).
We especially recommend to check the data tags of the ue for the safety distances that must be observed in presence of combustible materials and the type of insulating material to be used. These indications must be followed strictly to prevent serious harm to people and the integrity of the home. The installation of the appliance must ensure easy access to clean the appliance itself, the smoke outlet pipes and the ue. It is forbidden to install the stove in rooms with a re hazard. Installation in studio ats, bedrooms and bathrooms is only allowed with sealed or closed appliances equipped with suitable combustion air ducting directly outside. Always maintain adequate distance and protection in order to prevent the product from coming into contact with water.
In the event there are several appliances installed, the external air inlet must be sized accordingly.
MINIMUM DISTANCES
It is recommended to install the stove detached from any walls and/or furniture, with a minimum clearance to allow eective aeration of the appliance and a good distribution of heat in the room.Observe distances from ammable or heat-sensitive objects (sofas, furniture, wood panelling, etc..) as specied below. The front distance from ammable materials must be at least as set out in the product’s technical data table. If particularly delicate objects are present, such as furniture, curtains or sofas, increase the stove clearance accordingly.
If the oor is made of wood, it is recommended to t a oor protection sheet in compliance with the Standards in force in the country of installation.
A
Non-ammable walls Flammable walls
SWING HYDRO
A = 5 cm B = 5 cm
A = 10 cm B = 10 cm
B
If the oor is made of combustible material, it is recommended to use protection made of non-combustible material (steel, glass...) that also protects the front from falling combusted material during cleaning operations. The appliance must be installed on a oor with adequate load capacity. If the existing construction does not meet this requirement, one must take appropriate measures (for example a load distribution plate).
10
2-INSTALLATION
FOREWORD
This chapter on the Smoke Flue has been produced in reference to the prescriptions of European regulations (EN13384 - EN1443 - EN1856
- EN1457). The chapter provides indications for installing an ecient and correct smoke ue but is under no circumstances to substitute the
regulations in force, which the qualied technician must be in possession of. Check with local authorities whether there are any restrictive
regulations in force regarding the intake of air for combustion, the smoke extraction system, the ue or the chimney. The company declines all liability relating to the poor functioning of the boiler if this is due to the use of an insuciently sized ue in violation of regulations in force.

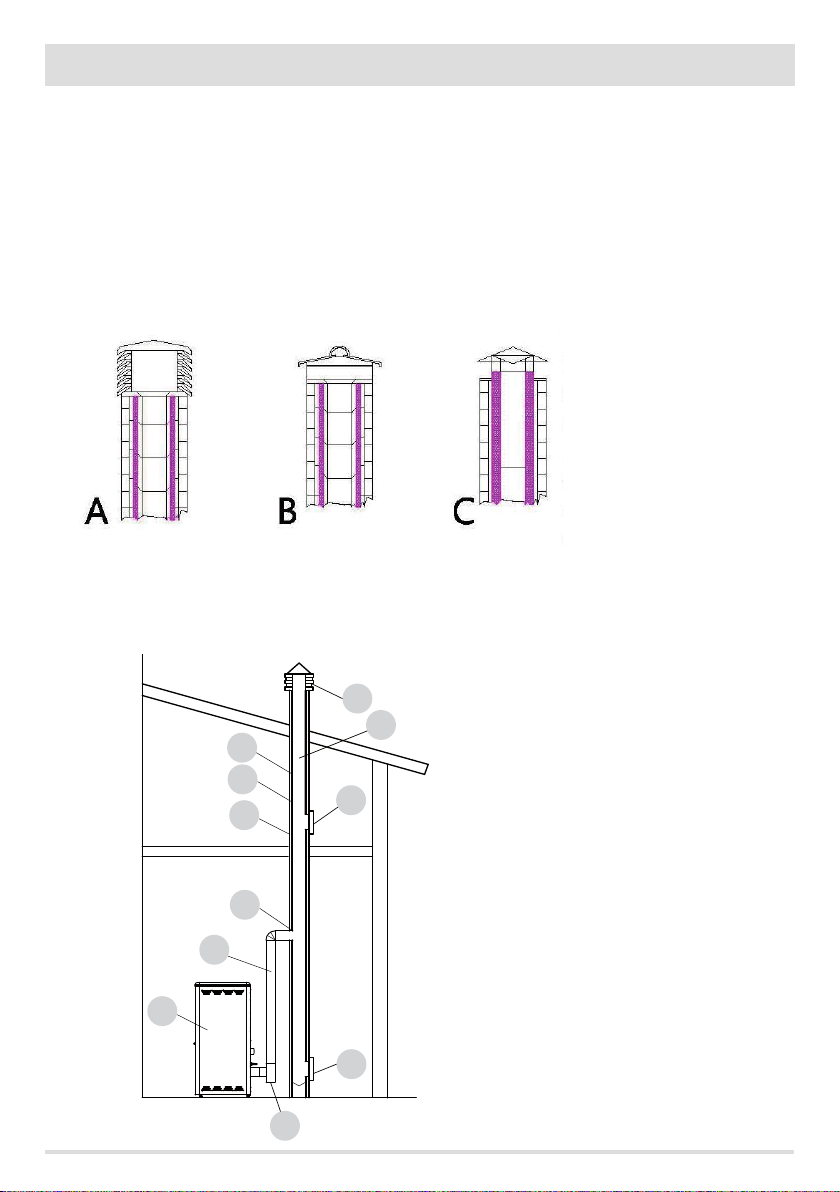

SMOKE FLUE
The ue or chimney is of great importance for the proper operation of a solid fuel-burning heating appliance with natural draught, as
modern heating appliances have high eciency with cooler ue gasses and consequently less draught, it is therefore essential that the ue is built up to standard and always kept in perfect working order. A ue that serves a pellet/wood fuelled appliance must be at least category T400 (or greater if the appliance requires, and resistant to soot res. Smoke must be extracted through a single ue made of
insulated steel (A) or an existing ue that complies with the intended use (B). A simple air shaft in cement must be suitably lined. In both solutions there must be an inspection cap (AT) and/or inspection hatch (AP) - FIG.1.
It is prohibited to connect more than one wood/pellet or any other type of appliance (vent cowling...) to the same ue.
The stove must be connected to a ue pipe or an internal or external vertical duct conforming to EN 1856-1-2 to suit the
appliance and types of fuels to be burnt – refer to detailed guidance in sections 2, 3 and 4 in ADJ (ONLY FOR UK).
min.3,5 metri
(A)
Technical Dept. - All rights reserved - Reproduction is prohibited
AT

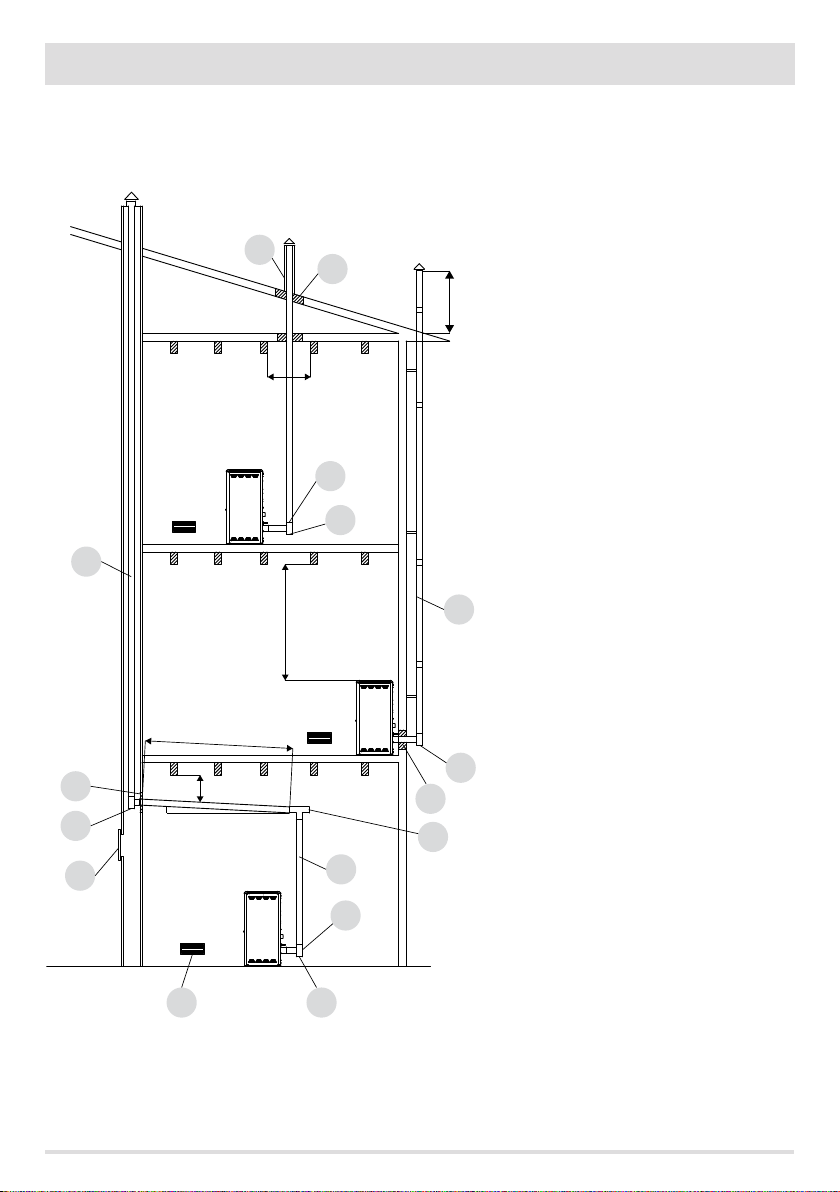

FIGURE 1 - SMOKE FLUE
AP
(B)
11
2-INSTALLATION
TECHNICAL CHARACTERISTICS
Have the eciency of the ue checked by an authorised technician. The ue must be sealed against ue gasses, in a vertical direction without narrowing, be made with materials impermeable to smoke, condensation, thermally insulated and suitable to resist normal mechanical stress over time (we recommend replaces made of A/316 or refractory material with insulated round section double chamber). Be suitably insulated externally to avoid condensation and reduce smoke cooling. It should be separated from combustible or ammable materials with an air gap or insulating materials: check the distance specied by the manufacturer of the replace according to EN1443. The chimney opening must be in the same room as the appliance, or at most in the adjoining room, and have a soot and condensation collection chamber beneath the opening, and be accessible via a watertight metal hatch.

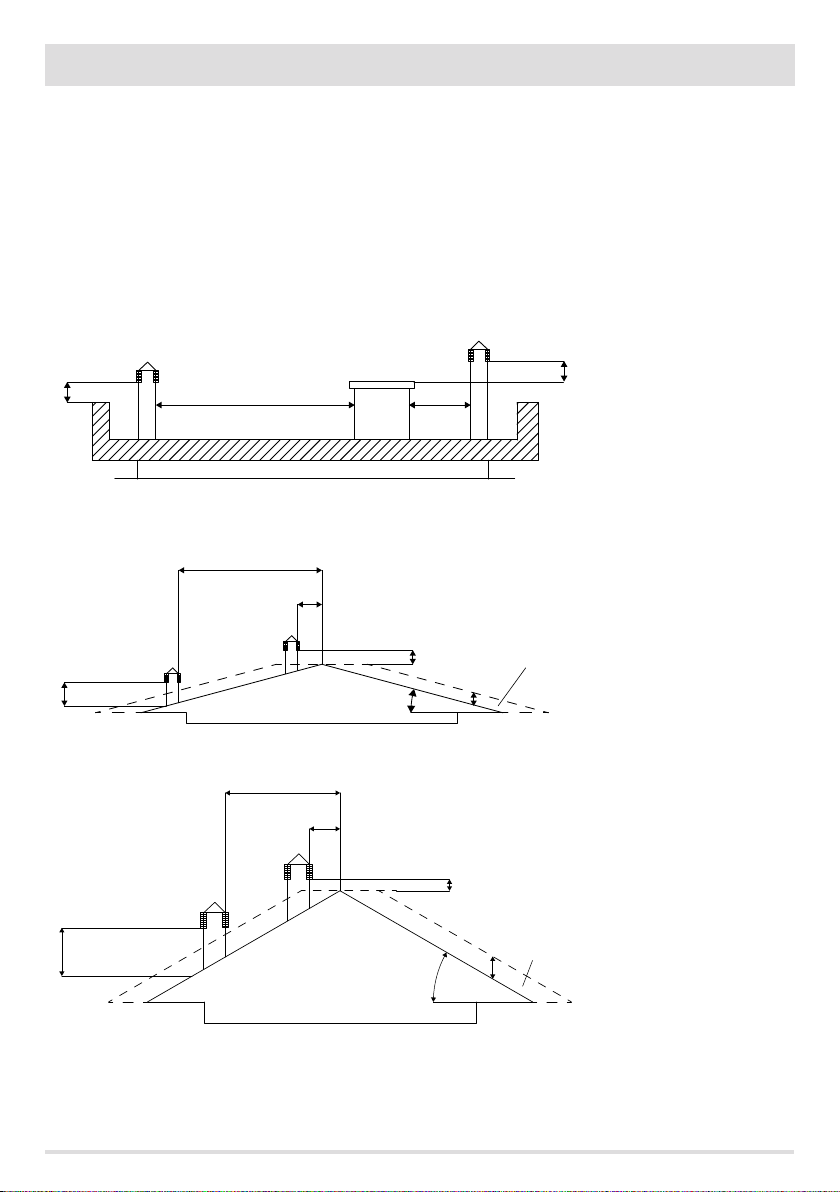

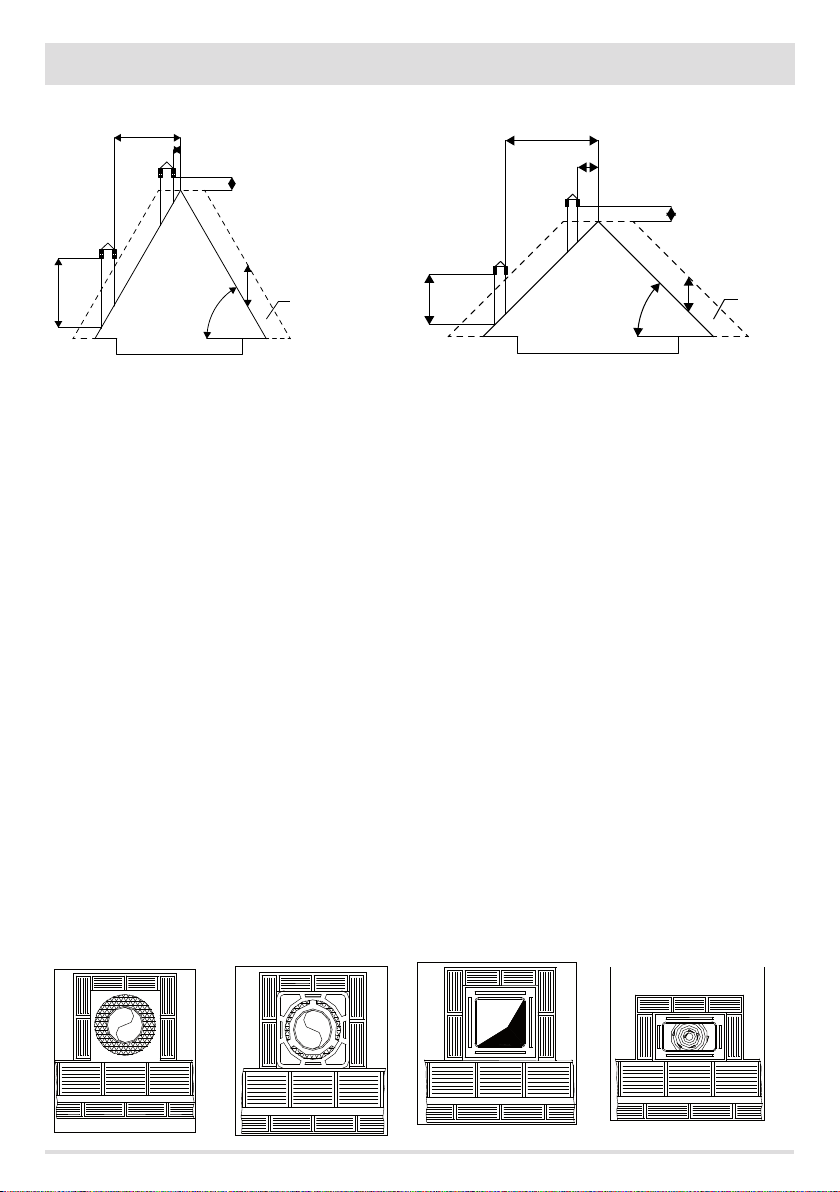

FLAT ROOF
A
ROOF AT 15°
A
ROOF AT 30°
A = 0.50 metres B = DISTANCE > 2 metres
D
B
B
C
C
E
C = DISTANCE < 2 metres D = O.50 metres E = TECHNICAL VOLUME
FIGURE 2
A = MIN. 1.00 metres B = DISTANCE > 1.85 metres C = DISTANCE < 1.85 metres D = 0.50 metres above highest point
D
15°
B
C
E
F
E = 0.50 metres F = REFLUX ZONE
FIGURE 3
A = MIN. 1.30 metres B = DISTANCE > 1.50 metres C = DISTANCE < 1.50 metres D = 0.50 metres ABOVE HIGHEST
D
POINT E = 0.80 metres F = REFLUX ZONE
A
30°
F
E
FIGURE 4
12
B
2-INSTALLATION
ROOF AT 60° ROOF AT 45°
C
D
B
C
D
A
A = MIN. 2.60 metres B = DISTANCE > 1.20 metres C = DISTANCE < 1.20 metres D = 0.50 metres ABOVE HIGHEST POINT E = 2.10 metres F = REFLUX ZONE
E
60°
F
FIGURE 5
A
A = MIN. 2.00 metres B = DISTANCE > 1.30 metres
45°
E
FIGURE 6
F
C = DISTANCE < 1.30 metres D = 0.50 metres ABOVE HIGHEST POINT E = 1.50 metres F = REFLUX ZONE
DIMENSIONING
The drop in pressure (draft) of a ue depends on its height. Check the drop in pressure with the values indicated in the technical characteristics. The minimum height of the chimney is 3.5 meters.
The interior cross-section of the ue can be circular (best variation), square or rectangular (the ratio between the interior sides must be ≤1.5) with the sides joined with a minimum radius of 20 mm. The dimension of the cross-section must be minimum Ø100mm.
The cross sections/lengths of chimneys must be correctly sized in accordance with the general method of calculation of UNI EN13384-1 or other proven eciency methods.
Below is a list of some ues available on the market:
Steel chimney AISI 316 with double chamber insulated with ceramic bre or equivalent resistant up to 400°C.
Refractory chimney with double insulated chamber and external lightweight concrete cladding with cellular material such as clay.
Traditional square-section clay chimney with insulating empty inserts.
Avoid products with an internal rectangular section where the larger side is 1.5 times the smaller side (e.g. 20x40 or 15x30).
EXCELLENT GOOD POOR VERY POOR
Technical Dept. - All rights reserved - Reproduction is prohibited
13
2-INSTALLATION
MAINTENANCE
The ue must be kept clean, since the deposit of soot or unburned oils reduces the cross-section reducing the draft and thus compromising
the ecient functioning of the heater and, if large build-ups accumulate, can catch re. The ue and chimney must be cleaned and checked by a qualied chimney sweep at least once a year. Once the maintenance has been performed, request a written declaration
that the device is safe.
Failure to clean the system jeopardises the safety.
CHIMNEY
The chimney is a crucial element for the heating appliance to work properly: we recommend a wind proof chimney (A), see Figure 7. The area of the opening for smoke extraction must be at least double the cross-section of the smoke duct/ue system, and arranged so
that smoke extraction is ensured even in strong wind. The chimney must prevent rain, snow or animals from entering the chimney. The height of outow into the atmosphere must be beyond the reux zone created by the shape of the roof or any obstacles near the outlet (see Figures 2-3-4-5-6).
FIGURE 7
CHIMNEY COMPONENTS
1
2
3
4
5
9
KE Y: (1) CHIMNEY (2) REFLUX CHANNEL (3) SMOKE DUCT (4) THERMAL INSULATION (5) OUTSIDE WALL (6) CHIMNEY CONNECTION (7) SMOKE CHANNEL (8) HEAT GENERATOR (9) INSPECTION ACCESS PANEL
6
7
FIGURE 8
8
9
9
14
2-INSTALLATION
EXTERNAL AIR INLET
It is mandatory to provide an adequate external air intake that supplies the combustion air required for the product to work properly. The ow of air between the outside and the installation room may be direct, through an inlet in an external wall of the room; or indirect, via air intake from adjoining rooms and connecting permanently with the installation room (see Figure 9 b). Adjoining areas may not include sleeping areas, garages or general areas with a re hazard. During installation one must check the minimum clearances required for air
intake from outside. Take into account the presence of doors and windows that could interfere with the proper ow of air to the stove (see diagram below). The air intake must have a minimum total net area of 80 cm2: the surface must be increased accordingly if within the room there are other active generators (for example: electric fan for stale air extraction, kitchen hood, other stoves, etc...), which could cause cause depression
in the room. One must verify that, with all the equipment on, the pressure drop between the room and the outside does not exceed a value of 4 Pa. If necessary increase the intake section of the air inlet, which must be made at oor level and always protected with a bird-
proof outer protection grid and in such a way that it cannot be obstructed by any object.
B B
A

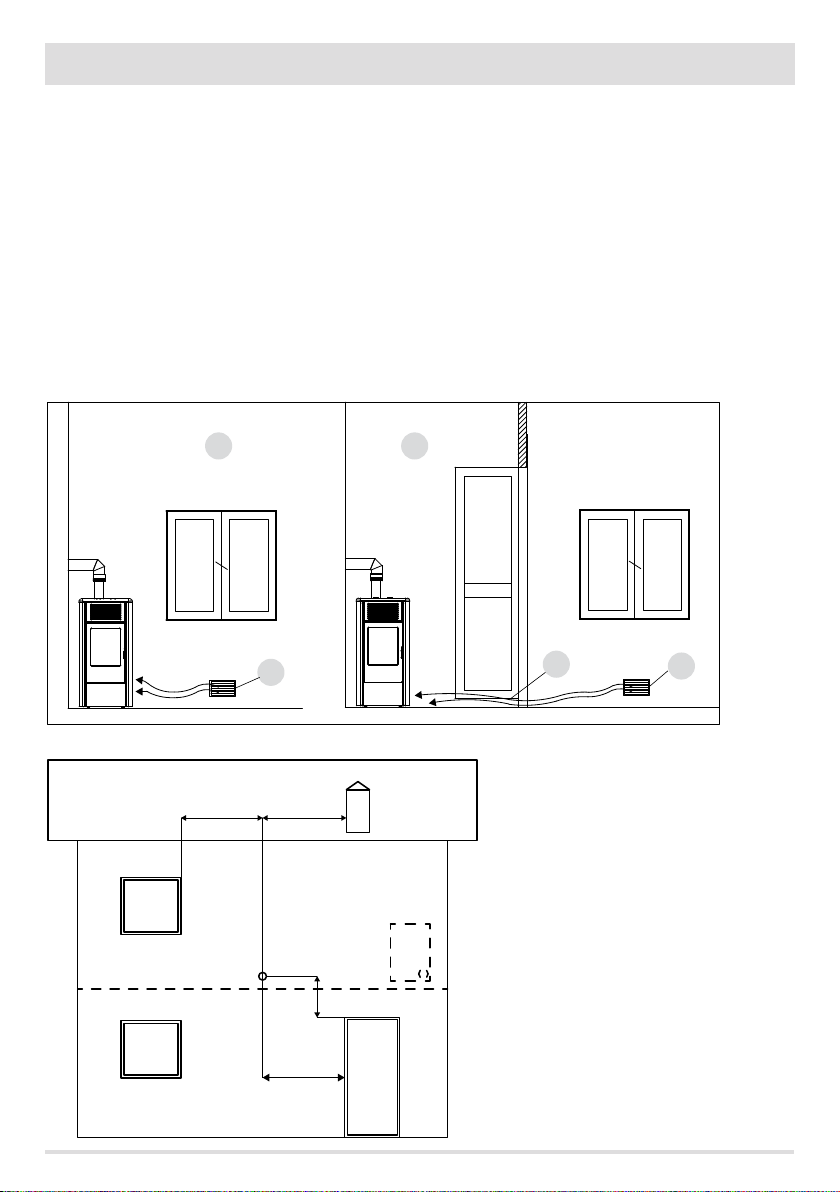

FIGURE 9 A - DIRECTLY FROM OUTSIDE
MIN.1,5 m MIN.1,5 m
MIN.0,3 m
MIN.1,5 m
Technical Dept. - All rights reserved - Reproduction is prohibited
C
FIGURE 9 B - INDIRECTLY FROM THE ADJACENT ROOM
A=AIR INLET B=ROOM TO BE VENTILATED C=INCREASE OF THE GAP UNDER THE DOOR
A
It is possible to connect the air required for combustion directly to the outside air inlet, with a pipe of at least Ø50mm, with maximum length of 3linear metres; each pipe bend shall be considered equivalent to a linear metre. To attach the pipe see the back of the stove. For stoves installed in studio ats, bedrooms and bathrooms (where allowed), it is mandatory to connect the combustion air outside. In particular for sealed stoves the connection must be sealed in order not to compromise the overall sealed characteristic of the system.
FIGURE 10
15
2-INSTALLATION
DISTANCE (metres) The air inlet must be at a distance of:
1.5 m UNDER Windows, doors, smoke outlets, cavities, ....
1.5 m HORIZONTALLY Windows, doors, smoke outlets, cavities, ....
0.3 m ABOVE Windows, doors, smoke outlets, cavities, ....
1.5 m AWAY from smoke outlet
CONNECTION TO FLUE
The connection between the ue and the appliance must be via a smoke duct that conforms with EN 1856-2. The connecting section
must extend no more than 4 m horizontally, with a maximum incline of 3% and containing a maximum of 3 90% bends (accessible for
inspection - do not count the T joint at the appliance outlet). The diameter of the smoke duct must be equal to or greater than that of the appliance outlet (Ø 80 mm).
TYPE OF DEVICE SMOKE DUCT
Minimum vertical length 1.5 metres
Maximum length
(with 1 accessible 90° bend)
Maximum length
(with 3 accessible 90° bends)
Maximum number of accessible 90° bends 3
Horizontal sections
(minimum incline 3%)
6.5 metres
4.5 metres
4 metres
Use a smoke duct according to the regulations in force in the country of installation and verify that it is compatible with the product and
installation characteristics. The temperature class of the smoke duct must exceed operating temperatures of the appliance.
It is prohibited to connect more than one appliance to the same smoke duct, or the discharge from overhead cowling. It is prohibited to extract the products of combustion directly through the wall, whether into indoor spaces or outdoors. Should there be ammable or heat-sensitive structures, the smoke duct must respect the safety distances specied in the data plate.
SUPPLEMENTARY ISTRUCTIONS ONLY FOR UK
FOR CONNECTION TO THE FLUE PIPE, NOT MORE THAN 150mm OF HORIZONTAL PIPE MUST BE USED AND NOT MORE THAN 4 x 45° bends MUST BE USED. I accordance with UK Building Regulations .
All exterior ue or ue used internaly above 1.8m should be twin wall insulated pipe installed in accordance with ADJ reference page 23 section 1.31 and 1.32 and 1.33 & Hetas regulations.
The external uepipe must have internal dimensions of a minimum of 150mm, and maximum 180mm.
Check with suitable instruments that there is a minimum draught of 5 Pa. on low re and 10pa on high re. The ue must
always run under negative pressure and a cold ue pull of – 2>3 pascals must be secured.
16
2-INSTALLATION
EXAMPLES OF CORRECT INSTALLATION
1
E
2

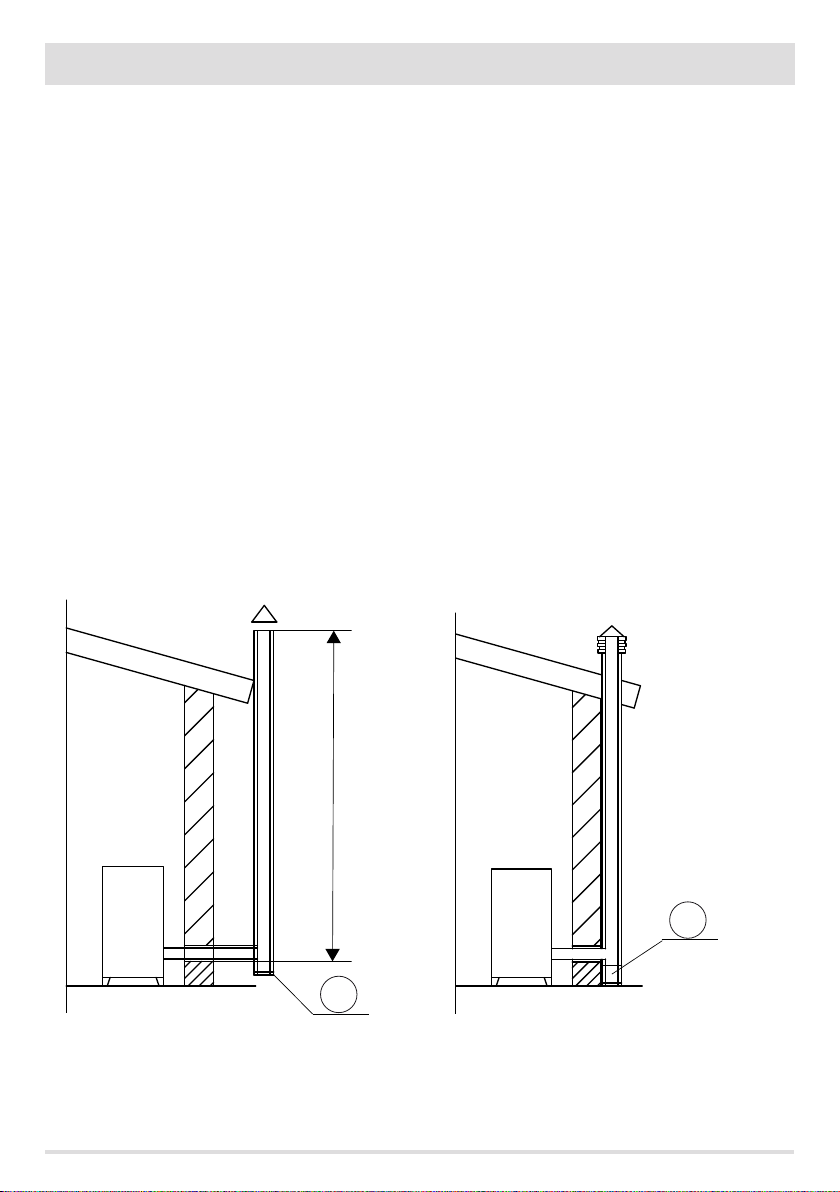

1. Installation of Ø150mm ue with hole for the passage of the tube increased by: minimum 100 mm around the tube if next to non ammable parts such as cement, brick, etc.; or minimum 300 mm around the tube (or as prescribed by
U
V
I
data tags) if next to ammable parts such as wood etc. In both cases, install suitable insulation between the ue and the ceiling.
F
Always check and respect the data tags on the ue, in particular the minimum safety distances from combustible materials. The previous rules also apply for holes made in walls.
2. Old ue, minimum pipe Ø100mm with the inclusion of an external access door for chimney cleaning.
3. External ue made of insulated stainless steel pipes, i.e. with double walls minimum Ø100mm: all securely mounted on the wall. With wind-proof chimney. See g. 7 type A.
4. Ducting system using T joints that allow easy access for cleaning without having to remove the tubes
D
B
U
I
S
A
C
4
T
P
Technical Dept. - All rights reserved - Reproduction is prohibited
I
3
FIGURE 11
U = INSULATING V = ANY REDUCTION FROM 100 TO 80 MM
I
I = INSPECTION CAP
U
I
S = INSPECTION ACCESS PANEL P = AIR INLET T = T JOINT WITH INSPECTION CAP
A = MINIMUM 40 MM B = MAXIMUM 4 M C = MINIMUM 3° D = MINIMUM 400 MM E = HOLE DIAMETER F = SEE FIG.2-3-4-5-6
17
3-DRAWINGS AND TECHNICAL FEATURES
DRAWINGS AND CHARACTERISTICS

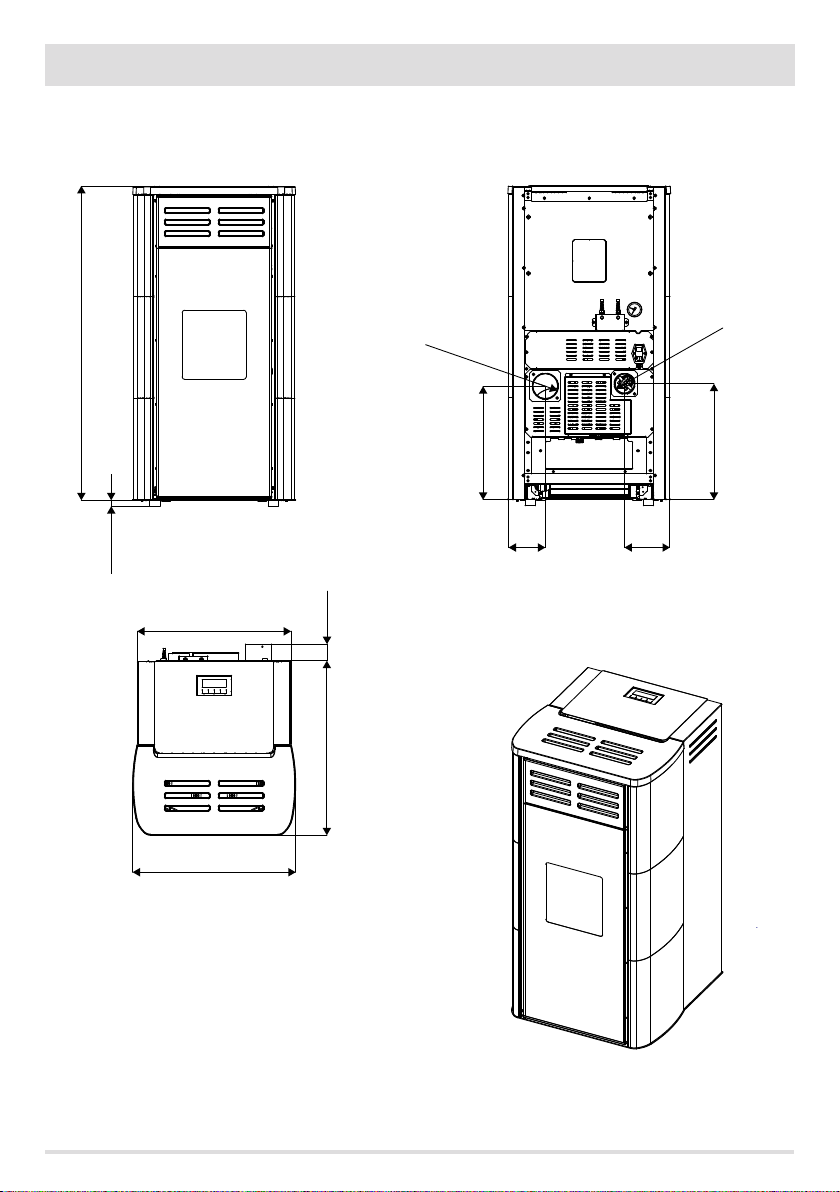

SWING HYDRO STOVE DIMENSIONS
1224
23
600
636
65
681
Ø100
443
143
Ø80
452
177
18
3-DRAWINGS AND TECHNICAL FEATURES
TECHNICAL CHARACTERISTICS SWING HYDRO
Nominal output power 24.8 kW (21328 kcal/h) Nominal power output (H2O) 22.7 kW (19522 kcal/h) Minimum power output 6.0 kW (5160 kcal/h) Minimum power output (H2O) 5.0 kW (4300 kcal/h) Eciency at Max 91.6% Eciency at Min 95.1% Temperature of exhaust smoke at Max 120 °C Temperature of exhaust smoke at Min 70°C Particulate / OGC / Nox (13%O2) 7 mg/Nm3 - 5.4 mg/Nm3 - 138 mg/Nm3 CO at 13% O2 at Min and at Max 0.024 – 0.008% CO2 at Min and at Max 5.8% - 9.5% Smoke mass 17.1 g/sec Max operating temperature 2.5 bar - 250 kPa Recommended draught at Max*** power 0.10 mbar - 10 Pa*** Minimum draft allowed at minimum power 0.02 mbar - 2 Pa Hopper capacity 106 litres Type of pellet fuel Pellet diameter 6-8 mm and size 5/30 mm Pellet hourly consumption Min ~ 1.2 kg/h* - Max ~ 5.2 kg/h* Autonomy At min ~ 60 h* - At max ~ 14 h* Heatable volume m Combustion air inlet Ø 80 mm Smoke outlet Ø 100 mm Air intlet 80 cm2 Rated electrical power (EN 60335-1) 120 W (Max 430 W ) Supply voltage and frequency 230 Volt / 50 Hz Net weight 245 kg (with ceramic cladding)
Weight with packaging 265 kg/ 240 kg Distance from ammable material (back) 100 mm Distance from ammable material (side) 100 mm
* Data that may vary depending on the type of pellets used ** Volume that can be heated, according to the power requirement per m3 (respectively 40-35-30 Kcal/h per m3) ***Value recommended by the manufacturer (non-binding) for optimal product operation
3
533/40 – 609/35 – 711/30 **
219 Kg (structure only)
Tested according to EN 14785 in accordance with European regulation for Construction Products (EU 305/2011)
Technical Dept. - All rights reserved - Reproduction is prohibited
19
4-INSTALLATION AND ASSEMBLY
PREPARATION AND UNPACKING
The packaging consists of a recyclable cardboard box according to RESY standards, recyclable EPS foam inserts, wooden pallets. All
packaging materials can be reused for similar use or disposed of as urban solid waste, in accordance with current regulations. After having removed the packaging make sure the product is intact.
Handle the product with suitable means in accordance with the applicable safety regulations in force. Do not turn the packaging over and handle the ceramic parts with care.
The SWING stove is delivered inclusive of all its electrical and mechanical components and already tested at the factory. Open the packaging, remove the two screws between the bracket and the stove and position the stove in the desired place, ensuring that
it is complies with the instructions above. As shown in gure 2, the product has a hook to make it easier to handle.

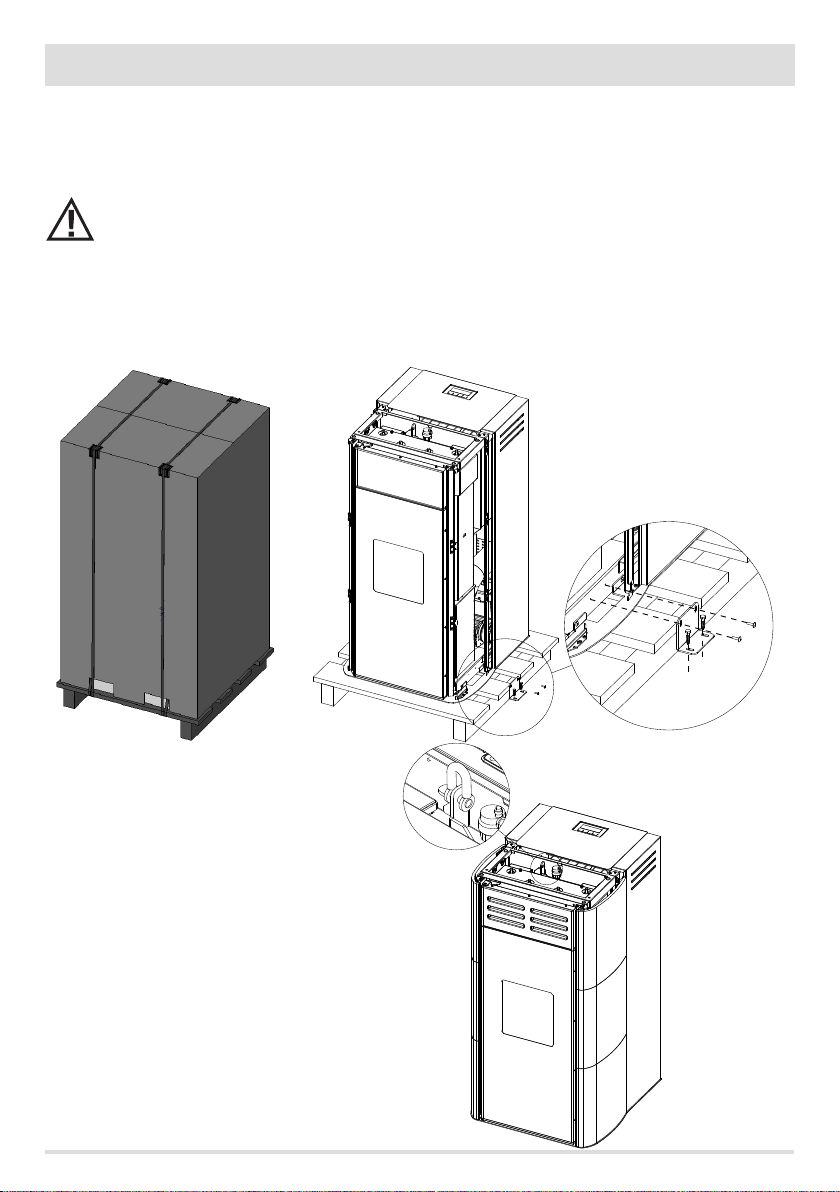

FIGURE 1 - REMOVING THE SCREWS ON THE PACKAGING

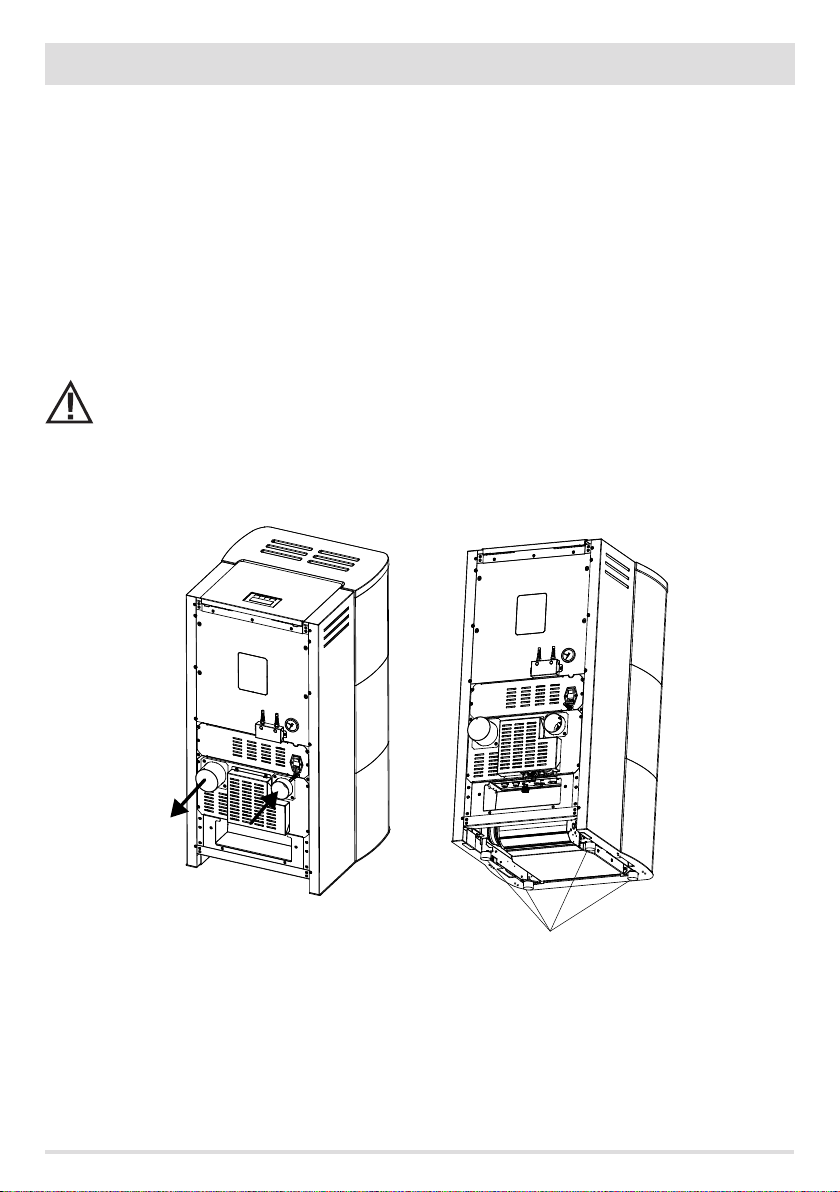

FIGURE 2 - HANDLING HOOK
20
4-INSTALLATION AND ASSEMBLY
The stove body or unit must always be kept in a vertical position when handled, and handled using carts only. Pay particular attention to
the door and its glass, protecting them from mechanical knocks that would compromise their integrity. The product must always be moved with care. If possible, unwrap the stove near the chosen area of installation. The packaging materials are neither toxic nor harmful, therefore no particular disposal measures are required.
Therefore, the end user is responsible for product storage, disposal or possible recycling in compliance with the relative
applicable laws in force.
Position the stove and connect it to the ue pipe. Use the four adjustable feet (J) to get the stove correctly levelled so that the smoke outlet is lined up with the connecting pipe.
If the stove needs to be connected to an outlet pipe which goes through the rear wall (to connect to the ue), take utmost care to make sure that the joint is not forced.
If the stove smoke outlet is forced or used improperly to lift it or position it, the operation of the stove can be damaged irreparably.
1. TURN THE FEET CLOCKWISE TO LOWER THE STOVE
2. TURN THE FEET COUNTERCLOCKWISE TO LIFT THE STOVE
Technical Dept. - All rights reserved - Reproduction is prohibited
FOOT J
21
4-INSTALLATION AND ASSEMBLY
INSTALLING THE FRONT PANEL
All ceramic parts are packaged separately from the structure when the stove is delivered. There are n.8 pieces in total (3+3 side parts, 1

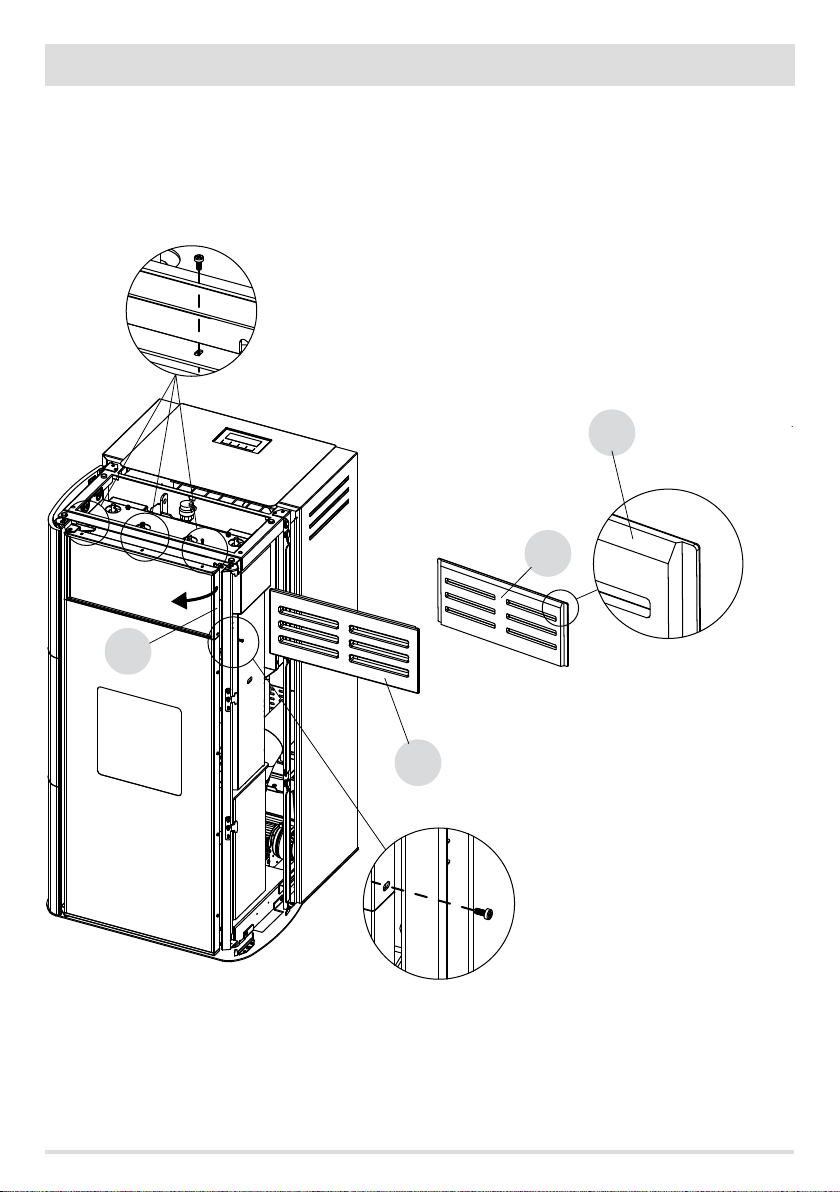

front part and 1 top). The rst step is to insert front panel “B”:
Remove the three screws (part U) on the upper prole (“A”) and the side screw (part V).
Take panel “B” with bevelled part “s” facing up
Pull prole “A” towards you and insert ceramic part “B”.
Now rescrew the three top screws (part U) and the side screw (part V)
U
s
B
A
B
V
POSITIONING OF FRONT PANEL “B”
22
4-INSTALLATION AND ASSEMBLY
INSTALLING THE SIDE PANELS

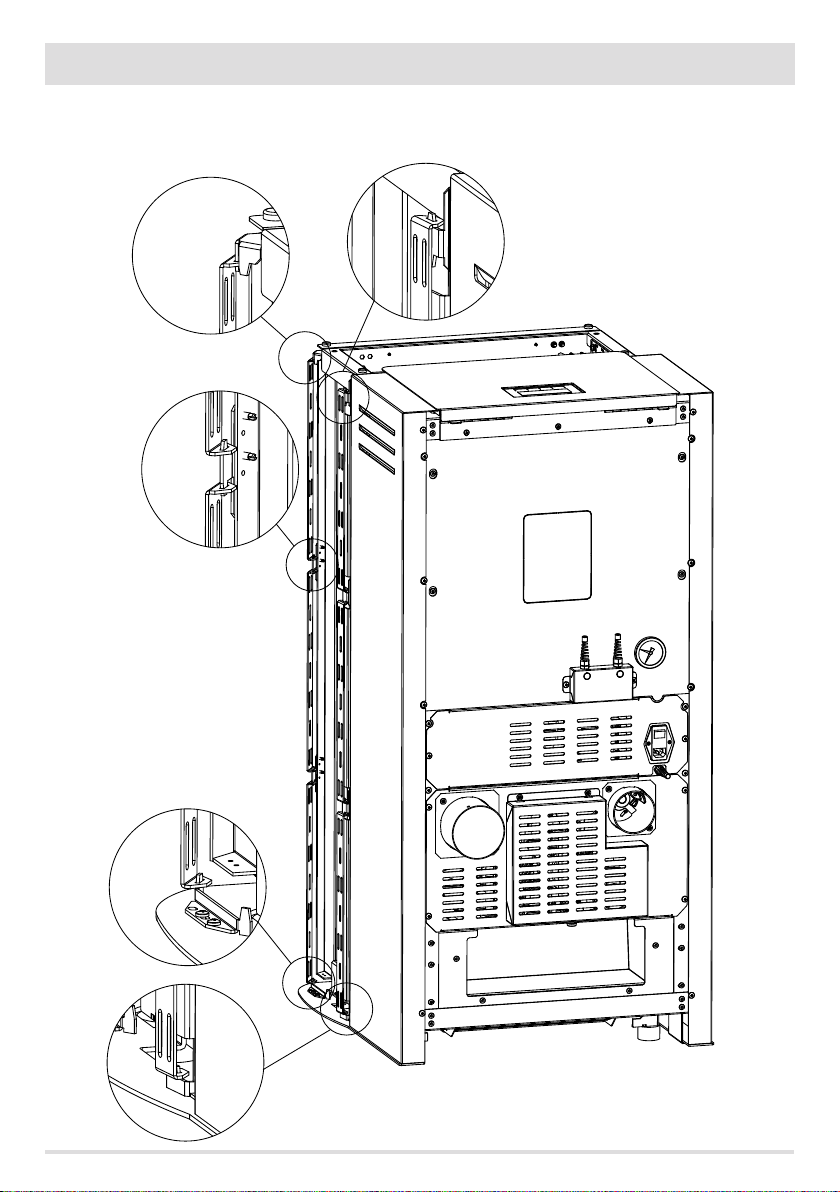

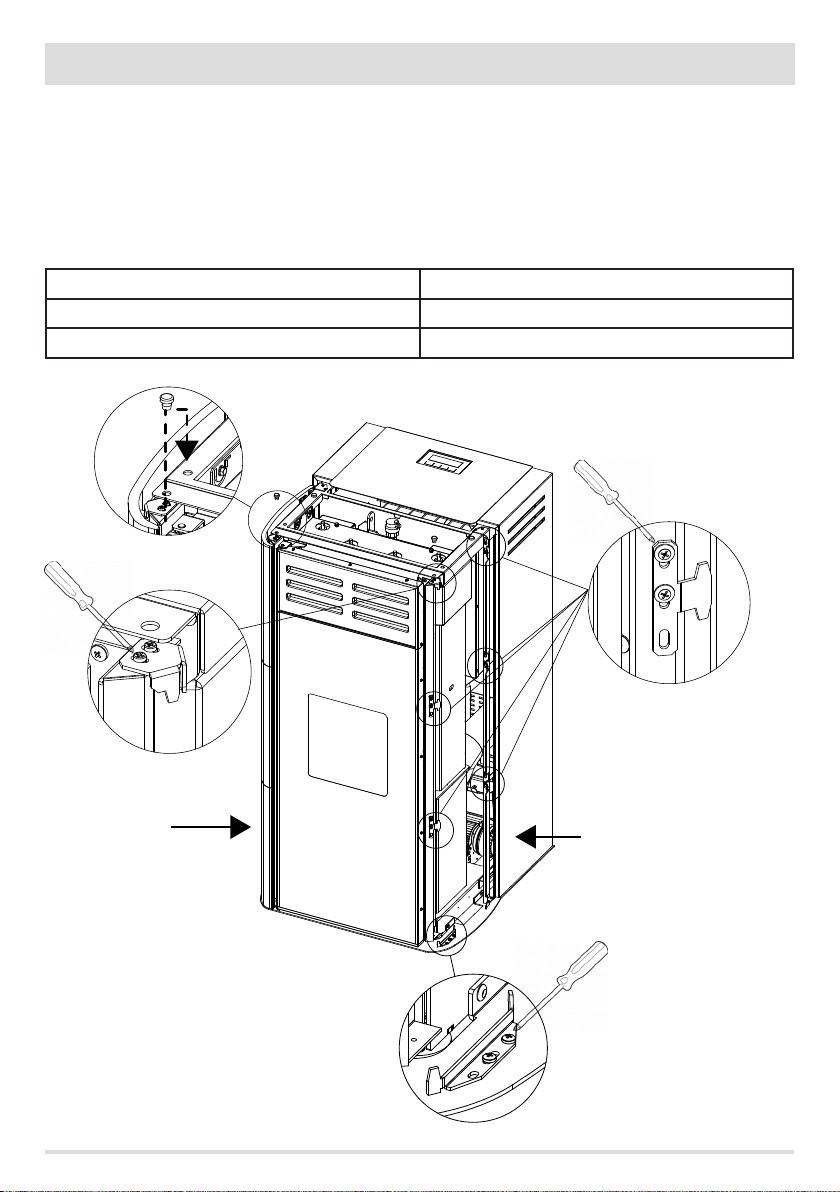

Loosen the screws of the fastening brackets before repositioning the side panels.
Temporarily move the two front rubber supports on which the top (detail P) is placed
Loosen the two screws in the front bracket at the top (detail Q)
Loosen the screws of the brackets as shown in detail R
Loosen the screws of the bracket on the stove's base as shown in detail T. We can now insert the side ceramic panels. To make assembly steps on the inside of the ceramic pieces easier, there is a code that corresponds to:
SX1 - BOTTOM LEFT CERAMIC PART DX1 - BOTTOM RIGHT CERAMIC PART
SX2 - INTERMEDIATE LEFT CERAMIC PART DX2 - INTERMEDIATE RIGHT CERAMIC PART
SX3 - TOP LEFT CERAMIC PART DX3 - TOP RIGHT CERAMIC PART
P
Q
SX1
Technical Dept. - All rights reserved - Reproduction is prohibited
R
DX1
T
23
4-INSTALLATION AND ASSEMBLY
BOTTOM SIDE PANEL

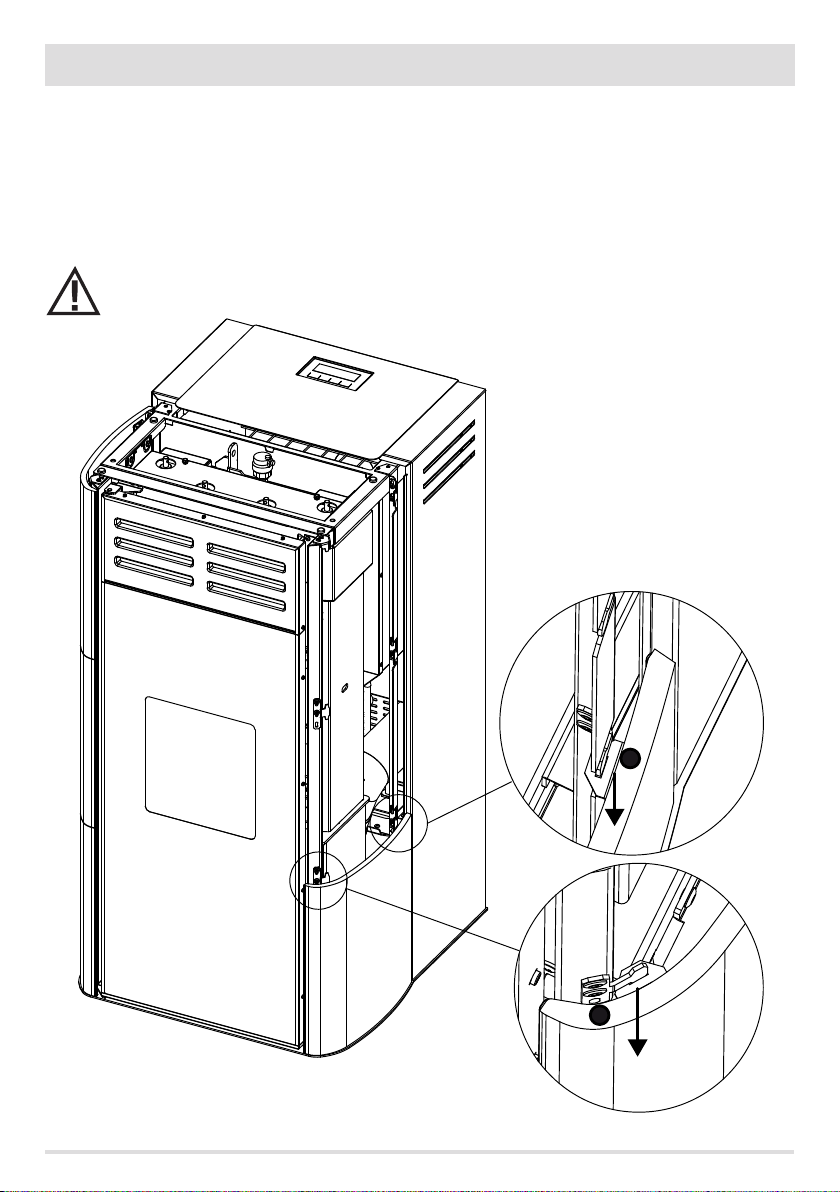

In the case shown in the gure, take the panel marked with code DX1:
the hole on the panel's bracket must go inside the hooks of the brackets located on the stove's base
t in the upper hooks
check the alignment of the ceramic part with the door
tighten the screws in the brackets at the bottom and the top
position no.2 felt pads at the top of the ceramic part (pos.f) to prevent damage to ceramic parts that touch each other
Caution! Tighten the screws of the upper brackets so that it is positioned vertically. This is done to facilitate the alignment with the intermediate ceramic part.
f
DX1
f
BOTTOM PANEL POSITIONING
24
4-INSTALLATION AND ASSEMBLY
INTERMEDIATE SIDE PANEL

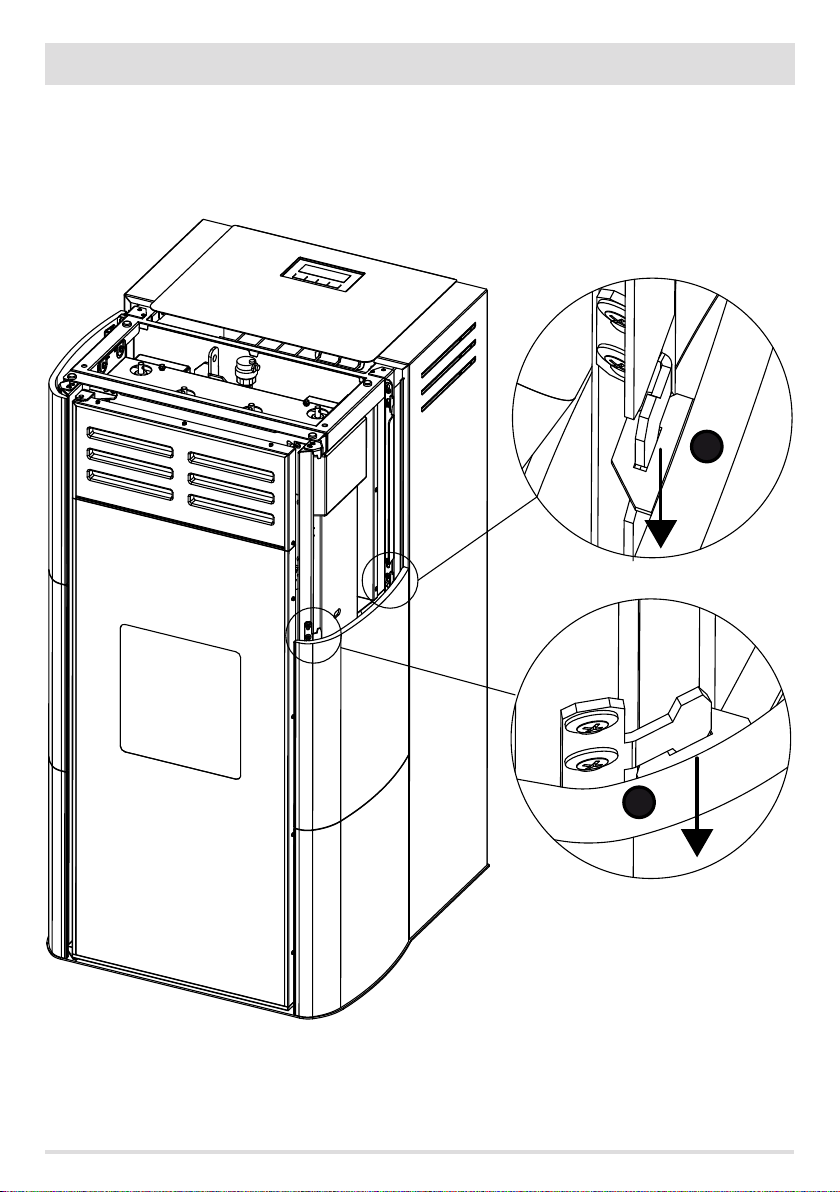

Take the ceramic part marked with code DX2 and insert it into the lower hooks already xed to the bottom ceramic part.
Insert the upper hooks and tighten the screws. Fix the two felt pads (pos.f) on the upper prole of the intermediate ceramic part.
f
DX2
INTERMEDIATE SIDE CERAMIC PART POSITIONING
Technical Dept. - All rights reserved - Reproduction is prohibited
f
25
4-INSTALLATION AND ASSEMBLY
TOP SIDE PANEL

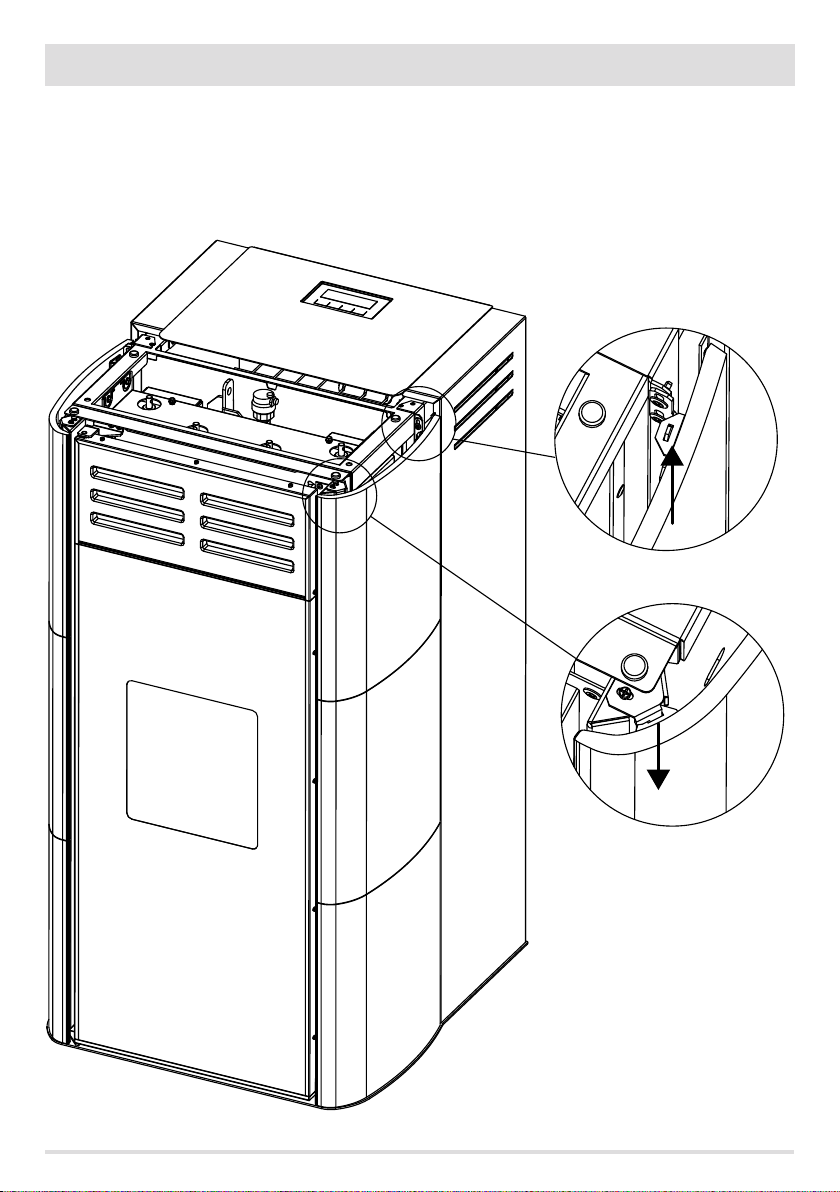

Position ceramic part DX3 on the hooks of the upper brackets already attached. Slightly lift the front bracket at the top and insert the hook
from the top, moving downwards, and the rear bracket from the bottom, moving upwards. Once again, check the alignment with the bottom panels and tighten the screws of the brackets. Repeat the same steps on the other side.
DX3
TOP PANEL POSITIONING
26
4-INSTALLATION AND ASSEMBLY
DETAIL SHOWING HOW THE PANELS ARE ATTACHED
The ceramic side panels already come with the brackets to x them. The following gure shows details of how the ceramic part and
brackets are attached on the structure.
Technical Dept. - All rights reserved - Reproduction is prohibited
27
4-INSTALLATION AND ASSEMBLY
ASSEMBLY OF THE UPPER CERAMIC TOP

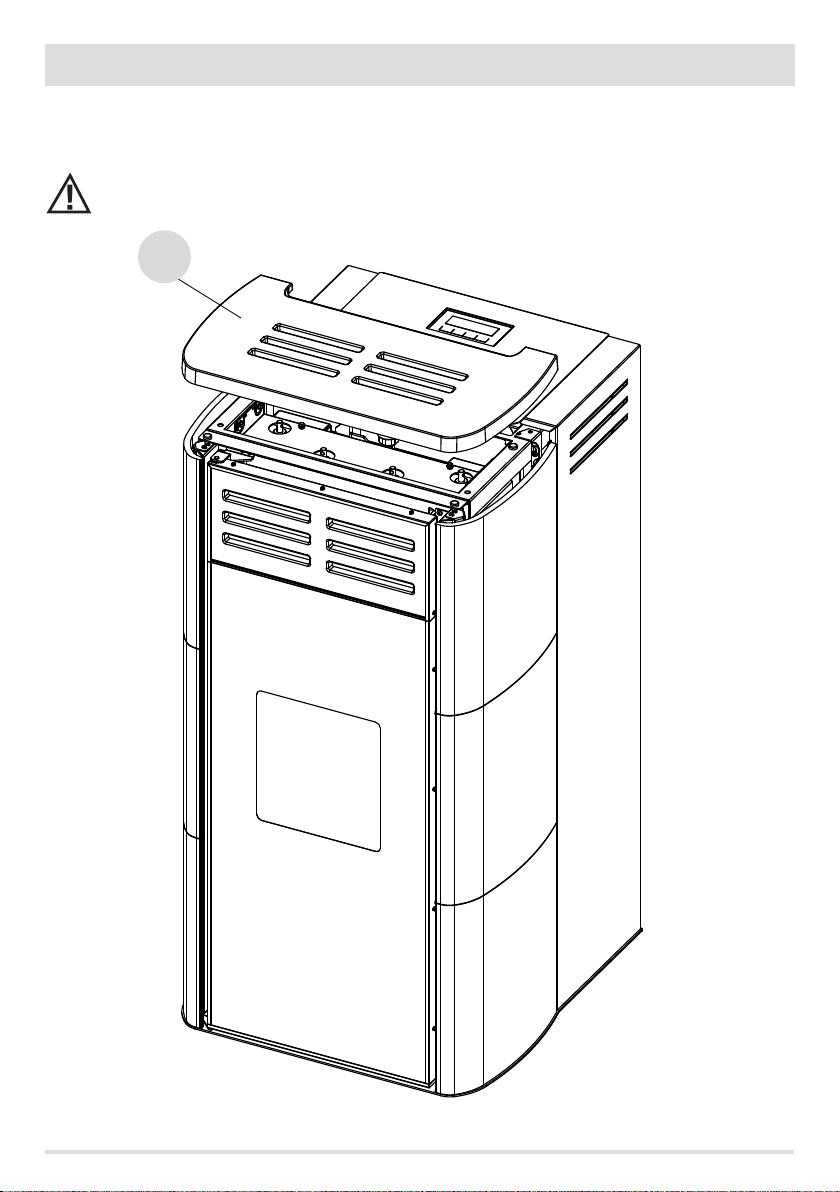

Assemble the top “C” by placing it on the four top rubber supports. The part under the ceramic top is equipped with four small cavities corresponding with the rubber supports.
Attention! Return the front rubber supports to their original holes (see page 21)
C
TOP POSITIONING
28
4-INSTALLATION AND ASSEMBLY
LOADING THE PELLETS

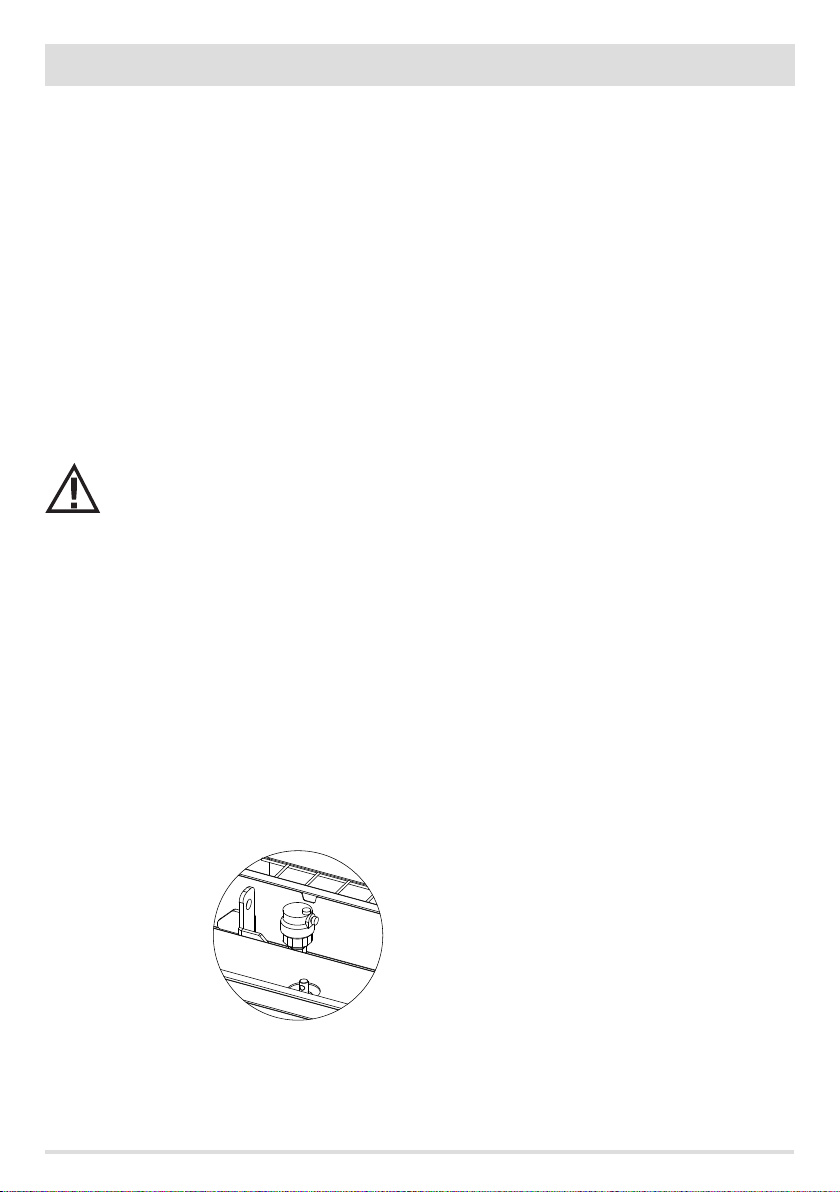

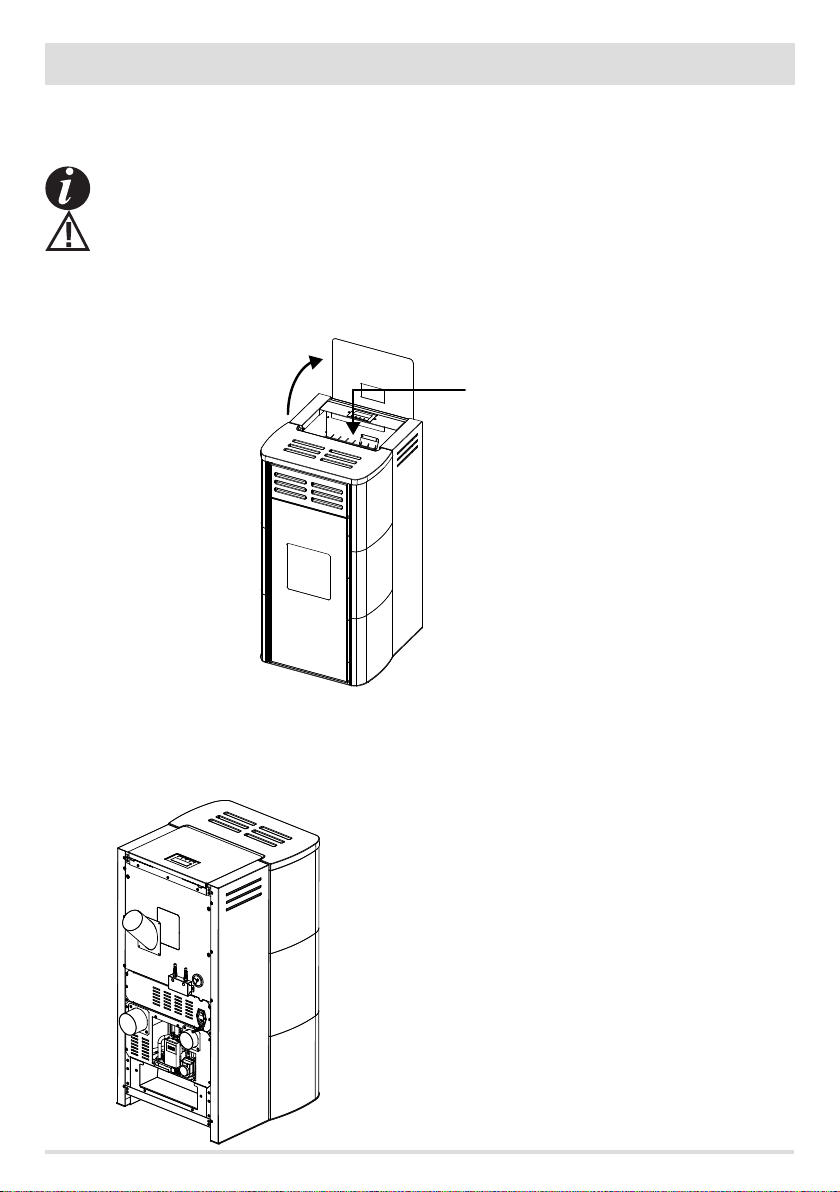

Fuel is loaded from the upper part of the stove by lifting the door. Slowly pour the pellets into the hopper.
Never remove the protection grid inside the hopper. When loading, do not let the pellet bag come into contact with
hot surfaces. No other type of fuel other than pellets is to be inserted into the hopper, in compliance with above-mentioned specications. Store the spare fuel at an adequate safe distance. Do not pour pellets directly onto the brazier but only into the hopper. Most of the stove surfaces are very hot (door, handle, glass, smoke outlet pipes, hopper door etc.), therefore it is recommended to avoid coming into contact with these parts without appropriate protective clothing.
LOADING THE PELLETS
CONDUIT FOR THE AUXILIARY TANK (optional)
It is possible to purchase conduit to be fastened, using four screws, to the back of the stove, in line with the knock-out panel (rst the square and then the round piece) to be removed. This conduit makes it possible to insert pellets into the tank through an auxiliary tank (not supplied).
EXTRA TANK
Technical Dept. - All rights reserved - Reproduction is prohibited
29
4-INSTALLATION AND ASSEMBLY
SAFETY PROCEDURE TO FOLLOW IF ANY SMOKE SPILLAGE IS SEEN WITHIN THE ROOM OR THE APPLIANCE SUFFERS FROM AN EXPLOSIVE IGNITION PLEASE TURN OFF THE APPLIANCE, VENTILATE THE ROOM AND CONTACT THE INSTALLER/ SERVICE ENGINEER IMIDIAT­LE Y.
User Training
In ALL cases the installation and commissioning engineer MUST carry out a thorough handover of the appliance to the
homeowner / end user. The following elements should be covered to the satisfaction of the end user. Failure to do this may result in unsafe use of the appliance:
Explanation of the appliance and how it works
Necessity to maintain ventilation to the appliance and the issues that may arise otherwise
Fuel useage and supply
How to light the appliance safely
What to do in the event of failed ignitions
What to do in the event of alarms (in particular those generated when the appliance runs out of fuel)
How to maintain the appliance correctly and the importance of carrying out these tasks each month
It is good practise to agree a date for the srt annual service
Explain the importance of the CO alarm in accordance with approved document J of the building regs (ONLY FOR UK)
Explain the need for the ue draft stabiliser and its position within the ue system (ONLY FOR UK)
Discuss the use of secondary heating systems if applicable
Explain how the remote control or room stats operate and their optimal positioning
Explain the need for the appliance data plate in accordance with approved document J of the building regulations (ONLY FOR UK)
The commissioning process and paperwork should also be explained to the homeowner. A copy of the base settings on the commissioning paperwork should also be left with the appliance (ONLY FOR UK).
30
5-HYDRAULIC CONNECTION

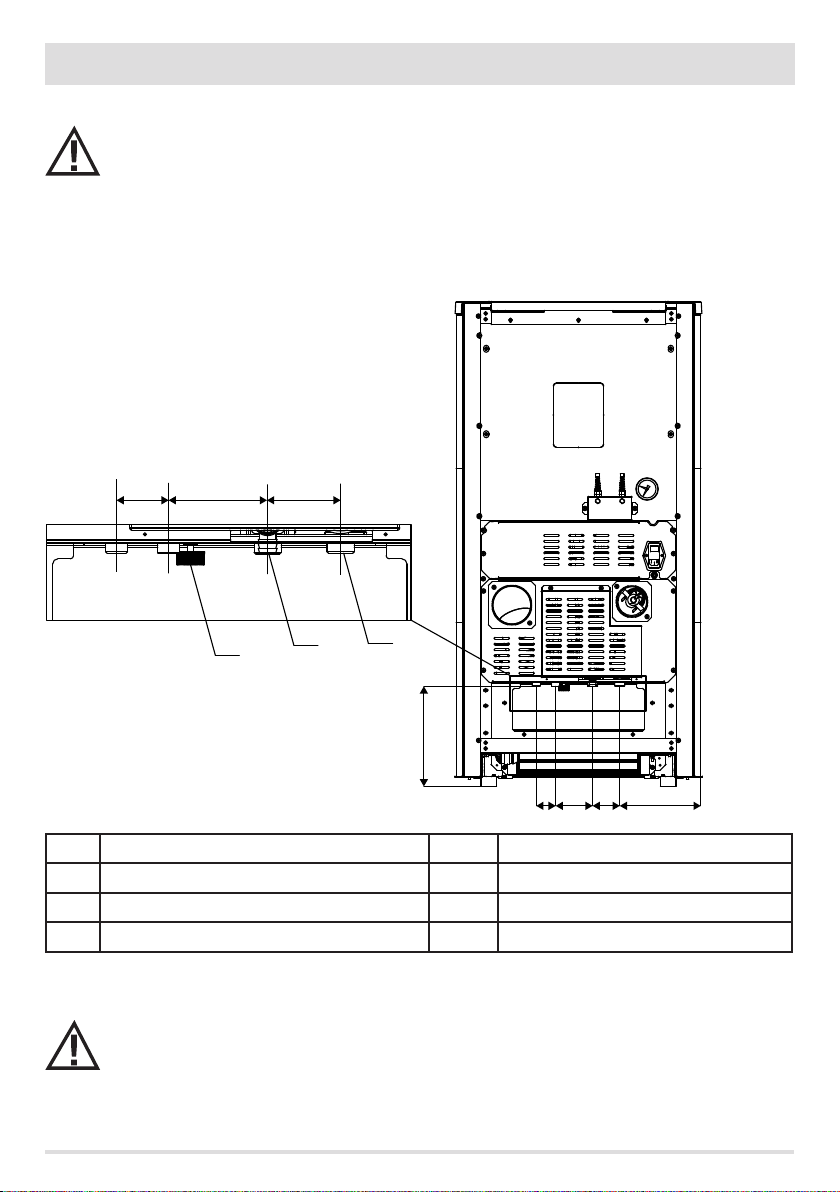

PLUMBING SYSTEM CONNECTION
IMPORTANT! The connection of the stove to the plumbing system must be carried out ONLY by specialised personnel who are capable of carrying out installation properly in compliance with current standards in the country of installation. The manufacturer will not be held responsible for damage to persons or property in the event of failed operation if the aforementioned warning is not complied with.
It is important that ONLY qualied engineers are used to t and commission the appliance in ALL cases. The installing engineer MUST hold a QCF recognised biomass qualication. Any company using sub-contractors MUST ensure they also
hold the relevant qualications (ONLY FOR UK).
4
5
50 95 70
6 7
3
2 1
258
50

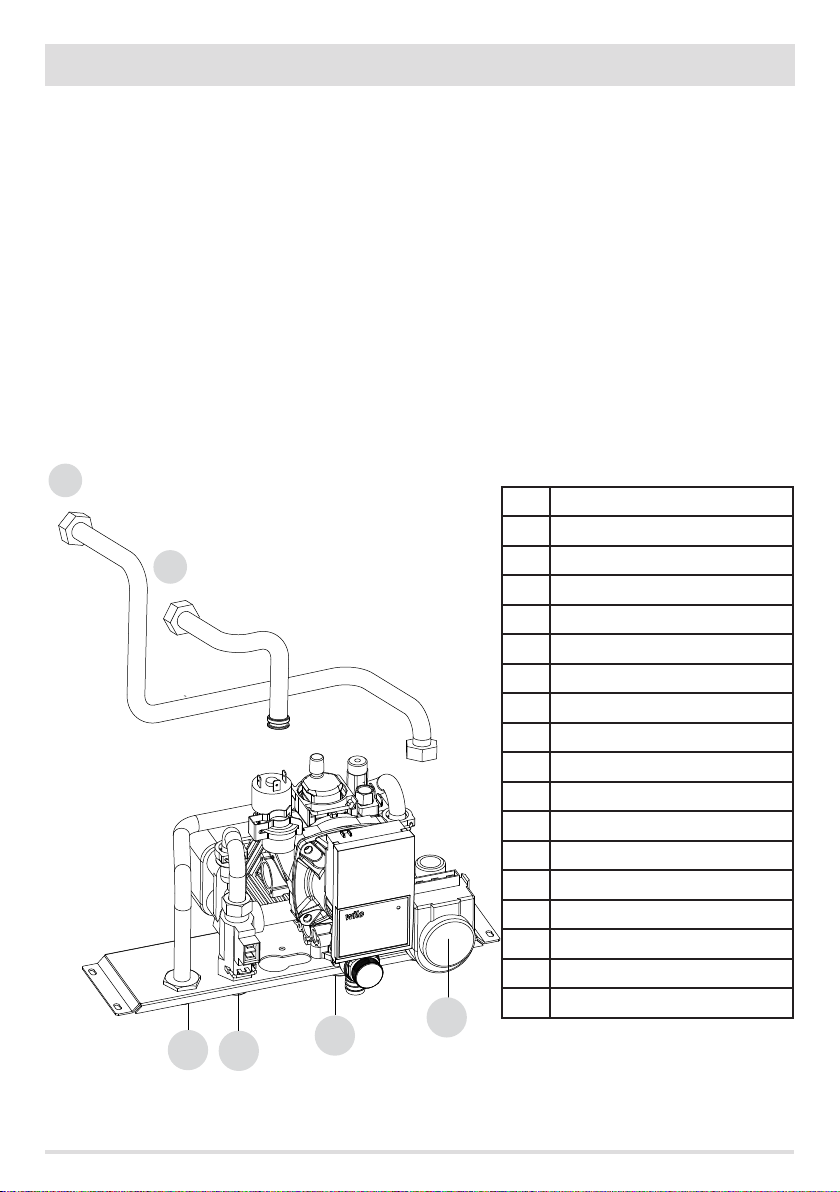

1 DRAIN TAP 5 MALE 1/2"G DOMESTIC WATER INLET
2 SAFETY VALVE 6 MALE 3/4"G HEATING RETURN
3 FILLING TAP 7 MALE 3/4"G HEATING OUTLET
4 MALE 1/2"G HOT WATER OUTLET
Make the connections to the corresponding ttings shown in the diagram above. Make sure the pipes are not placed under tension or undersized
IMPORTANT!!! CLEAN THE ENTIRE SYSTEM BEFORE CONNECTING THE STOVE, IN ORDER TO REMOVE ALL RESIDUE AND DEPOSITS. Always install shutters in the system leading to the stove so as to disconnect it from the hydraulic system should it be necessary to move it, or when it requires routine and/or special maintenance. Connect the stove using exible pipes so that the stove is not excessively constrained to the system, and to allow slight movements.
Technical Dept. - All rights reserved - Reproduction is prohibited
95
70
208
31
5-HYDRAULIC CONNECTION
HYDRAULIC KIT

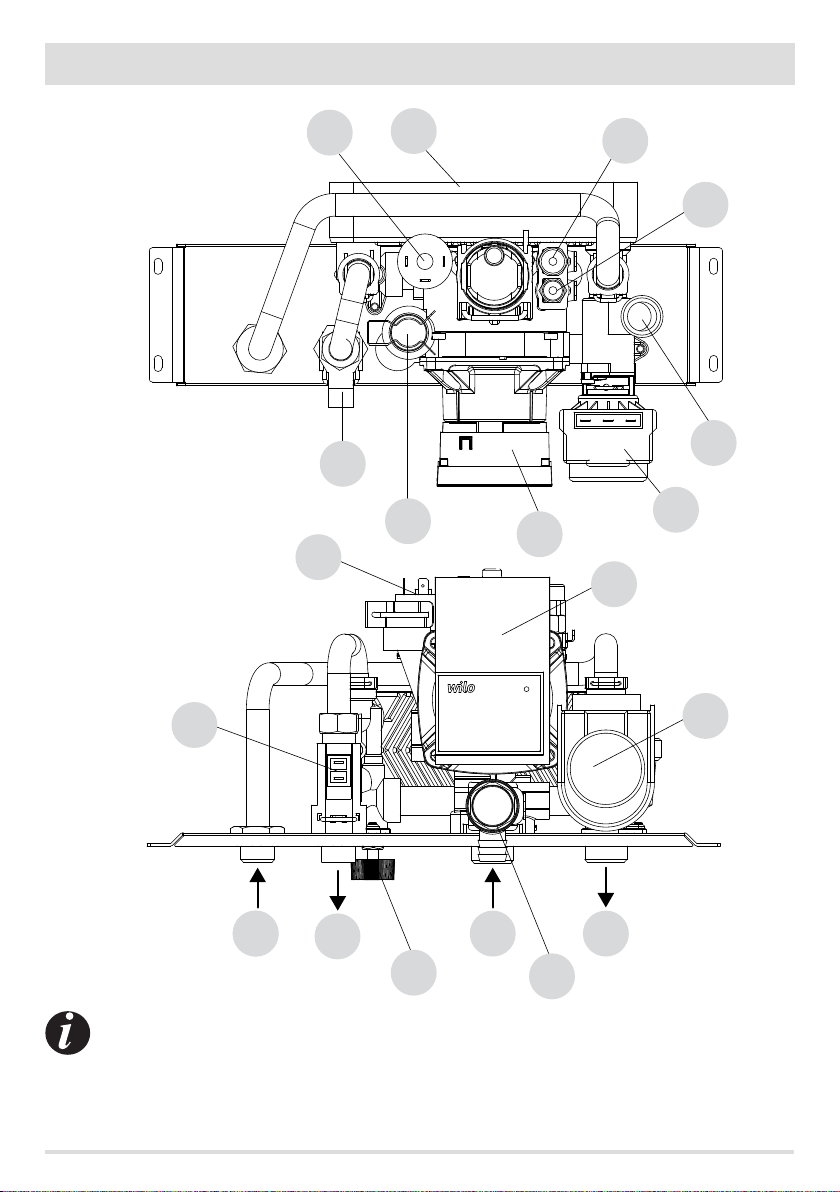

The boiler comes with a complete kit for the production of domestic water, comprising:
A plate heat exchanger
A three-way diverter valve
A ow switch
Pipes and ttings for connection
The kit is designed to heat domestic water directly from the domestic water supply system. The manufacturer supplies the kit ready assembled. When the tap is turned on and hot water is needed, the internal water ow switch will send a signal to the diverter valve to channel the
hot water from the boiler to the plate heat exchanger. The temperature of the domestic water depends a great deal on the temperature of the water inside the heating system. This can be calculated to a good degree of accuracy by taking 10°-15°C away from the value shown
on the control panel of the boiler (which is the temperature of the water in the boiler).
If domestic water is needed while the boiler is in ECOSTOP mode, the boiler will automatically and immediately begin the start-up process to heat the water inside the boiler, followed by the domestic water after 30 seconds.
17
M
18
R
1 DRAIN TAP
2 SAFETY VALVE
3 FILLING TAP
4 DOMESTIC WATER OUTLET
5 DOMESTIC WATER INLET
6 HEATING RETURN
7 HEATING DELIVERY
8 -------------
9 FLOW METER
10 3-WAY VALVE MOTOR
11 EXCHANGER
12 PRESSURE SWITCH
13 PRESSURE GAUGE CONNECTIONS
14 -------------------------------
15 EXPANSION VESSEL CONNECTIONS
16 PUMP
17 EXCHANGER DELIVERY
18 EXCHANGER RETURN
10
4
5
6
NOTE: FOR THE POSITIONS, PLEASE SEE THE DRAWING ON THE PREVIOUS AND NEXT PAGE AS WELL
32
5-HYDRAULIC CONNECTION
12
12
11
15
13
17
9
18
16
10
16
9
A4
The safety valve (6) must always be connected to a water drain pipe. The pipe must be adequate to support the water's high temperature and pressure.
Technical Dept. - All rights reserved - Reproduction is prohibited
5
10
6 7
3
2
33
5-HYDRAULIC CONNECTION
CLEANING THE SYSTEM
It is mandatory for the connections to be easy to disconnect by way of unions with rotating connections. Install suitable shutters to cut o the tubes from the heating system. Assembling the safety valve on the system is compulsory. In order to protect the heating system from damage caused by corrosion, incrustation or deposit build-up, it is important to clean the
appliance before installation, using suitable products, in compliance with Standard UNI 8065 (water treatment of thermal plants for civil
use).
The use of FERNOX PROTECTOR F1 (available at our authorised centres) product is recommended, this provides long-term protection of
heating systems against corrosion and calcium build-up. It prevents the corrosion of the metal parts of the appliance, i.e. the ferrous
metals, copper and copper and aluminium alloys. It also reduces the noise produced by the boiler. Refer to the instructions on the product. Cleaning should be performed by a qualied technician. We also recommend the use of FERNOX CLEANER F3 and LEAK SEALER F4, always available from our authorised distribution centres.
FERNOX F3 is a neutral product for rapid and ecient cleaning of heating appliances. It has been designed to eliminate residues, oily deposits and incrustations from existing appliances of all ages. It can help restore the heating eciency of the boiler and reduce the noise
it generates.
FERNOX F4 is intended to be used with all heating appliances to seal micro fractures that cause small and inaccessible leaks.
Attention: Failure to clean the thermal system or to use an adequate inhibitor will invalidate the warranty of the appliance and of the other accessories like the pump and valves.
FILLING THE SYSTEM
To ll the system, use the designated loading valve in the hydraulic unit. During this operation, any air in the system is released from the automatic vent valve located under the top. To ensure the valve vents, it is advisable to loosen the grey cap one turn and leave the red cap blocked (see gure). The lling pressure of the system WHEN COLD must be 1 bar. During operation, if the system pressure drops (due to evaporation of dissolved gases in the water) to values lower than the minimum indicated above, the user must use the lling tap to bring the pressure back up to its normal
pressure.
For proper operation of the stove WHEN HOT, the pressure in the boiler must be 1.5 bar. Upon completion of this operation, always close the tap.
VENT VALVE UNDER THE TOP
34
5-HYDRAULIC CONNECTION
WATER CHARACTERISTICS
The characteristics of the water used to ll the system are very important to prevent the build-up of mineral salts and the formation of incrustations along the pipes, in the boiler and in the heat exchangers.
Therefore, please GET YOUR PLUMBER'S ADVICE CONCERNING:
Hardness of water circulating in the system, to prevent problems of incrustation and limescale, especially in the domestic water heat exchanger. (> 25° French).
Installation of a water softener (if water hardness exceeds 25° French).
Filling the system with treated water (demineralised).
Possibly providing an anti-condensation circuit.
Installation of plumbing bumpers to prevent the phenomenon known as “water hammer” from occurring along the ttings and pipes.
For those who have very extensive systems (with large amounts of water) or which require frequent relling, to install water softening systems.
It should be remembered that incrustations drastically reduce performance due to low thermal conductivity.
Technical Dept. - All rights reserved - Reproduction is prohibited
35
6-ELECTRICAL CONNECTION
ELECTRICAL CONNECTION
First connect the power cable to the back of the stove and then to a wall socket.
The main switch must only be activated to switch the stove on; otherwise, it is advisable to keep it switched o.
It is recommended to disconnect the power cable when the stove is not used.
ELECTRICAL STOVE CONNECTION
STOVE POWER SUPPLY

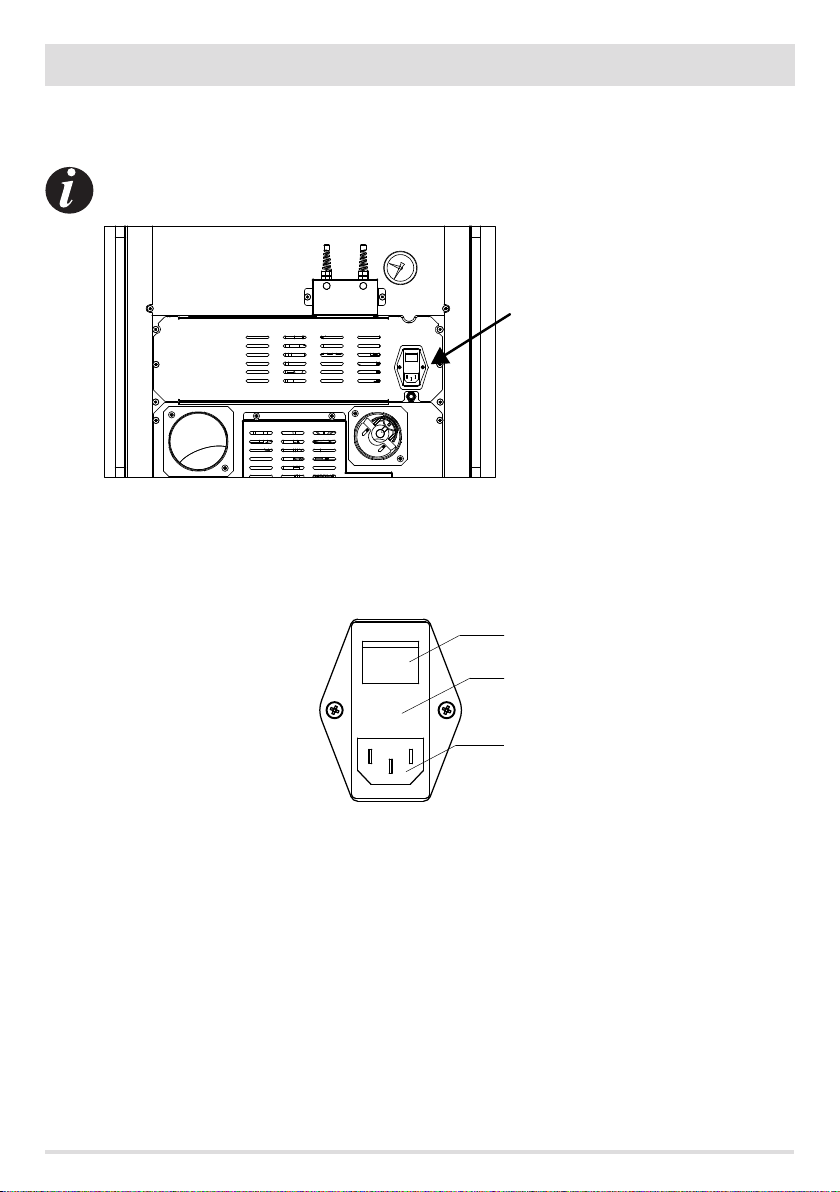

After connecting the power cable to the back of the stove, turn the switch at the back to position(I). The luminous switch button will light up. The switch on the back of the stove is used to power the system.
I/O SWITCH
I
FUSE HOLDER COMPARTMENT
STOVE POWER SUPPLY
On the rear of the boiler there is a fuse holding compartment located underneath the supply socket. Use a screwdriver to open the fuse­holder compartment and if necessary replace them (3.15 A delayed)
36
Via La Croce n°8
33074 Vigonovo di Fontanafredda (PN) – ITALY
Telephone: +39 0434/599599 r.a.
Fax: +39 0434/599598
Internet: www.mcz.it
e-mail: info.red@mcz.it
REV 08901505900
12/01/2015
Loading...
