MCZ Powerbox Compact-Link Installation Manual
INSTALLATION AND USE
MANUAL
EN 14785 - 2006
Potencia nomina l:
Potência nomina l:
Nominal heat output:
Brændværdi:
Emisión CO ( al 13% de O 2):
Emissão CO (13% de O2):
CO emissi on (at 13% O2)
CO emissi on (ved 13% O2):
Eficiencia:
Eficiencia:
Efficiency:
Virkningsg rad:
Temperadura humo s:
Tempretura dos fumos:
Flu e ga s t em p eratu re:
Røggastemperatur:
As orb i mi ento el ec t rico max :
Max. elektrisk effekt:
Tensión de funcionamiento:
Tensão electrica funcionamento:
Rated vol tage:
Netspænding:
Distancias de se
g
uridad (retro):
Distancia de segurança ( trasiera):
Safety clarence distance (back):
Sikkerhedsafstand (bag):
Distancias de se
g
uridad (laterales):
Distancia de segurança ( later al):
Safety clarence distance (side):
Sikkerhedsafstand
(
side):
Utilizar sólo con combustibles adaptados. Utilizar somente combustivel adaquado. Use
only recommended fuels. Anvend kun anbefalede brændsler.
Leer y seguir l as instrucci one s! Leia atentamente e siga
as instruções! Leggere e seguire le istruzioni! Read and
follow the operating instructions ! Følg fabrikantens
COD: 89008004
230 V - 50 Hz.
200 mm
200 mm
Producto conforme a la inst alación de tubo s múl t ip les. Produto conforme para
instalação em condutas multip las. Appliance suitable for i nstallation in a shared flue.
Apparatet kan bruges i en røggassamleledning.
170 °C
270 W
Potência electrica absorbida:
Max. electrical power su pply:
8,5 kW
2,6 kW
P max
P min
0,019%
0,042%
P max
P min
91,7%
92,6%
MCZ S.p.A. - Via G.Oberdan 86, I - 33097 Vigonovo (PN) Italy.
07
Art. 15a B-VG - VKF AEAI
POWER BOX
Max
Min
Contents
INSTALLATION AND USE MANUAL
page
3
Contents Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited
INTRODUCTION ....................................................................................................................................5
1. WARNINGS AND GUARANTEE CONDITIONS ....................................................................................6
1.1. SAFETY INSTRUCTIONS ..................................................................................................................6
1.2. OPERATING WARNINGS..................................................................................................................6
1.3. GUARANTEE CONDITIONS ..............................................................................................................7
1.3.1. Limitations...............................................................................................................................7
1.3.2. Exclusions................................................................................................................................7
2. THEORETICAL NOTIONS FOR INSTALLATION..................................................................................8
2.1. Pellets............................................................................................................................................8
2.2. PRECAUTIONS FOR INSTALLATION..................................................................................................9
2.3. OPERATING AREA.........................................................................................................................10
2.4. CONNECTION TO THE EXTERNAL AIR INTAKE................................................................................10
2.5. CONNECTION OF SMOKE DISCHARGE PIPE .................................................................................... 11
2.6. CONNECTION TO THE FLUE PIPE...................................................................................................12
2.7. CONNECTION TO AN EXTERNAL FLUE WITH INSULATED OR DOUBLE-WALL PIPE.............................12
2.8. CONNECTION TO THE FLUE PIPE...................................................................................................12
2.9. OPERATING PROBLEMS CAUSED BY DRAUGHT DEFECTS IN THE FLUE.............................................13
3. INSTALLATION AND ASSEMBLY .....................................................................................................14
3.1. DRAWINGS AND TECHNICAL CHARACTERISTICS ............................................................................ 14
3.2. PREPARATION AND UNPACK ING...................................................................................................16
3.3. MOUNTING TO THE UNIT BASE....................................................................................................16
3.4. REMOVAL OF COMPENSATION FRAME ...........................................................................................17
3.5. INSTALLATION OF PELLET LOADING CHUTE (LINK)......................................................................17
3.5.1. Side installation of chute.........................................................................................................18
3.5.2. Front installation of chute .......................................................................................................18
3.6. COMBUSTION AIR AND AIR FILTER ........................................................................................... 18
3.7. HOOD VENTILATION NOZZLES ......................................................................................................19
3.7.1.
Introduction
...........................................................................................................................19
3.7.2.
Hood ventilation nozzles for new cladding.
...............................................................................19
3.7.3. Mask for the realization of holes for the hood ventilation grilles..................................................20
3.8. MAKING THE ELECTRICAL CONNECTIONS ......................................................................................21
3.9. REALIZATION OF CLADDING .........................................................................................................21
3.10. INSULATING A WOODEN BEAM ..................................................................................................21
3.11. INSTALLATION OF STANDARD MCZ CLADDING ...........................................................................21
3.12. COMPENSATION FRAME ASSEMBLY ............................................................................................22
3.13. INSTALLATION OF PELLET CHUTE DOOR (LINK) .........................................................................22
3.13.1. Door assembly POWERBOX LINK.......................................................................................... 22
3.14. OPENING/CLOSING PELLET DOOR..............................................................................................22
3.15. DIAGRAM FOR CREATING HOLES ON THE CLADDING - RECOMMENDED MEASUREMENTS..............23
4. OPERATION.....................................................................................................................................24
4.1. PRE-LIGHTING WARNINGS............................................................................................................24
4.2. PRE-LIGHTING CHECK ..................................................................................................................24
4.3. LOADING PELLETS FOR THE COMPACT POWERBOX ........................................................................25
4.4. LOADING PELLETS FOR THE LINK POWERBOX................................................................................26
4.5. LCD REMOTE CONTROL ................................................................................................................27
4.5.1. Remote control display ...........................................................................................................27
4.5.2. General characteristics of the LCD remote control .....................................................................29
4.5.3. Type of batteries and replacement...........................................................................................29
4.6. EMERGENCY PANEL ......................................................................................................................30
4.7. SETTINGS TO CARRY OUT BEFORE FIRST LIGHTING ......................................................................31
4.7.1. Setting current day and time ...................................................................................................31
4.7.2. Setting the temperature unit of measure ..................................................................................31
4.8. FIRST LIGHTING ..........................................................................................................................31
4.8.1. Turning on/off from the remote control....................................................................................31
Contents
INSTALLATION AND USE MANUAL
page
4
Contents Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited
4.8.2. Note on first ignition...............................................................................................................32
4.8.3. Start-up/shutdown from emergency panel................................................................................32
4.9. OPERATING MODE........................................................................................................................33
4.9.1. Manual and automatic ............................................................................................................33
4.9.2. Manual mode.........................................................................................................................33
4.9.2.1. Changing from manual to automatic mode......................................................................... 33
4.9.3. Automatic mode.....................................................................................................................33
Changing from automatic to manual mode
.....................................................................................34
4.9.4. Automatic mode with ECO-STOP...........................................................................................34
4.9.4.1. Activation /de-activation of ECO-STOP mode...................................................................... 35
4.10. HOT AIR VENTILATION............................................................................................................35
4.11. SLEEP FUNCTION ......................................................................................................................36
4.12. TIMER ......................................................................................................................................36
4.12.1. Current date and clock ........................................................................................................36
4.12.2. TIMER activation and selection of a programme. ...................................................................37
4.12.3. TIMER de-activation. ...........................................................................................................39
4.13. PRE-SET WEEKLY AND DAILY PROGRAMMES...............................................................................39
4.13.1. Weekly programmes............................................................................................................39
4.13.2. Daily programmes...............................................................................................................41
4.14. PRACTICAL EXAMPLE OF WEEKLY/DAILY PROGRAMMING ............................................................42
4.14.1. Setting of a weekly programme............................................................................................42
4.14.2. Setting of a daily programme ...............................................................................................42
4.15. INSERTION OF KEYPAD LOCK ....................................................................................................44
4.16. PELLET LEVEL SENSOR ..............................................................................................................44
4.17. SYNCHRONIZATION OF REMOTE CONTROL ...............................................................................45
4.18. SAFETY DEVICES.......................................................................................................................45
4.19. ALARM SIGNALLING ..................................................................................................................46
4.20. Exiting alarm condition...............................................................................................................48
4.20.1. Interruption of product functioning.......................................................................................48
5. MAINTENANCE AND CLEANING ......................................................................................................49
5.1. DAILY AND WEEKLY CLEANING .....................................................................................................49
5.1.1. Before each lighting................................................................................................................49
5.1.2. Cleaning every 2/3 days..........................................................................................................49
5.1.3. Cleaning the glass ..................................................................................................................49
5.2. PERIODIC CLEANING TO BE PERFORMED BY THE USER ..................................................................50
5.2.1. Extracting the unit..................................................................................................................50
5.2.2. Cleaning of the air filter ..........................................................................................................50
5.2.3. Cleaning of the heat exchanger ............................................................................................... 51
5.2.4. Cleaning of smoke duct and connection....................................................................................51
5.2.5. Other checks..........................................................................................................................51
5.2.6. Shutting the stove down (end of season) .................................................................................52
5.2.7. Check of internal components .................................................................................................52
6. PROBLEMS / CAUSES / SOLUTIONS ...............................................................................................53
7. ELECTRICAL DIAGRAMS .................................................................................................................55
Chapter 1
INSTALLATION AND USE MANUAL
page
5
Introduction Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited
INTRODUCTION
Dear Customer,
We wish to thank you for choosing an MCZ product,
specifically a stove of the MCZ pellet line.
In order to get the best performance from your
stove and to enjoy to the full the warmth and
the sense of well-being which the flame will
diffuse through the home, we recommend that
you read this booklet carefully before lighting
the stove for the first time.
Congratulations on your choice and remember, the
product MUST NEVER be used by children or by
persons with limited physical or mental abilities or
without the proper experience and knowledge, unless
supervised or suitably instructed on the use of the
unit by the person who is responsible for their safety.
Revisions to the publication
In order to improve the product, to keep this
publication up to date the manufacturer reserves the
right to make modifications without any advance
notice. Any reproduction, even in part, of this manual
without the consent of the manufacturer is prohibited.
Care of the manual and how to consult it
• Take good care of this manual and keep it in a
place which can easily and quickly be reached.
• If this manual should be lost or destroyed, or if it
is in poor condition, ask for a copy from your
retailer or directly from the manufacturer,
providing product identification data.
• Information which is essential or that requires
special attention is shown in bold text.
•
Italic text
is used to call your attention to other
paragraphs in the manual or for any additional
clarifications.
SYMBOLS USED IN THE MANUAL
ATTENTION
This warning sign indicates that the
message to which it refers should be
carefully read and understood, because
failure to comply with what these notices
say can cause serious damage to the stove
and put the user's safety at risk.
INFORMATION
This symbol is used to highlight
information which is important for proper
stove operation. Failure to comply with
these provisions will compromise use of
the stove and its operation will not be
satisfactory.
OPERATING SEQUENCES:
Indicates a sequence of buttons to be
pushed to access menus or to make
adjustments.
MANUAL
Indicates that you should carefully read
this manual or the related instructions.
Chapter 1
INSTALLATION AND USE MANUAL
page
6
Warnings and guarantee conciliations Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited
1. WARNINGS AND GUARANTEE
CONDITIONS
1.1. SAFETY INSTRUCTIONS
• Installation of the stove, making the electrical
connections, checking its operation, and
maintenance are all tasks which should be
carried out by qualified and authorised
personnel.
• Install the stove in accordance with the
regulations in force in your local area, region
and country.
• For the correct use of the stove and of the
electronic apparatus connected to it, and to
prevent accidents, the instructions given in this
booklet must always be followed.
• Use, adjustment and programming must be
carried out by adults. Errors or incorrect settings
may cause hazardous conditions and/or poor
operation.
• Before beginning any operation, the user, or
whoever is preparing to operate on the stove,
must have read and understood the entire
contents of this instruction booklet.
• The stove is to be used only for its intended
purpose. Any other use is to be considered
improper and therefore hazardous.
• Do not use the stove for standing on or as any
kind of support.
• Do not put clothes to dry on the stove Any
clothes hangers and suchlike must be kept a
suitable distance from the stove. Danger of fire.
• All responsibility for improper use is taken
entirely by the user and such use relieves MCZ
of any civil or criminal responsibility.
• Any kind of tampering or unauthorised
substitution of non-original spare parts can be
hazardous for the safety of the operator and
relieves MCZ of any civil or criminal
responsibility.
• Most of the surfaces of the stove are extremely
hot (the door, the handle, the glass, smoke
discharge pipes etc.). Avoid coming into contact
with these parts, therefore, without adequate
protective clothing or suitable implements, such
as gloves with thermal protection or implements
which keep the hands cool.
• Carefully explain this hazard to elderly people,
disabled people and particularly to all children,
keeping them away from the stove while it is
running.
• Under no circumstances should the stove be run
with the door open or the glass broken.
• Do not touch the stove with wet hands, in view
of the fact that it is an electrical appliance.
Always disconnect the supply cable before doing
anything to the unit.
• Before carrying out any cleaning or maintenance
operation, make sure in advance that the stove
is disconnected from the mains electricity
supply, by turning off the main switch located
on the back of the stove, or by unplugging the
supply cable.
• The stove must be connected to an electrical
system which is equipped with an earth
conductor, as laid down in directives 73/23 EEC
and 93/98 EEC.
• The system must be of adequate rated capacity
for the stated electrical power of the stove.
• Incorrect installation or faulty maintenance (not
conforming to the requirements set out in this
booklet) can cause harm to people, animals or
property. In such cases MCZ is absolved from
any civil or criminal responsibility.
1.2. OPERATING WARNINGS
• Shut the stove down in the event of a breakdown
or bad running.
• Pellets must not be fed manually into the burner.
• Accumulated unburnt pellets in the burner after
repeated failed ignitions must be removed before
lighting.
• Do not wash the inside of the stove with water.
• Do not wash the stove with water. The water
could get inside the unit and damage the
electrical insulation and cause electric shocks.
• Do not expose your own body to hot air for
extended periods. Do not overheat the room you
are in and where the stove is installed. This could
cause injuries and health problems.
• Do not expose plants or animals directly to a
current of hot air. Both plants and animals could
be harmed by it.
• Do not put any fuels in the hopper but wood
pellets.
• Install the stove in a location which is suitable for
firefighting, and equipped with all services such
as air and electricity supply and provision for
discharging combustion gases.
• If there is a fire in the flue pipe, extinguish the
stove, disconnect it from the power supply and
never open the door. Then contact the
competent authorities.
• If the stove and the ceramic cladding are in
storage, it should be in a place that is free of
damp, and they should not be exposed to
extremes of temperature.
•
It is inadvisable to base the stove directly on the
Chapter 1
INSTALLATION AND USE MANUAL
page
7
Warnings and guarantee conciliations Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited
floor, and if the floor is made of flammable
material, it must be suitably insulated.
• Do not light the stove with flammable materials if
the ignition system breaks down.
INFORMATION
• In case of any problems, get in touch with your
dealer, or a qualified engineer authorised by MCZ,
and if a repair is necessary, insist on the use of
original spare parts.
• Use only the fuel recommended by MCZ (for Italy
pellets with a diameter of 6 mm and for other
European countries with a diameter of 6-8 mm)
and provided only with an automatic supply
system.
• Periodically check and clean the smoke outlet
ducts (connection to the flue pipe).
• Accumulated unburnt pellets in the burner after
repeated failed ignitions must be removed before
lighting.
• The pellet stove is not a cooking appliance.
• Always keep the cover of the fuel hopper closed.
• Keep this instruction manual carefully because it
must stay with the stove throughout its working
life. If the stove is sold or transferred to another
user, always make sure that the booklet goes
with the product.
• If it gets lost, ask MCZ or your authorised dealer
for another copy.
1.3. GUARANTEE CONDITIONS
MCZ guarantees the stove, excluding the
components which are subject to normal, for a
period of two years from the date of purchase, as
proved by a supporting document which gives the
name of the vendor and the date on which the sale
took place. The guarantee is conditional on the
guarantee certificate being filled in and returned
within 8 days, and requires that the product be
installed and tested by a specialised installer,
according to the detailed instructions given in the
instruction booklet supplied with the product.
The term 'guarantee' is to be understood to denote
the free-of-charge replacement or repair of parts
recognised to have been defective at the start
by reason of manufacturing defects.
1.3.1. Limitations
The above guarantee does not cover components
relating to electrical and electronic parts, or fans, on
which the guarantee period is 1 year from the
purchase of the product, documented as specified
above. The guarantee does not cover parts subject to
normal wear such as gaskets, glass, and any parts
with can be removed from the firebox.
The replacement parts will be guaranteed for the
remainder of the guarantee period starting from the
date of purchase of the product.
Specifically, the glass is guaranteed
from the moment the MCZ
installation technician certifies its
integrity when installation is
completed.
1.3.2. Exclusions
Variations in colour in the painted or ceramic parts, and
crackling of the glaze on the ceramics, do not constitute
grounds for a claim under the guarantee, as they are
natural characteristics of the material and of the use of
the product.
The guarantee does not cover any parts which may be
found to be faulty as a result of negligence or
carelessness in use, or of incorrect maintenance, or of
installation not complying with MCZ's specification (see
the relevant chapters in this user manual).
MCZ refuses to accept any responsibility for any damage
which may be caused, directly or indirectly, by persons,
animals or things in consequence of the failure to observe
all the prescriptions laid down in the instruction booklet,
especially those concerning warnings on the subject of
installation, use and maintenance of the appliance.
If the product does not perform correctly, contact your
local retailer and/or importer.
Damage caused by transport and/or handling is excluded
from the guarantee.
For installation and use of the product, reference must be
made exclusively to the booklet supplied.
The guarantee will be invalidated in the event of damage
caused by tampering with the appliance, atmospheric
agents, natural disasters, electrical discharges, fire,
defects in the electrical system, and caused by lack of, or
incorrect, maintenance in terms of the manufacturer's
instructions.
CLAIMS UNDER THE
GUARANTEE
the request for action under the
guarantee must be addressed to the
retailer, who will forward the claim to
MCZ's technical assistance service.
MCZ DECLARES THAT THE STOVE
WHICH YOU HAVE PURCHASED
COMPLIES WITH EEC DIRECTIVE
89/336 and 72/23 and SUCCESSIVE
AMENDMENTS
MCZ refuses to accept any
responsibility in the event that the
stove or any other accessory have
been improperly used or modified
without authorisation.
For all replacement of parts, only
original MCZ spare parts must be
used.
Chapter 2
INSTALLATION AND USE MANUAL
page
8
Theoretical notions for installation Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited
2. Theoretical notions for installation
2.1. Pellets
Wood pellets are manufactured by hot-extruding compressed sawdust which
is produced during the working of natural dried wood. The compactness of
the material comes from the lignin which is contained in the wood itself, and
allows the production of pellets without the use of glues or binders.
The market offers different types of pellet with characteristics which
vary depending on what mixture of woods is used. The diameter varies
between 6 mm and 8 mm, with a standard length in the range 5 mm to
30 mm. Good quality pellets have a density which varies between 600
kg/m3 and 750 kg/m3, with a moisture content which varies from 5%
to 8% by weight.
Besides being an ecological fuel (exploiting timber residues to the
maximum and achieving cleaner combustion than is possible with fossil
fuels), pellets also have technical advantages. While good-quality
timber has a calorific power of 4.4 kW/kg (with 15% moisture,
therefore after about 18 months' seasoning), the equivalent figure for
pellets is 5.3 kW/kg.
To ensure good combustion, the pellets must be stored in an area that
is free of humidity and protected from dirt. The pellets are usually
supplied in 15 kg. sacks, so storing them is very convenient.
Good quality pellets ensure good combustion, thus lowering the
emission of harmful agents into the atmosphere.
The poorer the quality of the fuel, the more
frequently will intervention be necessary for cleaning
the internal parts, such as the grate and the
combustion chamber.
The pellets must be produced from pure wood which has not been
treated chemically.
The standards DIN 51731 and ONORM M 7135 certify a high-quality
pellet with the following characteristics:
9 Calorific power: 5.3 kW/kg
9 Density: 700 kg/m3
9 Water content: max 8% of weight
9 Percentage of ashes: max 1% of weight
9 Diameter: 6 – 6.5mm
9 Length: max 30mm
9 Contents: 100% untreated wood, with no added bonding
substances (bark percentage 5% max)
9 Packaging: in sacks made from ecologically compatible or
biologically decomposing material
Fuel pellets
15 Kg sack of fuel
Chapter 2
INSTALLATION AND USE MANUAL
page
9
Theoretical notions for installation Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited
MCZ strongly recommends using certified fuel in its
stoves.
The use of fuel of inferior quality or not conforming
to the specification given above compromises the
running of your stove and can therefore lead to the
termination of the guarantee and of the
manufacturer's responsibility for the product.
MCZ pellet stoves run exclusively on pellets with a
diameter of 6 mm (only for Italy) and 6-8 mm
(European countries) with lengths that go from 5
mm to 30 mm.
2.2. PRECAUTIONS FOR INSTALLATION
IMPORTANTE!
THE INSTALLATION AND ASSEMBLY MUST BE
CARRIED OUT BY QUALIFIED PERSONNEL.
All local regulations, including those that refer to
national and European regulations, must be observed
at the time of installation of the unit
The stove must be installed in a suitable position to allow the normal
operations of opening and ordinary maintenance.
The site must be:
• capable of providing the environmental conditions for operation
• equipped with power supply 230V 50 Hz (EN73-23)
• capable of taking an adequate system for smoke discharge
• provided with external ventilation
• provided with an earth connection complying with CEI 64-8
IMPORTANT!
• THE PRODUCT MUST BE CONNECTED TO AN
INTERNAL OR EXTERNAL FLUE PIPE IN
COMPLIANCE WITH CURRENT STANDARDS.
• The product must be connected to a flue pipe or
other vertical smoke stack that can discharge
smoke at the highest point of the house.
• Smoke is generated from burning wood and,
therefore, may dirty adjacent or nearby walls.
Also take care because the fumes are very hot but
almost invisible, and can cause burns on contact.
• Before positioning the unit, a hole must be made
for the passage of the smoke pipe, and another
for the intake of air from outside.
• The electrical plug must be positioned where it is
always accessible. Otherwise, during installation,
provide suitable devices for disconnection for the
power supply network in compliance with
standards on electrical systems
Chapter 2
INSTALLATION AND USE MANUAL
page
10
Theoretical notions for installation Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited
2.3. OPERATING AREA
For proper operation the unit should be placed where air can flow that
is necessary for pellet combustion (this requires about 40 m
3
/h) in
accordance with the standard for installation and current national
standards.
The volume of the room must not be less than 50 m
3.
The air must come in through permanent openings made in walls (in
proximity to the stove) which give onto the outside, with a minimum
cross-section area of 100 cm
2.
These openings must be made in such a way that it is not possible for
them to be obstructed in any way.
Alternatively, the air can be taken from rooms adjacent to the one
which needs ventilating, as long as they are provided with an air intake
from the outside, and are not used as bedrooms or bathrooms, and
provided there is no fire risk such as there is for example in garages,
woodsheds, and storerooms, with particular reference to what is laid
down in current standards.
It is not permissible to install in bedrooms,
bathrooms or showers, or in a room where another
heating appliance is installed (fireplace, stove etc.)
which does not have its own independent air intake.
Locating the stove in a room with an explosive
atmosphere is prohibited.
The floor of the room where the stove is to be
installed must be strong enough to take its weight.
If the walls are not flammable, position the stove with a clearance to
the rear of at least 10 cm.
For flammable walls, keep a minimum distance of 20 cm at the rear, 50
cm on the sides and 150 cm at the front.
If the room contains objects which are believed to be particularly
delicate, such as drapes, sofas and other furniture, their distance from
the stove should be considerably increased.
If the flooring is made of wood, provide a floor
protection surface in compliance with current
national standards.
2.4. CONNECTION TO THE EXTERNAL AIR INTAKE
It is essential that at least as much air must be able to flow into the
room where the stove is installed as is required for proper combustion
in the appliance and for the ventilation of the room. This can be
effected by means of permanent openings in the walls of the room to
be ventilated, which give onto the outside, or by single or collective
ventilation ducts.
For this purpose, on the external wall near the stove, a hole must be
made with a minimum free cross-section of 100 cm². (equivalent to a
round hole of 12 cm diameter or a square hole 10x10 cm), protected by
a grille on the inside and the outside.
The air intake must also:
• communicate directly with the room where the stove is installed

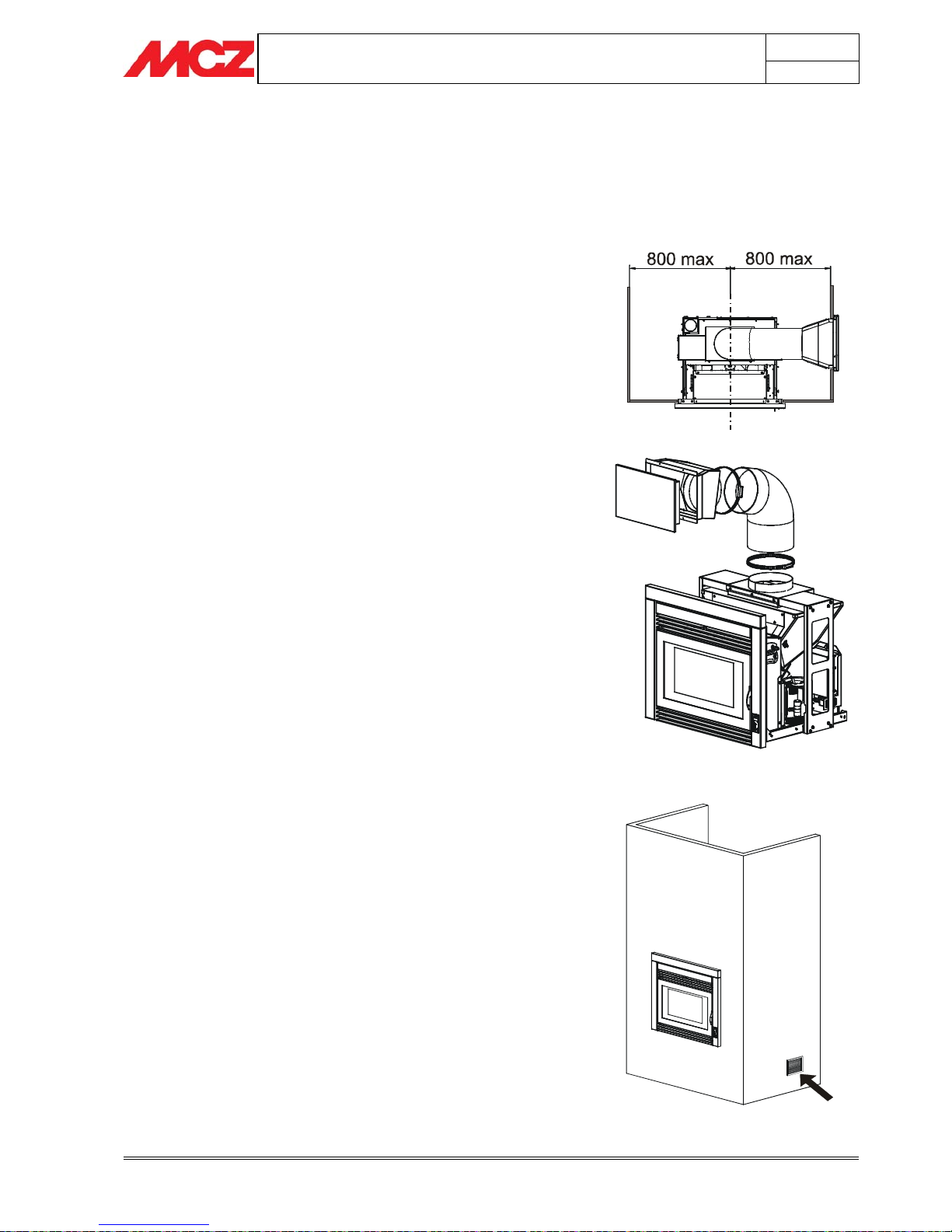

Example of realization of air intake
Example of installation of Powerbox
1500 cm
200 cm
200 cm
Chapter 2
INSTALLATION AND USE MANUAL
page
11
Theoretical notions for installation Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited
• be protected by a grille, metal mesh or suitable guard, as long as
this does not reduce the area below the minimum.
• be positioned in such a way as to be impossible to obstruct
It is not compulsory to connect the air intake directly
with the stove (so that it draws air directly from
outside), but it is essential at all events to ensure an
airflow of 50 cubic metres per hour by the use of a
hole of the dimensions given.
See standard UNI 10683 REV.
2.5. CONNECTION OF SMOKE DISCHARGE PIPE
When making the hole for the passage of the smoke discharge pipe, it
is necessary to take into account the possible presence of flammable
materials. If the hole will be going through a wall made of wood or any
other material which is sensitive to heat, the INSTALLER MUST first
of all use the special wall union (diam.13cm 13cm minimum) and
properly insulate the pipe of the stove that passes through it, using
adequate insulation materials (thickness 1.35cm with minimum thermal
conductivity of 0.07 W/m°K).
The same is true if the stove pipe must run through vertical or
horizontal stretches passing in proximity (min.20cm) to the heatsensitive wall
As an alternative we recommend the use of insulated pipe, which can
also be used on the outside to avoid condensation.
The combustion chamber works in low pressure. The smoke duct for
the discharge of fumes will also be under low pressure when connected
to an efficient flue pipe as directed.
IMPORTANT!
• All 90 degree changes of direction in the flue pipe
must be fitted with suitable tee connectors to
allow the possibility of inspection. (see
accessories for pellet stove)
• It is absolutely prohibited to fit a grille on the end
of the discharge pipe, because it could lead to
poor running of the stove.
• FOR CONNECTION TO THE FLUE PIPE, NOT MORE
THAN 2-3 METRES OF HORIZONTAL PIPE MUST
BE USED AND NOT MORE THAN THREE 90°
CURVES MUST BE USED
• IT IS ALSO ADVISABLE NOT TO EXCEED 6
METRES IN LENGTH WITH THE PIPE Ø 80 mm
• THE TUBE Ø 80 mm IS NEEDED ONLY TO
CONNECT THE FLUE PIPE AND CANNOT ITSELF
BE CONSIDERED AS A FLUE PIPE. The flue pipe
has the following characteristics described in
subsequent paragraphs
Example of installation of PowerSystem
Connection of smoke discharge pipe
Diagram
Chapter 2
INSTALLATION AND USE MANUAL
page
12
Theoretical notions for installation Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited
2.6. CONNECTION TO THE FLUE PIPE
The flue pipe must have internal dimensions not larger than 20 x 20
cm, or diameter 20 cm. In the event of larger dimensions, or of the
flue pipe being in poor condition (for example cracks, poor insulation,
etc.), it is advisable to fit a stainless steel pipe of suitable diameter
inside the flue pipe throughout its length, right up to the top.
Check with suitable instruments that there is a minimum draught of 10
Pa.
At the bottom of the flue pipe, provide an inspection cap to allow
periodic checking and cleaning, which must be done annually.
Make a gas-tight connection to the flue pipe, using pipes and
connectors as recommended by us.
You must ensure that a windproof cowl should be fitted which complies
with the standards in force.
This type of connection ensures the evacuation of the
fumes even in the event of a temporary power cut.
2.7. CONNECTION TO AN EXTERNAL FLUE WITH
INSULATED OR DOUBLE-WALL PIPE
The external fluepipe must have internal dimensions of minimum
10x10 cm or 10 cm diameter, and maximum 20x20 cm or 20 cm
diameter.
Check with suitable instruments that there is a minimum draught of 10 Pa.
The only type of pipe which is permissible is insulated (double-walled)
stainless steel, smooth on the inside, fixed to the wall. Flexible stainless
steel pipe must not be used. At the bottom of the flue pipe, provide an
inspection cap to allow periodic checking and cleaning, which must be
done annually. Make a gas-tight connection to the flue pipe, using
pipes and connectors as recommended by us.
You must ensure that a windproof cowl should be fitted which complies
with the standards in force.
This type of connection ensures the evacuation of the
fumes even in the event of a temporary power cut.
2.8. CONNECTION TO THE FLUE PIPE
For proper functioning, the connecting pipe between the stove and the
chimney or flue duct must have a slope of not less than 3% in the
horizontal stretches, the length of which must not exceed 2/3
metres, and the vertical distance between one tee connector and
another (change of direction) must not be less than 1.5m.
Check with suitable instruments that there is a minimum draught of 10
Pa.
At the bottom of the flue pipe, provide an inspection cap to allow
periodic checking and cleaning, which must be done annually.
Make a gas-tight connection to the flue pipe, using pipes and
connectors as recommended by us.
You must ensure that a windproof cowl should be fitted which complies
with the standards in force.
1) Windproof cowl
2) Flue pipe
3) Inspection
1) Windproof cowl
2) Flue pipe
3) Inspection
1) Windproof cowl
2) Flue pipe
3) Inspection
0,5 mt.
1
2
3
0,5 mt.
2
1
3
3-5 %
2 - 3 mt. MAX
0,5 mt.
H
>
1
,
5
m
t
.
3
2
1
Chapter 2
INSTALLATION AND USE MANUAL
page
13
Theoretical notions for installation Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited
This type of connection ensures the evacuation of the
fumes even in the event of a temporary power cut.
2.9. OPERATING PROBLEMS CAUSED BY DRAUGHT
DEFECTS IN THE FLUE
Of all the weather and geographical conditions which affect the
operation of a flue pipe (rain, fog, snow, altitude a.s.l., exposure to
sunlight, direction of facing), the wind is unquestionably the most
decisive. In fact, along with thermal depression caused by the
difference in temperature inside and outside of the chimney, there is
another type of depression or over-pressure: dynamic pressure caused
by the wind. An updraft always increases depression and hence
draught. A crosswind increases depression provided the cowl has been
installed properly. A downdraft always decreases depression, at times
inverting it.
Besides the direction and force of the wind, the position of the flue and
the cowl with respect to the roof of the building and the surrounding
landscape is important.
The wind also influences the operation of the chimney indirectly by
creating high-pressure and low-pressure zones, not only outside the
building but inside as well. In rooms directly exposed to the wind (2),
an indoor high-pressure area can be created which can augment the
draught in stoves and fireplaces, but it can be counteracted by the
external high pressure if the cowl is situated on the side exposed to the
wind (1). On the other hand, in the rooms on the opposite side from
the direction of the wind (3), a dynamic depression can be created
which competes with the natural thermal depression developed by the
chimney, but this can be compensated for (sometimes) by locating the
flue on the opposite side from the direction of the wind (4).
IMPORTANT!
The operation of the pellet stove is noticeabl
y
sensitive to the conformation and position of the flue
which is adopted.
Hazardous conditions can only be overcome by
suitable setting-up of the stove carried out by
qualified MCZ personnel.
1
2 3
4
E.g. Crosswind 2: 8 m/sec
Depression of 30Pa
E.g. Downdraft at 45° of
8m/sec. Overpressure of 17
Pa
1-2 = High-pressure zones
3-4 = Low-pressure zones
WIND
Least favourable points
Most favourable position
WIND
Downdraft
High-pressure
Low-pressure zone
Chapter 3
INSTALLATION AND USE MANUAL
page
14
Installation and fitting Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited
3. INSTALLATION AND ASSEMBLY
3.1. DRAWINGS AND TECHNICAL CHARACTERISTICS
POWERBOX COMPACT
TECHNICAL CHARACTERISTICS
Overall thermal power
Max.
8.5 kw / 7.310 kcal/h
Overall thermal power
Min.
2.6kw / 2.236 kcal/h
Yield at maximum
91.7 % (> 90%)
Yield at minimum
92.6 % (> 90%)
Temperature of exhaust
smoke at maximum
170°C
Temperature of exhaust
smoke at minimum
70°C
CO at 13%O
²
at Min and
at Max
0.042 — 0.019%
CO2 at minimum and
maximum
4.3% – 8.5%
Mass of smoke at
minimum and maximum
4.0 – 8.3 g/sec
Minimum draught at
maximum power
0,12 mbar – 12 Pa
Minimum draught at
minimum power
0,07 mbar – 7 Pa
Hopper capacity
25 litri
Fuel pellet type
Pellet Ø 6-8 mm.
Pezzatura 5/30 mm
Pellet consumption per
hour
Min ~ 0,6 kg/h *
Max.~ 1,75 kg/h *
Operating time between
re-fuelling
Al min ~ 28 h *
Al max. ~ 10 h *
Heatable volume m3
183/40 – 209/35 –
244/30 **
Combustion air inlet
Ø 50 mm.
Smoke outlet
Ø 80 mm.
Maximum absorbed
electrical power
270 Watt
Power supply frequency
and voltage
220 Volt / 50 Hz
Net weight
120 Kg.
741
606
622
362
564
606
580
32
Weight with packaging
140 Kg.
Note
* Data that may vary depending on the type of pellets used.
**Heatable volume based on demand of cal/m
3
40-35-30 (respectively 40-35-30 Kcal/h for m3)
Appliance suitable for installation in a shared flue.
Chapter 3
INSTALLATION AND USE MANUAL
page
15
Installation and fitting Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited
POWERBOX LINK
TECHNICAL CHARACTERISTICS
Overall thermal power
Max.
8.5 kw / 7.310 kcal/h
Overall thermal power
Min.
2.6kw / 2.236 kcal/h
Yield at maximum
91.7 % (> 90%)
Yield at minimum
92.6 % (> 90%)
Temperature of exhaust
smoke at maximum
170°C
Temperature of exhaust
smoke at minimum
70°C
CO at 13%O
²
at Min and
at Max
0.042 — 0.019%
CO2 at minimum and
maximum
4.3% – 8.5%
Mass of smoke at
minimum and maximum
4.0 – 8.3 g/sec
Minimum draught at
maximum power
0,12 mbar – 12 Pa
Minimum draught at
minimum power
0,07 mbar – 7 Pa
Hopper capacity
25 litri
Fuel pellet type
Pellet Ø 6-8 mm.
Pezzatura 5/30 mm
Pellet consumption per
hour
Min ~ 0,6 kg/h *
Max.~ 1,75 kg/h *
Operating time between
re-fuelling
Al min ~ 28 h *
Al max. ~ 10 h *
Heatable volume m3
183/40 – 209/35 –
244/30 **
Combustion air inlet
Ø 50 mm.
Smoke outlet
Ø 80 mm.
Maximum absorbed
electrical power
270 Watt
Power supply frequency
and voltage
220 Volt / 50 Hz
Net weight
120 Kg.
741
606
622
362
695
580
32
603.5
Weight with packaging
140 Kg.
Note
* Data that may vary depending on the type of pellets used.
**Heatable volume based on demand of cal/m
3
40-35-30 (respectively 40-35-30 Kcal/h for m3)
Appliance suitable for installation in a shared flue.
Chapter 3
INSTALLATION AND USE MANUAL
page
16
Installation and fitting Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited
3.2. PREPARATION AND UNPACK ING
The unit is delivered in a single package.
Open the packaging, take off the bands, remove the stove unit from
the pallet and position it in the chosen location, taking care that its
position complies with the above instructions.
The stove body or unit must always be kept in a vertical position when
moved, and moved only using carts. Special care must be used to
protect the door and the glass from impacts that would damage them.
Moving the product must always be done with care. If possible, unpack
the stove in the area where it is going to be installed.
The materials which make up the packaging are not toxic or harmful,
so no special procedures for disposal by required.
Their storage, disposal or possible recycling are therefore the responsibility
of the final user, in compliance with current legislation on the subject.
Do not store the stove unit or its cladding without their packaging.
If the stove needs to be connected to a discharge pipe which goes
through the rear wall (to connect up with the flue), take the greatest
care to make sure that the joint is not stressed.
Use the four adjustable feet (J) to get the stove correctly levelled so
that the smoke outlet (S) is lined up with the connecting pipe (H) .
3.3. MOUNTING TO THE UNIT BASE
You must anchor the unit to the floor because during annual
maintenance by an authorized technician, the combustion chamber may
be removed from its seat via the two extensible guides.
To mount the unit base, proceed as follows:
1. Measure the distance (A) from the exterior striker to the
exterior support to position it correctly.
2. Remove the compensation frame or the right and left elements
(C) as indicated in section 3.4
3. Unscrew the bottom screws (B) beneath the unit door.
4. At this point, take out the machine and separate it from the
support (D).
5. Position the support (D) at the previously measured distance
from the wall (A).
6. Use the provided screws to mount the support (D) to the base
(E).
It is mandatory to mount the unit to the base, since
during maintenance the combustion chamber must be
extracted, causing the barycentre of the equipment to
shift forward. If the product is not anchored to a
surface, it runs the risk of loosing its stability.
A
Chapter 3
INSTALLATION AND USE MANUAL
page
17
Installation and fitting Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited
The unit can be installed at the desired level, creating a structure of the
opportune height. This support must be constructed in inflammable
material.
MCZ declines any responsibility for possible damages
to persons or things if the aforementioned warnings
are not respected.
3.4. REMOVAL OF COMPENSATION FRAME
To avoid damage to the border frame (C) located around the fire door,
it is recommended to remove it before mounting the Powerbox to the
base (E) and to put it in a safe place. For removal, see
chap. 3.13
3.5. INSTALLATION OF PELLET LOADING CHUTE
(LINK)
Before positioning the unit, you will need to decide on which side the
chute for fuel loading will be installed.
The Powerbox Link is provided with two straps, the connecting tube
and the chute with a small door.
The chute can be assembled on the right side, the left side or on the
front. The connecting tube is one meter long.
It is mandatory to shorten the connecting tube in
accordance with its position (side or front) in a way
that results in the tube being firmly extended. This
operation is necessary to facilitate pellet descent.
Before assembling the cladding, execute a test by
loading the combustible fuel to make sure that the
pellets descend correctly towards the hopper.
B
B
C
C
D
E
Mounting to the base
Loading...
