INSTALLATION AND USE MANUAL
PICASSO

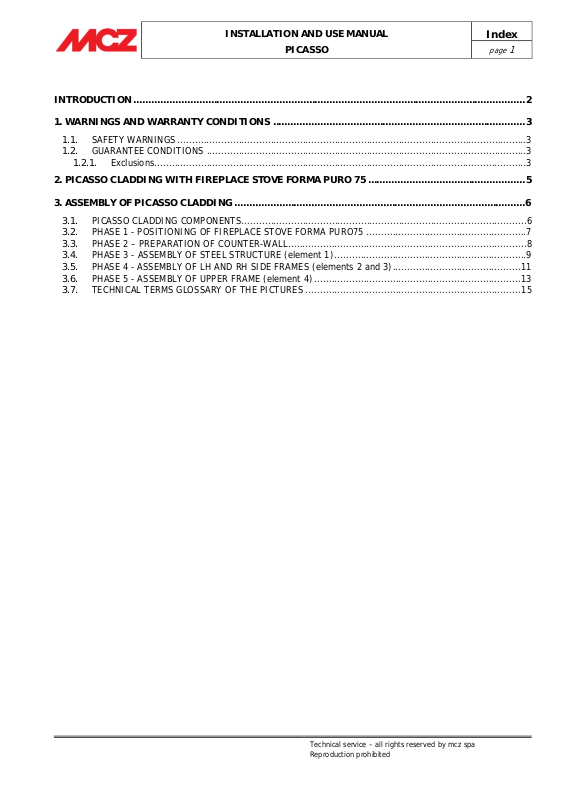

Index
page
1
INTRODUCTION....................................................................................................................................2
1. WARNINGS AND WARRANTY CONDITIONS .....................................................................................3
1.1. SAFETY WARNINGS........................................................................................................................3
1.2. GUARANTEE CONDITIONS ..............................................................................................................3
1.2.1. Exclusions................................................................................................................................3
2. PICASSO CLADDING WITH FIREPLACE STOVE FORMA PURO 75.....................................................5
3. ASSEMBLY OF PICASSO CLADDING ..................................................................................................6
3.1. PICASSO CLADDING COMPONENTS..................................................................................................6
3.2. PHASE 1 - POSITIONING OF FIREPLACE STOVE FORMA PURO75 .......................................................7
3.3. PHASE 2 – PREPARATION OF COUNTER-WALL..................................................................................8
3.4. PHASE 3 - ASSEMBLY OF STEEL STRUCTURE (element 1)..................................................................9
3.5. PHASE 4 - ASSEMBLY OF LH AND RH SIDE FRAMES (elements 2 and 3)............................................11
3.6. PHASE 5 - ASSEMBLY OF UPPER FRAME (element 4).......................................................................13
3.7. TECHNICAL TERMS GLOSSARY OF THE PICTURES ..........................................................................15
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL
PICASSO
INTRODUCTION
Dear Customer,
thank you for choosing a MCZ product and in particular the Picasso
(Forma Puro75 version) claddings Forma Puro (FP) range.
We are sure that, by using it, you will appreciate the quality of an
accurately designed and tested product. Our goal is to combine
technology with easy of use and, above all, safety.
For optimal functioning of the Picasso cladding and to fully
enjoy the heat and sense of well being that will spread
throughout your home, we suggest that you carefully read this
use and maintenance manual before using the product for the
first time; please contact your dealer should you require
assistance in resolving any doubts or problems.
Congratulations on your choice and remember, the fireplace stove
MUST NEVER be used by children who should always be kept at a
safe distance!
Introduction
page
2
Revisions to the publication
In order to improve the product, the Manufacturer reserves the right to
modify and update this publication without prior notice.
Reproduction, even partial, of this manual without the Manufacturer's
authorisation is prohibited.
Manual preservation.
• Please take care of this manual and keep it in a place that can be
quickly and easily reached.
• If this manual should be lost or destroyed, or if it is in poor
condition, request a copy from your dealer or directly from the
manufacturer, providing product identification data.
ion
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL
MODIGLIANI
1. WARNINGS AND WARRANTY CONDITIONS
1.1. SAFETY WARNINGS
• Check the conditions of the surface that will support the
weight of the stove. If it is made of flammable material
(such as wood, carpet, or plastic) provide suitable
insulation.
• The user is fully liable for improper product use,
releasing MCZ from any civil or penal liabilities.
• Any tampering with the fireplace stove, or use of nonoriginal spare parts, may be hazardous to the user and
releases MCZ from any civil or penal liability.
• Incorrect installation or poor maintenance (not
compliant with the provisions of this manual) may cause
damages to persons, animals or property. MCZ is not
civilly or criminally liable in these cases.
Chapter 1
page
3
1.2. GUARANTEE CONDITIONS
MCZ guarantees the product, with the exception for the elements
subject to normal wear listed below, for two years from the date of
purchase that is proven by a document that indicates the dealer's name
and date of sale, if the completed warranty certificate was returned
within 8 days and if the product was installed and inspected by a
specialised installation technician and according to the detailed
instructions indicated in the instruction manual supplied with the
product.
The warranty includes the free replacement or repair of parts
recognised as factory defective.
1.2.1. Exclusions
The guarantee does not cover any part that may be defective
due to negligence or careless use, incorrect maintenance,
installation non compliant with that specified by MCZ.
MCZ refuses to accept any responsibility for any damage which may be
caused, directly or indirectly, by persons, animals or things as a result
of the failure to observe all the provisions set forth in the instruction
booklet, especially those concerning warnings on the subject of
installation, use and maintenance of the appliance.
In the event of product inefficiency, please contact your dealer and/or
area importer.
Damages caused by transport and handling are not covered by the
guarantee.
Exclusively refer to the supplied manual for product installation and
use.
The guarantee will be invalidated in the event of damage caused by
tampering with the appliance, atmospheric agents, natural disasters,
1
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL
MODIGLIANI
electrical discharges, fire and lack of, or incorrect, maintenance in
terms of the manufacturer's instructions.
REQUEST FOR SERVICE
Requests for service must be addressed to the dealer
who shall forward the request to the MCZ technical
assistance service.
MCZ is not liable in the event the product and any
other accessory is improperly used or modified
without authorisation.
Only original MCZ spare parts must be used for all
replacements.
Chapter 1
page
4
1
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 2
page
PICASSO
5
2. PICASSO CLADDING WITH FIREPLACE STOVE FORMA PURO 75
The Picasso Forma Puro75 model is a recessed cladding, i.e. the fireplace stove is recessed into the wall.
Therefore it is necessary to build a counter-wall that protrudes from the perimeter wall. The depth of the wall to
be constructed is at your discretion provided you comply with all safety distances for the fireplace stove. For this
purpose please refer to the
Manual for Installation and Use
N.B. THE WALL CONSTRUCTED DURING WORK AND ON WHICH THE PICASSO FRAME IS INSTALLED
MUST BE LOAD BEARING, EQUIPPED WITH STEEL UPRIGHTS, POSSIBLY DOUBLE, LOCATED FLUSH
WITH THE HOLE IN A VERTICAL DIRECTION.
1060
180
of Forma Puro75.
637
1602
613
172
180 180
MURO PERIMETRALE MURO PERIMETRALE
700
DISTANZA DI
SICUREZZA
1060
60
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
PICASSO
3. ASSEMBLY OF PICASSO CLADDING
3.1. PICASSO CLADDING COMPONENTS
page
6
COMPONENTE
CORNICE LATERALE SX
CORNICE LATERALE DX
N.
1STRUTTURA IN ACCIAIO
1
1
1CORNICE SUPERIORE
VITERIA IN DOTAZIONE N.
VITE PER CARTONG. 3,9X35 11
12DADO M6 INOX
6ROSETTA M8X24
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
PICASSO
7
3.2. PHASE 1 - POSITIONING OF FIREPLACE STOVE FORMA PURO75
Place the Form Puro75 in the desired position and at a safe distance from the rear wall. Raise the
fireplace stove (by means of the 4 available feet) so that the height of the edge-cover profile with respect to the
floor is 165 mm (= height of fire bed of cladding). A second adjustment of the unit, if necessary, is made
during assembly of the cladding.
Before proceeding with the connection to the flue pipe and with complete installation of the fireplace stove,
check the correct position of Forma Puro75 with respect to the steel structure(1) of the Picasso cladding. When
the check is complete, install the unit Forma77 in accordance with the instructions in the respective
Installation and Use
and run a quick test for proper operation. If the test is successful, you can install the Picasso
cladding.
PROFILO
COPRIBORDO
Manual for
165
PAVIMENTO
DISTANZA DI
SICUREZZA
PAVIMENTO
165
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
PICASSO
8
3.3. PHASE 2 – PREPARATION OF COUNTER-WALL
Before proceeding with the installation of the Picasso cladding, you must create the counter-wall: for this
purpose, consider an external distance from the fireplace stove of about 27-30 mm. This measurement must be
measured based on elements 1 (steel structure), 2 (lh side frame) and 3 (rh side frame).
Make an opening on the front part of H=1200 mm and L=850 mm; reinforce the counter-wall with metal uprights
placed flush with the hole in a vertical direction and resting on the floor. For greater safety you can use 1+1
uprights per side.
Drill a hole in the counter-wall at the M6 threaded bars at the rear of each marble component. Six holes are
required, located as shown in the figure below.
N.B. The dimensions shown in the figure are approximate and must be verified in situ
MONTANTE
MONTANTE
850
1200
165
65
DISTANZA DI
MURO PERIMETRALE MURO PERIMETRALE
MONTANTE
SICUREZZA
1562
1292
250
FORI DA REALIZZARE
SULLA CONTROPARETE
PER FISSAGGIO PICASSO
MONTANTE
MONTANTE
27
CONTROPARETE
MONTANTE
A FILO FORO
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
PICASSO
9
3.4. PHASE 3 - ASSEMBLY OF STEEL STRUCTURE (element 1)
N.B. USE CARE IN HANDLING ALL COMPONENTS THAT ARE PAINTED BLACK AND COPPER EFFECT
TO PREVENT DAMAGE FROM IRREPARABLE SCRATCHES.
Align the steel structure with the fireplace stove (=axis of cladding) and 5 mm from the latter. Fasten the
structure to the counter-wall using the holes on the sides and top. Use the screws for plasterboard 3.9X35
provided. If the fastening wall is masonry, use inserts instead of screws for plasterboard.
Make sure the structure adheres well to the counter-wall, square and level.
FORO PER
FISSAGGIO
FORO PER
FISSAGGIO
FORO PER
FISSAGGIO
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
PICASSO
10
ASSE RIVESTIMENTO=
ASSE TERMOCAMINO
= =
1489
MURO PERIMETRALE
894
DISTANZA DI
SICUREZZA
MURO PERIMETRALE
60
CONTROPARETE
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
PICASSO
11
3.5. PHASE 4 - ASSEMBLY OF LH AND RH SIDE FRAMES (elements 2 and 3)
Set the side frames (rh and lh) on the counter-wall with the inner side resting on the steel structure.
If you have not already done so in phase 2, drill holes at the M6 threaded bars and fasten the two side frames
(rh and lh) using the screws, nuts and washers provided. For greater safety, you should use two nuts for each
threaded bar (nut and locking nut).
Make sure that the three assembled components adhere well to the counter-wall, and that they are square and
level.
ASSE RIVESTIMENTO=
ASSE TERMOCAMINO
1422
MURO PERIMETRALE
60
1489
3
694
DISTANZA DI
SICUREZZA
1060
180180
3
MURO PERIMETRALE
FISSAGGIO
DADO-CONTRODADO
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
PICASSO
12
CORNICE LATERALE
IN MARMO IN APPOGGIO
ALLA STRUTTURA
IN ACCIAIO
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
PICASSO
13
3.6. PHASE 5 - ASSEMBLY OF UPPER FRAME (element 4)
Set the upper frame (element 4) on the side frames, with which it must be perfectly flush. If you have not
already done so in phase 2, drill holes at the M6 threaded bars on the back of the upper frame and fasten
it using the screws, nuts and washers provided. For greater safety, you should use two nuts for each threaded
bar (nut and locking nut).
Make sure that when assembly is complete, the cladding is adherent to the wall, squared off and level with the
counter-wall and floor.
ASSE RIVESTIMENTO=
ASSE TERMOCAMINO
1060
= =
180
1422
MURO PERIMETRALE
60
1602
180 700 180
1060
DISTANZA DI
SICUREZZA
MURO PERIMETRALE
1060
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
PICASSO
14
A FILO
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Glossary
PICASSO
3.7. TECHNICAL TERMS GLOSSARY OF THE PICTURES
PAGE 5 PAGE 5
MURO PERIMETRALE PERIMETER WALL
DISTANZA DI SICUREZZA SAFETY DISTANCE
PAGE 6 PAGE 6
COMPONENTE COMPOSANT
STRUTTURA IN ACCIAIO STEEL STRUCTURE
CORNICE LATERALE SX LH SIDE FRAME
CORNICE LATERALE DX RH SIDE FRAME
CORNICE SUPERIORE UPPER FRAME
VITERIA IN DOTAZIONE NUTS AND BOLTS PROVIDED
VITE PER CARTONGESSO 3.9X35 SCREW FOR PLASTERBOARD 3.9X35
DADO M6 INOX NUT M8 STAINLESS STEEL
ROSETTA M8X24 WASHER M8X24
PAGE 7 PAGE 7
PROFILO COPRIBORDO EDGE-COVER PROFILE
PAVIMENTO FLOOR
DISTANZA DI SICUREZZA SAFETY DISTANCE
PAGE 8 PAGE 8
MONTANTE UPRIGHT
DISTANZA DI SICUREZZA SAFETY DISTANCE
FORI DA REALIZZARE SULLA
CONTROPARETE PER FISSAGGIO PICASSO
MURO PERIMETRALE PERIMETER WALL
CONTROPARETE COUNTER-WALL
MONTANTE FILO FORO UPRIGHT FLUSH WITH HOLE
PAGE 9 PAGE 9
FORO PER FISSAGGIO HOLES FOR FASTENING
PAGE 10 PAGE 10
MURO PERIMETRALE PERIMETER WALL
DISTANZA DI SICUREZZA SAFETY DISTANCE
CONTROPARETE COUNTER-WALL
PAGE 11 PAGE 11
MURO PERIMETRALE PERIMETER WALL
DISTANZA DI SICUREZZA SAFETY DISTANCE
FISSAGGIO DADO-CONTRODADO NUT AND LOCKING NUT
HOLES TO BE MADE ON THE COUNTER-
WALL FOR FASTENING PICASSO
page
15
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Glossary
PICASSO
PAGE 12 PAGE 12
CORNICE LATERALE IN MARMO IN
APPOGGIO ALLA STRUTTURA IN ACCIAIO
MARBLE SIDE FRAME RESTING ON STEEL
STRUCTURE
MURO PERIMETRALE PERIMETER WALL
PAGE 13 PAGE 13
MURO PERIMETRALE PERIMETER WALL
DISTANZA DI SICUREZZA SAFETY DISTANCE
PAGE 14 PAGE 14
A FILO FLUSH
page
16
Technical service – all rights reserved by mcz spa
Reproduction prohibited
Loading...
