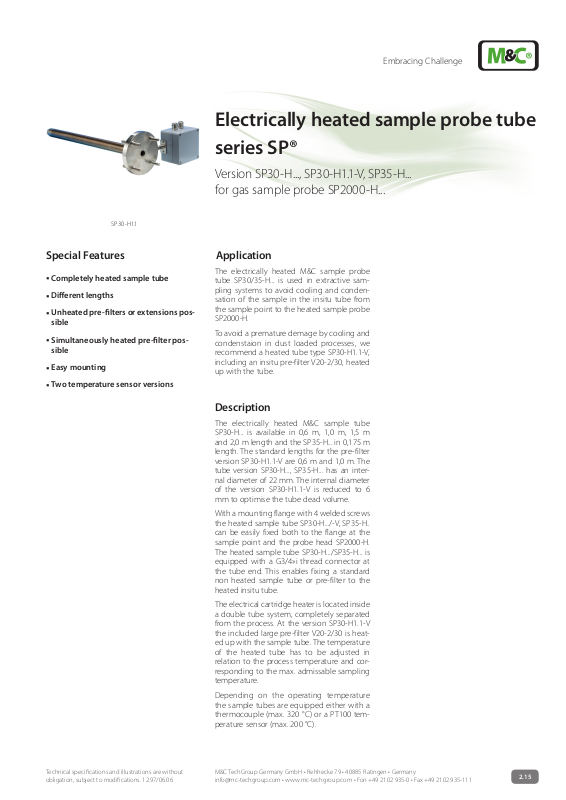

M&C TechGroup SP35-H Datasheet

SP30-H1.1

Embracing Challenge

Electrically heated sample probe tube
series SP®

Version SP30-H..., SP30-H1.1-V, SP35-H...
for gas sample probe SP2000-H...

Special Features

Completely heated sample tube



Dierent lengths



Unheated pre-lters or extensions pos-



sible

Simultaneously heated pre-lter pos-



sible

Easy mounting



Two temperature sensor versions



Application

The electrically heated M&C sample probe
tube SP30/35-H... is used in extractive sam­pling systems to avoid cooling and conden­sation of the sample in the insitu tube from
the sample point to the heated sample probe
SP2000-H.

To avoid a premature demage by cooling and
condenstaion in dust loaded processes, we
recommend a heated tube type SP30-H1.1-V,
including an insitu pre-filter V20-2/30, heated
up with the tube.

Description

The electrically heated M&C sample tube
SP30-H... is available in 0,6 m, 1,0 m, 1,5 m
and 2,0 m length and the SP35-H... in 0,175 m
length. The standard lengths for the pre-filter
version SP30-H1.1-V are 0,6 m and 1,0 m. The
tube version SP30-H..., SP35-H... has an inter­nal diameter of 22 mm. The internal diameter
of the version SP30-H1.1-V is reduced to 6
mm to optimise the tube dead volume.

With a mounting flange with 4 welded screws
the heated sample tube SP30-H.../-V, SP35-H..
can be easily fixed both to the flange at the
sample point and the probe head SP2000-H.
The heated sample tube SP30-H.../SP35-H... is
equipped with a G3/4»i thread connector at
the tube end. This enables fixing a standard
non heated sample tube or pre-filter to the
heated insitu tube.

The electrical cartridge heater is located inside
a double tube system, completely separated
from the process. At the version SP30-H1.1-V
the included large pre-filter V20-2/30 is heat­ed up with the sample tube. The temperature
of the heated tube has to be adjusted in
relation to the process temperature and cor­responding to the max. admissable sampling
temperature.

Depending on the operating temperature
the sample tubes are equipped either with a
thermocouple (max. 320 °C) or a PT100 tem­perature sensor (max. 200 °C).

Technical specications and illustrations are without
obligation, subject to modications. 12.97/06.06

M&C TechGroup Germany GmbH • Rehhecke 79 • 40885 Ratingen • Germany
[e-mail] • www.mc-techgroup.com • Fon [phone] • Fax [phone]

2.15

210

120

Ø 130

20

∅ 160

14 40

M12

L1

Terminals

Ø 42,2

G3/4"

PG13,5

Temperature-Sensor

Power

Dimensions

Probe tube SP30-H1.1/H2, SP35-H1.1/H2

Probe tube with pre-filter SP30-H1.1-V

210

120

ø 130

ø 160

Terminals

PG13,5

Temperature
Sensor

Power

500

Temperature of pre filter in dependence of controller
temperature at 20°C ambient temperature.

Controller temperature

180°C
250°C
300°C

L1

M12

ø 64

Temperature of pre filter

135°C
182°C
220°C

Dimensions in mm

Technical Data

Series SP
Type

Temperature sensor Fe-CuNi PT100 2 Fe-CuNi PT100 2 Fe-CuNi

Temperature controller optional, external

Probe tube length L1 175 mm max. 2 m max. 1 m

Sample temperature max. 550 °C

Operating temperature max. 320 °C 200 °C 320 °C 200 °C 320 °C

Pre-filter length 520 mm, ø 60 mm,
filter porosity 2µm, integrated and heated

Sample gas inlet connection G3/4"i DIN ISO 228/1 pre-filter with G1 1/2"i

Dust loading max. 2 g/m

Probe tube volume 380 ml/m 420 ml

Sample pressure max. 5 bar g

Ambient temperature -20 °C to +80 °C

Storage temperature -30 °C to +90 °C

Ready for operation 2 h

Power supply 230V AC, (115V optional) 230/115V AC - switchable,

Heating capacity 200W 0,6m: 600W, 1m: 800W, 1,5m: 1200W, 2m: 1200W

Electrical connections terminals, max. 2,5 mm2, 2x PG13,5 cable gland

Electrical standard EN 61010, EN60519-1

Degree of protection IP54 EN 60529

Mounting flange DN65 PN6, Form B with 4 welded screws on both sides M 12x 40 mm

Material of parts in contact with the sample stainless steel SS316Ti, Version SP30-H1.1/HC: Hastelloy C 1.4539, SS316Ti/SS316

®

Version SP35- .... Version SP30- ....

H1.1 H2 H1.1 H2 H1.1-V

V20-2/30

DIN ISO 228/1

3

>2 g/m

3

40

14

Pressure difference and T90-time

∆P and T90 at flow: 100 200 500 1000 Nl/h

∆P Pressure loss SP30-H... length 1m < 1 < 1 < 1 < 1 mbar

∆P pressure loss SP30-H...-V

< 1 < 1 1,5 4 mbar

length 1m with new pre-filter V20-2/30

T90- time 14 7 < 3 < 2 sec

Part number and weight

Version SP35-... Version SP30- ... execution:

length „L1“ 175 mm 0,6 m 1,0 m 1,5 m 2,0 m

Part number 20S9320

20S9322

Weight 4,8 kg 6,4 kg 8,0 kg 9,8 kg 11,6 kg

Part number 02S9037 02S9038 H1.1-V

Weight 9,0 kg 10,6 kg

The corresponding temperature controller has to be ordered and mounted separatly. See leaet 2-5.1.

2.15

M&C TechGroup Germany GmbH • Rehhecke 79 • 40885 Ratingen • Germany
[e-mail] • www.mc-techgroup.com • Fon [phone] • Fax [phone]

+ 02S9036 Standard, switchable 115V AC

02S9023
02S9026
02S9023p

02S9025
02S9092
02S9025p

02S9026
02S9093
02S9026p

02S9024
02S9094
02S9024p

H1.1
H1.1/HC
H2

Technical specications and illustrations are without
obligation, subject to modications. 12.97/06.06
