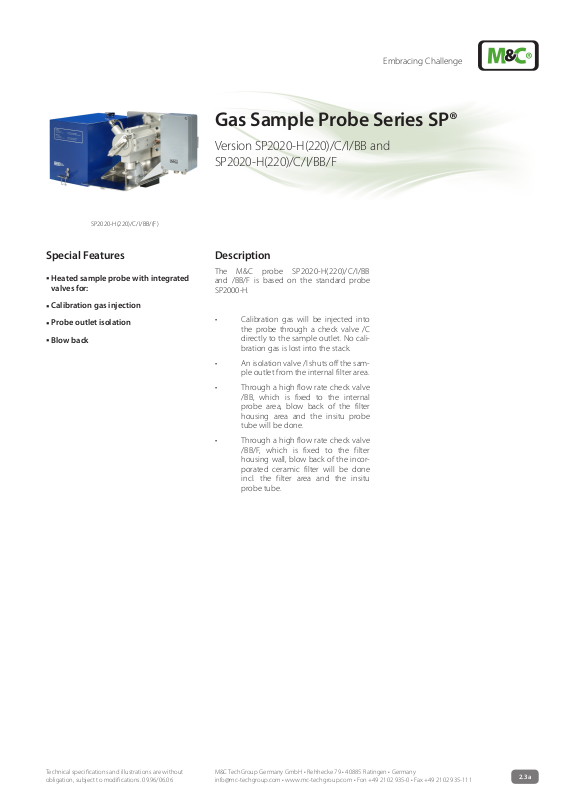

SP2020-H(220)/C/I/BB/(F)
Embracing Challenge
Gas Sample Probe Series SP®
Version SP2020-H(220)/C/I/BB and
SP2020-H(220)/C/I/BB/F
Special Features
Heated sample probe with integrated
valves for:
Calibration gas injection
Probe outlet isolation
Blow back
Description
The M&C probe SP2020-H(220)/C/I/BB
and /BB/F is based on the standard probe
SP2000-H.
• Calibration gas will be injected into
the probe through a check valve /C
directly to the sample outlet. No calibration gas is lost into the stack.
• An isolation valve /I shuts off the sample outlet from the internal filter area.
• Through a high flow rate check valve
/BB, which is fixed to the internal
probe area, blow back of the filter
housing area and the insitu probe
tube will be done.
• Through a high flow rate check valve
/BB/F, which is fixed to the filter
housing wall, blow back of the incorporated ceramic filter will be done
incl. the filter area and the insitu
probe tube.
Technical specications and illustrations are without
obligation, subject to modications. 09.96/06.06
M&C TechGroup Germany GmbH • Rehhecke 79 • 40885 Ratingen • Germany
info@mc-techgroup.com • www.mc-techgroup.com • Fon +49 2102 935-0 • Fax +49 2102 935-111
2.3a
1/4"NPT
1/8"NPT
(P 1-6bar)
(P 3-10bar)
(P >0,7bar)
1/4"NPT
1/8"NPT
(P 1-6bar)
(P 3-10bar)
(P >0,7bar)
Check valve
Tube 3/8" o.d.
Blow back in
Sample outCal.-gas in
Control in
Isolation valve
Check valve
Tube 3/8" o.d.
Control inBlow back in
Sample outCal.-gas in
Flange 3" 150lbs RF
Tube 1/4" o.d.
SP2020-H/C/I/BB/FSP2020-H/C/I/BB
Check valve
Flange 3" 150lbs RF
Tube 1/4" o.d.
Isolation valve
Technical Data
SP2020-H/C/I/BB SP2020-H/C/I/BB/F SP2020-H220/C/I/BB SP2020-H220/C/I/BB/F
Part Number 20S2020a 20S2025a 20S2021a 20S2030a
Operating temperature max. 180 °C max. 220°C
Power supply 115V 60Hz, 800W
Calibration gas valve /C Check valve, cracking pressure: >0,7 bar g connection: tube connector 1/4“ o.d.
Isolation valve /I Bellow valve with pneum, actuator, control pressure: 3-10 bar g connection: 1/8“NPT i
Blow back valves / BB
Blow back valves /BB/F
High flow rate check valve, cracking pressure: >0,7 bar g, recommended: 3-6 bar g
we recommend short pressure pushes to avoid decreasing of temperature in blow back area. connection: tube connector
3/8“ o.d.
Flange material: stainless steel 316Ti, dimensions: 3“ 150 Ibs
For further technical informations see standard probe SP2000-H.
Dimensions
Dimensions in mm
Following options are included: SP2020-H....
Flange 3“ 150 Ibs
Power 115V AC
Calibration gas connection tube connector 1/4“o.d.
Blow back gas connection tube connector 3/8“o.d.
Operating temperature max. 220 °C /H220
Calibration gas injection valve /C
Isolation valve /I
Valve for blow back of the filter housing area /BB
Valve for blow back of the incorporated ceramic filter /BB/F
2.3a
