McQuay AC 40A, AC 50A, AC 58A, AC 75B, AC100B Applications Manual

...

AM - MAC

Contents

Introduction .............................................................................................................. 1 - 3

1. Chiller Mounting ................................................................................................... 4 - 8

2. Water Pipe Circuit............................................................................................... 9 - 27

3. Water Pipe and Fittings ................................................................................... 28 - 66

4. Pipe and Fitting Size ....................................................................................... 67 - 72

5. Water Pump ..................................................................................................... 73 - 86

6. Water Storage Tank and Expansion Tank ..................................................... 87 - 93

7. Insulation Material ......................................................................................... 94 - 106

8. Pipe Support ......................................................................................................... 107

9. Water Side Treatment .................................................................................. 108 - 114

10. Heating Operation ...................................................................................... 115 - 120

11. Electrical Wiring Control ............................................................................ 121 - 140

12. Flow Switch................................................................................................. 141 - 145

13. System Balancing....................................................................................... 146 - 148

14. Chiller Shut Down....................................................................................... 149 - 150

Appendix (Appendix 1-19) ...............................................................................37 Pages

Copyright©2003 by McQuay International. All rights reserved. This publication is strictly confidential and is meant for DISTRIBUTORS of McQuay International only. No part of this publication may be reproduced or distributed in any form or by any means, or stored in a data base or retrieval system, without the prior written permission of McQuay International.

Introduction

The air-cooled mini chillers form part of a complete integrated water hydronic system with the chiller water fan coil units. The range of capacity from 30,000 Btu/hr to 150,000 Btu/hr (8.79 –

43.96 KW) makes them suitable for various applications:

- Office Rooms

- Private Houses

- Business Rooms

- Club, Pubs, Coffee Houses

- Hotels

- Restaurants

- Process Cooling

The advantages of using these chillers are:

1. Due to its compact design, the mini-chillers require a smaller space for installation. The design also allows for flexibility in design to meet various types of application requirements.

2. The amount of refrigerant used is small compared with other split and multi-split direct expansion systems, i.e. they are more environmental friendly.

3. There is no necessity to use cooling towers.

4. No refrigerant is used in the occupied space.

5. The usage of water as the cooling medium allows for excellent load variability with minimal system complexity as against equivalent VRV systems.

6. Ability to have long piping distances.

A water hydronic system can be classified as a close

or open system.

Definition

: A close water system is one with no more than one point of interface with a

compressible gas or surface. [ASHRAE handbook: 1996 System & Equip.]

The basic design of the mini-chiller is for a close system. However, a modification for an open system is possible.

The close hydronic system will consist of the following fundamental components:

a. Source

b. Load

c. Expansion Tank

d. Pump

e. Distribution System

Introduction Page 1

Schematic diagram of the basic close hydronic system:

Expansion tank

Heat Pump Heat

Distribution system

SOURCE LOAD

In the mini chiller, the source will comprise of the refrigeration circuit, i.e. compressor, expansion device, condenser and evaporator. A brazed plate heat exchanger (BPHE) is used as the evaporator to produce the chilled water.

A built-in water tank is also provided in the mini chiller to act as a buffer storage. See next page. For integration, both the expansion tank and pump are incorporated together into the mini chiller. Hence, the schematic diagram of the system becomes as follows:

Introduction Page 2

If both chilled water and hot water are required in the system, a mini chiller with a reverse cycle operation will be used. The unit will have an additional 4-way valve and accumulator for

this purpose.

It is by such integration of components of the hydronic system that the mini chiller becomes compact. Installation of the chiller will thus only involve:

1. The chiller mounting

2. Indoor fan coil unit installation

3. Water piping installation between the chiller and fan coil unit

4. Electrical wiring connection

This manual is written with the purpose of providing guidelines as to the installation and operation of the hydronic system; i.e. both the chiller and fan coil unit. Application design guidelines will also be discussed. Selection criteria of piping, valve, pump and other equipment are also given. Examples of such complete installations are as shown in the following pages. This manual will give some technical information and details on how such installations are designed and done at site.

In general, there are three series of mini chillers available: a) A series (from 30,000 Btu/hr [8.79 kW] to 50,000 Btu/hr [14.65 kW])

- double stack design, with built-in buffer tank

b) B series (from 75,000 Btu/hr [21.98 kW] to 125,000 Btu/hr [36.64 kW])

- double stack design, with built-in buffer tank

c) C series (from 80,000 Btu/hr [23.45 kW] to 150,000 Btu/hr [43.96 kW])

- monoblock design, without buffer tank

This manual must be used in conjunction with the Technical Manual and Installation and Operation Manual (IOM) of the mini chillers and chilled water fan coil units.

Introduction Page 3

Section 1: Chiller Mounting

Care must be taken to locate the air-cooled chiller at the proper place. Ensure sufficient clearance around the unit to allow proper air flow and to facilitate access for maintenance. Location of the units must also prevent short-circuiting of the discharge air. Do not block any air passage in and out of the units.

Please refer to the corresponding Technical Manual for further information.

The chiller unit must be placed on a firm surface, e.g. concrete flooring, slab or plinth. Due to space consideration, the chiller may be mounted onto a steel bracket which is secured to a firm surface, e.g. brick wall, concrete wall or a steel structure.

concrete flooring

Series B Chiller

Plinth

Wall

Steel bracket

Plinth

Section 1 Page 4

Such brackets must have sufficient strength to carry the weight of the chiller unit. It is recommended that angle bars (e.g. 38mm*38mm*3mm

) or hollow section bars (e.g. 25mm*

50m*2mm

) to be used for fabricating these brackets.

These brackets must also allow clearance for removal of service panels for maintenance purposes.

In any case, it is vital that the chiller unit is secured firmly onto the concrete floor/slab or steel bracket by using studs, wall plugs or bolts/nuts at the four (4) mounting holes located at the base plate of the chiller. The weight of the chiller unit and the water pipe connections are not sufficient to prevent unit movement should any sudden impact or strong vibrations occur in the unit. Failure to do so may cause the water pipes to deform and break.

It is further recommended that rubber isolation pads (1/2" thick) to be placed beneath each mounting hole to prevent excessive vibration and noise. If necessary, isolating springs can also be mounted.

The following pages are examples of these isolation pads and springs.

Section 1 Page 5

Special installation:

The A and B series mini chiller units have been designed with the refrigerant circuit located in the top compartment and the hydraulic kit in the bottom compartment:

A-series B-series

Hydraulic kit

Piping connection

Refrigerant

Water

B-series

-series

In some special installations whereby the available space (especially the height) is not sufficient to install the chiller, it is possible to to detach these two compartments and install them side by side. This is especially useful when there are multiple units which are stacked together with a steel bracket.

Bracket

Hydraulic kit

Water

pip

Refrigerant pipe connection

Hydraulic kit

Water pipes

Section 1 Page 6

For the A-series type of mini chiller, the inter-connecting pipes between the two compartments are the refrigerant pipes. For the B-series type, there is a water pipe in between the two compartments.

Therefore, the detached installation of the A-series mini chillers is very similar to the installation of a split type air-conditioning unit.

Note: Gas line to be insulated with

tube insulation. Use the correct size for each pipe, thickness

”

Refrig. Pipe size

Liquid Gas

AC 040A

3/8” ¾”

AC 050A

3/8” ¾”

AC 058A

½” ¾”

Take care of the following items [for detached A-series installations]:

Maximum pipe length,m

AC 040C

AC 050C

AC 058C

a) Do not allow excessive refrigerant pipe length between the two compartments. Always choose the shortest path.

Long piping will cause high pressure drops and reduces the capacity of the system. Use the following recommendations:

Maximum elevation, m

AC 040A

AC 050A

AC 058A

b) It is possible to have the hydraulic kit higher or lower than the refrigerant compartment. Do not allow excessive elevation between these two compartments. Use the following recommendations:

If the elevation exceeds the above recommendations, care must be taken to ensure sufficient oil return to the compressor. Use oil traps (one every 30ft height interval) or oil separators, if necessary.

c) The longer pipe lengths will require more refrigerant charge for optimum performance.

Recommendation: Additional 50g (R-22) for every 1 meter of connecting pipe length.

Similarly, additional refrigerant oil charge may be required.

Section 1 Page 7

d) Use as few bends as possible in the pipe run. Each bend will cause extra pressure drop and reduces the capacity of the system. Do not use more than 10 bends. For both A and B series chillers, locating the hydraulic kit at a far distance will also mean having a longer water pipe length. This will incur a higher pressure head to the water pump in the chiller unit. If not careful, this will reduce the water flow rate through the system and may cause system failure, e.g. water freezing, compressor tripping.

Furthermore, the longer pipe will increase the cost of installation. Always look for the closest possible locations for these two compartments.

External drain pan

In some instances, it is necessary to install an external drain pan beneath the unit to collect any condensate water from the chiller unit. This is especially so for the heat pump versions ,where water will condense on the heat exchanger coil during the heating mode. Further more, a lot of water will flow out during the defrost cycle.

Such external drain pans are needed when the chiller units are installed inside a plant

room where it is not appropriate for the floor to be wet. (Note A)

It is recommended that the drain pan to be fabricated out of galvanised iron (GI) sheet metal, at least 0.8 mm in thickness. Allow the drain pan depth of about 20mm.

This external drain pan should be laid out on the floor first before placing the entire chiller unit on top of it. It is recommended that the chiller unit to be raised up by 20 - 30mm from the drain pan so as to prevent rusting of the chiller base pan.

Note A: Caution! Please ensure adequate ventilation in the plant room else the

chiller unit may trip.

Section 1 Page 8

Section 2: Water Pipe Circuit

We have seen that the mini chiller has an integrated buffer storage tank, expansion tank and water pump together as one unit. Henceforth, we will represent the unit as such:

MINI CHILLER UNIT

In this section, we will look at the various piping circuits which we can use to connect the chiller unit with the load fan coil units.

There are many different piping circuit configurations which can be used, depending on:

a) the geometry of the building b) the available space for installation (e.g. the dimensions of the plant room) c) the economics of installation

d) loading capability requirements

The general rule of thumb in designing and determining the piping circuit network is:

KEEP IT SIMPLE!

The more extensive a pipe network is, the more complex it is and it becomes more difficult to analyse and control. In general, there are 4 types of this pipe configuration:

1. Series

2. Diverting

3. Parallel direct return

4. Parallel reverse return

Series Circuit:

Note: For C-series, the buffer tank is not applicable but the fundamentals of water piping circuitry is still the same

Water out

Water in

LOAD FCU 1

LOAD FCU 4

LOAD FCU 3

LOAD FCU 2

Section 2 Page 9

Advantages:

i. Lower piping cost

ii. High water temperature drops

Disadvantages:

i. Each fan coil loading cannot be controlled separately

Diverting Circuit:

LOAD FCU 3

LOAD

FCU 1

LOAD

FCU 2

LOAD FCU 4

Advantages:

i. Allows individual control to each fan coil unit

Disadvantages:

i. Only fan coil units with low pressure drops can be used

ii. Due to low water velocity in each fan coil, an air vent is required for

each fan coil iii. Higher installation cost iv. Water entering temperature for each fan coil is different, i.e. it gets

higher further away from the source

However, both the series and diverting circuits are seldom used in hydronic systems. The more commonly used are the parallel circuits because they allow the same water temperature to be available to all fan coil units.

It is recommended that the parallel circuits to be used in the installation of the mini chillers with the fan coil units.

Section 2 Page 10

Parallel Direct Return

Vertical installation

Fan coil unit

Horizontal installation

The basis for the design is "First In - First Out". In this system, the length of supply and return piping for each fan coil is unequal. This will affect the water flow rate through each individual load. Proper balancing is required to provide adequate water flow rate for each fan coil.

Nevertheless, the cost of installation is lower compared with the reverse return configuration due to the shorter pipe length needed. Therefore, this method is more economical for installation of fan coils with different pressure drops and balancing valves are used.

This method is also suitable for open system applications whereby the return from the fan coil loads are discharged into a external tank.

Section 2 Page 11

Parallel Reverse Return

Horizontal Installation

Fan coil unit

ertical Installation

The basis for the design is "First In - Last Out".

In this installation, the supply and return water pipes or of nearly equal lengths. Thus, it seldom requires balancing of water flow rate for individual fan coil unit. If required, this balancing will be easier.

This method is recommended if all the fan coil units have the same or nearly the same pressure drops.

Another advantage of this reverse return system is a reduction of the working pressure drop across any balancing valves used for the fan coil units.

However, such a system is not recommended for high-rise buildings because of the vertical weight of the extra piping required. In such instances, it may be more practical to use direct return systems.

The extra piping also does not give any advantage in open system applications because the same atmospheric conditions exist at all open points of the system.

Section 2 Page 12

Parallel Reverse Return Header, Direct Supply Rise

This is a variation of both the direct and reverse return systems, whereby it is not feasible to

have a full reverse return piping. Instead, only the return header is in reverse, whereas the supply to the individual fan coils are in direct configuration.

direct supply

reverse return

This method will have the advantage of lower installation cost with some benefits of a better water balanced system.

Balancing valves are required for each fan coil unit for proper flow balancing.

Section 2 Page 13

Close System vs. Open System

The mini chiller has been designed with an application for a close water piping system. However, it is still possible to use the unit with an open system by means of an additional buffer tank.

In such a system, the chiller will discharge the chilled water into the tank while a secondary external pump will then pump the water to the fan coil units.

It is recommended that the tank to have a baffle plate in between to isolate the two return water from the chiller and fan coil load. This will prevent the hotter return water temperature from the load mixing with the cold chilled water from the chiller.

Such a method is suitable for:

- multiple chillers operation

- multiple secondary pumps supplying chilled water to several zones

The water volume in the tank can also be sized to act as a storage to provide cold water to the fan coil units. By doing so, the chiller may be cycled-off for longer periods of time, hence saving energy costs.

However, since this is an open system, there is a higher chance of air entering the water. Care must also be taken to ensure there are no leakages along the pump suction line else air will enter the system. The air will be drawn into the buffer tank and accumulate there. This may affect the water flow rate and trip the chiller unit. Always ensure the automatic air vent on the buffer tank is operating properly to release any trapped air.

Supply to load

Return from load

Tank

Chiller Secondary pump

Check if this air vent is OK or not!!

Buffer tank

*** See Page 25 for more information

Section 2 Page 14

Primary - Secondary Pump System

There may be instances when the integrated pump in the mini chiller is not able to deliver the required head pressure to the load in a close piping system.

To overcome this problem:

1. Change the water pump with a higher head pressure capability.

Please consult with the factory as to the requirements. Calculate the required head pressure and select suitable replacement pump.

2. Install a booster pump.

It is recommended that this booster pump to be installed as a primary - secondary system; as follows:

Primary pump in chiller unit

Secondary booster pump

Bypass loop

Load

More than one secondary pumps can be installed together, e.g to serve several zones.

There are two drawbacks to this system:

a) Cost - additional two or more pumps are required

b) The bypass chilled water is sent back to the chiller unused

Keep the bypass loop as short and large as practical possible. Do not put any valve in this loop. This is to minimise the pressure loss between the entry and exit points of the loop. However, this length must be sufficient to prevent recirculation turbulence.

Section 2 Page 15

The temperature of water entering the load will depend very much on the sizing of the secondary pump.

1. If the capacity of primary pump = secondary pump, there will be no flow in the bypass loop. Hence, the water temperature entering the load will be equal to the water temperature leaving the chiller.

2. If the capacity of primary pump > secondary pump, there will be a nett flow down the loop and returned to the chiller unused. Therefore, tee A becomes a diverging tee and tee B becomes a mixing tee. The water temperature entering the load will also be equal to the water temperature leaving the chiller. However, the water temperature entering the chiller will be colder due to mixing of the unused chilled water at tee B.

3. If the capacity of primary pump < secondary pump, there will be a nett flow up the loop from B to A. Thus, tee A becomes a mixing tee and tee B becomes a diverging tee. Then, the water temperature entering the load will be in between the water temperature leaving the chiller and the water temperature entering the chiller.

There may be installations using pumps in series to boost the head pressure.

But this is not recommended due to a high chance of wrong pump sizing which can

cause damage to the pumps themselves.

Primary pump

Secondary pump in series

Load

For this to work properly, both the primary and secondary pumps must be of the same capacity. Else, the greater capacity pump will overflow the lesser pump and cause:

a. Cavitation problems to the lesser pump.

b. Excessive pressure drops across the pump itself.

c. The extra head pressure build-up may cause damage to some of the components in the chiller itself.

Section 2 Page 16

Multiple Chiller Installation

In most cases, one single chiller will not be sufficient to provide the cooling load of a system. Several chillers must be combined together to give the required loading.

Generally, these chillers will be installed together in parallel. There are several ways to do this:

1) Common Supply and Return Headers

Check valve

CHILLER 3

CHILLER 2

CHILLER 1

Chiller water return

Chilled water supply

Supply header

etu

rn h

eade

This method is most preferred and commonly used because of the lower cost and ease of installation.

Each chiller is normally set at different return water temperature to facilitate load staging. As the temperature becomes colder, the chillers will switch off one by one.

Generally, the header pipe size is larger than the supply and return pipes, e.g. one or two size larger. This is to have a low pressure drop along the header. Check valves are usually located along each chiller supply pipe to prevent back flush of water once the chiller is switched off. Such back flow may damage the water pump.

However, this method has several drawbacks:

a) Proper balancing of the water flow rate through each chiller is crucial.

b) If any one chiller is off, the water flow to the load will be affected. So much so

that during low load conditions, when the return water temperature is cold, and all the chillers have cycled off, no water will be pumped to the load. To overcome this problem, it is necessary to wire the chiller controls for continuous pump running as long as one fan coil unit is in operation. See Section 11.

Section 2 Page 17

c) Since all the water is pumped into one supply line, there is less flexibility in zoning

the water distribution. The pump head may not be sufficient to deliver water to zones of high pressure losses, e.g. at the furthest end of the pipe system.

Because of the importance of water flow balancing among all the parallel chillers, the design of the header is very important. Place the common pipe near the center of the header pipe. This will help to balance the water distribution between the left and right sides of the header.

If the common pipe is at one end of the header, water from the branches at the other end of the header will find more difficulty to flow into the common pipe.

Balancing valves must be installed at each supply branch to ensure adequate water flow rate through each chiller unit.

2) Primary-Secondary System

header

Water will experience a higher Resistance to flow to common pipe From the furthest branches.

Secondary pumps

To load

Return from load

Bypass loop

CHILLER 1

CHILLER 2

CHILLER 3

Section 2 Page 18

In this method, the load side of the system is isolated from the chiller side. Chillers of different capacities can be installed together without much balancing problems and effect on the supply flow rate to the loading. It just requires individual balancing of the flow rate through each chiller by using the balancing valves. Check valves and balancing valves are recommended to be installed for each chiller supply pipe.

The secondary pump alone will handle the flow and pressure requirements of the loads.

Because of this secondary pump, the sequencing of the chillers will not affect the water supply to the load when any of the primary pumps switches off. Several secondary pumps can also be installed to the bypass loop to serve several zones. This creates flexibility of installation.

The only drawback to this method is cost. The piping network is more extensive and additional water pumps are required.

It is important that the bypass loop is located correctly. The following two are questionable variations to the above method:

By pass loop

By pass

[A]

[B]

Secondary pump

To load

Return from load

Section 2 Page 19

For both method [A] and [B], the return water temperature for the multiple chillers will not be the same due to mixing. This will cause inefficiencies and energy wastages to the chiller operation.

3) Common Tank System

This method is for an open system.

CHILLERS

to load

Tank

return from load

As seen from the diagram, each chiller and secondary pump forms its own individual pipe circuit. There is no cross flow among each of them. This has been achieved with the common tank which acts as a buffer storage tank.

Therefore, there is no need of check valves. Normal globe valves will suffice to ensure proper water flow through each chiller.

Usually, the tank is at a higher elevated position, to allow gravity feed of water to the chillers and pumps.

This method is most expansive to install due to the additional piping and tank required for the system.

Please refer to Page 14 for cautions during installation and operation.

Section 2 Page 20

4) In some instances, variation to method (1) have been used whereby common headers are NOT installed to the multiple chillers. Instead, the chillers are connected together with one supply and return pipe only.

This method is still possible but there will be higher pressure drops along the common pipe lines. It is recommended that a larger pipe size to be used along this common line to reduce the friction losses.

Water flow rate tends to be faster at the tee nearest to the main supply lines due to lower friction. Therefore, proper balancing to ensure sufficient distribution to each chiller is vital.

A First In - Last Out arrangement between the supply and return lines may be useful to reduce the problem of distribution.

5) Another variation to the primary-secondary system mentioned in (2) above, is to use an auxillary tank to replace the by-pass loop. By using this tank, we can ensure a minimal pressure drop between the entry tee and exit tee of the secondary circuit.

This is not a common header pipe

To load

Return from load

To load

Return from load

uxiliary tank

Section 2 Page 21

Multiple Chiller, Single Fan Coil Load With Multiple Circuits

There are instances where several chillers are used to supply the chilled water to a large single fan coil unit. Each chiller will serve one of the multiple circuits of the heat exchanger coil in the fan coil unit.

There are two ways to install the pipe circuits for this system:

a) Individual Circuiting

b) Common Header

CIRCUIT 1

CIRCUIT 2

CIRCUIT 3

CHILLER 1

CHILLER 2

CHILLER 3

CIRCUIT 1

CIRCUIT 2

Section 2 Page 22

The first method has more extensive pipe works. But the water side flow control is easier and there is less pressure drop. Globe valves may be needed to ensure sufficient flow rate. Check valves are not required.

Due to the header pipes in the second method, check valves are needed for each chiller. Globe valves or balancing valves are also needed for each chiller for water balancing. All the pumps will operate in parallel and a higher water pressure drop is expected. Furthermore, balancing valves are also required in each circuit of the fan coil unit for proper balancing of the entire coil.

Nevertheless, if any one of the chiller is OFF, the second method will always allow an even water distribution to the whole heat exchanger in the fan coil unit. In the first method, hot air will by-pass through the portion of the coil which the chiller is OFF.

Section 2 Page 23

Make Up Water Supply

The make up water supply is used to refill water back into the hydronic system in the event of:

a) Leakage in the system b) Maintenance service

The supply is usually from the main domestic pipe and it is usually connected to the water return pipe of the pump; due to the lower pressure which will assist in "sucking" in the water. However, should the pressure in the main supply pipe is lower than the pressure in the return pipe, water will not enter the system. Rather, switch off the pump and allow the mains pressure to fill the system.

In view of this, it is necessary to install a check valve along the make up supply pipe to prevent back flow out of the system.

Other equipment which can be installed (optional) along the make up supply pipe:

a) Pressure gauge b) Safety relief valve - to prevent over filling [see Section 10] c) Pressure regulating valve

d) Filter element [see Section 9] e) Water meter

Domestic water supply

Pressure gauge

Check valve

CHILLER

Return

Section 2 Page 24

Loop Piping Installation

One of the main advantages of using mini chillers is the ability to have long water piping installations. However, it is important to check that the water pump head pressure capability is adequate to pump the water through the pipe network. The longer the pipe length is, the higher is the pressure drop. If the pump head is insufficient, it may be necessary to change the water pump itself. See Section 5.

With such installations, it is also important to check the condition of the automatic air vent valve. A high pressure drop along such pipe network may result in the return water to have a negative pressure (i.e. suction vacuum pressure in the buffer tank). Due to the mechanism of the air vent, air will be drawn into the buffer tank itself! This in turn will cause the pump to be air-locked. A symptom of such condition is that air will always be purged out of the tank when we manually open the air vent.

The solution to this problem is to remove the automatic air vent and plug up the hole. Make sure that all the air trapped are purged out of the system before plugging it. This can be done by continuously filling up the system with water until no air bubbles comes out of the hole.

Section2 Page 25

Water Pipe Connections

All mini chiller units comes with ∅1-1/4” pipe connections.

1] A-Series The pipe connections are on the right-hand side of the unit (when facing the fan blade).

2] B-Series The pipe connections are on the same side as the control box compartment

Water inlet

Water outlet

Water inlet

Water outlet

Section 2 Page 26

3] C-Series

The pipes can be connected either from the left or right side of the unit (with respect to the compartment doors).

Water inlet

Water outlet

Section 2 Page 27

Section 3: Water Pipe and Fittings

There are several types of pipe we can use for the water piping:

1. Black carbon steel pipe

2. Copper pipe

3. PVC pipe

Do not use galvanised iron (GI) steel pipe! This is because the zinc coating on the GI pipe will have an electrolytic reaction with the copper components of the system, e.g. the brazed plate heat exchanger and fan coil unit heat exchanger.

The zinc will be the sacrificial metal and deposit itself on the copper surfaces.

a) The pipe wall thickness will slowly eat away and cause leakages b) The zinc deposit on the copper surfaces will retard heat transfer process. It may also reduce the gap between plates in the BPHE and slows the water flow rate.

The mini chiller water piping connections is for a pipe size of 1-1/4". For a single run installation, the recommended maximum pipe length is 150 meters, but this will depend very much on the method of installation and the fittings used. The more complex the piping network is and the more fittings there are, the higher will be the friction losses. This will limit the piping length available.

Always calculate the friction losses in the system and compare this with the capability of the water pump in the chiller unit. See Section 4

1. Black Steel Pipes

The black steel pipes are the most commonly used in chiller installations. It is relatively cheap and by far the strongest among the 3 types mentioned above. However, these pipes are heavier and requires more extensive work to join and install.

The common pipe sizes are determined from the ASME (American Society of Mechanical Engineers) standard B36.1 OM which specifies the pipe dimensions. See Appendix 1.

Generally, steel pipes are sold in lengths of 6 meters each. The dimensions of importance which we need to know is the nominal pipe size (NIPS) and schedule number (wall thickness). For pipes 14" (350mm) and larger, the nominal diameter is the same as the actual outside diameter.

For pipes between 3" (80mm) to 12" (300mm), the nominal diameter is close to the actual inside diameter.

However, for pipes smaller than that, the nominal value does not correspond to any actual dimension. Steel pipes are manufactured with different wall thickness. The ASME standard has defined schedule numbers to identify these specifications. A pipe with a nominal pipe size may have several schedule numbers. See also Appendix 1

Section 3 Page 28

Therefore, pipes may have the same nominal diameters (outside diameters) but with different inside diameters because of the different schedule numbers. The usual schedule numbers are 10, 20, 30, 40, 60, 80, 100, 120, 140 and 160 with the thickness increasing with the numbers.

These numbers are further classified as Standard (ST), Extra Strong (XS) and Double Extra Strong (XXS) whereby applications requiring higher pressures will need pipes with thicker walls.

However, in the HVAC industry and for our mini chiller installation, a standard schedule 40 pipe

will suffice.

The steel pipes may be joined by several methods:

1. Arc welding

2. Thread (usually up to 50mm) with PTFE Teflon white tape

3. Flange with gaskets

2. Copper Pipes

Copper pipes are chosen for water piping because of their resistance to corrosion and ease of installation. The pipes are light and ductile. However, the cost of these pipes are higher compared with steel pipes (generally by 3 5 times).

The sizes of these copper pipes are defined by the ASTM (American Society for Testing and Materials) standard B88 for water and drain services. See Appendix 2. There is also another ASTM standard B280 which specifies the sizes of pipes used for refrigeration services with different wall thickness. This standard uses the outside diameter as the nominal size.

These pipes are also generally sold in lengths of 6 meters.

Generally, the B88 standard defines 4 types of copper tubes: Type K, L, M and DMV with descending wall thickness. The most commonly used types are type L and M which have higher internal working pressures. These may be of hard drawn or soft annealed temper.

The copper pipes may be joined by:

1. Brazing

2. Soldering

3. Flare joint / compression joint fittings

Section: 3 Page 29

3. PVC Pipes

The plastic PVC (polyvinyl chloride) pipes are light, generally inexpensive and corrosion resistant. The pipes also have a very low friction factor (i.e. with smooth surface) which results in lower pumping power and smaller pipe sizes. However, these pipes are not suitable for high temperature applications as they losses strength rapidly at temperatures above ambient. The pipes also have high coefficient of expansion, i.e. at high temperatures any pipe joint made may become loose and leaks. Because of the weaker strength of the material, such pipes must be installed with shorter support spans.

As a result of the above mentioned disadvantages, it is not recommended for PVC pipes to be used for external applications, especially under direct exposure to sunshine. They may be suitable for piping water indoors, e.g. under ceiling spaces, attics, plant rooms, etc.

The PVC material is classified as a thermoplastic. Generally, there are two types:

1. U-PVC (unplasticized PVC): for general usage up to 60°C

2. C-PVC (chlorinated PVC): for higher temperature applications.

The PVC pipes and fittings used inside the mini chiller unit (factory assembled) are of DIN 8061/8062 standard. Therefore, use back pipes and fittings with the same standard when running pipes from the chiller to the fan coil units. It is recommended that pipes with pressure rating of PN16 (16 bar working pressure) to be used. See Appendix 3.

Do not use PVC pipes manufactured to other standard specifications, e.g. BS 3505/3506 as the fittings will not match with those used in the chiller. The pipe wall thicknesses are also different.

The usual method of joining the pipes and fittings is with solvent cementing/welding. Some fittings also have threads for joining purposes (with PTFE white tape).

It is recommended that 'IPS Weld-on PVC 717' solvent cement to be used. It is gray in colour and used for heavy-body applications.

The following are some guidelines to ensure that the solvent cement joint is done properly:

a. Cut the pipe square and deburr. Clean and dry surfaces before coating the cement. b. Apply a full, even layer of cement equal to the depth of the socket. Avoid excess and puddling. c. Assemble while the cement is wet. If not wet, recoat parts. d. Ensure pipe fits snugly into socket. Give a twist of 1/8 to 1/4 turn. e. Hold for 30 seconds to prevent push out and allow for initial set. Wipe off excess. f. Allow curing time at least 5 minutes, up to 30 minutes. Longer curing time is better for higher pressure/temperature applications.

Section: 3 Page 30

Typical Pipe Fittings

The following are typical pipe fittings used for installing the mini chillers. Note that the pipe fitting size of the chiller itself is 1-1/4".

a) Steel Pipe

Because of the pipe fitting size, it is recommended that the connecting pipes and fittings to be joined with thread. However, where necessary, fittings for weld joining may also be used.

The following standards are applicable for these fittings:

ASME B16.9, ASME B16.11, ASME B16.28 and ASME B1.20.1

Internal thread

Tee joint

Internal thread

90º elbow

Internal

Page 31 Section 3

thread

Reducer

45º elbow are also available but not commonly used, unless necessary

A tee joint can either be a flow mixing or flow diverging point, depending on the design of the pipe work.

Some reduces/ fittings do not have these ribs: used for better

gripping when tightening with

pipe wrench.

Section: 3 Page 32

with reducing ends

Nipples are usually used for joining different types of fittings, e.g. an elbow with a reducer.

External thread

connector

Used for joining two lengths of pipes together

Internal thread

Union/ coupling

Used for joining two lengths of pipes together

Made up of two halves, each screwed into a pipe end. Both are then joined with a locking nut in between

flange

connector flange

holes for bolt and nut

nipple

gasket to be placed on the mating surfaces of both flanges

This method is not recommended for the small pipe size used for the mini chiller.

** The fittings for weld joining are very similar to those mentioned above, i.e. they do not come with the thread portion. They may be butt-welded or socket-welded.

BUTT

SOCKET

Section: 3 Page 33

b) Copper Pipe

The most commonly used method of joining copper pipes is brazing with an oxy-acetylene flame and copper filler rods. For this purpose, one end of the pipe is expanded by using an expander tooling, and the end of the other pipe is inserted into the expanded end. The joint is then brazed together. [see Appendix 4 for expansion dimensions] Similarly, fittings are available for such brazing joints:

90º elbow

expanded end

reduce

Usually, the pipe outer diameter will insert into the reducer inside diameter

tee

oint

expanded end

some may come with reducer end

Section: 3 Page 34

connectors

expanded end

Sometimes, copper connectors are used instead of expanding the copper ends. This is especially with larger pipes where expanding becomes more difficult because of the thicker wall thickness.

Also, an alternative to using elbows is to just bend the pipes with a pipe bender to suit the installation requirement. Various bending angles can be achieved with this method. However, the larger the pipe size, the more difficult this will become.

expanded end

Pipe bend

CAUTION! Do not bend the pipes with hands. This will cause the pipe to collapse at the bending portion. Use the suitable pipe bending tool. Manual hand benders allows a maximum size of 3/4". Pipes up to 1-3/8" can still be bended by using bending machine.

NOTE:

During brazing of copper-to-copper pipes, copper filler rods of 0% silver may be used. It is a good practice to pass nitrogen gas inside the copper pipes while

brazing to prevent oxidation.

Section: 3 Page 35

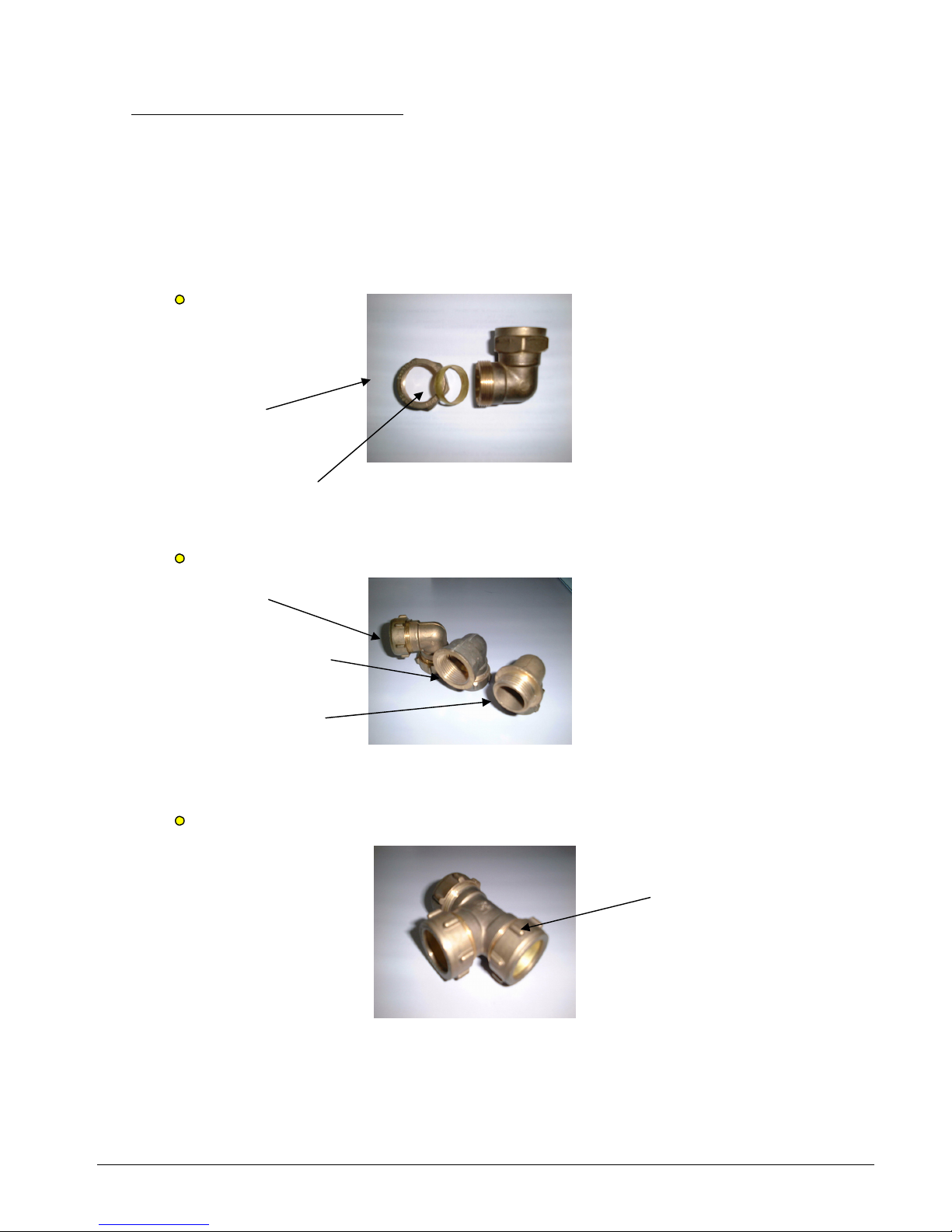

Copper Pipe: Compression Fittings

For some installations, the piping are connected using compression fittings. These fittings enable easy installation and dismantling. However, the cost for these fittings are higher. They are also not as strong as brazing joints. Chances of leakage are higher.

Generally, the fittings have mounting rings which are slipped onto the copper pipes. The ring is then pushed against the fitting internal surface and a locking nut is used to hold the assembly together.

90° elbow

ocking nut

mounting ring

° elbow with threaded ends

normal elbow

female thread with steel pipe fittings,

male thread

Such elbows are for special applications. For example, connection with steel pipe fittings, connection with a water tank.

tee joint

ribs for gripping with a wrench

Section: 3 Page 36

connector

female thread

Used for connecting two pipes together. Some have threaded ends for connection with other fittings.

union

locking nut The two halves opened up

threaded end

Similar to the steel type. Used for connecting two pipe together with flexibility of easy connection and dismantling. Some have threaded ends, others with compression fitting ends. In some installations, the copper pipes are brazed (with silver flux) onto each half of the union and then connected together with the locking nut.

NOTE: Brazing of copper to brass requires filler rods with 34% silver.

Section: 3 Page 37

c) PVC Pipe

It is recommended that the PVC pipe fittings used to be in accordance to the DIN 8062 standards. These fittings have thicker walls and able to withstand higher pressures and temperatures. Generally, these fittings are the cheapest and easiest to install.

90° elbow

With the threaded end, some elbows it is also possible to have threaded connect with a steel pipe ends or steel fitting.

tee joints

connector

Used to connect two PVC Pipes together with solvent cement

Section: 3 Page 38

adaptor/sockets

The sockets may have male or female threaded ends. Such sockets are useful to adapt connection with a steel pipe or tank.

union

locking nut the two halves of the union

Similar to the steel and copper versions, these unions enable easy connection and dismantling of two PVC pipe ends. The PVC pipes are joined to the two halves by using solvent cement and then they are assembled together with the locking nut.

reducer

Section: 3 Page 39

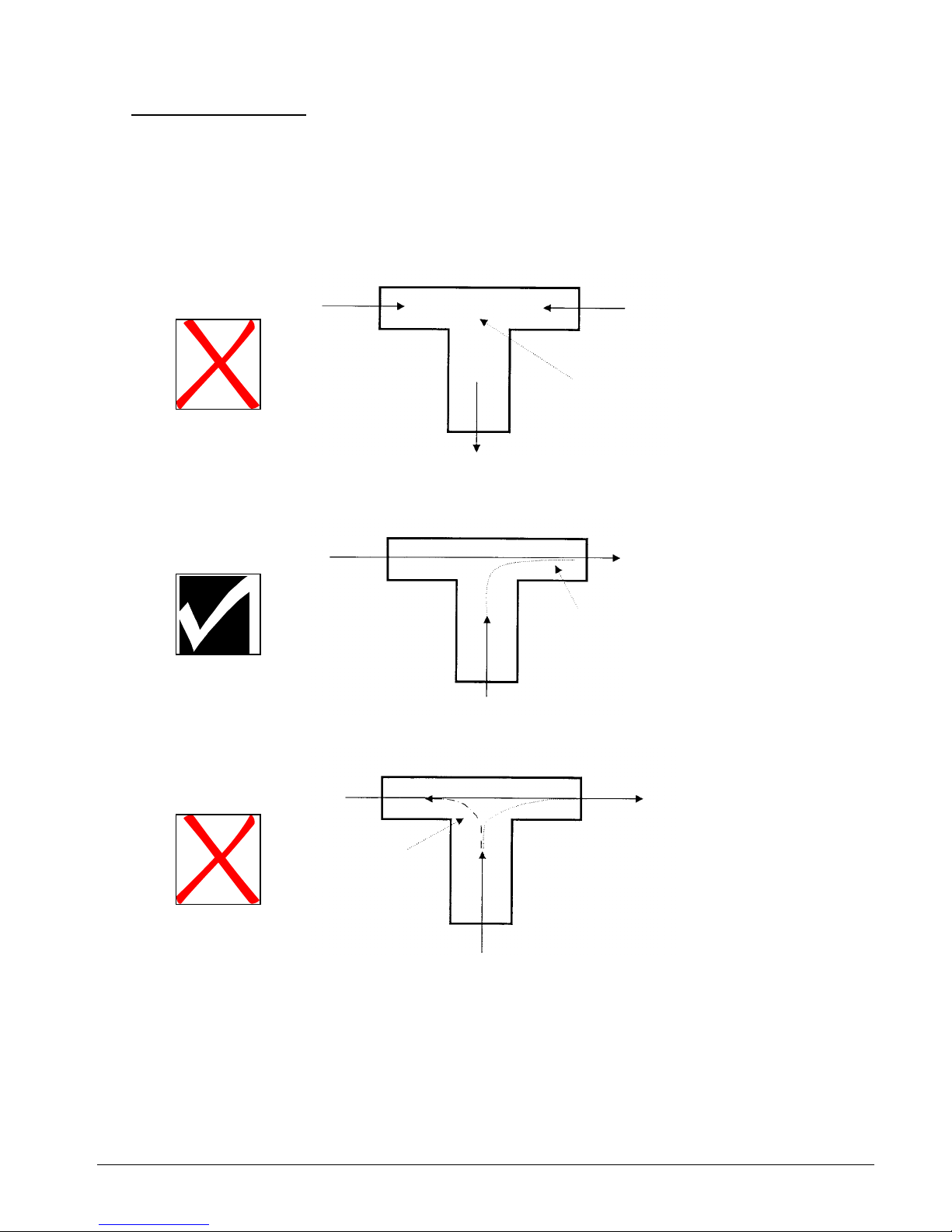

Tee Joint Installation

Care must be taken during installation of tee joints. Two cases are mentioned here to demonstrate the importance of understanding the design of the water flow system.

a. Avoid "bullheading"

Do not connect piping to the tee connection with opposing flow directions.

turbulence occurs here and causes high friction losses

. Encourage eduction out of a bypass tee branch.

return wate

the higher velocity of flow in the run of the ‘pulls’ water our of the tee branch

bypass branch

Do not allow the higher return water velocity to ‘ram’ into the tee joint. This may cause a backflow into the bypass branch.

backflow of water

return water

Section: 3 Page 40

Valves

In Section 2, we have look at several piping network configurations. The diagrams shown in that section have been simplified. In actual situation, the piping will have most of the pipe fittings described earlier in this Section 3. In addition, valves are also installed along the piping lines.

Valves are used for the following purposes: a. To isolate a component of the hydronic system from the rest of the system; thereby enabling easy maintenance and repair of that component. b. To regulate the water flow rate through the system. c. To divert or mix flow directions, optimizing the water temperature in the system. d. To relieve or regulate pressure. e. To prevent backflow.

Valves are constructed to withstand a specific range of temperature, pressure, corrosion and mechanical stress. Careful selection of the correct valve for a particular application is important to give the best service with consideration of economic requirements.

The following diagram gives the general anatomy of a valve:

Section 3 Page 41

Generally, valves can be categorised as manual or automatic valves.

Manual Valves

The following are the types of manual valves commonly used in hydronic systems:

1. Globe Valve

Flow is controlled by a circular disc forced against or withdrawn from an annular ring, or seat, that surrounds an opening through which flow occurs. The movement of the disc is parallel to the flow direction.

- used for pipe diameters up to 300mm

- used for throttling duty where positive shutoff is required

2. Gate Valve

Flow is controlled by means of a wedge disc fitting against seating faces.

Gate movement is pependicular to the flow direction.

- has straight-through openings as large as the full bore of the pipe.

- this type of valves are intended to be fully open or fully closed

- should not be used to regulate or control flow

- useful for isolation/shut-off purposes.

Section 3 Page 42

3. Ball Valve

This valve has a precision ball seated between two circular seals or seats.

A 90° turn of the handle will change the operation from fully open to fully closed.

- may be used for throttling duty

- generally used with smaller pipe diameters (up to 75mm)

4. Butterfly Valve

This valve has a cylindrical body with an internal rotatable disc serving as the fluid flow regulating device. This disc's axis of rotation is the valve stem and it is pependicular to the flow direction. A 90° turn will change the operation from fully open to fully closed.

- has low pressure drops

- fast operation of valve

- may be used for throttling duty

Section 3 Page 43

5. Balancing Valve

This type of valve provide throttling duty to regulate water flow rate for balancing purposes. Two ports are provided in the inlet and outlet ports of the valve to permit measurement of pressure drop across the valve. By using performance charts provided, the value of flow rate through the valve can be determined. The valve handwheel will have a setting scale to determine the amount of valve opening. This is useful during field commissioning and balancing.

Generally, the internal construction is similar to a globe valve. It is more costly than the conventional throttling valves and it is only used in systems where proper and accurate balancing is required.

Normally, connected via tubing to a hand-held meter readout

pressure tapping

Setting handwhell

Section 3 Page 44

Automatic Valves

This type of valves operate in conjunction with an automatic controller or device to control the fluid flow. These controllers are also called as actuators. There are several types of actuators commonly used:

a. Solenoid b. Electric motor c. Pneumatic

Such actuators will have gears, rack-and-pinion, cams and linkages to convert movement and allow opening and closing of the valve stem.

a. Solenoid Valve

This type of valve only allows either a totally open or close position. It has a magnetic coil which will lifts or drops a plunger in the valve to open and close the flow of water. This occurs when the coil is either energized or de-energized. Such valves are generally used for pipe sizes up to 50mm only. They are suitable for small fan coil units which require water shut-off when the fan coil is switched off.

solenoid coil

b. Electric Motorised Valve

The actuator has a built-in motor to produce a rotary motion. By using gears, cams or linkages, the valve stem will be opened or closed. Usually, the motor runs on DC power supply (24V). Generally, the actuator has positioning controls whereby the valve can stroke to any position between fully close to fully open. This is accomplished with a control signal from an external feedback controller. With this feature, it is possible to vary the water flow rate to suit any demand load

of an application.

Nevertheless, the cost of such valves is high.

Section 3 Page 45

motor drive

valve (encased in insulation)

position indicator

c. Pneumatic Valve

This type of valve has a flexible diaphragm clamped between an upper and lower housing. The valve stem is attached to the diaphragm. By injecting air pressure into the upper housing, the diaphragm will push the valve stem. An opposing spring force on the valve stem will also resist this movement. Therefore, by varying this air pressure, valve positioning can be achieved. For this to work, an external pneumatic converter/positioner must be used to regulate the air pressure. A thermostat may be used together for such a purpose. This cost for this type of valves is also high.

upper housing

diaphragm

lower housing

spring

valve body

air pressure inlet

Section 3 Page 46

Two Way and Three Way Valves

Automatic control valves used in hydronic systems may be classified as either two-way or three-way. All three types of actuators mentioned above may be used for these two types of valves.

In the two-way valve, water flows into the inlet port and exits from the outlet port. By means of the actuator, the flow rate may vary from full flow to zero. There are two types available: single-seated

and double-seated. For most applications, the single-seated type will suffice. In this type, there is only one valve seat and one plug-disc to clsoe against the flow. However, for applications with higher operating pressures, the double-seated types may be used.

attachment to actuator

Water In

Water Out

In the three-way valve, three ports are available. Depending on the application, these can be configured as a mixing

or diverting valve.

1. Mixing Valve attachment to

- two streams of water blends into a single stream

actuator

A A+B

2. Diverting Valve

-splits one stream into two different streams

A+B B 3 A

Section 3 Page 47

Capacity Control With 2-Way and 3-Way Valves

supply return supply ret

urn

The load of the fan coil unit can be calculated from the equation: Q = 4180 * (water flow rate, L/s) * (water temperature differential.°C) Watt

th the 2- ay and 3- ay

alve will vary t

∆t".

LOAD LOAD

LOAD

diverting

mixing

Therefore, the load is propotional to the water flow rate and ∆t. Bo w w v he flow rate to accomodate changes in the load demand.

With the 2-way valve, the system is considered as "variable flow, constant ∆t". With the 3-way valve, the system is considered as "constant flow, variable

It is recommended that the 3-way valve to be configured as a diverting valve

instead of a mixing valve. This is because when the fan coil unit is OFF, cold water will not enter into the heat exchanger with the valve diverting the water away to the return line. Unlike the mixing valve, even though the valve may be closed, cold water can still enter into the heat exchanger and ccumulate there. As a result, sweating

on the heat exchanger and the connecting joints will occur even

the fan coil unit is not running.

However, on the o

when

ch valves, choosing instead the mixing configuration.

ther hand, 3-way diverting valves cost more than mixing valves. This is why

some designs do not call for su

Section 3 Page 48

Application:

Both the two-way and three-way valves are suitable for shut-off and flow regulation purposes. The cost of the two-way valves are cheaper compared with the three-way valves. Thus, there is a tendency to use the two-way valves during installations.

A typical two-way valve installation:

The problem with the above installation occurs when both the fan coil units are switched off.

he controls of the fan coil unit will also at the same time switch off the solenoid valves, i.e.

FAN COIL UNIT 1

FAN COIL UNIT 2

Mini Chiller

2-way solenoid

T there will not be any water flow through the system when the fan coils are not in use. However, the chiller pump is still running. Therefore, the water pressure built-up in the piping may cause damage to the water pump or to the valves themselves (valve stem lifting).

Usage of 2-way valves will require additional design considerations:

a. Add a Bypass Line to Relief Pressure

LOAD

∆

LOAD

Different pressure transmitter to monitor the amount of water used. If pressure goes higher than preset value, it will open the relief bypass the water

valve and

Section 3 Page 49

b. Use a Variable Speed Drive for the Secondary Water Pump.

LOAD

∆

INV

primary loop

When the differential pressure becomes higher, the inverter will slows down the water pump to maintain the head pressure. If no demand, the water pump will stop running.

c. Modify the Control Wiring for Chiller and Fan Coil Unit.

The above two methods will incur high cost due to the extra piping, pressure transmitter and other necessary fittings/equipment.

An easier method is to change the control wiring of the system. Conventionally, when the fan coil unit thermostat cuts-off, the power supply to the control 2-way valve will be off.

It is possible to run a line from the thermostat to the chiller remote switch whereby when the thermostat cuts-off, the chiller unit (and the pump) will also switch off. See Section 11 on 'Electrical Wiring Control' for more details.

However, the disadvantage with this method is that the chiller cycle on-off more frequently and the water supply temperature will fluctuate up and down.

d. In view of the difficulties mentioned above, it is recommended that 3-way diverting valves to be used in the mini chiller hydronic system.

Since the 3-way valve gives a constant flow system, there will not be any problem when there is no load demand since the water will bypass through the valve when it is in the fully closed position (with respect to the load).

Section 3 Page 50

LOAD

However, this system has one main disadvantage. Since the supply water is by-passed around the load coil, energy is wasted

. This will cause the chiller to cycle on-off more frequent as the

return water temperature becomes lower.

Therefore, in terms of energy efficiency, applications with 2-way valves are better.

Section 3 Page 51

Other Type of Valves and Fittings

a. Check Valve

This valve will only allow flow in one direction, i.e. to prevent back flow of water. We have seen an example of usage in Section 2 with multiple chillers installation.

There are two basic design of these check valves:

1. swing check valve - can be installed in horizontal or vertical piping

2. lift check valve - only for horizontal piping installation

Swing check valve

Lift check valve

b. Plug Cock/Plug Valve

This type of valve is also used for throttling duty. It is less expansive compared with the globe valve or balancing valve. The setting also cannot be tampered with as easily as the globe valve.

Valve stem without handwheel. Use a spanner or wrench to open and close valve.

Plug with orifice port. With a 90° turn, the port will operate from fully open to fully close.

Section 3 Page 52

c. Pressure Gauge Cock

Generally, this valve is a ball valve. It is used to isolate pressure gauges installed along the water pipe lines.

Main pipe line

Pressure gauge

Impulse tubing loop

Gauge cock (Ball valve)

The gauge cock is only opened during pressure measurement. When not in use, the valve is closed to prevent prolonged pressurising to the gauge, therefore preventing damage to the gauge itself. It is also closed when changing a new gauge.

d. Safety Relief Valve [Optional]

The valve will open when the pressure exceeds a set value to prevent over pressuring the system which may cause damage. Normally, this is used when the system is running hot water (mini chiller in heating mode/reverse cycle) in a closed piping. The hotter the water temperature, the higher is the pressure due to expansion.

Such valves are also useful for protection against sudden pressure shocks, e.g. water hammering, and overpressuring from water fill system. If the system is with an open piping and external tank, this valve may be exempted.

The setting of the valve should be at least 10% higher than the expected maximum operating pressure. It should be installed at the location where this pressure may be expected to occur, e.g. near any expansion tanks or pump discharge lines. Pipe the exhaust from the relief valve to an external drain.

Section 3 Page 53

e. Air Vent Valve

The mini chiller unit has an automatic air vent located on top of the buffer tank. This is to release any trapped air inside the tank which may cause problem to the pumping operation. This is especially so during heating operation where oxygen and hydrogen gases are formed from the water and gets accumulated inside the tank. Air entrainment and microleaks along the joints and valves of the pump suction line will also cause air to enter the water system.

Therefore, it is a good practice to install another air vent at the highest position

of the piping network to ensure that the pump performance do not deteriorates. Such air vents are also useful during commissioning and system start-ups to release any air trapped in the piping system.

Always install the valve in a vertical position on top of a tank or pipe.

pipe

air vent

CORRECT INCORRECT

Under normal condition, water will enter inside the valve and lifts a floating body which will raise a mechanism to close a pin-shutter. Reduction of the water level as a result of accumulated air will cause the float to drop and opens the pin-shutter thus releasing the air automatically.

float body

pin-shutter opens

Air venting Normal

Section 3 Page 54

f. Strainer

The strainer is an important element in the piping system to remove particles (e.g. sand) and dirt from the water. If not, these impurities will damage the pumping mechanism and clogged-up valves and fittings.

IMPORTANT!!! The mini chiller unit do not have a strainer built-in. Always install a strainer on the water inlet pipe into the chiller to protect the internal water pump.

straine

CHILLER

water outlet

water inlet

Do not install strainer on the water outlet pipe as the water velocity is higher. Install the strainer with the filter element in a downward position. This is to facilitate easy flushing during periodic cleaning.

allow sufficient s

ace to remove filte

strainer with filter in downward

osition

pump

floor

## This method is not recommended

pump

straine

Section 3 Page 55

water inlet

filter mesh 16 – 20 recommended

There is also a practice to install a strainer on the inlet pipe to a fan coil unit. This is done to protect the control valve, located at the outlet pipe, from clogging.

strainer

FAN COIL UNIT

2-way valve

to measure th water te peratur

stallation can be done with a socket welded onto the pipe or a tee joint connection.

g. Thermometer

Glass thermometers are installed on the inlet and outlet pipes of either the chiller unit or fan coil units. This is e m e differential to determine the capacity performance. Usually, these thermometers are installed together with the pressure gauges. In

threadedjoint

welded

oint

threaded

thermomete

socket

Flow

oint

tee

oint

Thermometers can be installed vertically, horizontally or even at an angle.

Section 3 Page 56

During installation, it is important to ensure that the sensing bulb is in touch with the flowing stream of water. If the thermometer is installed too "high" up the connecting socket, the bulb will measure the temperature of stagnant water in the socket.

thermometer too high up

stagnant water

Thermometer bulb measuring correct water flow temperature

CORRECT INCORRECT

Section 3 Page 57

Valve Sizing

In selecting the suitable valve to use for an application, the following items must be considered:

1. What is the fluid medium of usage. In chillers, the fluid is water. There are valves specially designed other fluids e.g. steam and air, which are not suitable for water.

2. What is maximum operating pressure and temperature.

3. What is the valve duty required - is it for throttling, shut-off, balancing, mixing, etc.

4. What is the pipe size to be connected Do not oversize or undersize a valve to suit the pipe size. Size the valve according to the flow requirements. Use reducers where applicable.

5. What is the flow rate required through the valve

6. What is the flow characteristics required - linear, equal percentage (See following pages)

7. What is the piping connection method to the valve - threaded, flanged

Most of the above mentioned information may be obtained from the valve catalogs provided by the valve manufacturers. In sizing the valve, the general accepted method is by means of the C

(flow coefficient).

Different valves will have different C

values.

Formula:

Q = Cv * (∆p)

Definition: The C

rating of any valve is the amount of water,Q (GPM) at standard conditions (60°F, specific graviti = 1) which will pass through the valve with a pressure drop, ∆p of 1 psi with the valve in a full open position.

By using conversion factors, we can have the flow coefficient K

in metric units:

1 C

= 0.857 Kv

Definition: The K

rating of any valve is the amount of water (m3/hr) at standard conditions

(20°C, specific graviti = 1) which will pass through the valve with a pressure drop of 1 kg/cm

with the valve in a full open position. If the reference pressure is 1 bar, then:

1 C

= 0.867 Kv

Section 3 Page 58

For a given flow rate, we can select a valve with suitable Cv to give an appropriate pressure drop. These data are available in graphs provided by the manufacturer. See Appendix 5.

Selection of the valve must be done so as not to have too high a pressure drop, else the water pump head will be insufficient for the system. The values of these valve pressure drop can also be used during pump sizing. See Section 5.

For control valves (modulating, throttling duty, 2-way and 3-way), the pressure drop should be no less than half the total pressure drop in the branch. This will allow a stable control.

Example :

Pressure drop = 6 feet

FAN COIL UNIT

3-wa

supply

return

Pressure losses along piping works from A to B = 4.6 feet Pressure drop across 2 gate valves + coil heat exchanger = 6 feet

Therefore, the control 3-way valve should have a pressure drop of at least = 2 * (4.6 + 6) = 21.2 feet = 9.2 psi ** Conversion: 1 psi = 2.309 feet water

If the flow rate through the branch is 6 GPM, what valve C

should be used?

Refering to the graph in Appendix 5, the C

should be 2.

Therefore, a 3-way diverting valve with C

of 2 (at full opening) should be selected

for the above application.

As can be seen from the example above, the valve sizing was done with the design flow at full opening. Thus, at reduced flows, the valve will close and this will increase the pressure drop. This can be seen from the following graph which depicts the system curve and pump curve for a single fan coil load. See Section 5 for more details on pump curves.

Section 3 Page 59

Head Pressure

pressure drop

of control valve

at full opening

increased

pressure

drop with

reduced

flow

pressure

drop of

val ve wi th

zero flow

pump curve

system curve w/o control valve

Flow rate

Reduced flow Design flow

Another consideration in selecting the suitable valve is to determine the flow characteristic through the valve. Generally, there are three types:

1. Quick Opening

The valve shows a quick increase of flow for a small increase of opening. But as it reaches the open position, the rate at which the flow increases per movement of the opening reduces.

2. Linear

This valve produces equal rate of flow increase per equal rate of opening.

3. Equal Percentage

This type of valve produces an exponential flow increase as the valve opens up. The term equal percentage means that for equal amouts of valve opening, the flow increases by the same percentage.

SELECT THIS TYPE OF CHARACTERISTICS

Section 3 Page 60

Selection of valve with equal percentage flow characteristics will give the best performance as this will give a linear heat transfer rate with flow rate:

Heat transfer rate, %

Valve opening Flow rate, %

For automatic on-off valves (e.g. solenoid 2-way, 3-way), the selection is easier. Generally, use the same size as the pipe size, with a low pressure drop (e.g; 2 -5 psig: fully open). Using a smaller size (with pipe reducers and adaptors), for economic reasons, is possible, but check for excessive pressure losses which will reduce the pump performance.

Section 3 Page 61

Guidelines for Valve and Fitting Installation:

a. Gate valves (shut-off) are installed in the entering and leaving piping to the chiller and

fan coil unit. This is to permit servicing and replacement of the equipment without draining the system. A globe valve may be used to serve as one of the shut-off valve and in addition to balance the flow rate.

b. Valves and fittings using threaded or welded joints will require unions to permit easy

removal for servicing or replacement. Unions are usually located between each gate valve and the equipment. Unions are also place before and after the control valve, and in the branch of the 3-way valve. If flange joints are used, the need for unions is eliminated.

c. Locate the control valve in between the gate valve and the equipment to permit removal

of the control valve without draining the system.

d. Strainers, thermometers and pressure gauges are located between the gate valve and

the equipment.

Section 3 Page 62

The following diagrams illustrate examples of piping layout:

Typical Mini Chiller Piping Installation:

Water su

pply

Water return

1-1/4” connecto

Make-up water (from main supply or water tank)

RETURN

SUPPLY

gauge cock

FAN COIL UNIT

Typical Fan Coil Unit Installation:

a. Horizontal installation

Section 3 Page 63

Section 3 Page 64

Supply riser T

Return riser

FAN COIL UNIT

3-way mixing valve

tee joint

air vent

globe valve

FAN COIL 1 FAN COIL 2 FAN COIL 3

3-way

diverting

valve

b. Vertical Installation

o Multiple Fan Coil Unit Installation

** All three fan coil units to serve one area with a common thermostat. When temperature has

reached set point, thermostat will send signal to 3 way valve to divert water away.

Section 3 Page 65

CHILLER 3

CHILLER 2

CHILLER 1

check valve glove valve

Make-up water

Return

Supply

Multiple Chiller Installation

Common Header

** Globe valve will be used to balance the flow rate through each chiller unit.

** Additional gate valves may be installed along the main supply and return lines

to isolate the entire chiller assembly.

Primary-Secondary System

glove valve

secondary pump

RETURN

CHILLER

tee joint (Remember ! Do not encourage bullheading here)

Water Tank Installation (Open System)

RETURN

TANK

adaptor(c/w nubber gasket)

To external pump

CHILLER

SUPPLY

Section 3 Page 66

Section 4: Pipe and Fitting Sizing

In the previous section, we have looked at the different types of pipes which can be used in a hydronic system. We have also looked at the various types of fittings used in conjunction with the piping.

In this section, we will examine the friction losses

which occur when water flows through the pipes

and fittings.

Friction losses are dependent on the following factors: a. Water velocity b. Pipe internal diameter c. Pipe length d. Pipe internal wall roughness

Generally, friction increases when:

- Water velocity increases

- Internal diameter decreases

- Pipe length increases

- Wall roughness increases

The basic formula to calculate pipe friction losses (Hf) is the Darcy-Weisbach formula:

Hf = f * (L/D) * v

/2g where f = friction factor L = pipe length D = pipe internal diameter v = mean velocity g = acceleration due to gravity

The friction factor is a function of the roughness parameter, e, which in turn depends on the pipe material (e.g. steel, copper, PVC), and the Reynolds number, Re.

Re = D * v ρ / * µ where ρ = density µ = dynamic viscosity

Generally, the friction losses are presented in graphical form, for various pipe material. See attached charts for steel pipe Schedule 40,copper pipe and PVC. Note that Carrier

has developed two different type of graphs for steel pipes, i.e. for close and open system. The friction losses for the open system is higher than the close system, for the same parameters. This is to take into account the vulnerability of open systems to cause pipe fouling and scaling on the internal surfaces. A factor of approximately 1.75 is used for this purpose.

It is to be noted that the pipe friction loss charts presented are all for flows in the turbulent regime (Re > 10 000).

Section 4 Page 67

Water Flow Limitations

The factors which determine the water velocity limits are noise, erosion and installation cost. If the piping is too small, noise and erosion levels will become unfavourable even though the cost is more economical. Conversely, choosing a larger pipe will incur higher costs.

It is recommended that the following guidelines to be used for the mini chiller units:

1. The pipe friction loss used for the design of the system should be between 1 to 4 ft per 100

ft of equivalent pipe length.

2. The velocity in the pipe should be less than 4 fps in view of the allowable noise level

generated for residential and commercial buildings. However, the noise is not caused by the water itself, but rather by free air, sharp pressure drops, turbulence, cavitation and flashing. If precautions are taken to eliminate air and turbulences, higher velocities up to 8 fps are acceptable.

3. The minimum velocity in the pipe should be 1.5 - 2 fps to allow air entrained in the water to be carried to separation units (e.g. expansion tanks, locations of lowest pressure) for venting.

Taking into consideration (2) and (3) above, it is recommended that the water velocity in the pipe to be 2 - 8 fps. With this, the expected service life of the pipes is more than 8000 hours/year.

Conversion factors: 1 fps = 0.305 m/s 1 ft water = 248.84 Pa 1 ft = 0.305 m

Example: All the mini chiller units are with 1-1/4" pipe connections. Installation with 1-1/4" and 1" piping is possible, as shown in the following calculation for steel Sch 40:

Pipe size 1-1/4" Pipe size 1" Internal diameter = 1.3799" Internal diameter = 1.0488" Cross sectional area = 0.0104 ft

Cross sectional area = 0.006 ft2

Section 4 Page 68

The following data are extracted from the mini chiller technical manual:

Water flowrate Velocity, fps

Model

USGPM ft

/min 1-1/4" 1"

AC 40A

6.7 0.89 1.43 2.47

AC 50A

8.9 1.19 1.91 3.30

AC 58A

11.1 1.48 2.38 4.12

AC 75B

17.8 2.37 3.80 6.59

AC100B

22.2 2.97 4.75

8.24

AC125B

27.7 3.71 5.94

10.30

AC80C

17.5 2.34 3.75 6.50

AC100C

20.8 2.78 4.46 7.72

AC120C

26.7 3.57 5.72

9.92

AC150C

31.7 4.24 6.79

11.78

It is not recommended to install these units with 1” pipe size.

Section 4 Page 69

Equivalent Pipe Length

The concept of equivalent pipe length is very useful in calculating friction losses along the hydronic pipe system.

Defination: The equivalent pipe length of a component in the pipe system is the length of a straight pipe which will give the same friction losses as the component itself.

For example, we have a 1" elbow which gives a pressure drop of ∆P when a flowrate of Q passes through it. If a straight 1" pipe of length y feet gives the same pressure drop when a flowrate of Q flows through it, then, the equivalent pipe length of that elbow is y feet.

It is just like thinking that the elbow has been "replaced" with the length of straight pipe.

Naturally, a straight pipe in the hydronic system do not require such usage of equivalent length.

Therefore, the total equivalent pipe length of a hydronic system = straight pipe length + equivalent pipe length of all fittings and valves along the pipe

Generally, equivalent pipe lengths of common valves and fittings are available. See attached tables (Appendix 7).

An alternative method was published in the "ASHRAE Handbook: Fundamentals" for calculating the equivalent pipe length of tee joints. A graph is used to determine the number of equivalent elbows for the various flow conditions through the tee. This is then multiplied with the equivalent pipe length/pressure loss for the same size elbow. See Appendix 7.

It must be noted that the equivalent lengths given in the attached tables for the fittings are only estimates. The values are more meaningful when used for steel pipes.

Friction losses of copper and PVC fittings (e.g. elbows, tees, reducers) are quite similar to the equivalent steel type. Therefore, for estimation purposes, it is sufficient that the same equivalent lengths to be used for both copper and PVC pipes. Nevertheless, friction loss values

for different pipe material will be used in the computation of the

total friction in the piping system.

If specific friction losses for any fitting is available from the manufacturer, it is advisable to use these values instead of the estimates given in the tables. This is especially applicable to valves (specific C

) and strainers (different mesh sizes).

Section 4 Page 70

Internal and External Friction Losses

The friction losses of the straight pipes and fittings are considered external losses to the hydronic system. Other than that, there are also losses in the chiller unit itself, i.e. through the brazed plate heat exchanger (BPHE), internal pipework, pump fittings, flow switch, etc. All these internal losses

are as tabulated below:

Friction loss, Nominal water

Model

psi flow rate, GPM AC 40A/AR

5.4 6.7

AC 50A/AR

6.4 8.9

AC 58A/AR

5.7 11.1

AC 75B/BR

6.0 17.8

AC 100B/BR

6.5 22.2

AC 125B/BR

6.6 27.7

AC 80C/CR

5.9 17.5

AC 100C/CR

12.5 20.8

AC 120C/CR

6.4 26.7

AC 150C/CR

9.9 31.7

In the same manner, each fan coil unit has its own internal losses through the heat exchanger.

Please refer to the respective Technical Manual for the values of these losses.

Section 4 Page 71

Friction Loss Calculation

It is of utmost importance that a calculation to be made to determine the total friction loss along the piping network. This is to ensure that the water pump is able to deliver the required flow rate through the system. If the friction loss is too high, the flow rate will reduce, thereby causing improper operation of the chiller. If the friction loss is too low, the piping system may be redesigned for cost savings and better efficiency.

The following guidelines should be followed during calculation:

1. It is necessary to have a drawing of the entire piping network, showing the lengths, sizes, material and fittings used. Such drawing may be in 2-dimensional or 3 dimensional (preferred). If the system is an open type, determine the height difference between the chiller unit and storage tank (if any). The straight length of a pipe is measured from center-to-center of each fitting along the pipe.

2. It is a good practice to have markings on the drawing for each branch of the pipe network. This will help in identification of which branch is being calculated.

3. The following information must be available for calculation: water flow rate (GPM) of each pipe branch, internal friction losses of the chiller unit / fan coil unit and water pump head available. These information can be obtained from the product catalogs or technical manuals.

4. Calculate for the branch which gives the highest friction loss. This usually corresponds to the branch which have the furthest fan coil unit from the chiller.

5. It would be better to have the actual pressure drop across any of the fittings used vs. the estimated equivalent lengths presented in the attached tables. This is especially so for the valves (with specific C

values) and strainers (with different

mesh sizes).

6. Add a safety factor of 15 - 20% to the final friction loss to account for estimation errors and actual site installation of the piping system.

7. Check the final friction loss against the pump head available. The pump head must be higher than this calculated value if the system is to work properly.

An EXCEL spreadsheet programme has been written to help in this friction loss calculation.

Several worked examples are shown for typical installations in the following pages. The EXCEL programme has been used in the computation.

Section 4 Page 72

Section 5: Water Pump

We have seen in Introduction that the pump is one of the fundamental component in a hydronic

system. It circulates the water through all the other components in the system.

We have also seen that in the mini-chiller unit, this pump is incorporated together with the other components as one package.

In order to operate the chiller properly, it is vital to have an understanding of the pump characteristics and the factors which affect its performance.

The water pump used in the mini-chiller unit is of the end-suction centrifugal type. Water enters through an inlet port at the center of an impeller and is pushed out by centrifugal forces of the impeller to a discharge volute around the impeller. As a result, a water pressure head is developed at the discharge port. To rotate the impeller, the pump assembly is coupled with an induction motor. Therefore, torque developed by the electric motor serves as the input power to the pump and gets converted as output in the form of the water head pressure.

Factors which describes the performance of a pump: a) Volumetric Flowrate b) Head Pressure c) Input Power d) Efficiency e) NPSH (nett positive suction head)

Various pump designs are available to meet different requirements. Some of the common parameters which pump manufacturers use for their design are:

1. Impeller Diameter Generally, the larger impeller will give higher flowrate and higher head pressure.

2. Number of Impellers These multiple stages

will increase the flowrate and head pressure as compared to a

single stage impeller.

3. Impeller Speed

Most pumps are of the single speed design. However, variable speed pumps are also available which requires the usage of a speed controller (e.g.inverter unit). Generally, the faster the impeller rotational speed, the higher the flowrate and head pressure.

4. Material of Impeller and Pump Body

This will depend on the usage of the pump. Stainless steel and cast iron are two common materials used for the impeller and body. Applications which requires clean and hygienic pumping medium will require usage of stainless steel, e.g. for domestic water supply and food industries. Cast iron are sufficient for sewerage systems.

5. Pump Configuration/Type

There are various other types of pumps to suit the pumping needs, e.g. in-line centrifugal pumps, submersible pumps, dosing pumps, etc.

Section 5 Page 73

Proper selection of the pump is crucial to meet the pumping requirements. Other factors like the operating temperature and pressure of the medium must also be considered in the selection. Refer to the corresponding pump specifications and catalogs for detailed information of the pumps.

The multistage end-suction pump used in the mini-chillers are from GRUNDFOS. The models involved are:

Mini-Chiller

Model

AC 40A/AR CH2-30 AC 50A/AR CH2-30 AC 58A/AR CH2-30

AC 75B/BR CH4-40 AC 100B/BR CH4-40 AC 125B/BR CH4-40

AC 80C/CR CH4-40 AC 100C/CR CH4-40 AC 120C/CR CH8-40 AC 150C/CR CH8-40

The impeller and all movable parts in contact with the water are made of stainless steel. The pump suction and discharge chambers are made of cast iron. Please refer to the attached Technical Product Information for more detailed information. (Appendix 8)

Section 5 Page 74

Pump Performance

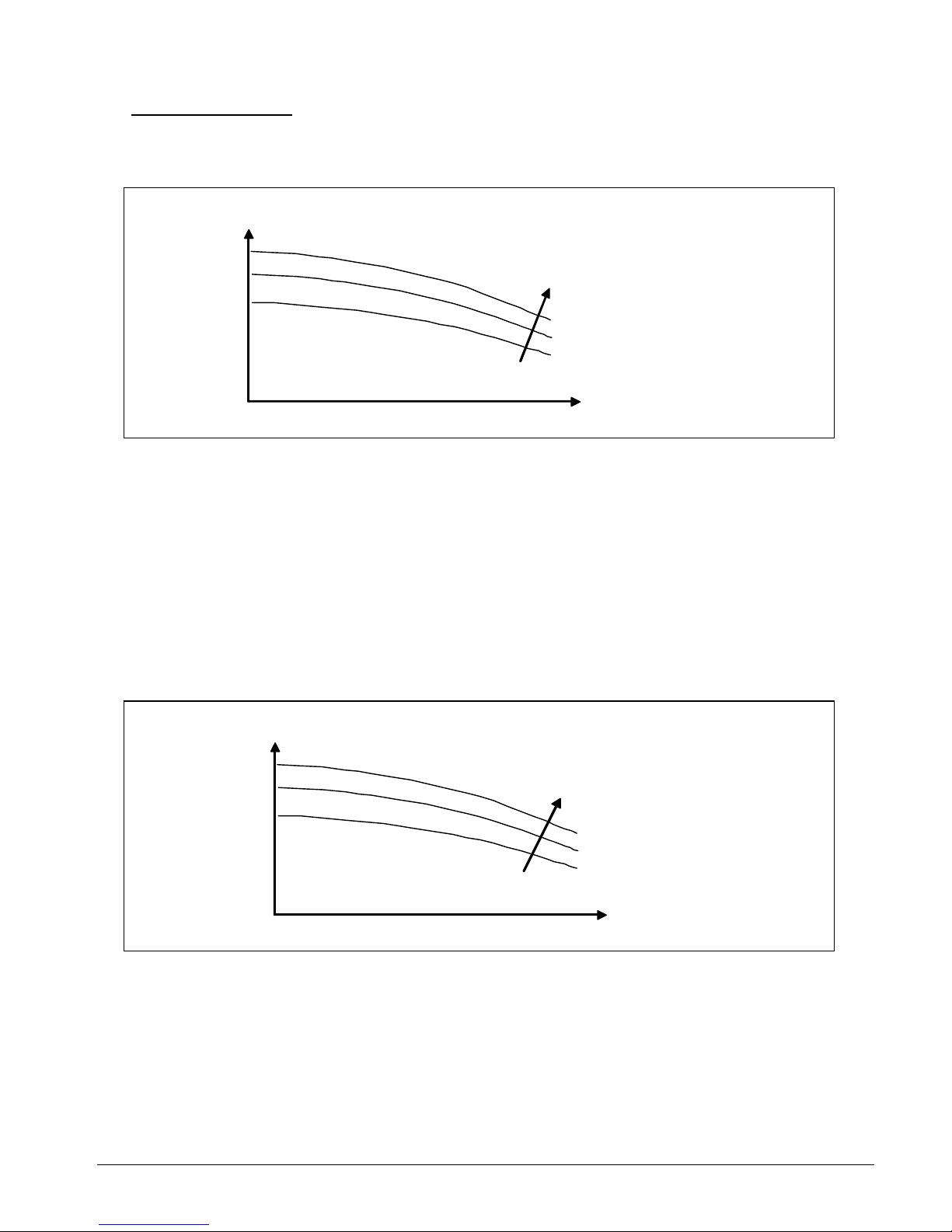

One of the most useful performance chart of a pump is the P-Q curve, which describes the relationship between the head pressure (P) vs. the volumetric flowrate (Q). The shape of the curve is as follows:

With increasing impeller diameter

This curve shows that when the head pressure increases, the flow rate reduces (and viceversa). By calculating the system pressure drop, we can thus determine the flow rate when the pump is running. Hence, we can check whether the system pipe design is suitable for a particular pump application. This pump head pressure can also be measured at the pump discharge port by using a pressure gauge.

The above curve is for a single fixed speed pump. If the pump were to operate under different power supply frequencies (e.g. from 50 Hz to 60 Hz), another set of curves must be used.

For variable speed pumps, the P-Q curves will look as follows:

With increasing RPM speed of impeller

Section 5 Page 75

Let us now examine the sample calculation of the friction loss shown in Application Example No. 1 (Section 4).

The flowrate in that example is 11 USGPM = 2.497 m

/hr at a total friction loss of 14.67m.

For the mini chiller model AC 58A, the pump used is CH2-30.

2.497 m3 /hr

The performance curve of the pump

shows that at the design flowrate, the pump is able to deliver a head pressure of 20 m. This is more than sufficient to cater for the total system friction loss. Therefore, the pump is OK.

20 m

Similarly, in Application Example No. 2, we have a flowrate of 27 usgpm with a requirement of total friction loss of 26.4m. Entering now into the pump performance curve of CH4-40, we find that at this flowrate, the pump can only deliver a head pressure of 19 m.

27 USGPM

his is not enough for the system.

ate.

T Therefore, it is necessary to redesign the piping network to have a lower friction loss in order for the pump to deliver the required flowr

19 m

Section 5 Page 76

System Curve

The system curve of a hydronic system is a plot of the pressure loss vs. the flowrate of the piping system itself. This curve describes the performance of the piping network itself. By plotting this curve onto the pump P-Q curve, we have the following:

pump curve

operating point

system curve

Note that the characteristics of the system curve is the opposite of the pump curve, whereby water will have a higher pressure loss in the piping system when the flowrate is higher. The intersection of these two lines will give the operating point

of the system.

What we have done in the Application Example No. 1 and 2 is to calculate the desired design operating point of the mini chiller with that particular piping network. In the first example, we have found that the pump has a much higher capacity compared with the requirement (System Curve

system curve 2

20 system curve 1 dP

pump curve

2.5 Q

calculated operating point

which does not lie on the pump curve

In order to "balance" back the pump operation, we need to increase the piping friction loss by dP (e.g. by adjusting the globe valve) so as to obtain System Curve 2. If this is not done, the pump will deliver a much higher flowrate compared with the design value.

Section 5 Page 77

In the second example, we find that the water pump is insufficient to cater for the system curve.

system curve 1

calculated operating point which lies above the pump curve

pump curve

system curve 2

In order to use the mini chiller, it is necessary for the piping network to have a characteristic of System Curve 2. The only way to do so is to redesign the piping system to give a lower friction loss.

Alternatively, we can use the pump P-Q curve during commissioning of the hydronic system. To do so, we need to measure the water pressure at the discharge port. This value is quite close to the actual head pressure developed by the pump. By plotting this pressure on the P-Q curve, we can then determine the approximate flowrate flowing through the system and compare it with the design requirement. Appropriate action can then be taken to ensure sufficient and correct amount of flowrate.

Water pressure measurement

To load with a design flowrate, q, and total pressure loss, p

MINI CHILLER

Design point

Actual opening point

Measurement P1

Section 5 Page 78

Parallel and Series Pump Operation

We have seen examples of the mini-chillers operating in parallel, e.g. where they are connected together via a common supply and return header pipe. Such installations are common when the single chiller do not have sufficient cooling capacity. In the parallel operation, the water pumps will work together to deliver a higher water flowrate (which is equivalent to the summation

of each

individual pump flowrate) at the operating head pressure.

Example

: Two mini-chillers of the same model are connected together to a load as shown

schematically (simplified) below:

header

Load

The pump in each chiller is delivering a flow of ϖ GPM. Assume that the friction loss

in each branch of the header pipe is the same. Therefore, the flow in the load will be 2ϖ GPM .

If the total pipe friction loss is P ft, we can have the following pump curves:

Head single pump curve pressure

combined pump curve

Flowrate

Section 5 Page 79

Now, if the friction loss in each branch is different, this will cause the flowrate in each branch to be different also, say ϖ1 and ϖ2. Therefore, the total flow to the load will become ϖ1 + ϖ2.

Thus, the pump curves will become:

Head pressure single pump curve

P1 P3 combined pump curve P2

ϖ1 ϖ2 ϖ1 + ϖ2 Flowrate

The two pumps will experience different head pressures P1 and P2. Therefore, the pressure after the header will be P3 when the two flows combine together.

What happens when the two chillers C1 and C2 are of different model, i.e. pumps of different characteristics? In such instances, we will still add the two curves together, and we will have the pump curves as follows:

Head

pressure pump curve C1

pump curve C2

X P1 P3 combined pump curve P2

ϖ1 ϖ2 ϖ1+ϖ2 Flowrate

Of course, both the pumps will be operating under different head pressures P1 and P2, and then combines together to give a pressure of P3 at the header.

Section 5 Page 80

One caution point we need to take care with parallel pumping of different pump capacities is to ensure the operating head pressure does not cause the pump of lower capacity to operate at shut-off conditions and cause over-heating, i.e. at point X.

Therefore, it is very important to have a thorough understanding of the operating condition when operating parallel pumps. Always check with the pump curves.

Pumps may also operate together in series. This is done to increase the head pressure for a particular flowrate. However, it is not recommended for the mini chiller units to be installed in series. This will cause problems in controlling the water temperature and may cause damage to the heat exchangers and pumps. Should the need arises, install the pump along the water discharge line to boost the head pressure.

Example

: The head pressure of the pump in chiller C1 is not sufficient to overcome the total friction loss to the the load. Therefore, an additional pump P1 is installed to increase the head pressure at the same water flowrate, Q, from HP1 to HP2.

C1 LOAD

LOAD C1

The pump curve will look as follows:

Head pressure combined pump curve with the head pressures added together for HP2 C1 and P1

pump curve of chiller C1 HP1 pump curve of P1

Flowrate

Section 5 Page 81

Cavitation

The phenomenon of cavitation occurs when the absolute pressure at the pump suction approaches the vapour pressure of water at the operating temperature. If the suction pressure becomes lower than the vapour pressure, vapour pockets (in the form of bubbles) will form along the pump impeller blade passages. This means that there is a change of phase from liquid to gas.

When these bubbles moves to the pressure side of the impeller, they collapse and implode on the blade surfaces. Such implosion causes erosion on the surface and create a pressure wave (or hammering noise) which can cause a noisy operation. Such phenomenon is more critical with hot water because at higher temperatures, the vapour pressure increases and the tendency of achieving this pressure is easier.

Therefore, it is important that a calculation of the pump inlet suction pressure to be made of the designed system and check it with the pump performance limits. The amount of this suction head pressure in excess of the vapour pressure required to prevent formation of the vapour bubbles is known as the Net Positive Suction Head Required

(NPSHR).

This NPSHR is a characteristic of a pump and is available from the manufacturer pump curves.

Note: The NPSHR can also be defined as the frictional resistance from the pump inlet to the first impeller.

In order to prevent cavitation, the actual system net positive suction head must be equal to or greater than the NPSHR value. This actual head pressure is also called as the Net Positive Suction Head Available (NPSHA).

NPSHR ≤ NPSHA

How can we calculate NPSHA?

There are two ways to do this:

1. For open systems, use the following equation:

NPSHA = P

+ Ps - Pvp - Pf

where P

is the atmospheric pressure

is the static head of water level above the pump impeller

is the vapour pressure of water at the operating temperature

is the friction loss of the suction pipe, fittings and valves.

Generally, if the water tank is elevated compared with the mini-chiller unit, there will be no problem with cavitation, unless the friction loss along the suction line is very high. See following example.

Section 5 Page 82

2. For close systems, use the following equation:

NPSHA = P

+ Ps + (v2/2g) - Pvp

where P

is the atmospheric pressure

is the pressure at the pump inlet v is the velocity of water at the pump inlet g is the accelaration due to graviti (32.17 ft/sec

or 9.81 m/sec2)

is the vapour pressure of water at the operating temperature

[Note: The term v

/2g is the velocity head of water at the pump inlet]

For both equations 1 and 2, it is recommended that an additional of 2 m (6.56 ft) to be deducted from the NPSHA as a safety factor to cater for the actual pipe installation.

Example 1:

A mini chiller (C1) is installed with a storage tank in the following configuration:

Return water

Storage tank (7°C)

H = 6ft.

Supply water

The chiller operate at the following parameters: Flowrate = 8 USGPM (1.82 m

/hr); the total suction line friction losses = 2 ft; the internal friction loss from the chiller inlet pipe to the pump inlet = 1.6 ft. The water tank is elevated at a height of 6 ft. The chiller has a water pump of model CH2-30.

At 7°C, the water vapour pressure is 0.34 ft wg. The atmospheric pressure at the site of installation is 34.0 ft wg.

By using equation 1, we calculate:

NPSHA = 34 + 6 - 0.34 - (2+1.6) = 36 ft.

By taking a safety factor of 6.56 ft, we get NPSHA = 29.44 ft.

Section 5 Page 83

From the performance curve of CH2-30, at a flowrate of 1.82 m

/hr, we have a NPSHR = 1 m =

3.28 ft

1.8

Since NPSHA > NPSHR, there will be no cavitation problems.

We can see that the elevated tank will not give any cavitation problem as the water column height will be sufficient to keep the inlet pressure higher than the vapour pressure.

However, if the mini-chiller is located above the tank, i.e. the pump is used to lift up water from the tank, then care must be taken to check for cavitation. Suppose the tank is lower than the pump inlet, then the value of P

in equation 1 will be

negative. Rearranging the equation 1:

= Pa - Pvp - Pf - NPSHA

Therefore in the above example, for the same flowrate of 1.8 m

/hr and a NPSHR of 3.28 ft, we can calculate what the maximum height is which the pump in the chiller unit can lift up without giving cavitation problems, i.e.

|max = 34 - 0.34 - (2+1.6) - 3.28 = 26.8 ft. (or 20.24 ft with safety factor)

Return

Lift of water

Tank

Supply

Section 5 Page 84

Example 2:

A mini chiller installed in a close piping system has the following operating

parameters:

¾ 20 USGPM = 2.674ft3/min = 4.54m

/hr

Pipe size is 1-1/4" SCH 40 steel pipe The pressure measurement at the inlet pipe is 1 psig (= 2.3 ft wg.) The chiller has a pump, model CH4-40. The water temperature is 12°C. The atmospheric pressure at the site of installation is 32.3 ft wg.

From the steel pipe data table (Section 3), the cross sectional area of the 1-1/4" pipe is 965 mm

= 0.0104 ft2. Therefore, the water velocity at the inlet pipe = 2.674/0.0104 = 257.12 ft/min. = 4.28 ft/sec.

At 12°C (53.6°F), the vapour pressure of water is 0.48 ft wg.

Entering equation 2:

NPSHA = 32.2 +2.3 + (4.28

/2*32.17) - 0.48 = 33.7 ft.

From the pump curve, we find that NPSHR = 0.9 m = 2.95 ft.

0.9

4.54

Again, we find that there is no problem of cavitation in this example since NPSHR < NPSHA.

Section 5 Page 85

Diagram of an imploding bubble which causes cavitation on the pump impeller:

Air Lock

Air lock is the phenomenon when air gets sucked into the pumping chamber and prevents water from discharging out of the pump volute. This normally occurs during refilling of water into the chiller unit during maintenance service. This can also occur when there are air leaks along the suction pipe causing air entrainment. In open systems, vortexing of the water can also cause air to be drawn into the pump. See Appendix 10.

When this happens, we need to release the air from the pump. This can be done by opening the air bleed hole on the pump housing. While the pump is running, slowly open this hole and allow the air to release out. Do this until water comes out of the hole and then close it back.

Section 5 Page 86

Section 6: Water Storage Tank and Expansion Tank

It has been mentioned in the Introduction that there is a water buffer storage tank inside the

mini chiller unit [for series A and series B versions]. The capacity of the tank is:

Model

Capacity/litres

AC 40A AC 50A AC 58A

AC 75B AC100B AC125B

150

The function of having this tank is to create a volume of water large enough to prevent short cycling of the compressor, i.e. to prevent the compressor from switching ON/OFF too frequently. This will usually happen during low load conditions, e.g. during night time, when the indoor fan coil units may switch off by the action of the room thermostat. As a result, only one or two fan coil units will be running while the larger capacity chiller unit continues to operate.

What is the effect of having the compressor switching ON/OFF too frequently? The main problem is overheating of the compressor motor winding. The winding will not get sufficient cooling from the refrigerant flow, and also there may be insufficient oil return which causes insufficient lubrication. Therefore, it is vital that a proper calculation of the total system water volume to be made to determine if the chiller can operate safely. The formula to calculate the minimum water volume is as follows:

min

= 860 * kW * Compressor OFF time

∆T * 60 * No. of load steps (or No. of compressors)

Units:

Conversion:

min

litre 1 kW = 3412 Btu/hr OFF time minutes ∆T deg. C

Example: A mini chiller (series A) has a cooling capacity of 40,000 Btu/hr (11.72 kW). The mini chiller controller has been programmed to operate with a minimum compressor run time of 3 minutes and an off time of 4 minutes (i.e. a minimum cyle of 7 minutes.)

Section 6 Page 87

The series A chillers only have 1 compressor.

Therefore, the minimum volume required for a temperature differential of 5 deg. C is:

min

= 860 * 11.72 * 4 = 134 litres

5 * 60 * 1

With an internal buffer tank of 32 litres, the remaining volume of (134 - 32) = 102 litre must be from the external piping and fan coil units.

Therefore, it is important for a calculation check to be made for this total water volume to ensure a proper operation. Too short a piping (e.g. back-to-back installations) may cause the compressor to cycle ON/OFF too frequently during low loading conditions.

It is recommended that the compressor do not switch ON/OFF for more than 8 cycles per hour.

The above recommendations are applicable for close piping systems

. In the case of open systems, whereby there is an external tank, there should be no problem of having the compressor short cycling as the additional volume of water in the external tank will take a much longer time to pull down the temperature.

With the series-C chillers, no buffer tank is required. This is because of the chiller control algorithm used to control the two compressors in the chiller (i.e. two capacity load steps). By having a sequential ON/OFF of the compressors (i.e. first ON, first OFF) and anti-short cycling timer in the controller, the compressors are prevented to ON/OFF too frequent beyond the specified cycles.

Thus, it is not necessary to perform similar minimum water volume calculations for these chillers.

Section 6 Page 88

How to calculate the water volume in the piping system?

We need to determine the volume in the piping system which contributes to the total volume required by the system.

The following volumes per unit length can be used for this calculation. These figures are taken from the pipe data tabulated in Appendix 1, 2 and 3:

Pipe Size Water volumn, litres/m

Steel, Schedule 40 (ST)

NPS 1/2" 0.196

3/4" 0.344 1" 0.558 1-1/4" 0.965 1-1/2" 1.313 2" 2.165 2-1/2" 3.089

Copper, Type L

OD 1/2" 0.094 5/8" 0.151 3/4" 0.225 7/8" 0.312 1-1/8" 0.532 1-3/8" 0.811 1-5/8" 1.148 2-1/8" 1.997 2-5/8" 3.079

PVC, DIN 8062

OD 20mm 0.227 20 25mm 0.353 25 32mm 0.581 32 40mm 0.908 40 50mm 1.425

The volume is then calculated by multiplying the above figures with the corresponding length used in the system. The volumes of all the different sizes used in the network is then added up to give the total system volume.

Section 6 Page 89

Expansion Tank

In the mini-chiller unit, the expansion tank is located on the storage tank. However, this tank is only available in the larger units, i.e. AC 75B, AC 100B, AC 125B. For the smaller units, i.e. AC 40A, AC 50A and AC 58A, the expansion tank must be located externally. Generally, the expansion tank provides a space into which the water can expand or from which it can contract as the water undergoes volumetric changes with respect to changes in temperature. Therefore, it is recommended for such an expansion tank to be installed externally for the smaller mini-chillers when running cooling only cycle, but it is compulsory to do so for the heat pump units with both cooling and heating cycles. Failure to do so will cause serious damage to the hydraulic components in the unit and also may cause cracking of the piping network. This is due to the expansion of the hot water in the pipes.

To allow for this expansion or contraction, the tank provides an interface point between the water and a compressible gas (e.g. air or nitrogen). There are 3 types of expansion tank available:

a. A closed tank which contains a captured volume of air and water b. An open tank, i.e. with the water surface open to the atmosphere c. A diaphragm tank, in which a flexible membrane is inserted between the air the water

The expansion tank which is used in the mini chiller units is of type (c). This type is recommended as the diaphragm will prevent the air dissolving into the water.

Tank body

Air Diaphragm

Water Connecting pipe

The tank is usually installed vertically, either upwards or downwards. However, due to space considerations, it is also possible to install it horizontally.

Downward installation

Horizontal

installation

Section 6 Page 90

The expansion tank in the larger mini-chiller unit is connected to the top of the water storage tank and it has a capacity of 8 litres, with a charged pressure of 1.5 bar.

To calculate the size of a diaphragm expansion tank

, use the following formula:

where

Vt = Vs [(v2/v1) - 1] - 3α∆t

1 - (P

1/P2

)

in the system

wer temperature

ody

r temperature (t1)

the tank for the heating cycle of the mini-chiller unit, use the lower tempe

the largest AC 58A as an example, we calculate as follows:

* 25 litres

°C, the specific volume be read fro e water properties table (App.

volume v

= 0.001008

is the tank volume

is the water volume

is the specific volume of water at lo

is the specific volume of water at higher temperature α is the linear coefficient of thermal expansion for the b = 11.7 * 10

-6

m/(m.K) for steel

= 17.1 * 10

-6

m/(m.K) for copper

At is higher temperature (t

- lowe

is the pressure at lower temperature

is the pressure at higher temperature

To size rature (t

) as

the design chilled water temperature (e.g. 7°C) and the higher temperature (t

) as design hot

water temperature (e.g. 40°C).

Using

Water volume required = (50,000 Btu/hr / 10,000) = 125 litres

At 7 can m th 11) v

= 0.001 m3/kg

At 40°C, the specific

m3/kg

Use the pressure P

equivalent to the pressure relief valve setting, e.g. 300 kPa.

Use the pressure P

as the positive pressure at the point of installation, e.g. 80 kPa.

Therefore,

= 12

= 1.17 litres

taking into account a 20% safety factor)

s, using a 2 litres expansion tank will suffice for the above operation

(0.001008/0.001) - 1] - (3*11.7*10

-6

)(40-7)

[

1-(80/300)

]

(1.4 litres,

Thu

Section 6 Page 91

Reworking the example by using the lower temperature as 0°C and the higher

temperature as 80°C, we will get:

[ ]

(0.001028/0.001) - 1] - (3*11.7*10-6)(80-0)

1 - (80/300)

= 125

= 4.29 litres (5.1 litres with 20% safety factor)

Thus, a 6 litres tank is needed. Therefore, the higher the water temperature, the larger the volume of the tank that is required.

Note: If the tank is located at a location with lower pressure, it can be seen that the volume required will be smaller. Therefore, the expansion tank should be located at the position with the a low pressure, e.g. on the water return suction line or at the highest point of a vertical pipe system.

To calculate the expansion tank size for cooling only systems, use the lower temperature as the design chilled water temperature and the higher temperature as the ambient temperature (e.g. 35°C). Generally, the size of the expansion tank for chilled water system is much smaller compared with the hot water applications.

Using a larger expansion tank than the calculate requirement is OK. The larger volume will not affect the system, rather it will help to cater for a larger water volume than the value used in the calculation.

An expansion tank is not required for an open piping system as the reservoir tank itself will allow for the expansion. There should only be ONE expansion tank in the close piping system.

Section 6 Page 92

Installation of External Expansion Tank

To install the expansion tank to the water pipe, make a tee-joint at the point of installation. Most tanks have threaded ends for connection purposes.

Tank

There is an option

to also install a ball

valve here for servicing

threaded end (e.g. φ3/4")

purposes.

pump suction line

tee joint

Section 6 Page 93

Section 7: Insulation Material

In this section, we will look at the insulation material needed to be used for the chilled water

piping installed with the mini chiller unit.

The purpose of using the insulation material around the pipe is: a) To prevent heat gain to or heat loss from the water in the pipes. b) To prevent water condensation along the pipes due to the chilled water flowing in the pipes c) To prevent injury due to the hot water flowing in the pipes

The type of insulation material used will depend on the pipe material used in the installation. For black steel pipes, it is common to either use closed cell elastomeric insulation (e.g. "Armaflex") or polyurethane foam with external aluminium cladding. For copper pipes, the closed cell elastomeric insulation is used. Similarly, PVC pipes may use the same type of insulation as the copper pipes.

It is important that the thickness of the insulation material used for the pipes are sufficient to fulfill the above mentioned requirements. Hence, it is recommended that a calculation check to be made to determine the insulation performance. To do this, the following items must be known:

1. Insulation material thermal conductivity coefficient (k)

2. Pipe Size

3. Air condition (dry bulb temperature and humidity / or wet bulb temperature) at the site of pipe installation - use the most extreme conditions that exists at the site

4. Convective heat transfer coefficient (h)

The k-value of the insulation material describes how much heat is being conducted through the insulation. A good insulation will have a low k-value. The amount of heat conducted can be calculated as follows:

a. Through a slab of thickness, x

Q = - kA (dT/x) where A is the surface area of the slab

T2 dT is the temperature difference between the

the two slab surfaces, i.e. (T1 - T2) with T1 > T2

** This equation is also called as

Fourier's Law

Heat transfer, Q

Section 7 Page 94

b. Through a Hollow Cylinder With Internal Radius, r1 and External Radius, r2

Q = 2πkL (T1 - T2)

where L is the length of the cylinder

ln (r2/r1) T1 is the internal surface temperature

T2 is the external surface temperature

T2 with T1 > T2

Heat transfer, Q

The piping insulation can be considered as a hollow cyclinder and the above formula may be used in calculating the insulation thickness. When the heat flux has conducted through the thickness of the pipe insulation, the heat will then dissipate at the external surface by means of convection. The heat transfer rate by convection (Qc) from a surface with temperature T can be expressed as:

Qc = hA(T - Ta) where Ta is the ambient air temperature A is the surface area

By equating the conductive and convective heat transfer equations, it can be shown:

r1 * ln (r2/r1) = k (T1 - T2) h (T2 - Ta)

Therefore, with the known k-value and h-value, together with the pipe size (r1) and operating temperature T1, we can calculate the external radius, r2, to obtain a specified external surface temperature, T2.

a) We can thus calculate the minimum required insulation thickness to ensure a safe external surface temperature to protect from the hot water pipe temperature.

b) We can also calculate the minimum required insulated thickness to prevent condensation by ensuring the external surface temperature is not lower than the dew point temperature of the air surrounding the piping. Refer to Appendix 12 for a psychometric chart to determine the dew point temperature for different temperatures and humidity levels.

Section 7 Page 95

k-values of Insulation Material

The following values can be used for the common insulation materials used:

k-value (W/m.K) Closed cell elastomeric insulation 0.034 - 0.0374

Polyurethane 0.021 - 0.026

Fibre glass 0.03 - 0.033

Polystyrene 0.028 - 0.03

For other types of insulation material, refer to the manufacturer's catalogs and specifications for the k-values.

If polyurethane is used with an external metal cladding (e.g. aluminium or galvanized), there will be two k-values involved in the computation equation. However, since the cladding is a good thermal conductor, it is possible to ignore this thin metal (usually 0.3 - 0.5 mm thick) in the calculation of the polyurethane thickness required. Nevertheless, if necessary, the following equation can be used:

r3[kb*ln(r1/r2) + ka*ln(r1/r2)] = (ka*kb) (T3 - T1) h (T3 - Ta)

where ka and kb are the k-values for the two different material r3 and T3 are the radius and surface temperature of the external cladding

The k-value for aluminium (kb) is 212 W/m.K

h-values

The following convective heat transfer coefficients can be used for different surface conditions (assuming free convection):

h-value (W/m.K) Matt surfaces, black or grey 9 - 10

Metallic surfaces, not polished 7 - 8

Metallic surfaces, polished 5 - 6

Section 7 Page 96

Pre-Insulated Pipes

These are black steel pipes which have been injected with polyurethane foam together with an external spirally wound metal cladding (aluminium or galvanised iron). Because these pipes have been pre-fabricated, they are widely used in the installation of chillers. The insulation forms a rigid and strong bond with the pipe surface.

black steel pipe

external metal polyurethane cladding (spiral wound)

Pipes can be joined together with arc welding.

Advantages:

a. Due to the strong bond of the polyurethane, there are no air leakages through the insulation and cause internal condensation. b. The metal cladding gives a good finishing to the installation. Paint can be applied easily over the metal, providing protection against corrosion and giving colour codes to the different pipes used.

Disadvantages:

a. High cost. b. Joints with fittings and between pipes require additional insulation moulding. This is done by making a mould with thin metal sheets (aluminium or GI) around the fitting or pipe joint. A mixture of polyurethane chemical and foaming agent is then poured into the mould and allowed to fill the mould.

Pre-fabricated pipe sectional polyurethane can also be used for this purpose, e.g. for elbows and straight pipe joints. An external metal cladding can then be rivetted around these sections.

As a result of this, the installation of such insulation is more extensive and requires skill.

Section 7 Page 97

Sectional Polyurethane

As an alternative to the pre-insulated pipes, pre-fabricated sectional polyurethane can be attached onto the bare black steel pipes with an external metal cladding rivetted around the pipe.

Various shapes and sizes are available to fit the piping network.

It is important that a layer of grease to be applied on the internal surface of the polyurethane sections before placing it around the pipe. These sections are then secured tightly around the pipe by tying with metal wire. The layer of grease is to ensure that the sections stick firmly onto the pipe surface and to seal any air gaps, especially at sections' joining surfaces, thus preventing condensation.

Even though this method is cheaper compared with the preinsulated pipe, one major problem is condensation because it is difficult to ensure a complete air-tight installation along the entire pipe length due to the number of sections used.

Closed Cell Elastomeric Insulation

This type of insulation, made from nitrile rubber

, is usually used with copper pipes. Some common names for this type of insulation are Armaflex, Insuflex and Superlon. Tubular form of this insulation are usually used for the copper pipes. However, sheet form are also used to insulate storage tanks, ductwork and steel pipes.

This insulation is soft, flexible and easy to install. It can be formed to suit various shapes and sizes. For the tubular form, the insulation can either be slipped-on or snapped-on. Adhesive is then used to stick together all the joining surfaces. It is not needed to stick the insulation onto the pipe itself. Rather, the correct size of the insulation must be used to match the pipe external diameter. Using too large a size will cause air pockets in between the insulation and pipe which will create condensation. A smaller size will not allow the pipe to slip-on or cause incomplete wrap-around during snap-on. See Appendix 13.

For the sheet form, adhesive can be used to just stick the insulation onto the surface. Joining edges and corners can also be sticked in the same manner.

This type of insulation is of the closed cell structure. As compared with the open cell insulation, the closed cell give better thermal insulation performance and lower water moisture permeability. Absorption of water into the insulation will cause degradation of the thermal conductivity properties over time. Hence, it is not desired for the insulation to retain water.

Section 7 Page 98

McQuay AC 40A, AC 50A, AC 58A, AC 75B, AC100B Applications Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
