McnMate MNC-H200 User Manual

Full HD Wi-Fi Network Camera

MNC-H200 USER'S MANUAL

■ is the trademark of MCNEX Co. Ltd.

■ The model and services of this product are the trademarks of the owner.

■ MCNEX Co. Ltd. owns the copyright of this document.

■ Copying, distributing, reproducing or modifying any part of this document is prohibited without an official approval
of MCNEX Co. Ltd.

■ Before using this product, please register the product number attached on the back of the product warranty of this
manual as well as on the product for the best customer support and after services. On the website.
(If not registered, it requires the purchase receipt for seamless A/S.)

Thank you for purchasing this product.

Before using this product...

www.mcnmate.com

■ This manual has been produced as of today/the present (by current standards). Best efforts were put for
completeness and accuracy. However, there may be editorial errors or omissions, and there is no guarantee for this.
The responsibility for using this document entirely depends on the user.

■ Any change(s) in the product specifications or manual for improvement in the product performance may take place
without notice.

■ The images in this manual may look a little differently depending on the printer or a change in specifications.

■ We do not take any responsibility for loss or radio/TV interference caused by the user’s misusage or remodeling
of the camera out of its original purpose. Please be aware that you may be legally punished by‘the Private Act
and related statutes’if you intentionally record others.

■ This device as a home appliance (B grade), Electromagnetic compatibility device is mainly suitable for use in the
home and can be used in all areas. The radio/wireless equipment may cause a mixed radio signal so cannot
provide services related with life-saving.

Important Notes

Date of Publication: November 2014 Publisher: MCNEX Co. Led.

02

Table of Contents

01 Warnings and Cautions

1. Safety Warnings

2. Safety Cautions

03 Parts of Product

1. Components

2. Names and Functions

1. Product Features

04 Installation

1. Product Installation

2. Network Connection

05 Viewer Monitoring

1. Camera Registration

2. Live Video

3. Playback

4. Settings

06 Mobile Monitoring

1. Camera Registration

2. Live Video

3. SD Card Playing

4. Settings

06 Others

1. Product Specification

2. Troubleshooting

3. A/S Guidelines

4. Warranty

02 Product Features

03

01

Warnings and Cautions

1. Safety Warnings

The following precautions are to prevent unexpected risks or damage by using the product safe and correct /
correct use / the product.
The precautions are divided into two types,“Warning”and“Caution”, meaning as follows:

This graphic symbol is a symbol for attention on the operations and items that might cause a hazard. So, please
read and follow the instructions carefully to prevent any risk. If you do not follow the instructions, the user takes
all the responsibility.

If this sign is violated, it may cause a serious injury or death.

If this sign is violated, it may cause a minor injury or damage to the product.

Warning

Caution

!

!

!

05

1. Warnings for Safety

■ Before using the product, please read the instructions thoroughly, and follow the operating guidelines and warnings
enclosed and indicated with this manual.

■ Do not touch the power cable with wet hands when plugging or unplugging. It can cause an electric shock.

■ Plug the power cable all the way in so that it’s not wobble, and do not use a damaged cable which can cause a
fire/electric shock.

■ Use the supplied power adapter only. Use of a unauthorized adapter may cause a damage to the product.
The power adapter must be used for home-rated power.

■ Install the product and power cable out of reach of children, and Place them away from infant beds or any other
children’s furniture. Install the power cable especially out of children’s reach.

■ This product has been designed for indoor use, not for medical purposes, and requires supervision of an adult.

■ Install the product in a well-ventilated place.

■ Do not touch any uninsulated, exposed part of the power adapter when plugging or unplugging.

■ Do not place the product or power cable near any hear sources.

■ Do not leave any sharp objects near the adapter cable to prevent cable damage.

■ This product is not intended to replace human supervisory ability of children.

■ This product does not have a function of immediately notifying adults of any unexpected and sudden movements of
children, so it requires a regular inspection and supervision management by staff.

■ Because this product as a Wi-Fi and Network product is used with transceivers of the antenna, keep the distance of
longer than 20 cm between the antenna of the product and the user to satisfy the RF exposure specifications.

■ Do not operate the product with wet hands. This may cause an electric shock or product malfunction.

!

WARNING

06

2. Safety Cautions

■ Use genuine McnMate products and parts only. Using a non-genuine product or part can cause a product damage.

■ Make sure the Micro SD card turned off before inserting or taking it out.

■ If the storage space in the Micro SD card is full, the oldest video is automatically deleted. Therefore, keep important
recording files on a separate storage device.

■ When changing the mounting position of the product, the camera angle can be changed, so check the images after
mounting the camera and adjusting its angle. If it is attached to the wrong location, normal recording may not be done.

■ Keep the front of the lens clean.

■ The best temperature for its functioning is between -20 ~ +55℃. Keep this temperature to prevent any problem
especially in hot summer or cold winder.

■ Do not use the product in a place with high temperature or humidity.

■ Please contact the customer service immediately if you suspect a problem with the product or its function. Otherwise,
the symptoms may get worse, and you may not be able to get normal customer support.

■ This product record images using a camera, so the quality may depredate depending on the conditions.
The degradation of image quality may be caused by a large difference in the shades of the object, severe backlight
during daytime and in the middle of the night.

■ Do not clean the product with chemicals or detergents. Please wipe it gently with a soft cloth to prevent any color
change of the product case.

■ Keep the product and cables from dust. Dusk can cause the product malfunction or error.

!

CAUTION

07

02

Features

■ Clear Video Recording

Sony Exmor sensor provides clear images.

■ High Definition Video Recording

FHD (1920x1080) provides high-quality images of 30 fps.

■ Remote Monitoring

Wherever the Internet connection is available, remote monitoring is available on any smart phone device (Android, iOS) or PC.

■ Real-time Alarm

As motions and sounds are detected, real-time alarming is sent to your smartphone.

■ Two-way Audio

A built-in microphones and speaker enable communication in both directions.

■ SD Card Storage

When an event occurs, the real-time images can be stored on the SD card inserted in the product.

■ IR LED

IR LED can be used to enable monitoring objects in low light.

■ Easy Installation

The product can be installed without any additional setup program at the website www.smartiview.com, and the images

can be monitored through the Web viewer.

Features

09

03

Parts of Product

Components

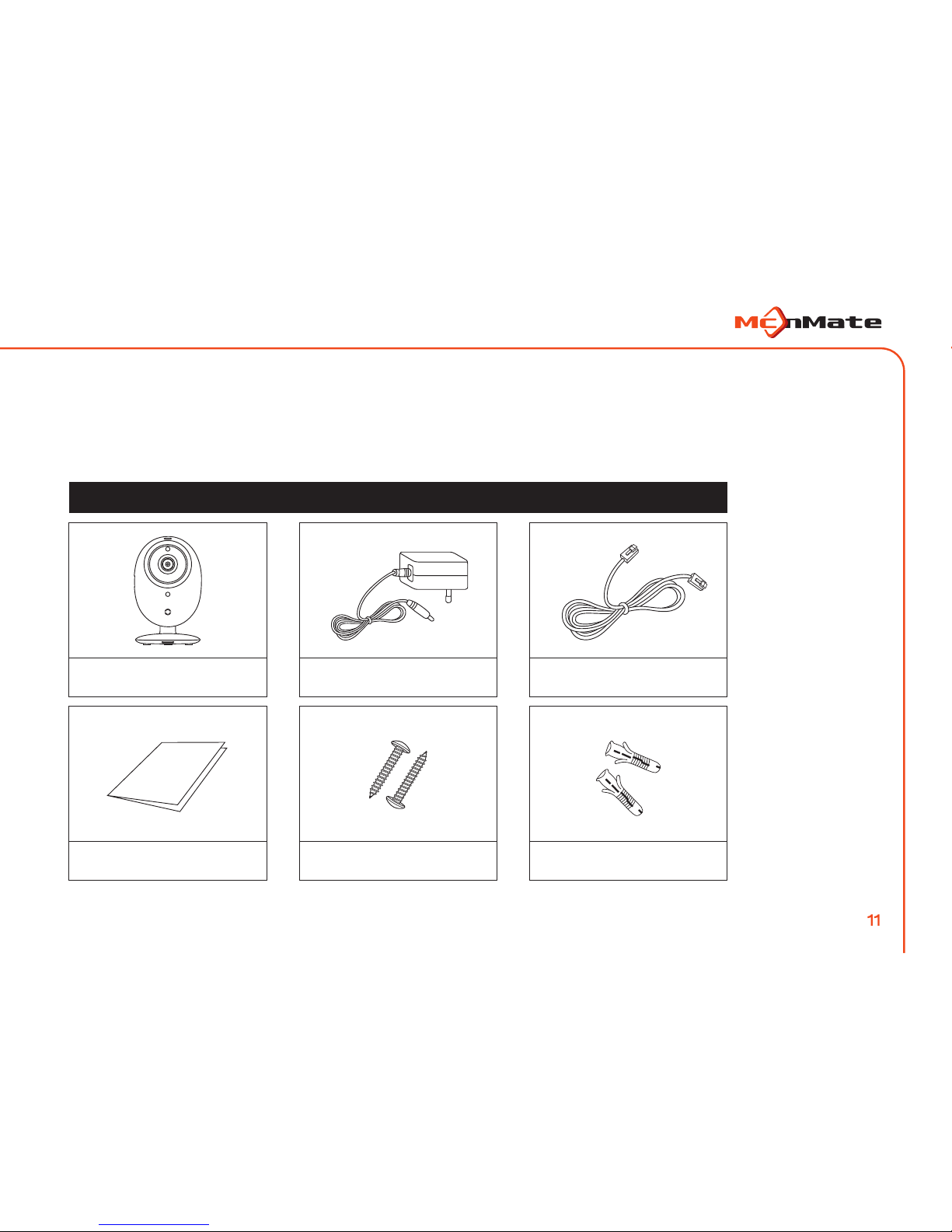

■ Make sure the components as shown in the pictures below are all included.
(Contact your dealer if something is missing.)

■ The components of this product are subject to change without notice for improvement of product
performance or quality.

■ Please download the manual and VMS program from www.mcnmate.com.

Main body

Quick Guide

Network cables

Plastic anchors

Adapter

Tapping screws

1. Components

11

MIC

RESET

DC IN 5V

NETWORK

■ Main body

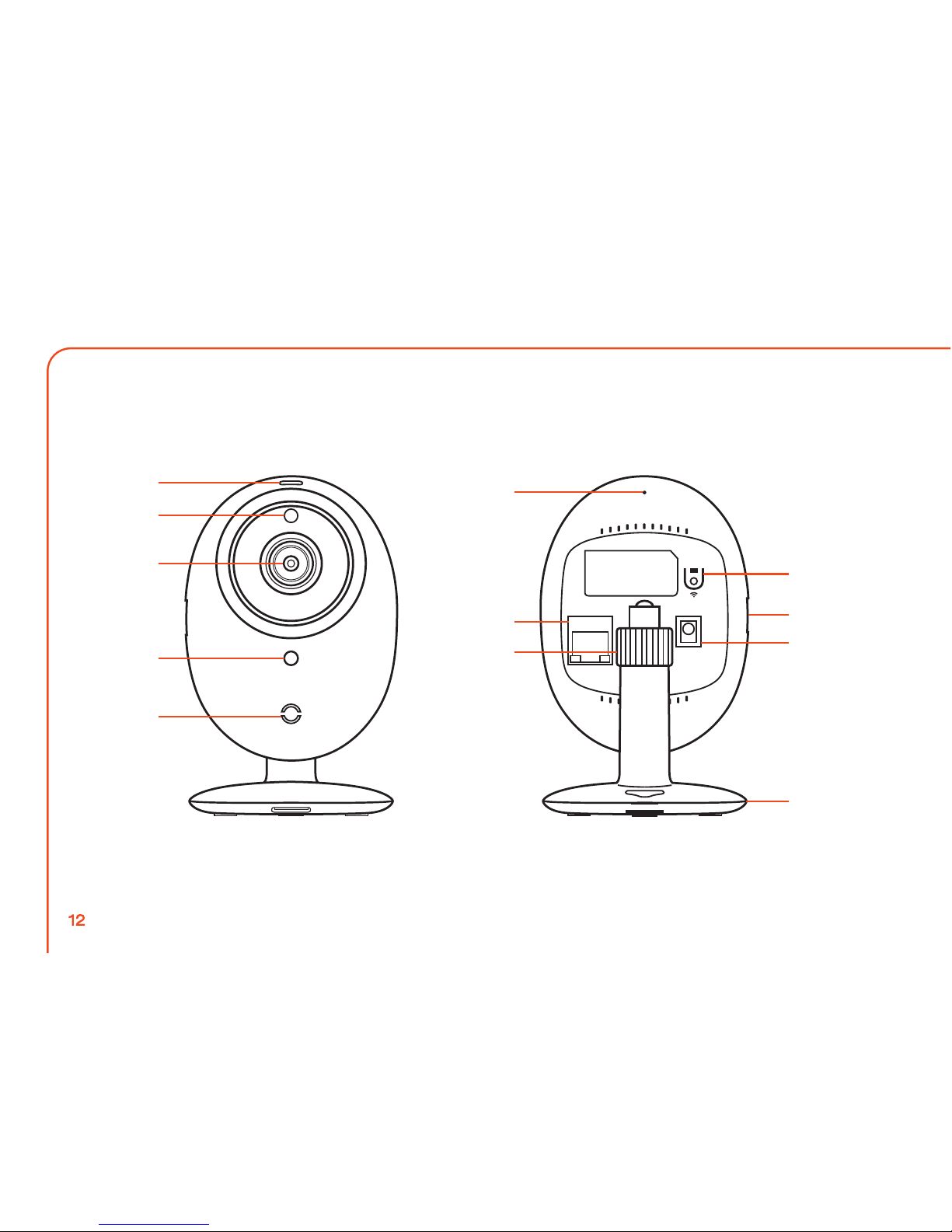

2. Names and Functions

①
②

③

④

⑤

⑦
⑫

⑥

⑧

⑨
⑩

⑪

12

■ Main body

2. Names and Functions

① Power / Network status LED

② Ambient light sensor

③ Camera lens

④ High-intensive IR LED

⑤ Speaker

⑥ Microphone

⑦ Network connection port

⑧ WPS / Reset button

⑨ Micro SD card slot

⑩ Power connection port

⑪ Mounting bracket

⑫ Angle-adjustment nut

Indicates the operating (power / network) status of the product.

Switches to night-vision mode depending on the brightness detected around the camera.

Record the front

Built-in IR LED for night time

Outputs the audio transmitted from outside using the built-in speaker.

Inputs audio using the built-in microphone.

Used for wired network connection (PoE power available)

1 second: pairing the camera with a wireless router
10 seconds: reset to the factory condition of the camera settings

Insert / take out the Micro SD card (note the insertion direction)

Power cable port

Used for desk, wall or ceiling installation

Fix the recording position after loosening the screws and securing / tightening direction.

13

04

Installation

Holding the hook on the back of the
bracket body, open the gap below it
to separate the bracket body and mount.

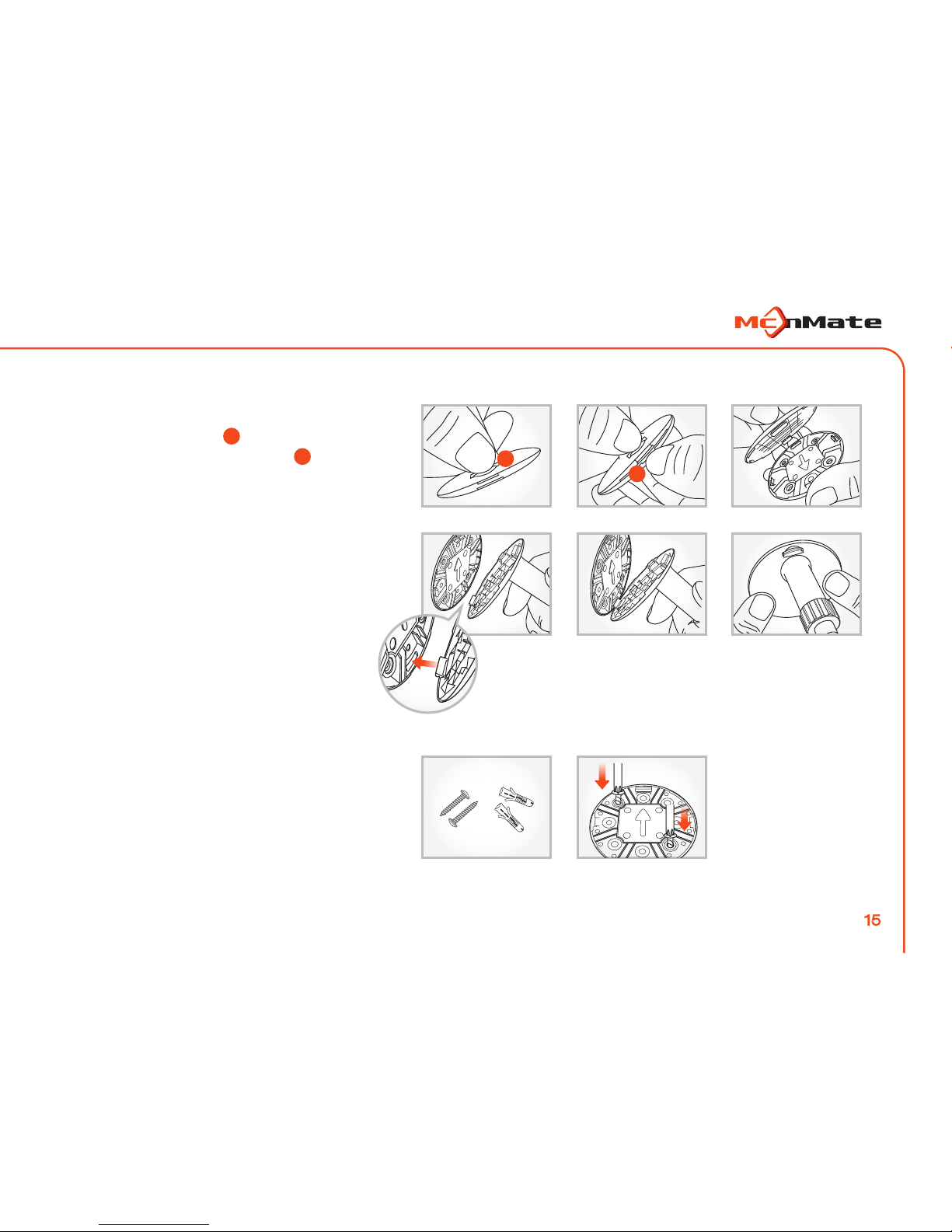

1. Wall-mounting with screws

■ Remove

■ Assembly

After aligning it to the right direction, first
set the hole on the opposite of the arrow
on the bracket mount with the hook on
the bracket body, and then push to
complete the assembly.

■ Installation

Get the screw (M3 x 20) and
the anchor (Ø 5 x 25) ready.

If the wall is wooden, place the arrow
toward 12 o’clock of the bracket mount
on the wall, chose one of the four holes
and fix the screws into the two holes
(in diagonal direction) with a screwdriver.

1)

2)

1. Product Installation

A

B

A

B

15

3)

4)

5)

6)

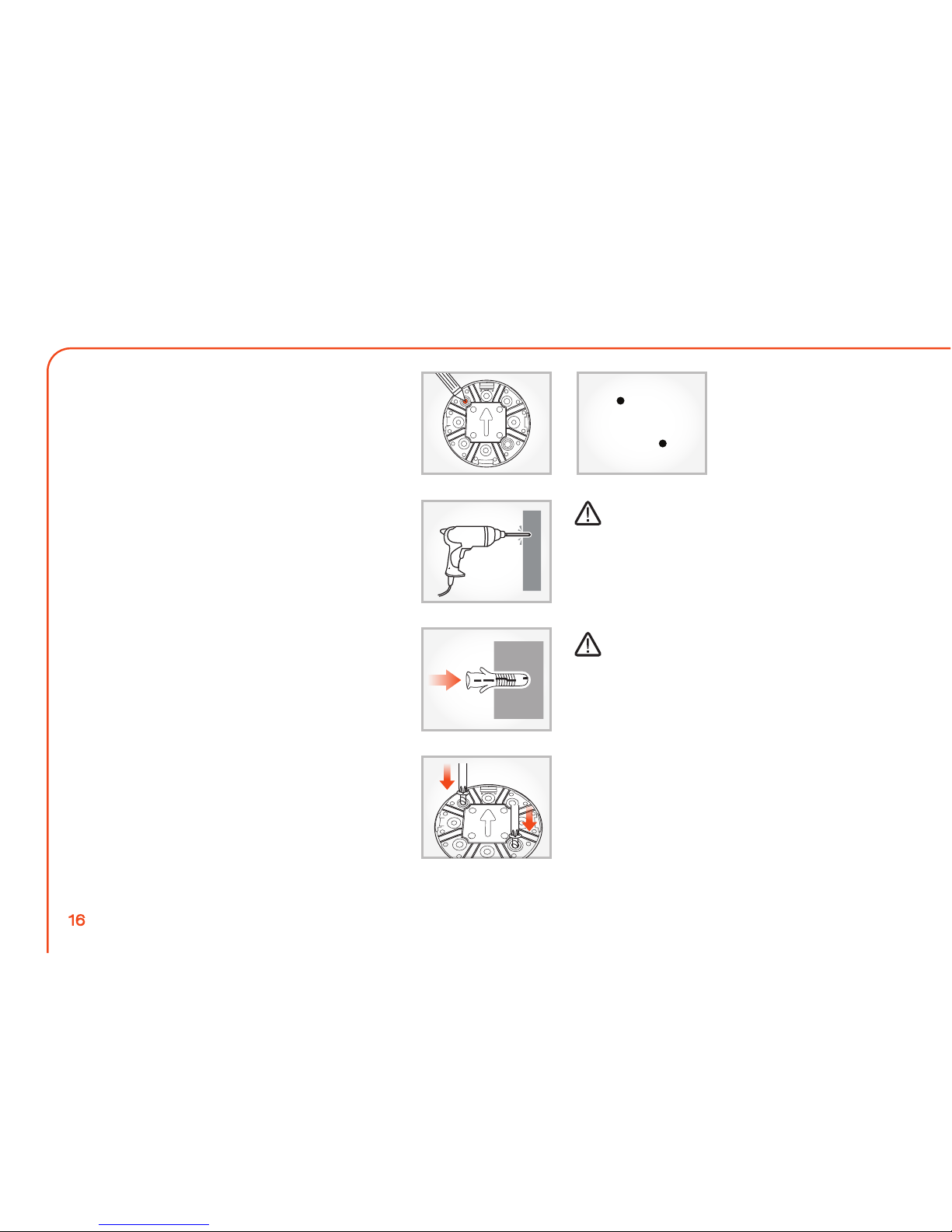

If the wall is concrete, first place the bracket
mount with the arrow pointing at 12 o’clock
and mark two (in diagonal) of the four holes
as shown in the illustration.

Insert the anchors in the two holes and hit
them lightly with a rubber hammer to insert
them to the wall.

Fix the screws into two holes with a
screwdriver.

1. Product Installation

Drill with a 6 mm concrete bit into the depth
of about 3 cm. Remove the scrapings in the
holes.

DRILL

Be careful of an injury when drilling.

When the installation is complete,
remove the protective plastic on the lens.

16

Loading

Loading complete/Network not connected

Network connected/Normal operation

WPS on

Upgrading firmware

3. Power connection

■ Plug the power adapter into a wall outlet and connect the camera with the power and network cables
as shown in the picture.

- Use the supplied power adapter only. Using an adapter other than specified may result in the malfunction of the product.

- It takes about 1 minute for the camera to completely turned on.

- Once the camera is completely on, the red light flashes and then stays on.

4. Network connection

■ Connect the network cable with the network connector
on the camera as shown.

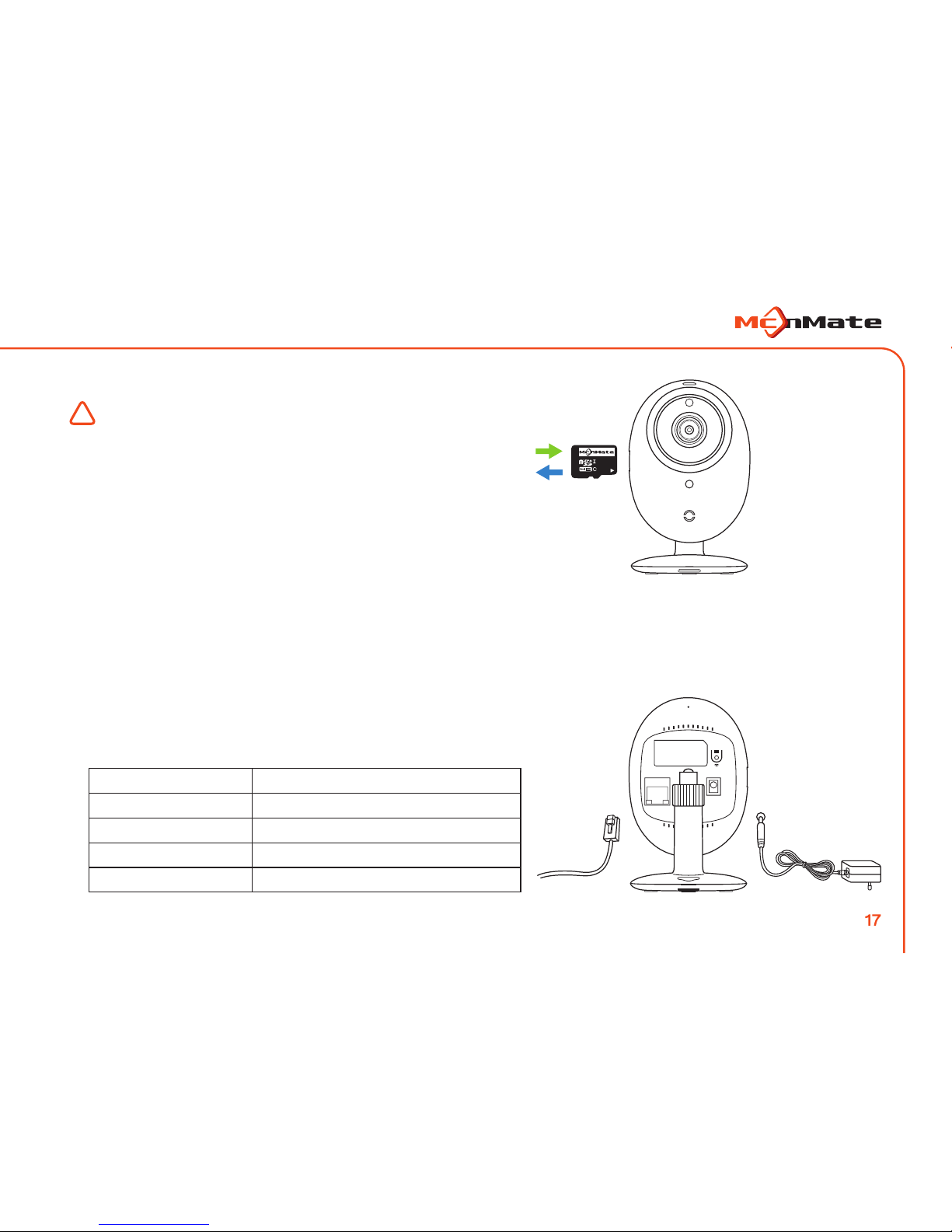

2. How to insert / remove Micro SD card

Cautions in the use of the Micro SD card

- It is recommended to regularly inspect or replace the
Micro SD card (formatting it every fortnightly recommended).

- When removing the card from the product, make sure the
power is turned off. If you remove the card with the power on,
it may cause an error or failure.

- Inserting the card too hard or in the other direction may cause
a damage to the card.

- The capacity of the Micro SD card is up to 32G.

!

1. Product Installation

l0

Insert

Remove

MIC

RESET

DC IN 5V

NETWORK

Red

Flashing red(500ms)

Green

Flashing green(200ms)

Purple(red+green)

17

Using the router set to DHCP (Dynamic Host
Configuration Protocol) server recommended.

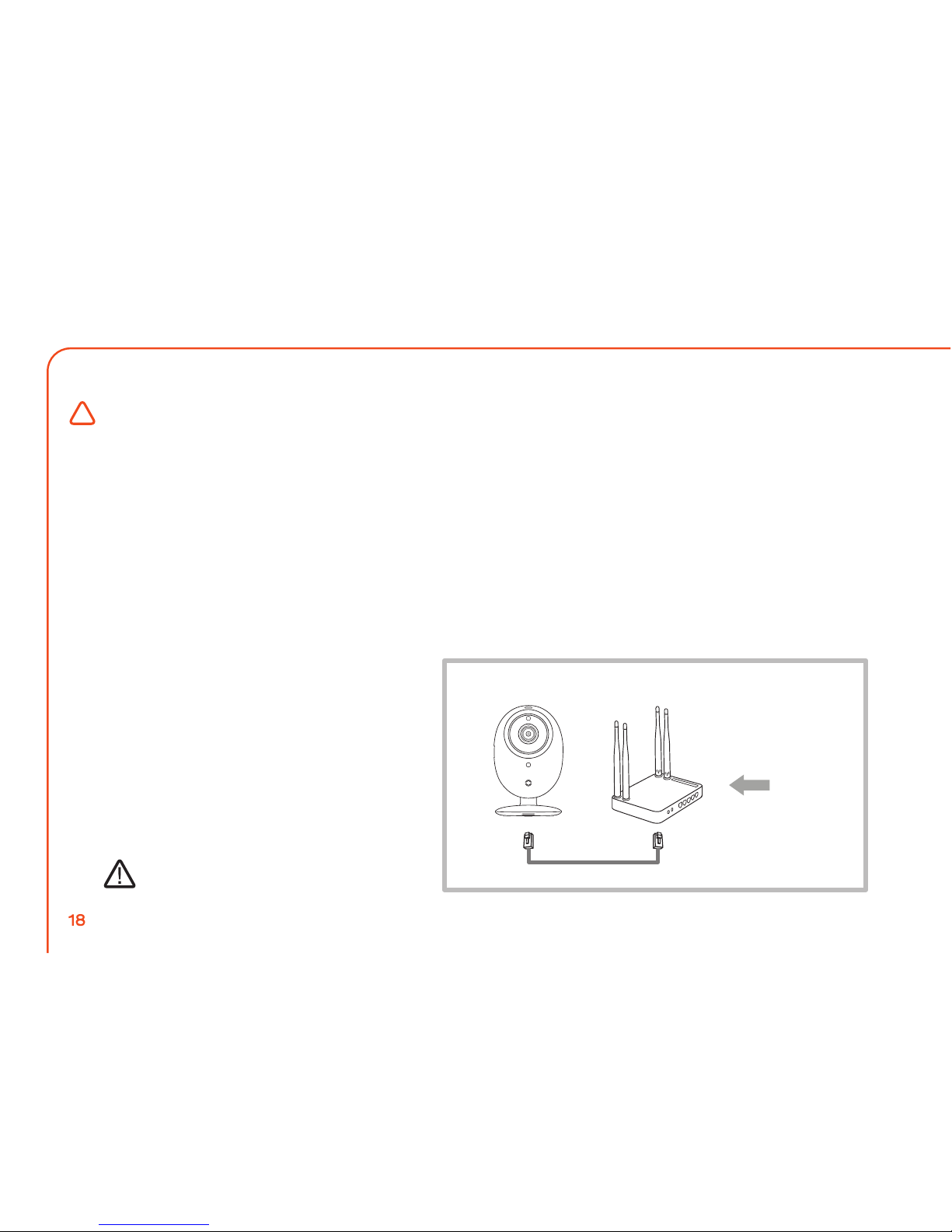

1) Network Cable Connection
If you do not have a wireless router, the camera
can be connected directly to the router using a
network cable.
① When the power is connected,
the red light comes on; when it’s complete,
the green light flashes.
② Connect the camera and the router with a
network cable.
③ When the network is properly connected,
the green on the LED status indicator stops
flashing. If not, repeat from step ②.

Cautions

- The wireless network connection may fail depending on the communication conditions, and network delay or interruption may occur
depending on the network conditions.

- The father it is from the wireless router, the longer the connection takes.

- Do not access to unauthorized network. Services may not be provided for certain Internet services that require user authentication.
In this case, contact your service provider.

- Contact your network administrator or service provider for network settings and password in more detail.

- Refer to the router manual or contact the router manufacturer for router or wireless connection in more detail.

- Some routers may have a compatibility problem.

- If the camera is installed on a network environment with multiple wireless connections, some image packets may be lost according
to the network traffic load.

!

5. Network connection and settings

2. Network Connection

Wireless router

Internet
services

18

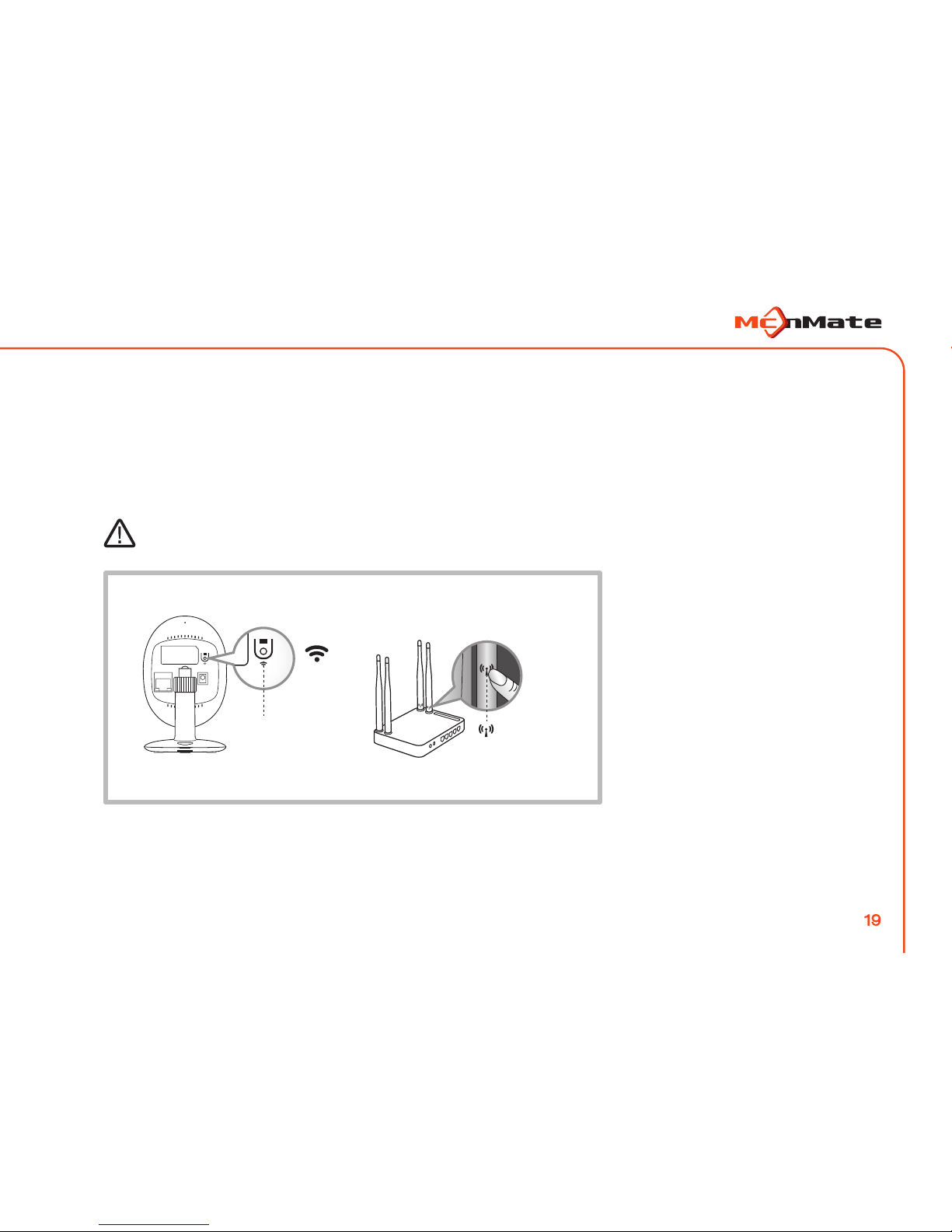

Available only with a wireless router that supports WPS.

2. Network Connection

2) WPS Connection
Using the WPS function with a single push of a button, you can connect the camera to your wireless router.
① When the power is connected, the red light comes on; when it’s complete, the green light flashes.
② Press the WPS button on back of the camera and hold it for one second. Then, press the WPS button
on the wireless router within two minutes.
③ When the network is properly connected, the green on the LED status indicator stops flashing. If not,
repeat from step ②.

WPS button

Wireless router

MIC

RESET

DC IN 5V

NETWORK

RESET

WPS button

19

2. Network Connection

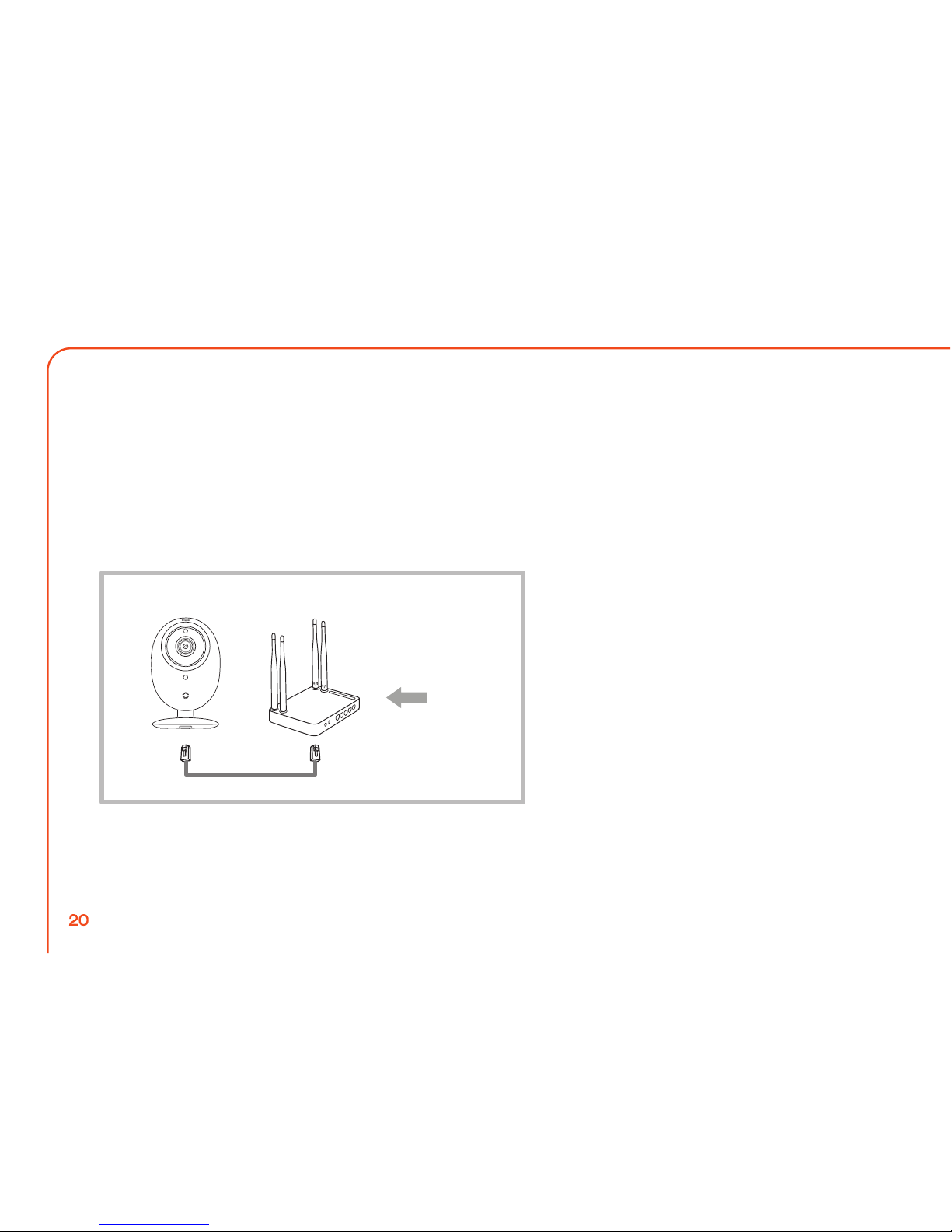

3) Wi-Fi Connection without WPS
To connect to a wireless router without WPS, change the network settings to‘wired’and try wireless network.
① When the power is connected, the red light comes on; when it’s complete, the red light flashes.
② Connect the camera and the router with a network cable.
③ Register and select the camera as described in the Web Monitoring Site on page 21.
④ Set up the wireless network as described in the Wireless Network Settings on page 29. When the network is
properly connected, the green on the LED status indicator turns on.
⑤ When the wireless network setting is completed, remove the network cable.

Wireless router

Internet
services

20

05

Viewer Monitoring

Hanshin IT Tower 2 (5F–8F, 10F–12F), 47, Digital-ro 9-gil, Geumcheon-gu, Seoul, Korea
TEL : [phone] I FAX : [phone]

Tow-way talk with family
Clear images even at night time!!

Download Viewer
Android
iOS

Go to Smartiview

You can sign up and register
your camera at once.

Remember ID

Forgot ID / PASSWORD

ID

PASSWORD

LOG IN

Start Smartiview

Start

1. Camera Registration

Customer serviceProduct Info KoreanLog in

iOS / Android / Real-time Web Monitoring

If you register the product on the website, you can monitor the video on your PC.

1. Web Browser Requirements

■ Supports Windows 7 and 8

- Internet Explorer 9 or later

2. Starting

1) Launch a web browser on your PC.

2) Access to www.smartiview.com.

3) Select your language.

4) Only for the first time, click on“Start Smartiview”to sign up and register your camera.
And then, log in with your ID and password and enter the Web Viewer.

22

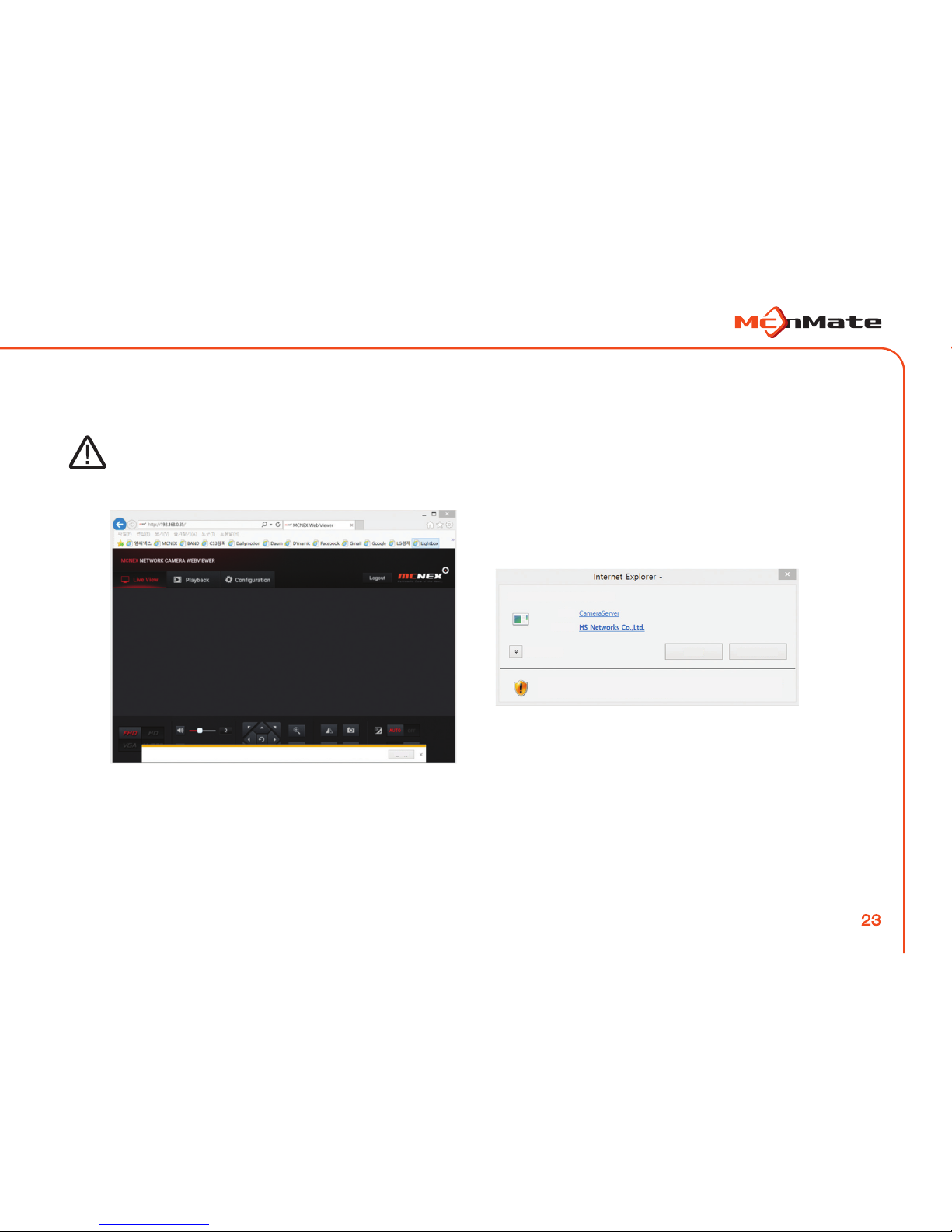

① Click Install. ② Click Install.

1. Camera Registration

■ Install ActiveX

You have to install this program to search for your network-connected camera and view its images.

■ If you log in on a PC without this program installed or click on“Start Smartview,”
an installation window pops up.

The additional function of‘CameraServer’distributed by HS Networks Co,Ltd. is being installed on this website. Risk(W)

Security Warning

Do you want to install the software?

Name:

Posted by:

Other options(O)

Install(I) Do Not Install(D)

This file format can damage a user’s computer. Please install the software
posted by a reliable source ONLY. Risk

Install(I)

23

1. Camera Registration

■ Use letters, numbers and special characters in your ID and password for security.

■ Restricted passwords - same as ID, three or more consecutive characters or numbers (e.g. 123 and abc)
and three or more same characters, numbers or special characters (e.g. 111, aaa and $$$)

■ Enter your password exactly since your email address will be used when you forget your ID or password.

Start Smartiview

You have to sign up and register your camera to use Web Viewer.

These are all required fields.

6 - 12 digits and alphanumeric

6 - 12 combination of alphanumeric and digits

Sign up Register your camera Complete

I agree to the Terms of Service.

I agree to use of personal information.

Sign up Cancel

ㆍ

ID

ㆍ

Password

ㆍ

Confirm Password

ㆍ

Name

ㆍ

Email Address

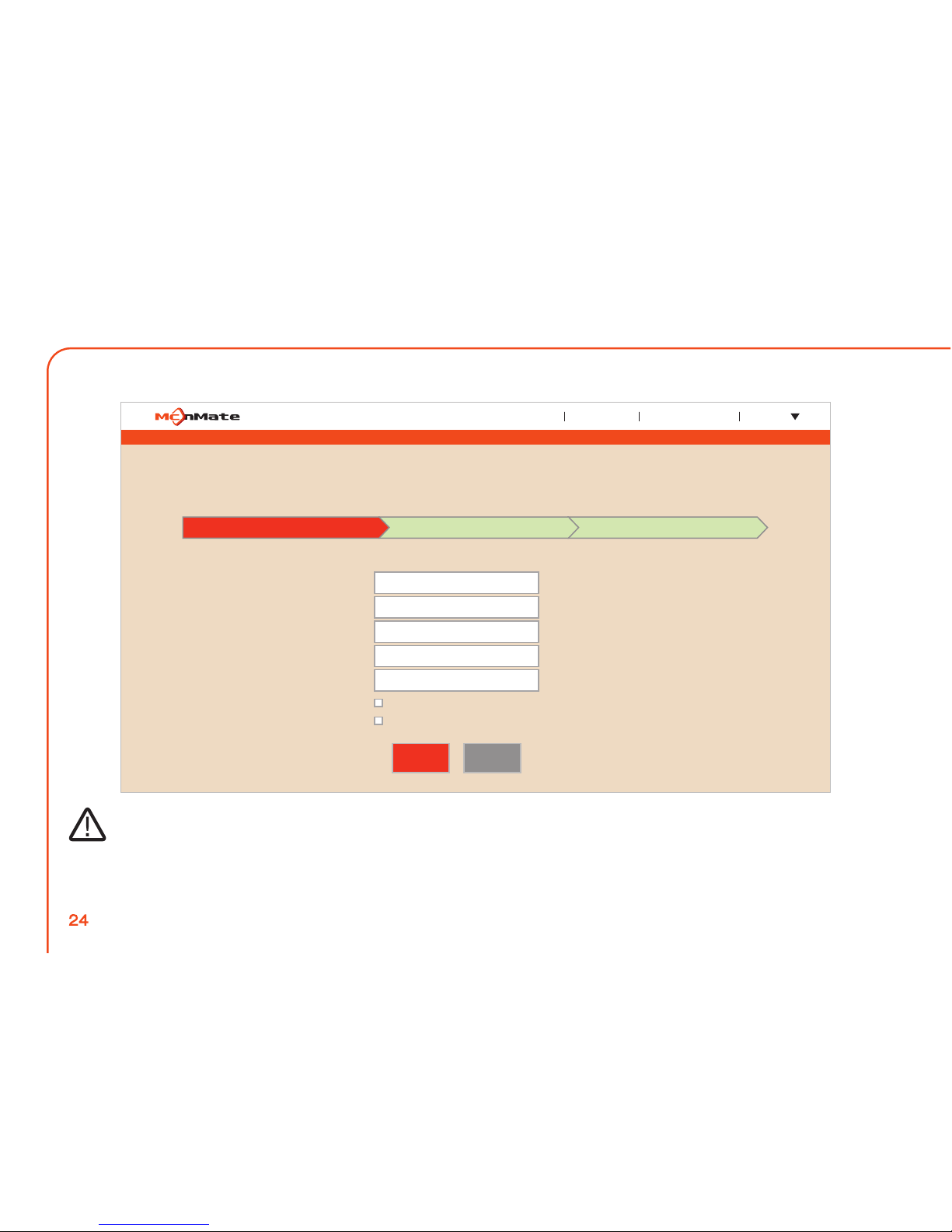

5) Enter the required information and click on“Sign up.”

Customer serviceProduct Info KoreanLog in

24

1. Camera Registration

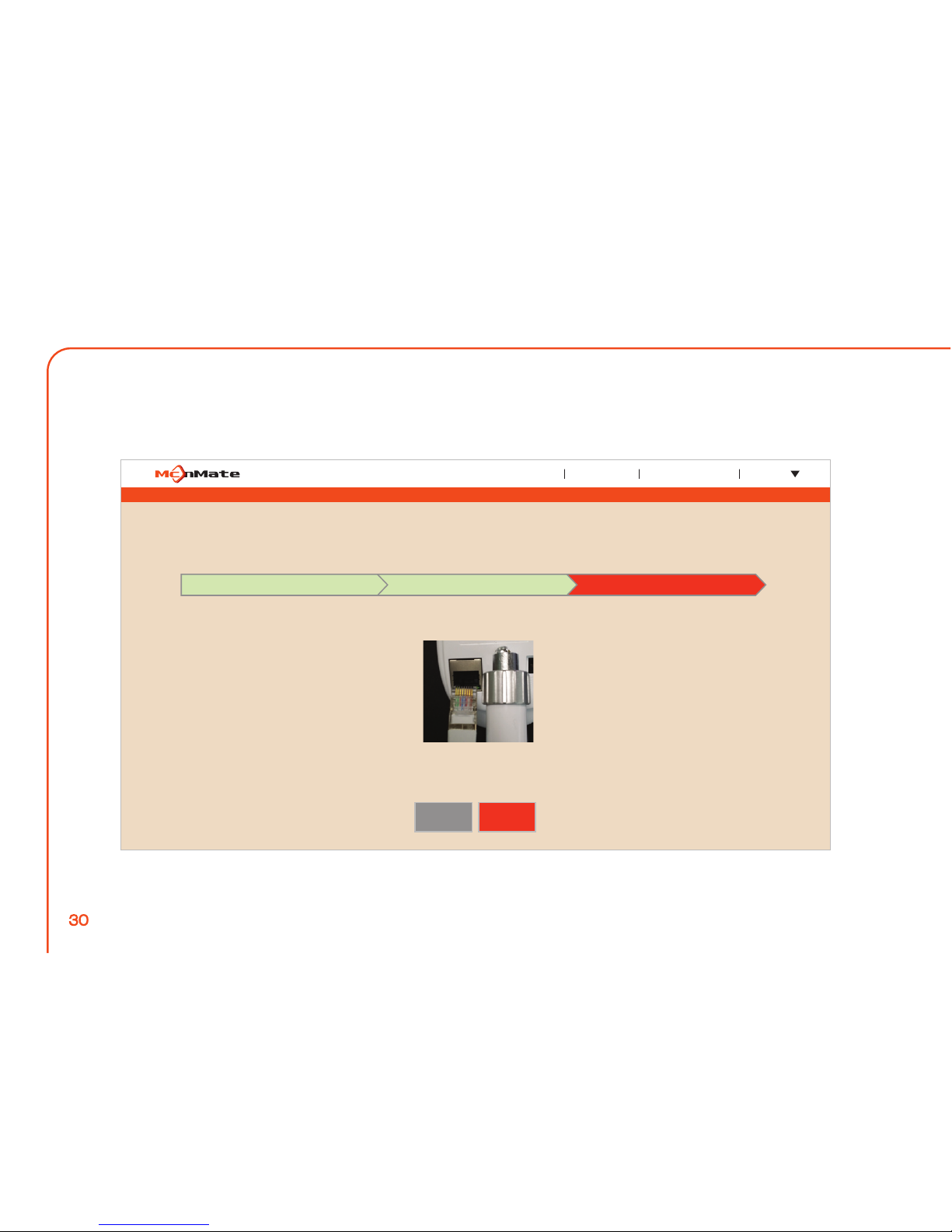

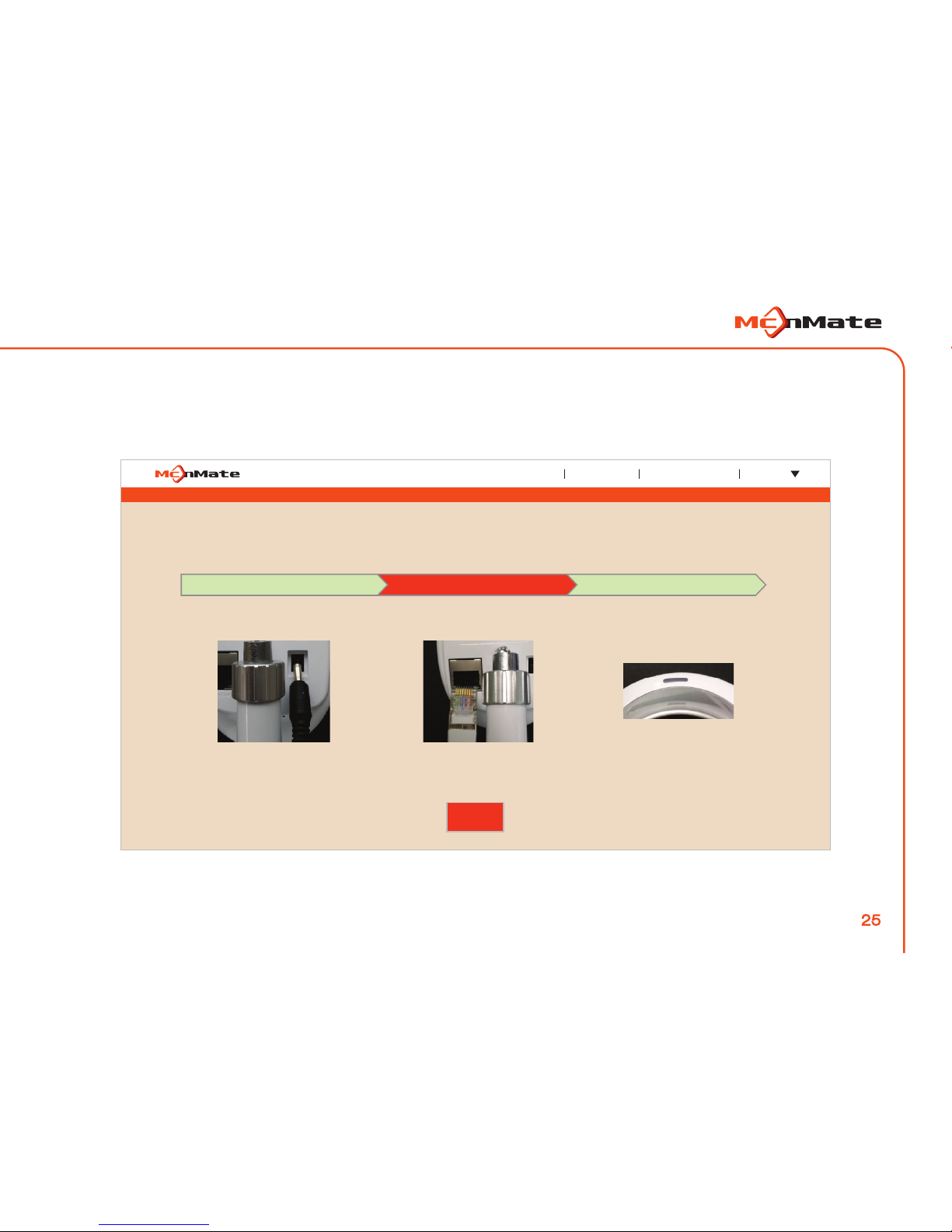

6) Connect the camera to the power and the network cable. If the status indicator turns green, click“Next.”

Start Smartiview

You have to sign up and register your camera to use Web Viewer.

Check the camera power adapter and network cable and then connect them as shown below.

Connect the power adapter to

the camera power socket.

Flashing Red → Red

(takes about 40 seconds)

Connect the network cable

to the camera and router.

The LED indicator lamp turns green

(takes about 10 seconds)

Next

Customer serviceProduct Info KoreanLog in

Sign up Register your camera Complete

25

1. Camera Registration

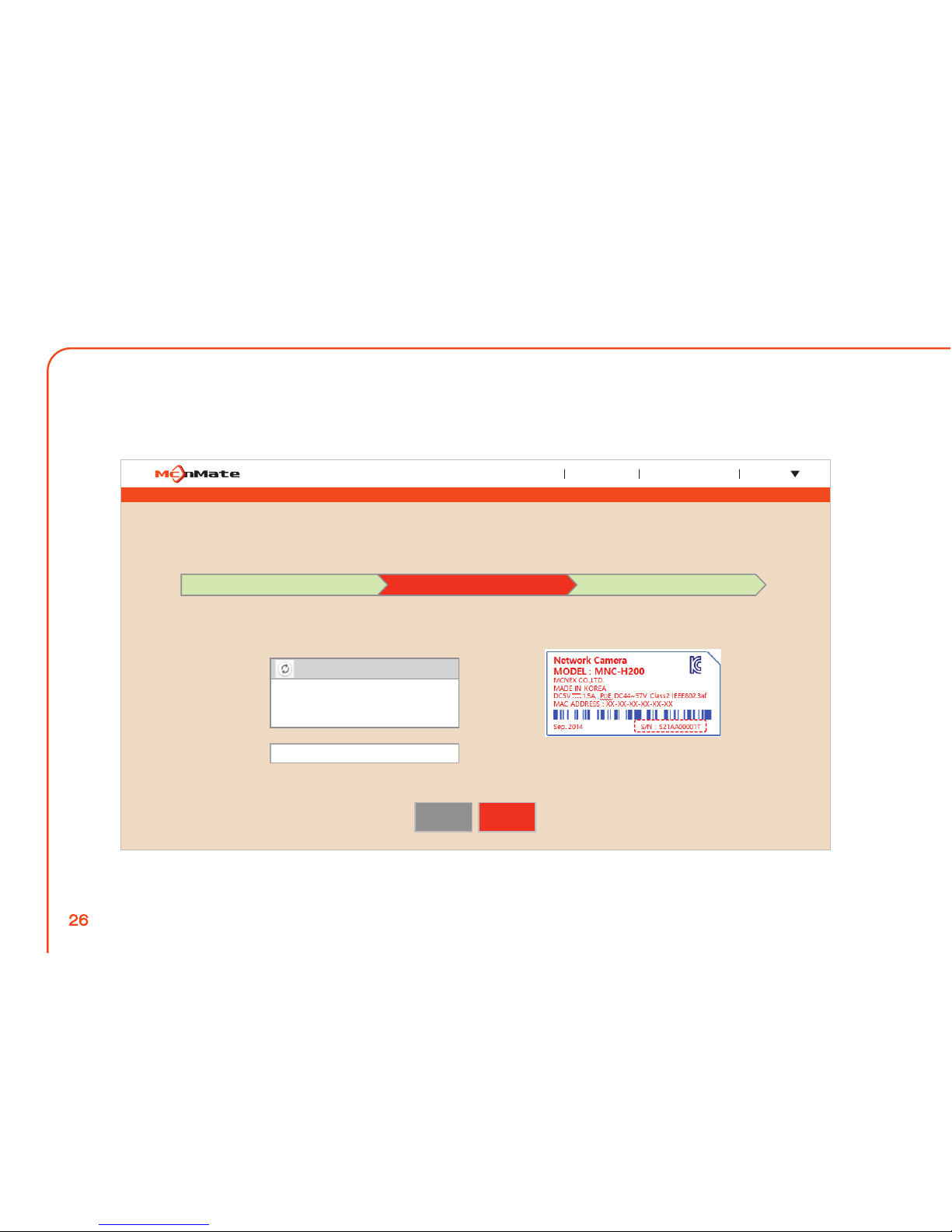

7) Select the product serial number (S/N) from the search list of cameras.
If the camera is not detected, enter its S/N in the field.

8) Click on“Next.”

Check the serial number in the list of cameras and select the camera to be registered.
The camera is automatically searched if the camera and PC are connected on the same network.

NextPrevious

A list of cameras found

S21AA00001T

Enter the product S/N here if the camera is not detected.

Serial Number

The S/N is on the back of the product.

Customer serviceProduct Info KoreanLog in

Start Smartiview

You have to sign up and register your camera to use Web Viewer.

Sign up Register your camera Complete

26

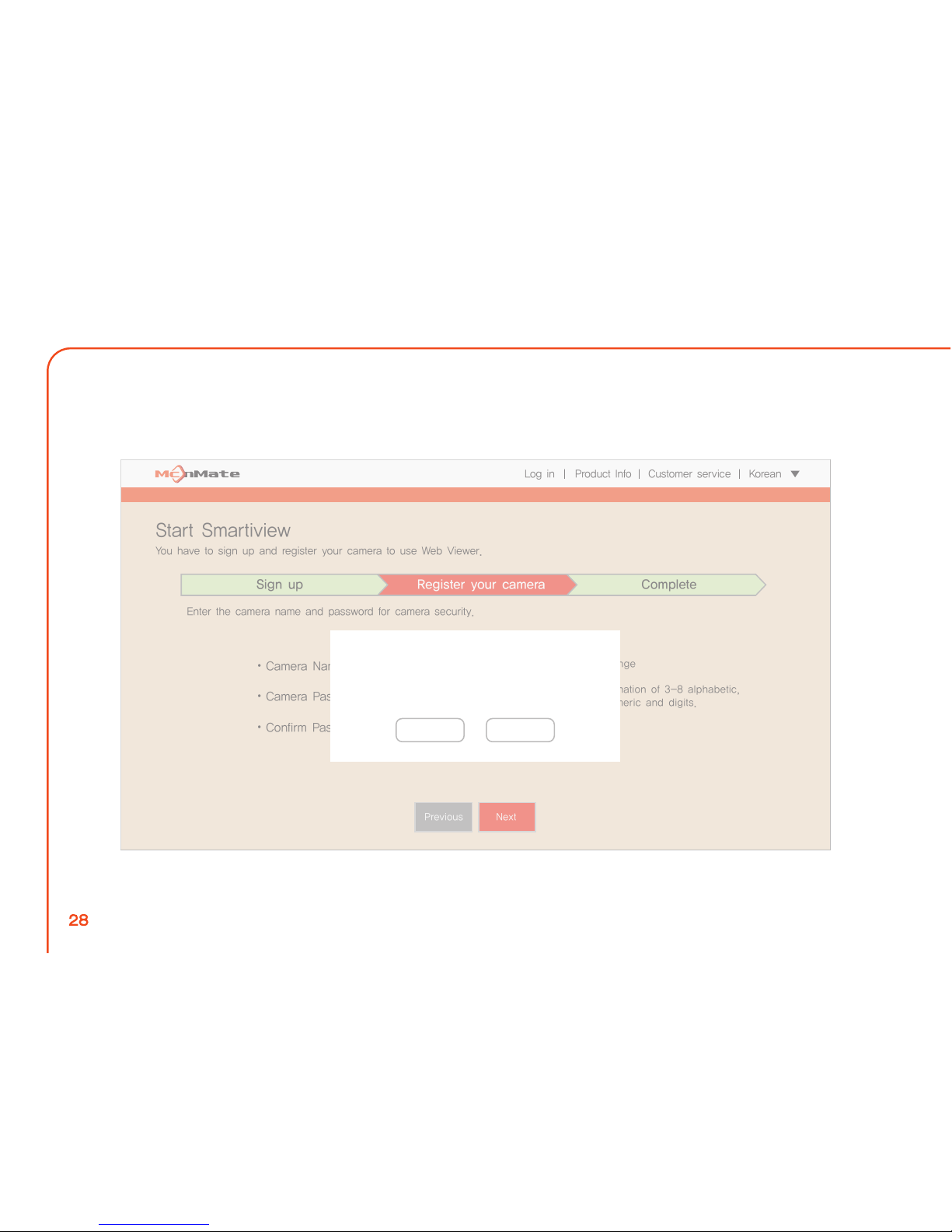

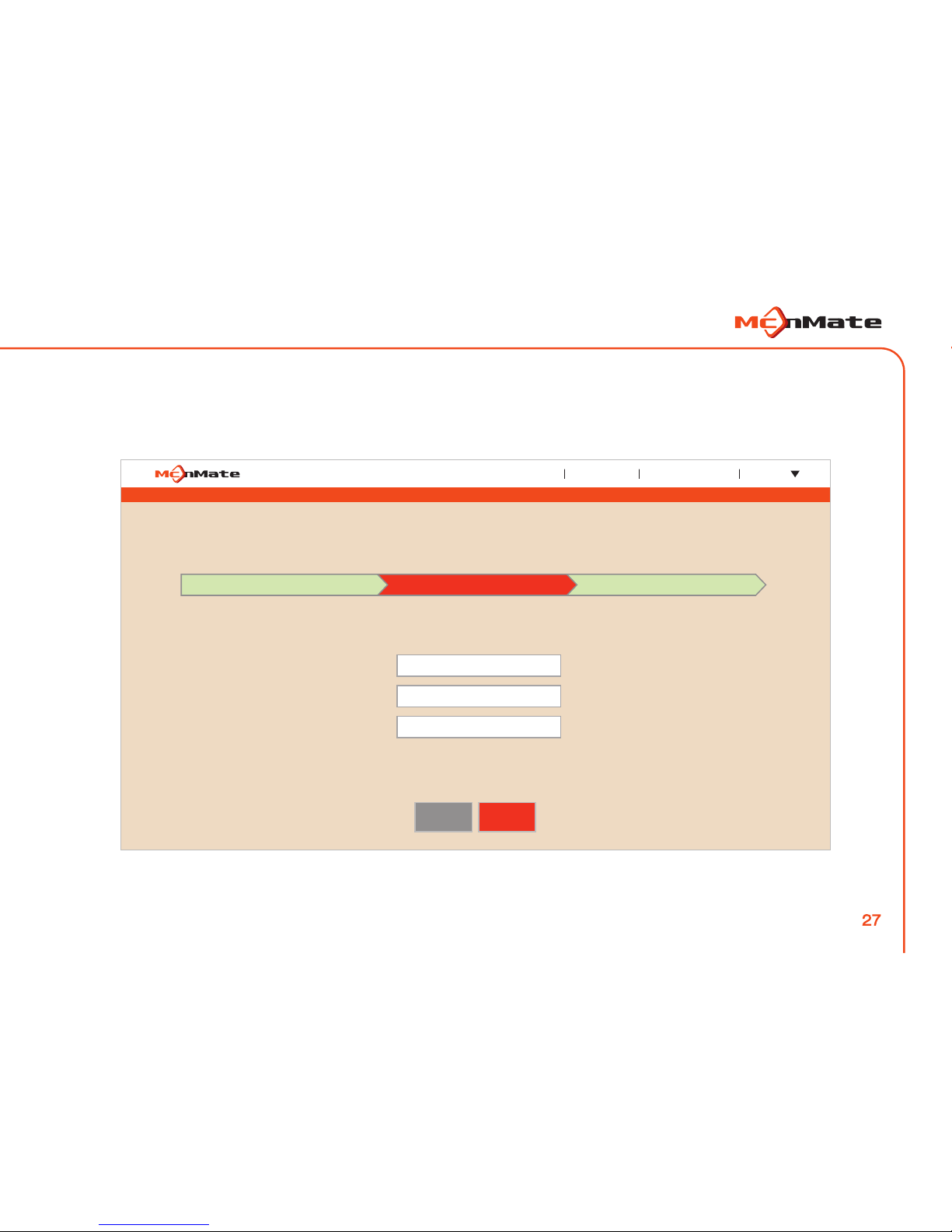

9) Create a name and password for your camera.

10) Click on“Next.”

1. Camera Registration

Enter the camera name and password for camera security.

E.g. Lounge

A combination of 3-8 alphabetic,
alphanumeric and digits.

ㆍ

Camera Name

ㆍ

Camera Password

ㆍ

Confirm Password

Start Smartiview

You have to sign up and register your camera to use Web Viewer.

Customer serviceProduct Info KoreanLog in

Sign up Register your camera Complete

NextPrevious

27

Enter the camera name and password for camera security.

E.g. Lounge

A combination of 3-8 alphabetic,
alphanumeric and digits.

ㆍ

Camera Name

ㆍ

Camera Password

ㆍ

Confirm Password

Start Smartiview

You have to sign up and register your camera to use Web Viewer.

Customer serviceProduct Info KoreanLog in

Sign up Register your camera Complete

1. Camera Registration

11) When the registration is complete, and a wireless network pop-up window appears, click“Yes.”
If you click“No,”wired network monitoring is possible. Go to step“14).”
Wireless network setting can be done in the Web Viewer setting.

NextPrevious

Camera registration is now complete.

Would you like to set the

camera’s wireless network?

Yes No

28

■ If you do not see the wireless network to set up, select“Other Wi-Fi Network (Set a wireless network
not in the list)”and enter the required fields.

12) When the registration is complete, and a wireless network pop-up window appears, click“Yes.”
If you click“No,”wired network monitoring is possible.

1. Camera Registration

Select your wireless network and enter the password of the router.

iptime12

Other Wi-Fi Network (Set a wireless network not in the list).

○ Open ◎ WEP ○ VGA ○ WPA/WPA2 PSK

ㆍ

AP Connected

ㆍ

Password

ㆍ

Security Type

ㆍ

Network SSID

ㆍ

Password

Start Smartiview

You have to sign up and register your camera to use Web Viewer.

Customer serviceProduct Info KoreanLog in

Sign up Register your camera Complete

Next

29

1. Camera Registration

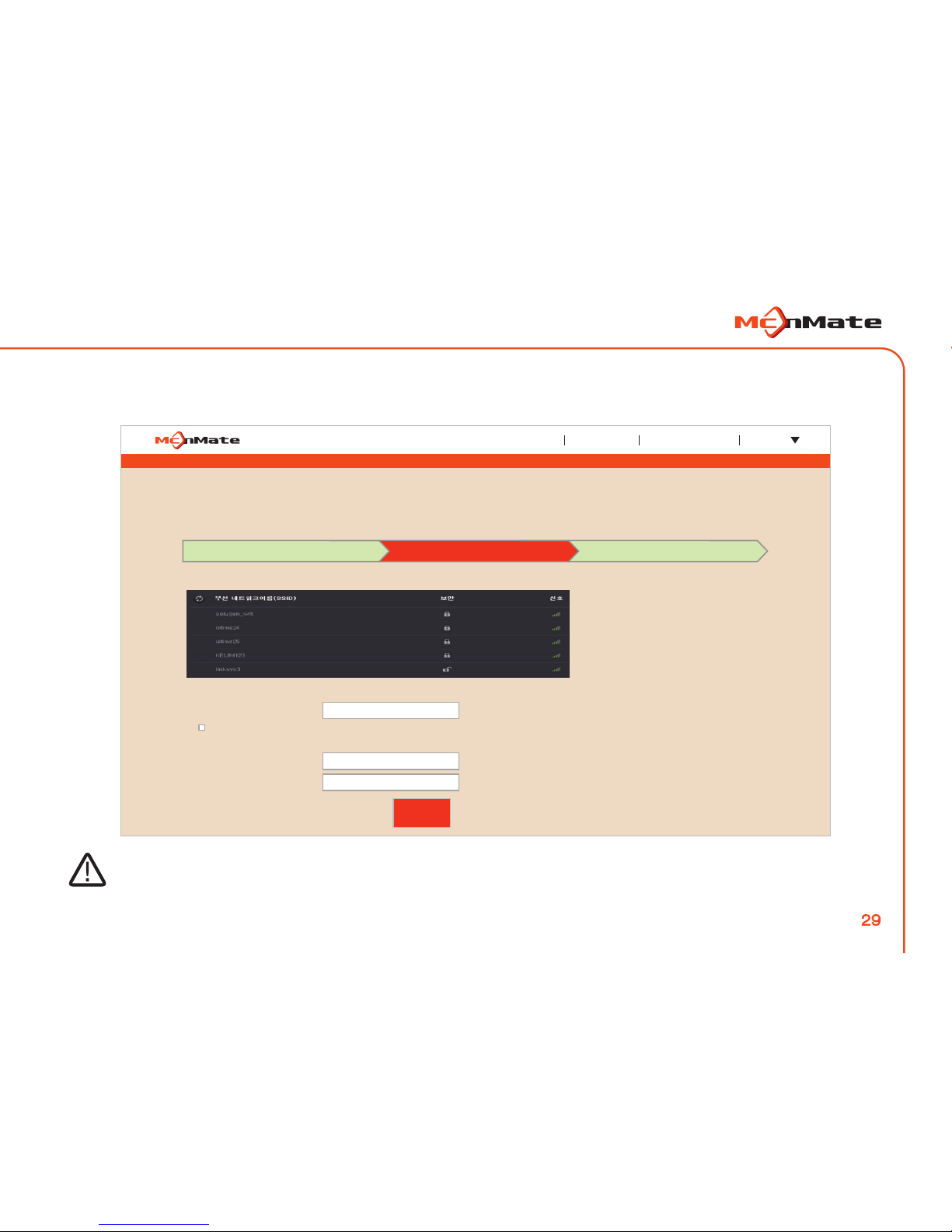

13) Remove the network cable from the router and camera.

14) When the“Complete”button is on, click it.

When the network cable between the router and camera is removed and complete button activated, click“complete.”

Removing the network cable

from the camera.

Start Smartiview

You have to sign up and register your camera to use Web Viewer.

Customer serviceProduct Info KoreanLog in

Sign up Register your camera Complete

NextPrevious

30

1. Camera Registration

15) Upon successful registration, you see a screen that looks like this below, and you can check the cameral in the list.

Camera List

Lounge

Main Bedroom

Log out ㅣ Personal Information

Add a Camera

31

■ Since any Inactivated camera in the list are not functioning, it can not be monitored.

1) Select the camera from the camera list on top-left.

2) Live video screen appears.

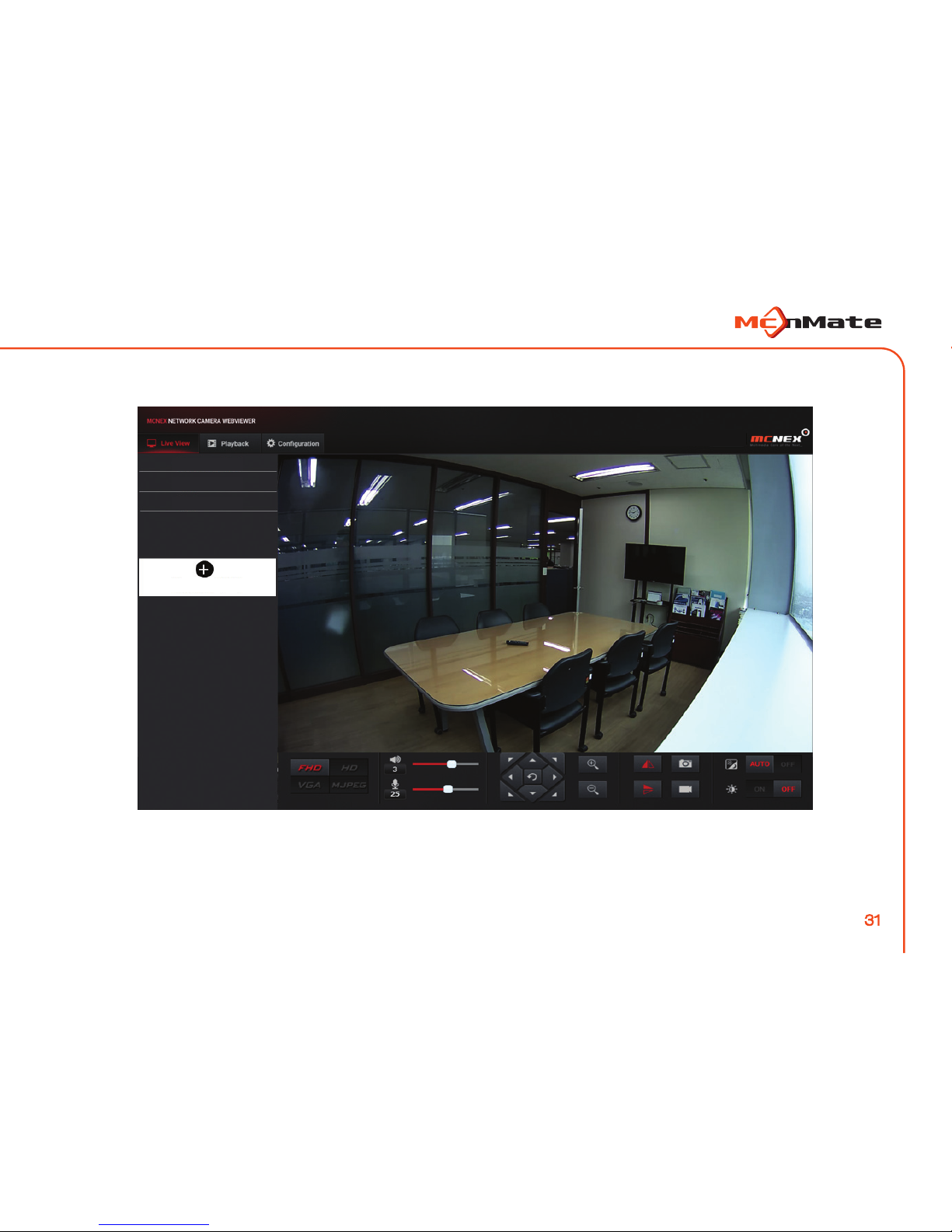

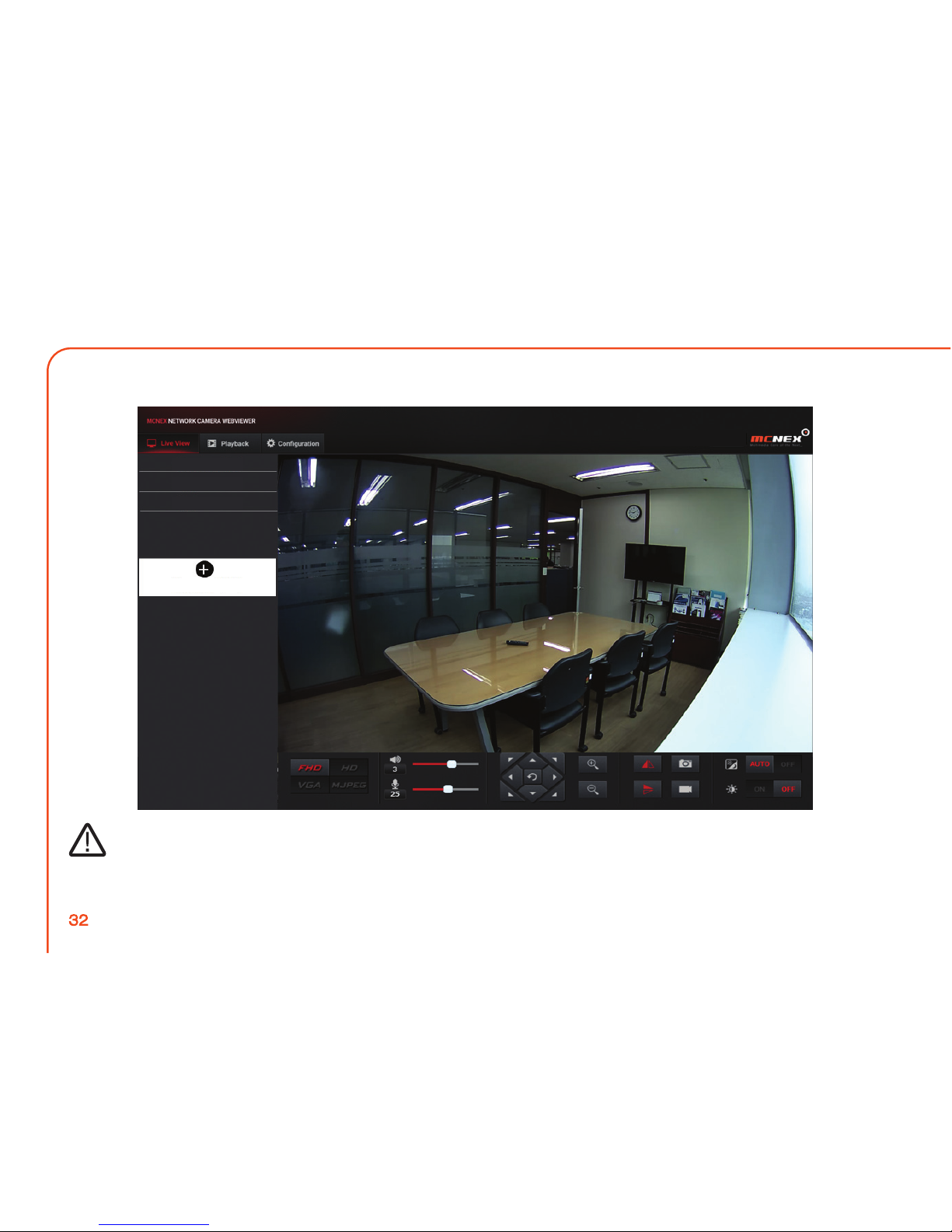

2. Live Video

Camera List

Lounge

Main Bedroom

Log out ㅣ Personal Information

Add a Camera

32

Camera List

Lounge

Main Bedroom

Log out ㅣ Personal Information

2. Live Video

1

2

13

6

3

5

7

14

4 6 7 8 9 10 11 12

Add a Camera

33

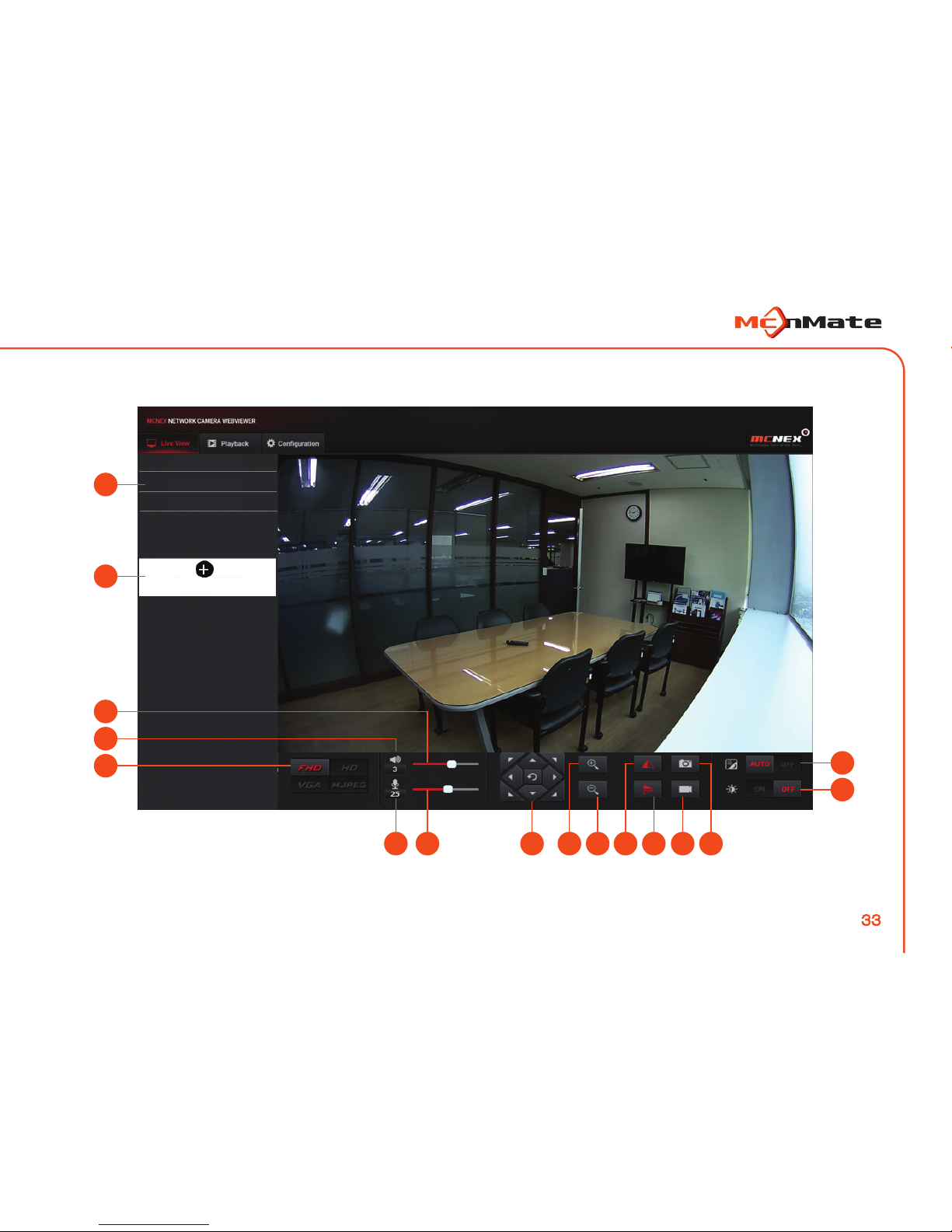

2. Live Video

Title Description

① List of Cameras
② Add a Camera
③ Adjust Speaker
④ Adjust Microphone
⑤ Speaker
⑥ Microphone
⑦ Stream

⑧ Navigation Key

⑨ Zoom In
⑩ Zoom Out
⑪ Mirror
⑫ Flip
⑬ Save Image
⑭ Save Video

⑮ Night Vision

WDR

You can see the live images, if you select a camera.

You can add a camera.

You can adjust the volume of the built-in speaker of the camera.

You can adjust the volume of the built-in microphone of the camera.

You can turn on or off the audio of the viewer.

You can turn on or off the microphone. Microphone is used for two-way voice communication.

You can select FHD / HD / VGA MJPEG stream.
The screen moves to the arrow direction if you click it. (This functions in Zoom In,)

You can go back to the original screen by clicking“Back”in Zoom In / Zoom Out. Same
when you place the cursor on the screen and move by holding the left button of the mouse.

You can zoom in by clicking this, up to 10 times.

You can zoom out by clicking this.

You can change the image orientation from left to right or vice versa.

You can change the image orientation from up to down or vice versa.

You can save the live images in a single image file. The saved location is My PC / My photos.

You can save the live images in a video file. The saved location is My PC / My Videos.
If set to Auto, when it’s dark, the images are automatically converted to black and write,

and the IR lighting functions. If set to Off, it is not converted to Auto vision, so the images
are still in colors.

This is a function that makes a dark place brighter and a bright place dark.
You can use this function when installed toward a gate or window.

16

34

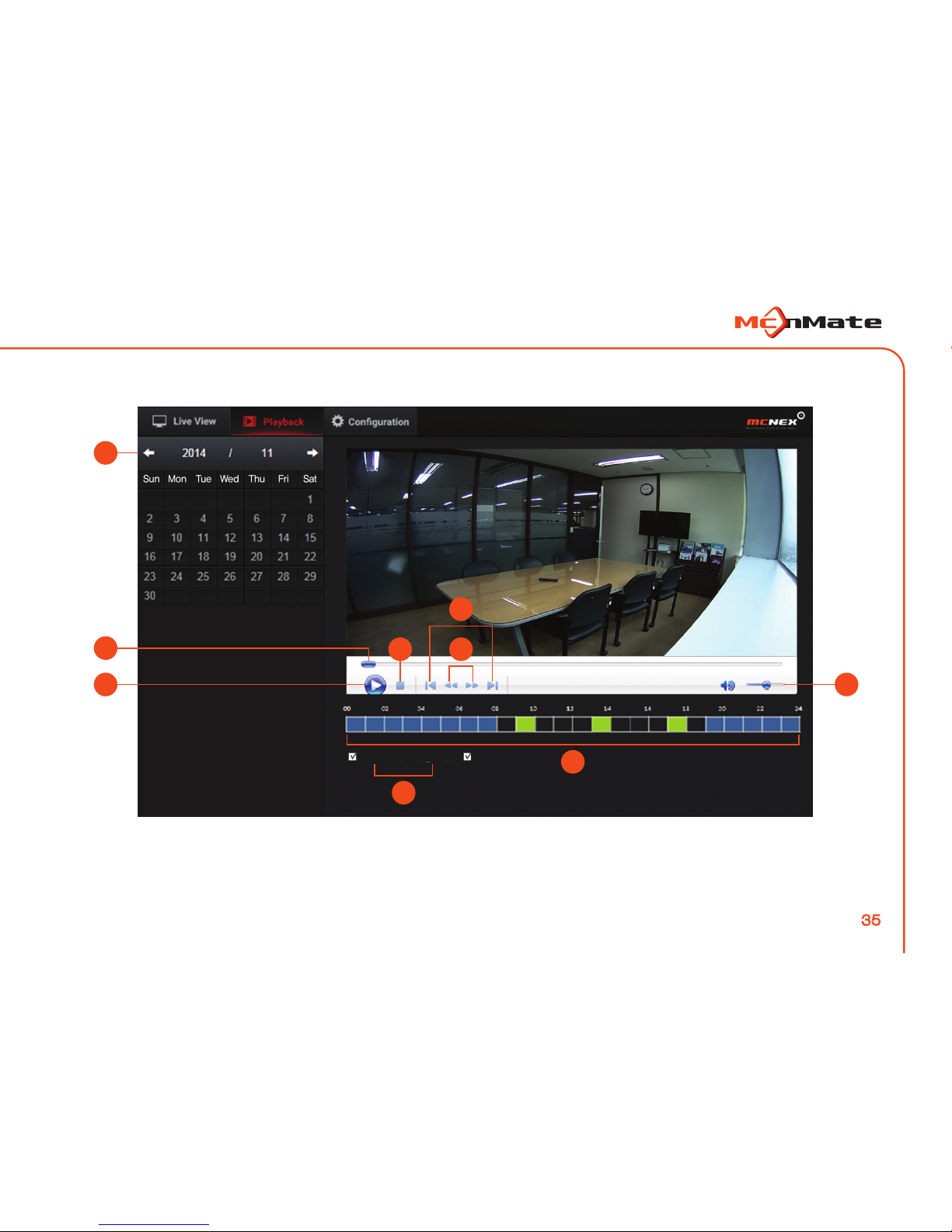

3. Playback

1

2

3 7

4

6

8

9

5

Log out ㅣ Personal Information

Sun Mon Tue Wed Thu Fri Sat

Continuous Recording Event Recording

35

3. Playback

Title Description

① Date

② Timeline

③ Play / Pause

④ Stop

⑤ Skip File

⑥ Skip Frame

⑦ Audio

⑧ Type

⑨ Type Bar

Searches the data on the SD card by date.
Dates with data are activated only.

Shows the playback progress.

Plays or pauses the video.

Stops the playback of the video.

Moves to the previous or next file.

Moves to the previous or next frame.

Adjusts the audio volume of the current video.

Sets the event type to search in a specified period.

Shows status by type of a specified search period.
Blue: Continuous recording, Green: Event recording

36

1. Basic Information

4. Configuration

Basic Configuration

Installation environment

Scene

SD card Management

SD Card Status

Partition Settings

Recording Quality Settings

If the SD card is full, the oldest video is automatically deleted.

Serviceable/All 3GB/16GB

Change

Change

Apply

Format

Serial Number

Camera Password

Camera Name

Firmware
Version

Current Version
Latest Version

xxxxxxxxxx
xxxxxxxxxx

Lounge

S21AA00001T

FHD HD VGA

1

2

3

4

5

6

7

8

Setting the Re cording Schedule

Time Settings

Network

Motion Zone/Alarm Settings

Privacy Zone Settings

Basic Configuration

Log out ㅣ Personal Information

Continuous recording first

37

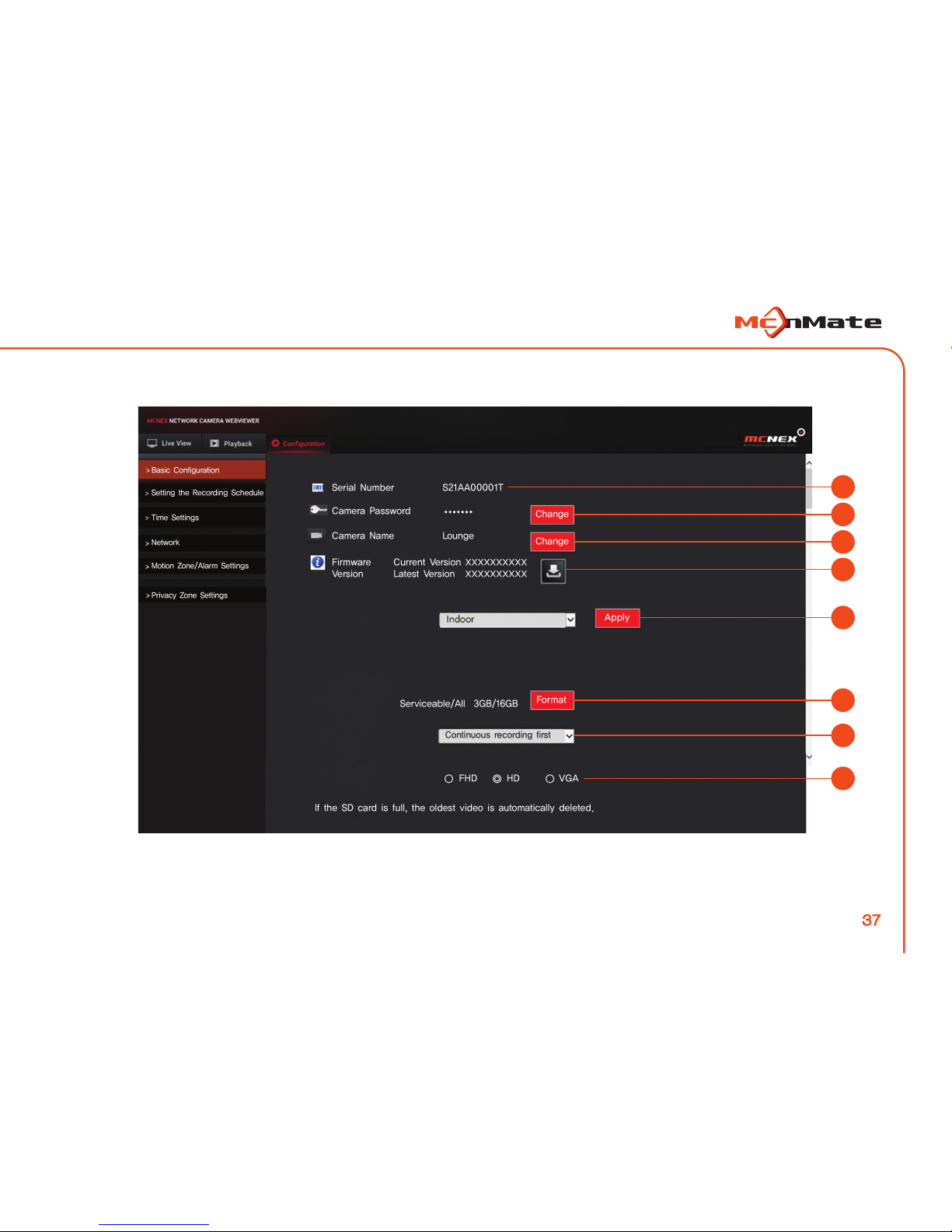

Title Description

① Serial Number

② Camera Password

③ Camera Name

④ Firmware Version

⑤ SD Card Status

⑥ Partition Settings

⑦ Recording Quality Settings

⑧ Type

Check the product serial number.

You can change the camera password by clicking“Change.”
Change the password by entering the existing password and a new combination of
3~8 alphanumeric and clicking“Apply.”

You can change the camera name by clicking“Change.”
Enter a new name and click“Apply.”

You can check the current and recent version of the camera software.
If the software needs a new version, the download icon is activated,
and you can start updating by clicking this icon.

You can format the SD card.

You can set the capacity of the SD card by recording type.
Priority of continuous recording: Continuous 70% and Event 30%.
Priority of event recording: Continuous 50% and Event 50%.

Set the quality of the images to be saved on the SD card.

Set the type of the event to be searched in the search period.

■ The camera reboots after the firmware update.

■ Do not turn on the power while updating. Otherwise, it may not function properly.

■ Wired network connection is recommended for the firmware update.

■ The time of the firmware update depends on the file size and network connection.

1. Basic Information

4. Configuration

38

Item Description

① Continuous Recording
② Camera Password
③ Delete All

Records the images during the set time on the SD card.
Records the images of before and after 10 seconds before and after the accident.
Delete all of the selected.

Delete All

Apply

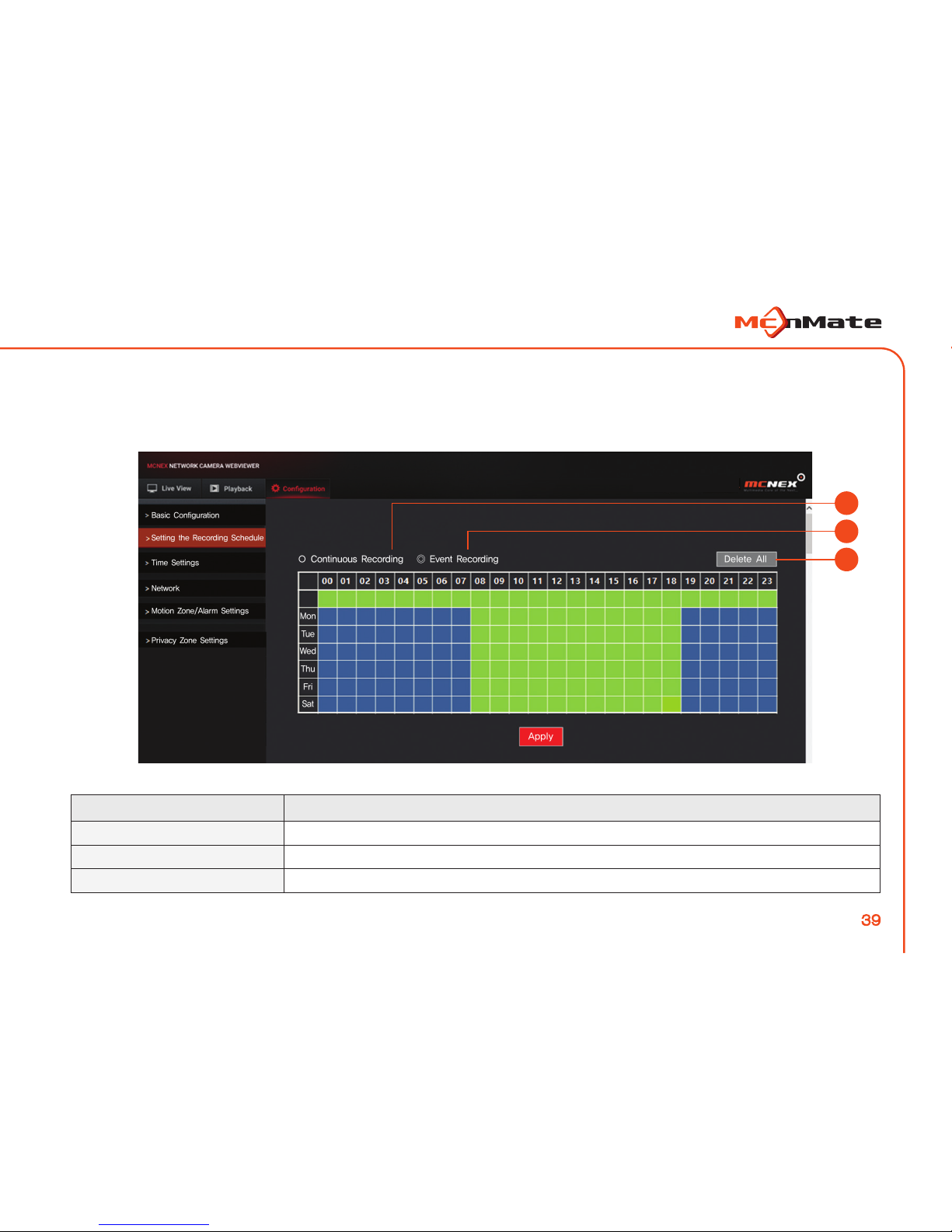

Setting the Schedule

○ Continuous Recording

◎ Event Recording

■ Select the continuous recording or event recording and then select a time to record the time and
set the alarm.

2. Setting the Recording Schedule

4. Configuration

3

2

1

Log out ㅣ Personal Information

Setting the Re cording Schedule

Time Settings

Network

Motion Zone/Alarm Settings

Privacy Zone Settings

Basic Configuration

Sun

Mon

Tue

Wed

Thu

Fri

Sat

39

4. Configuration

Title Description

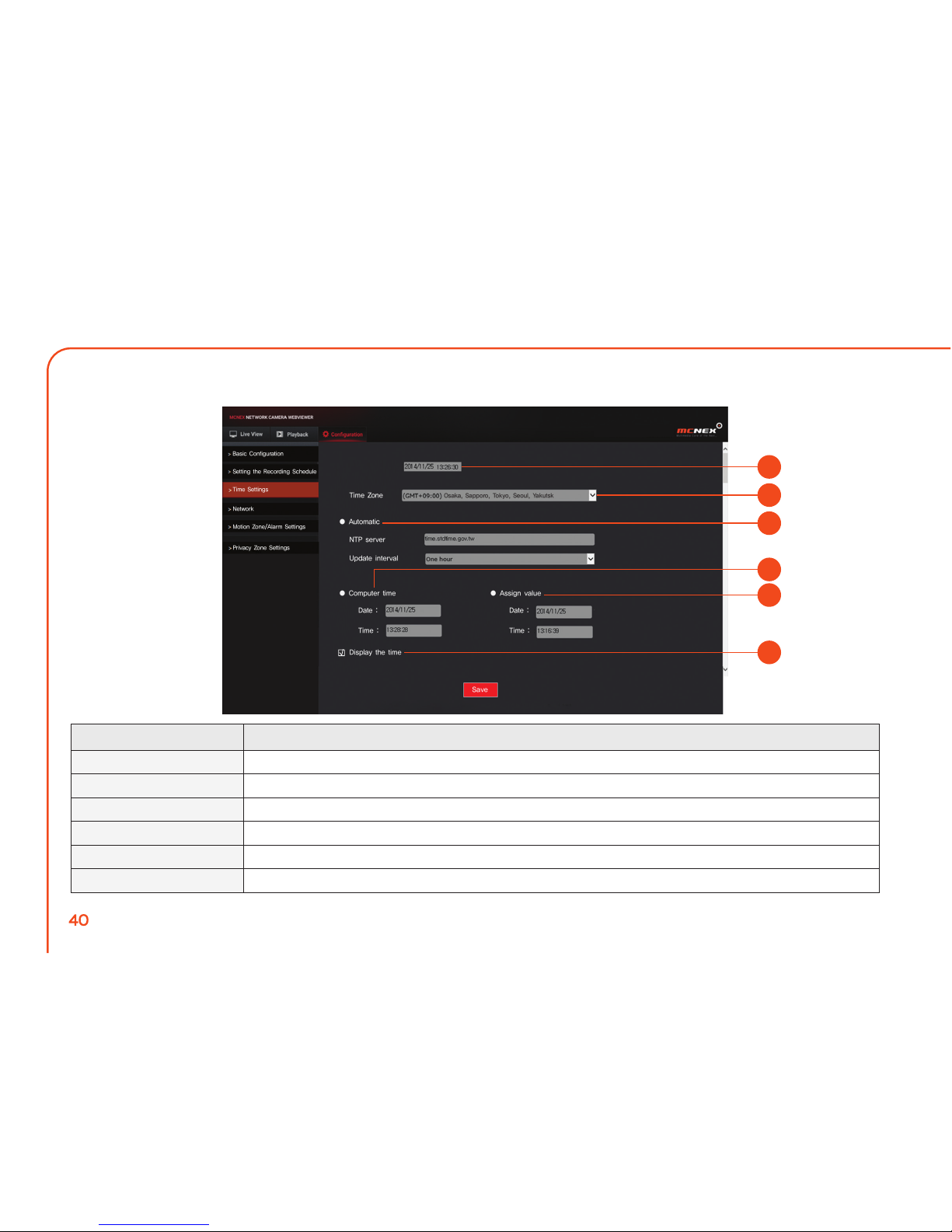

① Time Settings
② Time Zone
③ Auto
④ Computer Time
⑤ User Settings
⑥ Display the time

Shows the set time of the camera.
Select a region.
The server time is applied to you PC.
The time of the PC using the monitoring is applied.
You can directly input the time.
Overlaid on the camera images.

3. Time Settings

Save

Setting time

Time Zone

● Automatic

● Computer time

Date :

Time :

● Assign value

Date :

Time :

NTP server

Update interval

Display the time

1

2

3

4

5

6

Log out ㅣ Personal Information

Setting the Recording Schedule

Time Settings

Network

Motion Zone/Alarm Set tings

Privacy Zone Settings

Basic Configuration

Osaka, Sapporo, Tokyo, Seoul, Yakutsk

40

4. Configuration

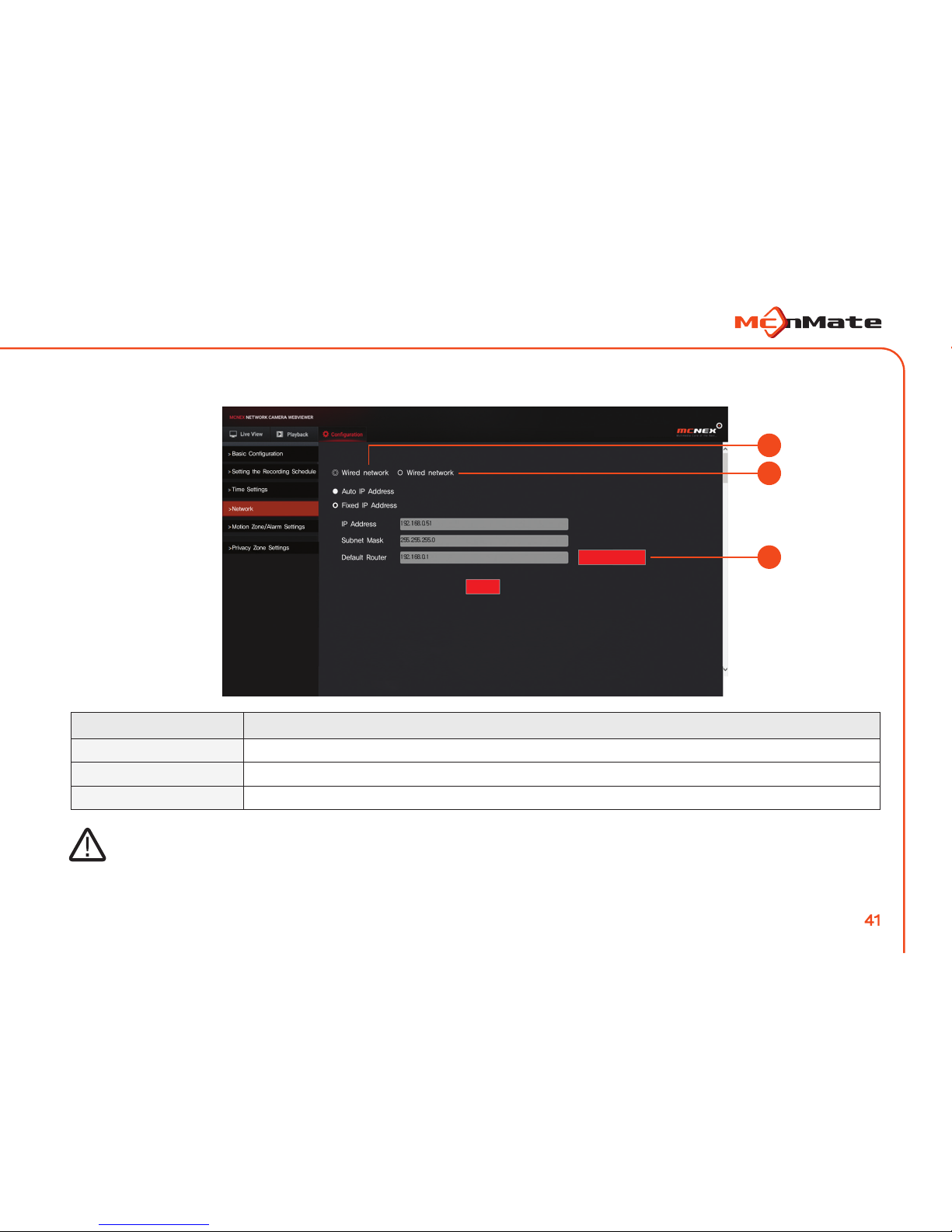

Title Description

① Auto IP Address
② Manual IP Address
③ Advanced Settings

When selected, the IP address is assigned automatically.
You have to enter the IP address, subnet mask and gateway.
Manual settings enables ideas on the manual IP address.

◎ Wired network

IP Address

Subnet Mask

Default Router

● Fixed IP Address

○ Wired network

Save

● Auto IP Address

■ When the camera is connected to both the wired and wireless network, the wired network is priotized.

■ Connecting from wireless to the wired can convert it into the wired.

■ If the manual settings are incorrect, the network settings are not applied.

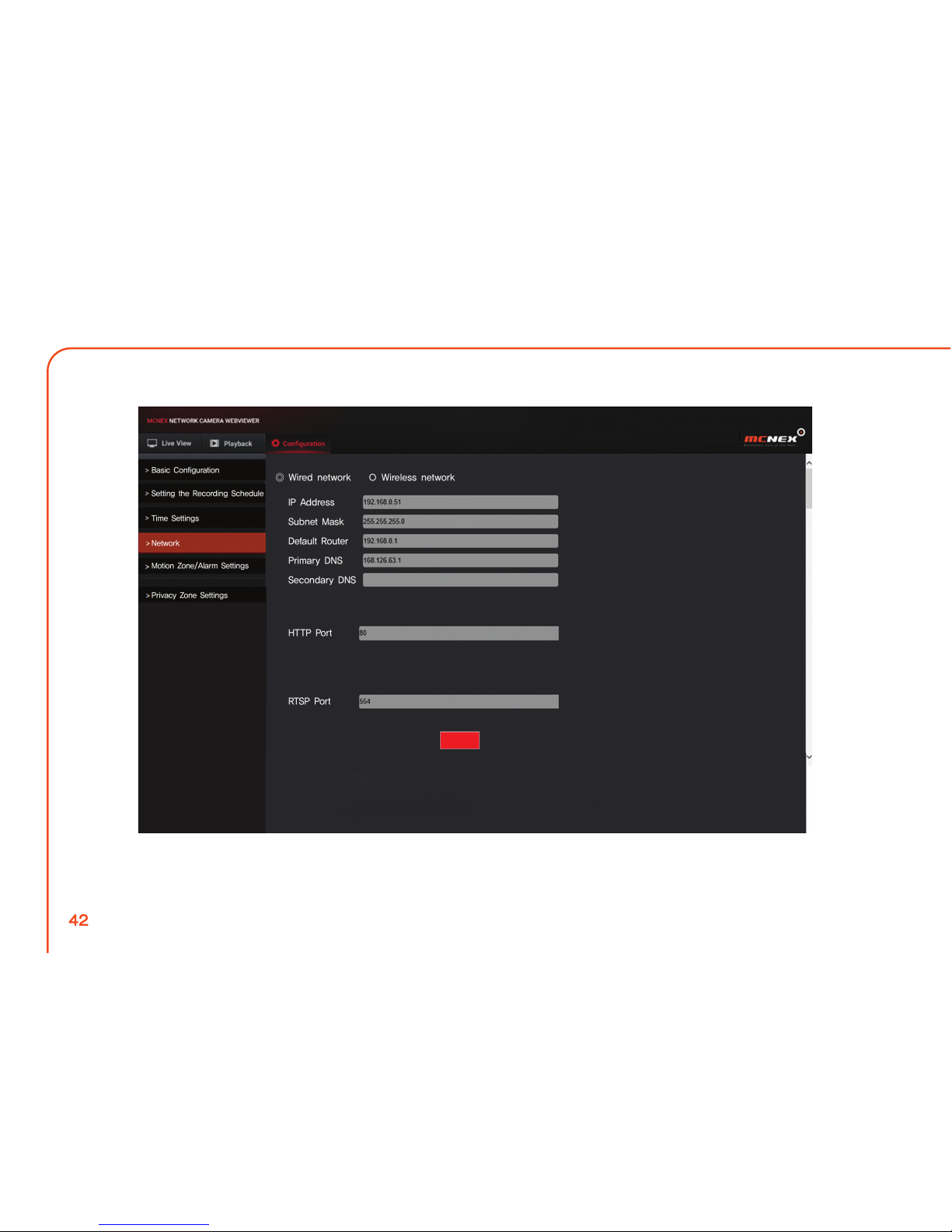

4. Network (Wired)

1

2

3

Log out ㅣ Personal Information

Setting the Recording Schedule

Time Settings

Network

Motion Zone/Alarm Set tings

Privacy Zone Settings

Basic Configuration

Advanced Settings

41

4. Configuration

◎ Wired network

IP Address

Subnet Mask

Default Router

Primary DNS

Secondary DNS

HTTP

RTSP Streaming

HTTP Port

RTSP Port

Save

○ Wireless network

4. Network (Wired, Advanced Settings)

Log out ㅣ Personal Information

Setting the Re cording Schedule

Time Settings

Network

Motion Zone/Alarm Settings

Privacy Zone Settings

Basic Configuration

42

◎ Wired network

○ Wireless network

AP Connected :

4. Configuration

4. Network (Wireless)

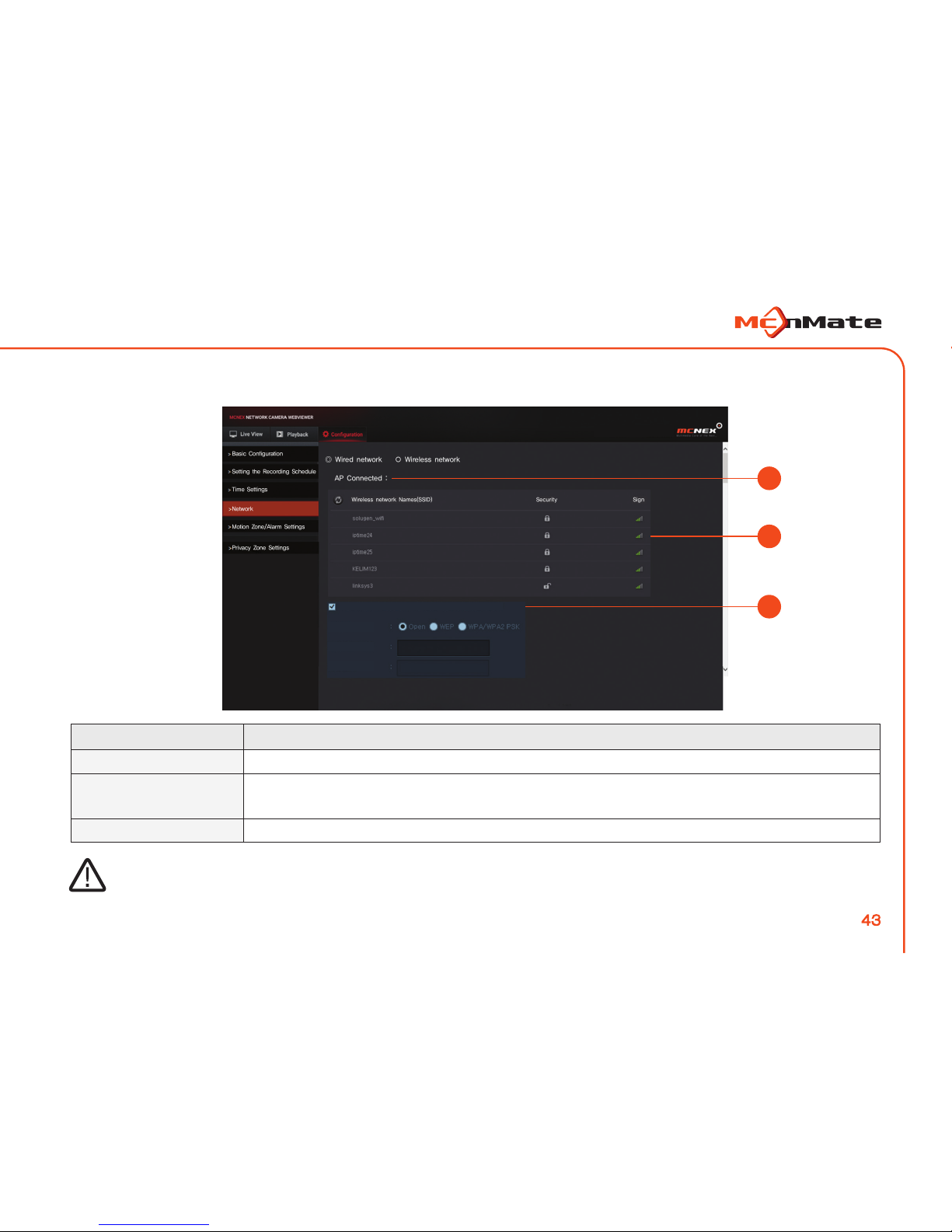

Item Description

① AP Connected

② AP List

③ Hidden SSID

Shows wireless network already set.

Displays a list of available Aps (Access Point). When you select an AP you want,
enter the password in the pop-up field.

In this case, enter SSID name and password.

■ For open Aps, no password is required. If you fail to enter the password to a secured AP,
you can access to network.

1

2

3

Log out ㅣ Personal Information

Setting the Recording Schedule

Time Settings

Network

Motion Zone/Alarm Set tings

Privacy Zone Settings

Basic Configuration

Network SSID

Security Type

Password

Wireless network Names(SSID)

Security

Sign

Other WiFi Network(Set the wireless network not in the list.)

43

4. Configuration

Delete All

Save

Motion Zone Set tings

You can drag the mouse to create up to three zones.

Set the alarm sensitivity.

Alarm Settings

Detect Motion

Sensitivity

Detect Audio

Setting

Setting

Push Alarm

Google Drive

E-mail Alarm

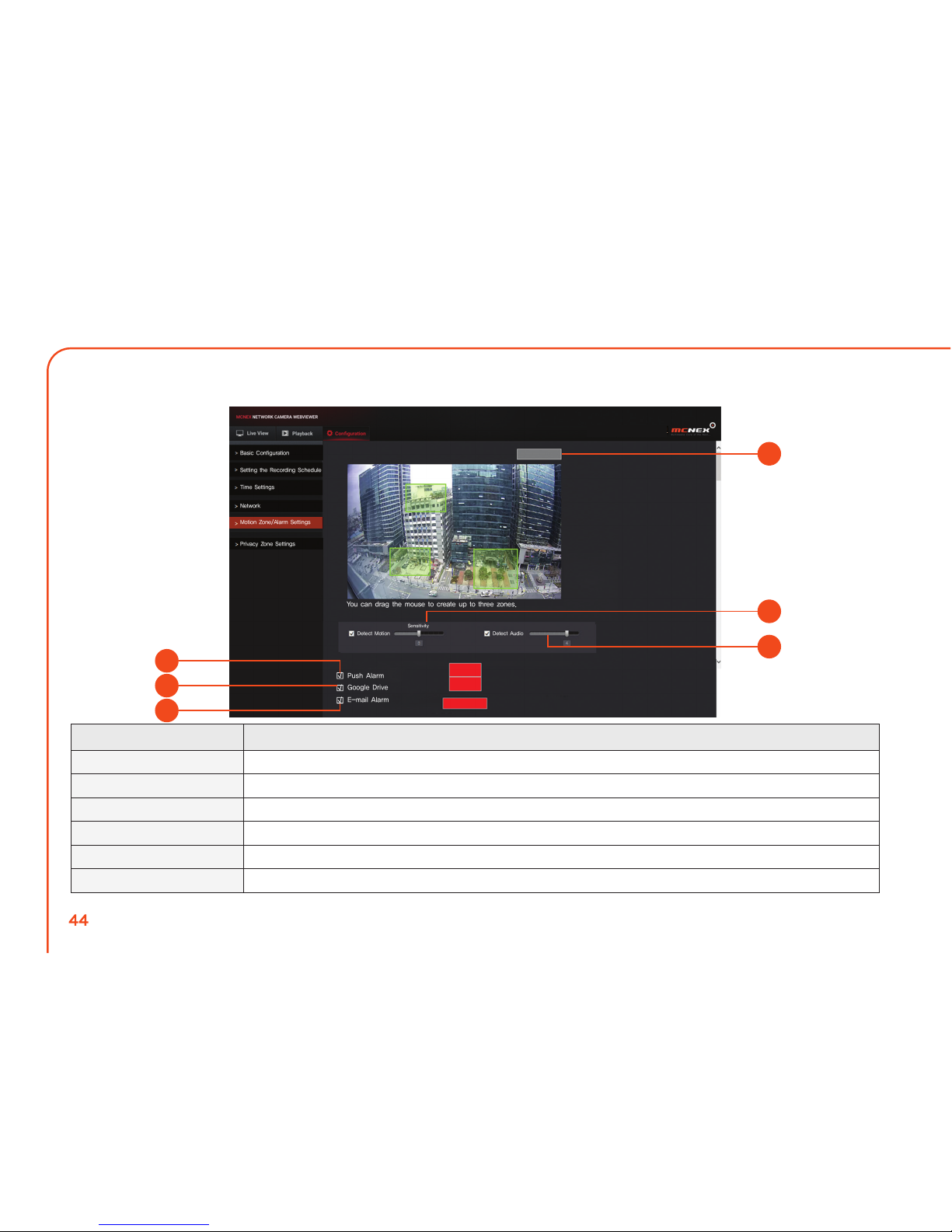

5. Motion Zone / Alarm Settings

1

4
5
6

2

3

Title Description

① Delete All
② Detect Motion
③ Detect Audio
④ Push Alarm
⑤ Google Drive
⑥ Email Alarm

Deletes all the set motion jones.
Activates and sets the motion detector. Higher motion sensitivity makes more motions detected.
Activates and sets the audio detector. Higher the motion sensitivity makes more audio detected.
Provides a push alarm service on the Web Viewer or mobile app with the camera registered.
When an event occurs, an alarm is saved on Google Drive.
Sends an alarm event to the set email address.

Log out ㅣ Personal Information

Setting the Recording Schedule

Time Settings

Network

Motion Zone/Alarm Set tings

Privacy Zone Settings

Basic Configuration

44

4. Configuration

1) Configure Google Drive

2) Set the Email Alarm

5. Motion Zone / Alarm Settings

45

4. Configuration

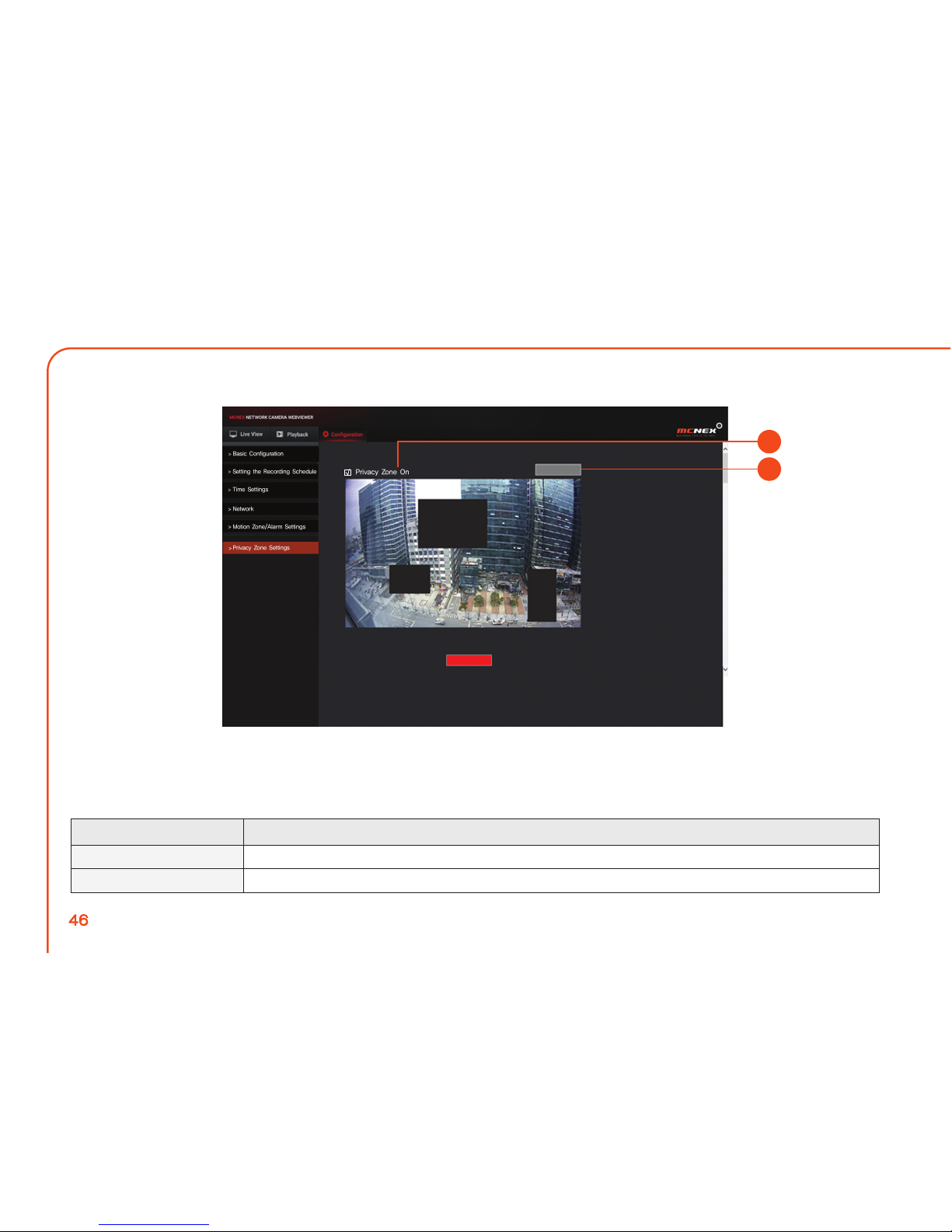

Title

① Privacy Zone On
② Delete All

Activates the privacy zone settings
Delete everything related with the privacy zone.

Delete All

Save

You can drag the mouse to create up to four zones.

Privacy Zone Settings

Privacy Zone On

6. Privacy Zone Settings

Description

Log out ㅣ Personal Information

Setting the Recording Schedule

Time Settings

Network

Motion Zone/Alarm Set tings

Privacy Zone Settings

Basic Configuration

1

2

46

06

Mobile Monitoring

■ The camera registration is handled after connecting the power with the network (state LED: Green).

- It can be directly monitored through a mobile app, using a mobile device.

- Download an app (keyword:“MCNEX,”Smartiview) from the Play store and install it on your mobile device.

1. Camera Registration

■ Android 4.0/4.1/4.2/4.3/4.4

1. Device specification

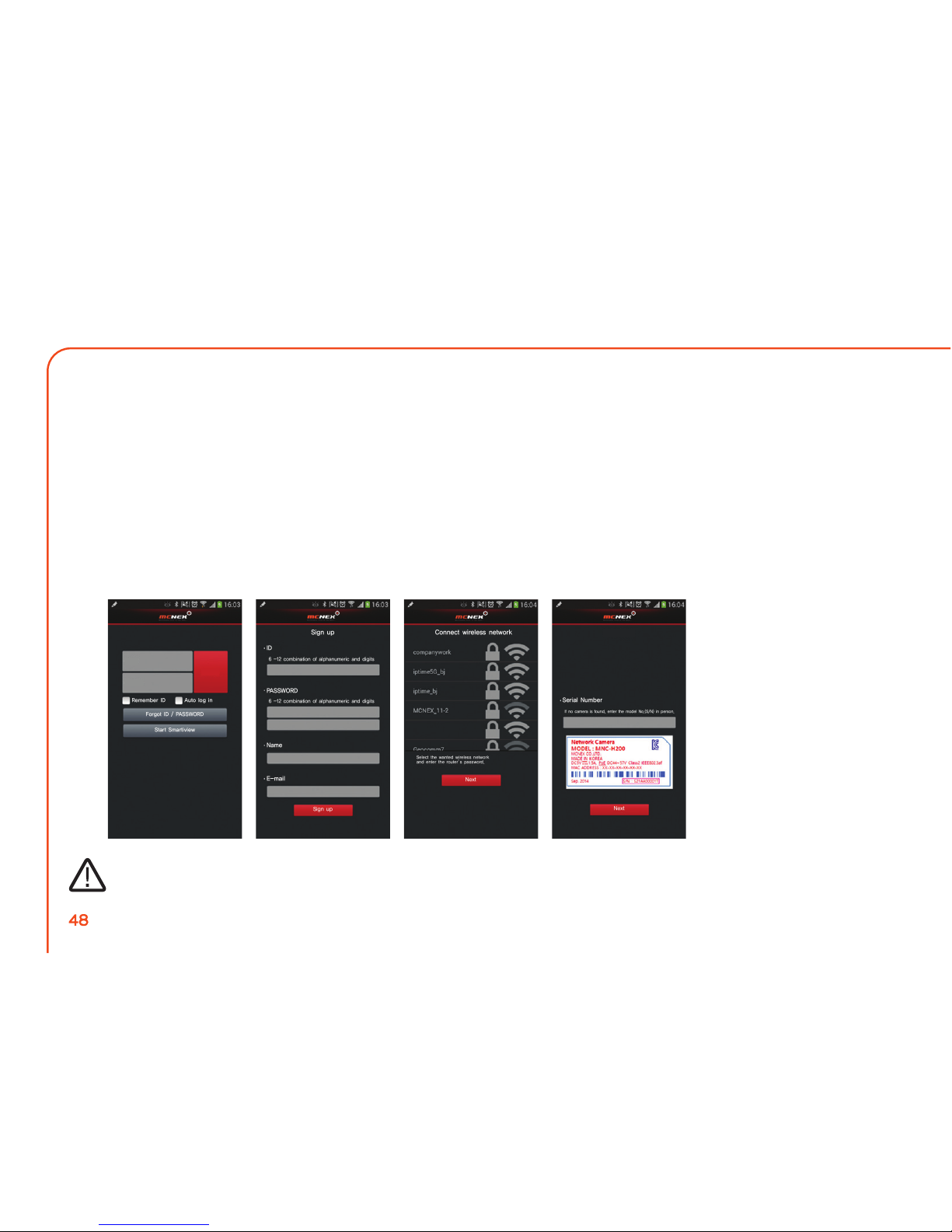

1) Install and start the downloaded app.

2) Click“Start Smartiview”. Then, join the membership and upload the camera.
After signing in on a web viewer or mobile, log in and enter the mobile viewer with your ID and password.

2. Start

① Click“Smartiview”.

② Enter your ID, password,
name and email and click
[JOIN THE MEMBERSHIP].

③ Select the WiFi to be
connected with a camera
and make a connection.

④ Enter the serial No. on the
back of the camera and
click NEXT.

ID

PASSWORD

LOG IN

Remember ID

Auto log in

Forgot ID / PASSWORD

Start Smartiview

Sign up

ID

6 -12 combination of alphanumeric and digits

6 -12 combination of alphanumeric and digits

PASSWORD

Name

E-mail

Sign up

Next

Next

Camera Registration

Serial Number

Connect wireless network

Select the wanted wireless network
and enter the router’s password.

If no camera is found, enter the model No.(S/N) in person.

48

1. Camera Registration

⑤ Enter the camera’s model number
and password and click NEXT.

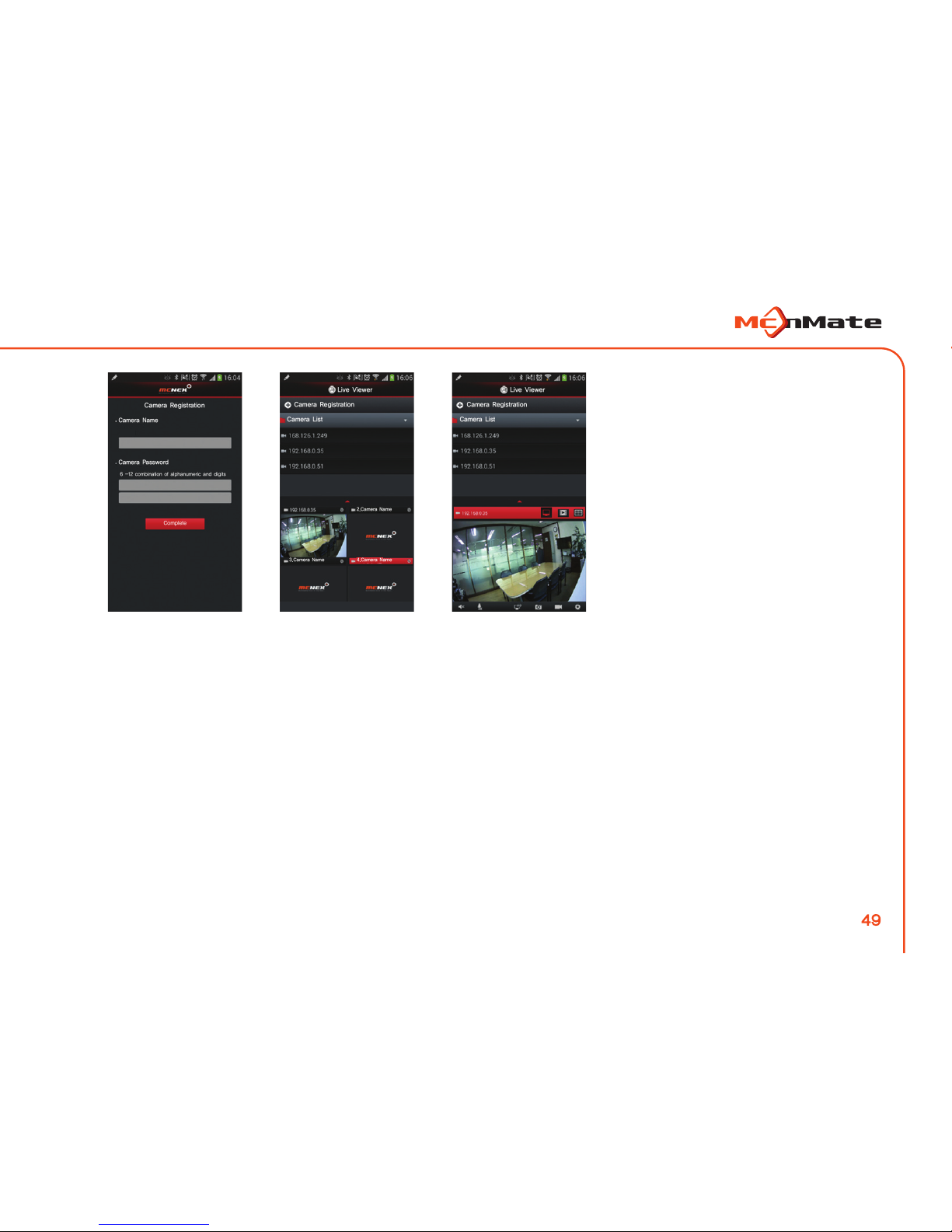

⑥ Select one on the list of cameras
and put it into the page below.
Then, a video appears.

⑦ If a wanted image is double-touched,
a single image appears.

Camera Registration

Camera Name

Camera Password

E.g. Lounge

E.g. Lounge

6 -12 combination of alphanumeric and digits

Complete

Live Viewer

Camera Registration

Camera List

Live Viewer

Camera Registration

Camera List

2.Camera Name

3.Camera Name

4.Camera Name

49

Title Description

① Camera model No.
② Conversion into Split Images
③ Regeneration of SD card
④ Live video
⑤ Speaker
⑥ Microphone
⑦ HD
⑧ Capture
⑨ Photography
⑩ Environment setting
⑪ Viewer page

The camera’s model No. appears.
The page is divided into four sections.
The images saved in the SD card are seen.
The camera’s live video is played.
Turn on/off the viewer audio.
It turns on/off the viewer’s microphone.
Select the quality of the image.
During monitoring, still image videos are stored.
During monitoring, images are stored (10 seconds).
The camera’s environmental setting is determined.
A user can expand the images and move them to the up and down and left to the right.

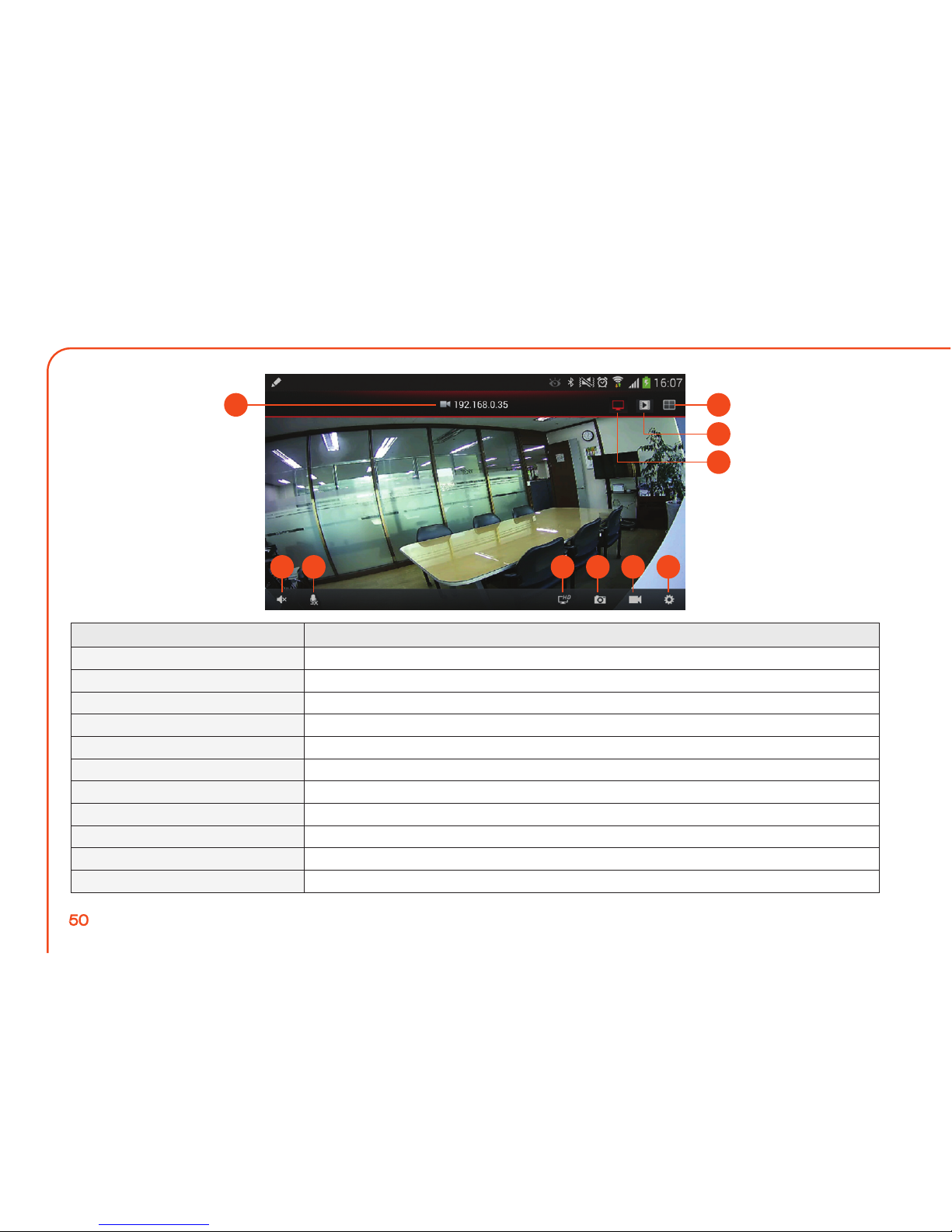

2. Live Video

1 2

3

4

5 6 7 8 9 10

50

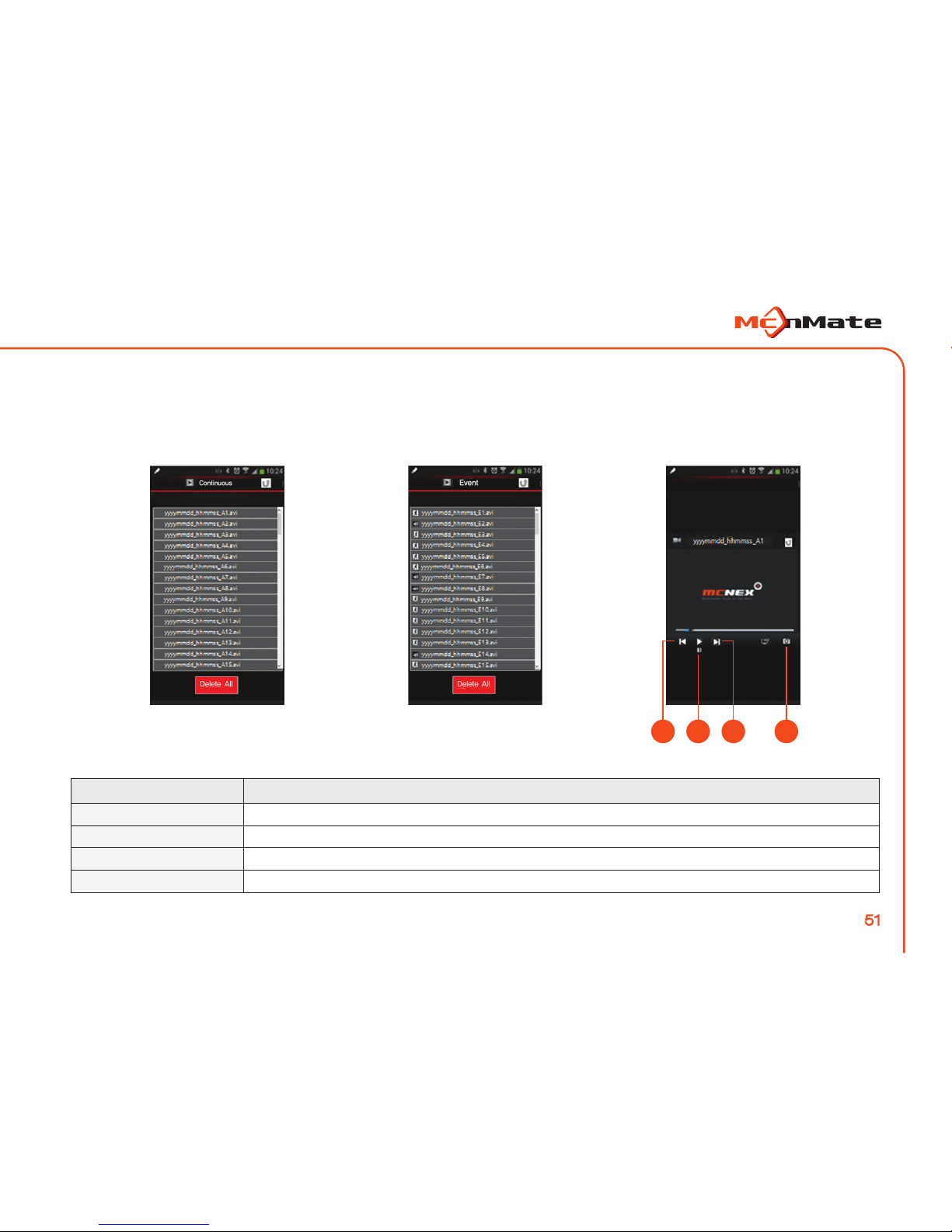

Title Description

① Skip Frame
② Play / Pause
③ Skip Frame
④ Capture

Move to the previous frame from the current file.
Play / pause the image.
Move to the next frame from the current file.
Save the still image.

- If PLAY SD CARD is pressed on the live page, a list of the recorded images in the card appears.

- If an item is double-clicked, it is played.

- To delete the recorded image(s), click DELETE ALL or select the image to delete and hold for few seconds.

3. SD Card Playing

[List of continuously recorded images] [List of the recorded images by event]

1 2 43

Delete All

Delete All

Event

Continuous

51

Display Description

① Camera Model No.
② Speaker
③ Microphone

④ Record Quality

⑤ Night Vision
⑥ WDR
⑦ Motion Detection
⑧ Audio Detection

⑨ Time Display

⑩ Time Setting

⑪ Network Setting

⑫ System Setting

Camera Model No. appears.

The speaker volume is adjusted.

The microphone volume is adjusted.

The quality of the images recorded
in the SD card is set.

Select either AUTO or OFF (click).

Select either ON (click) or OFF.

Select either ON (click) or OFF.

Select either ON (click) or OFF.

Time is displayed with overlapped
on the image.

Time is set.

Select the WiFi to be connected with
the camera and connect.

Set firmware update and SD card.

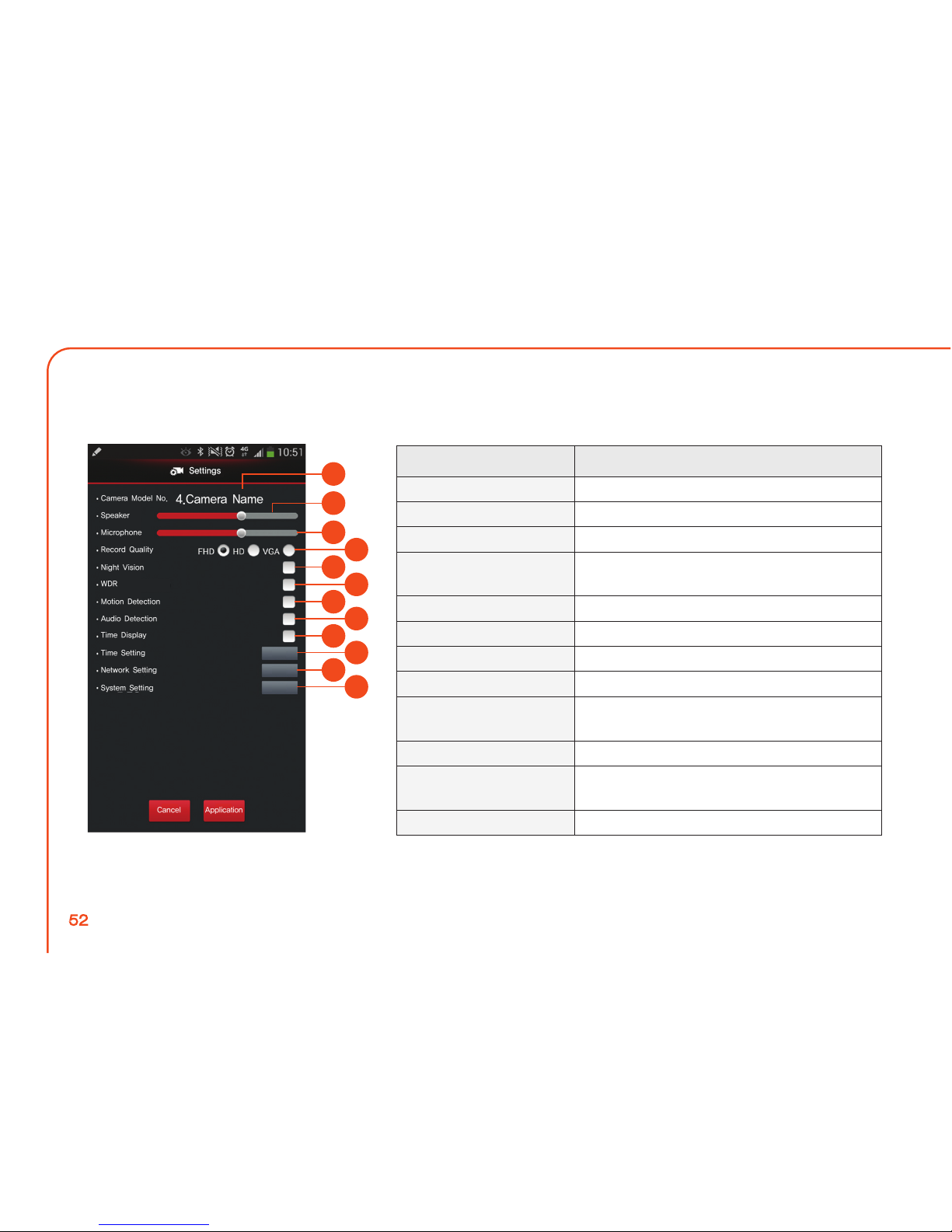

- If SETTINGS is click on the live page, the camera functions can be set.

4. Settings

1

2

3

5

4

7

6

9

8

11

10

12

4.Camera Name

Cancel

Application

Settings

Camera Model No.

Speaker

Microphone

Record Quality

Night Vision

WDR

Motion Detection

Audio Detection

Time Display

Time Setting

Network Setting

System Setting

Setting

Setting

Setting

52

07

Others

Item Specification

Resolution

Max Frame

Video Compression

Simultaneous

Transmission

Low Light

WDR

DNR

Day & Night

Night Vision

Angle of View

Digital Zoom

Flip / Mirror

Motion Detection

Audio Detection

Audio Compression

1920x1080, 1280x720, 640x360

1080p@30fps

H.264, MJPEG

Multi-Streaming(Up to 5Profiles)

0.1Lux(Color), 0lux(B/W)

Support

3D DNR

True D/N Filter

IR-LED, 5m

128°/ 106°/ 58°

Mobile: 4x, Web Viewer: 10x

Support

Support

Support

G.711, G.726

Item Specification

Audio Communication

Memory Slot

Save & Playback

Ethernet

Wireless

Maximum Users

Temperature for Use

Power Supply

Power Consumption

Status Indicator

Dimensions(WxHxL)

Weight

Color

2-Way Audio

(Built-in Microphones & Speaker)

Micro SD(FAT32) Up to 32GB

Continuous Recording/

Event Recording/Manual Recording

Remote Playback

RJ-45(10/100BASE-T)

Wi-Fi 802.11 b/g/n(2.4G)

5 Users

-20℃ ~ +55℃ / 90% RH

DC 5V / 1.5A

Max 4.5W

1LED(Power / Link)

73 x 98 x 44mm

123g

White / Black

1. Product Specifications

1. Product Specifications

54

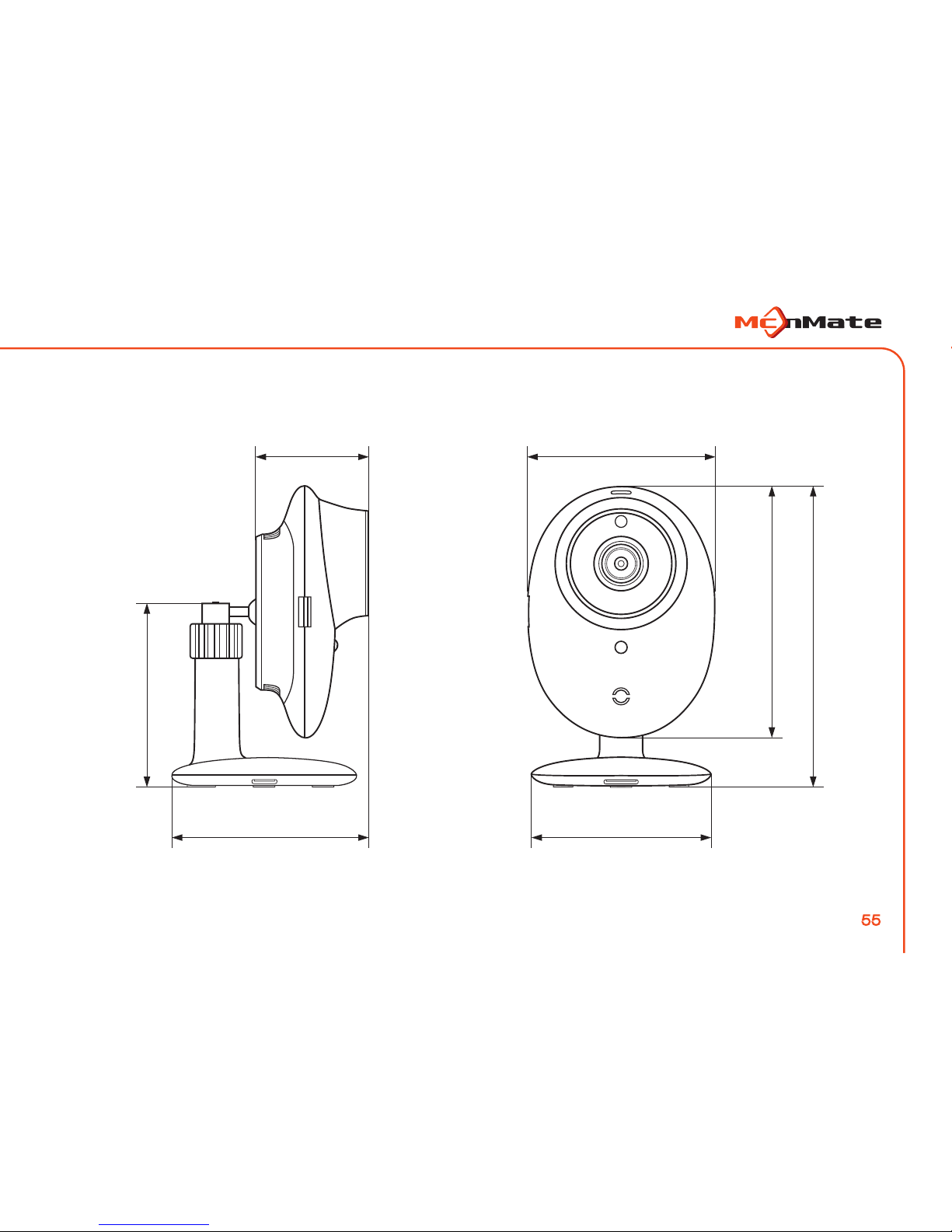

■ Dimensions

1. Product Specifications

73.0mm[2.9”]44.3mm[1.7”]

72.0mm[2.8”]77.0mm[3.0”]

117.0mm[4.6”]

71.0mm[2.8”]

98.0mm[3.9”]

55

Problem Action

I’ve forgotten my ID and password.

I’ve forgotten my camera password.

I can’t connect the camera to the
wireless connection.

I can’t register my camera.

I don’t hear anything from the video.

The camera images temporarily lose vision.

Click“Forgot ID/PASSWORD”on the log in page.

Press the RESET button in the back of the camera and hold it for
about ten (10) seconds for initiation. Then, reset the system.

Check if the wireless router and the camera are located too far away.
Install them close to each other and try connecting them again.

Press the reset button on the back of the product and regenerate
the password.

Check the audio icon and volume on the viewer page and turn
them on.

Check if the camera is installed where the wireless communication
is normally working.

2. Troubleshooting

56

※ Failure within 1 year (the warranty period) after purchase can get free
services only. When the product is used for a commercial purpose,
the warranty period is reduced by half.

※ You have to pay if the service requested is not a break-down.
So, please read the manual.

Compensation

Within the Warranty

Period

After the warranty

period

Type of Consumer Damage

Free Services

Location Address and Contact Number

Headquarter Level 11, Hanshin Tower 2, 60-18 Gasan-dong, Geumcheon-gu, Seoul, Korea / TEL: [phone]

A service requested,

but not a failure

Product failure

due to the

consumer’s

negligence

Others

Paid Services

A major problem taken place within
10 days after purchase

Performance or functional problem
taken place on a normal operation
within 1 month after purchase

Up to 3 times with the same problem

More than 4 times with the
same problem

Different problem for the 5th time

If the manufacturer loses the product
requested for repair

Repair parts available but not
possible to repair (within the part
ownership period).

Repair parts not available so not
possible to repair (within the part
ownership period).

Free Repair

Free Repair

Product Replacement

or Refund

Product Replacement

or Refund

Product Replacement

or Refund

Product Replacement

or Refund

Product Replacement

or Refund

Product Replacement

or Refund

NA

NA

Paid Repair

Paid Repair

Paid Repair

Return of 10% added

to the original price

of the product

Return of 10% added

to the original price

of the product

Return of 10% added

to the original price

of the product

When a simple adjustment is made without the
manual or disassembly

When removing dust off the inside of the product

When the failure occurs due to inappropriate handling
or wrong repair

When the failure occurs by a person other than the
authorized service man from the company

When the failure occurs by an item or option,
not provided by the company

When broken down or damaged by it being
dropped to the ground

When the product is disassemble intentionally

In the event of failure due to natural disasters
(e.g. lightning, fire, salt and water).

When used in a shock voltage which can not be protected.

When the life of consumable parts is due

3. A/S Guidlines

57

Product DIR Model MNC-H220

Manufacture Number

Name

Customer

Sales Shop

Address

Branch

Address

Date of Purchase Year Month Day

Contact Number

Contact Number

Sales Person (Sign)

Product Warranty

1. This product has been subjected to strict quality management and inspection.

2. Warranty Period: 1 Year from the date of purchase. (If the purchase date cannot be confirmed, the warranty period is counted from 3
months after the date of manufacture.)

3. When requesting a major repair within 10 days after purchase: Exchange or free services.

4. Within the Warranty Period: Free repairs

5. After the Warranty Period: Paid repairs

●

Free services are only offered for errors that occur on a normal operation.

●

Unspecified issues follow the ‘consumer dispute resolution criteria of the Fair Trade Commission.”

●

For the following cases, paid repairs are provided even within the warranty period.

- Natural disasters (fire, lightning, wind and water damage, etc.)

- When the breakdown has occurred by careless use (fall, immersion, shock, damage or unreasonable behavior).

- When the broken power and connection devices are repaired at a center other than the authorized service center.

- When the warranty has been lost, there’s no seal by the sales person or some notes have been changed.

※ If a problem occurs on this product, please check the user’s guide and then contact our A center.
Level 11, Hanshin IT Tower 2, 60-18 Gasan-dong, Guemcheon-gu, Seoul, Korea
TEL : [phone] / www.mcnmaet.com / www.mcnex.com

4. Product Warranty

58

FCC Information to User

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

—Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate this equipment.

IMPORTANT NOTE:

FCC RF Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

Full HD Wi-Fi Network Camera

MNC-H200 USER'S MANUAL
