4/8/16Ch H.264 Network DVR Series-Ver2.2
4/8/16 Channel H.264 Network DVR
Series
User Guide
4/8/16Ch H.264 Network DVR Series-MU.Ver2.2
ii
4/8/16Ch H.264 Network DVR Series-MU.Ver2.2
Publication History
Version Date Description
1.0 27 August 2010 Initial Release
1.1 3 September 2010 Add Force Record feature
Modify back panel drawing
2.0 27 September 2010 Add 16Ch pictures and features
2.1 30 November 2010 Typographical revisions
Display resolution for PC Viewer
PTZ Control revision
File backup with PVF Player
2.2 12 July 2011 Added new features
Content revisions
1.4 12 July 2011 Content revision due to FW update
iii
4/8/16Ch H.264 Network DVR Series-MU.Ver2.2
Warnings and Safety Precautions
FCC STATEMENT
This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
CE
This product is marked with the CE symbol and indicates compliance
with all applicable directives.
WEEE DIRECTIVE & PRODUCT DISPOSAL
At the end of its serviceable life, this product should not be treated as
household or general waste. It should be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment, or returned to the supplier for disposal.
iv
4/8/16Ch H.264 Network DVR Series-MU.Ver2.2
IMPORTANT GUIDELINES
User Manual – After unpacking this product, read the owner’s manual carefully,
and follow all the operating procedures and other instructions.
Power Source – This product should be operated only from the type of power
source indicated on the label. If unsure of the type of power supply available in
your home, office, or the area where you intend to use the product, consult
product dealer or local power company.
Ventilation – Slots and openings in the cabinet are provided for ventilation.
They ensure reliable operation of the product and protect it from overheating.
These openings must not be blocked or covered. The product should not be
placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided or the instructions have been adhered to.
Heat – The product should be situated away from heat sources such as
radiators, heat registers, stoves, or other products that produce heat. The
general operating temperature should be 5ºC ~45ºC.
Water and Moisture – Do not use this product near water. Do not exceed the
humidity specifications for the product as detailed in this manual.
Cleaning – Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth.
Power Cord Protection – Power-supply cords should not be routed so that
they are likely to be walked on or pinched by items placed against them, paying
particular attention to cords at plugs, receptacles, and the point where they exit
the product.
Overloading – Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or electrical shock.
Lightning – For added protection for this product during storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet.
This will prevent damage to the product due to lightning and power line surges.
Accessories – Do not place this product on an unstable cart, stand, tripod,
bracket, or table. The product may be irreparably damaged if it falls off and
may cause serious personal injury.
Disc Tray – Keep fingers well clear of the disc tray as it is closing. Neglecting
to do so may cause serious personal injury.
Burden – Do not place a heavy object on top of or step on the product. The
object may be irreparably damaged if it falls off and may cause serious
personal injury.
Disc – Do not use a cracked, deformed, or repaired disc. These may cause
serious personal injury (such as cuts and punctures) and product malfunction.
v
4/8/16Ch H.264 Network DVR Series-MU.Ver2.2
Damage Requiring Service – Unplug the unit from the outlet and refer
servicing to qualified service personnel under the following conditions:
» When the power-supply cord or plug is damaged.
» If liquid has been spilled, or objects have fallen into the unit.
» If the unit has been exposed to rain or water.
» If the unit does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions as an
improper adjustment of other controls may result in damage and will often
require extensive work by a qualified technician to restore the unit to its normal
operation.
» If the unit has been dropped or the enclosure has been damaged.
» When the unit exhibits a distinct change in performance - this indicates a need
for service.
Servicing – Do not attempt to service this product. Opening or removing
covers may expose the user to dangerous voltage or other hazards. Refer all
servicing to qualified personnel.
Safety Check – Upon completion of any service or repairs to this unit, ask the
service technician to perform safety checks to determine that the unit is in
proper operating condition.
vi
CAUTION
4/8/16Ch H.264 Network DVR Series-MU.Ver2.2
RISK OF ELECTRIC SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
Explanation of Graphical Symbols
This symbol is intended to alert the user to the
presence of uninsulated "dangerous voltage" within
the products enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to the
presence of important operating and maintenance
(servicing) instruction in the literature accompanying
the product.
CAUTION
DO NOT OPEN
PERSONNEL.
USERS OF THE SYSTEM ARE RESPONSIBLE FOR CHECKING AND
COMPLYING WITH ALL FEDERAL, STATE, AND LOCAL LAWS AND STATUTES
CONCERNING THE MONITORING AND RECORDING OF VIDEO AND AUDIO
SIGNALS. ELITAR SHALL NOT BE HELD RESPONSIBLE FOR THE USE OF
THIS SYSTEM IN VIOLATION OF CURRENT LAWS AND STATUTES.
vii
4/8/16Ch H.264 Network DVR Series-MU.Ver2.2
viii
4/8/16Ch H.264 Network DVR Series-MU.Ver2.2
Table of Contents
Publication History ................................................................................................iii
Warnings and Safety Precautions .......................................................................iv
Table of Contents ..................................................................................................ix
1 Overview .............................................................................................................1
1.1 Front Panel Control .................................................................................................. 2
1.2 Rear Panel Connector .............................................................................................. 4
1.2.1 BNC Cabling Model .......................................................................................... 4
1.2.2 CAT5 Cabling Model (Coming Soon) ............................................................... 8
1.3 Remote Control ........................................................................................................ 9
2 Installation ..........................................................................................................11
2.1 Hard Disk Installation ............................................................................................... 12
2.1.1 4/8Ch Single Hard Disk Installation .................................................................. 12
2.1.2 4/8/16Ch Mobile Rack & DVD Hard Disk Installation ...................................... 15
2.2 Sensor and RS485 Connector Installation ............................................................... 20
2.3 Video Format Detection............................................................................................ 21
2.4 Connection Guide .................................................................................................... 21
2.4.1 Connecting Peripherals to a BNC Type DVR ................................................... 21
2.4.2 Connecting Peripherals to a CAT5 Type DVR ................................................. 23
2.4.3 Brief Description for Connecting Devices ......................................................... 24
3 Getting Started ...................................................................................................27
3.1 Turning on the DVR.................................................................................................. 28
3.2 Home Screen ........................................................................................................... 29
3.2.1 The State Bar ................................................................................................... 29
3.2.2 The Control Bar ................................................................................................ 30
3.2.3 Drag and Drop Channel Swap .......................................................................... 31
3.3 Main Menu ............................................................................................................... 32
3.4 Channel Setup ......................................................................................................... 33
3.4.1 Channel Number .............................................................................................. 33
3.4.2 Basic Settings ................................................................................................... 34
3.4.3 Standard Color Adjustment .............................................................................. 36
3.4.4 Special Color Adjustment ................................................................................. 37
3.5 Record Setup ........................................................................................................... 37
3.5.1 Auto Record ...................................................................................................... 38
3.5.2 Activate Performance Gains ............................................................................. 38
3.5.3 Record Schedule .............................................................................................. 38
3.5.4 Total Power ...................................................................................................... 41
3.5.5 Auto Settings Adjustment ................................................................................. 42
3.5.6 Channel Recording Setup ................................................................................ 43
3.6 Detector Setup ......................................................................................................... 44
ix
4/8/16Ch H.264 Network DVR Series-MU.Ver2.2
3.6.1 Channel Number .............................................................................................. 44
3.6.2 Alarm Setup ...................................................................................................... 45
3.6.3 Motion Setup .................................................................................................... 47
3.6.4 Sensor Setup .................................................................................................... 50
3.7 Authentication Setup ................................................................................................ 54
3.8 System Setup ........................................................................................................... 56
3.8.1 Language Selection .......................................................................................... 57
3.8.2 View Setup ....................................................................................................... 57
3.8.3 Date/Time Setup ............................................................................................... 60
3.8.4 Sequence Setup ............................................................................................... 63
3.8.5 Button Beep Setup ........................................................................................... 65
3.8.6 Input Device Setup ........................................................................................... 65
3.8.7 Auto Exit Menu ................................................................................................. 66
3.9 Hardware Setup ....................................................................................................... 66
3.9.1 Query Error Message ....................................................................................... 67
3.9.2 Hard Drive Setup .............................................................................................. 67
3.9.3 Network Setup .................................................................................................. 69
3.9.4 Keyboard/PTZ Setup ........................................................................................ 73
3.9.5 Screen Setup .................................................................................................... 76
3.9.6 Audio Setup ...................................................................................................... 78
3.10 Utility/Tools ............................................................................................................. 79
3.10.1 Format USB Disk ............................................................................................ 79
3.10.2 Firmware Update ............................................................................................ 80
3.10.3 Environmental Setting .................................................................................... 82
3.11 Exit Main Menu....................................................................................................... 83
3.11.1 Exit & Save Changes ...................................................................................... 84
3.11.2 Exit & Discard Changes .................................................................................. 84
4 Playback and Data Backup ................................................................................85
4.1 Calendar Menu ......................................................................................................... 86
4.2 Play Menu ................................................................................................................ 87
4.3 Event Search ............................................................................................................ 90
4.4 Data Backup ............................................................................................................. 92
4.5 PC Player ................................................................................................................. 95
5 PTZ Control .........................................................................................................97
5.1 Pan/Tilt/Zoom Control .............................................................................................. 98
6 System Information
................................................................................................................................10
2
6.1 Record Information ................................................................................................... 103
6.2 Hard Drive Information ............................................................................................. 104
6.3 Network Information ................................................................................................. 105
7 Network Connectivity ....................................................................................... 106
7.1 PC Connection through LAN .................................................................................... 107
x
4/8/16Ch H.264 Network DVR Series-MU.Ver2.2
7.2 DynDNS Service Overview ...................................................................................... 108
7.2.1 Register with DynDNS ...................................................................................... 108
7.2.2 Create a DynDNS Account ............................................................................... 109
7.2.3 Login and Host Service .................................................................................... 110
7.2.4 Setup Router .................................................................................................... 112
7.2.5 Setup DynDNS Setting on DVR ....................................................................... 112
8 PC Viewer .......................................................................................................... 113
8.1 PC Viewer Operation................................................................................................ 114
8.1.1 Installation ........................................................................................................ 114
8.1.2 Overview ........................................................................................................... 114
8.1.3 Connect PC Client to DVR ............................................................................... 115
8.1.4 Switching the Channel Displays ....................................................................... 116
8.1.5 Pause Live Viewing .......................................................................................... 118
8.1.6 Capture Still Image ........................................................................................... 118
8.1.7 Live Backup ...................................................................................................... 119
8.1.8 PTZ Control ...................................................................................................... 120
8.1.9 Remote Playback ............................................................................................. 121
8.1.10 Remote DVR Configuration ............................................................................ 126
8.1.11 PC Viewer Player ........................................................................................... 126
9 Remote Viewers................................................................................................ 128
9.1 WebViewer for Internet Explorer® ............................................................................ 129
9.1.1 Switching the Channel Displays ....................................................................... 132
9.1.2 DVR Viewer Operation ..................................................................................... 133
9.2 SecuViewer for Apple® Mobile Devices .................................................................... 133
9.2.1 Install SecuViewer for Apple® ........................................................................... 133
9.2.2 SecuViewer Interface Overview ....................................................................... 135
9.2.3 Quick Operation Guide ..................................................................................... 135
9.2.4 Connecting to the DVR ..................................................................................... 136
9.3 Mobile Web Viewer .................................................................................................. 138
xi
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Chapter
1
1 Overview
1
4/8/16Ch H.264 Network DVR Series- Ver2.2
1.1 Front Panel Control
The full-feature H.264 network DVR is available in 4/8/16Ch.
4/8Ch H.264 DVR Single HDD Version
1 2 3 4 5 6 7
8 9 10 11 12 13
14
4/8/16Ch H.264 DVR Dual HDD Version
2
3
4
10
9
13
12
7
14
8
6
5
11
3 6 1 2 4 5 7
1
14
8
Removable Panel
9 10 11
12 13
2
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
4/8/16Ch H.264 DVR Mobile Rack Version
Hard Drive
Mobile Rack
Hard Drive Mobile Rack
3 6 1 2 4 5 7
14
8
9 10 11
2
3
4
10
9
12 13
13
12
7
14
8
6
5
11
1
4/8/16Ch H.264 DVR DVD-RW Version
DVD-RW
3 6 1 2 4 5 7
8
9 10 11
14
12 13
2
3
4
10
9
13
12
7
14
DVD-RW
8
6
5
11
1
3
4/8/16Ch H.264 Network DVR Series- Ver2.2
No Button / Name Function
1 USB Connects the USB 2.0 device (Support the pen drive and card
reader) for firmware upgrading or video backup
2 REW Rewind through video
3 II PLAY Resume video playback
4 FF Fast forward through video
5 STOP Stop playback or enter the PTZ control menu
6
● REC
7 Power LED (green) Indicates DVR is powered on
8 MODE Select screen display mode
9 MENU Enter the menu or go back to the previous menu
10 UP Moves up through list or changes selected values
11 DOWN Moves up through list or changes selected values
12 SELECT/ENTER Changes values in the menu or enters into a function
13 Hard disk active (red) Indicates hard drive is in use
14 IR Receiver (red) Remote control signal receiver
Start or stop recording/backup
NOTE DVR dimensions in millimeters (Width x Height x Depth) are
290x52x220 for the Slim (Single HDD) model and 340x60x280 for
the Mobile Rack, and DVD-RW models.
1.2 Rear Panel Connector
The rear panel of the DVR contains all of the connectors you will be using.
1.2.1 BNC Cabling Model
The single hard disk BNC version comes in 4- and 8-channel DVRs. The dual hard
disk, mobile rack and DVD BNC versions come in 4-, 8-, and 16-channel DVRs.
4
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
4-Channel DVR (Single HDD Version)
1
2
3
7
1
2
7 8
3 4
8-Channel DVR (Single HDD Version)
1
2
3
4
8 9 10
9 10 11
4
5
5
5
6
11
6
6
7
8 9 10
11
1
2
7 8
3 4
9 10 11
5 6
4-Channel DVR (Dual HDD / DVD-RW / Mobile Rack Version)
1
2
3 4
5 6
7 8 9 10 11
5
4/8/16Ch H.264 Network DVR Series- Ver2.2
1
2
3
7 8
4
9 10 11
5 6
8-Channel DVR (Dual HDD / DVD-RW / Mobile Rack Version)
1
2
3 4
5
7 8 9 10 11
6
1
2
3
7
8
4 5 6
9 10
11
16-Channel DVR (Dual HDD / DVD-RW / Mobile Rack Version)
3
11
1
78 9
2
10
5 6
4
6
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
No Name / Label Function
1 VIDEO-OUT Video output port for the security monitor
2 VIDEO-IN BNC connectors for video input:
CH1~CH4 (for 4Ch), CH1~CH8 (for 8Ch), CH1~CH16 (for
16Ch)
3 IR_ext IR extender connector (optional)
4 VGA-OUT VGA output (DB-9) port for the LCD monitor
5 SENSOR Sensor ports (marked “1~4”) and a common ground (marked
“G”)
6 ALARM Alarm port (Alarm 1+ and Alarm 1-)
7 AUDIO-IN and -OUT Connectors of audio input and output
8 LAN RJ45 port for the network cable
9 MOUSE Mouse port (for USB compatible mouse only)
10 DC IN 12V DC power port for the power adaptor
11 RS-485 RS-485 connector (typically for PTZ cameras and keyboards)
7
4/8/16Ch H.264 Network DVR Series- Ver2.2
1.2.2 CAT5 Cabling Model (Coming Soon)
All CAT5 versions come in 4- and 8-channel DVRs.
4-Channel DVR (Single HDD Version)
1
2
3 4
7 8 9 10 11
5 6
8-Channel DVR (Single HDD Version)
1 2
3
7 8 9 10 11
4
5 6
4-Channel DVR (Dual HDD / DVD-RW / Mobile Rack Version)
3
1
2
7 8 9 10 11
4
6
5
8-Channel DVR (Dual HDD / DVD-RW / Mobile Rack Version)
3
1
2
7 8 9 10 11
4
6
5
8
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
No Name / Label Function
1 VIDEO-OUT Video output port for the security monitor
2 VIDEO-IN RJ45 connectors for video input:
CH1~CH4 (for 4Ch), CH1~CH8 (for 8Ch)
3 IR_ext IR extender connector (optional)
4 VGA-OUT VGA output (DB-9) port for the LCD monitor
5 SENSOR Sensor ports (marked “1~4”) and a common ground (marked
“G”)
6 ALARM Alarm port (Alarm 1+ and Alarm 1-)
7 AUDIO-IN and -OUT Connectors of audio input and output
8 LAN RJ45 port for the network cable
9 MOUSE Mouse port (for USB compatible mouse only)
10 DC IN 12V DC power port for the power adaptor
11 RS-485 RS-485 connector (typically for PTZ cameras and keyboards)
1.3 Remote Control
9
4/8/16Ch H.264 Network DVR Series- Ver2.2
No Button / Name Function in DVR Mode
1
2 DVR Switch to DVR mode
3 PTZ Switch to PTZ mode
4 REW Rewind through video
5 STOP Stop playback or backup
6 II PAUSE Pause recording of playback
7 FF Fast forward through video
8 ► PLAY Start video playback
9 MENU Enter a menu or exit
10 ▲(UP) ▼(DOWN)
11
12
13 MODE Changes to split-screen mode
14
REC
(LEFT) ►(RIGHT)
(Enter/Select)
AUTO
－ ZOOM OUT
Start or stop recording / backup.
Move through lists or change the settings of
choices
Change and confirm values
Start automatic screen view rotation
(Not available in DVR mode)
15
16 1,2,----16 (Channels) Selects the channel to view in full screen
＋ ZOOM IN
(Not available in DVR mode)
10
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Chapter
2
2 Installation
11
4/8/16Ch H.264 Network DVR Series- Ver2.2
WARNING Be sure there is no power connection before starting installation!
2.1 Hard Disk Installation
2.1.1 4/8Ch Single Hard Disk Installation
The type of DVR contains one internal hard drive bracket for installing one SATA
hard drive.
The BNC and CAT5 cabling models have the same installation method.
Install the hard drive by following steps
Step 1 Unscrew the three screws on the rear side of the DVR housing.
Step 2 Slide the top cover towards its rear side and then lift it out.
Top Cover
12
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Step 3 The HDD bracket would typically be secured on to the main body
with four screws (one screw for each corner). Place the hard drive
on top of the bracket and use their matching screw sockets on
either side (one side and three screws are illustrated) to fix them.
The end where the HDD data and power are to be connected
should be facing out.
HDD Connector
Side
Step 4 Attach the SATA data and power cables of the hard disk to their
respective ports on the system board (as indicated in the following
illustration).
The data ports are labeled J16 or J17 and the power port
(typically a white connector) is labeled PJ2.
13
4/8/16Ch H.264 Network DVR Series- Ver2.2
Step 5 Connect the opposite end of the SATA data and power cables to
their slots on the hard disk.
HDD Power Cable
HDD DataCable
14
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Step 6 Slide the top chassis back into place. Position it slightly protruding
towards the rear end of the DVR then slide it forward.
Step 7 Screw top cover back into place.
1
2
Top Cover
2.1.2 4/8/16Ch Mobile Rack & DVD Hard Disk Installation
This type of DVR contains two internal hard drive brackets for installing two SATA
hard drives.
Install the hard drive using the following steps
Step 1 Unscrew the three screws on the side of the DVR housing.
15
4/8/16Ch H.264 Network DVR Series- Ver2.2
Step 2 Slide the top cover slightly backwards and then lift it out
2
Step 3 Remove two screws (indicated by arrows in the drawing) holding
down the the HDD bracket.
1
Top Cover
16
Step 4 Note that the other side (closer to the front face of the DVR) of the
bracket is supported by grooved corners. Slide the bracket slightly
backwards (away from the supports) and then lift it out.
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Step 5 Position the hard drive on top of the bracket (with the bottom side of
the drive against the bracket). Fasten the HDD and the bracket
together using four screws on the complementary slots.
Step 6 Attach the SATA data and power cables of the hard disk to their respective
ports on the system board (as indicated in the following illustration).
The data ports are labeled J16 or J17 and the power port (typically a white
connector) is labeled PJ2.
17
4/8/16Ch H.264 Network DVR Series- Ver2.2
HDD Data
Connector
HDD Power
Connector
Step 7 Connect the opposite end of the SATA data and power cables to
HDD Power
Connector
their slots on the hard disk.
HDD Data
Connector
18
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Step 8 Push the hard drive bracket (along with the HDD) back into place.
Fix the bracket with two screws.
Step 9 Slide the top chassis back into place. Position it slightly protruding
towards the rear end of the DVR then slide it forward.
1
2
Top Cover
Step 10 Screw top cover back into place.
19
4/8/16Ch H.264 Network DVR Series- Ver2.2
2.2 Sensor and RS485 Connector Installation
4/8 Channel DVR
The 4/8-channel DVR follows the same way to install the Sensor and RS485
connectors.
Please refer to the following procedures:
Fix the screws on
either side
Fix the screws on
either side
20
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
16 Channel DVR
Installing the Sensor and RS485 connectors on the 16-channel DVR is similar to
the procedure shown above. The notable differences are the location of the port on
the DVR and the size of the connectors. In principle, the 16-channel DVR allows
more sensors to be connected to it.
2.3 Video Format Detection
The DVR can automatically detect the video format (either NTSC or PAL) after the
cameras have been properly installed and the DVR has been powered on.
Please refer the section “Hardware Setup” to setup the NTSC/PAL auto detection.
2.4 Connection Guide
Connect all peripheral devices properly before turn on the DVR.
2.4.1 Connecting Peripherals to a BNC Type DVR
The following diagrams serve as a guide to the back panel connection of 4Ch, 8Ch,
and 16Ch DVRs with BNC.
21
4/8/16Ch H.264 Network DVR Series- Ver2.2
Single HDD BNC Cabling 4Ch/8Ch DVR
Security Cameras Alarm
IR Extender
LCD Monitor
Sensors
Security Monitor
Audio Devices
(Microphone/Speaker)
Mouse
Power Adaptor Network Cable
Dual HDD / DVD-RW / Mobile Rack BNC Cabling 4Ch/8Ch DVR
Security Cameras Alarm
IR Extender
LCD Monitor
Sensors
PTZ Device
(Camera or Keyboard)
Security Monitor
Audio Devices
(Microphone/Speaker)
Mouse
Power Adaptor Network Cable
NOTE 4Ch DVRs (not shown in the images above) can have up to 4
cameras connected.
22
PTZ Device
(Camera or Keyboard)
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Dual HDD / DVD-RW / Mobile Rack BNC Cabling 16Ch DVR
Mouse
IR Extender
Audio Devices
(Microphone/Speaker)
Security Cameras
Security Monitor
Sensors
Power Adaptor
Alarm
LCD Monitor
PTZ Device
(Camera or Keyboard)
Network Cable
2.4.2 Connecting Peripherals to a CAT5 Type DVR
The following diagrams serve as a guide to the back panel connection of 4Ch and
8Ch DVRs with unshielded twisted pair (UTP) cabling (through a video balun).
Single HDD UTP Cabling 4Ch/8Ch DVR
Security Cameras Alarm
Security Monitor
Audio Devices
(Microphone/Speaker)
IR Extender
LCD Monitor
Mouse
Power Adaptor Network Cable
Sensors
PTZ Device
(Camera or Keyboard)
23
4/8/16Ch H.264 Network DVR Series- Ver2.2
Dual HDD / DVD-RW / Mobile Rack UTP Cabling 4Ch/8Ch DVR
Security Cameras Alarm
Security Monitor
Audio Devices
(Microphone/Speaker)
IR Extender
LCD Monitor
Mouse
Power Adaptor Network Cable
Sensors
(Camera or Keyboard)
NOTE 4Ch DVRs (not shown in the images above) can have up to 4
cameras connected.
2.4.3 Brief Description for Connecting Devices
PTZ Device
Connect the Security Cameras
BNC Cabling Model:
Connect the security cameras to the video inputs labeled as “CH1” to “CH4” (for
4Ch), “CH1” to “CH8” (for 8Ch) or “CH1” to “CH16” (for 16Ch) on the DVR. This
connection provides the DVR with the surveillance video input.
CAT5 Cabling Model:
Connect each security camera to a video balun through the BNC plug (shown in the
diagram below) then connect the video balun to the DVR through CAT5 cables to
the video inputs labeled as “CH1” to “CH4” (for 4Ch) or “CH1” to “CH8” (for 8Ch).
This connection provides the DVR with the surveillance video input.
24
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Connect the Security Monitor
Connect the security monitor to the video output labeled as “VIDEO-OUT” on the
DVR. The connection provides a video transmission path from the DVR to the
security monitor.
Connect the Network Cable
Connect the network cable to the LAN port labeled as “ ” on the DVR. This
connects the DVR to the network.
Connect the USB mouse
Connect the USB mouse to the mouse port labeled as “ ” on the DVR.
This port only supports a USB mouse and not other devices.
Connect the LCD Monitor
Connect the LCD monitor to the VGA output labeled as “VGA-OUT” on the DVR.
The DVR will transmit the video signal to the LCD monitor through this connection.
Connect the Sensors
Connect the sensor wires to the sensor slots labeled as “SENSOR” and numbered
1~4 with a common ground “G” (for 4Ch and 8Ch) or numbered 1~16 with a
common ground “G” (for 16Ch) on the DVR. This device often used with a security
camera at the monitoring space.
Connect the Alarm
Connect the alarm indicator to the alarm slots labeled as “ALARM 1+” and “ALARM
1-” on the DVR. This supports alarm that can be triggered when an event has
occurred.
25
4/8/16Ch H.264 Network DVR Series- Ver2.2
Connect the PTZ Devices
Connect the communication wiring for the PTZ device to the RS-485 pins labeled
as “485+” and “485-” on the DVR. Note that PTZ-capable cameras still need to be
connected to a channel.
Connect the Audio Devices
Connect audio peripherals to the ports labeled as “AUDIO-IN” and “AUDIO-OUT”
on the DVR. These support devices for capturing or broadcasting sound.
Note: For CAT5 version, only CH1 supports audio recording through the
audio jack on the video balun.
Connect the IR Extender (Optional)
Connect the IR extender cable to the port labeled as “IR_ext” on the DVR. The
cable is an optional device which serves as an IR controller extension.
Connect the Power Adaptor
Connect the Power Adaptor to the DC jack labeled as “DC-IN 12V” on the DVR.
Connect the power adaptor after all devices have been properly installed.
26
Chapter
3
3 Getting Started
27
4/8/16Ch H.264 Network DVR Series- Ver2.2
3.1 Turning on the DVR
The DVR is ready for running after all peripherals have been properly installed.
NOTE Connect the power adaptor to turn the DVR on only after all the
devices (i.e. cameras, sensors, mouse, and hard drives) have
been connected to their respective ports.
The DVR may take a few seconds to startup. When the hard drive is detected by
the system it will ask whether or not you would like to format it. Refer to the
conditions stated below to determine which course of action to take.
Format the hard drive when:
» It is the initial installation of the hard drive (1st time to install the HDD in the
DVR).
Release Date: May 25 2010 17:33:16
Video: PAL
Hard Drive: WDC WD7500AYPS-01ZKB Rec:02.0
715403MB…Empty Disk
DVR needs to format HDD,
All data will be lost…
Format / Cancel?
Do not format the hard drive when:
» The hard drive has already been formatted by the DVR and not formatted by
other devices.
NOTE If the hard drive has already been used by the DVR, the start
screen will typically show the firmware version installed, the
release date of the said firmware, and the video format for the
DVR (i.e. PAL or NTSC) instead of asking for the HDD to be
formatted.
28
The Home Screen is shown after the system is ready.
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
3.2 Home Screen
The Home Screen is the starting point for many functions and applications. It allows
you to setup, access, and control the surveillance video data. You may think of this
screen as a vantage point to give you instant access to video information and DVR
functions.
1% 2010/06/06 15:37:47
3.2.1 The State Bar
The State Bar displays the status and notification icons of the surveillance system.
1% 2010/06/06 15:37:47
Icon Function Icon Function
XX%
2010/06/03
15:37:47
Camera is working
Recording
Force Record Start
USB disk connected
Hard drive overwrite enabled
Channel display rotation enabled
Percentage of hard drive already used
Current date
Current time
No signal from camera
Recording Stop
Network connected
Network disconnected
Hard drive status
29
4/8/16Ch H.264 Network DVR Series- Ver2.2

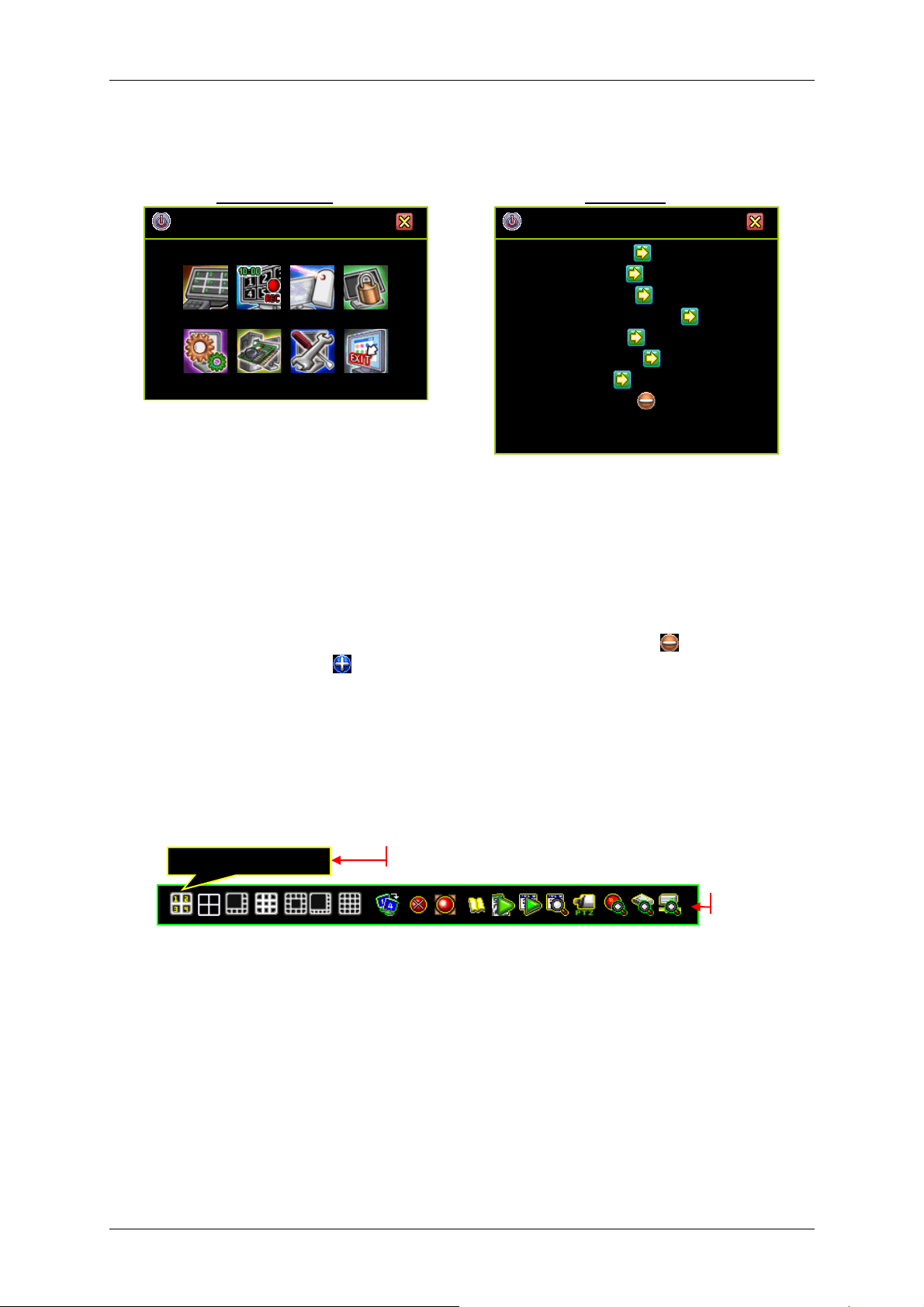

3.2.2 The Control Bar
The Control Bar may be used to switch displays, open and setup channels and their
related applications.
Icon Function Icon Function
Channel Views
Load default channel display location
1+7 Split View
1+12 Split View (for 16Ch only)
16-channel split view (for 16Ch only)
Main Menu
Enter main menu
Recording
Start recording
Start force recording
Video Search and Playback
Playback menu
Event search
System Information
Recording information
Network information
4-channel split view
9-channel split view
1+14 Split View (for 16Ch only)
Auto channel rotation
Stop recording
Stop force recording
Calendar Menu
Pan/Tilt/Zoom control screen
Hard drive information
NOTE The Force Record function allows the user to bypass the current
recording mode setting and to immediately start recording videos
right then. The DVR will revert to its previously set mode once the
forced recording feature is deactivated.
NOTE The PTZ icon appears on the Control Bar when a PTZ-camera
has been connected to and properly configured on the DVR.
30
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
3.2.3 Drag and Drop Channel Swap
The Drag and Drop Channel Swap enables swap the channel displays using your
mouse. No need to interchange the BNC connectors.
This function is also applicable for all kinds of Split View.
Drag and Drop Channel Reposition
1% 2010/06/06 15:37:47
1% 2010/06/06 15:37:47
» Move the cursor onto the channel-
square you would like to shift.
» Press left-button of the mouse (a
hand icon will appear) and drag the
channel-square to the new position.
1% 2010/06/06 15:37:47
» Release the mouse button to drop
the channel-square into new
position.
» System will keep the new channel
display arrangement even if you
reboot the DVR system.
Load Default Location
Press the icon “ ” to reset channel displays to their default locations.
31
4/8/16Ch H.264 Network DVR Series- Ver2.2
3.3 Main Menu
Logging In for the First Time
Press on the keypad or the icon and enter the password to get into the Main
Menu.
Default password is “123456”.
Enter Main Menu Password
[ _ _ _ _ _ _]
▲
□0 □1 □2 □3 □4
□5 □6 □7 □8 □9
Press to exit the password dialog.
Main Menu Guideline
Icon Name Function
MAIN MENU
DVR Power Supply
Channel Setup
Record Setup
Opens menu to reboot or shutdown the DVR
system
Set the channel display, record, channel name
and video color adjustment.
Set the record schedule, video performance
and quality
32
Detector Setup
Authentication Setup
System Setup
Set the motion, sensor and alarm mode.
Set the login account, password and the
authorization for each user.
Set the status icons display, languages,
date/time, rotation time, button beep tone, input
device speed, and other relevant system
features.
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Icon Name Function
Hardware Setup
Utility/Tools
Configures error message checks, hard drive
information, overwrite settings, network
settings, PTZ/Keyboard, Audio and screen
settings.
These are used to format USB devices, to
update firmware, to export event logs, and to
restore system settings.
Exit Main Menu
Exit the main menu.
DVR Power Supply Menu
The icon opens into the following menu:
DVR POWER SUPPLY
System Reboot
System Shutdown
System Reboot: Restarts the DVR
System Shutdown: Turns the DVR off
3.4 Channel Setup
Click the “Channel Setup” on the Main Menu. The screen will display the menu
shown in the following illustration.
CHANNEL SETUP
Channel Number
Basic Setting
Standard Color Adjustment
Special Color Adjustment
Operation Icons
Click on the icon to expand the menu and view its contents.
Click on the
Click on the right button of your mouse to go back to the upper menu.
icon to minimize the menu contents.
3.4.1 Channel Number
The Channel Number is used to designate to which channel or channels the settings
will apply.
Press the icon
will turn orange and the settings will be applied to all channels.
(for 4Ch), the icon (for 8Ch) or the icon (for 16Ch). This icon
33
4/8/16Ch H.264 Network DVR Series- Ver2.2
Press the icons “ , , , ” (for 4Ch), icons “ , , , , , , , ” (for
8Ch) or icons “
to individually set each channel. The channel icon will turn green when selected
and will turn to white when not selected.
, , , , , , , , , , , , , , , ” (for 16Ch)
3.4.2 Basic Settings
CHANNEL SETUP
Channel Number
Basic Setting
Active Channel [ ON]
Record Channel [ ON]
Hidden Channel [ NO]
Channel Name [No Definition]
Rotation Time ▐▬▬▬▬▬ [2Sec]
Image Position Adjustment
Standard Color Adjustment
Special Color Adjustment
3.4.2.1 Active Channel
Activate one channel or all of the channels. Active channels are ready for recording
and are displayed on the screen.
“ON” – Activates selected channel. The channel number icon turns to orange.
“OFF”- Disables selected channel. The channel number icon turns to gray.
3.4.2.2 Record Channel
To set one or all channels are record or not. The channel will be displayed on screen
even when it is not recording.
“ON” – Record.
“OFF” – Not Record.
3.4.2.3 Hidden Channel
Set whether or not to display one or all channels on screen. The channel will continue
to record regardless of it being hidden or not.
“ON” – Hide the channel on screen. The channel square turns to black and channel
number icon turns to white.
“OFF”- Unhide the channel or channel is visible.
3.4.2.4 Channel Name
Designate a name for each channel. The channel name is limited to 24 characters.
34
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Channel Name
[ _____________________________ ]
▲
1
q w e r t y u i o p [ ] \
a s d f g h j k l ; ‘
z x c v b n m , . / `
Press the icon [ Default Name] to select a channel name from the list defined by the
system: Room, Hall, Door, Lift, Area, Floor, Entry, and Point.
3 4 5 6 7 8 9 0 - =
[Space]
[ Default Name]
Press the icon “
Press the icon “
channel square.
Or you can define the name by using buttons on IR remote:
/ ( / ) – move up / down
/(/): move left / right to the character would like to select and press ”” to
select it.
” to switch to big letters.
” to enter the channel name. The channel name will appear on the
3.4.2.5 Rotation Time
Sets the period (with a range of 2 to 30sec) of full screen display for each channel.
3.4.2.6 Image Position Adjustment
The steps to adjust the position of display on the monitor are as follows:
Step 1 Select the icon “
adjust the display position of all channels in 4/8/16-split view at one
time.
OR
Select the icons “
“
”, “ ”, “ ” (for 8ch) or “ , , , , , , , , , , , , ,
, , ” (for 16Ch) to individually set the image position of each channel.
” (for 4ch), “ ” (for 8ch), or “ ” (for 16Ch) to
”, “ ”, “ ”, “ ” (for 4ch), “ ”, “ ”, “ ”, “ ”, “ ”,
Step 2 The following figure (for 4Ch) will appear when you enter the
“Image Position Adjustment”:
35
4/8/16Ch H.264 Network DVR Series- Ver2.2
1% 2010/06/06 15:37:47
IMAGE POSITION ADJUSTMENT
[ Default ]
Step 3 Adjust the image position by mouse left-click follow the direction
right/ left.
Press [
change of cursor icon up/ down/
Default] to load or to restore to the default location.
3.4.3 Standard Color Adjustment
Adjusts the video color parameters for each channel or simultaneously for all
channels.
CHANNEL SETUP
Channel Number
Basic Setting
Standard Color Adjustment
Brightness ◄▬▬▐▬▬► [10]
Contrast ◄▬▬▐▬▬► [10]
Hue ◄▬▬▐▬▬► [16]
Saturation ◄▬▬▐▬▬► [16]
Sharpness ◄▬▬▐▬▬► [8]
Special Color Adjustment
Brightness: Default is 10.
Press the button “◄ / ►” to adjust the brightness from 1 to 20.
36
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Contrast: Default is 10.
Press the button “◄ / ►” to adjust the contrast from 1 to 20.
Hue: Default is 16
Press the button “◄ / ►” to adjust the hue from 1 to 32.
Saturation: Default is 16.
Press the button “◄ / ►” to adjust the saturation from 1 to 32.
Sharpness: Default is 8.
Press the button “◄ / ►” to adjust the sharpness from 1 to 16.
3.4.4 Special Color Adjustment
Special Color Adjustment applies to video color parameters and designates the
setting for a specified period for an individual channel or for all channels.
CHANNEL SETUP
Channel Number
Basic Setting
Standard Color Adjustment
Special Color Adjustment
Activate Special Color
Start Time ◄▬▬▐▬▬► [06:00]
End Time ◄▬▬▐▬▬► [21:00]
Brightness ◄▬▬▐▬▬► [10]
Contrast ◄▬▬▐▬▬► [10
Hue ◄▬▬▐▬▬► [16]
Saturation ◄▬▬▐▬▬► [16]
Sharpness ◄▬▬▐▬▬► [8]
[ Disable]
Activate Special Color:
Disable” (Default): Disable Special Color Adjustment.
“
Enable”: Enable Special Color Adjustment
“
Start Time: The start time for the special color setting.
End Time: The end time for the special color setting.
Brightness: Default is 12.
Press the button “◄ / ►” to adjust the brightness from 1 to 20.
Contrast: Default is 12.
Press the button “◄ / ►” to adjust the contrast from 1 to 20.
Hue: Default is 16
Press the button “◄ / ►” to adjust the hue from 1 to 32.
Saturation: Default is 20.
Press the button “◄ / ►” to adjust the saturation from 1 to 32.
Sharpness: Default is 12.
Press the button “◄ / ►” to adjust the sharpness from 1 to 16.
37
4/8/16Ch H.264 Network DVR Series- Ver2.2
3.5 Record Setup
Click “Record Setup” on the Main Menu.
Auto Record ◄30Sec►
Activate Performance Gains [ Enable ]
Record Schedule
Total Power : 240 / 240 (Power/Sec)
Auto Settings Adjustment
Channel Recording Setup
Channel Number
Record Resolution [Middle Res (Half D1)]
Video Quality [Standard]
Record Frame Rate [30]
Record Performance Gains [ YES]
RECORD SETUP
3.5.1 Auto Record
Auto Record is utilized to set the period (OFF, 10Sec, 20Sec, 30Sec, 40Sec, 50Sec or
60Sec) within which the DVR will automatically start recording. Default value is
“30Sec”. This feature is particularly useful in automatically re-starting your DVR
recording in case of an abnormal shut down.
The DVR will not re-start recording when set this function “OFF”.
3.5.2 Activate Performance Gains
The function enables system auto increase the recording power to the heavy
loading channel from the not triggered or not recording channels.
Enable this function makes “Record Performance Gains” at “Channel Recording
Setup” is validated.
3.5.3 Record Schedule
Record Schedule is a menu charting the recording schedule of a particular channel
or all channels for the whole day (24 hours) and the entire week (7 days).
Default setting is “Time Record”.
38
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
RECORD SCHEDULE
Channel Number
None Time Motion Sensor Motion+Sensor
Day\Hour
Sunday |
Monday |
Tuesday |
Wednesday |
Thursday |
Friday |
Saturday |
3.5.3.1 Channel Number
Select the icon “ ” (for 4Ch), “ ” (for 8Ch) or “ ” (for 16Ch) to setup for all channels
at one time.
Select the icons “
(for 8Ch) or “
individually setup of each channel.
”, “ ”, “ ”, “ ” (for 4Ch), “ ”, “ ”, “ ”, “ ”, “ ”, “ ”, “ ”, “ ”
, , , , , , , , , , , , , , , ” (for 16Ch) to
3.5.3.2 Recording Mode Select
“/(/): to move left and right
“” To select the mode
There are five recording modes:
None: Indicates that the channel is set to not record during this duration
Time: Indicates that the channel is set to continuously record during this duration
Motion: Indicates that the channel is set to motion-triggered recording during this
duration
Sensor: Indicates that the channel is set to record when the sensor is triggered
during this duration
Motion+Sensor: Indicates that the channel is set to detect either triggering
events caused by motion or from the sensor
NOTE When “Motion Mode” is set for the recording schedule.
Remember to complete the “Motion Setup” at the main menu of
“Detector Setup” - otherwise it will not be able to record during the
period set on “Motion Mode”.
NOTE When “Sensor Mode” is set for the recording schedule.
Remember to complete the “Sensor Setup” at the main menu of
“Detector Setup” - otherwise it will not be able to record during the
period set on “Sensor Mode”.
39
4/8/16Ch H.264 Network DVR Series- Ver2.2
Press the icon “ ” to set the recording mode globally: the whole week (7 days) and the
whole day (24 hours) are in the same mode throughout.
The following example shows that the entire week (all 7 days) and the whole day (all
24 hours) are set to the “Motion” recording mode.
Select “Motion” recording mode, press the icon “
” and press “””.
RECORD SCHEDULE
Channel Number
None Time Motion Sensor Motion+Sensor
Day\Hour
Sunday |
Monday |
Tuesday |
Wednesday |
Thursday |
Friday |
Saturday |
Press the icon “
” (located after the name of each day) to set every hour of an entire
day to operate in the same mode.
The following example shows that on Sunday, the whole day is set to the “Time”
recording mode.
Select “Time” recording mode, press the icon “
” and press “””.
RECORD SCHEDULE
Channel Number
None Time Motion Sensor Motion+Sensor
Day\Hour
Sunday |
Monday |
Tuesday |
Wednesday |
Thursday |
Friday |
Saturday |
Press the icon “
” to set the same mode for a specified time every day.
The following example shows that from 23:00 to 24:00 (11:00pm to 12:00mn) everyday
there is no recording (set to “None” recording mode).
Select “None” recording mode, press the icon “
” and press “””.
40
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
RECORD SCHEDULE
Channel Number
None Time Motion Sensor Motion+Sensor
Day\Hour
Sunday |
Monday |
Tuesday |
Wednesday |
Thursday |
Friday |
Saturday |
You can also specifically set the recording mode for a particular time and day.
The following example shows that on Sunday, from 19:00 to 24:00 (7:00pm to
12:00mn), and on Friday, from 2:00 to 4:00 (2:00am to 4:00am), are set to the “Time”
recording mode.
Select the recording mode first. Move the cursor and click the icon “
“
” to change mode on the timetable.
”, “ ”, “ ”, “ ” or
Select “Time” recording mode, move the cursor and click the period of icons “
change to “
” and press “””.
RECORD SCHEDULE
Channel Number
None Time Motion Sensor Motion+Sensor
Day\Hour
Sunday |
Monday |
Tuesday |
Wednesday |
Thursday |
Friday |
Saturday |
”
3.5.4 Total Power
Total Power: 480/480 (Power / Sec)
It shows the number of recording power that has been allocated and the total
number of recording power.
41
4/8/16Ch H.264 Network DVR Series- Ver2.2
RECORD SETUP
Auto Record ◄30Sec►
Active Performance Gains [ Enable]
Record Schedule
Total Power: 480/480 (Power / Sec)
Auto Settings Adjustment
Channel Recording Setup
Channel Number
Record Resolution [ Middle Res (Half D1) ]
Video Quality [Standard]
Record Frame Rate [15]
Record Performance Gains [ YES]
To distribute the recording power into four channels by click the total power (as
upper red border).
RECORD SETUP
Total Power: 480/480 (Power/Sec)
Channel Select ◄ ······ ►
Resolution Quality Framerate
◄Half D1► [Standard] [15]
[ Half D1 ] [Standard] [15]
[ Half D1 ] [Standard] [15]
[ Half D1 ] [Standard] [15]
[ Half D1 ] [Standard] [15]
[ Half D1 ] [Standard] [15]
[ Half D1 ] [Standard] [15]
[ Half D1 ] [Standard] [15]
Video Resolution, Quality and Frame Rate Setting for each Channel
Resolution:
Press the button “◄ / ►” to adjust the resolution from CIF, Half D1 and D1 for
individual channel.
Quality:
Press the button “◄ / ►” to adjust the resolution from Lowest, Low, Standard, High
and Highest for individual channel.
Frame rate:
Press the button “◄ / ►” to adjust the frame rate from 0 to 30 for individual channel.
There is equal to not recording when setup the frame rate to 0.
3.5.5 Auto Settings Adjustment
This function can automatically allocate the recording power under the selected
record resolution.
42
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
When all the channels are set at the same resolution, the “Auto Settings
Adjustment” can automatically allocate the frame rate to every channel.
When the setting applies to a specific channel or to specific channels with a
particular resolution, video quality or frame rate the “Auto Settings Adjustment”
feature automatically allocates the remaining frame rate among the other channels.
3.5.6 Channel Recording Setup
The Channel Recording Setup is used to adjust the resolution, quality, frame rate
and performance gains of recording.
3.5.6.1 Channel Number
Select the icon “ ” (for 4Ch), “ ” (for 8Ch) or “ ” (for 16Ch) to setup for all
channels at one time.
Select the icons “
” (for 8Ch) or “ , , , , , , , , , , , , , , , ” (for
“
16Ch) to individually setup of each channel.
”, “ ”, “ ”, “ ” (for 4Ch), “ ”, “ ”, “ ”, “ ”, “ ”, “ ”, “ ”,
3.5.6.2 Recording Resolution
Select the recording resolution for each or all channels as:
» D1: 704*480 / 60fps (NTSC); 704*576 / 50fps (PAL)
» Half D1: 704*240 / 120fps (NTSC); 704*288 (PAL) (Default)
» CIF: 352*240 / 120fps (NTSC); 352*288 (PAL)
3.5.6.3 Video Quality
Video image quality settings can be Highest, High, Standard, Low, and Lowest. Default
is Standard.
Higher video quality provides a much clearer image for playback but can utilize a much
larger hard drive space with a larger file size.
3.5.6.4 Record Frame Rate
The recording frame rate for each or all channels may be set from 0~30 fps.
NOTE If the frame rate is set to 0 it means that it will not be recording.
43
4/8/16Ch H.264 Network DVR Series- Ver2.2
[
]
RECORD SETUP
Auto Record [30Sec]
Active Performance Gain [ Enable ]
Record Schedule
Total Frame Rate: 480/480 (Power / Sec)
Auto Settings Adjustment
Channel Recording Setup
Channel Number
Record Resolution [Middle Res
(Half D1)]
Video Quality
Standard
3.5.6.5 Recording Performance Gains
The “Record Performance Gains” enables the system to automatically increase the
system power on the heavy loading channel, taking power from the un-triggered,
unutilized or non- recording channels. This function can apply for one or all
channels.
3.6 Detector Setup
Click “Detector Setup” on the Main Menu.
Channel Number
Alarm Setup
Light Detect Mode [Sensitivity OFF]
Light Detect Alarm Mode [Mute]
Blind Detect Mode [Sensitivity OFF]
Blind Detect Alarm Mode [ Buzzer-Short]
Video Loss Mode [ Disable]
Video Loss Alarm Mode [ Buzzer-Short]
Motion Setup
Sensor Setup
3.6.1 Channel Number
DETECTOR SETUP
Select the icon “ ” (for 4Ch), “ ” (for 8Ch) or “ ” (for 16Ch) to setup for all
channels at one time.
44
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Select the icons “ ”, “ ”, “ ”, “ ” (for 4Ch), “ ”, “ ”, “ ”, “ ”, “ ”, “ ”, “ ”,
” (for 8Ch) or “ , , , , , , , , , , , , , , , ” (for 16Ch)
“
to individually setup of each channel.
3.6.2 Alarm Setup
Alarm Setup is accessed to configure the alarm mode of each channel, individually,
or for all channels, simultaneously.
DETECTOR SETUP
Channel Number
Alarm Setup
Light Detect Mode [Sensitivity OFF]
Light Detect Alarm Mode [Mute]
Blind Detect Mode [Sensitivity OFF]
Blind Detect Alarm Mode [ Buzzer-Short]
Video Loss Mode [ Disable]
Video Loss Alarm Mode [ Buzzer-Short]
Motion Setup
Sensor Setup
3.6.2.1 Light Detect Mode
This mode will be triggered when the video input and when the light from the
environment becomes faint or becomes dark unexpectedly (close to complete
darkness) or there is direct exposure by intense light. This mode is related to the
ambient lighting of the DVR. The light intensity settings will have no effect when
using the IR cameras.
Choose any of the following settings to adjust the sensitivity of light detection:
Sensitivity OFF: No sensitivity
Sensitivity Low: Low sensitivity level
Sensitivity Normal: Normal sensitivity level
Sensitivity High: High sensitivity level
Sensitivity Highest: Highest sensitivity level
3.6.2.2 Light Detect Alarm Mode
Select the alarm mode when the Light Detect Mode is triggered.
Mute: No beep whatever loss of light or not.
Buzzer-Short: Slow beeping sound from buzzer on main board.
Buzzer-Long: Fast beeping sound from buzzer on main board.
Alarm-Short: Short sound coming from the alarm.
Alarm-Long: Prolonged sound coming from the alarm.
45
4/8/16Ch H.264 Network DVR Series- Ver2.2
3.6.2.3 Blind Detect Mode
This mode will be triggered when there is no video input (in total darkness) whether
the security camera is purposefully being covered or there is a direct exposure to
intense light. This detects if there is a deliberate attempt to hide the view of the
camera. The light intensity settings will have no effect when using the IR cameras.
Choose any of the following settings to adjust the sensitivity of blind detection:
Sensitivity OFF: No sensitivity
Sensitivity Low: Low sensitivity level
Sensitivity Normal: Normal sensitivity level
Sensitivity High: High sensitivity level
Sensitivity Highest: Highest sensitivity level
3.6.2.4 Blind Detect Alarm Mode
Select the alarm mode when the Blind Detect Mode is triggered.
Mute: No beep whatever loss of light or not.
Buzzer-Short: Slow beeping sound from buzzer on main board.
Buzzer-Long: Fast beeping sound from buzzer on main board.
Alarm-Short: Short sound coming from the alarm.
Alarm-Long: Prolonged sound coming from the alarm.
3.6.2.5 Video Loss Mode
The Video Loss Mode is for detecting the loss of the camera video input.
Enable: Activates video loss detection
Disable: Deactivates video loss detection
3.6.2.6 Video Loss Alarm
Select the alarm mode when the Video Loss Mode is triggered.
Mute: No beep whatever video loss or not.
Buzzer-Short: Slow beeping sound from buzzer on main board.
Buzzer-Long: Fast beeping sound from buzzer on main board.
Alarm-Short: Short sound coming from the alarm.
Alarm-Long: Prolonged sound coming from the alarm.
46
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
3.6.3 Motion Setup
Motion Setup is accessed to configure the motion mode for the DVR channels.
DETECTOR SETUP
Channel Number
Alarm Setup
Motion Setup
Record Detection Activate [ Enable]
Motion Mode [Sensitivity Normal]
Record Time [10Sec]
Alarm Mode [Mute]
Alarm Time [10Sec]
Trigger Full Screen [ OFF]
Trigger Type [Initial Trigger]
Motion Area Setup
Sensor Setup
NOTE Remember to setup the motion mode period on “Record
Schedule” at the main menu of “Record Setup” after completing
“Motion Setup”. Otherwise, the system will be recording in the
default schedule recording mode.
3.6.3.1 Record Detection Activate (Motion Setup)
This feature activates the motion setup (allowing you to detect unusual movements)
and enables the system to log motion-triggered events even when your DVR setting
is in “Time Recording” mode.
Enable: Activates motion-triggered detection even when DVR is in a different
recording mode. When enabled, a blinking motion icon will be found alongside the
Time Recording mode icon when motion is detected.
47
4/8/16Ch H.264 Network DVR Series- Ver2.2
1% 2010/06/06 15:37:47
Time Recording
Mode Icon
Disable: Deactivates motion-triggered detection even when DVR is in a different
recording mode
Blinking Motion Icon
[“Motion Record Detection
Activate” is enabled]
NOTE Remember to specify the area you would like monitor using the
“Motion Area Setup” screen. Click on a particular channel you
would like to set and then click on Motion Area Setup
the particular area you would like to monitor.
3.6.3.2 Motion Mode
Choose any of the following settings to adjust the motion sensitivity parameter:
Sensitivity OFF: No sensitivity
Sensitivity Low: Low sensitivity level
Sensitivity Normal: Normal sensitivity level
Sensitivity High: High sensitivity level
Sensitivity Highest: The highest sensitivity level
to define
3.6.3.3 Record Time
Set the recording time when the Motion Mode is triggered.
The recording time as 5sec, 10sec, 15sec, 20sec, 25sec, 30sec, 45sec, 60sec,
90sec, 120sec, 150sec or 180sec.
3.6.3.4 Alarm Mode
Select the alarm mode when Motion Mode is triggered.
Mute: No beep whatever motion is detected or not.
Buzzer-Short: Slow beeping sound from buzzer on main board.
Buzzer-Long: Fast beeping sound from buzzer on main board.
48
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Alarm-Short: Short sound coming from the alarm.
Alarm-Long: Prolonged sound coming from the alarm.
3.6.3.5 Alarm Time
The Alarm Time is the duration of the beep and may be set to: “Nonstop”(no stop),
5sec, 10sec, 15sec, 20sec, 25sec, 30sec, 35sec, 40sec, 45sec, 50sec, 55sec or
60sec.
3.6.3.6 Trigger Full Screen
Trigger Full Screen is the duration of the of full-screen display when a channel is
triggered. This may be set to a period between 1 to 30 seconds.
OFF: It will not display on full screen when the channel has been triggered. Also, the
trigger area will turn to a red color.
3.6.3.7 Trigger Type
There are two trigger types: Initial Trigger and Continuous Trigger.
Initial Trigger
When channel has been triggered, the triggering event will be displayed on full screen
for the duration of the period set in Trigger Full Screen. During that period, this
channel will ignore any other triggering events.
Continuous Trigger:
When channel has been triggered, the triggering event will be displayed on full screen
for the duration of the period set in Trigger Full Screen. The channel is, however, still
actively monitoring during that period. Should there be a new triggering event, this
channel will display the more recent event and restart the display period.
3.6.3.8 Motion Area Setup
The Motion Setup allows the user to block multi areas on screen for every single
channel as motion detection area.
Select a channel to set.
All Select: Highlights the entire view displayed on the screen (as seen by the
camera)
All Deselect: Removes the selection from the entire view displayed on the
screen (as seen by the camera)
49
4/8/16Ch H.264 Network DVR Series- Ver2.2
A
MOTION SETUP
███████████████████
███████████████████
███████████████████
███████████████████
███████████████████
███████████████████
███████████████████
███████████████████
███████████████████
Or use the mouse or the (), (), (), () buttons to move the area. After
positioning, press “” or click right button of the mouse to save it.
□□□□□□□□□□□□□□□□□□□□
□□□□□□□□□□□□□□□□□□□□
□□□□□□□□□□□□□□□□□□□□
□□□□□□□□□□□□□□□□□□□□
□□□□□□□□□□□██████□□□
□□□□□□□□□□□██████□□□
□□□□□□□□□□□██████□□□
□□□□□□□□□□□██████□□□
□□□□□□□□□□□□□□□□□□□□
All Select
MOTION SETUP
ll Deselect
+
CAUTION There will be no response in Motion Mode when the Motion Area
Setup has not been completed.
3.6.4 Sensor Setup
Sensor Setup is accessed to configure the sensor mode for each channel or all
channels.
50
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
DETECTOR SETUP
Channel Number
Alarm Setup
Motion Setup
Sensor Setup
Record Detection Activate [ Enable]
Sensor Mode [ Disable]
Sensor Device Setup
Record Time [15Sec]
Alarm Mode [Mute]
Alarm Time [10Sec]
Trigger Full Screen [ OFF]
Trigger Type [Initial Trigger]
NOTE Remember to set up the sensor mode recording for your desired
period on the “Record Schedule” menu in “Record Setup” after
completing “Sensor Setup”. Otherwise, the system will still be
recording in the default recording mode.
3.6.4.1 Record Detection Activate (Sensor Setup)
This feature activates the sensor setup (allowing you to detect unusual movements
picked up by the sensor) and enables the system to log sensor-triggered events
even when your DVR setting is in “Time Recording” mode.
Enable: Activates sensor-triggered detection even when DVR is in a different
recording mode. When enabled, a blinking sensor icon will appear beside the Time
Recording mode icon once the sensor is tripped.
51
4/8/16Ch H.264 Network DVR Series- Ver2.2
1% 2010/06/06 15:37:47
Blinking Sensor Icon
[“Sensor Record Detection
Activate” is enabled and the
sensor has been triggered]
Disable: Deactivates sensor-triggered detection even when DVR is in a different
recording mode (i.e. Time Recording Mode)
Time Recording
Mode Icon
NOTE The sensors need to be properly mapped to a channel and set
according to their operation characteristics (i.e. normally open or
normally closed) when using Record Detection Activate in the
Sensor Setup.
3.6.4.2 Sensor Mode
This parameter enables or disables sensor mode detection.
Enable: Activates sensor mode for Sensor Recording Mode
Disable: Deactivates sensor mode for Sensor Recording Mode
3.6.4.3 Sensor Device Setup
This feature is to easily map a sensor port to a particular channel without having to
remove any wires.
52
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
DETECTOR SETUP
Channel Number
Alarm Setup
Motion Setup
Sensor Setup
Record Detection Activate [ Enable]
Sensor Mode [ Disable]
Sensor Device Setup
Record Time [15Sec]
Alarm Mode [Mute]
Alarm Time [10Sec]
Trigger Full Screen [ OFF]
Trigger Type [Initial Trigger]
Click on a channel you would like to map with a sensor. Select whether the sensor type
is normally open or closed. It depends on the characteristics of the sensor you intend to
use.
SENSOR DEVICE SETUP
Restore Default Setting
Channel Select [ ······ ]
Normal – Open: The sensor type is in a normally open state.
Normal – Close: The sensor type is in a normally closed state.
3.6.4.4 Record Time
Set the recording time when the Sensor Mode is triggered.
The recording time as 5sec, 10sec, 15sec, 20sec, 25sec, 30sec, 45sec, 60sec,
90sec, 120sec, 150sec or 180sec.
3.6.4.5 Alarm Mode
Select the alarm mode when Sensor Mode is triggered.
Mute: No beep whatever motion is detected or not.
53
4/8/16Ch H.264 Network DVR Series- Ver2.2
Buzzer-Short: Slow beeping sound from buzzer on main board.
Buzzer-Long: Fast beeping sound from buzzer on main board.
Alarm-Short: Short sound coming from the alarm.
Alarm-Long: Prolonged sound coming from the alarm.
3.6.4.6 Alarm Time
The Alarm Time is the duration of the beep and may be set to: “Nonstop”(no stop),
5sec, 10sec, 15sec, 20sec, 25sec, 30sec, 35sec, 40sec, 45sec, 50sec, 55sec or
60sec.
3.6.4.7 Trigger Full Screen
Trigger Full Screen is the duration of the of full-screen display when a channel is
triggered. This may be set to a period between 1 to 30 seconds.
OFF: It will not display on full screen when the channel has been triggered. Also, the
trigger area will turn to a red color.
3.6.4.8 Trigger Type
There are two trigger types: Initial Trigger and Continuous Trigger.
Initial Trigger
When the sensor has been triggered, the triggering event will be displayed on full
screen for the duration of the period set in Trigger Full Screen. During that period,
this channel will ignore any other triggering events.
Continuous Trigger:
When the sensor has been triggered, the triggering event will be displayed on full
screen for the duration of the period set in Trigger Full Screen. The sensor is,
however, still actively monitoring during that period. Should there be a new triggering
event, this channel will display the more recent event and restart the display period.
3.7 Authentication Setup
Authentication Setup manages the authorization for accounts, passwords, and
permissions.
54
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Click the following icons for authority management
AUTHENTICATION SETUP
Account ID Passwd
admin
power
police
guest
＊＊＊＊＊＊
＊＊＊＊＊＊
＊＊＊＊＊＊
＊＊＊＊＊＊
[ Option] [ Create] [ Delete]
Click the icons for setting:
: Indicates a disabled account : Indicates an active account
: Permits access to function : Disables access to function
: Creates a new account : Deletes an account
Account ID: Enter characters as the account ID
Passwd (Password): By entering six numbers as password
Click “[ Option] for expiration date setup
AUTHENTICATION SETUP
Account ID Passd
admin
power
police
guest
＊＊＊＊＊＊
＊＊＊＊＊＊
＊＊＊＊＊＊
＊＊＊＊＊＊
Expiration Date
Never Expires
Never Expires
Never Expires
2010/6/12 17:04:08
[ Option] [ Create] [ Delete]
Click the icons for setting:
: No expiration date : Sets the expiration date
Click “[ Option] for channel monitoring setup
AUTHENTICATION SETUP
Account ID Passd Video Monitoring
admin
power
police
guest
＊＊＊＊＊＊
＊＊＊＊＊＊
＊＊＊＊＊＊
＊＊＊＊＊＊
[ Option] [ Create] [ Delete]
55
4/8/16Ch H.264 Network DVR Series- Ver2.2
Click the icons for setting:
(for 4Ch), (for 8Ch), (for 16Ch):
Enables the account to monitor all channels. The icon turns orange when enabled.
“
”, “ ” or “
”:
Enables the account to monitor the specific channels. The icon turns green when
enabled. Disabled accounts are indicated by white icons.
Click “[ Option]” for audio monitoring setup
AUTHENTICATION SETUP
Account ID Passd Audio Monitoring
admin
power
police
guest
[ Option] [ Create] [ Delete]
＊＊＊＊＊＊
＊＊＊＊＊＊
＊＊＊＊＊＊
＊＊＊＊＊＊
Click the icons for setting:
: Allows the user to monitor audio recording from the channels
: Does not allow the user to monitor audio recording from the channels
NOTE Disabling all accounts means that access is available to all users
without a password.
NOTE Disabling all users to access the specific function means that all
users can access only specific functions.
3.8 System Setup
System Setup sets the Language, Viewing, Date/Time, Sequence, Button Beep,
Input Device, and other relevant parameters.
56
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
SYSTEM SETUP
Language Selection ◄English►
View Setup
Date/Time Setup
Sequence Setup
Button Beep Setup
Beep of Mouse Buttons [Sound A]
Beep of Keypad [Sound B]
Beep of IR Remote [Sound C]
Input Device Setup
Mouse Moving Speed [Normal]
Mouse Repeat Speed [Normal]
Keypad Repeat Speed [Normal]
IR Repeat Speed [Normal]
Auto Exit Menu [ OFF]
Click on the System Setup icon or “System Setup ” on the Main Menu.
3.8.1 Language Selection
Language Selection is used to select the language for the on-screen display (OSD)
Menu.
LANGUAGE SELECTION
English
中文
日本語
ไ ท ย
Pусский
Magyar
Italiano
ﺔـــــــــﻴ
Ελληνικά
Français
Deutsch
Español
Română
ﺑ
ﺮﻌﻟا
3.8.2 View Setup
View Setup is for choosing to display certain illustrations and DVR information.
System Display Setup
Main Menu Graphics Mode [ ON]
Channel Dynamic Effects [ ON]
Menu Dynamic Effects [ ON]
Icons Help [ ON]
Error Messages [ OFF ]
State Bar Information
Channel Information
VIEW SETUP
57
4/8/16Ch H.264 Network DVR Series- Ver2.2
p
3.8.2.1 Main Menu Graphics Mode
Sets the main menu displayed by graphic icons or text mode.
Graphics Mode
MAIN MENU
Text Mode
MAIN MENU
Channel Setup
Record Setup
Detector Setup
Authentication Setup
System Setup
Hardware Setup
Utility/Tools
Exit Main Menu
Exit & Save Changes
Exit & Discard Changes
3.8.2.2 Channel Dynamic Effect
Enables or disables the channel moving effects during channel dynamic drag and
drop.
3.8.2.3 Menu Dynamic Effects
This pertains to the setting for the sub-menu to scroll in (when the icon is clicked)
or scroll out (when the
icon is clicked). If enabled, the sub-menu would roll out
smoothly and if disabled, the sub-menu would have a more abrupt appearance on the
screen.
3.8.2.4 Icon Help
Enables or disables the help icon text description to appear when the mouse hovers
over the icons.
Default Location
Icon Hel
3.8.2.5 Error Message
Enables or disables system to show the log when an error occurs.
3.8.2.6 State Bar Information
Determines how system status information is set and shown.
Icons
58
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
System Display Setup
State Bar Information
All State Bar Information [ ON]
Record Light [ ON]
Network Information [ ON]
Hard Drive Information [ ON]
Date/Time Information [ ON]
Rotation Information [ ON]
Channel Information
1% 2010/06/06 15:37:47
VIEW SETUP
State Bar Information
3.8.2.7 Channel Information
Enable or disable the channel information icons is set and shown on the home
screen.
59
4/8/16Ch H.264 Network DVR Series- Ver2.2
System Display Setup
State Bar Information
Channel Information
All Channels Information [ ON]
Channel Number [ ON]
Channel Name [ ON]
Record Light [ ON]
Video Loss [ ON]
Record Mode [ ON]
Detector Mode [ ON]
Alarm Display [ ON]
1% 2010/06/06 15:37:47
VIEW SETUP
Channel Information
(4Ch) (8Ch) (16Ch): The Channel
Number Icon
: Recording Light : Video Loss (Flashing)
: Record Mode (Not Flashing)
: Detection Mode (Flashing)
3.8.3 Date/Time Setup
Date/Time Setup Menu sets relevant information on date and time.
60
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
DAY/TIME SETUP
Date Display Mode [YYYY/MM/DD]
Time Set [2010/06/14 11:18:19]
Time Zone [GMT +08:00]
[Taipei]
Daylight Saving Time
Activate Daylight Saving [ Disable]
Time Starts [No definition]
Time Ends [No definition]
NTP Server
Activate Service [ Enable]
Server IP [time.stdtime.gov.tw]
Interval (Days) [3Day]
Synchronize Now
3.8.3.1 Date Display Mode
Date Display Mode is used to choose a date format for the state information. The
allowable formats are YYYY/MM/DD, DD/MM/YYYY, and MM/DD/YYYY.
3.8.3.2 Time Set
“Time Set” is for adjusting the date and time.
Time Set [ 2010/06/14 11:28:22]
/ ( / ): Up / Down – Change the number
/(/): Move left/right to the character that needs to be changed
: Exit after confirmed setting
3.8.3.3 Time Zone
“Time Zone” is for adjusting time zone and location.
3.8.3.4 Daylight Saving Time
“Daylight Saving Time” is for adjusting the DST settings (for countries where it is
applicable).
3.8.3.4.1 Activate Daylight Saving
“Activate Daylight Saving” enables or disables the daylight saving mode.
3.8.3.4.2 Time Starts
“Time Starts” indicates the start date of daylight saving time. The user can set the
month, week number, day, and hour.
61
4/8/16Ch H.264 Network DVR Series- Ver2.2
Time Starts
Month ◄October►
Week [First Week]
Day [Sunday]
Hour [0]
3.8.3.4.3 Time Ends
“Time Ends” indicates the end date of daylight saving time. The user can set the
month, week number, day, and hour.
Time Ends
Month ◄October►
Week [First Week]
Day [Sunday]
Hour [0]
3.8.3.5 NTP Server
NTP Server allows for the synchronization of the day/ time settings with the NTP
server through internet.
DAY/TIME SETUP
Date Display Mode [YYYY/MM/DD]
Time Set [2010/06/14 11:18:19]
Time Zone [GMT +08:00]
[Taipei]
Daylight Saving Time
Active Daylight Saving [ Disable]
Time Starts [Not definition]
Time Ends [Not definition]
NTP Server
Activate Service [ Enable]
Server IP [time.stdtime.gov.tw]
Interval (Days) [3Day]
Synchronize Now
Activate Service:
Enable: Enable Synchronization
Disable: Disable Synchronization
Server IP: The IP address of NTP server (Maximum in 24 characters)
Interval (Days): The frequency (number of days) of when the server is
synchronized.
Synchronize Now: Start synchronizing with NTP server now
62
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
3.8.4 Sequence Setup
The Sequence Setup Menu is for setting the channel rotation sequence period.
SYSTEM SETUP
Language Selection [English]
View Setup
Date/Time Setup
Sequence Setup
Button Beep Setup
Beep of Mouse Buttons [Sound A]
Beep of Keypad [Sound B]
Beep of IR Remote [Sound C]
Input Device Setup
Mouse Moving Speed [Slow]
Mouse Repeat Speed [Normal]
Keypad Repeat Speed [Normal]
IR Repeat Speed [Normal]
Auto Exit Menu [ OFF]
SEQUENCE SETUP
Auto Sequence [ OFF ]
Full Screen Sequence [ ON]
4 Split Sequence ▐▬▬▬▬▬ [ OFF]
1+5 Split Sequence ▐▬▬▬▬▬ [ OFF]
1+7 Split Sequence ▐▬▬▬▬▬ [ OFF]
9 Split Sequence ▐▬▬▬▬▬ [ OFF]
1+12 Split Sequence ▐▬▬▬▬▬ [ OFF]
1+15 Split Sequence ▐▬▬▬▬▬ [ OFF]
16 Split Sequence ▐▬▬▬▬▬ [ OFF]
Auto Sequence
Enables automatic activation of sequence viewing within 10 sec, 20 sec, 30 sec, 40
sec, 50 sec or 60 sec. Default setting is OFF.
Full Screen Sequence
Enables or disables the full screen rotation period.
4 Split Sequence
Enables or disables the 4 split display rotation period.
63
4/8/16Ch H.264 Network DVR Series- Ver2.2
1+5 Split Sequence
Enables or disables the 1+5 split display rotation period.
1+7 Split Sequence
Enables or disables the 1+7 split display rotation period.
9 Split Sequence
Enables or disables the 9 split display rotation period.
1+12 Split Sequence
Enables or disables the 1+12 split display rotation period.
1+14 Split Sequence
Enables or disables the 1+14 split display rotation period.
16 Split Sequence
Enables or disables the 16 split display rotation period.
NOTE If all the sequence settings are OFF, the (Auto Rotation) icon
will not appear on the Control Bar.
3.8.4.1 Operating Auto Sequence
Auto Sequence activates the sequence settings within a given time if the Auto
Rotation icon has not been pressed. This is an explanation of setting the display
sequence.
If Auto Sequence is ON and all the other sequence settings (i.e. full screen, 4 split,
etc.) are OFF, the screen displays will remain static. The
will not appear on the Control Bar.
If Auto Sequence and Full Screen Sequence are both ON, the display will enter the
single channel view within the time set on Auto Sequence.
If Auto Sequence is OFF and Full Screen Sequence is ON, the display will enter the
single channel view only when the
(Auto Rotation) icon is clicked.
(Auto Rotation) icon
If Auto Sequence and any one of the Split Sequences are both ON, the display will
enter the specified view within the time set for Auto Sequence.
If Auto Sequence is OFF and any one of the Split Sequences is ON, the display will
enter the single channel view within the time set on the Split Sequence.
64
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
NOTE A quick way to determine if the display is in sequence mode is by
checking if the (Channel Rotation indicator) icon appears on
the State bar.
3.8.5 Button Beep Setup
The Button Beep Setup configures the type of beeping sound for the mouse,
keypad, and IR remote operations. The sound type can be either: [Mute], [Sound A],
[Sound B], or [Sound C].
SYSTEM SETUP
Language Selection [English]
View Setup
Date/Time Setup
Sequence Setup
Button Beep Setup
Beep of Mouse Buttons [Sound A]
Beep of Keypad [Sound B]
Beep of IR Remote [Sound C]
Input Device Setup
Auto Exit Menu [ OFF]
Beep of Mouse Buttons: Mute, Sound A, Sound B, Sound C
Beep of Keypad: Mute, Sound A, Sound B, Sound C
Beep of IR Remote: Mute, Sound A, Sound B, Sound C
NOTE Keypad Beep is available for models equipped with keypad.
3.8.6 Input Device Setup
Input Device Setup is used to set the speed of the following input devices: mouse,
keypad and IR Remote. The speeds can be assigned the following settings:
65
4/8/16Ch H.264 Network DVR Series- Ver2.2
Language Selection [English]
View Setup
Date/Time Setup
Sequence Setup
Button Beep Setup
Input Device Setup
Mouse Moving Speed [Normal]
Mouse Repeat Speed [Normal]
Keypad Repeat Speed [Normal]
IR Repeat Speed [Normal]
Auto Exit Menu [ OFF]
Mouse Moving Speed: Slow, Normal, Fast
SYSTEM SETUP
Mouse Repeat Speed:
Keypad Repeat Speed:
IR Repeat Speed:
OFF, Slow, Normal, Fast
OFF, Slow, Normal, Fast
OFF, Slow, Normal, Fast
NOTE Keypad repeat speed is available for models equipped with
keypad.
3.8.7 Auto Exit Menu
The Auto Exit Menu configures the menu to automatically revert back to the main
display screen after a specified period.
Set Auto Exit Menu to [
10, 20, 30, 40, 50 or 60 seconds, depending on the set time.
OFF] for manual exit. Otherwise, the menu will exit after
3.9 Hardware Setup
Hardware Setup is the menu for configuring hardware parameters including error
message, hard drive, network, keyboard/PTZ, screen display and audio function.
Click the “Hardware Setup” on the Main Menu.
66
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
HARDWARE SETUP
Query Error Messages
Hard Drive Setup
Network Setup
Keyboard/PTZ Setup
Screen Setup
NTSC/PAL Auto Detection [ ON]
Video Output Format [NTSC]
Screen Border [ ON]
Main Display Screen [VGA]
VGA Resolution [1024x768]
Video Adjustment
Audio Setup
Audio Record [ ON]
Audio Mute [ OFF]
Input Volume ▐▬▬▬▬▬ [1]
Output Volume ▬▬▬▬▬▐ [16]
3.9.1 Query Error Message
The Query Error Message window shows the all error messages.
QUERY ERROR MESSAGES
[ View Time] [ Clear Message]
View Time]: Sort error messages by time of occurrence.
[
Clear Message]: Clear all error logs.
[
3.9.2 Hard Drive Setup
The Hard Drive Setup menu displays hard disk information and allows the user to
enable the HDD overwriting.
67
4/8/16Ch H.264 Network DVR Series- Ver2.2
HARD DRIVE SETUP
Overwrite Enable [ YES]
Max. Recording Days ▐▬▬▬▬▬ [ None]
First Hard Disk
Model [WDC WD7500AYPS-01ZKB]
HDD Size [715403MB]
Max. Recording Days [1 Day]
Record Start Time [2006/06/11 15:26:18]
Record End Time [2010/06/14 13:13:30]
Standard Record Size [2438/715351 MB 35%]
Standard number of event [396/357376 20%]
Format Hard Drive
3.9.2.1 Overwrite enable
[ YES]: The hard drive automatically writes over the oldest video on the hard drive
when it runs out of space for recording.
[
NO]: Recording will stop when the hard drive is full.
3.9.2.2 Max. Recording Days
This function enables to specify the days of recording data which is retained in the
hard drive. It will be required to format the hard drive once you change the limited
days. Those expired recording data will be not found during event search.
Once you have selected the number of days, click on “Format Hard Drive”.
You can set the maximum recording days as from 1 to 30 or “None” not to limit.
CAUTION If you decide to move or re-assign your DVR to a different system
with a different ruling on how long you can keep your videos, you
have to reformat your hard drive to change the Max. Recording
Days.
3.9.2.3 First Hard Disk
Model: Automatically displays the hard drive model number.
HDD Size: Automatically displays the hard drive size.
Max. Recording Days: Displays the current setting for the maximum number
of days recorded videos are retained.
68
Record Start Time: Displays the day and time when the hard drive starts
storing recorded data
Record End Time: Displays the day and time of the last recording on the hard
drive
Standard Record Size: The total hard drive capacity in megabyte (MB) and
the ratio of using space.
Standard Number of event: Total number of record events / total capacity of
events and the ratio of using space.
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
3.9.2.4 Format Hard Drive
You cannot format the hard drive when the system is running in recording mode.
When you attempt to do so, the following warning message will appear on the
screen.
System is Recording
Hard Disk Format is Prohibited.
3.9.3 Network Setup
Network Setup is for adjusting network configurations.
NETWORK SETUP
Network Enable [ Enable]
IP Address Setup
IP Type [DHCP]
IP Address [ 0. 0. 0. 0]
Gateway [ 0. 0. 0. 0]
Subnet Mask [ 0. 0. 0. 0]
MAC Address [00:B2:95:DF:96:B7]
PPPoE Account ID [No Definition]
PPPoE Password [No Definition]
Management/Monitoring Setup
Server Setup
3.9.3.1 Network Enable
[ Enable]: Network may be used
[
Disable]: Network may not be used
3.9.3.2 IP Address Setup
The IP address acts as a locator or an identification number to enable a device on a
TCP/IP network to locate other devices and interact with them. Certain parameters
need to be set through IP Address Setup to ensure proper network communication.
69
4/8/16Ch H.264 Network DVR Series- Ver2.2
NETWORK SETUP
Network Enable [ Enable]
IP Address Setup
IP Type [DHCP]
IP Address [ 0. 0. 0. 0]
Gateway [ 0. 0. 0. 0]
Subnet Mask [ 0. 0. 0. 0]
MAC Address [00:B2:95:DF:96:B7]
PPPoE Account ID [No Definition]
PPPoE Password [No Definition]
Management/Monitoring Setup
Server Setup
IP Type
There are two options for IP type: Static IP address and Dynamic IP address
(DHCP and PPPoE).
Static IP Address: User must manually define a static IP address. Contact the
network administrator for this information.
DHCP: System gets the IP address from the router or DHCP server. Contact
the network administrator for this information.
PPPoE: The Point-to-Point Protocol over Ethernet (PPPoE) is used mainly with
DSL services where individual users connect to the DSL modem over Ethernet
and in plain Metro Ethernet networks.
Please input the PPPoE Account ID and Password provided by the ISP.
(Note: Account ID maximum in 24 characters; Password maximum in 16
characters)
GATEWAY: Define gateway IP address. Contact the network administrator for
this information.
SUBNET MASK: A sub network, or subnet, is a logically visible, distinctly
addressed part of a single Internet Protocol network. Contact the network
administrator for this information.
MAC Address: MAC address is a unique identifier assigned to most network
adapters or network interface cards (NICs) by the manufacturer for
identification. It has been set at dedicated address even reset the DVR.
NOTE You must plan on the network structure if the MIS or Network
Administrator manages the network. Consult with the MIS or
Network Administrator for the IP address segment and portforwarding rule for the DVR network setup.
3.9.3.3 Management / Monitoring Setup
The Management/Monitoring Setup menu addresses the management and
monitoring service for remote DVR control and viewing from the internet (i.e.
Internet Explorer) browser and PC Viewer.
70
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
MANAGEMENT/MONITORING SETUP
Management Service
Activate Service [ Enable]
Monitoring Service
Activate Service [ Enable]
Port [8000]
Video Transmission Quality [Standard]
Audio Transmission [ ON]
UPNP
Activate Client [ Disable]
Port [8000]
Management Service
Activate Service: Enables or disables the management service for allowing
remote control from IE or PC Viewer.
Monitoring Service
Activate Service: Enables or disables the monitoring service for allowing
remote viewing from IE or PC Viewer.
Port: The default port number is “8000” for DVR video and audio transmission.
The range of port numbers is from 2048 to 32767. This can also be used as the
web port.
Video Transmission Quality: Selects the remote video transmission quality
from Lowest, Low, Standard, High, and Highest.
Audio Transmission: Enables [
ON] or disables [ OFF] audio transmission.
UPNP
UPnP allows devices to automatically establish functional connections with other
devices when connected to a network.
Activate Client: Enables or disables the UPnP connection of the DVR
Port: Specifies the streaming port for UPnP. This is typically an unused port.
NOTE You must plan on the network structure if the MIS or Network
Administrator manages the network. Consult with the MIS or
Network Administrator for the IP address segment and portforwarding rule for the DVR network setup.
3.9.3.4 Server Setup
Configure the DNS server.
71
4/8/16Ch H.264 Network DVR Series- Ver2.2
Default DNS Address [ 8. 8. 8. 8]
Custom DNS Address [168. 95. 1. 1]
Dynamic DNS
Activate Service [ Disable]
Provider [www.dyndns.com]
Server Name [No Definition]
Account [No Definition]
Password [No Definition]
E-Mail Setup
Default DNS Address
The Domain Name System (DNS) translates hostnames to IP addresses (default
setting). If there is no DNS address setting or fail, DVR will go for Default DNS
Address.
SERVER SETUP
Custom DNS Address
The Domain Name system (DNS) translate hostnames to IP addresses (customer
setting).
Dynamic DNS
Dynamic DNS is a system that allows the domain name data held in a name server
to be updated in real time. Please refer to the chapter “DynDNS Service Overview”.
Activate Service: Enable the Dynamic DNS service.
Provider: The web site / IP Address of Dynamic DNS provider
Server Name: Define a name of Dynamic DNS (Maximum in 35 characters)
Account: The account name of Dynamic DNS (Maximum in 27 characters)
Password: Password for Dynamic DNS. Please refer to DynDNS Service
(Maximum in 27 characters)
E-Mail Setup
E-MAIL SETUP
Activate Service [ Enable ]
SMTP Server [ No Definition ]
SMTP Port [25]
Sender E-Mail [ No Definition ]
Receiver E-Mail [ No Definition ]
Email Authentication [ NO]
Authen User Name [ No Definition ]
Authen User Password [ No Definition ]
72
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Configure the electronic mail server.
Activate Service: Enable or disable the email feature of the DVR
SMTP Server: Specify the name of the mail server
SMTP Port: Specify the port number used by the mail server. The default
value is 25.
Sender E-Mail: Specify the email address of the sender
Receiver E-mail: Specify the email address of the recipient
Email Authentication: Activate or deactivate the email account authentication.
This is for identifying and verifying if the sender has been authorized.
Authen User Name: Specify the user name for email authentication
Authen User Password: Specify the password for email authentication
3.9.4 Keyboard/PTZ Setup
Configures the communication protocols between the DVR and the PTZ-capable
cameras and the keyboard connected to it.
KEYBOARD/PTZ SETUP
Pan/Tilt/Zoom Setup
RS-485
Baudrate [2400]
Databit [8 Bit]
Parity [No Parity]
Stopbit [1 Stopbit]
Keyboard
Keyboard Model [ OFF]
Keyboard ID [1]
3.9.4.1 Pan/Tilt/Zoom Setup
The Pan/Tilt/Zoom Setup allows you to modify the PTZ settings for each channel of
the DVR. These settings need to be matched to the camera you intend to connect
to your DVR.
73
4/8/16Ch H.264 Network DVR Series- Ver2.2
PAN/TILT/ZOOM SETUP
Channel Number
PTZ Protocol [None]
Camera ID [1]
Camera Reset
Speed Adjustment
Pan Speed ▬▬▬▐▬▬ [4]
Tilt Speed ▬▬▬▐▬▬ [4]
Cruise Speed ▬▐▬▬ [1]
Auto Pan Speed ▬▬▬▐▬▬ [3]
Zoom/Focus/Iris
Cruise Speed ▬▐▬ [1]
Focus Speed ▬▐▬ [1]
Iris Speed ▬▐▬ [1]
Auto Focus [ Enable]
Auto Iris [ Enable]
Channel Number
The “PAN/TILT/ZOOM SETUP” supports individually setup of each channel.
Select the icons “
” (for 8Ch) or “ , , , , , , , , , , , , , , , ” (for
“
16Ch) to individually setup of each channel.
”, “ ”, “ ”, “ ” (for 4Ch), “ ”, “ ”, “ ”, “ ”, “ ”, “ ”, “ ”,
PTZ Protocol
Provides options for the PTZ camera protocol: Pelco P, Pelco D, Teleview Pelco P,
Teleview Pelco D, Merit LILIN (3B), Merit LILIN (7B), HiSharp, Nicecam and Elitar.
Camera ID
Adjusts the identification number based on the local settings of your camera. This
value may be any number from 1 to 255. Use the arrows (
Camera ID [ 1]
and ) to select.
Speed Adjustment
These pertain to the panning, tilting, and cruising speeds of your camera.
Pan Speed: can be set between 0 to 8.
Tilt Speed: can be set between 0 to 8.
Cruise Speed: can be set between 0 to 3.
Auto Pan Speed: can be set between 0 to 5.
74
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
PAN/TILT/ZOOM SETUP
Channel Number
PTZ Protocol [Elitar]
Camera ID [1]
Camera Reset
Speed Adjustment
Pan Speed ▬▬▬▐▬▬ [4]
Tilt Speed ▬▬▬▐▬▬ [4]
Cruise Speed ▬▐▬▬ [1]
Auto Pan Speed ▬▬▬▐▬▬ [4]
Zoom/Focus/Iris
Zoom/Focus/Iris
These pertain to the zoom, focus, and iris adjustment settings of your camera.
Zoom Speed : can be set between 0 to 3.
Focus Speed : can be set between 0 to 3.
Iris Speed : can be set between 0 to 3.
Auto Focus : can be Enabled or Disabled.
Auto Iris : can be Enabled or Disabled.
3.9.4.2 RS-485
PAN/TILT/ZOOM SETUP
Channel Number
PTZ Protocol [Elitar]
Camera ID [1]
Camera Reset
Speed Adjustment
Zoom/Focus/Iris
Cruise Speed ▬▐▬ [1]
Focus Speed ▬▐▬ [1]
Iris Speed ▬▐▬ [1]
Auto Focus [ Enable]
Auto Iris [ Enable]
The DVR uses the RS-485 standard for PTZ communication. The following settings
must be configured in parallel with the local settings of the camera for the system to
function properly.
Baudrate
Select a baud rate: 1200, 1800, 2400, 4800, 9600, 14400, 19200, 38400, 57600 or
115200.
75
4/8/16Ch H.264 Network DVR Series- Ver2.2
Databit
Select a data bit communication protocol: 8-bit or 7-bit
Parity
Select a parity configuration: Odd, Even, or No Parity
Stopbit
Select a stop bit configuration: 1 Stopbit or 2 Stopbit
NOTE Pan/Tilt/Zoom and RS-485 Settings may vary for each camera.
Be sure to match local camera settings to those you input on the
DVR.
3.9.4.3 Keyboard
Keyboard Model
Select the keyboard model you are using: OFF (if there is no keyboard), CK101,
CK201, KB-KT301
Keyboard ID
Adjusts the identification number based on the local settings of your keyboard. This
value may be any number from 1 to 16.
Keyboard Protocol
Provides options for the keyboard communication protocol: Pelco P, Pelco D,
Teleview Pelco P, Teleview Pelco D, Merit LILIN (3B), Merit LILIN (7B), HiSharp,
Nicecam and Elitar. This setting depends on the keyboard model being used.
3.9.5 Screen Setup
Adjusts the video format and resolution of the display device.
NTSC/PAL Auto Detection
The system will automatically detect the video format NTSC/PAL from the video
source, i.e. security cameras.
Video Output Format
The selection of video output format NTSC or PAL is available while the
“NTSC/PAL Auto Detection” function is disabled.
76
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Screen Border
ON] : To show the border
[
OFF] : Not to show the screen border.
[
1% 2010/06/06 15:37:47
Screen Border
Main Display Screen
Provides options to connect the main display screen to either a BNC or VGA port
(Labeled as “VIDEO-OUT”).
VGA Resolution
Sets the resolution as 640x480, 800x600, 1024x768 or 1280x1024.
NOTE The default setting for VGA resolution on the DVR is 800x600.
Some monitors that may be connected to the VGA port may not
support this resolution and this may result to unclear images on
the display. You can adjust the setting to a higher value to ensure
clarity of the video.
Video Adjustment
Adjusts the position of main display on the monitor when connect the main display
screen to BNC port (Labeled as “VIDEO-OUT”).
The following figure will show when enter the “Video Adjustment”:
77
4/8/16Ch H.264 Network DVR Series- Ver2.2
1% 2010/06/06 15:37:47
VIDEO ADJUSTMENT
[ Default ]
Adjust the image position by using the mouse left-click button to follow the direction
change of cursor icon up / down / right/ left.
Press [
Default] to load the default location.
3.9.6 Audio Setup
Audio Setup relates to the settings for the audio device that may be connected to
your DVR.
HARDWARE SETUP
Query Error Message
Hard Drive Setup
Network Setup
Screen Setup
Audio Setup
Audio Record [ ON]
Audio Mute [ OFF]
Input Volume ▐▬▬▬▬▬ [1]
Output Volume ▬▬▬▬▬▐ [16]
78
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Audio Record
[ ON] : Enables audio recording
OFF] : Disables audio recording
[
Audio Mute
[ ON] : Mutes the sound
[
OFF] : Allows for sound to be heard
Input Volume
Adjusts the input volume from 1 to 16.
Output Volume
Adjusts the output volume from 1 to 16.
3.10 Utility/Tools
These tools help you to format the USB dongle, to update firmware, to export event
logs and to load or restore the environment configuration.
Click the “Utility/Tools” on the Main Menu.
UTILITY/TOOLS
Format USB Disk
Firmware Update
Environment Setting
Save Settings to USB
Load Settings from USB
Restore Default Setting
3.10.1 Format USB Disk
The system supports USB pen drives and USB card readers with the FAT32 device
file format. Please format the drive (using the file format function) if it is not in
FAT32 otherwise an error will occur during backup. The file format function helps
you format USB device to improve its compatibility with the DVR for storing video
data into your USB device.
FORMAT USB DISK
USB Disk [General Flash Disk]
File System [FAT32]
Free Capacity [1005MB]
Total Capacity [1005MB]
[ Format]
79
4/8/16Ch H.264 Network DVR Series- Ver2.2
3.10.2 Firmware Update
The firmware is updated by using a USB pen drive that contains the latest firmware
file.
Attach the external USB disk into the USB port on DVR front panel.
FIRMWARE UPDATE
Current Revision: V15.0.0
Current Date/Time: Jun 14 2010 05:22:38
Current Language: English
File Name:
File Size:
File Revision:
File Date/Time:
File Language:
File Checksum:
Plug USB Disk
Once the USB device is connected to the port, the DVR will take a few seconds to
search for the firmware.
If there is a mistake or missing file on the drive, it will show: File not found or Disk
Error on the bottom line. Please check USB disk or file. Re-attach disk to the port.
80
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Once the firmware has been found, its file name, revision number, revision date and
time, file language and checksum are displayed. Click this button on begin the
upgrade.
FIRMWARE UPDATE
Current Revision: V15.0.0
Current Date/Time: Jun 14 2010 05:22:38
Current Language: English
File Name: FWVX4TWNFWI
File Size: 7196672 Bytes
File Revision: V15.5.3
File Date/Time: Jan 15 2010 16:45:52
File Language: English
File Checksum: 0x02E165B5
Proceed Update
When DVR is updating the firmware, a status bar will appear at the bottom.
FIRMWARE UPDATE
Current Revision: V15.0.0
Current Date/Time: Jun 14 2010 05:22:38
Current Language: English
File Name: FWVX4TWNFWI
File Size: 7196672 Bytes
File Revision: V15.5.3
File Date/Time: Jan 15 2010 16:45:52
File Language: English
File Checksum: 0x02E165B5
After firmware update is completed, Firmware update completed. System will
restart is displayed, and then the system restarts.
FIRMWARE UPDATE
Current Revision: V15.0.0
Current Date/Time: Jun 14 2010 05:22:38
Current Language: English
File Name: FWVX4TWNFWI
Firmware update completed
System will restart
File Size: 7196672 Bytes
File Revision: V15.5.3
File Date/Time: Jan 15 2010 16:45:52
File Language: English
File Checksum: 0x02E165B5
Update Process
81
4/8/16Ch H.264 Network DVR Series- Ver2.2
3.10.3 Environmental Setting
Save Settings to USB
SAVE SETTINGS TO USB
USB Disk [General Flash Disk]
Free Capacity [905MB]
Total Capacity [1005MB]
Write File [Env2010-07-14_0503.env]
[ Save File]
This tool can help you duplicate the system environment configuration and store it
on the USB device. You can use this to swiftly deploy your other DVR systems
which will be using the same configuration.
It will show the following message after file is duplicated successfully.
SAVE SETTINGS TO USB
File ‘Env2010-07-14_0503.env’
Written successfully !!!
[ OK]
Load Settings from USB
LOAD SETTINGS FROM USB
USB Disk [General Flash Disk]
Free Capacity [905MB]
Total Capacity [1005MB]
Read File [Env2010-07-14_0503]
[ Load File] [ File Select]
This tool can help you load the system environment configuration from the USB
device.
Click [
File select] to select the file you would like to load.
LOAD SETTINGS FROM USB-FILE SELECT
Env2010-07-14_0531.env (Generic)
Env2010-07-11_0526.env (Generic)
Env2010-07-09_0525.env (Generic)
Env2010-07-08_0504.env (Generic)
Click [ Load File] to load the selected file from USB device. It will show the
following message:
82
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
LOAD SETTINGS FROM USB
File ‘Env2010-07-14_0503.env’ Loaded.
System will restart…
Restore Default Setting
This command resets the system to its default settings.
UTILITY/TOOLS
Format USB Drive
Firmware Update
Export Event Log
Environment Setting
Save Setting to USB
Load Setting from USB
Restore Default Setting
Load default setting
Restore default settings?
[ YES] [ NO]
Select “YES” to load the default setting. After which, the system will reboot.
Reset completed,
System will restart…
3.11 Exit Main Menu
The Exit Main Menu window provides options to save or discard changes before
exiting.
83
4/8/16Ch H.264 Network DVR Series- Ver2.2
MAIN MENU
Channel Setup
Record Setup
Detector Setup
Authentication Setup
System Setup
Hardware Setup
Utility/Tools
Exit Main Menu
Exit & Save Changes
Exit & Discard Changes
Click on the icon if you access this from the Main Menu in Graphics Mode. If
you have made changes, you will be asked whether or not you would like to save
those changes.
Exit Main Menu
Some configuration has been changed.
Please confirm?
[ Save] [ Discard] [ Cancel]
Otherwise, in the regular Main Menu mode, you are presented with the following
window:
3.11.1 Exit & Save Changes
All changes are saved before exiting from the menu.
Data Saving
Please Wait…
3.11.2 Exit & Discard Changes
All changes are ignored (The changes will not be saved and will take no effect.)
before exiting from the menu. Confirm with “Yes” or go back to the menu by
choosing “No”.
84
Exit Main Menu
Discard changes and exit now?
[ YES] [ NO]
Chapter
4
4 Playback and
Data Backup
85
4/8/16Ch H.264 Network DVR Series- Ver2.2
4.1 Calendar Menu
The Calendar Menu is a play back feature that allows you to access recorded
videos by selecting the date and time when the video was captured.
Press the Calendar Menu Icon on the Control Bar to enter the Calendar Menu in
the live viewing window.
CALENDAR MENU
Year Selector
[2010] [July]
Month Selector
Sun Mon Tue Wed Thu Fri Sat
1 2 3
4 5 6 7 8 9 10
11 12 13 14 15 16 17
Day Selector
18 19 20 21 22 23 24
25 26 27 28 29 30 31
0 1 2 3 4 5 6 7 8 9 10 11
Time Selector
12 13 14 15 16 17 18 19 20 21 22 23
[ Play] [ Backup]
Choosing the year of the video to play back
The Year Selector will start blinking when your mouse is hovering over it. Click on
the year or the arrows beside the year (
or ) to choose.
Choosing the month of the video to play back
The Month Selector will start blinking when your mouse is hovering over it. Click on
the month or the arrows beside the month (
or ) to choose.
Choosing the day of the video to play back
The dates with recorded videos will be in a vivid white color for weekdays, red for
Sundays, and cyan for Saturdays on the Day Selector. A specific day will start
blinking when your mouse is hovering over it. Click on the day you would like to
review. A circle will appear around the selected number and the number will be
enclosed with brackets.
Choosing the time of the video to play back
Once you’ve chosen the date, the hours with recorded videos will be in a vivid
green color on the Time Selector. A specific time will start blinking when your
mouse is hovering over it. Click on the hour you would like to review. A circle will
appear around the selected number.
86
4/8/16Ch H.264 Network DVR Series-MU.Ver2.3
Example of time-search video selection with Calendar Menu
CALENDAR MENU
[2010] [July]
Sun Mon Tue Wed Thu Fri Sat
1 2 3
4 5 6 7 8 9 10
11 12 13 14 15 16 17
18 19 20 21 22 23 24
25
[ ]
0 1 2 3 4 5 6 7 8 9 10 11
12 13 14 15 16 18 19 20 21 22 23
In the example above, the date selected is July 26, 2010 (Monday) and the time is
17:00. The illustration also shows that recorded videos of that day are available
from 09:00 to 18:00.
27 28 29 30 31
[ Play] [ Backup]
Play]: Starts to play the event that has been selected.
[
Backup]: Creates a backup file for the event that has been selected
[
NOTE Play back and backup for the Calendar Menu is similar to the
operation available in the Play Menu. Please refer to the section
on the Video Playback Control Bar.
4.2 Play Menu
Press “” (or “II”) button or icon to enter Play Menu in the live view window.
PLAY MENU
Channel Number
Play Begin Time [2010/7/04 10:40:02]
Play End Time [2010/7/14 05:59:13]
2121 ▲ ▲ 2010/07/14 06:18:31
2120 2010/07/14 06:17:12
2119 2010/07/14 05:57:38
2118 2010/07/14 04:20:11
2117 ▼ ▼ 2010/07/14 02:18:42
[ Option] [ Play] [ Backup]
▲
87
4/8/16Ch H.264 Network DVR Series- Ver2.2
Channel Number: select the channel to playback
Play Begin Time: specify the beginning of the playback
Play End Time: specify the end time of the playback
The information below it shows the available recorded events.
To click [
Option] to switching the window as follows:
PLAY MENU
▲
2121 ▲ ▲ 2010/07/14 06:18:31
2120 2010/07/14 06:17:12
2119 2010/07/14 05:57:38
2118 2010/07/14 04:20:11
2117 ▼ ▼ 2010/07/14 02:18:42
[ Option] [ Play] [ Backup]
[ Play]: Start playing the recorded data. After the data has been played, it will
show “”
Backup]: To back-up the recorded data. Please refer to the “Backup” section
[
Commands and Recorded Data status:
PLAY MENU
Channel Number
Play Begin Time [2010/7/04 10:40:02]
Play End Time [2010/7/14 05:59:13]
▲
2121 ▲ ▲ 2010/07/14 06:18:31
2120 2010/07/14 06:17:12
2119 2010/07/14 05:57:38
2118 2010/07/14 04:20:11
2117 ▼ ▼ 2010/07/14 02:18:42
[ Option] [ Play] [ Backup]
Start of Recording Time
Scroll Bar for Search
The type of event log
Serial Number of Recorded Data
S/N of Recorded Data: Series Number of recorded data provide by system
Recording Status:
o
/ : Shows the begin or end of recording data in the hard drive
o
o
: Shows the recording mode
: The data can be played (This icon doesn’t show if no video recording
is available.)
