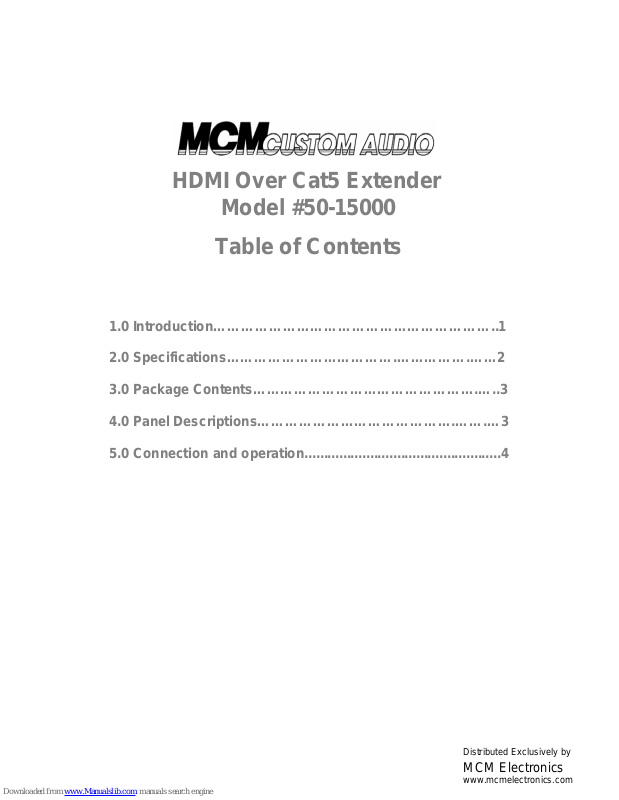

Table of Contents
1.0 Introduction……………………………………………………..1
2.0 Specifications……………………………….…………….……2
3.0 Package Contents………………………………………….…..3
4.0 Panel Descriptions…………………………………….…….…3
5.0 Connection and operation...................................................4
HDMI Over Cat5 Extender
Model # 50- 15000
Distributed Exclusively by
www.mcmelectronics.com
MCM Electronics
HDMI Extender by Cat5 x1
１
HDMI Over Cat5 Extender
Dear customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
1.0 INTRODUCTION
This HDMI Extender by CAT5 x1 uses a single Cat5 UTP cable with cross stand
inside to extend the HDTV display up to 50 meters for 1080p. It not only breaks
the limitation of the HDMI cable transmission length，but also has more flexibility
and convenience in cable construction.
It is equipped with HDMI (high definition multimedia interface) connector and is
capable of supporting DVI (digital visual interface) equipment when used with an
HDMI to DVI Adapter, providing greater flexibility and options when integrating
several home theater components.
This product offers solutions for residential consumers: HDTV retail and show site,
HDTV, STUB, DVD and Projector factories, noise, space and security concerns,
data center control, information distribution, conference room presentation, school
and corporate training environments.
1.1 BENEFITS
1) The length of HDMI cable is fixed and unchangeable after it is produced.
Because HDMI cables are not field terminated, it is not possible to
limitation does not exist with Cat5e network cables.
2) Because the header of the long HDMI cable is big, using it must in hidden
method. What's more, it is not easy to bend the HDMI cable and to pull it
through the in-wall tube or tray. However, CAT-5e/6 cable has no such
problems.
3) Using this Extender together with UTP cable with cross stand inside, the
transmission distance can be up to 60 meters for 1080p. For the general HDMI
cables, they must be customized when the length is over 10 meters.
1.2 FEATURES
This HDMI Extender has many features that enable it to perform in a superior
manner. Among those features you will find:
z One pair as a full functional module, no need of setting.
create custom lengths in the field, during installation. However this
HDMI Extender by Cat5 x1
２
z One piece of CAT-5e/6 cable can substitute HDMI cable to achieve long
distance transmission.
z Follow the standard of IEEE-568B.
z Transmission distance can be up to 50 meters for 1080p using UTP cable with
cross stand inside.
z Auto-adjustment of feedback, equalization and amplify, the user does not
need to care about the length of the cable.
z Compact size.
z Supports HDMI1.2a.
z Supports highest video resolution 1080p.
z Supports 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth.
z Supports 8bit per channel (24bit all channel) deep color.
z Supports uncompressed 2 channel audio such as LPCM
2.0 SPECIFICATIONS
Signal Inputs/Output
Input Video Signal 0.5 -1.0 volts p-p
Output Video HDMI 1.2a
Video format supported
DTV/HDTV 480i/576i/480p/576p/720p/1080i/1080P
Transmission distance
UTP cable with cross stand inside 50M for1080p
Operating Frequency
Video Amplifier Bandwidth 1.65Gpbs/165MHz
Vertical Frequency Range 50/60Hz
Resolutions(HDTV)
Interlaced(50&60Hz) 480i,576i,1080i
Progressive(50&60Hz) 480p,576p,720p,1080p
Mechanical
Size (L-W-H)
100×65×25.5MM
Weight (Net) 385G
Warranty
Limited Warranty 1 Year Parts and Labor
Environmental
Operating Temperature
0℃ to +70℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature
-10℃ to +80℃
Storage Humidity 5% to 90 % RH (no condensation)
Power Requirement
Power Supply 5V DC@2A
Power consumption (Max) 5W
Regulatory Approvals
Converter Unit FCC,CE,UL
Power Supply UL,CE,FCC
HDMI Extender by Cat5 x1
３
Accessories
AC Power Adapter US standard, UK standard and so on
User Manual English Version
Note: In order to achieve the high transmission quality, please choose the UTP cable
with cross stand inside.
2: The cables with lower quality will not achieve the perfect transmission effect
and long distance.
3: Theoretically the function of the product is normal when adopt short distance
transmission.
If the product cannot transmit long distance, this is to say, there are quality problems
in the transmission cables.
3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
1) Main unit NO. 1 Sender
2) Main unit NO. 2 Receiver
3) Two pieces of 5VDC Power Supply.
4) User’s Manual
4.0 Panel Descriptions
HDMI Extender by Cat5 x1
４
H
D
M
I
I
n
p
u
t
HDMI Extender by CAT5 X1
Sende
r
C
A
T
5
D
C
5
V
P
o
w
e
r
D
C
5
V
C
A
T
5
Receive
r
HDMI Extender by CAT5 X1
H
D
M
I
O
u
t
p
u
t
5.0 Connection and Operation
1) Connect the HDMI input source (such as HD-DVD, PS3, STB ) to the Sender.
2) Connect one piece of CAT-5e/6 cable to both of the output of the Sender and
input of the Receiver.
3) Connect the output of Receiver to display ( such as HD-LCD、HD-DLP)
4) Plug one power supply into the Sender and the other into the Receiver.
Attention: Insert / Extract cable gently.
5.1 CONNECTION DIAGRAM
