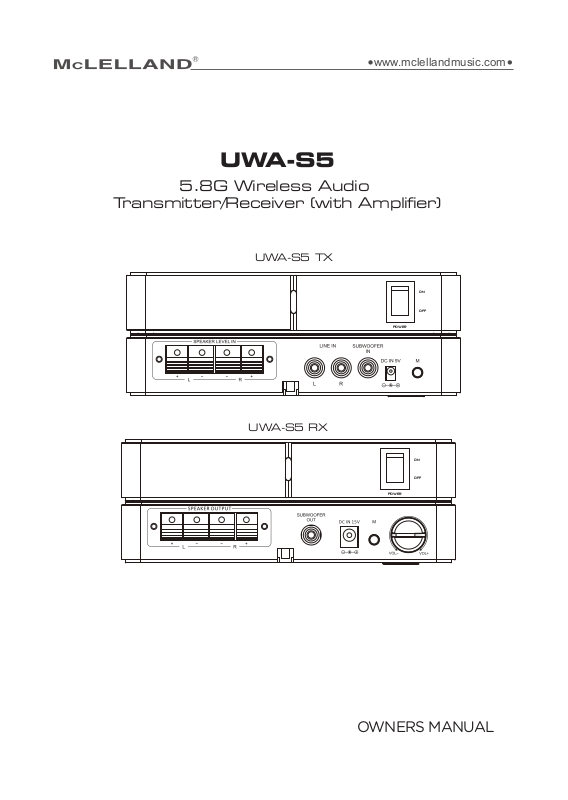

UWA-S5
Transmitter/Receiver (with Amplifier)
5.8G Wireless Audio
UWA-S5 TX
ON
OFF
POWER
UWA-S5 RX
ON
OFF
POWER
OWNERS MANUAL
INSTALL THE TRANSMITTER
1. Make sure your amplifier is off. Connect the transmitter to your
amplifier's speaker output terminals with the provided 6-foot speaker
wire,matching polarities. Or connect your transmitter to the
amplifier's RCA output ports with RCA cables (not included).
2. Connect the supplied AC adapter (9V, 1.3A)to the DC IN 9V jack, then
plug it into a standard household outlet.
INSTALL THE RECEIVER
1. Connect the rear speakers to the receiver with speaker wires,
matching polarities.
2. Connect the supplied AC adapter (15V, 4A) to the DC IN 15V jack,
and then plug it into a standard household outlet.
■ Make sure the exposed tips of the speaker wires do not
touch each other, and make sure they are fully inserted
into the terminals.
■ This speaker kit is designed for connecting to your
amplifier surround speaker terminals only.
■ For speaker wires that have proprietary connectors, you
may need to strip the end of the wires to allow
connection to the receiver. However, check with the
speake manufacturer before doing this, as it may void
the warranty.
■ When the RCA cables are connected, audio input from the
speaker terminal will be mixed.
■ Unplug the AC adapters from the AC outlet before
unplugging it from the transmitter or receiver.
■ Use the supplied AC adapters only. Using an AC adapter
not designed for this product may cause damage.
PACKAGE CONTENTS
■ Transmitter ■ 9V AC Adapter ■ 15V AC Adapter ■ Receiver
■ Stands (2) ■ User's Guide ■ 6-foot speaker wire (2)
FEATURES
■ 5.8GHz digital wireless link provides crystal-clear audio signals.
■ Auto channel selection.
■ Up to 100 feet (30.5m) operation distance between transmitter and
receiver (line of sight).
PLACE THE TRANSMITTER AND RECEIVER
The transmitter and receiver must be placed within 100 feet for proper
operation. They can be placed horizontally on a flat surface, vertically
in the provided stands, or mounted on a wall using the mounting holes
on the bottom.
LED INDICATOR POWER ON/OFF
If you need to mount the receiver on a wall, install it
against the wall in such a way that the ventilation slots are
not blocked.
To optimize the reception performance, place the
transmitter and receiver in the same orientation.
USE YOUR SPEAKER KIT
1. Once the AC adapters are connected, the receiver LEDs light green.
The speaker kit enters standby mode.
2. Tum on your amplifier and then play the audio or video source
through your amplifier.
3. When an audio signal is detected by the transmitter and the
transmitter signal is detected by the receiver, the speaker kit will
automatically go into active mode. The transmitter and receiver LEDs
will both turn blue.
After powering on, if there is no signal input within 17 minutes,
the speaker kit enters standby mode.
CHANGE THE CHANNEL
If you experience any
interference, press and hold
the M button on both units.
The units will then
automatically pair.
ADJUST THE VOLUME BALANCE
1. Power on the transmitter and receiver, and then turn on the amplifier
and adjust it to your normal listening level.
2. Adjust the receiver's VOL +/control to balance the front and rear
speaker sound level. This step is only necessary during first-time
installation of the speaker kit with your system.
3. After balance setup, simply use the volume control on your amplifier
to adjust speaker volume during playback.
OPTIMIZE YOUR SURROUND SOUND
Many surround-sound systems let you adjust the delay
between the front and rear speakers. To optimize your setup,
adjust the rear speaker delay response by about 20
milliseconds
SPECIFICATIONS
Audio Output Level: Subwoofer out: 470mv
Speaker out: 25W (Load at 4Ω)
Input Sensitivity: Line in: 470mV
Subwoofer in: 470mV
Speakerin: 7 V
Frequency Response: Subwoofer: 20Hz-200Hz
Speaker: 20Hz-20kHz
Audio Distortion: Subwoofer: <1 %
Speaker in: <10%
Signal to Noise Ratio: >80dB
Operation Distance: 100 ft (30.5m)
Dimensions (HxWxD): 6.9 X 3.9 X 1.6 inch (175x100x32mm)
Weight : 3.3 lb. (1.5kg)
Specifications are subject to change and improvement without
notice. Actual product may vary from the images found in this
document.
