mCig 4.0 User Manual

mCig® 4.0 USER MANUAL

4 PACKING CONTENTS:

5 mCIG® PEN OVERVIEW

7 LOADING

8 USING

10 CHARGING

13 CLEANING

15 TIPS

16 WARNINGS

17 WARRANTY

13 IMPORTANT SAFETY NOTICE AND

DISCLAIMER

CONTENTS

4

PACKING CONTENTS:

1 mCig® 4.0 Pen Vaporizer

1 Cleaning Brush Tool

1 Packing Tool

1 USB Charging Cable

1 User Manual

5

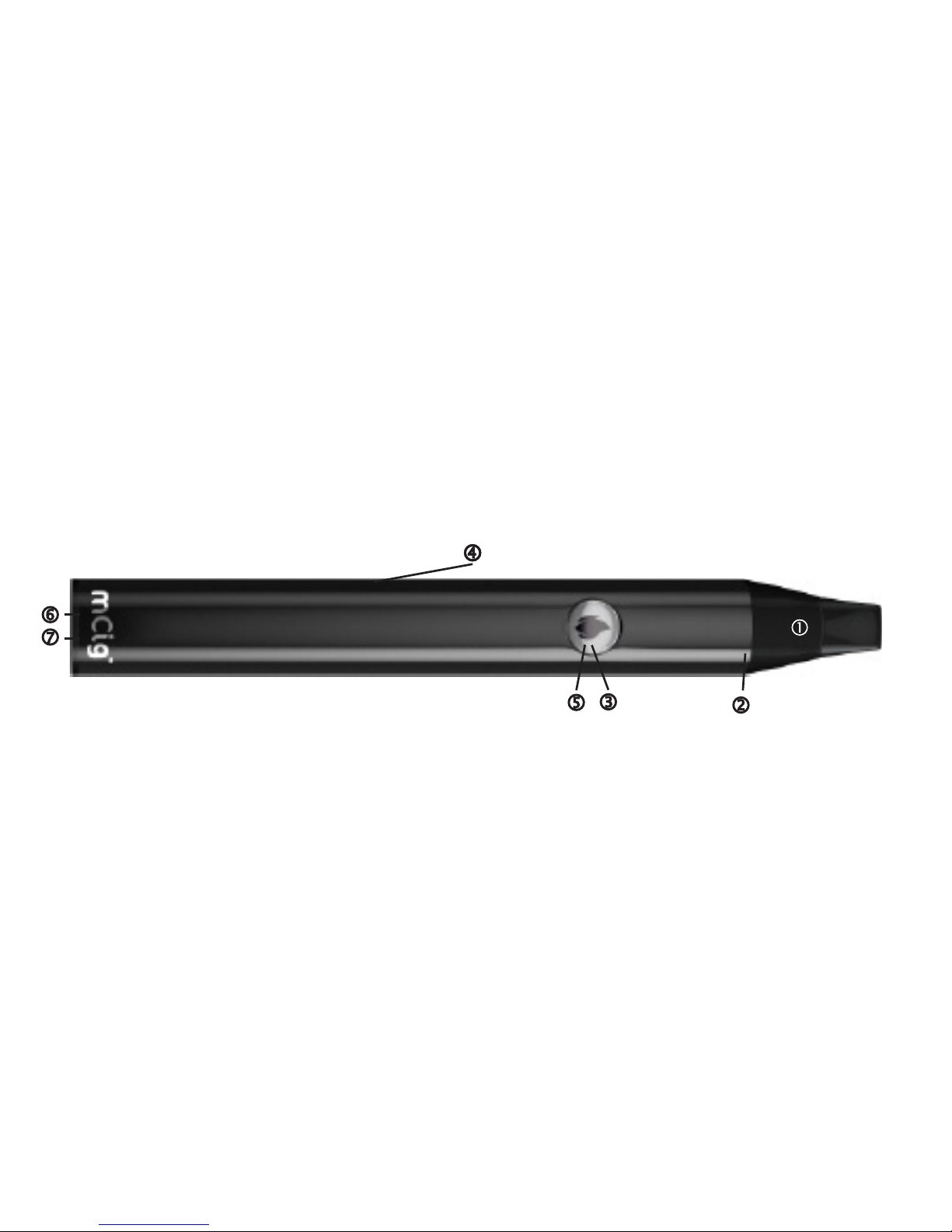

mCIG® 4.0 PEN OVERVIEW

1. Mouthpiece

2. Heating Chamber

3. Power Button

4. Rechargeable Battery

5. Indicator Light

6. Charging Indicator

7. Micro USB Interface

6

mCIG® 4.0 PEN OVERVIEW

7

LOADING

To load your mCig® 4.0 Pen Vaporizer follow these steps:

1. Remove mouthpiece by pulling it away from pen.

2. Fill the heating chamber with .15g-.2g ground dry herb.

3. Use the packing tool to evenly and gently pack the chamber.

4. Push the mouthpiece back onto the pen.

8

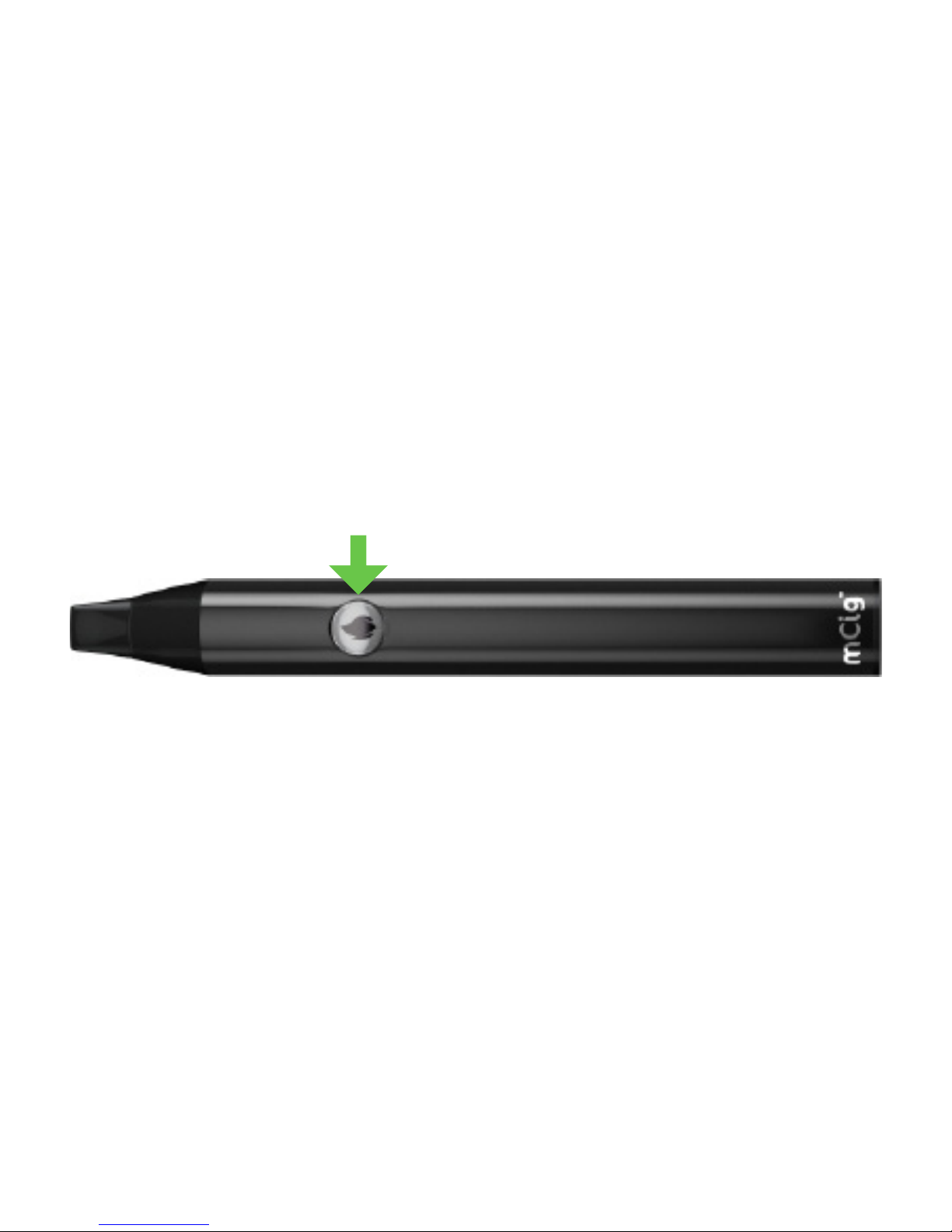

USING

To unlock and power up the mCig® 4.0 Vaporizer Pen, rapidly press the button 3 times. Indicator light will be solid red until
temperature reaches 180˚C (356˚F). Once optimal temperature is reached, light will turn green. The mCig® 4.0 heats up in
40-50 seconds. Gently inhale, exhale, welcome to the mCig® 4.0!

Feel free to hit the mCig® 4.0 Vaporizer Pen as it heats up for some great avors. Temperature will keep between 195˚C and
225˚C after the indicator light turns green. After 4 minutes the mCig® 4.0 Vaporizer Pen will automatically shut off. Press
the button 3 times rapidly to power up again.

9

USING

10

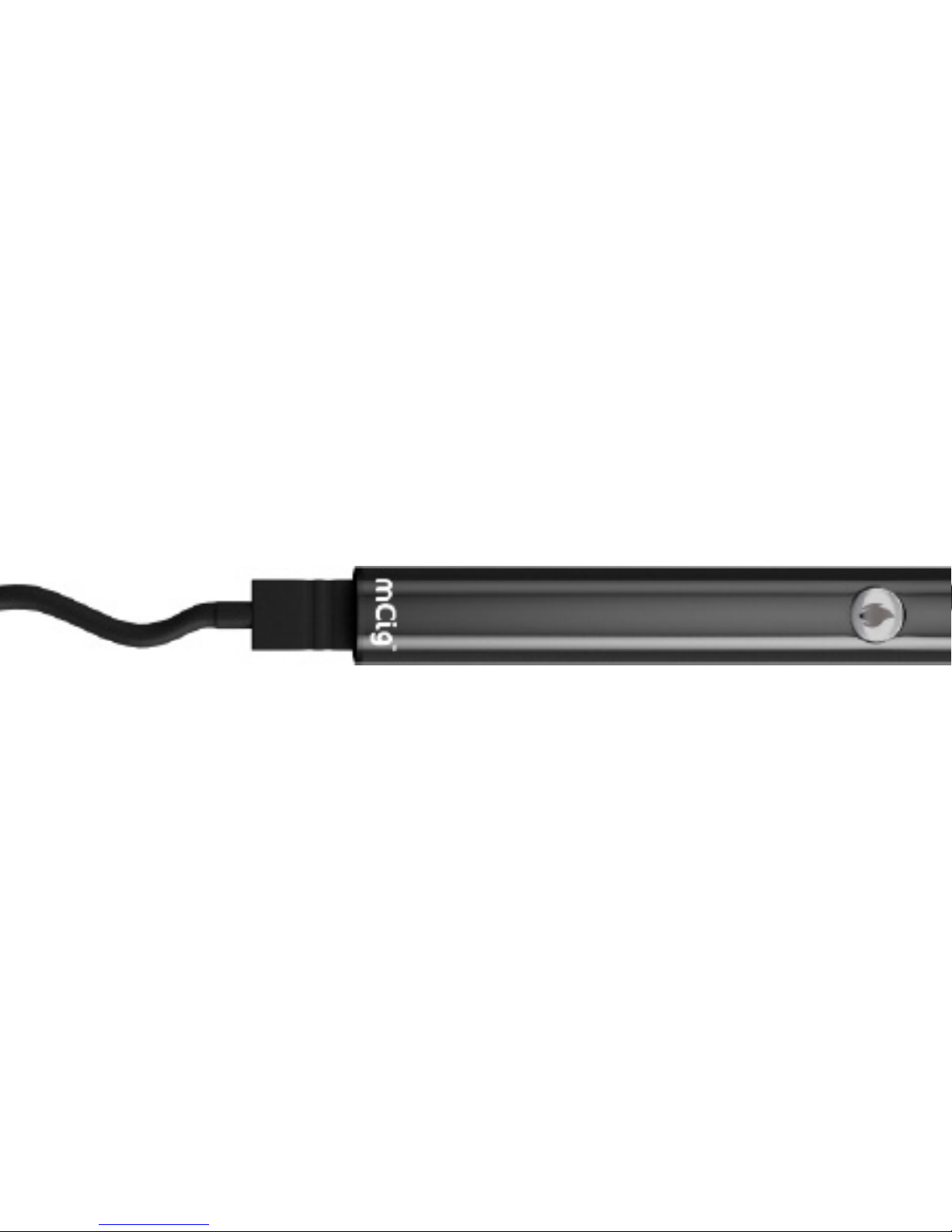

CHARGING: FIRST USE

We recommend charging the mCig® 4.0 Vaporizer Pen battery for at least 6 hours on the rst charge.

This will condition the battery for optimal capacity.

The charging indicator stays red while the device is charging. The red indicator light will no longer be illuminat­ed when the battery is full.

11

CHARGING: REGULAR USE

When the battery voltage is lower than 3.3v, the indicator light will ash red 8 times. After the low voltage warning occurs

three times, the drive will lock until the battery is charged and the voltage returns to normal.

The mCig® 4.0 Vaporizer Pen should be charged for 4-5 hours for full power. Use the included USB charging cable to charge
your battery.

12

CHARGING

13

CLEANING

Clean the device for better performance after using the mCig 4.0 Vaporizer Pen. It is easiest to clean out vaporized material
while the device is cooling vs cleaning while cold. Use the included cleaning tool to gently remove spent material from the
chamber. Make sure the mouthpiece screen is also free from resin or dry material before replacing.

14

MOUTHPIECE

HEATING CHAMBER

To clean mouthpiece, unscrew it by twisting counterclockwise. Use an alcohol soaked cotton swab or alcohol swab to clean

any residue buildup inside the mouthpiece or on either side of the lter.

Use alcohol sparingly on cotton to clean the inside of the chamber only when needed, never dump alcohol in the chamber

15

TIPS

• Do not pack the heating chamber too tight with dry herbs. Airow is essential for optimal vaporization.

• When device shuts off after 4 minutes of use automatically, wait 3 seconds before reactivating the device.

• If no vapor is pulling through mouthpiece, use the packing tool to gently rotate dry herb in the chamber.

• For best results, break up dry herb by hand or use a grinder. Remove all stems and/or seeds from dry herb.

16

WARNINGS

• Do NOT ll heating chamber with any stems/seeds, this can damage the mCig® 4.0 Vaporizer Pen. This will void the

warranty.

• Do NOT touch the heating chamber when either red or green power indicator is illuminated. WAIT 60 seconds from
the device powering down before touching the chamber.

• Keep the mCig® 4.0 Vaporizer Pen away from water or any other liquids.

• Do NOT put any foreign objects into the opening of the mCig® 4.0 Vaporizer Pen.

17

WARRANTY

mCig, Inc. warrants this device against defects in materials and workmanship under normal use for a period of one year from
the date of retail purchase by the original end-user purchaser.

If a physical defect arises and a claim is received within the Warranty Period, mCig, Inc. will at its option and to the extent
permitted by law, either:

(1) Repair the product defect, or
(2)Exchange the product with a product that is new or is at least functionally equivalent product.

18

IMPORTANT SAFETY NOTICE AND DISCLAIMER

The mCig® 4.0 is for adult consumption only, except in states where youth can deploy this device under the strict supervision of an
adult via a doctors recommendation. The mCig® should be viewed as a recreational device in states or localities where adult use is
permitted. In medical states or localities, the use of this device should be discussed with the medical professional that writes the rec-

ommendation for the individual’s safety and intended efcacy. It should not be considered a safe alternative to cigarettes, tobacco, or

other nicotine based products. The mCig® 4.0 is not intended for curing or mitigating any disease or condition. The mCig® 4.0 should
not be employed to administer any illegal products in accordance with state and local law. Use of the device for illegal purposes voids
the warranty. Do not use the mCig® device in public unless expressly permitted by the locality or state. Do not use the mCig® while

operating a motor vehicle, motor craft, or heavy machinery. Do not use the mCig® under the inuence of alcohol.

mCig.org
