McGregor 350W/450W/600W
7589940/7495065/7497173
(Model: MET3525/MET4530/MET6032)
Important - Please read these
instructions fully before starting assembly
These instructions contain important information that will help
you get the best from your grass trimmer, ensuring it is assembled
correctly and safely. If you need help or have damaged or missing
parts, call the Customer Helpline on 0345 605 2065
Grass Trimmer
AFTER SALES SUPPORT
0345 605 2065
Contents
Safety information……………………………………………………….................................……….……........3
In the box………………………………………………………………….......................................…………….7
Assemble…………………………………………………………………...................................……………….. 8
Prepare.......................................................................................................................................................9
Operate.............................................................................................................................................12
Maintenance......................................................................................................................16
Technical data............................................................................................................................................17
Accessories..............................................................................................................................................18
Environmental protection...........................................................................................................................18
Getting help................................................................................................................................................19
Guarantee.................................................................................................................................................19
2
Customer helpline 0345 605 2065
Safety information
Important - Please read these instructions fully before starting assembly
Warning symbols
The following warning symbols appear throughout this
assembly manual and indicate the appropriate safety
measures you should take when assembling and
operating the grass trimmer.
This symbol indicates there is a danger of serious
personal injury or death if you do not observe the warning.
Read operator’s manual
Do not expose to rain
General safety
WARNING!
Keep this assembly manual in a safe place following
assembly for reference at a later date.
Always ensure anyone intending to operate this grass
trimmer is fully conversant with the contents of this
assembly manual prior to assembling, maintaining or
operating the grass trimmer.
Perform assembly operations as described in this manual.
Failure to observe this warning may lead to serious injury,
death, or damage to the grass trimmer.
Always take care when removing the packaging to prevent
damage to you or to the grass trimmer.
IMPORTANT! Before assembling the grass trimmer,
check all the parts indicated in the manual are in the box.
Inspect all the parts for signs of damage. Do not assemble
the grass trimmer if you observe any damaged
components.
Customer helpline 0345 605 2065
3
Safety information
Important - Please read these instructions fully before starting assembly
Personal safety
WARNING!
Only operate the grass trimmer if you are wearing the correct Personal Protective Equipment (PPE) as described in the following
warnings.
Warning symbols
The following warning symbols appear throughout this
assembly manual and indicate the appropriate safety
measures you should take when assembling and
operating the grass trimmer.
Read operator’s manual
Double insulation
Warning
Wear eye and ear protection
Keep bystanders away
Disconnect the mains plug if the cord becomes damaged
or entangled
Do not expose to rain
Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with
your local authorities or retailer for recycling advice.
4
Customer helpline 0345 605 2065
Safety information
Important - Please read these instructions fully before starting assembly
General safety
WARNING!
Read all safety warnings and all instructions. Failure
to follow the warnings and instructions may result in elec-
tric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
Safe operating practices
1. Training
a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine.
b) Never allow children, persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge or people unfamiliar with these instructions to
use the machine, local regulations may restrict the age of
the operator.
c) Keep in mind that the operator or user is responsible
for accidents or hazards occurring to other people or their
property.
2. Preparation
a) Before use check the supply and extension cord for
signs of damage or aging. If the cord becomes damaged
during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the machine if the
Customer helpline 0345 605 2065
5
Safety information
Important - Please read these instructions fully before starting assembly
General safety
cord is damaged or worn.
b) keep extension cords away from moving hazardous
parts to avoid damages to the cords which can lead to
contact with live parts.
c) Before use, always visually inspect the machine for
damaged, missing or misplaced guards or shields.
d) Never operate the machine while people, especially
children, or pets are nearby.
3. Operation
a) Keep supply and extension cords away from cutting
means.
b) Wear eye protection, long trousers and stout shoes
at all times while operating the machine.
c) Avoid using the machine in bad weather conditions
especially when there is a risk of lightning.
d) Use the machine only in daylight or good articial
light.
e) Never operate the machine with damaged guards or
shields or without guards or shields in place.
f) Switch on the motor only when the hands and feet
are away from the cutting means.
g) Always disconnect the machine from the power supply (e.g. remove the plug from the mains)
1) whenever the machine is left unattended;
2) before clearing a blockage;
3) before checking, cleaning or working on the machine;
6
Customer helpline 0345 605 2065
In the box
Parts
On/Off switch
1
Front handle
2
Front handle locking knob
3
Height adjustment locking collar
4
Aluminum tube
5
Motor housing
6
Flower guard
7
Spool head
8
Safety guard
9
Lower cable holder
10
2
Handle rotation locking button
11
Cable holder
12
Main handle
13
Spool head cover
14
Line feed button
15
Cap release latch (on both sides)
16
Cutting line
17
Line cutter
18
Cable
19
Instruction manual
20
1
19
13
12
3
4
5
6
7
8 9
Customer helpline 0345 605 2065
11
20
18
14
10
17
1615
7
Assemble
Assembling instructions
Always take care when removing the packaging to prevent damage to you or to the grass trimmer.
IMPORTANT! Before assembling the grass trimmer, check all the parts indicated in the manual
are in the box. Inspect all the parts for signs of damage. Do not assemble the grass trimmer if you
observe any damaged components.
NOTE: Before using the tool, read the instruction book carefully.
INTENDED USE
The machine is intended for cutting weed, grass or similar soft vegetation in areas that are hard to
reach, e.g. under bushes, on slopes and edges. It may not be used to work on unusual thick, dry or
wet grass, e.g. pasture grass, or to shred leaves.
This machine is intended for private domestic use only, not for any commercial trade use. It must
not be used for any purposes other than those described.
WARNING! The guard must always be on the tool to protect the user.

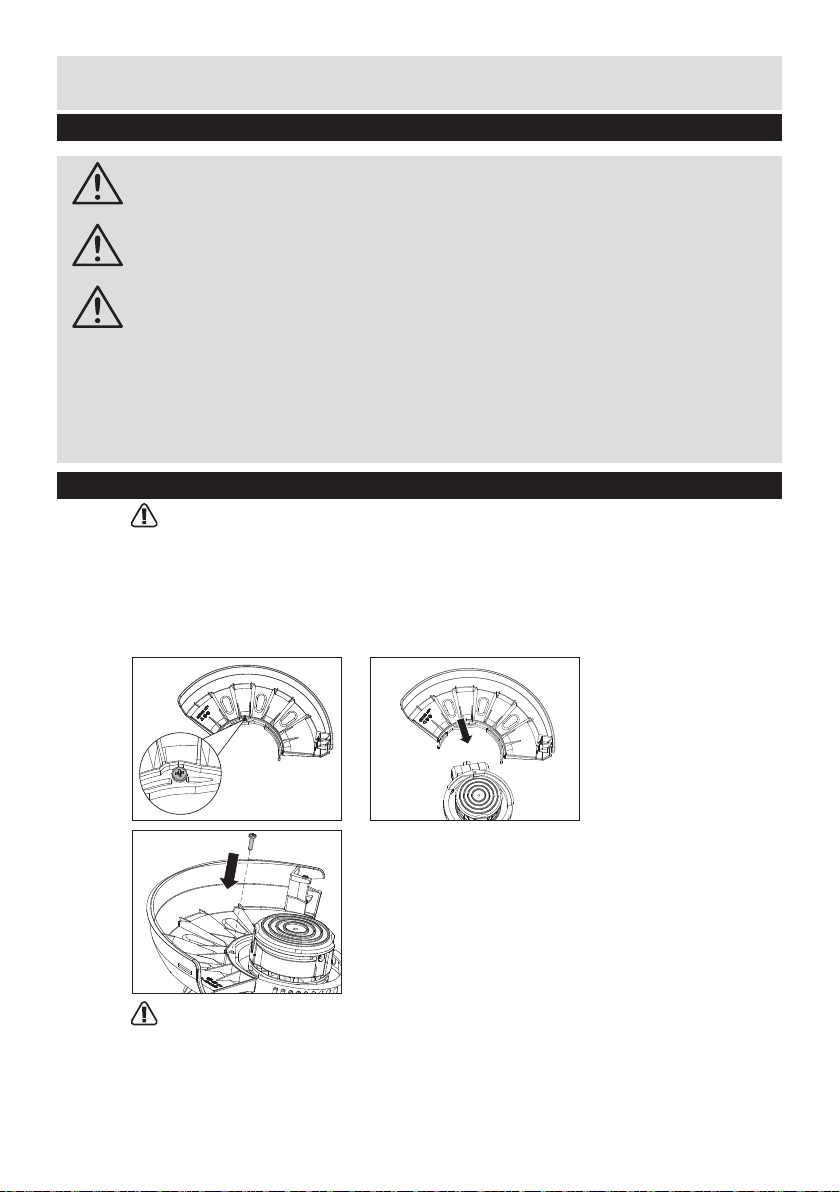

1. FITTING THE GUARD (SEE FIG. A1, A2, A3)
1) Remove the mounting screw from safety guard, see FIG A1.
2) Attach the safety guard to the trimmer head, align the guard so it slides into the slots located on
the trimmer head, see FIG A2.
3) Secure the safety guard onto the trimmer head with the screw provided, see A3.
A1 A2
A3
WARNING! Take great care when doing this as the guard has a very sharp cutting edge.
Never operate the tool without the guard properly in place. Use of the unit without having installed
the guard will cause the motor to overheat, and void the warranty.
8
Customer helpline 0345 605 2065
Assemble
Assembling instructions
2. REMOVING THE BLADE PROTECT LABEL (See Fig. B)
The blade is covered with a protect label. Please remove it before operation.
B
Prepare
Preparing instructions
2. ADJUST THE HEIGHT (See Fig. C1, C2)
1) Unscrew the height adjustment locking collar in the direction indicated to unlock, turn it clockwise.
2) Adjust the length of the Aluminum tube to the most comfortable length.
3) Tighten the locking collar in the direction indicated to lock, turn it counterclockwise.
C1
C2
1. FRONT AUXILIARY HANDLE (See Fig. D)
1) Press the Front handle locking knob.
2) Rotate the Front handle to the most comfortable and balanced position.
3) Release the Front handle locking knob.
D
2
1
Customer helpline 0345 605 2065
9
Prepare
Preparing instructions
3. ADJUSTING THE CUTTING ANGLE
WARNING: Always disconnect the trimmer before making adjustments!
1) Put one foot on the motor housing portion of the trimmer head, then grip the main handle and
apply adequate force on the main handle pushing it downwards, as shown in Fig. E1.
2) Adjust the main handle angle upwards, put one foot on the safety guard area of the trimmer head,
then grip the main handle, apply adequate force to adjust, as shown in Fig. E2.
E1 E2
4. MAINS SUPPLY CABLE STRAIN RELIEF (See Fig. F)
Double the main supply cable, about a foot from the end. Lead the loop through the hole on the rear
handle and hook the loop over the upper cable holder. Gently pull on the cord to ensure that it is
rmly attached at the handle.
F
5. FLOWER GUARD (See Fig. G)
Lift the ower guard up when edging and put it down before trimming, as shown in Figure G.
Before trimming or edging make sure the ower guard is locked rmly in position.
G
10
Customer helpline 0345 605 2065
Prepare
Preparing instructions
6. ON/OFF SWITCH
To start, press and hold the switch. (See Fig. H)
Release the switch to stop.
WARNING: The cutting head continues to rotate after the trimmer has been switched off,
wait until it has stopped then lay down the tool.
H
7. CABLE STORAGE (SEE FIG. I1, I2)
To release the cable, just turn down the upper cable holder (Fig. I2).
I1 I2
Customer helpline 0345 605 2065
11
Operate
Operating instructions
WARNING: Always wear eye protection. Never lean over the trimmer head. Rocks or debris
can ricochet or be thrown into eyes and face and cause blindness or other serious injury. When operating unit, check for the following:
Wear eye protection and heavy clothing. Hold front handle with one hand and auxiliary handle with
the other hand. Keep unit below waist level. Work only from your right to your left to ensure debris is
thrown away from you. Without bending over, keep line near and parallel to the ground (perpendicular when edging). Do not switch the machine on with the cutting head on or near material to be cut.
Ensure the cutting line is at full speed before contacting material to be cut.
WARNING: MAKE SURE THAT LINE IS FED OUT BEFORE OPERATION. MAKE SURE
MOTOR IS UP TO FULL SPEED BEFORE TRIMMING.
WARNING: Use only 1.65mm diameter cutting line. Other sizes of line will not feed properly
and will result in improper cutting head function or can cause serious injury. Do not use other material
such as wire, string, rope, etc. Wire can break off during cutting and become a dangerous missile that
can cause serious injury.
1. TRIMMING
1) Keep the trimmer head at an angle of about 30° to the ground when trimming (Fig J1).
2) Do not cut wet grass because it tends to stick to the trimmer head and guard, prevents proper discharge
of grass clippings, and could cause you to slip and fall.
3) Regularly remove clippings and dirt around the trimmer head with a switched off trimmer.
4) Work rhythmically, stand rmly with your feet apart. Cut from right to left so the trimmings will be thrown
away from the work area (Fig. J2).
5) When cutting longer /high grass, please make sure that you cut this down in 2 to 3 stages (Fig. J3, J4).
6) Do not move the trimmer too fast as this will result in ineffective cutting and possible damage.
If you nd that the nylon line is too short follow the instruction as in “Automatic line feed system’’ or “To manu-
ally feed the line”.
J1 J2
o
o
30
J3
o
12
J4
o
Customer helpline 0345 605 2065
Operate
Operating instructions
2. EDGING
Change the tool from trimming to edging mode 01:
1) Adjust the cutting angle to be in the lowest horizontal setting as shown in Fig. K1.
2) Push the handle rotation locking button downward and rotate the main handle clockwise at 90
degree(Fig. K2, K3).
K1
K3
Change the tool from trimming to edging mode 02:
1) Adjust the cutting angle to 30 degree to 50 degree as shown in Fig. K4.
2) Push the handle rotation locking button downward and rotate the main handle clockwise at 180
degree(Fig. K5, K6).
While edging, only allow the tip of the line to make contact with area being worked. Do not force the
line. Take extra caution while edging as objects can be thrown from the trimmer line.
K4
K2
2
1
K5
K6
2
o
o
-
30
50
Customer helpline 0345 605 2065
1
13
Operate
Operating instructions
3. AUTOMATIC LINE FEED SYSTEM
When initially switching on the trimmer, a small length of line is fed out.
A ‘clattering’ noise will be heard when the lines hit the line cutter. DO NOT BE ALARMED, this is quite
normal. After about 5 seconds the line will be cut to the correct length and the noise will reduce as the
motor receives full speed.
If the noise of the line being cut can’t be heard, more line will be fed out.
To feed more line, it is rst necessary to allow the trimmer to stop completely, then restart, allowing
the motor to reach full speed.
Repeat above steps until you hear the lines hitting against the line cutter. (Do not repeat this procedure
more than 6 times)
4. TO MANUALLY FEED THE LINE (SEE FIG. L)
If required, line can be fed out manually.
To operate, press and release manual line feed button, whilst gently pull out the lines until the lines
reach the line cutter.
When the required amount of line is fed out, gently pull on the second line (there is no need to press
the manual line feed button again)
If the line extends past the line cutter, too much line has been fed out.
If too much line is fed out, remove the spool cap and click spool anti-clockwise until the line is at the
desired length.
L
2
1
5. TO REMOVE THE CAP
Press and hold in the two cap release latches. (See Fig. M)
Pull cap away from the spool holder.
2
M
2
1
1
14
Customer helpline 0345 605 2065
Operate
Operating instructions
6. WHEN REFITTING THE SPOOL CAP.
Keep all areas of the cap and spool holder clean.
Ret the cap, pressing rmly down towards the spool holder to ensure cap is fully located.
Check that the cap is correctly tted by trying to remove it without depressing the two latches.
7. TO REPLACE CUT LINE.
For your convenience it is recommended you buy spool and line complete.
--TO FIT SPOOL AND LINE COMPLETE:
1) Remove old spool.
2) Place new spool into cutting head. Release one line from cleat and feed line through eyelet.
3) Repeat for second line.
4) Ret the cap.
--TO FIT NYLON LINE ONLY:
WARNING! Your trimmer is designed to use only line with a maximum diameter of 1.65
mm.
IMPORTANT - ALWAYS WIND THE LINE ONTO THE UPPER SECTION OF THE SPOOL FIRST.
1) Take two lines of approximately 3m (350W) / 5m (450W/600W) (Fig. N1).
2) Insert 15mm of line into one of the holes in the upper section of the spool and wind line in the direction
of the arrows on the top of the spool (Fig. N2).
3) Leave approximately 100mm of line unwound and place into cleat (Fig. N3).
4) Repeat on lower section of spool with another line (Fig. N4).
5) Then t spool as described in “TO FIT SPOOL AND LINE COMPLETE”.
Care should be taken to ensure that the line is neatly coiled on the spool. Failure to do so will impair the
efciency of the automatic line feed.
N1 N2
3m (350W) / 5m (450W/600W)
N3 N4
Customer helpline 0345 605 2065
15
Maintenance
Maintenance
Remove the plug from the socket before carrying out any adjustment, servicing or
maintenance.
Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts
in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry
cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working
controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will
not damage your power tool.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly quali-
ed persons in order to avoid a hazard.
Storage
a) Disconnect the machine from the power supply (e.g. remove the plug from the mains) before carrying
out maintenance or cleaning work.
b) Use only the manufacturer’s recommended replacement parts and accessories.
c) Inspect and maintain the machine regularly. Have the machine repaired only by an authorized repairer.
d) When not in use, store the machine out of the reach of children.
16
Customer helpline 0345 605 2065
Technical data
Technical data table
Model MET3525 MET4530 MET6032
Voltage 230-240V~50/60Hz
Power input 350W 450W 600W
No load speed 10500/min 9500/min
Cutting width 25cm 30cm 32cm
Diameter of line 1.65mm
Line length 2*3m 2*5m
Protection class
Machine weight 2.0kg 2.6kg 2.8kg
Noise and technical date
MET3525:
A weighted sound pressure L
K
A weighted sound power L
MET4530:
A weighted sound pressure L
K
A weighted sound power L
MET6032:
A weighted sound pressure L
K
A weighted sound power L
Wear ear protection.
/II
= 78dB(A)
pA
=3 dB (A)
pA
= 93.6dB(A)
wA
= 78dB(A)
pA
=3 dB (A)
pA
= 93.7dB(A)
wA
= 80dB(A)
pA
=3 dB (A)
pA
= 95.8dB(A)
wA
VIBRATION INFORMATION
Typical weighted vibration a
= 2.5m/s2 uncertainty K= 1.5m/s
h
2
WARNING: The vibration emission value during actual use of the power tool can differ from
the declared value depending on the ways in which the tool is used dependant on the following examples
and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained
Using the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use
should also take account of all parts of the operating cycle such as the times when the tool is switched off
and when it is running idle but not actually doing the job. This may significantly reduce the exposure level
over the total working period.
Helping to minimise your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate)
If the tool is to be used regularly then invest in anti vibration accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.
Customer helpline 0345 605 2065
17
Accessories
MET3525 MET4530 MET6032
Safety guard 1
Flower guard 1
We recommend that you purchase your accessories from the same store that sold you the tool. Choose
the type according to the work you intend to undertake. Refer to the accessory packaging for further
details. Store personnel can assist you and offer advice.
Troubleshooting
General troubleshooting
The following chart lists problem symptoms, possible causes and corrective action, if your electric
grass trimmer does not operate properly. If these do not identify and correct the problem, contact
your service agent.
WARNING! Always switch the product off, disconnect it from power supply and let the
product cool down before performing inspection, maintenance and cleaning work!
Problem Possible cause Solution
Grass trimmer does
not operate
Grass trimmer
operates
intermittently
Grass trimmer
labours
Grass trimmer is not
cutting
Line can’t be fed 5.1 Spool empty
Line keeps breaking 6.1 Line inside the spool
1.1 No power
1.2 Mains socket faulty
1.3 Extension cord damaged
1.4 Fuse faulty
2.1 Extension cord damaged
2.2 Internal wiring damaged
3. Grass too high 3. Cut in stages
4 Line too short/broken off 4 Feed the line manually/automatically
5.2 Line inside the spool
entangled
entangled
6.2 Trimmer used incorrectly
1.1 Check power
1.2 Check other socket, replace
1.3 Check cord, replace
1.4 Replace fuse
2.1 Check cord, replace
2.2 Contact Service Agent
5.1 Replace the spool
5.2 Inspect the spool, rewind if necessary
6.1 Inspect the spool, rewind if necessary
6.2 Only trim with the tip of the line, avoid
stones, walls and other hard objects.
Feed the line regularly to maintain full
cutting width.
Environmental protection
This product has been marked with a symbol relating to removing electric and electronic waste. This
means that this product shall not be discarded with household waste but that it shall be returned to
a collection system which conforms to the European Directive 2002/96/CE. It will then be recycled
or dismantled in order to reduce the impact on the environment. Electric and electronic equipment can be
hazardous for the environment and for human health since they contain hazardous substances.
18
Customer helpline 0345 605 2065
Getting help
Customer helpline 0345 605 2065
Guarantee
Dear Customer,
In the unlikely event that your device develops a fault, please contact our Customer service
department on the telephone number shown below.
1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty
rights. Claims must be accompanied by Proof of Purchase. This must be in the form of a Sales
receipt or Bank statement and must show that the product has been purchased within 2 years
prior to the claim, from the retailer that it was originally sold to.
2. Our guarantee covers problems caused by material or manufacturing defects, and will result in the
repair of these defects or replacement of the device with a like for like or similar article. Please
note that our devices have not been designed for use in commercial, trade or industrial applica-
tions. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or
industrial applications or for other equivalent activities.
3. The following are also excluded from our guarantee :
A. Faults due to accidents, customer misuse or unauthorized repairs
B. Consumable Parts such as detergent bottle, patio cleaner, jet lance, x brush and nozzle
pin.
C. Failure due to lack of routine maintenance.
D. Failure as a result of not using the equipment in accordance with the manual and safety
instructions
E. The adjustment of cables, drives belts or recoil starters.
4. The guarantee is valid for a period of 2 years starting from the purchase date of the device.
Guarantee claims should be submitted before the end of the guarantee period within two
weeks of the defect being noticed. No guarantee claims will be accepted after the end of the
guarantee period. The original guarantee period remains applicable to the device even if repairs
are carried out or parts are replaced. In such cases, the work performed or parts tted will
not result in an extension of the guarantee period, and no new guarantee will become active
for the work performed or parts tted.This also applies when an on-site Service is used.
5. Please keep your sales receipt in a safe place. If is covered by our guarantee your device
will either be repaired under the terms of guarantee or we will send you a replacement device.
This device may be re-conditioned or like for like replacement .
Customer helpline 0345 605 2065
19
Loading...
