McGregor MES25 Instruction manual

ORIGINAL
INSTRUCTION
MANUAL
McGregor 2500W Shredder
Important - Please read these instructions fully before starting assembly
These instructions contain important information that will help you get the best from your shredder, ensuring it is assembled correctly and safely. If you need help or have damaged or missing parts, call the Customer Helpline on
0345 605 2063
7645963 (Model: GY6000)
AFTER SALES SUPPORT
0345 605 2063
Oct 2017
Contents
Safety Information ........................................................................................................................... 3
Warning Symbols ........................................................................................................................... 3
General Safety ............................................................................................................................... 5
Personal Safety .............................................................................................................................. 6
Operational Safety ......................................................................................................................... 7
Maintenance and Storage Safety ................................................................................................ 10
Intended Use ................................................................................................................................ 10
Service ......................................................................................................................................... 10
In the Box ........................................................................................................................................ 11
Parts ............................................................................................................................................. 11
Assemble ........................................................................................................................................ 12
Prepare ............................................................................................................................................ 13
Operate ............................................................................................................................................ 14
Step 1.On/Off Operation .............................................................................................................. 14
Step 2. Shred the Branch ............................................................................................................ 14
Step 3. Empty the Collection Box ................................................................................................ 14
Overload Protection ..................................................................................................................... 15
Maintenance ................................................................................................................................... 16
Replace the Blade ........................................................................................................................ 16
Cleaning ....................................................................................................................................... 17
Storage ......................................................................................................................................... 17
Technical Data ................................................................................................................................ 18
Technical Data Table .................................................................................................................... 18
Part list ......................................................................................................................................... 18
Recycling and Disposal ................................................................................................................ 18
Troubleshooting ............................................................................................................................. 19
General Troubleshooting .............................................................................................................19
Getting Help ................................................................................................................................. 19
Guarantee ....................................................................................................................................... 20
2
Customer Helpline 0345 605 2063
Important - Please read these instructions fully before starting assembly
Warning Symbols
Safety Information
The following warning symblis appear through this manual and indicate the appropriate safety measures you should take when operating and maintaining the pressure washer.
Warning!
Read the manual.
Wear ear and eye protection.
Do not use as a stepping device.
Do not expose the unit to rain.
Caution! Switch off the motor and disconnect from the mains before adjustment or cleaning work, or if the cable is caught or has been damaged.
Warning! Risk of injury by rotating blade!
Danger-Rotating blades. Keep hands and feet out of openings while machine is running.
Warning! Danger from thrown objects. Keep your distance from the feeder and ejection area, and
keep others away from the danger area.
3Customer Helpline 0345 605 2063
Safety Information
Important - Please read these instructions fully before starting assembly
Warning Symbols
Caution!
Moving blade.
Warning! Electric shock hazard.
Always unplug the shredder before working on it.
Noise level specication Lwa in dB.
IPX4
P40
Do not dispose of electrical equipment in the domestic waste.
Protection Class II
Do not use as a step.
Degree of protection against liquids.
Machine operated intermittently, each cycle comprising a period of operation of 40s at rated power input and a period of 60s with the machine at no load.
The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.
4 Customer Helpline 0345 605 2063
Important - Please read these instructions fully before starting assembly
General Safety
Safety Information
IMPORTANT! Read carefully before use and keep for
future reference.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Keep children and pets at a safe distance away from the device. Children must be supervised in order to ensure that they do not play with the equipment.
• Never allow children or other persons unfamiliar with
the user manual to use the shredder. Local regulations
or bylaws may determine the minimum age for using the shredder.
CAUTION! The following states how to avoid accidents and injuries due to electric shock:
• Damaged cables, coupling and plugs or connecting
leads not corresponding to specications, must not be
employed. Remove the plug immediately from the plug socket in case of damage to the mains cable.
Do not touch the mains power supply cable under any circumstances until you have pulled the plug out of the mains socket.
• If the power cable for this equipment is damaged, it
must be replaced by the manufacturer, a qualied customer service agent or a similarly qualied person
in order to prevent hazards.
• Do not use the appliance if the on/off switch does not
5Customer Helpline 0345 605 2063
Safety Information
Important - Please read these instructions fully before starting assembly
General Safety (continued)
work properly. Always have a damaged switch repaired
by our a qualied technician.
• Only use extension cables that have been approved for outdoor use and are resistant to splash water. The core diameter for extension cables measuring up to 25 m must be at least 1.5 mm², and 2.5 mm² for cables longer than 25m. Always roll the whole cable off the reel before use. Check the cable for damage.
• Do not unplug the shredder pulling on the cable, only pull the plug itself. Keep the cable away from heat, oil and sharp edges.
Personal Safety
Become familiar with the instruction manual before attempting to operate this equipment.
• Never use the shredder with other persons or animals
nearby.
• Wear hearing and eye protection at all times when
using the shredder.
• Wear appropriate protective clothing such as protective
gloves, rm footwear and long trousers. Do not wear loosely tting clothes or clothes with dangling cords or
belts.
• Only use the shredder in the open (that is, away from
walls or other rigid structures) on a rm, level surface.
• Do not use the machine on a paved, gravelled area,
which could be damaged by ejected material.
• Before you start up the shredder, check that all of the
nuts, bolts and other fastenings are tight. Covers and shields must be fastened properly and in good working
6 Customer Helpline 0345 605 2063
Important - Please read these instructions fully before starting assembly
Personal Safety (continued)
Safety Information
order. Replace any damaged or illegible stickers.
• Only use replacement parts and accessories
supplied and recommended by the manufacturer. Using thirdparty parts will immediately invalidate the guarantee.
• Do not leave the shredder working unattended and
keep it in a dry place out of children’s reach.
• While being used in the open, connect the shredder to
a residual current (RC) circuit breaker with a trip current of not more than 30 mA.
• When servicing the cutting means be aware that,
even though the power source will not start due to the interlock feature of the guard, the cutting means can still be moved by a manual starting mechanism.
• Shut-off the power unit before attaching or removing the box.
• Keep all guards and deectors in place and in good
working condition.
Operational Safety
• Make sure that the funnel feeder is empty before you start the shredder.
• Keep your head, hair and body away from the intake opening.
• Do not reach into the funnel feeder during operation. The shredder will continue to run for a short period after you switch it off.
• Always make sure you are standing in a rm, balanced
position. Do not lean forwards, and never lean over the shredder when inserting materials.
7Customer Helpline 0345 605 2063
Safety Information
Important - Please read these instructions fully before starting assembly
Operational Safety (continued)
• Make sure that the material inserted into the shredder does not contain hard objects made of metal, stone, glass or similar.
• Do not use the shredder in the rain and in bad weather. Work in daylight or under good lighting conditions.
• Do not operate the shredder when you are tired
or distracted, or under the inuence of alcohol or
medication. Always take a break when you need one and be sensible about how you work.
• Switch the shredder off and pull the plug under the following circumstances:
When you are not using the device, transporting it or
leaving it unattended. New Line. Capitalize B.
When you are checking the device, cleaning it or removing blockages.
When you are carrying out cleaning or maintenance work or replacing accessories.
Before moving or lifting the shredder. If foreign objects should enter the shredder, if the
shredder is making unfamiliar noises or vibrations (check the shredder for damage before starting it up again)
• Do not allow shredded material to accumulate near the ejection area. This may otherwise hinder proper ejection and force the material back up through the feeder.
• Do not transport or tip the shredder with the motor running.
• Keep hands, other body parts and clothing out of the
lling chamber and ejection channel and away from
8 Customer Helpline 0345 605 2063
Important - Please read these instructions fully before starting assembly
Operational Safety
Safety Information
other moving parts.
• In the event of blockages in the machine intake or ejection, switch off the motor and disconnect the machine from the mains before removing leftover material in the intake opening or ejection channel. Ensure that the motor is free of rubbish and other accumulations in order to safeguard the motor from
damage or possible re.
• Remember that the cutting tool is also activated when the starting mechanism is started on a motor operated machine.
CAUTION! The following states how damage to the shredder and possible injury to people can be avoided:
• Handle the unit with care. Clean the ventilation slits regularly; keep to the maintenance instructions.
• Do not overload your device. Work only within the indicated range of performance. Do not employ any low power machines for heavy work. Do not use your device for purposes for which it has not been designed.
• Only switch the shredder off once the funnel feeder is completely empty since the shredder may otherwise clog up and not be able to start afterwards.
• Do not attempt to repair the shredder yourself unless
you are qualied to do so. Any work not specied in this manual may only be carried out by a qualied
service centre.
9Customer Helpline 0345 605 2063
Safety Information
Important - Please read these instructions fully before starting assembly
Maintenance and Storage Safety
WARNING!
• To ensure the appliance safety, use only original spare parts from the manufacturer or approved by the manufacturer.
• Retrotting or making any unauthorized changes to the
machine, as well as the use of unapproved parts will invalided your warranty.
• Do not attempt to repair the appliance yourself. All work not indicated in these instructions is to be carried out only by service stations authorized by us.
• Store the appliance in a dry location and out of reach of children.
• Handle the appliance with care. Keep the appliance
clean for save and more efcient working. Follow the
maintenance directions.
Intended Use
The shredder has a powerful electric motor with overload protection. The cutting is performed by a fast moving blade.
Refer to the following descriptions for the functional use of the various components and controls.
Service
Have your tool repaired by an authorized service agent. This tool is manufactured in accordance with the relevant safety regulations. To avoid danger, electrical appliances
must only be repaired by qualied technicians. Call our
customer helpline at 0345 605 2063 for advice.
10 Customer Helpline 0345 605 2063
11
In the Box

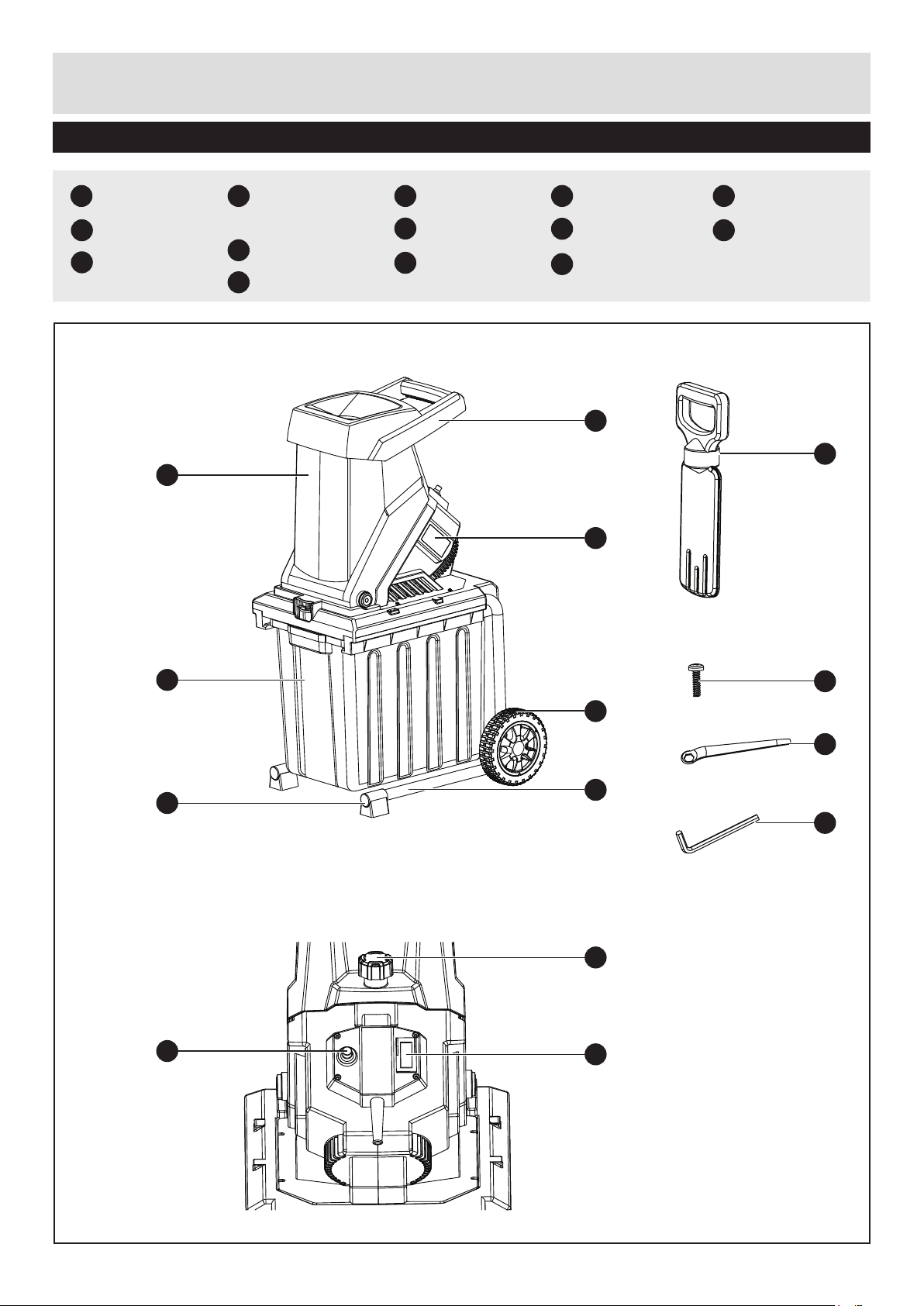

Parts
Handle
1
Housing
2
3
Motor
cover
Collection
4
box
5
Frame
6
Wheel
2
Feet
7
8
Main switch
9
Overload
reset switch
10
Cover knob
11
Push stick
12
Screw x 4
1
3
13
Spanner
14
Allen key
11
4
6
7
9
5
10
8
12
13
14
Customer Helpline 0345 605 2063
12
Assemble
Step1. Turn on Foots to the appropriate location, then upside down the frame.
Spacer
wheel Axle bush Screw
Step2. Mount the wheel in the same order illustrated, fasten nut by the provided spanner
ensure the nut is not too tight.
Wheel cover
Step3. Place the motor unit on the chassis, Secure the unit with 4 screws.
Customer Helpline 0345 605 2063
13
Assemble
Step 4 Lift up the button, push the collection box to end of the track, and make sure the box
has been locked.
1
2
Perpare
Connect Socket
Connect the plug to the main socket.
Customer Helpline 0345 605 2063
14
Operate
Step 1.On/Off Operation
Press the switch marked “1” to start and marked “0” to stop the motor.
Step 2. Shred the Branch
Put branches into hopper, use push stick to push when branches short.
Step 3. Empty the Collection Box
Turn off the unit, remove and empty the collection box.
Customer Helpline 0345 605 2063
1
2
15
Operate

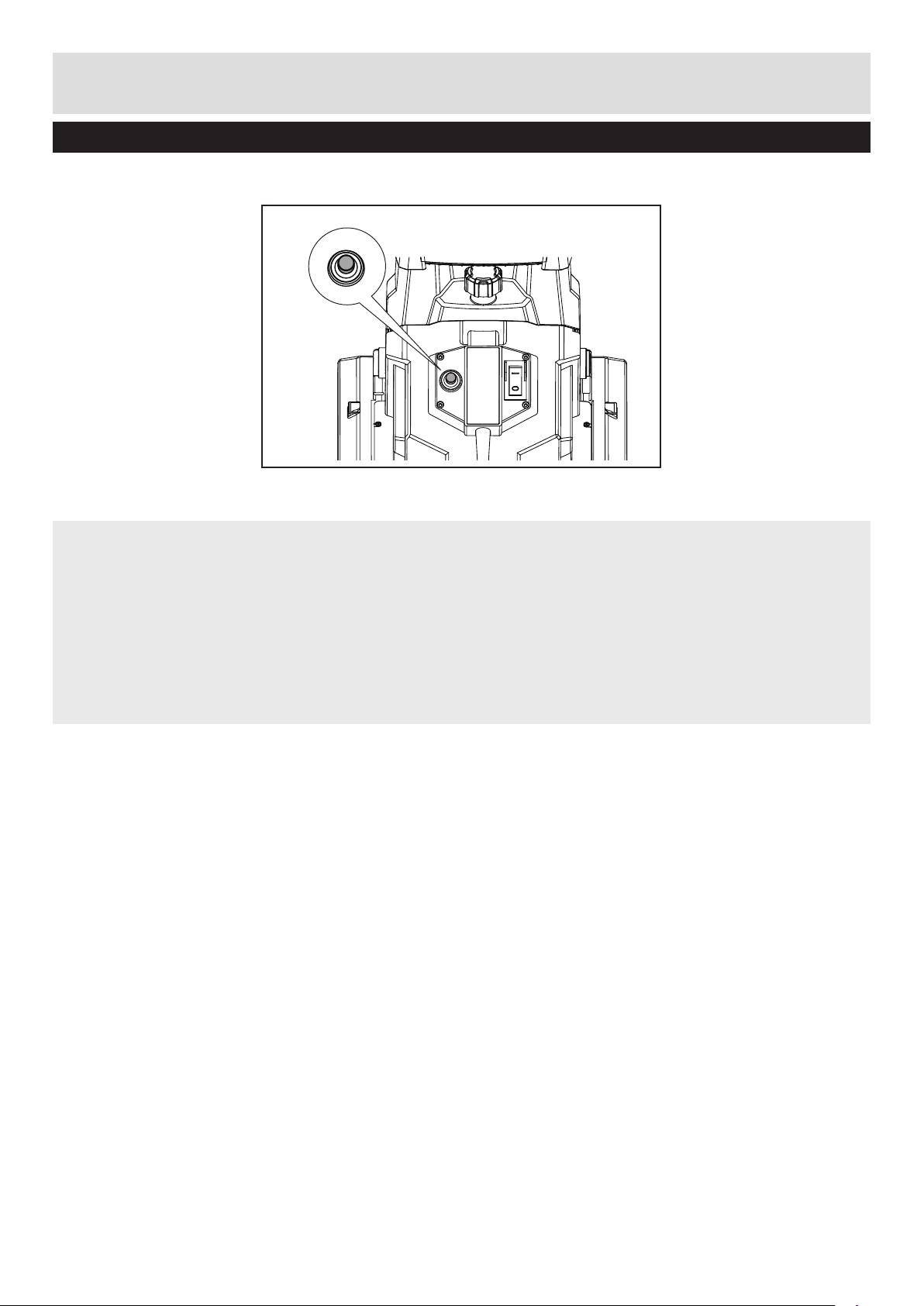

Overload Protection
Overload protection will be activate in following issue.
a. A build up of shredded material around the cutting disc.
b. the material bring shredded is greater then the motor capacity.
c. Where there is too much resistance against the cutting blade.
When Overload protection be activate, press the overload reset switch, press the on/off switch to “off” then press back to “on”.
Customer Helpline 0345 605 2063
16
Maintenance
Replace the Blade
Ensure that the shredder is switched off and disconnected from the mains supply. work gloves be used when replacing the blades.

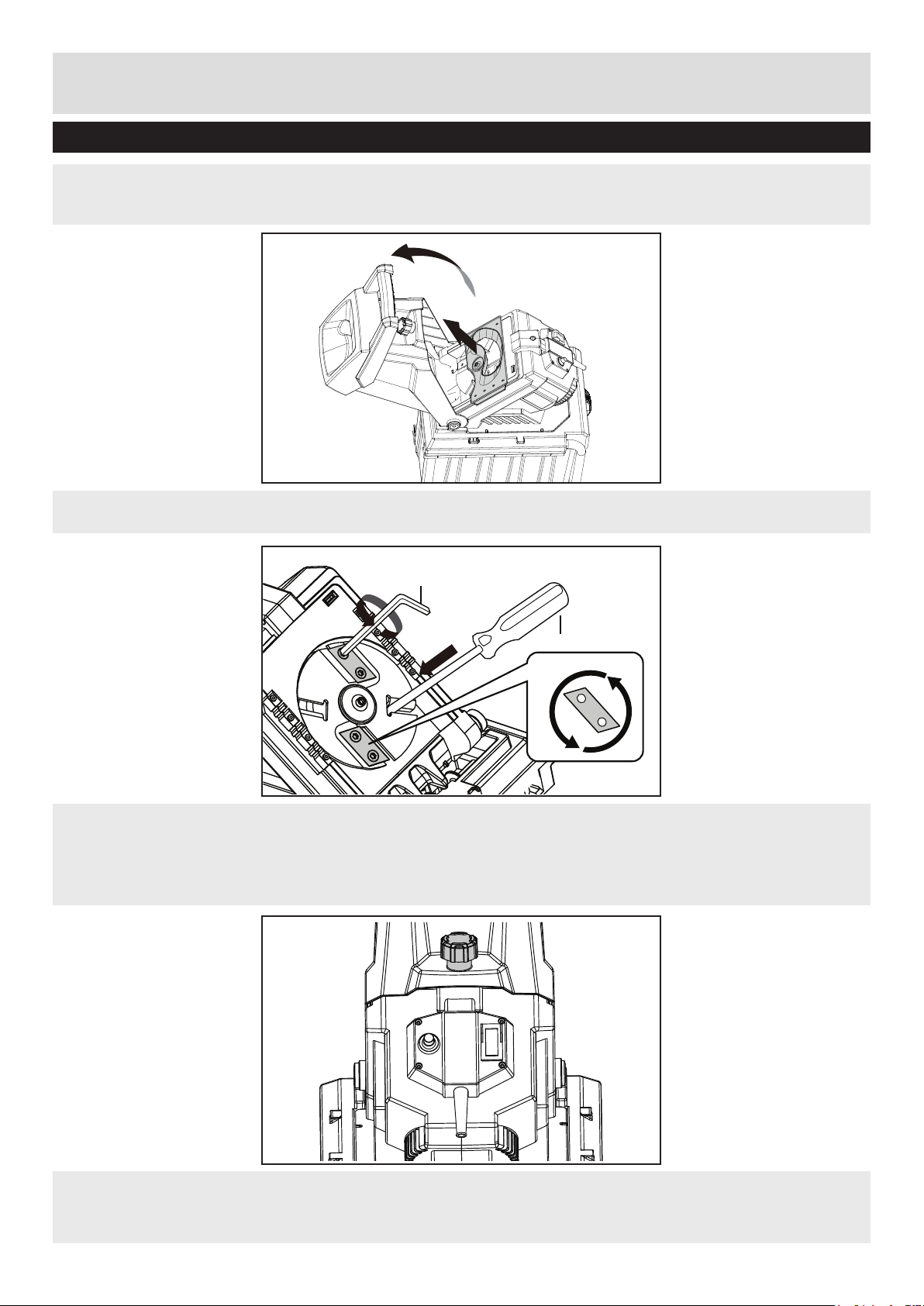

1. Open the top feed assemble by unscrewing the cover knob, and then remove the metal frame.
1
2
Remove 2 hex headed screws
2
2. Since the blade is two side sharp for cutting, so could use both sides; Lock the blade disc
using screwdriver or similar tools. Remove the blade by Allen key and rotate it through 180
degrees then t the blade to the blade disc ensuring that the ground cutting edge is facing downwards; Fix the metal frame back with screws.
Allen key
1
Screwdriver
Rotate blade 180
o
3. Close top feed, make sure knob fasten in proper position.
Note: The box must be locked rmly, otherwise the shredder cannot power on.
Customer Helpline 0345 605 2063
17
Maintenance
Cleaning
Make sure the product is switched off, cooled down and disconnected from power supply.
1. Clean the product with a dry cloth. Use a brush for areas that are hard to reach.
2. In particular clean after every use with a cloth and brush.
3. Remove stubborn dust with compressed air (max. 3 bar).
4. Check for any damage and wear. Repair damages in accordance with this instruction
manual or bring it to an authorized service centre before using the product again.
Storage
Store the product and its accessories in a dry, frost-free place.
1. Always store the product in a place that is inaccessible to children. The ideal storage
temperature is between 10 and 30°C.
2. Cover the product with a dust sheet to protect it against dust.
Customer Helpline 0345 605 2063
18
Technical Data
Technical Data Table
Model No GY6000 Nominal power intake 2500W (P40) Voltage 230-240V~, 50Hz Insulation protection class
Degree of protection IPX4 Branch thickness max. 40 mm Volume of collection bag ca. 50 l Weight 14.1 kg Sound pressure level (LpA) 95.7 dB(A) K=3 dB(A) Sound performance level (guaranteed) 111 dB(A)
Part List
II
PART NUMBER ACCESSORIES
8132-600001 Blade
Recycling and Disposal
Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way.
Recycle rather than dispose of unwanted material in landll whenever possible. The
machine must be delivered in rigid packaging to avoid damage during transportation. The packaging and the machine itself are manufactured from recyclable materials and should be disposed of accordingly.
Only dispose of electrical/electronic/battery terms in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your cooperation is vital to ensure the success of these schemes and for the protection of the environment.
Recycle packaging where facilities exist.
This symbol is known as the Crossed out Wheelie Bin Symbol. When this symbol is marked on a product or battery, it means that it should not be disposed of with your general household waste. Some chemicals contained within electrical/electronic products or batteries can be harmful to health.
Customer Helpline 0345 605 2063
19
Troubleshooting
General Troubleshooting
WARNING!
- Only perform the steps described within these instructions!
All further inspection, maintenance and repair work must be performed by an authorised
service centre or a similarly qualied specialist if you cannot solve the problem yourself!
- Always turn off the machine and remove the plug before making any adjustment.
Fault Possible Cause Solution Motor will not start No mains power supply Check the socket, cable, lead
Overload protection tripped Wait until the motor has cooled
Lid of housing not closed
properly
Garden waste is not drawn in
Unit won’t shred properly Blades are blunt Check and turn, sharpen or
Shredding material is too soft
Unit blocked See section “Clearing a Blockage” Shredding material in
discharge duct
and plug for damage, and if necessary, have any damage
repaired by qualied repair
personnel
down, then press the Reset button and restart the unit
Tightly screw in the cover knob
Use the pusher or add dry twigs/ branches
Remove shredding material from discharge duct
replace blades as necessary (see section “Sharpening, reversing, replacing the blades” )
Getting Help
Customer Helpline 0345 605 2063
Customer Helpline 0345 605 2063
20
Guarantee
Dear Customer,
In the unlikely event that your device develops a fault, please contact our Customer service department on the telephone number shown below.
1. These guarantee terms cover additional guarantee rights and do not affect your statutory
warranty rights. Claims must be accompanied by Proof of Purchase. This must be in the form of a Sales receipt or Bank statement and must show that the product has been purchased within 2 years prior to the claim, from the retailer that it was originally sold to.
2. Our guarantee covers problems caused by material or manufacturing defects, and
will result in the repair of these defects or replacement of the device with a like for like or similar article. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities.
3. The following are also excluded from our guarantee:
A. Faults due to accidents, customer misuse or unauthorized repairs.
B. Blade
C. Failure due to lack of routine maintenance.
D. Failure as a result of not using the equipment in accordance with the manual and
safety instructions.
4. The guarantee is valid for a period of 2 years starting from the purchase date of the
device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work
performed or parts tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts tted. This also
applies when an on-site Service is used.
5. Please keep your sales receipt in a safe place.
Customer Helpline 0345 605 2063
Loading...
