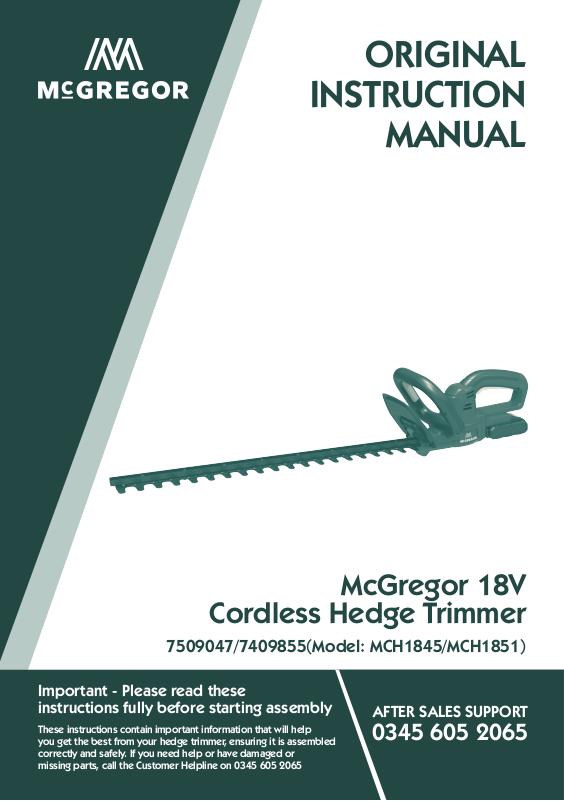

McGregor MCH1845 Instruction manual

ORIGINAL
INSTRUCTION
MANUAL
Cordless Hedge Trimmer
7509047/7409855(Model: MCH1845/MCH1851)
These instructions contain important information that will help you get the best from your hedge trimmer, ensuring it is assembled correctly and safely. If you need help or have damaged or missing parts, call the Customer Helpline on 0345 605 2065
McGregor 18V
AFTER SALES SUPPORT
0345 605 2065
Contents
Safety information…………………………………………....…………….................................……………........3
In the box…………….……………………………...…………………….......................................…………….14
Assemble………………………………………………………………....................................………………..15
Prepare……………………………………………………………...……...................................……………….. 15
Operate........................................................................................................................................18
Maintenance..............................................................................................................................................19
Technical data...............................................................................................................................................19
Accessories..............................................................................................................................................20
Troubleshooting..........................................................................................................................21
Environmental protection..............................................................................................................................21
Getting help..................................................................................................................................................22
Guarantee.................................................................................................................................................22
2
Customer helpline 0345 605 2065
Safety information
Important - Please read these instructions fully before starting assembly
Warning symbols
The following warning symbols appear throughout this assembly manual and indicate the appropriate safety measures you should take when assembling and operating the hedge trimmer.
This symbol indicates there is a danger of serious personal injury or death if you do not observe the warning.
Read operator’s manual
Do not expose to rain
General safety
WARNING!
Keep this assembly manual in a safe place following assembly for reference at a later date. Always ensure anyone intending to operate this hedge trimmer is fully conversant with the contents of this assembly manual prior to assembling, maintaining or operating the hedge trimmer. Perform assembly operations as described in this manual. Failure to observe this warning may lead to serious injury, death, or damage to the hedge trimmer. Always take care when removing the packaging to prevent damage to you or to the hedge trimmer.
IMPORTANT! Before assembling the hedge trimmer, check all the parts indicated in the manual are in the box. Inspect all the parts for signs of damage. Do not assemble the hedge trimmer if you observe any damaged components.
Customer helpline 0345 605 2065
3
Safety information
Important - Please read these instructions fully before starting assembly
Personal safety
WARNING!
Only operate the grass trimmer if you are wearing the correct Personal Protective Equipment (PPE) as described in the following warnings.
Warning symbols
The following warning symbols appear throughout this as­sembly manual and indicate the appropriate safety measures you should take when as­sembling and operating the Hedge Trimmer.
Read operator’s manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Do not expose to moisture
For indoor use only
4
Customer helpline 0345 605 2065
Safety information
Important - Please read these instructions fully before starting assembly Warning symbols
Read the operator’s manual.
T 2A
Fuse
Positive terminal
Negative terminal
Double insulation
Li-ion battery. This product has been marked with a symbol relating to ‘separate collection’ for all battery
Li-Ion
Li-Ion
packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
Do not burn
Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
Customer helpline 0345 605 2065
5
Safety information
Important - Please read these instructions fully before starting assembly General power tool safety warnings
WARNING!
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric
shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive atmospheres,
such as in the presence of ammable liquids, gases or
dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
2) Electrical safety a) Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodied plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
6
Customer helpline 0345 605 2065
Safety information
Important - Please read these instructions fully before starting assembly General power tool safety warnings
electric shock.
d) Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension
cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable,
use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety a) Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power tool
while you are tired or under the inuence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, non­skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to power source and/or battery
pack, picking up or carrying the tool. Carrying power tools
with your nger on the switch or energising power tools that
have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the
power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e)Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in unexpected situations.
Customer helpline 0345 605 2065
7
Safety information
Important - Please read these instructions fully before starting assembly General power tool safety warnings
f) Dress properly. Do not wear loose clothing or jewellery.
Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust­related hazards.
4) Power tool use and care a) Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on
and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the
battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do
not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding
of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind and are easier to control.
8
Customer helpline 0345 605 2065
Safety information
Important - Please read these instructions fully before starting assembly General power tool safety warnings
g) Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Battery tool use and care
a) Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of re when used with
another battery pack.
b) Use power tools only with specically designated battery
packs. Use of any other battery packs may create a risk of
injury and re.
c) When battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals
together may cause burns or a re.
d) Under abusive conditions, liquid may be ejected from the
battery; avoid contact. If contact accidentally occurs, ush
with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
6) Service
a) Have your power tool serviced by a qualied repair person
using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Customer helpline 0345 605 2065
9
Safety information
Important - Please read these instructions fully before starting assembly Hedge trimmer safety warnings
1. Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
2. Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge
trimmer always t the cutting device cover. Proper
handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
3. Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring. Cutter blades contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.
4. Check the hedge for foreign objects, e.g. wire fences.
5. Use both hands when operating the hedge trimmer. Using one hand could cause loss of control and result in serious personal injury.
General safety warnings for your battery charger
WARNING!
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric
shock, re and/or serious injury.
Save all warnings and instructions for future reference. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
10
Customer helpline 0345 605 2065
Safety information
Important - Please read these instructions fully before starting assembly General safety warnings for your battery charger
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
Additional safety instructions for your battery charger
1. Before charging, read the instructions.
2. Do not charge a leaking battery.
3. Do not use chargers for works other than those for which they are designed.
4. Before charging, ensure your charger is matching the local AC supply.
5. For indoor use, or do not expose to rain.
6. The charging device must be protected from moisture.
7. Do not use the charging device in the open.
8. Do not short out the contacts of battery or charger.
9. Respect the polarity “+/-“ when charging.
10.Do not open the unit and keep out of the reach of children.
11.Do not charge the batteries of other manufactures or ill-suited models.
12.Ensure that the connection between the battery charger and battery is correctly positioned and is not obstructed by foreign bodies.
13.Keep battery charger’s slots are free of foreign objects and protect against dirt and humidity. Store in a dry and frost-free place.
14.When charging batteries, ensure that the battery charger is in a well-ventilated area and away from
Customer helpline 0345 605 2065
11
Safety information
Important - Please read these instructions fully before starting assembly
Additional safety instructions for your battery charger
inammable materials. Batteries can get hot during
charging. Do not overcharge any batteries. Ensure that batteries and chargers are not left unsupervised during charging.
15.Do not recharge non-rechargeable batteries, as they can overheat and break.
16.Longer life and better performance can be obtained if the battery pack is charged when the air temperature is between 18 in air temperatures below 4.5 important as it can prevent serious damage to the battery pack.
17.Charge only battery pack of the same model provided by manufacturer and of models recommended by manufacturer.
Safety warnings for battery pack
o
C and 24oC. Do not charge the battery pack
o
C, or above 40.5oC. This is
a) Do not dismantle, open or shred cells or battery pack. b) Do not short-circuit a battery pack. Do not store
battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may
cause burns or a re.
c) Do not expose battery pack to heat or re. Avoid
storage in direct sunlight. d) Do not subject battery pack to mechanical shock. e) In the event of battery leaking, do not allow the liquid
to come into contact with the skin or eyes. If contact
has been made, wash the affected area with copious
12
Customer helpline 0345 605 2065
Safety information
Important - Please read these instructions fully before starting assembly
Safety warnings for battery pack
amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery
pack has been swallowed. g) Keep battery pack clean and dry. h) Wipe the battery pack terminals with a clean dry cloth if
they become dirty. i) Battery pack needs to be charged before use. Always refer to
this instruction and use the correct charging procedure. j) Do not maintain battery pack on charge when not in
use. k) After extended periods of storage, it may be necessary
to charge and discharge the battery pack several times
to obtain maximum performance. l) Battery pack gives its best performance when it is
operated at normal room temperature (20°C ± 5°C). m)When disposing of battery packs, keep battery packs of
different electrochemical systems separate from each other.
n) Recharge only with the charger specied by POSITEC.
Do not use any charger other than that specically
provided for use with the equipment. A charger that is
suitable for one type of battery pack may create a risk
of re when used with another battery pack.
o) Do not use any battery pack which is not designed for
use with the equipment. p) Keep battery pack out of the reach of children. q) Retain the original product literature for future
reference. r) Remove the battery from the equipment when not in
use. s) Dispose of properly.
Customer helpline 0345 605 2065
13
In the box
Parts
Blade
1
Safety guard
2
Front handle with safety switch
3
Rear handle
4
On/off switch
5
Battery pack
6
Blade sheath
7
Battery charger
8
Battery pack release button
9
Instruction manual
10
1 2 3 4
5
9
6
7
8
10
14
Customer helpline 0345 605 2065
Assemble
Assembling instructions
The hedge trimmer has been already assembled, You needn’t to assemble.
Prepare
Preparing instructions
Always take care when removing the packaging to prevent damage to you or to the hedge trimmer.
IMPORTANT! Before assembling the hedge trimmer, check all the parts indicated in the manual
are in the box. Inspect all the parts for signs of damage. Do not assemble the hedge trimmer if you
observe any damaged components.
NOTE: Before using the tool, read the instruction book carefully.
Remove all parts of the hedge trimmer from the box and carefully remove all packaging. Take care
not to lose any instructions which may be attached to the tool, these provide important information
which will be required while assembling the hedge trimmer.
1. TO CHARGE THE BATTERY (See Fig. A)
Chargers and batteries are specically designed to work together. Do not attempt to use batteries
with any other charger than that specied in these instructions.
Important notes for charging the battery:
In a warm environment or after heavy use, the battery pack may become too hot to permit
charging. Allow time for the battery to cool down before recharging.
BEFORE USING YOUR CORDLESS HEDGE TRIMMER, YOU MUST FULLY CHARGE THE BAT-
TERY
Your battery pack is UNCHARGED and you must fully charge before use.
HOW TO CHARGE THE BATTERY:
A discharged battery at normal ambient temperature will take approximately 3-5 hours to reach full
charge.
WARNING: When battery charge runs out after continuously use or exposure to direct
sunlight or heat, allow time for the battery pack to cool down before re-charging to achieve the full
charge.
CHARGING INDICATOR
Light Status
Red on Charging
Green on Fully Charged
Customer helpline 0345 605 2065
A
15
Prepare
Preparing instructions
2. TO REMOVE OR INSTALL BATTERY PACK (See B1, B2)
Depress the Battery pack release button to release battery pack from your hedge trimmer. After
recharging, insert the battery pack into hedge trimmer’s battery port. A simple push and slight
pressure will be sufcient.
WARNING! DO NOT USE THE PRODUCT WITHOUT ATTACHING THE GUARD.
B1 B2
3. BEFORE STARTING YOUR HEDGE TRIMMER
Remove blade sheath as illustrated in Fig C.
C
4. TO START YOUR HEDGE TRIMMER (See D)
Your trimmer is equipped with two switch levers ,safety switch and On/Off switch. Both switch levers
need to be pressed for the hedge trimmer to start. Depress and hold safety handle switch on front
handle and press on/off switch on rear handle.
D
Front(Safety switch)
TO STOP YOUR HEDGE TRIMMER
Move hedge trimmer away from cutting area before stopping.
To stop, release either the safety handle switch or On/Off switch, the Trimmer will stop almost immediately.
WARNING:
until all damaged parts have been replaced or repaired. Failure to do so could result in serious personal injury.
16
Rear(On/Off switch)
If any parts are missing, damaged or broken, do not operate your hedge trimmer
Customer helpline 0345 605 2065
Prepare
Preparing instructions
PAY ATTENTION TO USE YOUR HEDGE TRIMMER
Inspect the area to be cut before each use, remove objects which can be thrown or become entangled
in the cutting blades.
Always hold the Hedge trimmer with both hands and with the blade away from you before turning it on.
When trimming new growth, use a wide sweeping action so that the stems are fed directly into the blade.
Allow the cutting blades to reach full speed before entering the material to be cut.
Always work in the direction going away from people and solid objects such as walls, large stones,
trees, vehicles etc.
If the blade jam, immediately stop the Hedge trimmer. Remove the battery pack and clear the jammed
things from the cutting blade.
Wear gloves when trimming thorny or prickly growth.
Move the Hedge trimmer to feed the branches directly into the blade cutting edges.
Do not try to cut stems that are too large to feed into the cutting blade.
Customer helpline 0345 605 2065
17
Operate
Operating instructions
1. TOP EDGING (See Fig E)
Use a wide sweeping motion. A slight downward slant of the cutting blades in the direction of motion
gives the best cutting results.
E
2. SIDE EDGING(See Fig F)
When trimming the sides of the hedge, begin at the bottom and cut upwards, You should taper the
hedge inward at the top. This shape will expose more of the hedge, resulting in a more uniformed
growth.
WARNING: Check extension cords before each use. If damaged replace immediately.
Never use your tool with a damaged cord since touching the damaged area could cause electrical
shock resulting in serious injury.
If the supply cord is damaged, it should be replaced by a local approved service centre.
F
18
Customer helpline 0345 605 2065
Maintenance
Maintenance
WARNING: Remove the battery before carrying out any adjustment, servicing or
maintenance.
1) Never use water to cleaning the unit.
2) Always clean the hedge trimmer immediately after use. Brush the blade using a stiff nylon brush to
remove any debris.
3) Always store the unit in a dry place.
4) Inspect the hedge trimmer before each use.
5) Have the unit professionally repaired if any damage occurs.
6) The blade rail should be cleaned and treated with ne lubricating oil after each use.
7) Use the blade sheath for transportation and storage.
Technical data
Technical data table
Hedge trimmer MCH1851 MCH1845
Voltage 18V
No load speed 2800/min
Cutting width 16mm
Cutting length 510 mm 450 mm
Machine weight 2.1kg 2.0kg
Charger ACG318G2
Charger input 100-240V ~ 50/60Hz
Charger output 20V
Charging time 3-5 hrs
Battery pack ABP118W2
Battery type Lithium-Ion
Battery capacity 18V
Customer helpline 0345 605 2065
0.5A
2.0Ah, 36Wh
19
Technical data
Noise technical date
A weighted sound pressure LpA = 65.7dB(A) K
=3 dB (A)
pA
A weighted sound power L Wear ear protection.
= 79.8dB(A)
wA
VIBRATION INFORMATION
Typical weighted vibration a
= 2.207m/s2, uncertainty K= 1.5m/s
h
2
WARNING: The vibration emission value during actual use of the power tool can differ from the
declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials is cut or drilled. The tool being in good condition and well maintained To use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and any anti vibration accessories are used. And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use
should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period. Help to minimize your vibration exposure risk. ALWAYS use sharp chisels, drills and blades Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate) If the tool is to be used regularly then invest in anti vibration accessories. Plan your work schedule to spread any high vibration tool use across a number of days.
Accessories
MCH1851 MCH1845
Safety guard (installed on machine ) 1 1
Blade sheath (installed on machine) 1 1
Charger 1 1
Battery pack 1 1
20
Customer helpline 0345 605 2065
Troubleshooting
General troubleshooting
The following chart lists problem symptoms, possible causes and corrective action, if your electric
hedge trimmer does not operate properly. If these do not identify and correct the problem, contact your
service agent.
WARNING: Always switch the product off, disconnect it from power supply and let the
product cool down before performing inspection, maintenance and cleaning work!
Problem Possible cause Solution
Hedge trimmer does not operate
Hedge trimmer operates intermittently
Motor runs but blades remain stationary
Cutting blade hot 4.1 Cutting blade dull
Cutting time per battery charge too low
The blades are running slow 6.1 Battery discharged
Battery charge indicator(a) does not light up
1.1 Battery discharged
1.2 Battery not fully connected
2.1 Internal wiring damaged
2.2 On/Off switch defective
3. Internal fault 3. Contact Helpline
4.2 Cutting blade is damaged
4.3 Too much friction, due to lack of lubricant
5.1 Too much friction, due to lack of lubricant
5.2 Blade needs cleaning
5.3 Battery not fully charged
6.2 Battery stored outside of bat­tery temperature
7.1 Mains plug of battery charger not plugged in (properly)
7.2 Socket outlet, mains cable or battery charger defective
1.1 Recharge battery; also see “Charging The Battery”
1.2 Ensure the battery pack release button is fully locked
2. Contact Helpline
4.1 Have blade sharpened
4.2 Have blade inspected/over­hauled
4.3 Apply lubricant spray
5.1 Apply lubricant spray
5.2 Clean blade
5.3 Recharge battery; also see “Charging The Battery”
6.1 Recharge battery; also see “Charging The Battery”
6.2 Allow battery to warm naturally to room temperature (within battery operating temperature 10–45 °C)
7.1 Insert mains plug (fully) into the socket outlet
7.2 Contact Service Agent
Environmental protection
This product has been marked with a symbol relating to removing electric and electronic waste. This
means that this product shall not be discarded with household waste but that it shall be returned to
a collection system which conforms to the European Directive 2002/96/CE. It will then be recycled
or dismantled in order to reduce the impact on the environment. Electric and electronic equipment can be
hazardous for the environment and for human health since they contain hazardous substances.
Customer helpline 0345 605 2065
21
Getting help
Customer helpline 0345 605 2065
Guarantee
Dear Customer,
In the unlikely event that your device develops a fault, please contact our Customer service
department on the telephone number shown below.
1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty
rights. Claims must be accompanied by Proof of Purchase. This must be in the form of a Sales
receipt or Bank statement and must show that the product has been purchased within 2 years
prior to the claim, from the retailer that it was originally sold to.
2. Our guarantee covers problems caused by material or manufacturing defects, and will result in the
repair of these defects or replacement of the device with a like for like or similar article. Please
note that our devices have not been designed for use in commercial, trade or industrial applica-
tions. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or
industrial applications or for other equivalent activities.
3. The following are also excluded from our guarantee :
A. Faults due to accidents, customer misuse or unauthorized repairs
B. Consumable Parts such as detergent bottle, patio cleaner, jet lance, x brush and nozzle
pin.
C. Failure due to lack of routine maintenance.
D. Failure as a result of not using the equipment in accordance with the manual and safety
instructions
E. The adjustment of cables, drives belts or recoil starters.
4. The guarantee is valid for a period of 2 years starting from the purchase date of the device.
Guarantee claims should be submitted before the end of the guarantee period within two
weeks of the defect being noticed. No guarantee claims will be accepted after the end of the
guarantee period. The original guarantee period remains applicable to the device even if repairs
are carried out or parts are replaced. In such cases, the work performed or parts tted will
not result in an extension of the guarantee period, and no new guarantee will become active
for the work performed or parts tted.This also applies when an on-site Service is used.
5. Please keep your sales receipt in a safe place. If is covered by our guarantee your device
will either be repaired under the terms of guarantee or we will send you a replacement device.
This device may be re-conditioned or like for like replacement .
22
Customer helpline 0345 605 2065
Loading...
