Introduction

Thank You for purchasing this
McElroy product

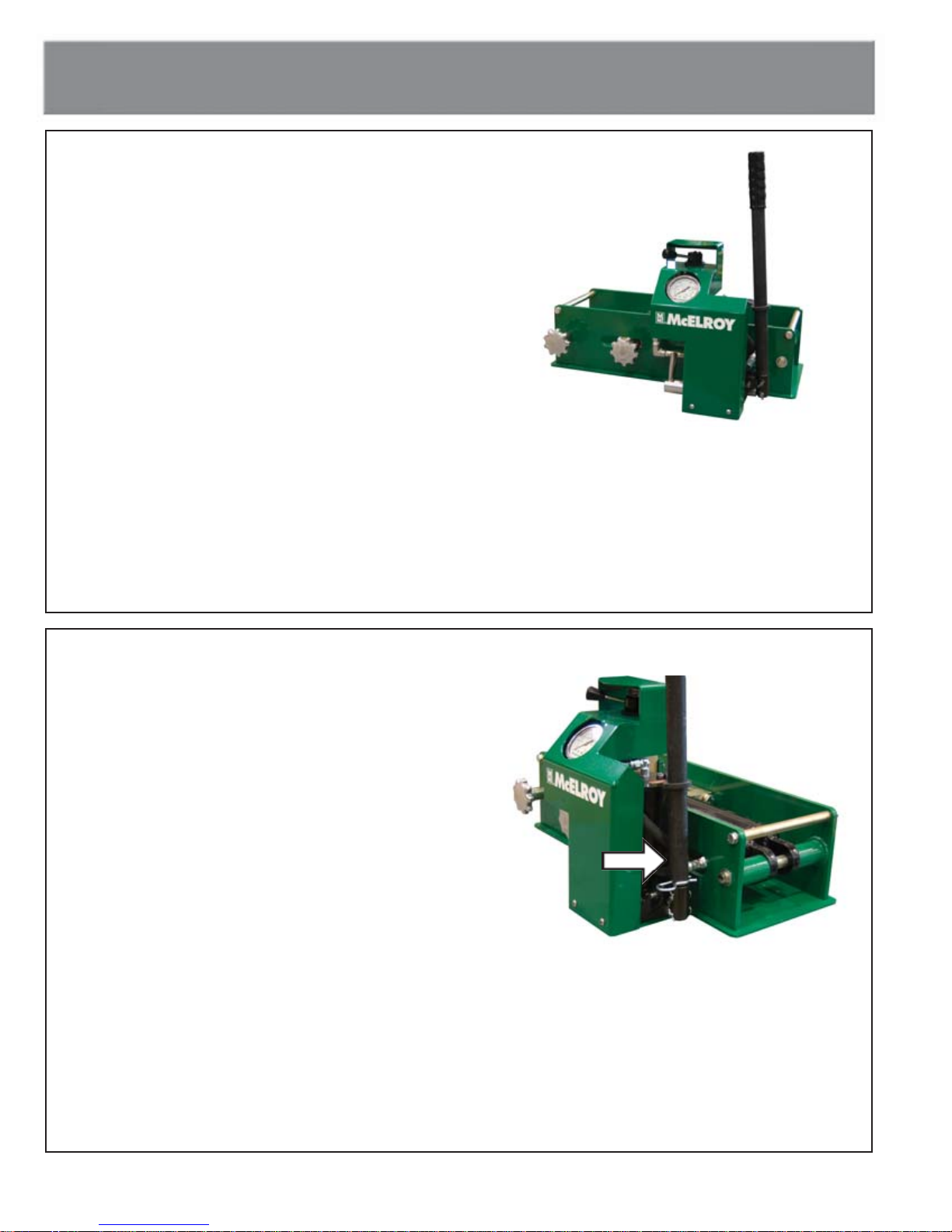

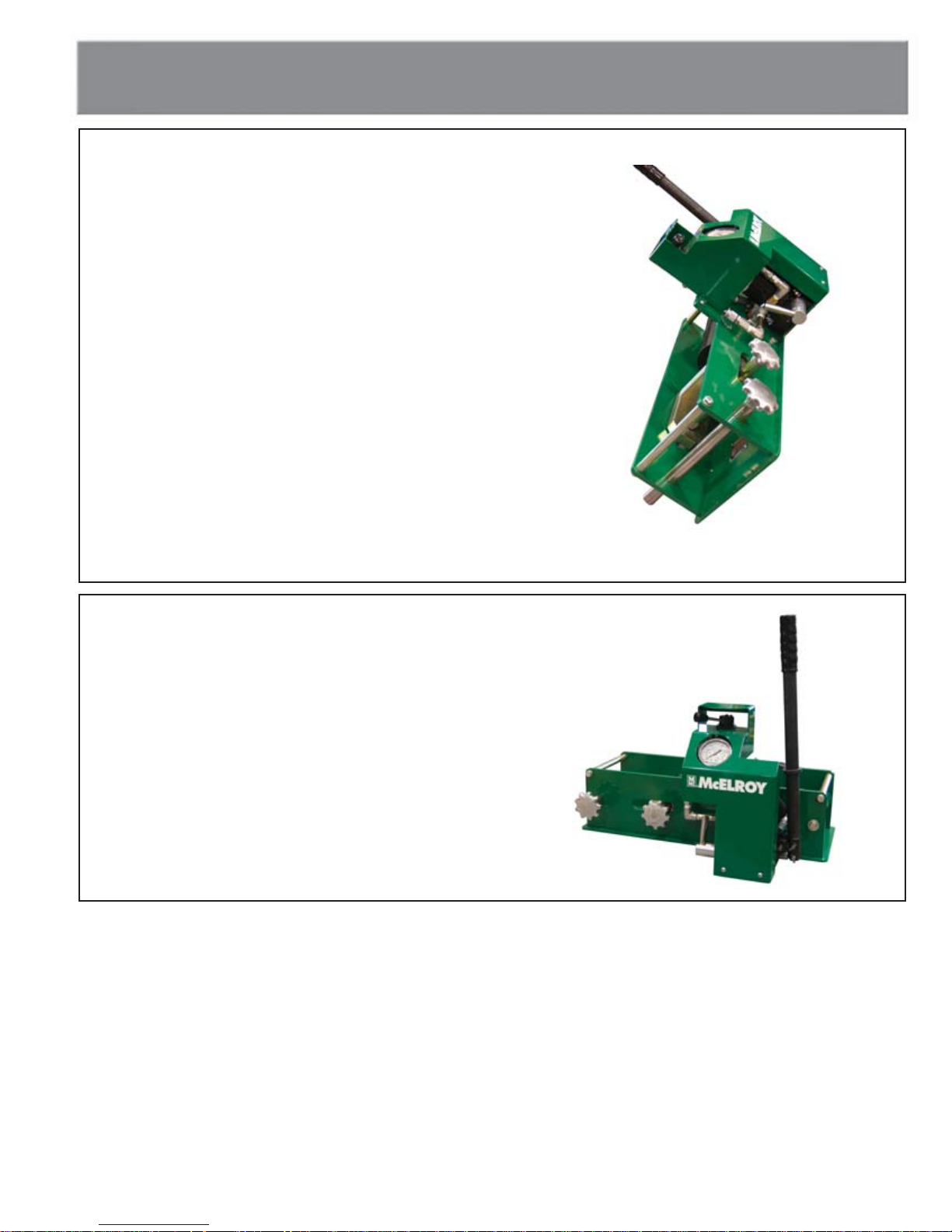

The In Field® Tensile Tester provides a quick and easy
way to qualitatively test joints in the field. A hand pump
system tests coupons from 2” IPS and larger pipes (up

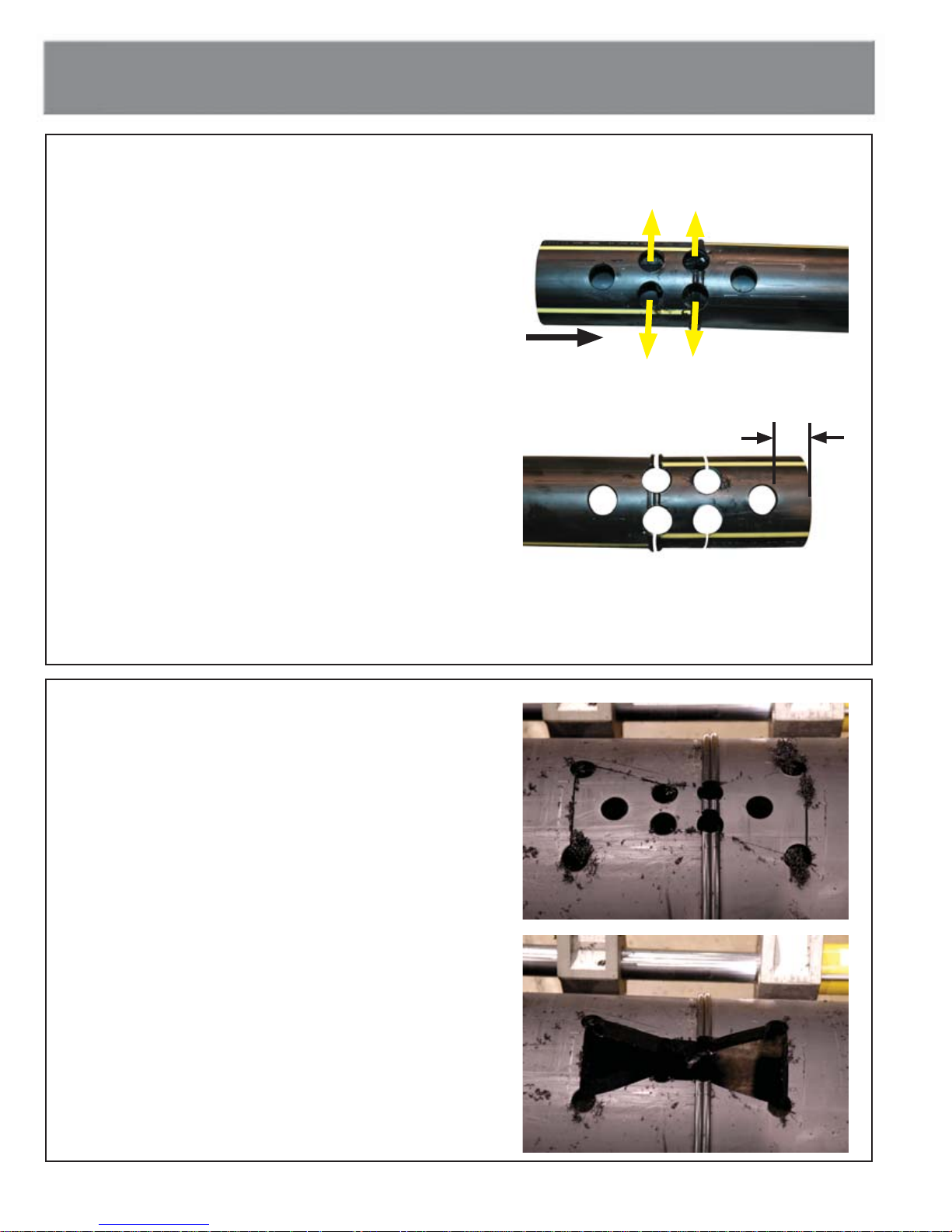

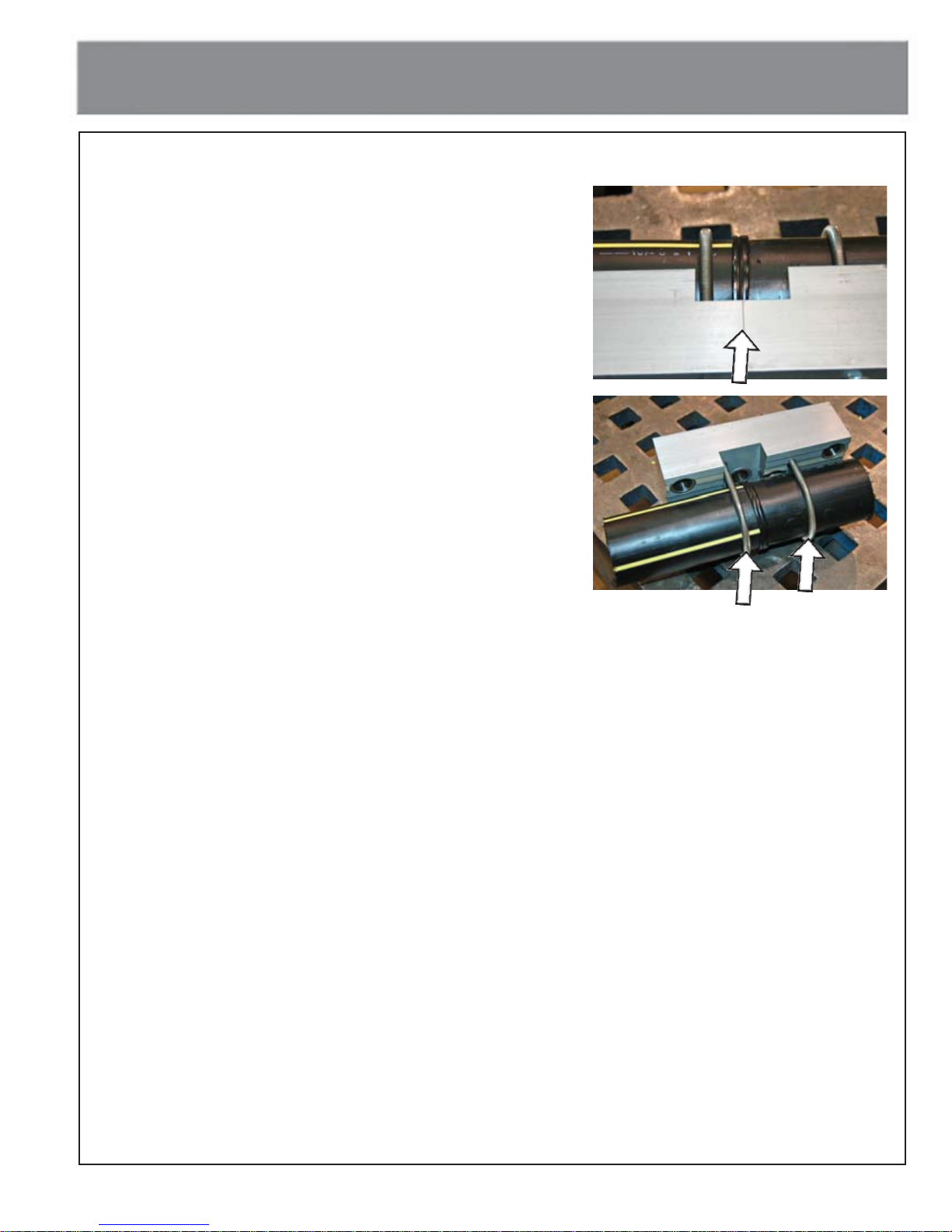

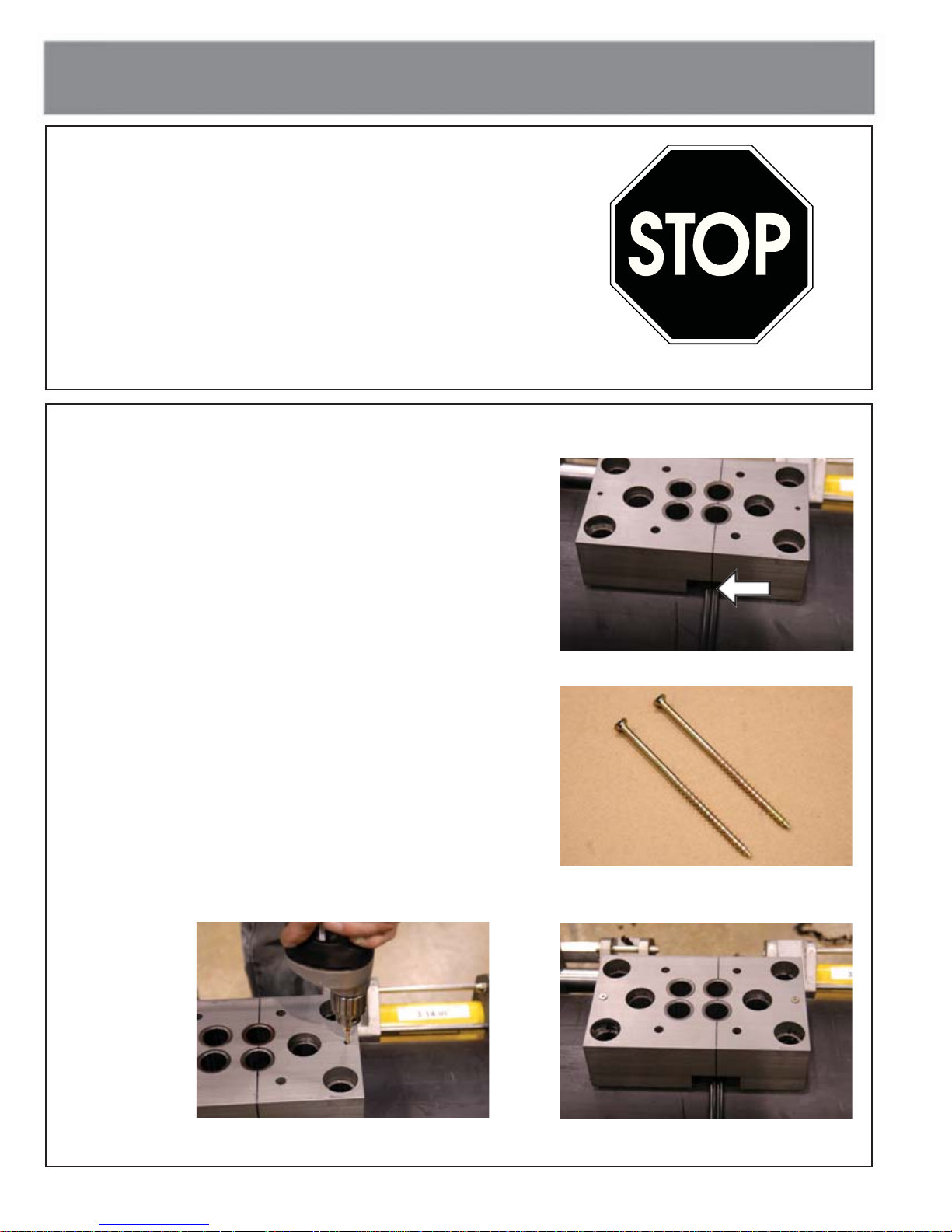

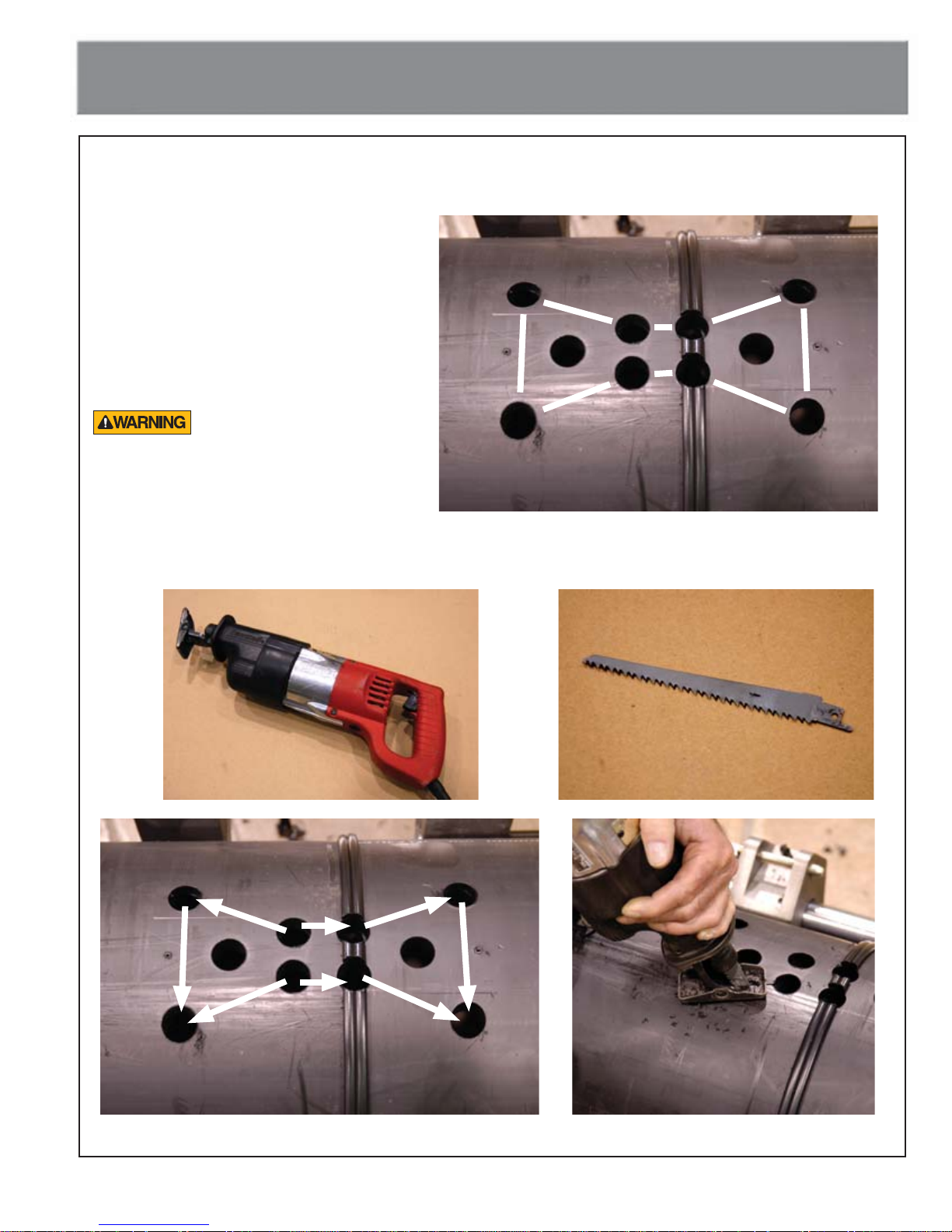

to 5” thick wall). To create the coupon, a template is

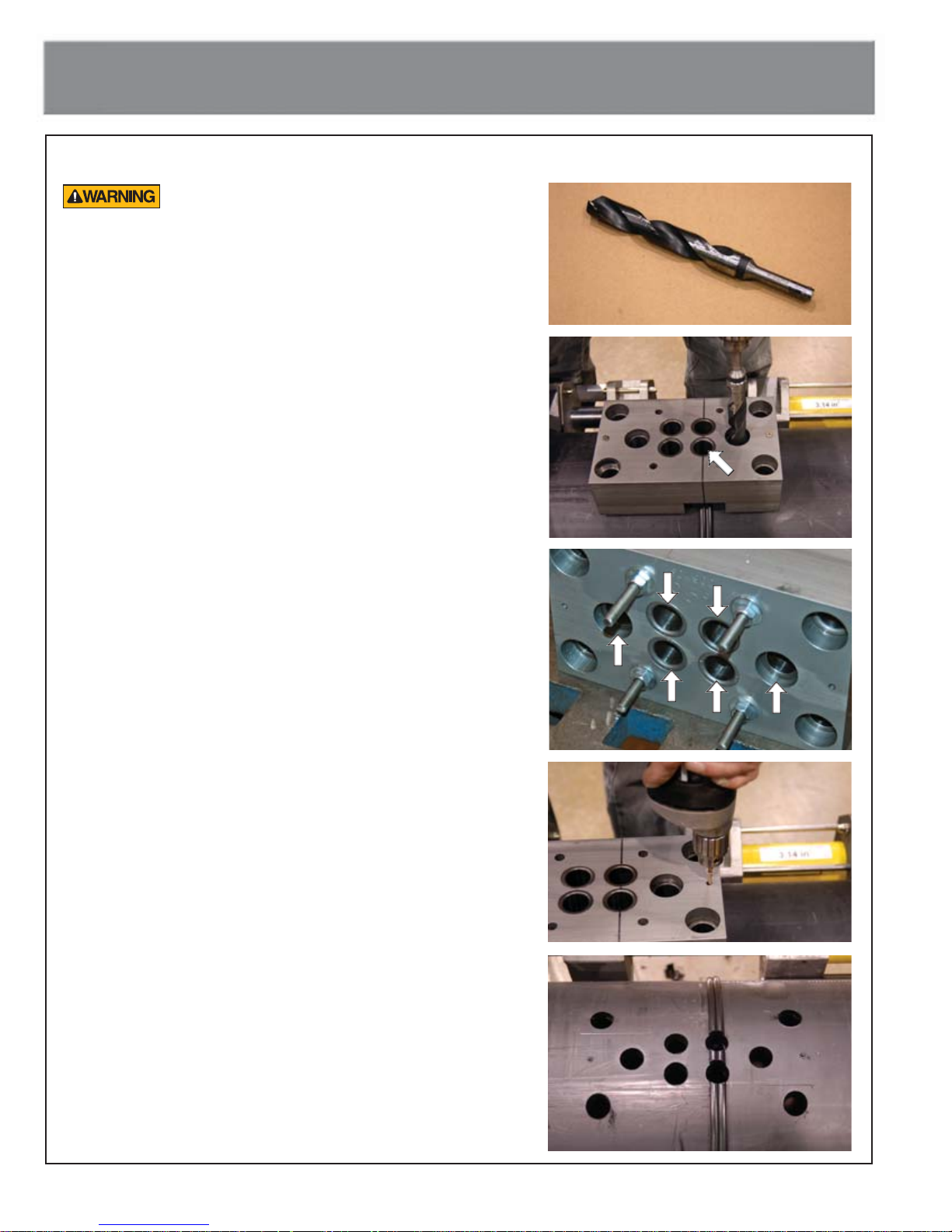

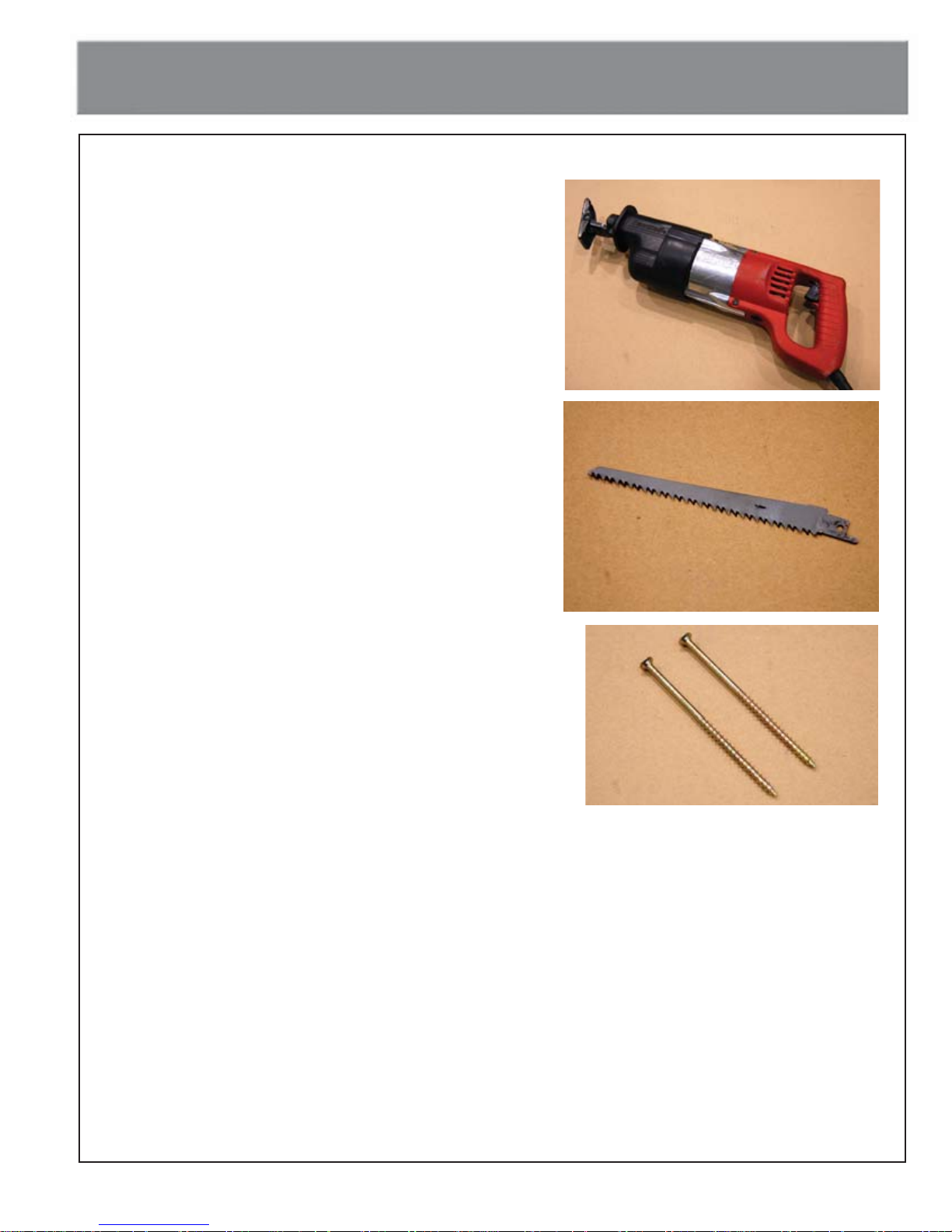

attached to the pipe’s outer wall, where a drill and
reciprocating saw produce the coupon in minutes. The

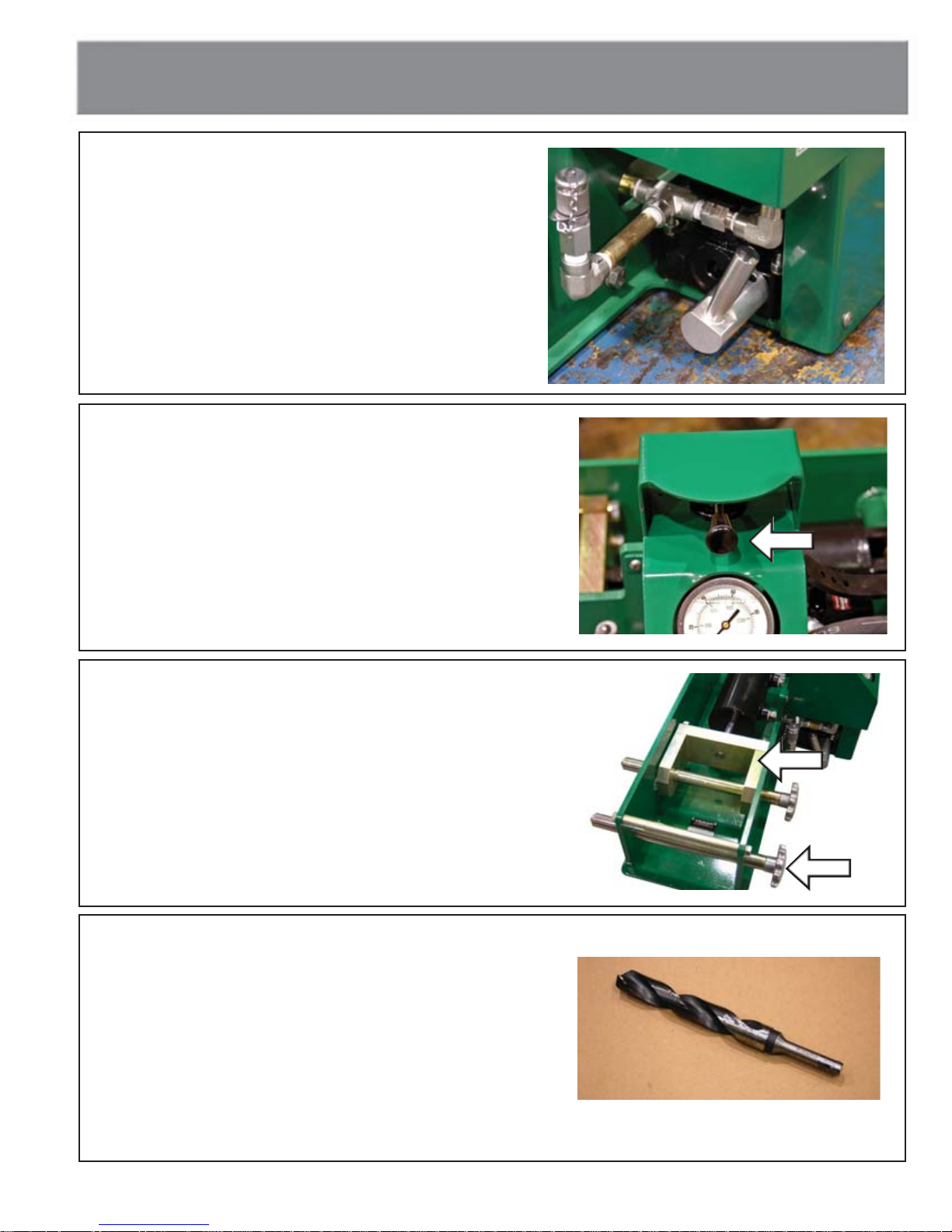

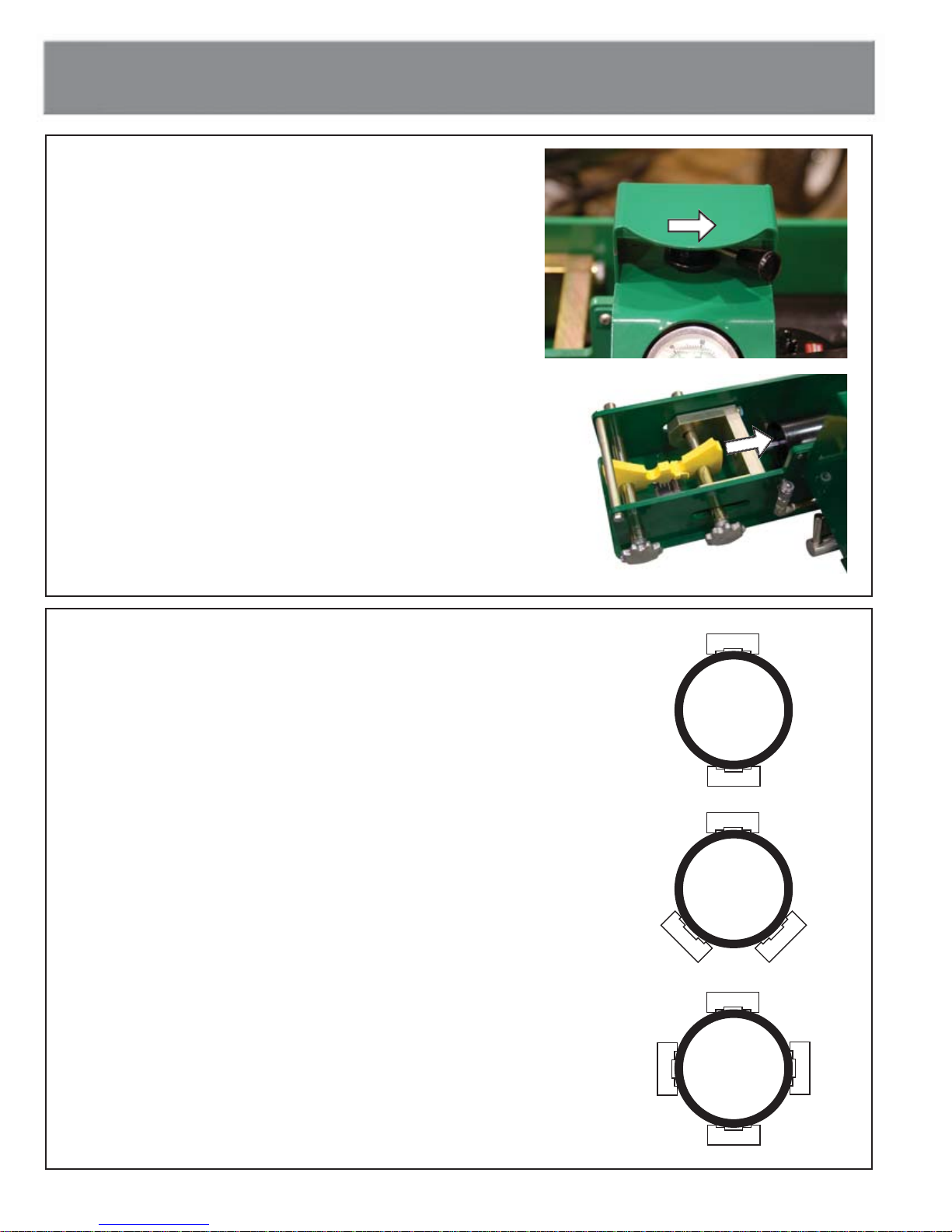

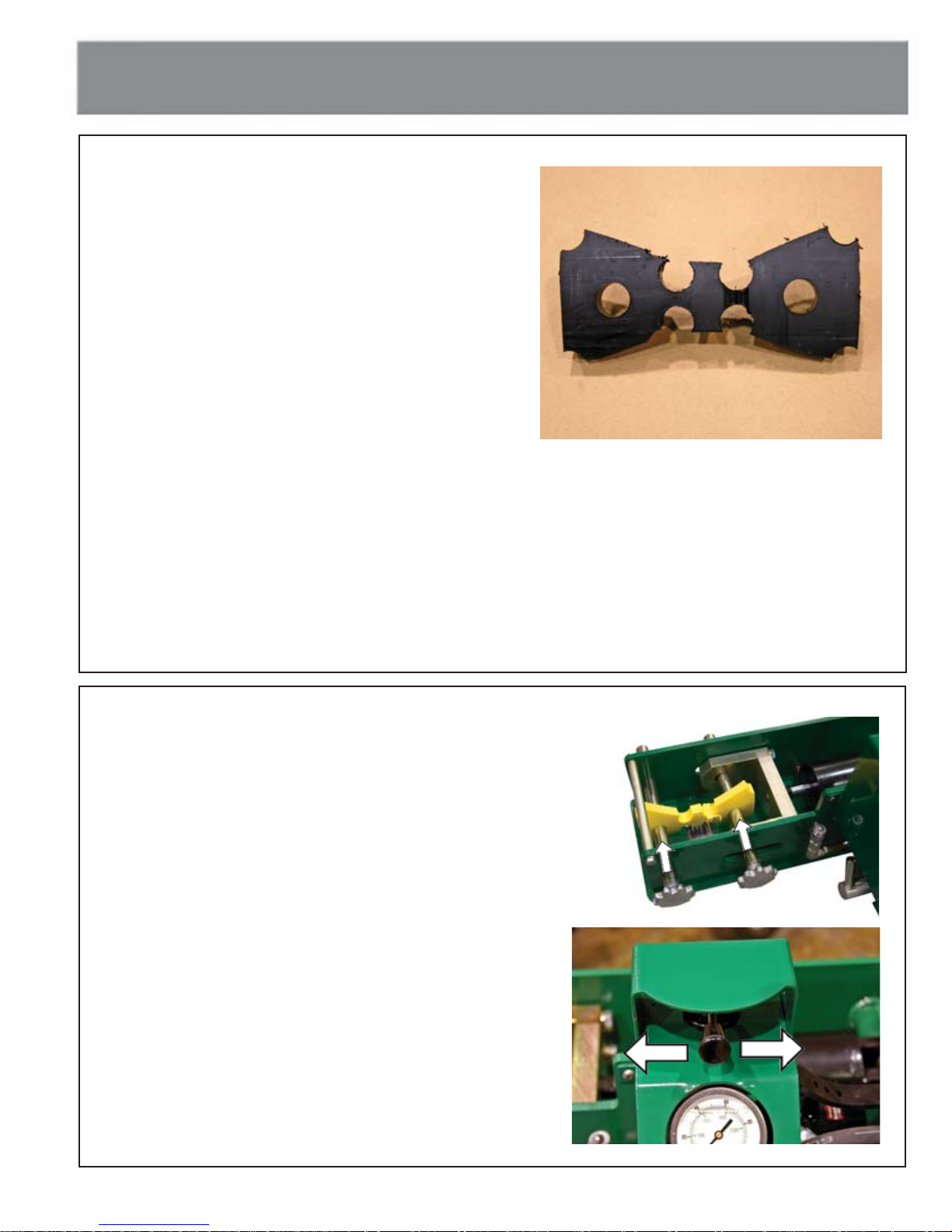

coupon is then inserted into the hand pump tensile test

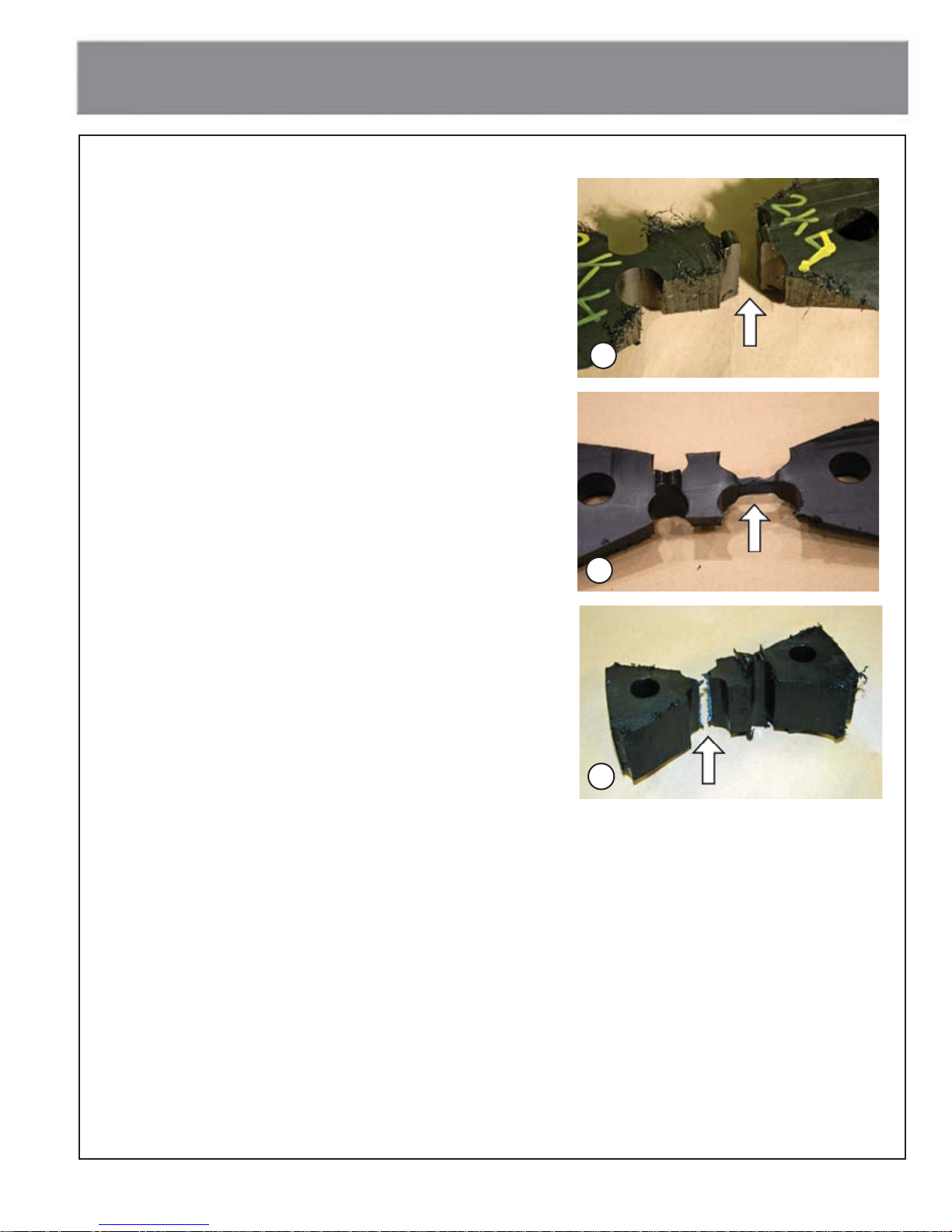

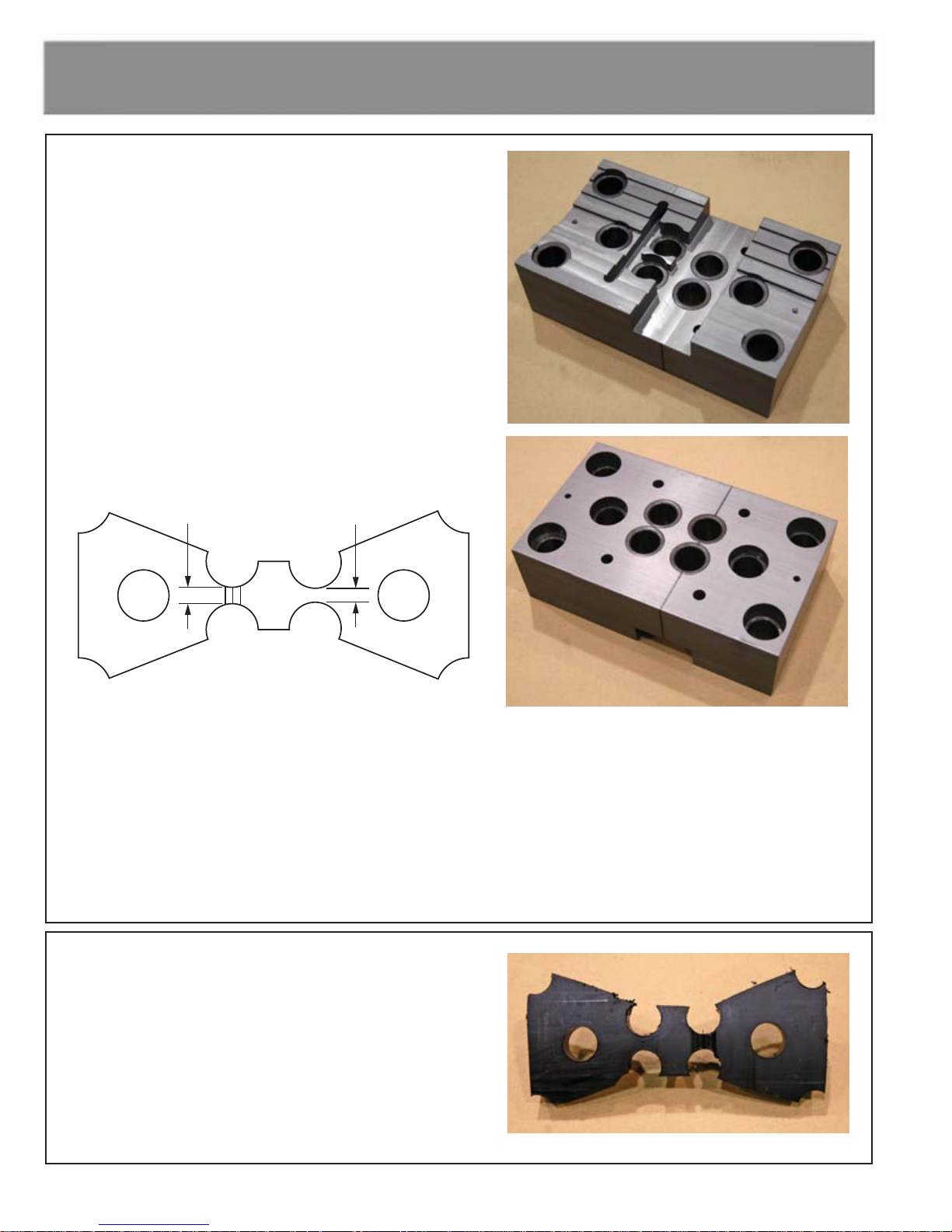

unit. The dual reduced section coupon allows failure
in either the parent pipe material or the fusion joint,
depending on joint quality. This makes a quick and easy
evaluation of joint integrity compared to the pipe.

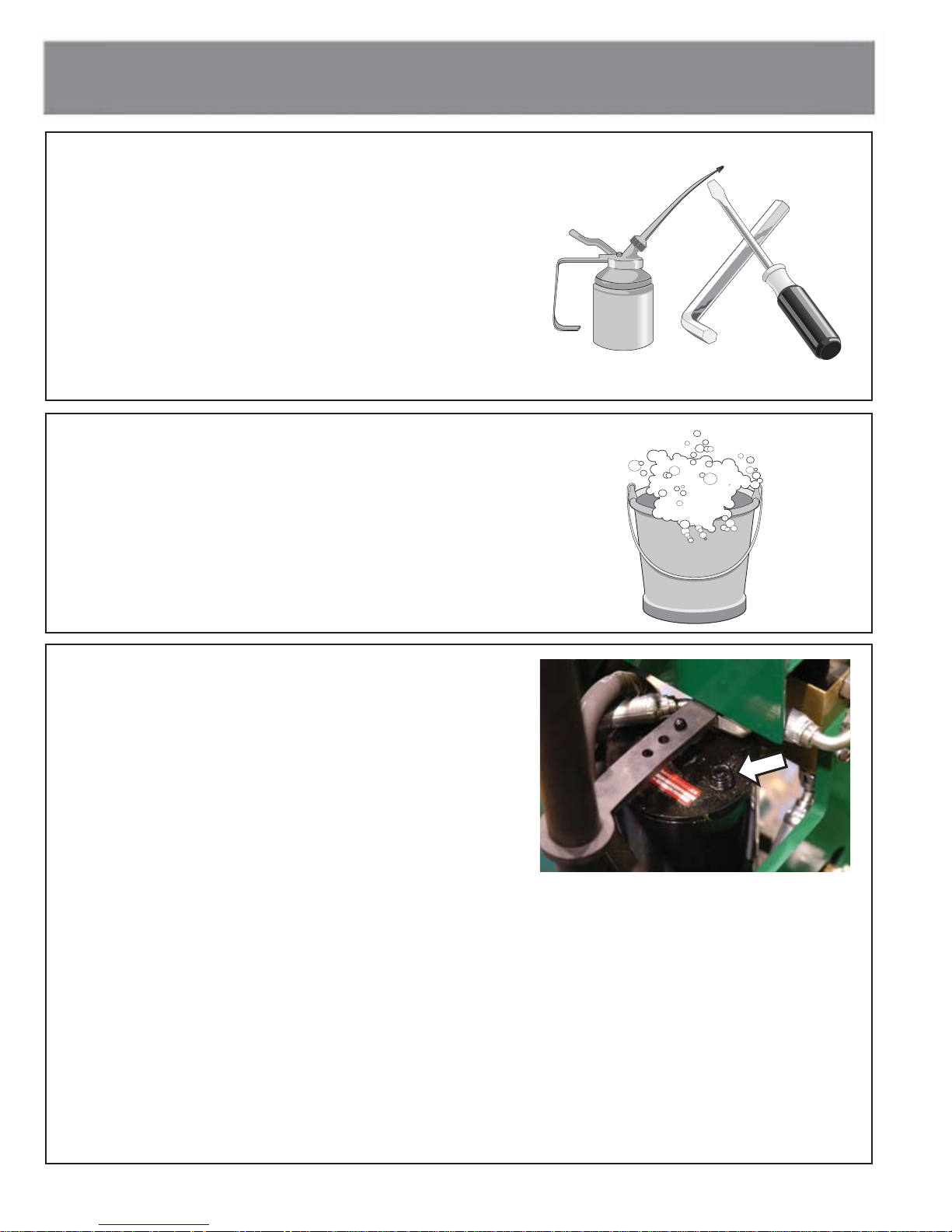

With reasonable care and maintenance, this equipment
will give years of satisfactory service.
