McCulloch MT780 User Manual

Operator’s Manual

2-Cycle Gasoline

Trimmer / Brushcutter

Model MT780

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

P/N 769-01330 (11/04)

PRINTED IN USA

INTRODUCTION

Copy the serial number

here:

THANK YOU

Thank you for buying this quality product. This modern outdoor power tool will provide many hours of useful service. You will find it to be a great labor-saving device. This operator’s manual provides you with easy-tounderstand operating instructions. Read the whole manual and follow all the instructions to keep your new outdoor power tool in top operating condition.

PRODUCT REFERENCES, ILLUSTRATIONS AND SPECIFICATIONS

All information, illustrations, and specifications in this manual are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

SERVICE INFORMATION

Service on this unit both within and after the warranty period should be performed only by an authorized and approved service dealer.

For service call 1-800-345-8746 in the United States, or 1-800-668-1238 in Canada to obtain a list of authorized service dealers near you. For more details about your unit, visit our website at www.mccullochpower.com.

DO NOT RETURN THE UNIT TO THE RETAILER. PROOF OF PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.

Before beginning, locate the unit’s model plate. It lists the model and serial numbers of your unit. Refer to the sample plate below and copy the information for future reference.

Make sure you carefully read and understand this manual before starting or operating this equipment.

THIS PRODUCT IS COVERED BY ONE OR MORE U.S. PATENTS. OTHER PATENTS PENDING.

TABLE OF CONTENTS

Service Information . . . . . . . . . . . . . . . . . . . . . . . . .2

Rules for Safe Operation . . . . . . . . . . . . . . . . . . . . .3

Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . .8

Oil and Fuel Information . . . . . . . . . . . . . . . . . . . . .11

Starting/Stopping Instructions . . . . . . . . . . . . . . . .12

Operating Instructions . . . . . . . . . . . . . . . . . . . . . .13

Maintenance and Repair Instructions . . . . . . . . . . .15

Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . .20

Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . .21

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Warranty Information . . . . . . . . . . . . . . . . . . . . . . .26

Parts List . . . . . . . . . . . . . . . . . . . .Inside Back Cover

Copy the model and parent

part number here:

SPARK ARRESTOR NOTE

NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and Washington.

All U.S. Forest Land and the state of California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that certain internal combustion engines operated on forest brush and/or grass-covered areas be equipped with a spark arrestor, maintained in effective working order, or the engine be constructed, equipped and maintained for the prevention of fire. Check with your state or local authorities for regulations pertaining to these requirements. Failure to follow these requirements could subject you to liability or a fine. This unit is factory equipped with a spark arrestor. If it requires replacement, ask your LOCAL SERVICE DEALER to install the Accessory Part

#753-04689 Spark Arrestor.

CALIFORNIA PROPOSITION 65 WARNING

WARNING

THE ENGINE EXHAUST FROM THIS

PRODUCT CONTAINS CHEMICALS

KNOWN TO THE STATE OF CALIFORNIA

TO CAUSE CANCER, BIRTH DEFECTS

OR OTHER REPRODUCTIVE HARM.

MODEL :

S/N :

ITEM :

RULES FOR SAFE OPERATION

READ ALL INSTRUCTIONS

BEFORE OPERATING

• Read the instructions carefully. Be familiar with the controls and proper use of the unit.

• Do not operate this unit when tired, ill, or under the influence of alcohol, drugs, or medication.

• Children and teens under the age of 15 must not use the unit, except for teens guided by an adult.

• All guards and safety attachments must be installed properly before operating the unit.

• Inspect the unit before use. Replace damaged parts. Check for fuel leaks. Make sure all fasteners are in place and secure. Replace parts that are cracked, chipped, or damaged in any way. Do not operate the unit with loose or damaged parts.

• Carefully inspect the area before starting the unit. Remove all debris and hard or sharp objects such as glass, wire, etc.

• Be aware of the risk of injury to the head, hands and feet.

• Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders, and pets outside a 50 feet (15 m.) radius; there still may be a risk to bystanders from thrown objects. Bystanders should be encouraged to wear eye protection. If you are approached, stop the unit immediately.

• Use only 0.095 inch (2.41 mm) diameter original equipment manufacturer replacement line. Never use metal-reinforced line, wire or rope. These can break off and become dangerous projectiles.

• Squeeze the throttle control and check that it returns automatically to the idle position. Make all adjustments or repairs before using unit.

SAFETY WARNINGS FOR GAS UNITS

• Store fuel only in containers specifically designed and approved for the storage of such materials.

• Avoid creating a source of ignition for spilled fuel. Do not start the engine until fuel vapors dissipate.

• Always stop the engine and allow it to cool before filling the fuel tank. Never remove the cap of the fuel tank, or add fuel, when the engine is hot. Never operate the unit without the fuel cap securely in place. Loosen the fuel tank cap slowly to relieve any pressure in the tank.

SYMBOL MEANING

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.

NOTE: Advises you of information or instructions vital to

the operation or maintenance of the equipment.

SYMBOL MEANING

When using the unit,

you must follow the safety rules. Please read these instructions before operating the unit in order to ensure the safety of the operator and any bystanders. Please keep these instructions for later use.

WARNING:

• IMPORTANT SAFETY INSTRUCTIONS •

Failure to obey a

safety warning can result in injury to yourself and others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

WARNING:

Failure to obey a

safety warning will result in serious injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

DANGER:

Failure to obey a

safety warning may result in property damage or personal injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

CAUTION:

Indicates

danger, warning or caution. Attention is required in order to avoid serious personal injury. May be used in conjunction with other symbols or pictographs.

SAFETY ALERT:

Gasoline is highly

flammable, and its vapors can explode if ignited. Take the following precautions:

WARNING:

Read the Operator’s Manual(s) and follow all

warnings and safety instructions.

Failure to do so can result in serious injury to the

operator and/or bystanders.

FOR QUESTIONS, CALL 1-800-345-8746 in the

United States, or 1-800-668-1238 in Canada

• Do not operate the engine faster than the speed needed to cut, trim or edge. Do not run the engine at high speed when not cutting.

• Always stop the engine when cutting is delayed or when walking from one cutting location to another.

• If you strike or become entangled with a foreign object, stop the engine immediately and check for damage. Do not operate before repairing damage. Do not operate the unit with loose or damaged parts.

• Stop the unit, switch the engine to off, and disconnect the spark plug for maintenance or repair.

• Use only original equipment manufacturer replacement parts and accessories for this unit. These are available from your authorized service dealer. Use of any unauthorized parts or accessories could lead to serious injury to the user, or damage to the unit, and void your warranty.

• Keep unit clean of vegetation and other materials. They may become lodged between the cutting attachment and shield.

• To reduce fire hazard, replace a faulty muffler and spark arrestor. Keep the engine and muffler free from grass, leaves, excessive grease or carbon build up.

WHILE OPERATING WITH CUTTING BLADE

• Read and understand all safety warnings before operating this unit.

• Always use the shoulder harness when using the brush blade accessory.

• Keep the J-handle between the operator and cutting attachment or blade at all times.

• NEVER cut when the cutting blade is 30 inches (76 cm) or more above the ground level.

• Blade thrust may occur when the spinning blade contacts an object that it does not immediately cut. Blade thrust can be violent enough to propel the unit and/or operator in any direction, possibly causing a loss of control. Blade thrust can occur without warning if the blade snags, stalls or binds. This is more likely to occur in areas where it is difficult to see the material being cut.

• For operation with the brush blade, do not cut anything thicker than 1/2 inch or a violent kickback could occur.

• Do not attempt to touch or stop the blade when it is rotating.

•A coasting blade can cause injury while it continues to spin after the engine is stopped or the throttle trigger is released. Maintain proper control until the blade has completely stopped rotating.

• Do not run the unit at high speed when not cutting.

• Mix and add fuel in a clean, well-ventilated outdoor area where there are no sparks or flames. Slowly remove the fuel cap only after stopping engine. Do not smoke while fueling or mixing fuel. Wipe up any spilled fuel from the unit immediately. Always wipe unit dry before using.

• Move the unit at least 30 feet (9.1 m) from the fueling source and site before starting the engine. Do not smoke or allow sparks and open flames near the area while adding fuel or operating the unit.

WHILE OPERATING

• Never start or run the unit inside a closed room or building. Breathing exhaust fumes can be fatal. Operate this unit only in a well-ventilated outdoor area.

• Wear safety glasses or goggles that meet ANSI Z87.1 standards and are marked as such. Wear ear/hearing protection when operating this unit. Wear a face or dust mask if the operation is dusty.

• Wear heavy long pants, boots, gloves and a long sleeve shirt. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair above shoulder level.

• The cutting attachment shield must always be in place while operating the unit as a trimmer. Do not operate unit without both trimming lines extended, and the proper line installed. Do not extend the trimming line beyond the length of the shield.

• This unit has a clutch. The cutting attachment remains stationary when the engine is idling. If it does not, have the unit adjusted by an authorized service technician.

• Adjust the J-handle to your size in order to provide the best grip.

• Be sure the cutting attachment is not in contact with anything before starting the unit.

• Use the unit only in daylight or good artificial light.

• Avoid accidental starting. Be in the starting position whenever pulling the starter rope. The operator and unit must be in a stable position while starting. Refer to Starting/Stopping Instructions.

• Use the right tool. Only use this tool for its intended purpose.

• Do not overreach. Always keep proper footing and balance.

• Always hold the unit with both hands when operating. Keep a firm grip on both handles or grips.

• Keep hands, face, and feet at a distance from all moving parts. Do not touch or try to stop the cutting attachment when it rotates.

• Do not touch the engine, gear housing or muffler. These parts get extremely hot from operation, even after the unit is turned off.

RULES FOR SAFE OPERATION

• If you strike or become entangled with a foreign object, stop the engine immediately and check for damage. Have any damage repaired before attempting further operations. Do not operate unit with a bent, cracked or dull blade. Discard blades that are bent, warped, cracked or broken.

• Do not sharpen the cutting blade. Sharpening the blade can cause the blade tip to break off while in use. This can result in severe personal injury. Replace the blade.

• Do not use the cutting blade for edging or as an edger; severe personal injury to yourself or others may incur. Use the cutting blade only for the purpose described in this manual.

• Stop the engine IMMEDIATELY if you feel excessive vibration. Vibration is a sign of trouble. Inspect thoroughly for loose nuts, bolts or damage before continuing. Repair or replace affected parts as necessary.

After Use

• Clean cutting blades with a household cleaner to remove any gum buildup. Oil the blade with machine oil to prevent rust.

• Lock up and store the cutting blade in an appropriate area to protect the blade from unauthorized use or damage.

OTHER SAFETY WARNINGS

• Never store a fueled unit inside a building where fumes may reach an open flame or spark.

• Allow the engine to cool before storing or transporting. Be sure to secure the unit while transporting.

• Store the unit in a dry area, locked up or up high to prevent unauthorized use or damage, out of the reach of children.

• Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean and free from debris. Clean after each use, see Cleaning and Storage instructions.

• Keep these instructions. Refer to them often and use them to instruct other users. If you loan someone this unit, also loan them these instructions.

SAVE THESE

INSTRUCTIONS

RULES FOR SAFE OPERATION

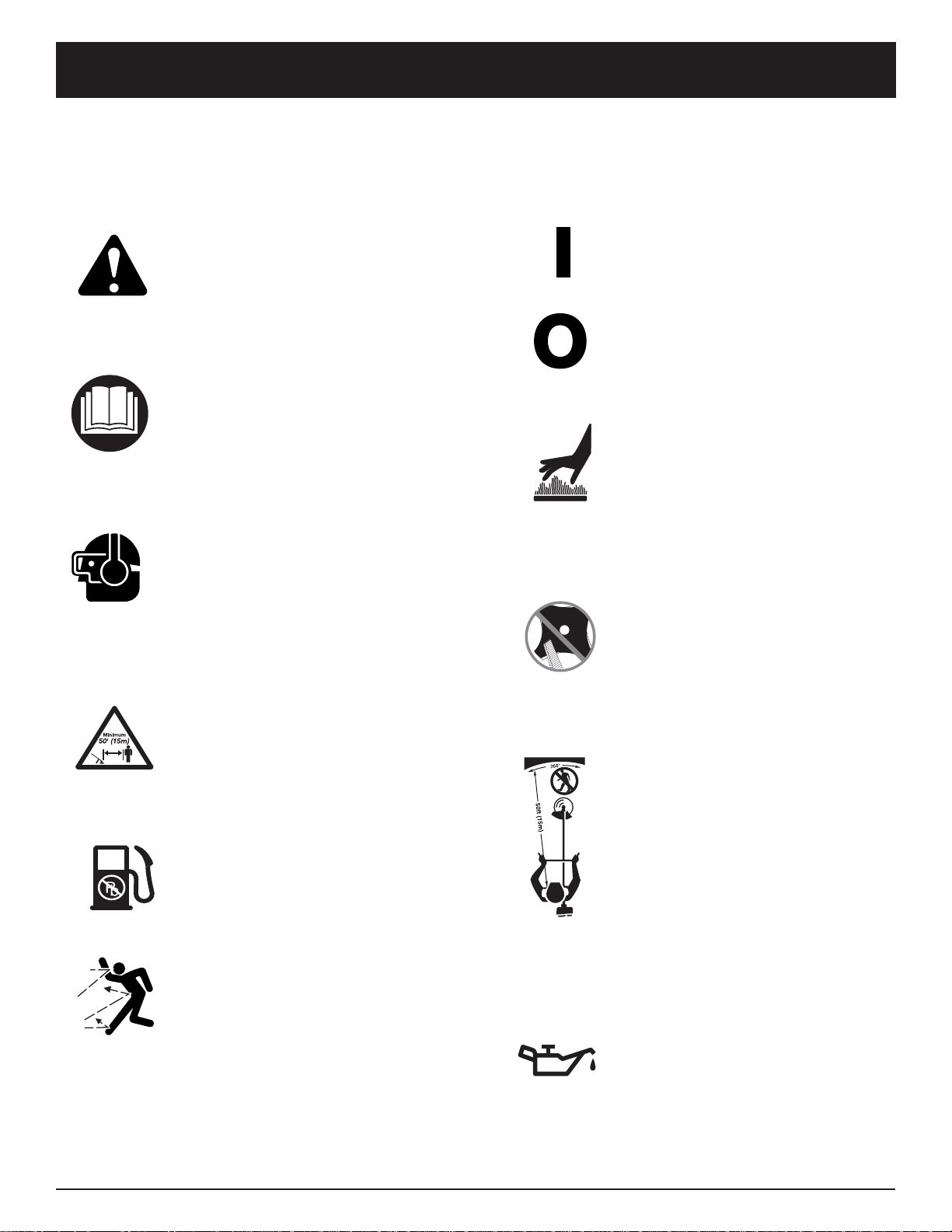

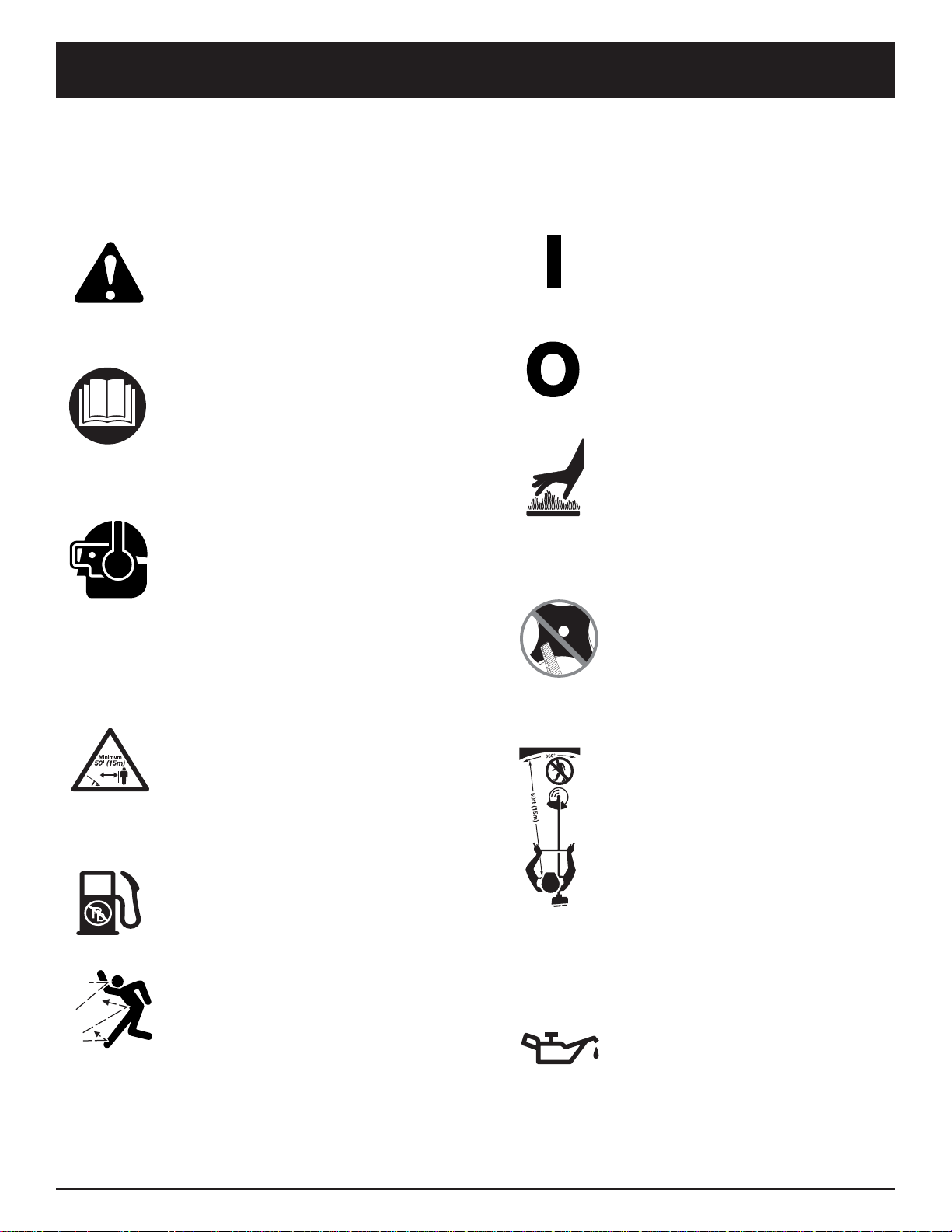

SYMBOL MEANING

• ON/OFF STOP CONTROL

OFF or STOP

• THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE SEVERE INJURY

WARNING:Do not

operate without the cutting attachment shield in place. Keep away from the rotating cutting attachment.

• HOT SURFACE WARNING

Do not touch a hot muffler, gear housing or cylinder. You may get burned. These parts get extremely hot from operation. They remain hot for a short time after the unit is turned off.

• BRUSHCUTTERS •REPLACE DULL BLADE

Do not sharpen the cutting blade. Sharpening the blade can cause the blade tip to break off while in use. This can result in severe personal injury.

• TRIMMER/ BRUSHCUTTER SAFETY

WARNING:Thrown

objects and rotating cutter can cause severe injury. Keep bystanders, especially children and pets, at least 50 feet (15 m) away from the cutting area. The cutting attachment shield must be used when using the trimmer cutting attachment.

SYMBOL MEANING

• SAFETY ALERT SYMBOL

Indicates danger, warning or caution. May be used in conjunction with other symbols or pictographs.

•WARNING - READ OPERATOR'S MANUAL

Read the operator’s manual(s) and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

• WEAR EYE AND HEARING PROTECTION

WARNING:Thrown

objects and loud noise can cause severe eye injury and hearing loss. Wear eye protection meeting ANSI Z87.1 standards and ear protection when operating this unit. Use a full

face shield when needed.

•KEEP BYSTANDERS AWAY

WARNING:Keep all

bystanders, especially children and pets, at least 50 feet (15 m) from the operating area.

• UNLEADED FUEL

Always use clean, fresh unleaded fuel.

• OIL

Refer to operator's manual for the proper type of oil.

•ON/OFF STOP CONTROL

ON / START / RUN

SAFETY AND INTERNATIONAL SYMBOLS

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.

RULES FOR SAFE OPERATION

APPLICATIONS

As a trimmer:

• Cutting grass and light weeds.

• Edging

• Decorative trimming around trees, fences, etc. As a brushcutter:

• Cutting weeds and light brush of up to 1/2 inch in diameter

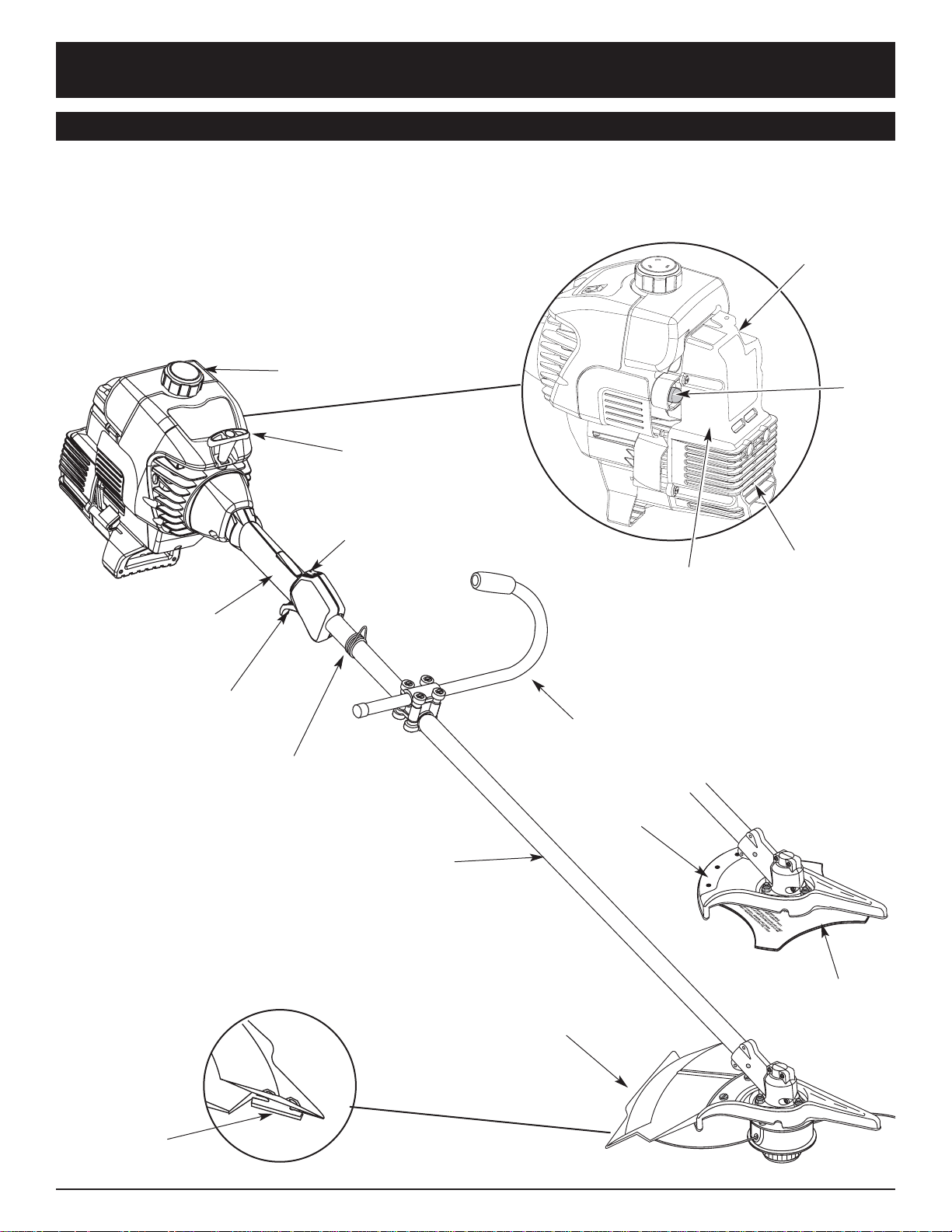

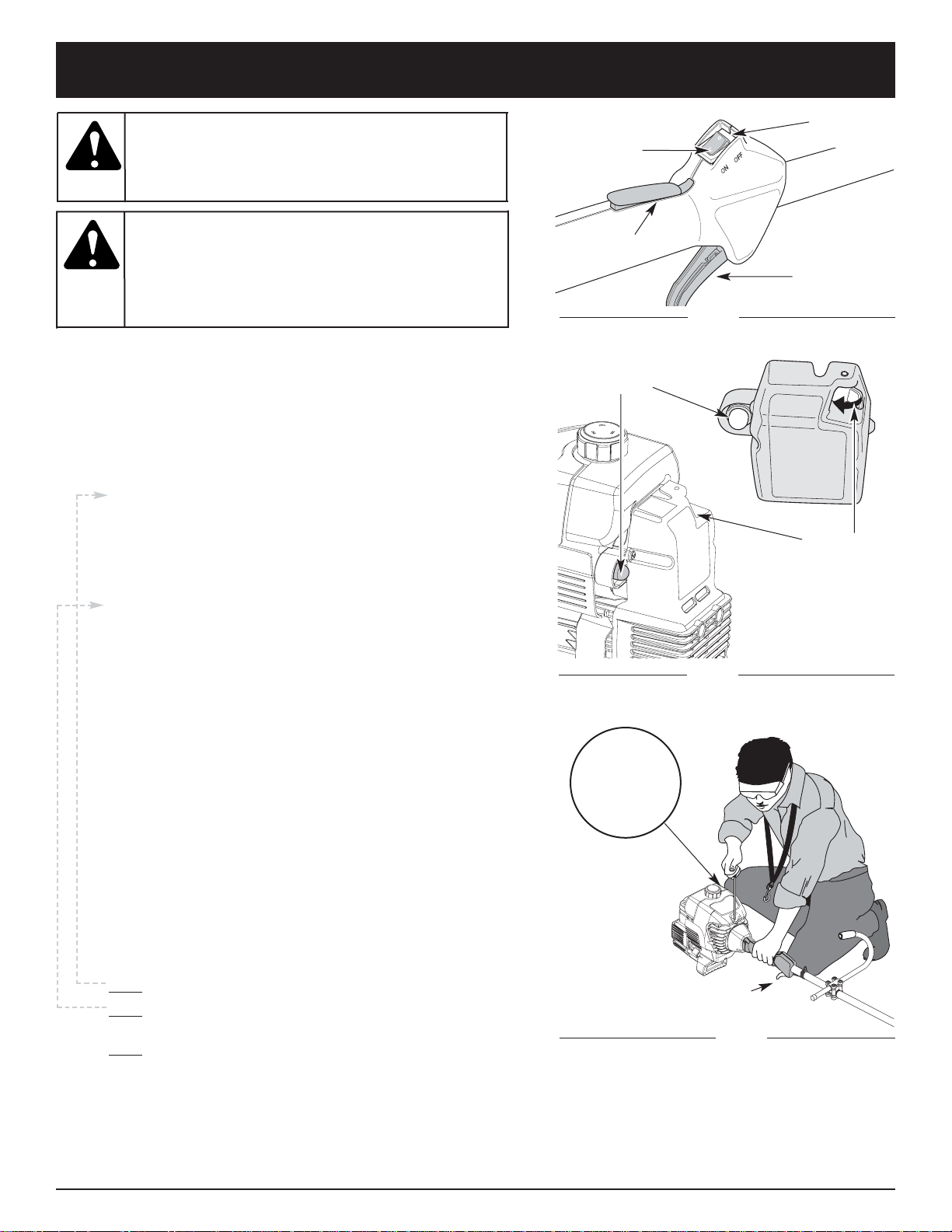

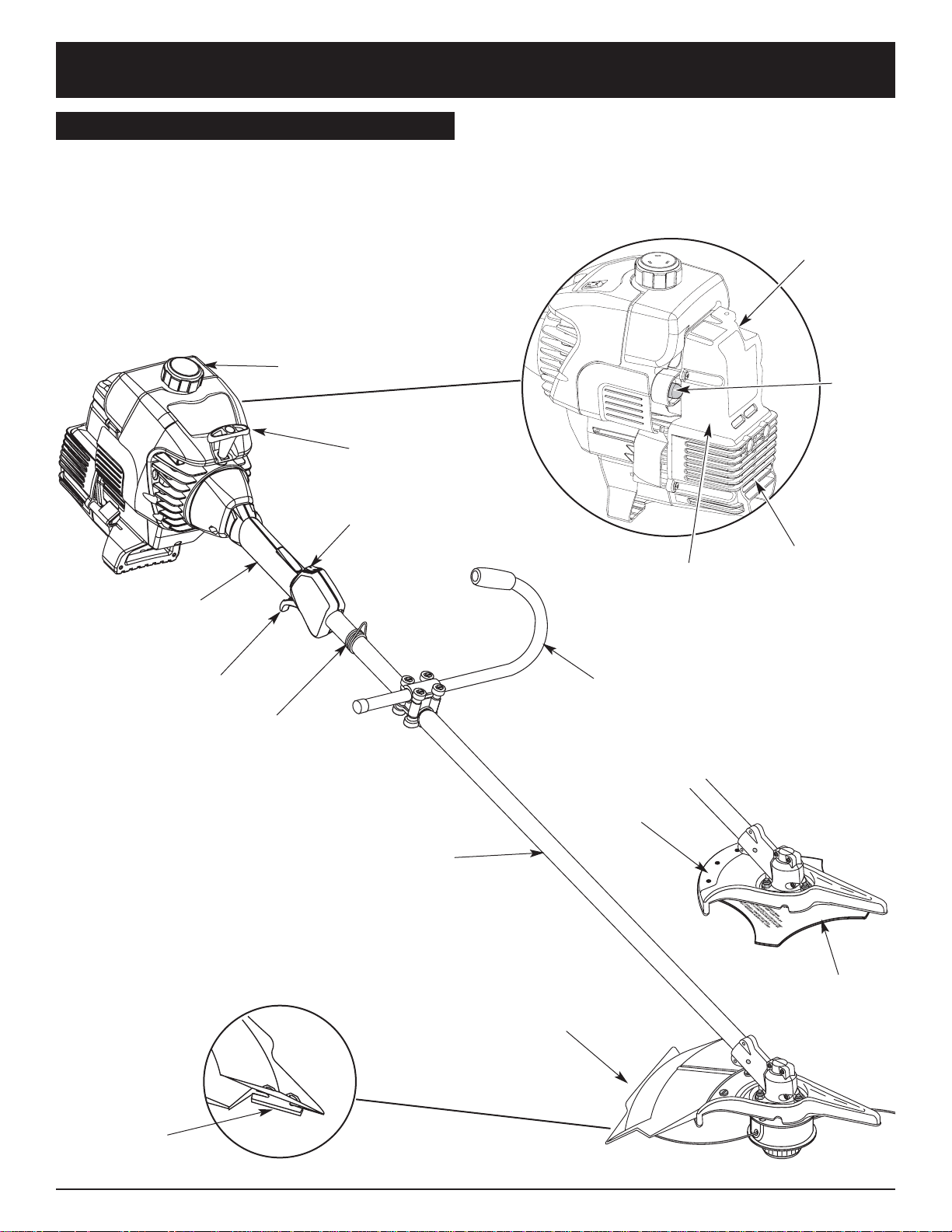

KNOW YOUR UNIT

Blade Shield /

Shield Mount

Brush Blade

Fuel Cap

Throttle

Control

J-Handle

Shaft

Grip

Primer

Bulb

Blue EZ-Start™

Lever

Air Filter/Muffler

Cover

Shaft Tube

Starter

Rope Grip

Line Cutting

Blade

Muffler

On/Off Stop

Control

Cutting Attachment

Shield

Spark Plug

Fig. 1

ASSEMBLY INSTRUCTIONS

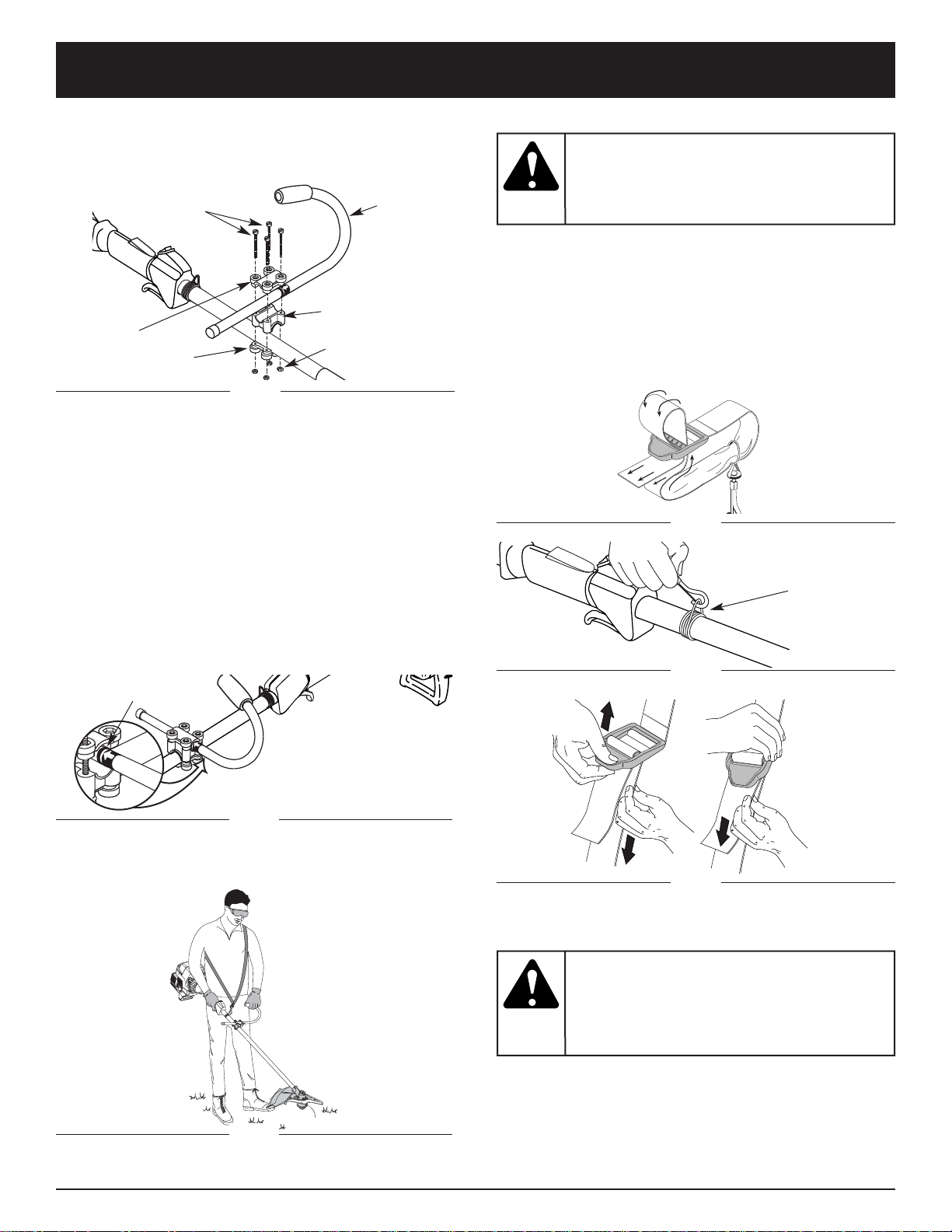

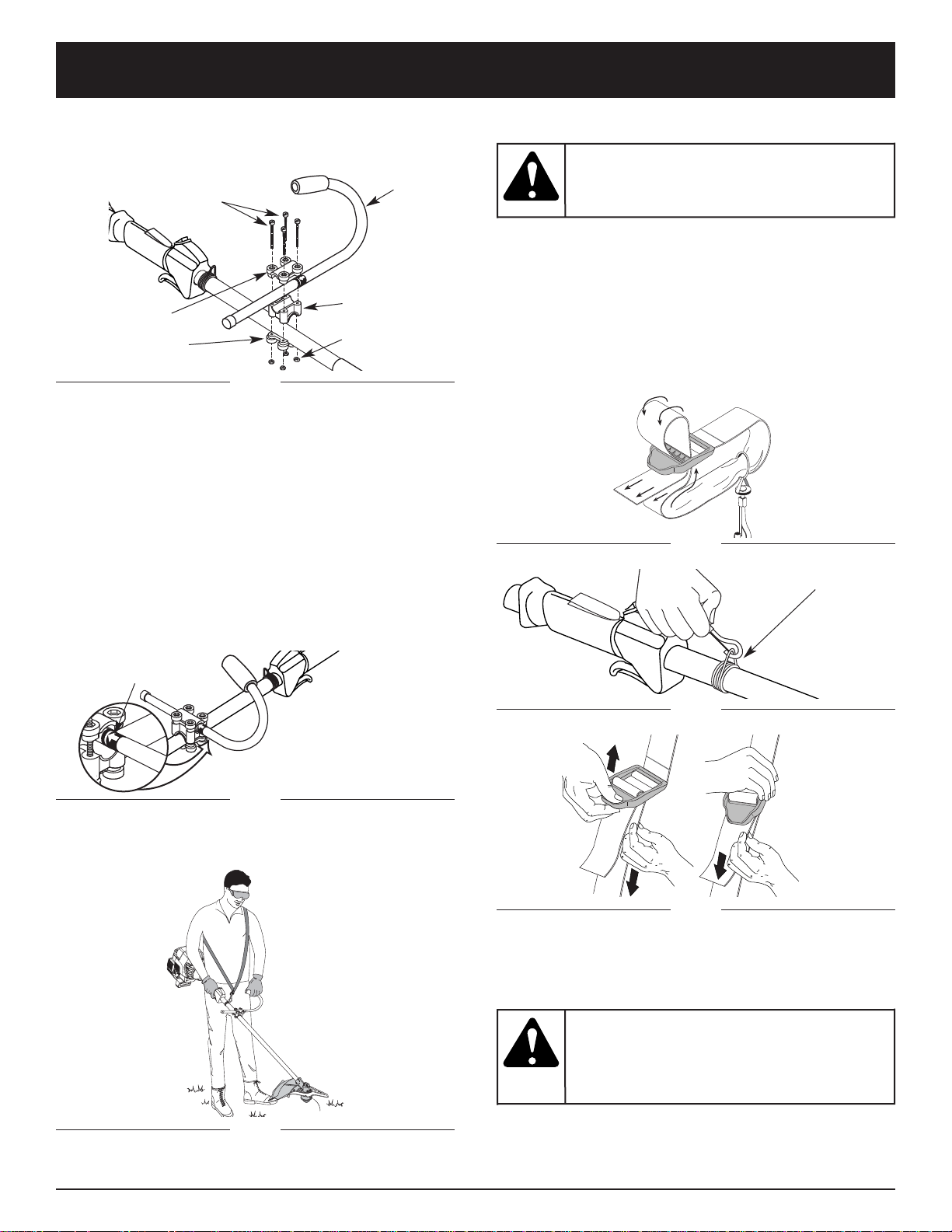

INSTALL AND ADJUST THE J-HANDLE

1. Place the J-handle between the top and middle

clamp pieces (Fig. 1).

(4) Screws

Top Clamp

J-Handle

Middle Clamp

Bottom Clamp

Nuts

2. While holding the three pieces together, install the four

(4) screws through the top clamp and into middle clamp.

NOTE: The holes in the top and middle clamp will line up

only when assembled correctly.

3. Place the clamps and the J-handle over the shaft

housing and onto the bottom clamp.

4. Hold each hex nut in the bottom clamp recess with a

finger. Start screws with a large Phillips screwdriver. Do not tighten until you make the handle adjustment.

5. Slide the J-handle in or out until the arrow/white line on

the decal touches the clamp assembly (Fig. 2). You must first loosen the screws if the handle is pre-installed.

Fig. 2

Fig. 3

6. While holding the unit in the operating position (Fig. 3),

position the J-handle to the location that provides you the best grip.

7. Tighten the clamp screws evenly, until the J-handle

is secure.

Decal

INSTALL THE HARNESS

1. Push the strap through the center of the buckle.

2. Pull the strap over the cross bar and down through the slot in the buckle (Fig. 4).

3. Put the harness on over head and onto shoulder. Snap it on to the support fitting (Fig. 5).

4. Adjust length to fit the operator’s size. Pull tab to lengthen, pull strap to shorten (Fig 6).

Support Fitting

Fig. 4

Fig. 5

Fig. 6

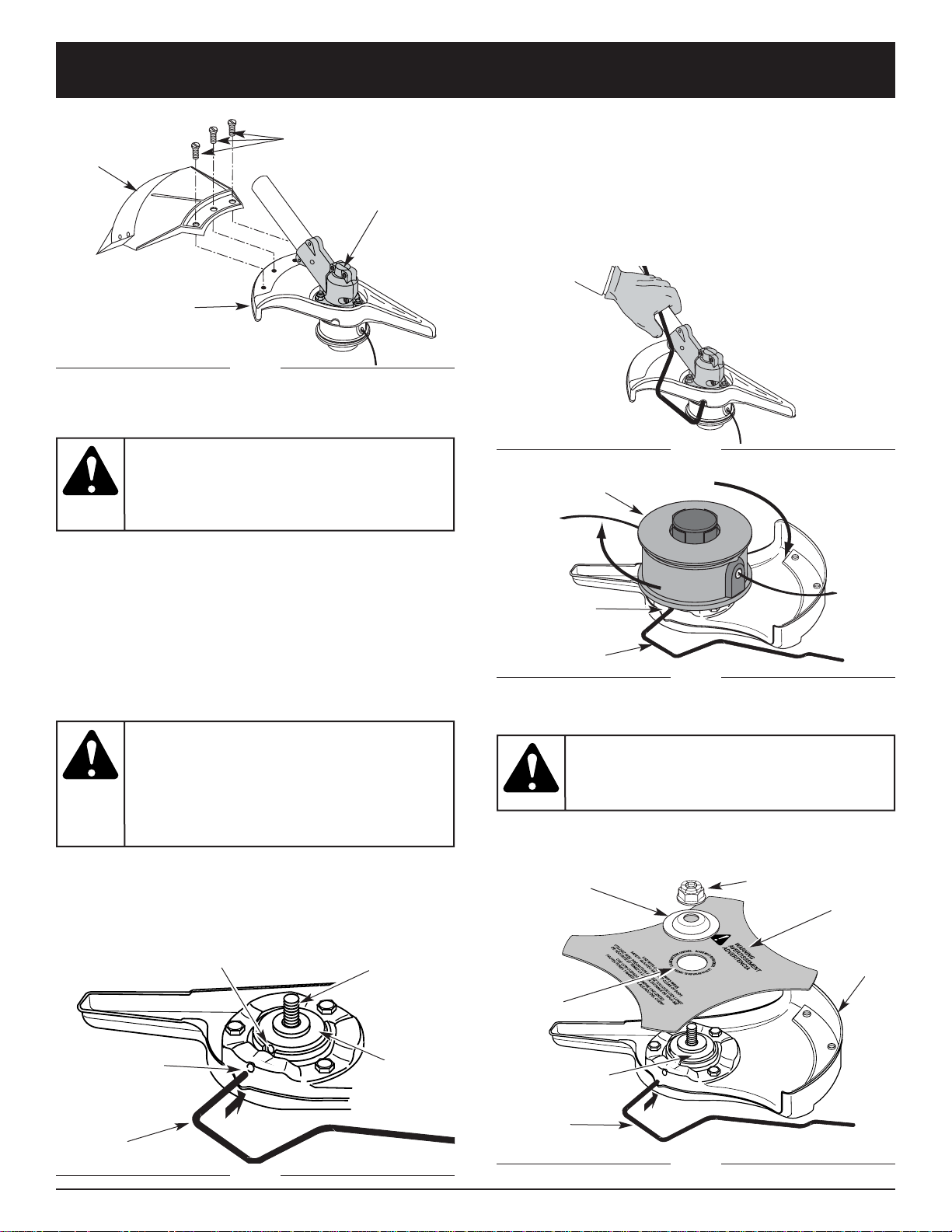

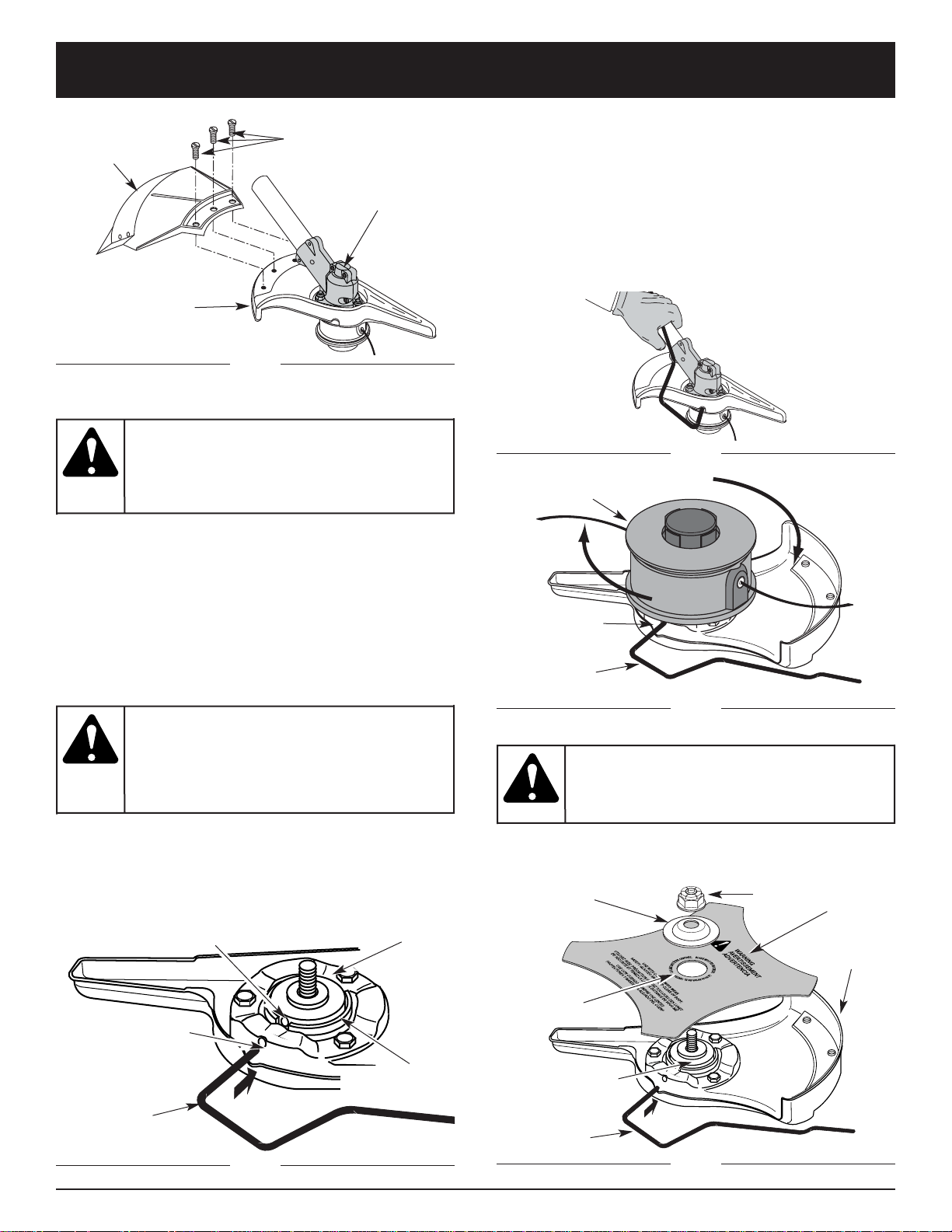

REMOVE AND INSTALL THE CUTTING ATTACHMENT SHIELD

Remove the cutting attachment shield when using the unit as a brushcutter

Remove the cutting attachment shield from the shield mount by removing the three (3) screws with a flat blade screwdriver (Fig. 7). Store parts for future use.

The cutting

attachment shield should NOT be installed when operating the unit with a blade. Remove the cutting attachment shield before removing or installing the blade.

WARNING:

Always use the

shoulder harness when using the cutting blade to avoid serious personal injury.

WARNING:

ASSEMBLY INSTRUCTIONS

Install the cutting attachment shield when using the unit as a grass trimmer

Install the cutting attachment shield on the shield mount by inserting the three (3) screws into the shield mount. Tighten securely with a flat blade screwdriver (Fig. 7).

REMOVE THE CUTTING A TTACHMENT AND INSTALL THE CUTTING BLADE

NOTE: To make cutting blade removal and installation easier,

place the unit on the ground or on a work bench

Remove the Cutting Attachment Shield

See Remove and Install the Cutting Attachment Shield.

Remove the Cutting Attachment

Align the shaft bushing hole with the locking rod slot and insert the locking rod into the shaft bushing hole (Fig. 8).

(3) Screws

Cutting

Attachment

Shield

Shield Mount

Gear Housing

Fig. 7

Cutting Attachment

Locking Rod

Slot

Locking Rod

Shaft Bushing Hole

Locking Rod Slot

Output Shaft

Bushing

Locking Rod

Output Shaft

2. Hold the locking rod in place by grasping it next to the boom of the unit (Fig. 9).

3. While holding the locking rod, remove the cutting attachment by turning it clockwise off of the output shaft (Fig. 10). Store the cutting attachment for future use.

NOTE: The blade retainer under the cutting attachment

will be used when installing the cutting blade.

Fig. 8

Fig. 10

Fig. 9

Install the Cutting Blade

4. Place the cutting blade on the output shaft bushing (Fig. 11).

Shield Mount

Locking Rod

Cutting

Blade

Blade Retainer

Nut

Output Shaft

Bushing

Pilot Hole

Fig. 11

The gear housing

gets hot with use. It can result in injury to the operator. The housing remains hot for a short time even after the unit is turned off. Do not touch the gear housing until it has cooled.

WARNING:

To avoid serious

personal injury, the cutting attachment shield MUST be in place at all times while operating the unit as a grass trimmer.

WARNING:

To avoid serious

personal injury, always wear gloves while handling or installing the blade.

WARNING:

ASSEMBLY INSTRUCTIONS

Fig. 15

Fig. 12

Pilot Step

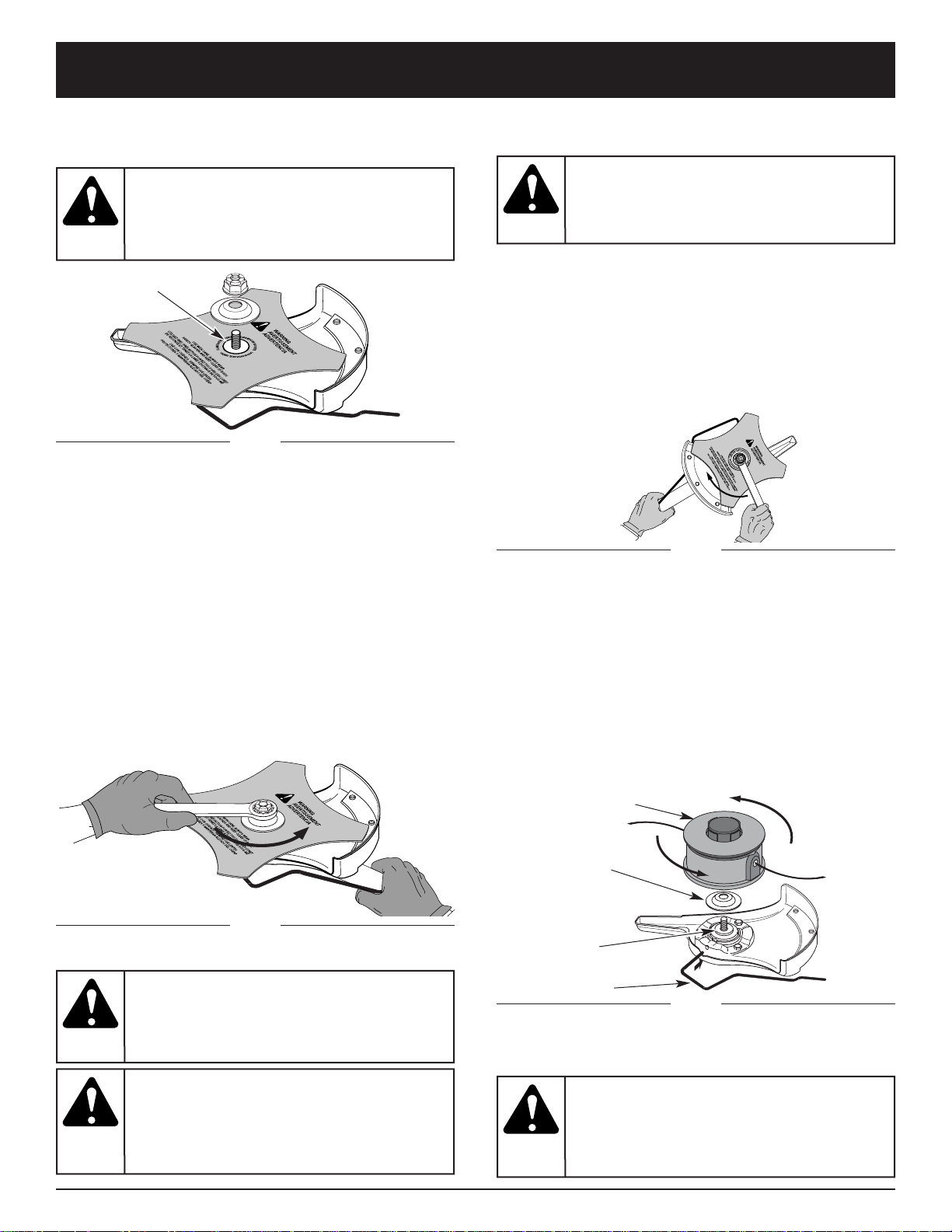

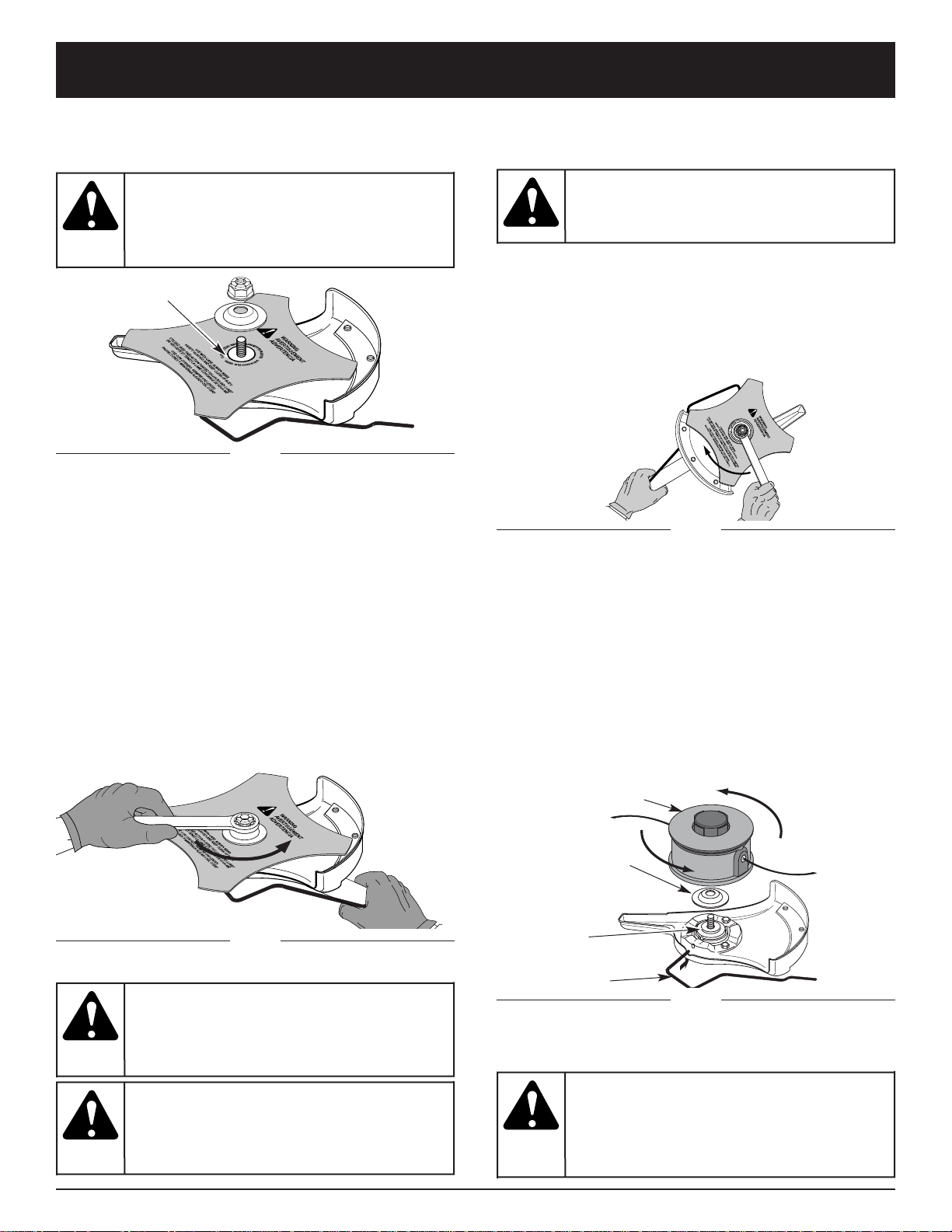

REMOVE THE CUTTING BLADE AND INSTALL THE CUTTING ATTACHMENT

Remove the Cutting Blade

1. Align the shaft bushing hole with the locking rod slot and insert the locking rod into the bushing hole (Fig. 8).

2. Hold the locking rod in place by grasping it next to the boom of the unit (Fig. 14).

3. While holding the locking rod, loosen the nut on the blade by turning it clockwise with a 5/8 inch closedend or socket wrench (Fig. 14).

Fig. 13

9. Remove the locking rod from the locking rod slot.

1/4-1/2 turn

Counterclockwise

6. Align the shaft bushing hole with the locking rod slot and insert the locking rod into the bushing hole (Fig. 8).

7. Put the blade retainer and nut on the output shaft. Make sure that the blade is installed correctly.

8. Tighten nut counterclockwise against the blade while holding the locking rod:

• If using a torque wrench and an 5/8 inch socket tighten

to: 325 - 335 in•lb, 27 - 28 ft.•lb, 37 - 38 N•m.

•Without a torque wrench, use a 5/8 inch closed-end or

socket wrench, turning the nut until the blade retainer is snug against the shaft bushing. Make sure that the blade is installed correctly, then rotate the nut an additional 1/4 to 1/2 turn counterclockwise (Fig. 13).

Cutting Attachment

Locking Rod

Clockwise

6. Remove the locking rod.

7. Install the cutting attachment shield. Refer to Remove

and Install the Cutting Attachment Shield.

Blade Retainer

Output Shaft

Bushing

Fig. 14

5. Make sure that the cutting blade is centered on the pilot step and sitting flat against the output shaft bushing (Fig. 12).

4. Remove the nut, blade retainer and blade. Store the nut and blade together for future use in a secure place. Store out of children’s reach.

Install the Cutting Attachment

Align the shaft bushing hole with the locking rod slot and insert the locking rod into the shaft bushing hole (Fig. 8). Place the blade retainer on the output shaft with the flat surface against the output shaft bushing (Fig. 15). Screw the cutting attachment counterclockwise onto the output shaft. Tighten securely.

NOTE: The blade retainer must be installed on the output

shaft in the position shown for the cutting attachment to work correctly.

If the cutting blade

is off-center, the unit will vibrate and the blade may fly off, causing possible serious personal injury.

WARNING:

To avoid serious

personal injury, always wear gloves while handling or installing the blade.

WARNING:

Do not sharpen the

cutting blade. Sharpening the blade can cause the blade tip to break off while in use. This can result in severe personal injury. Replace the blade.

WARNING:

To avoid serious

personal injury or damage to the unit, do not start or operate this unit with the locking rod in the locking rod slot.

WARNING:

To avoid serious

personal injury, the cutting attachment shield MUST be in place at all times while operating the unit as a trimmer.

WARNING:

OIL AND FUEL INFORMATION

NOTE: Dispose of the old fuel/oil mix in accordance to

Federal, State and Local regulations.

OIL AND FUEL MIXING INSTRUCTIONS

Old and/or improperly mixed fuel are the main reasons for the unit not running properly. Be sure to use fresh, clean unleaded fuel. Follow the instructions carefully for the proper fuel/oil mixture.

Definition of Blended Fuels

Today's fuels are often a blend of gasoline and oxygenates such as ethanol, methanol, or MTBE (ether). Alcohol-blended fuel absorbs water. As little as 1% water in the fuel can make fuel and oil separate. It forms acids when stored. When using alcohol-blended fuel, use fresh fuel (less than 60 days old).

Using Blended Fuels

If you choose to use a blended fuel, or its use is unavoidable, follow recommended precautions:

• Always use the fresh fuel mix explained in your operator's manual

• Always agitate the fuel mix before fueling the unit

• Drain the tank and run the engine dry before storing the unit

Using Fuel Additives

The bottle of 2-cycle oil that came with your unit contains a fuel additive which will help inhibit corrosion and minimize the formation of gum deposits. It is recommended that you use our 2-cycle oil with this unit.

If unavailable, use a good 2-cycle oil designed for air-cooled engines along with a fuel additive, such as STA-BIL®Gas Stabilizer or an equivalent. Add 0.8 oz. (23 ml.) of fuel additive per gallon of fuel according to the instructions on the container. NEVER add fuel additives directly to the unit's fuel tank.

Thoroughly mix the proper ratio of 2-cycle engine oil with unleaded gasoline in a separate fuel can. Use a 40:1 fuel/oil ratio. Do not mix them directly in the engine fuel tank. See the table below for specific gas and oil mixing ratios.

NOTE: One gallon (3.8 liters) of unleaded gasoline mixed

with one 3.2 oz. (95 ml.) bottle of 2-cycle oil makes a 40:1 fuel/oil ratio.

UNLEADED GAS 2 CYCLE OIL

1 GALLON US

(3.8 LITERS)

3.2 FL. OZ. (95 ml)

1 LITER 25 ml

MIXING RATIO - 40:1

Add fuel in a clean,

well ventilated outdoor area. Wipe up any spilled fuel immediately. Avoid creating a source of ignition for spilt fuel. Do not start the engine until fuel vapors dissipate.

WARNING:

Gasoline is

extremely flammable. Ignited Vapors may explode. Always stop the engine and allow it to cool before filling the fuel tank. Do not smoke while filling the tank. Keep sparks and open flames at a distance from the area.

WARNING:

Remove fuel cap

slowly to avoid injury from fuel spray. Never operate the unit without the fuel cap securely in place

WARNING:

For proper engine

operation and maximum reliability, pay strict attention to the oil and fuel mixing instructions on the 2-cycle oil container. Using improperly mixed fuel can severely damage the engine.

CAUTION:

STARTING/STOPPING INSTRUCTIONS

STARTING INSTRUCTIONS

Fig. 16

Fig. 17

Throttle Control

(Do NOT squeeze during

a standard start)

STOPPING INSTRUCTIONS

1. Release your finger from the throttle control. Allow the engine to cool down by idling.

2. Put the On/Off Stop Control in the OFF (O) position (Fig. 16).

Fig. 18

1. Mix gas with oil. Fill fuel tank with fuel/oil mixture. See Oil and Fuel Mixing Instructions.

NOTE: There is no need to turn the unit on. The On/Off

Stop Control is in the ON ( I ) position at all times.

2. Fully press and release the primer bulb 10 times, slowly. Some amount of fuel should be visible in the primer bulb and fuel lines (Fig. 17). If you can’t see fuel in the bulb, press and release the bulb as many times as it takes before you can see fuel in it.

3. Push the blue EZ-Start™ Lever towards the primer bulb until it clicks and locks into place (Fig. 17).

4. Crouch in the starting position and do not squeeze the throttle control (Fig. 18). Pull the starter rope out with a controlled and steady motion until the engine attempts to start. Repeat until the engine starts.

NOTE: The unit uses EZ-Pull Version 3™, which

significantly reduces the effort required to start the engine. You must pull the starter rope out far enough to hear the engine attempt to start. There is no need to pull the rope briskly-- there is no harsh resistance when pulling. Be aware that this starting method is vastly different from (and much easier than) what you may be used to.

5. When the engine starts, squeeze the throttle lock-out and then squeeze the throttle control for 15 to 30 seconds. This will warm up the unit. The blue EZ-Start™ Lever will click off automatically when you squeeze the throttle control.

...

The engine does not start, go back to step 2.

...

The engine stops while you are squeezing the throttle, go back to step 3.

IF... The engine stops before you squeeze the throttle

control, hold the throttle control and pull the starter rope until the trimmer starts.

NOTE: If you are having trouble starting the unit or are

operating in extreme temperatures (below 40º F, above 90º F), refer to the Troubleshooting section.

Starting Position

Operate this unit only in a

well- ventilated outdoor area. Carbon monoxide exhaust fumes can be lethal in a confined area.

WARNING:

Start/On ( I )

Stop/Off (O)

Throttle

Control

Throttle

Lock-Out

Avoid accidental starting.

Make sure you are in the starting position when pulling the starter rope (Fig. 18).

To avoid serious injury, the operator and unit

must be in a stable position while starting.

WARNING:

Primer

Bulb

Blue EZ-Start™

Lever

Trimmer

Equipped With

EZ-Pull

Version 3 ™

OPERATING INSTRUCTIONS

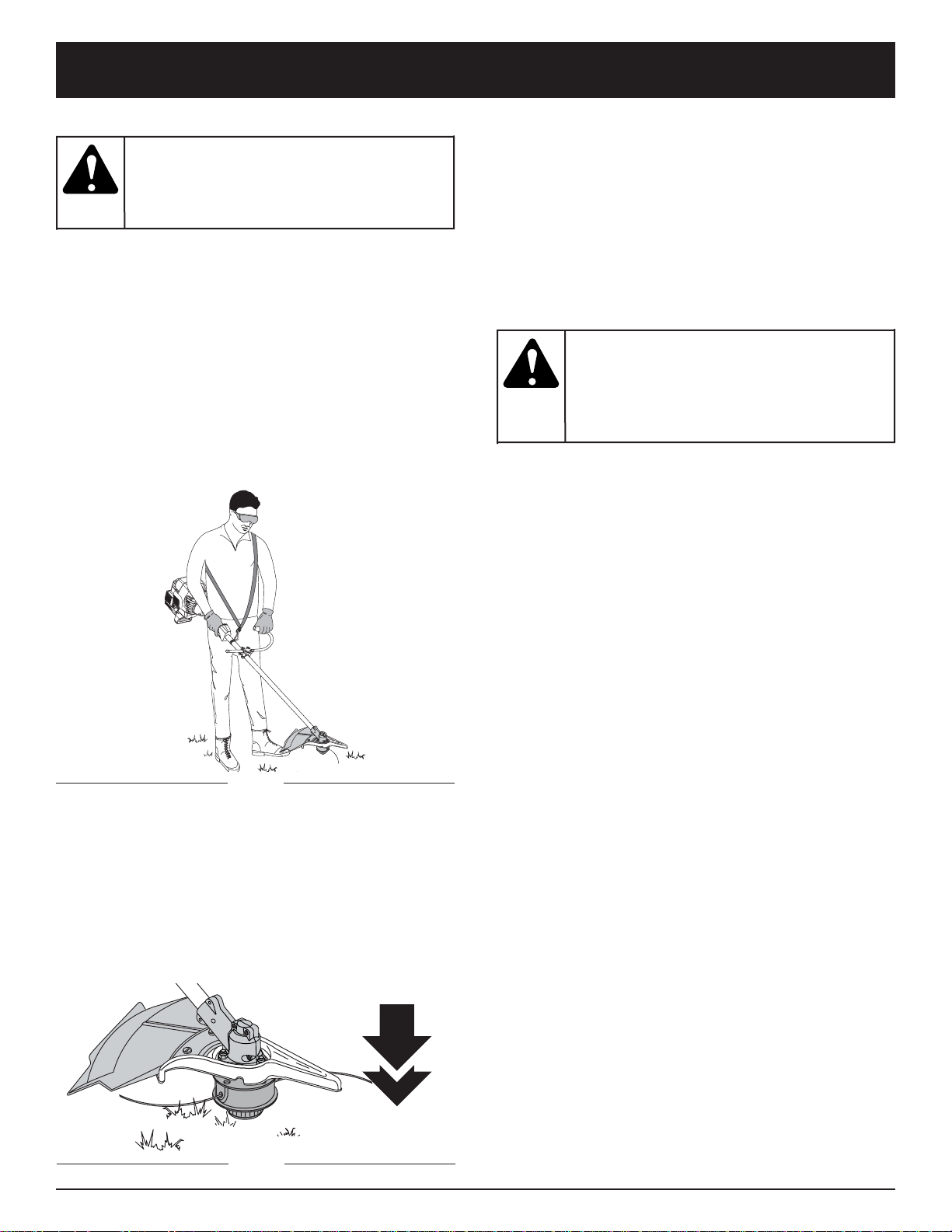

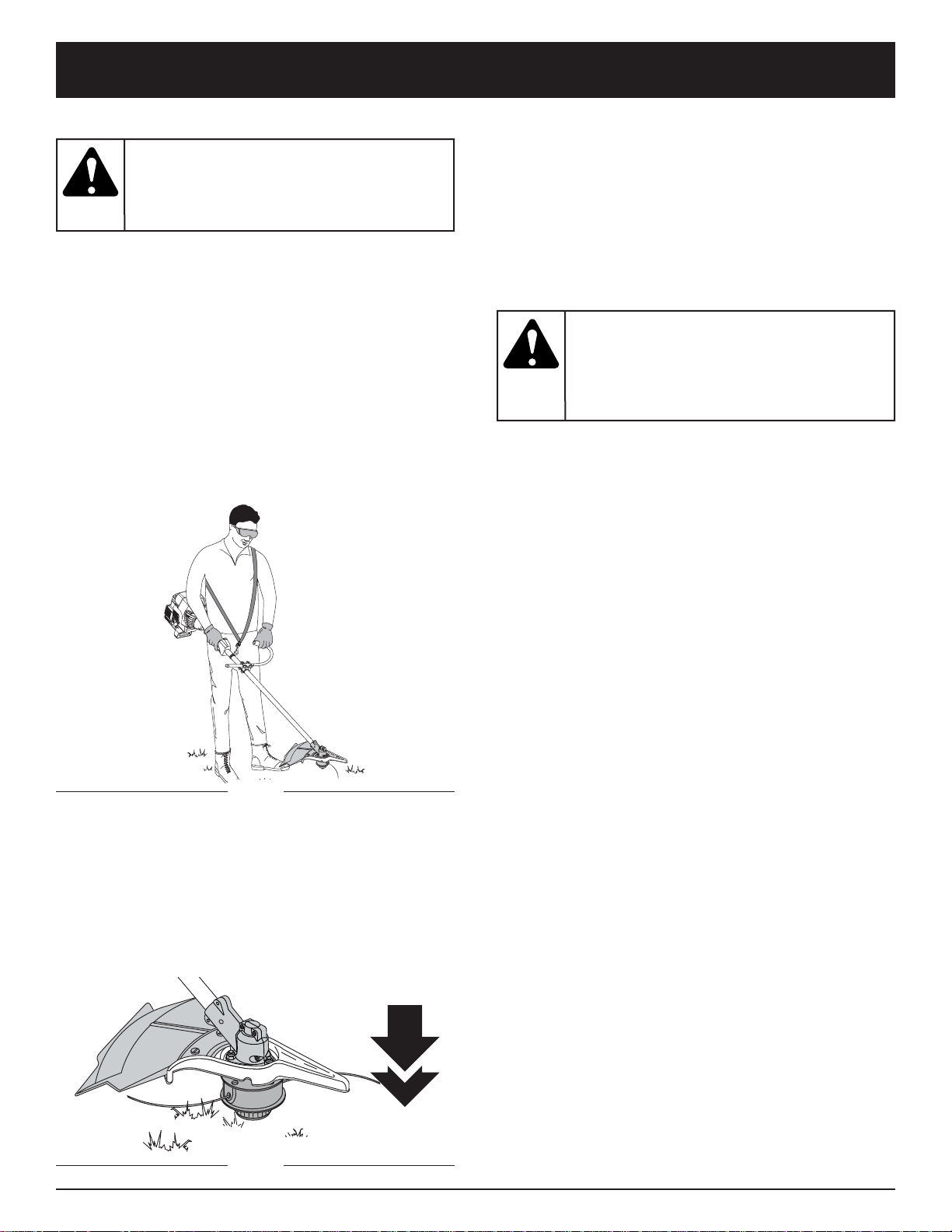

HOLDING THE TRIMMER

Before operating the unit, stand in the operating position (Fig. 19). Check for the following:

• The operator is wearing eye protection and proper clothing

• With a slightly-bent right arm, the operator’s right hand is holding the shaft grip

• The operator’s left arm is straight, the left hand holding the J-handle

• The unit is at waist level

• The cutting attachment is parallel to the ground and easily contacts the grass without the need to bend over

Once you are in the operating position, hook the shoulder strap to the unit.

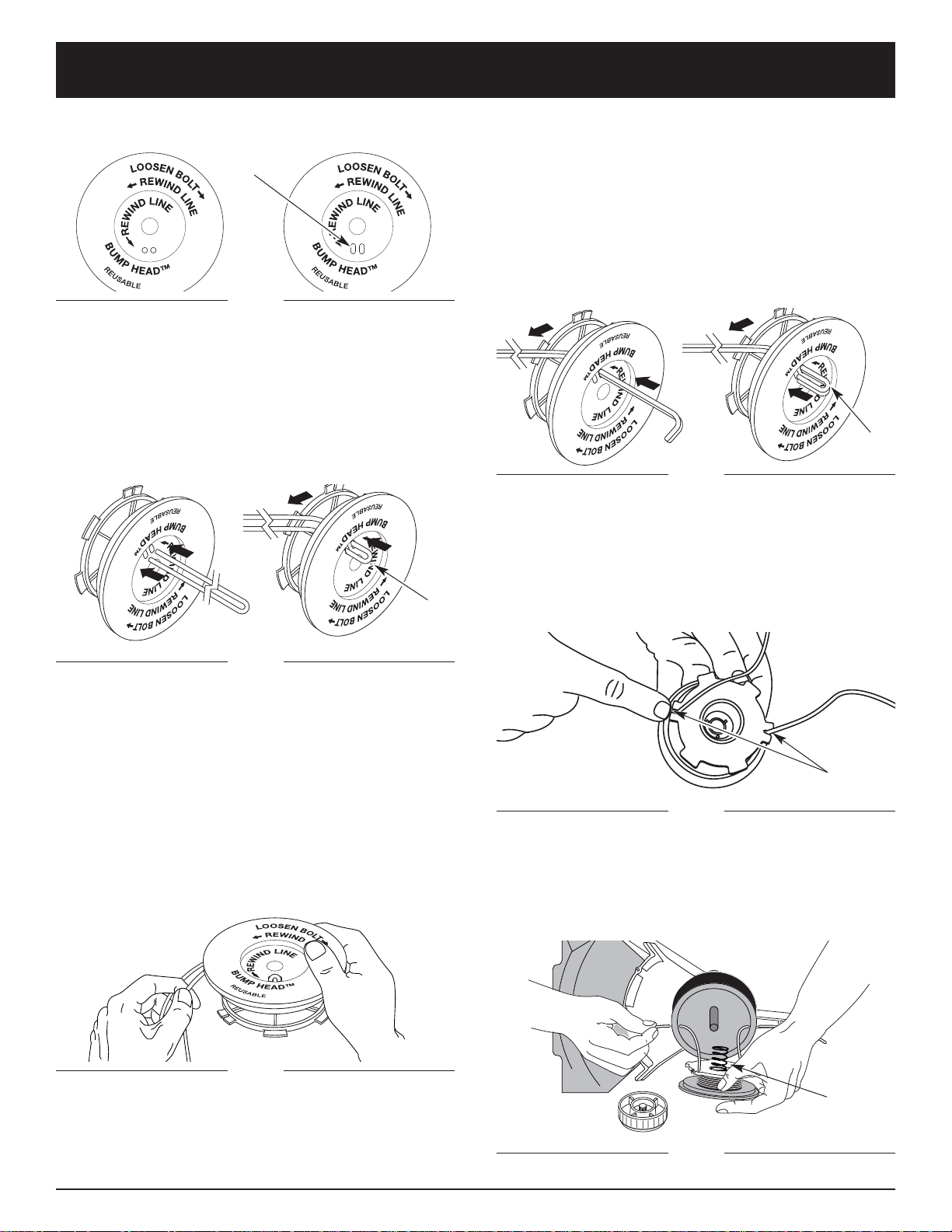

ADJUSTING TRIMMING LINE LENGTH

The Bump Head™ cutting attachment allows you to release trimming line without stopping the engine. To release more line, lightly tap the cutting attachment on the ground (Fig. 20) while operating the trimmer at high speed.

NOTE: Always keep the trimming line fully extended.

Line release becomes more difficult as the cutting line becomes shorter.

Fig. 20

Each time the head is bumped, about 1 inch (25.4 mm) of trimming line is released. A blade in the cutting attachment shield will cut the line to the proper length if excess line is released.

For best results, tap the Bump Head™ on bare ground or hard soil. If line release is attempted in tall grass, the engine may stall. Always keep the trimming line fully extended. Line release becomes more difficult as the cutting line becomes shorter.

NOTE: Do not rest the Bump Head™ on the ground

while the unit is running.

Some line breakage will occur from:

• Entanglement with foreign matter

• Normal line fatigue

• Attempting to cut thick, stalky weeds

• Forcing the line into objects such as walls or fence posts

TIPS FOR BEST TRIMMING RESULTS

• For best trimming results, operate unit at full throttle.

• Keep the cutting attachment parallel to the ground.

• Do not force the cutting attachment. Allow the tip of the line to do the cutting, especially along walls. Cutting with more than the tip will reduce cutting efficiency and may overload the engine.

• Cut grass over 8 inches (200 mm) by working from top to bottom in small increments to avoid premature line wear or engine drag.

• Cut from left to right whenever possible. Cutting to the right improves the unit's cutting efficiency. Clippings are thrown away from the operator.

• Slowly move the trimmer into and out of the cutting area at the desired height. Move either in a forwardbackward or side-to-side motion. Cutting shorter lengths produces the best results.

• Trim only when grass and weeds are dry.

• The life of your cutting line is dependent upon:

• Proper adherence of trimming techniques (explained

above)

• What vegetation is cut

• Where vegetation is cut

For example, the line will wear faster when trimming against a foundation wall as opposed to trimming around a tree.

Always wear eye,

hearing, foot and body protection to reduce the risk of injury when operating this unit.

WARNING:

Do not remove or alter

the line cutting blade assembly. Excessive line length will make the clutch overheat. This may lead to serious personal injury or damage to the unit.

CAUTION:

Fig. 19

OPERATING INSTRUCTIONS

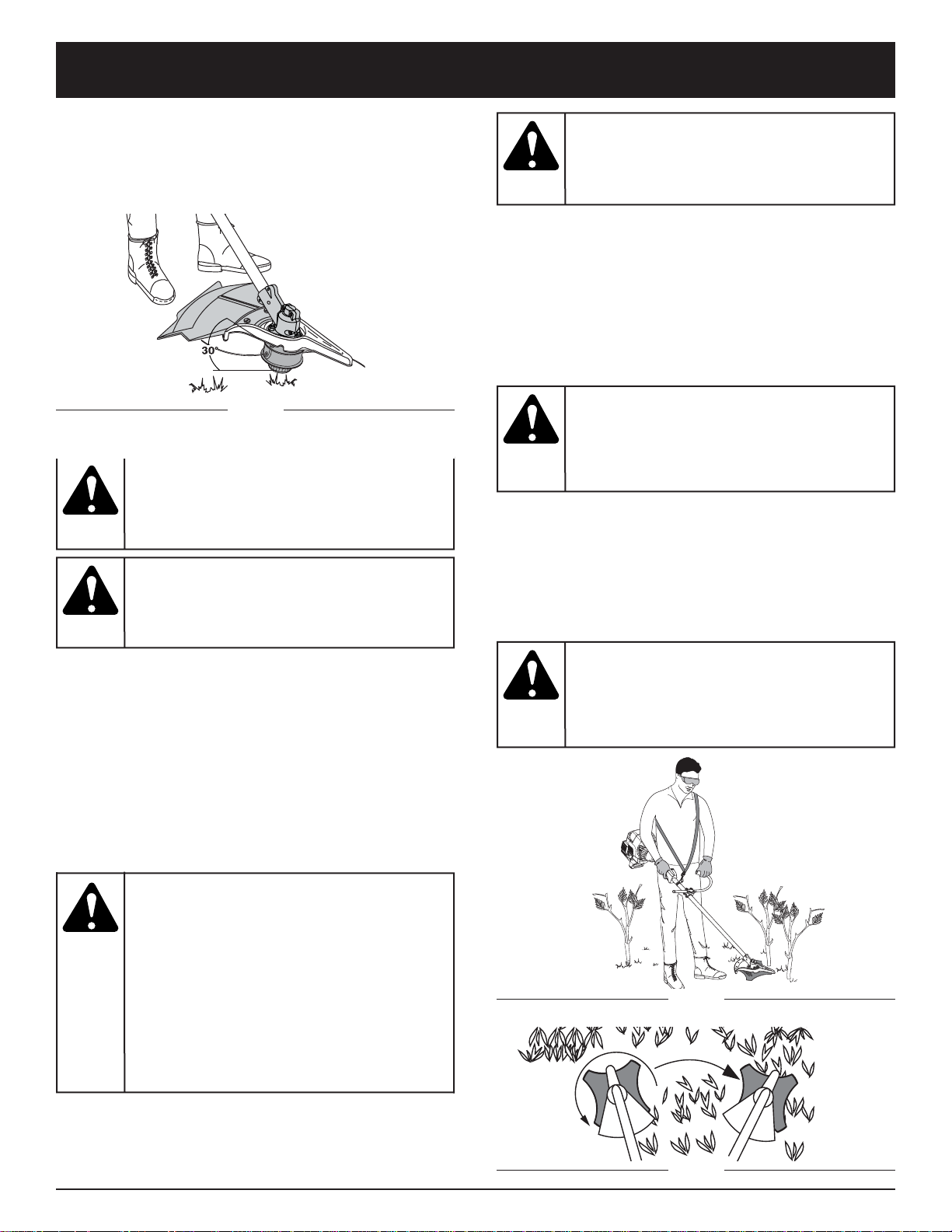

Fig. 21

Fig. 22

Fig. 23

DECORATIVE TRIMMING

Decorative trimming is accomplished by removing all vegetation around trees, posts, fences and more.

Rotate the whole unit so that the cutting attachment is at a 30° angle to the ground (Fig. 21).

USING THE CUTTING BLADE

Before operating the unit with the cutting blade, stand in the operating position (Fig. 22). Refer to Holding the Trimmer.

Cutting Blade Operating Tips

To establish a rhythmic cutting procedure:

• Plant feet firmly, comfortably apart.

• Bring the engine to full throttle before entering the material to be cut. At full throttle the blade has maximum cutting power and is less likely to bind, stall or cause blade thrust (which can result in serious personal injury to the operator or others).

• Cut while swinging the upper part of your body from left to right.

• Always release the throttle trigger and allow the engine to return to idle speed when not cutting.

• When you are finished, always unsnap the unit from the harness before taking off the harness.

• Swing the unit in the opposite direction as the blade spins, which increases the cutting action.

• After the return swing, move forward to the next area to be cut plant your feet again.

• The cutting blade is designed with a second cutting edge. You can use it by removing the blade, turning it upside down, and reinstalling it.

To reduce the chance of material wrapping around the blade, follow these steps:

• Cut at full throttle

• Swing the unit into material to be cut from your left to your right (Fig. 23)

• Avoid the material just cut as you make the return swing

Always wear eye,

hearing, foot, body protection and the shoulder strap to reduce the risk of injury when operating this unit.

WARNING:

Do not use the

cutting blade for edging or as an edger. Severe personal injury to yourself or others can result.

WARNING:

The blade continues

to spin after the engine is turned off. The coasting blade can seriously cut you if accidentally touched.

WARNING:

Do not sharpen the

cutting blade. Sharpening the blade can cause the blade tip to break off while in use. This can result in severe personal injury to yourself or others. Replace the blade.

WARNING:

ade thrust may

occur when the spinning blade contacts an object that it does not immediately cut. Blade thrust can be violent enough to cause the unit and/or operator to be propelled in any direction, and possibly lose control of the unit. Blade thrust can occur without warning if the blade snags, stalls or binds. This is more likely to occur in areas where it is difficult to see the material being cut.

WARNING:

Do not clear away

any cut material with the engine running or blade turning. To avoid serious personal injury, turn off the engine. Allow the blade to stop before removing materials wrapped around the blade shaft.

WARNING:

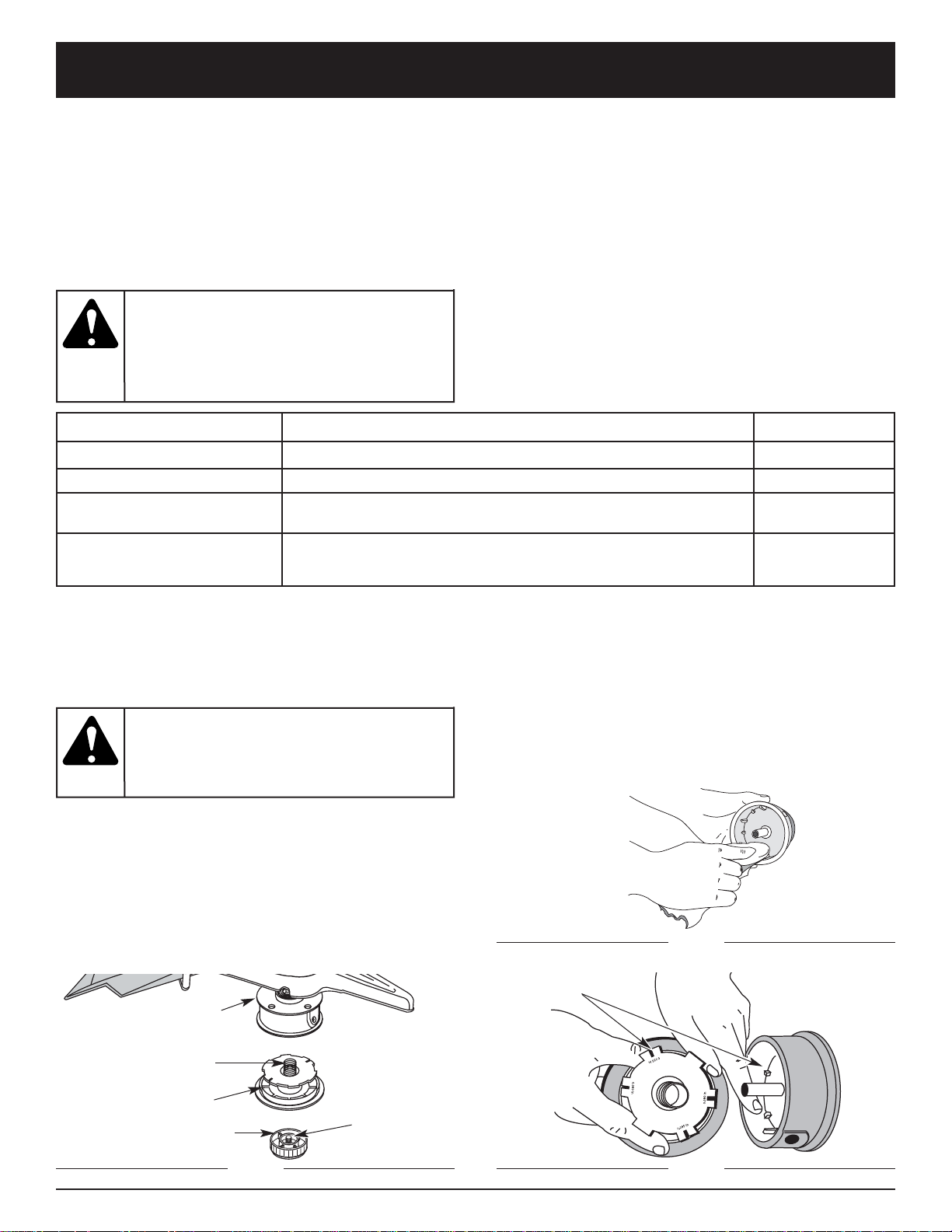

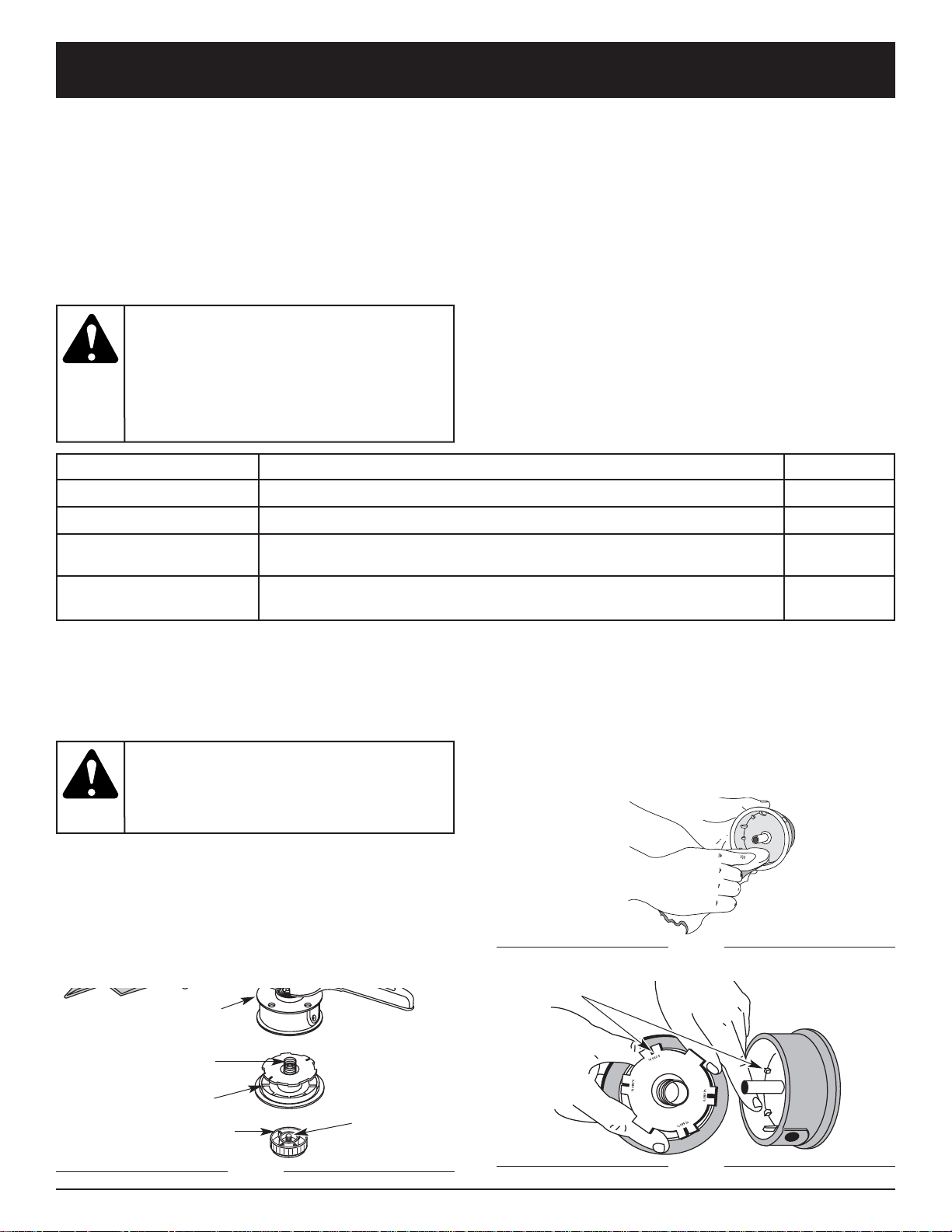

MAINTENANCE AND REPAIR INSTRUCTIONS

MAINTENANCE SCHEDULE

Perform these required maintenance procedures at the frequency stated in the table. These procedures should also be a part of any seasonal tune-up.

NOTE: Some maintenance procedures may require

special tools or skills. If you are unsure about these procedures take your unit to any non-road engine repair establishment, individual or authorized service dealer.

NOTE: Maintenance, replacement, or repair of the

emission control devices and system may be performed by any non-road engine repair establishment, individual or authorized service dealer.

In order to assure peak performance of your engine, inspection of the engine exhaust port may be necessary after 50 hours of operation. If you notice lost RPM, poor performance or general lack of acceleration, this service may be required. If you feel your engine is in need of this inspection, refer service to any non-road engine repair establishment, individual or authorized service dealer for repair. DO NOT attempt to perform this process yourself as engine damage may result from contaminants involved in the cleaning process for the port.

FREQUENCY MAINTENANCE REQUIRED REFER TO

Before starting engine Fill fuel tank with fresh fuel Page 11 Every 10 hours Clean and re-oil air filter Page 17

Every 25 hours

Check and clean spark arrestor Check spark plug condition and gap

Page 18 Page 20

Every 50 hours

Inspect exhaust port and spark arrestor screen for clogging or obstruction to assure maximum performance levels

Page 18

To prevent serious

injury, never perform maintenance or repairs with unit running. Always service and repair a cool unit. Disconnect the spark plug wire to ensure that the unit cannot start.

WARNING:

Indexing Teeth

Fig. 25

Fig. 26

LINE INSTALLATION

This section covers both SplitLine™ and standard single line installation.

Always use original equipment manufacturer 0.095 in. (2.41 mm) replacement line. Other types of line may make the engine overheat or fail.

There are two methods to replace the trimming line:

• Wind the inner reel with new line

• Install a prewound inner reel

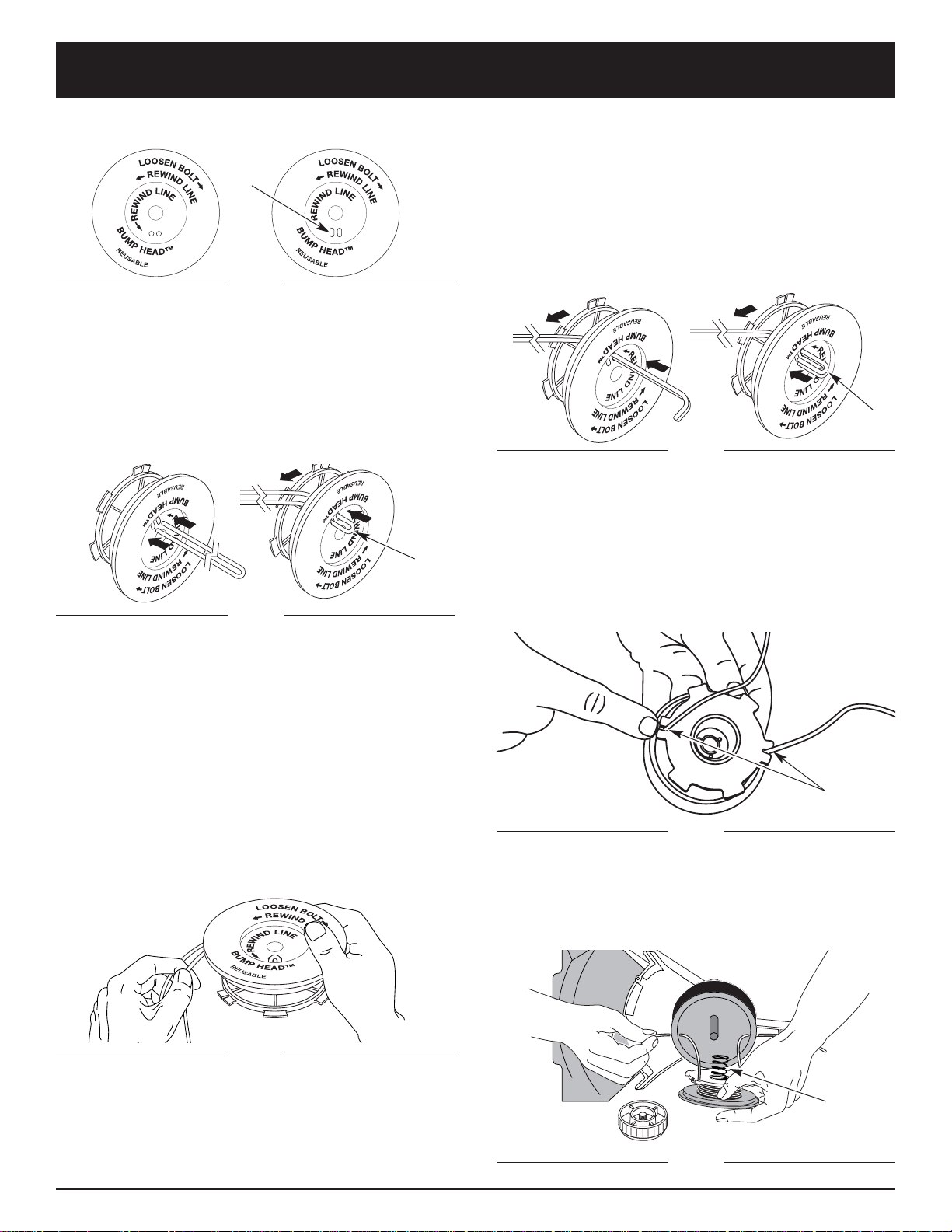

Winding the Existing Inner Reel

1. Hold the outer spool with one hand and unscrew the Bump Knob clockwise (Fig. 24). Inspect the bolt inside the bump knob to make sure it moves freely. Replace the bump knob if damaged.

2. Remove the inner reel from the outer spool (Fig. 24).

3. Remove spring from the inner reel (Fig. 24).

4. Use a clean cloth to clean the the inner reel, spring, shaft and inner surface of the outer spool (Fig. 25).

5. Check the indexing teeth on the inner reel and outer spool for wear (Fig. 26). If necessary, remove burrs or replace the reel and spool.

Inner Reel

Spring

Outer Spool

Bump Knob

Bolt

Fig. 24

Never use metal-

reinforced line, wire, chain or rope. These can break off and become dangerous projectiles.

WARNING:

MAINTENANCE AND REPAIR INSTRUCTIONS

Fig. 28

Fig. 29

Fig. 31

Fig. 32

Fig. 27

NOTE: SplitLine™ can only be used with the inner reel

with the slotted holes. Single line can be used on either type of inner reel. Use Figure 27 to identify the inner reel you have.

NOTE: Always use the correct line length when installing

trimming line on the unit. The line may not release properly if the line is too long.

Single Line Installation

Go To Step 8 for SplitLine™ Installation

6. Take approximately 20 feet (6 m) of new trimming line, loop it into two equal lengths. Insert each end of the line through one of the two holes in the inner reel (Fig. 28). Pull the line through the inner reel so that the loop is as small as possible.

7. Wind the lines in tight even layers, onto the reel (Fig. 29). Wind the line in the direction indicated on the inner reel. Place your index finger between the two lines to stop the lines from overlapping. Do not overlap the ends of the line. Proceed to step 11.

Spring

SplitLine™ Installation

8. Take approximately 10 feet (3 m) of new trimming line. Insert one end of the line through one of the two holes in the inner reel (Fig. 30). Pull the line through the inner reel until only about 4 inches is left out.

9. Insert the end of the line into the open hole in the inner reel and pull the line tight to make the loop as small as possible (Fig. 30).

10. Before winding, split the line back about 6 inches.

11. Wind the line in tight even layers in the direction indicated on the inner reel.

NOTE: Failure to wind the line in the direction indicated will

cause the cutting attachment to operate incorrectly.

Loop

Slotted

Holes

For Use with SplitLine™

or Single Line

For Use with Single

Line ONLY

Loop

Holding Slots

NOTE: The spring must be assembled on the inner reel

before reassembling the cutting attachment.

14. Hold the inner reel in place and install the bump knob by turning counterclockwise. Tighten securely.

12. Insert the ends of the line into the two holding slots (Fig. 31).

13. Insert the ends of the line through the eyelets in the outer spool and place inner reel with spring inside the outer spool (Fig. 32). Push the inner reel and outer spool together. While holding the inner reel and outer spool, grasp the ends and pull firmly to release the line from the holding slots in the reel.

Fig. 30

MAINTENANCE AND REPAIR INSTRUCTIONS

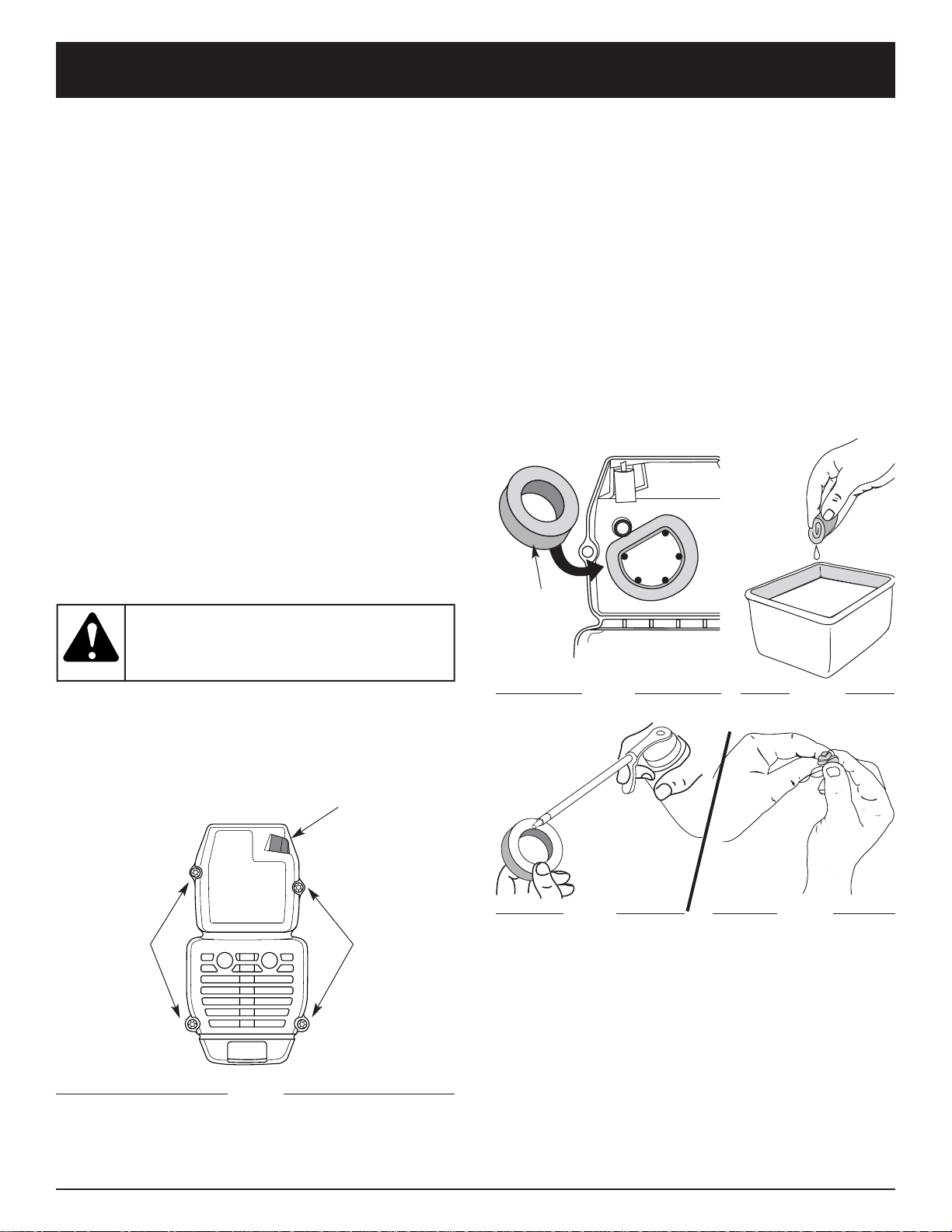

Fig. 33

AIR FILTER MAINTENANCE

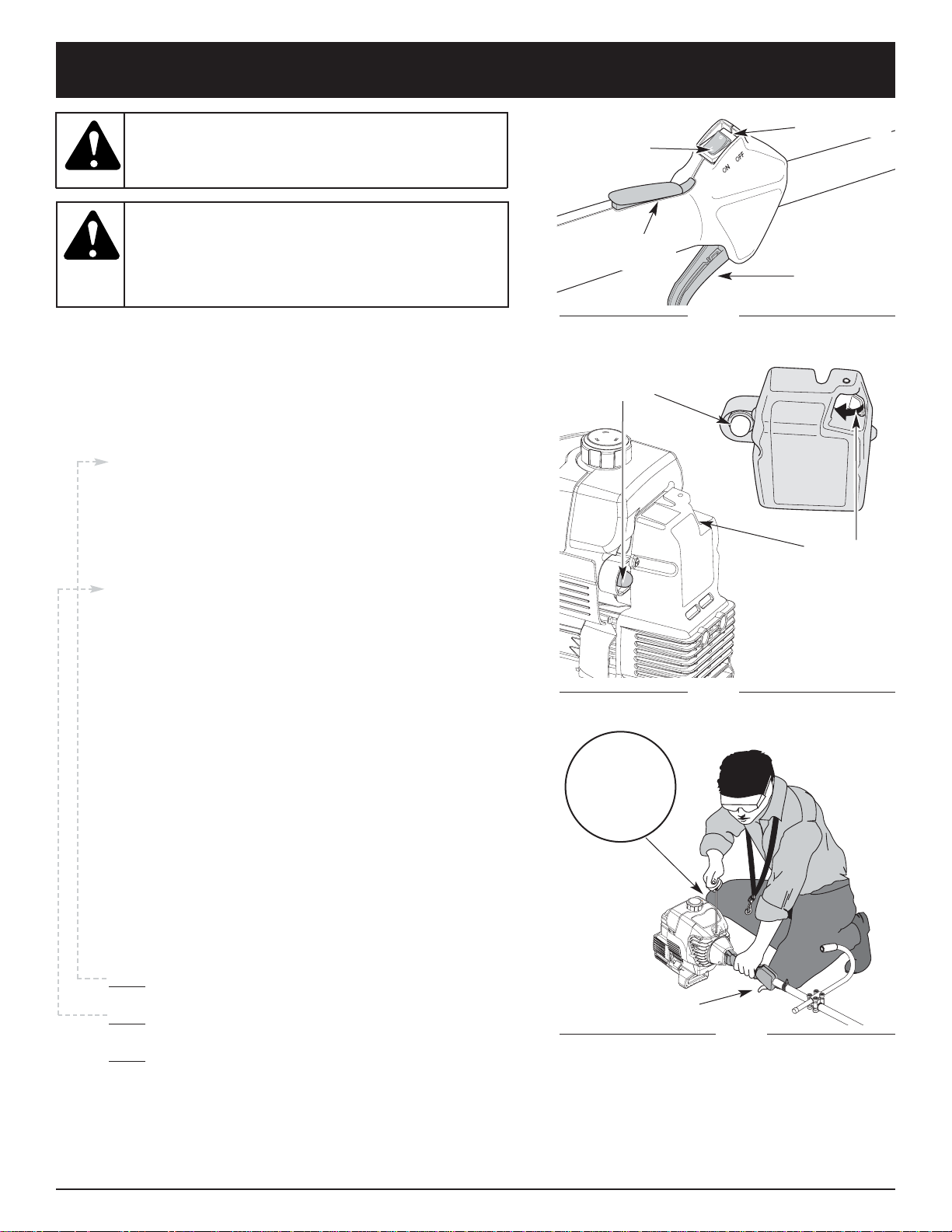

Removing the Air Filter/Muffler Cover

1. Remove the four (4) screws securing the air filter/muffler cover (Fig. 33). Use a flat blade or T20 Torx bit screwdriver.

2. Pull the cover from the engine. Do not force.

Screws

INSTALLING A PREWOUND REEL

1. Hold the outer spool with one hand and unscrew the bump knob clockwise (Fig. 24). Inspect the bolt inside the bump knob to make sure it moves freely. Replace the bump knob if damaged.

2. Remove the old inner reel from the outer spool (Fig. 24).

3. Remove the spring from the old inner reel (Fig. 24).

4. Place the spring in the new inner reel.

NOTE:The spring must be assembled on the inner reel

before reassembling the cutting attachment.

5. Insert the ends of the line through the eyelets in the outer spool (Fig. 32).

6. Place the new inner reel inside the outer spool. Push the inner reel and outer spool together. While holding the inner reel and outer spool, grasp the ends and pull firmly to release the line from the holding slots in the spool.

7. Hold the inner reel in place and install the bump knob by turning counterclockwise. Tighten securely.

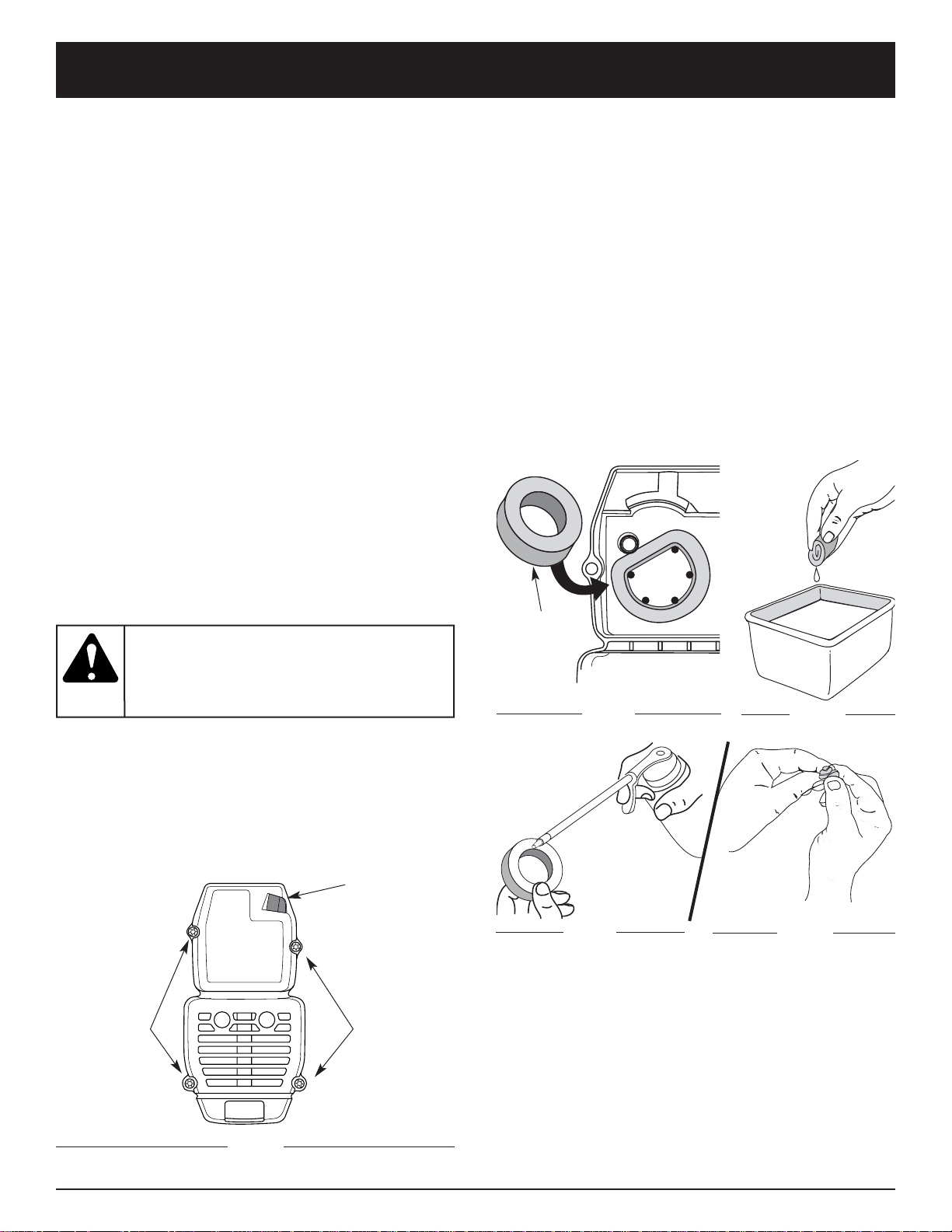

Cleaning the Air Filter

Clean and re-oil the air filter every 10 hours of operation. It is an important item to maintain. Failure to maintain your air filter properly can result in poor performance or can cause permanent damage to your engine.

1. Remove air filter/muffler cover. Refer to Removing

the Air Filter/Muffler Cover.

2. Turn cover over and look inside to locate the air filter. Remove the air filter from inside the air filter/muffler cover (Fig. 34).

3. Wash the filter in detergent and water (Fig. 35). Rinse the filter thoroughly. Squeeze out excess water. Allow it to dry completely.

4. Apply enough clean SAE 30 oil to lightly coat the filter (Fig. 36).

5. Squeeze the filter to spread and remove excess oil (Fig. 37).

Fig. 34

Fig. 35

Fig. 36

Fig. 37

6. Replace the air filter inside the air filter/muffler cover (Fig. 34).

NOTE: Operating the unit without the air filter and air

filter/muffler cover assembly will VOID the warranty.

Reinstalling the Air Filter/Muffler Cover

1. Place the air filter/muffler cover over the back of the carburetor and muffler. Align the screw holes.

2. Insert the four (4) screws into the holes in the air filter/muffler cover (Fig. 33) and tighten.

Do not over tighten.

Air Filter

Inside Muffler

Cover

Blue EZ-Start™

Lever

To avoid serious

personal injury , always turn your unit off and allow it to cool before you clean or service it.

WARNING:

MAINTENANCE AND REPAIR INSTRUCTIONS

If the exhaust

deflector assembly is not tightened securely, it could fall off causing damage to the unit and possible serious personal injury.

WARNING:

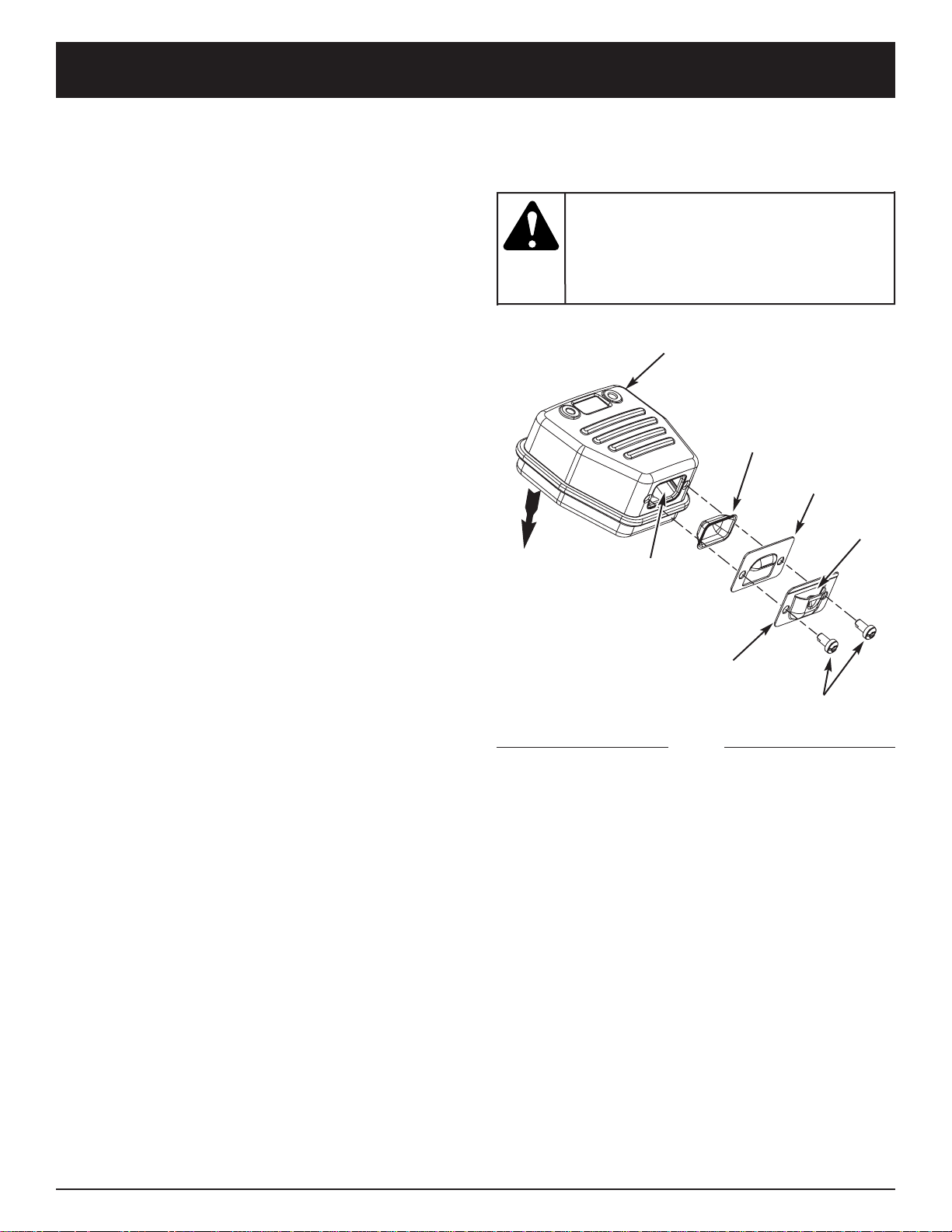

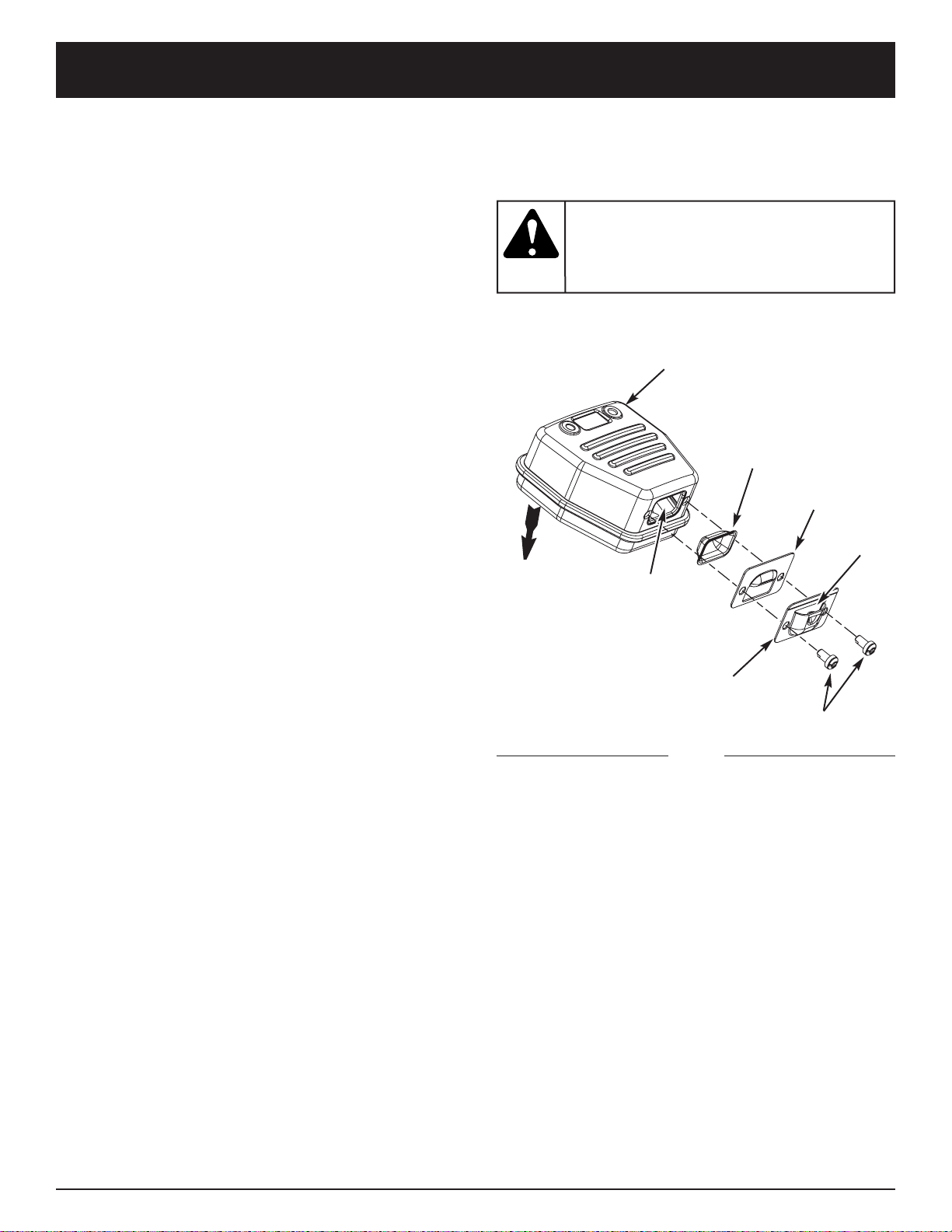

SPARK ARRESTOR MAINTENANCE

NOTE: The exhaust can only flow in one direction: AWAY

from the engine. Pay close attention when disassembling the muffler so you can put it back together correctly. Failure to do so will damage the unit and may cause serious personal injury.

1. Remove air filter/muffler cover. Refer to Removing the Air Filter/Muffler Cover.

2. Locate the muffler, but do not remove it. Find the two (2) screws on the bottom of the muffler (Fig. 38). These two screws hold the Spark Arrestor Hood Assembly and the spark arrestor screen to the bottom of the muffler. Remove the two (2) screws using either a torx #20 or flat blade screwdriver.

3. Using a small flat blade screwdriver, carefully pry up the spark arrestor screen from the recessed hole, taking care to notice that the “raised” part of the spark arrestor screen is inside the recessed hole. Remove the spark arrestor screen from the muffler.

4. Clean the spark arrestor screen with a wire brush. Replace it if it is damaged, or if you are unable to clean it thoroughly.

5. Reinstall the spark arrestor screen by putting the “raised” portion of the screen inside the recessed hole of the muffler. Make sure that the spark arrestor screen fits flat against the muffler.

6. Place the spark arrestor plate on top of the spark arrestor with the “raised” side up and the opening facing towards the engine (Fig. 38).

7. Place the spark arrestor hood on top of the spark arrestor plate with the “raised” side up and the opening facing AWAY from the engine (Fig. 38). Verify that the exhaust will be directed AWAY from the engine.

8. Replace the two screws you removed in Step 2 and tighten them securely.

9. Reinstall the air filter/muffler cover.

Spark Arrestor

Screen

Spark Arrestor

Plate

Spark Arrestor

Hood

Screws

Muffler

Recessed Hole

Engine

Spark Arrestor Hood

Assembly Includes:

Spark Arrestor Plate

Spark Arrestor Hood

and Screws

Opening

Fig. 38

MAINTENANCE AND REPAIR INSTRUCTIONS

Fig. 39

Idle Speed

Screw

3. If the cutting attachment rotates when the engine idles, turn the idle speed screw counterclockwise 1/8 of a turn at a time (as needed), to reduce idle speed.

Checking the fuel mixture, cleaning the air filter, and adjusting the idle speed should solve most engine problems.

If not and all of the following are true:

• The engine will not idle

• The engine hesitates or stalls on acceleration

• There is a loss of engine power

Have the carburetor adjusted by an authorized service dealer.

Check Fuel Mixture

Old and/or improperly mixed fuel is usually the reason for improper unit performance. Drain and refill the tank with fresh, properly-mixed fuel prior to making any adjustments. Refer to Oil and Fuel Information.

Clean Air Filter

The condition of the air filter is important to the operation of the unit. A dirty air filter will restrict air flow and change the air/fuel mixture. This is often mistaken for an out of adjustment carburetor. Check the condition of the air filter before adjusting the idle speed screw. Refer to Air Filter Maintenance.

Adjust Idle Speed Screw

If, after checking the fuel mixture and cleaning the air filter, the engine still will not idle, adjust the idle speed screw as follows:

1. Start the engine and let it run at a high idle for a minute to warm up. Refer to Starting/Stopping Instructions.

2. Release the throttle trigger and let the engine idle. If the engine stops, insert a small phillips screwdriver into the hole in the air filter/muffler cover (Fig. 39). Turn the idle speed screw in, clockwise, 1/8 of a turn at a time (as needed) until the engine idles smoothly.

NOTE: The cutting attachment should not rotate when

the engine idles.

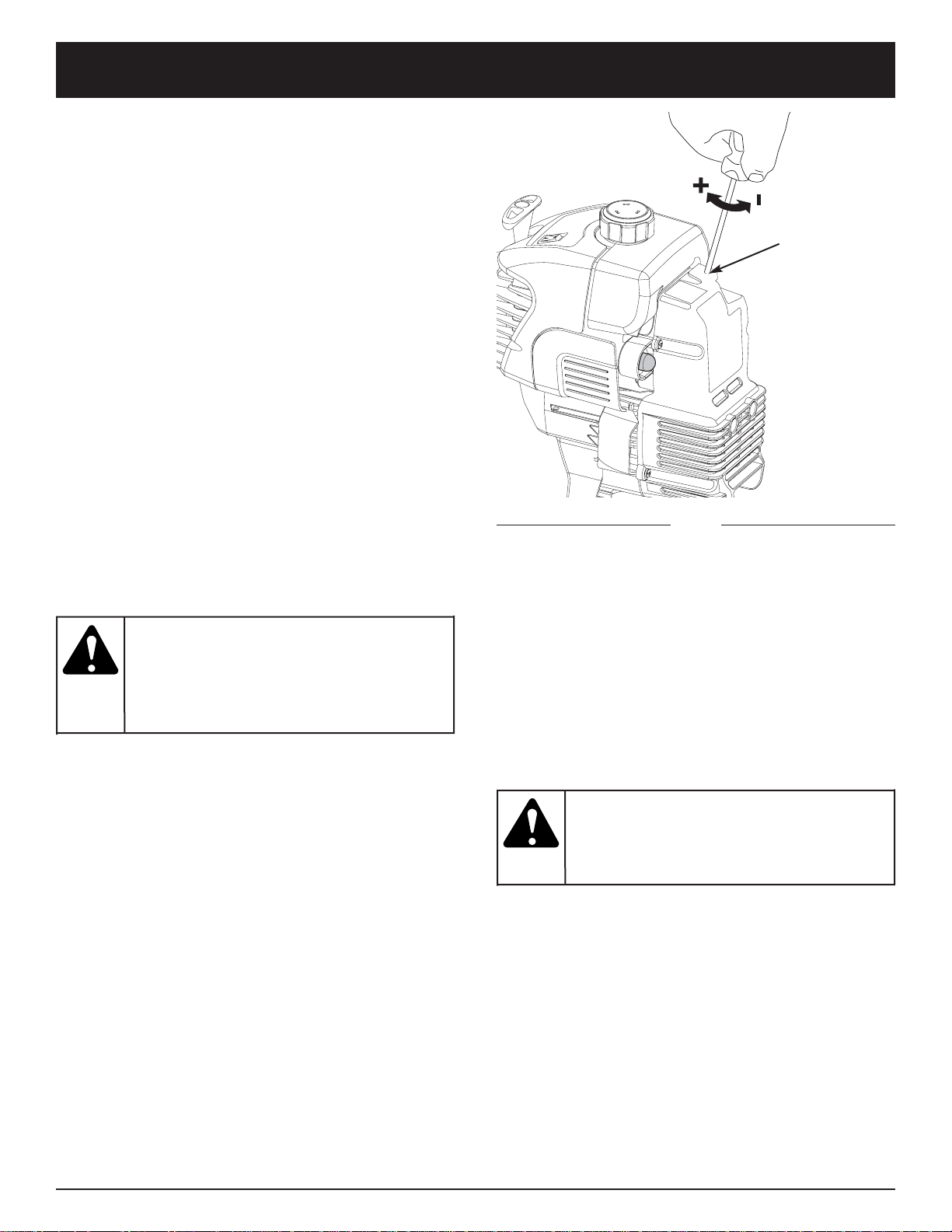

CARBURETOR ADJUSTMENT

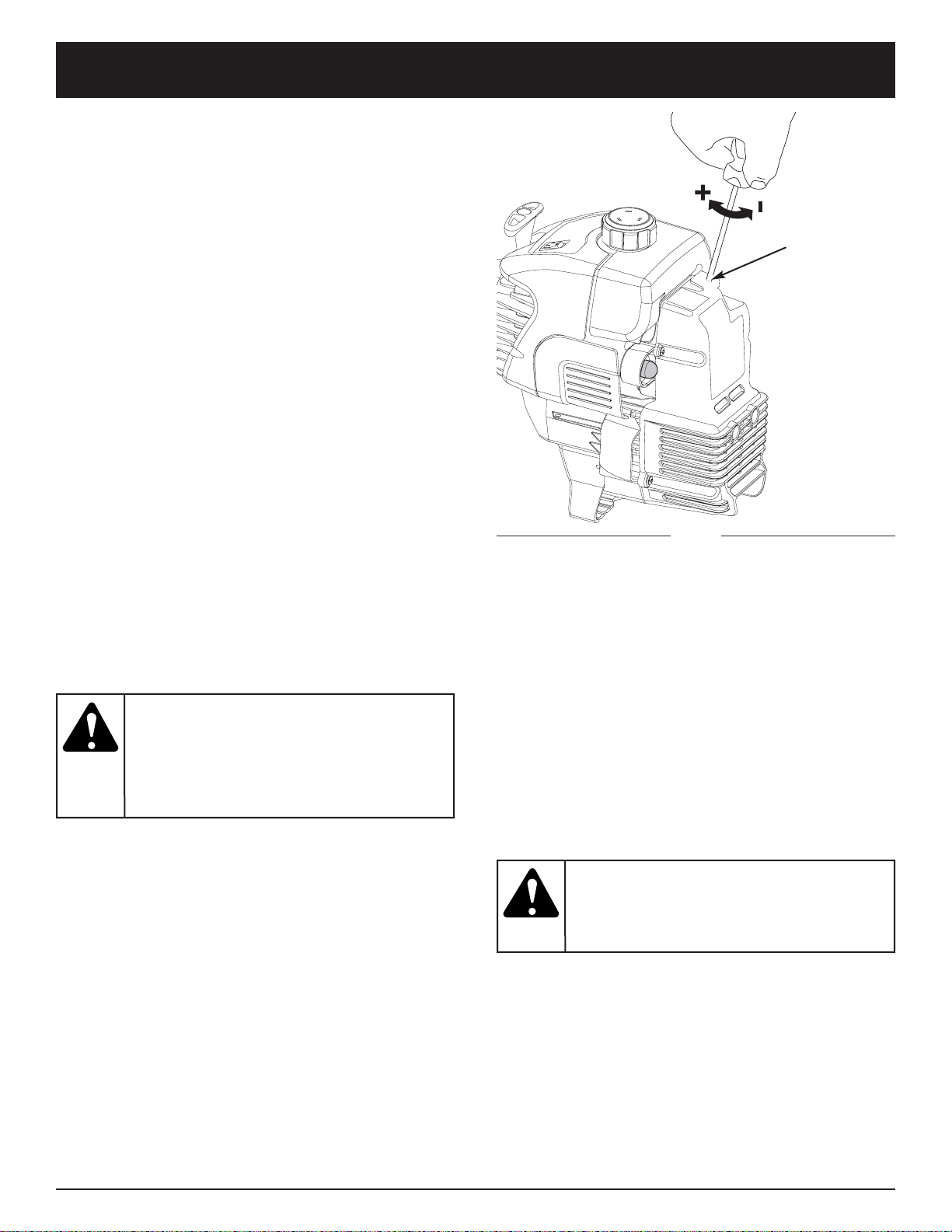

The idle speed of the engine is adjustable through the air filter/muffler cover (Fig. 39).

NOTE: Careless adjustments can seriously damage your

unit. An authorized service dealer should make carburetor adjustments.

The cutting

attachment may spin during idle speed adjustments. Wear protective clothing and observe all safety instructions to prevent serious personal injury.

WARNING:

To prevent serious

personal injury, make sure the cutting attachment has stopped rotating before you turn it off and set it down.

WARNING:

MAINTENANCE AND REPAIR INSTRUCTIONS

CLEANING

Use a small brush to clean off the outside of the unit. Do not use strong detergents. Household cleaners that contain aromatic oils such as pine and lemon, and solvents such as kerosene, can damage plastic housing or handle. Wipe off any moisture with a soft cloth.

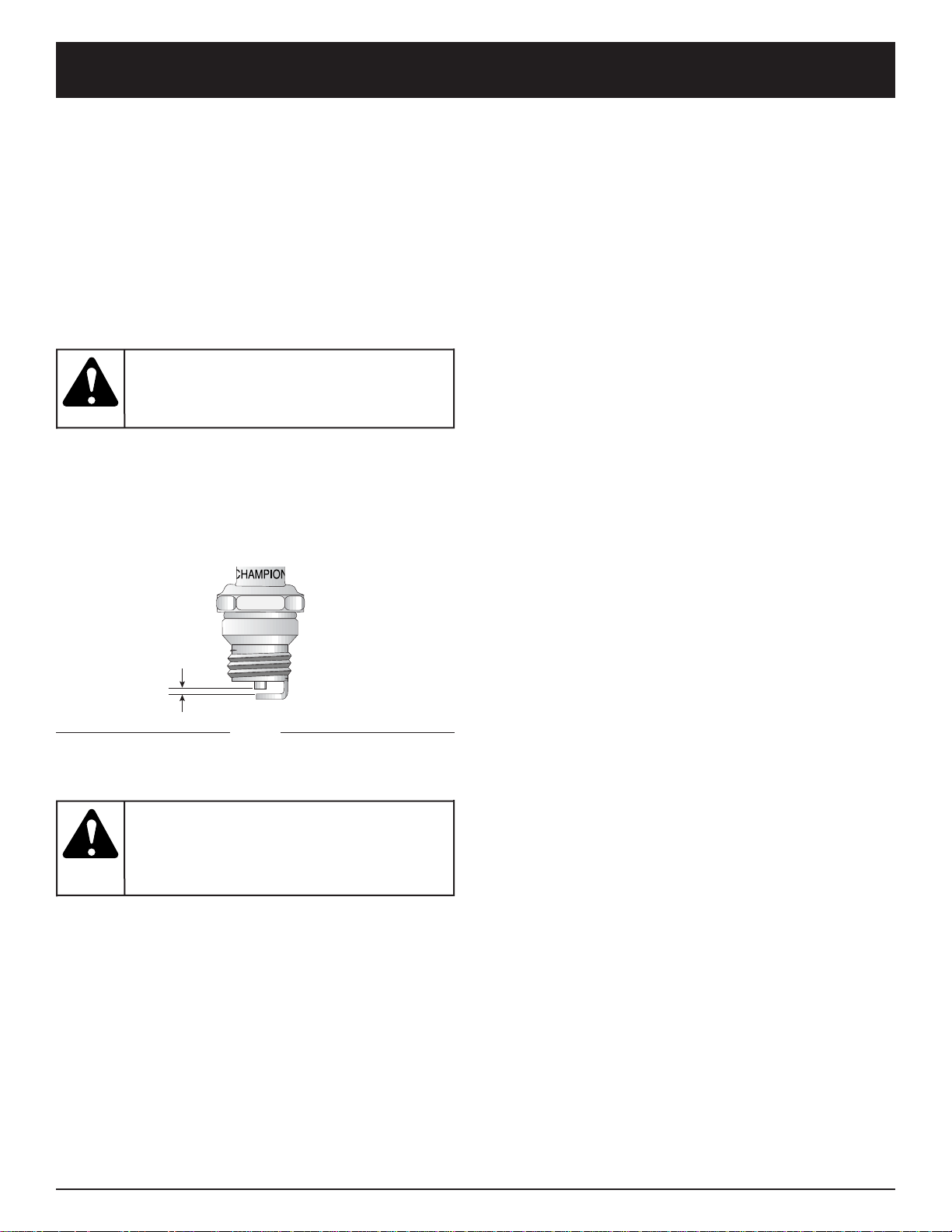

REPLACING THE SPARK PLUG

Use a Champion RDJ7Y spark plug (or equivalent). The correct air gap is 0.020 inch (0.5 mm). Remove the plug after every 25 hours of operation and check its condition.

1. Stop the engine and allow it to cool. Grasp the plug wire firmly and pull it from the spark plug.

2. Clean around the spark plug. Remove the spark plug from the cylinder head by turning a 5/8 in. socket counterclockwise.

3. Replace a cracked, fouled or dirty spark plug. Set the air gap at 0.020 in. (0.5 mm) using a feeler gauge (Fig. 40).

4. Install a correctly-gapped spark plug in the cylinder head. Tighten by turning the 5/8-inch socket clockwise until snug.

If using a torque wrench torque to:

110-120 in.•lb. (12.3-13.5 N•m) Do not over tighten.

0.020 in. (0.5 mm)

Fig. 40

STORAGE

• Never store the unit with fuel in the tank where fumes may reach an open flame or spark.

• Allow the engine to cool before storing.

• Store the unit locked up to prevent unauthorized use or damage.

• Store the unit in a dry, well-ventilated area.

• Store the unit out of the reach of children.

LONG TERM STORAGE

If the unit will be stored for an extended time, use the following storage procedure:

1. Drain all fuel from the fuel tank into a container with

the same 2-cycle fuel mixture. Do not use fuel that has been stored for more than 60 days. Dispose of the old fuel/oil mix in accordance to Federal, State and Local regulations.

2. Start the engine and allow it to run until it stalls. This

ensures that all fuel has been drained from the carburetor.

3. Allow the engine to cool. Remove the spark plug and

put 1 oz. (30 ml) of any high quality motor oil or 2-cycle oil into the cylinder. Pull the starter rope slowly to distribute the oil. Reinstall the spark plug.

NOTE: Remove the spark plug and drain all of the oil

from the cylinder before attempting to start the trimmer after storage.

4. Thoroughly clean the unit and inspect it for any loose

or damaged parts. Repair or replace damaged parts and tighten loose screws, nuts or bolts. The unit is ready for storage.

TRANSPORTING

• Allow the engine to cool before transporting.

• Drain fuel from unit.

• Tighten fuel cap before transporting.

• Secure the unit while transporting.

Do not sand blast,

scrape or clean electrodes. Grit in the engine could damage the cylinder.

WARNING:

To avoid serious

personal injury , always turn your unit off and allow it to cool before you clean or service it.

WARNING:

TROUBLESHOOTING

If further assistance is required, contact your authorized service dealer.

CAUSE ACTION

Cutting attachment bound with grass Stop the engine and clean cutting attachment Cutting attachment out of line Refill with new line Inner reel bound up Replace the inner reel

Cutting head dirty Clean inner reel and outer spool Line welded Disassemble, remove the welded section and rewind Line twisted when refilled Disassemble and rewind the line Not enough line is exposed Push the bump knob and pull out line until 4 inches

(102 mm) of line is outside of the cutting attachment

CAUSE ACTION

Old or improperly mixed fuel Drain gas tank and add fresh fuel mixture Improper carburetor adjustment Take to an authorized service dealer for an adjustment Fouled spark plug Replace or clean the spark plug Plugged spark arrestor Clean or replace spark arrestor

CAUSE ACTION

Empty fuel tank Fill fuel tank with properly mixed fuel Primer bulb wasn't pressed enough Press primer bulb fully and slowly 10 times Engine is flooded Squeeze the trigger and pull the starter rope Old or improperly mixed fuel Drain gas tank and add fresh fuel mixture Fouled spark plug Replace or clean the spark plug Plugged spark arrestor Clean or replace spark arrestor Blue EZ-Start™ lever wasn’t flipped/set Move lever to the starting position The outside temperature is below 40º F Pull the starter rope up to 10-15 times The outside temperature is above 90º F Squeeze the throttle control and pull the starter rope

ENGINE WILL NOT START

ENGINE WILL NOT IDLE

ENGINE WILL NOT ACCELERATE

ENGINE LACKS POWER OR STALLS WHEN CUTTING

CAUSE ACTION

Air filter is plugged Replace or clean the air filter Old or improperly mixed fuel Drain gas tank and add fresh fuel mixture Improper carburetor adjustment Adjust according to the Carburetor Adjustments section

CAUSE ACTION

Old or improperly mixed fuel Drain gas tank and add fresh fuel mixture Improper carburetor adjustment Take to an authorized service dealer for an adjustment Cutting attachment bound with grass Stop the engine and clean the cutting attachment Dirty air filter Clean or replace the air filter Plugged spark arrestor Clean or replace spark arrestor

CUTTING ATTACHMENT WILL NOT ADVANCE LINE

CAUSE ACTION

Oil, cleaner or lubricant in cutting head Clean and thoroughly dry the cutting head

CUTTING LINE ADVANCES UNCONTROLLABLY

SPECIFICATIONS

ENGINE*

DRIVE SHAFT & CUTTING ATTACHMENT*

*All specifications are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

Engine Type.......................................................................................................................................... Air-Cooled, 2-Cycle

Stroke.................................................................................................................................................... 1.25 in. (31.75 mm)

Displacement............................................................................................................................................. 1.9 cu in. (31 cc)

Clutch Type ......................................................................................................................................................... Centrifugal

Idle Speed RPM ...................................................................................................................................... 2,800 - 4,000 rpm

Operating RPM.................................................................................................................................................. 7,800+ rpm

Ignition Type.......................................................................................................................................................... Electronic

Ignition Switch.............................................................................................................................................. Rocker Switch

Spark Plug Gap....................................................................................................................................... 0.020 in. (0.5 mm)

Lubrication................................................................................................................................................... Fuel/Oil Mixture

Fuel/Oil Ratio.................................................................................................................................................................. 40:1

Carburetor....................................................................................................................................... Diaphragm, All-Position

Starter............................................................................................................................. Auto Rewind (EZ-Pull Version 3™)

Muffler..................................................................................................................................................... Baffled with Guard

Throttle............................................................................................................................................... Manual Spring Return

Fuel Tank Capacity.................................................................................................................................... 15 fl.oz. (444 ml)

Drive Shaft Housing ............................................................................................................................................ Steel Tube

Throttle Control................................................................................................................. Finger-Tip Trigger with Lock-Out

Approximate Unit Weight (No fuel, with J-handle, cutting attachment and shield) ................................. 14.75 lbs. (6.5 kg)

Cutting Mechanism................................................................................. 4-Tooth Cutting Blade, Dual String Cutting Head

Line Spool............................................................................................................................................. Bump Line Releaser

Line Spool Diameter............................................................................................................................. 4 inches (101.6 mm)

Trimming Line Diameter...................................................................................................................... 0.095 inch (2.41 mm)

Cutting Path Diameter, Cutting Attachment ......................................................................................... 18 inches (45.7 cm)

Cutting Path Diameter, Cutting Blade..................................................................................................... 8 inches (204 mm)

Shoulder Harness ................................................................................................................................... Single Quick-Snap

NOTES

+ 56 hidden pages
