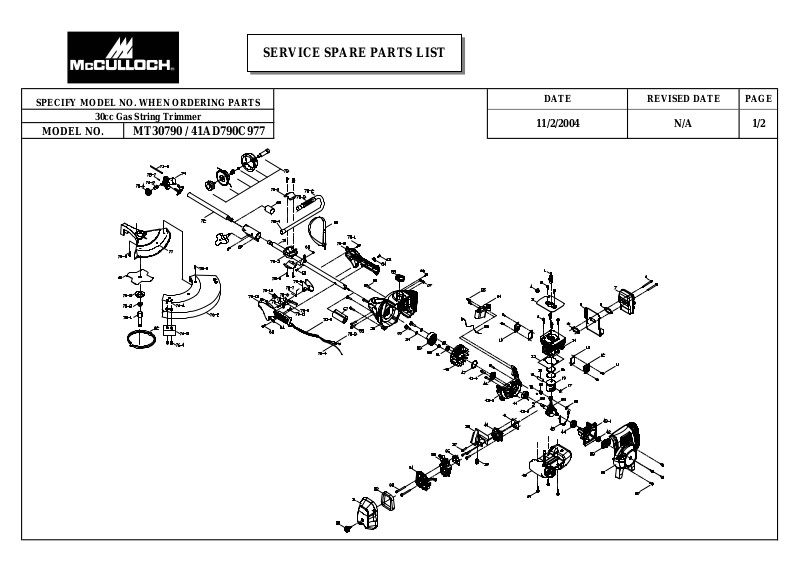

SERVICE SPARE PARTS LIST
SPECIFY MODEL NO. WHEN ORDERING PARTS
30cc Gas String Trimmer
MODEL NO. MT30790 / 41AD790C977
DATE
11/2/2004
REVISED DATE PAGE
N/A 1/2
6
SERVICE SPARE PARTS LIST
SPECIFY MODEL NO. WHEN ORDERING PARTS
DATE REVISED DATE PAGE
30cc Gas String Trimmer
11/2/2004 N/A 2/2
MODEL NO.
No.
STK CODE
1 MC-9295-310501 SPARK PLUG 1 39 MC-9012-334501 GROMMET 1 70-3 MC-9010-332103 WIRE ASS'Y, SWITCH 1
2 MC-9SGEB-05-10 SCREW 2 40 MC-9072-334501 INSULATOR 1 70-4 MC-9010-334501 THROTTLE CABLE 1
3 MC-9211-334502 PLATE (SPARK SIDE) 1 41 MC-9014-334506 INSULATOR GASKET 1 70-5 MC-9059-332101 HOSE 1
4 MC-9012-330301 GROMMET 1 42 MC-9157-332101 SEAL 1 70-6 MC-9028-332101 TRIGGER 1
5 MC-9SRCB-05-22 SCREW 4 43 MC-9228-334501 CRANKCASE ASS'Y 1 70-7 MC-9024-332102 SPRING 1
6 MC-9SXMBJ05-50 SCREW 2 43-1 MC-9151-334502F CRANKCASE (STARTER SIDE) 1 70-8 MC-9176-332101 LIBERATE SHAFT 1
7 MC-9228-334503 MUFFLE ASS'Y 1 43-2 MC-9PA-03-08 PIN 3 70-9 MC-9024-332103 SPRING 1
8 MC-9014-GP0102 MUFFLE GASKET 2 43-3 MC-9151-334501F CRANKCASE (FLYWHEEL SIDE) 1 70-10 MC-9176-332102 LIBERATE CHUNK 1
9 MC-9211-334501 MUFFLE PLATE 1 43-4 MC-9SGEB-05-20 SCREW 3 70-11 MC-6SLABB3.5-10 SCREW 2
10 MC-9017-334501 COVER (FLYWHEEL SIDE) 1 44 MC-9DB-620101 BEARING 2 70-12 MC-9022-330502 SWITCH 1
11 MC-9SGEB-04-10 SCREW 4 45 MC-9014-334502 GASKET 1 70-13 MC-9068-332104 HOUSING, HANDLE 1
JFT Parts No. Description Q No.
MT30790 / 41AD790C977
STK CODE
JFT Parts No. Description Q No.
STK CODE
JFT Parts No. Description Q
12 MC-9017-334502 GASKET 1 46 MC-9157-334501 SEAL 1 71 MC-9228-330354 BEHIND HOUSING ASS'Y 1
13 MC-9014-334507 GASKET 2 47 MC-9CB-32 C RING 1 72 MC-9228-A10505 FRONT HOUSING ASS'Y 1
14 MC-9292-334501F CYLINDER 1 48 MC-9169-334501 FLYWHEEL 1 73 MC-9228-330319 SRTINGHEAD ASS'Y 1
15 MC-9014-334501 GASKET 1 49 MC-9228-334506 FUEL TANK ASS'Y 1 74 MC-9110-330301B GEAR HOUSING ASS'Y 1
16 MC-9189-334501 PISTON RING 2 50 MC-9SKKBY05-18 SCREW 3 75 MC-9125-332603 ACCESSORIES 1
17 MC-9131-334501 CIRCLLP 2 51 MC-9NHC-08 NUT 1 75-1 MC-9042-330301 SLEEVE 1
18 MC-9115-334501 PISTON PIN 1 52 MC-9WFB-06-15 WASHER 2 75-2 MC-9NAZ-10 NUT 1
19 MC-9290-334501 PISTON 1 53 MC-9176-GP0101 CLUTCH (WITH SPRING) 1 75-3 MC-9111-330601 FLANGE, SPINDLE 1
20 MC-9067-334501 AXLS COVER 2 54 MC-9WWB-08 WAVE PLATE 2 75-4 MC-9131-330304 COLLAR 1
21 MC-9NR-KV9129.8 NEEDLE BEARING 1 55 MC-9214-GP0101 SCREW 2 75-5 MC-9124-330309 SPLINE SLEEVE 1
22 MC-6221-830301 KEY 1 56 MC-9228-334508 TRANSMISSION SUPPORT ASS'Y 1 75-6 MC-9111-330301 STICK 1
23 MC-9228-334502 CRANK/ROD ASS'Y 1 57 MC-9NDB-05 NUT 2 75-7 MC-9PB-1.4-20 PIN 1
24 MC-9288-334501-CH IGNITION COIL 1 58 MC-9SDABM05-25 SCREW 2 75-8 MC-9SKKBY10/24-0.5SCREW 3
25 MC-9SRCB-05-20 SCREW 2 59 MC-9012-334502 GROMMET 1 75-9 MC-9SKKB-06-15 SCREW 3
26 MC-9010-332102 COIL WIRE 1 60 MC-9SKKB-05-16 SCREW 4 76 MC-9228-330614 COVER ASS'Y 1
27 MC-9SGKB-05-12.5 SCREW 4 61 MC-9250-330601 BLADE, BRUSH 4-TOOTH 1 76-1 MC-6NGB-10/24 NUT 2
28 MC-9228-334504 STARTER HOUSING ASS'Y 1 62 MC-9015-330601 GUARD, CUTTING BLADE 2 76-2 MC-9017-330310 COVER 1
29 MC-9228-MD0107 PAWLS ASS'Y 1 63 MC-6SDAB-05-08 SCREW 3 76-3 MC-9250-330301 KIT, KNIFE 1
30 MC-9134-334501 KNOB 1 64 MC-9WFB-5.64-12 WASHER 2 76-4 MC-9SKKBY10/24-0.
31 MC-9017-334505 FILTER COVER 1 65 MC-6NGB-05 NUT 1 77 MC-9017-330301 SHIELD, BLADE 1
32 MC-9183-334501 FILTER 1 66 MC-9SGKBY10/24-0.625 SCREW 1 78 MC-9228-330355 HANDLE ASS'Y 1
33 MC-9SGEB-05-52 SCREW 2 67 MC-9027-332101 REDUTION 1 78-1 MC-9014-330402 CLAMP 2
34 MC-9228-334507 FILTER ASS'Y 1 68 MC-9149-330301-CH HARNESS 1 78-2 MC-9068-330312 J HANDLE 1
35 MC-9287-334501 CARBURETOR 1 69 MC-9105-330301 PLUG 1 78-3 MC-9068-330303 HANDLE 1
36 MC-9014-334505 CARBURETOR GASKET 1 70 MC-9228-334510 HANDLE ASS'Y 1 78-4 MC-9070-330301 PLUG 2
37 MC-9SKKB-05-19 SCREW 4 70-1 MC-6SDABB04-12 SCREW 4 78-5 MC-9072-330402 CENTERPLECE 1
38 MC-9211-334503 PLATE 1 70-2 MC-9068-332103 HOUSING, HANDLE 1 78-6 MC-9125-330301 PARTS BAG 1
SCREW 2
Stocking Codes are:
A - Dealer stocked B - Distributor stocked C - Factory stocked
