McCulloch MS1850AVCC User Manual

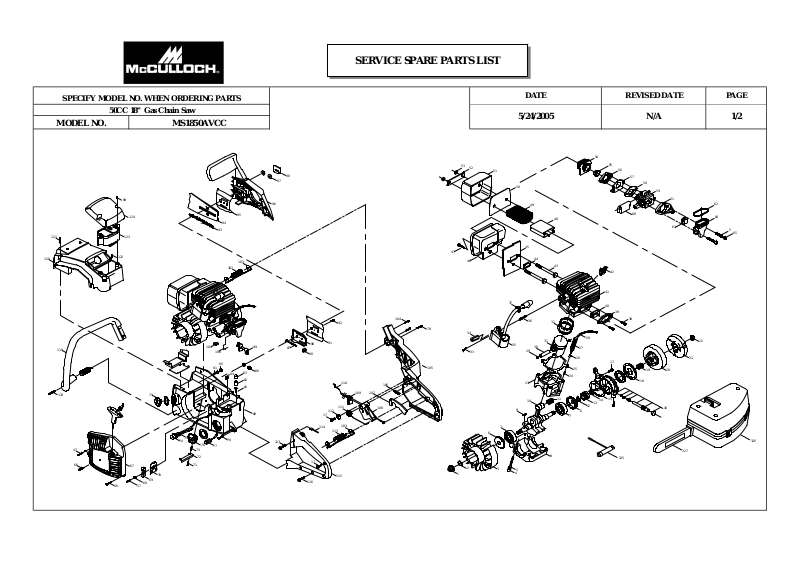

SERVICE SPARE PARTS LIST
SPECIFY MODEL NO. WHEN ORDERING PARTS
50CC 18" Gas Chain Saw
MODEL NO. MS1850AVCC
89
124
121
120
119
118
47
66
123
122
79
75
74
67
70
69
68
66
17
71
DATE REVISED DATE PAGE
5/24/2005 N/A 1/2
54
53
52
98
97
96
95
94
93
103
102
92
91
101
100
85
81
76
77
73
72
99
86
83
84
82
81
80
78
117
90
87
88
110
109
111
112
17
103
114
113
17
116
115
104
106
107
108
47
78
105
1
51
50
49
48
45
46
34
33
7
6
2
3
44
43
37
36
32
35
4
31
30
29
23
10
9
8
5
27
26
25
24
11
6
7
55
56
57
58
59
61
60
63
42
41
40
39
38
28
17
15
14
13
12
19
20
18
16
125
127
62
64
5
65
22
21
126
SERVICE SPARE PARTS LIST
SPECIFY MODEL NO. WHEN ORDERING PARTS
50CC 18" Gas Chain Saw
DATE
11/26/2004
REVISED DATE
N/A
PAGE
2/2
MODEL NO. MS1850AVCC
No. Parts No. Description Q No. Parts No. Description Q No. Parts No. Description Q No. Parts No. Description Q
1 9NAB-5/16-24 NUT 1 33 9SKKBY10/24-0.75 SCREW 1 65 9SREB-10/24-1.625 SCREW 2 97 9NAZ-5/16-18 NUT 2
2 9WOC-08 NUT 1 34 9124-310205 SPACER 1 66 9SKKBY10/14-0.625 SCREW 3 98 9072-310206 PLATE 1
3 9169-310201 FLYWHEEL 1 35 9288-310201-CH IGNITION ASS'Y 1 67 9228-310212 STARTER ASS'Y 1 99 9228-31C201 CKOKE ASS'Y 1
4 9SREB-10/24-2.75 SCREW 4 36 9191-310201 STUD 1 68 9WFZ-0.18 WASHER 1 100 9114-310202 ROD, CHOKE 1
5 9WFB-0.2 WASHER 7 37 9012-330301 GROMMET 1 69 9223-310201 1 101 9013-310202 PLUG 1
6 9157-310201 SEAL 2 38 9SKKBY10/24-0.62 SCREW 2 70 9183-310202 SCREEN 1 102 9228-310213 ISOLATOR ASS'Y 1
7 9DB-620201 BEARING 2 39 9014-310203 FLANGE 1 71 9SKKBY10/24-1 SCREW 4 103 9228-310214 CABLE ASS'Y 2
8 9072-3102Y1F CRANKCASE LOWER 1 40 9131-310202 EYELET 1 72 9043-310201 PLATE 2 104 9SGKBY10/24-0.5 SCREW 2
9 9221-310001 KEY 1 41 9292-31C201F CYLINDER 1 73 9124-310206 SPACE 4 105 9068-310203 FRAME, REAR 1
10 9228-310203A C'SHAFT/C'ROD ASS'Y 1 42 9295-320001 SPARK PLUG 1 74 9142-310002 PRIMER, REMOTE 1 106 9017-31C201 PLUG 1
11 9155-310201 BEARING 1 43 9STDZY10/24-2.79 SCREW 2 75 9129-310214 HOSE 1 107 9028-310201 RELEASE, TRIGGER 1
12 6014-M96A01 WASHER 1 44 9014-310208 WASHER 1 76 9228-310206 CAP, FUEL 1 108 9028-310202 TRIGGER 1
13 9073-310201 GEAR, WORM 1 45 9082-310201 BAFFLER 1 77 9182-310503 FILTER, FUEL 1 109 9124-310209 GROMMET 1
14 9WFN-0.4 WASHER 2 46 9228-310217 MUFFLER BODY ASS'Y 1 78 9SKKZY10/14-01 SCREW 2 110 9010-310201 CABLE 1
15 9076-310201 O RING 1 47 9SKKBY10/24-0.5 SCREW 2 79 9228-310207 CAP, OIL 1 111 9024-310206 SPRING 1
16 9228-310235 PUMP ASS'Y 1 48 9211-310201 PLATE 1 80 9228-310205 FUEL/OIL TANK ASS'Y 1 112 9WFB-4.9-17 WASHER 1
17 9SKKBY8/16-0.5 SCREW 6 49 9183-310201 SCREEN 1 81 9070-310002 VALVE DUCKBILL 2 113 9228-310222 ISOLATOR ASS'Y 1
18 9WDZ-0.722 WASHER 1 50 9082-310205 BAFFLER 1 82 6182-210101 FILTER 1 114 9010-310203 WIRE ASS'Y 1
19 9155-310203 BEARING 1 51 9017-310204 COVER, MUFFLER 1 83 9129-310209 HOSE 1 115 9228-310232 COVER ASS'Y, HANDLE 1
20 9228-310211 FRUM SPRKT ASS'Y 1 52 9158-310201 LOCKPLATE 1 84 9013-310201 PLUG 1 116 9SKKBY8/16-0.625 SCREW 3
21 9228-310210 CLUTCH ASS'Y 1 53 9NAC-10/24 NUT 2 85 9252-310002 FILTER 1 117 9SKKBY-8/16-1 SCREW 1
22 9NHC-09 NUT 1 54 9124-310202 BOOT, CARBURETOR 1 86 9131-310206 WASHER 2 118 9SJKB-12/14-1.5 SCREW 1
23 9072-3102Y2F CRANKCASE UPPER 1 55 9131-310203 EYELET 1 87 9214-310201 SCREW 1 119 9228-310231 HANDLE ASS'Y 1
24 9124-310201 FITTING, PULSE LINE 1 56 9014-310204 FLANGE 1 88 9035-310201 NUT 1 120 9228-310216 COVER ASS'Y 1
25 9014-3102Y1 GASKET 1 57 9102-310202 PLATE 1 89 9214-310101 SCREW 2 121 9SKKBY10/14-02 SCREW 2
26 9036-310201 CLAMP, WIRE HOSE 1 58 9014-310202 GASKET 1 90 9043-310203 PLATE, BAR 1 122 9SKKBY10/14-0.68 SCREW 1
27 9059-310201 CONDUIT, FLEX 1 59 9287-31C201 CARBURETOR 1 91 9043-310202 PLATE, FLANGE 1 123 9228-310204 AIR CLEANER ASS'Y 1
28 9129-310004 HOSE 1 60 9124-310203 BOOT 1 92 9SKKBY6/19-0.375 SCREW 1 124 9067-310202 COVER 1
29 9CA-0.46 RING 2 61 9014-31C201 FLANGE 1 93 9220-31B202 CHAIN 1 125 9042-310201 WRENCH 1
30 9PC-10-32.5 PIN 1 62 9024-310202 SPRING 1 94 9040-31A211 BAR 1 126 9120-310201 CARRY CASE 1
31 9290-31C201 PISTON 1 63 9131-310204 EYELET 1 95 9082-310204 PLATE 1 127 9017-310213 SCABBARD 1
32 9189-31C201 RING, PISTON 2 64 9124-310204 BOOT 1 96 9228-310215 CHAIN BRAKE ASS'Y 1
REVISION DATE
May-05
