McCulloch MS1639NAVCC, 41AY69CR077 User Manual

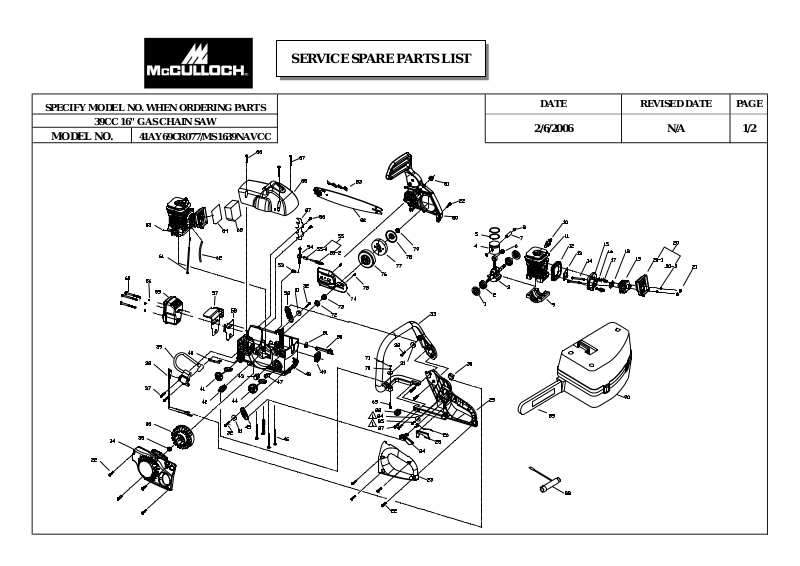

SERVICE SPARE PARTS LIST
SPECIFY MODEL NO. WHEN ORDERING PARTS
39CC 16" GAS CHAIN SAW
MODEL NO. 41AY69CR077/MS1639NAVCC
DATE
2/6/2006
REVISED DATE PAGE
N/A 1/2
SERVICE SPARE PARTS LIST
SPECIFY MODEL NO. WHEN ORDERING PARTS
39CC 16" GAS CHAIN SAW
MODEL NO.
STK CODE
No.
1 9157-310502 CAP, BEARING 2 31 9WFB-05-21 WASHER 4 61 9010-310502 CABLE, THROTTLE 1
2 9DB-620101 BEARING 2 32 9SKKBY8/16-0.625 SCREW 3 62 9129-310504 FUEL PIPE 1
3 9228-310505 CRANK/ROD ASS'Y 1 33 9068-310503 HANDLE, FRONT 1 63 9221-310001 WOODRUFF KEY 1
4 9290-310502 PISTON 1 34 9228-MD0901 STARTER HOUSING ASS'Y 1 64 9183-310502 MESH 1
5 9189-310502 RING, PISTON 1 35 9NAB-5/16-24 NUT 1 65 9252-310501 FILTER, AIR 1
6 9NB-K101410 ROLLER, PISTON 1 36 9169-310501 FLYWHEEL 1 66 9SKKBY-8/16-1 SCREW 1
7 9PC-10-34.5-CH PIN, PISTON 1 37 9SGEB-05-20 SCREW 2 67 9SKKBY8/16-1.4 SCREW 2
8 9CA-10.3 RING 2 38 9010-310503 WIRE ASS'Y 1 68 9017-310509 SHROUD 1
9
10 9295-310502 SPARK PLUG 1 40 9051-310501 CONDUCTIVE PLATE 1 70 6WSB-05 SPRING WASHER 1
11
12 9012-310502 RUBBER, ISOLATOR 1 42 9043-MD1003 FIX PLATE 1 72 9157-310501 FELT 1
13 9082-310505 SPACER 1 43 9142-310002 PRIMER 1 73 9073-310503 WORM 1
14 9STDB-05-60 SCREW 2 44 9228-310206 FUEL CAP ASS'Y 1 74 9017-310508 CAP, ANTI-DUST 1
15 9082-310504 ISOLATOR, CARBURETOR 1 45 9043-MD1002 FIX PLATE 1 75 6SDABB04-08 SCREW 2
16 6WSB-06 SPRING WASHER 2 46 9SFAB-06-55 SCREW 4 76 9228-310515 DRUM ASS'Y 1
17 9SACB-06-25 SCREW 2 47 9182-310503 FILTER 1 77 9228-310528 CLUTCH ASS'Y 1
18 9082-310506 SPACER 1 48 9228-310511 HOUSING ASS'Y 1 78 9077-310501 CAP, ANTI-DUST 1
19 9287-310501 CARBURETOR 1 49 9012-310503 HOLDER, CABLE 1 79 9NHC-09 NUT 1
20 9228-310510 AIR FILTER ASS/Y 1 50 9114-310510 LEVER, CHOKE (MTD BLUE) 1 80 9228-310550 BRAKE KIT ASS'Y 1
21 9NHZ-05 NUT 2 51 9012-310504 HOLDER, CHOKE LEVEL 1 81 9NAZ-5/16-18 NUT 1
22 9SGKBY10/14-0.625 SCREW 8 52 9043-MD1001 FIX PLATE 1 82 9040-310511 BAR 1
23 9068-310501 HANDLE, LEFT PART 1 53 9124-310102 CONNECTOR 1 83 6220-210816 CHAIN 1
24 9028-310502 TRIGGER, THROTTLE 1 54 9013-310501 OIL PIPE 1 84 9WFB-4.5-13 WASHER 1
25 9028-310501 TRIGGER, RELEASE 1 55 9228-310526 PUMP ASS'Y 1 85 9SKKBB-04-10 SCREW 1
26 9024-310504 SPRING 1 56 6WSB-06 WASHER 1 86 9SKKBY8/16-0.5 SCREW 2
27 9SKKBY10/14-0.68 SCREW 4 57 9082-310502 BAFFLE 1 87 9227-310501 SPIKED BUMPER 1
28 9027-310101 RUBBER 1 58 9082-310501 BAFFLE 1 88 9042-310201 WRENCH 1
29 9068-310502 HANDLE, REAR 1 59 9228-310504 MUFFLER ASS'Y 1 89 9017-310213 SCABBARD 1
30 9022-310501 SWITCH 1 60 9SXDB-06-70 SCREW 3 90 9120-310201 CARRY CASE 1
JFT Parts No. Description Q No.
9072-310501F自
9292-310501F自
41AY69CR077/MS1639NAVCC
STK CODE
CASE, CRANK 1 39 9288-310501-CH IGNITION ASS'Y 1 69 9SKKB-05-19 SCREW 1
CYLINDER 1 41 9228-310207 OIL CAP ASS'Y 1 71 9NAB-05 NUT 1
JFT Parts No. Description Q No.
DATE REVISED DATE PAGE
2/6/2006 N/A 2/2
STK CODE
JFT Parts No. Description Q
