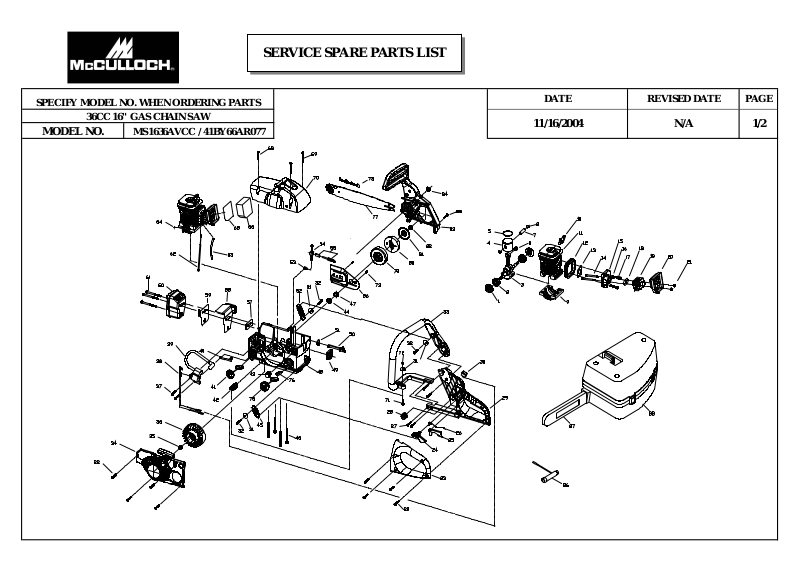

SERVICE SPARE PARTS LIST
SPECIFY MODEL NO. WHEN ORDERING PARTS
36CC 16" GAS CHAIN SAW
MODEL NO. MS1636AVCC / 41BY66AR077
DATE
11/16/2004
REVISED DATE PAGE
N/A 1/2
2
SERVICE SPARE PARTS LIST
SPECIFY MODEL NO. WHEN ORDERING PARTS
DATE REVISED DATE PAGE
36CC 16" GAS CHAIN SAW
11/16/2004 N/A 2/2
MODEL NO.
No.
STK CODE
1 B MC-9157-310502 CAP, BEARING 2 30 A MC-9022-310501 SWITCH 1 59 C MC-9082-310501 BAFFLE 1
2 A MC-9DB-620101 BEARING 2 31 B MC-9WFB-05-21 WASHER 4 60 C MC-9228-310504 MUFFLER ASS'Y 1
3 A MC-9228-310505 CRANK/ROD ASS'Y 1 32 B MC-9SKKBY8/16-0.625 SCREW 4 61 B MC-9SXDB-06-70 SCREW 3
4 B MC-9290-310502 PISTON 1 33 C MC-9068-310503 HANDLE, FRONT 1 62 B MC-9010-310502 CABLE, THROTTLE 1
5 B MC-9189-310502 RING, PISTON 2 34 C MC-9228-310502 STARTER HOUSING ASS'Y 1 63 B MC-9129-310504 FUEL PIPE 1
6 A MC-9NB-K101410 ROLLER, PISTON 1 35 B MC-9NAB-5/16-24 NUT 1 64 A MC-9221-310001 WOODRUFF KEY 1
7 A MC-9PC-10-34.5 PIN, PISTON 1 36 B MC-9169-310501 FLYWHEEL 1 65 B MC-9183-310502 MESH 1
JFT Parts No. Description Q No.
MS1636AVCC / 41BY66AR077
STK CODE
JFT Parts No. Description Q No.
STK CODE
JFT Parts No. Description Q
8 B MC-9CA-10.3 RING 2 37 B MC-9SKKBY8/16-0.75 SCREW 2 66 A MC-9252-310501 FILTER, AIR 1
9 C MC-9072-310501F CASE, CRANK 1 38 A MC-9010-310503 WIRE ASS'Y 1 68 B MC-9SKKBY-8/16-1 SCREW 1
10 A MC-9295-310502 SPARK PLUG 1 39 C MC-9288-310501-CH IGNITION ASS'Y 1 69 B MC-9SKKBY8/16-1.4 SCREW 2
11 C MC-9292-310501F CYLINDER 1 40 B MC-9051-310501 CONDUCTIVE PLATE 1 70 C MC-9017-310509 SHROUD 1
12 B MC-9012-310502 RUBBER, ISOLATOR 1 41 A MC-9228-310207 OIL CAP ASS'Y 1 71 MC-9SKKBY05-18 SCREW 1
13 B MC-9082-310505 SPACER 1 42 B MC-9228-310514 SPRING ASS'Y 1 72 MC-9NAB-05 NUT 1
14 B MC-9STDB-05-60 SCREW 2 43 A MC-9142-310002 PRIMER 1 73 B MC-6SDABB04-08 SCREW 2
15 C MC-9082-310504 ISOLATOR, CARBURETOR 1 44 B MC-9157-310501 FELT 1 75 C MC-9228-310206 FUEL CAP ASS'Y 1
16 B MC-6WSB-06 SPRING WASHER 2 45 B MC-9024-310506 SPRING 1 76 A MC-9182-310503 FILTER 1
17 B MC-9SACB-06-25 SCREW 2 46 B MC-9SFAB-06-55 SCREW 4 77 A MC-9040-310511 BAR 1
18 B MC-9082-310506 SPACER 1 47 B MC-9073-310503 WORM 1 78 A MC-6220-210816 CHAIN 1
19 C MC-9287-310501 CARBURETOR 1 48 C MC-9228-310511 HOUSING ASS'Y 1 79 C MC-9228-310515 DRUM ASS'Y 1
20 B MC-9228-310510 AIR FILTER ASS/Y 1 49 C MC-9012-310503 HOLDER, CABLE 1 80 C MC-9228-310528 CLUTCH ASS'Y 1
21 B MC-9NHZ-05 NUT 2 50 B MC-9114-310510 LEVER, CHOKE 1 81 C MC-9077-310501 CAP, ANTI-DUST 1
22 B MC-9SGKBY10/14-0.625SCREW 8 51 B MC-9012-310504 HOLDER, CHOKE LEVEL 1 82 B MC-9NHC-09 NUT 1
23 C MC-9068-310501 HANDLE, LEFT PART 1 52 B MC-9024-310507 SPRING 1 83 C MC-9228-310501 BRAKE KIT ASS'Y 1
24 A MC-9028-310502 TRIGGER, THROTTLE 1 53 B MC-9124-310102 CONNECTOR 1 84 B MC-9NAZ-5/16-18 NUT 1
25 A MC-9028-310501 TRIGGER, RELEASE 1 54 A MC-9013-310501 OIL PIPE 1 85 B MC-9SGKBY10/14-0.6
26 B MC-9024-310504 SPRING 1 55 B MC-9228-310526 PUMP ASS'Y 1 86 MC-9042-310201 WRENCH 1
27 B MC-9SKKBY10/14-0.68 SCREW 4 56 C MC-9017-310508 CAP, ANTI-DUST 1 87 MC-9017-310213 SCABBARD 1
28 MC-9027-310101 RUBBER 1 57 B MC-9082-310507 SPACER 1 88 MC-9120-310201 CARRY CASE 1
29 C MC-9068-310502 HANDLE, REAR 1 58 C MC-9082-310502 BAFFLE 1
SCREW 1
Stocking Codes are:
A - Dealer stocked B - Distributor stocked C - Factory stocked
