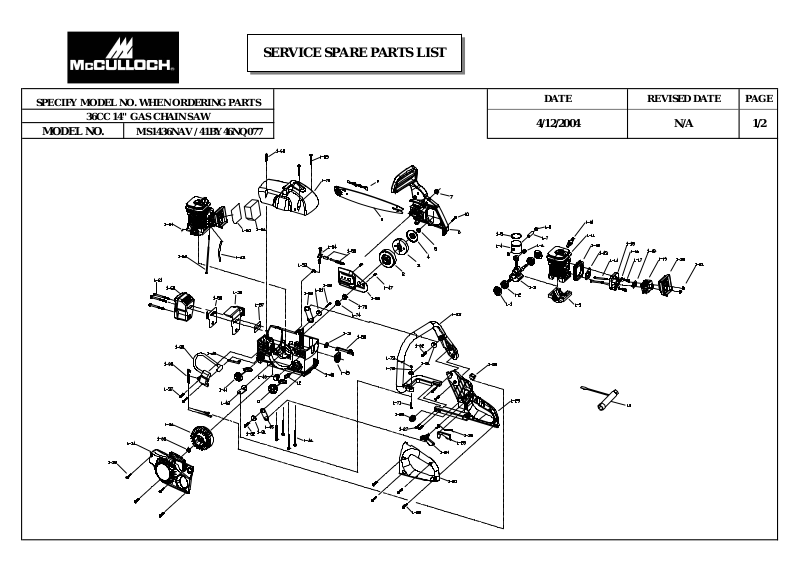

SERVICE SPARE PARTS LIST
SPECIFY MODEL NO. WHEN ORDERING PARTS
36CC 14" GAS CHAIN SAW
MODEL NO. MS1436NAV / 41BY46NQ077
DATE
4/12/2004
REVISED DATE PAGE
N/A 1/2
2
SERVICE SPARE PARTS LIST
SPECIFY MODEL NO. WHEN ORDERING PARTS
DATE REVISED DATE PAGE
36CC 14" GAS CHAIN SAW
4/12/2004 N/A 2/2
MODEL NO.
No.
STK CODE
1 MC-9238-MD0901 ENG ASS'Y 1 1-29 C MC-9068-310502 HANDLE, REAR 1 1-59 C MC-9082-310501 BAFFLE 1
1-1 B MC-9157-310502 CAP, BEARING 2 1-30 A MC-9022-310501 SWITCH 1 1-60 C MC-9228-310504 MUFFLER ASS'Y 1
1-2 A MC-9DB-620101 BEARING 2 1-31 B MC-9WFB-05-21 WASHER 4 1-61 B MC-9SXDB-06-70 SCREW 3
1-3 A MC-9228-310505 CRANK/ROD ASS'Y 1 1-32 B MC-9SKKBY8/16-0.625 SCREW 3 1-62 B MC-9010-310502 CABLE, THROTTLE 1
1-4 B MC-9290-310502 PISTON 1 1-33 C MC-9068-310503 HANDLE, FRONT 1 1-63 B MC-9129-310504 FUEL PIPE 1
1-5 B MC-9189-310502 RING, PISTON 1 1-34 C MC-9228-MD0901 STARTER HOUSING ASS'Y 1 1-64 A MC-9221-310001 WOODRUFF KEY 1
1-6 A MC-9NB-K101410 ROLLER, PISTON 1 1-35 B MC-9NAB-5/16-24 NUT 1 1-65 B MC-9183-310502 MESH 1
JFT Parts No. Description Q No.
MS1436NAV / 41BY46NQ077
STK CODE
JFT Parts No. Description Q No.
STK CODE
JFT Parts No. Description Q
1-7 A MC-9PC-10-34.5 PIN, PISTON 1 1-36 B MC-9169-310501 FLYWHEEL 1 1-66 A MC-9252-310501 FILTER, AIR 1
1-8 B MC-9CA-10.3 RING 2 1-37 B MC-9SKKBY8/16-0.75 SCREW 2 1-68 B MC-9SKKBY-8/16-1 SCREW 1
1-9 C MC-9072-310501F CASE, CRANK 1 1-38 A MC-9010-310503 WIRE ASS'Y 1 1-69 B MC-9SKKBY8/16-1.4 SCREW 2
1-10 A MC-9295-310502 SPARK PLUG 1 1-39 C MC-9288-310501-CH IGNITION ASS'Y 1 1-70 C MC-9017-310509 SHROUD 1
1-11 C MC-9292-310501F CYLINDER 1 1-40 B MC-9051-310501 CONDUCTIVE PLATE 1 1-71 MC-9SKKB-05-19 SCREW 1
1-12 B MC-9012-310502 RUBBER, ISOLATOR 1 1-41 A MC-9228-310207 OIL CAP ASS'Y 1 1-72 MC-6WSB-05 SPRING WASHER 1
1-13 B MC-9082-310505 SPACER 1 1-42 B MC-9043-MD1003 FIX PLATE 1 1-73 MC-9NAB-05 NUT 1
1-14 B MC-9STDB-05-60 SCREW 2 1-43 A MC-9142-310002 PRIMER 1 1-74 B MC-9157-310501 FELT 1
1-15 C MC-9082-310504 ISOLATOR, CARBURETOR 1 1-45 B MC-9043-MD1002 FIX PLATE 1 1-75 B MC-9073-310503 WORM 1
1-16 B MC-6WSB-06 SPRING WASHER 2 1-46 B MC-9SFAB-06-55 SCREW 4 2 C MC-9228-310515 DRUM ASS'Y 1
1-17 B MC-9SACB-06-25 SCREW 2 1-47 B MC-6SDABB04-08 SCREW 2 3 C MC-9228-310528 CLUTCH ASS'Y 1
1-18 B MC-9082-310506 SPACER 1 1-48 C MC-9228-310511 HOUSING ASS'Y 1 4 C MC-9077-310501 CAP, ANTI-DUST 1
1-19 C MC-9287-310501 CARBURETOR 1 1-49 C MC-9012-310503 HOLDER, CABLE 1 5 B MC-9NHC-09 NUT 1
1-20 B MC-9228-310510 AIR FILTER ASS/Y 1 1-50 B MC-9114-310510 LEVER, CHOKE (MTD BLUE) 1 6 C MC-9228-310501 BRAKE KIT ASS'Y 1
1-21 B MC-9NHZ-05 NUT 2 1-51 B MC-9012-310504 HOLDER, CHOKE LEVEL 1 7 B MC-9NAZ-5/16-18 NUT 1
1-22 B MC-9SGKBY10/14-0.625 SCREW 8 1-52 B MC-9043-MD1001 FIX PLATE 1 8 A MC-9040-310510 BAR 1
1-23 C MC-9068-310501 HANDLE, LEFT PART 1 1-53 B MC-9124-310102 CONNECTOR 1 9 A MC-6220-210803 CHAIN 1
1-24 A MC-9028-310502 TRIGGER, THROTTLE 1 1-54 A MC-9013-310501 OIL PIPE 1 10 B MC-9SGKBY10/14-0.6
1-25 A MC-9028-310501 TRIGGER, RELEASE 1 1-55 B MC-9228-310526 PUMP ASS'Y 1 11 C MC-9228-310206 FUEL CAP ASS'Y 1
1-26 B MC-9024-310504 SPRING 1 1-56 B MC-9017-310508 CAP, ANTI-DUST 1 12 A MC-9182-310001 FILTER 1
1-27 B MC-9SKKBY10/14-0.68 SCREW 4 1-57 B MC-9082-310507 SPACER 1 13 MC-9042-310201 WRENCH 1
1-28 MC-9027-310101 RUBBER 1 1-58 C MC-9082-310502 BAFFLE 1
SCREW 1
Stocking Codes are:
A - Dealer stocked B - Distributor stocked C - Factory stocked
