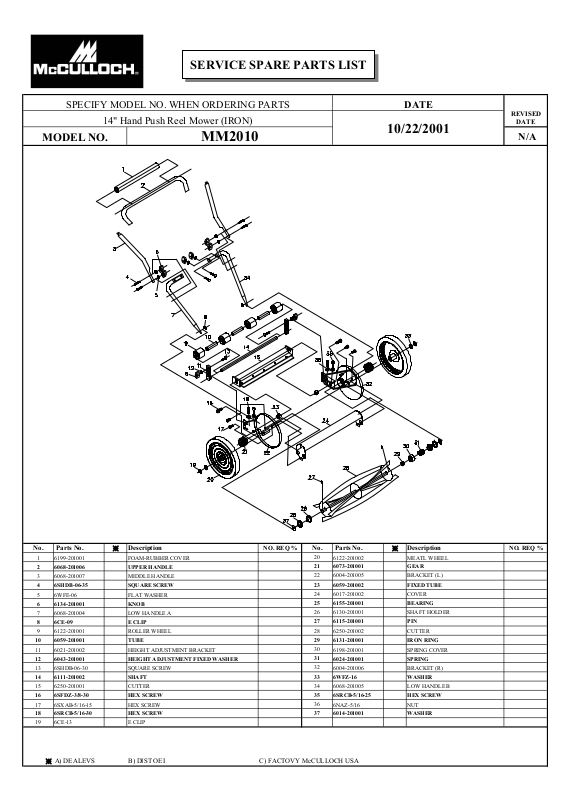

mcculloch MM2010 PARTS LIST

SERVICE SPARE PARTS LIST

SPECIFY MODEL NO. WHEN ORDERING PARTS

14" Hand Push Reel Mower (IRON)

MODEL NO. MM2010

DATE

10/22/2001

REVISED

DATE

N/A

No. Parts No. ※ Description NO. REQ % No. Parts No. ※ Description NO. REQ %

1 6199-201001 FOAM-RUBBER COVER

2 6068-201006 UPPER HANDLE

3 6068-201007 MIDDLE HANDLE

4 6SHDB-06-35 SQUARE SCREW

5 6WFE-06 FLAT WASHER

6 6134-201001 KNOB

7 6068-201004 LOW HANDLE A

8 6CE-09 E CLIP

9 6122-201001 ROLLER WHEEL

10 6059-201001 TUBE

11 6021-201002 HEIGHT ADJUSTMENT BRACKET

12 6043-201001 HEIGHT ADJUSTMENT FIXED WASHER

13 6SHDB-06-30 SQUARE SCREW

14 6111-201002 SHAFT

15 6250-201001 CUTTER

16 6SFDZ-3/8-30 HEX SCREW

17 6SXAB-5/16-15 HEX SCREW

18 6SRCB-5/16-30 HEX SCREW 37 6014-201001 WASHER

19 6CE-13 E CLIP

※

A) DEALEVS

B) DIST OEI C) FACTOVY McCULLOCH USA

20

6122-201002 MEATL WHEEL

21 6073-201001 GEAR

22 6004-201005 BRACKET (L)

23 6059-201002 FIXED TUBE

24 6017-201002 COVER

25 6155-201001 BEARING

26 6130-201001 SHAFT HOLDER

27 6115-201001 PIN

28 6250-201002 CUTTER

29

6131-201001 IRON RING

30

6198-201001 SPRING COVER

31

6024-201001 SPRING

32

6004-201006 BRACKET (R)

33

6WFZ-16 WASHER

34

6068-201005 LOW HANDLE B

35

6SRCB-5/16-25 HEX SCREW

36

6NAZ-5/16 NUT
