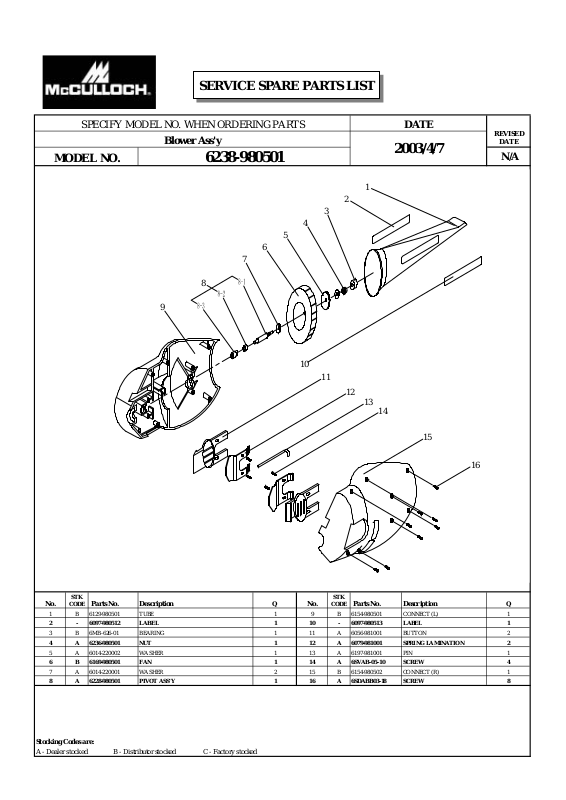

SERVICE SPARE PARTS LIST
SPECIFY MODEL NO. WHEN ORDERING PARTS
Blower Ass'y
MODEL NO.
9
6238-980501
7
8
DATE
2003/4/7
REVISED
DATE
N/A
1
2
3
4
5
6
10
11
12
13
14
15
16
STK
No.
CODE Parts No. Description Q No.
1 B 6129-980501 TUBE 1 9 B 6154-980501 CONNECT (L) 1
2 - 6097-980512 LABEL 1 10 - 6097-980513 LABEL 1
3 B 6MB-626-01 BEARING 1 11 A 6056-981001 BUTTON 2
4 A 6236-980501 NUT 1 12 A 6079-981001 SPRING LAMINATION 2
5 A 6014-220002 WASHER 1 13 A 6197-981001 PIN 1
6 B 6169-980501 FAN 1 14 A 6SVAB-05-10 SCREW 4
7 A 6014-220001 WASHER 2 15 B 6154-980502 CONNECT (R) 1
8 A 6228-980501 PIVOT ASS'Y 1 16 A 6SDABB03-18 SCREW 8
STK
CODE Parts No. Description Q
Stocking Codes are:
A - Dealer stocked B - Distributor stocked C - Factory stocked
