11-400057D WOODMATE I 01/82 to 12/85 IPL 215765 Page 1 of 3

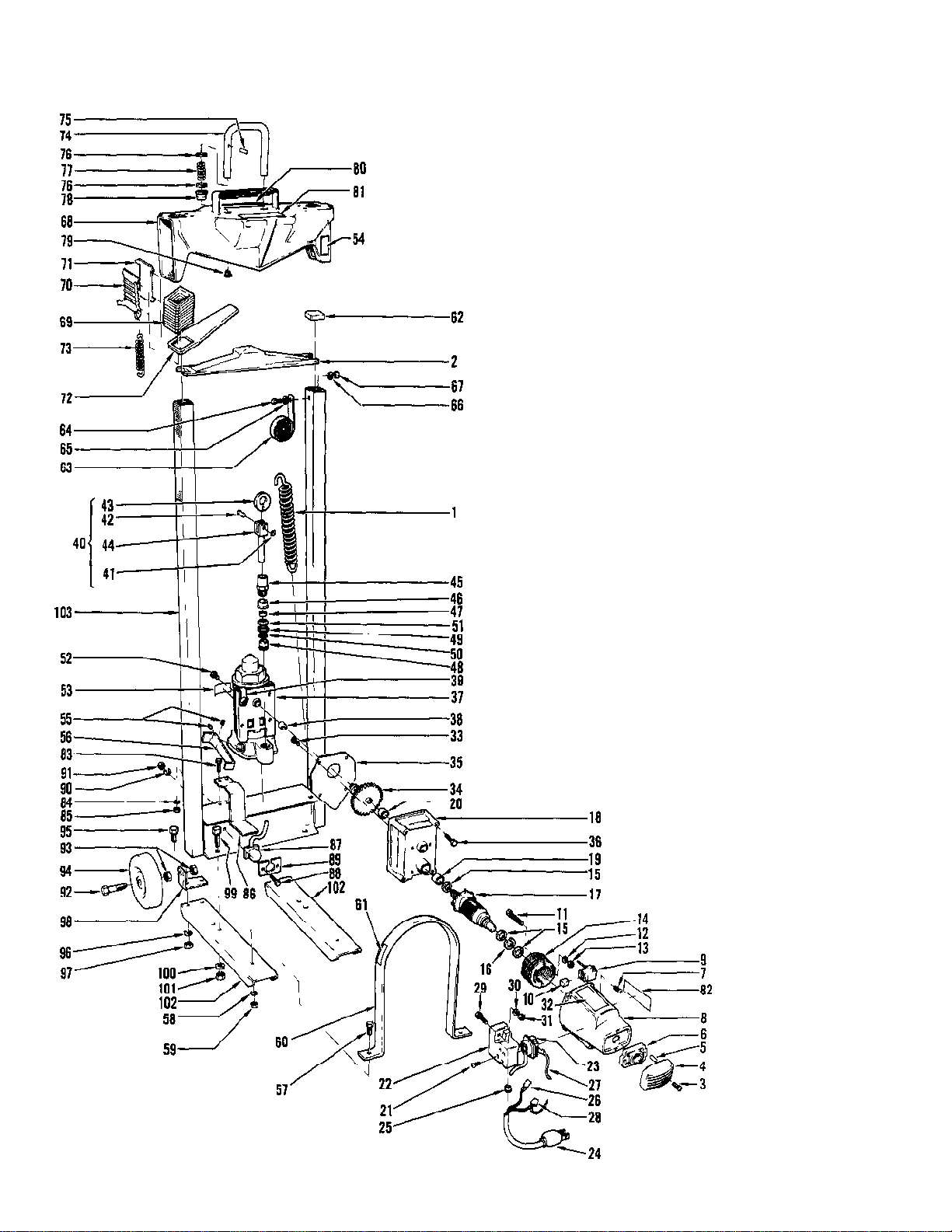

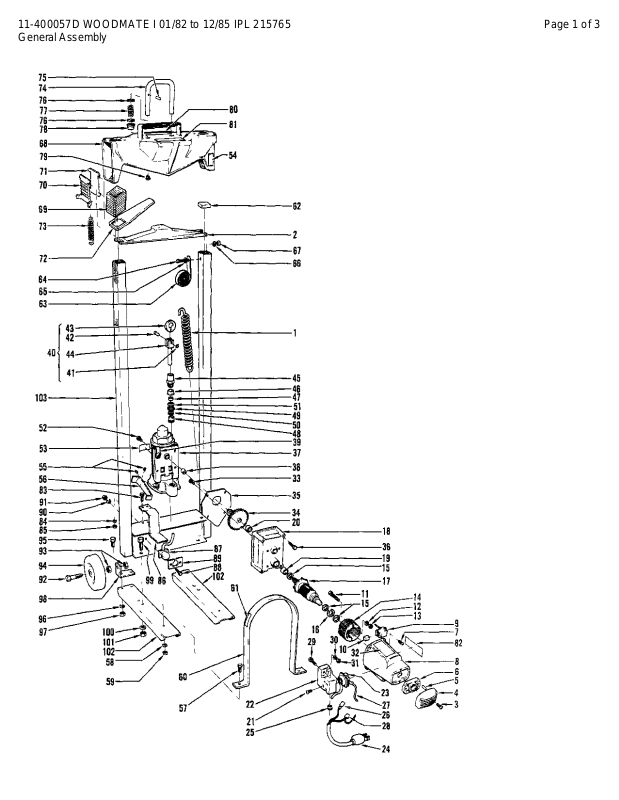

General Assembly
Page 2
11-400057D WOODMATE I 01/82 to 12/85 IPL 215765 Page 2 of 3
General Assembly
Ref # Part Number DescriptionQty
1 214621 Spring - Ram Guide2
2 214711 Ram Guide1
214744 Motor Asy1
3 215080 Screw 8-16 x .9372
4 214515 End Cap1
5 214516 Plug - End Cap2
6 214507 Heat Sink and Bearing Asy1
7 215178 Screw 10-32 x 2.54
8 214506 Field Case1
9 214513 Brush Holder2
10 214514 Brush2
11 110614 Screw 10-24 x 2.382
12 103174 Washer2
13 101326 Nut - Hex Lock 10-242
14 214509 Field Asy1
15 214512 Washer - Fiber3
16 214511 Washer - Spring1
17 214510 Armature - Fan Asy1
18 213766 Gear Housing Asy1
19 213768 Bushing1
20 213107 Bearing1
214629A Switch Box Asy1
21 213016A Screw - PN HD M3.5 x 9.22
22 214421 Switch Box1
23 214635A Switch1
24 214424 Cord Asy1
25 215300 Bushing - Strain Relief1
26 214742 Wire Asy1
27 214454 Wire Asy1
28 214743 Nut - Wire1
29 213123 Screw Hx M6 x 1.01
30 102523 Washer - 1/4 Plain1
31 213131 Nut1
32 215428 Decal - Power Pack1
33 213137 Screw - M44
34 213688 Shaft Asy1
35 213770 Shield - Grease1
36 213136 Screw - M64
37 215853 Kit - Jack/Backplate1
38 213107 Bearing1
39 214722 Nut4
40 214250 Plunger Asy1
41 213111 Ring - E1
42 213690 Pin - Clevis1
43 214147 Connector Asy1
44 213693 Pump Asy - Rod1
45 214183 Kit - Cylinder Pump1
46 214276 Seal1
47 213772 Retainer - Seal1
48 214184 Valve Asy1
49 Seal Not available separately.1
50 Washer Not available separately.1
51 Washer - Seal Not available separately.1
52 215994 Screw - Fill1
53 215669 Decal - Vent1
Page 3
11-400057D WOODMATE I 01/82 to 12/85 IPL 215765 Page 3 of 3
General Assembly
Ref # Part Number DescriptionQty
54 215736 Decal - Lubrication1
55 213171 Screw - Set M82
56 214266 Lever Asy1
57 120006 Screw - M62
58 105043 Washer - M62
59 120034 Nut - M62
60 214771 Guard - Motor1
61 215735 Decal - Guard1
62 214628 Cap - Plastic2
63 215854 Kit - Constant Force Spring1
64 120006 Screw - M62
65 215490 Washer2
66 105043 Washer - Lock2
67 120034 Nut2
68 214709 Wedge Asy1
69 215217 Clutch Plate Asy2
70 214288 Gripper - Clutch1
71 214287 Slipper - Clutch1
72 214297 Release - Clutch Plate1
73 214618 Spring - Extension4
74 215855 Kit - Handle Repair1
75 105654 Pin - Roll2
76 213033 Washer - Flat4
77 215587 Spring - Handle Release2
78 215586 Guide - Handle Release2
79 215564 Plug - Handle2
80 214827 Decal - Name1
81 214900 Decal - Caution1
82 215419 Plate - I.D.1
83 120006 Screw - M62
84 105043 Washer - M62
85 120034 Nut - Hx M62
86 214299 Pedal - Switch1
87 215569 Kit - Bellows1
88 100882 Screw - M62
89 214572 Clamp - Bellows1
90 105043 Washer - M62
91 111038 Nut - M62
92 213128 Screw - M122
93 213129 Nut - M124
94 214625 Wheel2
95 120006 Screw - M64
96 105043 Washer - M6 Lock4
97 120034 Nut - M64
98 214770 Bracket - Wheel2
99 213120 Screw - M104
100 213121 Washer - M104
101 213119 Nut - M104
102 214769 Cross Channel2
103 214768 Frame Asy1
215216 Repair Kit
