mcculloch EX2900 PARTS LIST

Ex Series Ex29002

INSTRUCTIONS FOR PARTS LIST MANUAL

ENGINE SECTION - PAGES 3 THROUGH 26

TRACTOR SECTION - PAGES 27 THROUGH 181

EXAMPLE - FIGURE & REFERENCE NUMBERS

Ex2900

Ex Series Ex2900

3

ENGINE SECTION INDEX

FIG. NO. GROUP NAME

1 CYLINDER BLOCK
2 GEAR HOUSING
3 OIL PAN & REAR ENGINE PLATE
4 CYLINDER HEAD & VALVE COVER
5 INTAKE MANIFOLD
6 EXHAUST MANIFOLD & MUFFLER
7 CAMSHAFT & TIMING PARTS
8 CRANKSHAFT & PISTON

9 HYDRAULIC PUMP
10 LUBRICATING PARTS
11 COOLING WATER SYSTEM
12 FUEL INJECTION PUMP
13 GOVERNOR
14 FUEL SUPPLY PARTS
15 STARTER
16 ALTERNATOR

TRACTOR SECTION STARTS ON PAGE 27

Ex Series Ex29004

NOTES:

Ex Series Ex2900

5

FIG. 1. CYLINDER BLOCK

REF

NO.

1 CY-729005-01562 BLOCK ASSY, CYLINDER 1
4 CY-124060-01050 PLUG PT1/8 1
5 CY-129001-01250 PLUG 50 1
6 CY-124160-01910 PLUG PT1/4 2
7 CY-124160-01910 PLUG PT1/4 1
8 CY-171051-01921 PLUG 1

9 CY-129150-02020 BOLT, METAL CAP 8
12 CY-129795-02412 BUSH, CAMSHAFT 1
13 CY-27241-120000 PLUG 12 2
14 CY-27241-300000 PLUG 30 6
24 CY-129001-02931 MAIN BEARING SET 4
27 CY-129150-02931 METAL, THRUST 2
30 CY-129150-01200 STUD, CYL. HEAD 14
31 CY-129001-01340 GASKET, (NON-ASB.) 1
32 CY-129150-02871 MAIN METAL US=0.25 UNDER-SIZE 4
35 CY-129150-02941 METAL,THRUST.25 (2PIE) OVER-SIZE 1

PART NUMBER DESCRIPTION QTY

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

6

FIG. 2. GEAR HOUSING

REF

NO.

1
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
23
24

PART NUMBER DESCRIPTION QTY

CY-729008-01500 GEAR CASE ASSY W/SEAL 1
CY-119934-01800 SEAL, OIL 1
CY-129008-01520 FLANGE, GEAR CASE 1
CY-119802-01561 STUD, M8X25 3
CY-129150-01580 STUD 8 X 30 1
CY-124160-01751 COVER, FILLER 1
CY-124240-01871 COVER, HO-P 1
CY-129795-01950 PIPE, KNOCK L=18 2
CY-119609-32040 O-RING P16 2
CY-121850-51960 O-RING, F.I.PUMP 1
CY-129001-91841 BOLT, M8X85 3
CY-22190-080002 SEAL WASHER 8S 4
CY-22190-080002 SEAL WASHER 8S 1
CY-24311-000320 O-RING 1A P-32.0 1
CY-26106-080162 BOLT M 8X 16 PLATED 4
CY-26106-080162 BOLT M 8X 16 PLATED 3
CY-26106-080302 BOLT M 8X 30 PLATED 1
CY-26106-080552 BOLT M 8X 55 PLATED 10
CY-26306-080002 NUT 3
CY-129150-91400 GEAR UNIT, TACHOMETER 1
CY-24341-000240 O-RING 1A S-24.0 1
CY-26106-060162 BOLT M 6X 16 PLATED 2

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

7

FIG. 3. OIL PAN & REAR ENGINE PLATE

REF

NO.

1 CY-129100-01580 PARALLEL PIN 8X16 2

2 CY-129129-01600 PLATE, REAR MOUNTING 1

3 CY-26206-100202 BOLT M10X20 6

4 CY-26206-100202 BOLT M10X20 4

5 CY-129129-01550 PAN ASSY, ENGINE OIL 1

6 CY-129129-01540 COVER ASSY, OIL PAN 1

7 CY-105425-01690 PLUG M16 1

8 CY-129150-01721 COVER, OIL PAN 1

9 CY-22190-160002 SEAL WASHER 16S 1
11 CY-26106-080122 BOLT M 8X 12 PLATED 8
12 CY-129001-91841 BOLT, M8X85 8
13 CY-129001-91910 BOLT, M8X120 4
14 CY-26106-080252 BOLT M 8X 25 PLATED 6
15 CY-26106-080502 BOLT M 8X 50 PLATED 4
16 CY-129100-01580 PARALLEL PIN 8X16 2
17 CY-729402-01650 CASE ASSY, OIL SEAL 1
19 CY-129120-01780 SEAL, OIL 1
20 CY-129486-01670 BOLT M8X30, COLLAR HD 9

PART NUMBER DESCRIPTION QTY

CY-977770-1207F GASKET SEALANT

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

FIG. 4. CYLINDER HEAD & VALVE COVER

8

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

9

FIG 4. CYLINDER HEAD & VALVE COVER

REF

NO.

1 CY-129004-11241 SHAFT ASSY, ROCKER 1

2 CY-129004-11251 SHAFT, ROCKER ARM 1

4 CY-119802-11260 SUPPORT, ROCKER ARM 2

5 CY-119802-11270 SUPPORT, ROCKER ARM 2

6 CY-119802-11280 STUD, 8X18 3

7 CY-129150-11280 SPRING 3

8 CY-129004-11650 ARM ASSY, ROCKER 6

9 CY-129150-11230 SCREW, VALVE 6
11 CY-129150-11750 NUT M8XP1.0 6
12 CY-129150-11370 CAP, VALVE 6
13 CY-129008-11700 HEAD ASSY, CYLINDER 1
16 CY-120130-11860 GUIDE, VALVE 3
18 CY-129150-11810 GUIDE, VALVE 3
20 CY-27241-400000 PLUG 40 2
21 CY-129005-11100 VALVE, INTAKE 3
22 CY-129100-11112 VALVE, EXHAUST 3
23 CY-129795-11120 SPRING, VALVE 6
24 CY-129795-11180 RETAINER, SPRING 6
25 CY-121400-11340 SEAL, VALVE STEM 3
26 CY-124460-11340 SEAL, VALVE STEM 3
27 CY-27310-080001 COTTER 8 6
29 CY-119802-11870 PROTECTOR, NOZZLE 3
30 CY-119625-11880 SEAT, NOZZLE 3
31 CY-129004-11900 RETAINER, NOZZLE 3
32 CY-120270-54410 WASHER 3
33 CY-22351-060012 SPRING PIN 6X12 2
34 CY-26106-080252 BOLT M 8X 25 PLATED 2
35 CY-26106-080352 BOLT M 8X 35 PLATED 3
36 CY-26106-080502 BOLT M 8X 50 PLATED 6
37 CY-129055-11350 COVER ASSY, VALVE 1
38 CY-129004-03010 PLATE, BAFFLE 1
39 CY-129150-03070 BAFFLE, BREATHER 1
40 CY-119802-03110 PLATE, DIAPHRAGM 1
41 CY-119802-03121 COVER, DIAPHRAGM 1
42 CY-119802-03130 DIAPHRAGM 1
43 CY-119802-03141 SPRING, DIAPHRAGM 1
45 CY-129004-11310 GASKET, VALVE COVER 1
46 CY-22857-500100 SCREW 5X10,TAPPING 4
47 CY-22857-500100 SCREW 5X10,TAPPING 4
48 CY-124160-11360 KNOB 3
49 CY-24311-000120 O-RING 1A P 12.0 3
50 CY-129900-07900 LIFTER, ENGINE 1
51 CY-26106-080162 BOLT M 8X 16 PLATED 2
52 CY-119803-77830 HARNESS, GLOW PLUG 1
53 CY-129008-77800 PLUG, GLOW 3
54 CY-129008-77820 CONNECTOR, GLOW PLUG 1

PART NUMBER DESCRIPTION QTY

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

10

FIG. 5. INTAKE MANIFOLD

REF

NO.

1 CY-129005-03080 PIPE, BREATHER 1

2 CY-129410-03990 CLAMP 22 2

3 CY-129005-12100 MANIFOLD, INTAKE 1

4 CY-129001-12110 GASKET,INT. MANIFOLD 1

5 CY-26106-080202 BOLT M 8X 20 PLATED 4

6 CY-26106-080802 BOLT M 8X 80 PLATED 1

7 CY-129486-12581 PIPE, INTAKE 1

8 CY-129150-77511 GASKET, (NON-ASB.) 1

9 CY-26106-080202 BOLT M 8X 20 PLATED 4

PART NUMBER DESCRIPTION QTY

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

11

FIG. 6. EXHAUST MANIFOLD & MUFFLER

REF

NO.

1 CY-129269-13100 MANIFOLD, EXHAUST 1

2 CY-129150-13110 GASKET, MANIFOLD 1

3 CY-119131-18320 BOLT M 8X 22 4

4 CY-123900-13630 BOLT 8X80 4

5 CY-129263-13220 BOLT M8X95 2

6 CY-26306-080002 NUT 2

7 CY-129004-13200 GASKET, MUFFLER 1

8 CY-129055-13521 MUFFLER 1

9 CY-26306-080002 NUT 4

PART NUMBER DESCRIPTION QTY

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

12

FIG. 7. CAMSHAFT & TIMING PARTS

REF

NO.

1 CY-129150-14200 TAPPET 6

2 CY-129150-14400 ROD, PUSH 6

3 CY-129129-14580 CAMSHAFT ASSY 1

4 CY-129150-02450 METAL, THRUST CAM 1

6 CY-129150-14101 GEAR, CAMSHAFT 1

7 CY-22512-070140 KEY 7X 14 1

8 CY-26106-080142 BOLT 8X 14 PLATED 2

9 CY-119803-25050 SHAFT, IDLE GEAR 1
10 CY-119802-25101 GEAR ASSY, IDLE 1
13 CY-119802-25071 BUSH, IDLE GEAR 1
14 CY-26106-080402 BOLT M 8X 40 PLATED 3
15 CY-129150-25301 BOLT, INJECTION PUMP GEAR 4
16 CY-119802-25901 GEAR, PUMP 1
17 CY-129150-01881 GASKET, (NON ASB.) 1
18 CY-129150-26000 GEAR ASSY, HYD PUMP CAM 1
19 CY-129150-26050 BRACKET, HYD PUMP GEAR 1
21 CY-24105-060064 BALL BEARING 2
22 CY-158552-51151 FLANGE 1
23 CY-22217-140000 SPRING WASHER 14 1
24 CY-26776-140002 LOCK NUT M14 PLATED 1

PART NUMBER DESCRIPTION QTY

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

13

FIG. 8. CRANKSHAFT & PISTON

REF

NO.

1 CY-129008-21000 CRANKSHAFT ASSY 1
2 CY-129100-01580 PARALLEL PIN 8X16 1
4 CY-119803-21200 GEAR, CRANKSHAFT 1
5 CY-22512-070140 KEY 7X 14 1
7 CY-22512-070140 KEY 7X 14 1
8 CY-129055-21650 V-PULLEY, CRANKSHAFT 1

9 CY-129795-21661 WASHER 1
10 CY-121850-21680 BOLT, V-PULLEY 1
11 CY-124160-21501 BOLT, FLYWHEEL 6
12 CY-129269-21590 FLYWHEEL ASSY 1
14 CY-119865-21600 GEAR, RING 1
15 CY-121820-21690 BEARING 1
16 CY-129005-22080 PISTON ASSY 3
18 CY-129005-22500 RING SET, PISTON 3
22 CY-129202-22300 PIN, PISTON 3
23 CY-22252-000260 CLIP, PISTON PIN 6
24 CY-729402-23100 ROD ASSY, CONNECTING 3
27 CY-129100-23910 BUSH, PISTON PIN 3
28 CY-121550-23200 BOLT, CONNECTING ROD 6
29 CY-129150-23601 BEARING SET, CON-ROD 3
31 CY-129150-23611 BEARING SET, CON-ROD US=0.25 3
33 CY-129005-22900 PISTON W/RING OS=.25 3
35 CY-129005-22950 RING SET OS=0.25 3

PART NUMBER DESCRIPTION QTY

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

14

FIG. 9. HYDRAULIC PUMP

REF

NO.

1 CY-124240-01883 GASKET, (NON-ASB.) 2
2 CY-178070-16000 PUMP, HYDRAULIC 1
4 CY-178070-10401 SQUARE RING 1

13 CY-194521-41570 PIN 11X7 2
15 CY-22252-000320 CIRCLIP 32 1
16 CY-24421-153207 SEAL TC15 32 07, OIL 1
17 CY-26016-080352 BOLT M 8X 35 4
18 CY-178070-44000 PUMP, HYDRAULIC 1
20 CY-178070-10401 SQUARE RING 1
26 CY-194521-41570 PIN 11X7 2
31 CY-22252-000320 CIRCLIP 32 1
32 CY-24421-153207 SEAL TC15 32 07, OIL 1
33 CY-26016-080352 BOLT M 8X 35 4
34 CY-26106-080802 BOLT M 8X 80 PLATED 2
35 CY-26106-080952 BOLT M 8X 95 PLATED 2
36 CY-26216-080222 STUD M 8X 22 PLATED 2
37 CY-26216-080402 STUD M 8X 40 PLATED 1
38 CY-26306-080002 NUT 4

PART NUMBER DESCRIPTION QTY

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

15

FIG. 10. LUBRICATING PARTS

REF

NO.

1 CY-129001-32001 PUMP ASSY, ENGINE OIL 1

14 CY-129150-32020 GASKET, ENGINE OIL PUMP 1
15 CY-26450-060252 BOLT M 6X 25 4
16 CY-121520-34810 TUBE, DIPSTICK 1
17 CY-119265-34830 DIPSTICK, ENGINE OIL 1
18 CY-129150-35042 GASKET, (NON-ASB.) 1
19 CY-129129-35090 PICK-UP ASSY, ENGINE OIL 1
20 CY-129129-35010 INLET 1
21 CY-129129-35080 PIPE, ENGINE OIL PICK-UP 1
22 CY-26106-080122 BOLT M 8X 12 PLATED 1
23 CY-26106-080352 BOLT M 8X 35 PLATED 2
24 CY-119802-35100 BRACKET ASSY, FILTER 1
25 CY-119802-35110 BRACKET, FILTER 1
26 CY-129100-35140 STUD 1
27 CY-129150-35111 GASKET, (NON-ASB.) 1
28 CY-129150-35160 FILTER 80X80L 1
29 CY-26106-080202 BOLT M 8X 20 PLATED 3
30 CY-114250-39450 SWITCH,(0.5KG) ENGINE OIL 1
31 CY-124160-39140 BOLT, BANJO 1
32 CY-119802-39450 PIPE ASSY, INJECTION PUMP 1
33 CY-129005-59830 BOLT WITH SEAL 1
34 CY-22190-080002 SEAL WASHER 8S 1
35 CY-23857-030000 BOLT, BANJO 1
36 CY-22190-080002 SEAL WASHER 8S 1
37 CY-22190-100002 SEAL WASHER 10S 2
38 CY-26366-060002 NUT M 6 1

PART NUMBER DESCRIPTION QTY

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

FIG. 11. COOLING WATER SYSTEM

16

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

17

FIG. 11. COOLING WATER SYSTEM

REF

NO.

1 CY-129550-42350 V-PULLEY(D=120) 1
2 CY-25132-003900 V-BELT 1
3 CY-129120-44741 FAN, COOLING (D=360) 1
4 CY-129030-44760 SPACER 1
5 CY-26106-060502 BOLT M 6X 50 PLATED 4
6 CY-129155-49801 THERMOSTAT (71) 1
7 CY-129150-49811 GASKET, (NON-ASB.) 1
8 CY-129795-49551 GASKET, (NON-ASB.) 1

9 CY-129350-49560 COVER, THERMOSTAT 1
10 CY-26306-080002 NUT 2
11 CY-129263-49610 PIPE, COOLING WATER 1
12 CY-129263-49710 PIPE, COOLING WATER 1
13 CY-124722-59050 CLAMP 9 2
14 CY-129263-49620 PIPE, COOLING WATER 1
15 CY-129263-49720 PIPE, COOLING WATER 1
16 CY-124722-59050 CLAMP 9 2
17 CY-119620-49290 DRAIN ASSY 1/4 1
21 CY-121450-42450 PLUG M16 1
22 CY-129054-42450 PLUG, M12X1.5 1
23 CY-124465-44950 GASKET 16 1
24 CY-124250-49351 THERMOMETER 1
25 CY-129150-49360 GASKET 10 1
26 CY-22190-120002 SEAL WASHER 12 1
27 CY-129486-42050 GASKET 1
28 CY-23414-080000 GASKET 8, ROUND 1
29 CY-26106-080122 BOLT M 8X 12 PLATED 1
30 CY-26106-080552 BOLT M 8X 55 PLATED 2
31 CY-26106-080602 BOLT M 8X 60 PLATED 1
32 CY-26106-080702 BOLT M 8X 70 PLATED 1
33 CY-129269-42000 PUMP ASSY, WATER 1
34 CY-129457-42050 PACKING 1
35 CY-129457-42121 PLATE 1
39 CY-129150-42301 FLANGE, PUMP 1
40 CY-24358-240310 O-RING 5 24031 1
42 CY-129054-42320 O-RING 1
43 CY-26577-060152 SCREW M 6X 15 3
44 CY-26106-060202 BOLT M 6X 20 PLATED 2
45 CY-26116-060162 BOLT 6X16 5
46 CY-119802-49113 JOINT 2
47 CY-23875-030000 PLUG PT3/8,STEEL 2
49 CY-129555-44750 STUD 2

PART NUMBER DESCRIPTION QTY

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

FIG. 12. FUEL INJECTION PUMP

18

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

Y

19

FIG. 12. FUEL INJECTION PUMP

REF

NO.

PART NUMBER DESCRIPTION QTY

1 CY-729269-51310

7 CY-119802-51090 KEY, WOODRUFF 4X16 1 95 CY-22190-120002 SEAL WASHER 12 1
32 CY-158600-51270
33 CY-158563-51281
34 CY-158563-51281
35 CY-129008-51300 VALVE ASSY, DELIVERY 3 100 CY-158552-52310 O-RING 1
43 CY-158563-51330
44 CY-129008-51340
51 CY-158601-51550
52 CY-119802-51560
53 CY-158552-51570
54 CY-158552-51570
55 CY-158557-51570
56 CY-158601-51570 PLUG, WATER PUMP 1 109 CY-24356-010180 O-RING 1
57 CY-158552-51580
58 CY-119802-51590
59 CY-119802-51600
62 CY-158553-51670 O-RING, 1011 1 116 CY-26776-140002 LOCK NUT M14 PLATED 1
63 CY-119802-51680 BACKUP RING 1 119 CY-158553-51551 JOINT, COOLING WATER 1
64 CY-119802-51690
65 CY-24356-010200
66 CY-24372-000150
67 CY-158552-51600
68 CY-158553-51630
70 CY-158553-51640
71 CY-158553-51660
72 CY-158553-51680
92 CY-158601-51770
93 CY-158552-51781

INJECTION PUMP ASSY

STOPPER
O-RING
O-RING

SPRING
HOLDER, DELIVER
PLUG
BARREL PLUG
GASKET
GASKET
PLUG

LIFTER
TIMER SET
TIMER CMP

O RING
PACKING, 1020
RING, BACKUP T2 P 15
PACKING, HEAD
SPRING, TIMER
ELEMENT, THERMO
O-RING,P14
PACKING, TIMER
PISTON
DAMPER ASSY

REF

NO.

PART NUMBER DESCRIPTION QTY

1 94 CY-158601-51790

1 96 CY-22190-180002
1 97 CY-23887-120002
1 99 CY-158553-51770

3 101 CY-158552-52400
3 102 CY-22190-120002
1 103 CY-22190-180002
1 104 CY-22217-140000
3 105 CY-22312-050140
1 106 CY-22351-050010
1 108 CY-24311-000070

1 110 CY-24356-010200
1 111 CY-26106-060102
1 115 CY-26450-080452

1 120 CY-158601-51650
1 121 CY-158552-51670
1 123 CY-158552-52100
1 124 CY-158552-52500
1 125 CY-129916-59020
1 127 CY-22190-120002
1 128 CY-23857-060000
1 129 CY-119802-51250
1 130 CY-26106-080162
1 131 CY-26106-080202

PLUG

SEAL WASHER 18
PLUG M12, HEX.
BOLT

O-RING 4E S42
SEAL WASHER 12
SEAL WASHER 18
SPRING WASHER 14
PARALLEL PIN 5X14
SPRING PIN 5X10
O-RING 1A P-7.0

PACKING, 1020
BOLT 6X 10 PLATED
BOLT M 8X 45

JOINT
JOINT
PUMP ASSY, FEED
O-RING, FEED P INNER
JOINT 12, PIPE
SEAL WASHER 12
JOINT BOLT 6,PIPE
BRACKET, PUMP
BOLT M 8X 16 PLATED
BOLT M 8X 20 PLATED

1

1
1
4

1
2
2
1
2
2
1

1
1
4

1
1
1
1
1
2
1
1
1
1

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

20

FIG. 13. GOVERNOR

REF

NO.

1 CY-194150-01370 ADJUSTER 1
4 CY-158553-61050 PACKING, CASE 1
5 CY-158553-61070 PACKING 1

7 CY-129155-51280 O-RING S6 1
23 CY-129255-61410 NUT 1
24 CY-119807-61420 SPRING 1
25 CY-158552-61441 LEVER, REGULATOR 1
26 CY-129155-61460 BOLT, IDLE LIMIT 1
60 CY-119660-61901 RETAINER, SHAFT 1
64 CY-22190-120000 SEAL WASHER 12(BOLT) 1
66 CY-23887-120002 PLUG M12,HEX. 1
68 CY-26106-060102 BOLT 6X 10 PLATED 1
69 CY-26756-060002 LOCK NUT 6 1
78 CY-158552-61900 O-RING 1
83 CY-26106-060142 BOLT M 6X 14 PLATED 2
84 CY-26106-060142 BOLT M 6X 14 PLATED 4
85 CY-26106-060202 BOLT M 6X 20 PLATED 10
87 CY-129642-61060 COVER, CASE 1

130 CY-119653-77950 SOLENOID, STOP 1
131 CY-22137-080000 WASHER 8, POLISHED 1
132 CY-22417-160180 COTTER PIN 1.6X18 1

PART NUMBER DESCRIPTION QTY

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

21

FIG. 14. FUEL SUPPLY PARTS

REF

NO.

10 CY-114250-53120 SPRING, NOZZLE 3
11 CY-114250-53130 SEAT, NOZZLE SPRING 3
12 CY-114250-53140 PLATE, STOP 3
13 CY-114250-53210 PIN 6
14 CY-119803-53400 SHIM PACK 3
26 CY-129150-59120 RETAINER, INJ. PIPE 2
29 CY-129150-59131 BOLT M4X14,HEX.SCKT. 4
31 CY-129004-59811 PIPE ASSY, INJECTION 1
35 CY-129004-59821 PIPE ASSY, INJECTION 1
39 CY-129004-59831 PIPE ASSY, INJECTION 1
44 CY-119802-59550 PIPE ASSY, RETURN 1
45 CY-124722-59050 CLAMP 9 2
46 CY-119802-59560 PIPE, FUEL RETURN 1
47 CY-129486-59551 PIPE, FUEL RETURN 2
48 CY-124722-59050 CLAMP 9 4
50 CY-119593-59581 CAP 1
51 CY-124060-77680 CLAMP 10 1

PART NUMBER DESCRIPTION QTY

1 CY-729008-53100 FUEL INJECTOR 3
2 CY-129008-53000 NOZZLE ASSY 3
5 CY-114250-53080 NUT, NOZZLE CASE 3
6 CY-119802-53100 HOLDER ASSY, NOZZLE 3

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

FIG. 15. STARTER

22

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

23

FIG. 15. STARTER

REF

NO.

1 CY-129129-77010 STARTER ASSY 1
2 CY-X0283060061 ROLLER 5
3 CY-129129-77460 SCREW 2
4 CY-X9490561370 NUT 1
5 CY-X9491200240 BALL 1
6 CY-129129-77210 YOKE ASSY 1
7 CY-129129-77220 ARMATURE ASSY 1
8 CY-129129-77230 BEARING 1

9 CY-129129-77240 BEARING 1
10 CY-129129-77250 STARTER ASSY 1
11 CY-X0280210230 NUT 1
12 CY-X0283270140 RETAINER 1
13 CY-X9491703371 SPRING, COIL 1
14 CY-129129-77390 CLUTCH ASSY, STARTER 1
17 CY-129129-77400 SHAFT 1
18 CY-129129-77410 SPRING, COIL 1
19 CY-129129-77420 PINION 1
20 CY-129129-77430 RING 1
21 CY-129129-77260 RETAINER 1
22 CY-129129-77270 PINION 1
23 CY-129129-77280 HOUSING 1
24 CY-129129-77290 FRAME 1
25 CY-129129-77300 HOLDER ASSY 1
26 CY-X9491730461 SPRING 4
27 CY-129129-77310 SWITCH ASSY 1
28 CY-129129-77320 BOLT 2
29 CY-129129-77330 BOLT 2
30 CY-129129-77340 SPRING 1
31 CY-129129-77350 O-RING 2
32 CY-129129-77362 COVER 1
34 CY-129129-77380 CAP 1
35 CY-129155-77060 BOLT, STARTER 1
36 CY-26116-120202 BOLT M12X 20 PLATED 1

PART NUMBER DESCRIPTION QTY

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

FIG. 16. ALTERNATOR

24

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

25

FIG. 16. ALTERNATOR

REF

NO.

1 CY-129795-01900 STUD 1
2 CY-119620-77201 ALTERNATOR 1
3 CY-X9490561001 NUT 1
4 CY-119620-77380 ROTOR ASSY 1
5 CY-123501-79240 BEARING, BALL 1
6 CY-119620-79250 COVER, BEARING 1
7 CY-119620-79360 THRUST WASHER 1
8 CY-119620-77421 FLAME ASSY, DRIVE 1

9 CY-119620-79200 BALL BEARING 1
10 CY-119620-79210 PLATE 1
11 CY-119620-79220 SCREW 4
12 CY-119620-79230 BOLT, STUD 2
13 CY-119620-77440 FLAME ASSY, REAR 1
14 CY-119620-77450 COVER 1
15 CY-119620-77461 PULLEY 1
16 CY-119620-77471 NUT 1
17 CY-119620-77490 COLLAR 1
18 CY-119620-77710 REGULATOR ASSY 1
19 CY-119620-79260 HOLDER 1
20 CY-119620-79270 HOLDER, BRUSH 1
21 CY-119620-77480 BRUSH ASSY 2
22 CY-119620-79280 SPRING 2
23 CY-119620-79290 SCREW 6
24 CY-119620-79300 SCREW 1
25 CY-119620-79310 BOLT 3
26 CY-119620-79320 SCREW W/WASHER 2
27 CY-119620-79330 BOLT 2
28 CY-119620-79340 INSULATION BUSH 1
29 CY-119620-79350 NUT 2
30 CY-26306-100002 NUT 1
31 CY-129107-77330 ADJUSTER, BELT 1
32 CY-124732-77340 SPACER 1
33 CY-129972-77341 BOLT, ADJUSTING 1

PART NUMBER DESCRIPTION QTY

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

26

THIS PAGE INTENTIONALLY LEFT BLANK

Copyright 2007 Cub Cadet Yanmar LLC

Ex Series Ex2900

27

TRACTOR SECTION INDEX

FIG. NO

ENGINE CONTROL SECTION

1 ENGINE ACCESSORIES 49 P.T.O. SHIFTER
2 ENGINE ACCESSORIES MOUNTING 50 P.T.O. LEVER

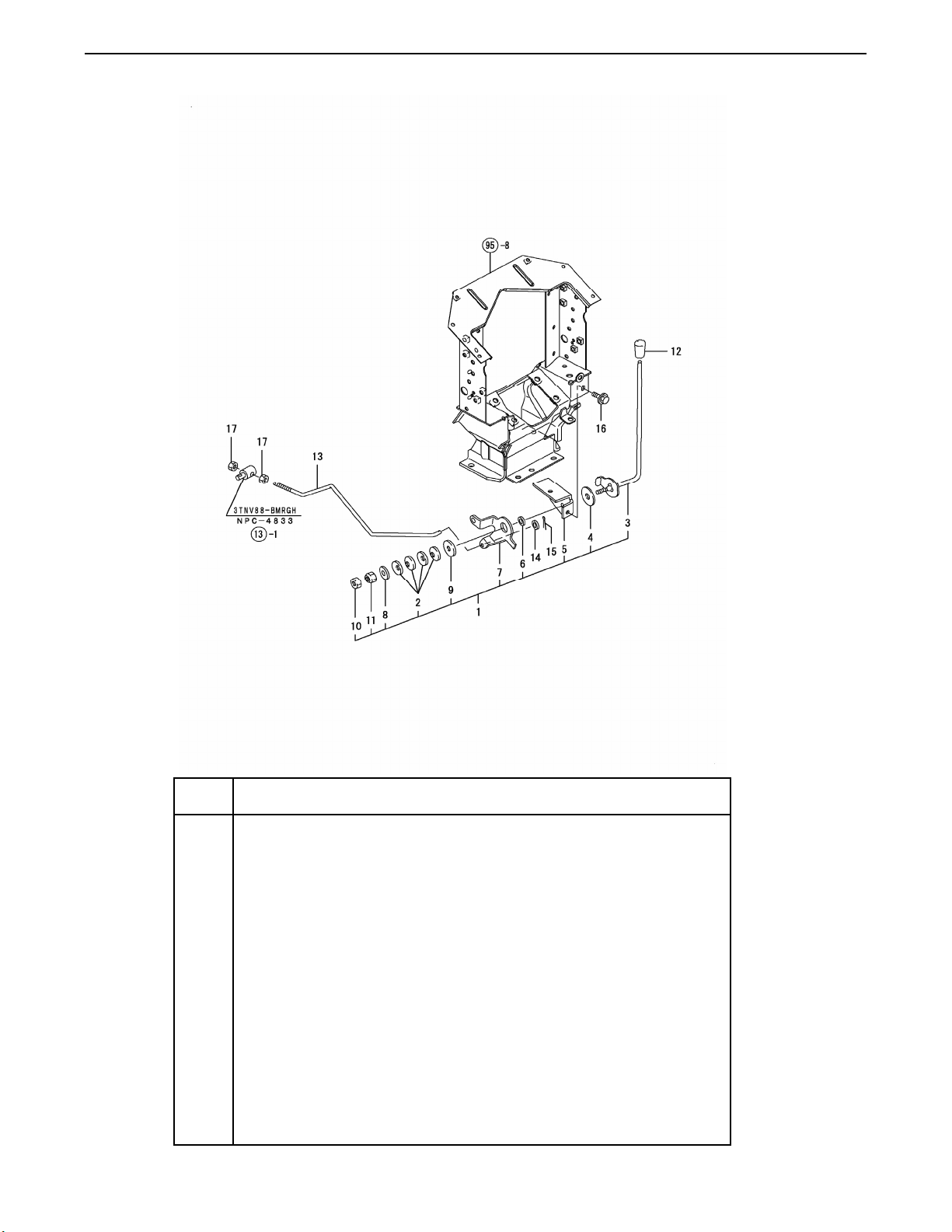

3 ACCELERATOR LEVER 51 FRONT DRIVE

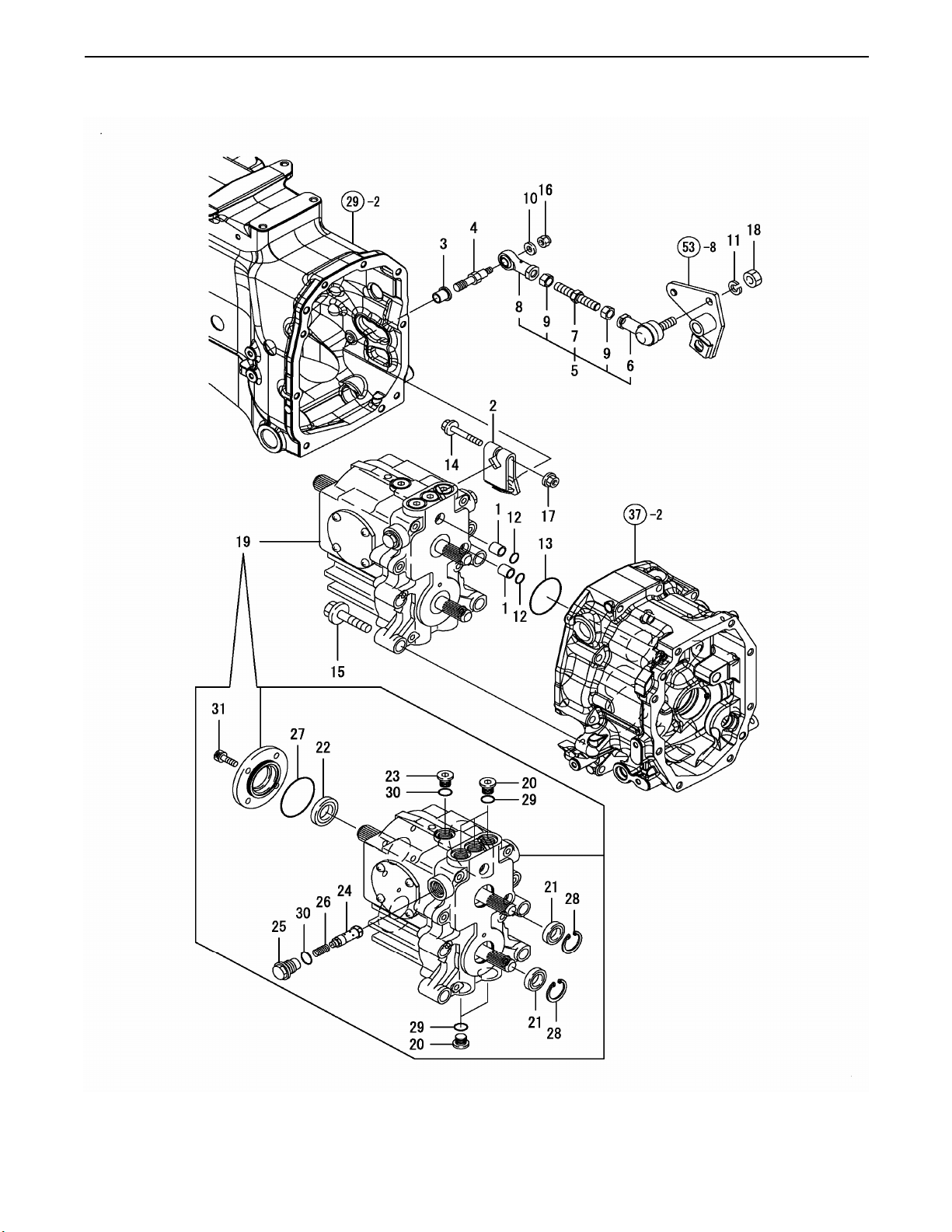

4 EXHAUST 52 HYDROSTATIC (HST)

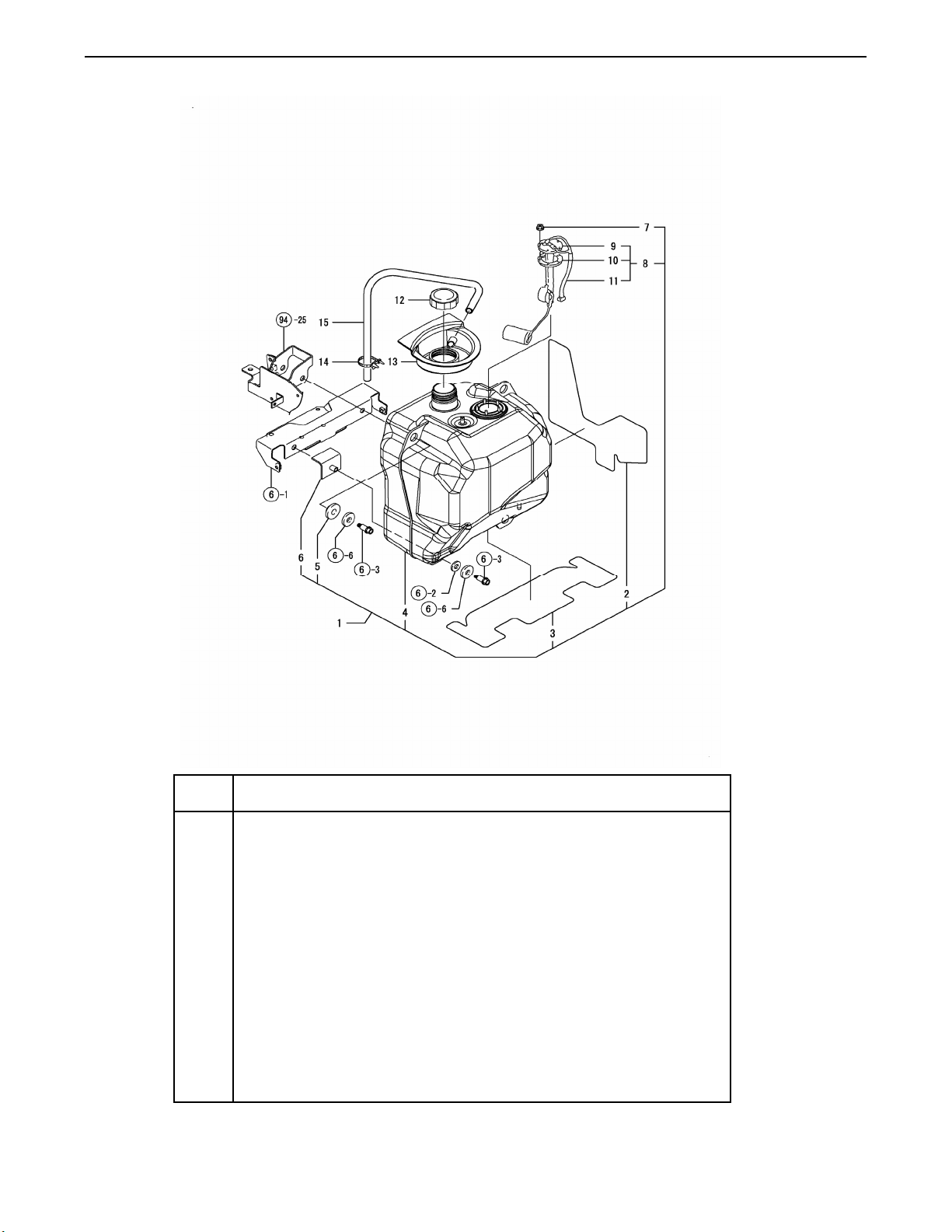

5 FUEL TAN

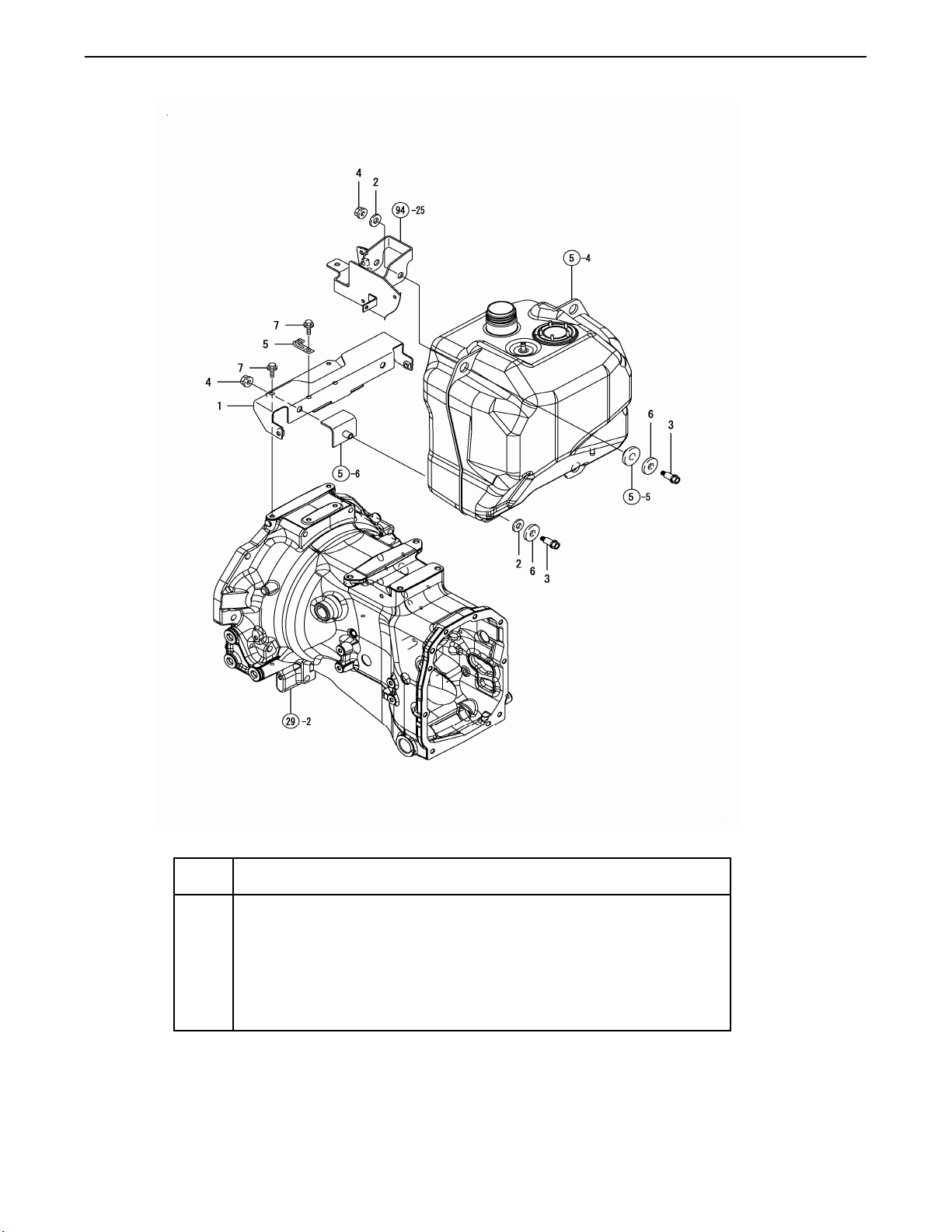

6 FUEL TANK MOUNTING
7 EXHAUST MANIFOLD PLATE

FRONT AXLE SECTION

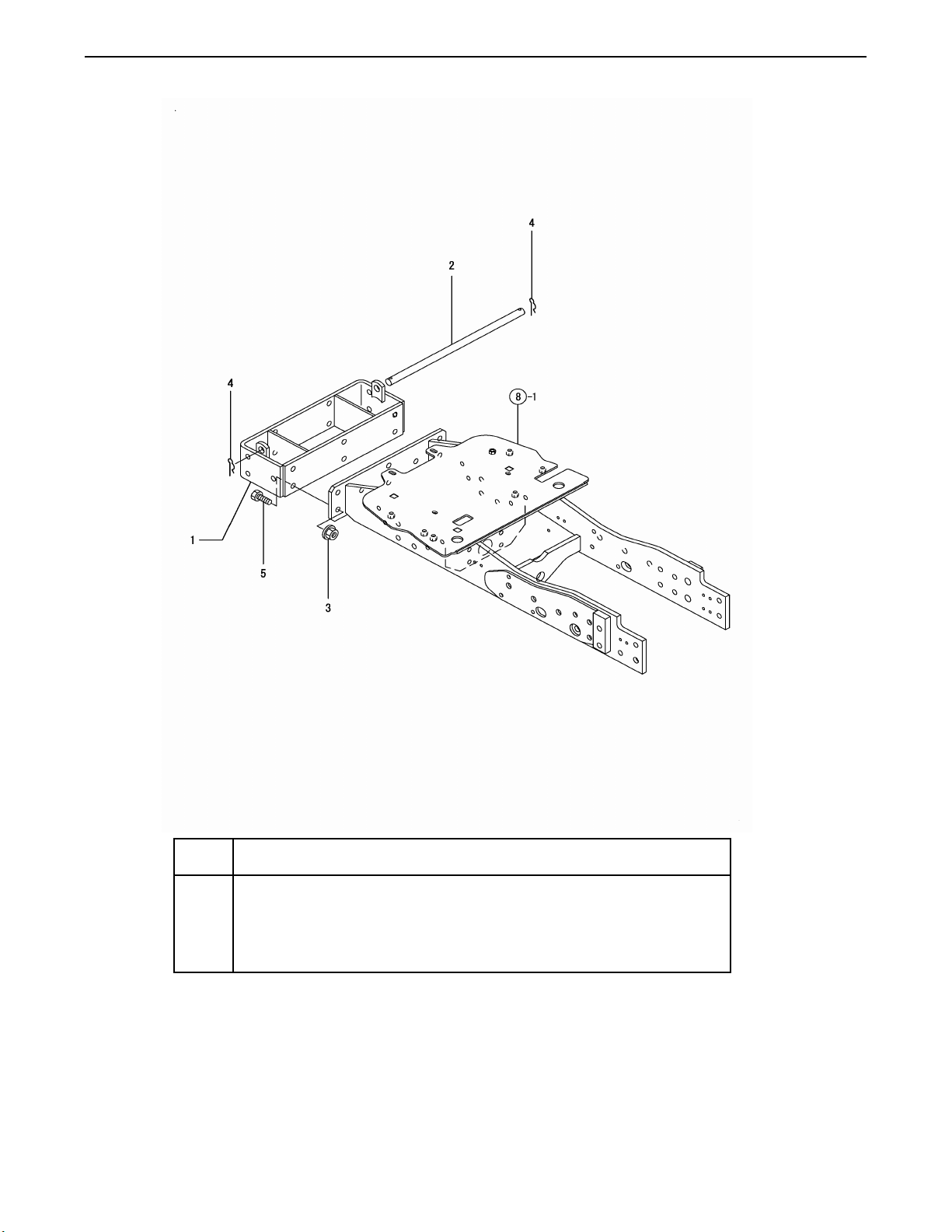

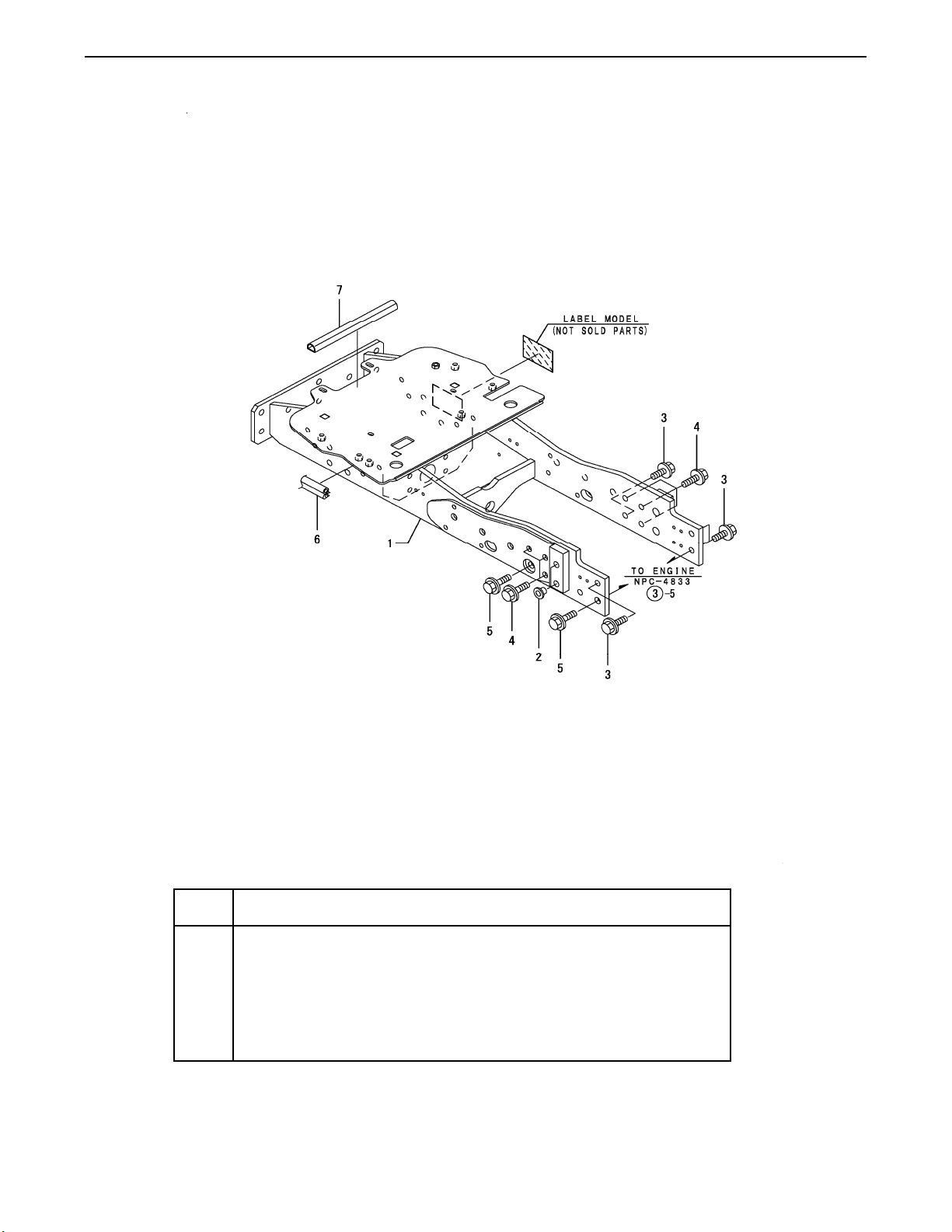

8 FRONT FRAME 56 DIFFERENTIAL CARRIER

9 FRONT WEIGHT BRACKET 57 REAR HOUSING

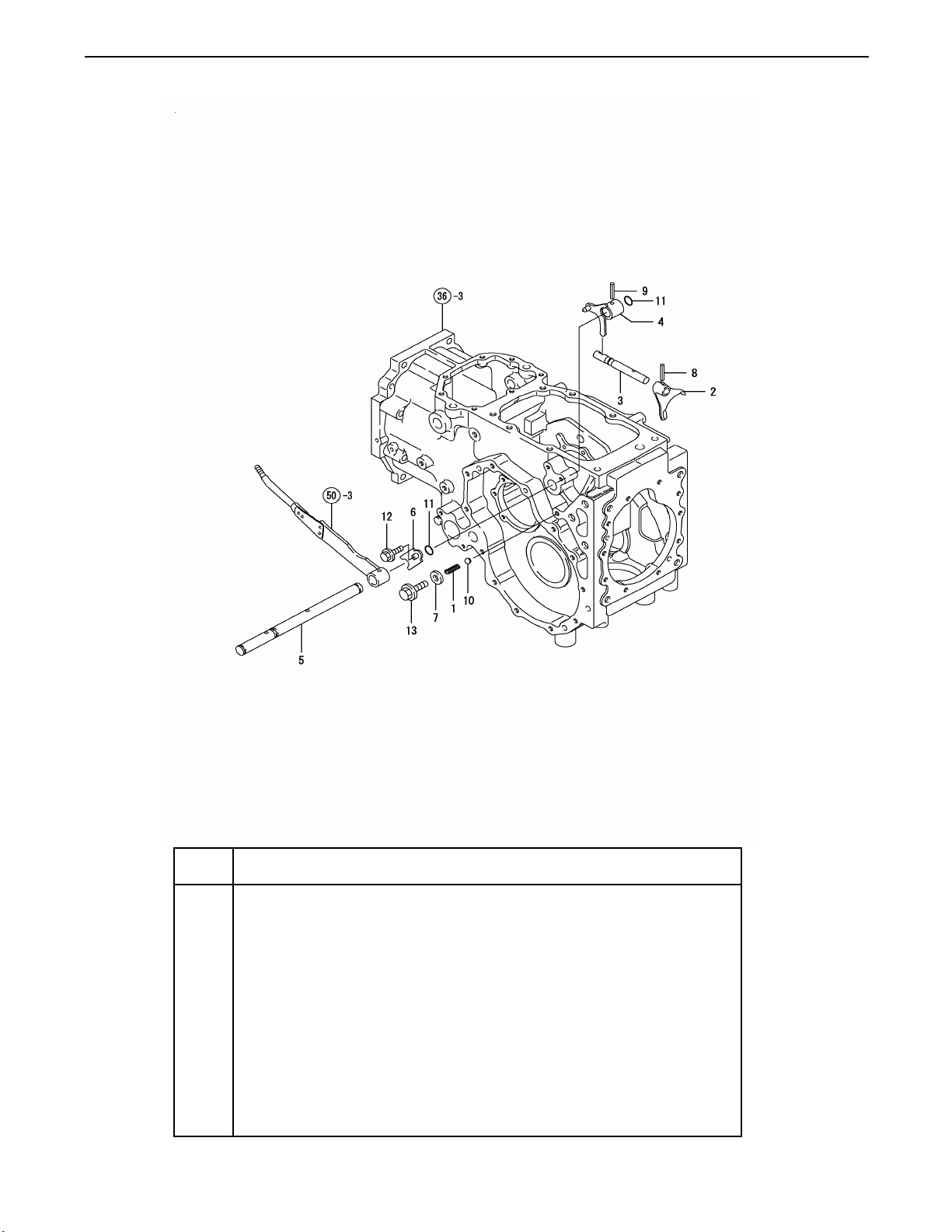

10 CENTER PIN 58 DIFFERENTIAL LOC

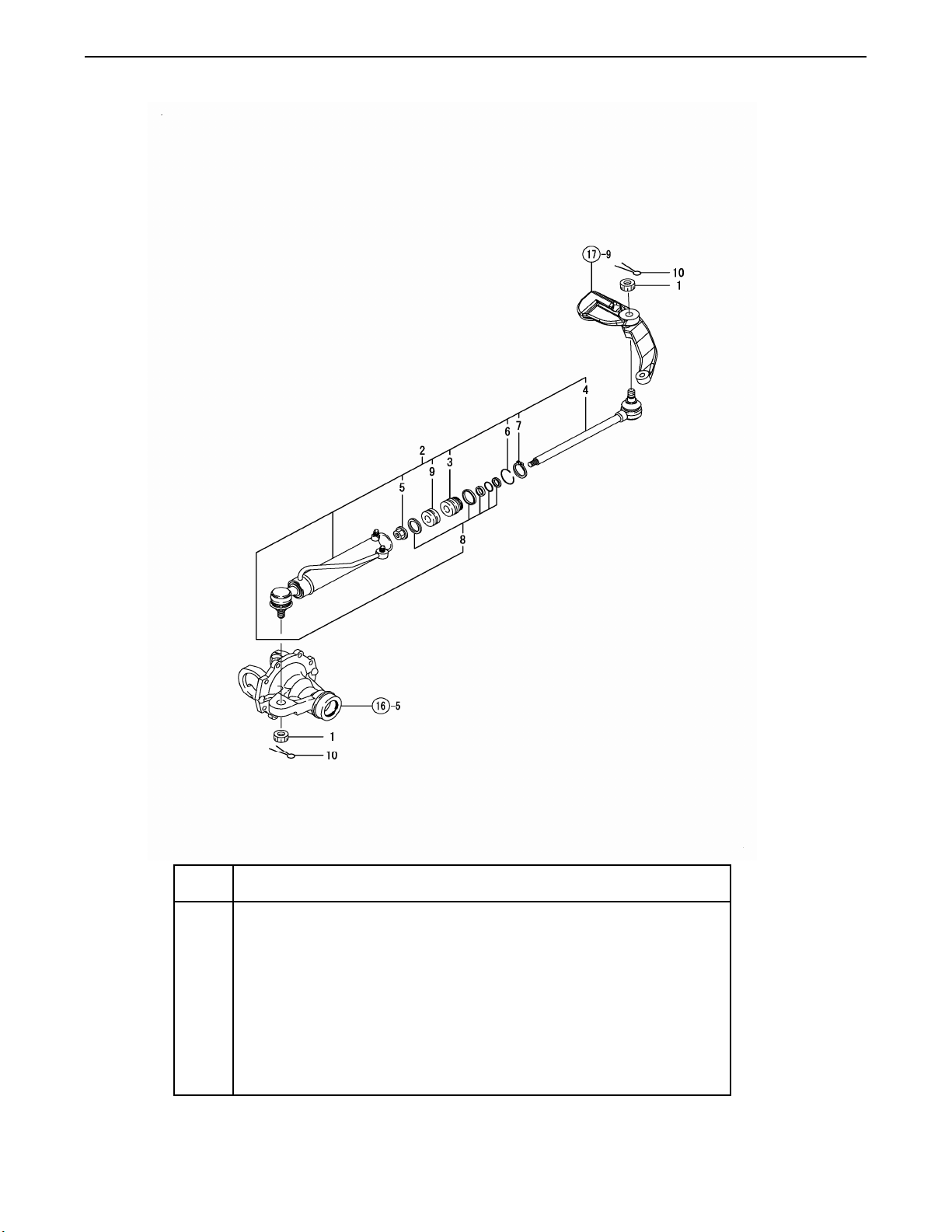

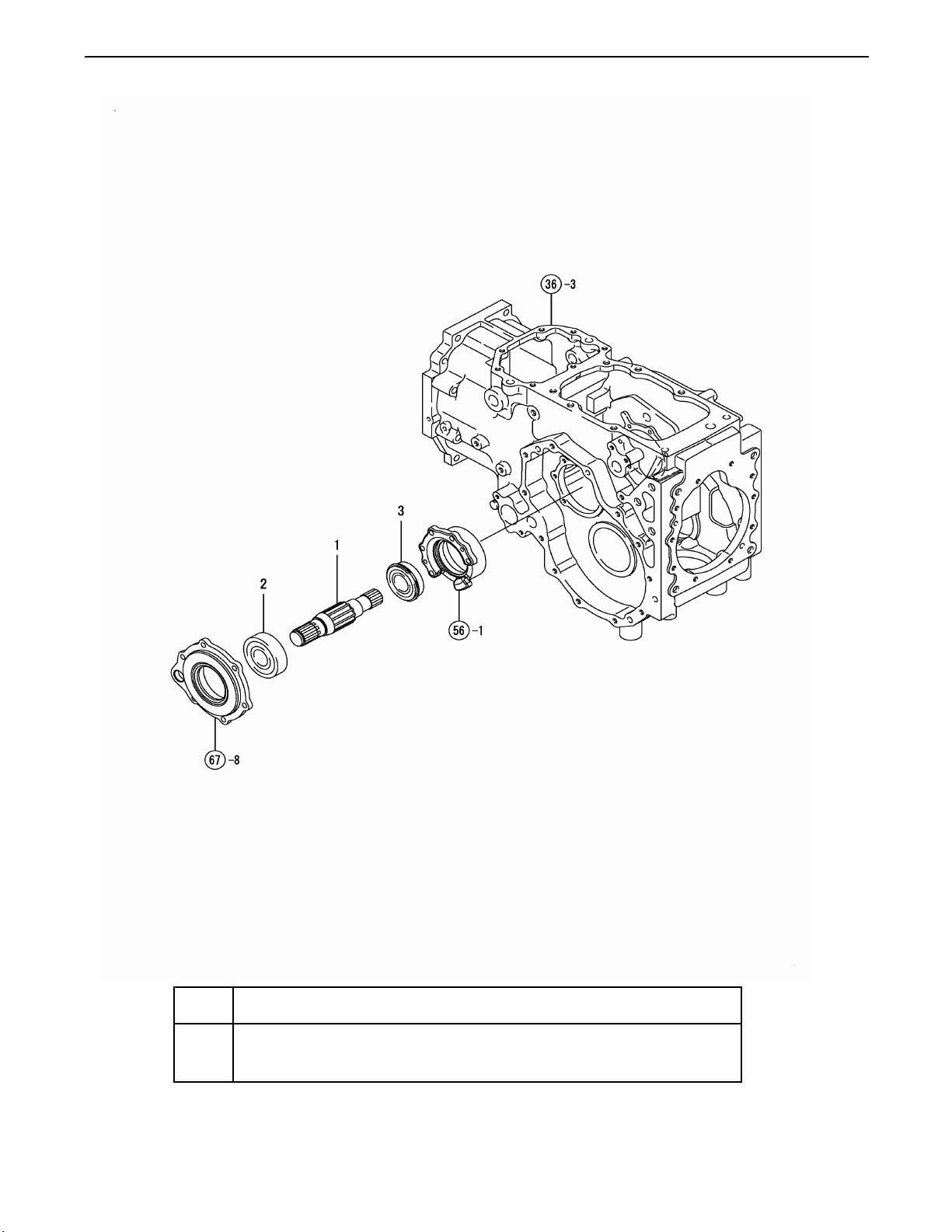

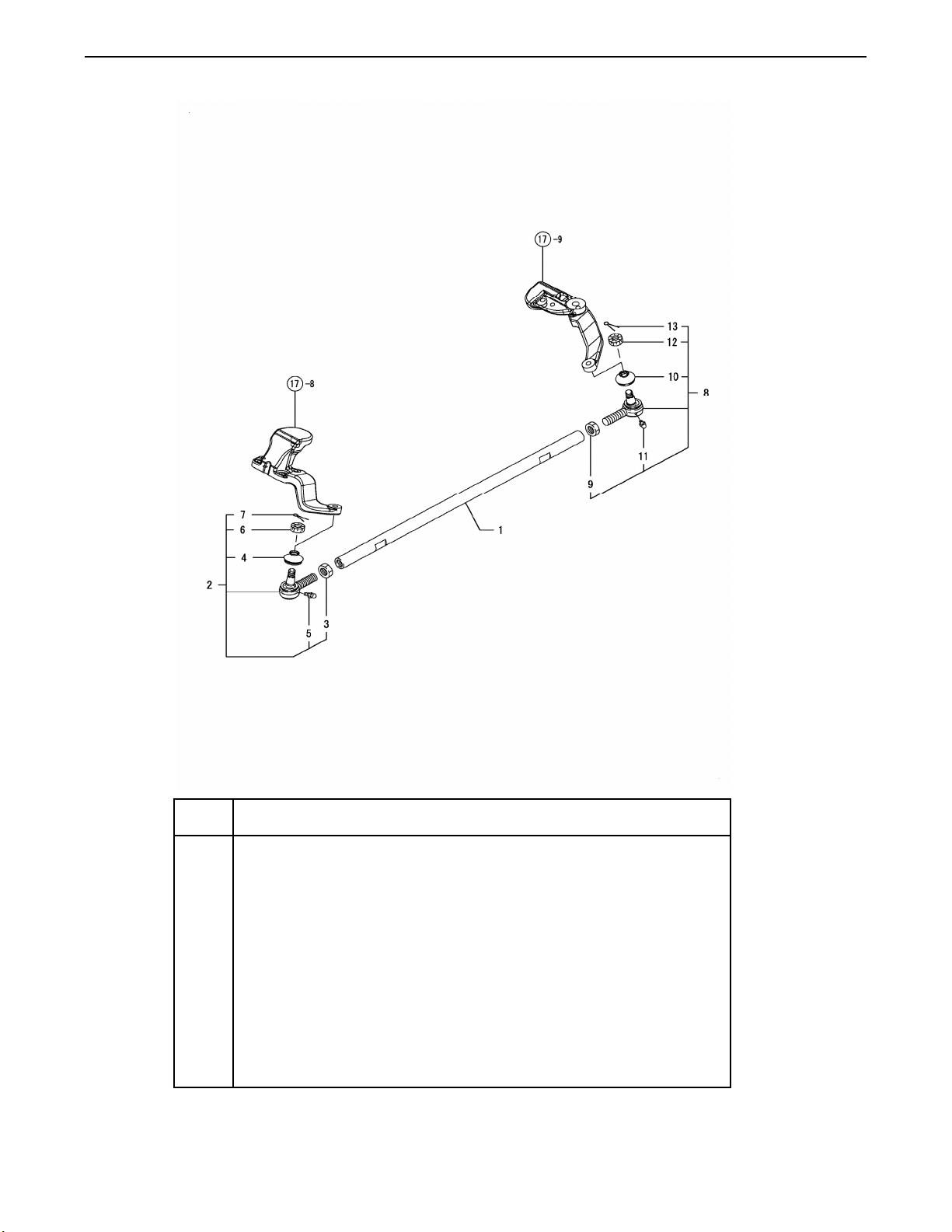

11 TIE ROD 59 FINAL PINION

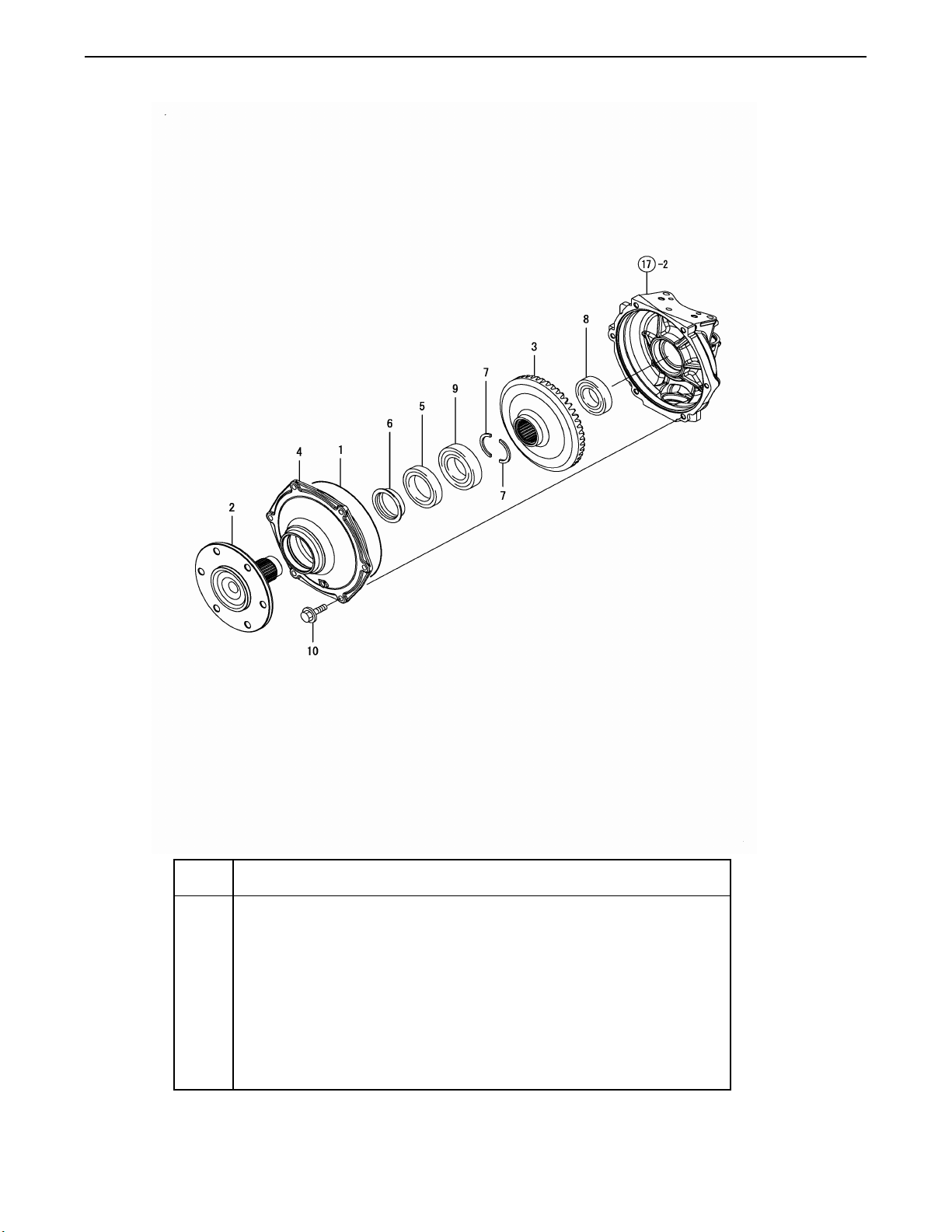

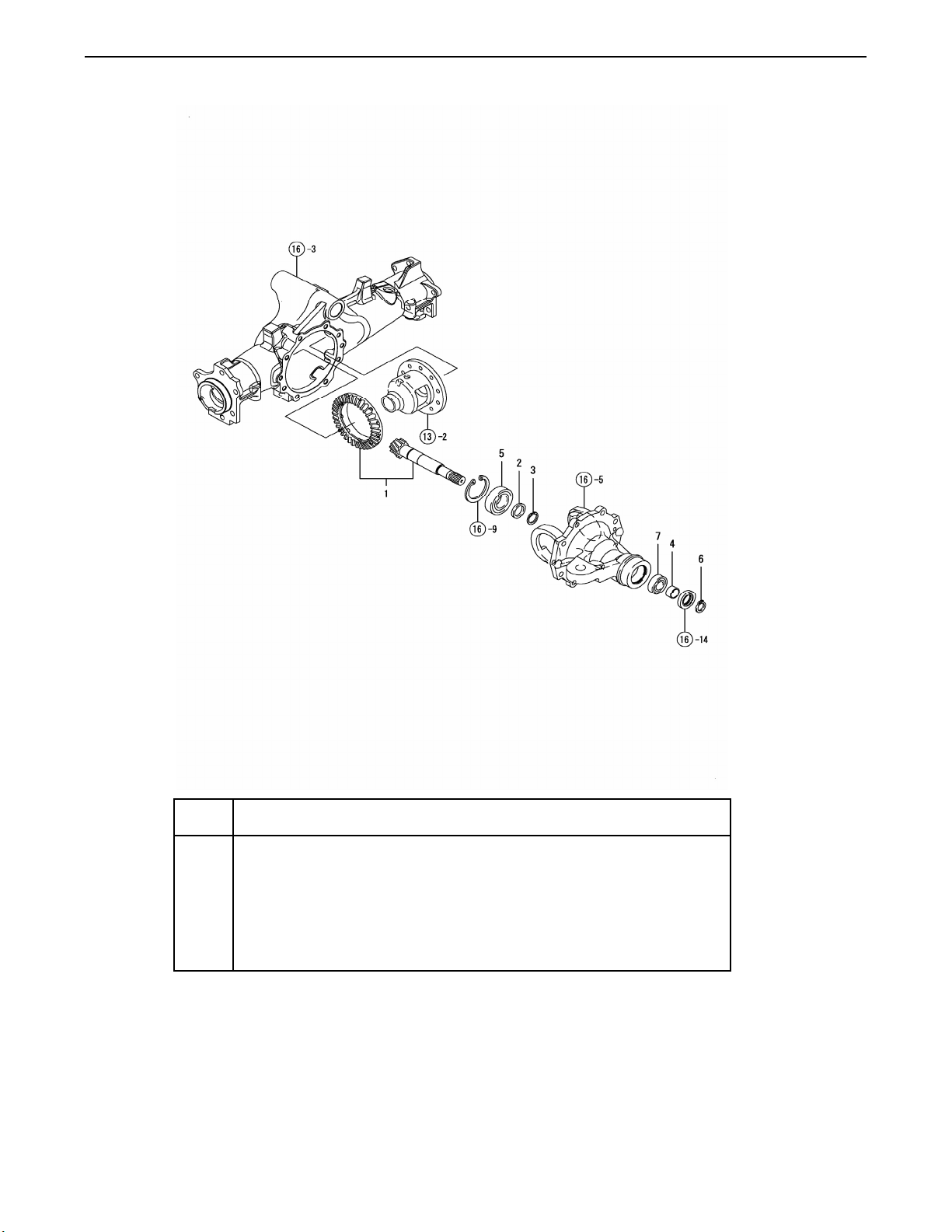

12 RING GEAR 60 FINAL GEAR & REAR AXLE SHAF

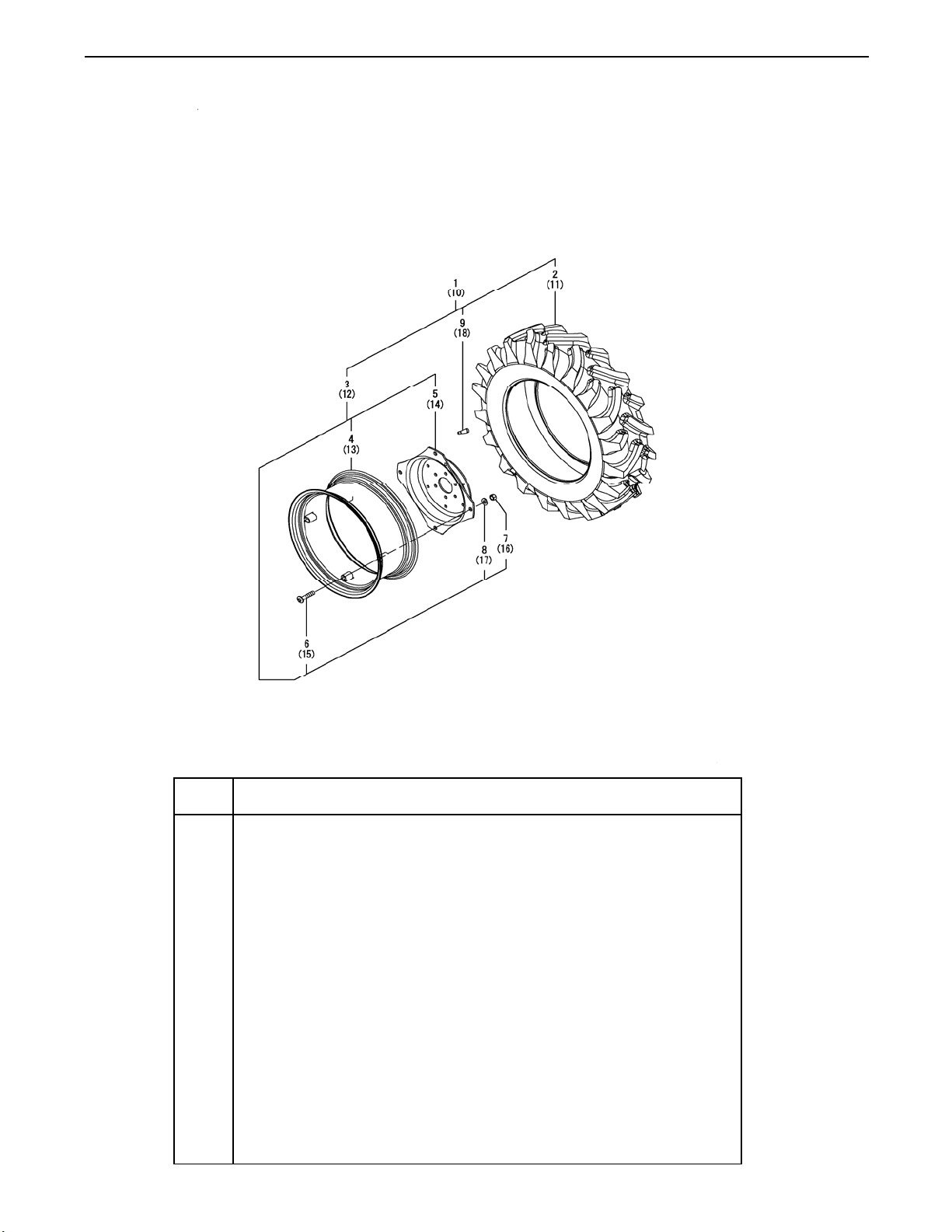

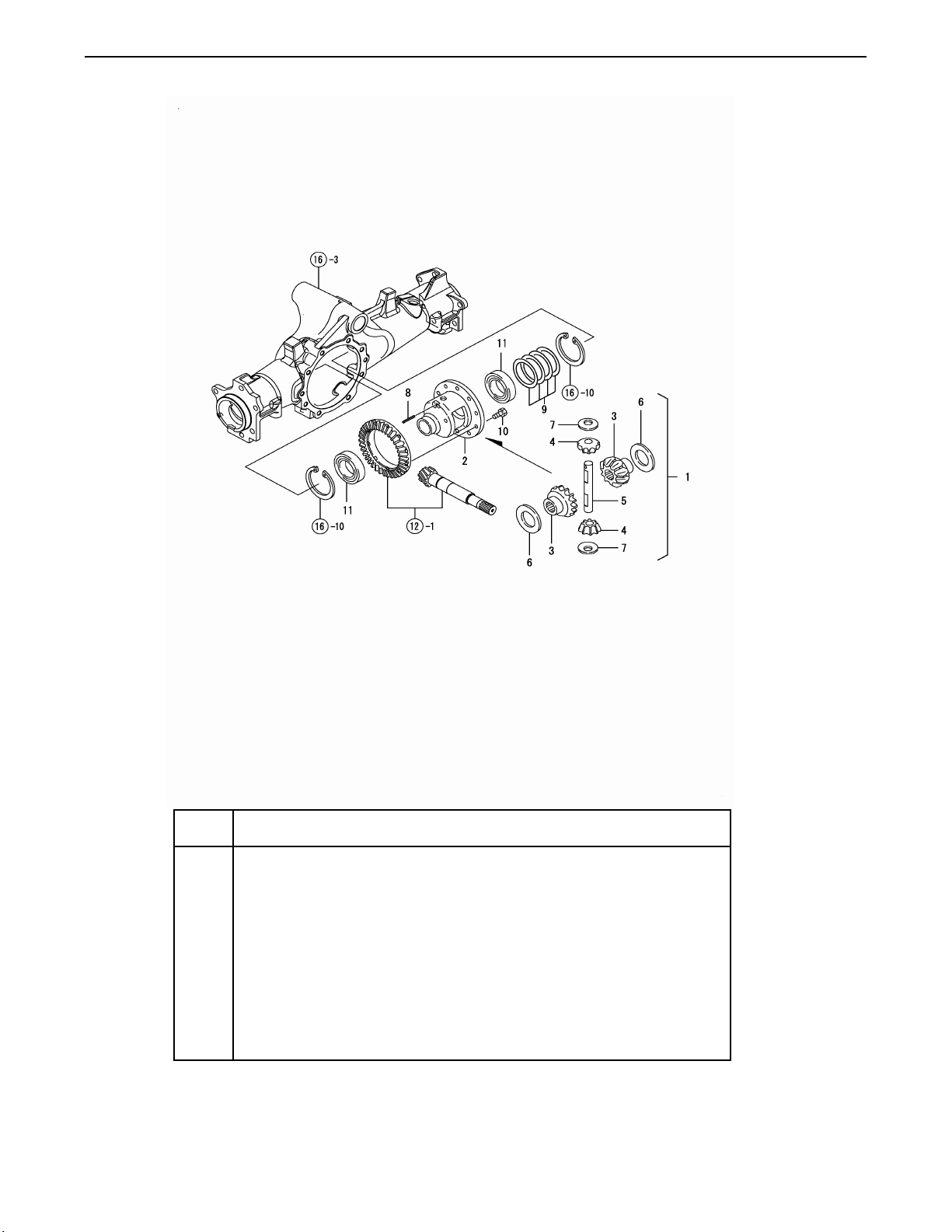

13 DIFFERENTIAL GEAR 61 REAR WHEEL TIRE (BAR)

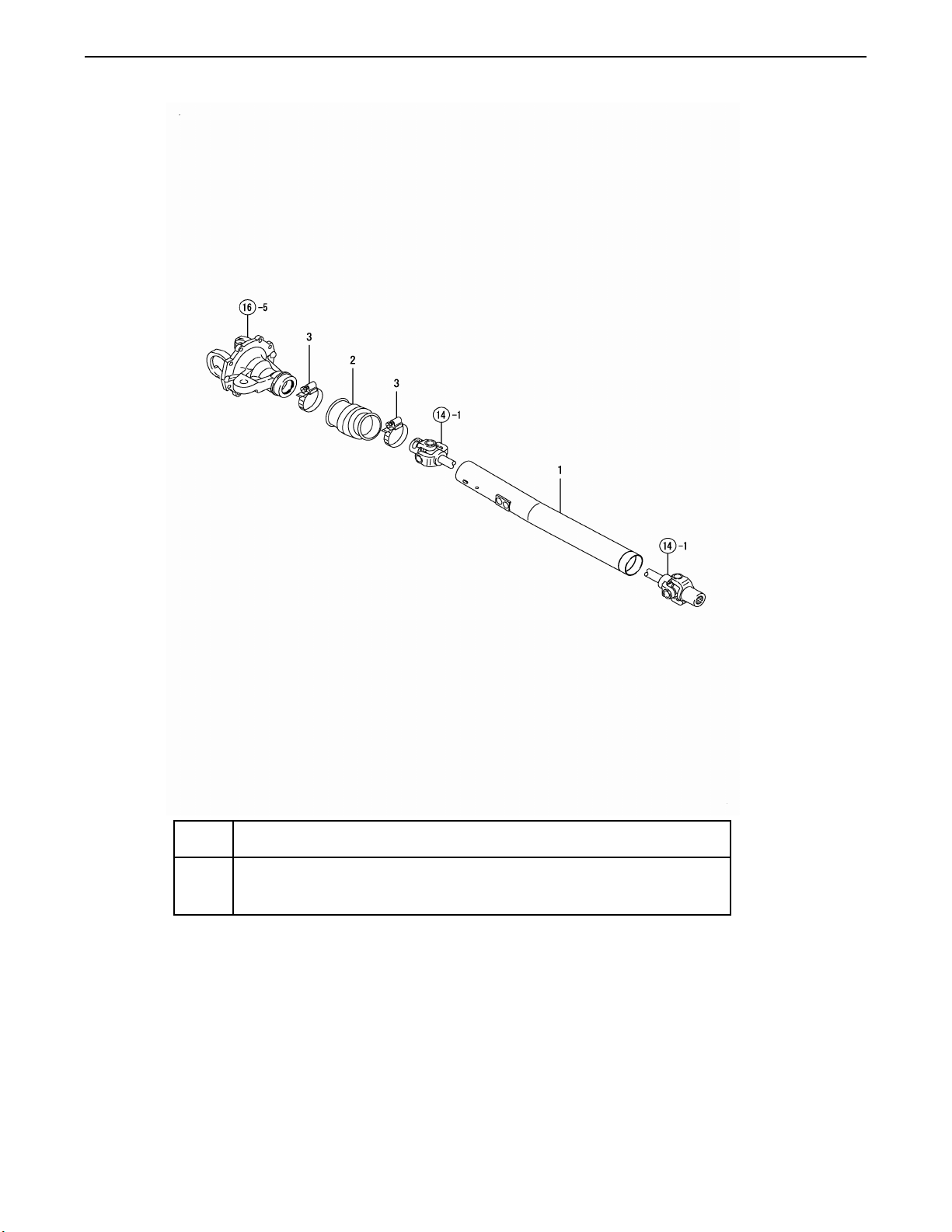

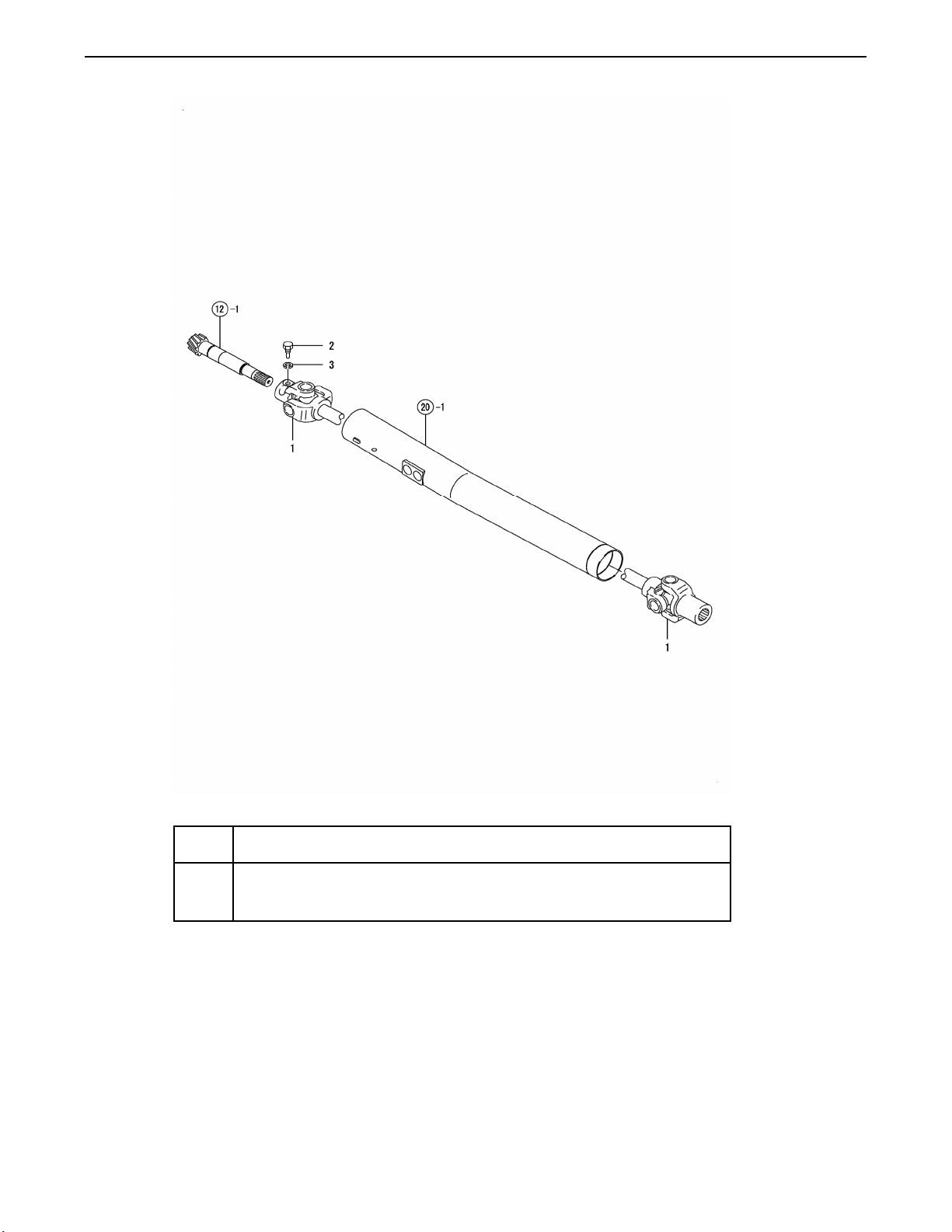

14 PROPELLER SHAFT 62 REAR WHEEL TIRE (TURF)

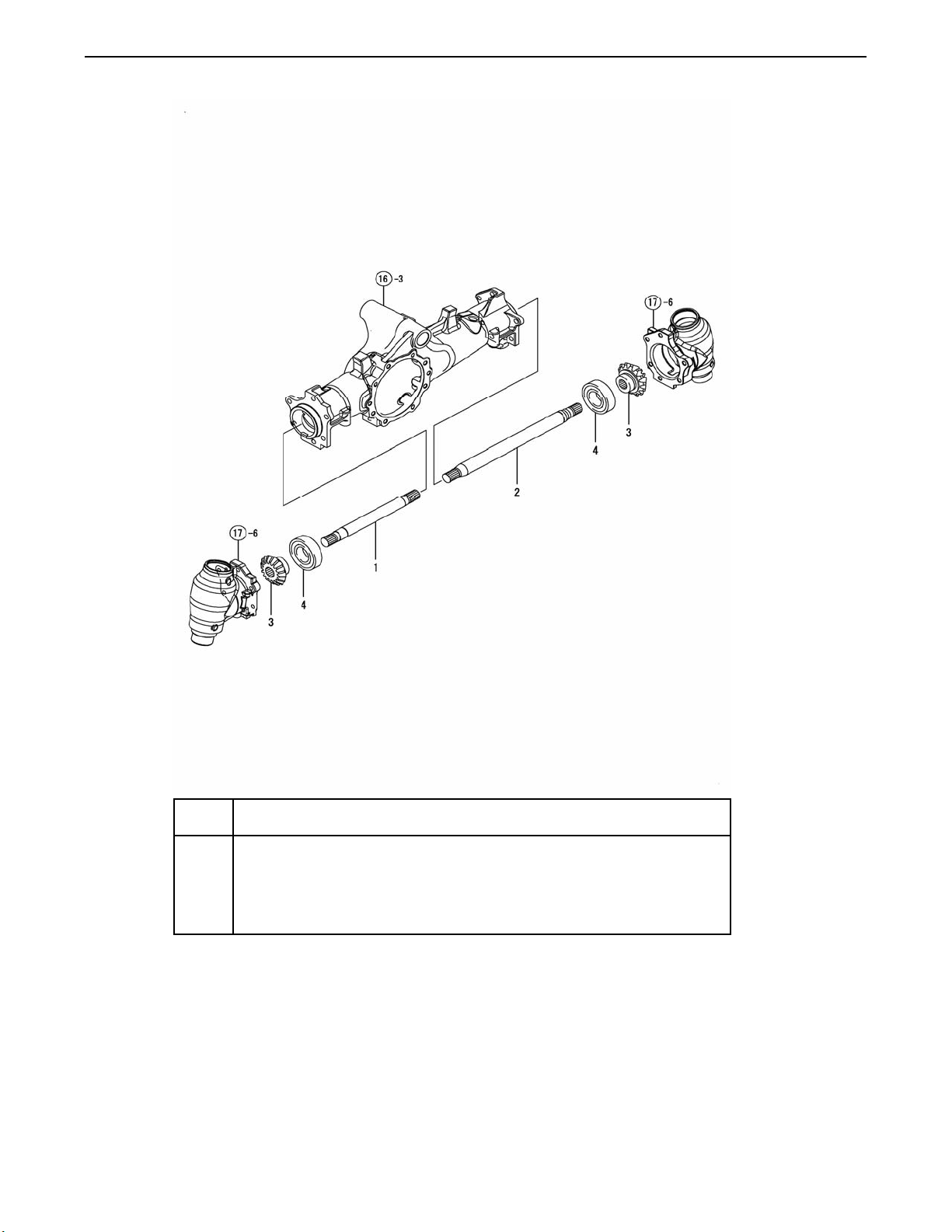

15 FRONT DRIVE SHAFT 63 REAR WHEEL TIRE

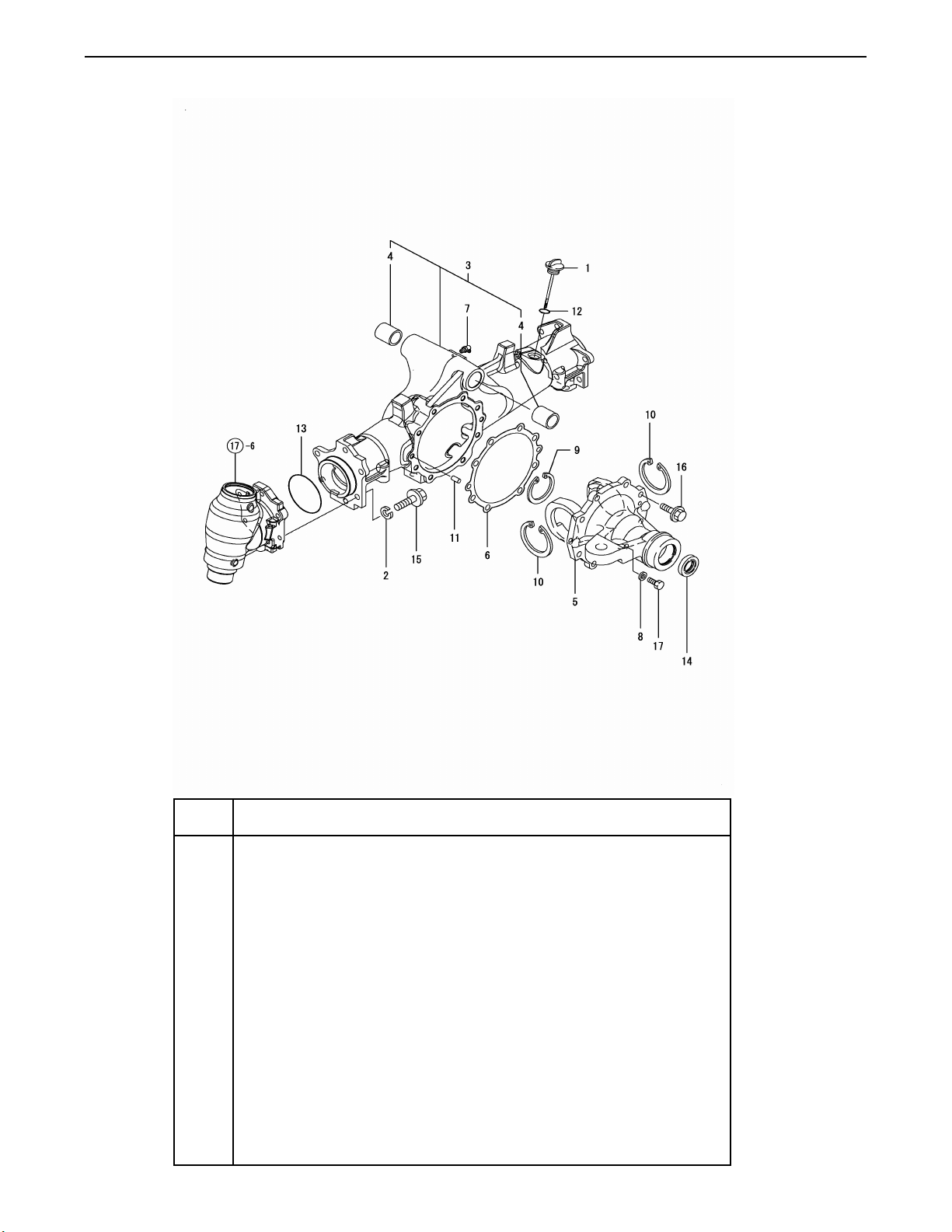

16 FRONT AXLE CASE 64 HUB BOLT(REAR)
17 FRONT GEAR CASE 65 HYDRAULIC PEDAL
18 FRONT SHAFT 66 SHOCK ABSORBER
19 FRONT SPINDLE 67 BRAKE
20 SHAFT COVER 68 BRAKE PEDAL

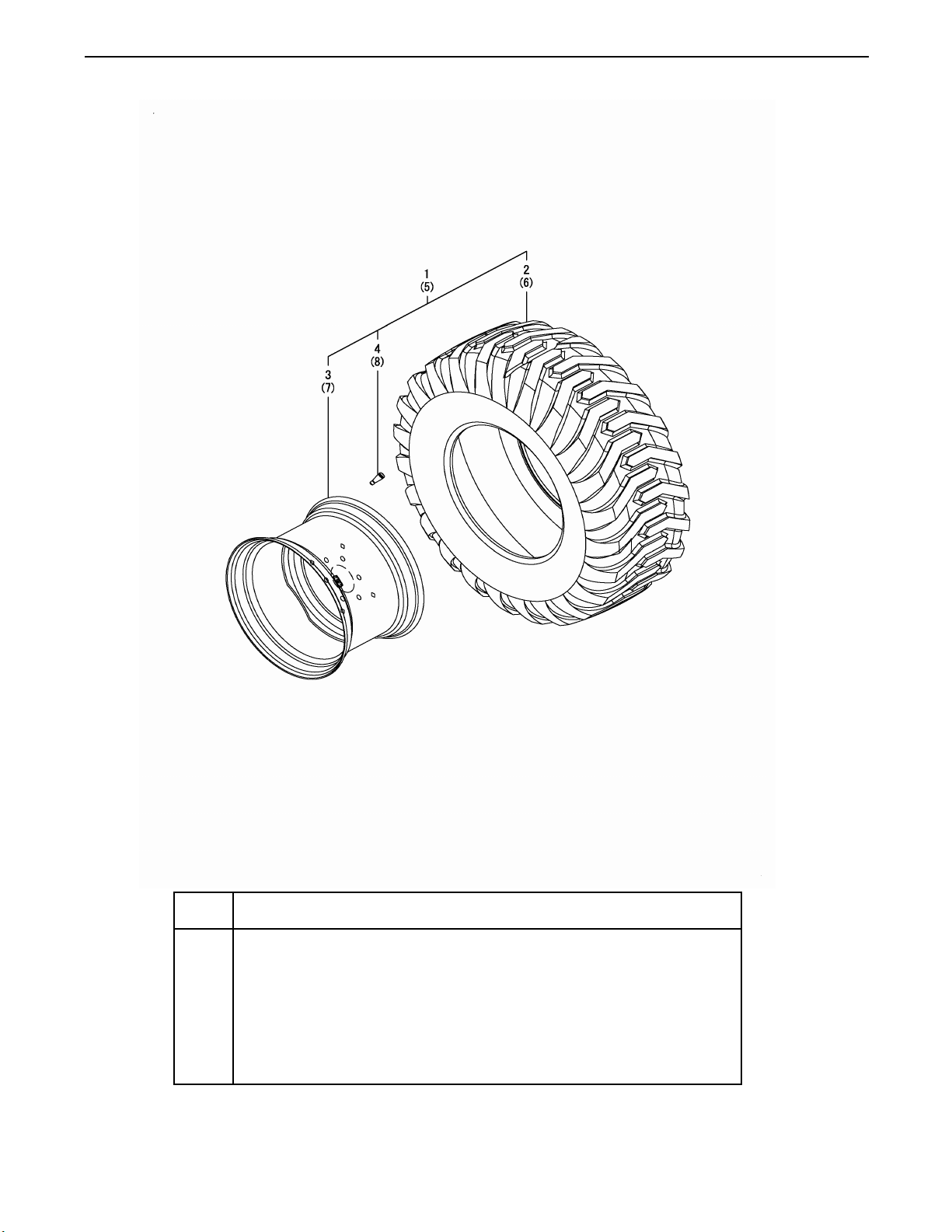

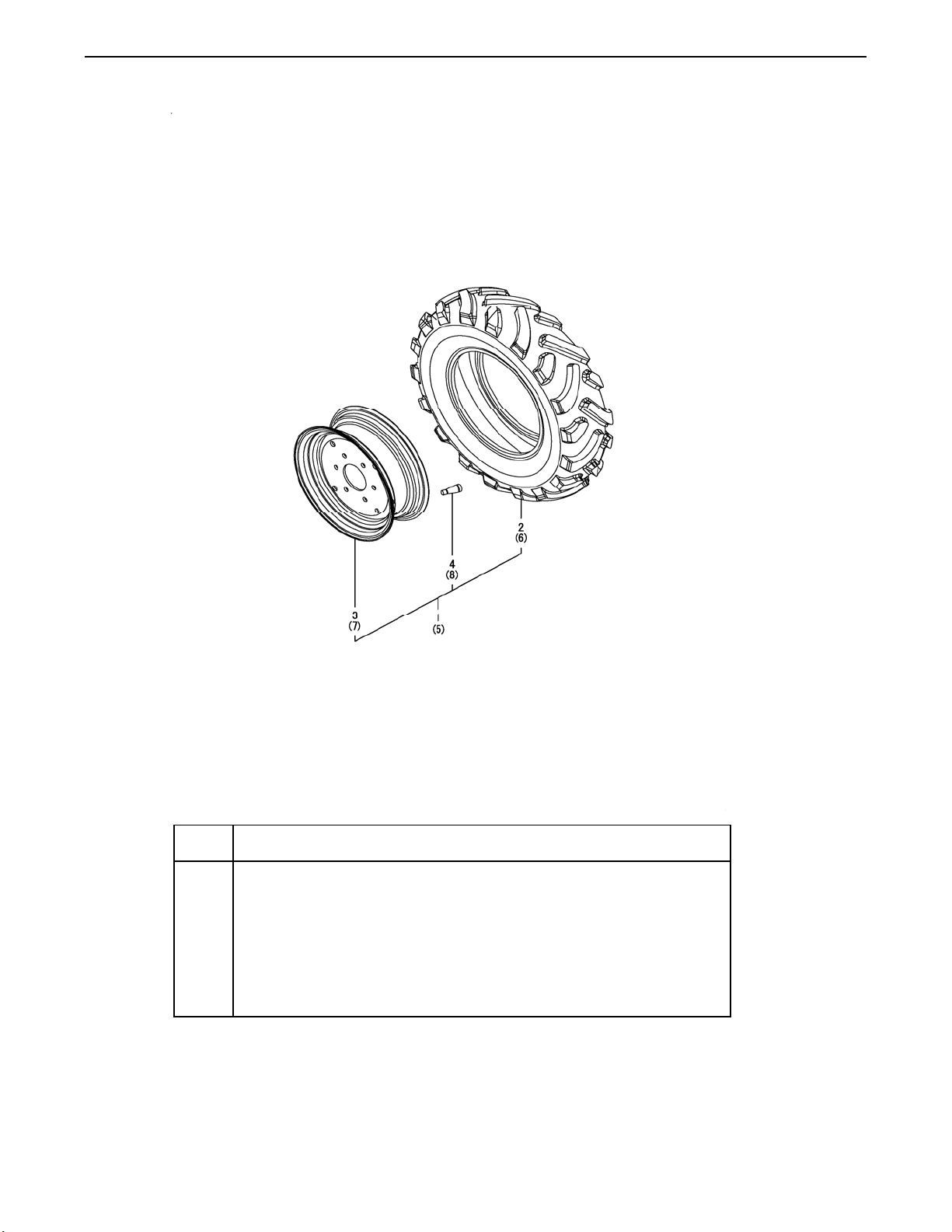

21 FRONT WHEEL TIRE (BAR)

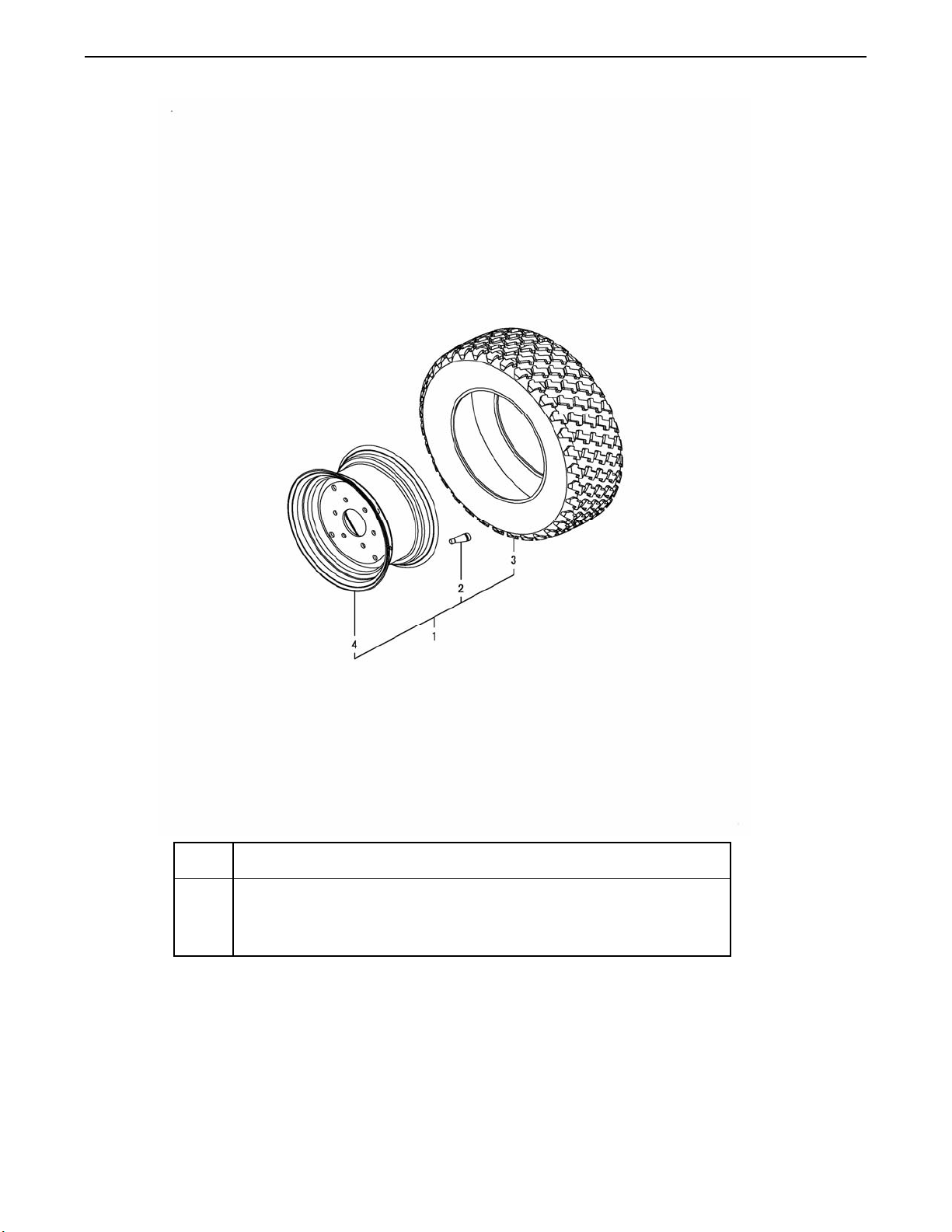

22 FRONT WHEEL TIRE (TURF)
23 FRONT WHEEL TIRE 69 HYDRAULIC CYLINDER CASE
24 HUB BOLT (FRONT) 70 PISTON

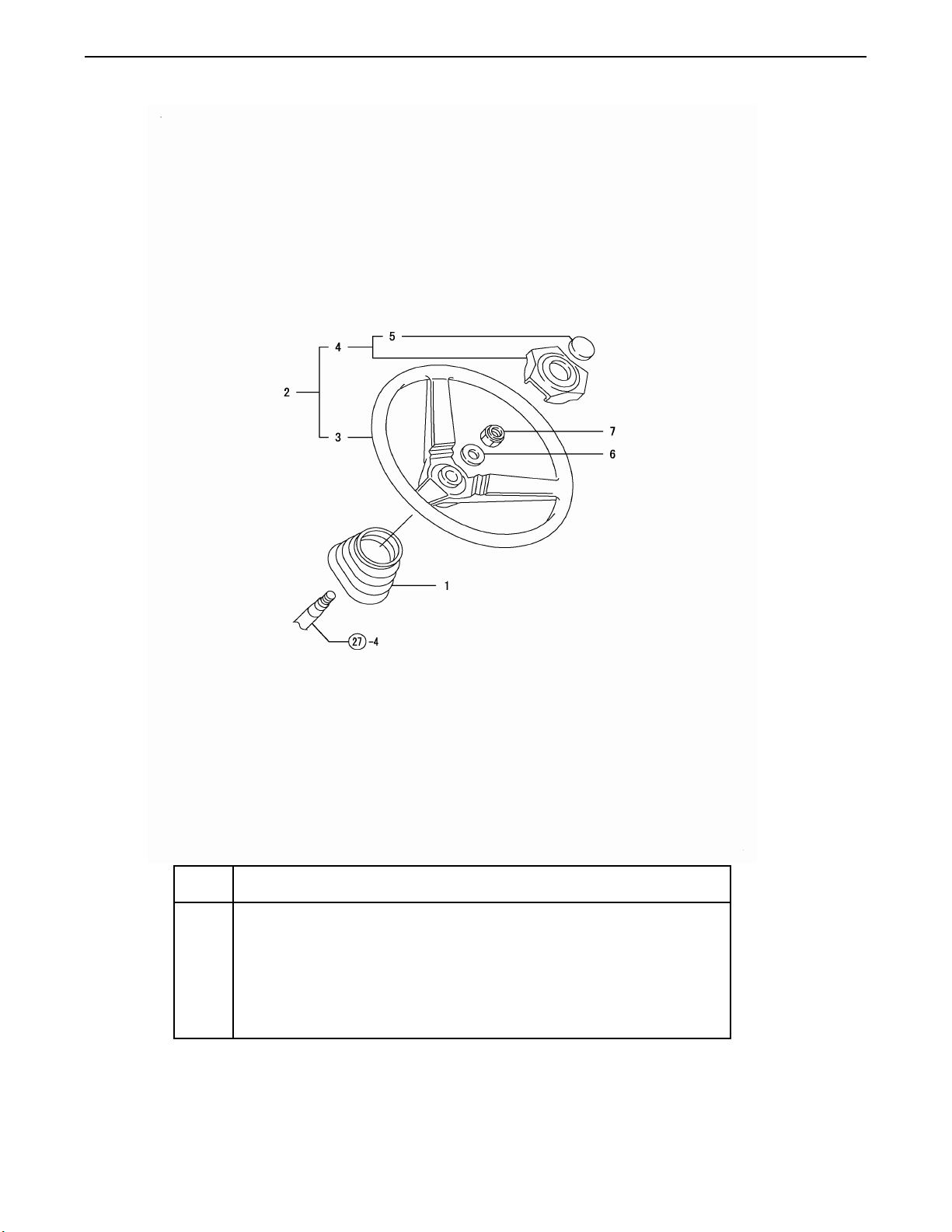

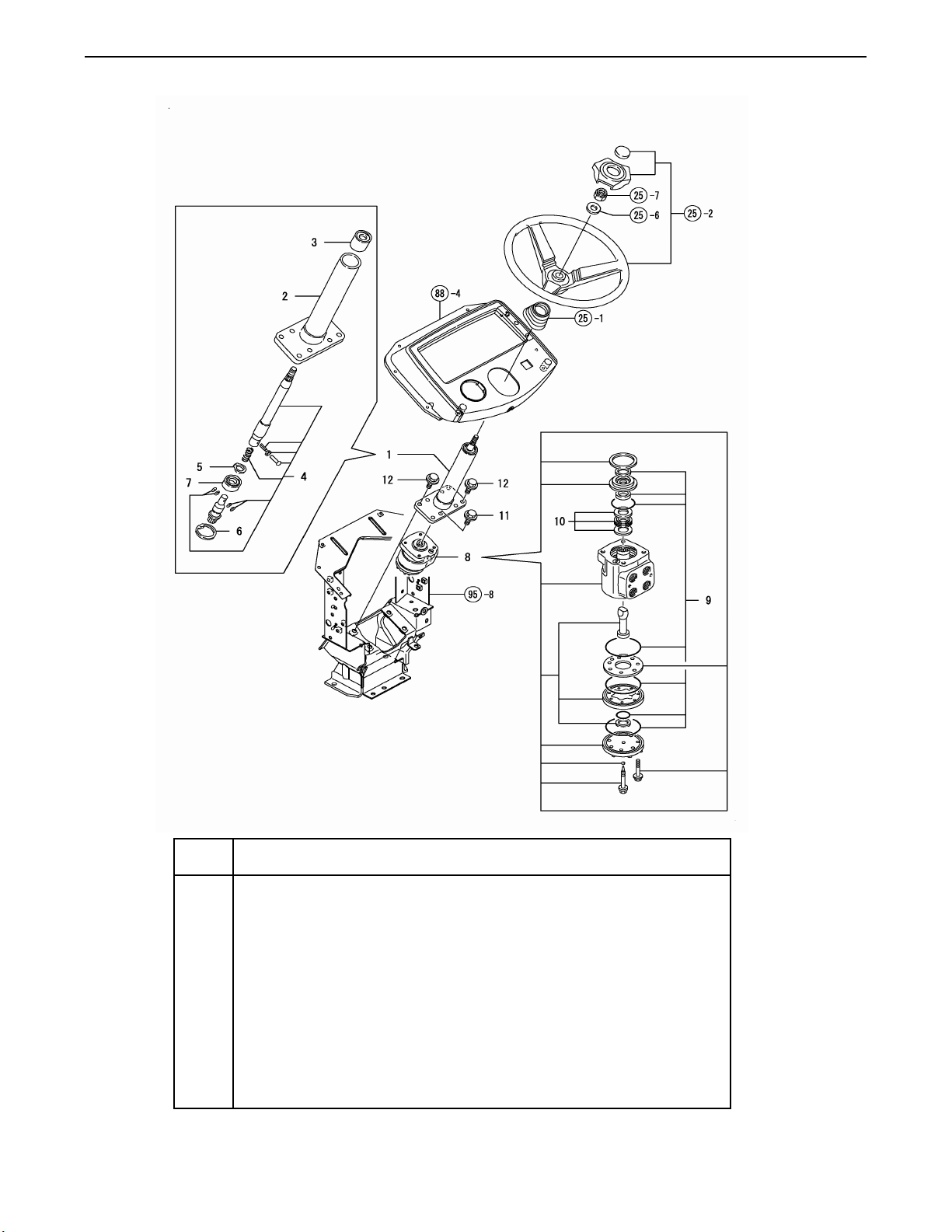

25 STEERING WHEEL 71 LIFT CRANK
26 POWER STEERING CYLINDER 72 CONTROL VALVE
27 POWER STEERING VALVE 73 RELIEF VALVE

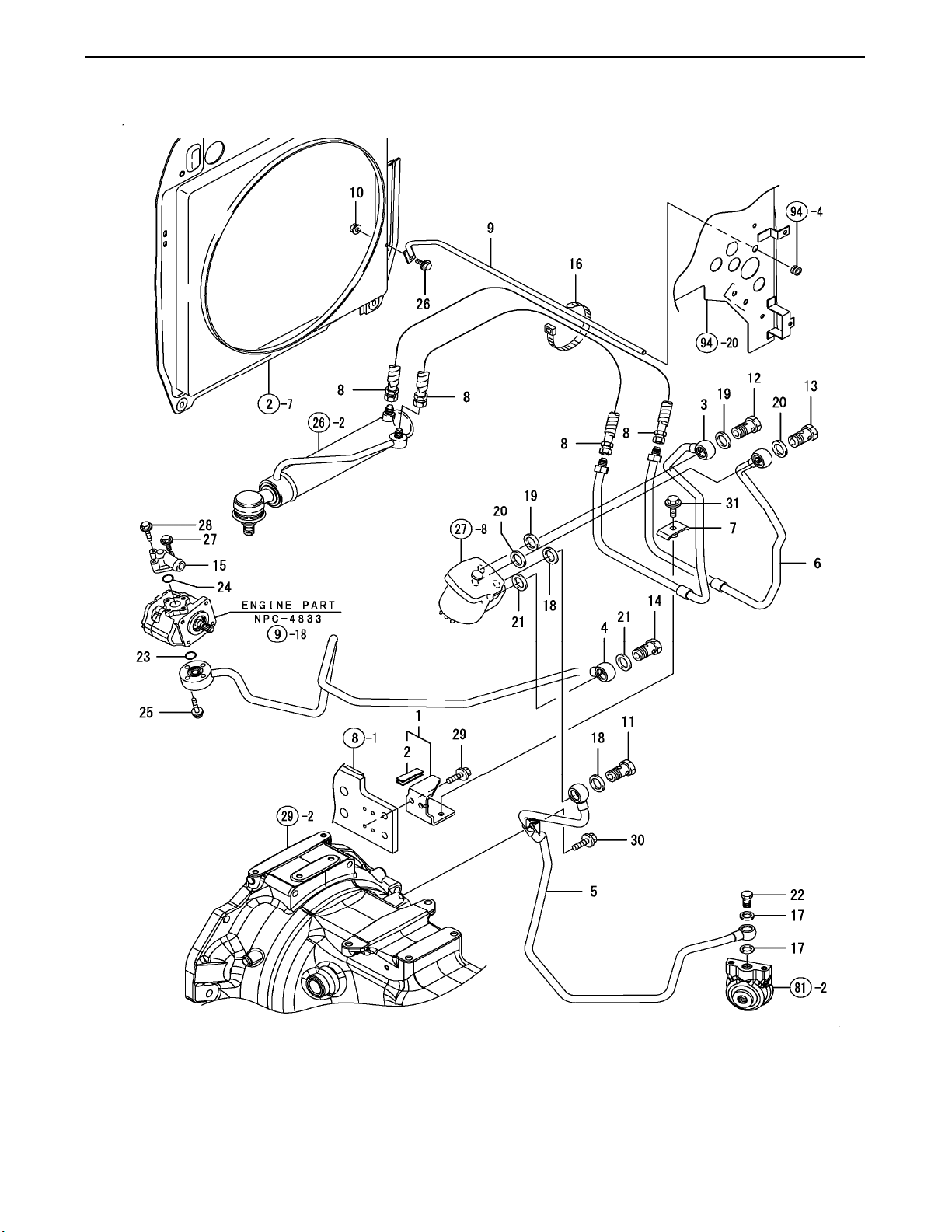

28 POWER STEERING LINES 74 STOP VALVE

TRANSMISSION SECTION

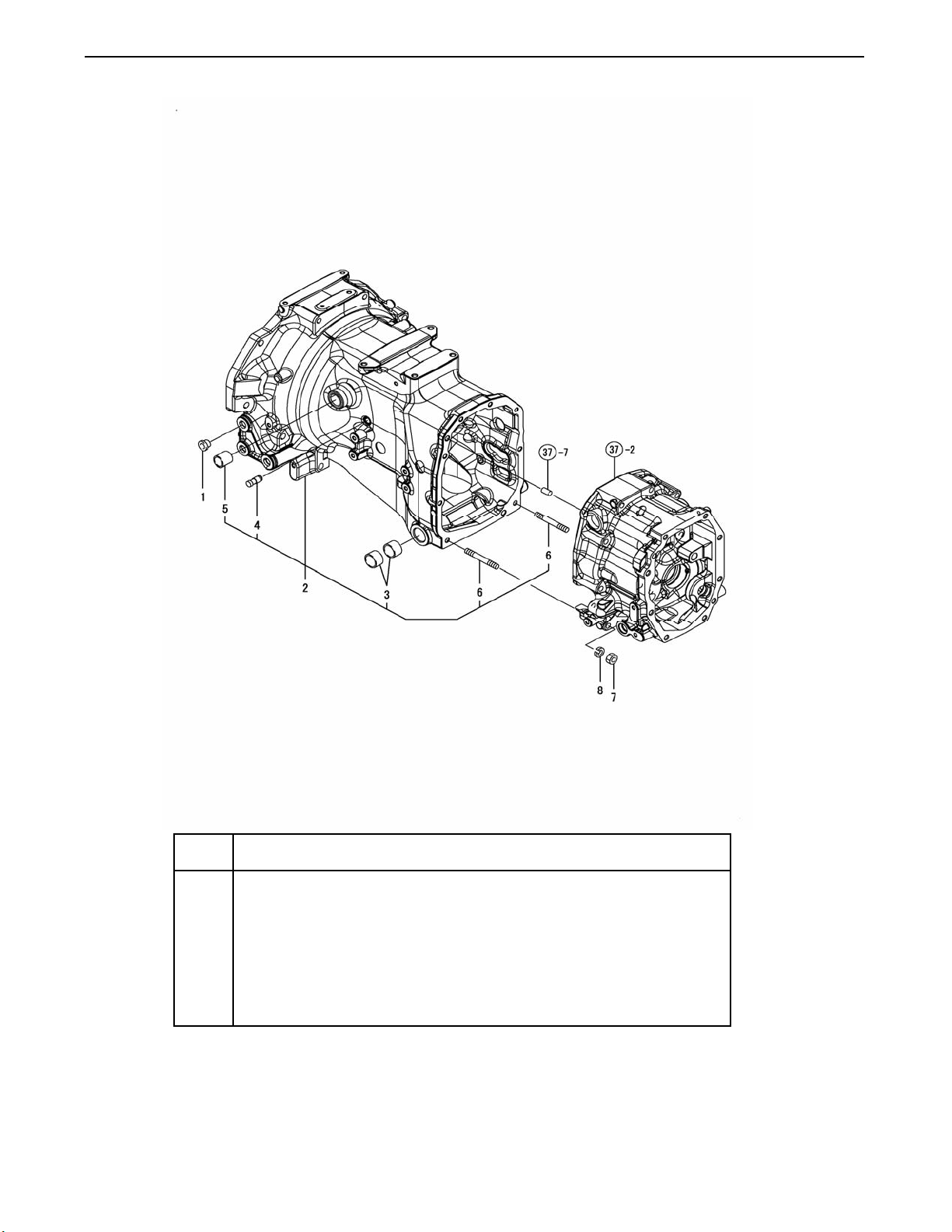

29 CLUTCH HOUSING 77 HYDRAULIC CONTROL

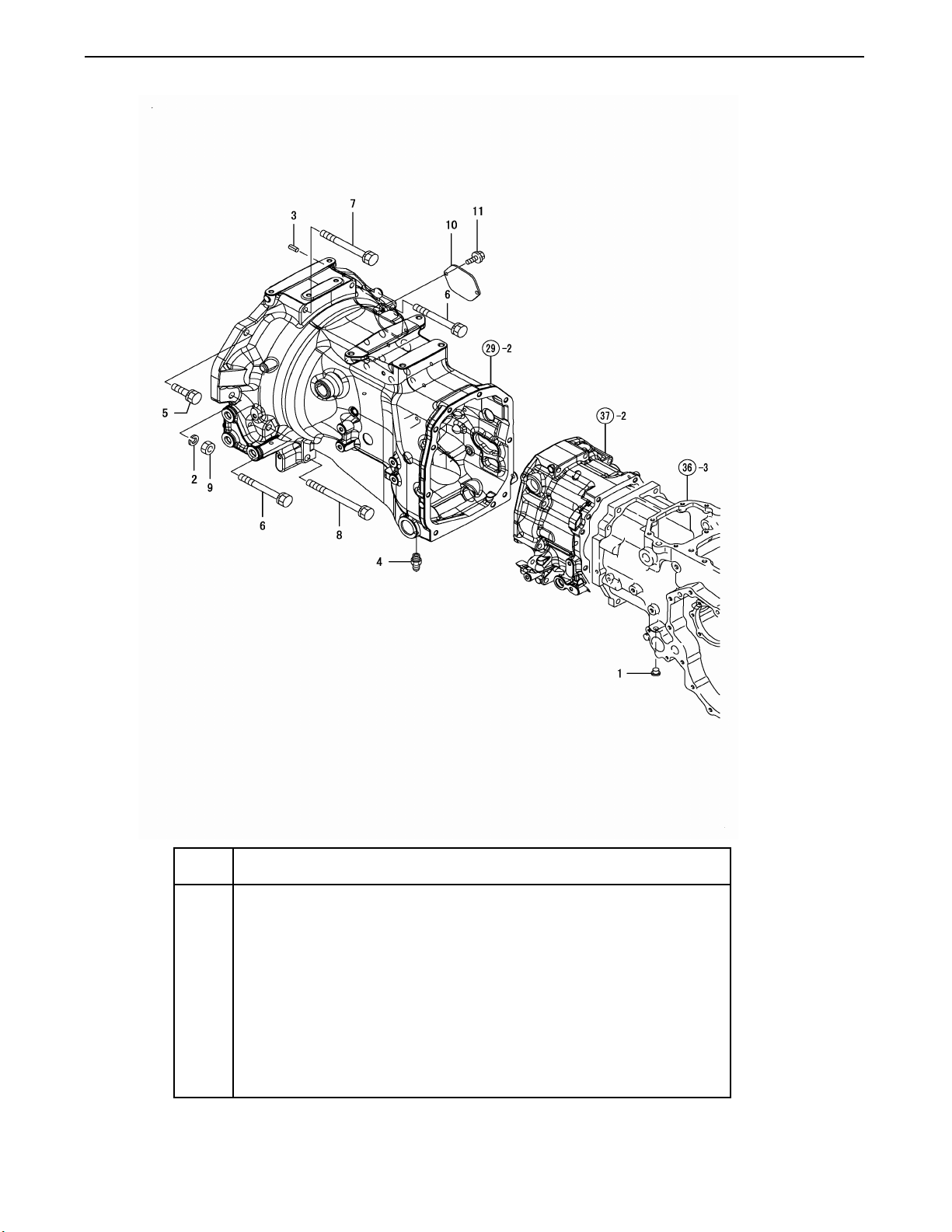

30 DOCKING BOLT 78 HYDRAULIC PIPING

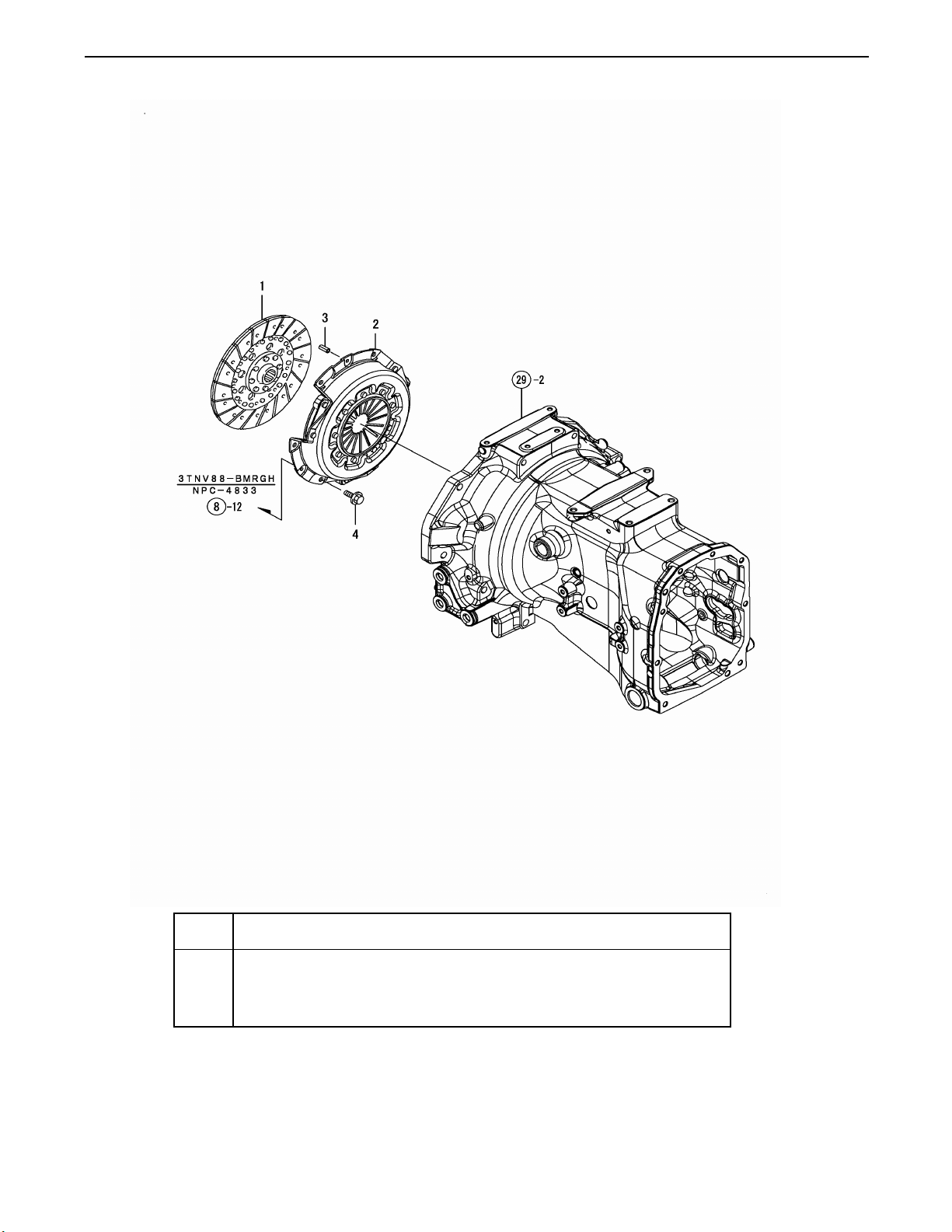

31 SINGLE CLUTCH 79 OIL FILTER
32 CLUTCH SHAFT 80 OIL COOLER

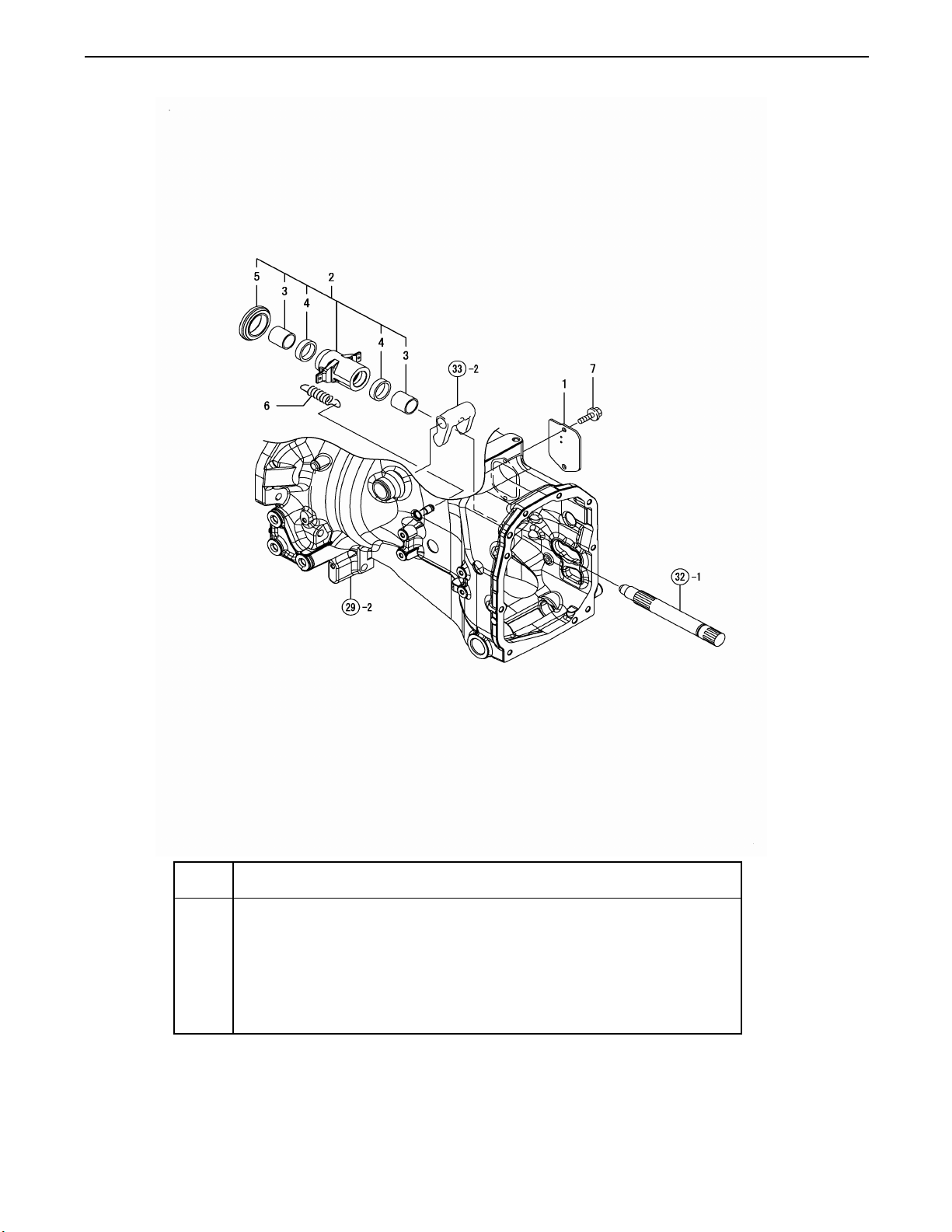

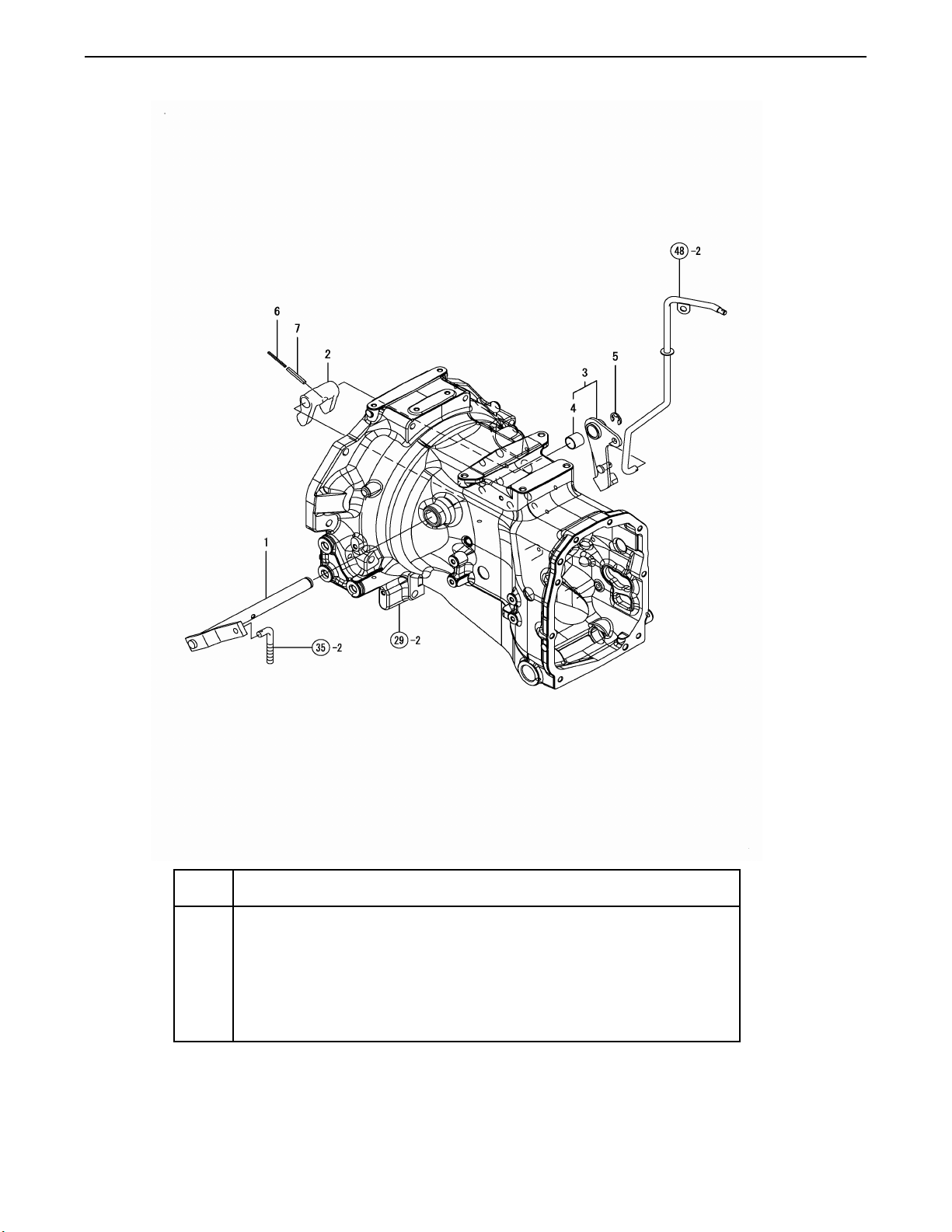

33 CLUTCH RELEASE 81 HYDROSTATIC (HST) LINES & FILTER
34 BEARING SLEEVE

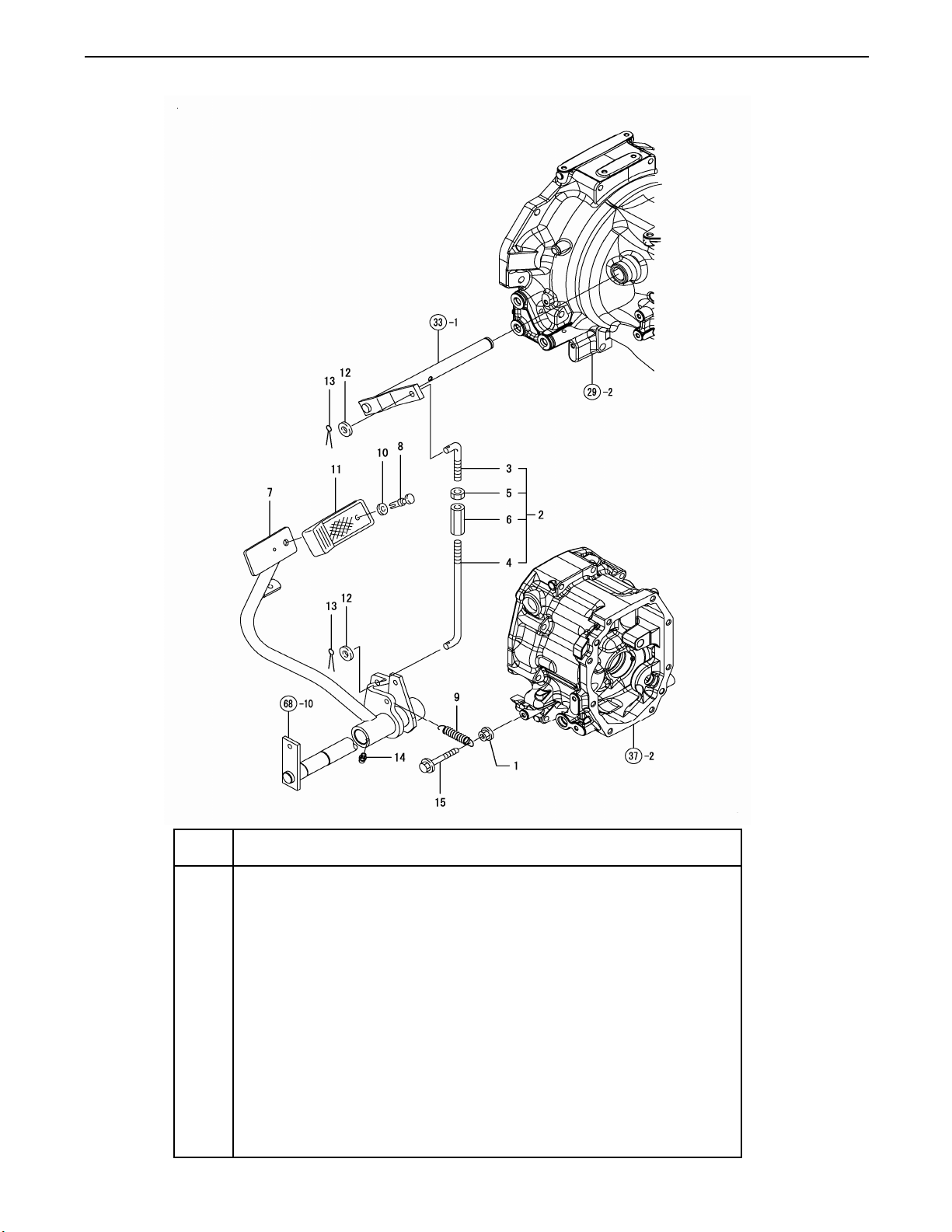

35 CLUTCH PEDAL

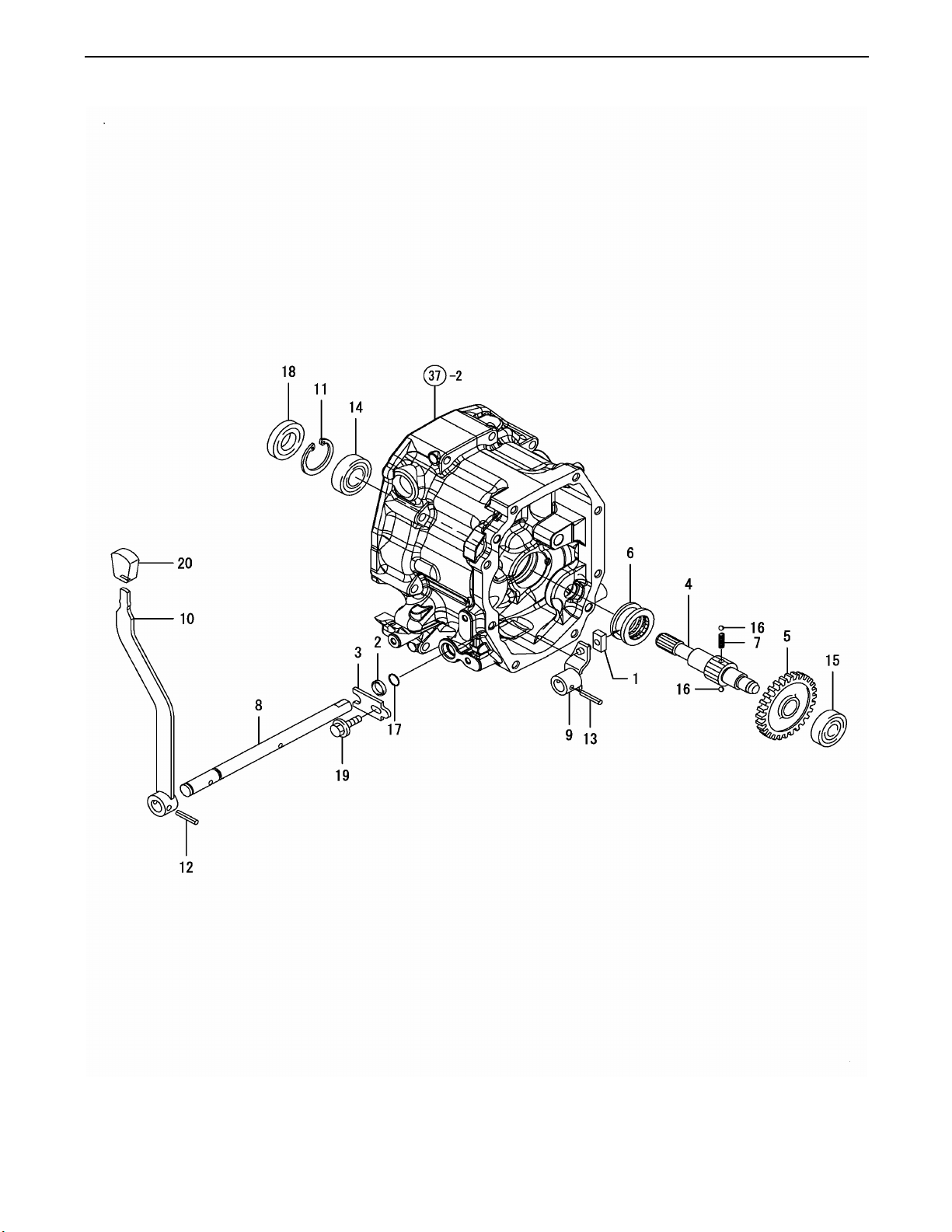

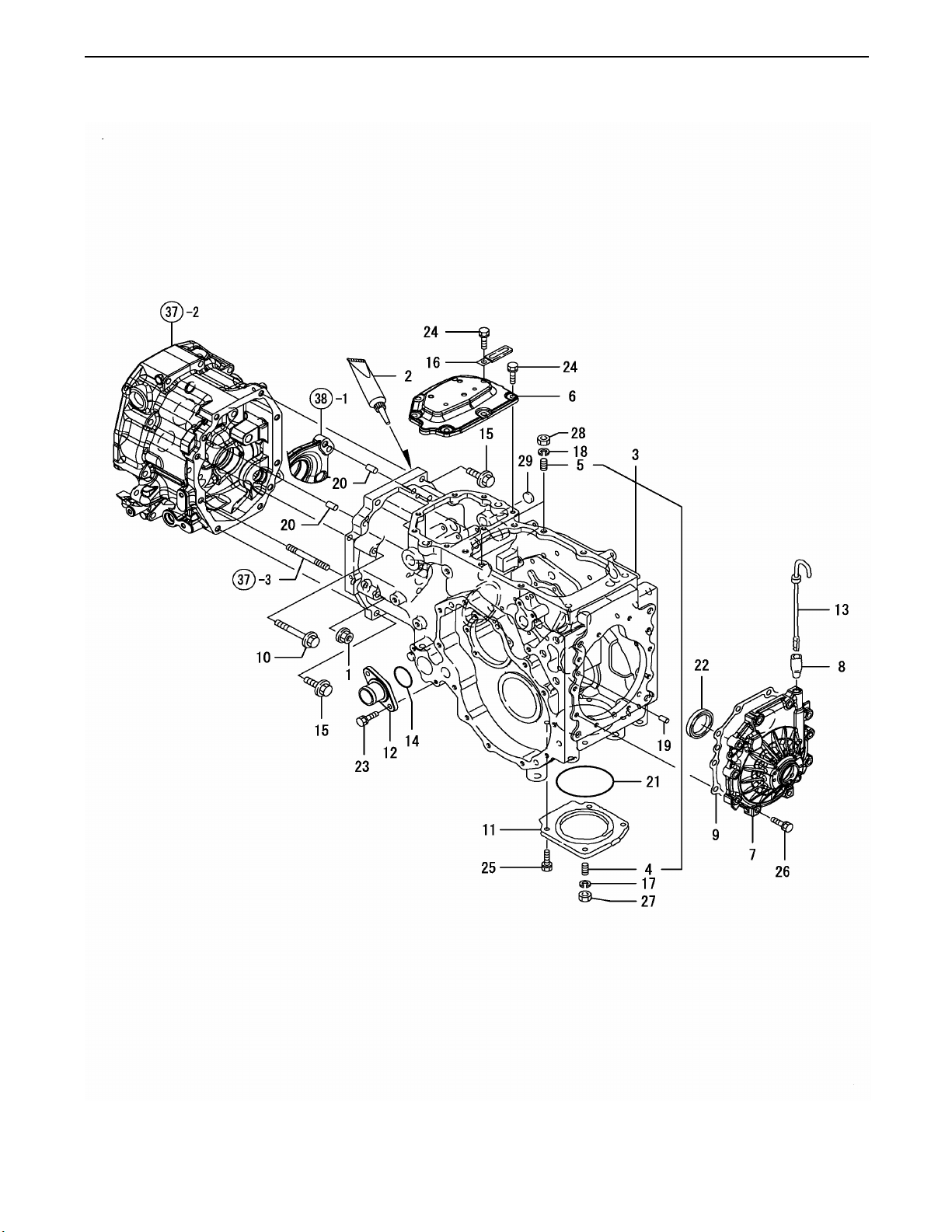

36 TRANSMISSION CASE 82 WIRE HARNESS

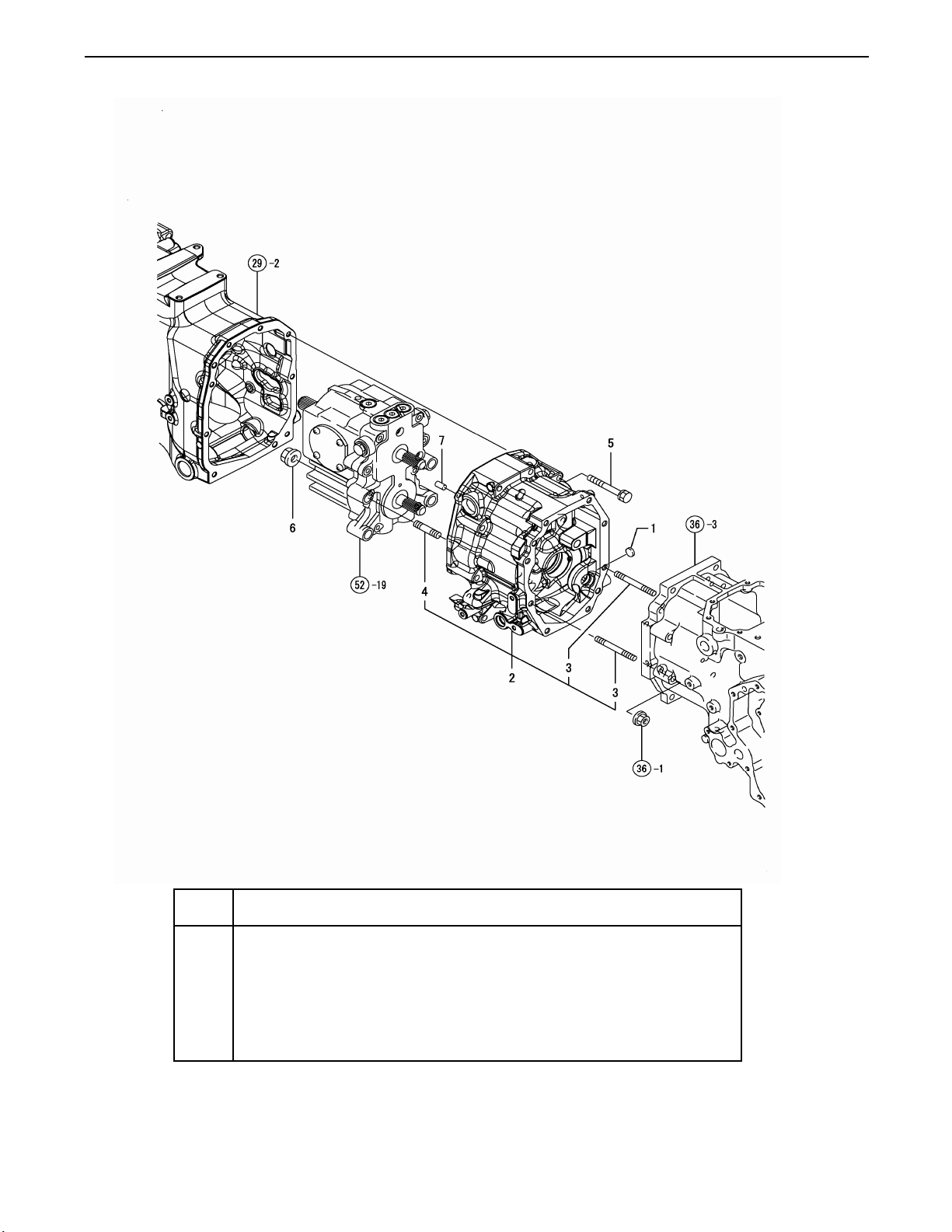

37 CENTER PLATE 83 BATTERY
38 BEARING RETAINER 84 SWITCHES

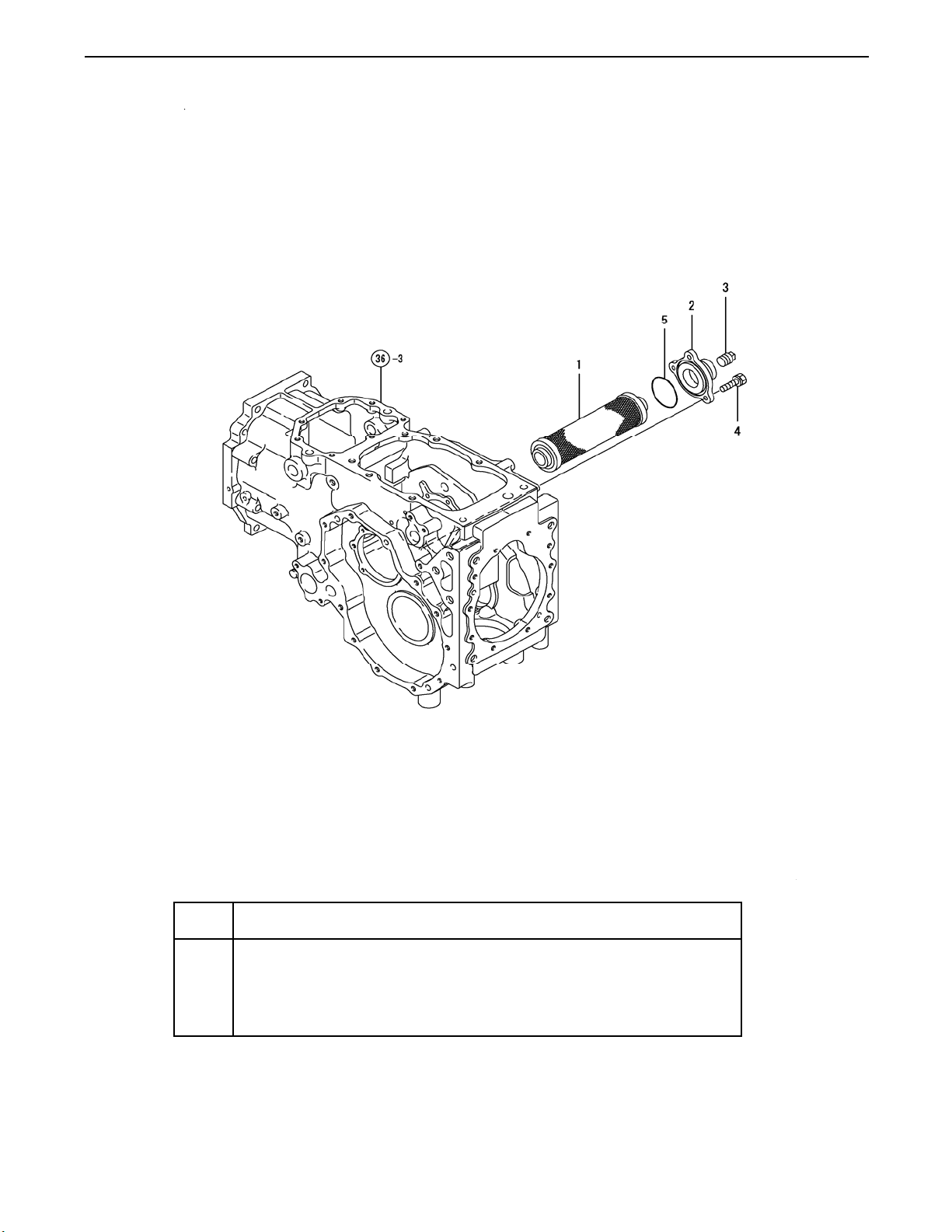

39 OIL STRAINER 85 SEAT SWITCH

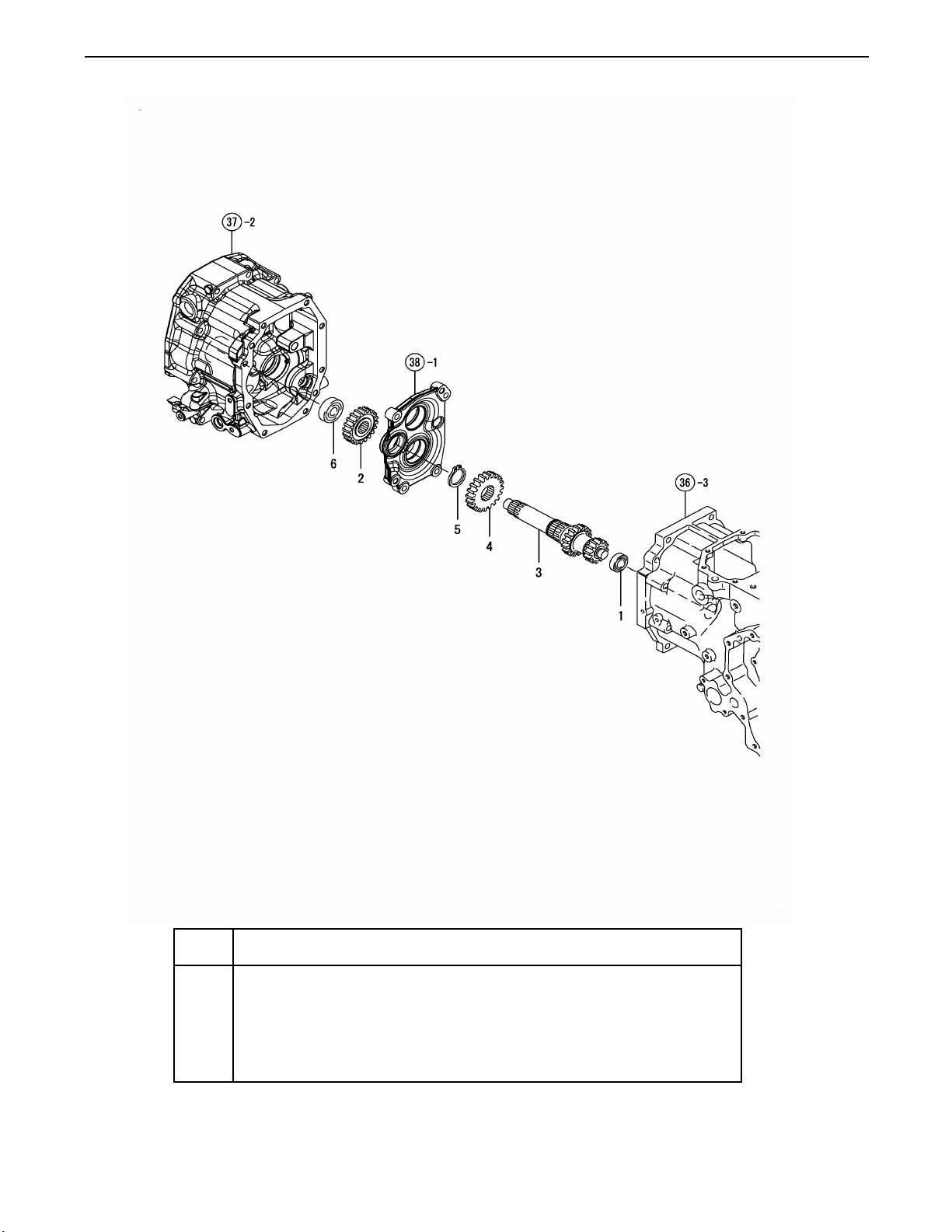

40 INPUT GEAR 86 LAMPS
41 REDUCTION SHAFT 87 FRONT LAMPS

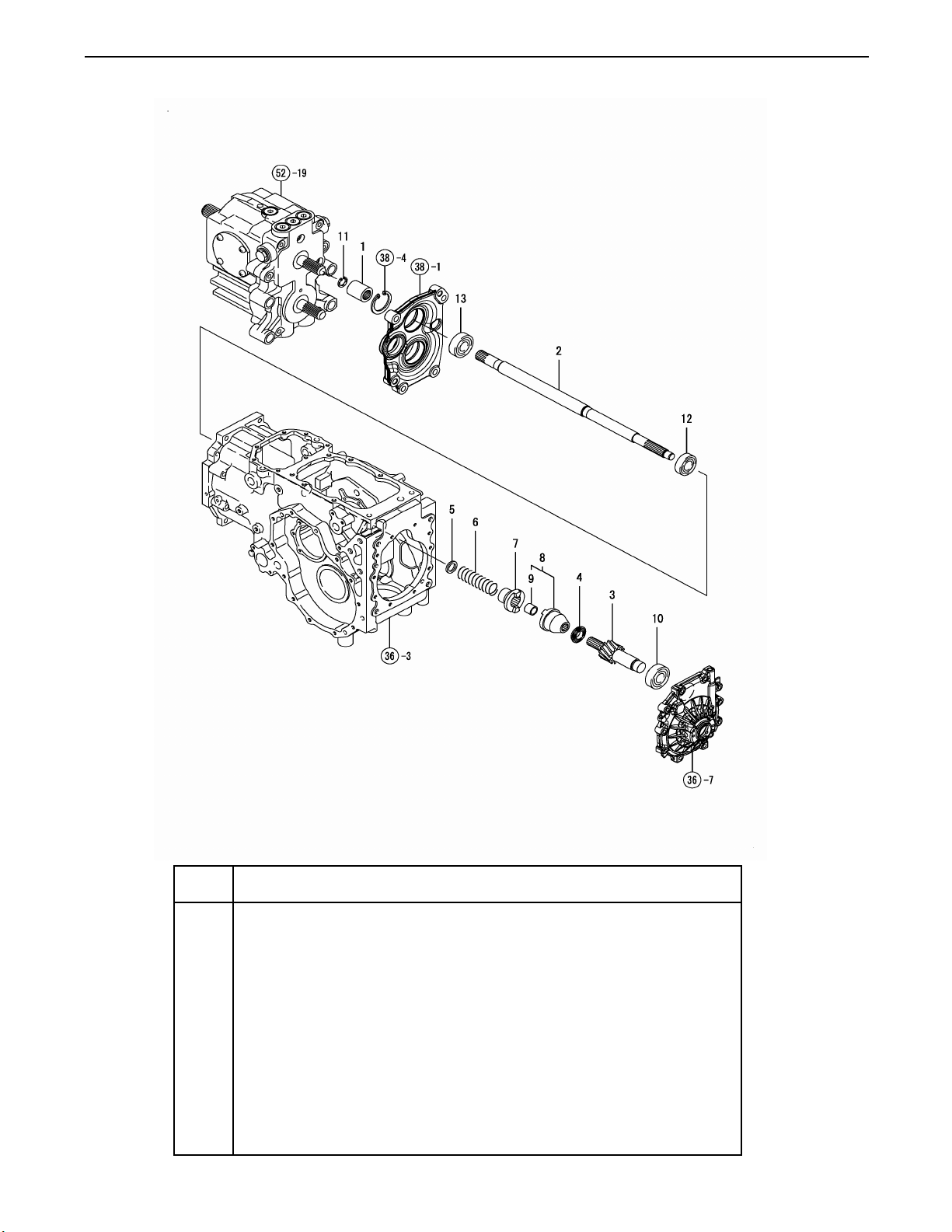

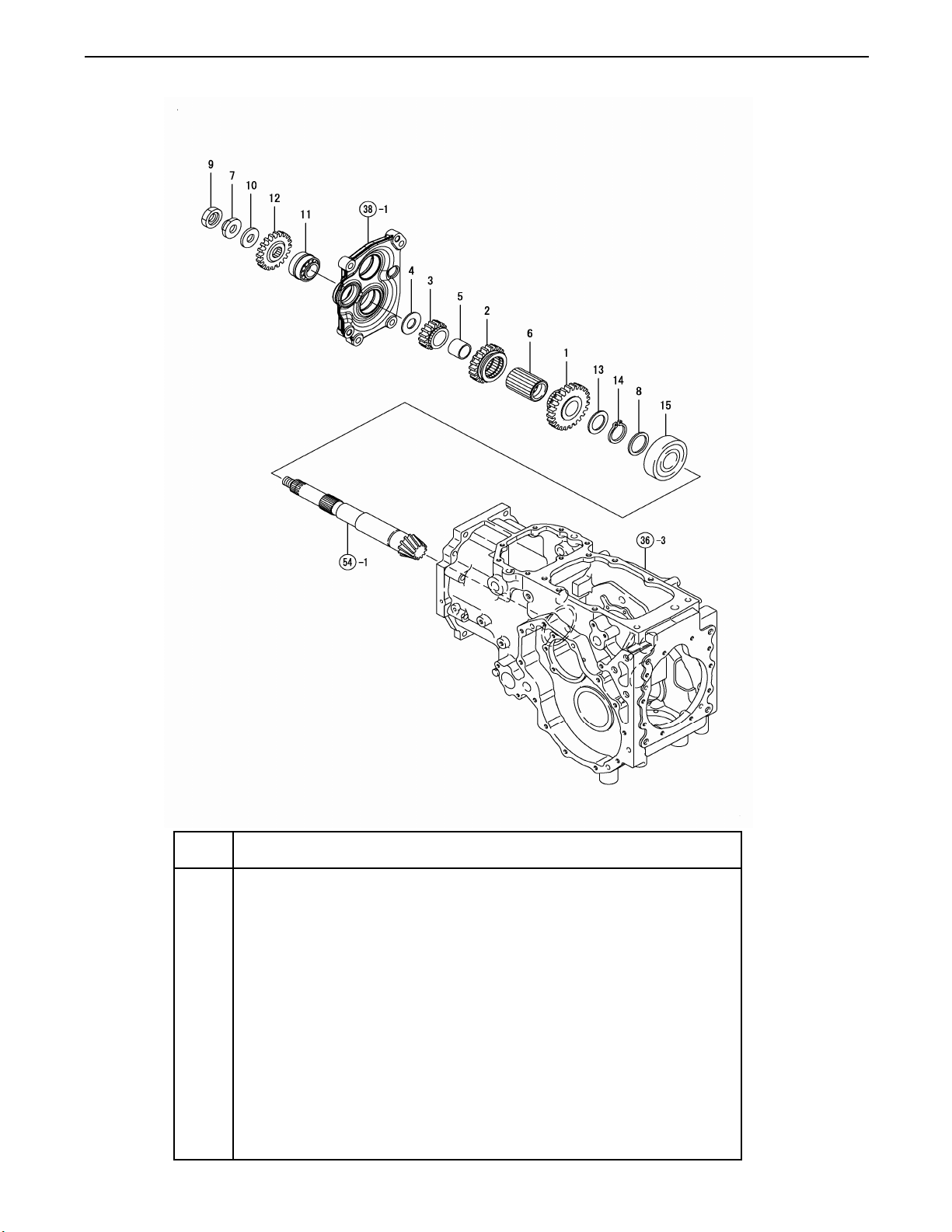

42 COUNTER SHAFT 88 INSTRUMENT PANEL
43 P.T.O. DRIVE SHAF
44 P.T.O. SHAF
45 P.T.O. SHIELD continued on page 29…..

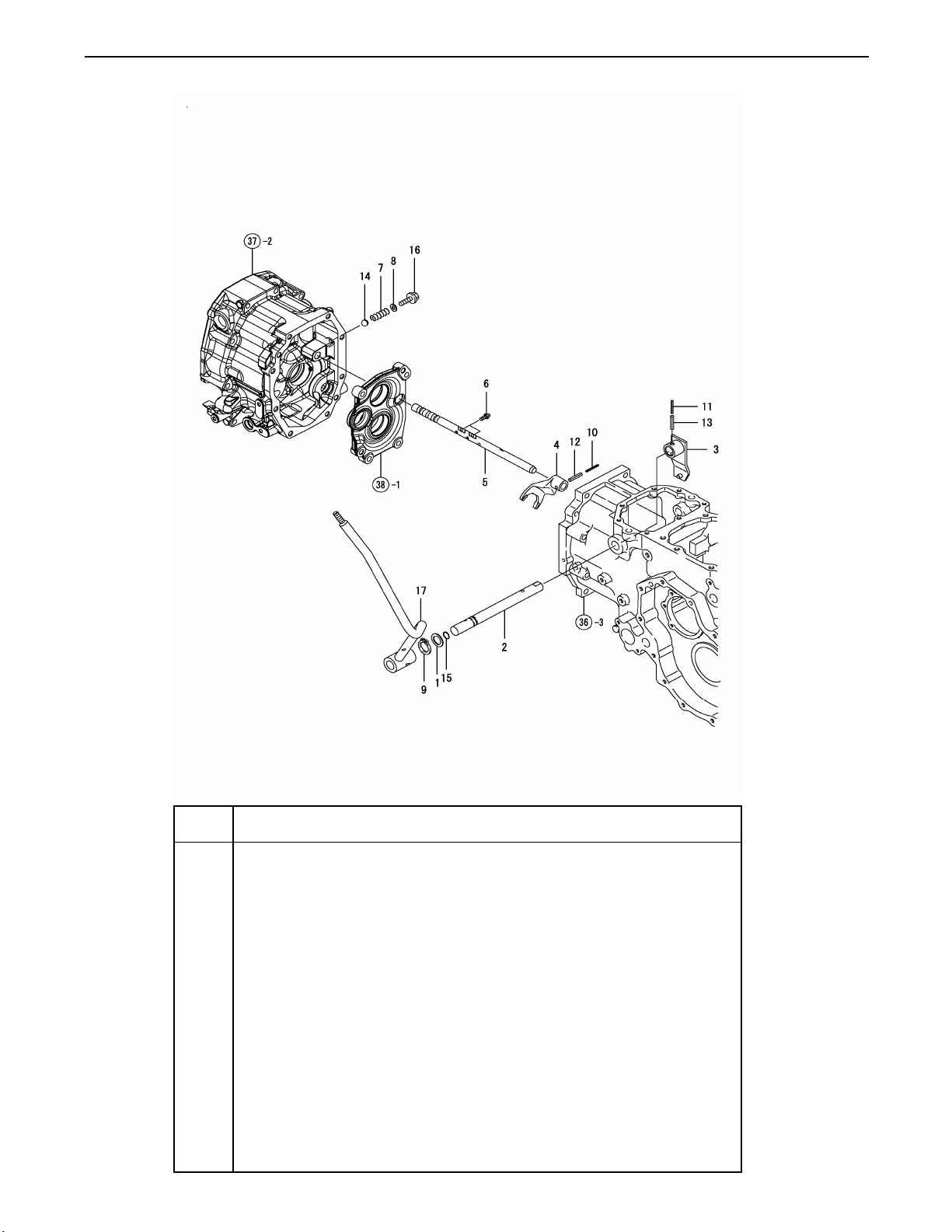

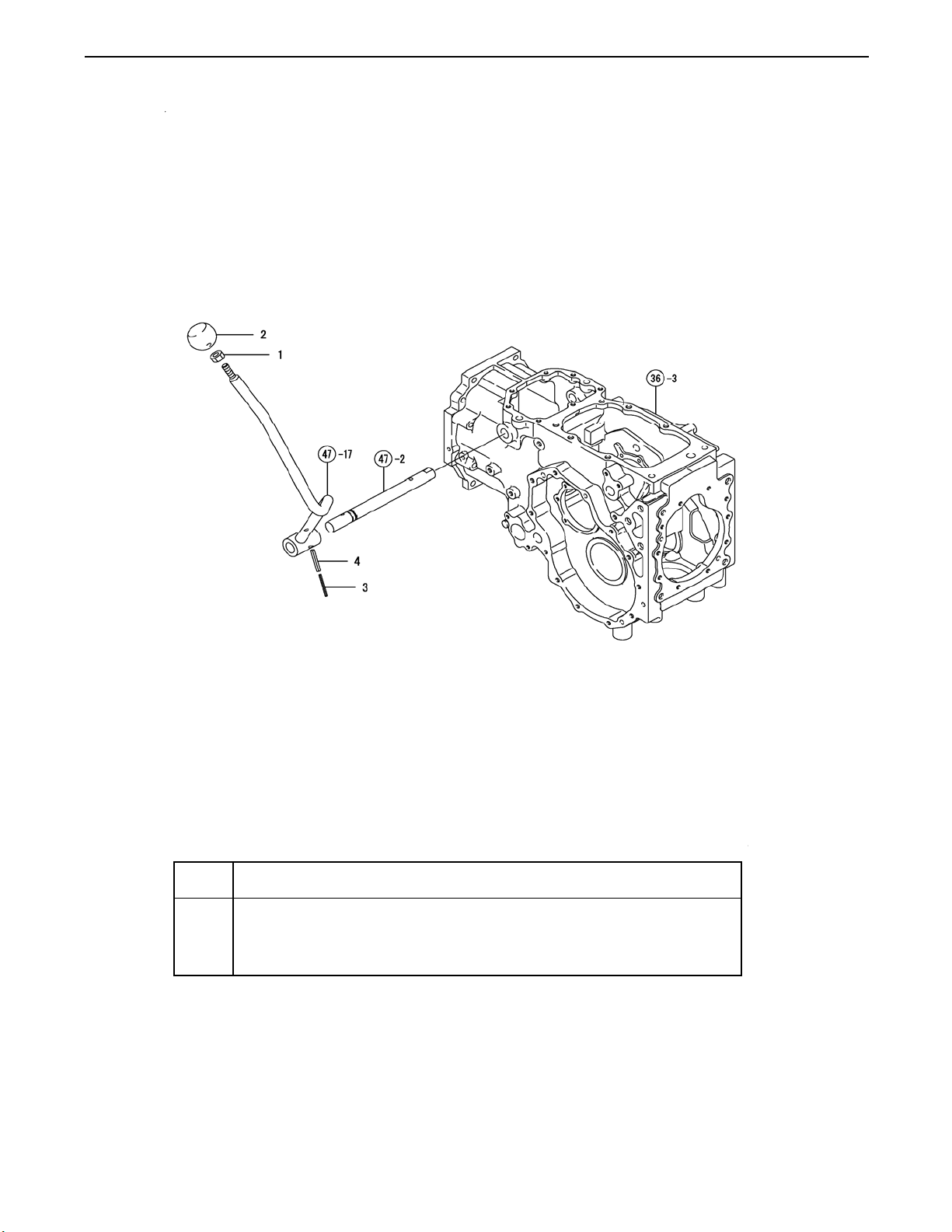

46 RANGE LEVER
47 RANGE LEVER PARTS

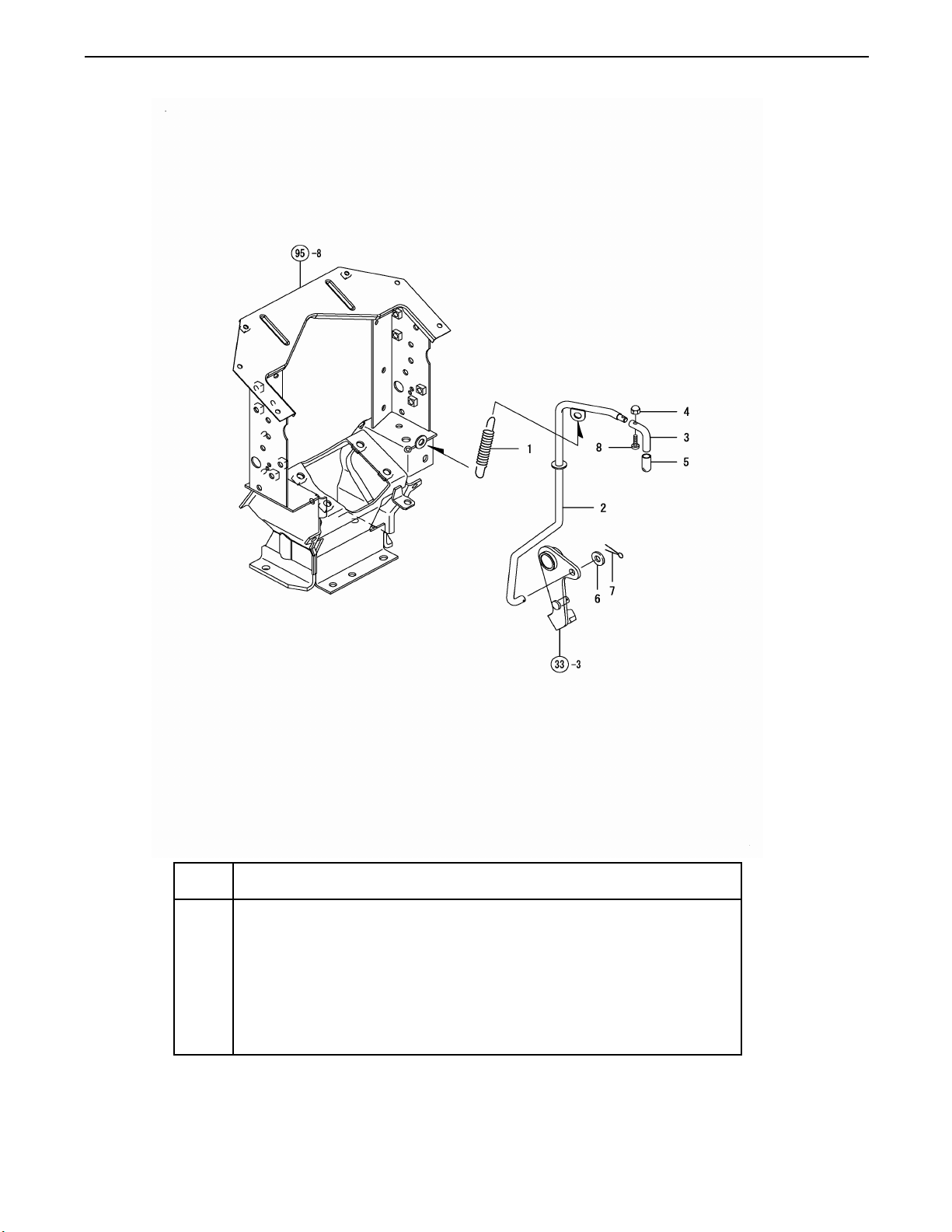

48 CRUISE CONTROL

GROUP NAME FIG. NO GROUP NAME

K 53 HST LINK

REAR AXLE SECTION

54 RING GEAR

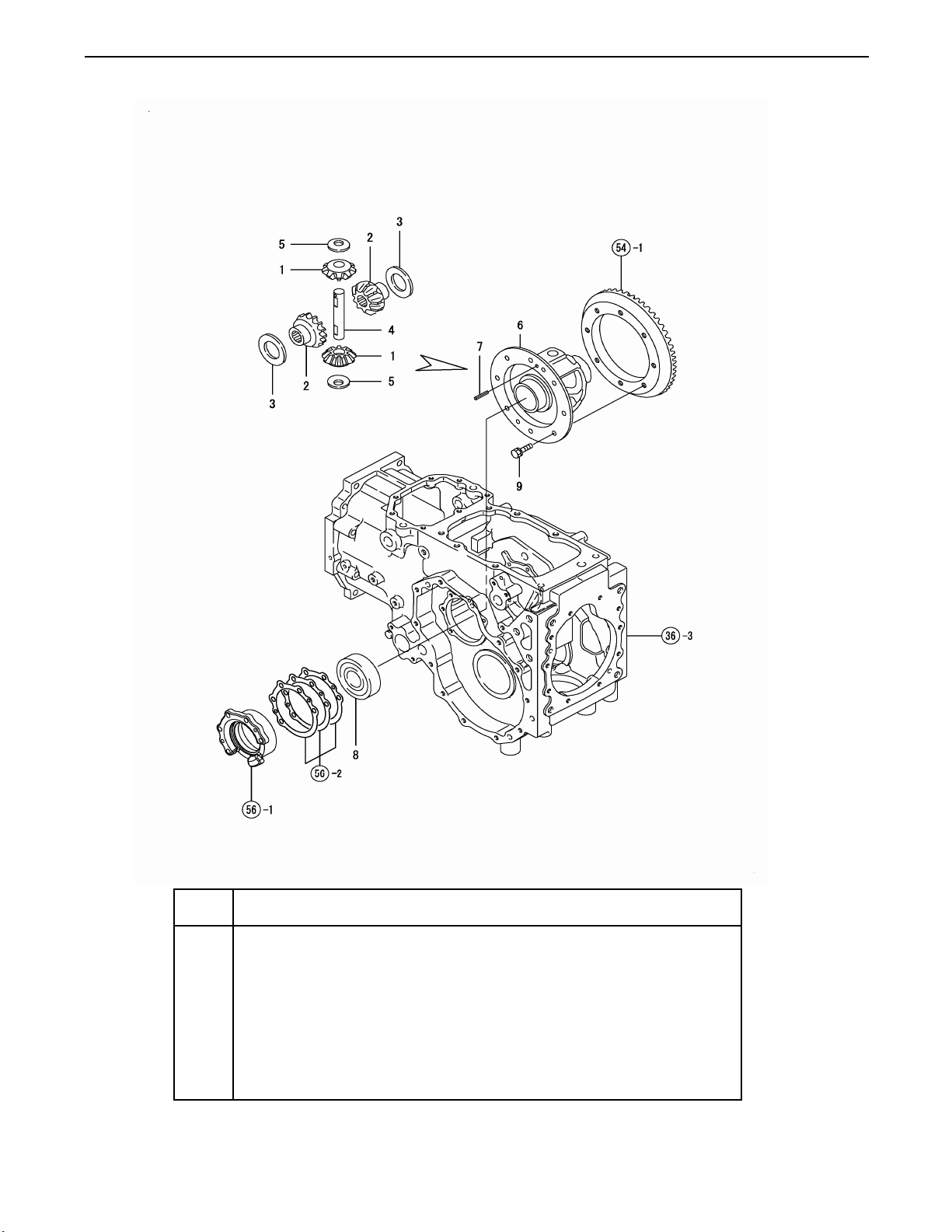

55 DIFFERENTIAL GEAR

K

HYDRAULIC CONTROL SECTION

75 SAFETY VALVE
76 HYDRAULIC SUB CONTROL VALVE

ELECTRICAL PARTS SECTION

T 89 RELAY

T

T

Ex Series Ex290028

NOTES:

Ex Series Ex2900

29

TRACTOR SECTION INDEX

FIG. NO
FITING SECTION continued from page 27

90 FRONT FRAME
91 HOOD

92 FRONT GRILLE
93 SIDE COVER
94 HOOD FRAME
95 DASHBOARD
96 FENDER
97 FENDER STAY
98 STEP
99 STEP AUXILIARY

100 SEAT
101 SEAT BELT
102 LABELS
103 LABELS (SAFETY)

HITCH SECTION

104 THREE POINT LINK
105 DRAFT PIN & TOP HOOK
106 CHECK CHAIN BRACKET
107 DRAW BAR HITCH
108 SAFETY FRAME
109 REAR BRACKET

GROUP NAME

OPTIONAL SECTION

110 MID P.T.O. KIT 59A40014727 (OPTIONAL)
111 MID P.T.O. KIT 59A40014727 CONTROLS (OPTIONAL)
112 FRONT WEIGHT BRACKET EXTENSIONS (OPTIONAL)
113 POWER BEYOND KIT 59A40022727 (OPTIONAL)
114 WORK LAMP (OPTIONAL)

HYDROSTATIC TRANSMISSON

115 HYDROSTATIC TRANSMISSION HOUSING
116 HYDROSTATIC TRANSMISSION CENTER

Ex Series Ex2900

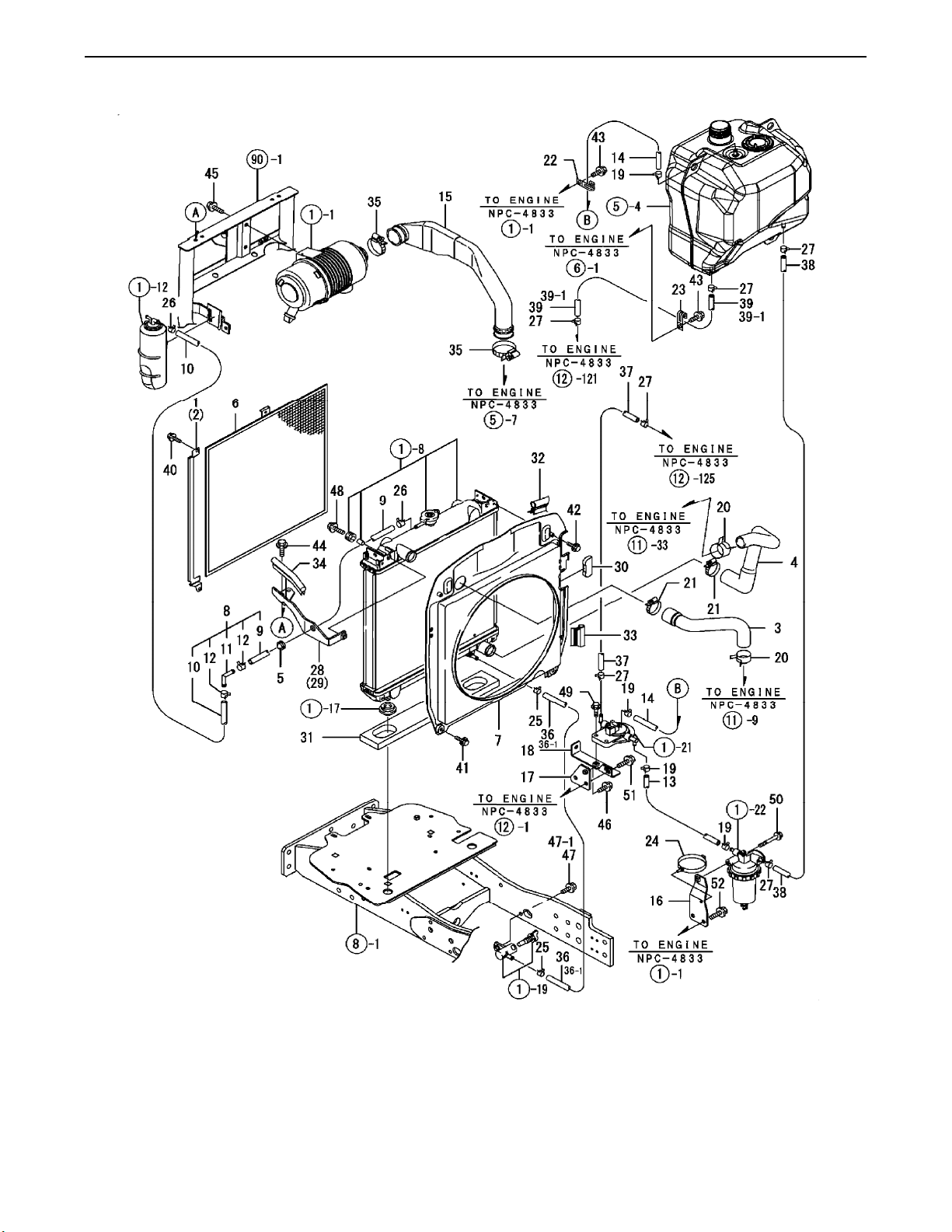

FIG. 1. ENGINE ACCESSORIES

30

Copyright 2007 Cub Cadet Yanmar LLC
