Page 1
A13-600095 MAC 15 CHAIN SAW 11/68 to 03/69 IPL 68977 Page 1 of 11
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
A13-600095 MAC 15 CHAIN SAW 11/68 to 03/69 IPL 68977 Page 2 of 11
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
66977 Bar
65120M Chain
51445A Combination Wrench-Screwdriver
69048 Owner's Manual
52958 Spike
50134 Piston Assy - 0.020 in. oversize
55125 Ring Set - 0.020 in oversize
36248 Wrench - Spark plug
63165 Spark Arrester
65712 Timing Guide
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
A13-600095 MAC 15 CHAIN SAW 11/68 to 03/69 IPL 68977 Page 3 of 11
www.ktoutdoor.com

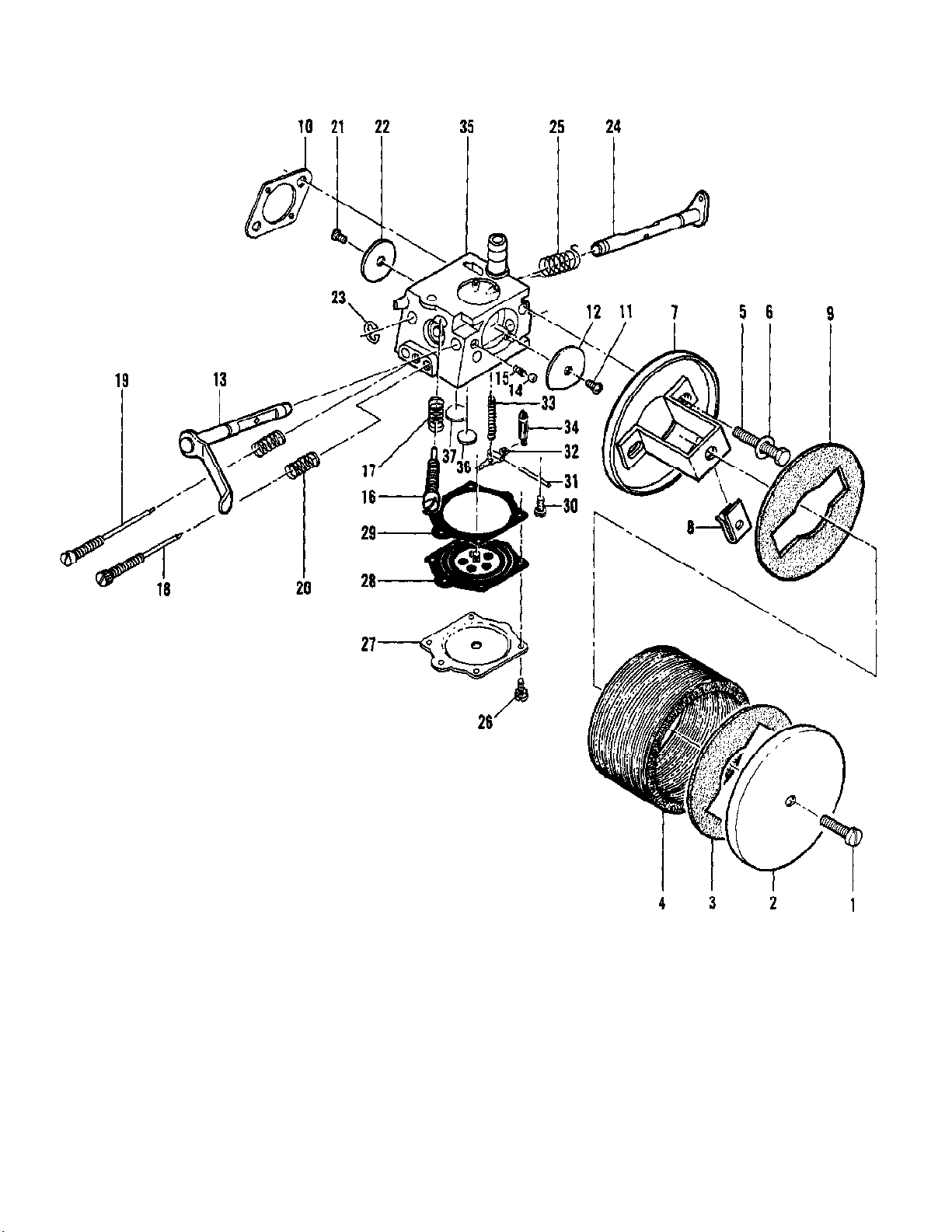

Carburetor And Air Filter
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
A13-600095 MAC 15 CHAIN SAW 11/68 to 03/69 IPL 68977 Page 4 of 11
www.ktoutdoor.com
Carburetor And Air Filter
Ref # Part Number DescriptionQty
1 104393 Screw - Pan hd 10-24 x 3/81
2 63091 Cover Assy - Air cleaner1
3 63090 Gasket - Air cleaner cover1
4 52961 Screen - Air cleaner1
5 102586 Screw - Hex hd 10-24 x 22
6 36388 Lockplate2
7 68982 Plate Assy - Air cleaner1
8 104171 Nut - Speed1
9 63090 Gasket - Air cleaner1
10 68132 Gasket - Carburetor1
68981 Carburetor Assy1
11 47690 Screw - Choke plate1
12 69505 Plate - Choke1
13 69504 Shaft Assy - Choke1
14 100302 Ball - Detent1
15 67504 Spring - Detent1
16 68106 Screw - Idle speed1
17 67502 Spring - Idle speed screw1
18 68104 Needle - High speed adjustment1
19 68105 Needle - Idle adjustment1
20 67502 Spring - Needle2
21 47690 Screw - Throttle plate1
22 67487 Plate - Throttle1
23 68211 Ring - Retaining1
24 69503 Shaft Assy - Throttle1
25 69507 Spring - Throttle return1
26 70798 Screw - Diaphragm cover4
27 67485 Cover - Diaphragm1
28 67499 Diaphragm - Metering1
29 67496 Gasket - Diaphragm1
30 67500 Screw - Lever pin1
31 67508 Pin - Lever1
32 67509 Lever - Metering1
33 67503 Spring - Lever1
34 67491 Valve - Needle1
35 69502 Body Assy - Carburetor1
36 67492 Plug - 3/81
37 69506 Plug - 5/161
69508 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
A13-600095 MAC 15 CHAIN SAW 11/68 to 03/69 IPL 68977 Page 5 of 11
www.ktoutdoor.com

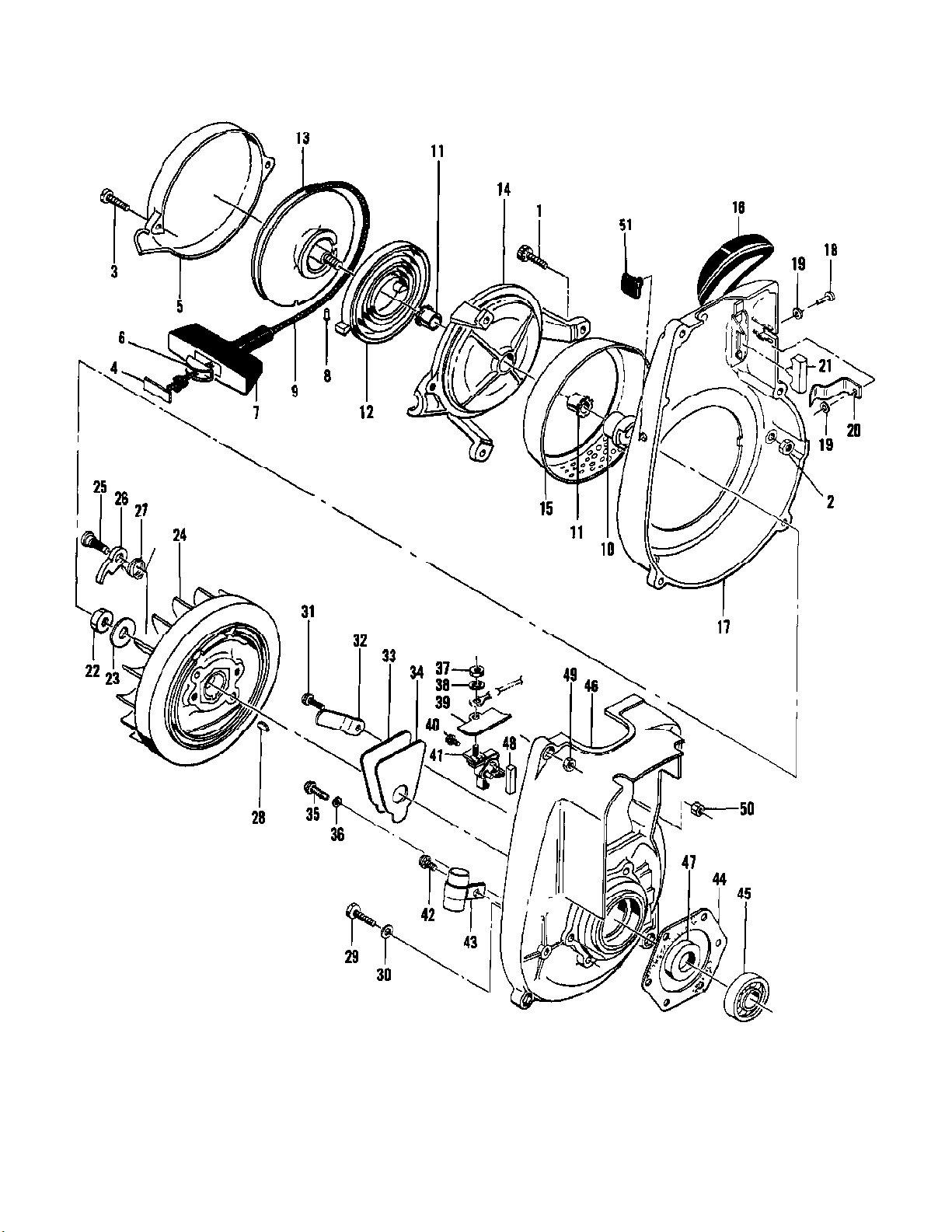

Fan Housing, Starter, Flywheel and Crankcase Cover
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
A13-600095 MAC 15 CHAIN SAW 11/68 to 03/69 IPL 68977 Page 6 of 11
www.ktoutdoor.com
Fan Housing, Starter, Flywheel and Crankcase Cover
Ref # Part Number DescriptionQty
1 104815 Screw - Hex hd 10-24 x 7/83
2 101191 Nut - Hex 10-243
60130 Starter Assy1
3 104396 Screw - Pan hd 10-24 x 3/42
4 57232 Plate - Starter handle1
5 60647 Cover - Starter1
6 57231 Cup - Starter handle1
7 57230 Handle - Starter1
8 101136 Rivet - Rd hd 3/32 dia x 5/161
9 28716 Rope - Starter1
10 57790 Ratchet - Starter1
11 57535 Bushing - Starter base2
12 51665 Spring - Rewind1
13 57792 Drum - Starter1
14 60646 Base - Starter1
15 50581A Guard - Sawdust1
16 57565 Cover Assy - Spark plug1
17 57184B Housing Assy - Fan1
18 103819 Rivet1
19 24236 Washer2
20 50818 Spring - Switch1
21 50817 Button - Switch1
22 101179 Nut - Hex 7/16-201
23 101270 Washer - 7/161
24 68282 Flywheel & Pawl Assy1
25 36144B Pin - Starter pawl2
26 24093 Pawl - Starter2
27 50582 Spring - Pawl2
28 103879 Key - Woodruff #31
29 102289 Screw - Hex hd 10-24 x 3/43
30 102189 Washer - #103
31 104815 Screw - Hex hd 10-24 x 7/81
32 50671 Retainer - Breaker cover1
33 50588A Cover - Breaker box1
34 65584 Gasket - Breaker box1
35 55494 Screw Assy - Sealing #102
36 55492 Washer - Sealing2
37 100251 Nut - Hex 8-321
38 100057 Lockwasher - Internal #81
39 50381A Insulator - Breaker terminal1
40 103928 Screw - 8-32 x 1/2 (SEMS)1
41 50076A Breaker Assy1
42 103928 Screw - 8-32 x 1/2 (SEMS)1
43 50074 Condenser1
44 51240 Gasket - Cover1
45 100824 Bearing - Ball1
46 57126A Crankcase Cover Assy1
47 50663 Seal - Oil1
48 54184 Wiper - Felt1
49 101326 Nut - Hex 10-242
50 101326 Nut - Hex 10-242
51 55670 Grommet1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
A13-600095 MAC 15 CHAIN SAW 11/68 to 03/69 IPL 68977 Page 7 of 11
www.ktoutdoor.com

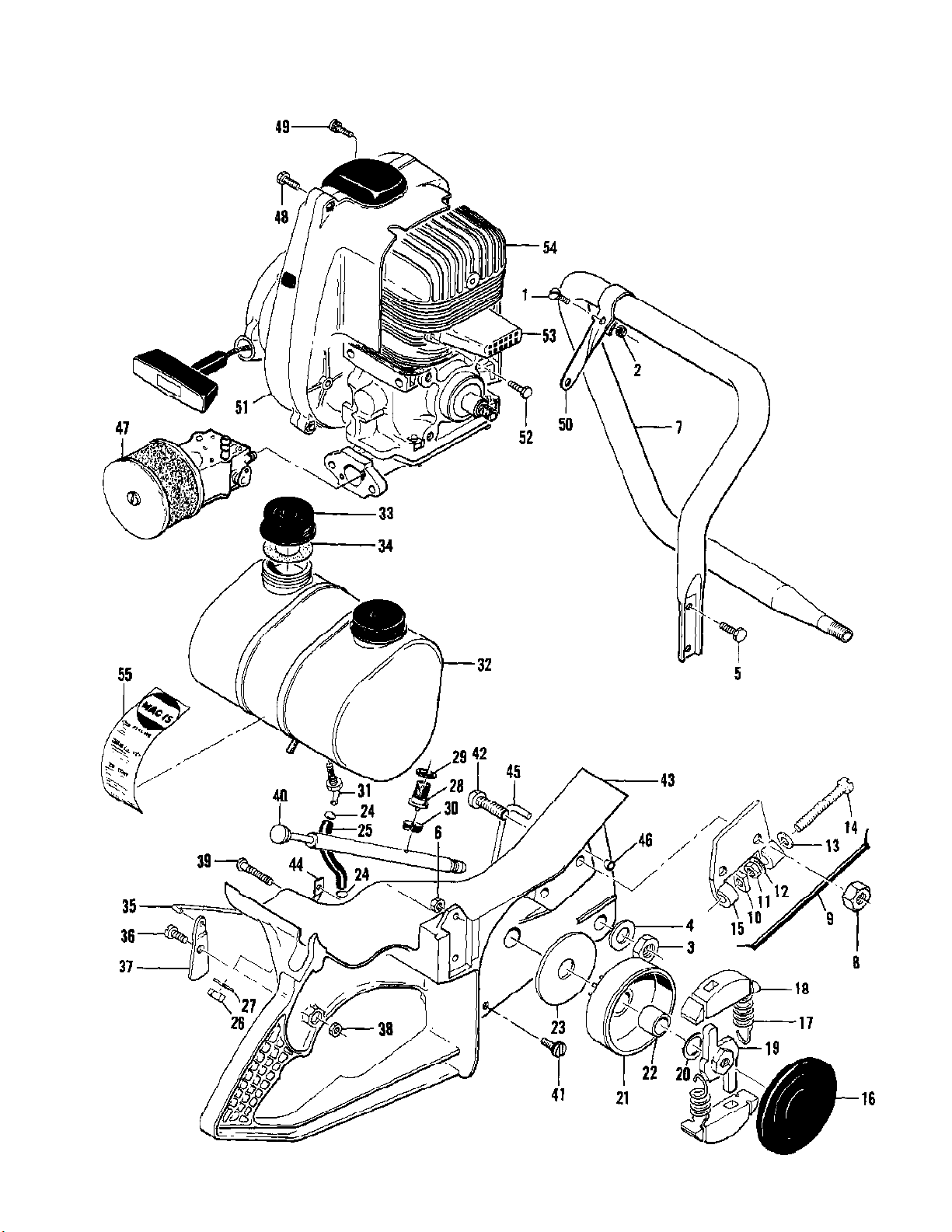

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
A13-600095 MAC 15 CHAIN SAW 11/68 to 03/69 IPL 68977 Page 8 of 11
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 104395 Screw - Pan hd 10-24 x 5/81
2 101191 Locknut - 10-241
3 100604 Jamnut - 1/2-201
4 110010 Washer - Spring 1/21
5 102861 Screw - Hex hd 1/4-20 x 5/82
6 103242 Nut - Hex 1/4-201
7 52804 Frame1
8 103729 Nut - Hex 3/8-242
9 66275 Clamp Assy - Bar1
10 52828 Nut - Adjusting1
11 100640 Locknut - 1/4-281
12 102813 Washer - Spring1
13 102843 Washer - 1/41
14 103919 Bolt - Fil hd 1/4-28 x 2-1/21
15 66276 Clamp - Bar1
16 52837 Cover - Clutch1
52844 Clutch Assy1
17 63999 Spring - Clutch2
18 52845 Shoe - Clutch2
19 52846 Rotor - Clutch1
20 101270 Washer - 7/161
21 52878 Drum, Sprocket & Bushing Assy1
22 50128 Bushing1
23 50132 Washer - Sprocket1
24 50742 Clamp - Hose2
25 52808 Hose - Fuel1
26 101330 Nut - Hex 5/16-181
27 100443 Lockwasher - 5/161
28 65382 Filter Assy - Oil tank1
29 62779 Gasket - Filter1
30 52822 Gland - Oiler1
31 52887 Fitting - Fuel outlet1
32 62776 Tank Assy1
33 52923A Cap - tank2
34 52964 Gasket2
35 68986 Rod - Throttle1
36 52888 Screw - Trigger1
37 52823 Trigger1
38 101191 Nut - Hex 10-241
39 101449 Screw - Rd hd 8-32 x 5/81
40 65381 Pump Assy - Oiler1
41 110208 Screw - Flat hd 1/4-20 x 3/4 (SEMS)4
42 52957 Bolt - Bar mounting2
43 68007 Handle Assy - Saw1
44 110180 Nut - Speed1
45 68005 Tube Assy - Oiler1
46 52876 Sleeve - Tube1
47 Carburetor & Air Filter See "Carburetor & Air Filter"
illustration and parts list.
48 104815 Screw - Hex hd 10-24 x 7/83
49 103947 Screw - 10-24 x 1 (SEMS)1
50 52883 Brace - Frame1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
A13-600095 MAC 15 CHAIN SAW 11/68 to 03/69 IPL 68977 Page 9 of 11
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
51 Fan Housing, Starter, Flywheel & Crankcase Cover
See "Fan Housing, Starter, Flywheel & Crankcase
Cover" illustration and parts list.
52 104840 Screw - Hex hd 10-24 x 3/42
53 50115 Pipe - Exhaust1
54 Powerhead See "Powerhead" illustration and parts
55 69603 Instruction Decal1
1
list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
A13-600095 MAC 15 CHAIN SAW 11/68 to 03/69 IPL 68977 Page 10 of 11
www.ktoutdoor.com

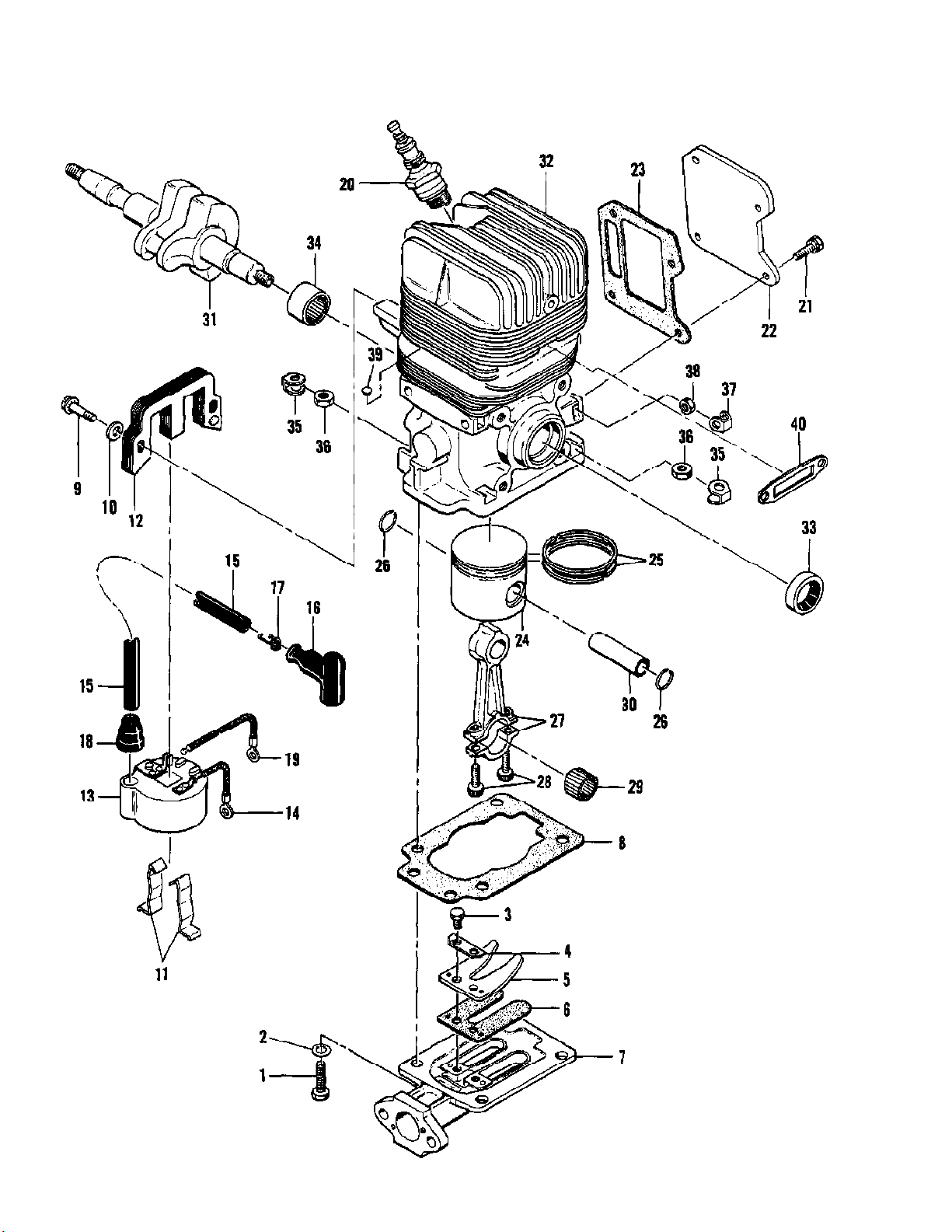

Powerhead
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
A13-600095 MAC 15 CHAIN SAW 11/68 to 03/69 IPL 68977 Page 11 of 11
www.ktoutdoor.com
Powerhead
Ref # Part Number DescriptionQty
1 102121 Screw - Hex 1/4-20 x 7/84
2 100005 Washer - 1/44
3 104476 Screw - Hex hd 8-32 x 5/162
4 51480 Lockplate1
5 48591 Guard - Reed1
6 48593 Valve - Reed1
7 68979 Adapter - Carburetor1
8 65578 Gasket - Carburetor adapter1
9 104815 Screw - 10-24 x 7/8 (SEMS)2
10 100352 Washer - #102
11 51253 Retainer - Coil2
12 51251 Lamination Assy1
13 57643A Kit - Coil & Terminal Assy1
14 101883 Wire Assy - Ground1
15 57648 Wire - Spark plug1
16 55060 Boot - Spark Plug1
17 55061 Connector1
18 55617 Nipple - Spark plug wire1
19 57225 Wire Assy - Primary1
20 Plug - Spark 14 mm1
21 103814 Screw - 10-24 x 5/8 (SEMS)4
22 8354 Cover - Transfer port1
23 48605 Insulator - Reed plate1
24 50206 Piston Assy - Standard1
25 55123 Ring Set - Standard piston1
26 50133 Ring - Retaining2
27 47903 Connecting Rod Assy1
28 60210A Screw - Socket hd 10-32 x 5/82
29 102742 Roller - Needle24
30 50207A Pin - Piston1
31 50659A Crankshaft1
32 52886A Cylinder Crankcase Assy1
33 104128 Seal - Oil1
34 104129 Bearing - Needle1
35 18556A Retainer - Nut6
36 105394 Nut - Hex 1/4-206
37 28053 Retainer - Nut2
38 101326 Nut - Hex 10-242
39 110179 Plug - Expansion2
40 53652 Gasket - Exhaust1
K&T Saw Shop 606-678-9623 or 606-561-4983
