A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 1 of 38
www.ktoutdoor.com

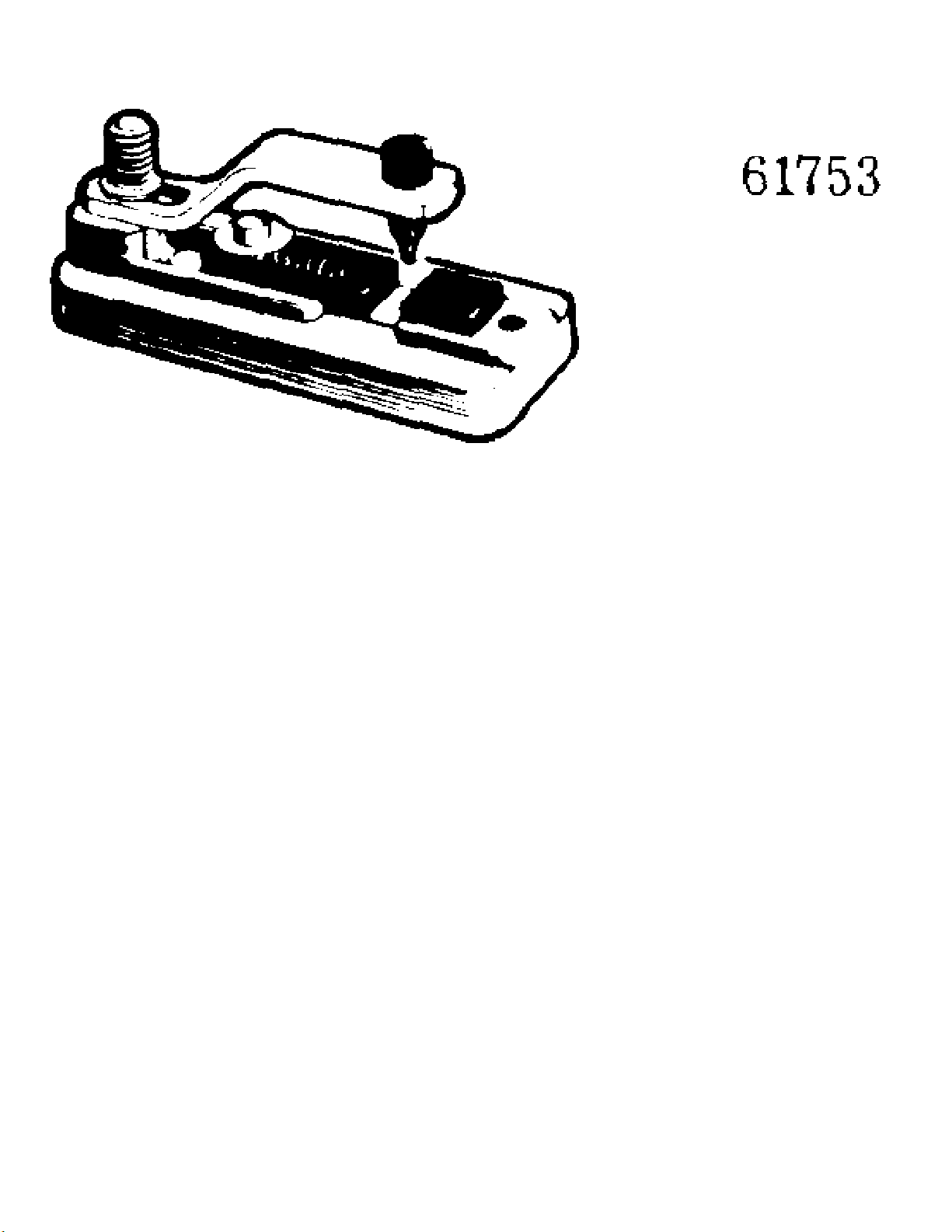

"Brake All" Chain Braker
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 2 of 38
www.ktoutdoor.com
"Brake All" Chain Braker
Ref # Part Number DescriptionQty

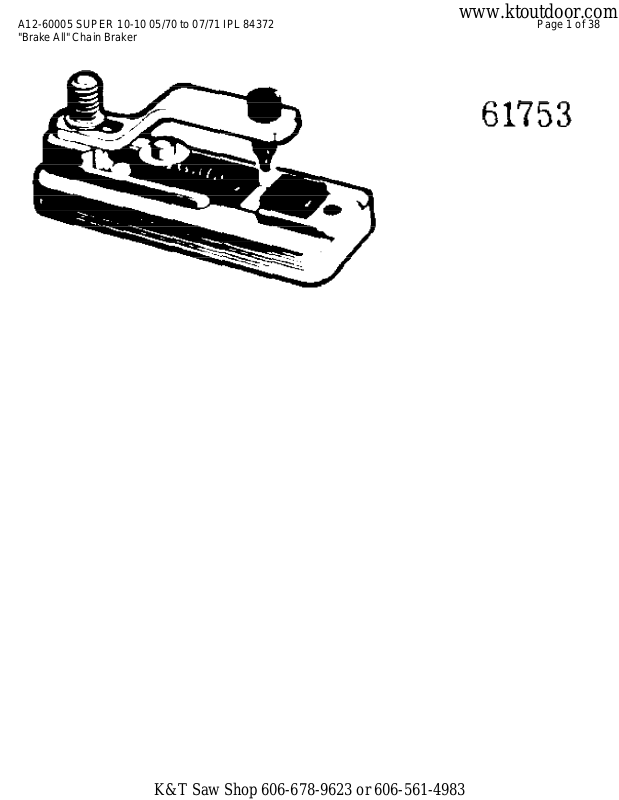

61753 61753 "Break All" Chain Breaker Required when repairing
chain; Instructions included.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 3 of 38
www.ktoutdoor.com
40:1 Two-Cycle Motor Oil
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 4 of 38
www.ktoutdoor.com
40:1 Two-Cycle Motor Oil
Ref # Part Number DescriptionQty

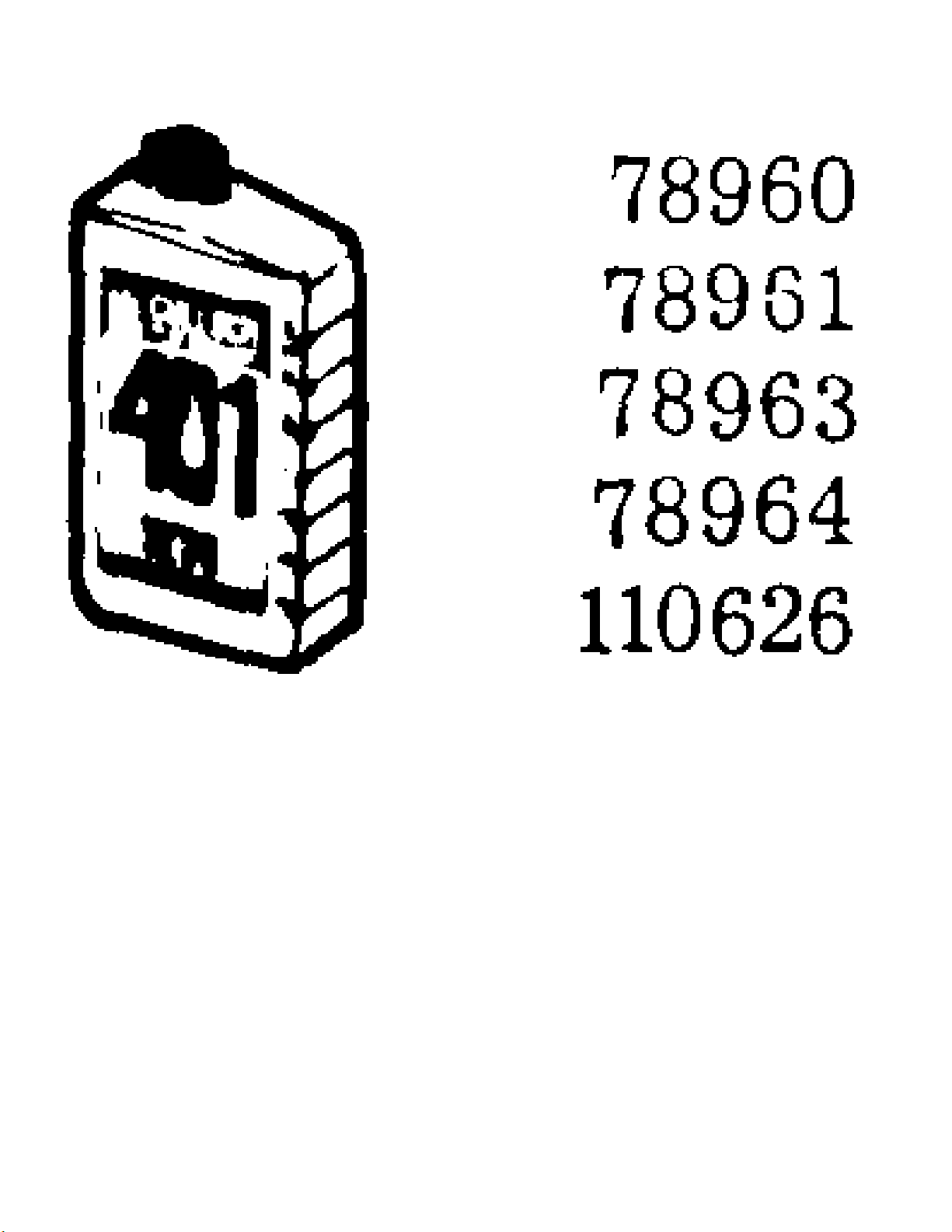

78960 78960 40:1 Two-Cycle Motor Oil - 6oz. can
78961 78961 40:1 Two-Cycle Motor Oil - 6-pack (6oz. can)
78963 78963 40:1 Two-Cycle Motor Oil - 16oz. can
78964 78964 40:1 Two-Cycle Motor Oil - 6-pack (16oz.can)
110626 110626 40:1 Two-Cycle Motor Oil - 1 qt. bottle
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 5 of 38
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 6 of 38
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
83434 Manual - Owner's
63746 Scrench
63341A Kit - Spike
62827 Wrench
65712 Guide - Timing
63432 Spark Plug - AC CS42T
65778 Spark Plug - AC CS41T
69210 Piston Assy - 0.020 in. oversize
62813 Ring Set - Piston 0.020 in. oversize
69211 Piston Assy - 0.030 in. oversize
62812 Ring Set - Piston 0.030 in. oversize
64330 Bar Plate Set
63084 Manual - Shop
69058 Kit - Wrap around frame
69191 Kit - Pressure test adaptor
83406 Kit - Spark arrester screen
84453 Kit - Piston tool
63541 Bar - 16 in.
62556M Chain Assy - 16 in. bar
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 7 of 38
www.ktoutdoor.com
Chain, Bar, & Sprocket Oil
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 8 of 38
www.ktoutdoor.com
Chain, Bar, & Sprocket Oil
Ref # Part Number DescriptionQty

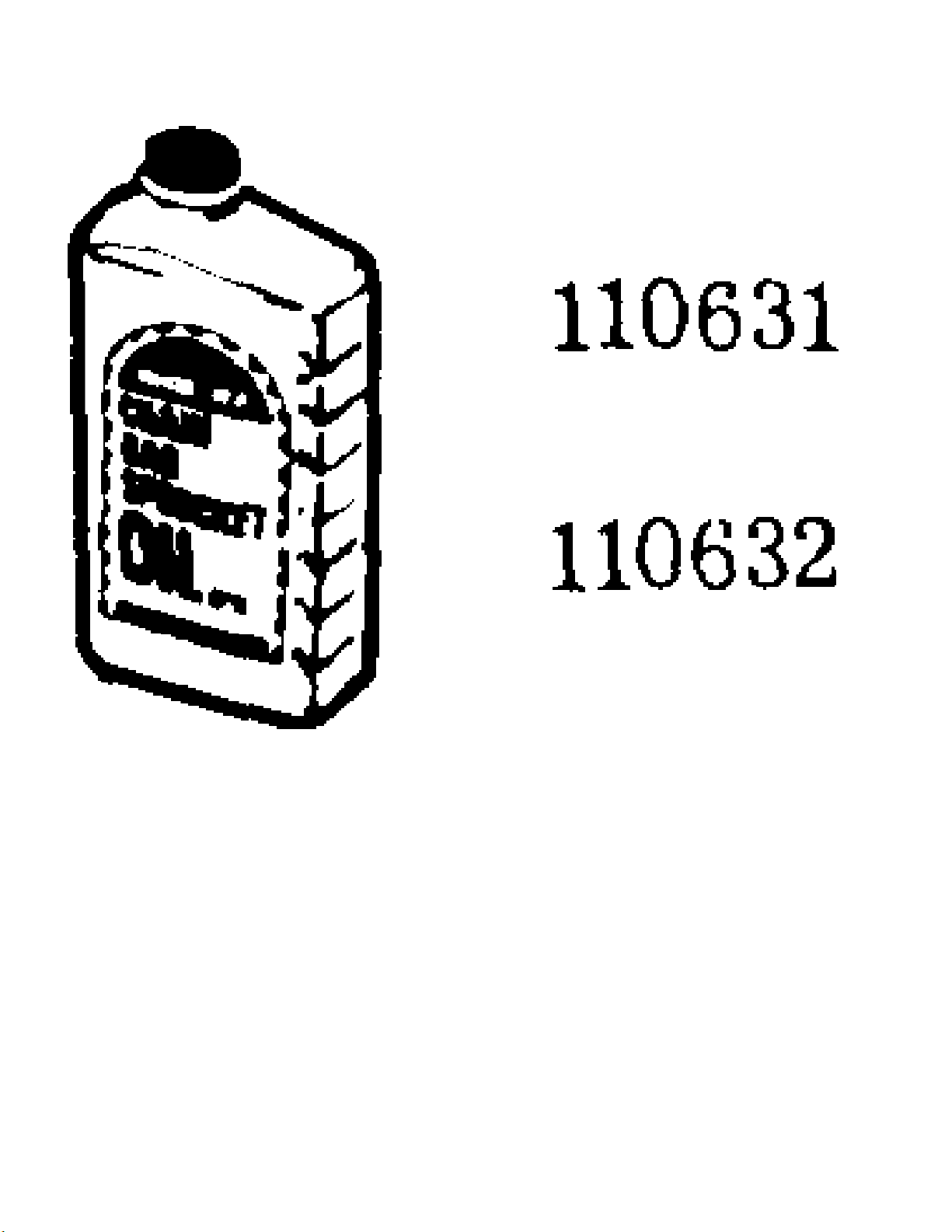

110631 110631 Chain, Bar, and Sprocket Oil - 1qt. bottle
110632 110632 Chain, Bar, and Sprocket Oil - Case of 24 (1qt.
Bottles)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 9 of 38
www.ktoutdoor.com
Bar Guards
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 10 of 38
www.ktoutdoor.com
Bar Guards
Ref # Part Number DescriptionQty

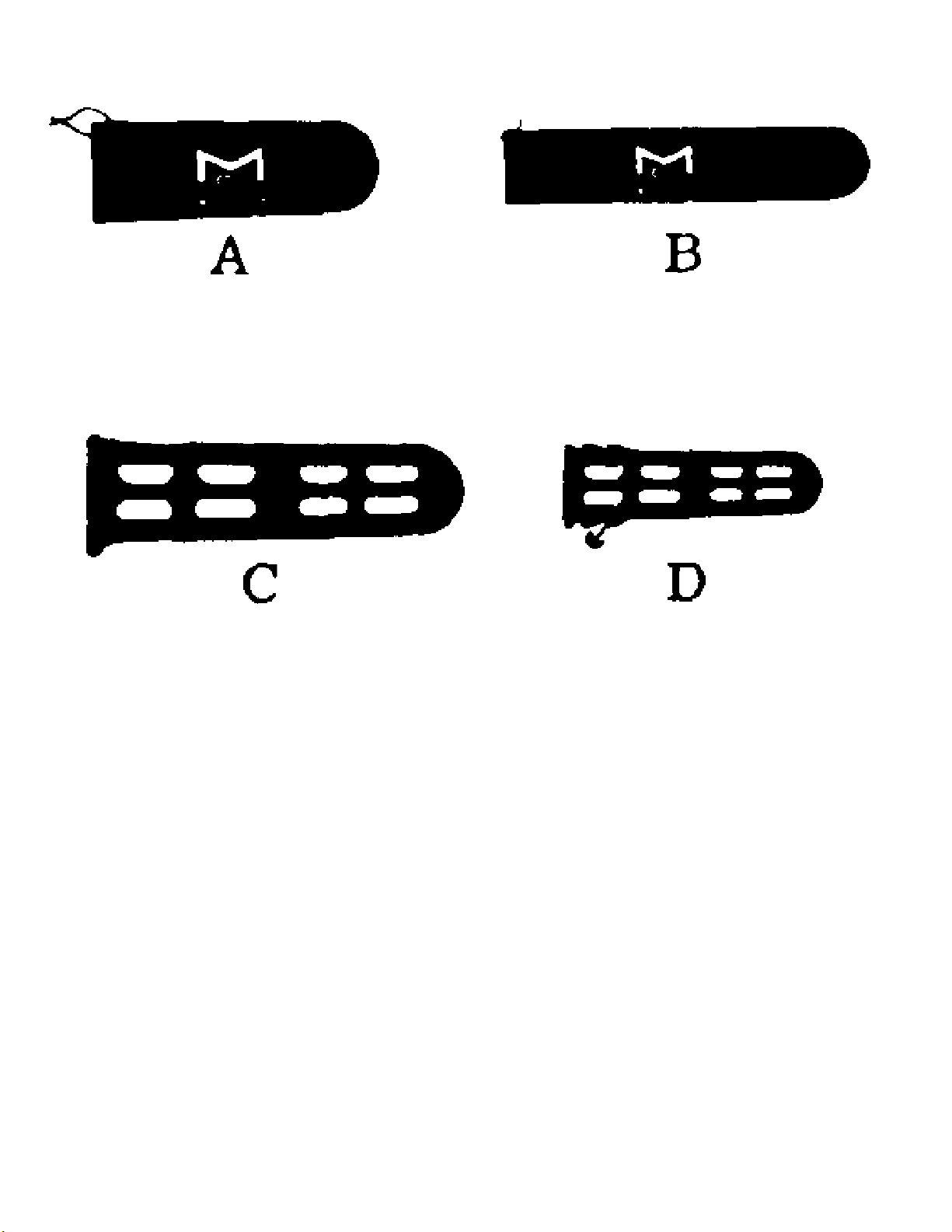

A 56927 Bar Guard - For wide bars Black Polyvinylchloride
B 64930 Bar Guard - Narrow bars Black Polyvinylchloride
C 66544 Bar Guard - MAC 10 - 16, 20" Rigid Yellow Plastic
D 83124 Bar Guard - PM 6 - 12, 16" Rigid Yellow Plastic
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 11 of 38
www.ktoutdoor.com

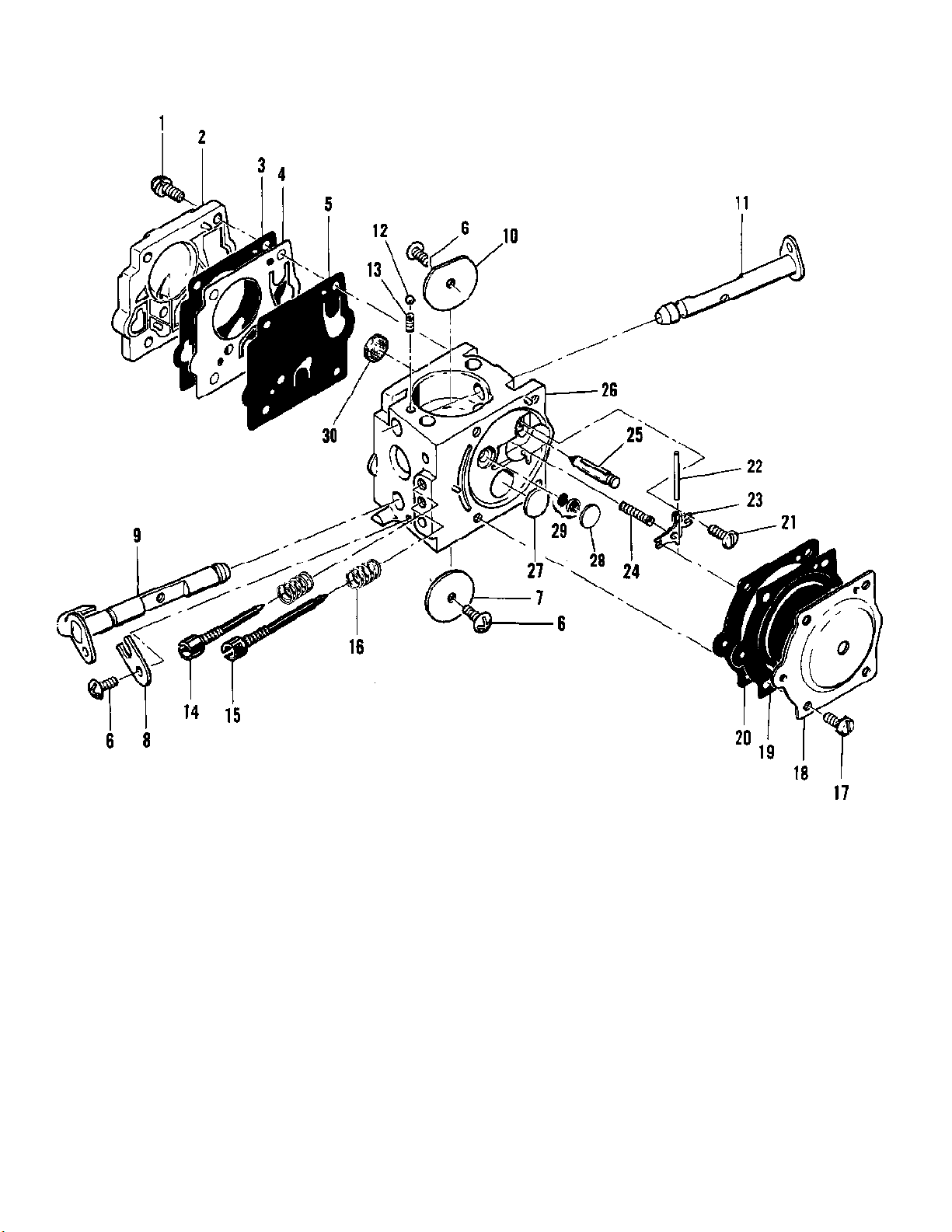

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 12 of 38
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
67379 Carburetor Assy (McCulloch SDC 2)1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 67487 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Assy - Throttle1
10 67490 Plate - Choke1
11 67488 Shaft Assy - Choke1
12 100302 Ball - Choke friction1
13 67504 Spring - Choke friction1
14 67506 Needle - High speed1
15 67505 Needle - Idle1
16 67502 Spring - Needle2
17 70798 Screw - Diaphragm cover4
18 83761 Cover - Diaphragm1
19 67499 Diaphragm - Metering1
20 67496 Gasket - Diaphragm1
21 67500 Screw - Lever pin1
22 67508 Pin - Lever1
23 67509 Lever - Inlet1
24 67503 Spring - Lever1
25 67491 Valve - Needle1
26 67483 Body Assy - Carburetor1
27 71690 Plug - 3/81
28 69506 Plug - 5/161
29 83758 Kit - Valve & Seat Assy1
30 67507 Screen - Fuel1
67482 Gasket Set
67481 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 13 of 38
www.ktoutdoor.com

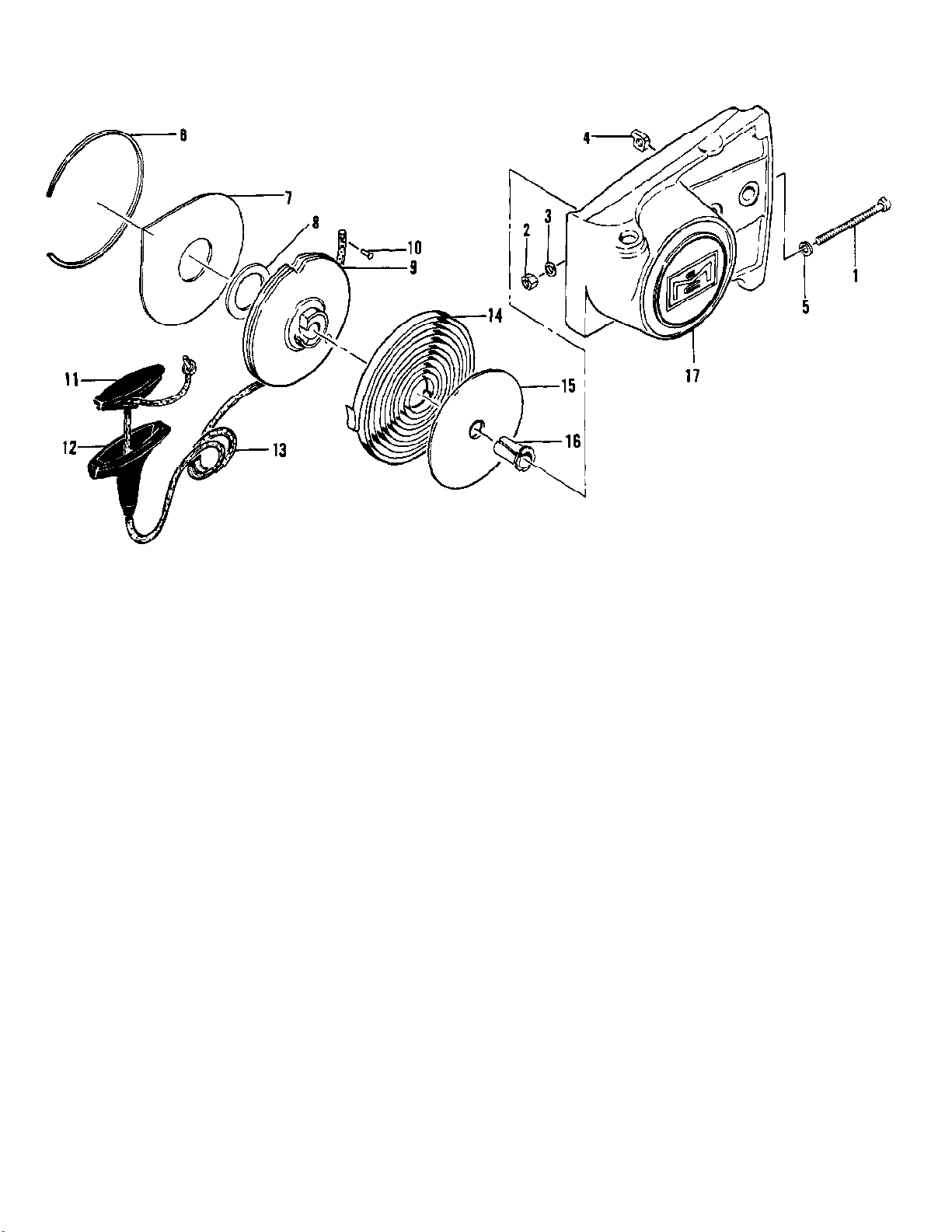

Clutch Guard And Starter Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 14 of 38
www.ktoutdoor.com
Clutch Guard And Starter Assemblies
Ref # Part Number DescriptionQty
83850 Clutch Guard Assy1
1 102144 Screw - Bar adjusting1
2 102067 Nut - Hex 10-241
3 110387 Washer - Wave1
4 61705 Nut - Bar adjusting1
5 110264 Washer - #101
6 67205 Retainer - Shield1
7 63985 Shield - Dust1
8 63986 Washer - Thrust1
9 83651 Drum - Starter1
10 110470 Rivet - Starter rope1
11 62191A Insert - Handle1
12 62190A Handle - Starter1
13 69964 Rope - Starter1
14 83334 Spring - Rewind1
15 63987 Shield - Spring1
16 61635A Bushing - Nyliner1
17 83569 Guard - Clutch1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 15 of 38
www.ktoutdoor.com
Depth Gauge Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 16 of 38
www.ktoutdoor.com
Depth Gauge Tools
Ref # Part Number DescriptionQty

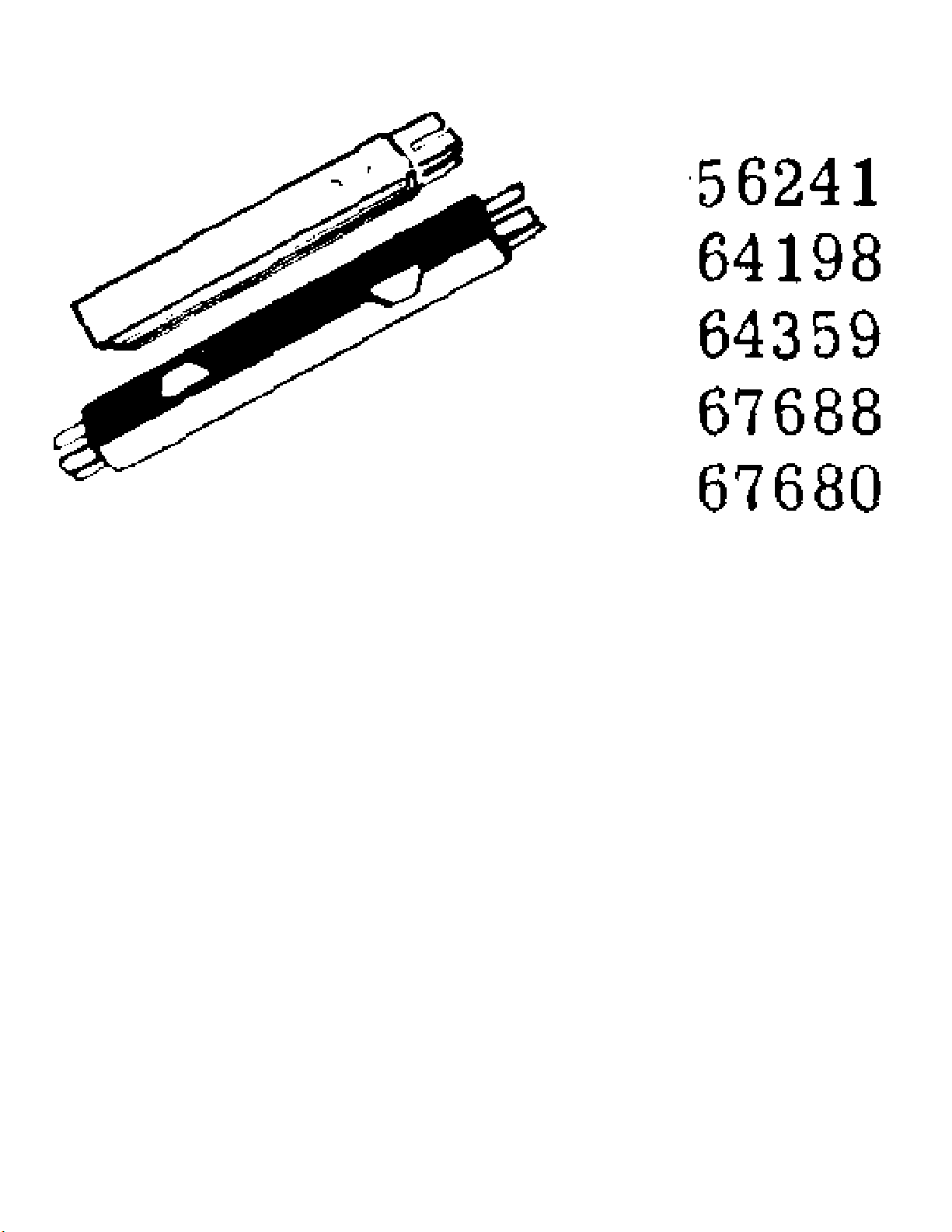

56241 56241 Depth Gauge Tool - .025-.040"
56241 56241 Depth Gauge Tool - .045-.060"
64198 64198 Depth Gauge Tool - .035-.060"
64359 64359 Depth Gauge Tool - .045-.050"
67688 67688 Depth Gauge Tool - .015-.020"
67680 67680 Depth Gauge Tool - .025-.030"
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 17 of 38
www.ktoutdoor.com

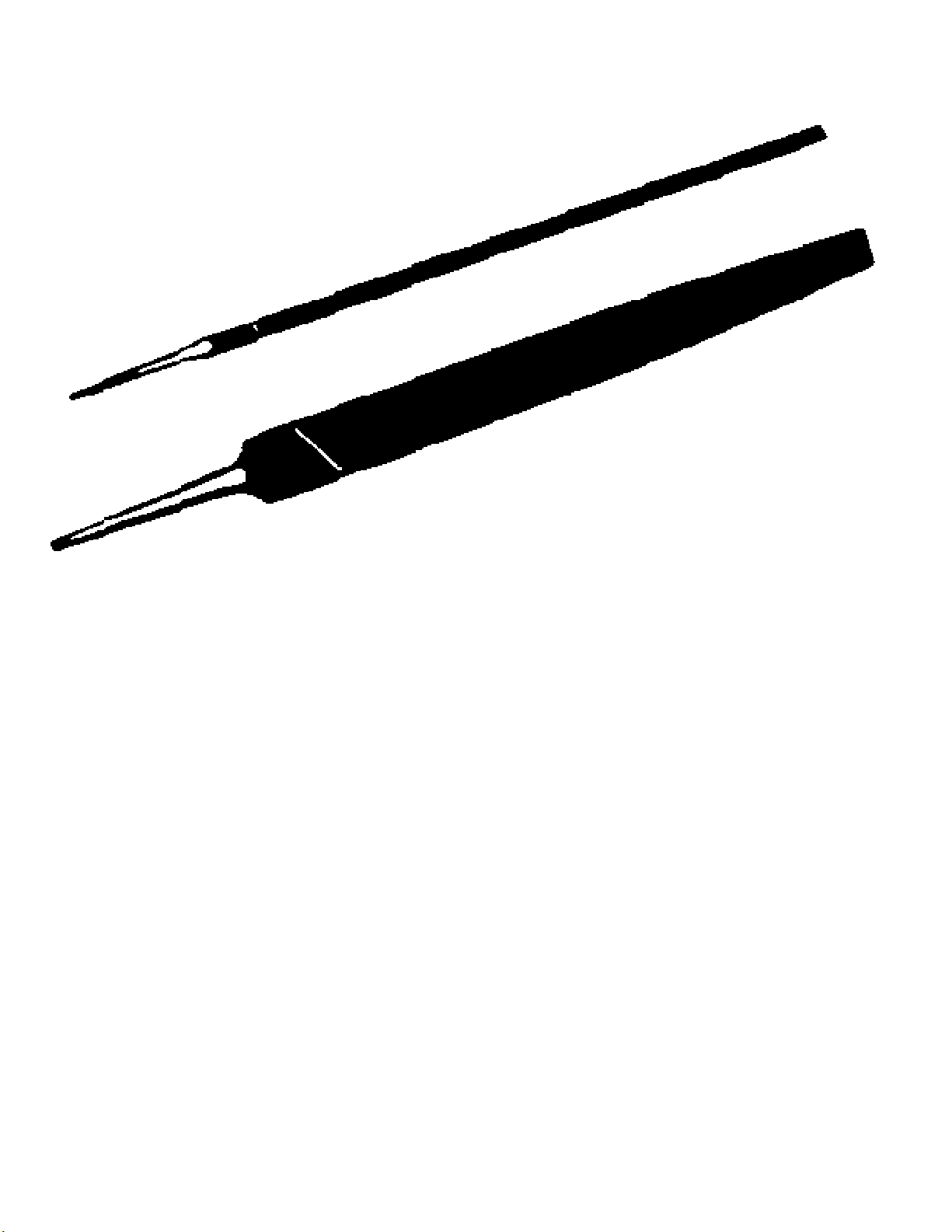

File Guide & File
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 18 of 38
www.ktoutdoor.com
File Guide & File
Ref # Part Number DescriptionQty

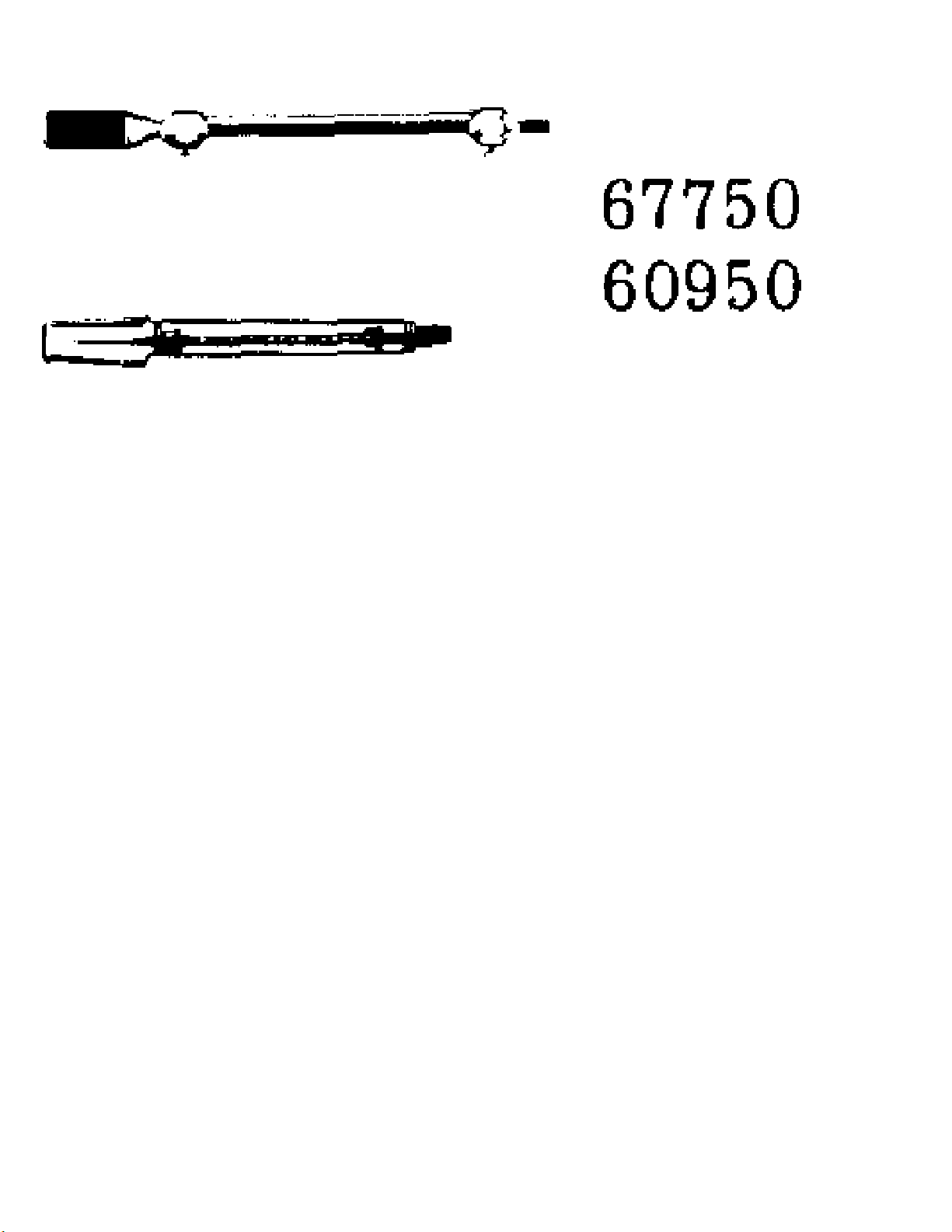

67750 67750 File Guide & File - 1/8" round
60950 60950 File Guide & File - 7/32" round
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 19 of 38
www.ktoutdoor.com
File-N-Joint
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 20
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 20 of 38
www.ktoutdoor.com
File-N-Joint
Ref # Part Number DescriptionQty

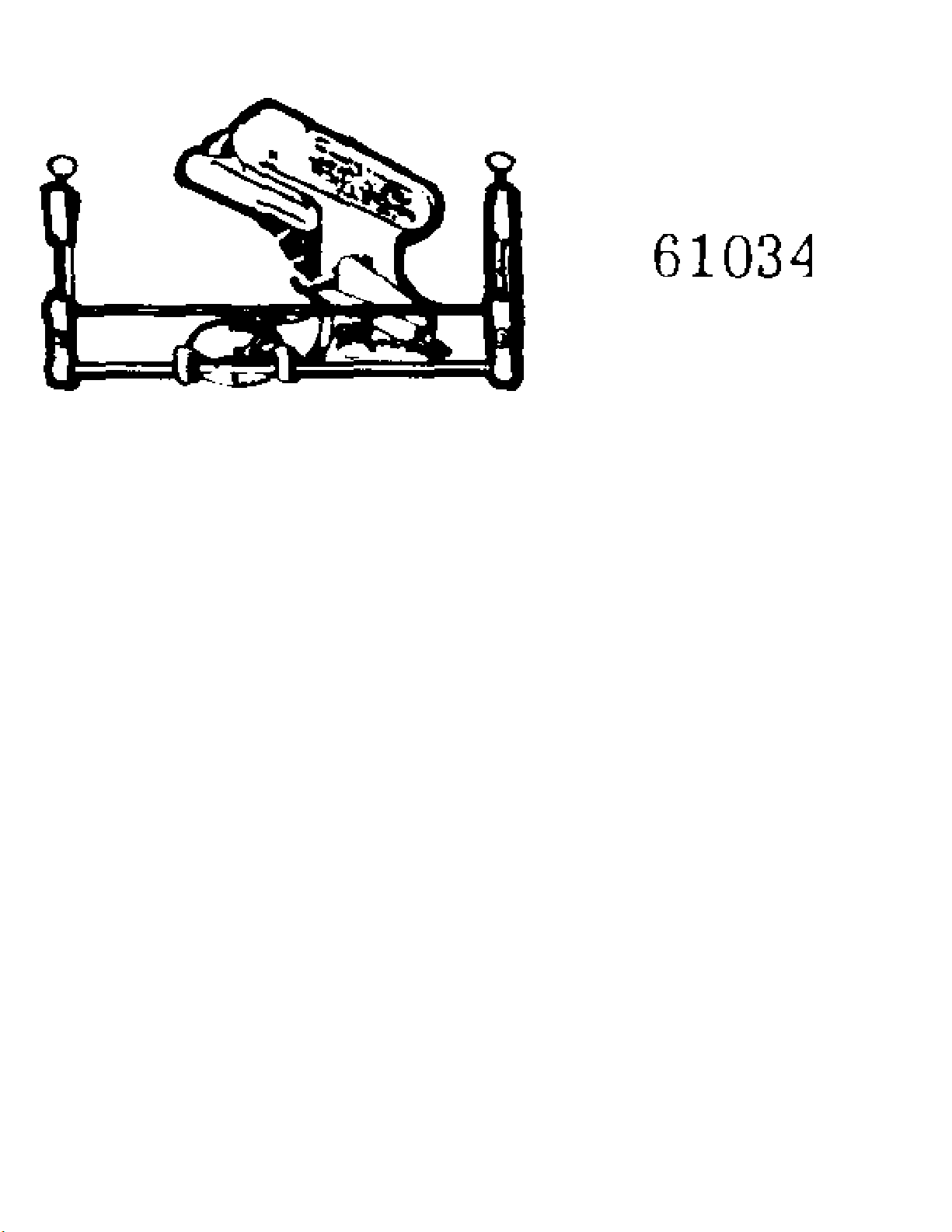

61034 61034 File-N-Joint Assures correct filing angle, height; Used
on all models.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 21
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 21 of 38
www.ktoutdoor.com
Files
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 22
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 22 of 38
www.ktoutdoor.com
Files
Ref # Part Number DescriptionQty
File 1/8" round
File 5/32" round
File 3/16" round
File 7/32" round
File 1/4" round
File 9/32" round
File 8" flat
File 6" flat safety
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 23
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 23 of 38
www.ktoutdoor.com
Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 24
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 24 of 38
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty

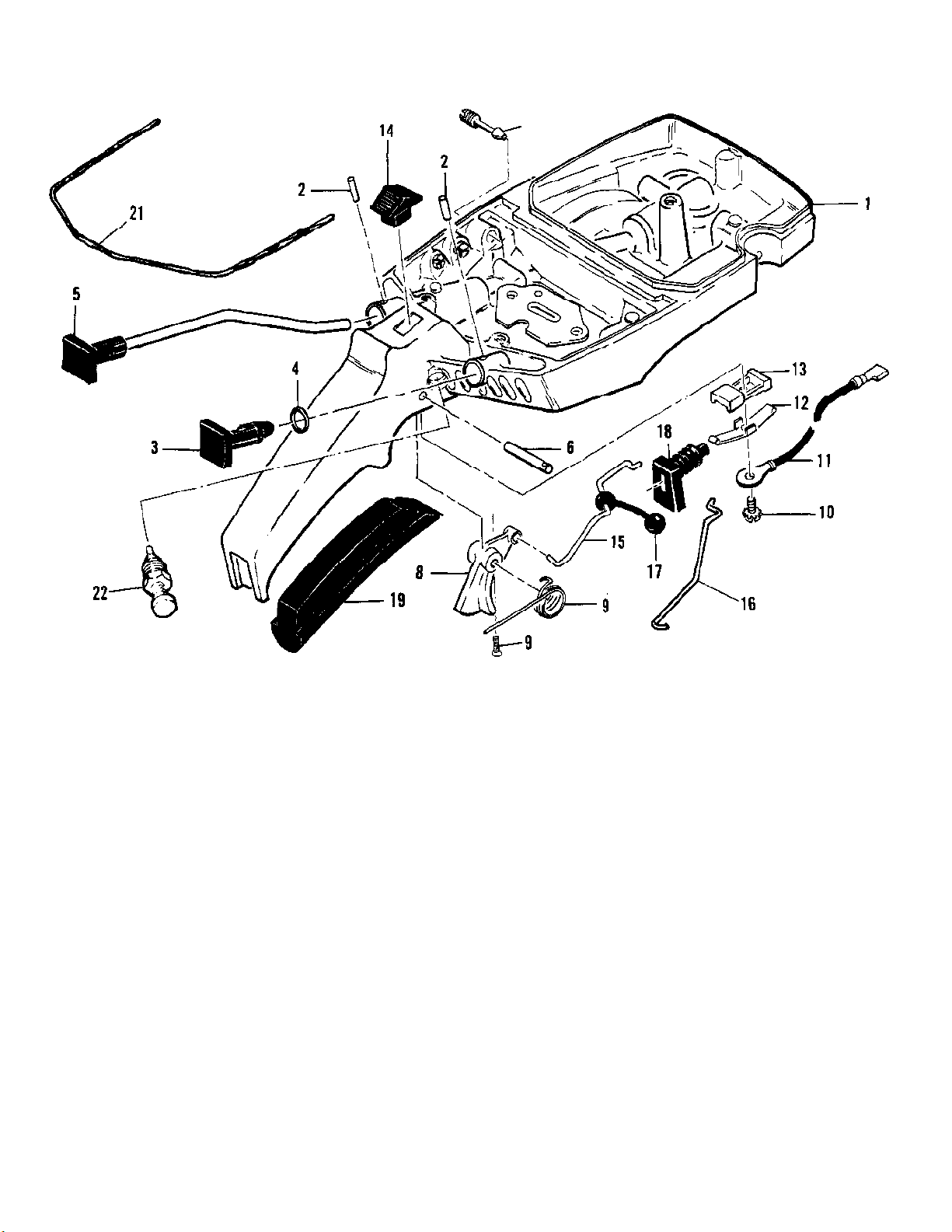

1 84183 Fuel Tank Assy1
2 105673 Pin - Roll2
3 69041 Button - Choke1
4 101056 "O" Ring1
5 64871 Button & Rod Assy1
6 110378 Pin - Roll1
7 65734 Spring - Throttle return1
8 67224 Trigger1
9 110668 Screw - Fil hd 8-36 x 5/81
10 103672 Screw - Fil hd 8-32 x 1/2 (SEMS)1
11 62973A Wire Assy - Stop switch1
12 62451 Contact - Switch1
13 62950A Base - Switch1
14 62951 Button - Switch1
15 68170 Rod - Throttle1
16 69042 Rod - Choke1
17 69043 Snubber - Control rod1
18 68522 Seal - Throttle rod1
19 64872 Grip - Handle1
20 67271 Screw - Idle speed1
21 69564 Seal - AirboxAR
22 83051 Throttle Lock Assy1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 25
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 25 of 38
www.ktoutdoor.com

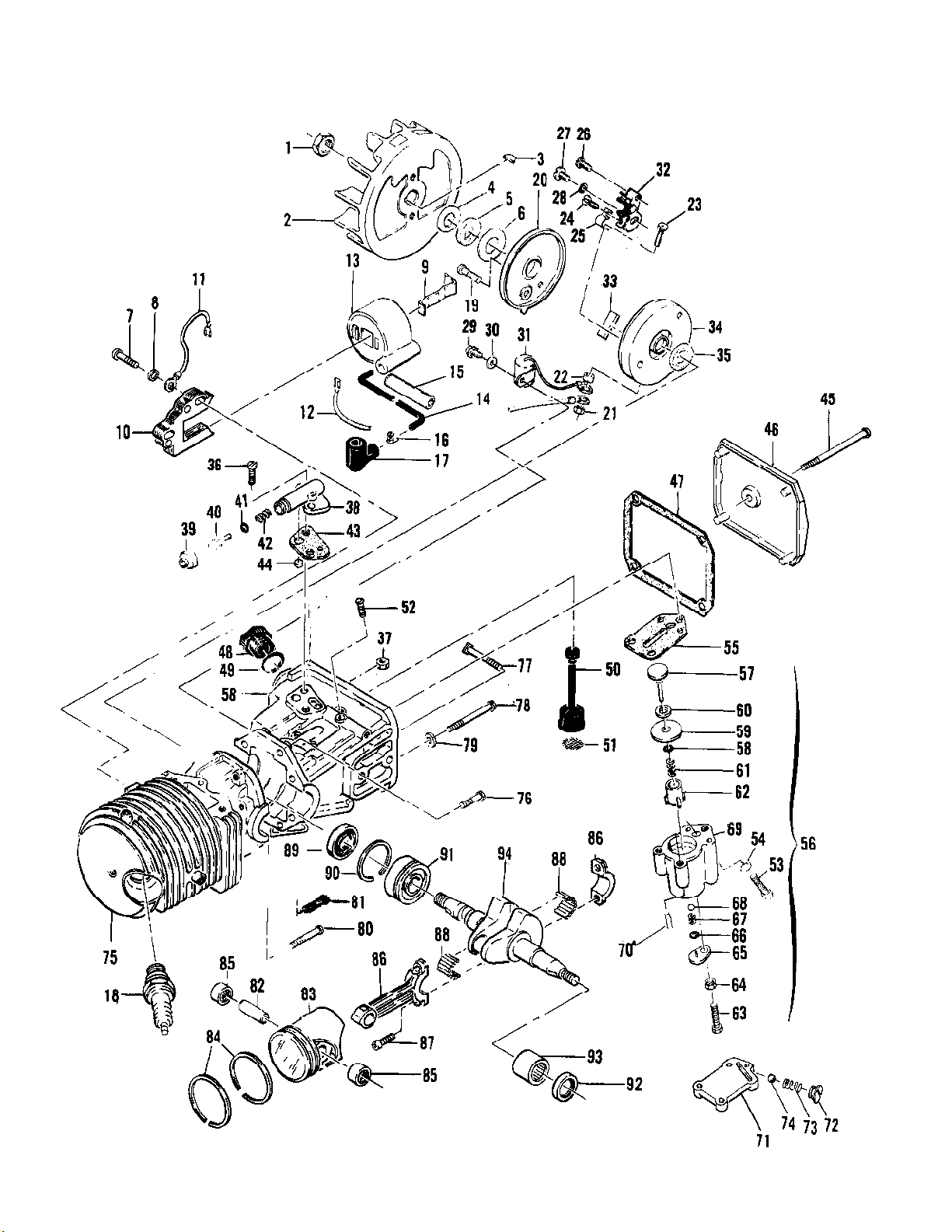

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 26
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 26 of 38
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty

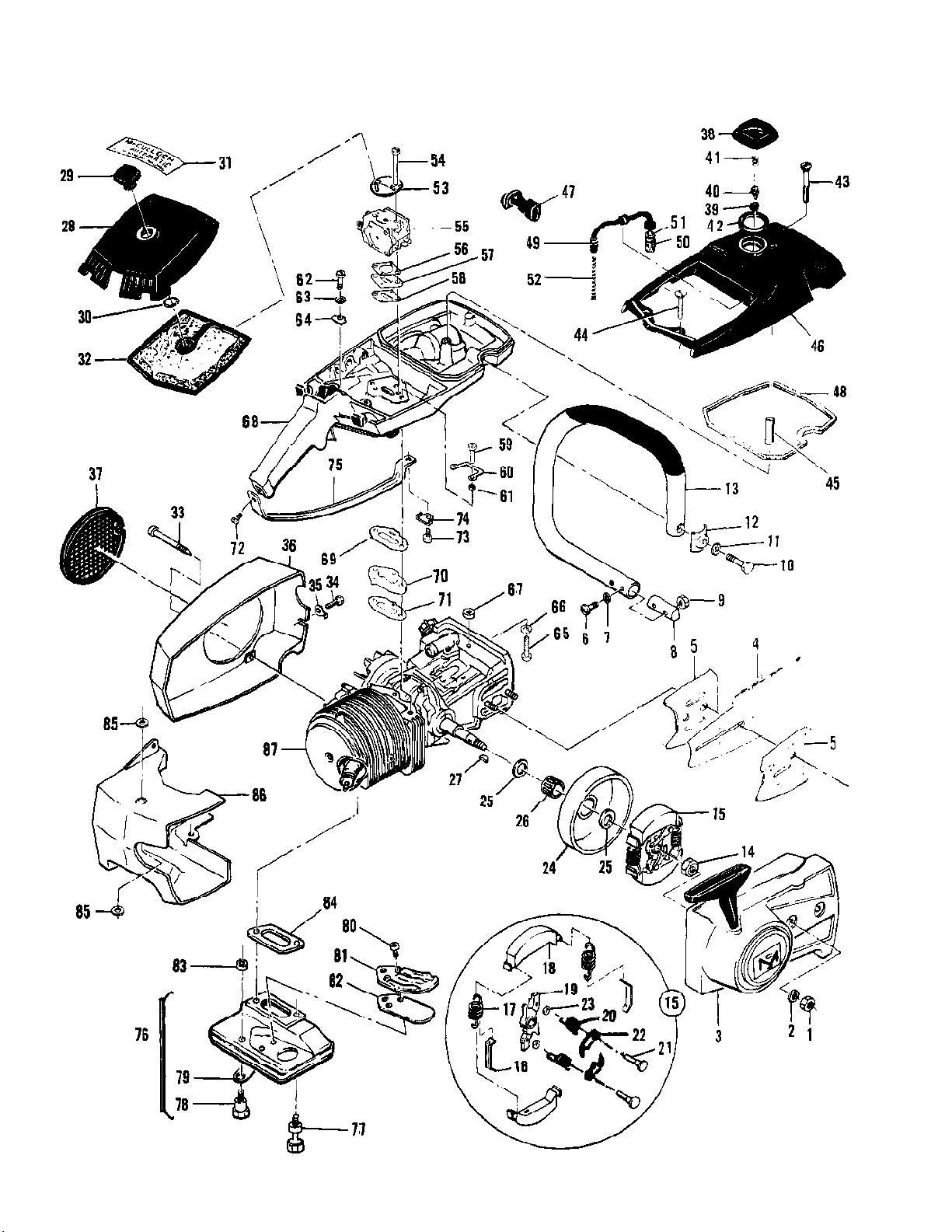

1 110454 Nut - Hex 5/16-242
2 100440 Washer - 5/162
3 Clutch Guard & Starter Assy See "Clutch Guard And
Starter Assembly" illustration and parts list.
4 Bar & Chain See "Accessories" illustration and parts
list.
5 64325 Plate - Bar protector2
6 102761 Screw - Hex hd 10-24 x 7/82
7 100352 Washer - #102
8 61678 Plug - Nut retainer1
9 101326 Nut - Hex 10-242
10 102130 Screw - Hex hd 1/4-20 x 1-1/21
11 100153 Lockwasher - 1/41
12 63484 Clamp - Frame1
13 69054 Frame & Grip Assy1
14 110594 Nut - Hex 3/8-241
15 83655 Clutch Assy1
16 64583 Retainer2
17 83223 Spring - Clutch2
18 67233 Shoe - Clutch2
19 83671 Rotor Assy1
20 83654 Spring - Pawl2
21 83653 Rivet2
22 24093 Pawl - Clutch2
23 65473 Washer - Special2
24 65370 Kit - Sprocket & Drum Assy1
25 61692 Shim2
26 110330 Bearing1
27 103879 Key - Woodruff1
28 68530 Cover Assy - Air cleaner1
29 68529 Knob - Cover1
30 110565 Ring - Retaining1
31 69932 Nameplate1
69897 Nameplate1
32 69922 Filter - Air1
33 62978 Screw - Special3
34 102762 Screw - Hex hd 10-24 x 1/21
35 69890 Lockplate1
36 83521 Kit - Fan Housing1
37 55615 Guard - Flywheel
38 68531 Cap Assy - Fuel1
39 68533 Plug1
40 63041 Valve1
41 63040 Spring1
42 69767 Gasket1
43 110402 Screw - Oval hd 12-24 x 2-3/81
44 103579 Screw - Flat hd 10-24 X 12
45 69686 Spacer - Fuel tank cover1
46 84252 Cover - Fuel tank1
47 84253 Boot - Carburetor adjustment1
48 69345 Gasket - Cover1
49 64848 Hose Assy - Fuel1
50 63932 Filter - Fuel1
51 100440 Washer - 5/161
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 27
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 27 of 38
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
52 67944 Spring - Hose stiffener1
53 83204 Kit - Bracket Assy1
54 103357 Screw - Hex hd 10-24 x 2-1/42
55 Carburetor Assy See "Carburetor Assembly"
illustration and parts list.
56 83059 Gasket - Carburetor1
57 84078 Spacer - Carburetor1
58 84081 Gasket - Spacer1
59 110570 Screw - Hex hd 12-24 x 1-3 82
60 68582 Lockplate1
61 102115 Washer - #122
62 110568 Screw - Hex hd 12-24 x 1-1/81
63 64856 Washer - Special1
64 69516 Lockplate1
65 102660 Screw - Skt hd 10-24 x 7/81
66 100003 Washer - #101
67 69772 Spacer - Fuel tank1
68 Fuel Tank Assy See "Fuel Tank Assembly" illustration
and parts list.
69 84082 Gasket - Fuel tank1
70 84079 Insulator - Fuel tank1
71 84082 Gasket - Insulator1
72 106078 Screw - Hex hd 10-24 x 7/16 (SEMS)1
73 110566 Screw - Hex hd 12-24 x 5/81
74 68508 Lockplate1
75 69838 Brace - Handle1
76 68863 Kit - Muffler1
77 67838 Screw - Muffler long2
78 67837 Screw - Muffler short1
79 83993 Lockplate1
80 110563 Screw - Skt hd 8-32 x 1/42
81 83069 Stop - Reed1
82 64785 Reed1
83 63993 Gasket - Muffler screw1
84 84007 Gasket - Muffler1
85 68581 Insulator - Shroud2
86 67910 Shroud1
87 Powerhead Assy See "Powerhead Assembly"
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 28
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 28 of 38
www.ktoutdoor.com
Locquic & Loctite
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 29
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 29 of 38
www.ktoutdoor.com
Locquic & Loctite
Ref # Part Number DescriptionQty

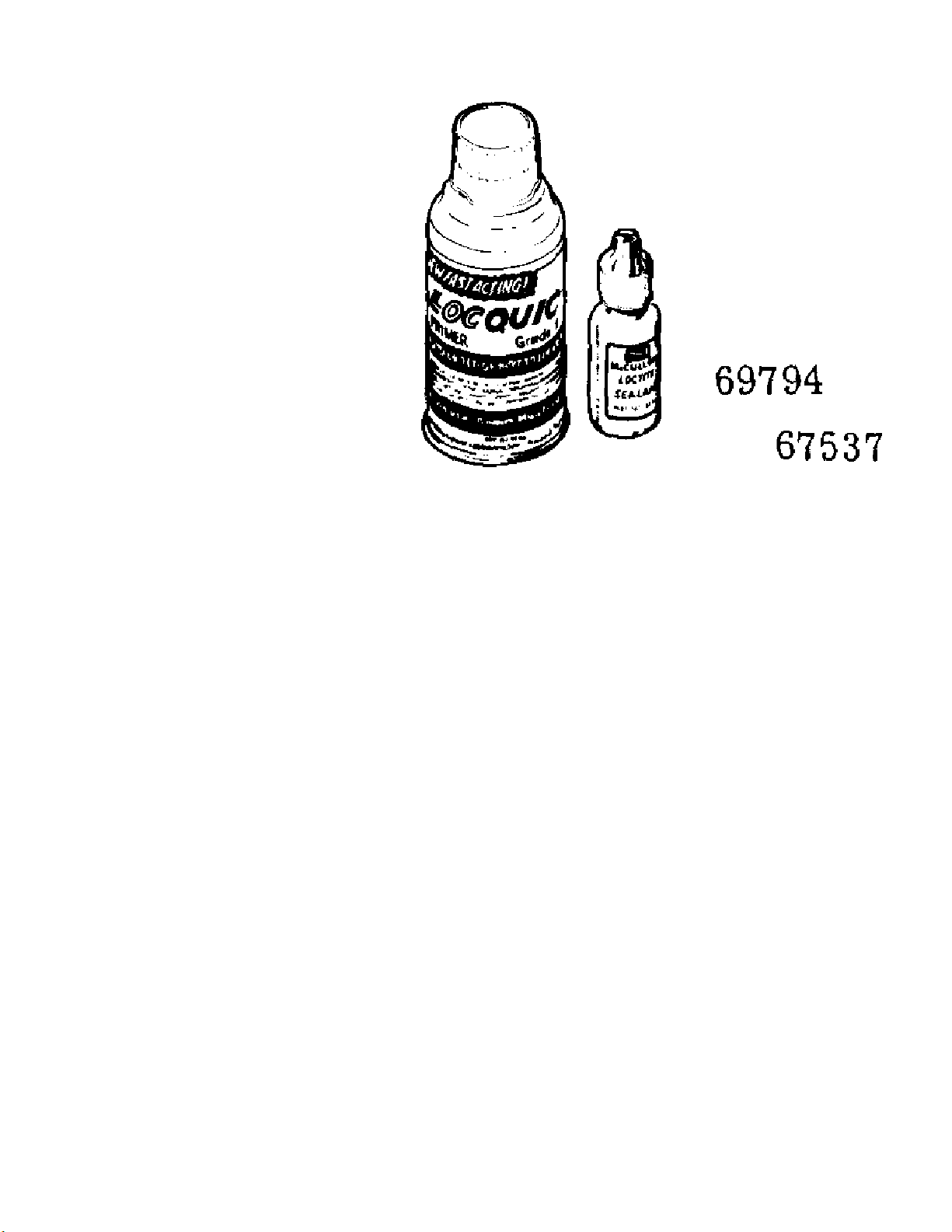

67537 67537 Loctite - 10cc plastic bottle
69794 69794 Locquic - 7-1/2 oz. spray can
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 30
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 30 of 38
www.ktoutdoor.com
Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 31
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 31 of 38
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 110594 Nut - Hex 3/8-241
2 84681 Flywheel Assy1
3 103879 Key - Woodruff1
4 67057 Washer - Thrust1
5 67056 Seal1
6 67054 Washer - Thrust1
7 110127 Screw - Hex hd 10-24 x 7/8 (SEMS)2
8 100003 Washer - #102
9 51253 Retainer - Coil1
10 68164 Lamination Assy1
11 62819 Wire Assy - Ground1
12 69344 Wire Assy - Primary1
13 69798 Coil & Terminal Assy1
14 69966 Wire & Sleeve Assy - Spark plug1
15 67127 Sleeve - Spark plug wire1
16 62932 Connector1
17 62926 Boot1
18 63097 Spark Plug - AC CS45T1
19 110349 Screw - Rd hd 8-32 x 3/41
20 62362 Cover - Breaker box1
21 100298 Nut - Hex 6-321
22 62365 Spacer - Breaker screw1
23 110346 Screw - Hex hd 6-32 x 3/41
24 110489 Screw - Pan hd 6-32 x 7/161
25 83126 Strap - Conduction1
26 100934 Screw - Rd hd 8-32 x 3/81
27 110445 Screw - Tr hd 8-32 x 3/81
28 105976 Washer - #81
29 103672 Screw - Fil hd 8-32 x 1/21
30 100080 Washer - #81
31 61650 Condenser1
32 66231 Breaker Assy1
33 54184 Wiper1
34 83125 Box - Breaker1
35 67051 Seal1
36 110623 Screw - Fil hd 8-32 x 1/22
37 100955 Nut - Hex 8-321
38 62261A Housing - Pump1
39 62262 Cap - Housing1
40 62266 Plunger - Pump1
41 101056 "O" Ring1
42 66687 Spring1
43 62230 Gasket1
44 62909 Valve1
45 110291 Screw - Pan hd 10-24 x 2-5/81
46 63072 Cover - Oil tank1
47 62116 Gasket - Cover1
48 68809 Cap - Oil tank1
49 101148 "O" Ring1
50 62123B Hose Assy - Oil1
51 51506 Screen - Hose1
52 110333 Screw - Oval hd 8-32 x 1/23
53 102660 Screw - Skt hd 10-24 x 7/81
54 24236 Washer - Special1
55 62274 Gasket - Pulse pump1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 32
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 32 of 38
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
83790 Gasket - Pulse pump1
56 83786 Pump Assy - Pulse1
57 60260A Piston Assy - Pump1
58 104001 "O" Ring1
59 60263 Ring - Pump piston1
60 60937 Washer - Teflon1
61 60259 Spring - Piston1
62 62227 Sleeve - Adjustment1
63 110386 Screw - Hex hd 8-32 x 11
64 100251 Nut - Hex 8-321
65 62407 Cover - Outlet valve1
66 106104 "O" Ring1
67 62885A Spring - Outlet valve1
68 102809 Ball1
69 83787 Body Assy - Pump1
70 110643 Screw - Set 8-32 x 7/161
71 68711 Body Assy - Check valve1
72 68714 Screw - Special1
73 63034 Spring - Check valve1
74 100071 Ball - 5/32 dia.1
75 69993 Crankcase Assy1
84113 Crankcase Assy1
76 110288 Screw - Hex hd 8-32 X 3/42
77 62065 Bolt - Bar mounting2
78 62105 Screw Assy - Sealing4
79 62842 Washer - Sealing4
80 110618 Screw - Hex hd 8-32 X 1-3/81
81 110288 Screw - Hex hd 8-32 X 3/41
82 61649 Pin - Piston1
83 69212 Piston Assy1
84 62814 Ring Set - Piston1
85 103085 Bearing - Needle2
86 65401 Connecting Rod Assy1
87 61627A Screw - Special2
88 63225 Roller - Needle (set of 20)1
89 67906 Oil Seal1
90 63464 Ring - Snap1
91 67905 Bearing - Ball1
92 110260 Oil Seal1
93 104357 Bearing - Needle1
94 63336 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 33
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 33 of 38
www.ktoutdoor.com
Pressure Test Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 34
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 34 of 38
www.ktoutdoor.com
Pressure Test Tools
Ref # Part Number DescriptionQty

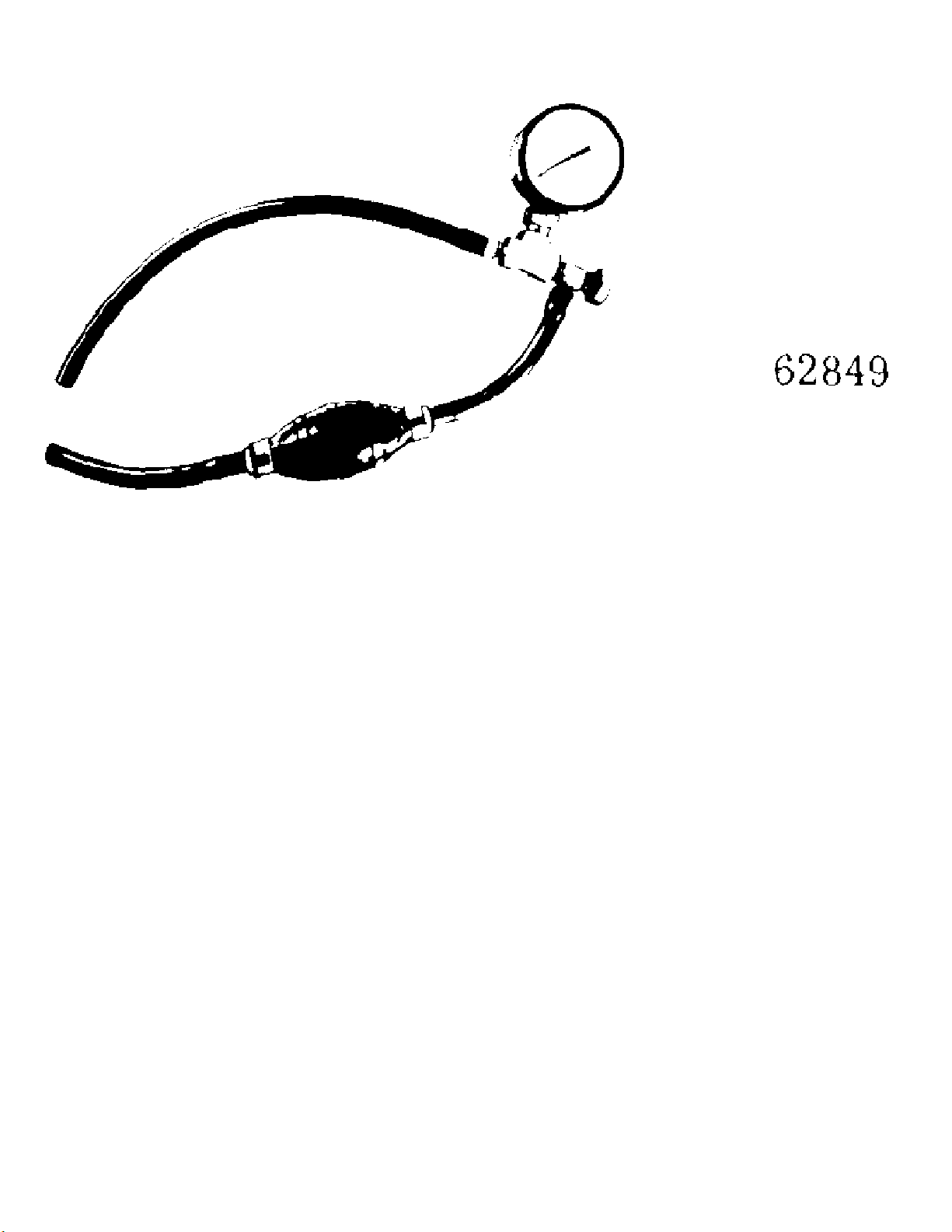

62849 62849 Pressure Test Tools For leakage check of
crankcase, fuel system.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 35
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 35 of 38
www.ktoutdoor.com
Spray Paint
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 36
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 36 of 38
www.ktoutdoor.com
Spray Paint
Ref # Part Number DescriptionQty

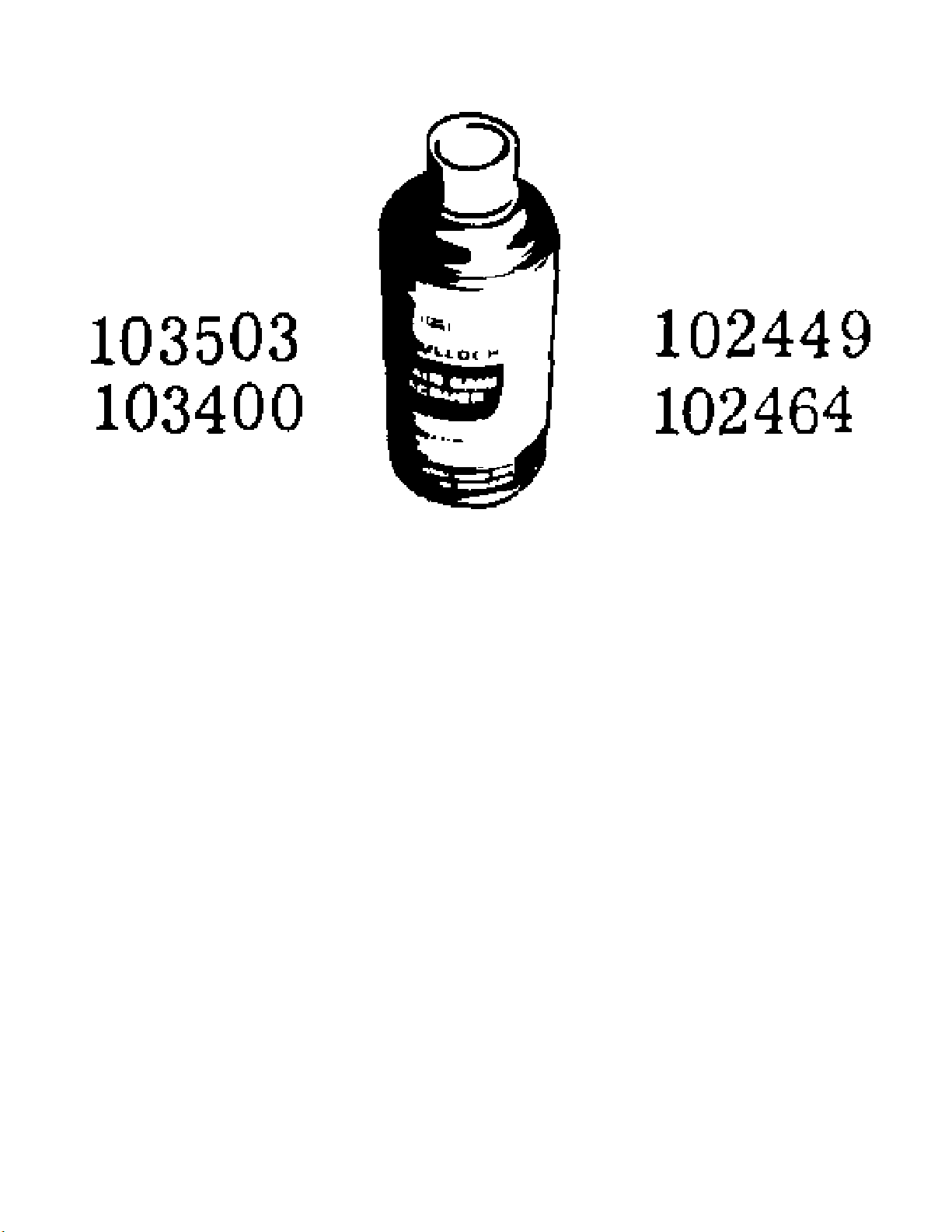

103503 103503 12oz. can - Black
103400 103400 Case of 12 (12oz. cans) - Black
102449 102449 12oz. can - Yellow
102464 102464 Case of 12 (12oz. cans) - Yellow
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 37
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 37 of 38
www.ktoutdoor.com
Starter Rope
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 38
A12-60005 SUPER 10-10 05/70 to 07/71 IPL 84372 Page 38 of 38
www.ktoutdoor.com
Starter Rope
Ref # Part Number DescriptionQty

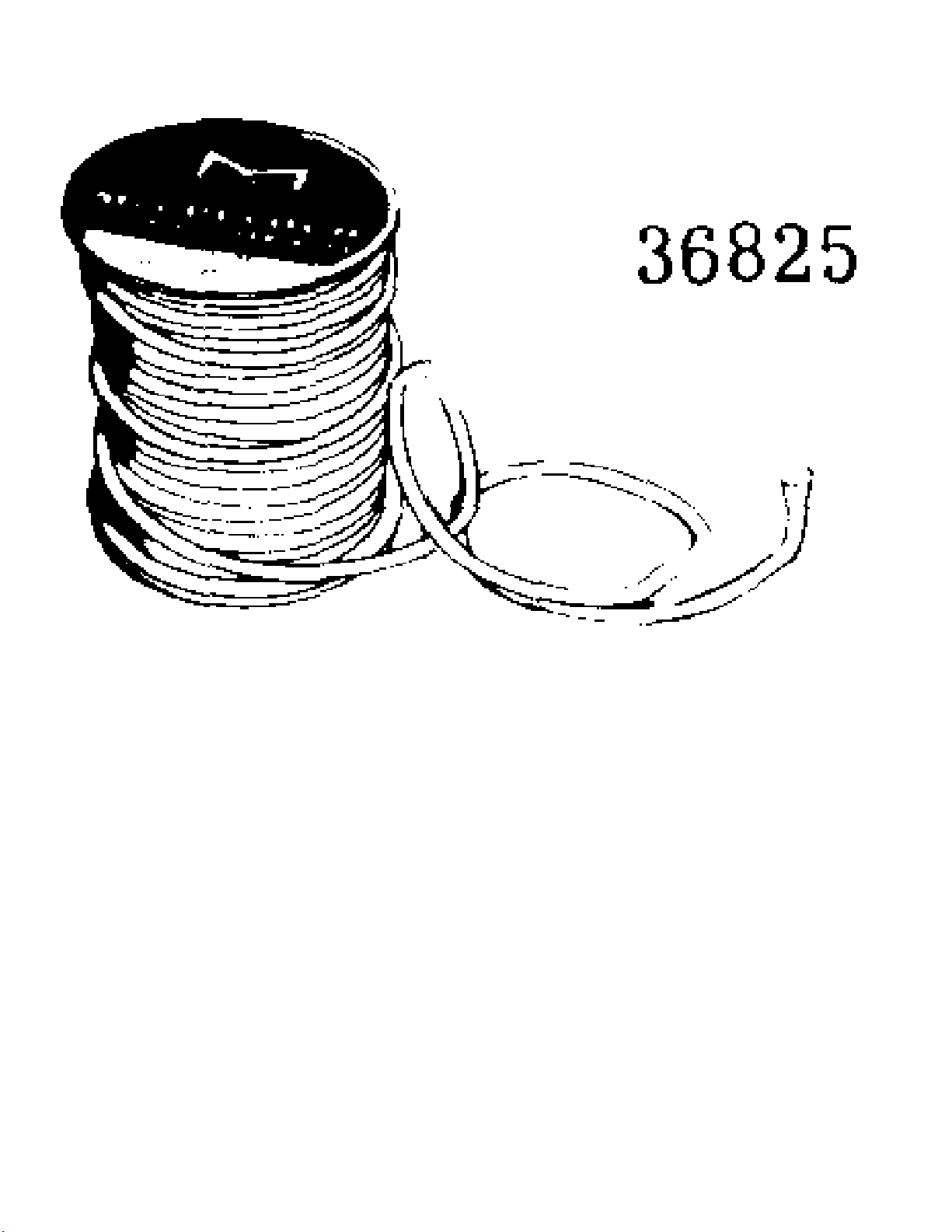

36825 36825 Starter Rope 100' spool Solid, braided nylon
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
