Page 1
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 1 of 36
www.ktoutdoor.com

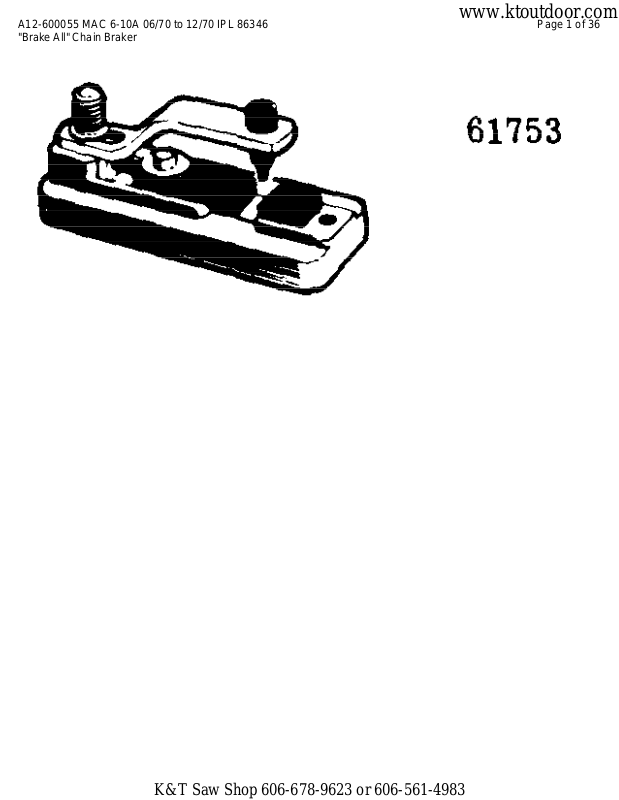

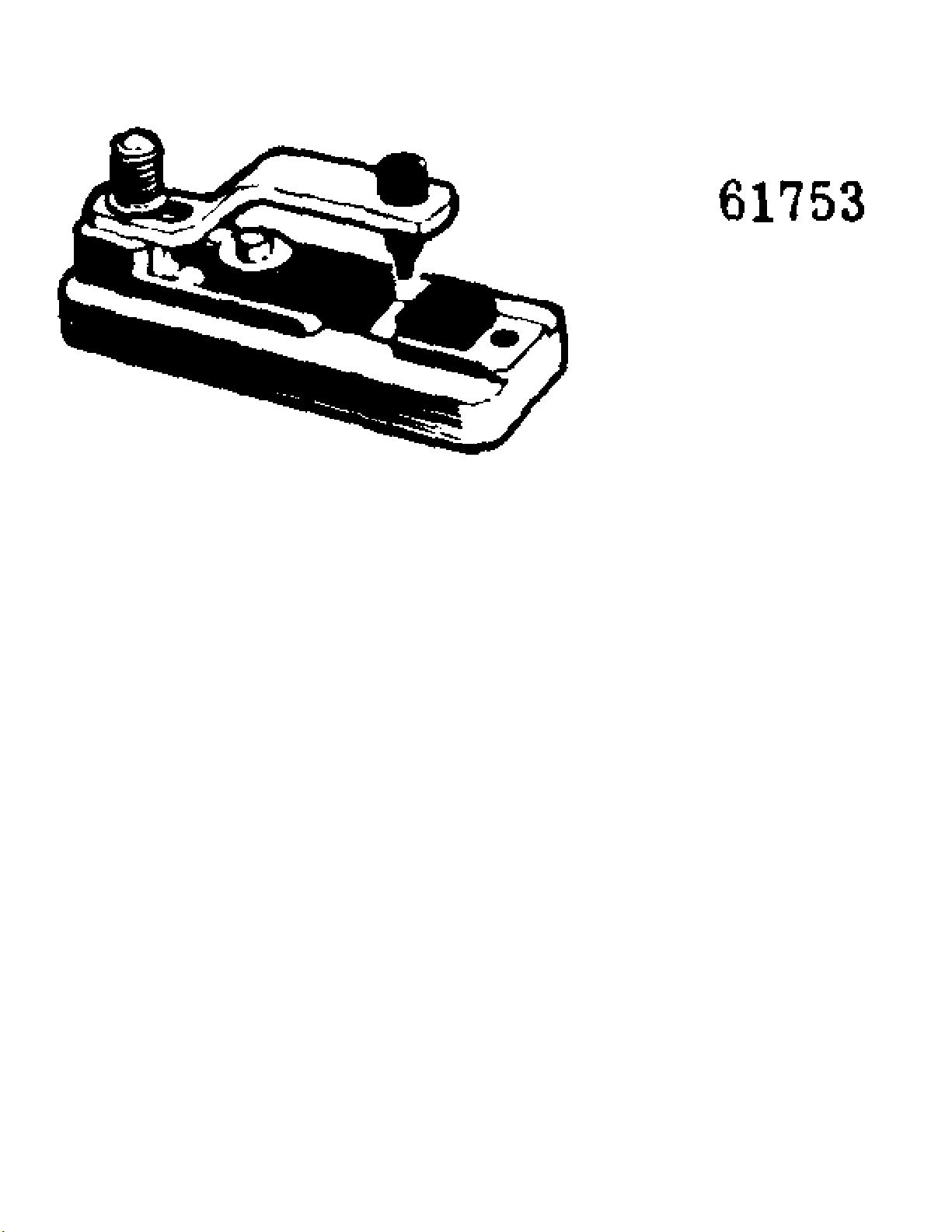

"Brake All" Chain Braker
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 2 of 36
www.ktoutdoor.com
"Brake All" Chain Braker
Ref # Part Number DescriptionQty
61753 61753 "BREAK ALL" CHAIN BREAKER Required when
repairing chain; Instructions included.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 3 of 36
www.ktoutdoor.com

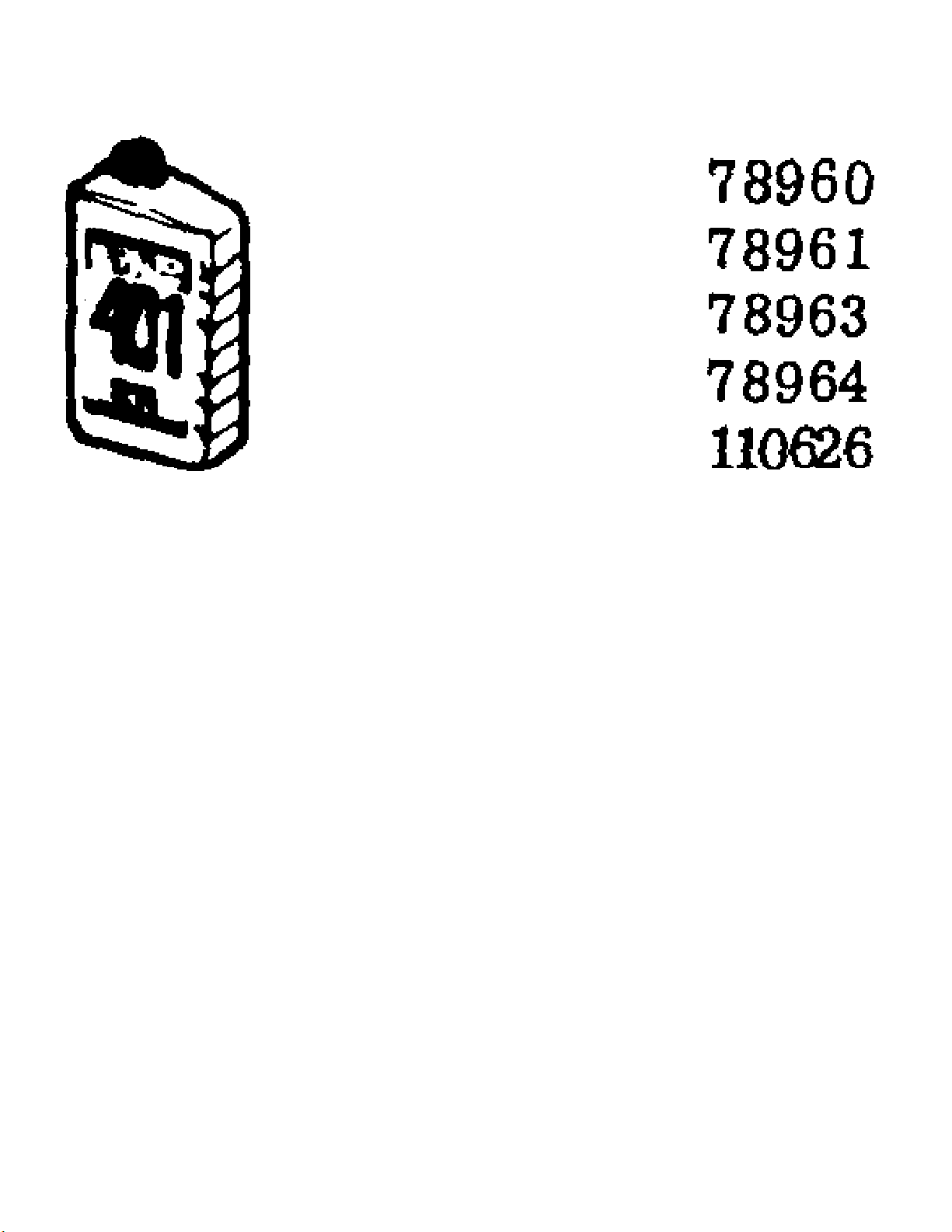

40:1 TWO-CYCLE MOTOR OIL
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 4 of 36
www.ktoutdoor.com
40:1 TWO-CYCLE MOTOR OIL
Ref # Part Number DescriptionQty
78960 78960 40:1 TWO-CYCLE MOTOR OIL 6 oz. can
78961 78961 40:1 TWO-CYCLE MOTOR OIL 6-pack
78963 78963 40:1 TWO-CYCLE MOTOR OIL 16 oz. can
78964 78964 40:1 TWO-CYCLE MOTOR OIL 6-pack
110626 110626 40:1 TWO-CYCLE MOTOR OIL 1 qt. bottle
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 5 of 36
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 6 of 36
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
85726 Manual - Owner's
62827 Wrench - Screwdriver
63746 Scrench
63341A Kit - Spike
84922 Baffle - Spark arrester screen
69058 Kit - Wrap-around frame
65712 Guide - Timing
63097 Spark Plug AC CS 45T
65778 Spark Plug AC CS 41T

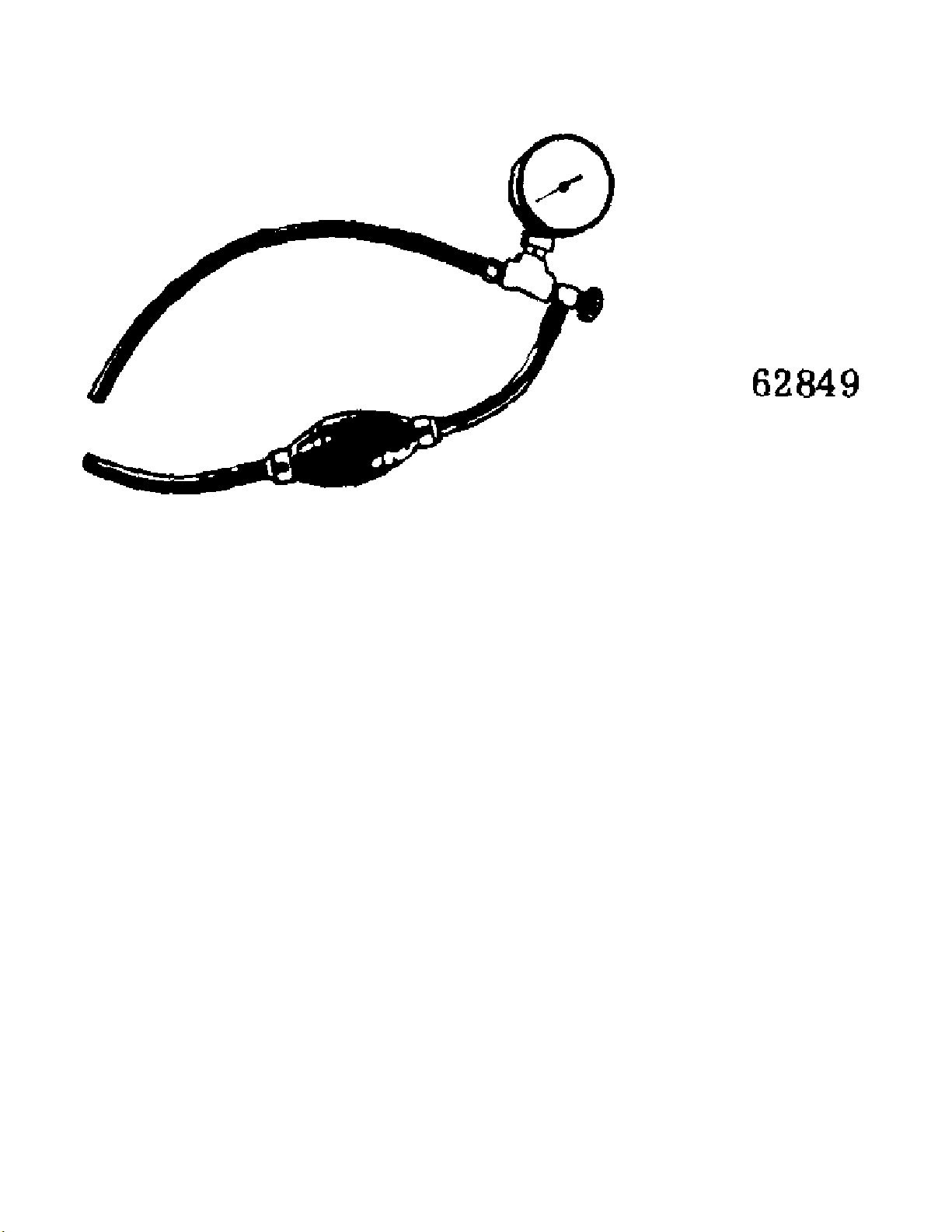

69191 Kit - Pressure adaptor
62379B Baffle - Muffler
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 7 of 36
www.ktoutdoor.com

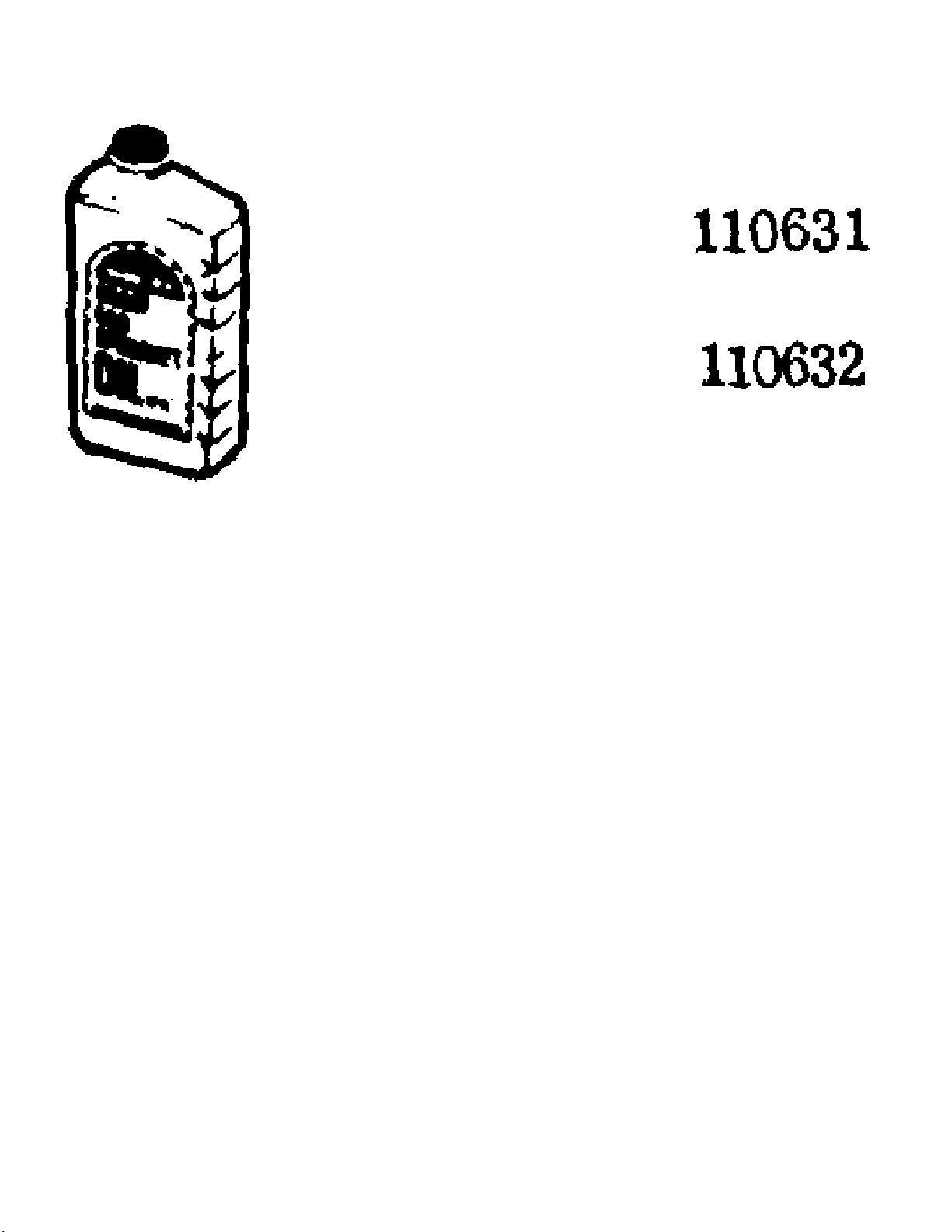

Chain, Bar And Sprocket Oil
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 8 of 36
www.ktoutdoor.com
Chain, Bar And Sprocket Oil
Ref # Part Number DescriptionQty
110631 110631 CHAIN, BAR AND SPROCKET OIL, 1 qt. bottle
110632 110632 CHAIN, BAR AND SPROCKET OIL, Case of 24
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 9 of 36
www.ktoutdoor.com

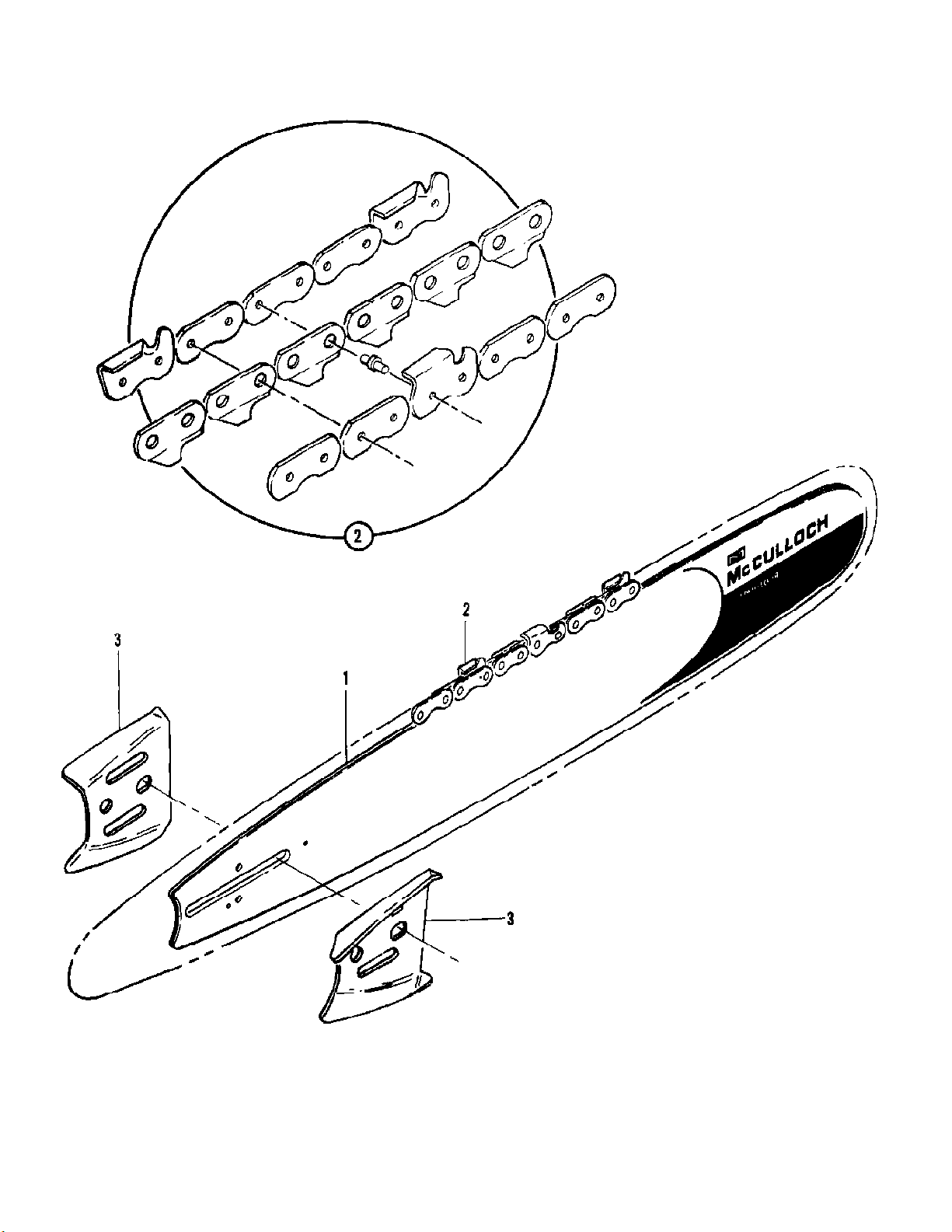

Bar & Chain Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 10 of 36
www.ktoutdoor.com
Bar & Chain Assemblies
Ref # Part Number DescriptionQty
1 63541 Bar1
2 62556M Chain Assy1
64330 Set - Bar Plate1
3 64325 Plate - Bar2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 11 of 36
www.ktoutdoor.com
Bar Guard
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 12 of 36
www.ktoutdoor.com

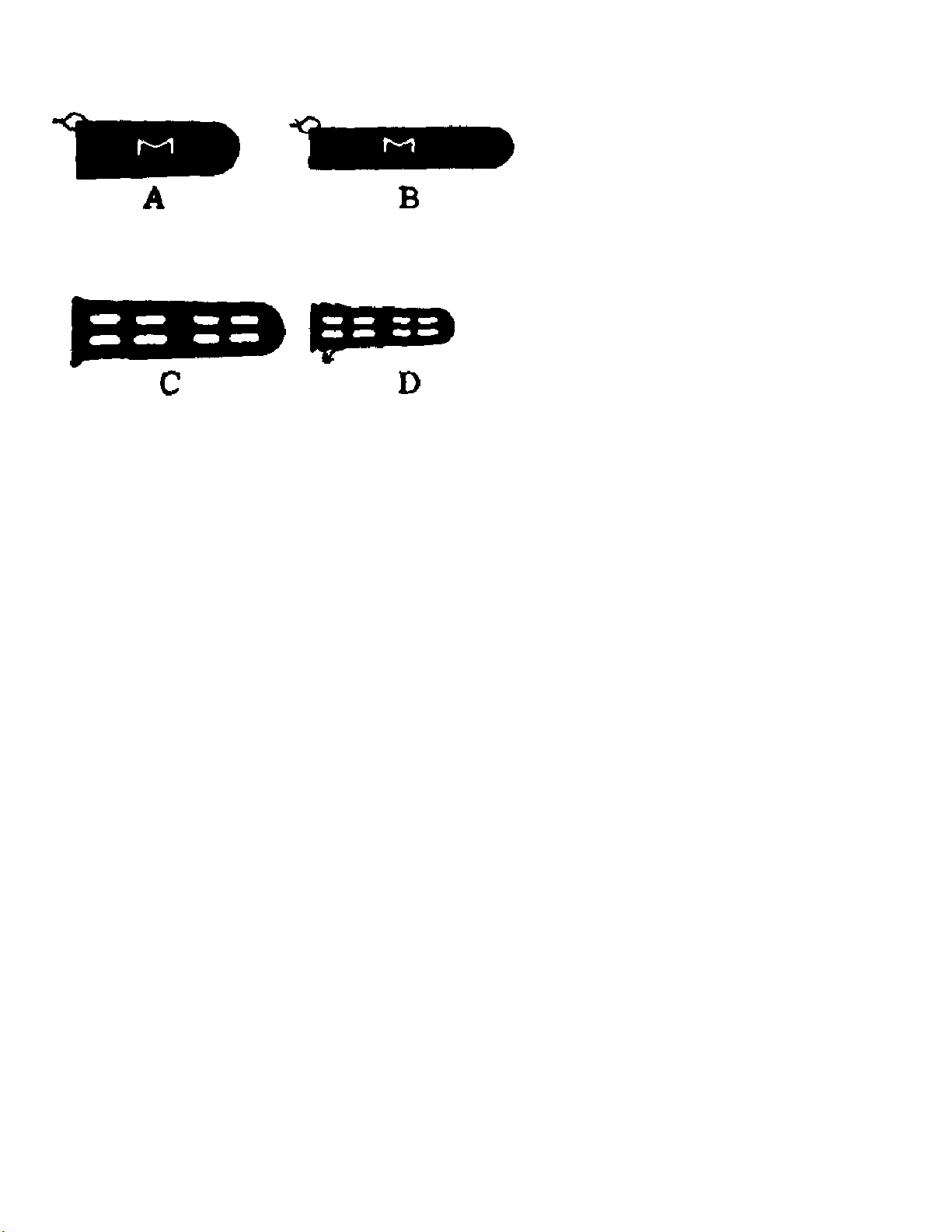

Bar Guard
Ref # Part Number DescriptionQty
A 56927 BAR GUARDS, for wide bars Black Polyvinylchoride
B 64930 BAR GUARDS, narrow bars Black Polyvinylchoride
C 66544 BAR GUARDS, MAC 10 - 16, 20 Rigid Yellow Plastic
D 83124 BAR GUARDS, PM 6 - 12, 16" Rigid Yellow Plastic
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 13 of 36
www.ktoutdoor.com

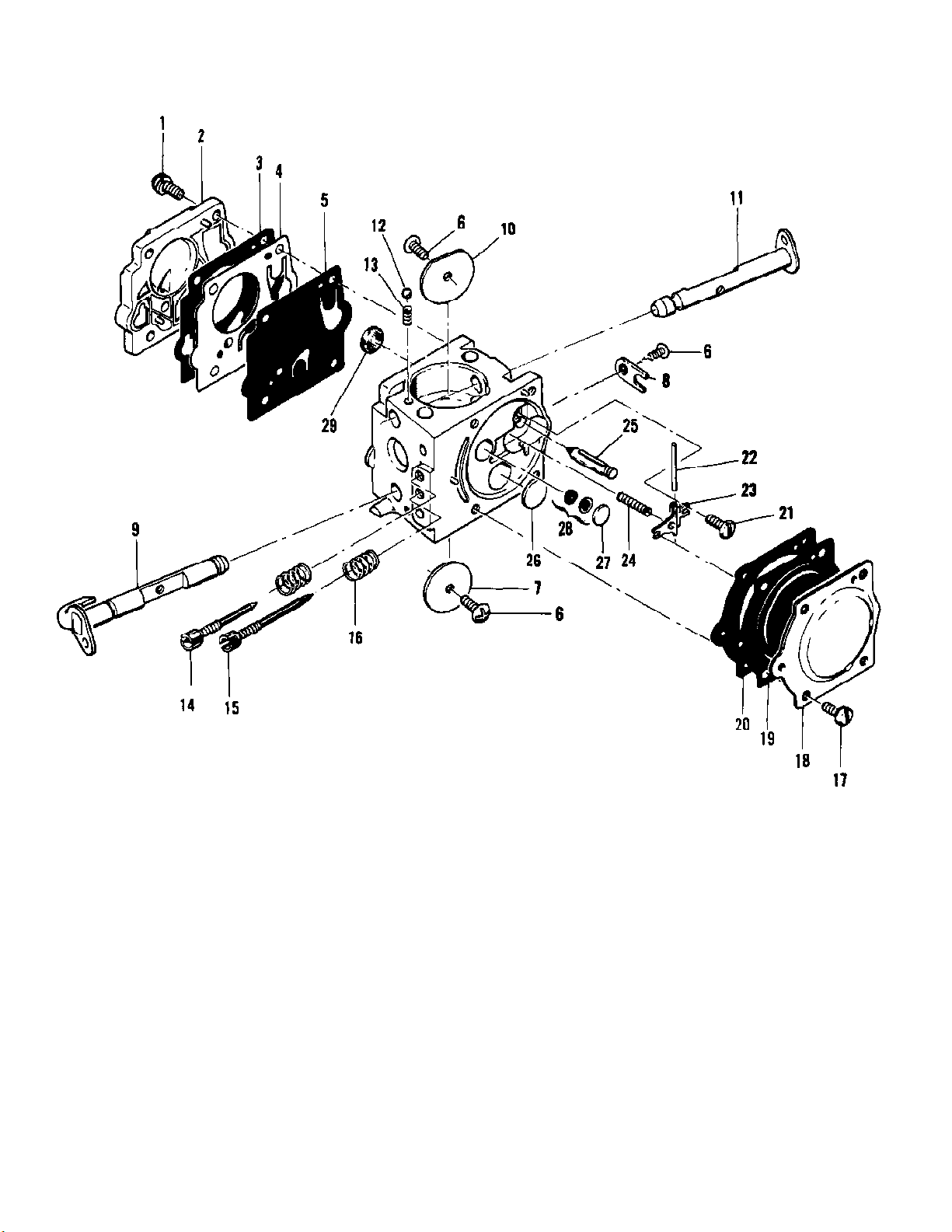

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 14 of 36
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
84015 Carburetor Assy1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Assy - Throttle1
10 67490 Plate - Choke1
11 67488 Shaft Assy - Choke1
12 100302 Ball - Choke friction1
13 67504 Spring - Choke1
14 67506 Needle - High speed1
15 67505 Needle - Idle1
16 67502 Spring - Needle2
17 70798 Screw - Diaphragm cover4
18 83761 Cover - Diaphragm1
19 67499 Diaphragm - Metering1
20 67496 Gasket - Diaphragm1
21 67500 Screw - Lever pin1
22 67508 Pin - Lever1
23 67509 Lever - Metering1
24 67503 Spring - Lever1
25 67491 Valve - Needle1
26 71690 Plug - 3/81
27 69506 Plug - 5/161
28 83758 Kit - Valve & Seat Assy1
29 67507 Screen - Fuel1
67482 Gasket Set
67481 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 15 of 36
www.ktoutdoor.com
Clutch Guard Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 16 of 36
www.ktoutdoor.com

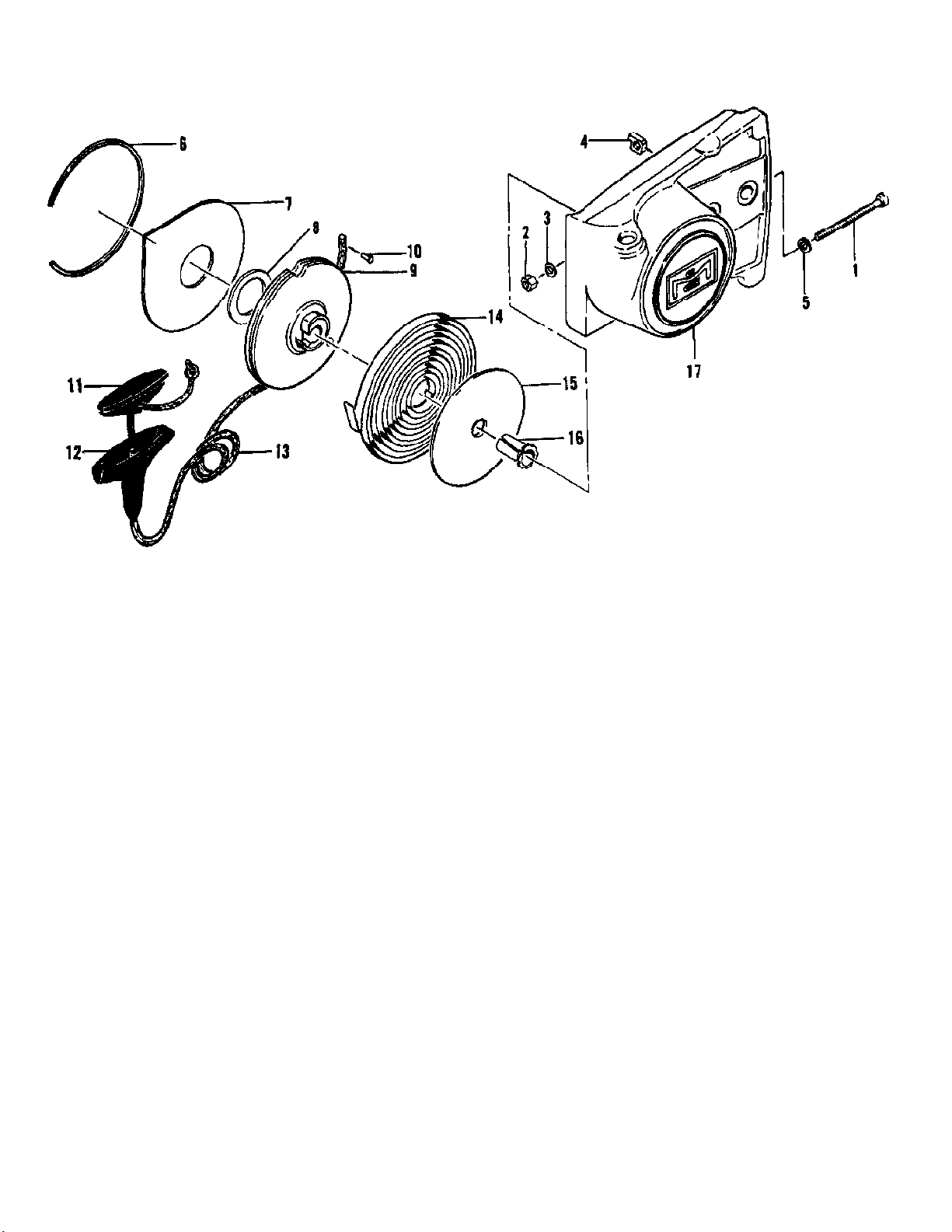

Clutch Guard Assembly
Ref # Part Number DescriptionQty
83850 Clutch Guard Assy1
1 102144 Screw - Bar adjusting1
2 102067 Nut - Hex 10-241
3 110387 Washer - Wavey1
4 61705 Nut - Bar adjusting1
5 110264 Washer - #101
6 67205 Retainer - Shield1
7 63985 Shield - Dust1
8 63986 Washer - Thrust1
9 85124 Drum - Starter1
10 110470 Rivet - Rope1
11 62191A Insert - Handle1
12 62190A Handle - Starter1
13 69964 Rope - Starter1
14 68626 Spring - Rewind1
15 63987 Shield - Spring1
16 61635A Bushing - Nyliner1
17 83569 Guard - Clutch1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 17 of 36
www.ktoutdoor.com

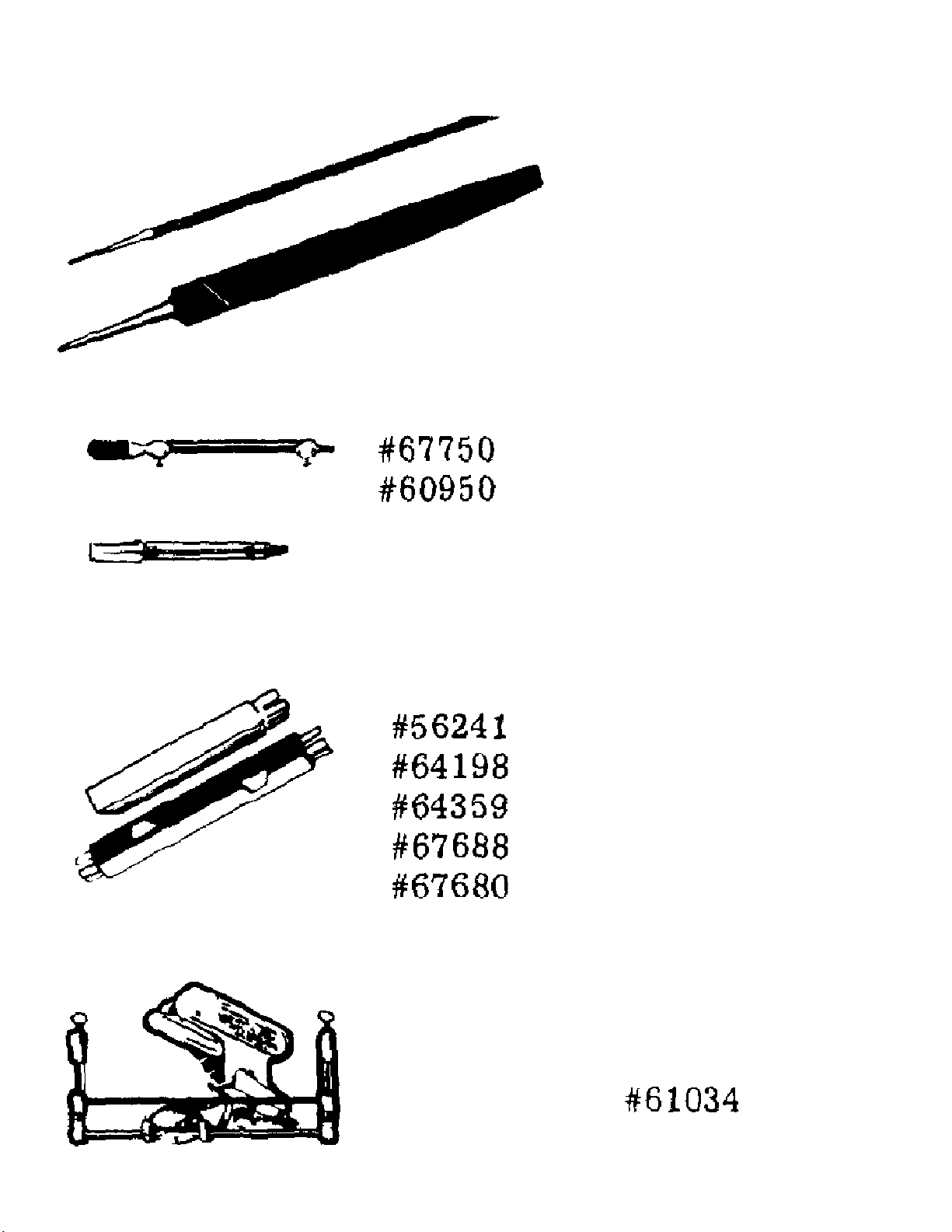

Files
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 18 of 36
www.ktoutdoor.com
Files
Ref # Part Number DescriptionQty
1/8" round Used on model S-25
5/32" round Used on models S-25 & SM-57
3/16" round Used on model SM-57
7/32" round Used on model S-40
1/4" round Used on model S-80
9/32" round Used on model S-90
8" flat Used on all models
6" flat safety Used on all models
67750 67750 File Guide & File - 1/8" round Used on model S-25
60950 60950 File Guide & File 7/32" round Also holds 3/16 and 1/4"
round; Used on model S-40 (7/32" round); Models
SM-57 & S-80 (3/16" AND 1/4" round)
56241 56241 Depth Guage Tool - .045 - .060" Used on models
S-40, S-80, & S-90
64198 64198 Depth Guage Tool - .035 - .060" Used on models
SM-57, S-40, S-80, & S-90
64359 64359 Depth Guage Tool - .045 - .050" Used on models
SM-57
67688 67688 Depth Guage Tool - .015 - .020" Used on models
S-25
67680 67680 Depth Guage Tool - .025 - .030" Used on all models
61034 61034 File-N-Joint Assures correct filing angle, height.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 19 of 36
www.ktoutdoor.com
Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 20
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 20 of 36
www.ktoutdoor.com

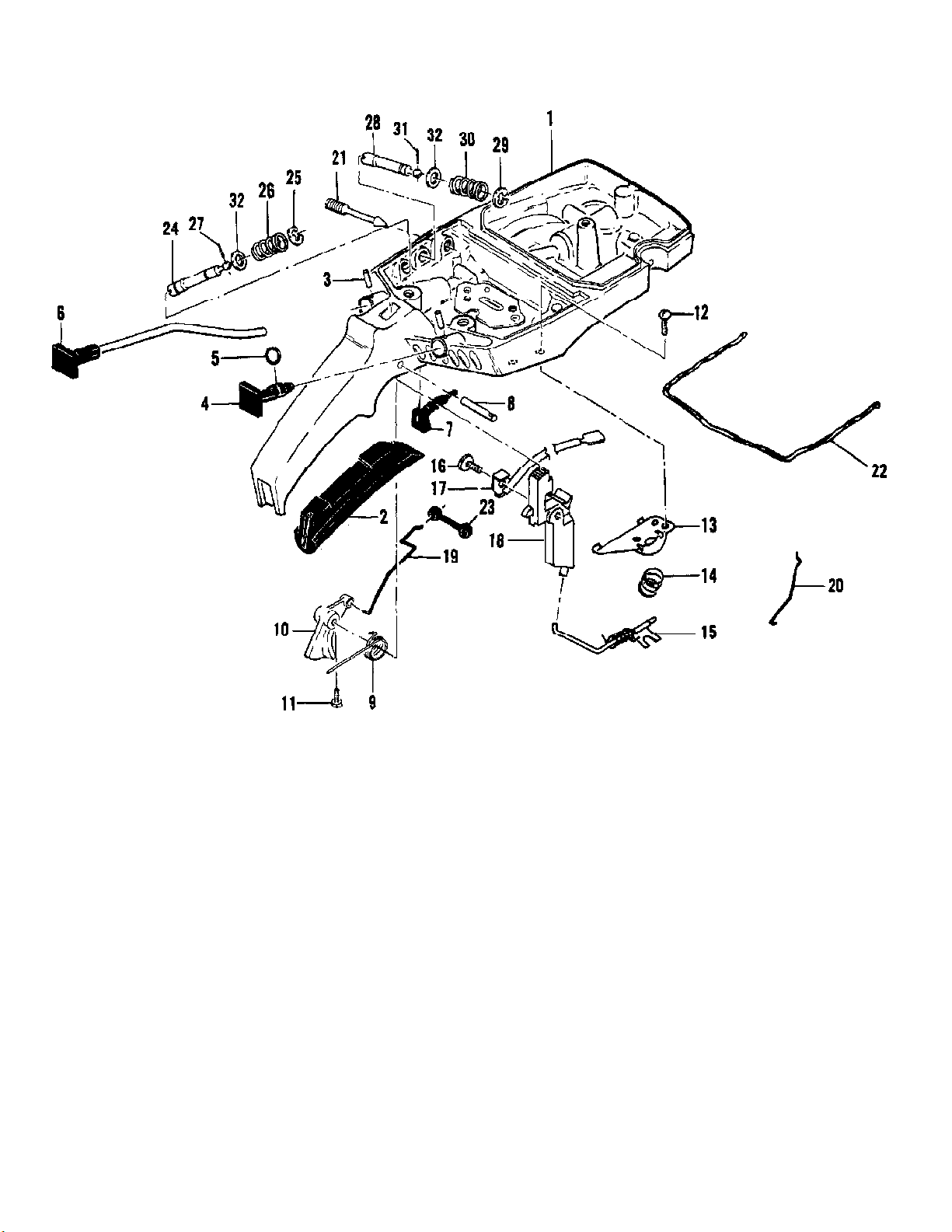

Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 84183 Fuel Tank Assy1
2 64872 Grip - Handle1
3 105673 Pin - Roll 3/32 x 9/162
4 68517 Button - Choke1
69041 Button - Choke1
5 101056 "O" Ring1
6 64871 Button & Rod Assy1
7 68522 Seal - Throttle rod1
8 110378 Pin - Roll 3/16 x 15/161
9 87178 Spring - Throttle return1
10 85978 Trigger1
11 110537 Screw - Fil hd 8-36 x 1/21
12 105249 Screw - Rd hd 8-32 x 3/8 (SEMS)2
13 64721 Bracket - Lever Assy1
14 69687 Spring - Valve1
15 69811 Lever Assy - Compression release1
16 110385 Screw - Pan hd 8-32 x 3/81
17 65873 Wire Assy - Stop switch1
18 67209 Button - Control1
19 85107 Rod - Throttle1
20 67355 Rod - Choke1
69042 Rod - Choke1
21 67271 Screw - Idle adjustment1
22 69564 Seal - AirboxAR
23 69043 Snubber - Rod1
24 68102 Extension Assy - High speed needle1
25 110512 Ring - Retaining1
26 67363 Spring1
27 110509 Pin - Groove1
28 68101 Extension Assy - Idle needle1
29 110512 Ring - Retaining1
30 67363 Spring1
31 110509 Pin Groove1
32 67292 Washer - Special2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 21
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 21 of 36
www.ktoutdoor.com

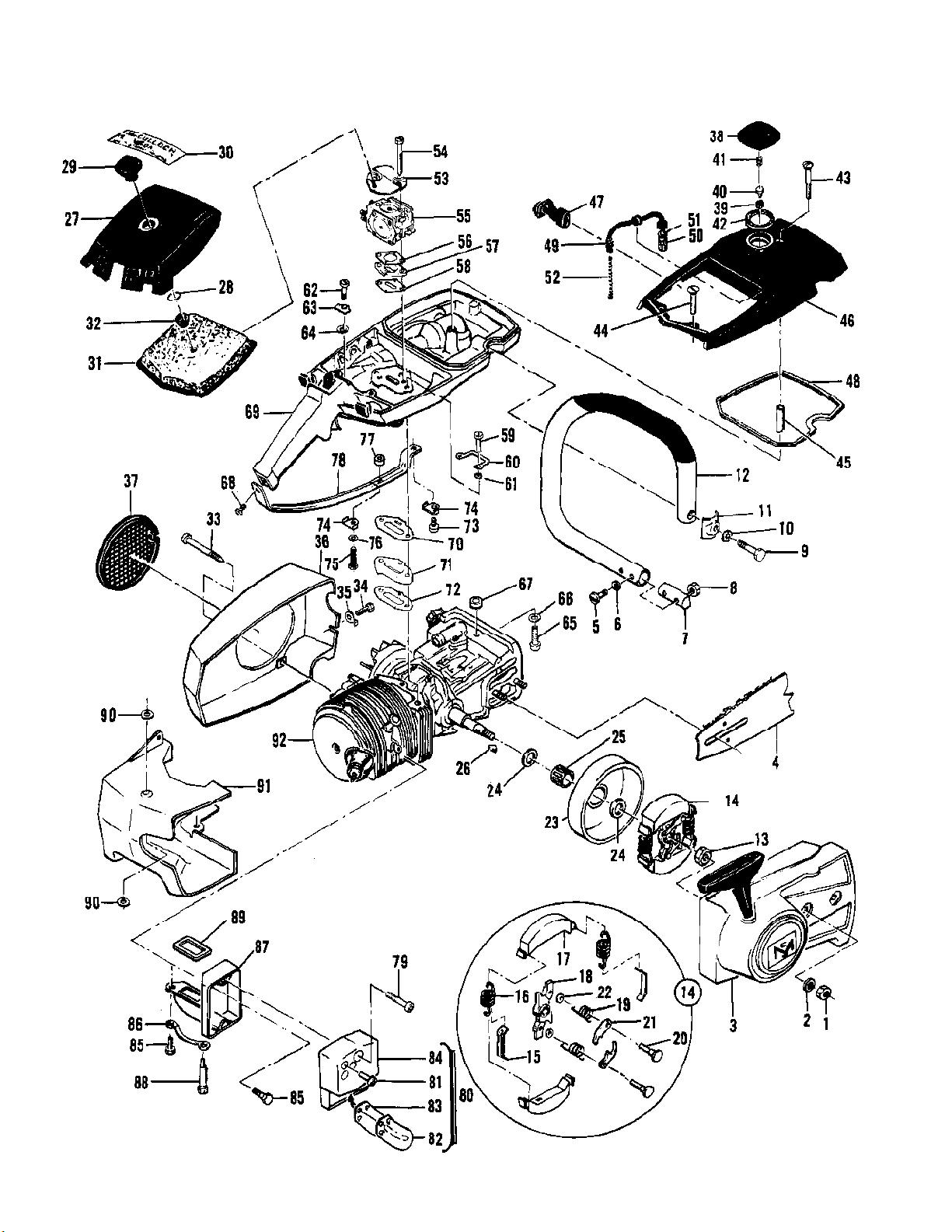

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 22
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 22 of 36
www.ktoutdoor.com

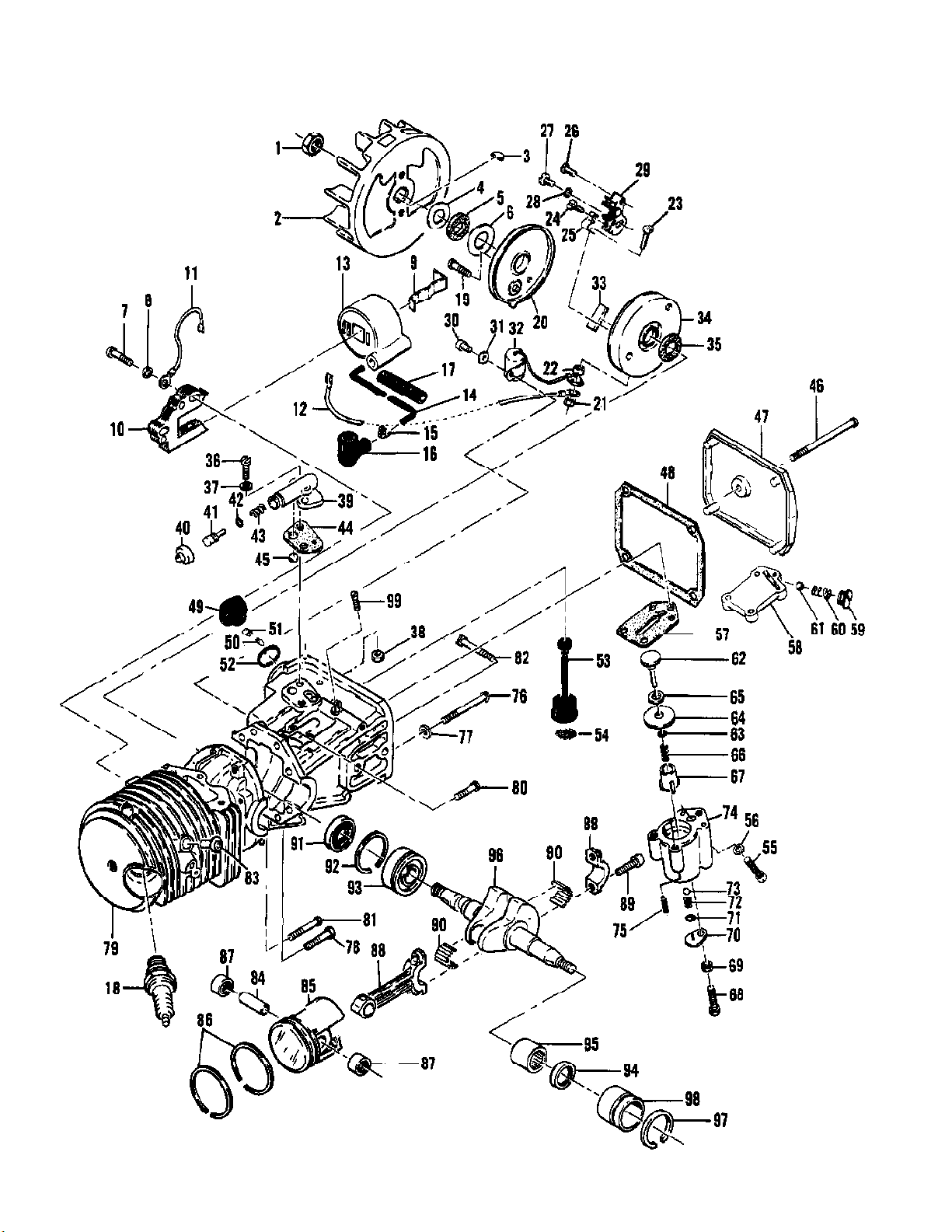

General
Ref # Part Number DescriptionQty
1 110454 Nut - Hex 5/16-242
2 100440 Washer - 5/162
3 Clutch Guard Starter Assy
4 Bar & Chain See "Bar & Chain Assemblies"
Illustration and parts list. Used on All Models and Serial
Numbers.
5 102761 Screw - Hex hd 10-24 x 7/82
6 100352 Washer - #102
7 61678 Plug - Nut retainer1
8 101326 Nut - Hex 10-242
9 102130 Screw - Hex 1/4-20 x 1-1/21
10 100153 Lockwasher - 1/41
11 63484 Clamp - Frame1
12 85770 Frame & Grip Assy1
13 103746 Nut - Hex 3/8-241
110594 Nut - Hex 3/8-241
14 67148 Clutch Assy1
83656 Clutch Assy1
15 64583 Retainer2
16 66384 Spring - Clutch2
17 67233 Shoe - Clutch2
18 67149 Rotor Assy1
83671 Rotor Assy1
19 68837 Spring2
83654 Spring2
20 67112 Rivet2
83653 Rivet2
21 64857 Pawl2
24093 Pawl2
22 65473 Washer - Special2
23 65370 Kit - Sprocket & Drum1
24 61692 Shim2
25 110330 Bearing1
26 103879 Key - Woodruff1
27 68530 Cover Assy - Air cleaner1
28 110565 Ring - Retainer1
29 68529 Knob - Cover1
30 68708 Nameplate1
68699 Nameplate1
85525 Nameplate1
31 69922 Filter Assy - Air1
83230 Filter Assy - Air1
32 68528 Grommet1
33 62978 Screw - Special3
34 102762 Screw - Hex hd 10-24 x 1/21
35 69890 Lockplate1
36 83521 Kit - Fan Housing1
37 55615 Guard - Flywheel1
38 86401 Cap Assy - Fuel1
39 68533 Plug1
40 86402 Valve1
41 63040 Spring1
42 69767 Gasket1
43 110402 Screw - Oval hd 12-24 x 2-3/81
44 103579 Screw - Fil hd 10-24 x 12
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 23
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 23 of 36
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
45 69686 Spacer1
46 69679 Cover - Fuel tank1
84252 Cover - Fuel tank1
47 84253 Boot - Carburetor adj.1
48 69345 Gasket - Cover1
49 64848 Hose Assy - Fuel1
50 63932 Filter - Fuel1
51 100440 Washer1
52 67944 Spring - Hose1
53 83204 Bracket Assy1
54 103357 Screw - Hex hd 10-24 x 2-1/42
55 Carburetor Assy See "Carburetor Assembly"
Illustration and parts list.
56 68132 Gasket - Carburetor1
83059 Gasket - Carburetor1
57 84078 Spacer - Carburetor1
58 84081 Gasket - Spacer1
59 110567 Screw - Hex hd 12-24 x 1-1/42
60 68582 Lockplate1
61 102115 Washer2
62 110568 Screw - Hex hd 12-24 x 1-1/81
63 69516 Lockplate1
64 64856 Washer - Special1
65 102660 Screw - Skt hd 10-24 x 7/81
66 100003 Washer - #101
67 68219 Spacer1
69772 Spacer1
68 106078 Screw - Oval hd 10-24 x 7/161
69 Fuel Tank Assy See "Fuel Tank Assembly" Illustration
and parts list.
70 84082 Gasket - Fuel tank1
71 68579 Insulator - Fuel tank1
84080 Insulator - Fuel tank1
72 68594 Gasket - Insulator1
73 110566 Screw - Hex hd 12-24 x 5/81
74 68508 Lockplate2
75 102761 Screw - Hex hd 10-24 x 7/81
76 110264 Washer - #101
77 69830 Spacer - Handle brace1
78 85007 Brace - Handle1
79 110473 Screw - Skt hd 10-24 x 1-5/82
104560 Screw - Skt hd 10-24 x 1-1/22
80 65532 Cover and Valve Assy1
81 110472 Screw - Skt hd 8-32 x 5/163
82 84780 Stop - Reed valve1
83 84779 Valve - Reed1
84 65419 Cover Assy - Spark arrester1
85 110529 Screw - Hex hd 10-24 x 1/22
86 67922 Lockplate1
87 83106 Body and Duct Assy1
88 68187 Screw - Special1
89 68149 Gasket - Muffler1
84007 Gasket - Muffler1
90 68581 Insulator - Shroud2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 24
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 24 of 36
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
91 67910 Shroud1
92 Powerhead Assy See "Powerhead Assembly"
Illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 25
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 25 of 36
www.ktoutdoor.com

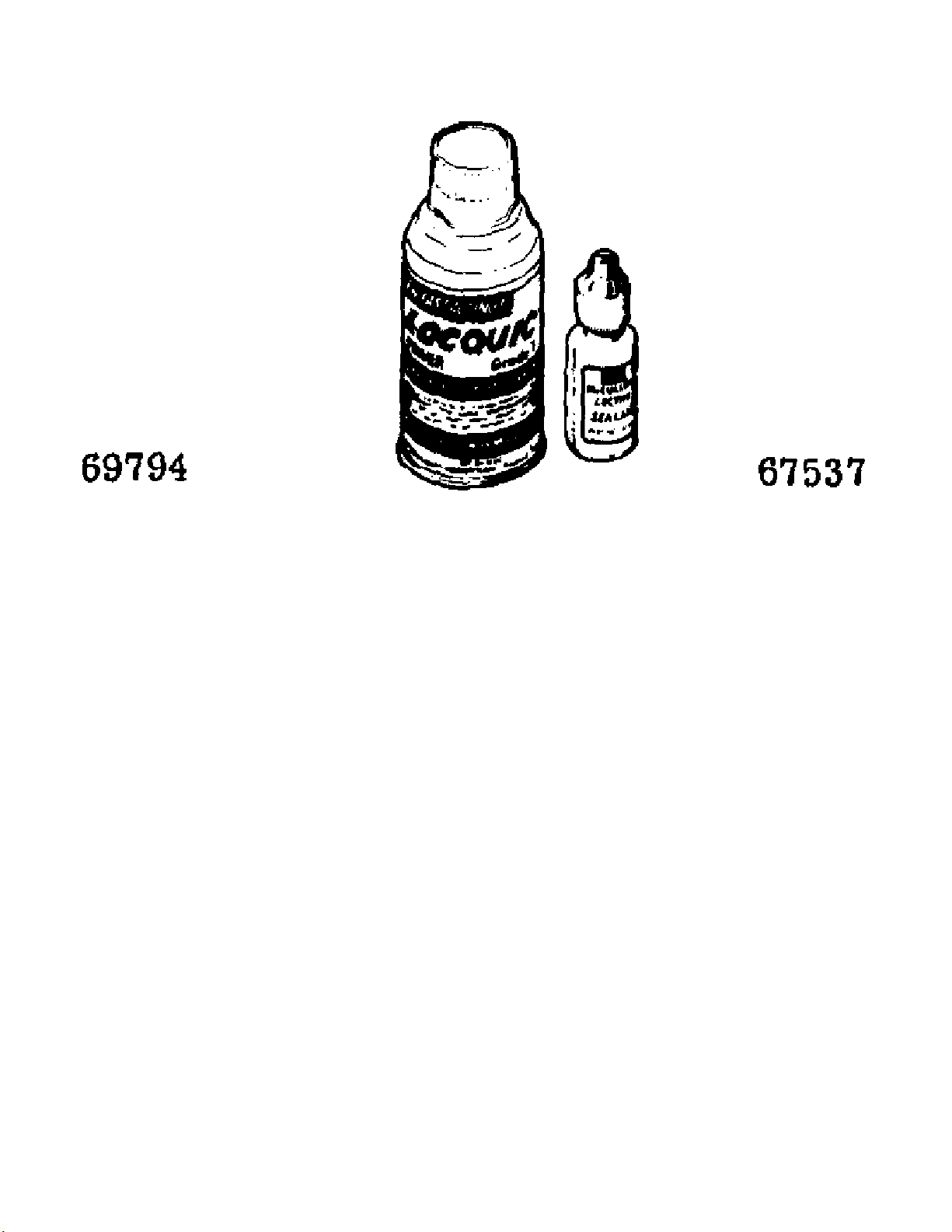

Locquic and Loctite
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 26
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 26 of 36
www.ktoutdoor.com
Locquic and Loctite
Ref # Part Number DescriptionQty
69794 69794 7-1/2 oz. spray can.
67537 67537 10cc plastic bottle
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 27
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 27 of 36
www.ktoutdoor.com
Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 28
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 28 of 36
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 101391 Nut - Hex 3/8-241
110594 Nut - Hex 3/8-241
2 84681 Flywheel Assy1
3 103879 Key - Woodruff1
4 67057 Washer - Thrust1
5 67056 Seal1
6 67054 Washer - Thrust1
7 110127 Screw - Hex hd 10-24 x 7/8 (SEMS)2
8 100003 Washer - #102
9 51253 Retainer - Coil1
10 85138 Lamination Assy1
11 62819 Wire Assy - Ground1
12 69344 Wire Assy - Primary1
13 84972 Kit - Coil1
14 69966 Wire Assy - Spark plug1
15 62932 Connector1
16 62926 Boot1
17 67127 Sleeve1
18 63432 Spark Plug1
19 110349 Screw - Rd hd 8-32 x 3/41
20 62362 Cover - Breaker box1
21 100298 Nut - Hex 6-321
22 62365 Spacer - Breaker screw1
23 110346 Screw - Hex hd 6-32 x 3/41
24 110489 Screw - Pan hd 6-32 x 7/16 s/t1
25 83126 Strap - Conduction1
26 100934 Screw - Rd hd 8-32 x 3/81
27 110445 Screw - Truss 8-32 x 3/81
28 105976 Washer - #81
29 62363 Breaker Assy1
66231 Breaker Assy1
30 103672 Screw - Fil hd 8-32 x 1/2 (SEMS)1
31 100080 Washer - #81
32 85358 Condenser1
67960 Condenser1
33 54184 Wiper1
34 62361 Box - Breaker1
84329 Box - Breaker1
35 67051 Seal1
36 110623 Screw - Fil hd 8-32 x 1/22
37 105976 Washer - #82
38 100955 Nut - Hex 8-321
39 84156 Housing - Pump1
40 62262 Cap - Housing1
41 62266 Plunger - Pump1
42 101056 "O" Ring1
43 66687 Spring1
44 62230 Gasket1
45 62909 Valve1
46 110291 Screw - Pan hd 10-24 x 2-5/81
47 86304 Cover - Oil tank1
48 86306 Gasket - Cover1
49 57129A Cap - Oil tank1
68809 Cap - Oil tank1
50 110737 Clip - Plug1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 29
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 29 of 36
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
51 84953 Plug - Cap1
52 101148 "O" Ring1
53 62123B Hose Assy - Oil1
54 51506 Screen - Hose1
55 110713 Screw - Skt hd 10-24 x 7/81
56 24236 Washer - Special1
57 62274 Gasket - Pulse pump1
86188 Gasket - Pulse pump1
58 68711 Body Assy - Check valve1
59 68714 Screw - Special1
60 63034 Spring - Valve1
61 100071 Ball - Check valve1
83786 Pump Assy - Pulse1
62 60260A Piston Assy - Pump1
63 104001 "O" Ring1
64 60263 Ring - Piston1
65 60937 Washer - Teflon1
66 60259 Spring - Piston1
67 62227 Sleeve - Adjustment1
68 110386 Screw - Hex hd 8-32 x 11
69 100251 Nut - Hex 8-321
70 62407 Cover - Outlet valve1
71 106104 "O" Ring1
72 62885A Spring - Outlet valve1
73 102809 Ball1
74 83787 Body Assy - Pump1
75 110643 Screw - Set1
76 62105 Screw Assy - Sealing4
77 62842 Washer - Sealing4
78 110288 Screw Assy - Hex hd 8-32 x 3/41
79 85771 Crankcase Assy1
80 110288 Screw Assy - Hex hd 8-32 x 3/42
81 110618 Screw Assy - Hex hd 8-32 x 1-3/81
82 62065 Bolt - Bar mounting2
83 83137 Valve - D.S.P1
84221 Valve - D.S.P1
84 65389 Pin - Piston1
69020 Pin - Piston1
85 85240 Piston Assy1
85239 Piston Assy1
86 85241 Ring Set - Piston1
87 103085 Bearing - Needle2
110590 Bearing - Needle2
88 65401 Connecting Rod Assy1
85352 Connecting Rod Assy1
89 61627A Screw - Skt hd special2
90 63225 Roller - Needle (set of 20)1
91 61618 Seal - Oil1
92 63464 Ring - Snap1
93 63429B Bearing - Ball1
94 110260 Seal - Oil1
95 104357 Bearing - Needle1
96 85125 Crankshaft1
97 63699 Ring - Bearing insert1
98 63701 Insert - Bearing1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 30
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 30 of 36
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
99 110333 Screw - Oval hd 8-32 x 1/23
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 31
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 31 of 36
www.ktoutdoor.com
Pressure Test Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 32
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 32 of 36
www.ktoutdoor.com
Pressure Test Tools
Ref # Part Number DescriptionQty
62849 62849 PRESSURE TEST TOOLS, Basic unit For leakage
check of crankcase, fuel system.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 33
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 33 of 36
www.ktoutdoor.com

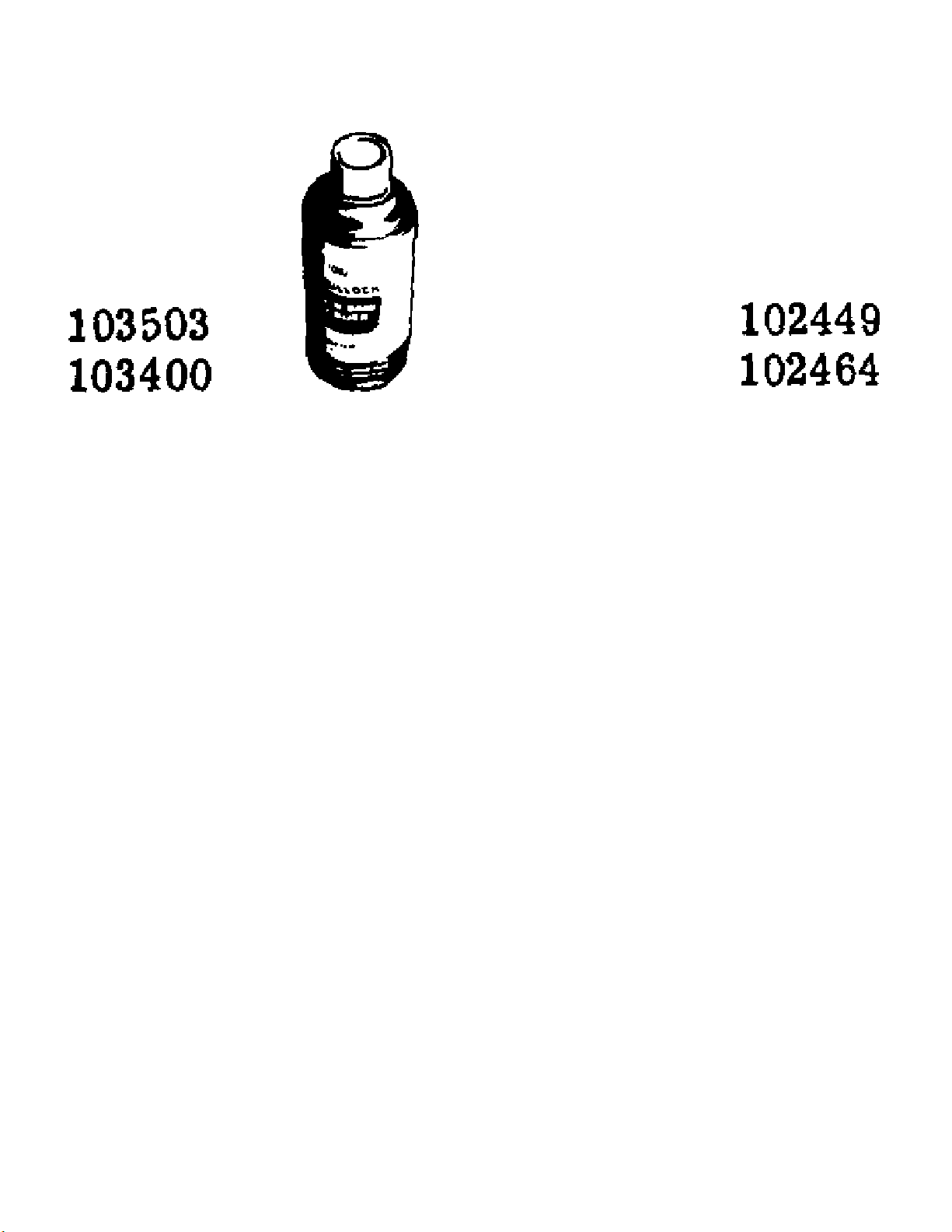

Spray Paint
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 34
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 34 of 36
www.ktoutdoor.com
Spray Paint
Ref # Part Number DescriptionQty
103503 103503 Black 12 oz. can
103400 103400 Case of 12
102449 102449 Yellow 12 oz. can
102464 102464 Yellow Case of 12
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 35
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 35 of 36
www.ktoutdoor.com

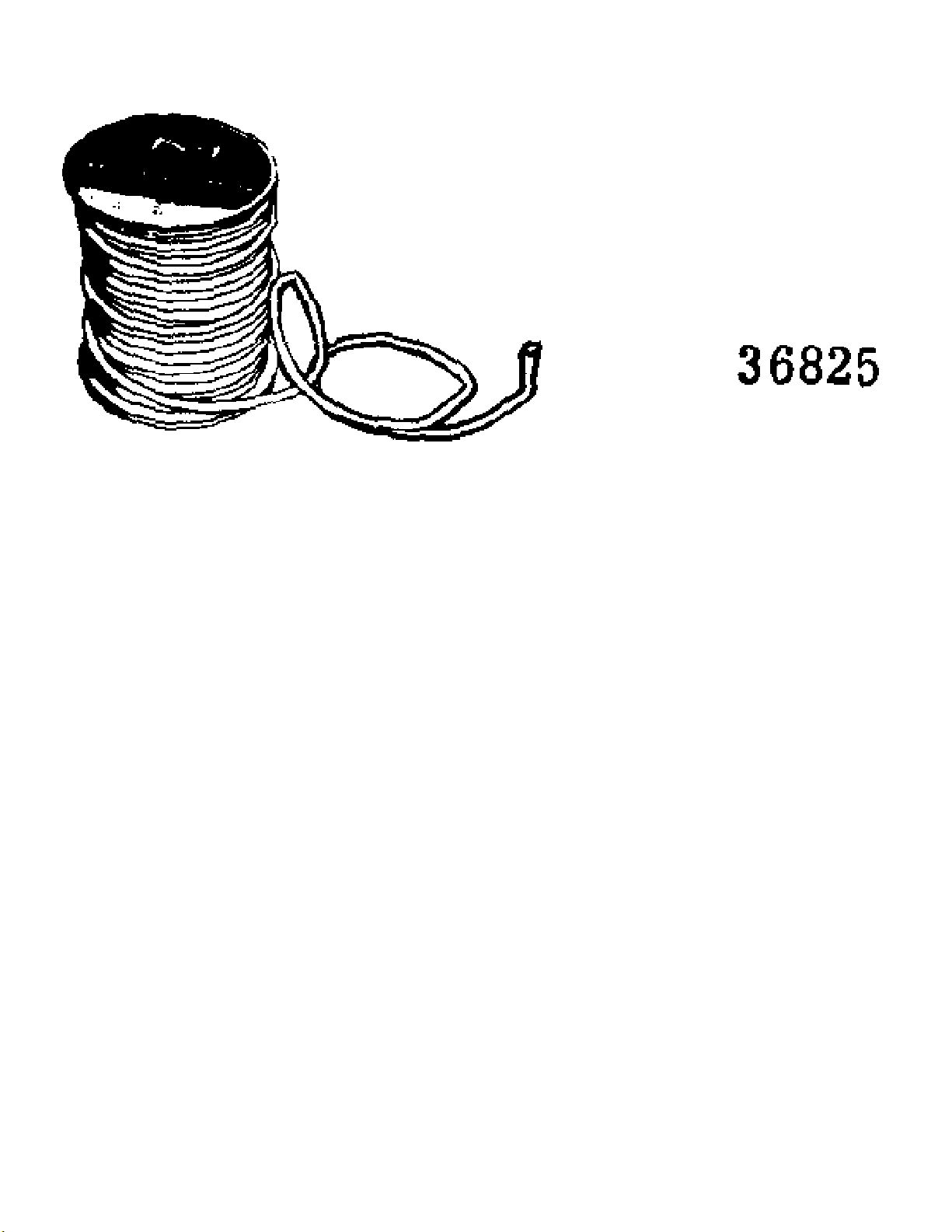

Starter Rope
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 36
A12-600055 MAC 6-10A 06/70 to 12/70 IPL 86346 Page 36 of 36
www.ktoutdoor.com
Starter Rope
Ref # Part Number DescriptionQty
36825 36825 100' spool
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
