Instruction Manual
Manual de Instrucciones
ENGLISH
Manuel d’Instructions
For Occasi onal Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias
e instrucciones de seguridad. El no hacerlo puede resultar en
lesiones graves.
AVERTISSEMENT:
Lire le manuel d’instructions et bien respecter tous les avertissements et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
McCulloch
9335 Harris Corners
Charlotte, NC 28269
850 Matheson Blvd. West
Mississauga, Ontario L5V 0B4
115376827 Rev. 1 5/1/10 BRW
McCulloch
ESPAÑOL
FRANÇAIS
Page 2
IDENTIFICATION OF SAFETY SYMBOLS
DANGER: Use only specified trimmer
head, spool, and recommended trimmer line.
Never use blades, flailing devices, wire, rope,
string, etc. This attachment is designed for line
trimmer use only. Failure to follow these instructions may result in serious injury.
WARNING: This unit can be dangerous! Careless or improper
use can cause serious injury.
WARNING: Read the operator’s manual before use. Failure to
follow instructions could result in serious injury to the operator and/or
bystanders. Save operator’s manual.
Trimmer line can throw objects violently.
You can be blinded or injured. Always
wear hearing protection and safety
glasses marked Z87. Always wear head
protection, heavy, long pants, long
sleeves, boots and gloves.
Hazard zone for thrown objects.
S Trimmer line throws objects violently.
S You and others can be blinded/injured.
S Keep children, bystanders, and animals 50 feet
(15 meters) away.
Secure hair above shoulder length. Do
not wear jewelry, loose clothing, or
clothing with loosing hanging straps,
ties, tassels, etc. They can be caught in
moving parts.
Assist handle to be positioned only below
the arrow.
2
Page 3
IDENTIFICATION OF SAFETY SYMBOLS
Never allow children to operate this unit.
Store unit indoors in a high, dry place out of the reach of
children.
When servicing unit, use only identical replacement
parts.
Always stop unit and disconnect spark plug before cleaning or servicing.
WARNING: Fire hazard. Never mix, pour, or store gasoline or
use the unit near a flame or sparks (including smoking, open flames, or
work that can cause sparks).
Use unleaded gasoline and two-- stroke oil mixed at a ratio of
40:1 (2.5%).
3
Page 4
OPTIONAL ATTACHMENTS
f
These attachments used in combination with the speci
to ANSI B175.3--2003, “Grass Trimmers and Brushcutters -- Safety Requirements”.
Powerhead model Attachments Type part. no.
MC125
These attachments used in combination with the specified powerhead have been evaluated
to applicable ISO-- and EN safety requirement standards by the Swedish Machinery Testing
Institute:
Attachments Type Part. no.
Edger attachment PP1000E 952711607
Cultivator attachment PP2000T 952711608
Blower attachment PP3000B 952711609
Pruner attachment PP5000P 952711612
Trimmer head Fixed line 545053902 / 545003325
Brushcutter attachment PP4000C 952711610
ied powerhead have been evaluated
Cutting attachment / guard,
SAFETY RULES
S Always wear face or dust mask if operation is
WARNING: When using gardening
appliances, basic safety precautions must always be followed to reduce the risk of fire and
serious injury. Read and follow all instructions.
This power unit can be dangerous! Operator
is responsible for following instructions and
warnings on unit and in manual. Read entire
instruction manual before using unit! Be thoroughly familiar with the controls and the proper use of the unit. Restrict the use of this unit
to persons who have read, understand, and
will follow the instruc tions and warnings on
the unit and in the manual. Never allow children to operate this unit.
INSTRUCTION
MANUAL
DANGER: Never use blades with line
trimmer attachment. Never use flailing devices
with any attachment. This unit (when used with
supplied line trimmer attachment) is designed
for line trimmer use only. Use of any other accessories or attachments with line trimmer attachment will increase the risk of injury.
If situations occur which are not covered in
this manual, use care and good judgment. If
you need assistance, contact your authorized
service dealer or call 1-800-554--6723.
OPERATOR SAFETY
S Dress properly. Always wear safety glasses
or similar eye protection when operating, or
performing maintenance, on your unit (safety
glasses are available). Eye protection should
be marked Z87.
SAFETY INFORMATION
ON THE UNIT
dusty.
S Always wear heavy, long pants, long sleev es,
boots, and gloves . Wearing safety leg guards
is recommended.
S Always wear foot protection. Do not go
barefoot or wear sandals. Stay clear of
spinning line.
S Secure hair above shoulder length. Secure or
remove loose clothing or clothing with loosely
hanging ties, straps, tassels, etc. They can be
caught in moving parts.
S Being fully covered also helps protect you
from debris and pieces of toxic plants thrown
by spinning line.
S Stay Alert. Do not operate this unit when you
are tired, ill, upset or under the influence of
alcohol, drugs, or medication. Watch what
you are doing; use common sense.
S Wear hearing protection.
S Never start or run inside a closed room or
building. Breathing exhaust fumes can
kill.Keep handles free of oil and fuel.
S Keep handles free of oil and fuel.
S Always keep engine on the right hand side
of your body.
S Hold the unit firmly with both hands.Keep
trimmer head (or other optional attachment)
below waist level and away from all parts of
your body. Do not raise engine above your
waist.
S Keep all parts of your body away from muffler
and spinning line (or other optional
attachment). Keep engine below waist level.
A hot muffler can cause serious burns.
S Keep firm footing and balance. Do not
overreach or use from unstable surfaces
such as ladders, trees, steep slopes,
rooftops, etc.
S Use only in daylight or good artificial light.
4
Page 5
S Use only for jobs explained in this manual
(or manuals for optional attachments).
UNIT / MAINTENANCE SAFETY
S Disc onnect the spark plug before performing
maintenance except carburetor adjustments.
S Look for and replace damaged or loose parts
before eac h use. Look for and repair fuel
leaks before use. Keep in good working
condition.
S Replace trimmer head parts that are chipped,
cracked, broken, or damaged in any other
way before using the unit.
S Maintain unit according to rec ommended
procedures. Keep cutting line at proper
length.
S Use only 0.115 inch (3 mm) diameter cut
length line. Never use wire, rope, string, etc.
S Install required shield properly before using
the unit. Use only specified trimmer head;
make sure it is properly installed and securely
fastened.
S Make sure unit is assemb le d correctly as
shown in this manual.
S Make carburetor adjustments with lower end
supported to prevent line from contacting any
object.
S Keep others away when making carburetor
adjustments.
S Use only recommended McCulloch
accessories and replacement parts.
S Have all maintenance and service not
explained in this manual performed by an
authorized service dealer.
FUEL SAFETY
S Mix and pour fuel outdoors.
S Keep away from sparks or flames.
S Use a container approved for fuel.
S Do not smoke or allow smoking near fuel or
the unit.
S Avoid s pilling fuel or oil. Wipe up all fuel spills.
S Move at least 10 feet (3 meters) away from
fueling site before starting engine.
S Stop engine and allow to cool before
removing fuel cap.
S Always store gasoline in a container
approved for flammable liquids.
TRANSPORTING AND STORAGE
S Allow engine to cool; sec ure unit before
storing or transporting in vehicle.
S Empty the fuel tank before storing or
transporting the unit. Use up fuel left in the
carburetor by starting the engine and letting it
run until it stops.
S Store unit and fuel in area where fuel vapors
cannot reach sparks or open flames from
water heaters, electric motors or switches,
furnaces, etc.
S Store unit so line limiter blade cannot
accidentally cause injury. The unit can be
hung by the shaft.
S Store unit out of reach of children.
WARNING: The engine exhaust
from this product contains chemicals known
to the State of California to cause cancer, birth
defects or other reproductive harm.
SAFETY NOTICE: Exposure to vibrations
through prolonged use of gasoline powered
hand tools could cause blood vessel or nerve
damage in the fingers, hands, and joints of
people prone to circulation disorders or abnormal swellings. Prolonged use in cold weather
has been linked to blood vessel damage in
otherwise healthy people. If symptoms occur
such as numbness, pain, loss of strength,
change in skin color or texture, or loss of feeling
in the fingers, hands, or joints, discontinue the
use of this tool and seek medical attention. An
anti- -vibration system does not guarantee the
avoidance of these problems. Users who operate power tools on a continual and regular basis
must monitor closely their physical condition
and the condition of this tool.
SPECIAL NOTICE: This unit is equipped
with a temperature limiting muffler and spark
arresting screen which meets the requirements of California Codes 4442 and 4443. All
U.S. forest land and the states of California,
Idaho, Maine, Minnesota, New Jersey, Oregon, and Washington require by law that
many internal combustion engines be
equipped with a spark arresting screen. If you
operate in a locale where such regulations exist, you are legally responsible for maintaining
the operating condition of these parts. Failure
to do so is a violation of the law . For normal
homeowner use, the muffler and spark arresting screen will not require any service. After
50 hours of use, we recommend that your
muffler be serviced or replaced by your authorized service dealer .
LINE TRIMMER SAFETY
WARNING: Inspect the area before
each use. Remove objects (rocks, broken
glass, nails, wire, etc.) which can be thrown
by or become entangled in line. Hard objects
can damage the trimmer head and be thrown
causing serious injury.
S Use only for trimming, scalping, mowing
and sweeping. Do not use for edging,
pruning or hedge trimming.
S Cut from your left to your right. Cutting on
right side of the shield will throw debris
away from the operator.
ADDITIONAL SAFETY RULES
FOR OPTIONAL ATTACHMENTS
WARNING: For each optional at-
tachment used, read entire instruction manual before use and follow all warnings and instructions in manual and on attachment.
WARNING: Ensure handlebar is
installed when using brushcutter attachment.
Attach handlebar above arrow on safety label
on the upper shaft (engine end of unit). If your
brushcutter attachment does not include a
handlebar, a handlebar accessory kit
(#530071451) is available from your authorized service dealer .
5
Page 6
Handlebar
EDGER SAFETY
WARNING: Inspect the area to be
edged before each use. Remove objects
(rocks, broken glass, nails, wire, etc.) which
can be thrown by the blade or can wrap
around the shaft.
WARNING: Blade rotates momen-
tarily after the trigger is released or engine is
turned off. The blade can seriously cut you or
others. Allow blade to stop before removing it
from the cut.
S Throw away blades that are bent, warped,
cracked, broken or damaged in any other
way. Replace parts that are cracked,
chipped, or damaged before using the unit.
S Do not attempt to remove cut material nor
hold material to be cut when the engine is
running or when cutting blade is moving.
S Always keep the wheel and depth adjusting
skid in contact with the ground.
S Always push the unit slowly over the
ground. Stay alert for uneven sidewalks,
holes in the terrain, large roots, etc.
BLOWER/VACUUM SAFETY
WARNING: Inspect area before
starting unit. Remove all debris and hard objects such as rocks, glass, wire, etc. that can
ricochet, be thrown, or otherwise cause injury
or damage during operation.
S Do not set unit on any surface except a clean,
hard area while engine is running. Debris
such as gravel, sand, dust, grass, etc., could
be picked up by the air intake and thrown out
through discharge opening, damaging unit,
property, or causing serious injury to
bystanders or operator.
S Never place objects inside the blower tubes,
vacuum tubes or blower outlet. Always direct
the blowing debris away from people,
animals, glass, and solid objects such as
trees, automobiles, walls, etc. The force of air
can cause rocks, dirt, or sticks to be thrown or
to ricochet which can hurt people or animals,
break glass, or cause other damage.
S Never run unit without the proper
equipment attached. When using your unit
as a blower, always install blower tubes.
S Check air intake opening, blower tubes or
vacuum tubes frequently, always with
engine stopped and spark plug
disconnected. Keep vents and discharge
tubes free of debris which can accumulate
and restrict proper air flow.
S Never place any object in air intake opening
as this could restrict proper air flow and cause
damage to the unit.
S Never use for spreading chemicals, fertilizers,
or other substances which may contain toxic
materials.
S Toavoid spreading fire, do not use near leaf or
brush fires, fireplaces, barbecue pits,
ashtrays, etc.
BRUSHCUTTER SAFETY
DANGER: Blade can thrust violently
away from material it does not cut. Blade
thrust can cause amputation of arms or legs.
WARNING: Do not use trimmer head
as a fastening device for the blade.
WARNING: The blade continues to
spin after the trigger is released or engine is
turned off. The coasting blade can throw objects or seriously cut you if accidentally
touched. Stop the blade by contacting the left
hand side of the coasting blade with material
already cut.
WARNING: Inspect the area to be
cut before each use. Remove objects (rocks,
broken glass, nails, wire, etc.) which can be
thrown or become entangled in the blade or
trimmer line.
S Throw away and replace blades that are
bent, warped, cracked, broken or damaged
in any other way.
6
Page 7
S Install required shield properly before using
the unit. Use the metal shield for all metal
blade use. Only use brushcutter attachments
that provide a metal shield with proboscis
nose.
Proboscis
nose
S Use only specified blade and make sure it is
properly installed and securely fastened.
S Cut from your right to your left.
S Always use the handlebar and a properly
adjusted shoulder strap with blade (see
ASSEMBLY instructions in brushcutter
attachment instruction manual).
CULTIVATOR SAFETY
WARNING: Rotating tines can cause
serious injury. Keep away from rotating tines.
Stop the engine and disconnect the spark plug
before unclogging tines or making repairs.
WARNING: Inspect the area to be
cultivated before starting the unit. Remove all
debris and hard and sharp objects such as
rocks, vines, branches, rope, string, etc.
S Avoid heavy contact with solid objects that
might stop the tines. If heavy contact occurs,
stop the engine and inspect the unit for
damage.
S Never operate the cultivator without the tine
cover in place and properly secure d.
S Keep the tines and guard clear of debris.
S After striking a foreign object, stop the
engine, disconnect the spark plug and
inspect the cultivator for damage. Repair
before restarting.
S Disc onnect attachment from the drive engine
before cleaning the tines with a hose and
water to remove any build- -up. Oil the tines to
prevent rust.
S Always wear gloves when servicing or
cleaning the tines. The tines become very
sharp from use.
S Do not run unit at high speed unless
cultivating.
HEDGE TRIMMER SAFETY
DANGER: RISK OF CUT; KEEP
HANDS AWA Y FROM BLADE -- Blade moves
momentarily after the trigger is released or engine is turned off. Do not attempt to clear away
cut material when the blade is in motion. Make
sure engine is turned off, the spark plug wire is
disconnected, and the blade has stopped moving before removing jammed material from the
cutting blade. Do not grab or hold the unit by the
cutting blade.
WARNING: Inspect the area before
starting the unit. Remove all debris and hard
objects such as rocks, glass, wire, etc. that
can ricochet, be thrown, or otherwise cause
injury or damage during operation.
S Do not use a cutting blade that is bent,
warped, cracked, broken or damaged in any
other way. Have worn or damaged parts
replaced by an authorized service dealer.
S Always keep unit in front of your body.
Keep all parts of your body away from the
cutting blade.
S Keep the cutting blade and air vents clear of
debris.
POLE PRUNER SAFETY
WARNING: The reciprocating blade/
rotating chain can cause severe injury. Inspect the unit before use. Do not operate unit
with a bent, cracked or dull blade or dull chain.
Keep away from the blade/chain.
WARNING: The reciprocating blade/
rotating chain is sharp. Do not touch. T oprevent serious injury, always stop engine and
ensure blade/chain has stopped moving, disconnect spark plug, and wear gloves when
changing or handling the blade or chain.
WARNING: A coasting blade/rotat-
ing chain can cause injury while it continues to
move after the engine is stopped. Maintain
proper control of the unit until the blade/chain
has completely stopped moving. Keep
hands, face and feet at a distance from all
moving parts. Do not attempt to touch or stop
the blade or chain when it is moving.
WARNING: Falling objects can
cause severe head injury. Wear head protection when operating this unit with a pole pruner attachment.
7
Page 8
WARNING: T o prevent serious injury ,
do not use more than one boom extension with
a pole pruner attachment.
WARNING: Keep the pruner away
from power lines or electrical wires.
S Only use for pruning limbs or branches
overhead up to 6 inches (15 cm) in diameter.
S Do not operate the unit faster than the
speed needed to prune. Do not run the unit
at high speed when not pruning.
S Always stop the unit when work is delayed
or when walking from one cutting location to
another.
S If you strike or become entangled with a
foreign object, stop the engine immediately
and check for damage. Have any damage
repaired by an authorized service dealer
before attempting further operations.
Discard blades that are bent, warped,
cracked or broken.
S Stop the unit immediately if you feel excessive
vibration. Vibration is a sign of trouble. Inspect
thoroughly for loose nuts, bolts or damage
before continuing. Contact an authorized
service dealer for repair or replacement of
affected parts as necessary.
SNOW THROWER SAFETY
WARNING: Keep hands and feet
away from the rotor when starting or running
the engine. Never attempt to clear the rotor
with the engine/motor running. Stop engine
and disconnect spark plug before unc logging
snow or debris from discharge chute or when
adjusting vanes.
WARNING: Never lean over dis-
charge chute. Rocks or debris could be
thrown into the eyes and face and cause serious injury or blindness.
WARNING: Inspect the area where
the unit is to be used. Remove objects that
could be thrown or damage the unit. Some
objects may be hidden by fallen snow -- be
alert for the possibility.
S Direct material discharge away from glass
enclosures, automobiles, etc.
S Do not run engine at high speed while not
removing snow.
S Be attentive when using the snowthrower,
and stay alert for holes in the terrain and other
hidden hazards.
S Make sure the rotor will spin freely before
attaching the snowthrower to the powerhead.
S If the rotor will not rotate freely due to frozen
ice, thaw the unit before thoroughly before
attempting to operate under power.
S Keep the rotor clear of debris.
S Do not throw snow near other people. The
snow thrower could propel small objects at
high speed causing injury.
S After striking a foreign object, stop the
engine, disconnect spark plug and inspect
the snowthrower for damage and repair if
necessary before restarting unit.
S Never operate the snowthrower near glass
enclosures, automobiles and trucks.
S Never attempt to use the snowthrower on a
roof.
S Never operate the snowthrower near
window wells, dropoffs, etc.
S Never discharge snow onto public roads or
near moving traffic.
S Clear snow from slopes by going up and
down; never across. Use caution when
changing directions. Never clear snow from
steep slopes.
S Let snowthrower run for a few minutes after
clearing snow so moving parts do not
freeze.
S Look behind and use care when backing up.
Exercise caution to avoid slipping or falling,
especially when operating in reverse.
S Know how to stop quickly.
8
Page 9
ASSEMBLY
WARNING: If received assembled,
repeat all steps to ensure your unit is properly
assembled and all fasteners are secure.
Examine parts for damage. Do not use damaged parts.
NOTE: If you need assistance or find parts
missing or damaged, call 1-800-554-6723.
It is normal for the fuel filter to rattle in the
empty fuel tank.
Finding fuel or oil residue on muffler is normal
due to carburetor adjustments and testing
done by the manufacturer.
INSTALLING TRIMMER ATTACHMENT
CAUTION:
ment, place the unit on a flat surface for stability.
1. Loosen the coupler by turning the knob
counterclockwise.
Shipping
protector
2. Remove shipping protector from coupler.
3. Remove the shaft cap from the trimmer attachment (if present).
4. Position locking/release button of attachment into guide recess of coupler.
5. Push the attachment into the coupler until
the locking/release button snaps into the
primary hole.
6. Before using the unit, tighten the knob securely by turning clockwise.
WARNING: Make sure the locking/
release button is locked in the primary hole
and the knob is securely tightened before operating the unit. All attach ment s are designed
to be used in the primary hole unless otherwise
stated in the applicable attachment instruction
manual. Using the wrong hole could lead to serious injury or damage to the unit.
When installing trimmer attach-
Coupler
LOOSEN
Knob
TIGHTEN
Upper
Shaft
Primary Hole
Guide Recess
Locking/
Release
Button
Attachment
Coupler
Locking/Release
Button in Primary Hole
For assembly of optional attachments (see
list on page 11), refer to the ASSEMBLY section of the applicable attachment instruction
manual.
ATTACHING THE SHIELD
WARNING: The shield must be prop-
erly installed. The shield provides partial protection from the risk of thrown objects to the operator and others and is equipped with a line limiter
blade which cuts excess line to the proper
length. The line limiter blade (on underside of
shield) is sharp and can c ut you.
For proper orientation of shield, see KNOW
YOUR TRIMMER illustration in OPERATION
section.
1. Remove wing nut from shield.
2. Insert bracket into slot as shown.
3. Pivot shield until bolt passes through hole in
bracket.
4. Securely tighten wing nut onto bolt.
Bracket
Slot
Shield
Gearbox
Wing Nut
ADJUSTING THE HANDLE
WARNING: When adjusting the han-
dle, be sure it remains above the safety label
and below the mark or arrow on the shaft.
1. Loosen wing nut on handle.
2. Rotate the handle on the shaft to an upright position; retighten wing nut.
9
Page 10
OPERATION
KNOW YOUR UNIT
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT.
Compare the illustrations with your unit to familiarize yourself with the location of the various controls
and adjustments. Save this manual for future reference.
Muffler
Assist Handle
Coupler
Trimmer
Head
Shield
Shaft
Spark
Plug
Throttle Trigger
Primer Bulb
Line Limiter
Blade
ON/STOP SWITCH
The ON/STOP switch is located on the trigger
handle and is used to stop the engine. To stop
the engine, push and release the engine
ON/STOP switch.
PRIMER BULB
The PRIMER BULB removes air from the carburetor and fuel lines and fills them with fuel.
This allows you to start the engine with fewer
pulls on the starter rope. Activate the primer
bulb by pressing it and allowing it to return to
its original form.
ON/STOP
Switch
BEFORE STARTING ENGINE
WARNING: Be sure to read the fuel
information in the safety rules before you begin. If you do not understand the safety rules,
do not attempt to fuel your unit. Call
1-800-554-6723.
FUELING ENGINE
WARNING: Remove fuel cap slowly
when refueling.
HELPFUL TIP
Toobtain the correct oil mix
ratio, pour 3.2 ounces of
2--cycle synthetic oil into
one gallon of fresh gas.
This engine is certified to operate on unleaded gasoline. Before operation, gasoline
must be mixed with a good quality synthetic
Start
Lever
Starter handle
START LEVER
The START LEVER helps to supply fuel to the
engine to aid in starting. Activate the starting
system by moving the start lever to the START
position. DO NOT squeeze the throttle trigger
until the engine has started and runs. After the
engine starts, allow the engine to warm-- up
10--15 seconds, then fully squeeze the throttle
trigger to deactivate the starting system.
COUPLER
The COUPLER enables optional attachments to be installed on the unit.
2-cycle air-cooled engine oil designed to be
mixed at a ratio of 40:1. A 40:1 ratio is obtained by mixing 3.2 fluid ounces (95 ml) of oil
with 1 gallon (4 liters) of unleaded gasoline.
Pour the entire contents of the 3.2 ounce (95
ml) container of oil into 1 gallon (4 liters) of
gasoline to achieve the proper fuel mixture.
DO NOT USE automotive or marine oil.
These oils will cause engine damage. When
mixing fuel follow the instructions printed on
the container. Once oil is added to gasoline,
shake container momentarily to assure that
the fuel is thoroughly mixed. Always read and
follow the safety rules relating to fuel before
fueling your unit.
CAUTION: Never use straight gasoline in
your unit. This will cause permanent engine
damage and void the limited warranty.
FUEL REQUIREMENTS
This engine requires the use of minimum 87
octane [R+M]/2 clean gasoline.
10
Page 11
IMPORTANT
Use of alcohol blended fuels (called gasohol or
using ethanol or methanol) can cause major engine performance and durability problems.
WARNING: Alternative fuels (not gas -
oline) such as E-- 15 (15% alcohol), E-- 20 (20%
alcohol), E- -85 (85% alcohol) are NOT classified
as gasoline and are NOT approved for use in
2--stroke gasoline engines. Use of alternative
fuels will cause problems such as: improper
clutch engagements, overheating, vapor lock,
power loss, lubrication deficiency, deterioration
of fuel lines, gaskets and internal carburetor
components, etc. Alternative fuels cause high
moisture absorption into the fuel/oil mixture
leading to oil and fuel separation.
HOW TO STOP YOUR UNIT
S Release the throttle trigger.
S Push and release the engine ON/STOP
switch. The switch will automatica l l y retur n to
the ON position. Wait 5 seconds before attempting to restart unit to allow switch to reset.
Primer Bulb
Start Lever
Starter Handle
ON/STOP
Switch
HOW TO START YOUR UNIT
WARNING: Avoid any c ontact with
the muffler. A hot muffler can cause serious
burns.
Starting position
HELPFUL TIP
If your engine still does not
start after following these
instructions, please call
1-- 800--554 --6723.
STARTING A COLD ENGINE
NOTE:
DO NOT squeeze the throttle trigger
until the engine has started and runs.
1. Set unit on a flat surface.
2. Slowly press the primer bulb 6 times.
3. Move the start lever to the ST AR T position.
4. Pull starter rope handle sharply until engine starts and runs.
5. Allow unit to run for 10-- 15 seconds, then
fully squeeze the throttle trigger to disengage the starting system.
STARTING A WARM ENGINE
1. Squeeze and hold the throttle trigger.
Keep throttle trigger fully squeezed until
engine runs smoothly.
2. Pull starter rope sharply while squeezing
throttle trigger until engine runs.
NOTE: Normally, the warm starting proce-
dure can be used within 5--10 minutes after
the unit is turned off. If the unit sits for more
than 10 minutes without being ran, it will be
necessary to start the unit by following the
steps under STARTING A COLD ENGINE or
following the starting instruction steps shown
on the unit.
STARTING A FLOODED ENGINE
Flooded engines can be started by placing
the start lever to the RUN position. Fully
squeeze throttle trigger. Pull the starter handle repeatedly while squeezing throttle trigger
until engine starts and runs. This could require pulling the starter handle many times,
depending on how badly the unit is flooded.
If the unit still doesn’t start, refer to
TROUBLESHOOTING TABLE or call
1-800-554-6723.
OPERATING THE COUPLER
This model is equipped with a coupler which
enables optional attachments to be installed.
The optional attachments are:
Edger PP1000E.....................
Cultivator PP2000T..................
Blower PP3000B....................
Brushcutter PP4000C................
Pruner PP5000P....................
MODEL:
11
Page 12
WARNING: Always stop unit and dis-
y
f
connect spark plug before removing or installing attachments.
REMOVING TRIMMER ATTA CHMENT (OR OTHER OPTIONAL
ATTACHMENTS)
CAUTION:
tachments, place the unit on a flat surface for
stability.
1. Loosen the coupler by turning the knob
counterclockwise.
Attachment
2. Press and hold the locking/release button.
Locking/Release
When removing or installing at-
Coupler
LOOSEN
Knob
TIGHTEN
Button
Locking/Release
Button in Primary Hole
OPERATING INSTRUCTIONS
It is recommended that the engine not be
operated for longer than 1 minute at full
throttle.
OPERATING POSITION
ALWAYS WEAR:
Hearing
protection
Long pants
Eye protection
Attachment
3. While securely holding the engine and
upper shaft, pull the attachment straight
out of the coupler.
Coupler
Upper Shaft
INSTALLING OPTIONAL ATTACHMENTS
1. Remove the shaft cap from the attachment (if present).
2. Position locking/release button of attachment into guide recess of coupler.
3. Push the attachment into the coupler until
the locking/release button snaps into the
primary hole.
4. Before using the unit, tighten the knob securely by turning clockwise.
Coupler
WARNING: Make sure the locking/
release button is locked in the primary hole
and the knob is securely tightened before operating the unit. All attach ment s are designed
to be used in the primary hole unless otherwise
stated in the applicable attachment instruction
manual. Using the wrong hole could lead to serious injury or damage to the unit.
Upper
Shaft
Primary Hole
Guide Recess
Locking/
Release
Button
Attachment
Heavy shoes
Cut onl
romyour lefttoyour right.
WARNING: Always wear eye protec-
tion. Never lean over the trimmer head.
Rocks or debris can ricochet or be thrown into
eyes and face and cause blindness or other
serious injury.
When operating unit, stand as shown and
check for the following:
S Wear eye protection and heavy clothing.
S Hold trigger handle with your right hand and
assit handle with left hand.
S Keep unit below waist level.
S Cut only from your left to your right to
ensure debris is thrown away from you.
Without bending over, keep line near and
parallel to the ground and not crowded into
material being cut.
Do not run the engine at a higher speed than
necessary. The cutting line will cut efficiently
when the engine is run at less than full throttle.
At lower speeds, there is less engine noise and
vibration. The cutting line will last longer and will
be less likely to “weld” onto the spool.
Always release the throttle trigger and allow
the engine to return to idle speed when not
cutting.
To stop engine:
S Release the throttle trigger.
S Push and release the engine ON/STOP
switch.
12
Page 13
CUTTING METHODS
WARNING: Use minimum speed
and do not crowd the line when cutting around
hard objects (rock, gravel, fence posts, etc.),
which can damage the trimmer head, become
entangled in the line, or be thrown causing a
serious hazard.
S The tip of the line does the cutting. You will
achieve the best performance and minimum line wear by not crowding the line into
the cutting area. The right and wrong ways
are shown below.
Tip of the line
does the cutting.
Right Wrong
S The line will easily remove grass and
weeds from around walls, fences, trees and
flower beds, but it also can cut the tender
bark of trees or shrubs and scar fences.
S For trimming or scalping, use less than full
throttle to increase line life and decrease
head wear, especially:
S During light duty cutting.
S Near objects around which the line can wrap
such as small posts, trees or fence wire.
S For mowing or sweeping, use full throttle for
a good clean job.
TRIMMING - - Hold the bottom of the trimmer
head about 3 inches (8 cm) above the ground
and at an angle. Allow only the tip of the line to
make contact. Do not force trimmer line into
work area.
Trimming
Line crowded into
work area.
SCALPING -- The scalping technique removes
unwanted vegetation down to the ground. Hold
the bottom of the trimmer head about 3 in. (8
cm) above the ground and at an angle. Allow the
tip of the line to strike the ground around trees,
posts, monuments, etc. This technique increases line wear.
Scalping
MOWING -- Y our trimmer is ideal for mowing
in places conventional lawn mowers cannot
reach. In the mowing position, keep the line
parallel to the ground. Avoid pressing the
head into the ground as this can scalp the
ground and damage the tool.
Mowing
SWEEPING -- The fanning action of the rotat-
ing line can be used to blow away loose debris
from an area. Keep the line parallel to and
above the area surface and swing the tool
from side to side.
Sweeping
3 inches (8 cm)
above ground
13
Page 14
MAINTENANCE
WARNING: Disconnect the spark
plug before performing maintenance except
for carburetor adjustments.
HELPFUL TIP
IMPORTANT: Have all
repairs other than the recommended maintenance
described in the instruction
manual performed by an
If any dealer other than an authorized
service dealer performs work on the
product, we may not pay for repairs un-
der warranty. It is your responsibility to
maintain and perform general mainte-
nance.
CHECK FOR LOOSE
FASTENERS AND PARTS
S Spark Plug Boot
S Air Filter
S Housing Screws
S Assist Handle Screw
S Debris Shield
CHECK FOR DAMAGED OR
WORN PARTS
Contact an authorized service dealer for replacement of damaged or worn parts.
S ON/STOP Switch -- Ensure ON/STOP
switch functions properly by pushing and
releasing the switch. Make sure engine
stops. Wait 5 seconds before attempting to
restart unit to allow switch to reset. Restart
engine and continue.
S Fuel T ank -- Discontinue use of unit if fuel
tank shows signs of damage or leaks.
S Debris Shield -- Discontinue use of unit if
debris shield is damaged.
INSPECT AND CLEAN UNIT AND DECALS
S After each use, inspect complete unit for
loose or damaged parts. Clean the unit and
decals using a damp cloth with a mild deter-
gent.
S Wipe off unit with a clean dry cloth.

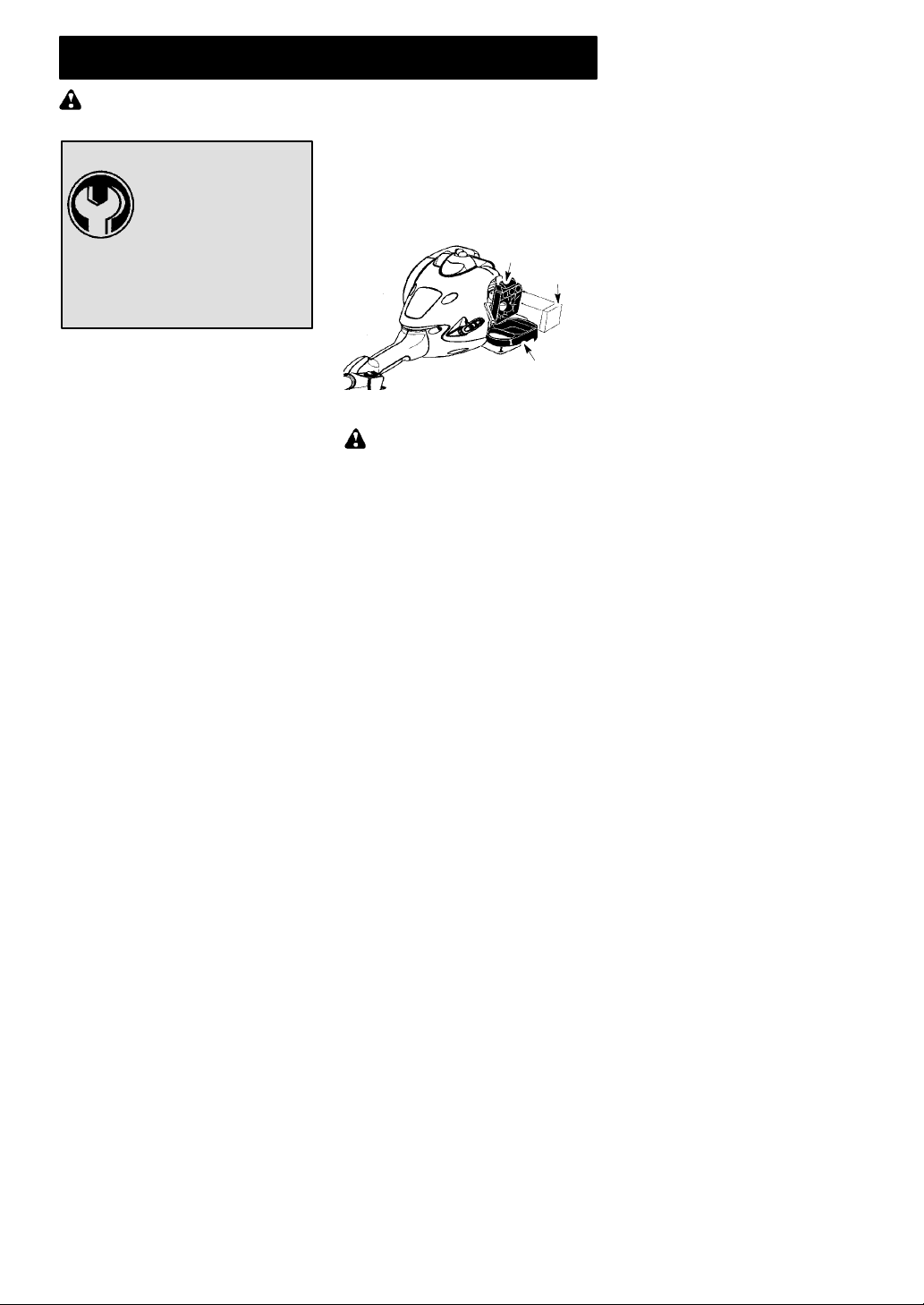

CLEAN AIR FILTER
A dirty air filter decreases engine performance and increases fuel consumption and
harmful emissions. Always clean after every
5 hours of operation.
authorized service dealer.
1. Clean the cover and the area around it to
keep dirt from falling into the carburetor
chamber when the cover is removed.
2. Remove parts by pressing button to release air filter cover.
NOTE: T o avoid creating a fire hazard or
producing harmful evaporative emissions, do
not clean filter in gasoline or other flammable
solvent.
3. Wash the filter in soap and water.
4. Allow filter to dry.
5. Replace parts.
Button
Air Filter
Air Filter Cover
INSPECT MUF FLER AND SPARK
ARRESTING SCREEN
WARNING: The muffler on this prod-
uct contains chemicals known to the State of
California to cause cancer.
As your unit is used, carbon deposits build up
on the muffler and spark arresting screen and
must be removed to avoid creating a fire hazard or affecting engine performance.
For normal homeowner use, the muffler and
spark arresting screen will not require any
service. After 50 hours of use, we recommend that your muffler be serviced or replaced by an authorized service dealer.
REPLACE SPARK PLUG
Replace the spark plug each year to ensure
the engine starts easier and runs better. Set
spark plug gap at 0.025 inch (0.6 mm). Ignition timing is fixed and nonadjustable.
NOTE: This spark ignition system complies
with the Canadian standard ICES- -002.
1. Twist, then pull off spark plug boot.
2. Remove spark plug from cylinder and
discard.
3. Replace with Champion RCJ-6Y spark
plug and tighten securely with a 3/4 inch
(19 mm) socket wrench.
4. Reinstall the spark plug boot.
14
Page 15
SERVICE AND ADJUSTMENTS
REPLACING THE LINE
For unit to operate properly, the cutting line
should be replaced when line becomes worn to
less than 3 inches (7.5 cm) in length from the
edge of the line exit tunnels on each side of the
cutting head.
1. Remove and discard worn line before
installing new line.
2. Use only 0.115 inch (3 mm) diameter cut
length line.
3. Insert one end of the line through the
positioning tunnel.
4. Continue to feed line through tunnel until
line is centered (leaving equal amounts
on each side). See illustration below.
Positioning
tunnel
5. Insert ends of line one at a time through
the line exit tunnels.
6. Pull the line and make sure the line is extended fully through the tunnels.
Line exit
tunnel
7. Correctly installed line will be the same
length on both ends.
REPLACING THE CUTTING HEAD
1. Align hole in the dust cup with the hole in
the side of the gearbox by rotating the
dust c up.
2. Insert a small screwdriver into aligned
holes. This will keep the shaft from turning
while removing and ins talling trimmer head.
Line exit
tunnel
4. Thread replacement trimmer head onto
the shaft by turning counterclockwise.
Tighten until secure.
5. Remove the screwdriver.
CARBURETOR IDLE SPEED
ADJUSTMENT
WARNING: Keep others away when
making idle speed adjustments. The trimmer
head, blade or any optional attachment will be
spinning during most of this procedure. Wear
your protective equipment and observe all safety precautions. After making adjustments, the
trimmer head, blade or any optional attachment
must not move/spin at idle speed.
The carburetor has been carefully set at the
factory. Adjustments may be necessary if you
notice any of the following conditions:
S Engine will not idle when the throttle is
released.
S The trimmer head, blade or optional
attachment moves/spins at idle.
Make adjustments with the unit supported so
the cutting attachment is off the ground and
will not make contact with any object. Hold
the unit by hand while running and making adjustments. Keep all parts of your body away
from the cutting attachment and muffler.
To adjust idle speed:
Allow engine to idle. Adjust speed until engine
runs without trimmer head, blade or optional
attachment moving or spinning (idle too fast)
or stalling (idle speed too slow).
S Turn idle speed screw clockwise to
increase engine speed if engine stalls or
dies.
S Turn idle speed screw counterclockwise to
decrease engine speed if trimmer head,
blade or optional attachment moves or
spins at idle.
WARNING: Recheck the idle speed
after each adjustment. The trimmer head,
blade or optional attachment must not move
or spin at idle speed to avoid serious injury to
the operator or others.
Idle Speed Screw
Screwdriver
3. While holding the screwdriv er in position,
remove trimmer head by turning clockwise.
Air Filter Cover
If you require further assistance or are unsure
about performing this procedure, contact an
authorized service dealer or call
1-- 800--554--6723.
15
Page 16
STORAGE
WARNING: Perform the following
steps after each use:
S Allow engine to cool before storing or trans-
porting.
S Store unit and fuel in a well ventilated area
where fuel vapors cannot reach sparks or
open flames from water heaters, electric
motors or switches, furnaces, etc.
S Store unit with all guards in place. Position
unit so that any sharp object cannot accidentally cause injury.
S Store unit and fuel well out of the reach of
children.
SEASONAL STORAGE
Prepare unit for storage at end of season or if
it will not be used for 30 days or more.
If your unit is to be stored for a period of time:
S Clean the entire unit before lengthy
storage.
S Store in a clean dry area.
S Lightly oil external metal surfaces.
FUEL SYSTEM
Under FUELING ENGINE in the OPERATION section of this manual, see message labeled IMPORTANT regarding the use of gasohol in your engine.
Fuel stabilizer is an acceptable alternative in
minimizing the formation of fuel gum deposits
during storage. Add stabilizer to the gasoline
in the fuel tank or fuel storage container.
Follow the mix instructions found on stabilizer
container. Run engine at least 5 minutes after
adding stabilizer.
HELPFUL TIP
During storage of your gas/
oil mixture, the oil will separate from the gas.
We recommend that you
shake the gas can weekly
to insure proper blending of
the gas and oil.
ENGINE
S Remove spark plug and pour 1 teaspoon of
40:1, 2-cycle engine oil (air cooled) through
the spark plug opening. Slowly pull the
starter rope 8 to 10 times to distribute oil.
S Replace spark plug with new one of recom-
mended type and heat range.
S Clean air filter.
S Check entire unit for loose screws, nuts,
and bolts. Replace any damaged, broken,
or worn parts.
S At the beginning of the next season, use
only fresh fuel having the proper gasoline to
oil ratio.
OTHER
S Do not store gasoline from one season to
another.
S Replace your gasoline can if it starts to rust.
16
Page 17
TROUBLESHOOTING TABLE
WARNING: Always stop unit and disconnect spark plug before performing all of the
recommended remedies below except remedies that require operation of the unit.
TROUBLE CAUSE REMEDY
Engine will not
start.
Engine will
not idle
properly.
Engine will not
accelerate,
lacks power,
or dies under
a load.
Engine
smokes
excessively.
Engine runs
hot.
1. Engine flooded.
2. Fuel tank empty.
3. Spark plug not firing.
4. Fuel not reaching
carburetor.
5. Carburetor requires
adjustment.
1. Carburetor requires
adjustment.
2. Crankshaft seals worn.
3. Compression low.
1. Air filter dirty.
2. Spark plug fouled.
3. Carburetor requires
adjustment.
4. Carbon build-up on
muffler outlet screen.
5. Compression low.
1. Fuel mixture incorrect.
2. Air filter dirty.
3. Carburetor requires
adjustment.
1. Fuel mixture incorrect.
2. Spark plug incorrect.
3. Carburetor requires
adjustment.
4. Carbon build-up on
muffler outlet screen.
1. See “Starting a Flooded Engine” in
Operation Section.
2. Fill tank with correct fuel mixture.
3. Install new spark plug.
4. Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
5. Contact an authorized service dealer.
1. See “Carburetor Idle Speed Adjustment”
in Service and Adjustments Section.
2. Contact an authorized service dealer.
3. Contact an authorized service dealer.
1. Clean or replace air filter.
2. Clean or replace plug
and regap.
3. Contact an authorized service dealer.
4. Contact an authorized service dealer.
5. Contact an authorized service dealer.
1. Empty fuel tank and refill with
correct fuel mixture.
2. Clean or replace air filter.
3. Contact an authorized service dealer.
1. See “Fueling Engine” in Operation
section.
2. Replace with correct spark plug.
3. Contact an authorized service dealer.
4. Contact an authorized service dealer.
17
Page 18
LIMITED WARRANTY
McCulloch, a division of Husqvarna Consumer
Outdoor Products N.A., Inc., warrants to the
original consumer purchaser that each new
McCulloch brand gasoline tool or attachment is
free from defec ts in material and workmanship
and agrees to repair or replace under this warranty any defective gasoline product or attachment as follows from the original date of purchase.
2YEARS--Parts and Labor, when used for
household purposes.
90 DAYS -- Parts and Labor, when used for
commercial, professional, or income producing
purposes.
30 DAYS -- Parts and Labor, if used for rental
purposes.
This warranty is not transferable and does not
cover damage or liability caused by improper
handling, improper maintenance or alteration, or
the use of acces sories and/or attachments not
specifically recommended by McCulloch for
this tool. This warranty does not cover tune-- up,
spark plugs, filters, starter ropes, cutting line, or
rotating head parts that will wear and require replacement with reasonable use during the warranty period. This warranty does not cover pre- delivery setup or normal adjustments explained
in the instruction manual. This warranty does
not cover transportation costs.
In the event you have a claim under this warranty, you must return the product to an authorized
service dealer.
Should you have any unanswered questions
concerning this warranty, please contact:
McCulloch, a division of Husqvarna
Consumer Outdoor Products N.A., Inc.
9335 Harris Corners
Charlotte, NC 28269
1--800--554-- 6723
In Canada, contact:
McCulloch
850 Matheson Blvd. West
Mississauga, Ontario L5V 0B4
Giving the model number, serial number and
date of purchase of your product and the name
and address of the authorized dealer from
whom it was purchased.
THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO
STATE.
NO CLAIMS FOR CONSEQUENTIAL OR
OTHER DAMAGES WILL BE ALLOWED,
AND THERE ARE NO OTHER EXPRESS
WARRANTIES EXCEPT THOSE EXPRESSLY STIPULATED HEREIN.
SOME STA TES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPL I ED WARRANTY LASTS OR THE EXCLUSION OR
LIMI TATIO N S OF INCI DEN TA L OR CONS E QUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY
TO YOU.
This is a limited warranty within the meaning of
that term as defined in the Magnuson- -Moss Act
of 1975.
The policy of McCulloch is to continuously improve its products. Therefore, McCulloch reserves the right to change, modify, or discontinue models, designs, specifications, and
accessories of all products at any time without notice or obligation to any purchaser.
U.S. EPA / CALIFORNIA / ENVIRONMENT CANADA
EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS: The U.S. Environmental
Protection Agency, California Air Resources
Board, Environment Canada and McCulloch
are pleased to explain the emissions control
system warranty on your year 2010 and later
small off- -road engine. In California, all small off- road engines must be designed, built, and
equippe d to meet the State’s stringent anti-smog standards. McCulloch must warrant the
emission control system on your small off-road engine for the periods of time listed below provided there has been no abuse, neglect, or improper maintenance of your small
off--road engine. Your emission cont rol system
includes parts such as the carburetor, the ignition system and the fuel tank. Where a warrantable condition exists, McCulloch will repair
your small off-- road engine at no cost to you.
Expenses covered under warranty include
diagnosis, parts and labor.
MANUFACTURER’S WARRANTY C OVERAGE: If any emissions related part on your
engine (as listed under Emissions Control
Warranty Parts List) is defective or a defect in
the materials or workmanship of the engine
causes the failure of such an emission related
part, the part will be repaired or replaced by
McCulloch. OWNER’S WARRANTY RE -
SPONSIBILITIES: As the small off--road engine owner, you are responsible for the performance of the required maintenance listed
in your instruction manual. McCulloch recommends that you retain all receipts covering
maintenance on y our small off--road engine,
but McCulloch cannot deny warranty solely
for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. As the small off--road engine owner,
you should be aware that McCulloch may
deny you warranty coverage if your small off-road engine or a part of it has failed due to
18
Page 19
abuse, neglect, improper maintenance, unapproved modifications, or the use of parts
not made or approved by the original equipment manufacturer. Y ou are responsible for
presenting your small off- -road engine to an
McCulloch authorized repair center as soon as
a problem exists. Warranty repairs should be
completed in a reasonable amount of time, not
to excee d 30 days. If you have any questions
regarding your warranty rights and responsibilities, you shoul d contact your neare st authorized service center, call McCulloch at
1-- 800-- 554--6723, or send e-mail correspondence to
emission.com
MENT DATE: The warranty period begins on
the date the small off--road engine is purchased. LENGTH OF COVERAGE: This
warranty shall be for a period of two years
from the initial date of purchase, or until the
end of the product warranty (whichever is longer). WHAT IS COVERED: REPAIR OR RE-
PLACEMENT OF PARTS. Repair or replacement of any warranted part will be
performed at no charge to the owner at an approved McCulloch servicing center. If you
have any questions regarding your warranty
rights and responsibilities, you should contact
your nearest authorized service center, call
McCulloch at 1-- 800--554--6723, or send
e-mail correspondence to
@HCOP--emission.com
RIOD: Any warranted part which is not
scheduled for replacement as required maintenance, or which is scheduled only for regular inspection to the effect of “repair or replace
as necessary” shall be warranted for 2 years.
Any warranted part which is scheduled for replacement as required maintenance shall be
warranted for the period of time up to the first
scheduled replacement point for that part.
DIAGNOSIS: The owner shall not be
The information on the product label indicates which standard your engine is certified.
Example: (Year) EPA and/or CALIFORNIA.
emission.warranty@HCOP--
. WARRANTY COMMENCE-
emission.warranty
. WARRANTY PE-
charged for diagnostic labor which leads to
the determination that a warranted part is defective if the diagnostic work is performed at
an approved McCulloch servicing center.
CONSEQUENTIAL DAMAGES: McCulloch
may be liable for damages to other engine
components caused by the failure of a warranted part still under warranty. WHAT IS
NOT COVERED: All failures caused by
abuse, neglect, or improper maintenance are
not covered. ADD--ONORMODIFIED
PARTS: The use of add--on or modified parts
can be grounds for disallowing a warranty
claim. McCulloch is not liable to cover failures of
warranted parts caused by the use of add-- on or
modified parts. HOW TO FILE A CLAIM: If you
have any questions regarding your warranty
rights and responsibilities, you should contact
your nearest authorized service center, call
McCullochat 1--800--554--6723, or send e-mail
correspondence to
@HCOP--emission.com
WARRAN TY SERVICE: Warranty services or
repairs shall be provided at all McCulloch ser vice centers. Call: 1-- 800-- 554- -6723 or send
e-mail correspondence to emission.warrant
@HCOP--emission.com
REPLACEMENT AND REPAIR OF EMISSION RELATED PARTS: Any McCulloch ap-
proved replacement part used in the performance of any warranty maintenance or repair
on emission related parts will be provided
without charge to the owner if the part is under
warranty. EMISSION CONTROL WARRAN-
TY PARTS LIST: Carburetor, air filter (covered
up to maintenance schedule), ignition system:
spark plug (covered up to maintenance schedule), ignition module, muffler including catalyst (if
equipped), fuel tank. MAINTENANCE
STATEMENT: The owner is responsible for
the performance of all required maintenance
as defined in the instruction manual.
emission.warranty
. WH ERE TO GET
. MAINTENANCE,
y
This engine is certified to be emissions compliant for the following use:
Moderate (50 hours)
Intermediate (125 hours)
Extended (300 hours)
19
Loading...
