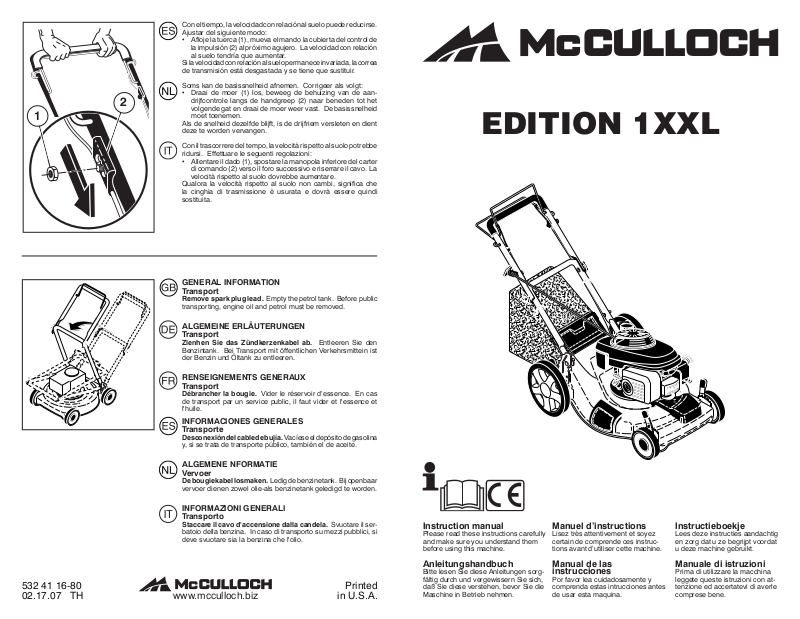

McCulloch 96141014601 User Manual

Con el tiempo, la velocidad con relación al suelo puede reducirse. Ajustar del siguiente modo:

• Afloje la tuerca (1), mueva el mando la cubierta del control de la impulsión (2) al próximo agujero. La velocidad con relación al suelo tendría que aumentar.

Si la velocidad con relación al suelo permanece invariada, la correa de transmisión está desgastada y se tiene que sustituir.

Soms kan de basissnelheid afnemen. Corrigeer als volgt:

• Draai de moer (1) los, beweeg de behuizing van de aan-

drijfcontrole langs de handgreep (2) naar beneden tot het volgende gat en draai de moer weer vast. De basissnelheid moet toenemen.

Als de snelheid dezelfde blijft, is de drijfriem versleten en dient deze te worden vervangen.

Con il trascorrere del tempo, la velocità rispetto al suolo potrebbe ridursi. Effettuare le seguenti regolazioni:

• Allentare il dado (1), spostare la manopola inferiore del carter di comando (2) verso il foro successivo e riserrare il cavo. La velocità rispetto al suolo dovrebbe aumentare.

Qualora la velocità rispetto al suolo non cambi, significa che la cinghia di trasmissione è usurata e dovrà essere quindi sostituita.

EDITION 1XXL

GENERAL INFORMATION Transport

Remove spark plug lead. Empty the petrol tank. Before public

trans port ing, engine oil and petrol must be removed.

ALGEMEINE ERLÄUTERUNGEN Transport

Zienhen Sie das Zündkerzenkabel ab. Entleeren Sie den

Benzintank. Bei Transport mit öffentlichen Verkehrsmittein ist der Benzin und Öltank zu entleeren.

RENSEIGNEMENTS GENERAUX Transport

Débrancher la bougie. Vider le réservoir d'essence. En cas

de transport par un service public, il faut vider et l'essence et l'huile.

INFORMACIONES GENERALES Transporte

Desconexión del cable de bujía. Vacíese el depósito de gasolina

y, si se trata de transporte público, también el de aceite.

ALGEMENE NFORMATIE Vervoer

De bougiekabel losmaken. Ledig de benzinetank. Bij openbaar

vervoer dienen zowel olie-als benzinetank geledigd te worden.

INFORMAZIONI GENERALI Transporto

Staccare il cavo d'accensione dalla candela. Svuotare il ser-

batoio della benzina. In caso di transporto su mezzi pubblici, si deve svuotare sia la benzina che l'olio.

532 41 16-80 Printed

02.17.07 TH in U.S.A.

www.mcculloch.biz

Instruction manual

Please read these in struc tions care ful ly and make sure you un der stand them before using this ma chine.

Anleitungshandbuch

Bitte lesen Sie diese Anleitungen sorgfältig durch und vergewissern Sie sich, daß Sie diese verstehen, bevor Sie die Maschine in Betrieb nehmen.

Manuel d’instructions

Lisez très attentivement et soyez certain de comprende ces in struc tions avant d’utiliser cette machine.

Manual de las instrucciones

Por favor lea cuidadosamente y comprenda estas intrucciones antes de usar esta maquina.

Instructieboekje

Lees deze instructies aandachtig en zorg dat u ze begrijpt voordat u deze machine gebruikt.

Manuale di istruzioni

Prima di utilizzare la macchina leggete queste istruzioni con attenzione ed accertatevi di averle comprese bene.

CONTENTS

SAFETY RULES ........................ PAGE 3-8

TECHNICAL DATA .................................. 9

OVERVIEW ............................................ 10

ASSEMBLY ....................................... 10-12

ADJUSTMENTS .................................... 13

START AND STOP ........................... 14-16

USE ................................................... 16-17

MAINTENANCE ................................ 17-20

GENERAL INFORMATION .................... 20

INHALTSVERZEICHNIS

SICHERHEITSREGELN ............SEITE 3-8

TECHNISCHE DATEN ............................. 9

ÜBERSICHT .......................................... 10

MONTIEREN ..................................... 10-12

EINSTELLUNG ...................................... 13

START UND ABSTELLEN ............... 14-16

GEBRAUCH DES RASENMÄHERS .. 16-17

WARTUNG ........................................ 17-20

ALLGEMEINE ERLÄUTERUNGEN ...... 20

TABLE DES MATIERES

MESURES DE SÉCURITÉ ........ PAGE 3-8

DONNÉES TECHNIQUES ....................... 9

APERÇU ................................................ 10

MONTAGE ........................................ 10-12

RÉGLAGE.............................................. 13

MARCHE ET ARRÊT ........................ 14-16

UTILISATION DE LA TONDEUSE ... 16-17

ENTRETIEN ...................................... 17-20

RENSEIGNEMENTS GÉNÉRAUX ........ 20

INDICE

REGLAS DE SEGURIDAD ..........SIVU 3-8

ESPECIFICACIONES TÉCNICAS ........... 9

SUMARIO .............................................. 10

MONTAJE ......................................... 10-12

REGULACIÓN ....................................... 13

ARRANQUE Y PARADA .................. 14-16

APLICACIÓN DEL CORTACÉSPED . 16-17

MANTENIMIENTO ............................ 17-20

INFORMACIONES GENERALES ......... 20

INHOUD

VEILIGHEIDSMAATREGELEN ....PAG.3-8

TECHNISCHE GEGEVENS ..................... 9

OVERZICHT ........................................... 10

MONTEREN ...................................... 10-12

INSTELLEN ........................................... 13

STARTEN EN STOPPEN .................14-16

GEBRUIK VAN DE MAAIER ............ 16-17

ONDERHOUD ................................... 17-20

ALGEMENE INLICHTINGEN ................ 20

INDICE DEL CONTENUTO

NORME DE SICUREZZA ...... PAGINA 3-8

CARATTERISTICHE TECNICHE ............ 9

SOMMARIO ........................................... 10

MONTAGGIO .................................... 10-12

REGOLAZIONE ..................................... 13

AVVIAMENTO ED ARRESTO .......... 14-16

USO DELLA FALCIATRICE ............. 16-17

MANUTENZIONE ............................. 17-20

INFORMAZIONI GENERICHE ............... 20

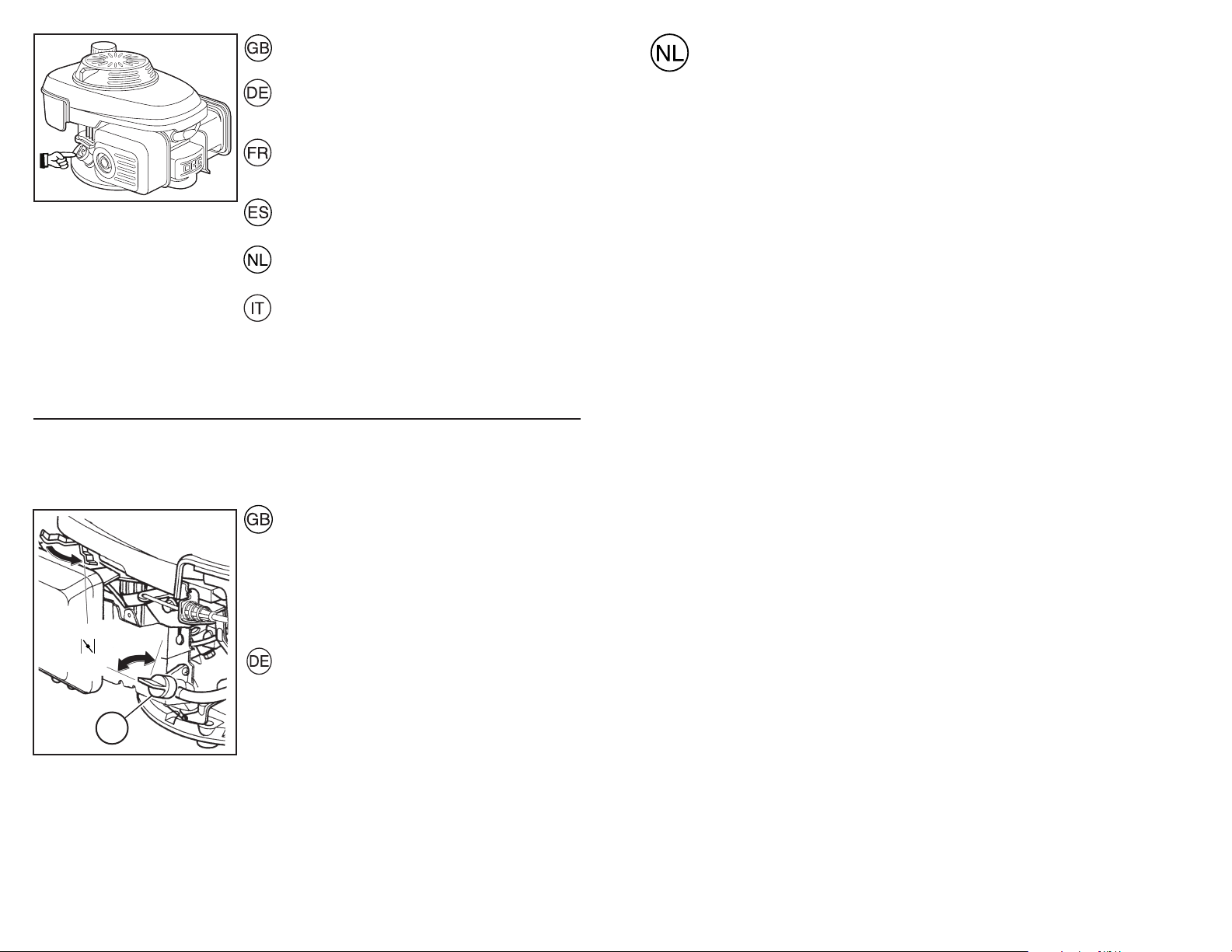

(1) OIL DRAIN PLUG

(1) ÖLABLASSSCHRAUBE

(1) BOUCHON DE VIDANGE D'HUILE

(1) TAPON DE DRENAJE PARA ACEITE

(1) AFTAPPLUG OLIE

(1) TAPPO DI SCARICO DELL'OLIO

Change oil after each season or after 25 hours running time. Run the engine warm, remove the spark plug lead. Remove the drain plug from bottom of engine and drain oil. Fill with new oil. SAE 30 can be used.

Ölwechsel einmal pro Jahr oder nach 25 Betriebsstunden. Den Motor warm laufen lassen, abstellen und das Zündkerzenkabel abziehen. Die Ölablaßschraube an der Unterseite des Motors entfernen und das Öl ablassen. Danach neues Öl auffüllen SAE 30.

Changez l'huile à chaque saison ou après 25 heures de marche. Allumez le moteur, arrêtez-le et enlevez le câble d'allumage. Enlevez le bouchon de vidange sous le moteur et vider l'huile. Puis remplissez avec de l'huile neuve (les huiles SAE 30 sont utilisables).

Cambiar el aceite cada temporada, o después de 25 horas de funcionamiento. Dejar funcionar el motor hasta que se caliente, pararlo y quitar el cable de encendido. Quitar el tapón de drenaje del lado inferior del motor y dejar salir el aceite. Poner después aceite nuevo. Pueden utilizarse los aceites SAE 30.

Ververs de olie elk seizoen, of na 25 u rijden. Laat de motor warmlopen, schakel de motor uit en demonteer de ontstekingskabel. Verwijder de aftapplug op de onderkant van de motor en tap de olie af. Vul daarna met verse olie: SAE 30.

Sostituire l'olio al termine di ogni stagione, oppure dopo 25 ore di esercizio. Scaldare il motore, spengerlo e staccare il cavo della candela. Togliere il tappo di scarico sotto il motore e far uscire tutto l'olio. Rifornire con olio nuovo SAE 30.

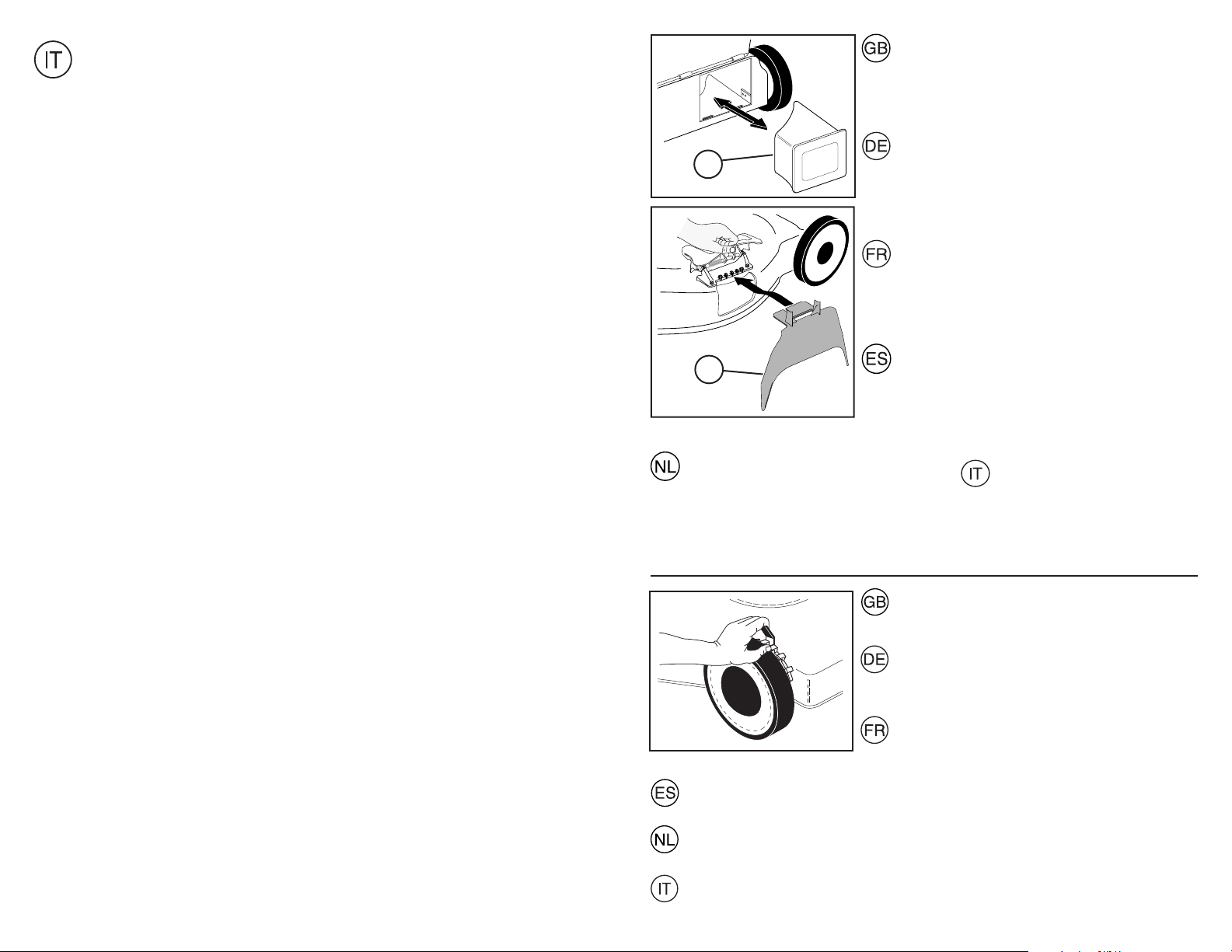

Cleaning of air filter. Remove the lid and remove the filter cartridge.

Reinigung des Luftfilters. Deckel abnehmen und Filtereinsatz herausnehmen.

Nettoyage du filtre à air. Enlevez le capot et retirez la cartouche filtrante.

Limpieza del filtro de aire. Quitar la tapa y extraer el elemento filtrante.

Het schoonmaken van het luchfilter. Verwijder de deksel en haal het filter eruit.

Pulizia del filtro. Togliere il coperchio ed estrarre il filtro.

Over time, ground speed may decrease. Adjust as follows:

• Loosen nut (1) and move drive control housing (2) down handle to the next hole. Ground speed should increase.

If ground speed remains the same, drive belt is worn and should be replaced.

Mit der Zeit kann die Grundgeschwindigkeit abnehmen, regulieren Sie diese wie folgt:

• Lockern Sie die Mutter (1) und bewegen Sie das Gehäuse der Gangschaltung (2) am Griff nach unten zum nächsten Loch. Die Grundgeschwindigkeit sollte so zunehmen.

Verändert dieses Verfahren die Geschwindigkeit nicht, ist der Transmissionsriemen defekt und muss ersetzt werden.

Après un certain temps, la vitesse de roulement peut diminuer. Veuillez l’ajuster de cette façon:

• Desserrez l’écrou (1), déplacez la poignée inférieure (2) du carter de la commande de l’entraînement vers le trou suivant et resserrez l’écrou. La vitesse de roulement devrait augmenter.

Si la vitesse de roulement demeure inchangée, la courroie du système d’entraînement est usée et doit être remplacée.

Regularly

Stop the engine and unscrew the dipstick. The level should be between FULL and ADD. Avoid filling with too much oil.

Regelmässig

Stellen Sie den Motor ab und schrauben Sie den Ölpeilstab heraus. De Ölstand soll swischen FULL and ADD liegen. Vermeiden Sie zu viel Öl einzufüllen.

Régulièrement

Arrêter le moteur et vérifier la jauge à julie. Le niveau doit être situé entre FULL (plein) et ADD (ajoutez). Evitez de mettre trop d'huile.

Periódicamente

Parar el motor para controlar el nivel de aceite del motor. Debe estar entre FULL y ADD. Evitar relleno excesivo de aceite.

Regelmatig

Kontroleer het oliepeil bij voorkeur bij een koude motor. Het niveau moet tussen FULL en ADD staan. Nooit beneden de ADD mar ook nooit boven FULL. Niet teveel olie bijvullen.

Periodicamente

Arrestare il motore e controllare l'asta dell'olio. Ll livello deve trovarsi fra FULL e ADD. Evitare di versare troppo olio.

Annually (After end of season)

Grinding and balancing the cutter blade. Remove the spark plug lead. Fitting and removing the blade require the use of

protective gloves. Unscrew the cutter blade and deliver it to a service workshop for grinding and balancing. Tighten the screw properly when re as sem bling.

Jährlich (nach Beendigung der Saison)

Schleifen und Auswuchten des Messers. (Achtung: Vor Demontage des Messers Zündkabel von der Zündkerze entfernen). Die Klinge nur mit Schutzhandschuhen einsetzen

und entfernen. Schrauben Sie das Messer ab und bringen dieses in eine Service-Werkstatt. Bei der Montage die Schrauben richtig anziehen.

Annuellement (à fin de la saison)

Aiguisage et équilibrage de la lame. Débrancher la bougie. Mettre des gants de protection avant de mettre en place ou d’enlever la lame. Démontez-la et donnez-la à aiguiser à un professionnel. Bien resserer la vis après remontage.

Revisión anual (Al terminar la estación)

Afilado y equilibrado de la cuchilla. Se desconecta el cable del encendido de la bujía. El ajuste y la sustitución de la hoja

requiere el uso de guantes protectores. Se desmonta leugo la cuchilla que es entrega a un taller mecánico para su afilado y equilibrado. Apriétese bien la tuerca al volver a montar.

Jarlijks (na einde van het seizoen)

Slijpen en balanceren van het maaimes. De bougiekabel losmaken. Bij het afstellen en verwijderen van het mes moeten

altijd beschermende handschoenen worden gedragen. Schroef het mes er af en breng het naar de werkplaats voor slijpen en balanceren. Bij het weer aanbrengen de schroef goed vastdraaien.

Controllo annuale (All fine della stagione)

Rettifica e bilanciamento della lama. Rimuovere il cavo di accensione. Inserire e rimuovere la lama solamente indossando

guanti di protezione. Smontare la lama e consegnarla ad una officina di servizio per la rettifica ed il bilanciamento. Stringere bene le viti nel rimontaggio.

Safe Operation Prac tic es for Pe des tri an-Controlled Rotary Lawnmowers

IMPORTANT: This cutting machine is ca pa ble of am pu tat ing hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury or death.

I. Training

• Read the instructions carefully. Be fa mil iar with the con trols and the proper use of the equipment.

• Never allow children or people un fa mil iar with the ins truc tions to use the lawnmower. Local regulations may restrict the age of the operator.

• Never mow while people, especially children, or pets are nearby.

• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

II. Preparation

• While mowing, always wear sub stan tial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals.

• Thoroughly inspect the area where the equipment is to be used and remove all objects which may be thrown by the machine.

• WARNING - Petrol is highly flammable.

- Store fuel in containers specifically de signed for this pur pose.

- Refuel outdoors only and do not smoke while re fu el ing.

- Add fuel before starting the engine. Never remove the cap of the fuel tank or add petrol while the engine is running or when the en gine is hot.

- If petrol is spilled, do not attempt to start the engine but move the ma chine away from the area of spillage and avoid cre at ing any source of ig ni tion until petrol va pors have dis si pat ed.

- Replace all fuel tanks and container caps se cure ly.

• Replace faulty silencers.

• Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or dam aged. Replace worn or damaged blades and bolts in sets to pre serve balance.

• On multi-bladed machines, take care as rotating one blade can cause other blades to rotate.

III. Operation

• Do not operate the engine in a confined space where dan ger ous carbon mon ox ide fumes can collect.

• Mow only in daylight or in good artificial light.

• Avoid operating the equipment in wet grass, where feasible.

• Always be sure of your footing on slopes.

• Walk, never run.

• For wheeled rotary machines, mow across the face of slopes, never up and down.

• Exercise extreme caution when chang ing direction on slopes.

• Do not mow excessively steep slopes.

• Use extreme caution when reversing or pulling the lawnmower towards you.

• Stop the blade if the lawnmower has to be tilted for trans por ta tion when cross ing surfaces other than grass, and when transporting the lawnmower to and from the area to be mowed.

• Never operate the lawnmower with defective guards, or without safety de vic es, for example deflectors and/or grass catchers, in place.

• Do not change the engine governor settings or overspeed the engine. Op er at ing the engine at excessive speed may increase the hazard of personal injury.

• Disengage all blade and drive clutches before starting the engine.

• Start the engine or switch on the motor carefully according to instructions and with feet well away from the blade.

• Do not tilt the lawnmower when starting the engine or switch ing on the motor, except if the lawnmower has to be tilted for starting. In this case, do not tilt more than absolutely nec es sary and lift only the part which is away from the op er a tor.

• Do not start the engine when standing in front of the discharge chute.

• Do not put hands or feet near or under rotating parts. Keep clear of the dis charge opening at all times.

• Never pick up or carry lawnmower while the engine is running.

• Stop the engine and disconnect the spark plug wire:

- before cleaning blockages or un clog ging chute;

- before checking, cleaning or work ing on the lawnmower;

- after striking a foreign object. Inspect the lawnmower for damage and make repairs before re start ing and op er at ing the lawnmower;

- if the lawnmower starts to vibrate abnormally (check im me di ate ly).

• Stop the engine:

- whenever you leave the lawnmower;

- before refuelling.

• Reduce the throttle setting during en gine shut down and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of mowing.

• Go slow when using a trailing seat.

IV. Maintenance and Storage

• Keep all nuts, bolts and screws tight to be sure the equip ment is in safe work ing condition.

• Never store the equipment with petrol in the tank inside a building where fumes may reach an open flame or spark.

• Allow the engine to cool before storing in any enclosure.

• To reduce the fire hazard, keep the engine, silencer, battery compartment and petrol storage area free of grass, leaves, or excessive grease.

• Check the grass catcher frequently for wear or de te ri o ra tion.

• Replace worn or damaged parts for safety.

• If the fuel tank has to be drained, this should be done outdoors.

+ 7 hidden pages
