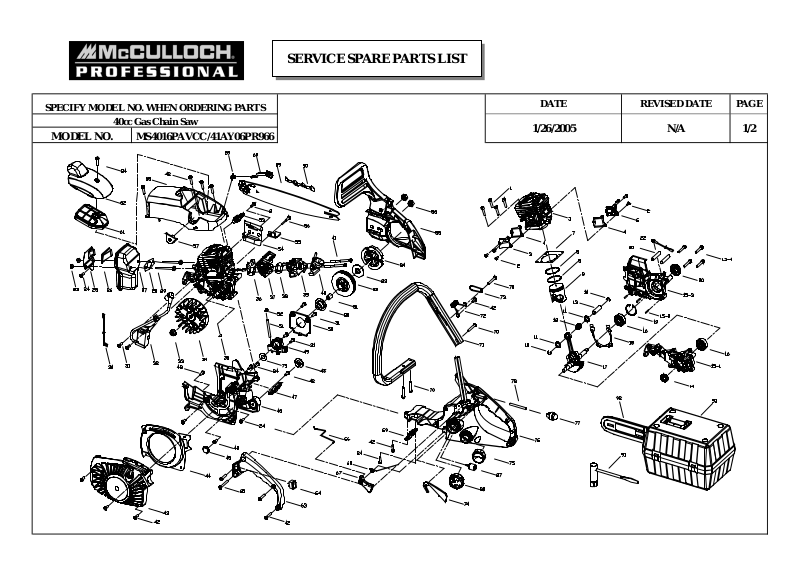

SERVICE SPARE PARTS LIST
SPECIFY MODEL NO. WHEN ORDERING PARTS
40cc Gas Chain Saw
MODEL NO. MS4016PAVCC/41AY06PR966
DATE
1/26/2005
REVISED DATE PAGE
N/A 1/2
SERVICE SPARE PARTS LIST
SPECIFY MODEL NO. WHEN ORDERING PARTS
40cc Gas Chain Saw
MODEL NO.
STK CODE
No.
1 9SGEB-05-20 SCREW 4 30 9010-310802 WIRE 1 63 9068-310803 HANDLE, LB 1
2 9SKKB-04-10 SCREW 7 31 9SKKB-04-14 SCREW 6 64 9022-310701 SWITCH 1
3 9067-310802 CAP 1 32 9288-310801 IGNITION ASS'Y 1 65 9SKKBB05-35 SCREW 1
4 9014-310803 GASKET 2 33 9NHC-08 NUT 1 66 9188-310802 PUSH ROD 1
5 9292-310801F CYLINDER 1 34 9169-310801 FLYWHEEL ASS'Y 1 67 9028-310802 TRIGGER, THROTTLE 1
6 9067-310801 CAP 1 35 6221-830301 WOODRUFF KEY 1 68 9024-310801 SPRING 1
7 9014-310801 GASKET 1 36 9014-310805 SPACER 1 69 9024-310803 SPRING 1
8 9189-310801 PISTON RING 2 37 9228-310806 ISOLATER ASS'Y, CARBURETER 1 70 9SKKBB05-27 SCREW 4
9 9290-310801 PISTON 1 38 9014-310006 SPACER 1 71 9068-310801 HANDLE, FRONT 1
10 9CA-10.3 RING 2 39 9287-310801 CARBURETER 1 72 9024-310802 SPRING 1
11 9131-310801 WASHER 2 40 9072-310803 AIR GUIDE 1 73 9043-310802 CAP, SPRING 1
12 9NR-K101411 ROLLER 1 41 9SKKB-04-70 SCREW 2 74 9028-310801 TRIGGER, RELEASE 1
13 9PC-10-35 PIN, PISTON 1 42 9SKKBB05-18 SCREW 14 75 9228-310809 OIL CAP ASS'Y 1
14 9157-332101 SEAL 1 43 9228-310815 STARTER HOUSING ASS'Y 1 76 9228-310816 HANDLE ASS'Y (R) 1
15 9228-310819 CLY CASE ASS'Y 1 44 9211-310801 CAP, AIRWAY 1 77 9142-310002 PRIMER 1
15-1 9072-310802F CLY CASE, LEFT 1 45 9105-310802 CAP, RUBBER 1 78 9129-310803 PIPE 1
15-2 9PA-03-08S PIN 3 46 9228-310810 BRACKET ASS'Y 1 79 9WFB-10-18 SPACER 1
15-3 9072-310801F CLY CASE, RIGHT 1 47 9012-310801 FIXED, PUSH ROD 1 80 9073-310803 WORM 1
15-4 9SKKB-05-27 SCREW 4 48 9105-310801 CAP, RUBBER 1 81 9NR-K101313 ROLLER 1
16 9DB-620101 BEARING 2 49 9228-310805 PUMP ASS'Y 1 82 9200-310801 DRUM ASS'Y 1
17 9228-310801 CRANK/ROD ASS'Y 1 50 9072-310806 CAP, ANTI-DUST 1 83 9014-310807 WASHER 1
18 9014-310802 GASKET 1 51 9129-310804 PIPE 1 84 9228-310813 CLUTCH ASS'Y 1
19 9CB-32 RING 1 52 9154-310802 CONNECTOR 1 85 9228-310814 BRAKE KIT ASS'Y 1
20 9157-310801 SEAL 1 53 9295-310801 SPARK PLUG 1 86 9NAZ-5/16-18 NUT 2
21 9191-310802 SCREW 2 54 9014-310811 SPACER 1 87 9182-310101 FUEL FILTER 1
22 9010-310801 WIRE 1 55 9263-310801 CHAIN CATCH 1 88 9228-310820 FUEL CAP ASS'Y 1
23 9NCC-05U NUT 2 56 9SKKB-05-32 SCREW 1 89 9040-310808F BAR 1
24 9SKKB-05-14 SCREW 7 57 9105-310803 CAP, ADJUST 1 90 6220-210813 CHAIN 1
25 9014-310810 COVER, MESH 1 58 9067-310805 SHROUD 1 91 9042-310201 SPANNER 1
26 9016-310801 SPARK ARRESTER 1 59 9072-310804 HOLDER, CHOKE LEVER 1 92 9101-310805 SCABBARD 1
27 9228-310804 MUFFLER ASS'Y 1 60 9114-310801 LEVER, CHOKE 1 93 9120-310801 CARRY CASE 1
28 9014-310804 BAFFLE 1 61 9228-310808 AIR FILTER ASS.Y 1
29 9191-310803 SCREW 2 62 9067-310806 TOP COVER 1
JFT Parts No. Description Q No.
MS4016PAVCC/41AY06PR966
STK CODE
JFT Parts No. Description Q No.
DATE REVISED DATE PAGE
1/26/2005 N/A 2/2
STK CODE
JFT Parts No. Description Q
