Page 1
REPAIR PARTS MANUAL
MODEL NO. 14592RB (BA14592RBD)
Lawn Tractor
532 18 94-01 01.06.04 RD
PRINTED IN U.S.A.
Page 2
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,
it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “Tractor”
• Model Number - “
• Part Number
• Part Description
14592RB (BA14592RBD)
”
TABLE OF CONTENTS
SCHEMATIC ................................................................................................................ 3
ELECTRICAL............................................................................................................4-5
CHASSIS...................................................................................................................6-7
DRIVE........................................................................................................................8-9
STEERING ............................................................................................................10-11

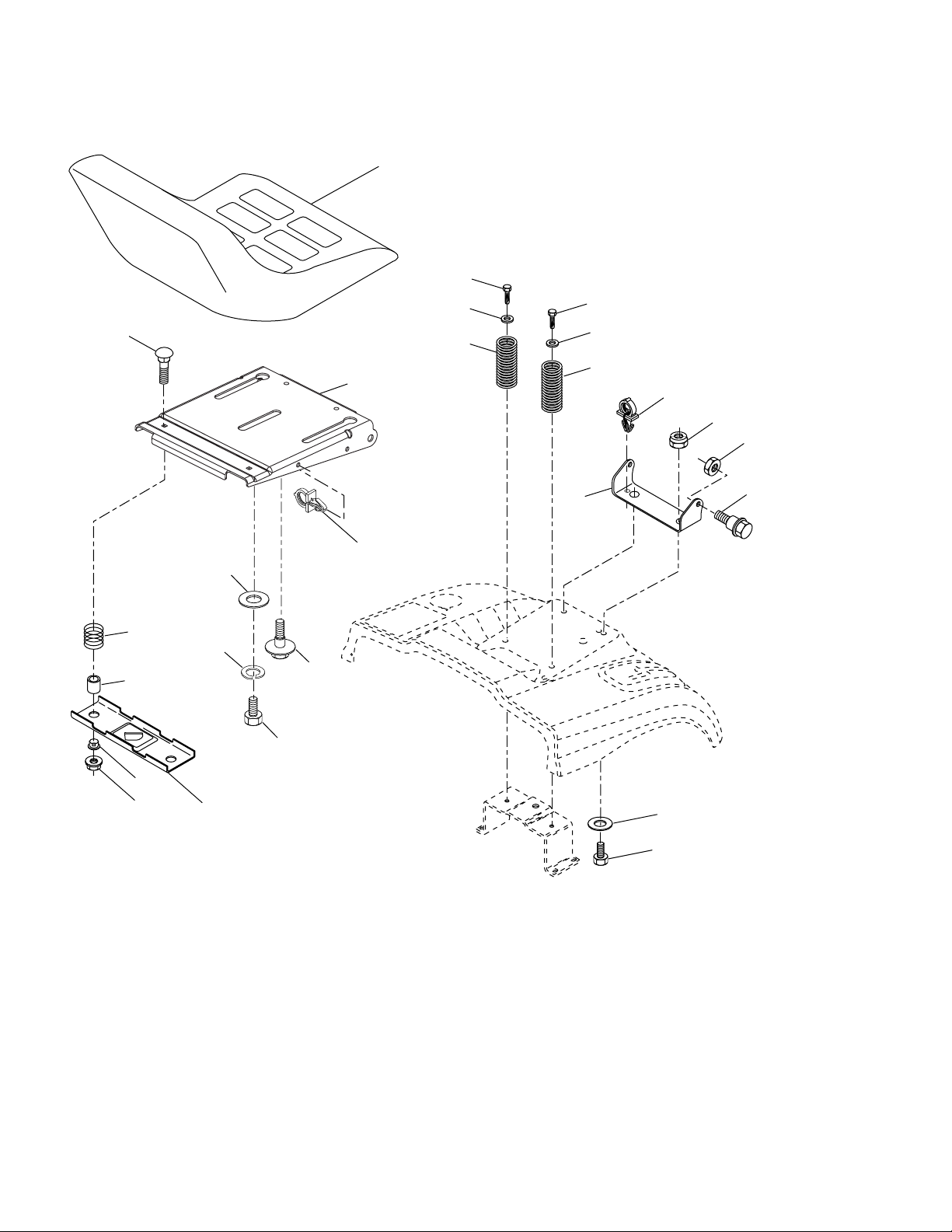

SEAT ..........................................................................................................................12
DECALS.....................................................................................................................13
ENGINE.................................................................................................................14-15
MOWER LIFT........................................................................................................16-17
MOWER DECK .....................................................................................................18-19
BAGGER ...............................................................................................................20-21
2
Page 3
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
SCHEMATIC
12VDC
BLACK
RED
B
G
L
AMMETER
(OPTIONAL)
A
WHITE
S
M
A1
A2
ORANGE
GREEN
RED
FUSE
BLACK
CLUTCH / BRAKE
(PEDAL UP)
GREEN
SEAT SWITCH
(NOT OCCUPIED)
BATTERY
BLACK
RED
ATT'MENT CLUTCH
(CLUTCH OFF)
STARTER
SOLENOID
FBI BUZZER
OPERATOR PRESENCE
RELAY
85 86
87
30
87A
85 86
30
87
87A
BAGGER RELAY
85 86
BLACK
STARTER
M
BLACK
FBI
SWITCH
BAGGER
INTERLOCK
(NO BAG,
CHUTE OR
PLUG)
BLACK
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B + S + A1START
WIRING INSULATED CLIPS
NOTE:
IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR
WIRING.
“MAKE”
NONE
A2+L
NONE
NONE
BLUE RED
CARBURETOR SOLENOID
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
PTO SWITCH
OFF
CIRCUITPOSITION
C + G, B + H
C + F, B + E, A + DON
BLACK
BLACK
FUEL
LINE
(IF SO EQUIPPED)
BROWN
87
30
87A
MOWER ENGAGED
RELAY
IGNITION
UNIT
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
RED
DIODE
LIGHTING SYSTEM
OUTPUT
5 AMP AC @ 3600 RPM
HEADLIGHTS
YOUR TRACTOR IS EQUIPPED
WITH A SPECIAL ALTERNATOR
SYSTEM. THE LIGHTS ARE NOT
CONNECTED TO THE BATTERY,
BUT HAVE THEIR OWN
ELECTRICAL SOURCE.
BECAUSE OF THIS, THE BRIGHTNESS OF THE LIGHTS WILL
CHANGE WITH ENGINE SPEED.
AT IDLE THE LIGHTS WILL DIM.
AS THE ENGINE IS SPEEDED UP,
THE LIGHTS WILL BECOME
THEIR BRIGHTEST.
NOTE
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
BLACK
87
87A
8586
30
RELAY
FC
G
E
H
A
D
B
3
Page 4
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
ELECTRICAL
22
21
24
33
30
27
43
27
25
41
27
27
40
26
42
81
16
48
27
52
29
66
28
58
2
1
59
16
4
Page 5
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4
16 532 17 61-38 Switch Interlock Push-In
21 532 18 37-59 Harness Asm. Light
22 532 00 41-52 Bulb
24 532 12 47-80 Cable Starter 6 Ga. 11" Red
25 532 16 59-87 Cable Battery Crd 56" Red
26 532 17 51-58 Fuse 20 Amp
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 12 77-25 Cable Ground 6 Ga. 18" Black
29 532 12 13-05 Switch Plunger Normal Op Gray
30 532 17 55-66 Switch Ignition
33 532 14 04-01 Key Ign
40 532 18 80-36 Harness Ign
41 871 11 04-08 Bolt Flk Fin Hex 1/4-20 unc x 1/2
42 532 13 15-63 Cover Terminal Red
43 532 17 88-61 Solenoid
48 532 14 08-44 Adapter Ammeter Rectangular
52 532 14 19-40 Protection Wire Loop
58 532 16 94-19 Buzzer Crd
59 532 18 03-79 Switch FBI CRD
66 817 49 06-08 Screw Thdrol 3/8-16 x 1/2 Ty-Tt
81 532 10 97-48 Relay Asm
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
5
Page 6
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
CHASSIS AND ENCLOSURES
29
212
17
28
256
266
187
189
186
188
187
188
171
189
26
190
165
25
209
171
24
18
89
30
24
26
25
209
5
5
39
166
173
172
185
198
179
170
175
209
265
164
209
207
31
184
208
26
33
3
11
10
209
209
162
2
209
209
35
24
163
26
209
15
209
9
209
3
209
8
8
26
24
6
16
145
37
209
35
205
38
37
34
205
38
1
13
26
chassis_Elite Value_CRD_4
208
69
6
Page 7
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532 17 46-20 Chassis
2 532 18 03-84 Drawbar
3 817 06 06-12 Screw 3/8-16 x .75
5 532 15 52-72 Bumper Hood/Dash
6 532 18 44-19 Saddle
8 532 12 64-71 Clip Insulator 13/32 Mtg. Hole
9 532 18 54-80 Dash
10 872 14 06-08 Bolt, Carriage 3/8-16 x 3/4
11 532 17 49-96 Panel, Dash, L.H.
13 532 18 69-52 Panel, Asm. Dash R.H.
15 874 18 05-12 Screw, Machine, Truss Head
5/16-18 unc x 3/4
16 873 51 05-00 Nut
17 532 18 65-80 Hood Assembly
18 532 12 69-38 Bumper Hood
24 874 78 06-16 Bolt
25 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
26 873 80 06-00 Nut
28 532 18 35-52 Grille Lens Asm (Includes Key
Nos. 29 and 212)
29 532 18 58-46 Lens Grille
30 532 18 25-06 Fender
31 532 16 51-56 Bracket, Fender Support
33 532 18 25-07 Footrest, L.H.
34 532 18 25-08 Footrest, R.H.
35 872 11 06-06 Bolt
37 817 49 05-08 Screw Thdrol 5/16-18 x 1/2 TYT
38 532 18 17-48 Bracket Asm Pivot Mower Rear
39 532 17 47-14 Bracket Pivot Laser/Elite LT
69 532 14 24-32 Screw Hex 1/4-1/2
KEY PART
NO. NO. DESCRIPTION
89 532 18 13-88 Console
145 532 15 65-24 Rod Pivot Chassis/Hood
162 532 18 03-82 Bracket Exten Chassis Lh CRD
163 532 18 03-83 Bracket Exten Chassis Rh CRD
164 532 16 56-05 Support Battery CRD
165 532 18 13-56 Cover Battery CRD Lt
166 532 17 18-75 Screw HWHD Hi-Lo #13-16 x 3/4
170 532 17 88-62 Backplate CRD
171 872 14 06-20 Bolt Rdhd Sqnk 3/8-16 x 2-1/2 Gr. 5
172 819 13 20-16 Washer 13/32 x 1-1/4 x 16 Ga.
173 873 51 06-00 Nut, Keps Hex 3/8-16 unc
175 532 18 82-03 Trap Door CRD
179 532 18 03-76 Rod Pivot FBI CRD
184 532 17 46-62 Bracket Actuator Bagger CRD
185 532 18 11-01 Knob Rod
186 532 16 07-93 Latch Asm Multch Bagger
187 532 12 50-04 Nut Weld .327/.304 #10-24
188 819 06 12-16 Washer #10
189 810 07 10-00 Washer Lock #10
190 871 08 10-10 Screw Pan Hd Phillips 10-24 x 5/8
198 532 16 89-37 Nut Push
205 817 49 06-08 Screw 3/8-16 x 1/2
207 817 67 05-08 Screw 5/16-18 x 1/2
208 817 67 06-08 Screw Thdrol 3/8-16 x 1/2
209 817 00 06-12 Screw Hex Wsh Thdrol 3/8-16 x 3/4
212 532 18 35-50 Insert Lens Refl ective
256 532 18 13-61 Cover Fender Rack CRD
265 532 18 57-04 Seal RH Side Bagger
266 532 18 57-03 Seal LH Side Bagger
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
7
Page 8
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
DRIVE
2
263
77
263
267
265
26
51
120
35
263
275
264
171
266
261
181
182
183
50
150
48
151
51
53
180
183
183
183
57
183
96
84
13
14
112
11
30
16
172
167
80
96
255
10
8
4
3
79
30
35
36
77
21
38
214
207
47
51
179
178
253
165
51
263
158
255
254
162
83
156
5
18
6
258
22
159
161
112
14
163
171
82
18
5
6
36
35
168
166
62
184
179
180
26
40
38
56
177
42
35
36
28
29
203
42
39
34
26
215
268
66
9
65
37
258
27
43
187
50
27
49
47
36
26
27
15
1
75
74
78
76
96
24
19
25
26
55
drive-fender_CRD_Elite_Basic_2
8
Page 9
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - Transaxle Peerless 206-546
Order parts from transaxle manu-
facturer
2 532 14 66-82 Spring Brake Return
3 532 16 59-99 Pulley Transaxle
4 812 00 00-28 Ring Retainer #5100-62
5 532 12 15-20 Strap torque 30 degrees
6 817 06 05-12 Screw 5/16-18 x 3/4
8 532 16 56-19 Rod Shift Fender Adjust Lt
9 532 18 03-54 Clutch Asm Noram
10 876 02 04-16 Pin, Cotter 1/8 x 1
11 532 10 57-01 Washer Plate Shf .3888 sq hole
13 874 55 04-12 Bolt 1/4-28 unf Gr. 8 w/patch
14 810 04 04-00 Washer, Lock Hvy Helical
15 874 49 05-40 Bolt Hex FGHD 5/16-18 x Gr. 5
16 873 80 05-00 Nut, Lock Hex w/Ins 5/16-18 unc
18 874 78 06-16 Bolt Hex 3/8-16 unc x 1 Gr. 5
19 873 80 06-00 Nut, Lock Hex w/Wsh 3/8-16 unc
21 532 10 69-33 Knob Round 1/2-13 unc Blk
22 532 17 56-07 Rod, Brake CRD Main
24 873 35 06-00 Nut
25 532 10 68-88 Spring, Rod, Brake
26 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
27 876 02 04-12 Pin, Cotter 1/8 x 3/4
28 532 17 57-65 Rod, Parking Brake
29 532 07 16-73 Cap, Parking Brake
30 532 17 49-73 Bracket, Mfg. Transaxle
34 532 17 55-78 Shaft, Asm Pedal Foot CRD
35 532 12 01-83 Bearing, Nylon
36 819 21 16-16 Washer 21/32 x 1 x 16 Ga.
37 532 12 49-63 Pin, Roll 3/16 x 1"
38 532 16 59-36 Pulley, Flat
39 874 76 06-44 Bolt Fin Hex 3/8-16 unc x 2-3/4
40 532 12 49-65 Spacer, Split 395 x 59 Bzp
42 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
43 819 11 10-12 Washer 11/32 x 5/8 x 12 Ga.
47 532 12 77-83 Pulley, Idler, V Groove Plasitc
48 532 15 44-07 Bellcrank Clutch Grnd Drv
49 532 12 32-05 Retainer, Belt Style Spring
50 872 11 06-12 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5
51 873 68 06-00 Nut, Crownlock 3/8-16 unc
53 532 10 57-10 Link, Clutch 7.66
55 532 10 57-09 Spring, Return, Clutch
56 817 06 06-20 Screw 3/8-16 x 1-1/4
57 532 16 56-31 V-Belt Kev PMST CRD
62 532 12 48-72 Cover, Pedal
65 810 04 07-00 Washer
66 532 15 47-78 Keeper, Belt Engine F-Proof
74 532 13 70-57 Spacer Axle
75 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
76 812 00 00-01 Ring, E
77 532 12 35-83 Key, Square
KEY PART
NO. NO. DESCRIPTION
78 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
79 532 12 50-96 Key Woodruff
80 532 14 50-90 Arm Shift PMST 20" Tires
82 532 16 57-11 Spring, Torsion
83 819 17 12-16 Washer 17/32 x 3/4 x 16 Ga.
84 532 16 56-21 Link Shift CRD Pmst 18" Tires
96 532 12 47-88 Spring, Retainer 1”
112 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
120 873 90 06-00 Nut Lock 3/8-16
150 532 16 58-50 Bushing, Bellcrank Grnd Dr
151 819 13 32-10 Washer 13/32 x 2 x 10 Ga.
156 532 16 60-02 Washer Srred 5/16 ID x 1.125
158 532 16 55-89 Bracket Shift Mount
159 532 18 39-00 Hub Shift
161 872 14 04-06 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
162 873 68 04-00 Nut Crownlock 1/4-20 unc
163 874 78 04-16 Bolt Hex Fin 1/4-20 unc x 1 Gr. 5
165 532 16 56-23 Bracket Pivot Lever
166 817 49 05-10 Screw 5/16-18 x 5/8
167 532 16 55-88 Bracket Support Shift CRD
168 532 16 54-92 Bolt Shoulder 5/16-18 x .561
171 817 49 06-08 Screw Thdrol 3/8-16 x 1/2 Ty-Tt
172 532 16 56-35 Shaft Asm Shift Front CRD PMST
177 532 16 59-32 Keeper Flat Idler 3.06" CRD
178 532 16 59-33 Keeper Belt Idler 1.88" CRD
179 532 12 09-58 Washer Sintered
180 532 16 56-30 Pulley Flat Composite 3.06"
181 532 18 02-11 Bracket Idler Ground Drive CRD
182 532 18 26-82 Keeper Belt 2.5" Od V-Idler CRD
183 532 18 60-07 Pulley V-Idler 2.50" Od CRD
184 817 49 06-44 Screw Hexwsh Thdrol
3/8-16 x 2-3/4
187 817 58 05-20 Screw 5/16-18 x 1.25
203 871 17 07-80 Bolt Hex 7/16-20 x 5
214 532 17 56-09 Shaft Asm. Brake
215 532 17 56-51 Rod Brake Secondary
253 532 17 50-28 Bracket Cable Chassis
254 817 00 06-16 Screw 3/8-16 x 1
255 532 17 56-08 Brace Shaft Brake
258 532 17 80-62 Clip Retainer
261 532 13 14-94 Pulley Idler Flat Plated
263 817 00 06-12 Screw Hex Wsh THDR
3/8-16 x 3/4
264 532 18 19-95 Bracket Clutch
265 532 18 20-13 Spacer Idler Chassis
266 532 18 20-61 Shield Idler
267 872 14 06-26 Bolt Rd Sqk 3/8-16 x 3-1/4
269 532 18 24-02 Guard Muffl er OHV B&S RH
275 819 13 16-14 Washer 13/32 x 1 x 14 Ga.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
9
Page 10
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
STEERING ASSEMBLY
38
12
39
1
41
42
37
37
36
44
51
54
91
43
29
steering_pl.lt_29
88
71
68
29
17
68
82
15
15
15
29
46
8
6
2
87
5
3
11
40
10
13
65
32
33
34
35
67
46
8
6
67
67
87
5
4
43
43
95
8
10
Page 11
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532 17 59-04 Steering Wheel
2 532 18 47-06 Cast Iron Axle Assembly
3 532 16 98-40 Spindle Assembly, L.H.
4 532 16 98-39 Spindle Assembly, R.H.
5 532 12 49-31 Bearing, Race, Thrust, Hardened
6 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Klip
10 532 17 51-21 Link, Drag
11 810 04 06-00 Washer, Lock
12 873 94 08-00 Nut Hex Jam Toplock 1/2-20
13 532 13 65-18 Spacer Brg Axle Front
15 532 14 52-12 Nut, Hexfl ange Lock
17 532 18 06-41 Shaft Assembly, Steering
29 817 00 06-12 Screw, 3/8-16 x 3/4
32 532 17 01-62 Rod, Tie
33 819 11 12-16 Washer 11/32 x 3/4 x 16 Ga.
34 810 04 05-00 Washer Lock Hvy Hlcl Spr 5/16
35 873 54 05-00 Nut Crownlock 5/16-24 unf
36 532 15 50-99 Bushing, Steering
37 532 15 29-27 Screw TT #I0-32 x 5 x 3/8 Flange
38 532 17 59-05 Cap Wheel Steer
39 819 18 38-12 Washer 9/16 x 2-3/8 x 12 Ga.
40 873 54 06-00 Nut Crownlock 3/8-24
41 532 18 67-37 Adaptor, Steering Wheel
42 532 16 96-33 Boot, Steering Dash P/L Mtl
43 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
44 532 18 06-40 Extension Steering
46 532 12 12-32 Cap, Spindle
51 873 54 04-00 Nut Crownlock 1/4-28
54 871 13 04-20 Bolt Hex 1/4-28 unf x 1-1/4
65 532 16 03-67 Spacer Brace Axle
67 872 11 06-18 Bolt Rdhd Sq 3/8-16 unc x 2-1/4
71 532 17 51-46 Steering Asm.
68 532 16 98-27 Brace Axle
82 532 16 98-35 Bracket Susp Chassis Front
87 532 17 39-66 Washer Flat .781 x 1-1/2 x .14
88 532 17 51-18 Bolt Shoulder 7/16-20 unc
91 532 17 55-53 Clip Steering
95 532 18 89-67 Washer Hardened
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
11
Page 12
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
SEAT ASSEMBLY
1
8
8
9
7
5
6
14
9
7
10
22
5
24
16
15
13
17
seat_lt.bolt_7
KEY PART
NO. NO. DESCRIPTION
1 532 18 87-04 Seat
2 532 18 01-66 Bracket Pnt Pivot Seat (blk )
3 871 11 06-16 Bolt Fin Hex 3/8-16 unc x 1
4 819 13 16-10 Washer Flat 13/32 x 1 x 10 Ga.
5 532 14 50-06 Clip Push In Hinged
6 873 80 06-00 Nut Lock Hex 3/8-16 unc
7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi
8 817 00 06-16 Screw 3/8-16 x 1-1/2
9 819 13 16-14 Washer 13/32 x 1 x 14 Ga.
10 532 18 01-86 Pan Pnt Seat (blk )
12 532 12 12-46 Bracket Pnt Mounting Switch
13 532 12 12-48 Bushing Snap Blk Nyl 50 Id
26
25
23
12
2
4
3
KEY PART
NO. NO. DESCRIPTION
14 872 05 04-12 Bolt Rdhd Sht Nk 1/4-20 x 1-1/2
15 532 13 43-00 Spacer Split
16 532 12 12-50 Spring Cprsn Plate SW 1.310 Ga.
17 532 12 39-76 Nut Lock 1/4 Lge Flg Gr. 5 Zinc
21 532 17 18-52 Bolt Shoulder 5/16-18 unc-2A
22 873 80 05-00 Nut Hex Lock w/Ins 5/16-18
23 871 11 08-14 Bolt Hex Black
24 819 17 19-12 Washer 17/32 x 1-3/16 x 12 Ga.
25 532 12 70-18 Bolt Shoulder 5/16-18 x 62
26 810 04 08-00 Washer Lock Hvy Hlcl Spr 1/2
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
21
12
Page 13
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
DECALS
4
14
3 3
21
17
2
12
1
KEY PART
NO. NO. DESCRIPTION
1 532 14 54-98 Decal Read Owner’s Manual Sym
2 532 18 47-67 Decal Hp Engine
3 532 18 96-91 Decal Hood
4 532 18 96-97 Decal Steering
6 532 18 04-32 Decal Fender 100 OB/CE
9 532 18 95-73 Decal Fender
10 532 14 50-05 Decal Bat Dan/Poi P/L Sym Wpn
11 532 18 21-66 Decal Mower Cut Finger Symbol
12 532 15 97-37 Decal Brake/Clutch Symbol Lt
13 532 18 04-35 Decal Warn Back Plate CRD
6
14
9
13
10
KEY PART
NO. NO. DESCRIPTION
14 532 15 97-36 Decal Chassis Hot Muffl er
17 532 14 08-37 Decal Saddle Brake Parking
21 532 16 62-86 Decal Hex Belt Sch 92 CRD
— 532 18 10-90 Pad Footrest RH
— 532 13 83-11 Decal Lift Handle
— 532 18 26-21 Decal Bagger Frame
— 532 18 10-91 Pad Footrest LH
— 532 18 52-30 Manual Operator's (Euro)
— 532 18 52-32 Manual Operator's (Scand)
— 532 18 52-35 Manual Operator's E-Block
— 532 18 94-01 Manual Parts
11
+
+
_
_
90N
MAX
150N
MAX
WHEELS & TIRES
1
2
6
5,8
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Value Tire
2 532 06 51-39 Stem Value
4,10
7
3,9
3 532 10 62-22 Tire F Ts 15 x 6 0 - 6 Service
4 532 05 99-04 Tube Inner Front #35060
5 532 18 33-37 Rim Asm 6" front Service
6 532 12 49-57 Fitting Grease
7 532 12 49-59 Bearing Flange
11
8 532 18 33-38 Rim Asm 8" rear Service
9 532 10 62-68 Tire R Ts 18 x 9.5-8 Service
10 532 12 49-26 Tube Rear 9 5 x 8 Service
11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Sealant, Tire (10 oz. tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
wheel_1
13
Page 14
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
ENGINE
2
32
3
72
1
81
25
26
78
38
14
78
44
46
13
4
31
40
33
23
33
37
29
OPTIONAL EQUIPMENT
Spark Arrester
45
engine-bs.1cyl_37
14
Page 15
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 532 17 05-51 Control Throt
2 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2
3 - - - - - - - - Engine B&S Model 21A807
(Order Parts from Engine Manufacturer)
4 532 13 73-52 Muffl er Exhaust B&S Lt
13 532 16 52-91 Gasket 1 313 Id Tin Plated
14 532 14 84-56 Tube Drain Oil Easy
23 532 16 98-37 Shield Browning/Debris Guard
25 532 18 09-45 Control Choke
26 873 92 06-00 Nut Keps 3/8-24 unf
29 532 13 71-80 Arrestor Spark
31 532 18 49-00 Tank Fuel 1.25
32 532 14 05-27 Cap Asm Fule Top Vent N/Lany
33 532 12 34-87 Clamp Hose Blk
37 532 13 70-40 Line Fuel 20"
38 532 18 16-54 Plug Drain Oil Easy
44 817 67 04-12 Screw Hexwsh Thdrol 3/8-16 x 3/4
45 817 00 06-12 Screw 3/8-16 x 3/4
46 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
72 532 18 39-06 Screw Socket Head 5/16-18 x 1
78 817 06 06-20 Screw 3/8-16x1-1/4
81 873 51 04-00 Nut Keps Hex 1/4-20 unc
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
15
Page 16
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
MOWER LIFT
5
7
8
13
13
11
19
31
32
31
32
13
4
12
19
20
5
20
1
4
17
16
15
lift-rh.1piece_3
18
20
3
2
6
6
13
20
15
16
Page 17
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
MOWER LIFT
KEY PART
NO. NO. DESCRIPTION
1 532 15 94-61 Wire Asm Inner Spring W/Plunger
2 532 15 94-76 Shaft Asm. Lift
3 532 17 89-81 Pin Groove
4 812 00 00-02 E Ring #5133-62
5 819 21 16-21 Washer 21/32 x 1 x 21 Ga.
6 532 12 01-83 Bearing Nylong
7 532 10 94-13 Grip Handle Bicycle
8 532 12 45-26 Button Plunger Black
11 532 16 58-29 Link Asm Lift L.H.
12 532 16 58-31 Link Asm Lift R.H.
13 532 12 46-70 Retainer Spring
15 532 17 32-88 Link Front
16 873 35 08-00 Nut Jam Hex 1/2-13 unc
17 532 17 56-89 Trunnion Blk Zinc
18 873 80 08-00 Nut Lock w/Wsh 1/2-13 unc
19 532 13 98-68 Arm Suspension Mower
20 532 16 35-52 Retainer Spring
31 532 16 98-65 Bearing, Pvt. Lift.
32 873 54 06-00 Nut Crownlock 3/8-24
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
17
Page 18
REPAIR PARTS
2
21
21
35
118
117
116
119
34
21
117
119
116
118
2
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
MOWER
152
158
42_clutch_mod_7
67
185
40
32
68
36
6
5
19
36
32
36
44
46
3
21
4
1
40
37
36
22
32
33
31
56
55
27
30
17
30
30
28
61
30
21
24
21
30
124
33
31
40
37
36
84
124
40
37
36
26
2
40
21
23
32
25
21
18
21
124
131
11
161
130
18
162
13
15
2
14
69
9
8
162
9
20
18
2
46
163
16
36(92cm)_deck-elect.(CRD)_1
36 GW med/wide/std
46
45
Page 19
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
MOWER
KEY PART
NO. NO. DESCRIPTION
1 532 16 55-52 Housing Asm. Mower
2 872 14 05-06 Bolt Rdhd Sqnk 5/16-18 unc x 3/4
3 532 16 55-69 Bracket Asm. S-Bar Chass
4 532 16 55-58 Bracket Bar Sway Deck
5 532 12 46-70 Retainer Spring
6 532 16 55-57 Bar Sway
8 532 18 17-12 Bolt 3/8-24 x 1.25 Gr. 8 Patched
9 810 03 06-00 Washer Lock Hvy 3/8 Unplated
11 532 18 63-85 Blade 3-1 Lh
13 532 13 76-45 Shaft Asm. W/Lower Bearing
14 532 12 87-74 Housing Mandrel Vented (Machd)
15 532 11 04-85 Bearing Ball Mandrel
16 532 18 63-86 Blade 3-1 Rh
17 872 14 06-10 Bolt Carriage 3/8-16 x 1-1/4
18 872 11 06-06 Bolt Rdhd Sqnk 3/8-16 x 3/4
19 532 13 28-27 Bolt Shoulder 5/16-18 Thd Form
20 532 18 17-13 Bolt 3/8-24 x 1.25 Gr. 8 Ptch Lhthd
21 873 68 05-00 Nut Crown Lock 5/16-18
22 532 16 52-43 Bracket Idler Sprt RR
23 532 16 54-46 Bracket Idler Sprt RF
24 532 16 52-42 Bracket Suspension LF
25 532 16 52-44 Bracket Suspension RF
26 532 16 52-37 Brace Support Susp Frt CRD
27 532 16 55-68 Bracket Asm. Susp RR
28 532 16 55-67 Bracket Asm. Susp LR
30 532 17 39-84 Screw Thd Rolling Washer Head
31 532 18 76-90 Washer Spacer
32 532 15 35-31 Mandrel Pulleys 36 & 46
33 532 17 83-42 Nut Flg Top Lock
34 532 16 52-39 Bracket Gauge Wheel Lf
35 532 16 52-38 Bracket Gauge Wheel Rf
36 532 14 67-63 Pulley Idler V-Groove Dim 4.25
37 819 13 13-16 Washer 11/32 x 13/16 x 16 Ga.
KEY PART
NO. NO. DESCRIPTION
40 873 68 06-00 Nut Crownlock 3/8-16 unc
41 873 90 06-00 Nut Lock Flg 3/8-16 unc
44 532 17 55-38 Cover Mandrel Lh
45 532 17 55-39 Cover Mandrel Rh
46 532 13 77-29 Screw Thd Roll 1/4-20 x 5/8
55 532 16 54-45 Arm Idler
56 532 16 57-23 Spacer Retainer PM Mower
61 532 16 59-45 Spring Tension Belt
67 532 10 69-32 Knob Rd 3/8-16 Plstc Thds Blk
68 532 18 02-17 Hex-Belt 92 Mower
69 532 16 54-82 Shaft Asm W/Lwr Brg Rh Thd CRD
84 532 15 60-85 Keeper Belt Idler
116 532 18 42-19 Bolt Shoulder
117 532 13 39-57 Wheel Gage Donut Wide
118 873 93 06-00 Nut Centerlock 3/8-16 unc
119 819 12 14-14 Washer 3/8 x 7/8 x 14 Ga.
124 872 11 06-12 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5
130 872 11 05-06 Bolt Rdhdsqnk 5/16-18 unc x 3/4
131 532 16 56-61 Chute Bagger CRD
152 532 17 60-74 Cable Clutch CRD Service
158 817 72 04-08 Screw Hex Thdcut 1/4-20 x 5/8
161 532 18 63-87 Blade Cross Lh 92
162 532 18 08-78 Adpater Blade Cross
163 532 18 63-88 Blade Cross Rh 92
185 532 18 82-34 Head Asm. Cable Clutch
-- 532 18 18-57 Mandrel Asm Service
-- 532 18 18-58 Mandrel Asm CRD Lh Threads
SVC
-- 532 18 85-23 Replacement Mower Complete- -
(Std. deck Order separately gauge
wheel components Key Nos. 116-
119)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
19
Page 20
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
BAGGER
39
16
28
5
5
4
8
1
32
24
31
6
4
6
43
23
22
3
7
3
13
11
16
19
9
7
7
25
7
17
12
17
38
41
19
37
36
14
2
9
2
19
3
3
14
36
22
20
41
37
2
38
16
10
13
11
16
Bagger Asy (CRD)_6
3
26
21
20
Page 21
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02
BAGGER
KEY PART
NO. NO. DESCRIPTION
1 532 16 52-49 Tube Handle Bagger CRD
2 872 14 04-16 Bolt Carriage 1/4-20 x 2.0 Gr.5
3 532 12 39-76 Nut Lock 1/4 Lge Flg Gr. 5 Zinc
4 532 16 99-16 Handle Bagger w/Lvrs Gr. 5 Zinc
5 874 98 10-24 Screw Pan Head #10-24 x 1.50 Blk
6 874 98 10-32 Screw Pan Hd
7 873 40 10-00 Nut Wiz Lock Hex Serr/Hd #10-24
8 532 18 25-14 Cover Bagger Steel
9 872 14 04-18 Bolt Carriage 1/4-20 x 2.25d x Gr. 5
10 532 18 12-82 Tube Support Bagger CRD
11 532 16 57-19 Bracket Support Upper Bag CRD
12 532 18 88-48 Bracket Pivot LH
13 872 11 06-06 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
14 874 52 06-36 Bolt Hex 3/8-16 x 2-1/4 Gr. 5
16 873 90 06-00 Nut Lock Flg 3/8-16 unc
17 872 14 05-06 Bolt Rdhd Sht Sqnk 5/16-18 unc x 3/4
19 873 90 05-00 Nut Lock Hex Flange 5/16-18
20 532 18 88-47 Bracket Pivot RH
21 532 18 08-80 Bag Asm CRD
22 532 16 57-81 Bracket Side Bagger CRD
23 532 16 57-82 Tube Upper Bagger CRD
24 532 16 57-83 Tube Pivot Bagger CRD
25 532 18 01-24 Tube Front Bagger CRD
26 532 16 57-85 Tube Lower Bagger CRD
28 532 16 57-87 Grip Handle Black
31 532 16 94-84 Retainer Clip
32 532 12 68-75 Rivet Rd Hd Drilled 3/8 Dia
36 819 13 20-16 Washer 13/32 x 1-1/4 x 16 Ga.
37 532 17 54-01 Plug Support Bagger CRD
38 872 01 05-20 Bolt 5/16-18 x 2-1/2
39 532 18 09-85 Seal Trim 37"
41 532 16 96-83 Bracket Vert Adj Bagger CRD
43 532 17 40-83 Plug Tubing End
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
21
Page 22
SERVICE
T
E
C
Issued January 1980
Revised January 1991
E
S
U
M
®
H
POLICY
T
E
C
U
WARRANTY
M
®
H
E
S
LIMITED WARRANTIES
FOR
NEW PEERLESS GEAR POWER TRAIN COMPONENTS
A. Products Warranted
Peerless Gear and Machine Division of Tecumseh Products Company (“Tecumseh”), subject to the limitations contained below,
will,at its option, repair or replace, without charge for parts or labor only, any part of a new Power Train Component (which as used
herein means and includes the transaxle, gear box, transmission, differential and right angle drives, and any part of the Power Tra i n
Component), EXCEPT any new Power Train Component incorporated in equipment used for commercial or rental purposes, which is
found upon examination by any Tecumseh Authorized Service Outlet or by Tecumseh’s factory in Grafton, Wisconsin, to be DEFECTIVE
IN MATERIAL AND/OR WORKMANSHIP if received by Tecumseh or a Tecumseh Authorized Service Outlet for such examination within
TWO YEARS from the date of sale to the original consumer purchaser of Peerless Series 820, 900, 910, 915, 920, 930 transaxles and
Series 1100 angle drive and ONE YEAR for all other Peerless products. New Power Train Components incorporated in equipment used
for commercial purposes are warranted in the same manner and to the same extent EXCEPT such Power Train Components are warranted for NINETY (90) DAYS ONLY, and must be received by Tecumseh or by a Tecumseh Authorized Service Outlet for such examination within 90 days from the date of sale to the original purchaser. New Power Train Components Incorporated in equipment used for
rental purposes are warranted in the same manner and to the same extent EXCEPT such Power Train Components are warranted for
THIRTY (30) DAYS ONLY, and must be received by Tecumseh or a Tecumseh Authorized Service Outlet within 30 days from the date
of sale to the original purchaser.
B. Products And Items Not Warranted
1. Alterations or Modifi cations of Power Train Components.
2. Accidents, Normal Maintenance, Failure to follow the Original Equipment Man u fac tur er’s Manual.
This warranty covers only parts of new Power Train Components which are found upon examination to be defective in material or
workmanship as delivered to the original purchaser. This warranty does not cover defects caused by depreciation or damage caused
by normal wear, accidents, improper main te nance, improper use or abuse of the product, failure to follow the instructions contained in
an Instruction Manual for the operation of the Power Train Component and parts. The cost of normal maintenance and replacement of
service items which are not defective shall be paid for by the original purchaser.
C. Securing Warranty Service
Warranty service can be arranged for by contacting either a Tecumseh Authorized Service Outlet (any Tecumseh Registered Service
Dealer, Tecumseh Authorized Service Distributor, or Tecumseh Central Warehouse Distributor) or by contacting Tecumseh, c/o Service
Manager, Engine and Transmission Group Service Division, 900 North Street, Grafton, Wisconsin 53024. Warranty service can only
be performed by a Tecumseh Authorized Service Outlet or by Tecumseh at its factory in Grafton, Wisconsin. At the time of requesting
warranty service, evidence must be presented of the date of sale to the original purchaser. The purchaser shall pay any charges for
making service calls and/or for transporting the product to and from the place where the inspection and/or warranty work is performed.
The purchaser shall be responsible for any damage or loss incurred in connection with the transportation of Power Train Components
and/or part(s) of the Power Train Components submitted for inspection and/or warranty work.
D. Limitation of Damages and Implied Warranties
The foregoing EXPRESSED WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. Neither Tecumseh nor any of its
affi liates makes any warranties, representations or promises, written or oral, as to the quality of the Power Train Component or any of
its parts, other than as set forth herein.
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, TO THE EXTENT THAT
EITHER MAY APPLY TO ANY PART(S) OF POWER TRAIN COMPONENTS, SHALL BE LIMITED IN DURATION TO THE PERIODS
OF THE EXPRESSED WARRANTIES DEFINED IN PARAGRAPH A HEREOF. IN NO EVENT WILL TECUMSEH BE LIABLE FOR ANY
INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES AND/OR EXPENSES. Some states do not allow limitations on how long
an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitation(s) or exclusion(s)
may not apply to you. This warranty gives you specifi c legal rights and you may also have other legal rights which vary from state to
state.
E. No Dealer Warranty
Tecumseh neither assumes nor authorizes any other person, natural or corporate, to assume for Tecumseh any other obligations or
liabilities in connection with or with respect to any part(s) of a Power Train Component. The seller or dealer of part(s) of a Power Train
Component has no authority, whatsoever, to make any representations or promises on behalf of Tecumseh or to modify the terms or
limitations of Tecumseh’s warranty in any way.
22
Page 23
LIMITED WARRANTY
The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materials and work man ship. For a period of one (1) year from date of purchase by the original consumer purchaser, we will repair or
replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we fi nd to be defective due
to materials or workmanship. This Warranty is subject to the following limitations and exclusions.
1. This warranty does not apply to the engine. Please contact your nearest dealer where they will send the machine to the
engine manufacturer.
2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the pur chaser. Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser
unless such return is requested by your dealer.
3. Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery which we fi nd
to be defective in manufacture, during the fi rst ninety (90) days of ownership. After ninety (90) days, we will exchange the
Battery, charging you 1/12 of the price of a new Battery for each full month from the date of the original sale. Battery must
be maintained in accordance with the instructions furnished.
4. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of original
purchase.
5. This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained in ac cor dance with the instructions furnished. This Warranty does not apply to any product which has been subjected to alteration,
misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.
6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments, stan dard
hardware and normal maintenance.
7. In case of any problem within the boundaries of this warranty, contact the nearest department store, indicate the model
number, serial number and the date of purchase of your machine. This warranty does not apply to accidental damages. All
implicit warranties are limited to the same time frames. Or contact:
E.M. Services
54 Rue Lambrechts
92400 Courbevoie
France
Telephone: (1) 46678078
Fax: (1) 46678095
THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES. ANY IMPLIED WAR RAN TIES
ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN.
23
Page 24
Electrolux Outdoor Products Service Con tacts
BELGIQUE/BELGIË
Electrolux Outdoor Products
Tel: 02 363 0311, Fax: 02 363 0391
CESKÁ REPUBLIKA
Electrolux, spol. S.r.o., oz Electrolux Outdoor Products,
Na Krecku 365 Praha 10 - Horn
Tel: 02/7487 0164, Info-linka: 0800/110 220
Internet: www.partner-fl ymo.cz E-mail: info@husqvarna.cz
DANMARK
Electrolux Outdoor Products, Flymo/Partner A/S,
Lundtoftegrdsvej 93A, DK 2800 Kgs.Lyngby
Tel: 45 87 75 77, Fax 45 93 33 08 www.fl ymo-partner.dk
DEUTSCHLAND
Electrolux Outdoor Products
Tel: 097 21 7640, Fax:097 21 764202
ESTONIA
Electrolux Estonia Ltd (Electrolux Eesti AS)
Tel: (372) 6650010
FRANCE
Electrolux Outdoor Products
Tel 01 46 67 8141, Fax 01 43 34 2491
FINLAND SUOMI
Electrolux Outdoor Products Finland
Tel: 00 39611, Fax: 00 39 612632
ITALIA
McCulloch Italiana s.r.l. - Via Como 72, 23868 Valmadrera
(LECCO) - ITALIA, Tel: 800 017829, Fax: 0341 581671
IRELAND
Electrolux Outdoor Products
Tel: 01 4565222, Fax: 01 4568551
MAGYARORSZÁG
Electrolux Lehel Kft
Tel: 00 36 1 251 41 47
NORGE
Electrolux Outdoor Products
Tel: 69 10 47 90
NEDERLAND
Electrolux Outdoor Products BV
Tel: 0172-468322, Fax: 0172-468219
ÖSTERREICH
HUSQVARNA Zentralwerksttte, Industriezeile 36, 4020 LINZ,
Tel: 0732 770101-60, Fax: 0732 795922
POLSKA
Electrolux Poland Sp. z.o.o. Husqvarna, 01-612 Warszawa
Myslowicka 10/2
Tel:- (22) 8332949
SLOVENIJA
HUSQVARNA-Ges.m.b.H. Nfg. KG, Industriezeile 36, 4020 LINZ,
Tel: 0732 77 01 01-0, Fax: 0732 77 01 01.40
Internet: www.husqvarna.at E-mail: offi ce@husqvarna.co.at
SLOVENSKA
Electrolux Slovakia s.r.o., Borova Sihot 211, 033 01 Lipt. Hradok
Tel: 044 522 14 19, Fax: 044 522 14 18, www.fl ymo-partner.sk
SCHWEIZ/SUISSE/SUIZZERA
Electrolux Outdoor Products
Tel 062 889 93 50 / 889 94 25, Fax 062 889 93 60 / 889 94 35
SVERIGE
Electrolux Outdoor Products, Sverige
Tel: 036 û 14 67 00, Fax: 036 û 14 60 70
UNITED KINGDOM
Electrolux Outdoor Products, United Kingdom
Tel: 01325 300303, Fax: 01325 310339
í Mecholupy
www.electrolux.com/mcculloch
Loading...
