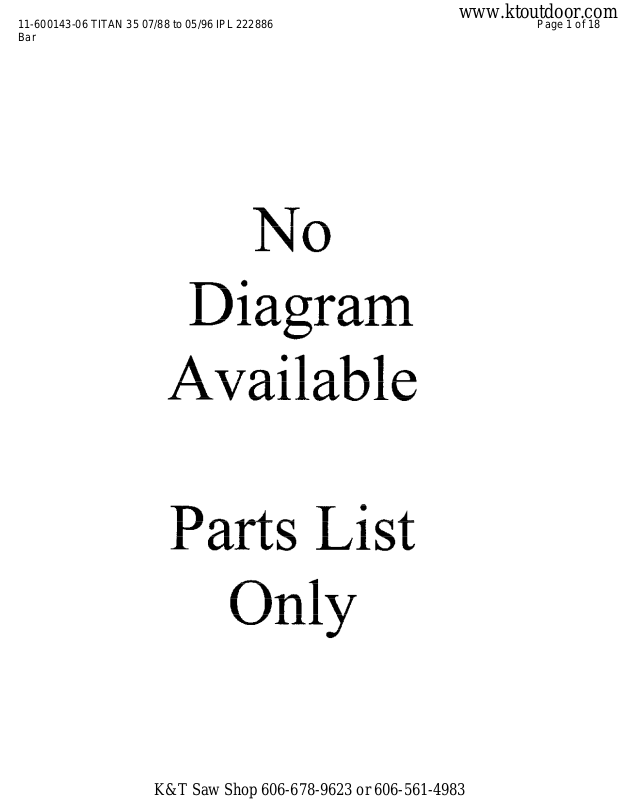

Page 1
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 1 of 18
www.ktoutdoor.com
Bar
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 2 of 18
www.ktoutdoor.com
Bar
Ref # Part Number DescriptionQty
222987 Sprocket Tip 12"
222915 Sprocket Tip 14"
222916 Sprocket Tip 16"
222917 Sprocket Tip 18"
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 3 of 18
www.ktoutdoor.com

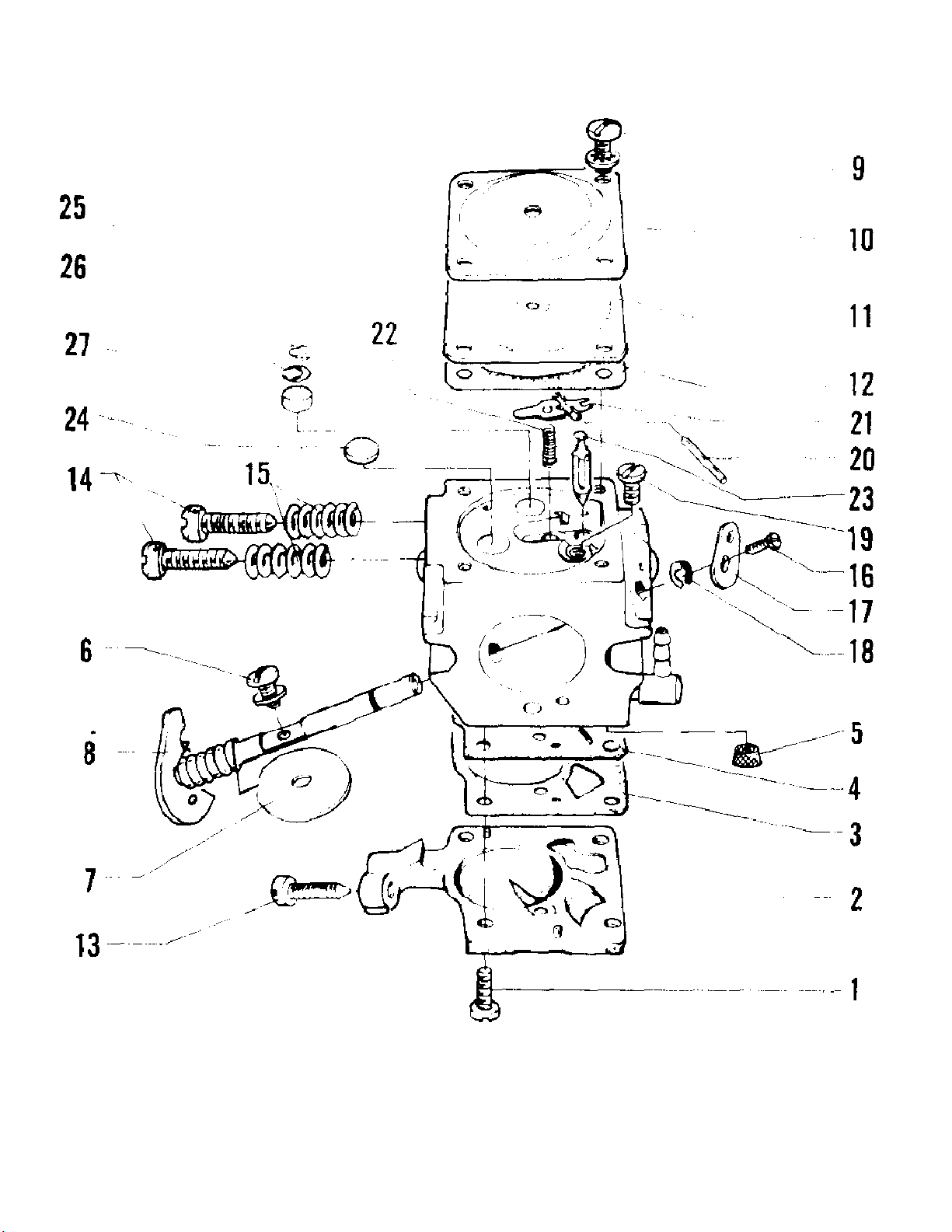

Carburetor Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 4 of 18
www.ktoutdoor.com
Carburetor Assemblies
Ref # Part Number DescriptionQty
235270 Carburetor Tillotson HU 57 (Titan 35)1
235449 Carburetor Tillotson HU 58 (Titan 40)1
1 Screw Not available separately4
2 Cover - Fuel Pump Not available separately1
3 Gasket - Fuel Pump Not available separately1
4 Diaphragm - Fuel Pump Not available separately1
5 Screen - Inlet Not available separately1
6 Screw - Valve Not available separately1
7 Valve - Throttle Not available separately1
8 Shaft Asy - Throttle Not available separately1
9 Screw - Metering Cover Not available separately4
10 Cover - Metering Diaphragm Not available separately1
11 222328 Diaphragm Asy - Metering1
12 Gasket - Metering Diaphragm Not available
13 Needle - Idle Speed Not available separately1
14 Needle - High/Low Not available separately2
15 Spring - Needle Adjustment Not available separately2
16 Screw - Lever Throttle Not available separately1
17 Lever - Throttle Not available separately1
18 Ring - Retaining Not available separately1
19 Screw - Pin Lever Not available separately1
20 Pin Not available separately1
21 Arm - Needle Valve Not available separately1
22 Spring - Arm Not available separately1
23 Valve - Needle Not available separately1
24 Plug - Welch Not available separately1
25 Seal Not available separately1
26 Ring - Retaining Not available separately1
27 Plug - Welch Not available separately1
235370 Repair Kit
1
separately
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 5 of 18
www.ktoutdoor.com

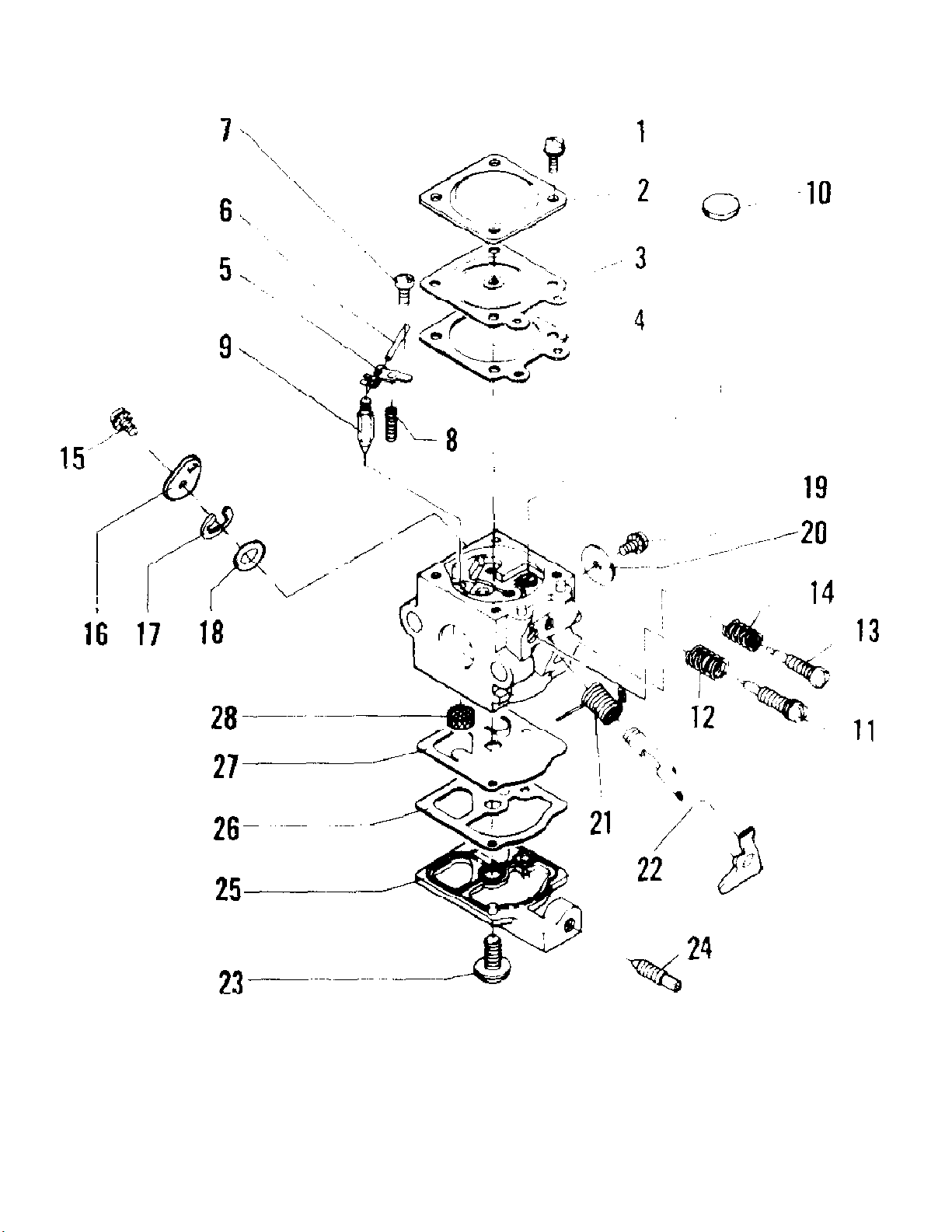

Carburetor Assembly (Walbro WT 55)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 6 of 18
www.ktoutdoor.com
Carburetor Assembly (Walbro WT 55)
Ref # Part Number DescriptionQty
228527 Carburetor Assembly Walbro WT 551
1 Screw - Metering Cover Not available separately4
2 Cover - Metering Diaphragm Not available separately1
3 Diaphragm Asy - Metering Not available separately1
4 Gasket - Metering Diaphraqm Not available
5 Lever - Metering Not available separately1
6 Pin - Metering Lever Not available separately1
7 Screw - Metering Lever Pin Not available separately1
8 Spring - Metering Lever Not available separately1
9 Valve - Inlet Needle Not available separately1
10 Plug - Welch Not available separately1
11 Needle - High Speed Not available separately1
12 Spring - Needle High Speed Not available separately1
13 Needle - Idle Not available separately1
14 Spring - Needle Idle Not available separately1
15 Screw - Throttle Lever Not available separately1
16 Lever - Throttle Not available separately1
17 Ring - Shaft Retainer Not available separately1
18 Washer - Throttle Shaft Not available separately1
19 Screw - Throttle Shutter Not available separately1
20 Shutter - Throttle Not available separately1
21 Spring - Throttle Return Not available separately1
22 Shaft - Assembly Throttle Not available separately1
23 Screw - Pump Cover Not available separately1
24 Screw - Idle Adjust Not available separately1
25 Cover - Fuel Pump Not available separately1
26 Gasket - Fuel Pump Not available separately1
27 Diaphragm - Fuel Pump Not available separately1
28 Screen - Fuel Inlet Not available separately1
223242 Major Repair Kit
223243 Minor Repair Kit
1
separately
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 7 of 18
www.ktoutdoor.com

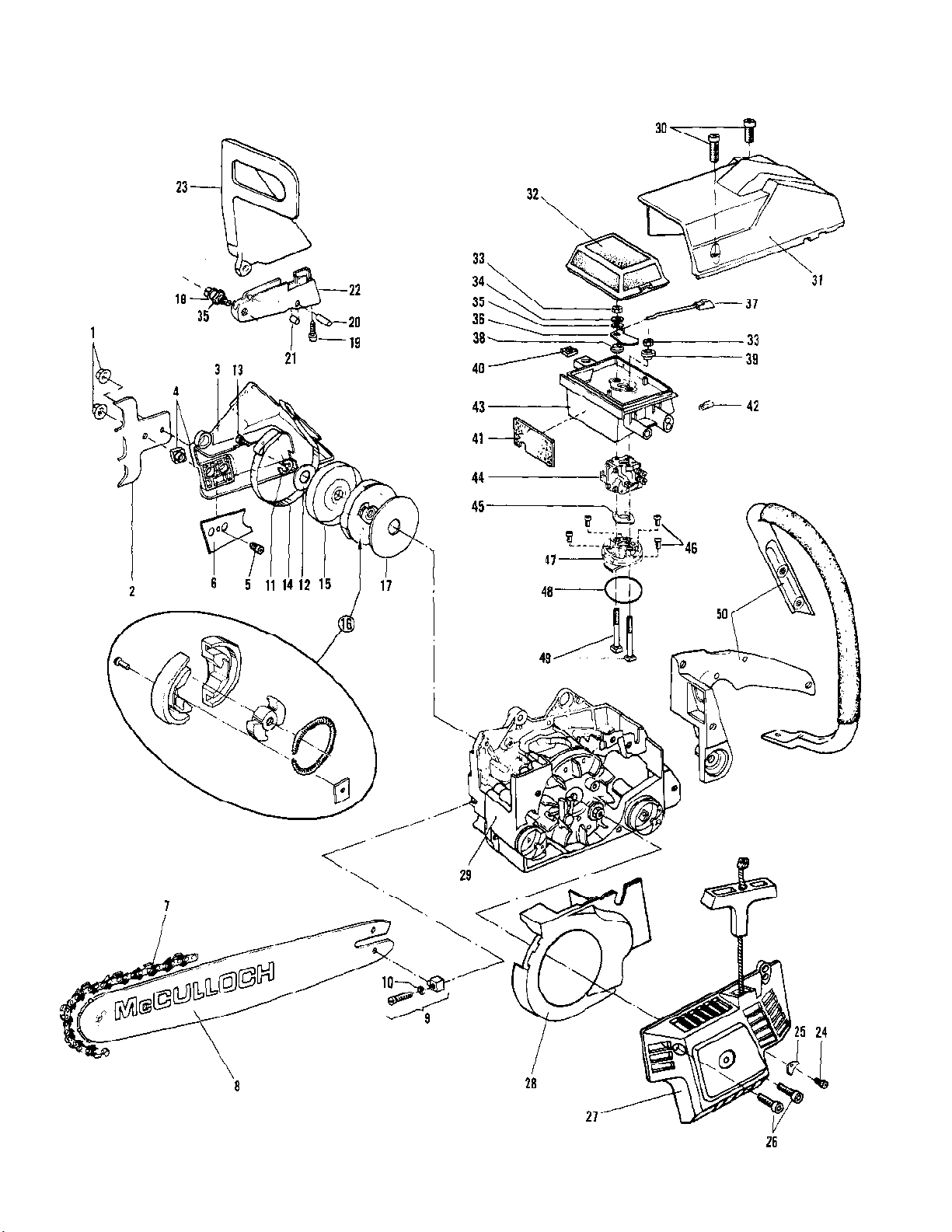

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 8 of 18
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 235217 Nut - Spike2
2 229481 Spike1
3 229464 Cover - Clutch1
4 228943 Insert - Cover2
5 228554 Screw1
6 229217 Plate - Bar1
7 Chain Not available separately1
8 Bar See "Bar" parts list.1
9 235574 Bar Adjustment Asy1
10 235367 Ring - "E"1
11 229137 Ring - "E"1
12 235281 Washer1
13 235812 Screw1
14 235073 Band - Brake1
15 215252 Drum/Bearing Asy1
16 235115 Clutch1
17 228853 Shield - Saw Dust1
18 228955 Screw1
19 235205 Screw1
20 235226 Pivot - Brake Band1
21 235184 Bearing - Roller1
22 235177 Box - Brake1
23 229463 Lever - Chain Brake1
24 228554 Screw1
25 229018 Plate1
26 235207 Screw - M5 x 142
27 Starter Assembly See "Starter Assembly" illustration
1
and parts list.
28 229486 Baffle - Fan1
29 Powerhead Assembly See "Powerhead Assembly"
30 229163 Screw - M5 x 302
31 228722 Cover - Top1
32 228892 Filter - Air1
33 235216 Nut2
34 235163 Washer1
35 235225 Washer - Wavy
36 235020 Plate - Choke1
37 229152 Knob - Choke1
38 228910 Bushing - Choke1
39 228911 Bushing - Choke1
40 236732 Nut1
41 229129 Gasket1
42 235281 Clip1
43 228655 Airbox1
44 Carburetor Assemblies See "Carburetor Assemblies"
45 235016 Gasket1
46 228908 Screw - M4 x 144
47 226022 Valve - Reed1
48 228909 Ring - "O"1
49 228907 Bolt2
1
illustration and parts list.
1
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 9 of 18
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
50 Handle Assemblies See "Handle Assemblies"
1
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 10 of 18
www.ktoutdoor.com

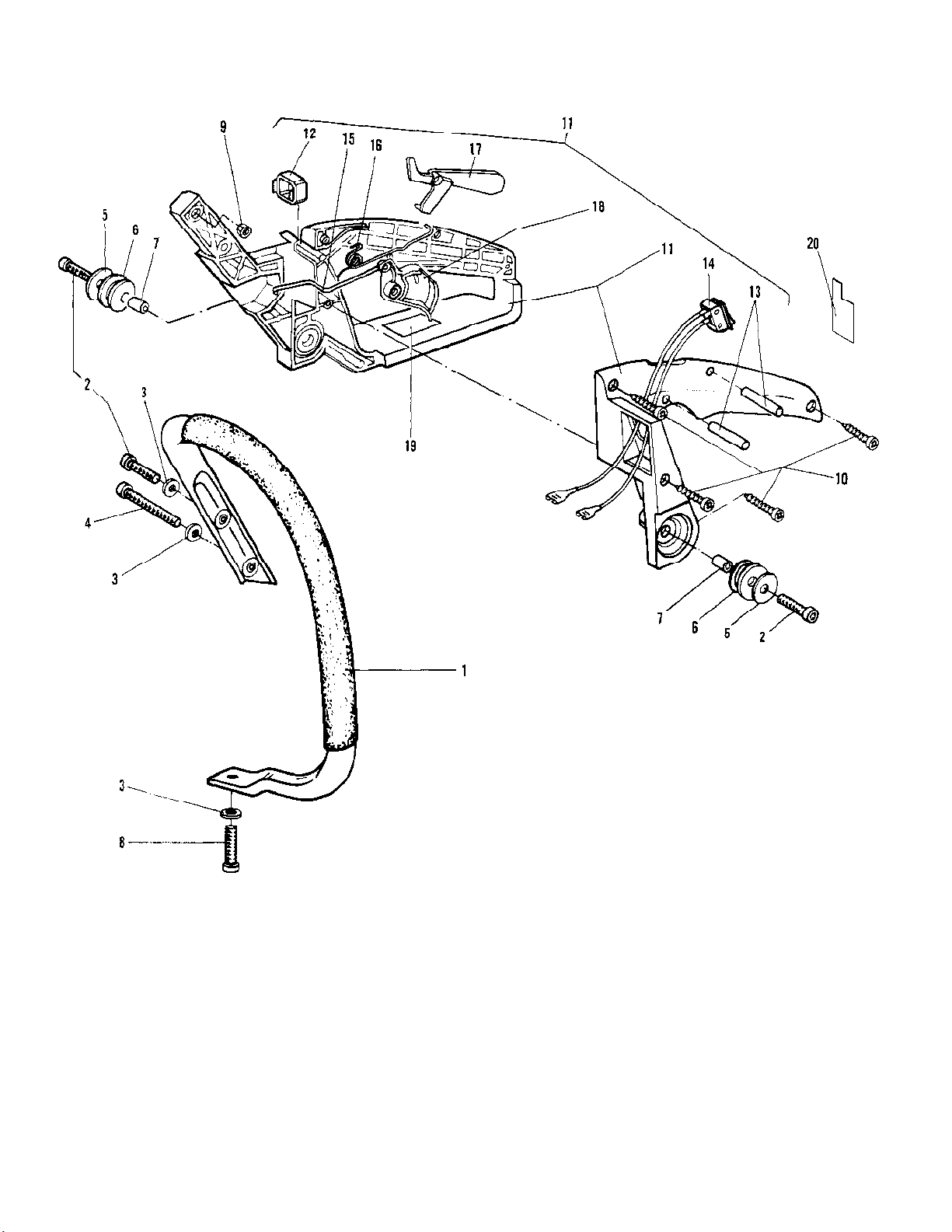

Handle Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 11 of 18
www.ktoutdoor.com
Handle Assemblies
Ref # Part Number DescriptionQty
1 228998 Handle - Front1
2 235210 Screw - M5 x 253
3 235248 Washer3
4 235244 Screw - M5 x 451
5 235107 Washer2
6 235105 Mount2
7 235106 Bushing2
8 235239 Screw - M5 x 201
9 235216 Nut1
10 235205 Screw4
11 229457 Kit - Handle Rear1
12 229460 Plug1
13 229087 Pin2
14 228138 Switch1
15 229257 Rod - Throttle1
16 93771 Spring1
17 229462 Trigger1
18 229461 Throttle1
19 219058 Decal - Safety1
20 223034 Decal - Warning1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 12 of 18
www.ktoutdoor.com

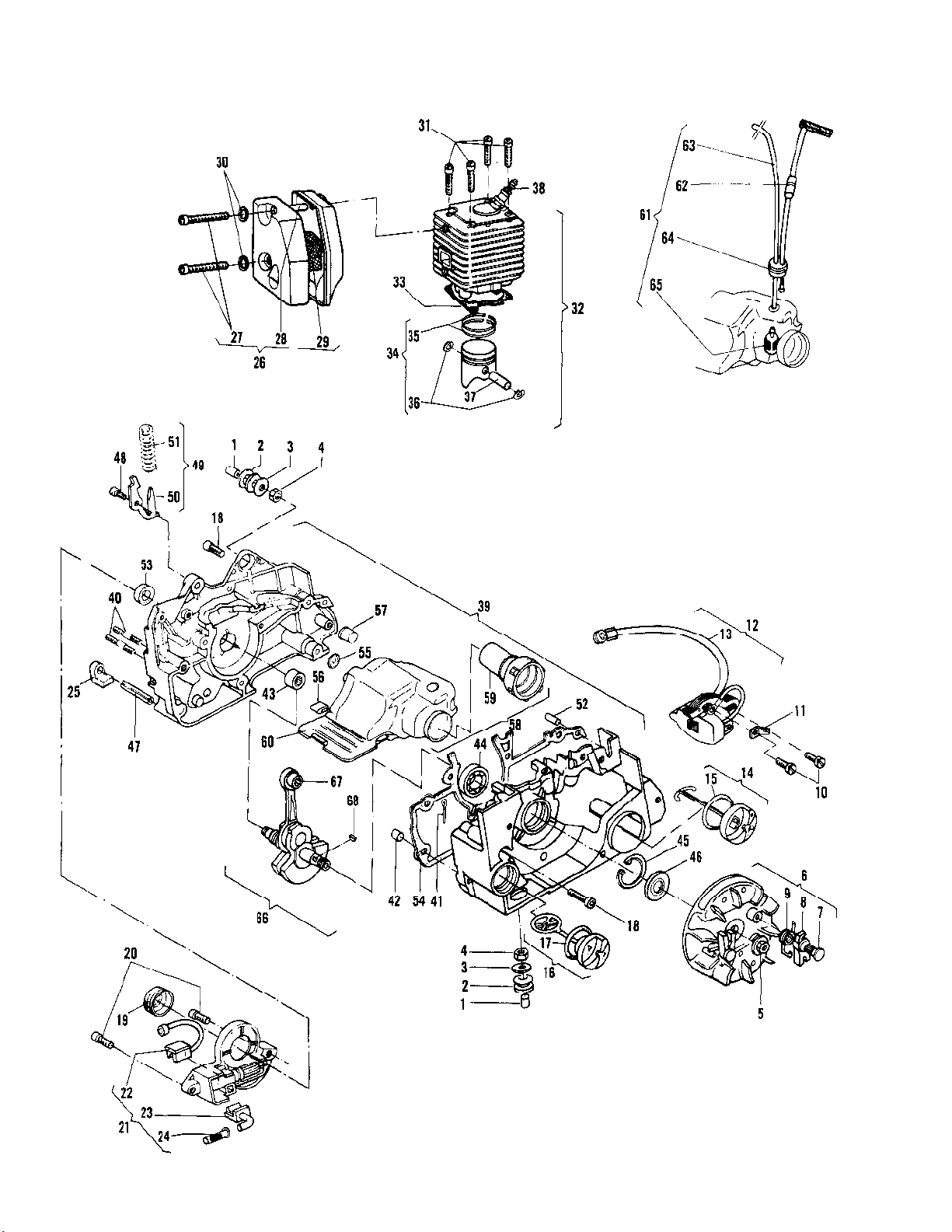

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 13 of 18
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 235106 Bushing2
2 235105 Mount2
3 235107 Washer2
4 235642 Nut2
5 235218 Nut - Flywheel1
6 235138 Kit - Flywheel/Pawl1
7 235516 Pin - Pawl2
8 235517 Pawl2
9 235518 Spring2
10 235239 Screw - M5 x 202
11 228139 Contact1
12 228416 Kit - Ignition1
13 235238 Wire1
14 229473 Cap - Fuel Tank1
15 235510 Gasket1
16 229470 Cap - Oil Tank1
17 235511 Gasket1
18 235804 Screw - M5 x 307
19 228597 Worm1
20 229250 Screw - M5 x 82
21 228598 Oiler Assembly1
22 228855 Connector1
23 228856 Hose1
24 228857 Filter1
25 229075 Grommet1
26 228982 Muffler Assembly1
27 228975 Screw - M5 x 552
28 228976 Spacer2
29 229072 Screen - Spark Arrestor1
30 229237 Washer2
31 228150 Screw4
32 235800 Kit - Cylinder1
33 235135 Gasket1
34 235799 Kit - Piston1
35 235677 Ring - Piston2
36 235008 Ring - Retaining2
37 Pin - Wrist Not available separately1
32 235479 Kit - Cylinder1
33 235135 Gasket1
34 235478 Kit - Piston1
35 235178 Ring - Piston2
36 235008 Ring - Retaining2
37 Pin - Wrist Not available separately1
38 93018 Plug - Spark1
39 229482 Kit - Crankcase1
40 228935 Bolt - Bar2
41 228122 Clip1
42 235190 Bushing1
43 235230 Bearing1
44 235900 Bearing1
45 235899 Clip1
46 228872 Seal - Oil1
47 235222 Catcher - Chain1
48 235075 Pivot - Latch1
49 215758 Kit - Brake Latch1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 14 of 18
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
50 216755 Latch - Chain Brake1
51 215721 Spring1
52 235221 Pin1
53 235229 Seal1
54 228952 Gasket - C'Case1
55 235700 Gasket - C'Case1
56 235674 Support1
57 235672 Support1
58 235729 Kit - Fuel Tank1
59 229476 Tube - Filler1
60 235670 Shield - Fuel Tank1
61 235716 Kit - Fuel/Vent1
62 235741 Vent1
63 235713 Hose - Fuel1
64 235675 Grommet1
65 93720 Pickup - Fuel1
66 228869 Crankshaft Assembly1
67 235742 Bearing1
68 102164 Key - Flywheel1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 15 of 18
www.ktoutdoor.com
Service Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 16 of 18
www.ktoutdoor.com
Service Tools
Ref # Part Number DescriptionQty
236020 Piston Pin Puller
236019 Main Needle Bearing Puller
236024 Intake Pressure Plate
236025 Exhaust Pressure Plate
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 17 of 18
www.ktoutdoor.com

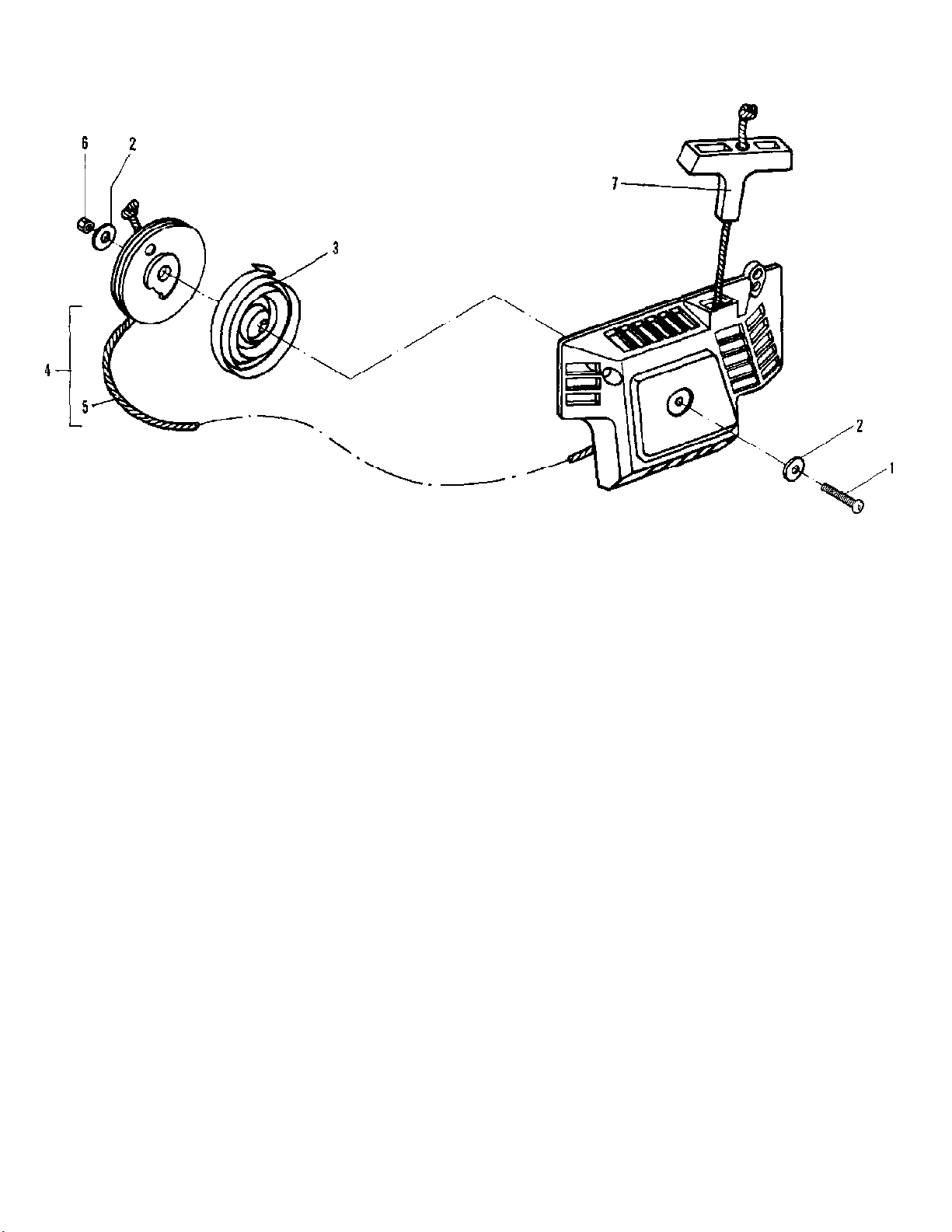

Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-600143-06 TITAN 35 07/88 to 05/96 IPL 222886 Page 18 of 18
www.ktoutdoor.com
Starter Assembly
Ref # Part Number DescriptionQty
229466 Starter Assembly1
1 229164 Screw - M4 x 351
2 235048 Washer2
3 222784 Spring - Rewind1
4 235372 Drum/Rope Assembly1
5 83203 Rope (31.75"-33.75")1
6 235431 Nut1
7 229469 Handle - Starter1
K&T Saw Shop 606-678-9623 or 606-561-4983
