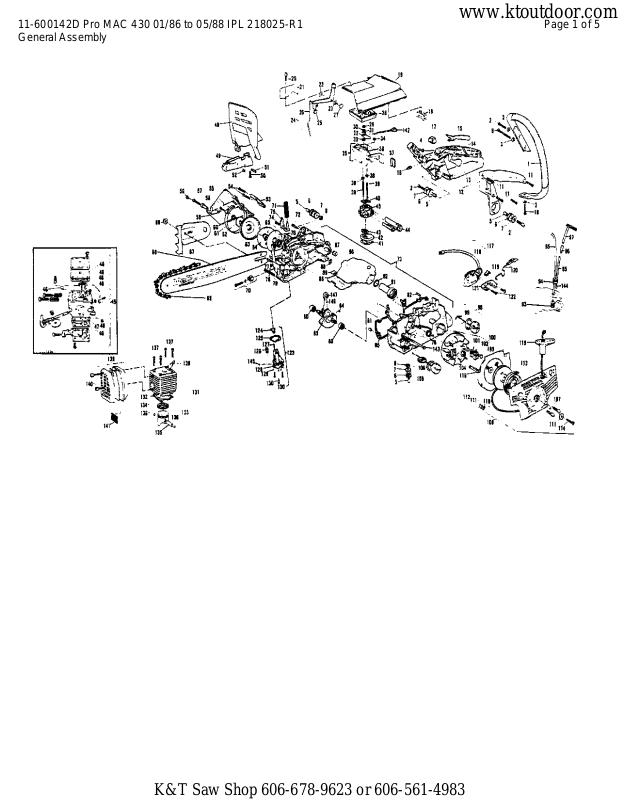

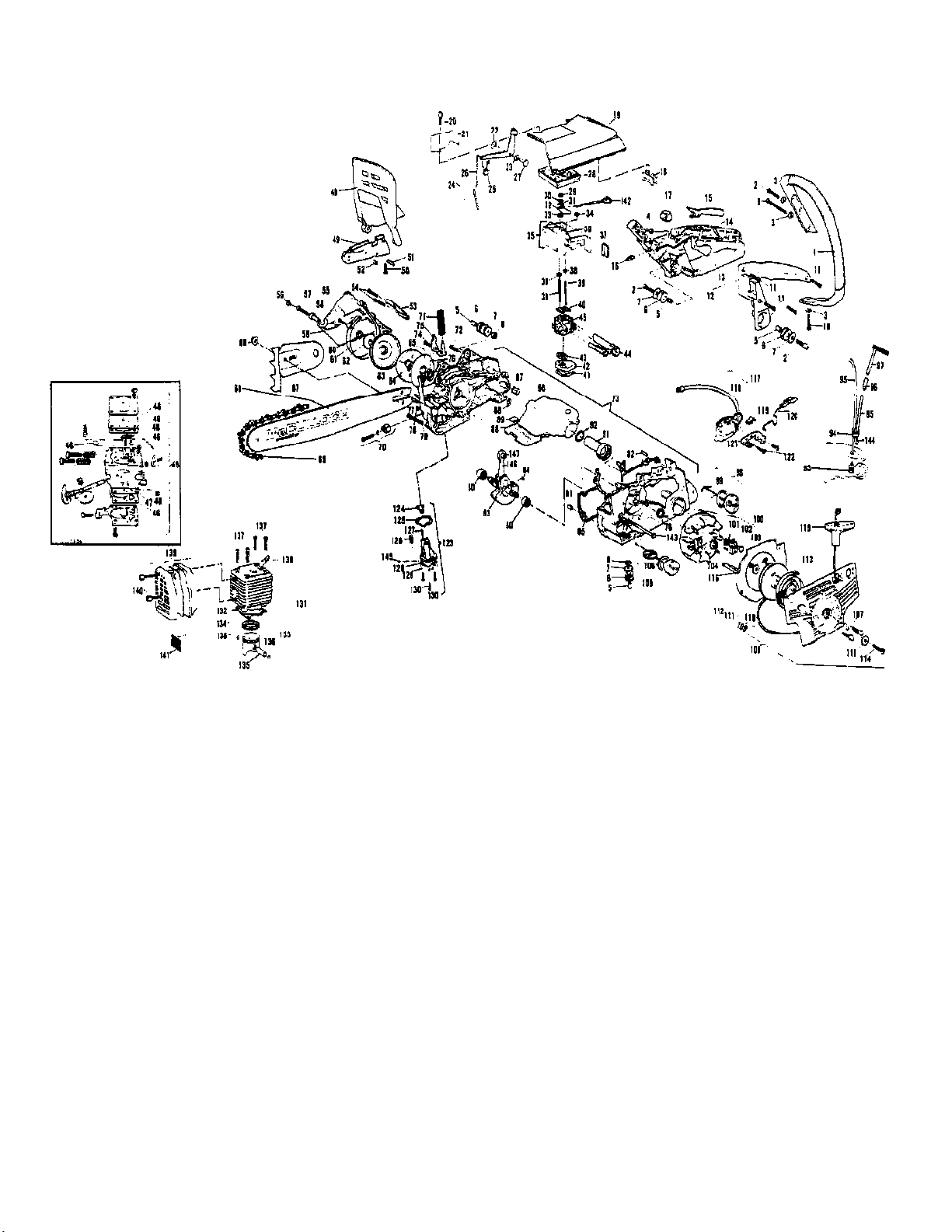

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600142D Pro MAC 430 01/86 to 05/88 IPL 218025-R1 Page 2 of 5
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 235865 Front Handle1
2 235803 Screw - M5 x 25 TCE3
3 235248 Washer1
4 235216 Nut - M51
5 235106 Bushing4
6 235105 Shock Mount4
7 235107 Washer4
8 235642 Nut - M52
9 235807 Screw - M5 x 451
10 235806 Screw - M5 x 201
11 235205 Screw1
12 235374 Rear Handle Kit1
13 235521 Throttle Trigger1
14 235104 Spring1
15 235519 Safety Trigger1
16 235281 Throttle Trigger Retainer1
17 235170 Plug1
18 235636 Baffle - Warm Air Vent1
19 235809 Top Cover1
20 235802 Brake Shield Screw1
21 235693 Brake Shield1
22 235811 Oiler Lever/Rod Retainer1
23 235225 Wavy Washer1
24 235816 Manual Oil Lever Kit1
25 235281 Oiler Lever/Rod Retainer1
26 235602 Manual Oiler Rod1
27 235604 Oil Lever Pivot Pin1
28 235686 Air Filter1
29 235216 Nut - M51
30 235163 Washer1
31 235225 Elastic Washer1
32 235020 Choke1
33 235033 Choke Bushing1
34 235216 Nut - M51
35 235946 Air Filter Box1
36 235601 Cover Attachment Latch1
37 235697 Foam Gasket1
38 235216 Nut - M52
39 235183 Carburetor Bolt2
40 235234 Gasket - Carburetor Cover1
41 235015 Reed Gasket1
42 235120 Reed Valve1
43 235016 Carburetor Gasket1
44 235522 Screwdriver Guide1
45 235270 Carburetor1
45 225449 Carburetor1
46 235370 Carburetor Repair Kit1
235254 Diaphragm - Metering Not available separately.1
Diaphragm Gasket Not available separately.1
Inlet Control Lever Not available separately.1
Inlet Needle Not available separately.1
Welch Plug Not available separately.1
Body Channel Screw Not available separately.1
Flange Gasket Not available separately.1
Fuel Pump Gasket Not available separately.1
