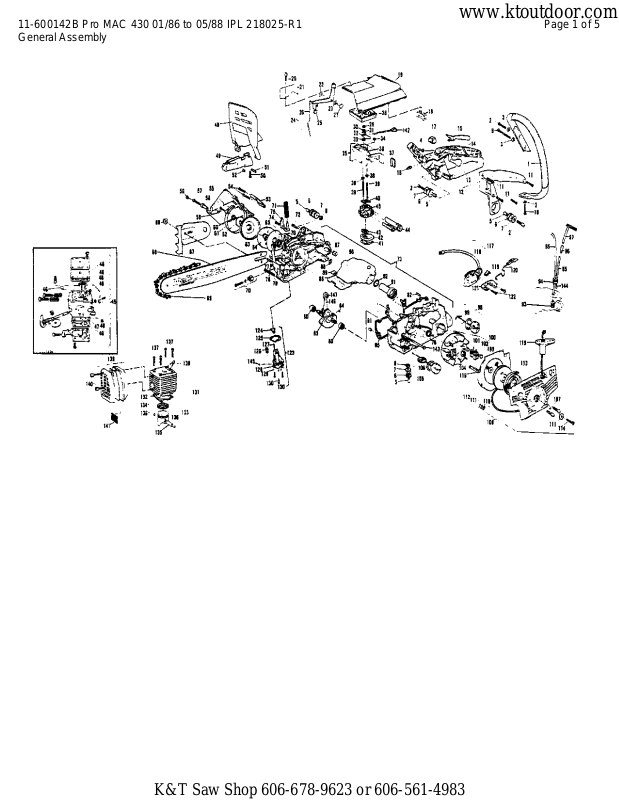

11-600142B Pro MAC 430 01/86 to 05/88 IPL 218025-R1 Page 1 of 5
www.ktoutdoor.com

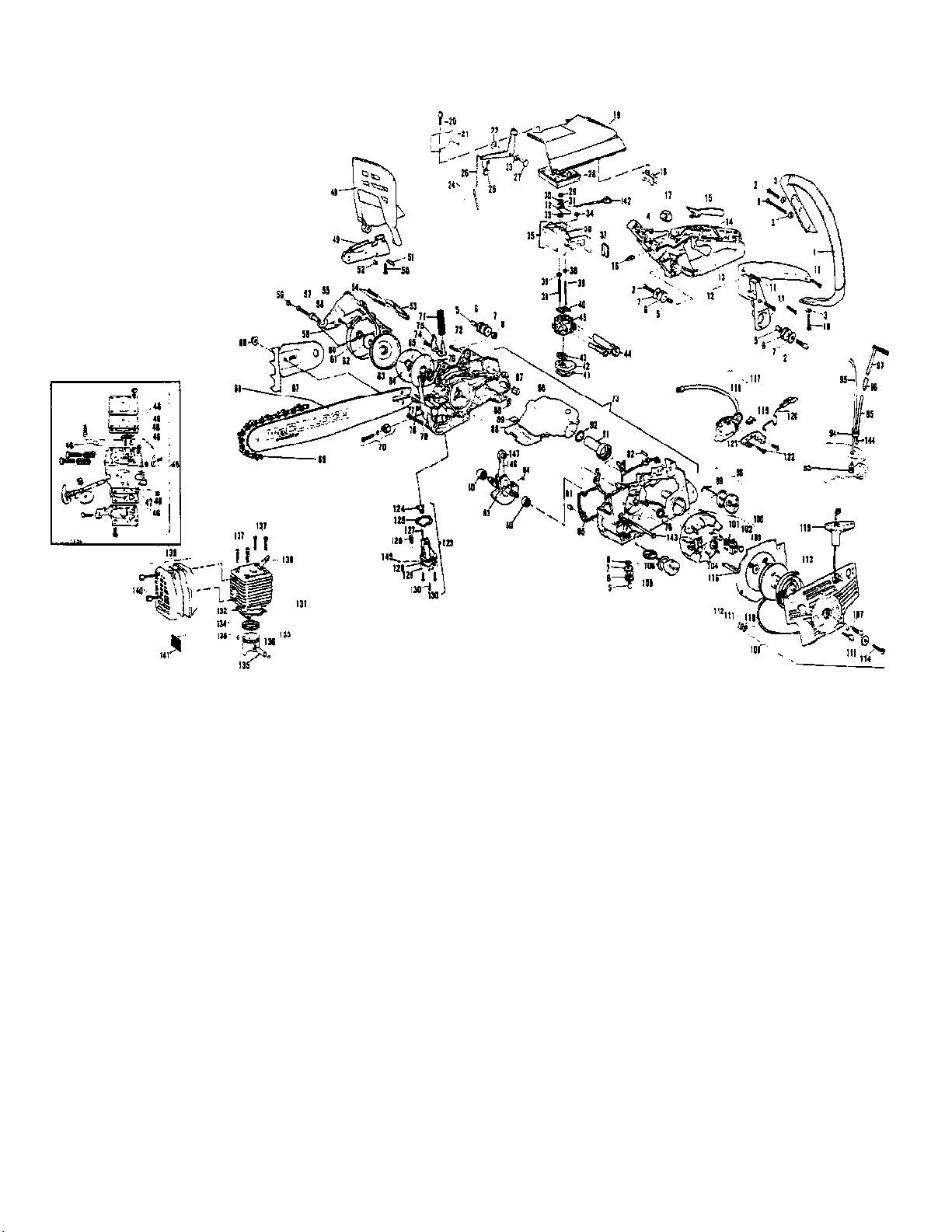

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600142B Pro MAC 430 01/86 to 05/88 IPL 218025-R1 Page 2 of 5
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 235865 Front Handle1
2 235803 Screw - M5 x 25 TCE3
3 235248 Washer1
4 235216 Nut - M51
5 235106 Bushing4
6 235105 Shock Mount4
7 235107 Washer4
8 235642 Nut - M52
9 235807 Screw - M5 x 451
10 235806 Screw - M5 x 201
11 235205 Screw1
12 235374 Rear Handle Kit1
13 235521 Throttle Trigger1
14 235104 Spring1
15 235519 Safety Trigger1
16 235281 Throttle Trigger Retainer1
17 235170 Plug1
18 235636 Baffle - Warm Air Vent1
19 235809 Top Cover1
20 235802 Brake Shield Screw1
21 235693 Brake Shield1
22 235811 Oiler Lever/Rod Retainer1
23 235225 Wavy Washer1
24 235816 Manual Oil Lever Kit1
25 235281 Oiler Lever/Rod Retainer1
26 235602 Manual Oiler Rod1
27 235604 Oil Lever Pivot Pin1
28 235686 Air Filter1
29 235216 Nut - M51
30 235163 Washer1
31 235225 Elastic Washer1
32 235020 Choke1
33 235033 Choke Bushing1
34 235216 Nut - M51
35 235946 Air Filter Box1
36 235601 Cover Attachment Latch1
37 235697 Foam Gasket1
38 235216 Nut - M52
39 235183 Carburetor Bolt2
40 235234 Gasket - Carburetor Cover1
41 235015 Reed Gasket1
42 235120 Reed Valve1
43 235016 Carburetor Gasket1
44 235522 Screwdriver Guide1
45 235270 Carburetor1
45 225449 Carburetor1
46 235370 Carburetor Repair Kit1
235254 Diaphragm - Metering Not available separately.1
Diaphragm Gasket Not available separately.1
Inlet Control Lever Not available separately.1
Inlet Needle Not available separately.1
Welch Plug Not available separately.1
Body Channel Screw Not available separately.1
Flange Gasket Not available separately.1
Fuel Pump Gasket Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600142B Pro MAC 430 01/86 to 05/88 IPL 218025-R1 Page 3 of 5
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
47 Fuel Pump Gasket Not available separately.1
48 235082 CHAIN BRAKE Lever1
49 235177 Brake Box1
50 235205 Brake Box Screw1
51 235226 Brake Band Pivot Pin1
52 214368 Roller Bearing1
53 235155 Spacer - Bracket2
54 235530 Screw - M5 x 351
55 235812 Brake Band Screw1
56 235805 Screw Cap1
57 235530 Screw - Skt. Hd. M6 x 351
58 235512 Brake Bushing1
59 235444 Clutch Cover1
60 235224 Seeger Ring1
61 235073 Brake Band1
62 235287 Clutch Washer1
63 215252 Drum/Spkt./Bearing Assembly1
64 235115 Clutch1
65 235701 Saw Dust Shield1
66 235217 Bar Retaining Nut - M61
67 235620 Spike1
68 214234 Guide Bar - 12"1
68 214235 Guide Bar - 14"1
68 214236 Guide Bar - 16"1
69 218095N Saw Chain - 12"1
69 218096N Saw Chain - 14"1
69 218097N Saw Chain - 16"1
70 235574 Chain Tension Kit1
71 235076 Brake Latch Spring1
72 235804 Screw - M5 x 30 TCE6
73 235863 Crankcase Kit1
74 235075 Pivot Latch1
75 94006 Brake Latch1
76 235229 Seal2
77 235424 Bar Pin1
78 235641 Oil Vent1
79 235222 Chain Catcher1
80 235230 Crankshaft Bearing2
81 235190 Bushing1
82 235221 Pin1
83 235765 Crankshaft1
84 102165 Key - Woodruff1
85 Crankcase Gasket Not available separately.1
86 Crankcase Gasket Not available separately.1
87 235672 Rubber Support - Fuel Tank1
88 235670 Fuel Tank Protective Shield1
89 235674 Rubber Support - Fuel Tank1
90 235729 Fuel Tank Kit1
91 235861 Fuel Tank Neck1
92 235510 "O" Ring1
93 93720 Fuel Tank Filter1
94 235675 Fuel Tank Grommet1
95 235713 Fuel Hose2
96 235741 Vent Valve - Fuel Hose1
97 235758 Felt Vent - Fuel Line1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600142B Pro MAC 430 01/86 to 05/88 IPL 218025-R1 Page 4 of 5
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
98 235551 Fuel Tank Cap Kit1
99 235510 "O" Ring1
100 235138 Flywheel/Pawl Kit1
101 235518 Starter Spring2
102 235517 Starter Pawl2
103 235372 Starter Pin Pawl2
104 235218 Flywheel Retaining Nut - M81
105 235552 Oil Tank Cap Kit1
106 235061 Oil Cap Gasket1
107 235802 Screw - M5 x 141
108 235480 Starter Kit1
109 235372 Drum/Rope Assembly1
110 83203 Starter Rope1
111 235048 Starter Washer2
112 235631 Starter Assembly Nut1
113 235371 Rewind Spring1
114 235430 Screw - Slotted1
115 235043 Starter Handle1
116 235643 Fan Baffle1
117 235034 Electronic Ignition System1
118 235238 High Tension Wire1
119 235368 Ignition Contact1
120 235436 On - Off Knob1
121 235429 Bracket - Ignition1
122 235239 Ignition Bracket Screws2
123 235513 Oil Pump Kit1
124 235159 Oil Pump Gasket1
125 235051 Oil Pump Gasket1
126 235438 Oil Filter Screen1
127 235173 Oiler Adjustment Screw1
128 Oil Pump Gasket Not available separately.1
129 235515 Oil Pump Gasket1
130 235801 Screw - M4 x 16 TCE3
131 235477 Cylinder Kit1
131 235800 Cylinder Kit1
131 235798 Cylinder Kit1
132 235135 Cylinder Gasket1
133 235376 Piston Kit1
133 235799 Piston Kit1
133 235797 Piston Kit1
134 235006 Piston Ring Set1
134 235677 Piston Ring Set1
134 235678 Piston Ring Set1
135 235007 Wrist Pin1
136 235008 Wrist Pin Spring2
137 235806 Screw - M6 x 10 TCE4
138 211123 Spark Plug1
139 235745 Muffler Assembly1
140 135808 Screw - M5 x 502
141 235665 Spark Arrester Screen1
142 235187 Choke Knob1
143 235215 Screw - M6 x 901
144 235673 Fuel line Vent Screw1
145 235186 Check Ball - Oil Pump1
146 Connecting Rod Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600142B Pro MAC 430 01/86 to 05/88 IPL 218025-R1 Page 5 of 5
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
147 235762 Bearing Needle1
