McCulloch 11-600141H-Power-MAC-380AS-2-Bar-Bolt-10-84-to-02-86-IPL-218024-R1 Repair Manuals
Page 1

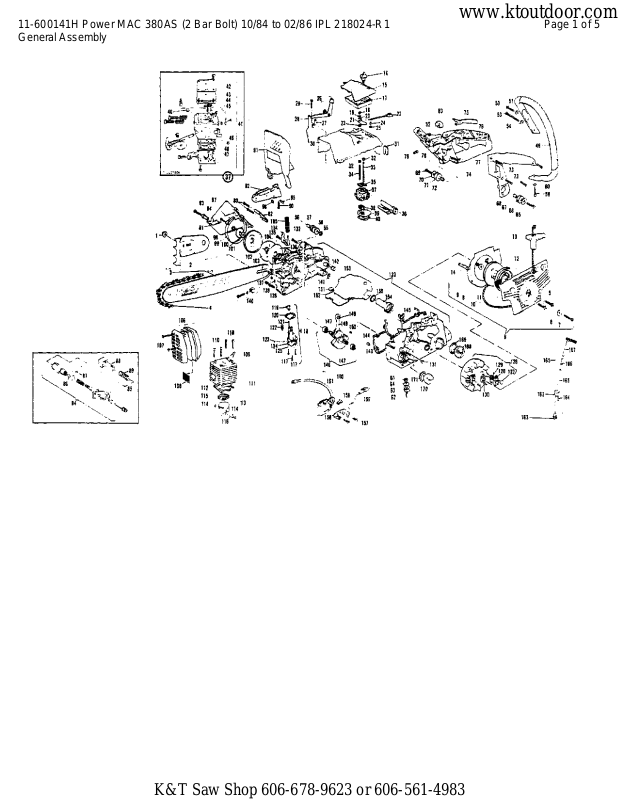

11-600141H Power MAC 380AS (2 Bar Bolt) 10/84 to 02/86 IPL 218024-R1 Page 1 of 5
www.ktoutdoor.com

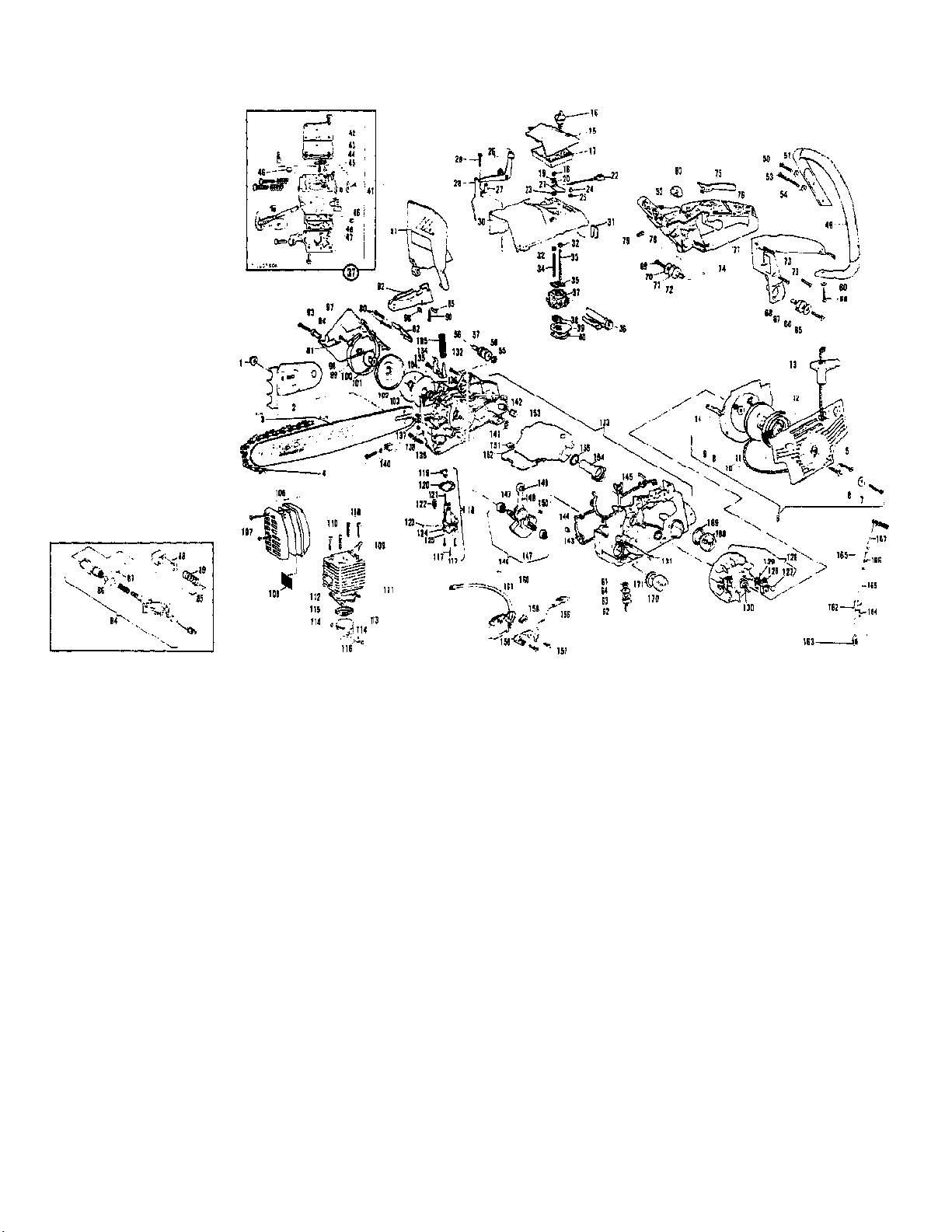

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600141H Power MAC 380AS (2 Bar Bolt) 10/84 to 02/86 IPL 218024-R1 Page 2 of 5
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 235217 Bar Retaining Nut - M61
2 235620 Spike1
3 214234 Guide Bar - 12 Inches1
3 214235 Guide Bar - 14 Inches1
3 214236 Guide Bar - 16 Inches1
4 218095N Saw Chain - 12 Inches1
4 218096N Saw Chain - 14 Inches1
4 218097N Saw Chain - 16 Inches1
4 218098N Saw Chain - 16 Inches1
5 235207 Screw - M5 x 142
6 235377 Starter Assembly1
7 235430 Screw1
8 235048 Starter - Washer2
9 235431 Nut1
10 235372 Drum & Rope Assembly1
11 83203 Starter Rope1
12 235371 Spring - Rewind1
13 235043 Starter Handle1
14 235643 Fan Baffle1
15 235032 Cover - Air Filter1
16 235030 Knob - Filter Cover1
17 235526 Air Filter1
18 235216 Nut - M51
19 235189 Washer - Air Filter1
20 235225 Washer - Wavy1
21 235020 Plate - Choke1
22 235187 Kit - Choke Knob1
23 235033 Bushing - Choke1
24 235707 Grommet - Air Filter1
25 235216 Nut - M61
26 235189 Kit - Manual Oil Lever1
27 235281 Clip - Lever Retaining1
28 235193 Rod - Manual Oiler1
29 235207 Top Cover Screw - M5 x 41
30 235028 Top Cover - Engine1
31 235697 Gasket - Foam1
32 235216 Carburetor Bolt Nut - M52
33 235029 Bolt - Carburetor (Left)1
34 235183 Bolt - Carburetor (Right)1
35 235234 Gasket - Carburetor Cover1
36 235522 Guide - Screwdriver1
37 235449 Carburetor Assembly1
38 235016 Gasket - Carburetor1
39 235120 Valve - Reed1
40 235015 Gasket - Reed1
41 235370 Kit - Carburetor Repair1
42 Diaphragm Not available separately.1
43 Gasket - Diaphragm Not available separately.1
44 Lever - Inlet Control Not available separately.1
45 Needle - Inlet Not available separately.1
46 Welch Plug & Strainer Not available separately.1
47 Gasket - Fuel Pump Not available separately.1
48 235254 Diaphragm - Fuel Pump1
49 235261 Handle - Front1
50 235210 Screw - Sltd. Hd. M5 x 251
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600141H Power MAC 380AS (2 Bar Bolt) 10/84 to 02/86 IPL 218024-R1 Page 3 of 5
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
51 235248 Washer - M51
52 235216 Nut - Hex Head M51
53 235244 Screw - Sltd. Hd. M5 x 451
54 235248 Washer1
55 235642 Nut - Hex Head M51
56 235106 Bushing1
57 235105 Shock Mount - Rubber1
58 235107 Washer1
59 235239 Screw - Sltd. Hd. M5 x 201
60 235248 Washer1
61 235642 Nut - Hex Head M51
62 235106 Bushing1
63 235105 Shock Mount - Rubber1
64 235107 Washer1
REAR HANDLE ASSEMBLY1
65 235210 Screw - Sltd. Hd. M5 x 251
66 235107 Washer1
67 235105 Shock Mount - Rubber1
68 235106 Bushing1
69 235210 Screw - Sltd. Hd. M5 x 251
70 235107 Washer1
71 235105 Shock Mount - Rubber1
72 235106 Bushing1
73 235205 Screw - Sltd. Hd.4
74 235482 Kit - Rear Handle1
75 235519 Safety Trigger1
76 235104 Spring1
77 235521 Throttle Trigger1
78 235022 Rod - Throttle Trigger1
79 235281 Retainer - Throttle Rod1
80 235212 Screw - Clutch Cover M5 x 352
81 235427 Cover - Clutch1
82 235155 Spacer1
83 235170 Plug1
84 235153 AUTO SHARP Assembly1
85 218218 Wheel Assembly - Grinding1
86 Washer Not available separately.1
87 Cotter Pin Not available separately.1
88 235114 AUTO SHARP Knob1
89 235121 Spring1
90 235205 Screw - Brake Box1
91 235653 Lever - CHAIN BRAKE1
92 235177 Brake Box1
93 235530 Screw - Skt. Hd. M6 x 351
94 235512 Brake Bushing1
95 235226 Pivot - Brake Band1
96 214368 Bearing - Roller1
97 235812 Screw - Brake Band1
98 235224 Ring - Seeger1
99 235073 Brake Band1
100 235287 Washer - Clutch1
101 235164 Washer1
102 215252 Drum/Sprocket Assembly1
103 235115 Clutch1
104 235701 Sawdust Shield1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600141H Power MAC 380AS (2 Bar Bolt) 10/84 to 02/86 IPL 218024-R1 Page 4 of 5
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
105 235076 Spring - Brake Latch1
106 235669 Muffler Assembly1
107 235213 Screw - M5 x 502
108 235665 Spark Arrester Screen1
109 214223 Spark Plug1
110 235214 Cylinder Screw - M6 x 204
111 235479 Kit - Cylinder1
112 235135 Gasket - Cylinder1
113 235478 Piston Assembly1
114 235008 Ring - Snap2
115 235178 Ring - Piston2
116 235007 Wrist Pin1
117 235801 Screw - M4 x 16 TCE3
118 235513 Kit - OiL Pump1
119 235159 Gasket - Oil Pump1
120 235051 Gasket - Oil Pump1
121 235173 Screw - Oil Flow Adjustement1
122 235438 Screen - Oil Filter1
123 235186 Check Ball - Oil Pump1
124 Gasket - Oil Pump Not available separately.1
125 Cover - Oiler Body Not available separately.1
126 235138 Flywheel/Pawl Assembly1
127 235516 Pin - Pawl2
128 235517 Pawl - Starter1
129 235516 Spring - Pawl2
130 235218 Nut - M81
131 235215 Screw - M6 x 90 (Crankcase)1
132 235211 Screw - M5 x 30 (Crankcase)6
133 235726 Kit - Crankcase1
134 94006 Brake Latch1
135 235075 Later - Pivot1
136 235225 Seal2
137 235424 Pin - Guide Bar2
138 235641 Oil Vent1
139 235222 Chair Catcher1
140 235574 Kit - Chain Tension Adjusting1
141 Gasket - Crankcase Not available separately.1
142 235672 Support - Rubber1
143 Gasket - Crankcase Not available separately.1
144 235190 Bushing1
145 235221 Pin1
146 235765 Kit - Crankshaft1
147 235230 Bearing - Ball2
148 Connecting Rod Not available separately.1
149 Bearing - Needle Not available separately.1
150 102164 Key - Woodruff1
151 235674 Support1
152 235670 Protective Shield - Fuel Tank1
153 235729 Fuel Tank Assembly1
154 235861 Fuel Tank Neck1
155 235510 "O" Ring1
156 235436 Kit - ON/OFF knob1
157 235239 Screw - Ignition Bracket2
158 235429 Bracket - Ignition1
159 235368 Contact - Ignition1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600141H Power MAC 380AS (2 Bar Bolt) 10/84 to 02/86 IPL 218024-R1 Page 5 of 5
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
160 235034 Electronic Ignition System1
161 235238 High Tension Wire1
162 235675 Grommet - Fuel Tank1
163 93720 Filter - Fuel Tank1
164 235673 Screw - Fuel Line Vent1
165 235713 Fuel Hose1
166 235741 Valve - Fuel Line vent1
167 235758 Fuel Line Vent Assembly1
168 235788 Fuel Cap1
169 235510 "O" Ring1
170 235789 Oil Cap1
171 235061 Gasket - Oil Cap1
K&T Saw Shop 606-678-9623 or 606-561-4983
