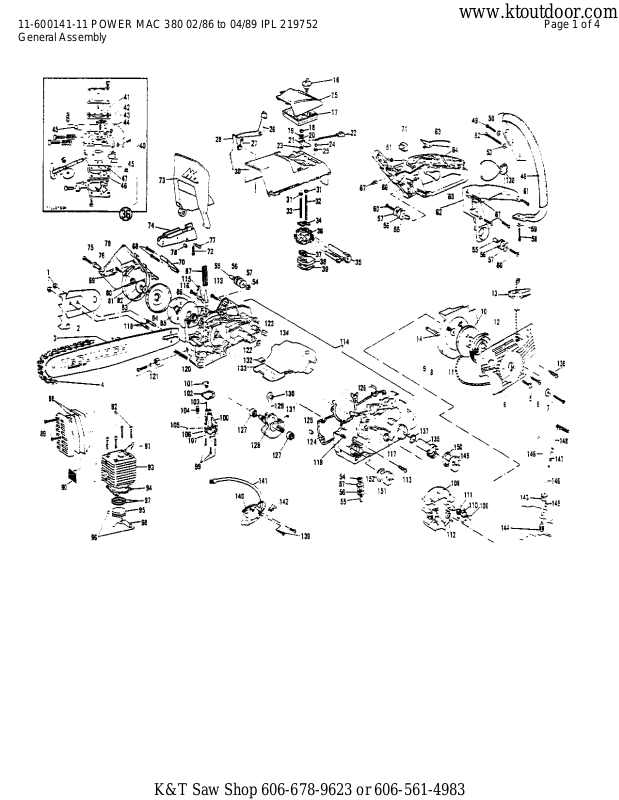

11-600141-11 POWER MAC 380 02/86 to 04/89 IPL 219752 Page 1 of 4
www.ktoutdoor.com

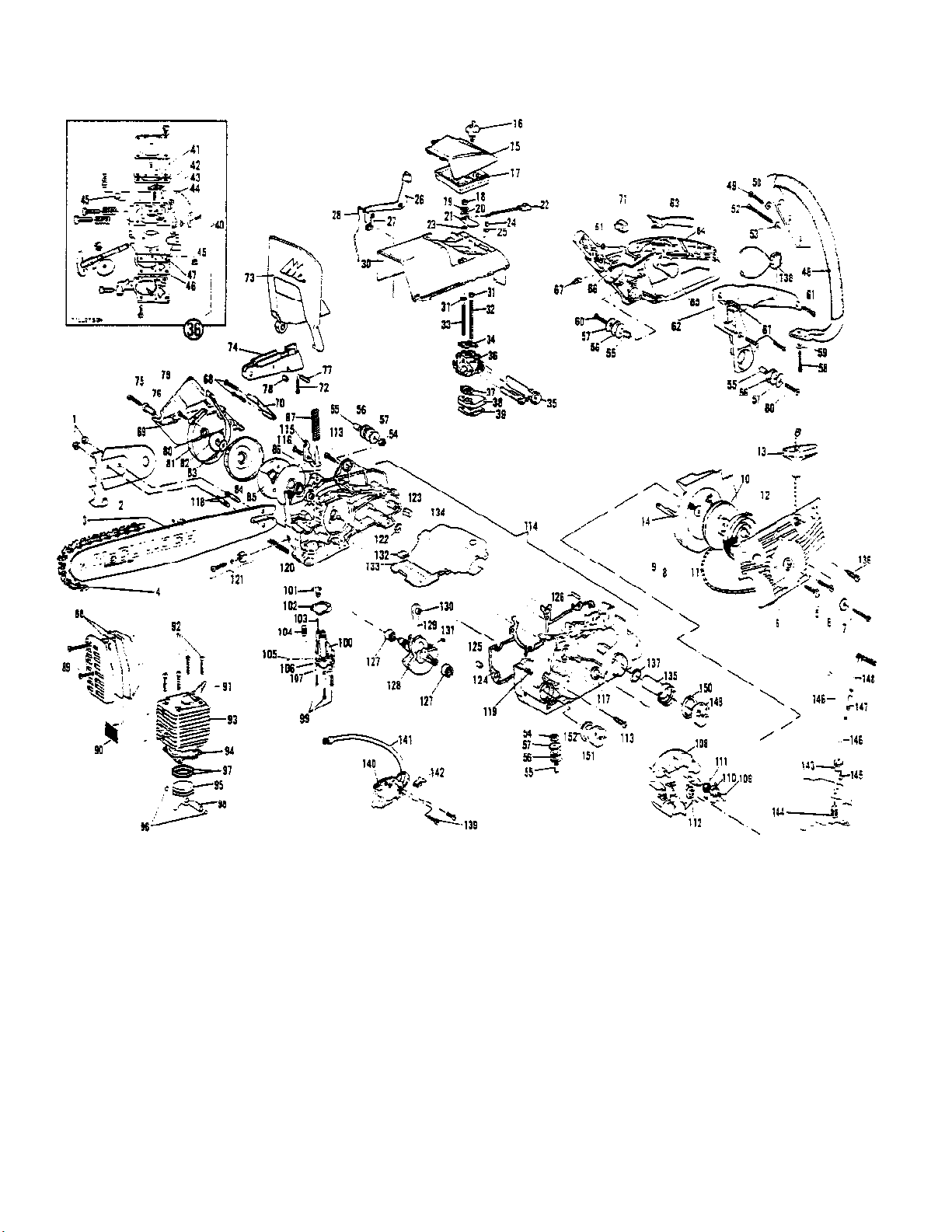

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600141-11 POWER MAC 380 02/86 to 04/89 IPL 219752 Page 2 of 4
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 235217 Bar Retaining Nut - M62
2 236992 Spike1
3 214236 Guide Bar - 16 Inches1
3 219276 Guide Bar - 18 Inches1
4 218097-12 Saw Chain - 16 Inches (MP 370 GLX 55CL)1
4 219275-12 Saw Chain - 18 Inches (MP 370 GLX 60CL)1
5 235207 Screw - M5 x 142
6 235377 Starter Assembly1
7 235430 Screw1
8 235048 Starter - Washer2
9 235431 Nut1
10 235372 Drum/Rope Assembly1
11 83203 Starter Rope1
12 235371 Spring - Rewind1
13 235043 Starter Handle1
14 235643 Fan Baffle1
15 235032 Cover - Air Filter1
16 235030 Knob - Filter Cover1
17 235526 Air Filter1
18 235216 Nut - M51
19 235163 Washer1
20 235225 Washer - Spring1
21 235020 Plate - Choke1
22 235187 Kit - Choke Knob1
23 235033 Bushing - Choke1
24 235707 Grommet - Air Filter1
25 235216 Nut - M51
26 235189 Manual Oil Lever1
27 235281 Clip - Lever Retaining1
28 235193 Rod - Manual Oiler1
30 235028 Top Cover - Engine1
31 235216 Nut - Carburetor M52
33 235029 Bolt - Carburetor (Left)1
32 235183 Bolt - Carburetor (Right)1
34 235234 Gasket - Carburetor Cover1
35 235522 Guide - Screwdriver1
36 235449 Carburetor Assembly1
37 235016 Gasket - Carburetor1
38 235120 Valve - Reed1
39 235015 Gasket - Reed1
40 235370 Kit - Carburetor Repair1
41 235254 Diaphragm - Metering1
42 Gasket - Diaphragm Not available separately.1
43 Lever - Inlet Control Not available separately.1
44 Needle - Inlet Not available separately.1
45 Welch Plug & Strainer Not available separately.1
46 Gasket - Fuel Pump Not available separately.1
47 235254 Diaphragm - Fuel Pump1
48 235261 Handle - Front1
49 235210 Screw - Sltd. Hd. 15 x 251
50 235248 Washer - M51
51 235216 Nut - M51
52 235244 Screw - Sltd. Hd. M5 x 451
53 235248 Washer1
54 235642 Nut - Hex Head M52
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600141-11 POWER MAC 380 02/86 to 04/89 IPL 219752 Page 3 of 4
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
55 235106 Bushing4
56 235105 Shock Mount - Rubber4
57 235107 Washer4
58 235239 Screw - Sltd. Hd. M5 x 201
59 235248 Washer1
REAR HANDLE ASSEMBLY
60 235210 Screw - Sltd. Hd. M5 x 251
61 235205 Screw - Sltd. Hd.4
62 235351 Kit - Rear Handle1
63 235519 Safety trigger1
64 235104 Spring1
65 235521 Throttle Trigger1
66 235022 Rod - Throttle Trigger1
67 235281 Retainer - Throttle Rod1
68 235212 Screw - Clutch Cover M5 x 352
69 235427 Cover - Clutch1
70 235155 Spacer1
71 235170 Plug1
72 235205 Screw - Brake Box1
73 235653 Lever - CHAIN BRAKE1
74 235177 Brake Box1
75 235530 Screw - Skt. Hd. M6 x 351
76 235512 Brake Bushing1
77 235226 Pivot - Brake Band1
78 214368 Bearing - Roller1
79 235812 Screw - Brake Band1
80 235224 Ring - Seeger1
81 235073 Brake Band1
82 235287 Washer - Clutch1
83 235164 Washer1
84 215252 Drum/Sprocket Assembly1
85 235115 Clutch1
86 235701 Sawdust Shield1
87 235076 Spring - Brake Latch1
88 235669 Muffler Assembly1
89 235213 Screw - M5 x 502
90 235665 Spark Arrester Screen1
91 214223 Spark Plug1
92 235214 Cylinder Screw - M6 x 204
93 235479 Kit - Cylinder1
94 235135 Gasket - Cylinder1
95 235478 Piston Assembly1
96 235008 Ring - Snap2
97 235178 Ring - Piston2
98 Wrist Pin Not available separately.1
99 235801 Screw - M4 x 16 TCE3
100 235513 Kit - Oil Pump1
101 235159 Gasket - Oil Pump1
102 235051 Gasket - Oil Pump1
103 235173 Screw - Oil Flow Adjustment1
104 235438 Screen - Oil Filter1
105 235186 Check Ball - Oil Pump1
106 Gasket - Oil Pump Not available separately.1
107 Cover - Oiler Body Not available separately.1
108 235138 Flywheel/Pawl Assembly1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600141-11 POWER MAC 380 02/86 to 04/89 IPL 219752 Page 4 of 4
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
109 235516 Pin - Pawl2
110 235517 Pawl - Starter2
111 235518 Spring - Pawl2
112 235218 Nut - M81
113 235211 Screw - M5 x 30 (Crankcase)7
114 236996 Kit- Crankcase1
115 215758 Kit- Brake Latch1
116 235075 Latch - Pivot1
117 235229 Seal1
118 236982 Stud - Guide Bar1
119 Oil Vent - Cotter Key Not available separately.1
120 235222 Chain Catcher1
121 235574 Kit - Chain Tension Adjusting1
122 Gasket - Crankcase Not available separately.1
123 235672 Support - Rubber1
124 Gasket - Crankcase Not available separately.1
125 235190 Bushing1
126 235221 Pin1
127 235230 Bearing - Crankshaft2
128 228085 Kit - Crankshaft1
129 Connecting Rod Not available separately.1
130 235742 Bearing - Needle1
131 102164 Key - Woodruff1
132 235674 Support1
133 235670 Protective Shield - Fuel Tank1
134 235729 Fuel Tank Assembly1
135 235861 Fuel Tank Neck1
136 228554 Screw1
137 235510 "O" Ring1
138 228138 Kit - ON/OFF Knob1
139 235239 Screw - Ignition2
140 228416 Electronic Ignition System1
141 235238 High Tension Wire1
142 228139 Contact - Ignition1
143 235675 Grommet - Fuel Tank1
144 93720 Filter - Fuel Tank1
145 235673 Screw - Fuel Line Vent1
146 235713 Fuel Hose1
147 235741 Valve - Fuel Line Vent1
148 235758 Fuel Line Vent Assembly1
149 235788 Fuel Cap1
150 235510 "O" Ring1
151 235789 Oil Cap1
152 235061 Gasket - Oil Cap1
