Page 1
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 1 of 17
www.ktoutdoor.com
Tools/Accessories/Lubricants
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 2 of 17
www.ktoutdoor.com
Tools/Accessories/Lubricants
Ref # Part Number DescriptionQty
93797 Wrench - Screwdriver
216063 Key-Socket 5/32"
214194 Lubri - Gun
91226 Tool - Flywheel Holder
110706 Tool - Handle/Throttle Trigger Screw
94415 Adaptor - Pressure Test Intake (Cyl)
94416 Adaptor - Pressure Test Intake (Airbox)
68917 Plate - Block - Off Exhaust
85229 Kit - Pressure Test
215432 Gauge/Bulb - Pressure Test
63094 Driver - Piston Pin
67537 Loctite - 10cc Bottle
69794 Locquic - 6oz.
110083 R.T.V. Sealant - Tube
94364 Kit - Carrying Case (16")
214202 Scabbard (16")
93770 40:1 2-Cycle Custom Lubricant: 6 Oz. Can (Case of
48)
85707 40:1 2-Cycle Custom Lubricant: 16 Oz. Can (Case of
24)
85709 40:1 2-Cycle Custom Lubricant: 1 Qt. Bottle (Case of
12)
87885 Bar and Chain Oil: 1 Qt. Bottle (Case of 12)
94818 Bar and Chain Oil: 1 Gal. Bottle (Case of 6)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 3 of 17
www.ktoutdoor.com
Bar & Chain Combinations
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 4 of 17
www.ktoutdoor.com
Bar & Chain Combinations
Ref # Part Number DescriptionQty
214235 Bar - 14" Mini Pro
214919-12 Chain - MP370GLX 49CL
219131 File Plate, Round File Size - 5/32"
214236 Bar - 16" Mini Pro
214925-12 Chain - MP370GLX 54CL
219131 File Plate, Round File Size - 5/32"
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 5 of 17
www.ktoutdoor.com

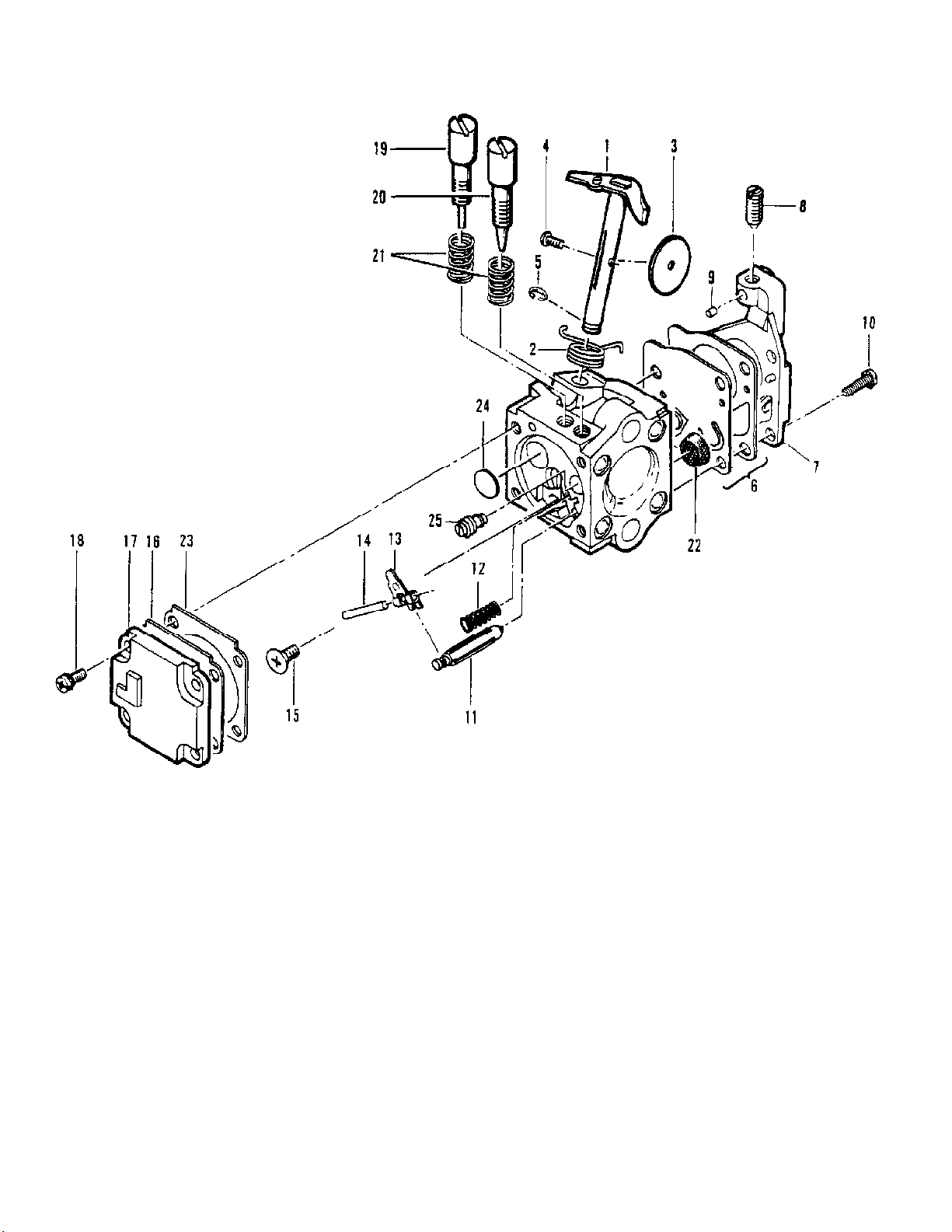

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 6 of 17
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
94496 Carburetor Assembly (Zama)1
1 Shaft Asy - Throttle Not available separately.1
2 Spring - Throttle Return Not available separately.1
3 Plate - Throttle Not available separately.1
4 Screw - Plate (M3) Not available separately.1
5 "E" Ring Not available separately.1
6 Diaphragm & Gaskets Not available separately.1
7 Cover Asy - Pump Not available separately.1
8 Screw - Idle Speed Not available separately.1
9 Insert - Friction Not available separately.1
10 Screw - Pump Cover (M4) Not available separately.4
11 Needle - Inlet Not available separately.1
12 Spring - Lever Not available separately.1
13 Lever - Inlet Needle Not available separately.1
14 Pin - Lever Not available separately.1
15 Screw - Lever Pin (M3) Not available separately.1
16 Diaphragm Asy - Metering Not available separately.1
17 Cover - Diaphragm Not available separately.1
18 Screw - Diaphragm Cover (M3) Not available
4
separately.
19 Screw - Idle Adjust Not available separately.1
20 Screw - Main Adjust Not available separately.1
21 Spring - Needle Not available separately.2
22 Screen - Filter Not available separately.1
23 Gasket - Metering Diaphragm Not available
24 Welch Plug Not available separately.1
25 Orifice - Main Fuel Not available separately.1
217081 Repair Kit
217089 Gasket/Diaphragm Kit
216804 Needle Kit
1
separately.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 7 of 17
www.ktoutdoor.com

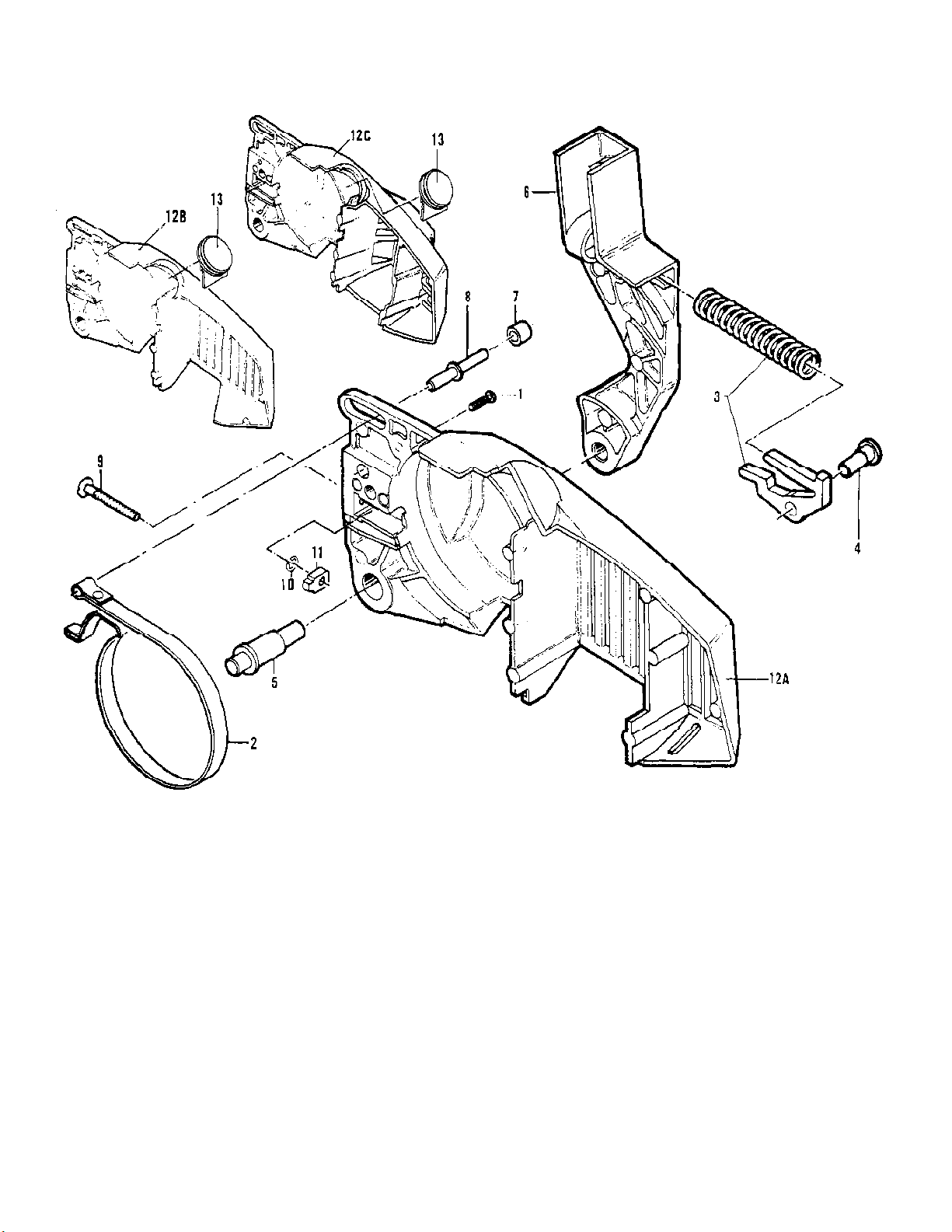

Chain Brake Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 8 of 17
www.ktoutdoor.com
Chain Brake Assemblies
Ref # Part Number DescriptionQty
A 219323 Brake Asy-Chain1
B 216409 Brake Asy-Chain1
C 216552 Brake Asy-Chain1
1 111047 Screw-8-32 x .6251
2 94709 Band-Brake1
3 215758 Latch/Spring Kit1
4 93602 Pivot-Latch1
5 216549 Pivot-Lever1
6 93159 Lever-Actuating1
7 214368 Bearing-Roller1
8 213907 Pin-Roller1
9 90658 Screw-Adjusting1
10 110907 Ring-Retaining1
11 84929 Nut-Bar Adjusting1
12A 219321 Housing-Brake1
12B 216411 Housing-Brake1
12C 216270 Housing-Brake1
13 93528-01 Cover-Auto Sharp1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 9 of 17
www.ktoutdoor.com

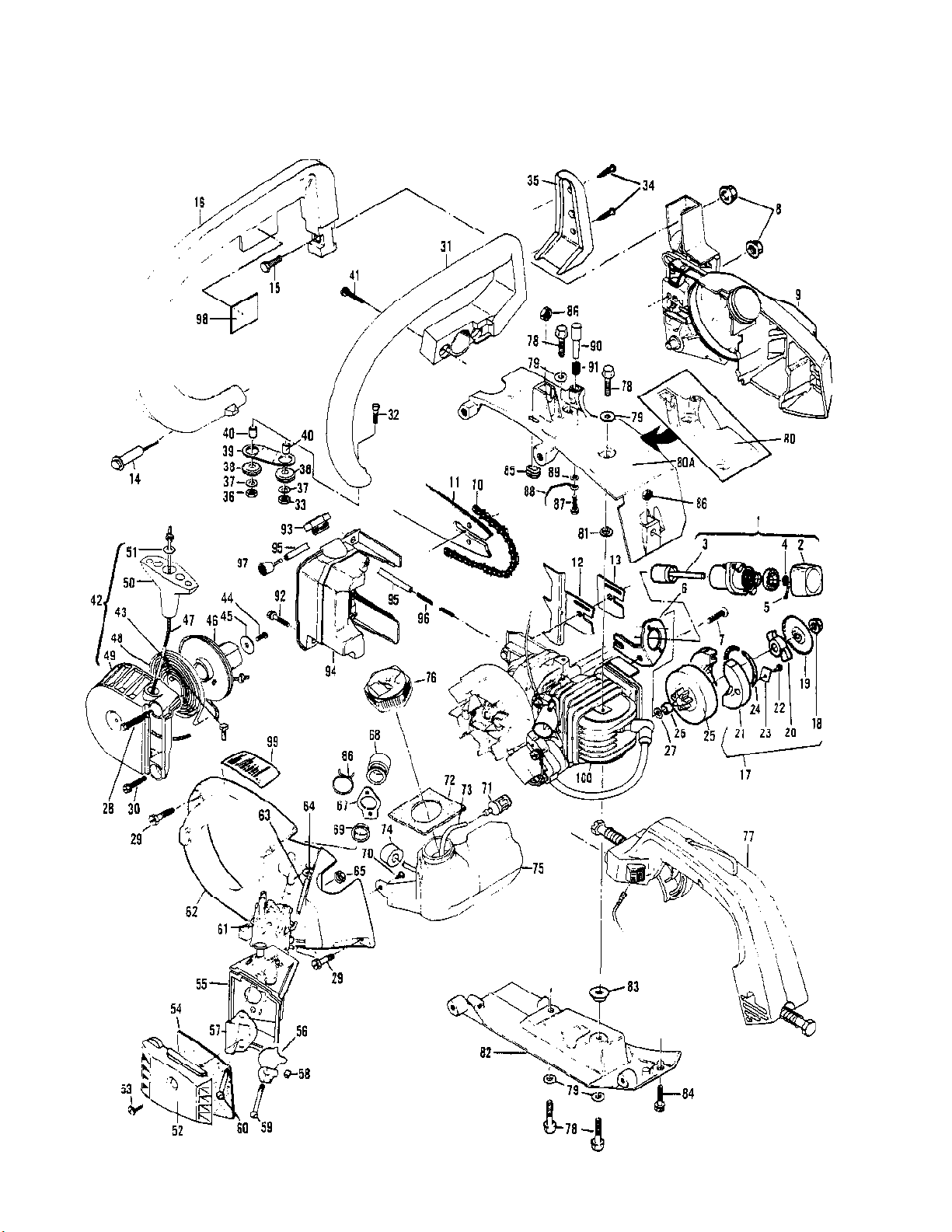

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 10 of 17
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 216132 Kit-Auto Sharp1
2 215447 Knob1
3 218294 Wheel Asy-Grinding1
4 216134 Washer1
5 216133 Pin-Cotter1
6 215208 Bracket-Auto Sharp1
7 120025 Screw-M5 x 10 (35-40 in. lb. torque)2
8 120029 Nut-Flange M6 .3 x 1.02
9 Chain Brake Asy See "Chain Brake Assembly"
1
illustration and parts lists.
10 Chain See "Bar & Chain" illustration and parts lists;
11 Bar See "Bar & Chain" illustration and parts lists;
12 214207 Spike1
13 93148 Spacer-Bar Pad1
14 215695 Screw-M5 x 501
15 120028 Screw-M6 .3 x 201
16 93021-01 Lever-Wraparound1
17 213278 Kit-Clutch1
18 94244 Nut-Clutch (160-170 in. lb. torque)1
19 94243 Plate-Dust1
20 Rotor-Clutch Not available separately.1
21 213277 Clutch Asy1
22 Rivet-1/8 x .547 Not available separately.2
23 Plate-Clutch Shoe Not available separately.2
24 Spring Asy-Clutch Not available separately.1
25 215252 Drum/Sprocket/Bearing Asy Models with a suffix
1
Models with a suffix number 10 were originally
equipped with a .250 pitch bar. Chain and
Drum/Sprocket Assembly which is no longer available.
Should replacement become necessary, order item
number 25 as well as Bar and Chain as shown in
Figure 6.
1
Models with a suffix number 10 were originally
equipped with a .250 pitch bar. Chain and
Drum/Sprocket Assembly which is no longer available.
Should replacement become necessary, order item
number 25 as well as Bar and Chain as shown in
Figure 6.
1
number 10 were originally equipped with a .250 pitch
bar. Chain and Drum/Sprocket Assembly which is no
longer available. Should replacement become
necessary, order item number 25 as well as Bar and
Chain as shown in Figure 6.
26 91222 Bearing-Needle1
67650 Bearing1
27 215259 Washer-Sprocket1
67303 Washer1
28 120096 Screw-M5 x 551
29 120095 Screw-M5 x 20 (40-50 in. lb. torque)2
30 120098 Screw-M5 x 181
31 216816 Frame Asy1
32 216064 Screw-M5 T-Head1
33 216585 Nut-M5 (35-40 in. lb. torque)1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 11 of 17
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
31 216504 Frame Asy-Weighted1
32 216064 Screw-M5 T-Head1
33 216585 Nut-M5 (35-40 in. lb. torque)1
34 111011 Screw-10-16 x .8752
35 95141 Weight-Frame1
36 216585 Nut-M5 (35-40 in. lb. torque)1
37 120045 Washer-M52
38 110989 Grommet2
39 93152 Link1
40 93057 Spacer-Mount2
41 120036 Screw-M4 x 25 (15-20 in. lb. torque)2
42 216491 Starter Asy1
43 216064 Bolt-M5 T-Head1
44 110041 Screw-8-32 x .501
45 68497 Washer1
46 213257 Drum/Rope Asy See Service Bulletin 18331
47 83203 Rope-Starter1
48 83078 Spring-Rewind1
49 216485 Housing-Starter1
50 91255 Handle/Washer Asy1
51 105490 Washer-Handle1
52 215481 Cover/Screw Asy-Air Filter1
53 213118 Screw-Air Filter Cover1
54 215456 Filter-Air1
55 215482 Box Asy-Air1
56 213411 Plate-Choke1
57 215455 Bracket-Choke1
58 213420 Spacer1
59 213105 Screw-M5 x 551
60 213104 Screw-M5 x 501
61 Carburetor Asy See "Carburetor Assembly"
1
illustration and parts lists.
62 215563 Housing Asy-Fan1
63 213542 Hose-Pulse1
64 215562 Grommet1
65 94501 Nut-M5 x 0.8 Thin1
66 94302 Clip-Spring1
67 92747 Flange-Carburetor Mounting1
68 213211 Boot/Eyelet Asy1
69 95656 Eyelet1
70 111002 Screw-10-16 x 1/21
71 93720 Pickup-Fuel1
72 94491 Seal-Fuel Vent1
73 93997 Hose-Fuel1
74 90869 Insert-Cushion1
75 216666 Fuel Tank/Cap Asy1
76 216157 Cap Asy-Fuel W/Retainer1
77 Handle Asy See "Handle Assembly" illustration and
78 213172 Screw-M6 x 17 (90-100 in. lb. torque)4
213166 Screw-M6 x 16 (90-100 in. lb. torque)4
79 213021 Washer-Ramp Conical4
80 219319 Top Shroud (without Recess)1
80A 214152 Kit-Top Shroud (with Recess)1
1
parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 12 of 17
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
81 214350 Insulator1
82 214154 Kit-Bottom Shroud1
83 214350 Insulator1
84 120095 Screw-M5 x 20 (40-50 in. lb. torque)1
85 94192 Grommet1
86 120034 Nut-M6 x 1.02
87 110999 Screw-6-20 x 5/8 (8-10 in. lb. torque)1
88 94540 Rod-Oiler1
89 100001 Washer-Plain1
90 217782 Knob-Oiler1
91 93634-01 Spring-Compression1
92 120095 Screw-M5 x 20 (35-40 in. lb. torque)2
93 216095 Cap-Oil1
94 216696 Tank Asy-Oil1
95 94405 Hose-Oil Pickup1
96 93998 Spring-Oil Hose1
97 92465 Pickup-Oil1
98 219058 Label-Safety1
99 218558 Label-Instruction1
100 Powerhead See "Powerhead Assembly" illustration
1
and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 13 of 17
www.ktoutdoor.com

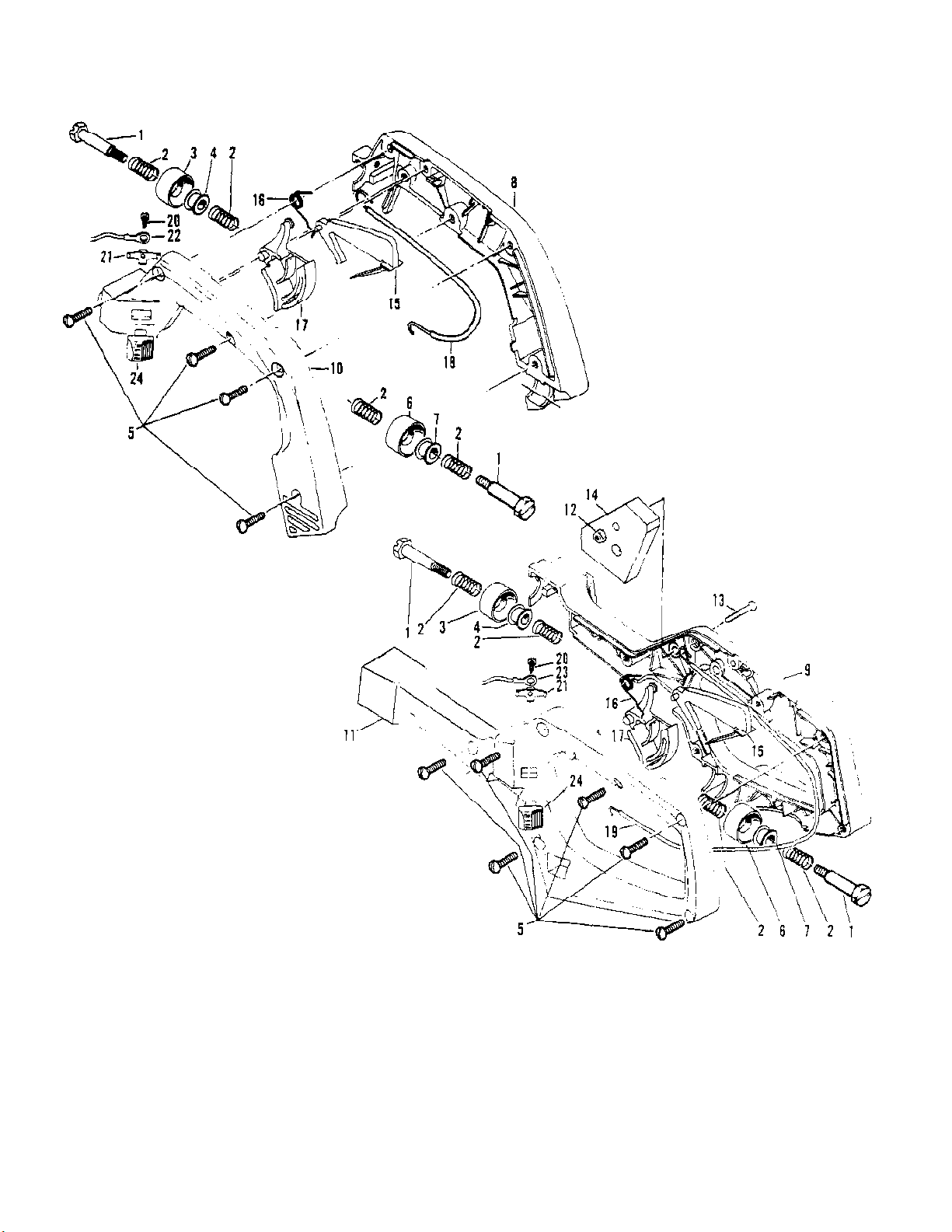

Handle Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 14 of 17
www.ktoutdoor.com
Handle Assemblies
Ref # Part Number DescriptionQty
1 93529 Bolt-Shoulder2
2 93530-01 Spring-Mount4
3 92704 Mount1
4 94038 Hub-Mount1
213230 Handle Assembly1
213231 Handle Assembly1
213235 Handle Assembly weighted1
5 111032 Screw-Ph Hd 10-16 x .6256
6 92704 Mount1
7 94038 Hub-Mount1
8 213229 Handle-Right Half1
9 213224 Handle-Long Right1
10 213228 Handle-Left Half1
11 213226 Handle-Long Left1
12 216649 Nut-Hx Lock 10-241
13 216632 Screw-Pan Hd 10-24 x 11
14 95042 Weight-Handle1
15 93310 Trigger-Safety1
16 93515 Spring-Trigger1
17 213232 Trigger-Throttle1
18 213234 Wire Asy-Throttle1
19 213233 Wire Asy-Throttle1
20 110706 Screw-Pan Hd 8-18 x .501
21 62451 Contact-Ignition Switch1
22 93505-01 Wire-Switch (310/320/E.B.)1
23 94039 Wire-Stop Switch (330/340)1
24 68846 Button-Stop Switch1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 15 of 17
www.ktoutdoor.com

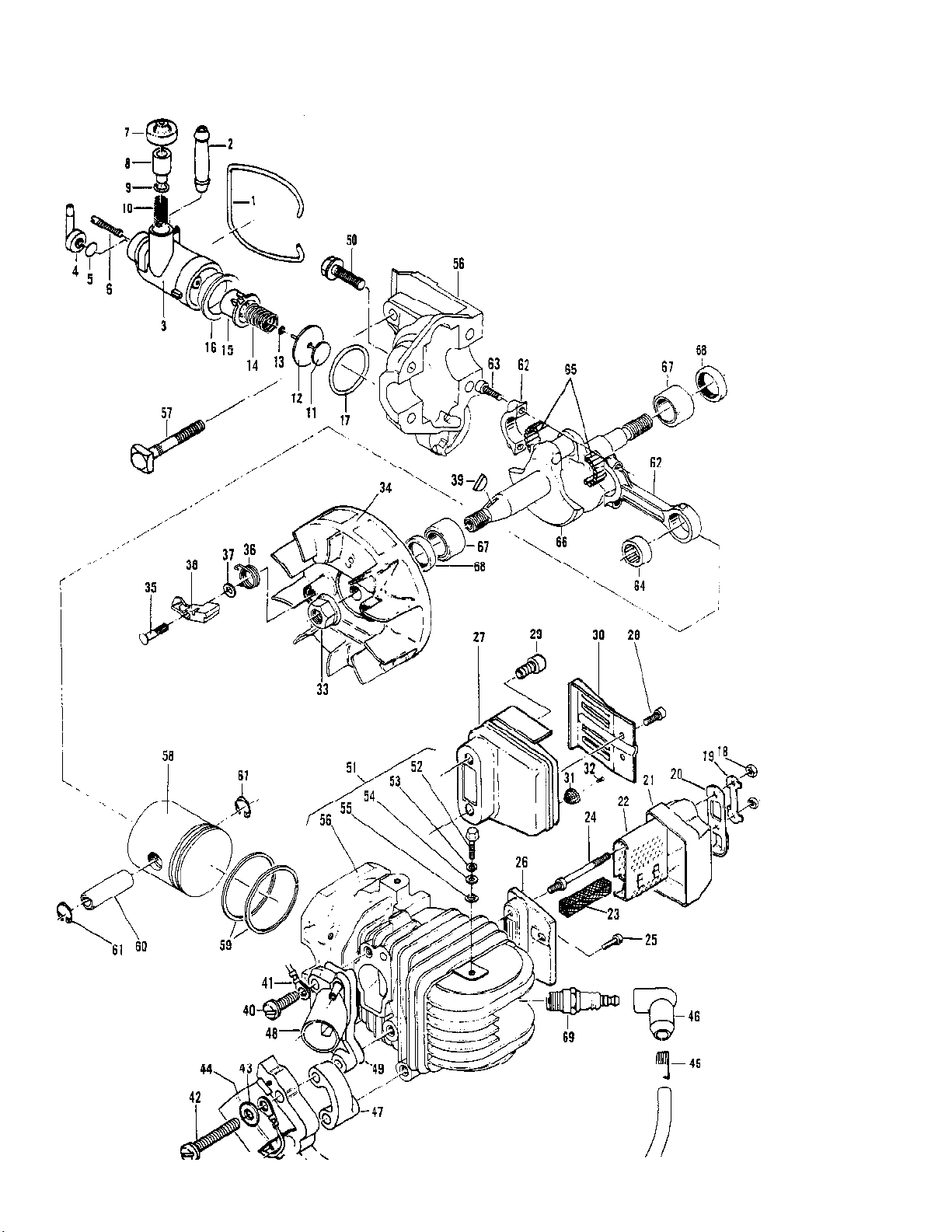

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 16 of 17
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 93150 Bail1
2 217168 Connector-Outlet1
3 Pump Asy-Oiler (W/Output Adjustment Screw) Not
219990 Pump Asy-Oiler (Non-Adjustable)1
4 215196 Connector-Hose1
5 94115 Valve-Oiler1
6 217765 Screw-6-40 x .8001
7 215151 Cap-Oil Pump1
8 93301 Plunger-Oil Pump1
9 105614 "O" Ring-.239 x .0701
10 93632 Spring1
11 216425 Piston Asy-Oiler1
219566 Piston Asy-Oiler1
12 Ring-Oil Pump Piston Not available separately.1
13 105603 "O" Ring-.114 x .0701
14 83891 Spring-Return1
219525 Spring-Return1
15 216423 Sleeve-Oil Pump1
16 216422 Eyelet1
17 110653 "O" Ring1
18 215871 Nut-Muffler2
19 215471 Plate-Lock1
20 215472 Deflector-Exhaust1
21 215774 Cover1
22 215776 Baffle1
23 216805 Screen-Spark Arrestor1
24 215757 Bolt-Shoulder (65-85 in. lb. torque)2
25 213369 Bolt-M6 (70-85 in. lb. torque)1
26 215713 Base1
27 215411 Kit-Muffler1
28 110681 Screw-Skt, Hd. 10-24 x 1/4 (40-45 in. lb. torque)2
29 215394 Screw-Special M6 (70-80 in. lb. torque)2
30 92961 Deflector-Exhaust1
31 214204 Kit-Spark Arrestor1
32 101987 Screw-6-32 x .25 (25 in. lb. torque)1
33 216645 Nut-Flange M8 (200-220 in. lb. torque)1
34 94737 Flywheel W/The Letters IGN Molded in Casting1
34A 219211 Flywheel W/The Letters CDI Molded in Casting1
35 216984 Pin-Pawl2
36 216982 Spring-Pawl2
37 93469 Washer2
38 216983 Pawl-Starter2
39 102164 Key-Flywheel1
40 120098 Screw-M5 x 18 (40-50 in. lb. torque)1
41 93514-01 Wire Asy-Ground1
42 120112 Screw-M5 x 40 (70-80 in. lb. torque)2
43 216683 Washer-Special2
44 219215 Ignition-CDI (Black Sems)1
45 102556 Connector-Spark Plug1
46 95266 Boot-Spark Plug1
47 214356 Spacer1
48 215601 Manifold-Carburetor1
49 92778 Gasket-Manifold1
50 120097 Screw-M5 x 25 (70-80 in. lb. torque)4
K&T Saw Shop 606-678-9623 or 606-561-4983
1
available separately.
Page 17
11-600132-03 EB 2.1 07/91 to 05/94 IPL 216186-01 Page 17 of 17
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
51 215943 Kit-Cylinder/Crankcase1
52 213166 Screw-M6 x 16 (90-100 in. lb. torque)4
53 105043 Washer-Lock4
54 102523 Washer-1/4 Plain4
55 214350 Insulator2
56 215762 Cylinder Asy1
57 92777 Bolt-Bar1
58 94660 Piston Asy1
59 94136 Ring Set-Piston1
60 92836 Pin-Piston1
61 111026 Ring-Snap2
62 94135 Connecting Rod Asy1
63 94654 Screw-Connecting Rod (35-40 in. lb. torque)2
64 110984 Bearing-Needle1
65 68095 Bearing-Needle (set of 20)1
66 92750 Crankshaft1
67 213282 Bearing-Crankshaft1
68 83859 Seal-Crankshaft2
69 62345 Spark Plug-AC-CS45T1
93018 Spark Plug-Champion RDJ8 (120 in. lb. torque)1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
