Page 1
11-600123-07 EAGER BEAVER 01/86 to 05/96 IPL 219239-01 Page 1 of 15
www.ktoutdoor.com

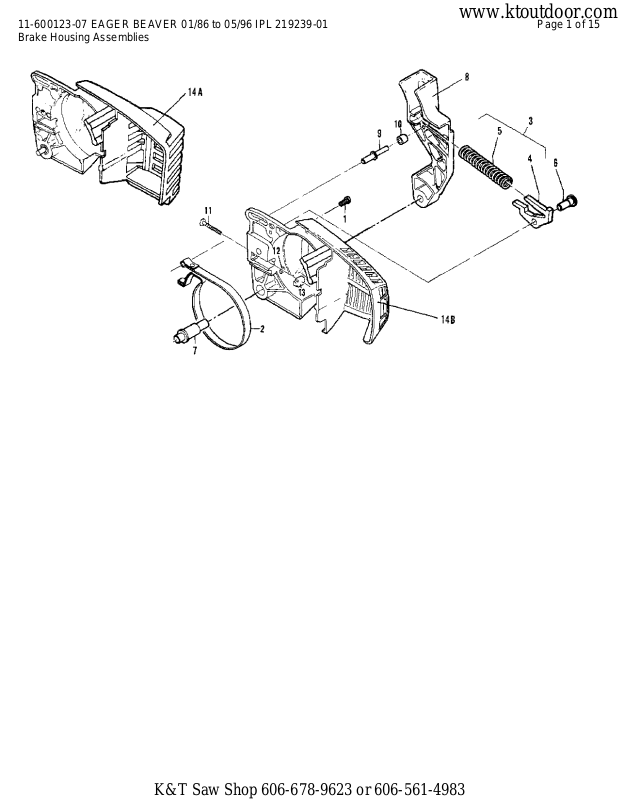

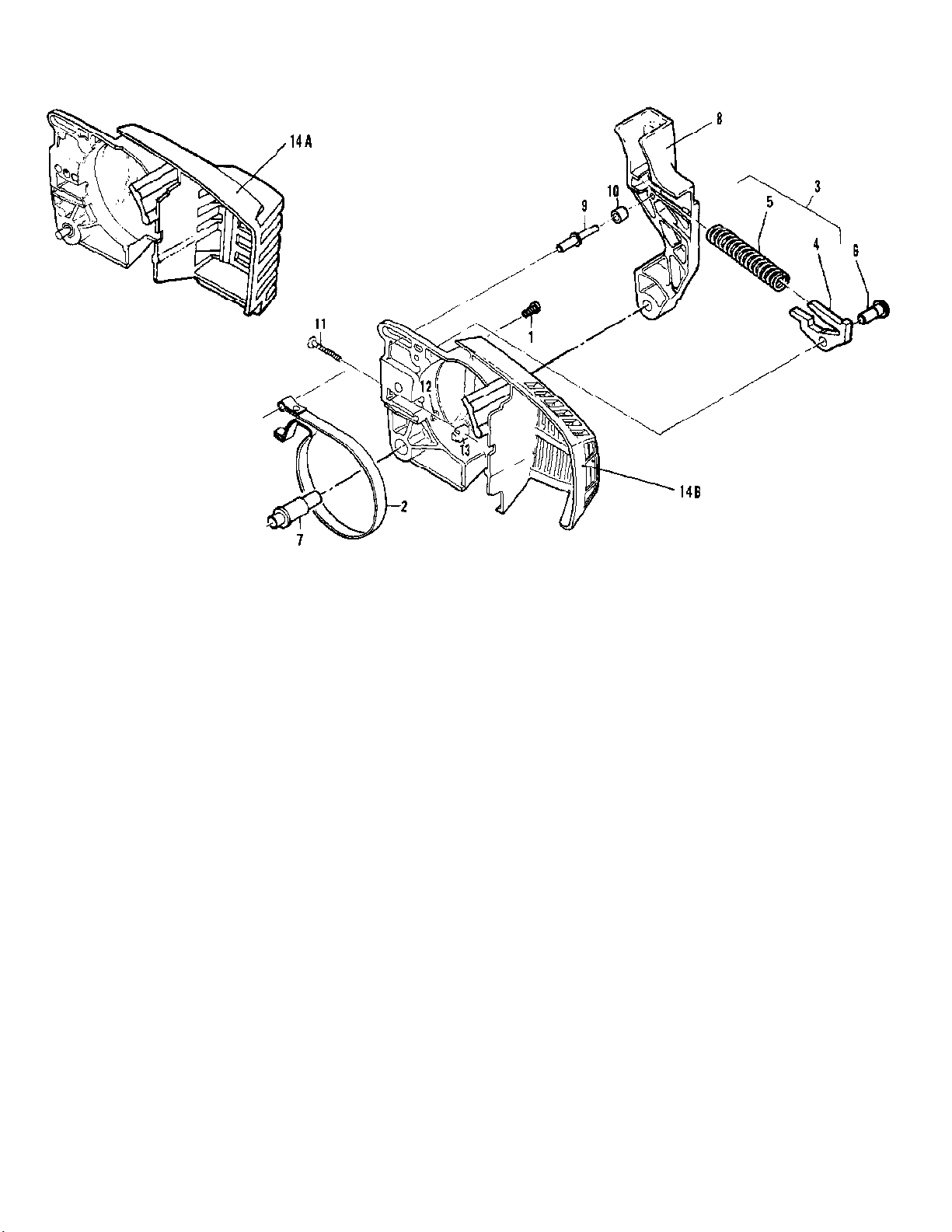

Brake Housing Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600123-07 EAGER BEAVER 01/86 to 05/96 IPL 219239-01 Page 2 of 15
www.ktoutdoor.com
Brake Housing Assemblies
Ref # Part Number DescriptionQty
A 216551 Brake Assembly - Chain1
B 216416 Brake Assembly - Chain1
1 111047 Screw - Pan Hd 8-32 x .6251
2 94709 Band - Brake1
3 215758 Kit - Latch1
4 216755 Latch1
5 215721 Spring - Compression1
6 93602 Pivot - Latch1
7 216549 Pivot - Lever1
8 92867 Lever1
9 213907 Pin - Roller1
10 214368 Bearing - Roller1
11 90658 Screw - Adjusting1
12 110907 Ring - Retaining1
13 84929 Nut - Bar Adjusting1
14A 216553 Housing - Brake1
14B 216414 Housing - Brake1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600123-07 EAGER BEAVER 01/86 to 05/96 IPL 219239-01 Page 3 of 15
www.ktoutdoor.com

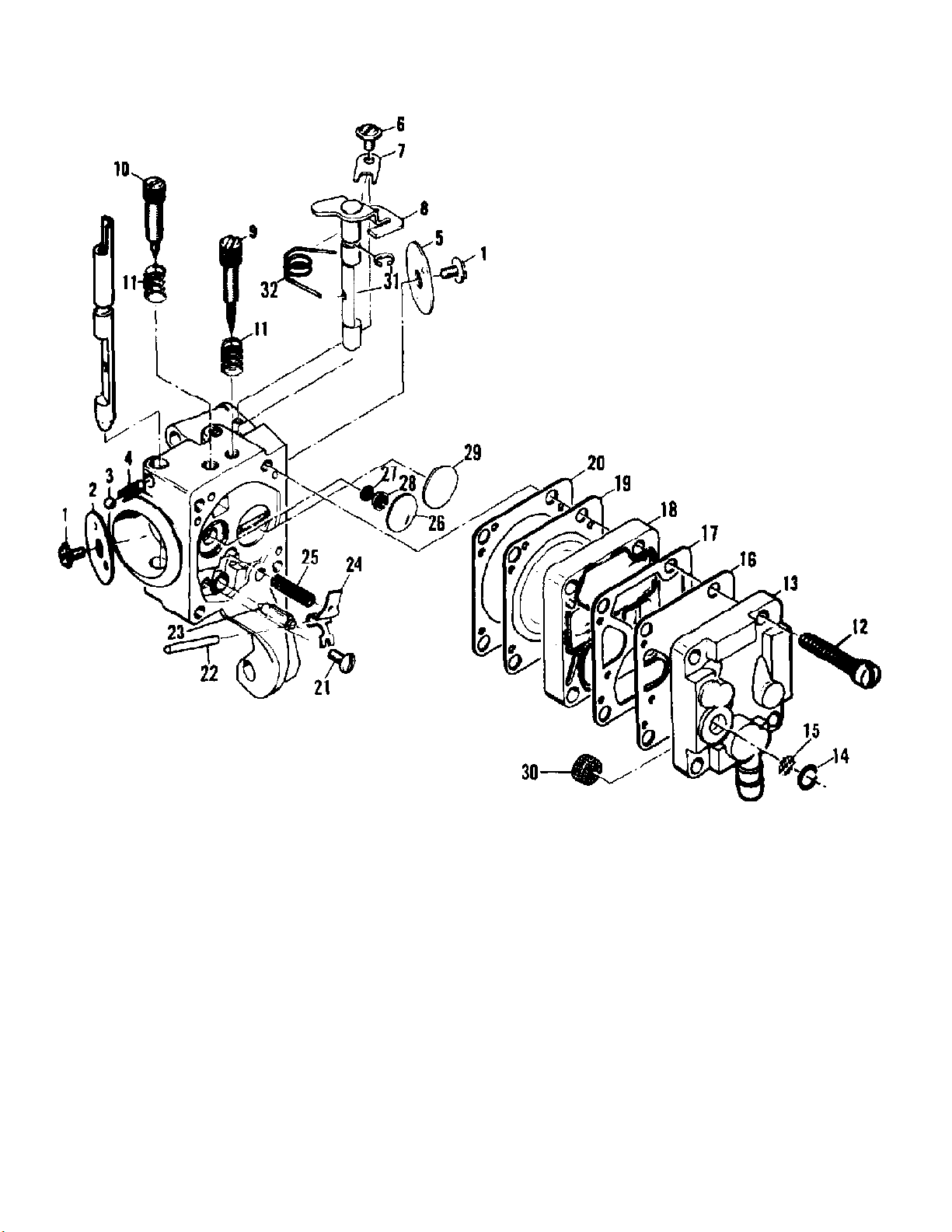

Carburetor Assembly (Walbro MDC 16)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600123-07 EAGER BEAVER 01/86 to 05/96 IPL 219239-01 Page 4 of 15
www.ktoutdoor.com
Carburetor Assembly (Walbro MDC 16)
Ref # Part Number DescriptionQty
214082-02 CARBURETOR ASSY - WALBRO MDC 16
1 SCREW - PLATE Not available separately.2
2 PLATE - CHOKE Not available separately.1
3 BALL - CHOKE FRICTION Not available separately.1
4 SPRING - CHOKE FRICTION Not available
5 PLATE - THROTTLE Not available separately.1
6 SCREW - CLIP Not available separately.1
7 CLIP - THROTTLE SHAFT Not available separately.1
8 SHAFT ASSEMBLY - THROTTLE. Not available
9 NEEDLE - IDLE Not available separately.1
10 NEEDLE - HIGH SPEED Not available separately.1
11 SPRING - NEEDLE Not available separately.2
12 SCREW ASSEMBLY - BODY Not available
1
separately.
1
separately.
4
separately.
13 COVER ASSEMBLY - PUMP Not available
14 RING - VENT SCREEN Not available separately.1
15 VENT - SCREEN Not available separately.1
16 DIAPHRAGM - FUEL PUMP Not available
17 GASKET - METERING DIAPHRAGM Not available
18 BODY - FUEL PUMP Not available separately.1
19 DIAPHRAGM ASSEMBLY - METERING Not
20 GASKET - FUEL PUMP Not available separately.1
21 SCREW - METERING LEVER PIN Not available
22 PIN - METERING LEVER Not available separately.1
23 VALVE - INLET NEEDLE Not available separately.1
24 LEVER - METERING Not available separately.1
25 SPRING - METERING LEVER Not available
26 PLUG - WELCH 7/16 Not available separately.1
27 SCREEN - INLET Not available separately.1
28 RING - INLET SCREEN Not available separately.1
29 PLUG - WELCH 1/2 Not available separately.1
30 SCREEN Not available separately.1
31 RING - RETAINING Not available separately.1
32 SPRING - THROTTLE RETURN Not available
1
separately.
1
separately.
1
separately.
1
available separately.
1
separately.
1
separately.
1
separately.
217084 MAJOR REPAIR KIT
216727 MINOR REPAIR KIT
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600123-07 EAGER BEAVER 01/86 to 05/96 IPL 219239-01 Page 5 of 15
www.ktoutdoor.com

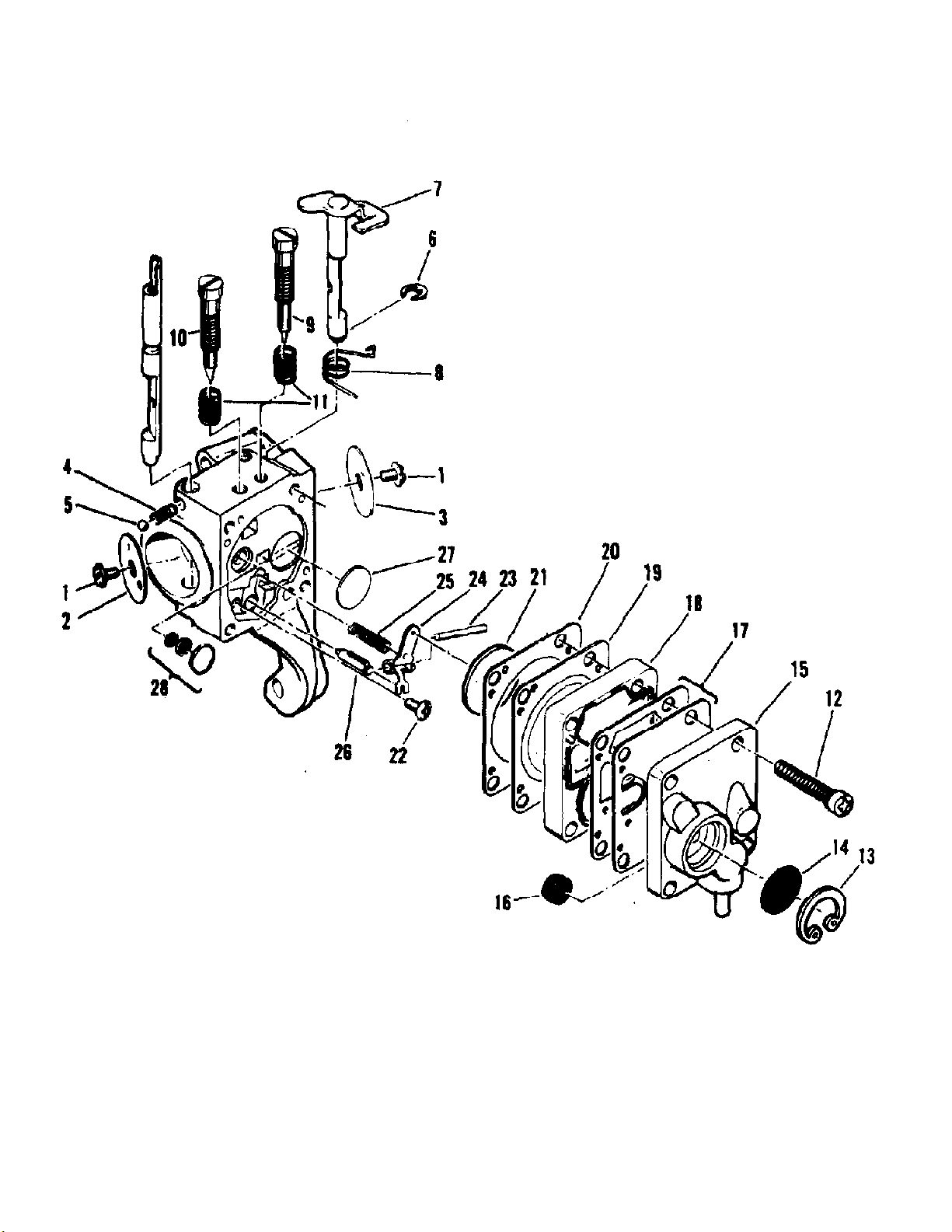

Carburetor Assembly (Zama M1-M7)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600123-07 EAGER BEAVER 01/86 to 05/96 IPL 219239-01 Page 6 of 15
www.ktoutdoor.com
Carburetor Assembly (Zama M1-M7)
Ref # Part Number DescriptionQty
214082-01 Carburetor Assy - Zama M1-M71
1 Screw - Plate Not available separately.2
2 Valve - Choke Not available separately.1
3 Valve - Throttle Not available separately.1
4 Spring - Choke Not available separately.1
5 Ball - Friction Not available separately.1
6 "E" Ring Not available separately.1
7 Shaft Assembly - Throttle Not available separately.1
8 Spring - Throttle Return Not available separately.1
9 Screw - Idle Adjustment Not available separately.1
10 Screw - Main Adjustment Not available separately.1
11 Spring - Screw Not available separately.2
12 Screw - Cover Not available separately.4
13 "C" Ring Not available separately.1
14 Strainer Not available separately.1
15 Cover - Pump Not available separately.1
16 Screen Not available separately.1
17 Kit - Pump diaphragm Not available separately.1
18 Body - Pump Not available separately.1
19 Diaphragm - Main Not available separately.1
20 Gasket - Main Not available separately.1
21 Disk Not available separately.1
22 Screw Not available separately.1
23 Pin - Arm Not available separately.1
24 Arm - Needle Valve Not available separately.1
25 Spring - Arm Not available separately.1
26 Valve - Needle Not available separately.1
27 Plug - Welch Not available separately.1
28 Valve Asy - Main Nozzle Not available separately.1
217079 Repair Kit
216722 Gasket/Diaphragm Kit
217086 Needle Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600123-07 EAGER BEAVER 01/86 to 05/96 IPL 219239-01 Page 7 of 15
www.ktoutdoor.com

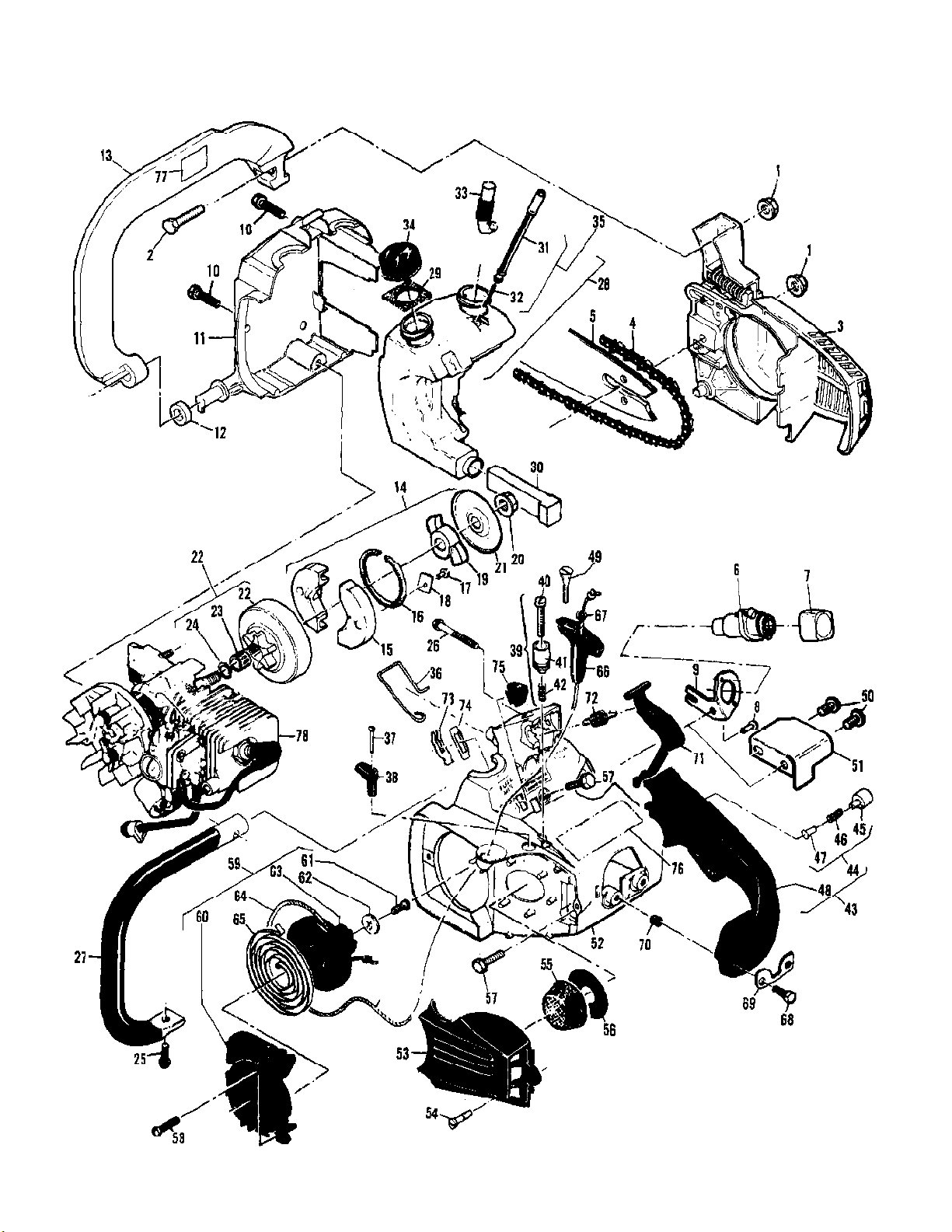

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600123-07 EAGER BEAVER 01/86 to 05/96 IPL 219239-01 Page 8 of 15
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 110676 Nut - Hex Head 1/4-28 (65 - 75 in. lb. torque)2
2 110972 Screw - Hex 1/4-28 x .751
3 Brake Assembly - Chain See "Brake Housing
4 Chain - Saw Not available separately.1
5 Bar - Guide Not available separately.1
6 218886 Grinder Assembly1
7 215447 Knob - Auto Sharp1
8 110583 Screw - Pn Hd 8-32 x .44 (35 - 40 in. lb. torque)2
9 215209 Bracket - Auto Sharp1
10 110639 Screw - Hex Hd 12-24 x 1 (55 - 60 in. lb. torque)2
11 218867 Cover - Fuel/Oil Tank1
12 93194-01 Washer - Rubber1
13 92479 Lever/Handguard1
14 213278 Kit - Clutch1
15 213276 Shoe - Clutch2
16 93608 Spring - Assembly1
17 Rivet - Flt. 1/8 x .547 Not available separately.2
18 Plate Not available separately.2
19 Rotor Not available separately.1
20 94244 Nut - Clutch (160 - 170 in. lb. torque)1
21 94243 Plate - Dust1
22 215252 Drum/Sprocket/Bearing Assembly1
23 91222 Searing - Needle1
24 215259 Spacer - Drum1
25 110953 Screw - Hx Hd 12-24 x .625 (70 - 80 in. lb. torque)1
26 110686 Screw - Hx Hd 13-16 x 2 (35 - 45 in. lb. torque)1
27 214505 Frame/Grip Assembly1
28 217761 Kit - Fuel/Oil Tank1
29 91148 Seal - Fuel Vent1
30 84956 Pickup - Fuel1
31 217755 Piston - Manual Oiler1
32 83946 Spring - Piston1
33 85557 Body - Oiler1
34 216668 Cap - Fuel/Oil2
35 217762 Rod/Oiler Asy1
36 217759 Rod - Manual Oiler1
31 217755 Piston - Manual Oiler1
32 83946 Spring - Piston1
37 110672 Screw - Oval Hd 4-40 x 11
38 83870 Knob - Choke
39 93437 Latch Assembly - Throttle1
40 216440 Screw - Throttle Lock1
41 Latch - Throttle Not available separately.1
42 Spring - Compression Not available separately.1
43 218130 Handle/Trigger/Throttle Asy1
44 222992 Kit - Throttle Latch1
45 Knob - Throttle Latch Not available separately.1
46 Spring - Throttle Latch Not available separately.1
47 Rivet - Flat Not available separately.1
48 217908 Handle/Safety Trigger Asy1
49 68566 Screw - Idle Adjustment1
50 110807 Screw - Pan Hd 8-32 x .312 (35 - 50 in. lb. torque)2
51 93290 Deflector - Sawdust1
52 217015 Shroud - Using Auto Sharp1
K&T Saw Shop 606-678-9623 or 606-561-4983
1
Assemblies" illustration and parts list.
Page 9
11-600123-07 EAGER BEAVER 01/86 to 05/96 IPL 219239-01 Page 9 of 15
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
216963 Shroud - Non Auto Sharp1
53 91853 Cover - Air Filter1
54 91796 Screw - Filter Cover1
55 216905 Filter - Air1
56 84918 Washer - Air Seal1
57 216490 Screw - Hex Hd 12-24 x .76 (70 - 80 in. lb. torque)3
58 110959 Screw - Hex Hd 8-32 x .50 (15 - 20 in. lb. torque)3
59 213255 Starter Asy1
60 90425 Housing - Starter1
61 110041 Screw - Pan Hd 8-32 x .50 (20 - 25 in. lb. torque)1
62 68497 Washer - Special1
63 213257 Drum/Rope Assembly1
64 83203 Rope - Starter1
65 83078 Spring - Rewind1
66 91255 Handle Asy-Starter1
67 105490 Washer - Starter Handle1
68 110953 Screw - Hex Hd 12-24 x .625 (20 - 25 in. lb. torque)2
69 84520-01 Plate - Washer1
70 84519 Sleeve - Handle2
71 217909 Trigger - Throttle1
72 83940 Spring - Trigger Return1
73 83935 Contact - Switch1
74 83936 Protector - Switch1
75 83934 Button - Switch1
76 218853 Decal - 2.0 Cu. In.1
77 219058 Label - Safety1
78 Powerhead Asy See "Powerhead Assembly"
1
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600123-07 EAGER BEAVER 01/86 to 05/96 IPL 219239-01 Page 10 of 15
www.ktoutdoor.com

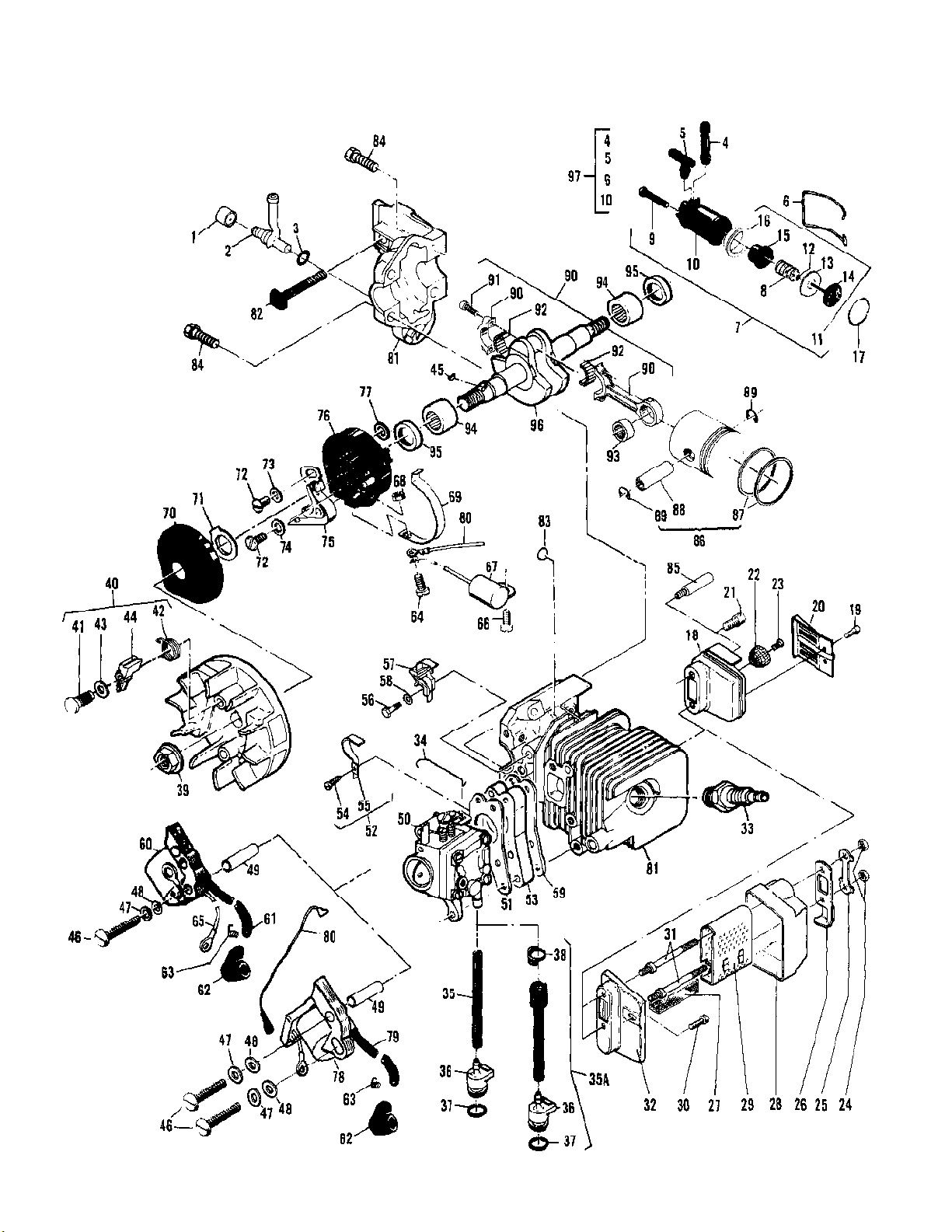

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600123-07 EAGER BEAVER 01/86 to 05/96 IPL 219239-01 Page 11 of 15
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 86438 Valve - Check1
2 217156 Connector - Oil Tank/Bar Pad1
3 105603 Ring - "O" Spacer1
4 217168 Connector - Pump/Bar Pad1
5 217167 Connector - Pump/Oil Tank1
6 83896 Bail - Pump Retaining1
7 219989 Pump Assembly - Oil1
8 83891 Spring - Return1
9 110651 Screw - Oil Flow Adjustment1
10 Body - Pump Not available separately.1
11 216426 Kit - Oil Pump Repair1
12 105603 Ring - "O" .114 x .0701
13 Ring - Oil Pump Piston Not available separately.1
14 Piston Assembly - Oiler Not available separately.1
15 216423 Sleeve - Oil Pump1
16 216422 Eyelet1
17 110653 Ring - "O"1
18 215411 Muffler Assembly1
19 110681 Screw - Skt. Hd. 10-24 x .250 (40 - 45 in. lb. torque)2
20 92961 Deflector - Exhaust1
21 215394 Screw - Special (70 - 80 in. lb. torque)2
22 214204 Kit - Spark Arrestor Screen1
23 101987 Screw - 6-32 x .2501
24 215871 Nut - Muffler (40 - 60 in. lb. torque)2
25 215471 Plate - Lock1
26 215412 Deflector - Exhaust1
27 216805 Screen - Spark Arrestor1
28 215774 Cover1
29 215776 Baffle1
30 213369 Screw - Hex Wsh M6 (70 - 85 in. lb. torque)1
31 215757 Bolt - Shoulder (65 - 85 in. lb. torque)2
32 215773 Base1
33 62345 Plug - Spark DJ8J Champion1
92879 Plug - Spark RDJ8 Champion1
34 89274 Red - Throttle1
35 89059 Hose - Fuel1
36 90660 Adaptor - Fuel Hose1
37 110908 Ring - "O" Adaptor1
35A 90661 Kit - Fuel Hose1
36 90660 Adaptor Fuel Hose1
37 110908 Ring - "O"1
38 87826 Clamp - Fuel Hose1
39 216640 Nut - Hex 5/16-24 (200 - 220 in. lb. torque)1
40 94737 Flywheel/Pawl Assembly1
41 216984 Pin - Pawl2
42 216982 Spring - Pawl2
43 93469 Washer - Pawl2
44 216983 Pawl - Starter2
45 102164 Key - Woodruff1
46 222866 Screw - Pan Head 8 - 32 x 1.753
47 105976 Washer - Flat 11/64"3
48 67177 Washer - Insulating3
49 68198 Tube - Insulating3
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600123-07 EAGER BEAVER 01/86 to 05/96 IPL 219239-01 Page 12 of 15
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
50 Carburetor Assemblies See "Carburetor Assembly
51 68197 Gasket - Carburetor1
52 219389 Connector/Insulator Assy1
53 219754 Insulator - Carburetor1
54 Screw - Connector Not available separately.1
55 219390 Connector - Stop Switch1
56 Screw - Hex HD 8-32 x 1/2 Not available separately.1
57 Connector - Stop Switch Not available separately.1
58 Eyelet - Connector Not available separately.1
59 90714 Gasket - Insulator1
60 84957 Coil - Lamination Assembly1
61 215351 Wire Assembly - Spark Plug1
62 95266 Boot1
63 102556 Connector1
64 110364 Screw - Pan Head 6-32x.6251
65 69344 Wire Assembly-Coil1
66 110041 Screw - Pan Head S-32x.501
67 85358 Condenser1
68 100035 Nut - Hex 6-321
69 84502 Connector - Stop Switch1
70 67841 Cover - Breaker Box1
71 69323 Seal - Breaker Box1
72 213032 Screw - Hex Head 8-32 x .502
73 69322 Washer - Special1
74 105976 Washer - Flat 11/64"1
75 88811 Breaker - Assembly1
76 84505-01 Kit - Breaker Box1
77 92037 Washer1
78 217031 Ignition Assembly - CDI1
62 95266 Boot1
63 102556 Connector1
79 Wire-Spark Plug Not available separately.1
80 217190 Wire Assembly - Stop Switch1
81 217165 Cylinder/Crankcase Using Auto Sharp1
82 83856 Bolt - Bar Mounting1
83 110914 Plug - Cup4
81 216935 Cylinder/Crankcase Using Automatic Oiler1
82 83856 Bolt - Bar Mounting1
83 110914 Plug - Cup4
81 217067 Cylinder/Crankcase Without Automatic Oiler1
82 83856 Bolt - Bar Mounting1
83 110914 Plug - Cup4
84 120097 Screw - Hex M5 x 25 (70 - 80 in. lb. torque)4
81 216950 Cylinder/Crankcase (Plated) Using Automatic Oiler1
82 83856 Bolt - Bar Mounting1
83 110914 Plug - Cup4
84 120097 Screw - Hex M5 x 25 (70 - 80 in. lb. torque)4
85 213327 Screw - Special2
86 94662 Piston Assembly1
87 95143 Ring - Piston2
88 92836 Pin - Piston1
89 111026 Ring - Snap2
K&T Saw Shop 606-678-9623 or 606-561-4983
1
(Zama M1-M7) illustration and parts list and
"Carburetor Assembly (Walbro MDC 16)" illustration
and parts list.
Page 13
11-600123-07 EAGER BEAVER 01/86 to 05/96 IPL 219239-01 Page 13 of 15
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
86 216713 Piston Assembly (Non-Plated)1
87 216705 Ring - Piston1
88 92836 Pin - Piston1
89 111026 Ring - Snap2
90 94135 Rod Assembly - Connecting1
91 94654 Screw - Connecting Rod2
92 68095 Roller - Needle (set of 20)1
93 110984 Bearing - Needle1
94 213282 Bearing - Crankshaft2
95 83859 Seal - Crankshaft2
96 217042 Crankshaft1
91932 Crankshaft1
97 216582 Kit - Manual Oil Pump (Includes P/N 217156 item 4,
1
P/N 217167 item 5, P/N 83896 item 6 and item 10).;
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600123-07 EAGER BEAVER 01/86 to 05/96 IPL 219239-01 Page 14 of 15
www.ktoutdoor.com
Service Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600123-07 EAGER BEAVER 01/86 to 05/96 IPL 219239-01 Page 15 of 15
www.ktoutdoor.com
Service Tools
Ref # Part Number DescriptionQty
68915-01 Kit - Piston Pin Installation/Removal Tool
93900 Kit - Cylinder/C'Case Pressure Test
215432 Tool - Pressure Test
214219 Wrench/Screwdriver
216063 Key - Socket 5/32"
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
