11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 1 of 18
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 2 of 18
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
94962 Scrench - 13mm x 5/8
84453 Kit - Pressure test adaptor
63432 Spark Plug
62827 Wrench/Screw Driver
214194 Metal Lubri - gun
214195 Plastic Lube Gun
215697 Air filter - felt
216147 Key - Socket 1/8
216335 Key - Socket 3/32
216063 Key - Socket 5/32
214283 Spark Screen & Cap Asy
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 3 of 18
www.ktoutdoor.com
Bar & Chain Combinations
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 4 of 18
www.ktoutdoor.com
Bar & Chain Combinations
Ref # Part Number DescriptionQty
94074 Bar - 16" Speed Mac
89502 Bar - 16" Mac 10
88167N Chain - 16" MP 370G
214231N Chain - 16" PRG 370G
89974N Chain - 16" SPR 370G
93778 Bar - 20" Speed Mac
89503 Bar - 20" Mac 10
88173N Chain - 20" PM 370G
214232N Chain - 20" PGR 370G
89979N Chain - 20" SPR 370G
86846 Bar - 24" Speed Mac
89504 Bar - 24" Mac 10
88175N Chain - 24" PM 370G
94437N Chain - 24" PGR 370G
89981N Chain - 24" SPR 370G
86847 Bar - 28" Speed Mac
89505 Bar - 28" Mac 10
93552N Chain - 28" PM 370G
89984N Chain - 28" SPR 370G
91284 Bar - 33" Speed Mac
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 5 of 18
www.ktoutdoor.com

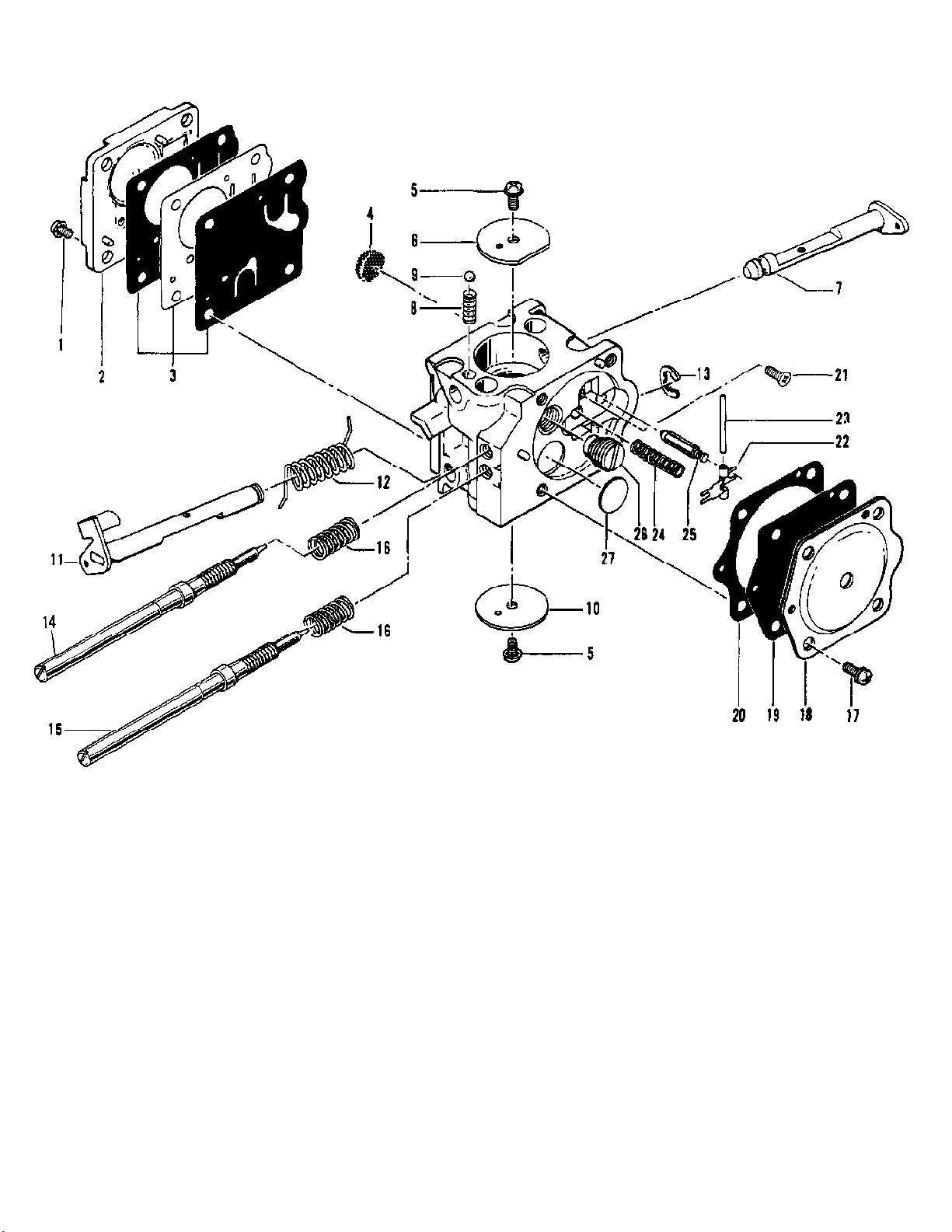

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 6 of 18
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
214763 Carburetor Assembly (Zama C-2)1
1 Screw - Pump cover (M4)4
2 Cover - Fuel pump1
3 93952 Kit - Pump diaphragm1
4 Screen - Filter1
5 Screw - Plate2
6 Valve - Choke1
7 Shaft Assembly - Choke1
8 Spring - Choke shaft1
9 Ball - Choke friction1
10 Valve - Throttle1
11 Shaft Assembly - Throttle1
12 Spring - Throttle return1
13 "E" Ring1
14 215265 Needle - High speed1
15 93947 Needle - Idle1
16 Spring - Needle2
17 Screw - Diaphragm cover4
18 Cover - Diaphragm1
19 93943 Diaphragm Assembly - Main1
20 Gasket - Main1
21 91814 Screw - Lever pin (M3)1
22 93941 Lever - Inlet1
23 93942 Pin - Lever1
24 93940 Spring - Lever1
25 Valve - Needle1
26 93950 Valve Assembly - Main get1
27 93951 Plug - Welsh1
217082 Repair Kit
216724 Gasket/Diaphragm Kit
216724 Needle Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 7 of 18
www.ktoutdoor.com

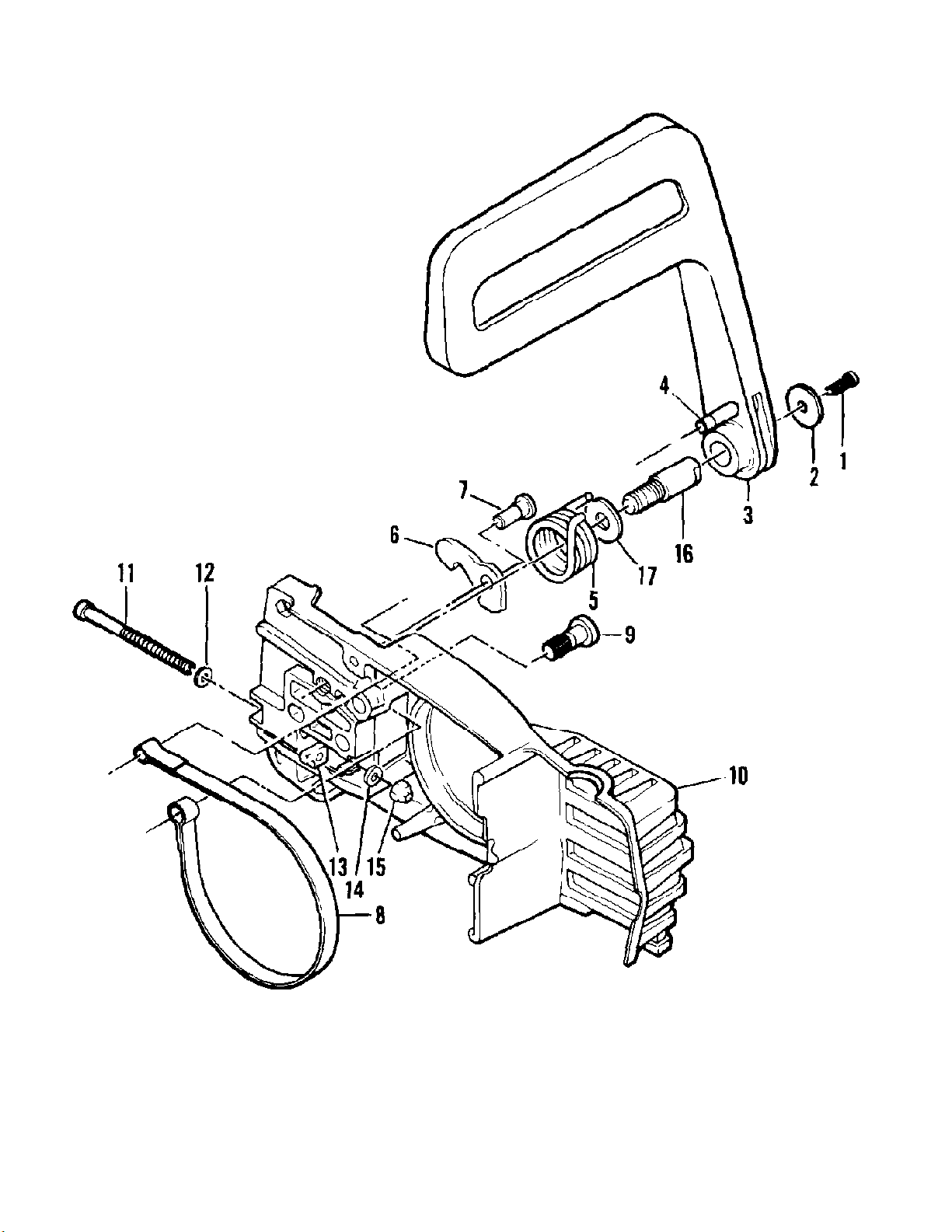

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 8 of 18
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
216163 CHAIN BRAKE Assembly
1 102500 Screw - Pan hd 10-24 x 1/21
2 91273 Washer - Special1
3 215911 Lever Assembly1
4 214366 Pin Assembly - Roller1
5 93085 Spring - Brake1
6 93083 Latch1
7 93669 Pivot - Latch1
8 93081 Band - Brake1
9 93082 Pin - Band Anchor1
10 216164 Housing - Brake1
11 216636 Screw - Fil hd 10-24 x 2-3/41
12 110264 Washer - #101
13 61705 Nut - Bar adjusting1
14 100002 Washer - #101
15 102067 Nut - Hx 10-241
16 91246 Pin - Lever pivot1
17 91245 Washer - Thrust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 9 of 18
www.ktoutdoor.com

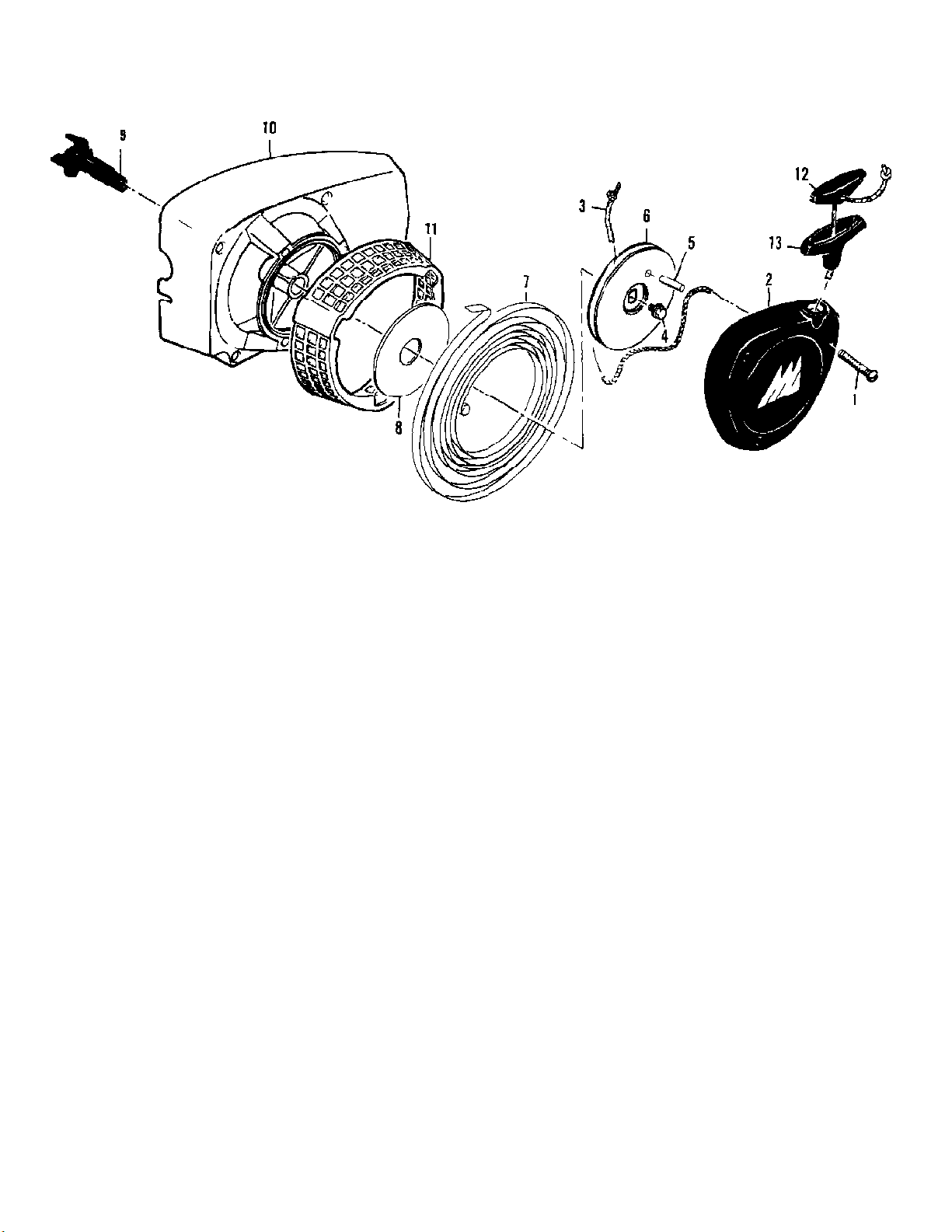

Fan Housing And Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 10 of 18
www.ktoutdoor.com
Fan Housing And Starter Assembly
Ref # Part Number DescriptionQty
216162 Fan Housing/Starter Assembly1
1 216625 Screw - Oval 10-24 x 1.253
2 215707 Cover Assembly - Starter1
3 87670 Rope - Starter1
4 110928 Screw - Hx hd 10-24 x 1/21
5 105841 Pin - Roll1
6 87689 Drum - Starter1
7 87680 Spring - Rewind1
8 86053 Shield - Spring1
9 95412 Shaft - Starter1
10 216161 Kit - Fan housing1
11 214192 Guard - Sawdust1
12 214699 Insert - Starter1
13 93137 Handle - Starter1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 11 of 18
www.ktoutdoor.com

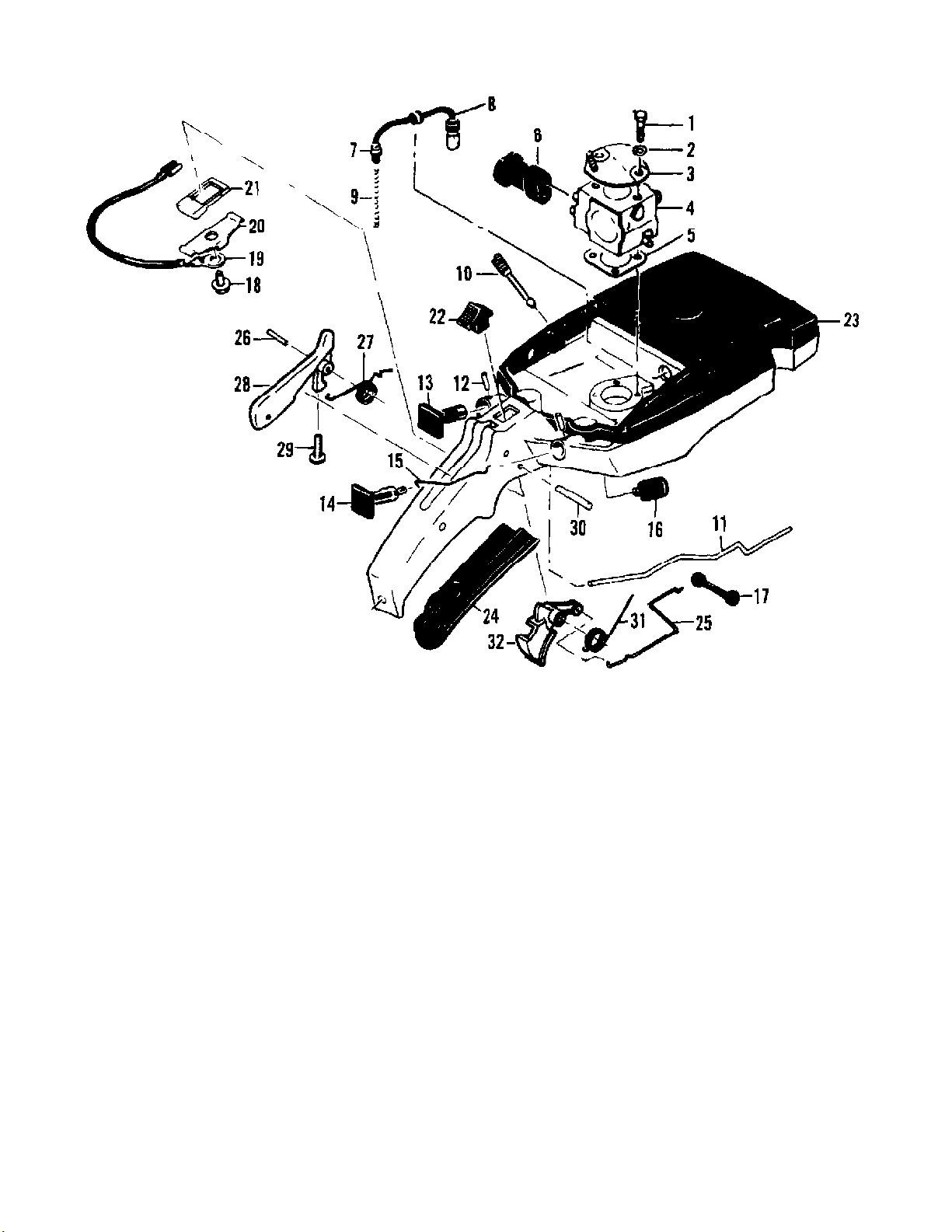

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 12 of 18
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 103357 Screw - Hx hd 10-24 x 2 1/42
2 110964 Washer - Plain2
3 95414 Bracket - Air cleaner1
4 Carburetor Assembly See "Carburetor Assembly"
illustration and parts list.
5 86189 Gasket - Carburetor1
6 214762 Boot - Carburetor controls1
7 215708 Hose Assembly - Fuel1
8 215714 Pickup Assembly - Fuel1
9 67944 Spring - Hose1
10 86273 Screw - Idle speed1
11 92903 Rod - Oiler1
12 105673 Pin - Roll 3/32 x 9/162
13 95480 Button - Oiler1
14 95614 Button - Choke1
15 69631 Rod - Choke1
16 69597 Boot - Control rod1
17 69043 Snubber - Rod1
18 110706 Screw - Pn hd 8-18 x 1/21
19 83661 Wire Assembly - Stop switch1
20 62451 Contact - Switch1
21 214691 Base - Switch1
22 68846 Button - Switch1
23 94025 Tank/Control Assembly1
24 89320 Insert - Handle grip1
25 92155 Rod - Throttle1
26 105654 Pin - Roll 1/8 x 7/81
27 92154 Spring - Trigger release1
28 94275 Release Assembly - Trigger1
29 111012 Screw - Pn hd 4-40 x 5/161
30 110378 Pin - Roll 3/16 x 15/161
31 92152 Spring - Trigger1
32 214679 Trigger - Throttle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 13 of 18
www.ktoutdoor.com

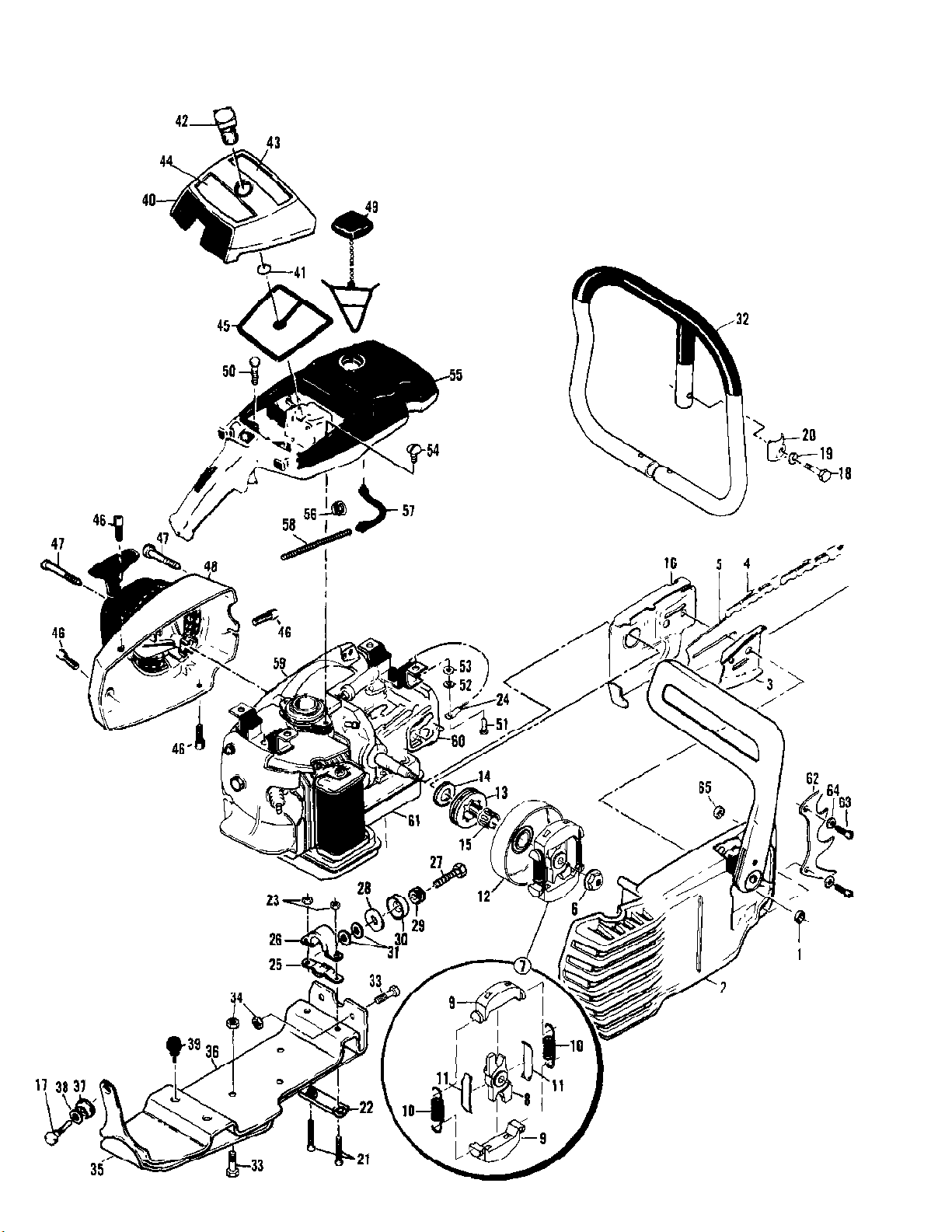

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 14 of 18
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 213169 Nut - M8 Hx Flange2
2 CHAIN BRAKE Asy See "Chain Brake Assembly"
3 64325 Plate - Bar Protector1
4 Chain Assembly1
5 Bar Assembly1
6 86113 Nut - Hx 3/8-24 Left Hand1
7 214301 Clutch Assembly1
8 214300 Rotor - Clutch1
9 67233 Kit - Clutch Shoe1
10 83223 Spring - Clutch1
11 64583 Retainer - Clutch Spring2
12 95166 Kit - Drum & Sprocket 7T .375P1
13 86145 Sprocket1
14 86958 Washer - Sprocket1
15 215720 Bearing - Sprocket1
16 84978A Shield - Sawdust1
17 213055 Screw - Frame Brace1
18 102130 Screw - Hx hd 1/4-20 x 1-1/21
19 100153 Lockwasher - 1/41
20 216639 Clamp - Frame1
21 103353 Screw - Hx hd 10-24 x 1-1/22
22 95679 Clamp - Frame1
23 216682 Nut - Hx lock 10-242
24 83828A Wire Assembly - Ground1
25 92701 Clamp - Bottom1
26 93932 Clamp - Top1
27 110679 Screw - Hx hd 1/4-20 x 21
28 110845 Washer - Plain1
29 84661 Grommet1
30 85898 Mount - Lower1
31 95636 Washer - 1/42
32 95514 Frame & Grip Assembly1
33 102500 Screw - Pn 10-24 x .505
34 216682 Nut - Hx Lock 10-245
35 216103 Shield - Frame Brace1
36 216090 Brace - Frame1
37 93032 Grommet - Frame Brace1
38 214764 Washer1
39 89403 Bumper - Lower2
40 95418 Cover Assembly - Air Cleaner1
41 110565 Ring Retaining1
42 95420 Knob Cover1
43 216165 Name Plate1
44 95486 Plate Instruction1
45 215681 Filter - Air1
46 110741 Screw - Skt 10-24 x .504
47 216624 Screw - Oval 8-32 x 2.263
48 Fan Hsng/Starter Asy See "Fan Housing And Starter
1
illustration and parts list.
Assembly" illustration and parts list.
49 216053 Cap Assembly - Fuel1
50 110746 Screw Hx hd 10-24 x .502
51 102861 Screw - Hx hd --20 x 5/82
52 100153 Lockwasher - 1/42
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 15 of 18
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
53 100005 Washer - 1/42
54 110807 Screw - Pn hd 8-32 x 5/162
55 Fuel Tank Assembly See "Fuel Tank Assembly"
illustration and parts list.
56 87826 Clamp - Hose2
57 69598 Line Pulse1
58 67944 Spring - Hose1
59 Flywheel/Ignition See "Powerhead and Oiler
Assemblies" illustration and parts list.
60 Powerhead/Oiler See "Powerhead and Oiler
Assemblies" illustration and parts list.
61 Muffler Assembly See "Powerhead and Oiler
Assemblies" illustration and parts list.
62 93668 Spike1
63 213042 Screw - Skt 10-24 x .622
64 24236 Washer - Special 102
65 216682 Nut - Hx Lock 10-242
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 16 of 18
www.ktoutdoor.com

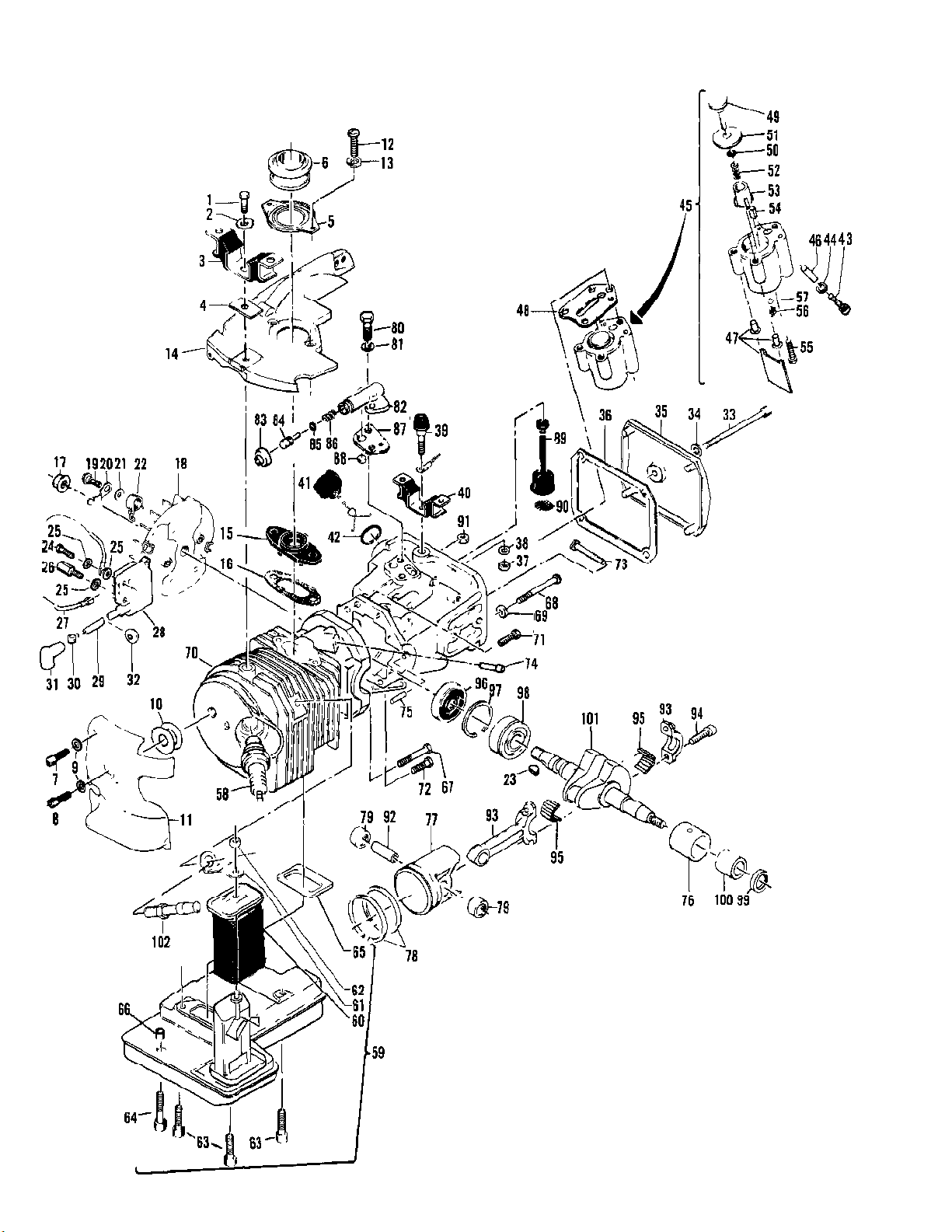

Powerhead And Oiler Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 17 of 18
www.ktoutdoor.com
Powerhead And Oiler Assemblies
Ref # Part Number DescriptionQty
1 83811 Screw - Special1
2 69924 Lockplate1
3 93925 Mount - Rear1
4 84619 Insulator1
5 213381 Clamp Assembly - Boot1
6 215247 Boot - Port1
7 102500 Screw - Skt 10-24 x 1/21
8 104396 Screw - Skt 10-24 x 3/41
9 100002 Washer - #102
10 93460 Washer - Insulator1
11 216136 Shroud - Rear1
12 104396 Screw - Pan hd 10-24 x 3/42
13 101194 Lockwasher - #102
14 95477 Shroud - Upper1
15 87844 Insulator - Inlet1
16 88740 Gasket - Insulator1
17 110703 Nut - Hex 3/8-241
18 95481 Flywheel Assembly1
19 93464 Screw - Pawl2
20 93198 Pawl - Starter2
21 93469 Washer - Pawl2
22 214102 Spring - Pawl2
23 100106 Key - Woodruff1
24 110127 Screw - Hx hd 10-24 x 7/8 (SEMS)1
25 100002 Washer - #103
26 95603 Stud - Special1
27 85798 Wire Assembly - Ground1
28 95553 Electronic Ignition Assembly1
29 95269 Wire Assembly - Spark plug1
30 102556 Connector1
31 95266 Boot1
32 110995 Grommet1
33 110291 Screw - Skt 10-24 x 2-5/81
34 110921 Washer - Sealing
35 86304 Cover - Oil tank1
36 86306 Gasket - Cover1
37 101143 Nut - Hx 1/4-201
38 102523 Washer - 1/41
39 69832 Bumper - Front1
40 93926 Mount - Front1
41 216052 Cap - Oil tank1
42 101148 "O" Ring1
43 110890 Screw - Fil 10-24 x .881
44 100003 Washer - #101
45 215339 Pump Assembly - Pulse1
46 91774 Sleeve1
47 215246 Kit - Oil pump clip1
48 92818 Seal - Pulse pump1
49 214278 Piston Assembly - Pump1
50 105603 "O" Ring1
51 86182 Ring - Piston1
52 60259 Spring - Piston1
53 62227 Sleeve - Adjustment1
54 91259 Pad - Oil pump1
55 110386 Screw - Hx hd 8-32 x 11
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-600119B PRO MAC 805 08/82 to 06/95 IPL 216167-R3 Page 18 of 18
www.ktoutdoor.com
Powerhead And Oiler Assemblies
Ref # Part Number DescriptionQty
56 92844 Spring - Outlet valve1
57 102809 Ball - Outlet valve1
58 63432 Spark Plug1
59 216160 Kit - Muffler1
60 214283 Spark Screen & Cap Asy1
61 216087 Strap - Muffler1
62 216682 Nut - Hex1
63 104895 Screw - Skt 10-24 x .623
64 110713 Screw - Skt 10-24 x .881
65 95387 Gasket - Muffler1
66 216047 Spacer1
67 110644 Screw - Hx hd 8-32 x 1-1/21
68 62106 Screw - Special4
69 111025 Washer - Sealing4
70 215713 Kit - Cylinder - c'case, piston1
71 110288 Screw - Hx hd 8-32 x 3/42
72 110963 Screw - Hx hd 8-32 x 11
73 92459 Bolt - Bar2
74 69600 Nipple - Pulse line1
75 110851 Pin - Dowel1
76 87152 Insert - Bearing1
77 92519 Piston Assembly1
78 87854 Ring Set - Piston1
79 111021 Bearing - Needle2
80 104241 Screw - Hx 8-32 x 9/162
81 110613 Washer - #8 Hard2
82 84156 Housing - Pump1
83 215151 Cap - Housing1
84 92902 Plunger - Pump1
85 105614 "O" Ring1
86 66687 Spring - Pump1
87 91669 Gasket - Pump1
88 91668 Valve - Pump1
89 91672 Hose - Oil1
90 51506 Screen - Hose1
91 100955 Nut - Hex 8-321
92 69020 Pin - Piston
93 215245 Connecting Rod Assembly1
94 61627A Screw - Special2
95 215150 Roller (set of 22)1
96 61618 Seal - Oil1
97 63464 Ring - Snap1
98 63429B Bearing - Ball1
99 110260 Seal - Oil1
100 104357 Bearing - Needle1
101 95386 Crankshaft1
102 215673 Valve - Compression release1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
