Page 1
11-600118 B PRO MAC 655 06/82 to 11/83 IPL 216159-R1 Page 1 of 16
www.ktoutdoor.com
Tools & Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600118 B PRO MAC 655 06/82 to 11/83 IPL 216159-R1 Page 2 of 16
www.ktoutdoor.com
Tools & Accessories
Ref # Part Number DescriptionQty
215432 Pressure Test Tool
63137 Adaptor-Exhaust
94415 Adaptor-Intake
110761 Plug-D.S.P.
501334 Ignition Tester
84223 Kit-Piston tools
501222 Piston Stop Tools
95218 Air Filter-Felt
94962 Scrench
214195 Gun-Lube (disposable)
214194 Gun-Lube (deluxe)
85702 Lubricant-Custom, 6 oz. can
85703 Lubricant-Custom, 6 oz. cans, 1 6-pack
216107 Key-Socket 4 mm
95159 Allen Wrench-5 mm
69794 Locquic
110083 R.T.V. Sealant
94121 Kit-Carrying case 20"
214203 Scabbard-20"
94367 Kit-Carrying case 16"
92896 Scabbard-16"
214208 Kit-Spike
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600118 B PRO MAC 655 06/82 to 11/83 IPL 216159-R1 Page 3 of 16
www.ktoutdoor.com
Bar And Chain Combinations
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600118 B PRO MAC 655 06/82 to 11/83 IPL 216159-R1 Page 4 of 16
www.ktoutdoor.com
Bar And Chain Combinations
Ref # Part Number DescriptionQty
94074 Bar-16" Speed Mac
89502 Bar-16" Mac 10
88167N Chain-16" PM 370 G
214231N Chain-16" PGR 370 G
89974N Chain-16" SPR 370 G
93778 Bar-20" Speed Mac
89503 Bar-20" Mac 10
88173N Chain-20" PM 370 G
214732N Chain-20" PGR 370 G
86846 Bar-24" Speed Mac
89504 Bar-24" Mac 10
88175N Chain-24" PM 370 G
94437N Chain-24" PGR 370 G
89981N Chain-24" SPR 370 G
86847 Bar-28" Speed Mac
89505 Bar-28" Mac 10
93552N Chain-28" PM 370 G
89984N Chain-28" SPR 370 G
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600118 B PRO MAC 655 06/82 to 11/83 IPL 216159-R1 Page 5 of 16
www.ktoutdoor.com

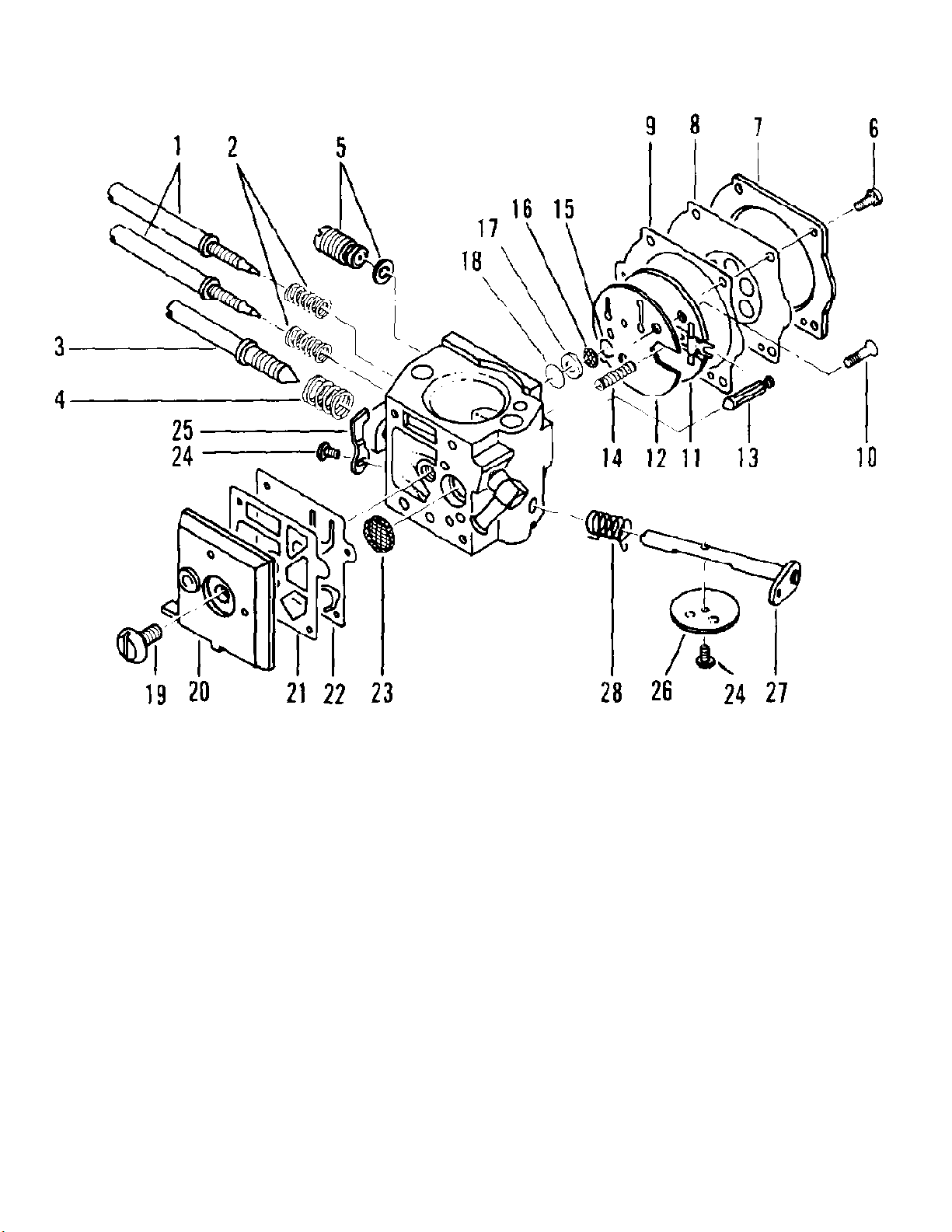

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600118 B PRO MAC 655 06/82 to 11/83 IPL 216159-R1 Page 6 of 16
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
95631 Carburetor-Walbro HDB-7A2
1 Needle-Hi speed and idle2
2 Spring-Needle adjust2
3 Screw-Idle1
4 Spring-Idle adjust1
5 Governor Asy (HDB-7A only)1
6 Screw-Metering cover4
7 Cover-Metering diaphragm1
8 Diaphragm Asy-Metering1
9 Gasket-Metering diaphragm1
10 Screw-Circuit plate2
11 Plate Assembly-Circuit1
12 Gasket-Circuit plate1
13 Valve-Inlet needle1
14 Spring-Metering lever1
15 Ring-Screen retaining1
16 Screen-Check valve1
17 Retainer-Check valve1
18 Valve-Check1
19 Screw-Fuel pump cover1
20 Cover-Fuel pump1
21 Gasket-Fuel pump1
22 Diaphragm-Fuel pump1
23 Screen-Inlet1
24 Screw-Valve2
25 Stop-Throttle1
26 Valve-Throttle1
27 Shaft Asy-Throttle1
28 Spring-Throttle return1
217075 Contained in Repair Kit
217077 Contained in Gasket Kit
217076 Contained in Needle Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600118 B PRO MAC 655 06/82 to 11/83 IPL 216159-R1 Page 7 of 16
www.ktoutdoor.com

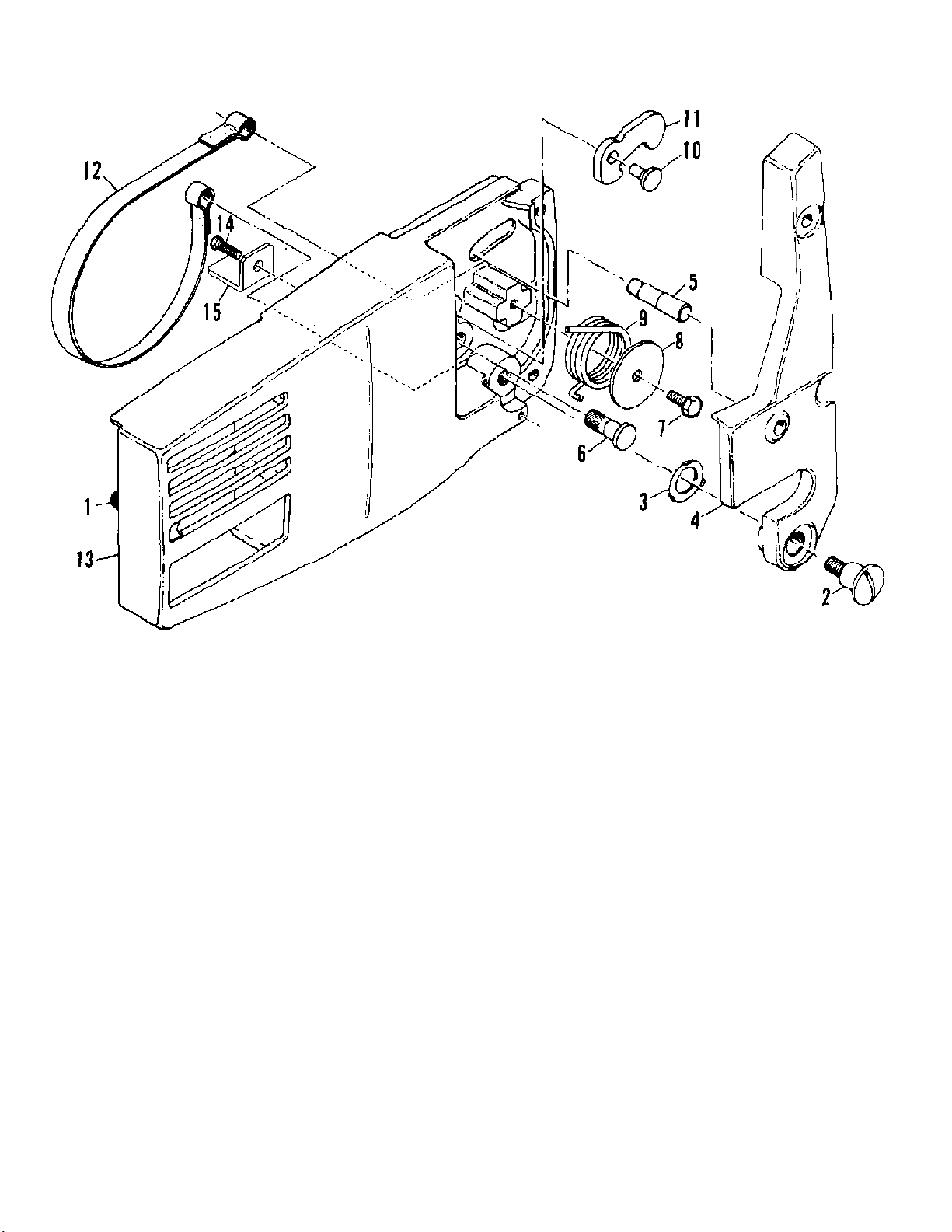

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600118 B PRO MAC 655 06/82 to 11/83 IPL 216159-R1 Page 8 of 16
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
217007 CHAIN BRAKE Assembly1
1 92086 Snubber-Brake housing1
2 216693 Screw-Pivot1
3 Washer-Special1
4 217000 Lever Asy-Brake actuator1
5 214367 Pin Assembly-Roller1
6 93082 Pin-Band anchor1
7 120019 Screw-Hx hd M5 x 131
8 92134 Retainer-Spring1
9 92135 Spring-Actuating1
10 94144 Pivot-Latch1
11 94150 Latch-Brake1
12 93081 Band-Brake1
13 92084 Housing-Brake1
14 120001 Screw-Pn hd M5 x 14.251
15 92178 Stop-Chain1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600118 B PRO MAC 655 06/82 to 11/83 IPL 216159-R1 Page 9 of 16
www.ktoutdoor.com

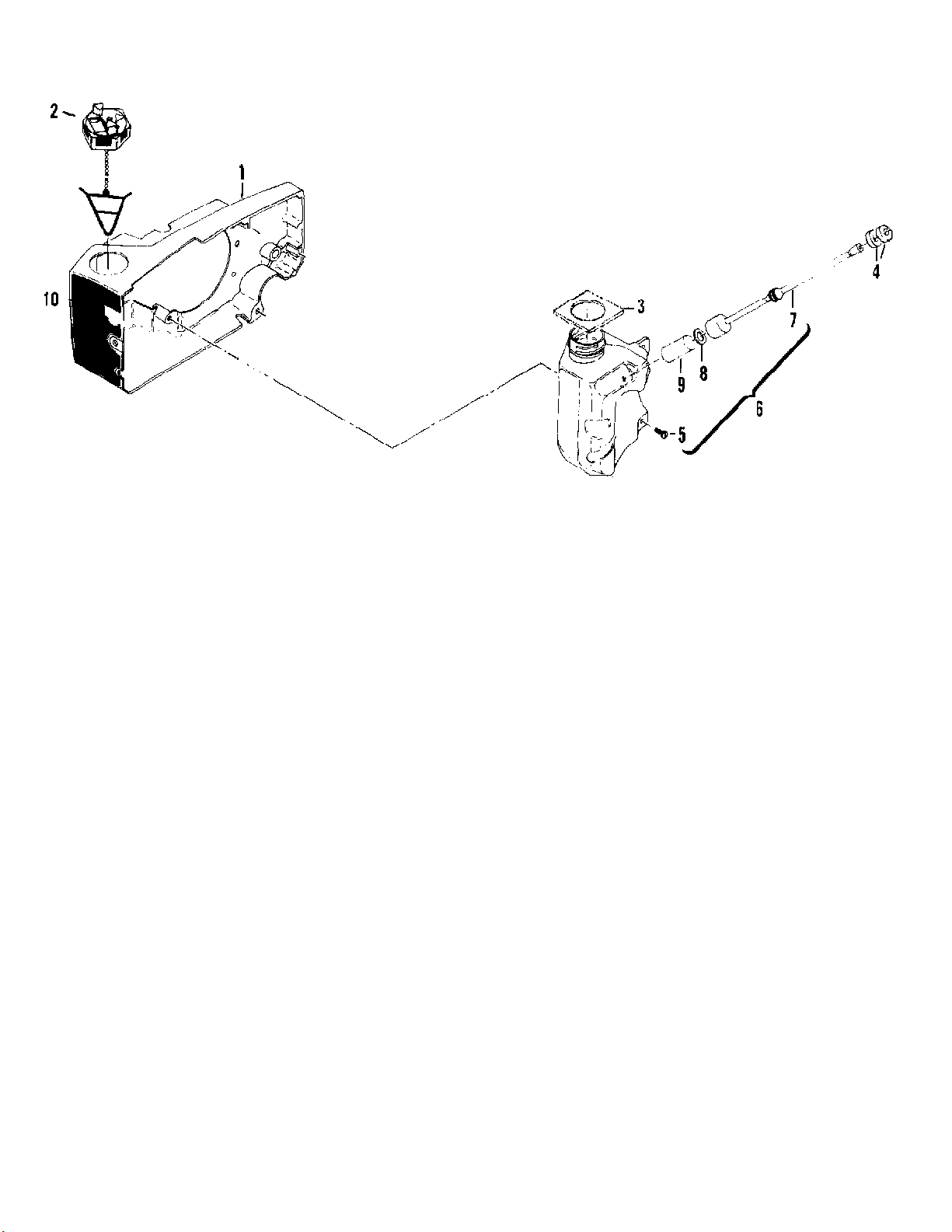

Fan Housing and Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600118 B PRO MAC 655 06/82 to 11/83 IPL 216159-R1 Page 10 of 16
www.ktoutdoor.com
Fan Housing and Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 216154 Housing-Fan1
2 216157 Cap-Fuel (vented)1
3 93251 Seal-Fuel vent1
4 92161 Seal-Air box2
5 120068 Screw-Pn hd M4 x 12 (SEMS)2
6 94901 Fuel Tank Assembly1
7 94899 Hose-Assembly-Fuel1
8 100440 Washer-5/161
9 63932 Filter-Fuel1
10 216168 Nameplate (PM 655)1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600118 B PRO MAC 655 06/82 to 11/83 IPL 216159-R1 Page 11 of 16
www.ktoutdoor.com

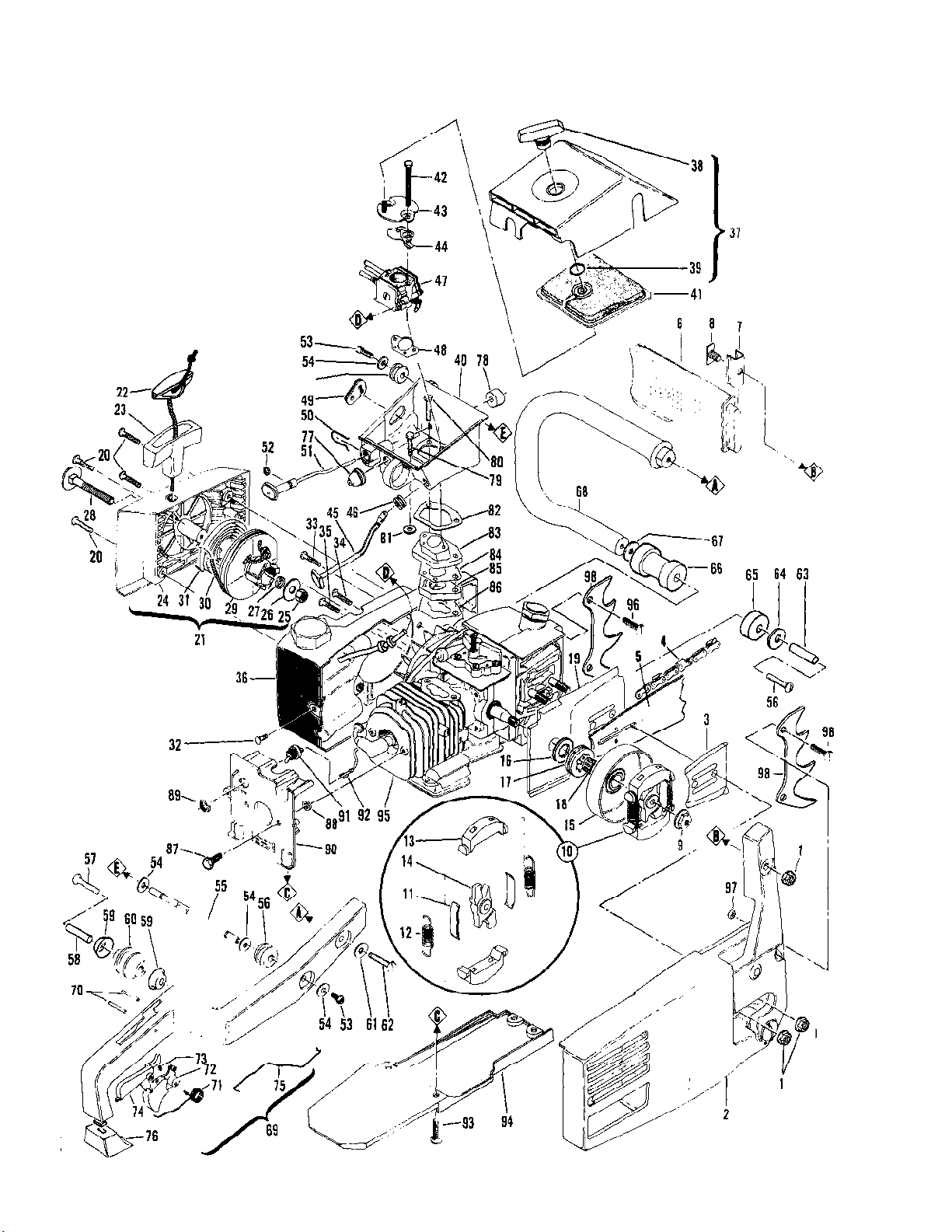

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600118 B PRO MAC 655 06/82 to 11/83 IPL 216159-R1 Page 12 of 16
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 213169 Nut-Hx flange3
2 CHAIN BRAKE Assembly See "Chain Brake
Assembly" illustration and parts list.
3 64325 Plate-Bar protector1
4 Chain Assembly
5 Bar Assembly
6 216179 Flag Brake Lever1
7 93721 Channel-Brake arm1
8 93746 Stud-Brake1
9 92457 Nut-Hx flange M10 x 1.25 LH1
10 214301 Clutch Assembly1
11 64583 Retainer-Clutch shoe2
12 83223 Spring-Clutch2
13 67223 Kit-Clutch shoe1
14 214300 Rotor-Clutch1
15 95165 Drum/Sprocket Asy-7T .375P1
16 86958 Washer-Shim1
17 86951 Sprocket-7T .375P1
18 215720 Bearing-Needle1
19 92354 Jacket-Cylinder1
20 216210 Screw-Skt hd M4 x 16 (SEMS)4
21 95358 Starter Assembly1
22 214699 Insert-Starter1
23 93137 Handle-Starter1
24 95353 Kit-Starter housing1
25 111038 Nut-1/4-201
26 95401 Washer-Starter1
27 216589 Spacer-Starter1
28 215848 Step Bolt-Starter1
29 216758 Drum Assembly-Starter1
30 87670 Rope-Starter1
31 87680 Spring-Starter rewind1
32 216673 Screw-Pn hd M5 x 141
33 216663 Screw-Fan housing (M5 x 40)1
34 216662 Screw-Fan housing (M5 x 35)1
35 216661 Screw-Fan housing (M5 x 20)1
36 Fan Housing/Fuel Tank Asy See "Fan Housing/Fuel
Tank Assembly" illustration and parts list.
37 216155 Cover Asy-Air cleaner1
38 91991 Knob-Air cleaner cover1
39 110565 Ring-Retaining1
40 95215 Kit-Air box1
41 214226 Filter-Air1
42 120004 Screw-Hx hd M5 x 562
43 91938 Bracket Assembly-Air cleaner1
94482 Choke and Rod Kit1
44 94151 Choke-Carburetor1
45 94171 Rod-Choke1
46 93261 Grommet-Choke1
47 Carburetor Assembly See "Carburetor Assembly"
illustration and parts list.
48 91924 Gasket-Carburetor
49 91995A Grommet-Carburetor needle1
50 93458 Clip-Oiler button1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600118 B PRO MAC 655 06/82 to 11/83 IPL 216159-R1 Page 13 of 16
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
51 92067A Button/Rod Assembly-Oiler1
52 105614 "O" Ring1
53 216681 Screw-Skt hd M5 x 132
54 110990 Washer4
55 93252A Strut-Handle1
56 93253 Grommet-Strut2
57 213059 Screw-Btn hd 1/4-14 x 2.52
58 92071 Spacer1
59 92066 Cup-Isolator2
60 92065 Isolator1
61 216694 Washer-Plain1
62 213058 Screw-Btn hd 1/4-14 x 1.751
63 92071 Spacer1
64 111027 Washer-Plain1
65 93913 Isolator1
66 94150 Isolator1
67 111027 Washer-Plain1
68 91951 Frame1
69 94255 Handle/Boot Assembly1
70 110994 Pin-Roll2
71 93771 Spring-Trigger1
72 91953A Trigger1
73 111013 Screw-Set1
74 91955 Release-Trigger1
75 214504 Rod-Throttle1
76 93459 Boot-Handle1
77 69597 Boot-Control rod1
78 92161 Seal-Air box1
79 120037 Screw-Hx hd M5 x 25 (SEMS)1
80 120039 Screw-Hx hd M5 x 30 (SEMS)2
81 93460 Washer-Insulator1
82 94018 Gasket-Air box1
83 94017A Insulator-Carburetor1
84 91933 Gasket-Air box1
85 91934 Insulator-Air box1
86 92038 Gasket-Insulator1
87 120037 Screw-Hx hd M5 x 25 (SEMS)2
88 93460 Washer-Insulator2
89 104810 Nut-Hx 15/32-321
90 92004 Shroud-Cylinder1
91 93890 Switch-Ignition1
92 92466 Wire Assembly-Switch1
93 216673 Screw-Pn hd M5 x 14.252
94 214670 Shroud-Bottom1
95 Powerhead/Oiler Asys See "Powerhead And Oiler
Assembly" illustration and parts list.
96 216673 Screw-Pn hd M5 x 14.254
97 120044 Nut-Hx M5 lock2
98 93668 Spike2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600118 B PRO MAC 655 06/82 to 11/83 IPL 216159-R1 Page 14 of 16
www.ktoutdoor.com

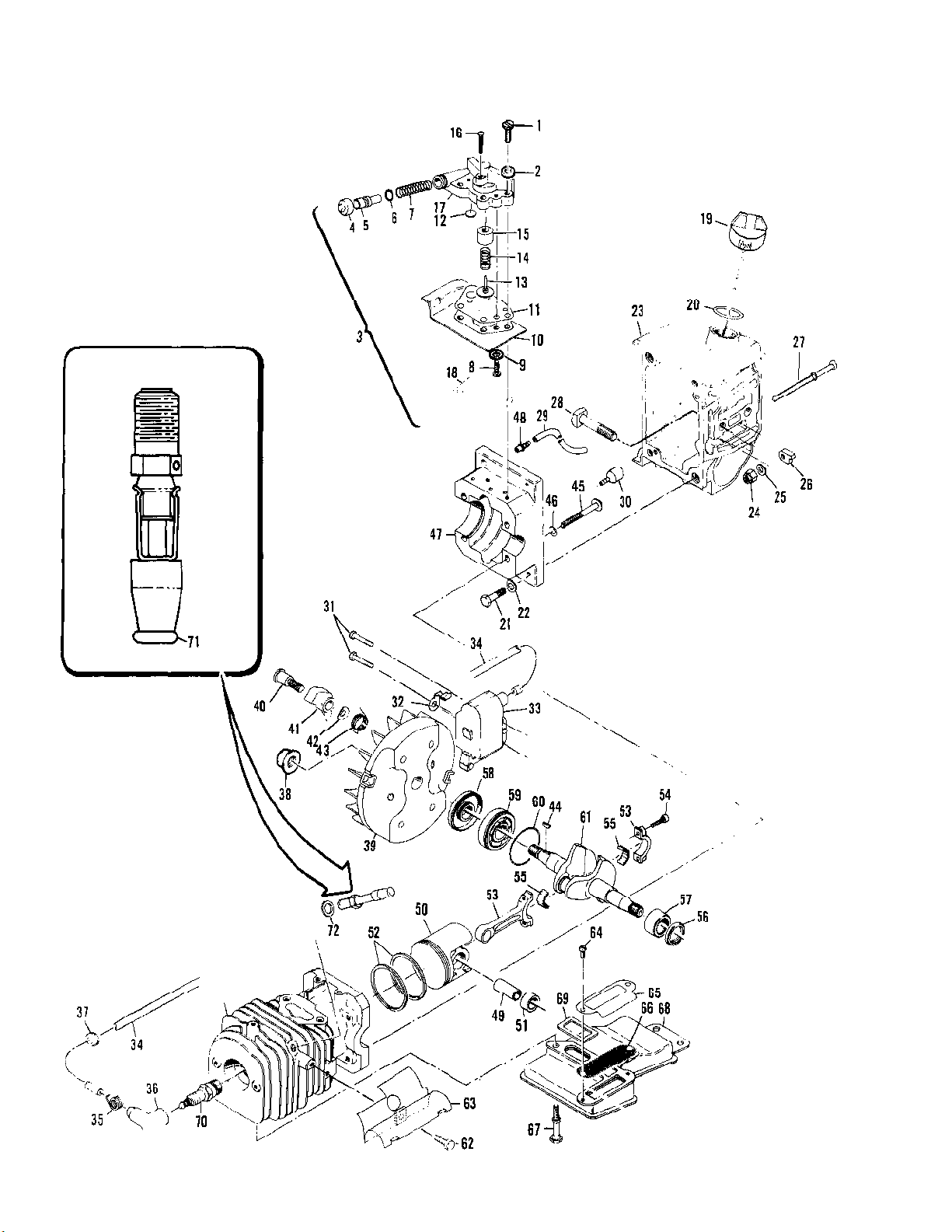

Powerhead and Oiler Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600118 B PRO MAC 655 06/82 to 11/83 IPL 216159-R1 Page 15 of 16
www.ktoutdoor.com
Powerhead and Oiler Assembly
Ref # Part Number DescriptionQty
1 120036 Screw-Pn hd M4 x 16 (SEMS)4
2 67177 Washer-Insulating4
3 217208 Pump Assembly-Pulse oiler1
4 215151 Cap-Oil pump1
5 93933 Plunger-Oil pump1
6 105614 "O" Ring1
7 66687 Spring-Plunger1
8 110706 Screw-Pn hd 8-18 x 1/23
9 216354 basket-Washer1
10 217218 Cover-Diaphragm1
11 216992 Diaphragm-Oiler1
12 217217 Valve-Oiler1
13 91945 Piston Assembly-Pulse1
14 94322 Spring-Return1
15 91944 Sleeve-Oil pump1
16 120092 Screw-Pn hd M3.5 x 221
17 217202 Body Assembly-Oil pump1
18 91950 Gasket-Oil pump1
19 216156 Oil Cap Assembly1
20 101148 "O" Ring1
21 120006 Screw-Hx hd M6.6 x 244
22 100004 Washer-Plain4
23 92077 Oil Tank Assembly1
24 110950 Nut-Lock1
25 102115 Washer-Plain1
26 91982 Nut-Bar adjustment1
27 94362 Screw-Bar adjustment1
28 92459 Bolt-Bar2
29 92616 Hose-Oil pickup1
30 92465 Pickup-Oil1
31 120037 Screw-Hx M5 x 25 (SEMS)2
32 84686A Strap-Ground1
33 95553 Ignition Assembly-Electronic1
34 95270 Wire Assembly-Spark plug1
35 102556 Connector-Spark plug1
36 95266 Boot-Spark plug1
37 110995 Grommet-Spark plug wire1
38 94500 Nut-Hx flange M101
39 95307 Flywheel/Pawl Assembly1
40 95362 Screw-Starter pawl2
41 95361 Pawl-Starter2
42 213253 Washer-Spring2
43 93144 Spring-Starter pawl2
44 100106 Key-Woodruff1
45 62106 Screw-Wsh hd 12-24 x 1 3/44
46 111025 Washer-Sealing4
47 94536 Cylinder/Crankcase Assembly1
48 92096 Nipple-Oil Line1
49 87710 Pin-Piston1
50 94130 Piston Assembly1
51 111021 Bearing-Needle2
52 94132 Ring Set-Piston1
53 85352 Connecting Rod Assembly1
54 61627A Screw-Connecting rod2
55 63225 Roller-Needle (set of 20)1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600118 B PRO MAC 655 06/82 to 11/83 IPL 216159-R1 Page 16 of 16
www.ktoutdoor.com
Powerhead and Oiler Assembly
Ref # Part Number DescriptionQty
56 110260 Seal-Oil1
57 104357 Bearing-Needle1
58 67906 Seal-Oil1
59 67905 Bearing-Ball1
60 63464 Ring-Snap1
61 217041 Crankshaft Assembly1
62 102762 Screw-Hx hd 10-24 x 1/21
63 95439 Deflector Assembly-Exhaust1
64 120038 Screw-Pn hd M4 x 82
65 93481 Plate-Deflector1
66 214205 Screen-Muffler1
67 92458 Screw-Muffler2
68 93603 Body/Cover Assembly-Muffler1
69 84007 Gasket-Muffler1
70 214223 Spark Plug-AC CS 45 T1
71 214304 Valve-DSP1
72 214765 Washer-Valve1
K&T Saw Shop 606-678-9623 or 606-561-4983
