Page 1
11-600117B PRO MAC 515 08/82 to 12/85 IPL 216178 Page 1 of 15
www.ktoutdoor.com
Tools & Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600117B PRO MAC 515 08/82 to 12/85 IPL 216178 Page 2 of 15
www.ktoutdoor.com
Tools & Accessories
Ref # Part Number DescriptionQty
95169 Kit - Spark Arrester
91485 Wrench - Socket
85687 Wrench - Screwdriver
88755 Scrench
93090 Guide - Timing
90256 Kit - Tune-up
93285 Case - Carrying, 16"
92896 Bar Guard 16"
214215 Guide - File
93900 Kit - Pressure Test
215432 Tool - Pressure Test
501334 Tester - Ignition
214194 Lubri - Gun
85702 Lubricant - Custom, 6 oz. can
85703 Lubricant - Custom, 6 oz. cans 1-6 pack
67537 Loctite
69794 Locquic
110083 R.T.V. Sealant
214211 Kit - Tool Maintenance
216063 Key - Socket 5/32
216147 Key - Socket 1/8
216148 Key - Socket 3/16
216058 Key - Socket 9/64
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600117B PRO MAC 515 08/82 to 12/85 IPL 216178 Page 3 of 15
www.ktoutdoor.com

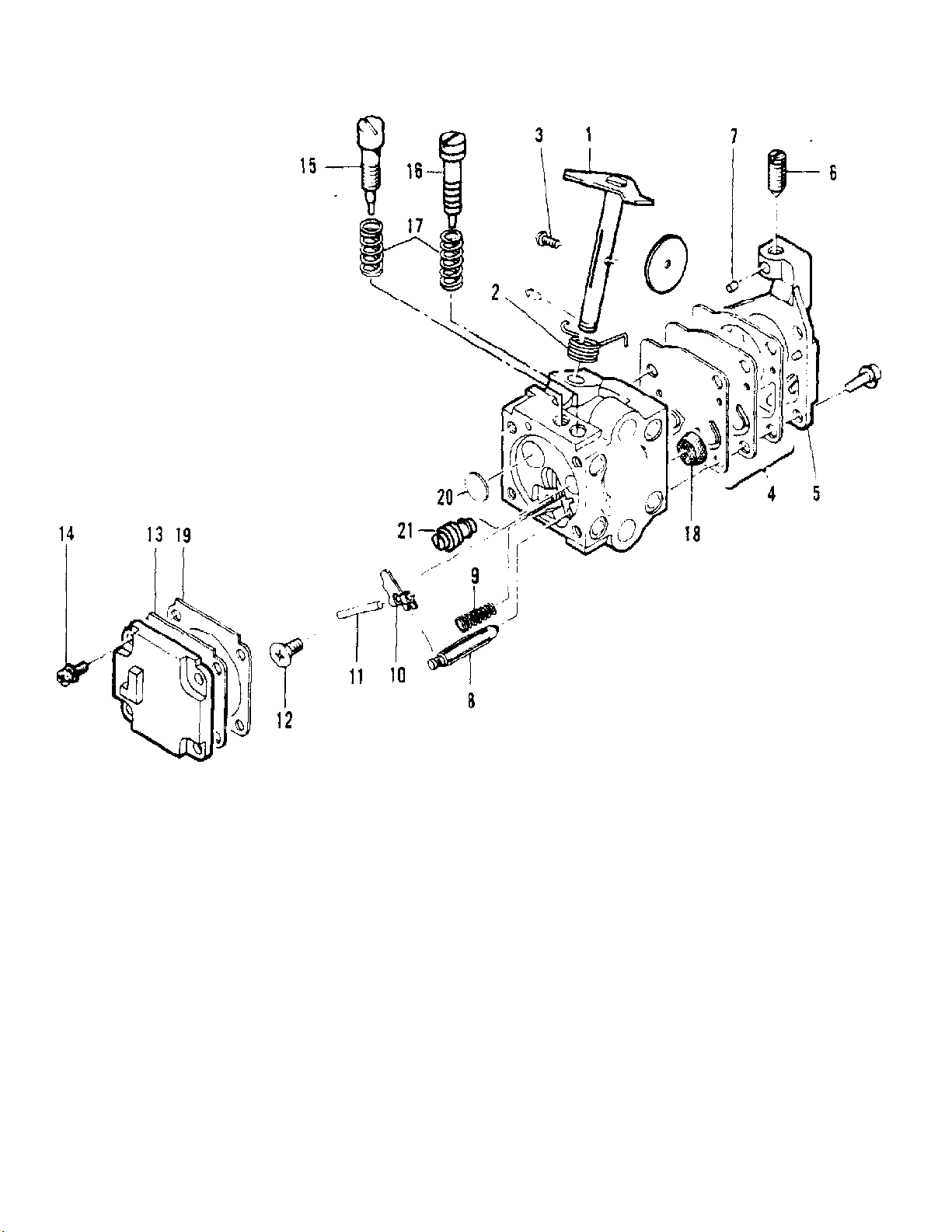

Carbuetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600117B PRO MAC 515 08/82 to 12/85 IPL 216178 Page 4 of 15
www.ktoutdoor.com
Carbuetor Assembly
Ref # Part Number DescriptionQty
93766 Carburetor Asy (Zama)1
1 Shaft Asy - Throttle Not available separately.1
2 Spring - Throttle return Not available separately.1
3 Screw - Plate (m3) Not available separately.1
4 91824 Kit - Diaphragm & Gaskets1
5 Cover Asy - Pump Not available separately.1
6 Screw - Idle speed Not available separately.1
7 Insert - Friction Not available separately.1
8 91810 Needle - Inlet1
9 91811 Spring - Lever1
10 91812 Lever - Inlet needle1
11 91813 Pin - lever1
12 91814 Screw - Lever pin (m3)1
13 91815 Diaphragm Asy - Metering1
14 Screw - Diaphragm cover (m3) Not available
15 91818 Needle - Idle mixture1
16 94033 Needle - High speed1
17 91819 Spring - Needle1
18 91820 Screen - Filter1
19 91821 Gasket - Metering diaphragm1
20 92097 Welch Plug1
21 93950 Orifice - Main fuel1
4
separately.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600117B PRO MAC 515 08/82 to 12/85 IPL 216178 Page 5 of 15
www.ktoutdoor.com

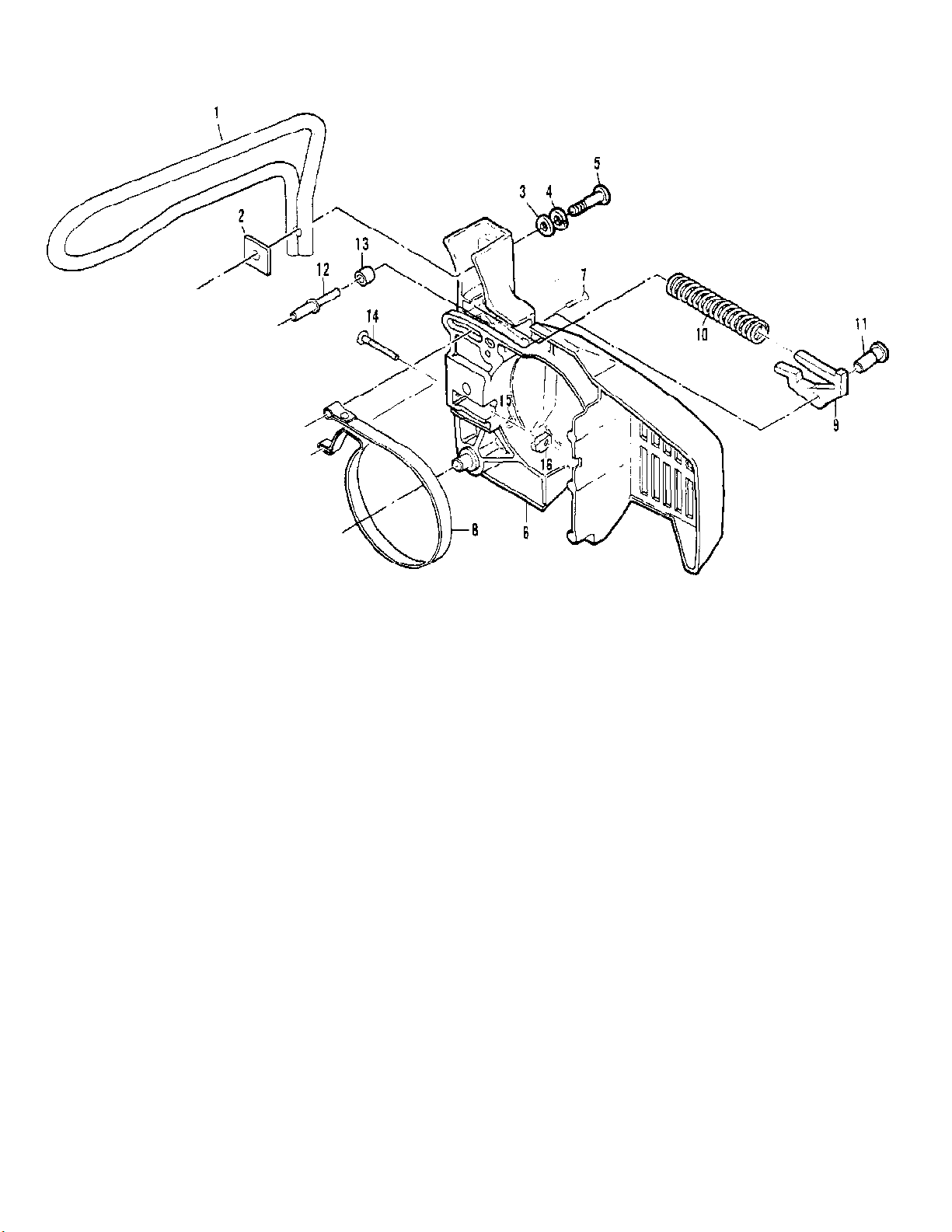

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600117B PRO MAC 515 08/82 to 12/85 IPL 216178 Page 6 of 15
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
1 216439 Lever - Flag Brake1
2 216256 Nut - Brake Handle1
3 216541 Washer1
4 216542 Washer - Lock1
5 216276 Screw - BTN 1/4 - 20 x .811
6 216320 CHAIN BRAKE Asy1
7 216540 Screw - Fil 8-32 x 5/81
8 94709 Band - Brake1
9 215758 Kit - Latch1
10 Spring - Compression Not available separately.1
11 93602 Pivot - Latch1
12 213907 Pin - Roller1
13 214368 Bearing - Roller1
14 213052 Screw - Adjusting1
15 110907 Ring - Retaining1
16 84929 Nut - Bar Adjusting1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600117B PRO MAC 515 08/82 to 12/85 IPL 216178 Page 7 of 15
www.ktoutdoor.com

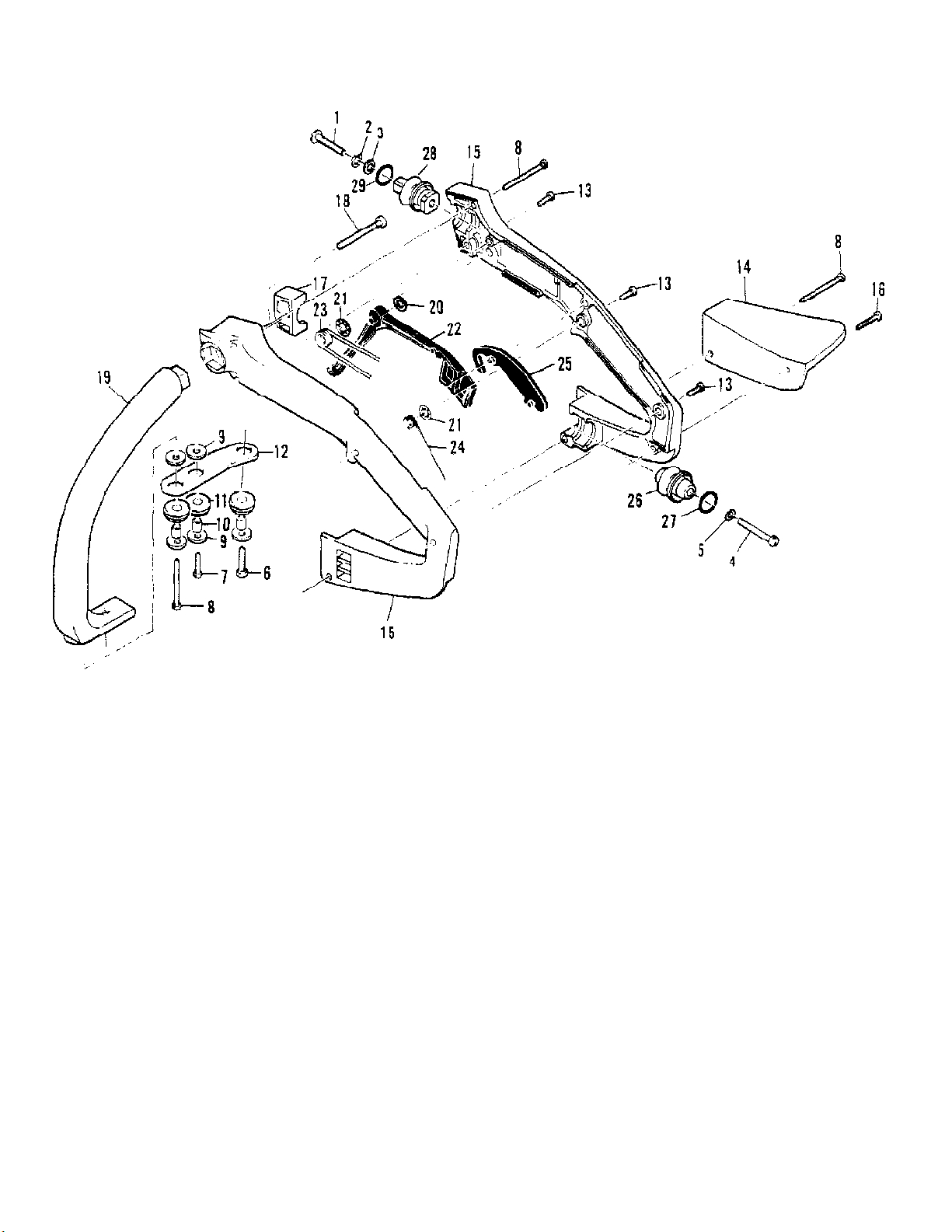

Handle & Frame Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600117B PRO MAC 515 08/82 to 12/85 IPL 216178 Page 8 of 15
www.ktoutdoor.com
Handle & Frame Assembly
Ref # Part Number DescriptionQty
1 213047 Screw - Skt 1/4-20 x 1-1/21
2 216392 Washer - Spring lock1
3 100005 Washer1
4 213048 Screw - Fil 1/4-20 x 1-3/41
5 105043 Washer - Spring lock1
94053 Kit - Handle and Frame1
6 216388 Screw - Hx 12-24 x 13/161
7 216538 Screw - Pn 10-16 x 7/81
8 216537 Screw - Pn 10-16 x 1-5/83
9 216536 Washer5
10 93057 Spacer - Mount3
11 110989 Grommet3
12 93031 Link Mount1
13 216535 Screw - Pn 8-16 x 5/83
14 93026 Guard - Chain1
15 94054 Kit - Handle1
16 216538 Screw - Pn 10-16 x 7/81
17 93030 Insert - Handle1
18 110976 Screw - Pn 1/4 -14 x 1-3/41
19 94052 Frame1
20 110960 Washer - Wavey1
21 110936 Retainer - Spring1
22 216083 Trigger - Throttle1
23 90606 Spring - Trigger1
24 90615 Spring - Trigger release1
25 91504 Release - Trigger1
26 91171 Mount1
27 105615 "O" Ring1
28 91170 Mount Asy1
29 105615 "O" Ring1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600117B PRO MAC 515 08/82 to 12/85 IPL 216178 Page 9 of 15
www.ktoutdoor.com

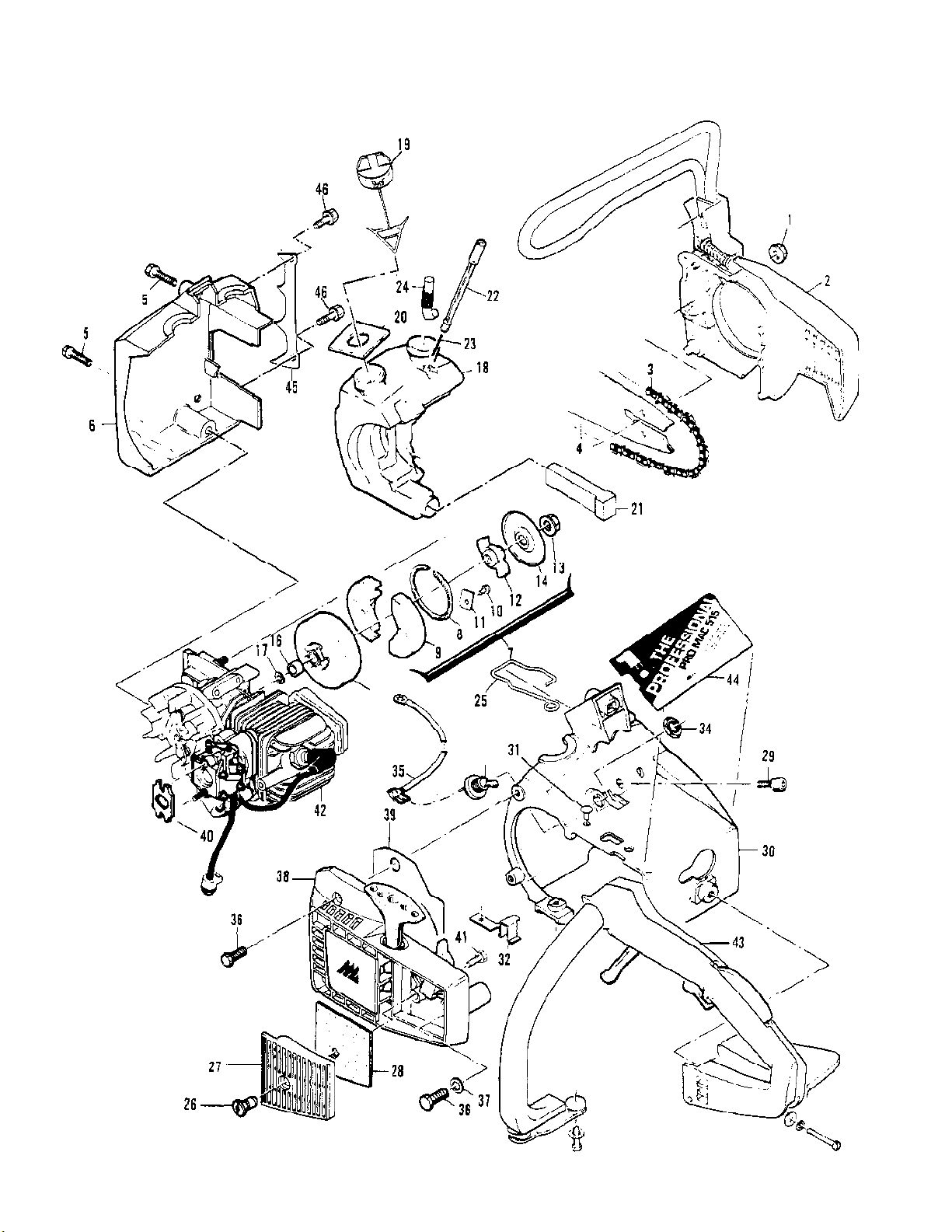

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600117B PRO MAC 515 08/82 to 12/85 IPL 216178 Page 10 of 15
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 110676 Nut - Hx 1/4-281
2 CHAIN BRAKE Asy See "Chain Brake Assembly"
illustration and parts list
3 214925N Chain Asy1
4 214236 Bar1
5 110639 Screw - Hx hd 12-24 x 12
6 92863 Cover - Fuel & Oil tank1
7 213278 Clutch Kit1
8 93608 Spring Asy1
9 213276 Shoe - Clutch2
10 110957 Rivet2
11 85064 Plate2
12 94247 Rotor Kit1
13 94244 Nut - Clutch1
14 94243 Plate - Dust1
15 214390 Drum/Spkt/Brng Asy - .375P1
16 91222 Kit - Needle brng1
17 215259 Washer - Sprocket1
18 91454A Tank Kit - Fuel & Oil1
19 216070 Cap - Fuel & Oil (unvented)2
20 91148 Seal - Fuel vent1
21 84956 Pickup - Fuel1
22 213906 Piston - Pulse Oiler1
23 83946 Spring - Piston1
24 85557 Body - Oiler1
25 93295 Rod - Oiler1
26 89070 Nut - Air cleaner cover1
27 89069 Cover - Air cleaner1
28 92410 Filter - Air1
29 216511 Screw - Skt 12-24 x 3/43
30 213822 Shroud/Latch Asy1
31 111007 Rivet1
32 93912 Spring - Throttle latch1
33 92649 Kit - Ignition switch1
34 104810 Nut - Hx 15/32-321
35 69344 Wire Asy - Ignition1
36 110953 Screw - Hx hd 12-24 x 5/83
37 110882 Washer1
38 Starter Asy See "Starter Assembly" illustration and
parts list
39 93236 Deflector - Air1
40 94142 Gasket - Starter housing1
41 102762 Screw - Hx hd 10-24 x 1/21
42 Powerhead Asy See "Powerhead Assembly"
illustration and parts list
43 Handle & Frame Asy See "Handle & Frame
Assembly" illustration and parts list
44 216145 Plate - Name1
45 91735 Kit - Spike1
46 213046 Screw Hx hd 10-24 x 1/22
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600117B PRO MAC 515 08/82 to 12/85 IPL 216178 Page 11 of 15
www.ktoutdoor.com

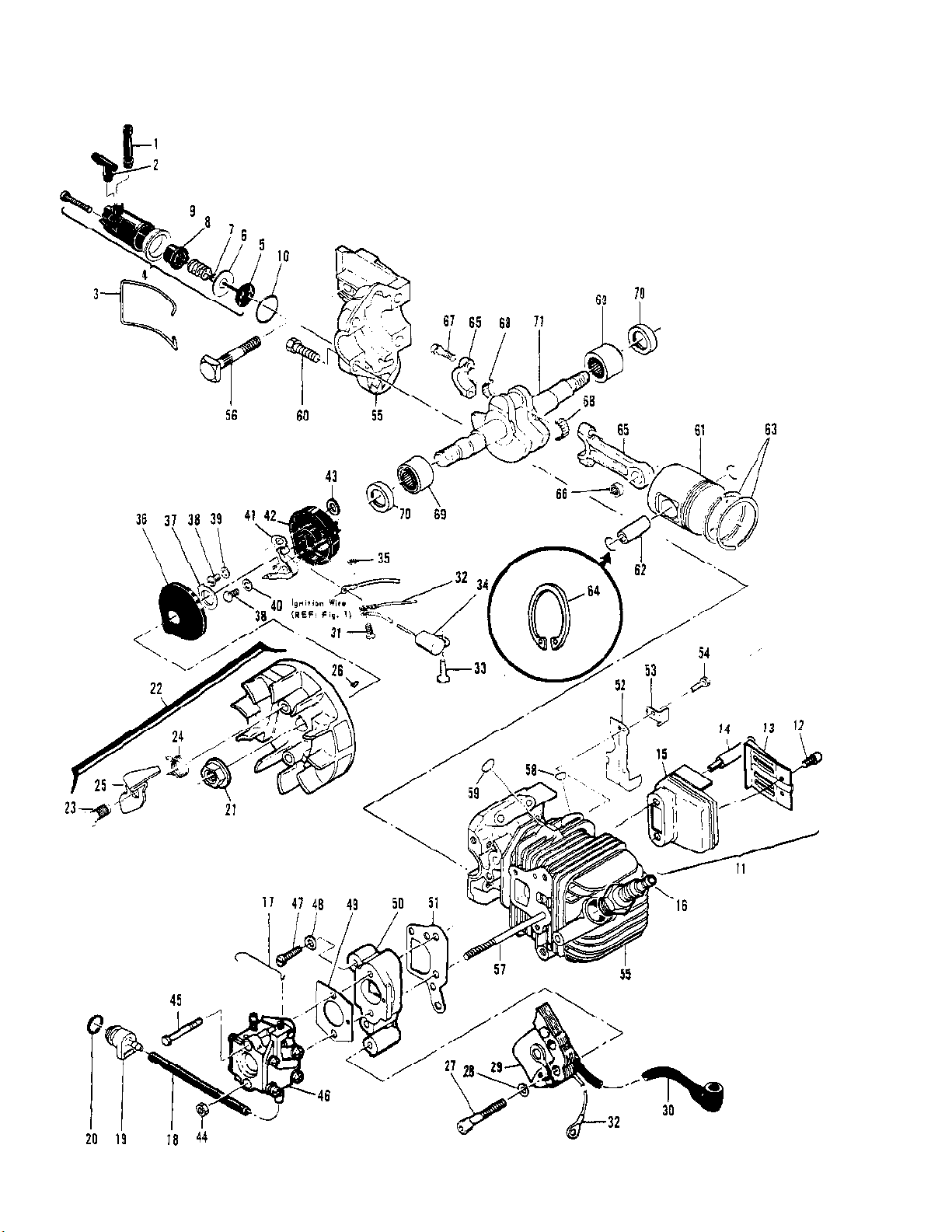

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600117B PRO MAC 515 08/82 to 12/85 IPL 216178 Page 12 of 15
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 83898 Connector - Outlet1
2 84613 Connector - Pump1
3 83896 Bail - Mounting1
4 215739 Pump Assembly - Oiler1
216426 Repair Kit - Oil Pump1
5 Piston Assembly Not available separately.1
6 Piston Ring Not available separately.1
7 "O" Ring Not available separately.1
8 Sleeve Not available separately.1
9 Eyelet Not available separately.1
10 110653 "O" Ring1
11 215411 Kit - Muffler1
12 110681 Screw - Skt hd 10-24 x 1/42
13 92961 Deflector - Exhaust1
14 213327 Screw - Special2
15 Body - Cover Not available separately.1
16 63432 Spark Plug1
17 89060 Rod - Throttle1
18 89059 Hose - Fuel1
19 90660 Adapter - Fuel hose1
20 110908 "O" Ring1
21 110961 Nut - Hx 5/16-241
22 94737 Flywheel/Pawl Assembly1
23 68796 Pin - Pawl2
24 67814 Spring - PawlZ
25 94493 Pawl - Starter2
26 102164 Key - Woodruff1
27 213050 Screw - Skt 8-32 x 1-5/82
28 100080 Washer - #82
29 84957 Coil 5 Lamination1
30 215351 Wire Assembly - Spark plug1
31 110364 Screw - Pan hd 6-32 x 3/41
32 69344 Wire Assembly - Coil1
33 110041 Screw - Pan hd 8-32 x 1/21
34 85358 Condenser1
35 100035 Nut - Hx 6-321
36 67841 Cover - Breaker box1
37 69323 Seal - Breaker box1
38 213032 Screw - Hx hd 8-32 x 1/22
39 69322 Washer - Hard #81
40 105976 Washer - #8 Plain1
41 88811 Breaker Assembly1
42 92054 Kit - Breaker box1
43 92037 Washer1
44 105367 Nut - Hx 10-241
45 110614 Screw - Hx hd 10-24 x 2-3/81
46 Carburetor Assembly
47 110652 Screw - Pan hd 8-32 x 11
48 100080 Washer - #81
49 89057 Gasket - Carburetor1
50 214352 Insulator1
51 89054 Gasket - Insulator1
52 89648A Shield1
53 93353 Deflector - Sawdust1
54 110674 Screw - Hx hd 10-24 x 1/2 s/t2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600117B PRO MAC 515 08/82 to 12/85 IPL 216178 Page 13 of 15
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
55 214156 Cylinder/C'case Assembly1
56 83856 Bolt - Bar mounting1
57 94143 Stud1
58 110914 Plug - Cup2
59 111024 Plug - Cup2
60 216512 Screw - Skt 12-24 x 14
61 94661 Piston Assembly1
62 92836 Pin - Piston1
63 91703 Ring Set - Piston1
64 111026 Ring - SnapZ
65 94135 Connecting Rod Assembly1
66 110984 Bearing - Needle1
67 94654 Screw - Connecting rod2
68 68095 Roller - Needle (set of 20)1
69 93763 Sleeve Assembly - Bearing2
70 83859 Seal - Oil2
71 91932 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600117B PRO MAC 515 08/82 to 12/85 IPL 216178 Page 14 of 15
www.ktoutdoor.com

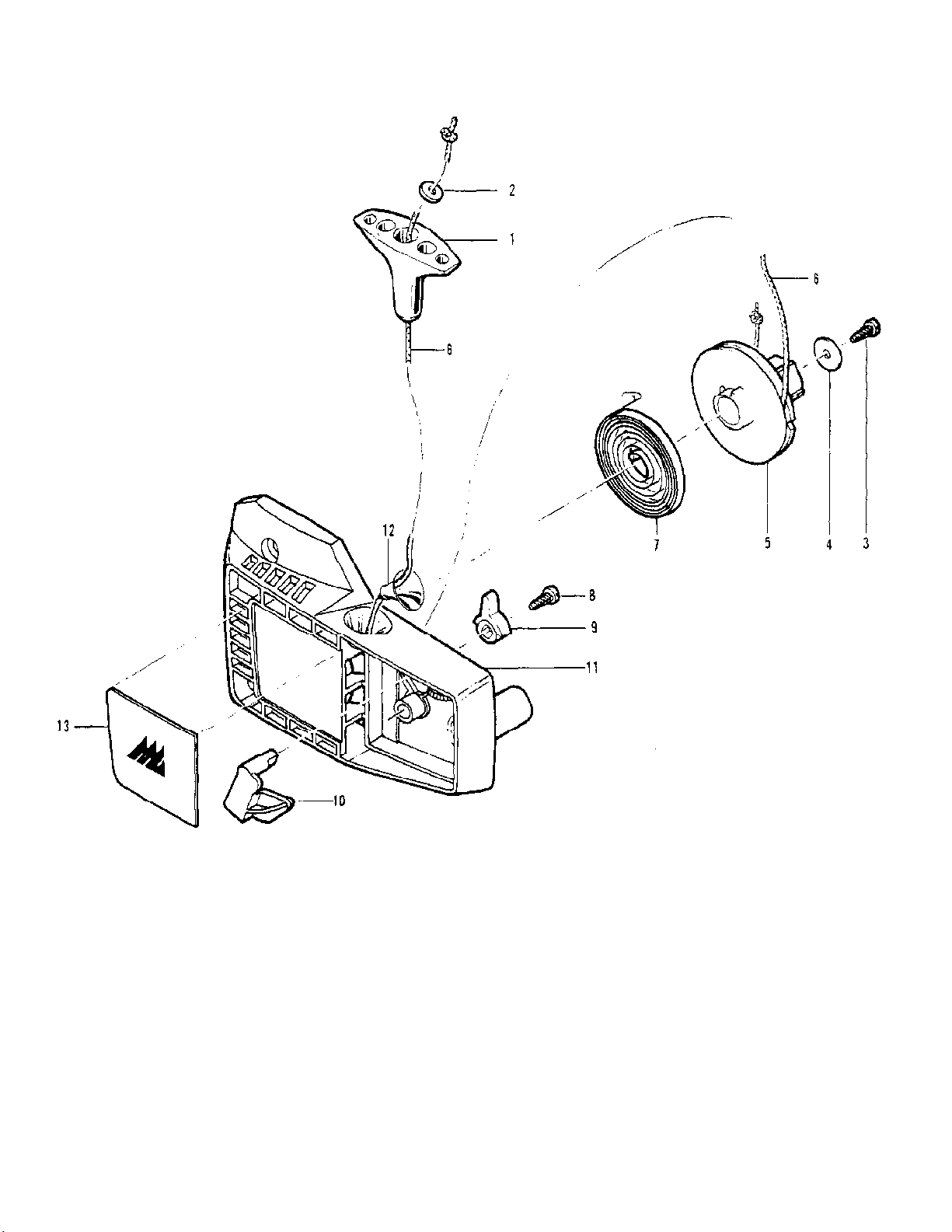

Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600117B PRO MAC 515 08/82 to 12/85 IPL 216178 Page 15 of 15
www.ktoutdoor.com
Starter Assembly
Ref # Part Number DescriptionQty
213260 Starter Assembly1
1 91255 Kit - Starter handle
2 105490 Washer1
3 110041 Screw - Pan hd 8-32 x 1/21
4 68497 Washer1
5 213261 Drum/Rope Assembly1
6 83203 Rope - Starter1
7 83078 Spring - Rewind1
8 110041 Screw - Pan hd 8-32 x 1/21
9 91182 Lever - Choke1
10 91183 Plate - Choke1
11 94148 Housing - Starter1
12 67571 Guide - Rope1
13 91570 Plate1
K&T Saw Shop 606-678-9623 or 606-561-4983
