Page 1
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 1 of 18
www.ktoutdoor.com
Tools And Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 2 of 18
www.ktoutdoor.com
Tools And Accessories
Ref # Part Number DescriptionQty
216058 Key - Socket - 9/64
216063 Key - Socket - 5/32
84453 Kit - Piston Tool
69191 Kit - Pressure Test Adaptor
214223 Spark Plug (Standard)
63432 Spark Plug (Cooler)
62827 Wrench/Screwdriver
214221 Scrench
91226 Wrench - Clutch/Flywheel
86419 Guide - Timing
92993 Spark Arrester Screen
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 3 of 18
www.ktoutdoor.com
Bar/Chain/Chain Sharpening Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 4 of 18
www.ktoutdoor.com
Bar/Chain/Chain Sharpening Tools
Ref # Part Number DescriptionQty
94074 16" Speed Mac Bar
89502 16" Mac 10 Bar
93778 20" Speed Mac Bar
89503 20" Mac 10 Bar
86846 24" Speed Mac Bar
89504 24" Mac 10 Bar
86847 28" Speed Mac Bar
89505 28" Mac 10 Bar
88167-12 16" PM370GX 60 C.L. Chain
89974-12 16" SPR370GX 60 C.L. Chain
88173-12 20" PM370GX 71 C.L. Chain
89979-12 20" SPR370GX 71 C.L. Chain
88175-12 24" PM370GX 81 C.L. Chain
89981-12 24" SPR370GX 81 C.L. Chain
93552-12 28" PM370GX 93 C.L. Chain
89984-12 28" SPR370GX 93 C.L. Chain
218739 File Plate No.
218738 File Plate No.
56698-23 7/32 Round File No. 1 Doz. Pak
219161 7/32 Round File No. Twin Pak
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 5 of 18
www.ktoutdoor.com

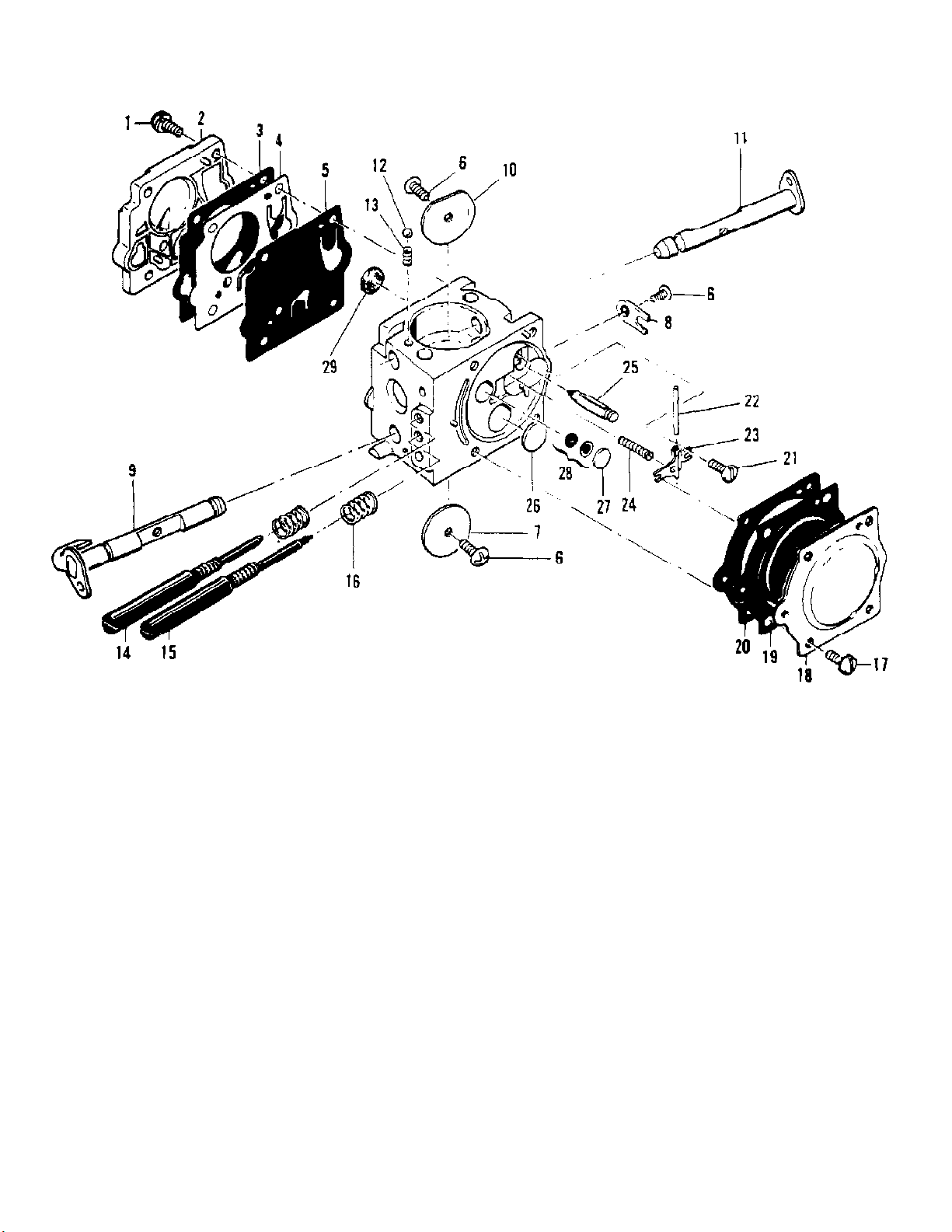

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 6 of 18
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
87666 CARBURETOR ASY (WALBRO)1
1 Screw - Pump Cover Not available separtely.1
2 Cover - Pump Not available separtely.4
3 Gasket - Cover Not available separtely.1
4 Diaphragm - Check Valve Not available separtely.1
5 Diaphragm - Fuel Pump Not available separtely.1
6 Screw - Plate Not available separtely.3
7 Plate - Throttle Not available separtely.1
8 Clip - Shaft Not available separtely.1
9 Shaft Asy - Throttle Not available separtely.1
10 Plate - Choke Not available separtely.1
11 Shaft Asy - Choke Not available separtely.1
12 Ball - Choke Friction Not available separtely.1
13 Spring - Choke Not available separtely.1
14 Needle - High Speed Not available separtely.1
15 Needle - Idle Not available separtely.1
16 Spring - Needle Not available separtely.2
17 Screw - Diaphragm Cover Not available separtely.4
18 Cover - Diaphragm Not available separtely.1
19 Diaphragm - Metering Not available separtely.1
20 Gasket - Diaphragm Not available separtely.1
21 Screw - Lever Pin Not available separtely.1
22 Pin - Lever Not available separtely.1
23 Lever - Metering Not available separtely.1
24 Spring - Lever Not available separtely.1
25 Valve - Needle Not available separtely.1
26 Plug - 3/8 Not available separtely.1
27 Plug - 5/16 Not available separtely.1
28 Kit - Valve & Seat Asy Not available separtely.1
29 Screen - Fuel Not available separtely.1
217080 Major Repair Kit
217078 Gasket/Diaphragm Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 7 of 18
www.ktoutdoor.com

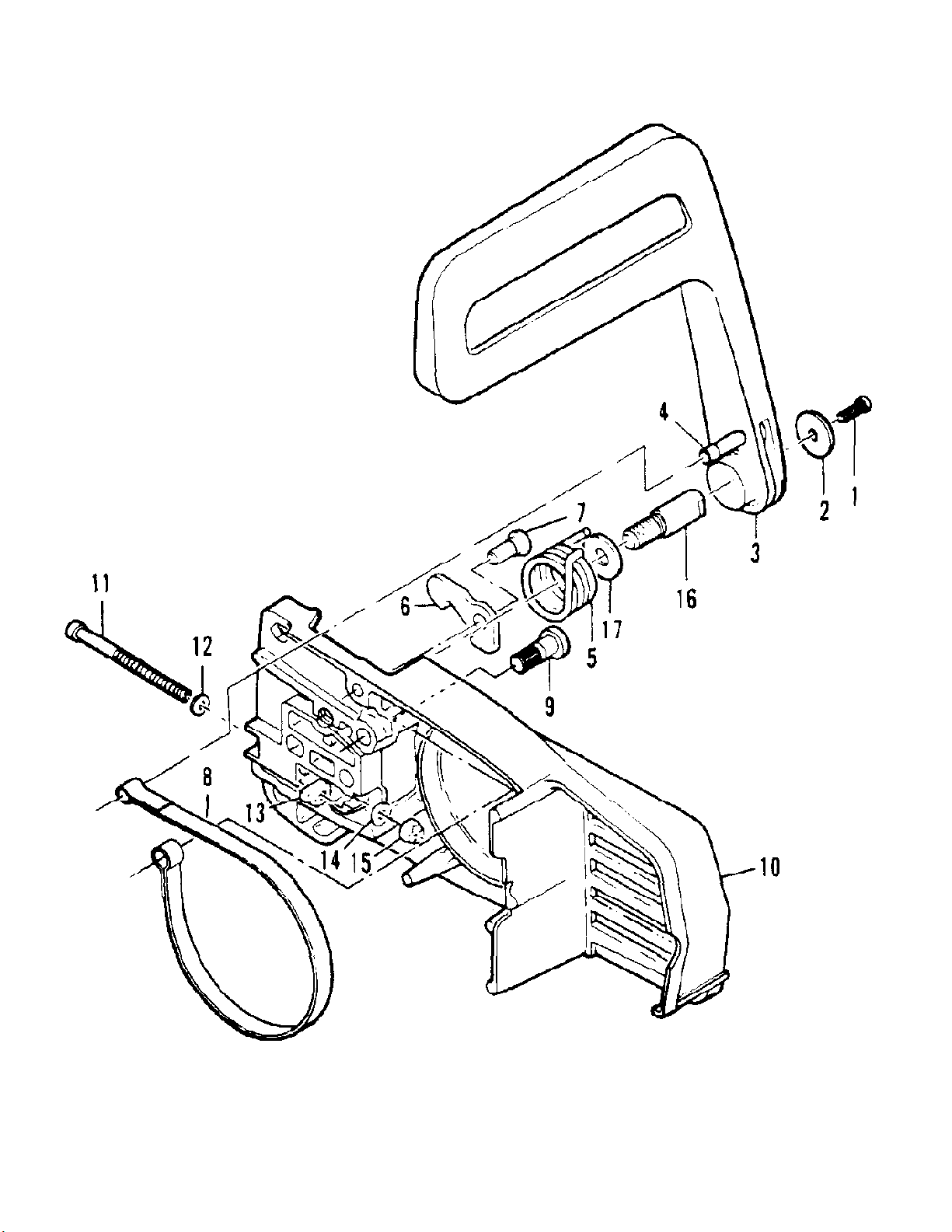

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 8 of 18
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
217694 CHAIN BRAKE Asy1
1 216634 Screw - Pan Hd 10-24 x 1/21
2 216633 Washer - Special1
3 215911 Lever Asy1
4 214366 Pin Asy - Roller1
5 93085 Spring - Brake1
6 217235 Latch1
7 93669 Pivot - Latch1
8 93081 Band - Brake1
9 93082 Pin - Band Anchor1
10 216771 Housing Asy - Brake1
11 216636 Screw - Fil Hd 10-24 x 2-3/41
12 110582 Washer - #101
13 61705 Nut - Bar Adjusting1
14 100002 Washer - #101
15 102067 Nut - Hx 10-241
16 91246 Pin - Lever Pivot1
17 91245 Washer - Thrust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 9 of 18
www.ktoutdoor.com

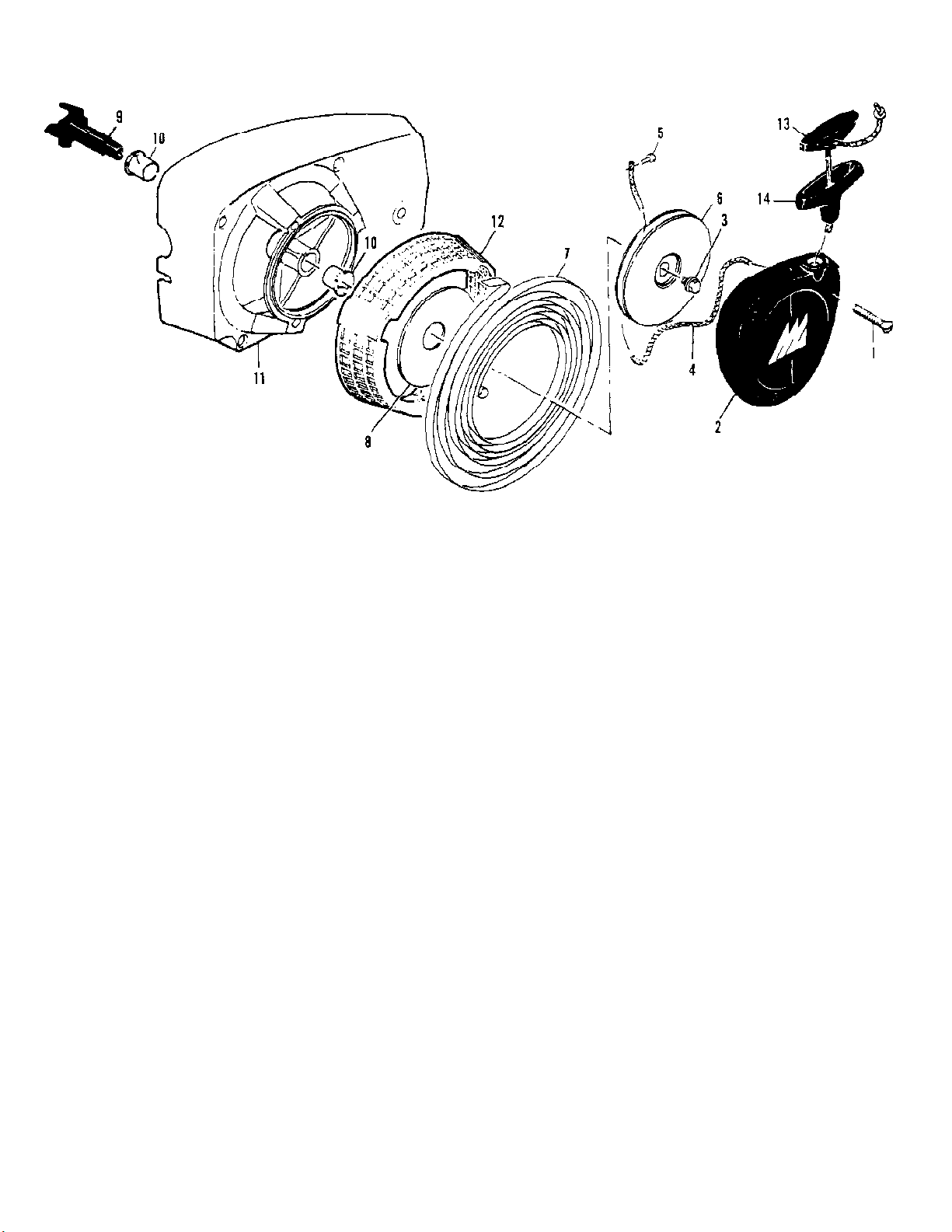

Fan Housing/Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 10 of 18
www.ktoutdoor.com
Fan Housing/Starter Assembly
Ref # Part Number DescriptionQty
216050 FAN HOUSING/STARTER ASY1
1 110646 Screw - Oval Hd 8-32 x 1-1/83
2 91084 Cover - Starter1
3 110928 Screw - Hx Hd 10-24 x 1/21
4 68162 Rope - Starter1
5 110470 Rivet - Rope1
6 83959 Drum - Starter1
7 87680 Spring - Rewind1
8 86053 Shield - Spring1
9 83748 Shaft - Starter1
10 57535 Bushing - Starter2
11 216051 Housing - Fan1
12 214192 Guard - Sawdust1
13 214699 Insert - Handle1
14 93137 Handle - Starter1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 11 of 18
www.ktoutdoor.com

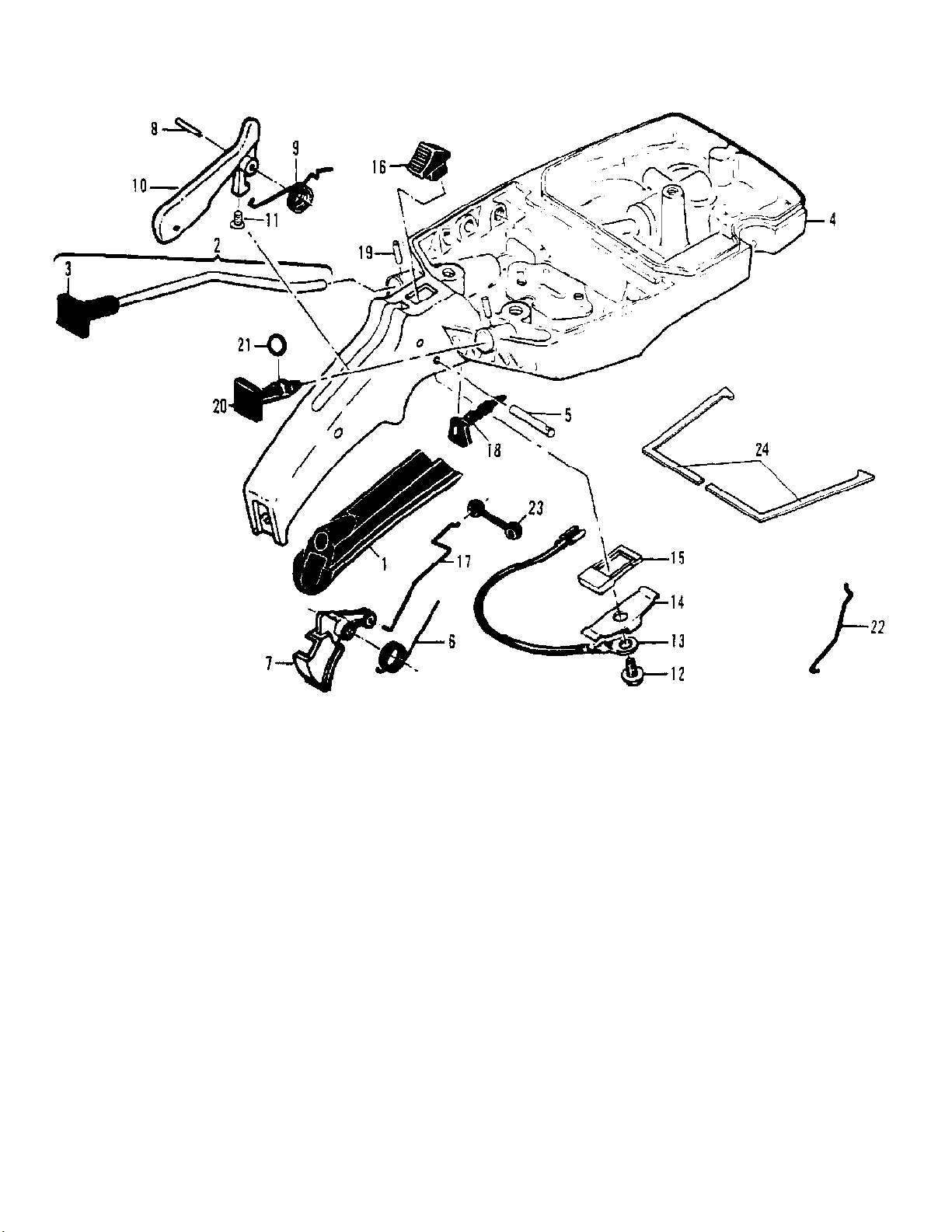

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 12 of 18
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 89320 Insert - Handle Grip1
2 216126 Button & Rod Assembly1
3 95615 Button - Oiler1
4 216127 Kit - Fuel Tank/Control1
5 110378 Pin - Roll 3/16 x 15/161
6 92152 Spring - Trigger1
7 214679 Trigger - Throttle1
8 105654 Pin - Roll 1/8 x 7/81
9 92154 Spring - Trigger Release1
10 214680 Release Asy - Trigger1
11 111012 Screw - Pn Hd 4-40 x 5/161
12 110706 Screw - Pn Hd 8-18 x 1/21
13 214692 Wire Asy - Stop Switch1
14 62451 Control - Switch1
15 214691 Base - Switch1
16 68846 Button - Switch1
17 85107 Rod - Throttle1
18 214701 Seal - Throttle Rod1
19 105673 Pin - Roll 3/32 x 9/162
20 69041 Button - Choke1
21 105614 "O" Ring1
22 69042 Rod - Choke1
23 69043 Snubber - Rod1
24 219280 Set - Gaskets (L.H. and R.H.)1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 13 of 18
www.ktoutdoor.com

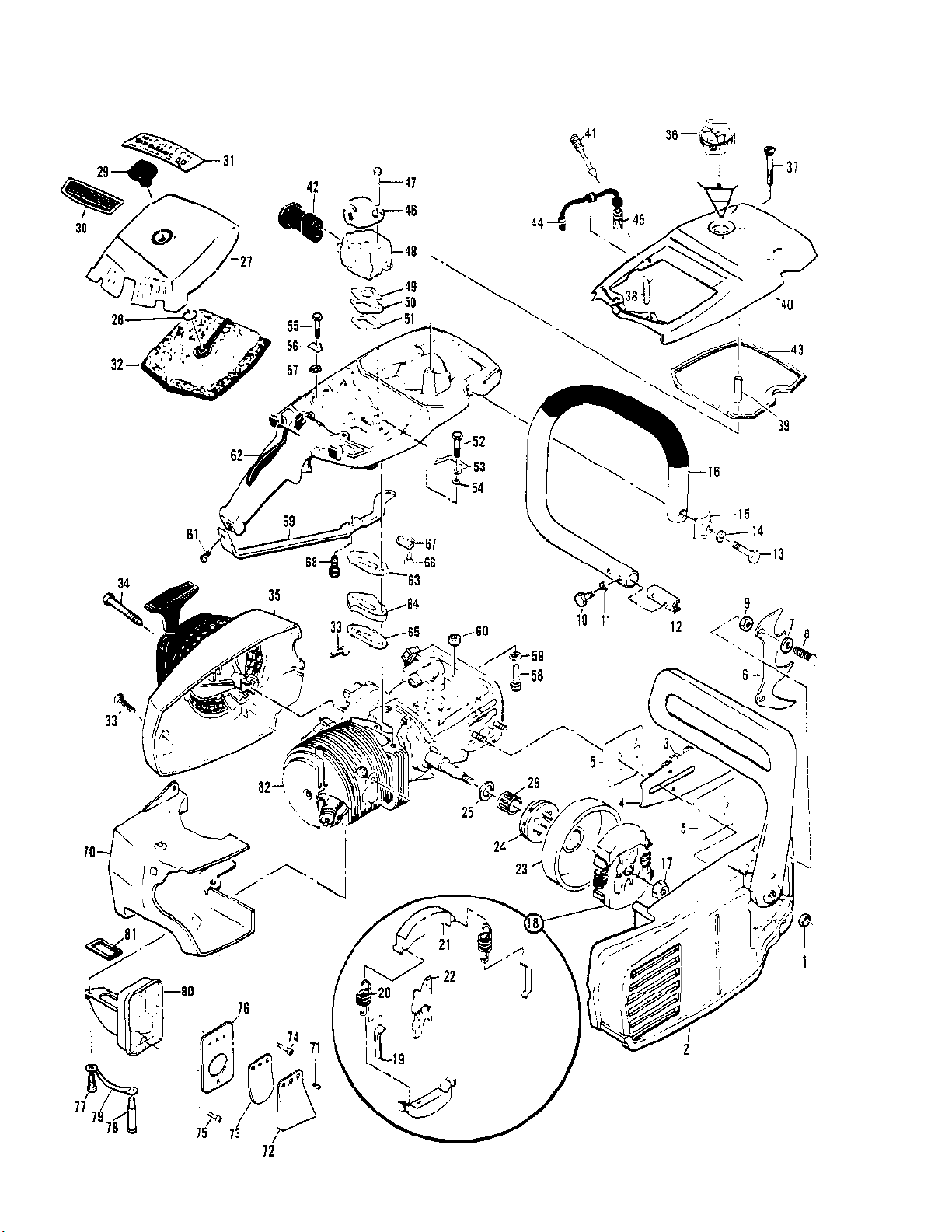

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 14 of 18
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 216640 Nut - Hx 5/16-242
2 CHAIN BRAKE See "Chain Brake Assembly"
1
illustration and parts list.
3 Chain Assembly See "Bar/Chain/Chain Sharpening
4 Bar Assembly See "Bar/Chain/Chain Sharpening
5 64330 Set - Bar Plates (2)1
6 93668 Spike1
7 216683 Washer - Special2
8 213042 Screw - Skt Hd 10-24 x 5/82
9 216682 Nut - Hx Lock 10-242
10 216677 Screw - Hx Hd 10-24 x 7/82
11 100352 Washer - #102
12 89727 Retainer - Frame1
13 216638 Screw - Hx Hd 1/4-20 x 1-1/21
14 100153 Washer - Lock 1/41
15 216639 Clamp - Frame1
16 214549 Frame & Grip Assembly1
17 86113 Nut - Hx 3/8-24 (L.H.)1
18 214301 Clutch Assembly1
19 64583 Retainer - Spring2
20 83223 Spring - Clutch2
21 67233 Kit - Clutch Shoe1
22 214300 Rotor - Clutch1
23 95165 Drum & Sprocket Asy 7T .375P1
24 86951 Sprocket - 77 .375P1
25 86958 Washer - Sprocket1
26 110971 Bearing - Sprocket1
27 91543 Cover Asy - Air Cleaner1
28 110565 Ring - Retaining1
29 68529 Knob - Cover1
30 216138 Plate - Name1
31 216054 Plate - Instruction1
32 69922 Filter - Air1
33 110741 Screw - Pan Hd 10-24 x 1/22
34 87871 Screw - Special3
35 Fan Housing/Starter Asy See "Fan Housing/Starter
1
Tools" parts list.
1
Tools" parts list.
1
Assembly" illustration and parts list.
36 216053 Cap Asy - Fuel W/Retainer1
37 216678 Screw - Oval Hd 10-24 x 2-3/81
38 101986 Screw - Oval Hd 10-24 x 12
39 87840 Spacer1
40 88650 Cover - Fuel Tank1
41 87932 Screw - Idle Adjustment1
42 87665 Boot - Carburetor Adjustment1
43 69345 Gasket - Cover1
44 215208 Hose Asy - Fuel1
45 215714 Pickup Asy - Fuel1
46 69952 Bracket - Air Cleaner1
47 103357 Bolt - Hx Hd 10-24 x 2-1/42
48 Carburetor Asy See "Carburetor Assembly"
1
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 15 of 18
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
49 86189 Gasket - Carburetor1
50 84078 Spacer - Carburetor1
51 84081 Gasket - Spacer1
52 110567 Screw - Hx Hd 12-24 x 1-1/42
53 68582 Plate - Lock1
54 102115 Washer - #122
55 110568 Screw - Hx Hd 12-24 x 1-1/81
56 69516 Plate - Lock1
57 100352 Washer - Special1
58 110713 Screw - Skt Hd 10-24 x 7/81
59 100003 Washer - #101
60 69772 Spacer - Fuel Tank1
61 216632 Screw - Pn Hd 10-24 x 1-1/41
62 Fuel Tank Asy See "Fuel Tank Assembly" illustration
63 84082 Gasket - Fuel Tank1
64 84080 Insulator - Fuel Tank1
65 68594 Gasket - Insulator1
66 216679 Screw - Hx Hd 10-24 x 5/81
67 68508 Plate - lock1
68 216679 Screw - Hx Hd 10-24 x 5/81
69 85007 Brace - Handle1
70 214702 Shroud1
71 110563 Screw - Skt Hd 8-32 x 1/42
72 92996-01 Stop - Reed1
73 85585-01 Valve - Reed1
74 101563 Screw - Skt Hd 10-24 x 1-1/41
75 110439 Screw - Skt Hd 10-24 x 11
76 92995 Cover - Spark Arrestor1
77 110529 Screw - Hx Hd 10-24 x 1/21
78 68187 Screw - Special1
79 67922 Plate - Lock1
80 92989 Body Muffler1
81 84007 Gasket - Muffler1
82 Powerhead Asy See "Powerhead Assembly"
1
and parts list.
1
illustration and parts list.
215720 Bearing Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 16 of 18
www.ktoutdoor.com

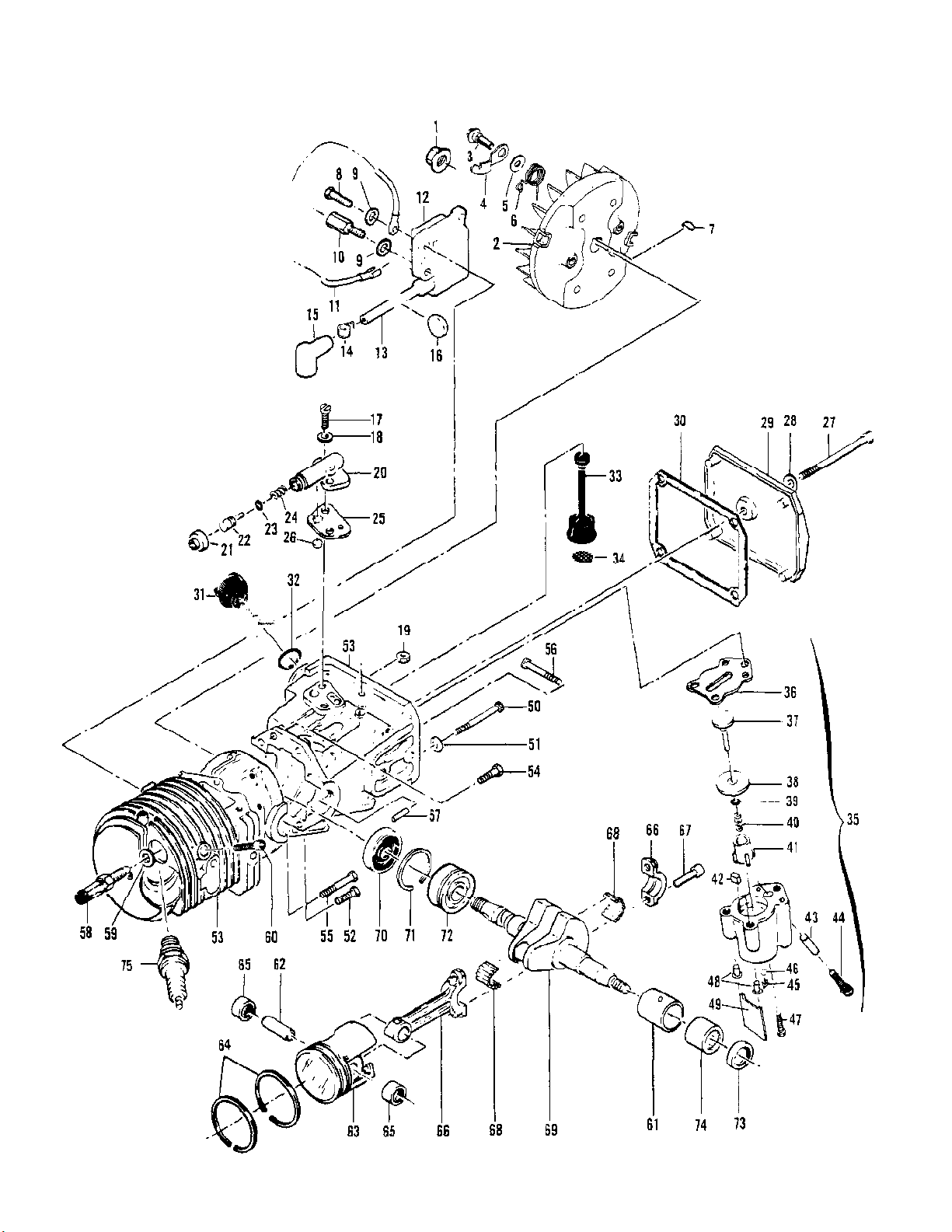

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 17 of 18
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 110703 Nut - Hx 3/8-241
2 216739 Flywheel Assembly1
3 93464 Screw - Pawl2
4 93198 Pawl - Starter2
5 93469 Washer - Pawl2
6 214102 Spring - Pawl2
7 100106 Key - Woodruff1
8 110127 Screw - Hx Hd 10-24 x 7/8 (Sems)1
9 100002 Washer - #102
10 83512 Stud - Special1
11 84686-01 Wire Assembly - Ground1
12 95553 Ignition - Electronic1
13 95269 Wire Asy - Spark Plug1
14 102556 Connector1
15 95266 Boot1
16 110995 Grommet1
17 110338 Screw - Pn Hd 8-32 x 1/22
18 110613 Washer - #82
19 100955 Nut - Hx 8-321
20 84156 Housing - Pump1
21 215151 Cap - Housing1
22 62266 Plunger - Pump1
23 105614 "O" Ring1
24 66687 Spring - Pump1
25 91669 Gasket - Pump1
26 91668 Valve - Pump1
27 110291 Screw - Pn Hd 10-24 x 2-5/81
28 110921 Washer - Sealing1
29 218707 Cover - Oil Tank1
30 86306 Gasket - Cover1
31 216052 Cap - Oil Tank1
32 101148 "O" Ring1
33 91672 Hose Assembly - Oil1
34 51506 Screen - Hose1
35 215339 Kit - Pulse Pump1
36 92874 Seal - Pulse Pump1
37 214278 Piston Assembly - Pump1
38 86182 Ring - Piston1
39 105603 "O" Ring1
40 60259 Spring - Piston1
41 62227 Sleeve - Adjustment1
42 91259 Pad - Pump1
43 91774 Sleeve1
44 216677 Screw - Hx Hd 10-24 x 7/81
45 Spring - Outlet Valve Not avaialble separately.1
46 Ball Not avaialble separately.1
47 110386 Screw - Hx Hd 8-32 x 11
48 Eyelets Not avaialble separately.2
49 Clip - Sealing Not avaialble separately.
50 62106 Screw - Sealing4
51 111025 Washer - Sealing4
52 110288 Screw - Hx Hd 8-32 x 3/41
53 214671 Cylinder/C'Case Assembly1
54 110288 Screw - Hx Hd 8-32 x 3/42
55 110618 Screw - Hx Hd 8-32 x 1-3/81
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-600116-03 PRO MAC 700 08/82 to 11/92 IPL 216176-R4 Page 18 of 18
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
56 62065 Bolt - Bar Mounting2
57 110851 Pin - Dowel1
58 94273 Valve - DSP1
59 214765 Washer - Valve1
60 110681 Screw - Skt Hd 10-24 x 1/41
61 87152 Insert - Bearing1
62 69020 Pin - Piston1
63 85239 Piston Assembly1
64 89732 Ring Set - Piston1
65 111021 Bearing - Needle2
66 85352 Rod Assembly - Connecting1
67 61627-01 Screw - Skt Hd Special2
68 63225 Roller - Needle (Set of 20)1
69 216909 Crankshaft Assembly1
70 61618 Seal - Oil1
71 63464 Ring - Snap1
72 63429-02 Bearing - Ball1
73 110260 Seal - Oil1
74 104357 Bearing - Needle1
75 214223 Spark Plug1
215246 Kit - Oil Pump Clip1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
