Page 1
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 1 of 21
www.ktoutdoor.com
Tools And Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 2 of 21
www.ktoutdoor.com
Tools And Accessories
Ref # Part Number DescriptionQty
94121-01 Universal Carrying Case
92896 Guard - Bar 16 in.
86419 Timing Guide
69191 Kit, Pressure Test Adapter
215432 Tool, Pressure Test
63139 Adapter Plate, Intake
63137 Adapter Plate, Exhaust
84453 Kit, Piston Tool
214221 Scrench
214223 Spark Plug, Standard Type
63432 Spark Plug, Cooler Type
91226 Wrench, Clutch/Flywheel
322235 Kit, LOCTITE
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 3 of 21
www.ktoutdoor.com
Bar/Chain/Sharpening Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 4 of 21
www.ktoutdoor.com
Bar/Chain/Sharpening Tools
Ref # Part Number DescriptionQty
89502 16" Mac 10 .375 Replacement Nose Assemblies are
not available for these bars
94074 16" Speed Mac .375 Replacement Nose - Nose
Assembly Bar .375 P/N 86830
94074-05 16" Speed Mac .375 Replacement Nose - Kit
Sprocket Nose Asy P/N 219807
223195 16" Speed Mac .325 Replacement Nose - .325 Pitch
Nose Asy P/N 223183
89503 20" Mac 10 .375 Replacement Nose Assemblies are
not available for these bars
93778 20" Speed Mac .375 Replacement Nose - Nose
Assembly Bar .375 P/N 86830
93778-05 20" Speed Mac .375 Replacement Nose - Kit
Sprocket Nose Asy P/N 219801
218924 20" Speed Mac .325 Replacement Nose - .325 Pitch
Nose Asy P/N 218999
89504 24" Mac 10 .375 Replacement Nose Assemblies are
not available for these bars
86846 24" Speed Mac .375 Replacement Nose - Nose
Assembly Bar .375 P/N 86830
86846-05 24" Speed Mac .375 Replacement Nose - Kit
Sprocket Nose Asy P/N 219807
89505 28" Mac 10 .375 Replacement Nose Assemblies are
not available for these bars
86847 28" Speed Mac .375 Replacement Nose - Nose
Assembly Bar .375 P/N 86830
86847-05 28" Speed Mac .375 Replacement Nose - Kit
Sprocket Nose Asy P/N 219801
91284-00 33" Speed Mac .375 Replacement Nose - Kit
Sprocket Nose Asy P/N 86830
91284-01 33" Speed Mac .375 Replacement Nose - Kit
Sprocket Nose Asy P/N 219807
218839-12 Chain - 16" PMR 370 GLX 60 CL
219132 File Plate
219161 File - Size - 7/32
88167-12 Chain - 16" PM 370 GX 60 CL
219132 File Plate
219161 File - Size - 7/32
89974-12 Chain - 16" SPR 370 GX 60 CL
219132 File Plate
219161 File - Size - 7/32
218551-12 Chain - 16" SPG 320 GLX 68 CL
219130 File Plate
98023 File - Size - 11/64
89978-12 Chain - 20" SPR 370 GX 70 CL
219132 File Plate
219161 File - Size - 7/32
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 5 of 21
www.ktoutdoor.com
Bar/Chain/Sharpening Tools
Ref # Part Number DescriptionQty
89979-12 Chain - 20" SPR GX 71 CL
219132 File Plate
219161 File - Size - 7/32
88173-12 Chain - 20" PM 370 GX 71 CL
219132 File Plate
219161 File - Size - 7/32
218069-12 Chain - 20" PMR 370 GLX 71 CL
219132 File Plate
219161 File - Size - 7/32
218552-12 Chain - 20" SPG 320 GLX 79 CL
219130 File Plate
98023 File - Size - 11/64
89981-12 Chain - 24" SPR 370 GX 81 CL
219132 File Plate
219161 File - Size - 7/32
88175-12 Chain - 24" PM 370 GX 81 CL
219132 File Plate
219161 File - Size - 7/32
218070-12 Chain - 24" PMR 370 GLX 81 CL
219132 File Plate
219161 File - Size - 7/32
89982-12 Chain - 24" SPR 370 GX 82 CL
219132 File Plate
219161 File - Size - 7/32
93551-12 Chain - 24" PM 370 GX 82 CL
219132 File Plate
219161 File - Size - 7/32
89984-12 Chain - 28" SPR 370 GX 92 CL
219132 File Plate
219161 File - Size - 7/32
93552-12 Chain - 28" PM 370 GX 93 CL
219132 File Plate
219161 File - Size - 7/32
92101-12 Chain - 33" SPR 370 GX 106 CL
219132 File Plate
219161 File - Size - 7/32
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 6 of 21
www.ktoutdoor.com

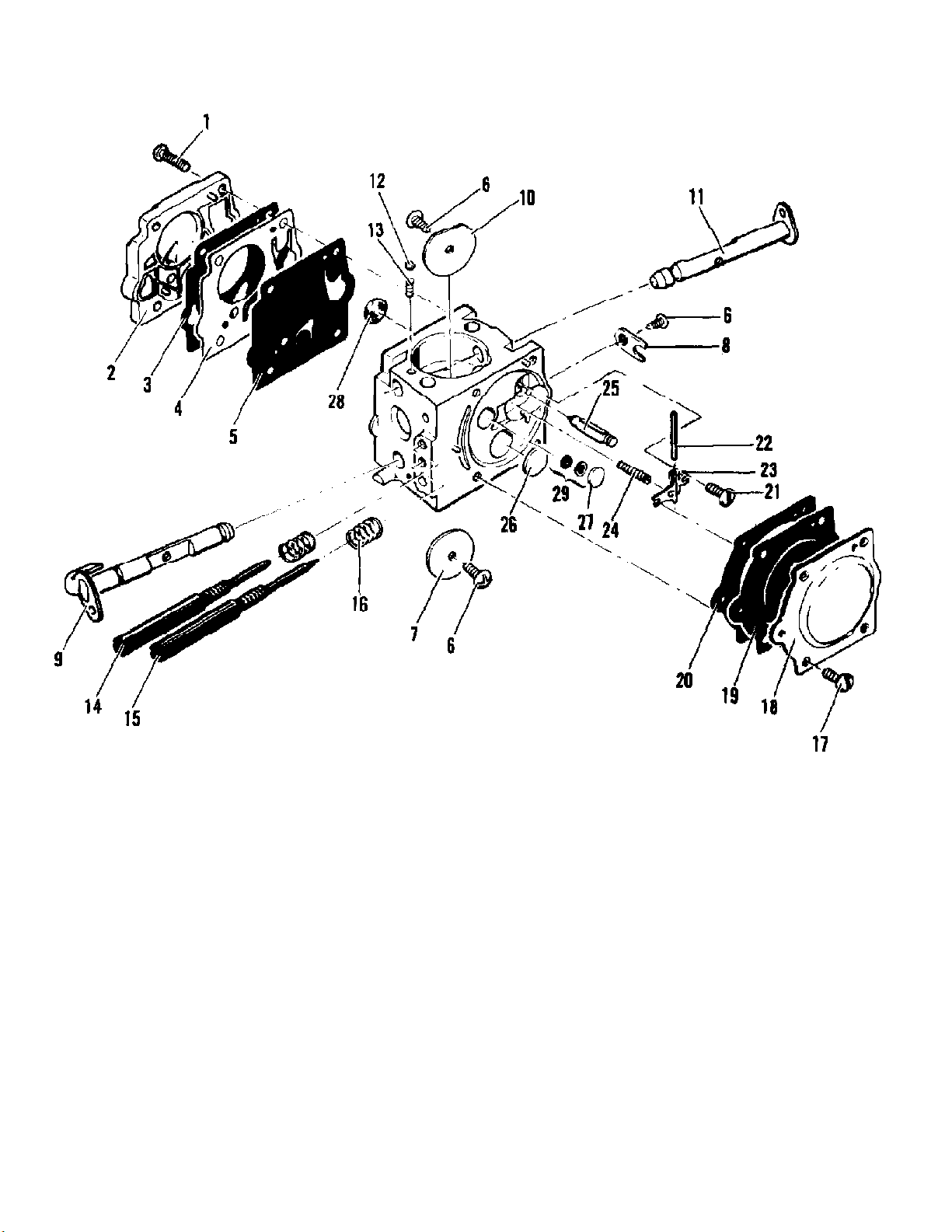

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 7 of 21
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
87666 Carburetor Asy. (SDC 44) Dealer stocked. Fast to
1
medium moving part.
1 Screw - Pump Cover Not available separately.Not
2 Cover - Pump Not available separately.4
3 Gasket - Cover Not available separately.1
4 Diaphragm - Check Valve Not available separately.1
5 Diaphragm - Fuel Pump Not available separately.1
6 Screw - Plate Not available separately.3
7 Plate - Throttle Not available separately.1
8 Clip - Shaft Not available separately.1
9 Shaft Asy - Throttle Not available separately.1
10 Plate - Choke Not available separately.1
11 Shaft Asy - Choke Not available separately.1
12 Ball - Choke Friction Not available separately.1
13 Spring - Choke Not available separately.1
14 Needle - High Speed Not available separately.1
15 Needle - Idle Not available separately.1
16 Spring - Needle Not available separately.2
17 Screw - Diaphragm Cover Not available separately.4
18 Cover - Diaphragm Not available separately.1
19 Diaphragm - Metering Not available separately.1
20 Gasket - Diaphragm Not available separately.1
21 Screw - Lever Pin Not available separately.1
22 Pin - Lever Not available separately.1
23 Lever - Metering Not available separately.1
24 Spring - Lever Not available separately.1
25 Valve - Needle Not available separately.1
26 Plug 3/8 Not available separately.1
27 Plug 5/16 Not available separately.
28 Screen - Fuel Not available separately.1
29 83758 Kit, Valve & Seat Asy.1
217080 Major Repair Kit
216736 Gasket/Diaphragm Kit
1
available separately.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 8 of 21
www.ktoutdoor.com

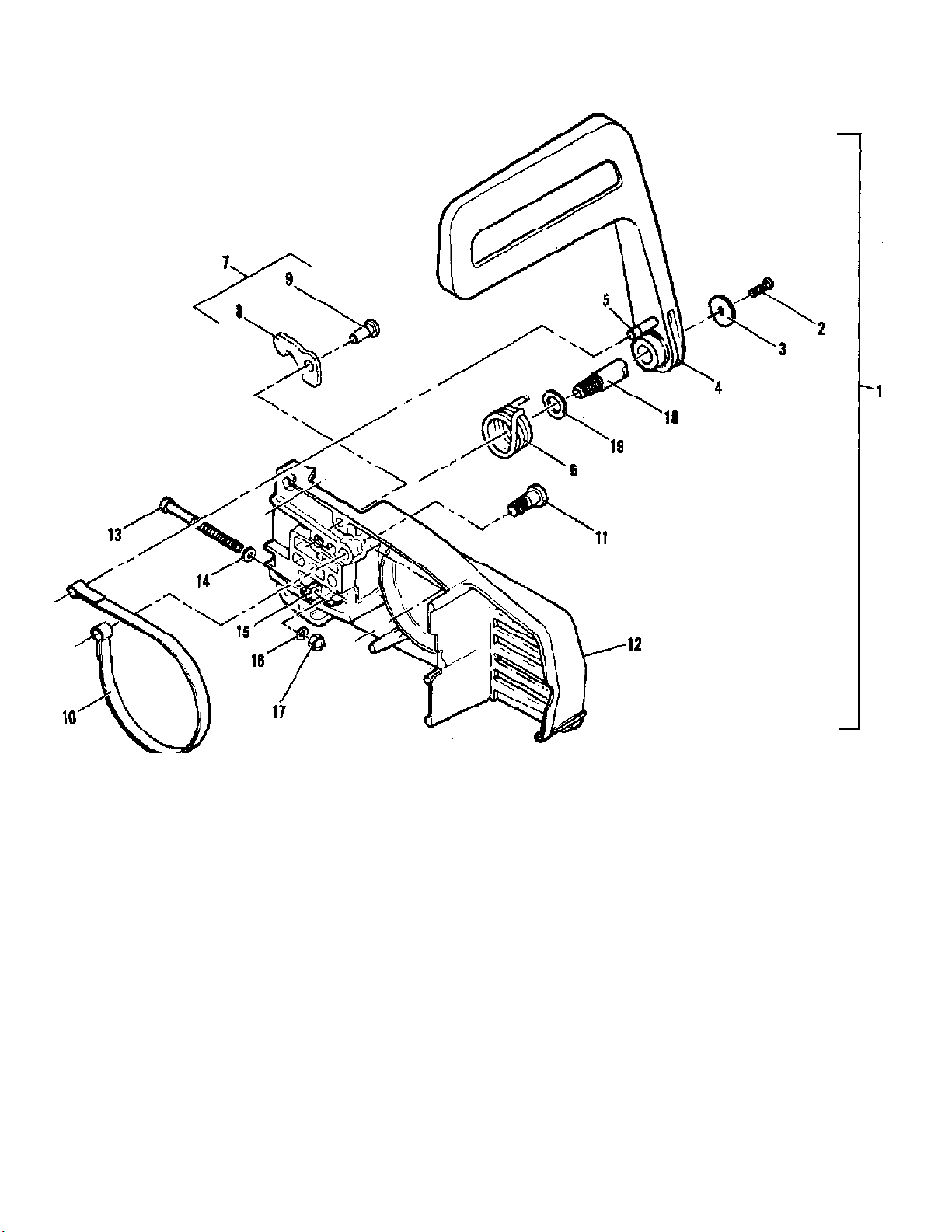

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 9 of 21
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
1 217694 Chain Brake Assembly1
2 216634 Screw - Pn Hd 10-24 x .501
3 216633 Washer - Plain .210 I.D.1
4 215911 Lever Assembly1
5 214366 Pin Asy - Roller1
6 93085 Spring - Brake1
7 222478 Kit Latch - Pivot1
8 Latch Not available separately. If replacement of
1
either pivot or latch is necessary, you MUST order
P/N 222478 (item 7) and replace both.
9 Pivot - Latch Not available separately. If replacement
10 93081 Band - Brake1
11 93082 Pin - Band Anchor1
12 Housing, Brake Not available separately.1
13 216636 Screw - Fil 10-24 x 2.751
14 110582 Washer - #101
15 61705 Nut - Blade Adjust1
16 100002 Washer - #10 Plain1
17 102067 Nut - Hx Lock 10-241
18 91246 Pin - Lever Pivot1
19 91245 Washer - Thrust1
1
of either pivot or latch is necessary, you MUST order
P/N 222478 (item 7) and replace both.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 10 of 21
www.ktoutdoor.com

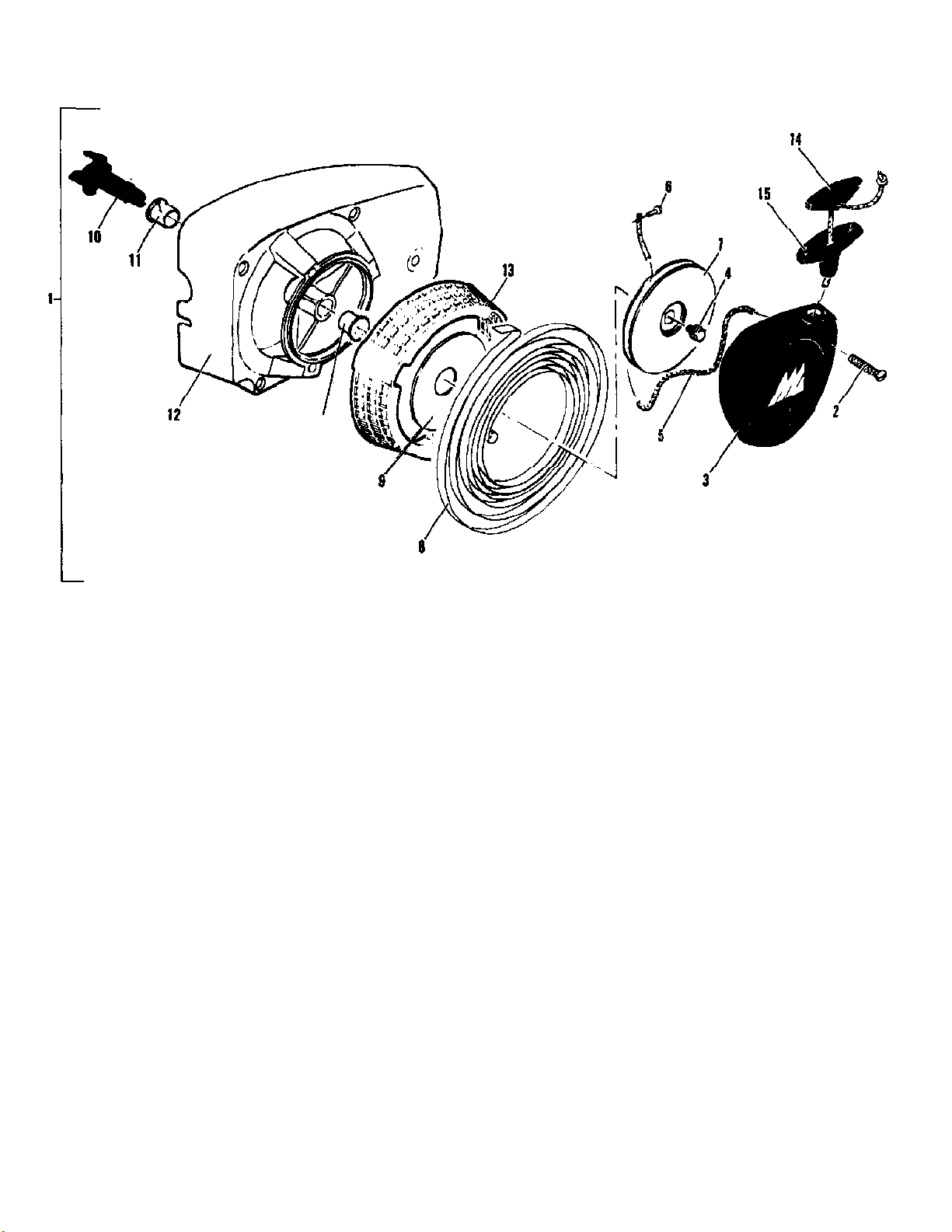

Fan Housing/Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 11 of 21
www.ktoutdoor.com
Fan Housing/Starter Assembly
Ref # Part Number DescriptionQty
1 216050 Fan Housing/Starter Asy1
2 216623 Screw - Oval 8-32 x 1.123
3 91084 Cover - Starter1
4 217936 Screw - Hx 10-24 x .50 Tor.1
5 68162 Rope - Starter1
6 110470 Rivet - Rope1
7 85122 Drum Asy - Starter1
8 87680 Pkg., Spring - Starter Rewind1
9 86053 Shield - Starter Spring1
10 83748 Shaft - Starter1
11 57535 Bushing - Starter2
12 223953 Kit Housing - Fan/Guard1
13 214192 Guard - Sawdust1
14 214699 Insert - Handle1
15 93137 Handle - Starter1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 12 of 21
www.ktoutdoor.com

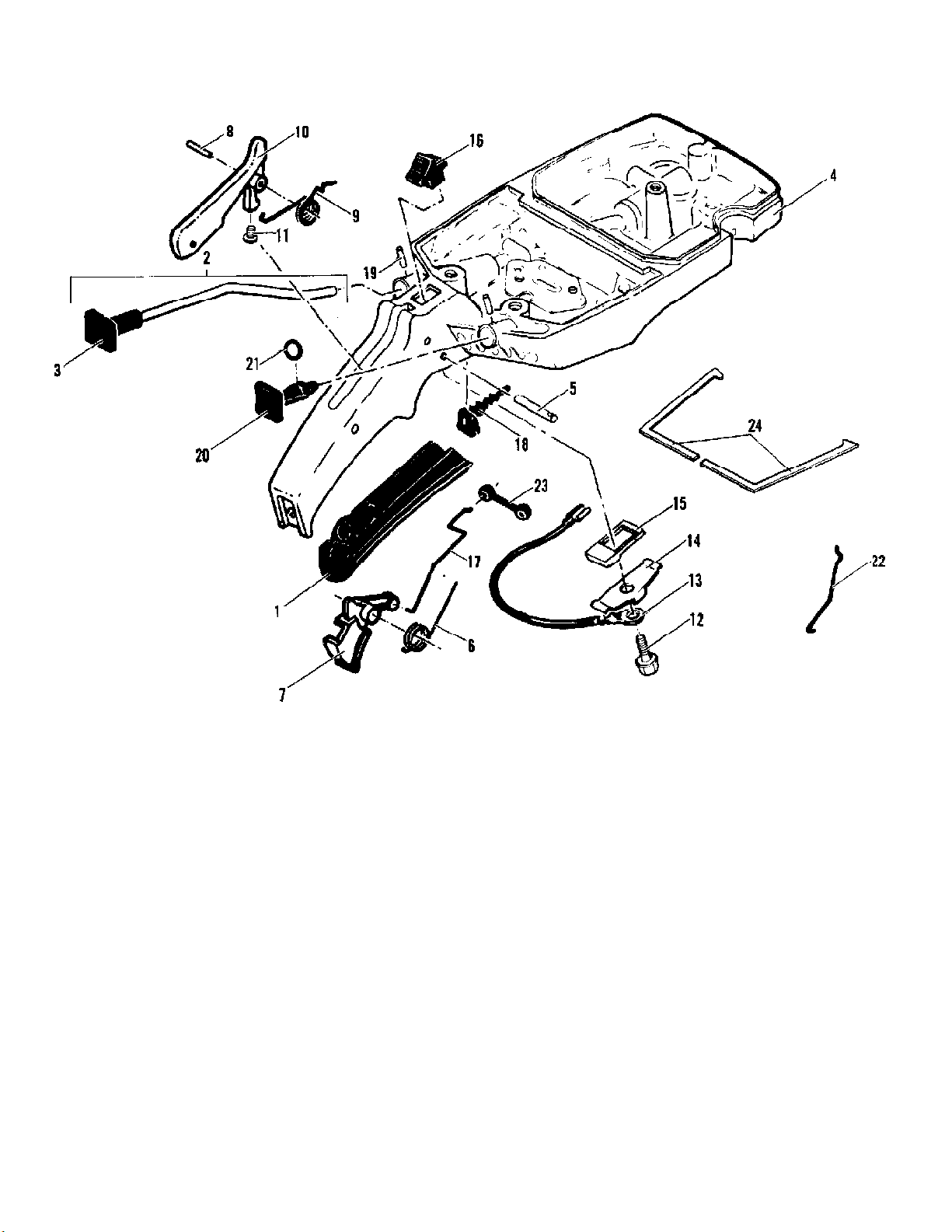

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 13 of 21
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 89320 Insert - Handle Grip1
2 216126 Button & Rod Assembly1
3 95615 Button - Oiler1
4 216127 Tank Asy - Fuel1
5 110378 Pin - Roll .196 x .9371
6 92152 Spring Trigger1
7 214679 Trigger - Throttle1
8 105654 Pin - Roll .131 x .8751
9 92154 Spring - Trigger Release1
10 94275 Release Asy - Trigger1
11 111012 Screw - Pn 4-40 x .31 ST1
12 110706 Screw - Pn 8-18 x .50 ST1
13 214692 Wire Asy - Switch1
14 62451 Contact - Ign, Switch1
15 214691 Base - Stop Switch1
16 68846 Button - Stop Switch1
17 85107 Rod - Throttle1
18 214701 Seal Throttle Rod1
19 105673 Pin Roll .099 x .5622
20 69041 Button Choke1
21 105614 "O" Ring .239 x .0701
22 69042 Rod Choke1
23 69043 Snubber1
24 219280 Kit, Gasket (L.H.& R.H.)1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 14 of 21
www.ktoutdoor.com

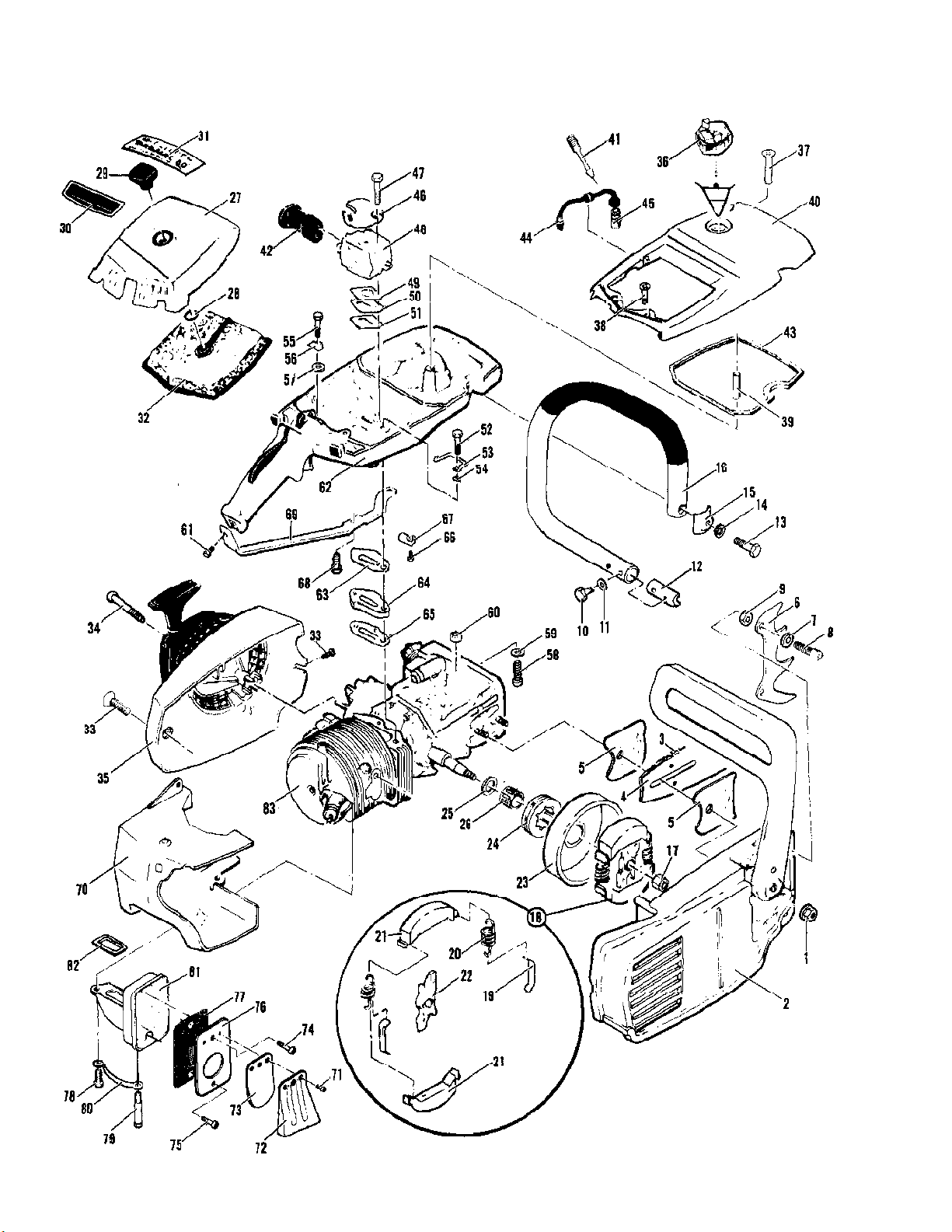

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 15 of 21
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 216640 Nut - Flange 5/16-242
2 Chain Brake See "Chain Brake" illustration and parts
1
list.
3 Chain Assembly See "Bar/Chain/Sharpening Tools"
4 Bar Assembly See "Bar/Chain/Sharpening Tools"
5 64325 Plate - Bar Guide2
6 93668 Spike1
7 216683 Washer - Spec. #102
8 213042 Screw - Skt 10-24 x .622
9 216682 Nut - Hx Lock 10-242
10 216677 Screw - Hx 10-24 x .875 SL2
11 100352 Washer - #10 Plain2
12 89727 Retainer - Frame1
13 216638 Screw - Hx Hd 1/4-20 x 1.501
14 100153 Washer - Lock .2501
15 216639 Clamp - Frame1
16 214549 Frame & Grip Assembly1
17 223060 Nut - Hx (L.H.)1
18 214301 Clutch Assembly1
19 64583 Retainer - Spring2
20 83223 Spring - Clutch2
21 67233 Kit - Clutch Shoe1
22 214300 Rotor - Clutch1
23 95185 Drum & Spkt Asy. 77 (.375)1
24 86961 Sprocket - 7T (.375P)1
25 86958 Washer - Shim1
26 110971 Bearing - Needle1
27 91543 Cover Asy - Air Cleaner1
28 110565 Ring - Retaining1
29 68529 Knob - Cover1
30 Plate - Name Not available separately.1
31 216054 Label - Logo1
32 216685 Filter - Air1
33 110741 Screw - Pn Hd 10-24 x .502
34 87871 Screw - Fan Housing3
35 Fan Housing/Starter Asy. See "Fan Housing/Starter
1
illustration and parts list.
1
illustration and parts list.
1
Assembly" illustration and parts list.
36 216053 Cap Asy - Fuel W/Retainer1
37 216678 Screw - Oval Hd 12-24 x 2.3751
38 101986 Screw - Oval Hd 10-24 x 12
39 87840 Spacer - Fuel Tank Cover1
40 87677 Cover - Fuel Tank1
41 87932 Screw - Idle Adjustment1
42 87665 Boot - Carb. Adjust.1
43 69345 Gasket - Fuel Tank Cover1
44 215708 Hose Asy Fuel1
45 215714 Pickup Asy - Fuel1
46 69952 Bracket - Air Cleaner1
47 103357 Bolt - Hx Hd 10-24 x 2.252
48 Carburetor Assembly See "Carburetor Assembly"
1
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 16 of 21
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
49 86189 Gasket - Carburetor1
50 84078 Spacer - Carburetor1
51 84081 Gasket - Carb Spacer1
52 110567 Screw Hx Hd 12-24 x 1.252
53 68582 Plate - Lock1
54 102115 Washer - Plain .254 x .0332
55 110568 Screw - Hx Hd 12-24 x 1.121
56 69516 Plate - Lock1
57 100352 Washer - #10 Plain1
58 110713 Screw - Skt Hd 10-24 x .881
59 100003 Washer - #10 Plain1
60 69772 Spacer Fuel Tank1
61 216632 Screw Pn Hd 10-24 x 1.251
62 Fuel Tank Assembly See "Fuel Tank Assembly"
63 84082 Gasket Fuel Tank1
64 84080 Insulator - Fuel Tank1
65 68594 Gasket Fuel Tank1
66 216679 Screw Hx Hd 10-24 x .6251
67 68508 Plate - Lock1
68 216679 Screw - Hx Hd 10-24 x .6251
69 85007 Brace - Frame1
70 214702 Shroud - Cylinder1
71 110563 Screw - Skt Hd 8-32 x .252
72 92996-01 Stop Reed1
73 85585-01 Valve - Reed1
74 101563 Screw - Skt Hd 10-24 x 1.251
75 110439 Screw - Skt Hd 10-24 x 1.001
76 92995 Cover - Spark Arrestor1
77 92993 Baffle - Screen Arrestor1
78 110529 Screw - Hx Hd 10-24 x .501
79 68187 Screw - Hx 10-24 x 1.381
80 67922 Plate - Lock1
81 92989 Body/Duct Asy. S/A1
82 84007 Gasket - Muffler1
83 Powerhead Assembly See "Powerhead Assembly"
1
illustration and parts list.
1
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 17 of 21
www.ktoutdoor.com
Loctite Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 18 of 21
www.ktoutdoor.com
Loctite Kit
Ref # Part Number DescriptionQty
322235 LOCTITE KIT
322236 RETAINING COMPOUND 620 (10 ml)
322237 THREAD LOCKER 242 (10 ml)
322238 GASKET ELIMINATOR 518 (50 ml)
322239 BLACK MAX ADHESIVE 380 (01 oz)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 19 of 21
www.ktoutdoor.com

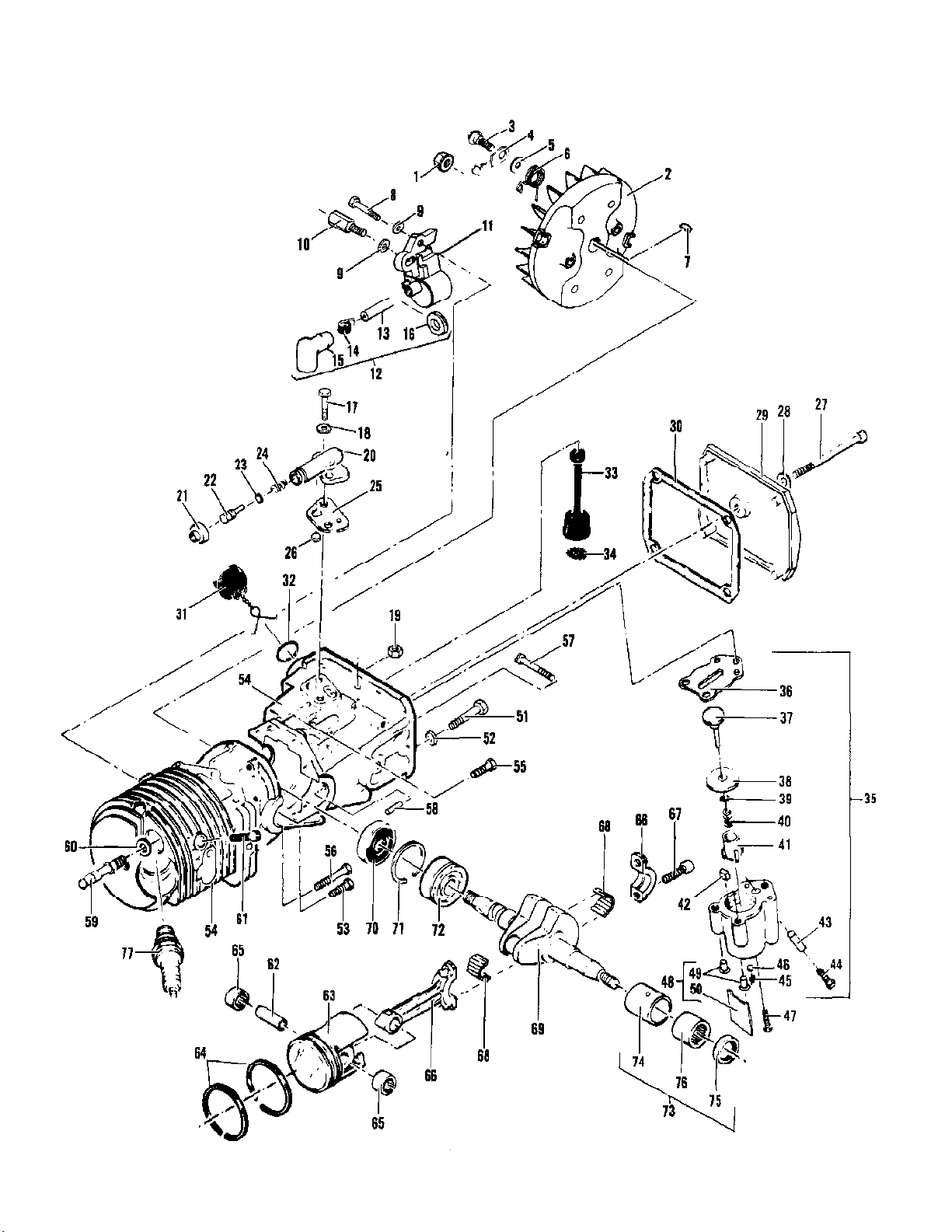

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 20
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 20 of 21
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 110703 Nut - Hx 3/8-241
2 216739 Flywheel Assembly1
3 93464 Screw - Pawl Pivot2
4 93198 Pawl - Starter2
5 93469 Washer - Starter Pawl2
6 214102 Spring - Starter Pawl2
7 100106 Key - Woodruff1
8 110127 Screw - Hx 10-24 x .88 Sems1
9 223637 Spacer, .21D x .44D x .122
10 83512 Stud - Special1
11 223708 Kit, Ignition Assembly1
12 223884 Kit, Spark Plug Wire1
13 Wire - 7mm Ignition Not available separately.1
14 102556 Connector, Spark Plug1
15 95266 Boot, Spark Plug1
16 110995 Grommet, Spark Plug Wire1
215533 Grommet, H/T Lead1
17 110338 Screw - Hx 8-32 x .5322
18 110613 Washer - #8 Hard2
19 100955 Nut - Hx Lock 8-321
20 84156 Housing - Oil Pump1
21 215151 Cap - Oil Pump1
22 62266 Plunger - Oil Pump1
23 105614 "O" Ring .239 x .0701
24 66687 Spring - Plunger1
25 91669 Gasket - Oil Pump Hsg.1
26 91668 Valve - Oiler1
27 110291 Screw - Pn 10-24 x 2.621
28 110921 Washer - Sealing1
29 218707 Cover - Oil Tank1
30 86306 Gasket - Cover Oil Tank1
31 216052 Cap Asy - Oil1
32 101148 O-Ring .75 ID x .091
33 91672 Hose Asy - Oil Pickup1
34 51506 Screen - Oil Intake1
35 215339 Kit - Pump Tested1
36 92874 Seal - Pulse Pump1
37 214278 Piston Asy - Oiler1
38 86182 Ring - Piston Pulse Oiler1
39 105603 O-Ring .114 x .0701
40 60259 Spring - Piston1
41 62227 Sleeve - Adjustment1
42 91259 Pad - Pump1
43 91774 Sleeve - Pulse Pump Body1
44 217936 Screw - Hx 10-24 x .875 SL1
45 Spring - Outlet Valve Not available separately.1
46 Ball Not available separately.1
47 110963 Screw - Hx 8-32 x 1.00 WSH1
48 215246 Kit, Oil Pump Retainer1
49 Eyelets Not available separately.2
50 Clip - Sealing Not available separately.1
51 62106 Screw - Wsh 12-24 x 1.754
52 111025 Washer - Sealing Alum.4
53 110288 Screw - Hx 8-32 x .751
54 214671 Cylinder/C'Case Asy.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 21
11-600116-03 PRO MAC 700 (08/82 to 11/92) IPL 216176-02 Page 21 of 21
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
55 110288 Screw - Hx 8-32 x .752
56 110618 Screw - Hx 8-32 x 1.37 Wsh1
57 62065 Bolt - Bar Mounting2
58 110851 Pin - Dowel1
59 94273 Valve - Comp. Release1
60 214765 Washer - Valve1
61 110681 Screw - Skt 10-24 x .251
62 69020 Pin - Piston1
63 85239 Piston Assembly1
64 89732 Set - Piston Ring1
65 111021 Bearing - Needle2
66 85352 Rod Assembly - Connecting1
67 61627-01 Screw - Connecting Rod2
68 63225 Roller - Needle (Set of 20)1
69 216909 Crankshaft Assembly1
70 61618 Seal - Oil1
71 63464 Ring - Snap1
72 63429-02 Bearing - Ball1
73 87151 Insert - Bearing Asy Needle1
74 Insert - Bearing Not available separately.1
75 110260 Seal - Oil1
76 104357 Bearing - Needle1
77 62345 Spark Plug1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
