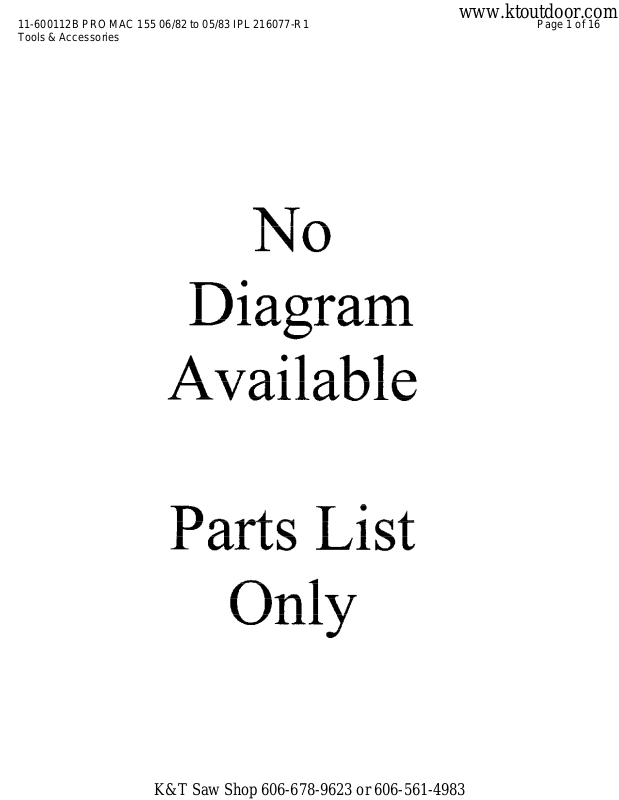

Page 1
11-600112B PRO MAC 155 06/82 to 05/83 IPL 216077-R1 Page 1 of 16
www.ktoutdoor.com
Tools & Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600112B PRO MAC 155 06/82 to 05/83 IPL 216077-R1 Page 2 of 16
www.ktoutdoor.com
Tools & Accessories
Ref # Part Number DescriptionQty
216805 Kit - Spark Arrester
85687 Wrench - Screwdriver
91485 Wrench - Socket
88755 Scrench
93283 Case - Carrying, 12"
214201 Bar Guard, 12"
93090 Guide - Timing
68915A Kit - Piston Tool
90256 Kit - Tune-up
214215 Guide - File
216063 Key - Socket - 5/32
216148 Key - Socket - 3/16
216058 Key - Socket - 9/64
214211 Kit - Tool Maintenance
93900 Kit - Pressure Test
215432 Tool- Pressure Test
501344 Tester - Ignition
214194 Lubri-gun
85702 Lubricant - Custom, 6-oz can
85703 Lubricant - Custom, 6-oz. cans, 1-6 pack
67537 Loctite
69794 Locquic
110083 R.T.V. Sealant
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600112B PRO MAC 155 06/82 to 05/83 IPL 216077-R1 Page 3 of 16
www.ktoutdoor.com
Bar & Chain Combinations
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600112B PRO MAC 155 06/82 to 05/83 IPL 216077-R1 Page 4 of 16
www.ktoutdoor.com
Bar & Chain Combinations
Ref # Part Number DescriptionQty
214234 Bar-12" Mini Pro (Sprocket tip)
90631 Bar-12" Mini Mac
90770 Bar-12" Mac 6
214921N Chain-12" MP 370 GL
214235 Bar-14" Mini Pro (Sprocket tip)
91730 Bar-14" Mini Mac
90771 Bar-14" Mac 6
214919N Chain-14" MP 370 GL
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600112B PRO MAC 155 06/82 to 05/83 IPL 216077-R1 Page 5 of 16
www.ktoutdoor.com

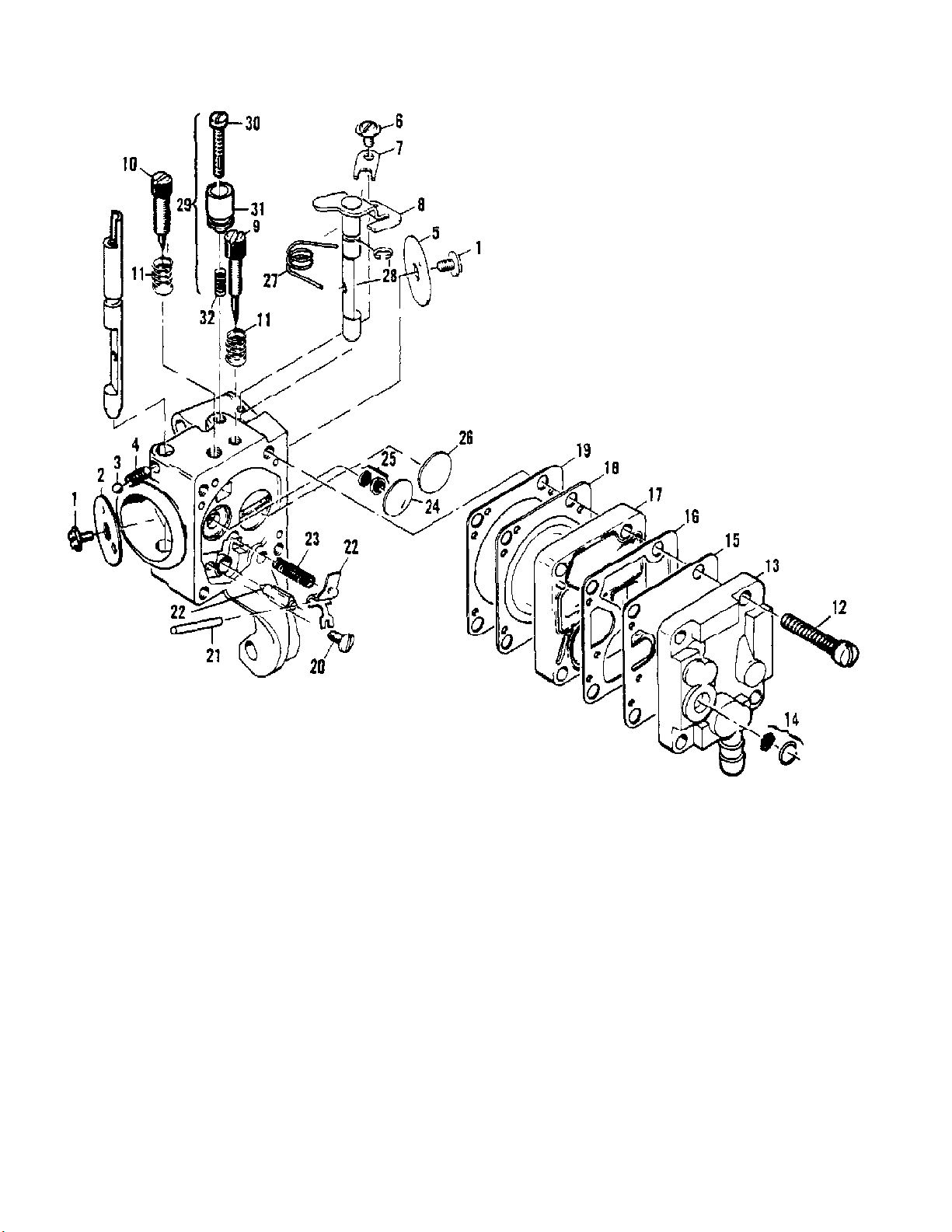

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600112B PRO MAC 155 06/82 to 05/83 IPL 216077-R1 Page 6 of 16
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
214082B Carburetor Asy - Walbro MDC 161
214082 Carburetor Asy - Walbro MDC 151
1 Screw - Plate Not available separately.2
2 Plate - Choke Not available separately.1
3 Ball - Choke friction Not available separately.1
4 Spring - Choke friction Not available separately.1
5 Plate - Throttle Not available separately.1
6 Screw - Clip Not available separately.1
7 Clip - Throttle shaft Not available separately.1
8 Shaft Asy - Throttle Not available separately.1
9 86446 Needle - Idle1
10 86447 Needle - High speed1
11 67502 Spring - Needle2
12 Screw Asy - Body Not available separately.4
13 Cover Asy - Pump Not available separately.1
14 85629 Kit - Vent screen1
15 68563 Diaphragm - Fuel pump1
16 85035 Gasket - Pump diaphragm1
17 Body - Fuel pump Not available separately.1
18 85036 Diaphragm - Metering1
19 85034 Gasket - Diaphragm1
20 67500 Screw - Lever pin1
21 67508 Pin - Lever1
22 85059 Kit - Needle & Lever1
23 68567 Spring - Lever1
24 68559 Plug - Welsh 7/161
25 83758 Kit - Check valve1
26 68560 Plug - Welsh 1/21
27 Spring - Throttle return Not available separately.1
28 Ring - Retaining Not available separately.1
29 93437 Latch Asy - Throttle1
30 Screw - Long lock Not available separately.1
31 Latch - Throttle Not available separately.1
32 Spring - Compression Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600112B PRO MAC 155 06/82 to 05/83 IPL 216077-R1 Page 7 of 16
www.ktoutdoor.com

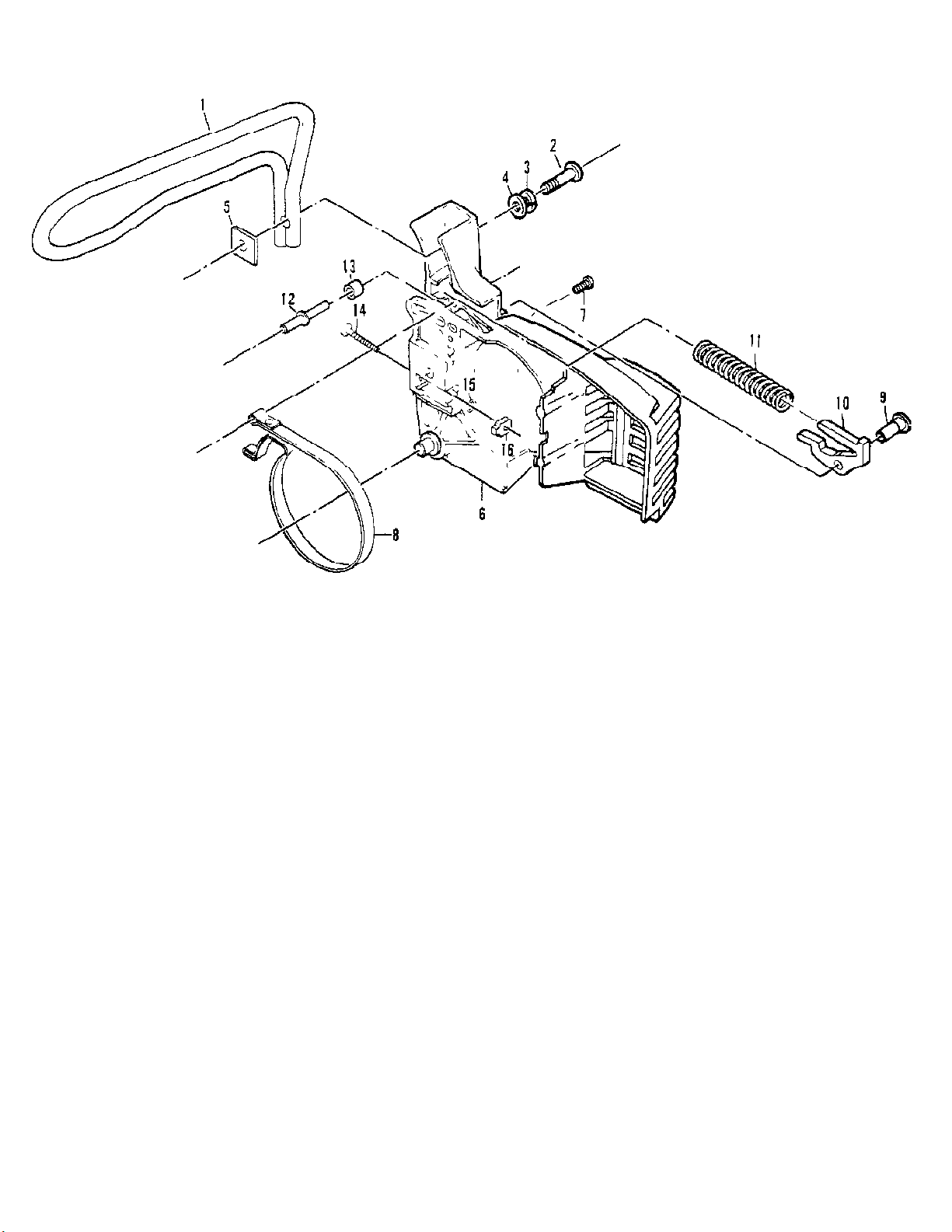

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600112B PRO MAC 155 06/82 to 05/83 IPL 216077-R1 Page 8 of 16
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
1 216439 Lever - Flag Brake1
2 216276 Screw - Btn 1/4-20 x 13/161
3 216542 Washer - Lock1
4 216541 Washer - P11
5 216256 Nut - Brake Handle1
6 216555 Chain Brake Asy1
7 216540 Screw - Fil hd 8-32 x 5/81
8 94709 Band - Brake1
9 93602 Pivot - Latch1
10 215758 Kit - Latch1
11 Spring - Compression Not available separately.1
12 213907 Pin - Roller1
13 214368 Bearing - Roller1
14 213052 Screw - Adjusting1
15 110907 Ring - Retaining1
16 84929 Nut - Bar Adjusting1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600112B PRO MAC 155 06/82 to 05/83 IPL 216077-R1 Page 9 of 16
www.ktoutdoor.com

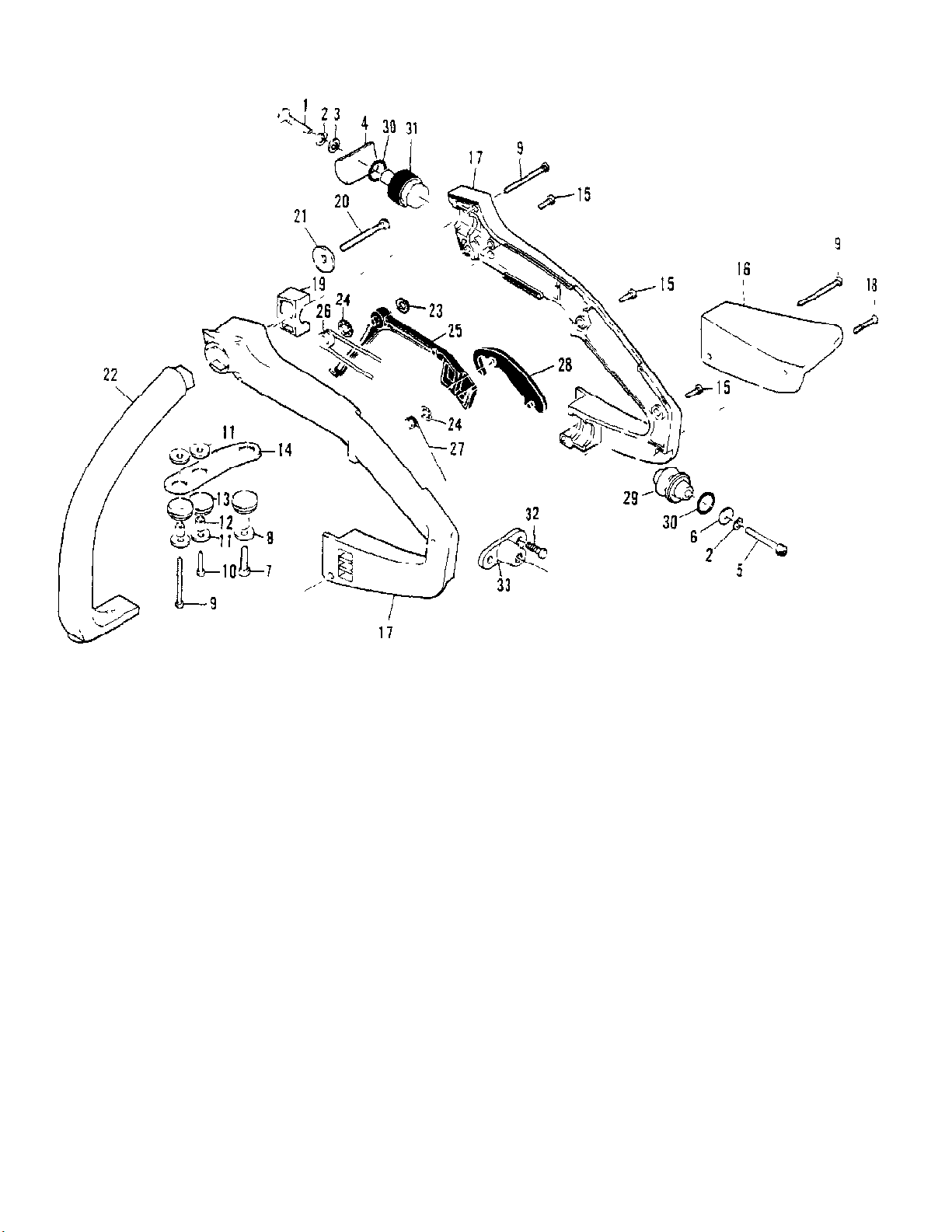

Handle & Frame Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600112B PRO MAC 155 06/82 to 05/83 IPL 216077-R1 Page 10 of 16
www.ktoutdoor.com
Handle & Frame Assembly
Ref # Part Number DescriptionQty
1 213047 Screw -Skt hd 1/4-20 x 1-1/21
2 216533 Washer - Spring Lock2
3 216534 Washer1
4 91168 Fitting - Shroud1
5 213048 Screw - Skt hd 1/4-20 x 1 3/41
6 111027 Washer1
93060A Handle/Frame Asy
7 216388 Screw - Hx 12-24 x 13/161
8 216536 Washer1
9 216537 Screw - Pn 10-16 x 13
10 216538 Screw - Pn 10-16 x 3/41
11 216536 Washer4
12 93057 Spacer - Mount3
13 110989 Grommet3
14 93031 Link Mount1
15 216535 Screw - Pn 8-16 x 5/83
16 93026 Guard - Chain1
17 94054 Kit - Handle1
18 216538 Screw - Pn 10-16 x 3/41
19 93030 Insert - Handle1
20 110976 Screw - Pn 1/4-14 x 1-3/41
21 111027 Washer1
22 94052 Frame1
23 110960 Washer - Wavey1
24 110936 Retainer - Spring2
25 216083 Trigger - Throttle1
26 90606 Spring - Trigger1
27 90615 Spring - Trigger Release1
28 91504 Release - Trigger1
29 91171 Mount1
30 105615 "O" Ring2
31 91170 Mount1
32 216390 Screw - Hx Hd 12-24 x 5/82
33 90436 Adaptor - Rear1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600112B PRO MAC 155 06/82 to 05/83 IPL 216077-R1 Page 11 of 16
www.ktoutdoor.com

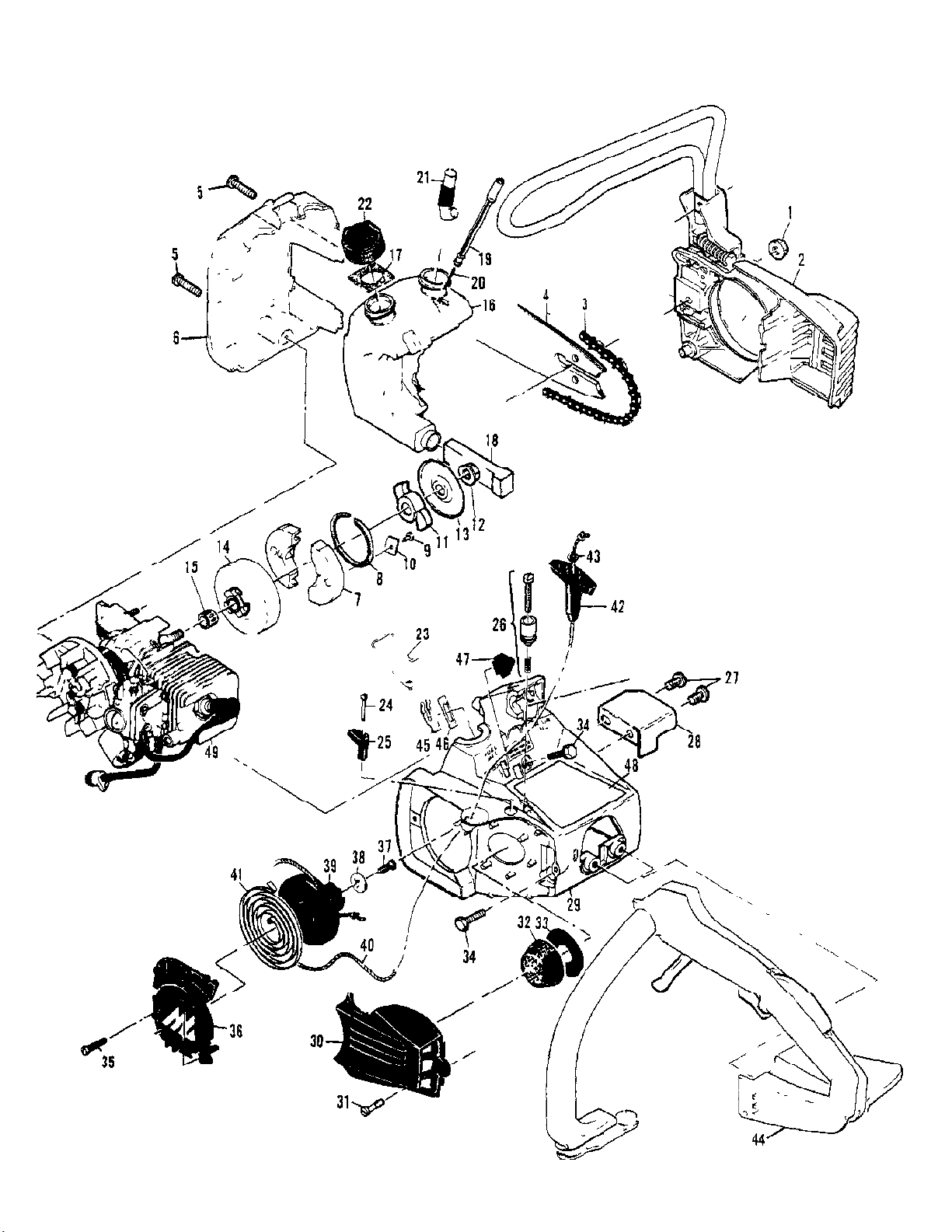

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600112B PRO MAC 155 06/82 to 05/83 IPL 216077-R1 Page 12 of 16
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 216539 Nut - Hx 1/4-281
2 CHAIN BRAKE Asy See "Chain Brake" illustration
3 Chain Asy Not available separately.1
4 Bar Not available separately.1
5 216512 Screw - Skt hd 12-24 x 1 Not available separately.2
6 214642 Cover - Fuel & Oil Tank1
7 213278 Kit - Clutch
8 93608 Spring Assembly1
9 110957 Rivet1
10 85064 Plate1
11 94247 Kit - Rotor1
12 94244 Nut - Clutch1
13 94243 Plate - Dust1
14 215252 Drum/Spkt/Brng Assembly1
15 91222 Kit - Needle Bearing1
16 216715 Fuel & Oil Tank Assembly1
17 91148 Seal - Fuel Vent1
18 84956 Pickup - Fuel1
19 213906 Piston - Manual Oiler1
20 83946 Spring - Piston1
21 85557 Body - Oiler1
22 216070 Cap - Fuel & Oil (unvented)2
23 90706 Rod - Manual Oiler1
24 216532 Screw - Oval hd 4-40 x 11
25 83870 Knob - Choke1
26 Throttle Latch Asy Not available separately. See
1
and parts list.
1
"Carburetor Assembly" illustration and parts list.
27 110807 Screw - Pan hd 8-32 x 5/162
28 93290 Deflector - Sawdust1
29 214987 Shroud1
30 91853 Cover - Air Cleaner1
31 91796 Screw - Air Cleaner1
32 91460 Filter - Air1
33 84918 Washer - Air Seal3
34 216511 Screw - Skt hd 12-24 x 5/83
35 216389 Screw - Hx hd 8-32 x 1/21
36 90425 Cover - Starter1
37 110041 Screw - Pan hd 8-32 x 1/21
38 68497 Washer - Special1
39 213261 Drum/Rope Assembly1
40 83203 Rope - Starter1
41 83078 Spring - Rewind1
42 91255 Kit - Starter Handle1
43 105490 Washer - Starter Handle1
44 Handle Assembly Not available separately. See
"Handle & Frame Assembly" illustration and parts list.
45 83935 Contact - Switch1
46 83936 Protector - Switch1
47 83934 Button - Switch1
48 216072 Plate - Name (MAC 165)1
48 216074 Plate - Name (MAC 155)1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600112B PRO MAC 155 06/82 to 05/83 IPL 216077-R1 Page 13 of 16
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
49 Powerhead Assembly Not available separately. See
"Powerhead Assembly" illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600112B PRO MAC 155 06/82 to 05/83 IPL 216077-R1 Page 14 of 16
www.ktoutdoor.com

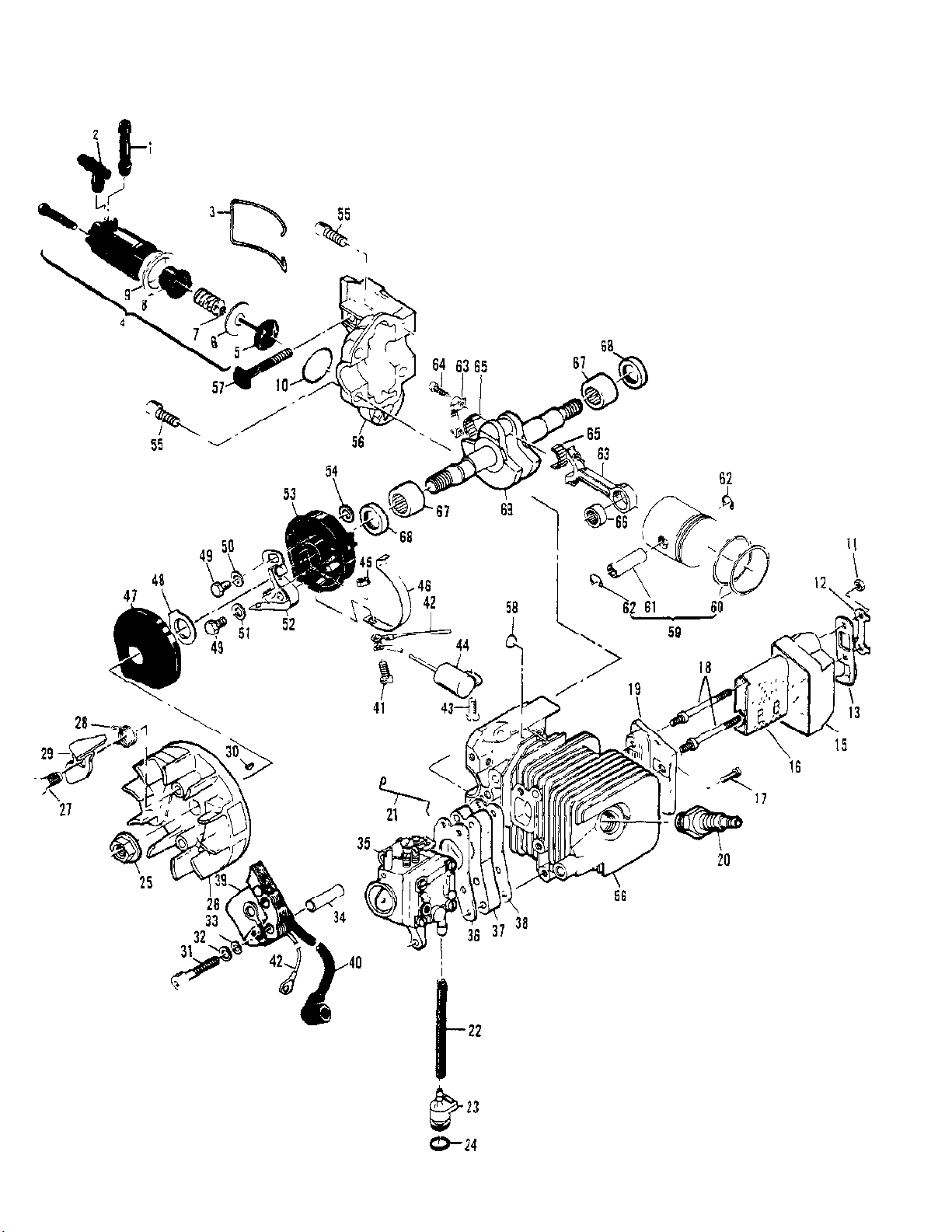

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600112B PRO MAC 155 06/82 to 05/83 IPL 216077-R1 Page 15 of 16
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 83898 Connector-Outlet1
2 84613 Connector-Pump1
3 83896 Bail-Mounting1
4 216563 Pump Assembly-Oiler1
216426 Repair Kit-Oil Pump
5 Piston Assembly Not available separately.1
6 Piston Ring Not available separately.1
7 "O" Ring Not available separately.1
8 Sleeve Not available separately.1
9 Eyelet Not available separately.1
10 110653 "O" Ring1
11 215871 Nut-Muffler2
12 215471 Plate-Lock1
13 215472 Deflector-Exhaust1
15 215774 Cover1
16 215776 Baffle1
17 213369 Screw1
18 215757 Bolt-Shoulder2
19 215773 Base1
20 214406 Spark Plug1
21 216039 Rod-Throttle1
22 89059 Hose-Fuel1
23 90660 Adaptor-Fuel Hose1
24 110908 "O" Ring1
25 110961 Nut-Hex 5/16-241
26 94737 Flywheel/Pawl Assembly1
27 68796 Pin-Pawl2
28 67814 Spring-Pawl2
29 94493 Pawl-Starter2
30 102164 Key-Woodruff1
31 213050 Screw-Skt hd 8-32 x 1-3/43
32 105976 Washer-#83
33 67177 Washer-Insulating3
34 68198 Tube-Insulating3
35 Carburetor Assembly Not available separately. See
"Carburetor Assembly" illustration and parts list.
36 68197 Gasket-Carburetor1
37 214349 Insulator-Carburetor1
38 90714 Gasket-Insulator1
39 84957 Coil & Lamination Assembly1
40 215351 Wire Assembly-Spark Plug1
41 110364 Screw-Pan hd 6-32 x 5/81
42 69344 Wire Assembly-Coil1
43 110583 Screw-Pan hd 8-32 x 1/2 s/t1
44 85358 Condenser1
45 100035 Nut-Hx 6-321
46 84502 Connector-Stop Switch1
47 67841 Cover-Breaker Box1
48 69323 Seal-Breaker Sox1
49 213032 Screw-Hex hd 8-32 x 1/22
50 69322 Washer-Special1
51 105976 Washer-481
52 88811 Breaker Assembly1
53 84505A Kit-Breaker Box1
54 92037 Washer1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600112B PRO MAC 155 06/82 to 05/83 IPL 216077-R1 Page 16 of 16
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
55 216512 Screw-Skt hd 12-24 x 14
56 214164 Kit-Cylinder1
57 83856 Bolt-Bar mounting1
58 110914 Plug-Cup4
59 216713 Piston Assembly1
60 216705 Set-Piston Rings1
61 92836 Pin-Piston1
62 111026 Ring-Snap2
63 94135 Connecting Rod Assembly1
64 94654 Screw-Connecting Rod2
65 68095 Roller-Needle (set of 20)1
66 110984 Bearing-Needle1
67 213282 Bearing-Crankshaft2
68 83859 Seal-Crankshaft1
69 91932 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
