11-600111-04 PRO MAC 10-10S 08/82 to Current IPL 216062-01 Page 1 of 16
www.ktoutdoor.com

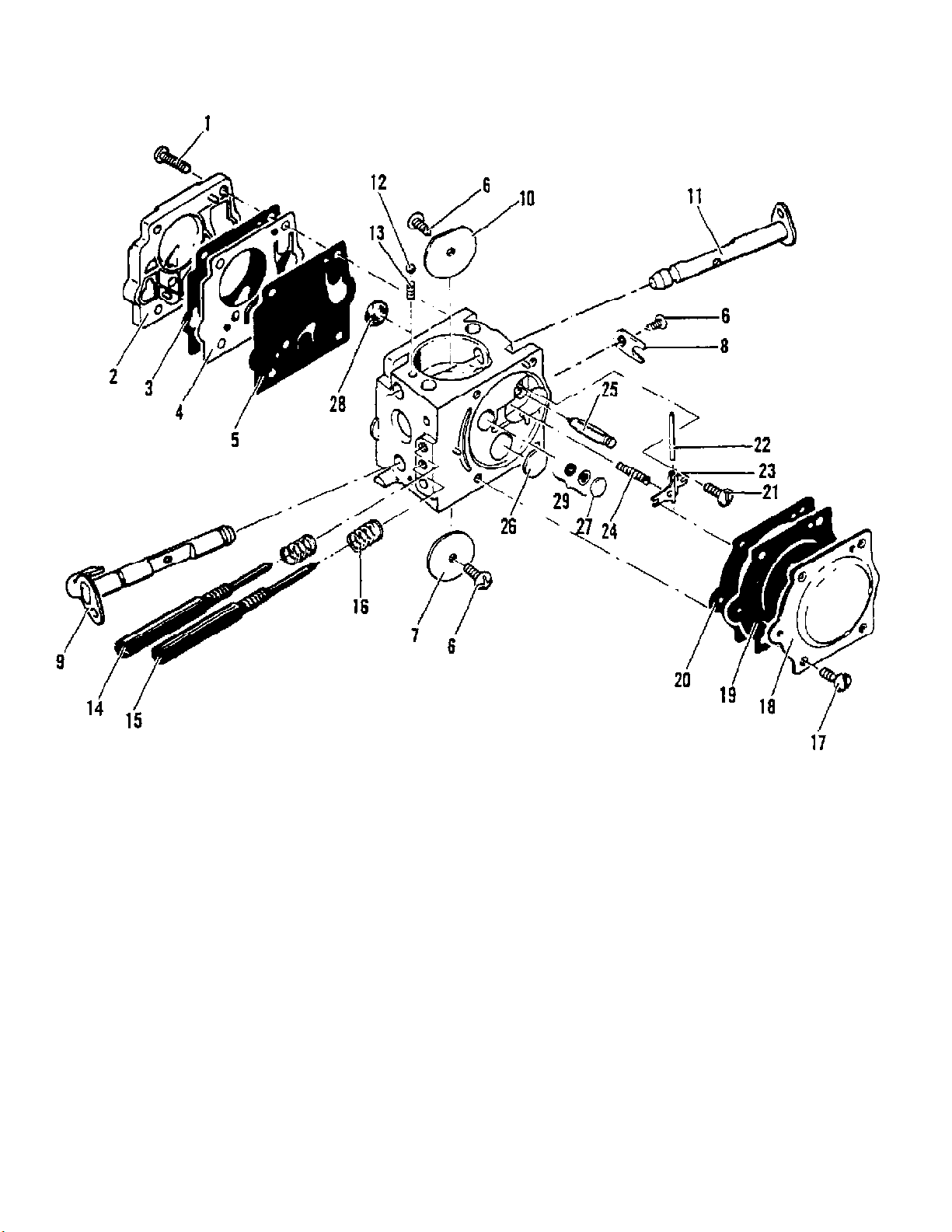

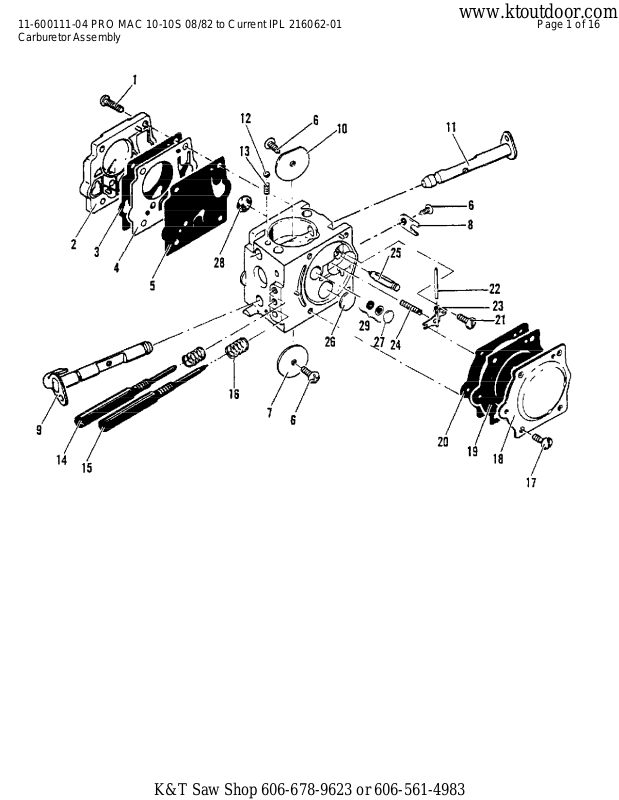

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600111-04 PRO MAC 10-10S 08/82 to Current IPL 216062-01 Page 2 of 16
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
87666 Carburetor Asy (SDC 44)1
1 Screw - Pump Cover Not available separately.4
2 Cover - Pump Not available separately.1
3 Gasket - Cover Not available separately.1
4 Diaphragm - Check Valve Not available separately.1
5 Diaphragm - Fuel Pump Not available separately.1
6 Screw - Plate Not available separately.3
7 Plate - Throttle Not available separately.1
8 Clip - Shaft Not available separately.1
9 Shaft Asy Throttle Not available separately.1
10 Plate - Choke Not available separately.1
11 Shaft Asy - Choke Not available separately.1
12 Ball - Choke Friction Not available separately.1
13 Spring - Choke Not available separately.1
14 Needle - High Speed Not available separately.1
15 Needle - Idle Not available separately.1
16 Spring - Needle Not available separately.2
17 Screw - Diaphragm Not available separately.4
18 Cover - Diaphram Not available separately.1
19 Diaphram - Metering Not available separately.1
20 Gasket - Diaphram Not available separately.1
21 Screw - Level Pin Not available separately.1
22 Pin - Lever Not available separately.1
23 Lever - Metering Not available separately.1
24 Spring - Lever Not available separately.1
25 Valve - Needle Not available separately.1
26 Plug - 3/8 Not available separately.1
27 Plug - 5/16 Not available separately.1
28 Screen - Fuel Not available separately.1
29 83758 Kit - Valve & Seat Asy Not available separately.1
217080 Major Repair Kit Not available separately.
219248 Gasket/Diaphragm Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600111-04 PRO MAC 10-10S 08/82 to Current IPL 216062-01 Page 3 of 16
www.ktoutdoor.com

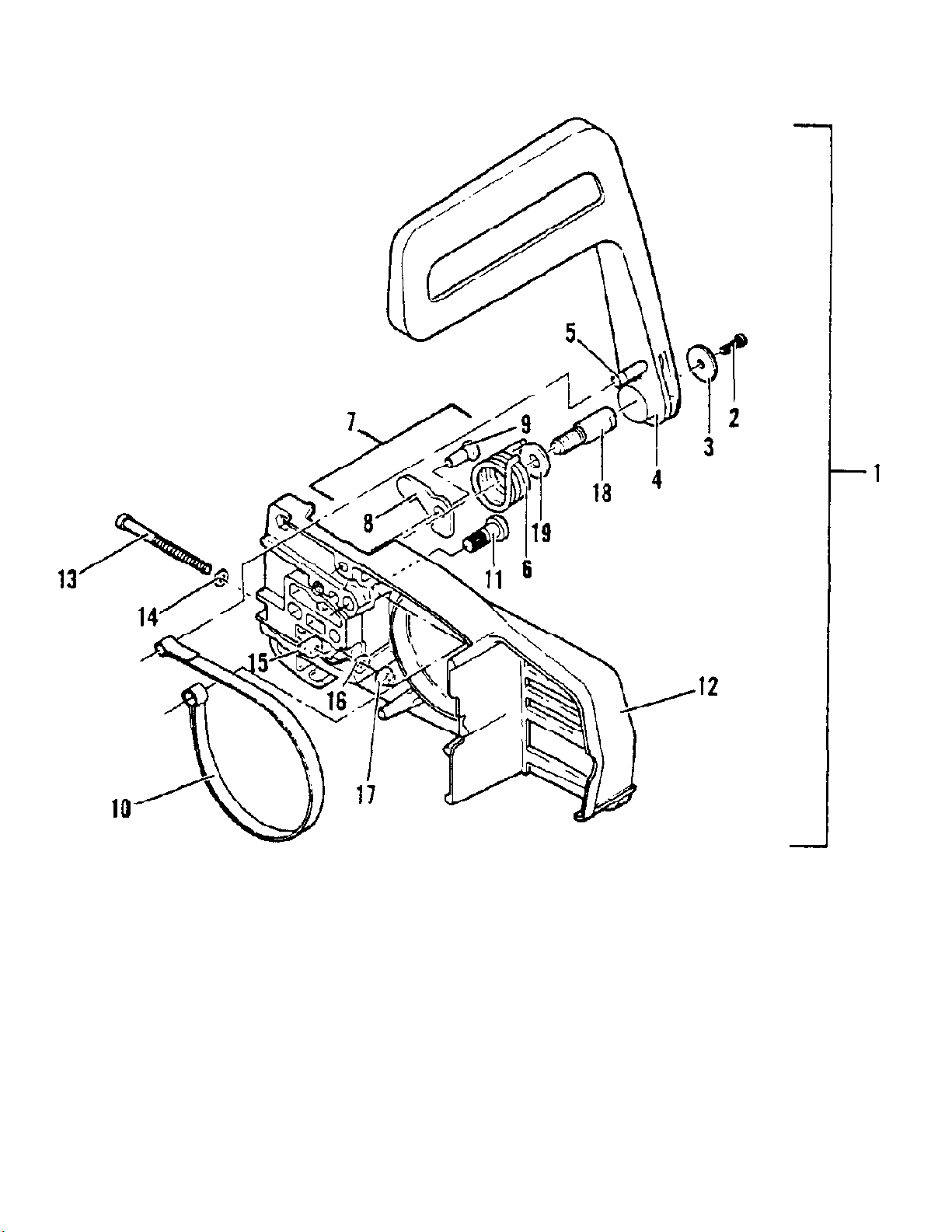

Chain Brake
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600111-04 PRO MAC 10-10S 08/82 to Current IPL 216062-01 Page 4 of 16
www.ktoutdoor.com
Chain Brake
Ref # Part Number DescriptionQty
1 217694 Chain Brake Assembly1
2 216634 Screw - Pn Hd 10-24 x .501
3 216633 Washer - Plain .210 I.D.1
4 215911 Lever Assembly1
5 214366 Pin Assembly - Roller1
6 93085 Spring - Brake1
7 222478 Kit - Latch - Pivot1
8 Latch Not available separately.1
9 Pivot - Latch Not available separately.1
10 93081 Band Brake1
11 93082 Pin - Band Anchor1
12 Housing Assembly - Brake Not available separately.1
13 216636 Screw - Fil 10-24 x 2.751
14 216635 Washer - Plain .203 I.0.1
15 61705 Nut - Blade Adjust1
16 100002 Washer - #10 Plain1
17 102067 Nut Hx Lock 10 241
18 91246 Pin - Lever Pivot1
19 91245 Washer - Thrust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600111-04 PRO MAC 10-10S 08/82 to Current IPL 216062-01 Page 5 of 16
www.ktoutdoor.com

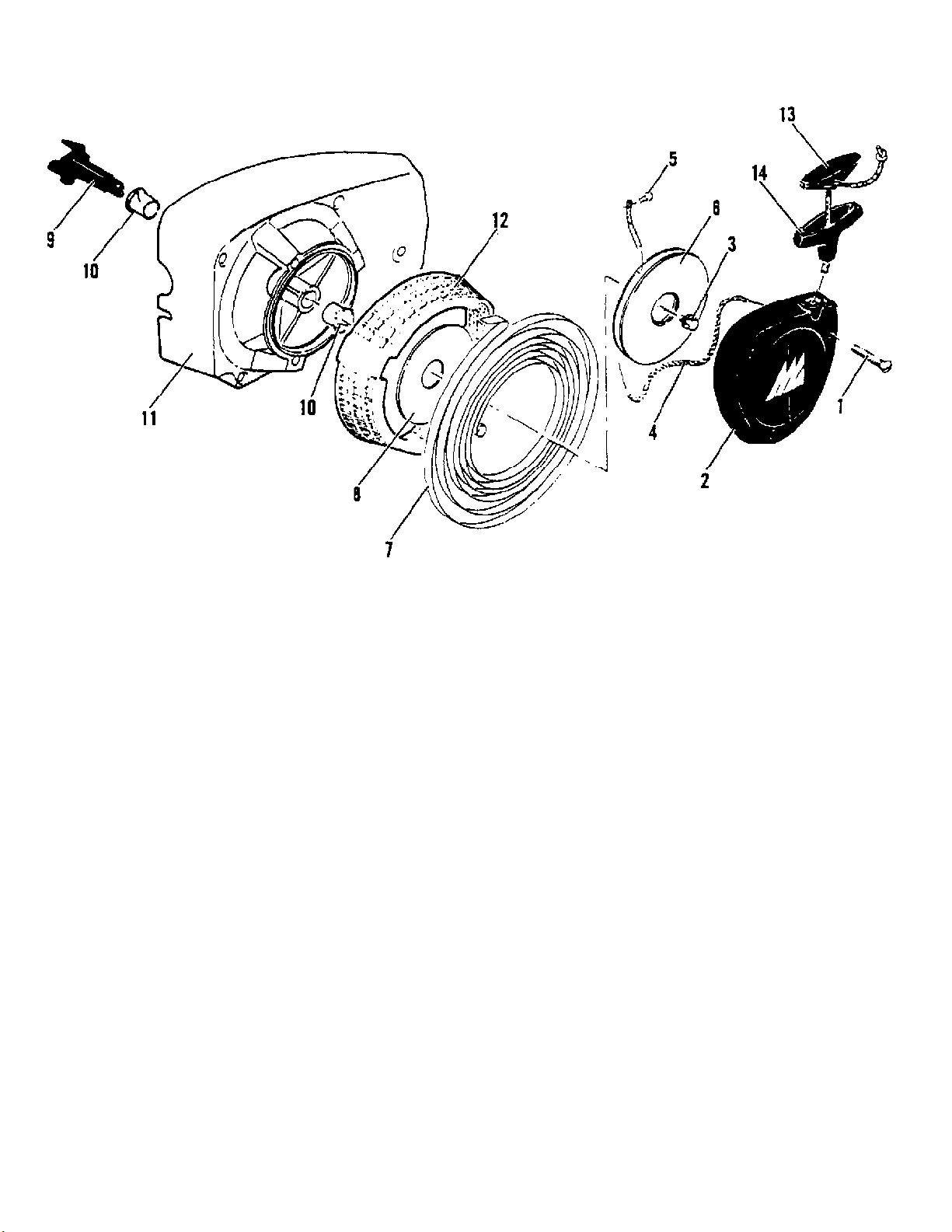

Fan Housing/Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600111-04 PRO MAC 10-10S 08/82 to Current IPL 216062-01 Page 6 of 16
www.ktoutdoor.com
Fan Housing/Starter Assembly
Ref # Part Number DescriptionQty
216050 Fan Housing & Starter Asy.1
1 216623 Screw - Oval 8-32 x 1.123
2 91084 Cover, Starter1
3 217935 Screw - Tr 10-24 x .50 TORX1
4 87670 Rope - Starter1
5 110470 Rivet - Rope1
6 85122 Drum Assembly - Starter1
7 87680 Spring - STR/Rewind1
8 86053 Shield - Starter Spring1
9 83748 Shaft - Starter1
10 57535 Bushing - Starter2
11 223953 Kit - Fan Housing/Guard1
12 214192 Guard - Sawdust1
13 214699 Insert Handle1
14 93137 Handle - Starter1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600111-04 PRO MAC 10-10S 08/82 to Current IPL 216062-01 Page 7 of 16
www.ktoutdoor.com

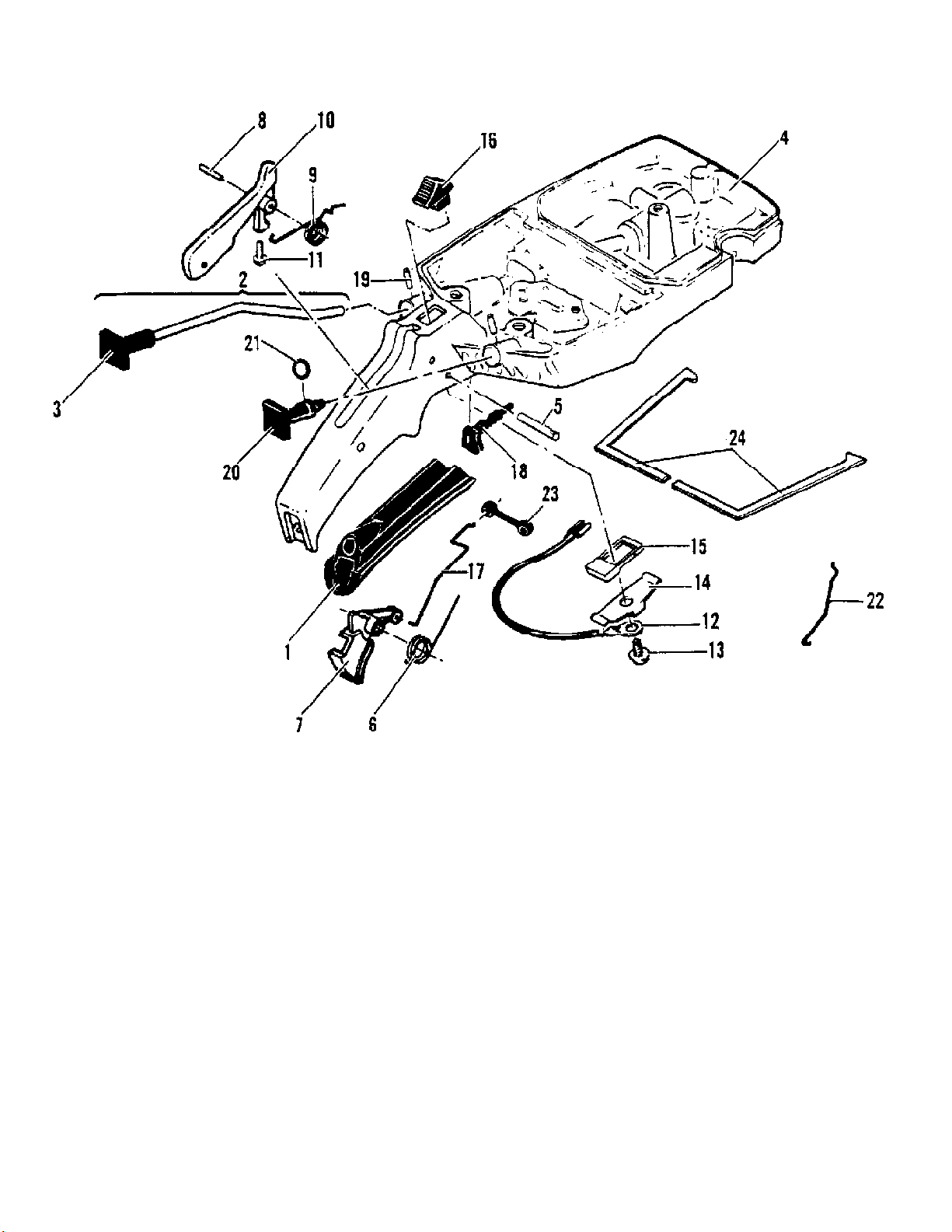

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600111-04 PRO MAC 10-10S 08/82 to Current IPL 216062-01 Page 8 of 16
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 89320 Insert - Handle Grip1
2 216126 Button/Rod Assembly - Oiler1
3 95615 Button - Oiler1
4 216127 Tank Asy - Fuel1
5 110378 Pin - Roll .196 x .9371
6 92152 Spring Trigger1
7 214679 Trigger - Throttle1
8 105654 Pin Roll .131 x .8751
9 92154 Spring - Trigger Release1
10 94275 Release Assembly - Trigger1
11 110713 Screw - Skt 10-24 x .881
12 214692-01 Wire Asy - Switch1
13 111012 Screw Pn Hd 4 40 x .311
14 62451 Contact - Ign Switch1
15 214691 Base - Stop Switch1
16 68846 Button - Stop Switch1
17 85107 Rod - Throttle1
18 214701 Seal - Throttle Rod1
19 105673 Pin Roll .099 x .5622
20 69041 Button Choke1
21 105614 "O" Ring .239 x .0701
22 69042 Rod Choke1
23 69043 Snubber1
24 219280 Gasket Kit (L.H. & R.H.)1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600111-04 PRO MAC 10-10S 08/82 to Current IPL 216062-01 Page 9 of 16
www.ktoutdoor.com

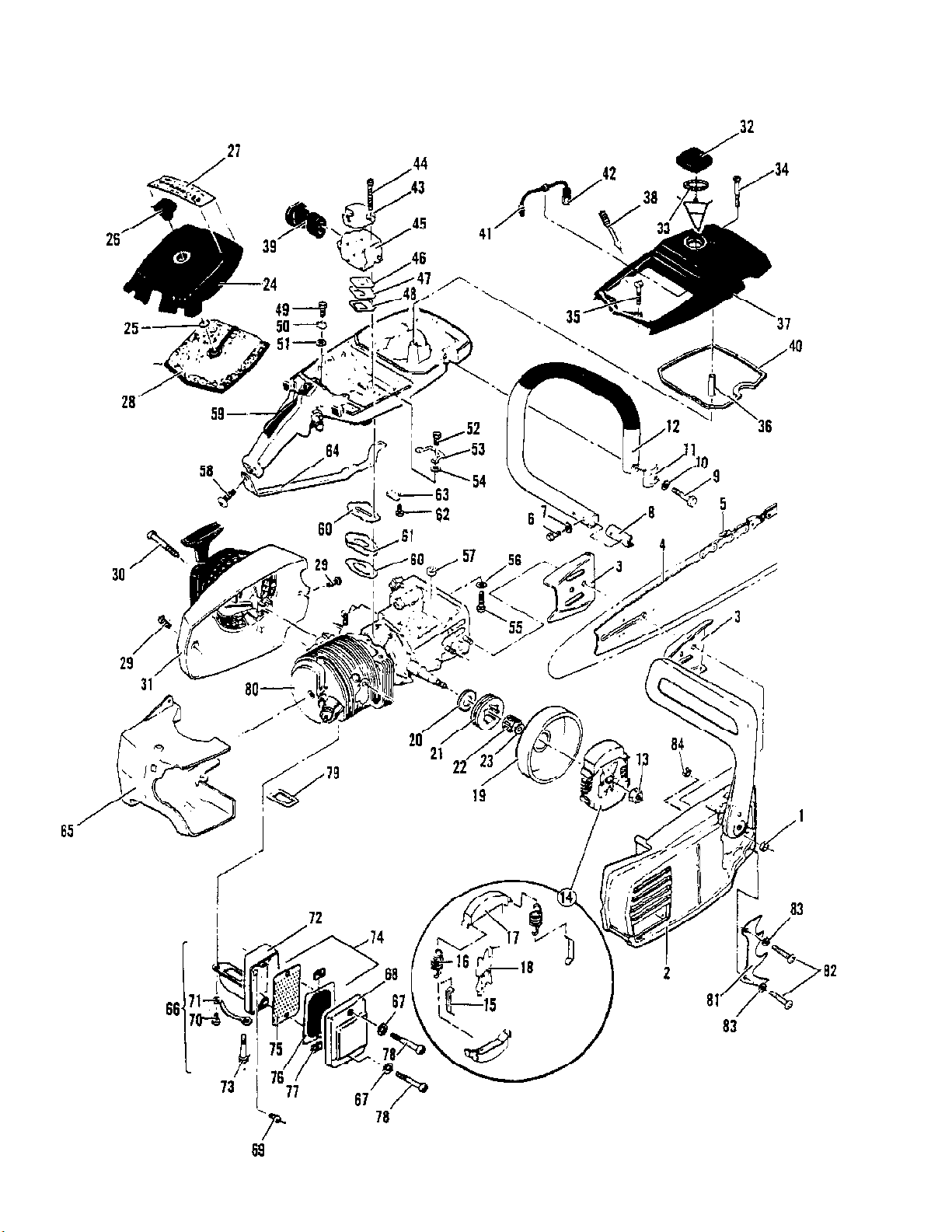

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600111-04 PRO MAC 10-10S 08/82 to Current IPL 216062-01 Page 10 of 16
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 216640 Nut, Flange 5/16-242
2 Chain Brake Assembly See "Chain Brake Assembly"
illustration and parts list.
3 64325 Plate, Bar Guide1
4 Bar Assembly
5 Chain Assembly See "Bar Assembly" illustration and
parts list
6 216677 Screw-Hx 10-24 x.875 SL2
7 100352 Washer-#10 Plain2
8 89727 Retainer-Frame1
9 216638 Screw-Hx Hd 1/4-20 x 1.501
10 216542 Washer-Lock .2501
11 216639 Clamp-Frame1
12 214549 Frame & Grip Assembly1
13 223060 Nut-Hx (L.H.)1
14 214301 Clutch Assembly1
15 64583 Retainer, Clutch Spring2
16 83223 Spring, Clutch2
17 67233 Kit-Clutch Shoe1
18 214300 Rotor, Clutch1
19 95165 Drum & Spkt Assembly 7T (.375)1
20 86958 Washer, Shim1
21 86961 Sprocket-7 T .375 pitch1
22 215720 Kit-Bearing/Washer1
23 86958 Washer-Shim1
24 91543 Cover Asy-Air Cleaner1
25 110565 Ring-Retaining1
26 68529 Knob-Cover1
27 216054-01 Label-Logo1
28 216685 Filter, Air1
29 217935 Screw-Pn 10-24x.50 TORX3
30 216624 Screw-Ov Set 8-32 x 2.263
31 Fan Housing/Starter Asy. See "Fan Housing/Starter
Assembly" illustration and Parts list.
32 216053 Cap Assembly, Fuel W/Retainer1
33 69767 Gasket1
34 216678 Screw-Pn 12-24 x 2.3751
35 101986 Screw-Fuel Tank Cover1
36 87840 Spacer-Fuel Tank Cover1
37 87677 Cover-Fuel Tank1
38 87932 Screw-Idle Adjustment1
39 87665 Boot-Carburetor1
40 69345 Gasket-Cover1
41 215708 Hose Assembly-Fuel1
42 215714 Pickup Assembly-Fuel1
43 69952 Bracket-Air Cleaner1
44 103357 Bolt-Hx Hd 10-24 x 2.252
45 Carburetor Assembly See "Carburetor Assembly"
illustration and parts list
46 86189 Gasket-Carburetor1
47 84078 Spacer-Carburetor1
48 84081 Gasket-Carb Spacer1
49 110570 Screw-Hx Hd 12-24 x 1.3752
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600111-04 PRO MAC 10-10S 08/82 to Current IPL 216062-01 Page 11 of 16
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
50 68582 Plate-Lock1
51 102115 Washer-Plain1
52 110568 Screw-Hx Hd 12-24 x 1.121
53 69516 Plate-Lock1
54 100352 Washer-#10 Plain1
55 110713 Screw-Skt Hd 10-24 x .881
56 100003 Washer-#10 Plain1
57 69772 Spacer-Fuel Tank1
58 216632 Screw-Pn Hd 10-24 x 1.251
217938 Screw-Tr. 10-24 x 1.251
59 Fuel Tank Assembly See "Fuel Tank Assembly"
illustration and Parts list.
60 84082 Gasket-Fuel Tank2
61 84079 Insulator-Fuel Tank1
62 216680 Screw-Hx 12-24 x .6251
63 68508 Plate-Lock1
64 85007 Brace-Framet
65 214702 Shroud-Cylinder1
66 93992 Kit-Muffler Lvr Side1
67 216635 Washer-Plain2
68 83966 Cover Assembly-Muffler1
69 217935 Screw-Tr 10-24 x .50 TORX1
70 110529 Screw-Hx 10-24 x .501
71 67922 Plate-Lock1
72 83105 Kit-Body/Duct Assembly1
73 68187 Screw-Hx 10-24 x 1.381
74 223451 Kit-Baffle Screen1
75 223403 Baffle Spark-Arrestor1
76 223405 Screen Asy Spark Arrestor1
77 Clip-S/Arrestor Baffle Not available separately.1
78 101563 Screw-Skt 10-24 x 1.252
79 84007 Gasket-Muffler1
80 Powerhead Assembly See "Powerhead Assembly"
illustration and Parts list.
81 93668 Spike1
82 213042 Screw, Skt 10-24 x .6252
83 216683 Washer, Special 102
84 216682 Nut, Hex Lock 10-242
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600111-04 PRO MAC 10-10S 08/82 to Current IPL 216062-01 Page 12 of 16
www.ktoutdoor.com
Loctite Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600111-04 PRO MAC 10-10S 08/82 to Current IPL 216062-01 Page 13 of 16
www.ktoutdoor.com
Loctite Kit
Ref # Part Number DescriptionQty
322235 LOCTITE KIT
322236 RETAINING COMPOUND 620 (10 ml)
322237 THREAD LOCKER 242 (10 ml)
322238 GASKET ELIMINATOR 518 (50 ml)
322239 BLACK MAX ADHESIVE 380 (01 oz)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600111-04 PRO MAC 10-10S 08/82 to Current IPL 216062-01 Page 14 of 16
www.ktoutdoor.com

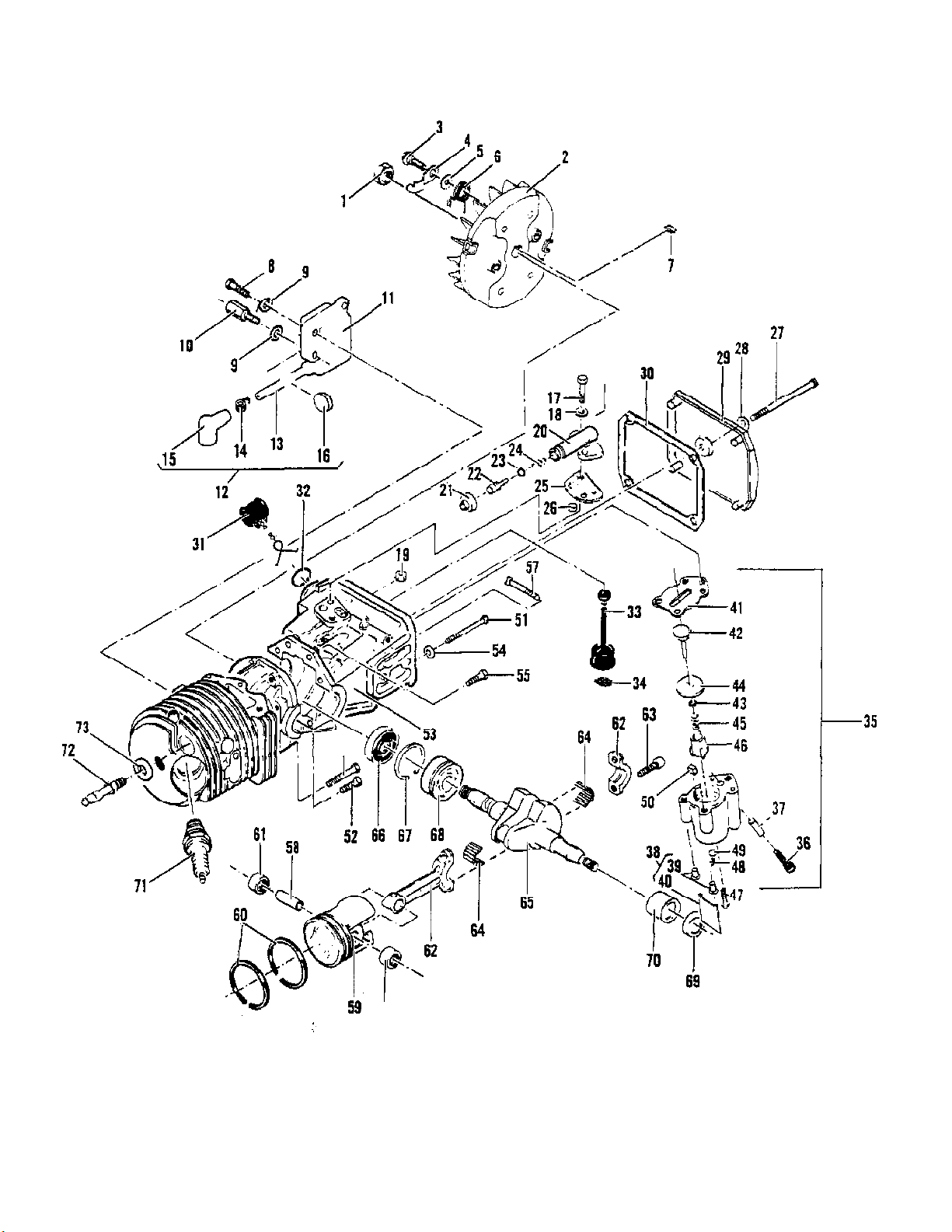

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600111-04 PRO MAC 10-10S 08/82 to Current IPL 216062-01 Page 15 of 16
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 110703 Nut, Hex Flange 3/8-241
2 216739 Flywheel Assembly1
3 93464 Screw, Pawl Pivot2
4 93198 Pawl, Starter2
5 93469 Washer, Starter Pawl2
6 214102 Spring, Starter Pawl2
7 100106 Key, Woodruff1
8 110127 Screw, Hex 10-24 x .88 SEMS1
9 223637 Spacer2
10 83512 Stud, Special1
11 223708-01 Kit, ignition Assembly1
12 223884 Kit, Spark Plug Wire1
13 Wire - 7mm Ignition Not available separately.1
14 102556 Connector, Spark1
15 95266 Boot, Spark Plug1
16 110995 Grommet, Spark Plug Wire1
215533-01 Grommet, H/T Lead1
17 110338 Screw - Hx 8-32 x .5322
18 110613 Washer,48 Hard1
19 100955 Nut - Hx Lock 8-321
20 84156 Housing - Oil Pump1
21 215151 Cap - Oil Pump1
22 62266 Plunger - Oil Pump1
23 105614 "O" Ring .239 x .0701
24 66687 Spring - Plunger1
25 91669 Gasket - Oil Pump Hsg.1
26 91668 Valve - Oiler1
27 110291 Screw - Pn 10-24 x 2.621
28 110921 Washer, Sealing1
29 218707 Cover - Oil Tank1
30 86306 Gasket - Cover Oil Tank1
31 216052 Cap Assembly, Oil1
32 101148 "O" Ring .75 ID x.091
33 91672 Hose Asy - Oil Pickup1
34 51506 Screen - Oil Intake1
35 215339 Kit, Pump Tested1
36 217936 Screw - TR, 10-24 x .75 TORX1
37 91774 Sleeve - Pulse Pump1
38 215246 Kit, Oil Pump1
39 Eyelet Not available separately.2
40 Clip - Sealing Not available separately.1
41 92874 Seal - Pulse Pump1
42 214278 Piston Assembly-Oiler1
43 105603 "O" Ring, .114 x .0701
44 86182 Ring - Piston Pulse Pump1
45 60259 Spring, Piston Oiler1
46 62227 Sleeve - Oiler Adjustment1
47 110963 Screw - Hx 8-32 x 1.00 WSH1
48 Spring - Outlet Valve Not available separately.1
49 Ball Not available separately.1
50 91259 Pad - Pump1
51 62106 Screw - Wsh 12-24 x 1.754
52 110288 Screw - Hx Wsh 8-32 x .751
53 214672 Cylinder/Crankcase Asy1
54 111025 Washer - Sealing Aluminum4
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600111-04 PRO MAC 10-10S 08/82 to Current IPL 216062-01 Page 16 of 16
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
55 110288 Screw - Hx Wsh B-32 x .751
56 110618 Screw - Hx Wsh 8-32 x 1.37 Wsh1
57 62065 Bolt - Bar Mounting2
58 69020 Piston - Pin1
59 89783-01 Piston Assembly1
60 92517 Set - Piston Ring1
61 111021 Bearing Needle2
62 85352 Connecting Rod Asy1
63 61627-01 Screw Connecting Rod2
64 63225 Pkg Needle Roller (20)1
65 216897 Crankshaft Assembly1
66 67906 Seal, Oil1
67 63464 Ring, Snap1
68 67905 Bearing, Ball1
69 110260 Seal, Oil.625 I.D. x.8751
70 104357 Bearing, Needle1
71 92879 Spark - Plug1
72 62345 Spark - Plug1
73 94272 Valve - Compression Release1
74 214765 Washer - Valve1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
