Page 1
11-600097G MINI-MAC 35AS 07/76 to 04/77 IPL 92754A-R1 Page 1 of 12
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600097G MINI-MAC 35AS 07/76 to 04/77 IPL 92754A-R1 Page 2 of 12
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
91753 Case - Carrying
88756 Scrench
83687 Guide - Timing
90256 Kit - Tune Up
68915A Kit - Piston Tool
84992 Kit - Reed Muffler
85933 Kit - Spark Arrester Screen (Reed Muffler)
85924 Kit - Spark Arrester (PM6 Type)
89685 Screen - Spark Arrester
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600097G MINI-MAC 35AS 07/76 to 04/77 IPL 92754A-R1 Page 3 of 12
www.ktoutdoor.com

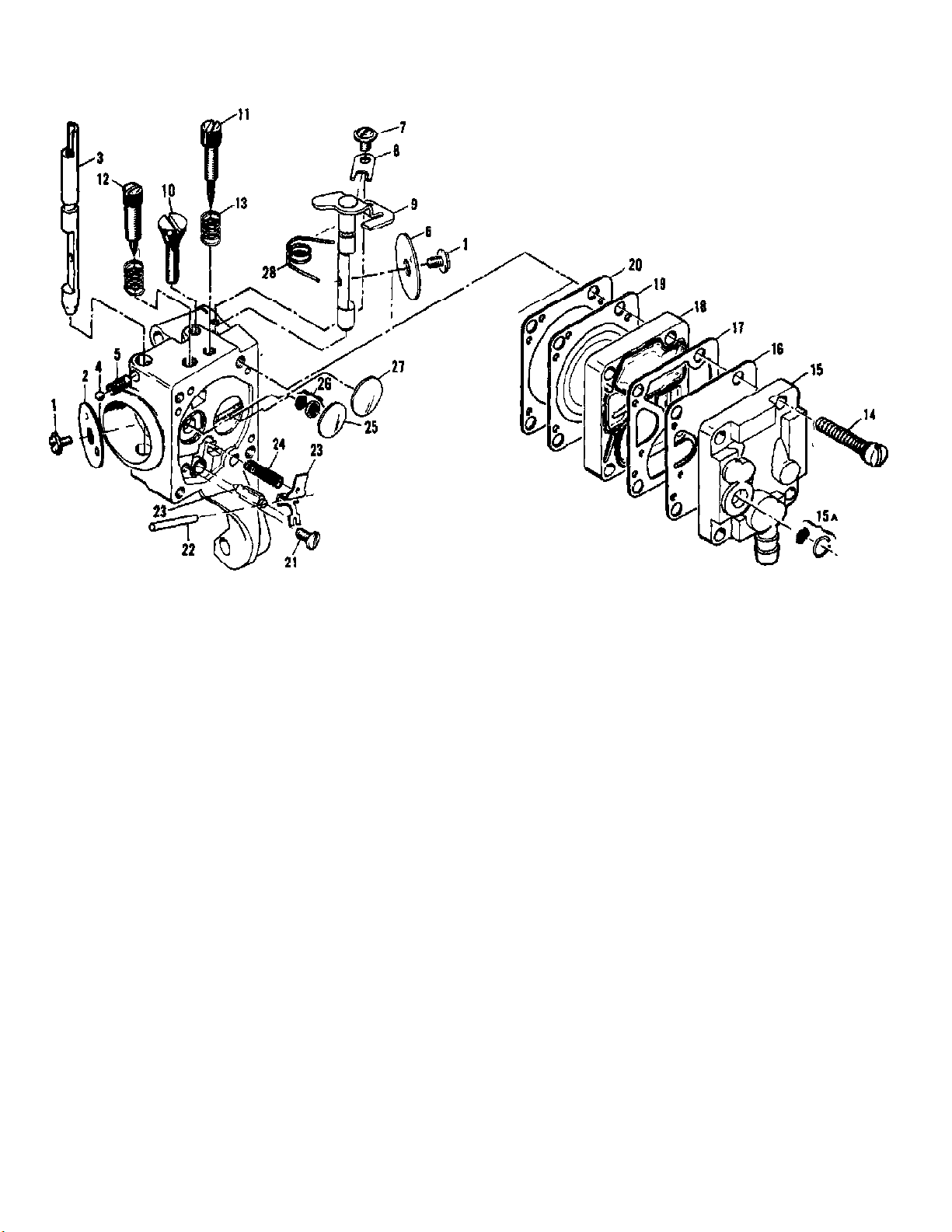

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600097G MINI-MAC 35AS 07/76 to 04/77 IPL 92754A-R1 Page 4 of 12
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
90918 Carburetor Asy1
1 83755 Screw - Plate2
2 68556 Plate - Choke1
3 85033 Shaft - Choke1
4 100302 Ball - Choke friction1
5 67504 Spring - Choke friction1
6 68553 Plate - Throttle1
7 70798 Screw - Clip1
8 68554 Clip - Throttle shaft1
9 90471 Shaft Asy - Throttle1
10 68566 Screw - Idle speed1
11 86446 Needle - Idle1
12 86447 Needle - High speed1
13 67502 Spring - Needle2
14 68564 Screw Asy - Body4
15 91347 Cover Asy - Pump1
15A 85629 Kit - Vent screen1
16 68563 Diaphragm - Fuel pump1
17 85035 Gasket - Pump diaphragm1
18 85030 Body - Fuel pump1
19 85036 Diaphragm - Metering1
20 85034 Gasket - Diaphragm1
21 67500 Screw - Lever pin1
22 67508 Pin - Lever1
23 85059 Kit - Needle & lever1
24 68567 Spring - Lever1
25 68559 Plug - Welsh 7/161
26 83758 Kit - Check valve1
27 68560 Plug - Welsh 1/21
28 89785 Spring - Throttle return1
29 86463 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600097G MINI-MAC 35AS 07/76 to 04/77 IPL 92754A-R1 Page 5 of 12
www.ktoutdoor.com

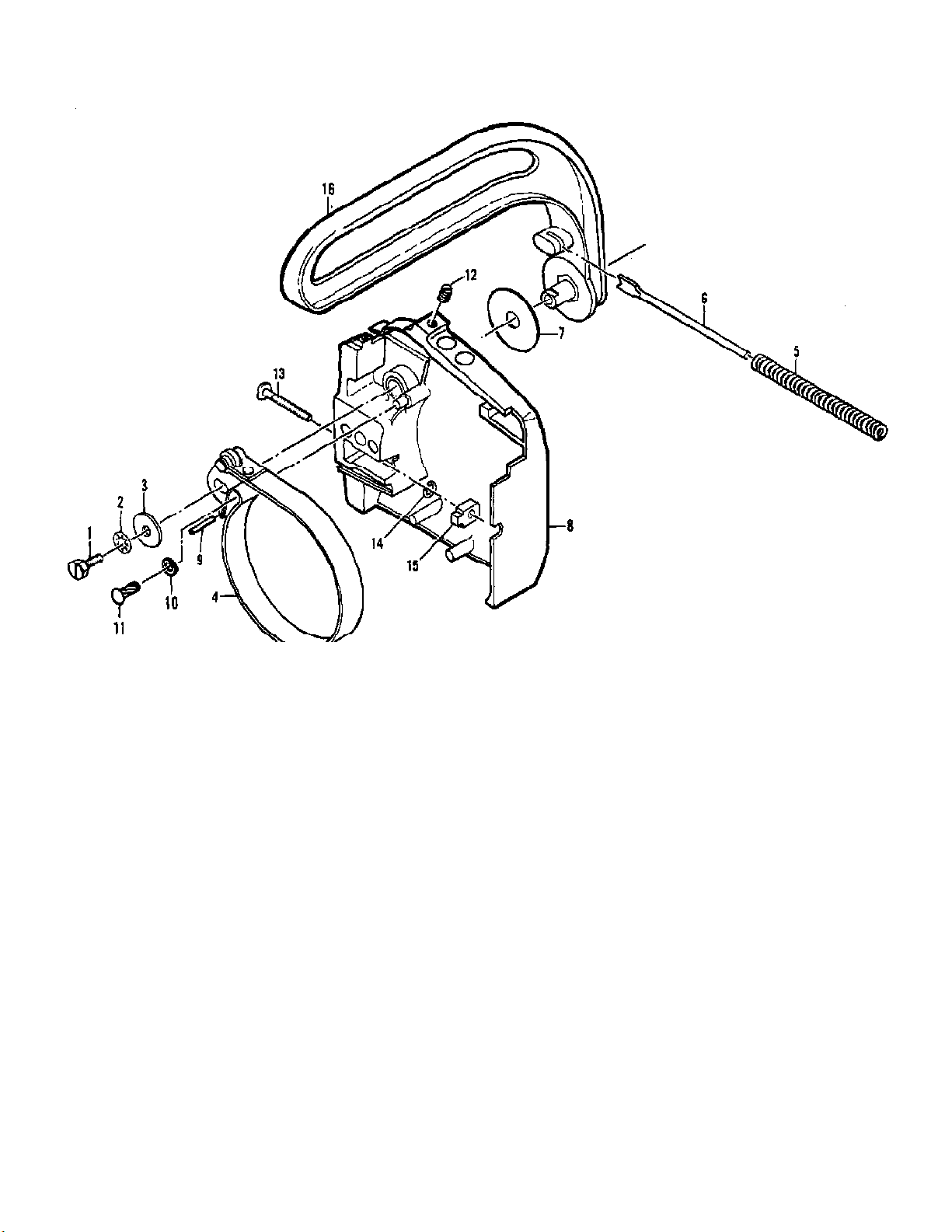

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600097G MINI-MAC 35AS 07/76 to 04/77 IPL 92754A-R1 Page 6 of 12
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
92594 CHAIN BRAKE Asy
1 102762 Screw - Hx hd 10-24 x 1/21
2 101194 Washer - Lock #101
3 110712 Washer1
4 90580 Band & Lever1
5 90587A Spring - Brake Actuator1
6 90588 Guide - Spring1
7 90967 Washer - Actuating Lever1
8 92592 Kit - Housing/Spring1
9 103047 Pin1
10 100001 Washer1
11 110946 Screw Drive - 6 x 5/161
12 110955 Screw - Set 8-32 x 1/21
13 90658 Screw - Adjusting1
14 110907 Ring - Retaining1
15 84929 Nut - Bar adjusting1
16 90576 Lever - Actuator1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600097G MINI-MAC 35AS 07/76 to 04/77 IPL 92754A-R1 Page 7 of 12
www.ktoutdoor.com

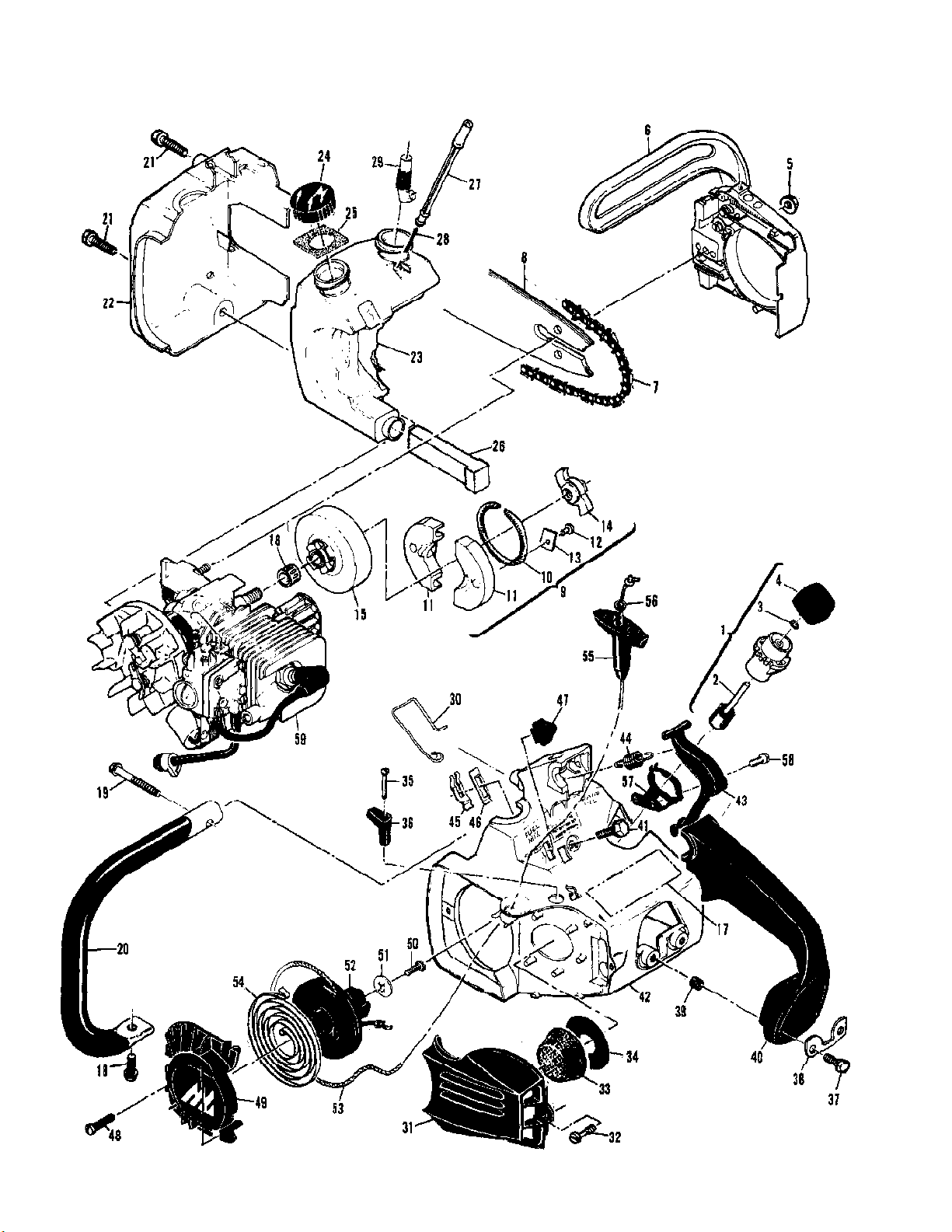

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600097G MINI-MAC 35AS 07/76 to 04/77 IPL 92754A-R1 Page 8 of 12
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 92588 Grinder Asy - AUTO SHARP1
2 92587 Wheel Asy - Grinding1
3 110968 Ring - Retaining1
4 92582 Knob1
5 110676 Nut - Hx 1/4-281
6 CHAIN BRAKE Asy See "Chain Brake Assembly"
illustration and parts list.
7 92600N Chain - AS 370G1
8 90550 Bar - 14" Mini Pro1
9 92743 Clutch Assembly1
10 69358 Spring - Clutch1
11 91050 Shoe - Clutch2
12 110709 Rivet2
13 85064 Plate2
14 92721 Spider1
15 90150A Drum/Spkt/Brg Asy - .375P1
16 91222 Bearing1
17 92671 Plate - Name1
18 110953 Screw - Hx hd 12-24 x 5/81
19 110686 Screw - Hx hd 13-16 x 21
20 84791 Frame & Grip Asy1
21 110639 Screw - Hx hd 12-24 x 12
22 88591 Cover - Fuel & Oil tank1
23 91454A Kit - Fuel & Oil tank1
24 91283 Cap - Fuel & Oil2
25 91148 Seal - Fuel vent1
26 84956 Pickup - Fuel1
27 83900A Piston - Manual oiler1
28 83946 Spring - Piston1
29 85557 Body - Oiler1
30 84611 Rod - Manual oiler1
31 91853 Cover - Air cleaner1
32 91796 Screw - Air cleaner1
33 85127 Filter - Air1
34 84918 Washer - Air seal1
35 110672 Screw - Oval hd 4-40 x 11
36 83870 Knob - Choke1
37 110953 Screw - Hx hd 12-24 x 5/82
38 84520A Plate - Washer1
39 84519 Sleeve - Handle2
40 83852A Handle1
41 110953 Screw - Hx hd 12-24 x 5/83
42 92589 Shroud1
43 83878 Trigger1
44 83940 Spring - Trigger1
45 83935 Contact - Switch1
46 83936 Protector - Switch1
47 83934 Button - Switch1
48 110959 Screw - Hx hd 8-32 x 1/23
49 90425 Cover - Starter1
50 110706 Screw - Pan hd 8-18 x 1/21
51 68497 Washer - Special1
52 92316 Drum/Rope Asy1
53 83203 Rope - Starter1
54 83078 Spring - Rewind1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600097G MINI-MAC 35AS 07/76 to 04/77 IPL 92754A-R1 Page 9 of 12
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
55 91255 Kit - Starter handle1
56 105490 Washer1
57 92581 Bracket - AUTO SHARP1
58 110597 Screw - Pan hd 8-32 x 1/2 (SEMS)2
59 Powerhead Asy See "Powerhead Assembly"
illustration and parts list
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600097G MINI-MAC 35AS 07/76 to 04/77 IPL 92754A-R1 Page 10 of 12
www.ktoutdoor.com

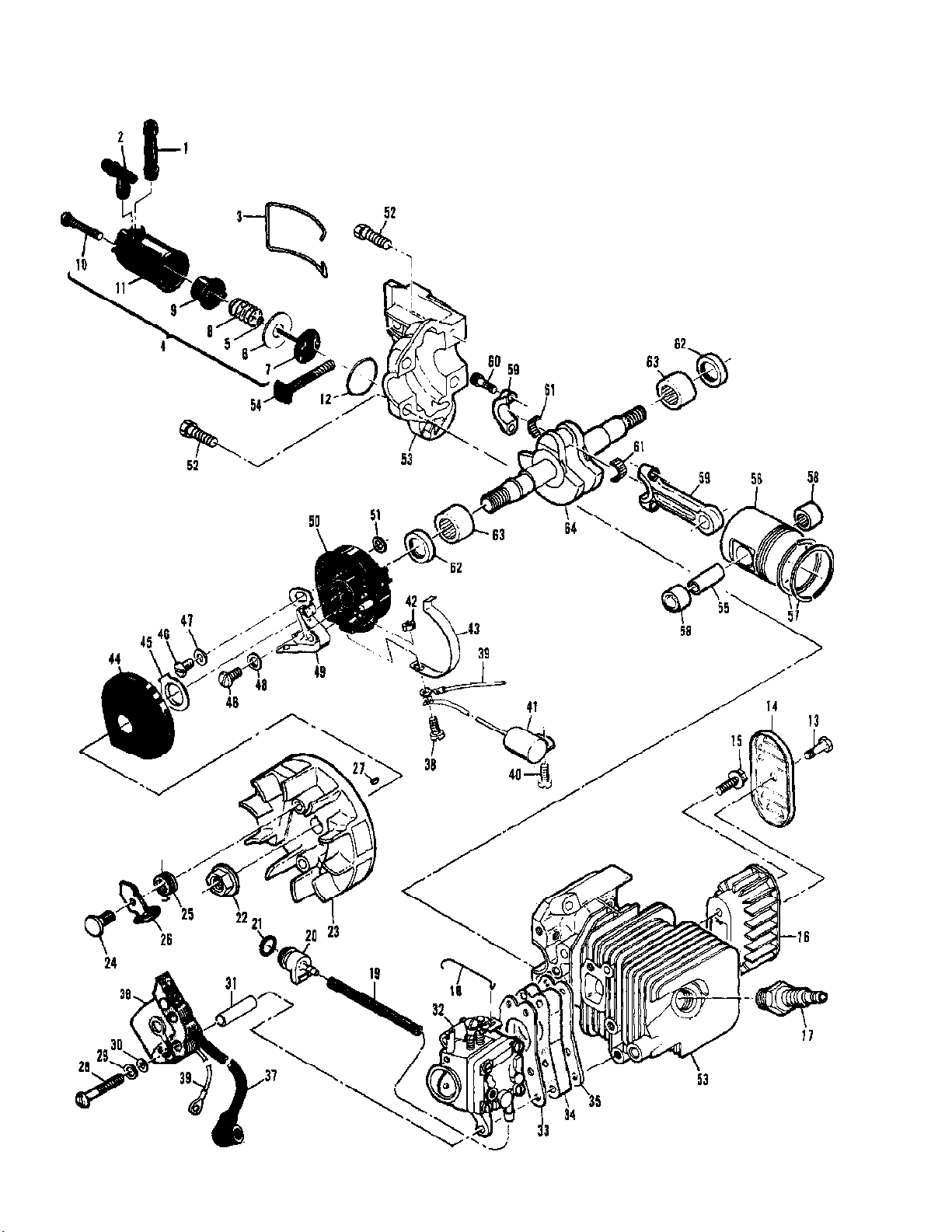

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600097G MINI-MAC 35AS 07/76 to 04/77 IPL 92754A-R1 Page 11 of 12
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 83898 Connector - Outlet1
2 84613 Connector - Pump1
3 83896 Bail - Mounting1
4 83886 Pump Asy - Pulse1
5 105603 "O" Ring1
6 85769 Ring - Pump Piston1
7 92204 Piston Asy - Pump1
8 83891 Spring - Pump1
9 83890 Sleeve - Pump1
10 110651 Screw - Adjustment1
11 83887 Body Asy - Pump1
12 110653 "O" Ring1
13 110674 Screw - Hx hd 10-24 x 1/21
14 89684 Cover - Muffler1
15 110928 Screw - Hx hd 10-24 x 1/22
16 89682 Body - Muffler1
17 63097 Spark Plug1
18 89274 Rod - Throttle1
19 89059 Hose - Fuel1
20 90660 Adapter1
21 110908 "O" Ring1
22 110970 Nut - Hx 5/16-241
23 91961 Flywheel & Pawl Asy1
24 68796 Pin - Pawl2
25 92898 Spring - Pawl2
26 91872 Pawl - Starter2
27 102164 Key - Woodruff1
28 110586 Screw - Pan hd 8-32 x 1-3/43
29 105976 Washer - #83
30 67177 Washer - Insulator3
31 68198 Tube - Insulator3
32 Carburetor Asy See "Carburetor Assembly"
illustration and parts list.
33 68197 Gasket - Carburetor1
34 90713 Insulator - Carburetor1
35 90714 Gasket - Insulator1
36 84957 Coil & Lamination Asy1
37 50120 Wire Asy - Spark plug1
38 110364 Screw - Pan hd 6-32 x 5/81
39 69344 Wire Asy - Primary1
40 110041 Screw - Pan hd 8-32 x 1/2 s/t1
41 85358 Condenser1
42 100035 Nut - Hx 6-321
43 84502 Connector - Stop switch1
44 67841 Cover - Breaker box1
45 69323 Seal - Breaker box1
46 110969 Screw - Hx hd 8-32 x 1/22
47 69322 Washer - Special1
48 105976 Washer - #81
49 88811 Breaker Asy1
50 84505A Kit - Breaker Box1
51 92037 Washer1
52 110639 Screw - Hx hd 12-24 x 14
53 90665B Cyl/C'Case Asy1
54 83856 Bolt - Bar mounting1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600097G MINI-MAC 35AS 07/76 to 04/77 IPL 92754A-R1 Page 12 of 12
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
55 66867 Pin - Piston1
56 68098 Piston Asy1
57 87165 Ring Set - Piston1
58 110538 Bearing - Needle2
59 68097 Connecting Rod Asy1
60 66853 Screw - Special2
61 68095 Roller - Needle (Set of 20)1
62 83859 Seal - Oil2
63 66854 Bearing - Needle2
64 91932 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
