Page 1
11-600093U MINI-MAC 30 12/73 to 04/77 IPL 92290-02 Page 1 of 12
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600093U MINI-MAC 30 12/73 to 04/77 IPL 92290-02 Page 2 of 12
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
90745 Bar - 10" Mini Pro
90641N Chain Asy - 10" MP 370G
90630 Bar - 10" Mini Mac
90638N Chain Asy - 10" MM370G
90770 Bar - 12" Mac 6
88033N Chain Asy - 12" SM250G
90549 Bar - 12" Mini Pro
90642N Chain Asy - 12" MP370G
90639N Chain Asy - 12" MM370G
90550 Bar - 14" Mini Pro
90640N Chain Asy - 14" MM370G
83687 Guide - Timing
91753 Case - Carrying
88756 Scrench
68747 Gasket- Spark arrester
84992 Kit - Reed Muffler
85924 Kit - Spark Arrester (PM6 type)
89685 Screen - Spark arrester
85062 Kit - Piston Tool
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600093U MINI-MAC 30 12/73 to 04/77 IPL 92290-02 Page 3 of 12
www.ktoutdoor.com

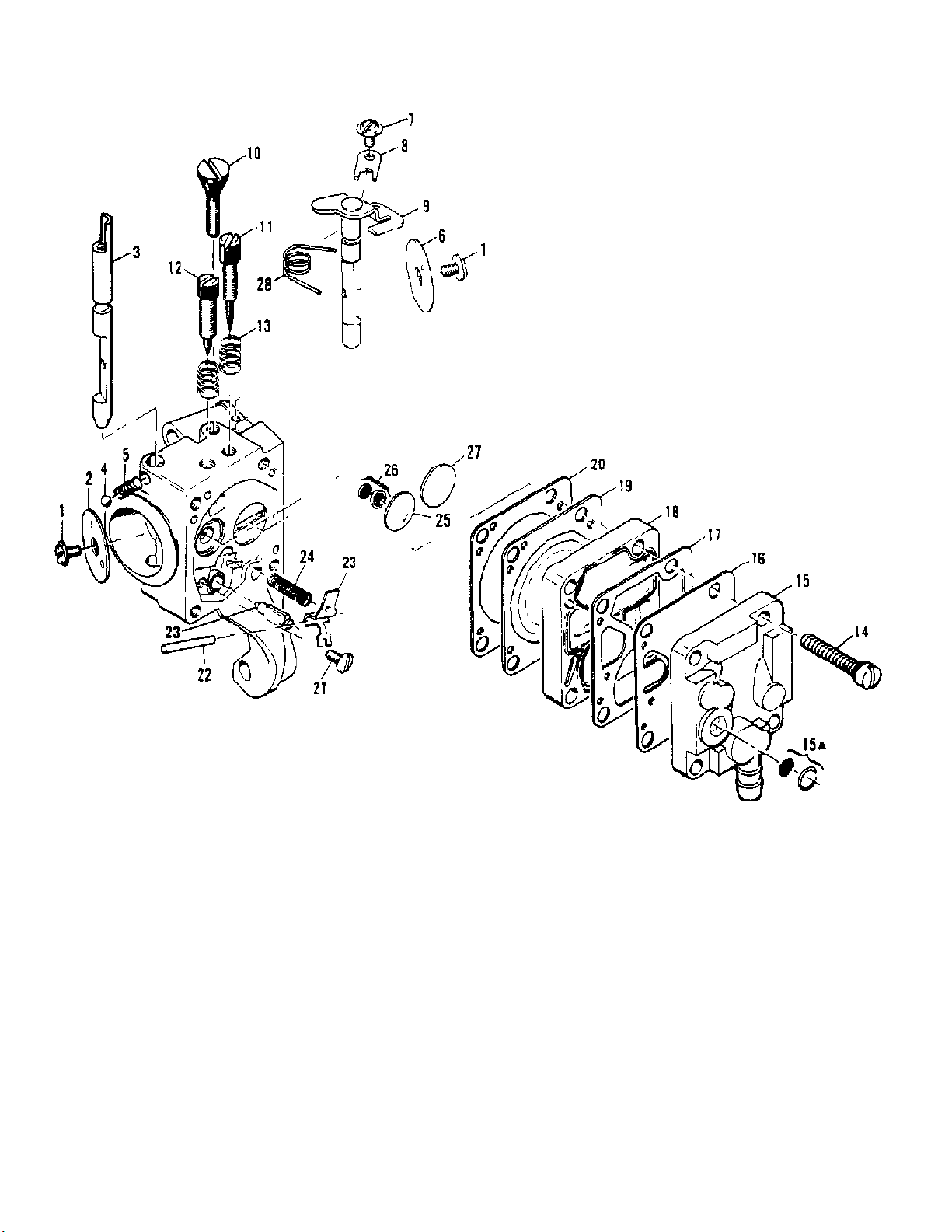

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600093U MINI-MAC 30 12/73 to 04/77 IPL 92290-02 Page 4 of 12
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
90918 Carburetor Asy1
1 83755 Screw - Plate2
2 68556 Plate - Choke1
3 85033 Shaft - Choke1
4 100302 Ball - Choke friction1
5 67504 Spring - Choke friction1
6 68553 Plate - Throttle1
7 70798 Screw - Clip1
8 68554 Clip -Throttle shaft1
9 90471 Shaft Asy - Throttle1
10 68566 Screw-Idle speed1
11 86446 Needle - Idle1
12 86447 Needle - High speed1
13 67502 Spring - Needle2
14 68564 Screw Asy - Body4
15 91347 Cover Asy - Pump1
15A 85629 Kit - Vent screen1
16 68563 Diaphram - Fuel pump1
17 85035 Gasket - Pump diaphragm1
18 85030 Body - Fuel pump1
19 85036 Diaphragm - Metering1
20 85034 Gasket - Diaphragm1
21 67500 Screw - Lever pin1
22 67508 Pin - Lever1
23 85059 Kit - Needle & lever1
24 68567 Spring - Lever1
25 68559 Plug - Welsh 7/161
26 83758 Kit - Check valve1
27 68560 Plug - Welsh 1/21
28 89785 Spring - Throttle return1
86463 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600093U MINI-MAC 30 12/73 to 04/77 IPL 92290-02 Page 5 of 12
www.ktoutdoor.com

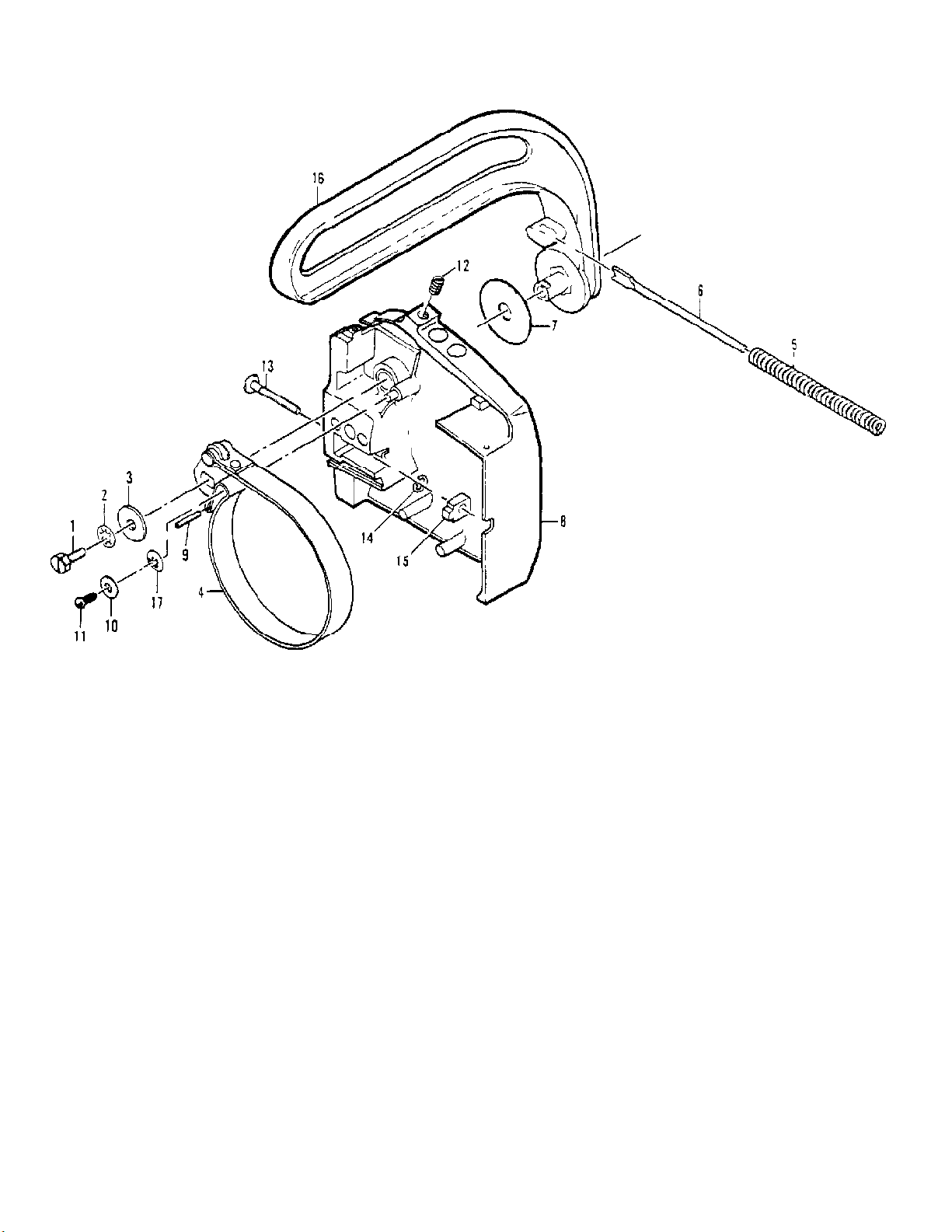

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600093U MINI-MAC 30 12/73 to 04/77 IPL 92290-02 Page 6 of 12
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
90570B CHAIN BRAKE Asy
1 102762 Screw - Hx hd 10-24 x 1/21
2 101194 Washer - Lock #101
3 110712 Washer1
4 90580 Band & Lever1
5 90587A Spring - Brake Actuator1
6 90588 Guide - Spring1
7 90967 Washer - Actuating Lever1
8 90571C Kit - Housing/Spring1
9 103047 Pin1
10 100001 Washer1
11 110946 Screw Drive - 6 x 5/161
12 110955 Screw - Set 8-32 x 1/21
13 90658 Screw - Adjusting1
14 110907 Ring - Retaining1
15 84929 Nut - Bar adjusting1
16 90576 Lever - Actuator1
17 110913 Fastener - Springtip1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600093U MINI-MAC 30 12/73 to 04/77 IPL 92290-02 Page 7 of 12
www.ktoutdoor.com

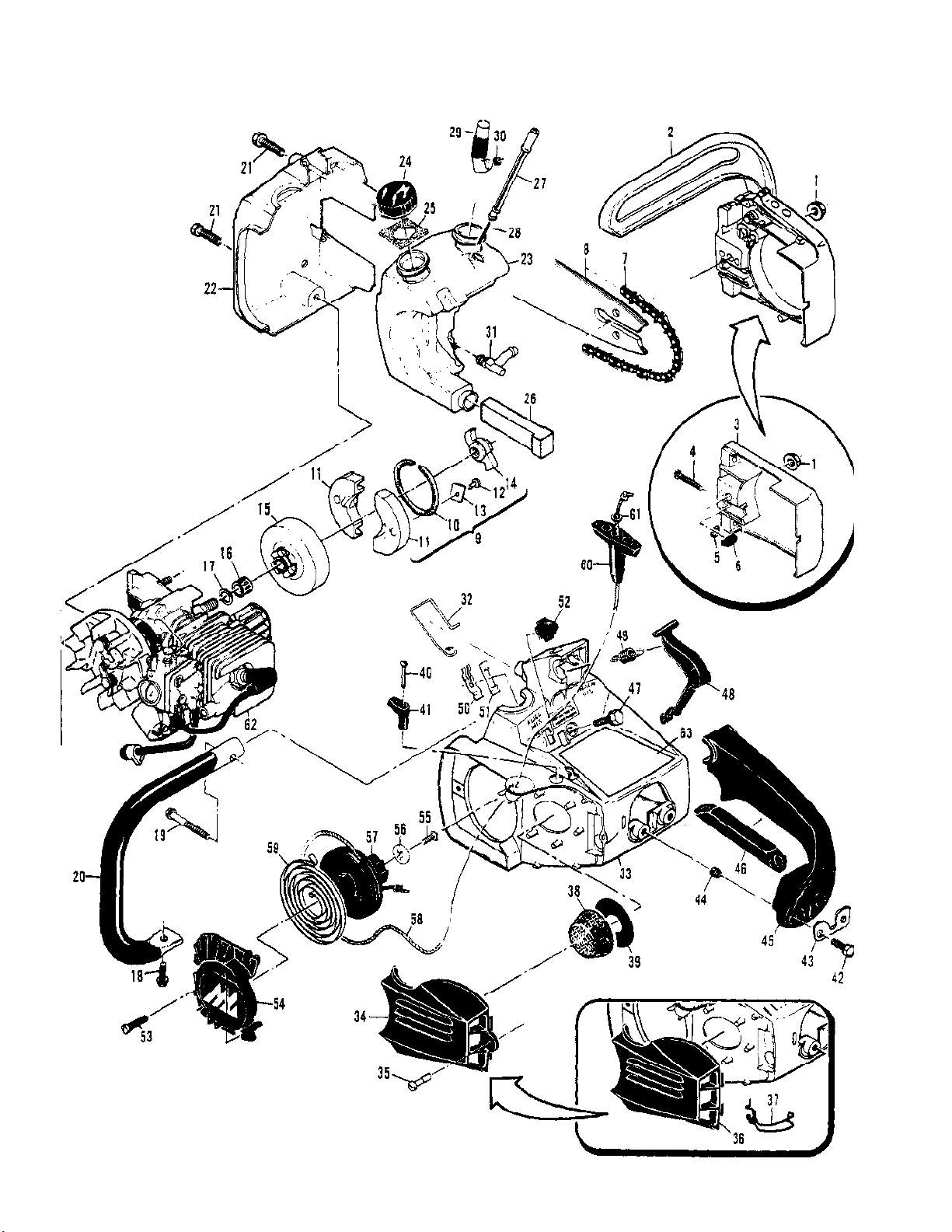

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600093U MINI-MAC 30 12/73 to 04/77 IPL 92290-02 Page 8 of 12
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 110676 Nut - Hx 1/2-281
2 CHAIN BRAKE Asy See "Chain Brake" Assembly
illustration & parts list.
3 90636 Guard Asy - Clutch1
4 90658 Screw - Pan hd 8-32 x 1-1/81
5 110907 Ring - retaining1
6 84929 Nut - Bar adjusting1
7 Chain Asy See "Accessories" parts list.
8 Bar See "Accessories" parts list.
9 92727 Clutch Asy1
10 69358 Spring - Clutch1
11 85202 Kit - Clutch Shoe2
12 110957 Rivet2
13 85064 Plate2
14 92721 Spider1
9 85450 Clutch Asy1
10 69358 Spring - Clutch1
11 85202 Kit - Clutch Shoe2
12 110709 Rivet2
13 85064 Plate2
14 85449 Spider1
15 90150 Drum/Spkt/Brng Asy1
16 91222 Kit - Needle Bearing2
15 85504 Drum Cr Sprocket Asy1
16 67650 Bearing - Sprocket1
17 67303 Washer - Sprocket1
18 110953 Screw - Hx hd 12-24 x 5/81
19 110686 Screw - Hx hd 13-16 x 21
20 84791 Frame & Grip Asy1
21 110639 Screw - Hx hd 12-24 x 12
22 88591 Cover - Fuel & Oil tank1
23 91454A Tank Kit - Fuel & Oil1
24 91283 Cap - Fuel & Oil (Unvented)2
24 90922 Cap - Fuel & Oil (Vented)2
25 91148 Seal - Fuel vent1
26 84956 Pickup - Fuel1
27 83900A Piston - Manual oiler1
28 83946 Spring - Piston1
29 85557 Body - Oiler1
30 86438 Valve - Manual oil pump1
31 84653 Connector - Manual oiler1
32 84611 Rod - Manual oiler1
33 91859 Kit - Shroud Asy1
34 91853 Cover - Air cleaner1
35 91796 Screw - Air cleaner1
36 90383 Cover - Air cleaner1
37 83882 Retainer - Cover1
38 85127 Filter - Air1
39 84918 Washer - Air seal1
40 110672 Screw - Oval hd 4-40 x 11
41 83870 Knob - Choke1
42 110953 Screw - Hx hd 12-24 x 5/82
43 84520A Plate - Washer1
44 84519 Sleeve - Handle2
45 83852A Handle & Grip Asy1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600093U MINI-MAC 30 12/73 to 04/77 IPL 92290-02 Page 9 of 12
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
46 64872 Grip - Handle1
47 110953 Screw - Hx hd 12-24 x 5/83
48 83878 Trigger1
49 83940 Spring - Trigger1
50 83935 Contact - Switch1
51 83936 Protector - Switch1
52 83934 Button - Switch1
53 110959 Screw - Hx hd 8-32 x 1/23
54 90425 Cover - Starter1
55 110706 Screw - Rd hd 8-32 x 5/81
56 68497 Washer - Special1
57 83876 Drum - Starter1
57 92316 Drum/Rope Asy1
58 83203 Rope - Starter1
59 83078 Spring - Rewind1
60 91255 Kit - Starter handle1
61 105490 Washer - Starter handle1
62 Powerhead Asy See "Powerhead Assembly"
illustration & parts list.
63 91694 Plate - Name1
63 91693 Plate - Name1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600093U MINI-MAC 30 12/73 to 04/77 IPL 92290-02 Page 10 of 12
www.ktoutdoor.com

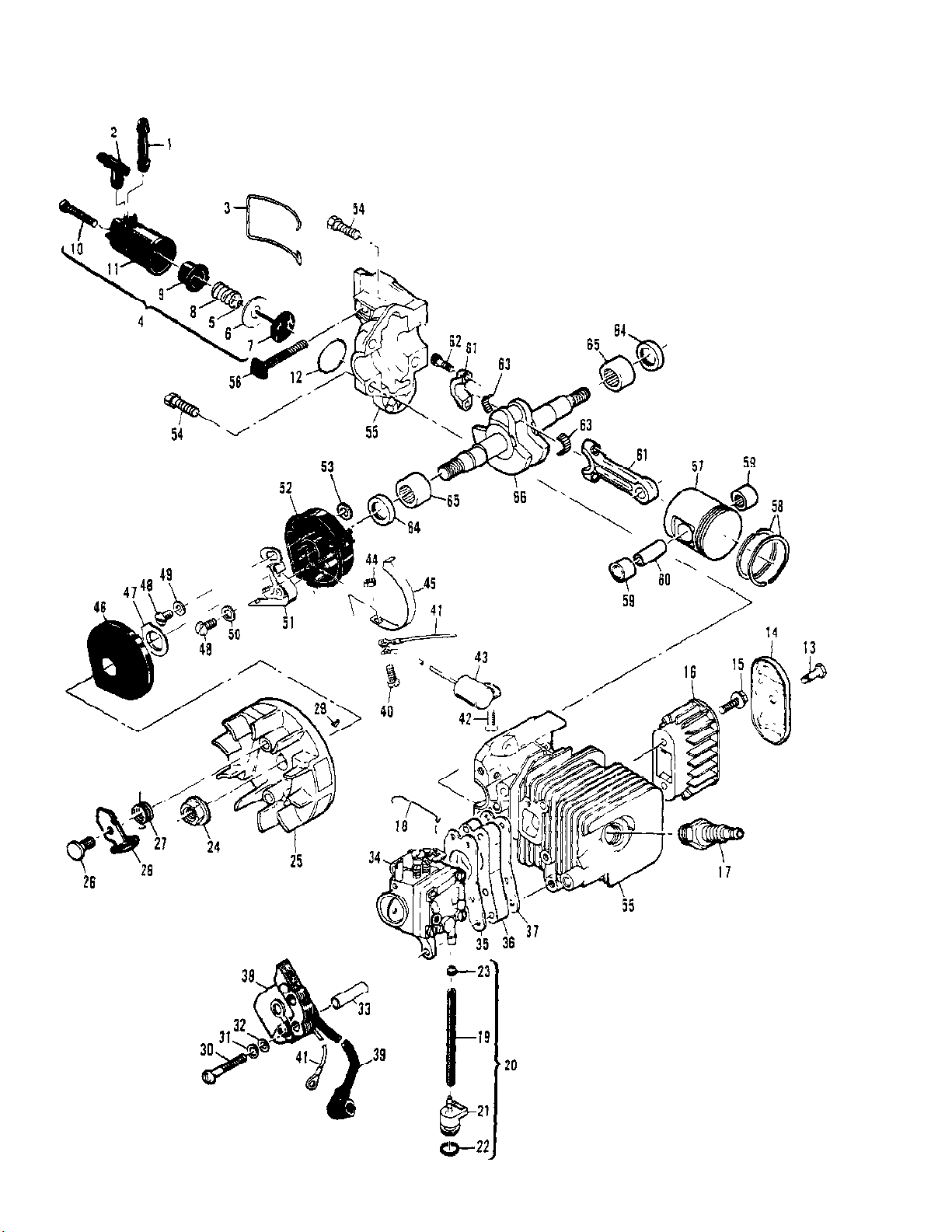

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600093U MINI-MAC 30 12/73 to 04/77 IPL 92290-02 Page 11 of 12
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 83898 Connector - Outlet1
2 84613 Connector - Pump1
3 83896 Ball - Mounting1
4 83886 Pump Asy - Oiler1
5 105603 "O" Ring1
6 85769 Ring - Pump piston1
7 92204 Piston Asy - Pump1
8 83891 Spring - Pump1
9 83890 Sleeve - Pump1
10 110651 Screw - Adjustment1
11 83887 Body Asy - Pump1
12 110653 "O" Ring1
13 110674 Screw - Hx hd 10-24 x 1/21
14 89684 Cover - Muffler1
15 110928 Screw - Hx hd 10-24 x 1/22
16 89682 Body - Muffler1
17 63097 Spark Plug1
18 89274 Rod - Throttle1
19 89059 Hose - Fuel1
20 90661 Kit - Fuel Hose1
19 90659 Hose - Fuel1
21 90660 Adaptor - Fuel hose1
22 110908 "O" Ring1
23 87826 Clamp1
24 110970 Nut - Hx 5/16-241
24 110931 Nut - Hx 3/8-241
25 91961 Flywheel & Pawl Asy1
26 68796 Pin - Pawl2
27 92898 Spring - Pawl2
28 91872 Pawl - Starter2
25 69806 Flywheel & Pawl Asy1
26 68796 Pin - Pawl2
27 67814 Spring - Pawl2
28 69103 Pawl - Starter2
29 102164 Key - Woodruff1
29 100106 Key - Woodruff1
30 110586 Screw - Pan hd 8-32 x 1-3/43
31 105976 Washer - #83
32 67177 Washer - Insulating3
33 68198 Tube - Insulating3
34 Carburetor Asy See "Carburetor Assembly"
illustration & parts list.
35 68197 Gasket - Carburetor1
36 90713 Insulator - Carburetor1
37 90714 Gasket - Insulator1
38 84957 Coil & Lamination Asy1
39 50120 Wire Asy - Spark plug1
40 110364 Screw - Pan hd 6-32 x 5/81
41 69344 Wire Asy - Coil1
42 110041 Screw - Pan hd 8-32 x 1/2 s/t1
43 85358 Condenser1
44 100035 Nut - Hx 6-321
45 84502 Connector - Stop switch1
46 67841 Cover - Breaker box1
47 69323 Seal - Breaker box1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600093U MINI-MAC 30 12/73 to 04/77 IPL 92290-02 Page 12 of 12
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
48 110041 Screw - Pan hd 8-32 x 1/2 s/t2
49 69322 Washer - Special1
50 105976 Washer - 481
51 88811 Breaker Asy1
52 84505A Kit - Breaker Box1
53 92037 Washer1
54 110639 Screw - Hx hd 12-24 x 14
55 92279 Kit - Cyl/C'Case/Piston1
56 83856 Bolt - Bar mounting1
57 92274 Piston Asy1
58 92752 Set - Piston Rings1
59 110538 Bearing - Needle2
57 84981 Piston Asy1
58 87164 Set - Piston Rings1
59 110538 Bearing - Needle2
60 66867 Pin - Piston1
61 68097 Connecting Rod Asy1
62 66853 Screw - Special2
63 68095 Roller - Needle (Set of 20)1
64 83859 Seal - Oil2
65 66854 Bearing - Needle2
66 91932 Crankshaft1
66 86439A Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
