Page 1
11-600091U MINI-MAC 35 12/73 to 03/77 IPL 92327-R1 Page 1 of 12
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600091U MINI-MAC 35 12/73 to 03/77 IPL 92327-R1 Page 2 of 12
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
90550 Bar-14" Mini Pro
90643N Chain-MP370G
90771 Bar-14" Mac 6 (B)
88034N Chain-SM 250 (B)
90632 Bar-14" Mini Mac (C,G,U)
90640N Chain-MM370G (C,G,U)
91753 Case-Carrying
88756 Scrench
83687 Guide - Timing
90256 Kit-Tune Up
68915A Kit-Piston Tool
84992 Kit-Reed Muffler
85933 Kit-Spark Arrester Screen (Reed Muffler)
85924 Kit-Spark Arrester (PM6 type)
89685 Screen-Spark arrester
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600091U MINI-MAC 35 12/73 to 03/77 IPL 92327-R1 Page 3 of 12
www.ktoutdoor.com

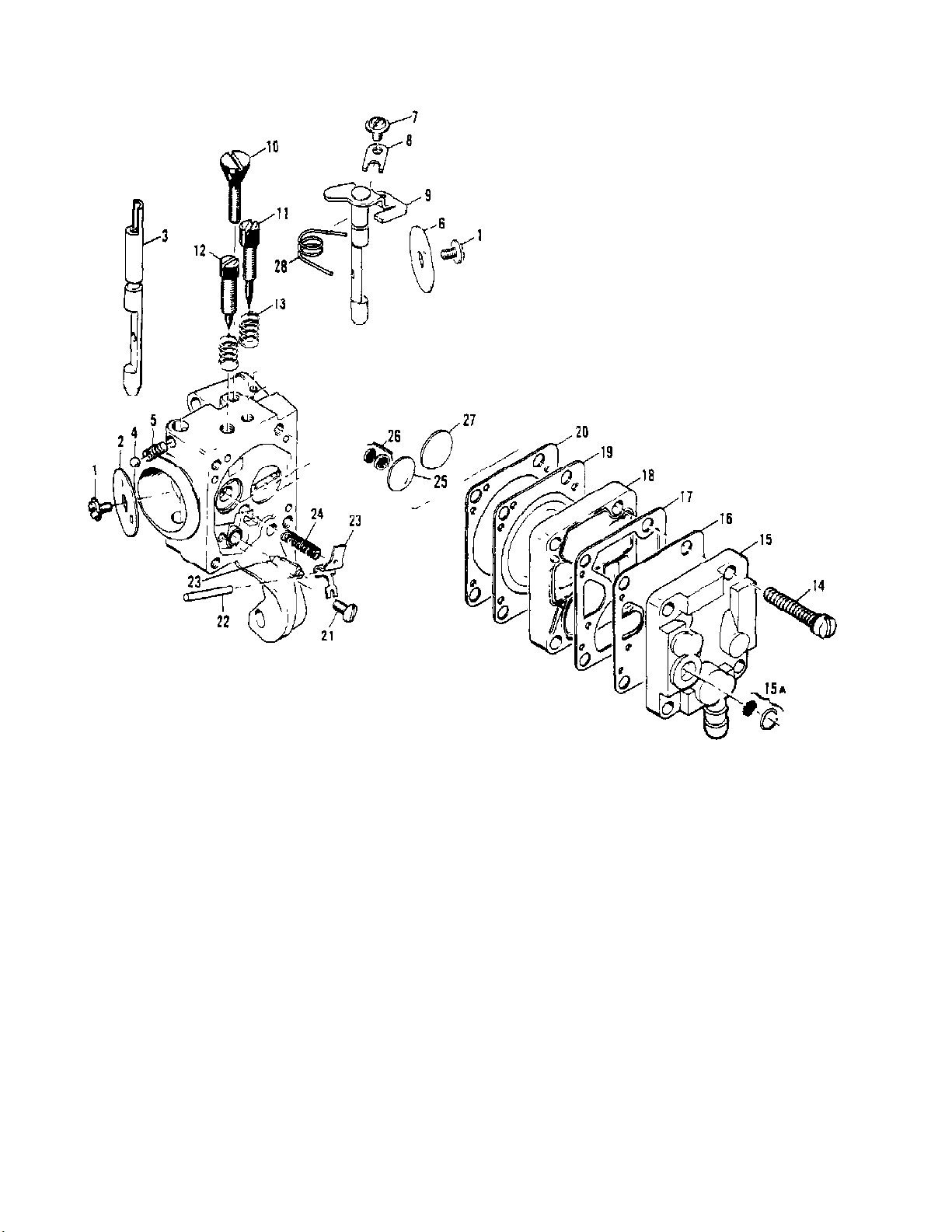

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600091U MINI-MAC 35 12/73 to 03/77 IPL 92327-R1 Page 4 of 12
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
90918 Carburetor Asy (MDC 11)1
1 83755 Screw-Plate2
2 68556 Plate-Choke1
3 85033 Shaft-Choke1
4 100302 Ball-Choke friction1
5 67504 Spring-Choke friction1
6 68553 Plate-Throttle1
7 70798 Screw-Clip1
8 68554 Clip-Throttle shaft1
9 90471 Shaft Asy-Throttle1
10 68566 Screw-Idle speed1
11 86446 Needle-Idle1
12 86447 Needle-High speed1
13 67502 Spring-Needle2
14 68564 Screw Asy-Body4
15 91347 Cover Asy-Pump1
15A 85629 Kit-Vent screen1
16 68563 Diaphragm-Fuel pump1
17 85035 Gasket-Pump diaphragm1
18 85030 Body-Fuel pump1
19 85036 Diaphragm-Metering1
20 85034 Gasket-Diaphragm1
21 67500 Screw-Lever pin1
22 67508 Pin-Lever1
23 85059 Kit-Needle & lever1
24 68567 Spring-Lever1
25 68559 Plug-Welsh 7/161
26 83758 Kit-Check valve1
27 68560 Plug-Welsh 1/21
28 89785 Spring-Throttle return1
86463 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600091U MINI-MAC 35 12/73 to 03/77 IPL 92327-R1 Page 5 of 12
www.ktoutdoor.com

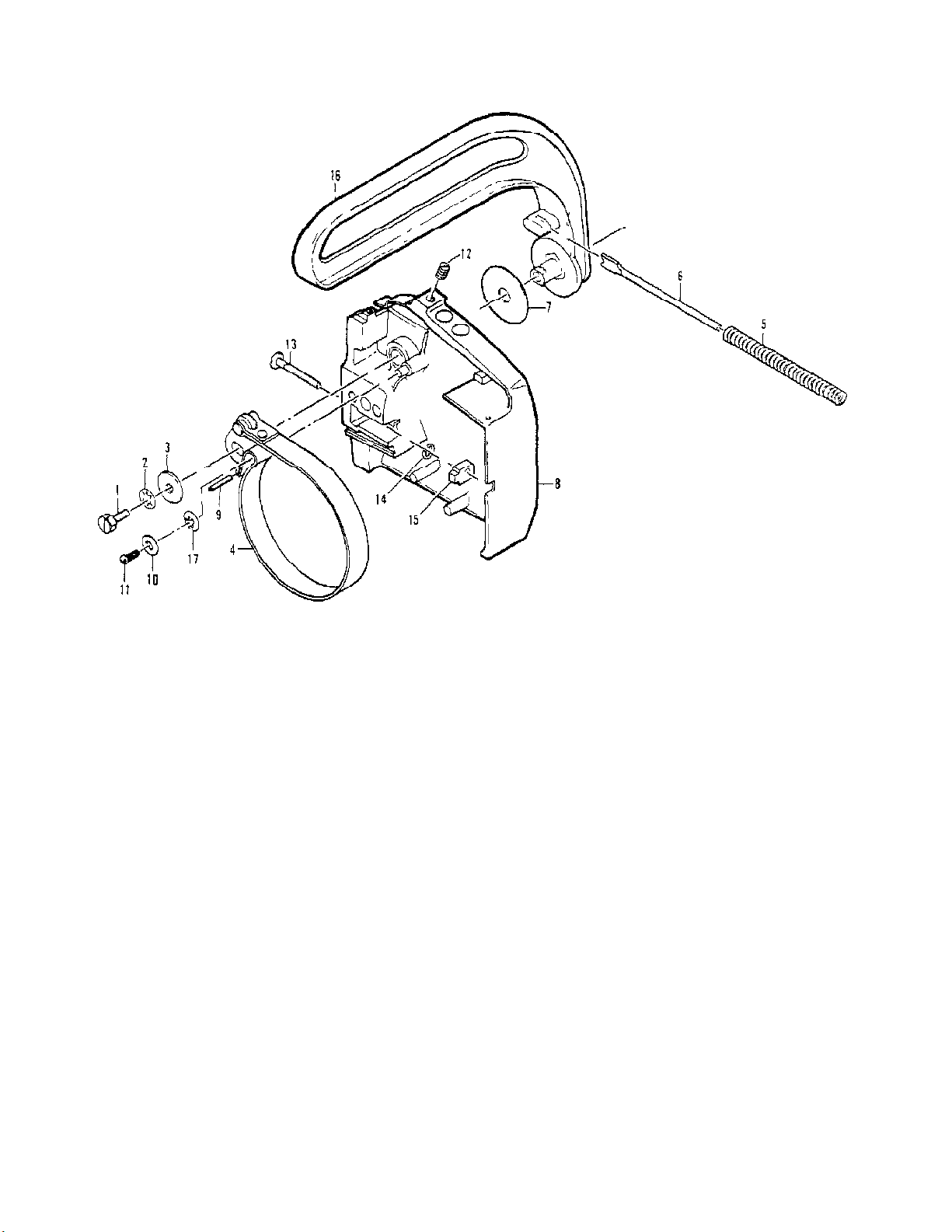

Chainbrake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600091U MINI-MAC 35 12/73 to 03/77 IPL 92327-R1 Page 6 of 12
www.ktoutdoor.com
Chainbrake Assembly
Ref # Part Number DescriptionQty
90570B CHAIN BRAKE Asy
1 102762 Screw-Hx hd 10-24 x 1/21
2 101194 Washer-Lock #101
3 110712 Washer1
4 90580 Band & Lever1
5 90587A Spring-Brake Actuator1
6 90588 Guide-Spring1
7 90967 Washer-Actuating Lever1
8 90571C Kit-Housing/Spring1
9 103047 Pin1
10 100001 Washer1
11 110946 Screw Drive-6 x 5/161
12 110955 Screw-Set 8-32 x 1/21
13 90658 Screw-Adjusting1
14 110907 Ring-Retaining1
15 84929 Nut-Bar Adjusting1
16 90576A Lever-Actuator1
17 110913 Fastener-Spring tip1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600091U MINI-MAC 35 12/73 to 03/77 IPL 92327-R1 Page 7 of 12
www.ktoutdoor.com

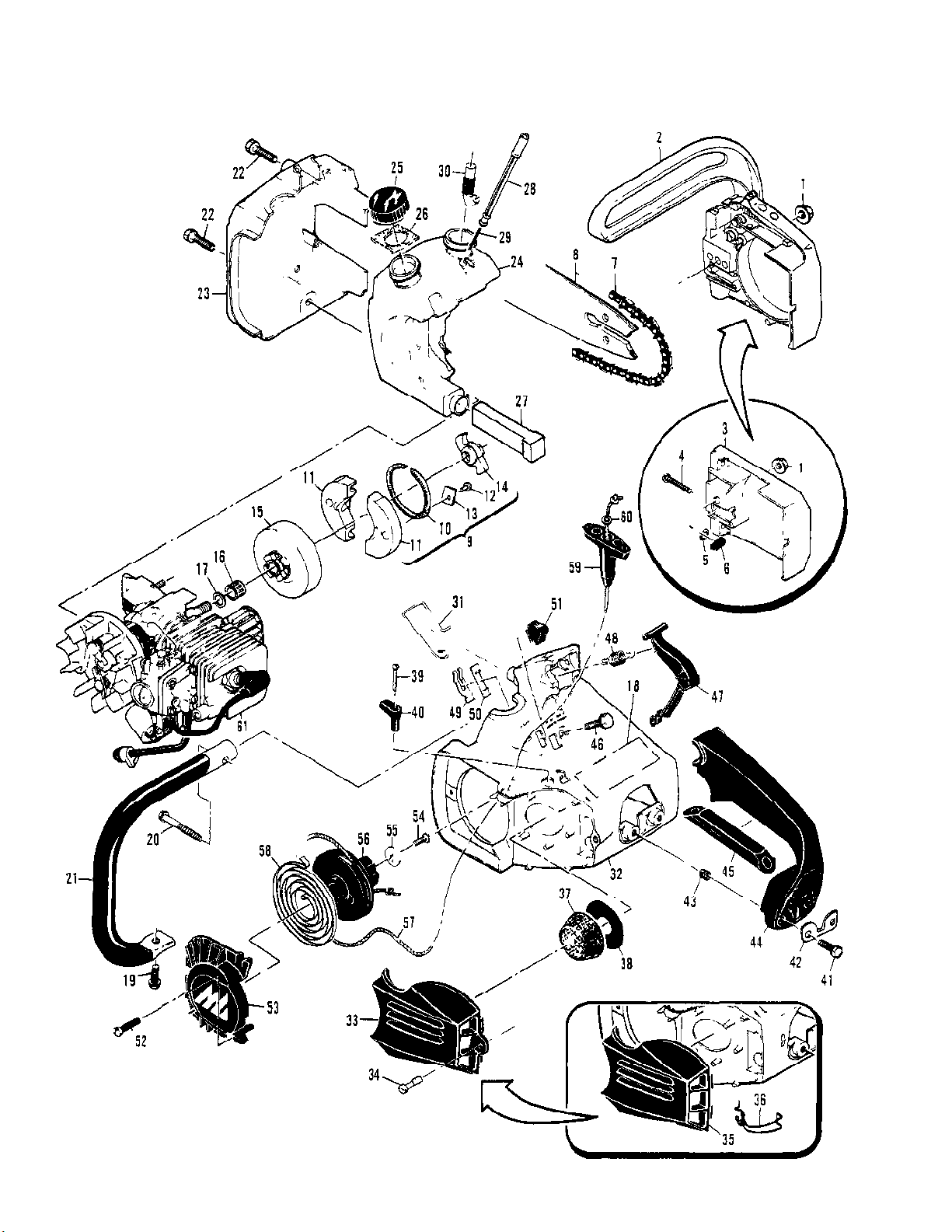

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600091U MINI-MAC 35 12/73 to 03/77 IPL 92327-R1 Page 8 of 12
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 110676 Nut-Hx 1/4-281
2 CHAIN BRAKE Asy See "CHAIN BRAKE" Assembly
Illustration and parts list
3 90636 Guard Asy-Clutch1
4 90658 Screw-Pan hd 8-32 x 1-1/81
5 110907 Ring-Retaining1
6 84929 Nut-Bar adjusting1
7 Chain Asy (See Accessories)1
8 Bar (See Accessories)1
9 92727 Clutch Asy1
10 69358 Spring-Clutch1
11 85202 Kit-Clutch Shoe2
12 110957 Rivet2
13 85064 Plate2
14 92721 Spider1
9 85450 Clutch Asy1
10 69358 Spring-Clutch1
11 85202 Kit-Clutch Shoe2
12 110709 Rivet2
13 85064 Plate2
14 85449 Spider1
15 90150 Drum/Sprocket/Bearing Asy1
16 91222 Kit-Needle Bearing1
15 85504 Drum & Sprocket Asy1
16 67650 Bearing-Sprocket1
17 67303 Washer-Sprocket1
18 91695 Plate-Name1
19 110953 Screw-Hx hd 12-24 x 5/81
20 110686 Screw-Hx hd 13-16 x 21
21 84791 Frame & Grip Asy1
22 110639 Screw-Hx hd 12-24 x 12
23 88591 Cover-Fuel & Oil1
24 91454A Kit-Fuel & Oil tank1
25 91283 Cap-Fuel & Oil (Unvented)2
25 90922 Cap-Fuel & Oil (Vented)2
26 91148 Seal-Fuel vent1
27 84956 Pickup-Fuel1
28 83900A Piston-Manual Oiler1
29 83946 Spring-Piston1
30 85557 Body-Oiler1
31 84611 Rod-Manual Oiler1
32 91859 Kit-Shroud Asy1
33 91853 Cover-Air cleaner1
34 91796 Screw-Air cleaner1
35 90383 Cover-Air cleaner1
36 83882 Retainer-Cover1
37 85127 Filter-Air1
38 84918 Washer-Air seal1
39 110672 Screw-Oval hd 4-40 x 11
40 83870 Knob-Choke1
41 110953 Screw-Hx hd 12-24 x 5/82
42 84520A Plate-Washer1
43 84519 Sleeve-Handle2
44 83852A Handle1
45 64872 Grip-Handle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600091U MINI-MAC 35 12/73 to 03/77 IPL 92327-R1 Page 9 of 12
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
46 110953 Screw-Hx hd 12-24 x 5/83
47 83878 Trigger1
48 83940 Spring-Trigger1
49 83935 Contact-Switch1
50 83936 Protector-Switch1
51 83934 Button-Switch1
52 110959 Screw-Hx hd 8-32 x 1/23
53 90425 Cover-Starter1
54 110706 Screw-Pan hd 8-18 x 1/21
55 68497 Washer-Special1
56 83876 Drum-Starter1
56 92316A Drum/Rope Asy1
57 83203 Rope-Starter1
58 83078 Spring-Rewind1
59 91255 Kit-Starter handle1
60 105490 Washer1
61 Powerhead Asy See "Powerhead Assembly"
Illustration and parts list
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600091U MINI-MAC 35 12/73 to 03/77 IPL 92327-R1 Page 10 of 12
www.ktoutdoor.com

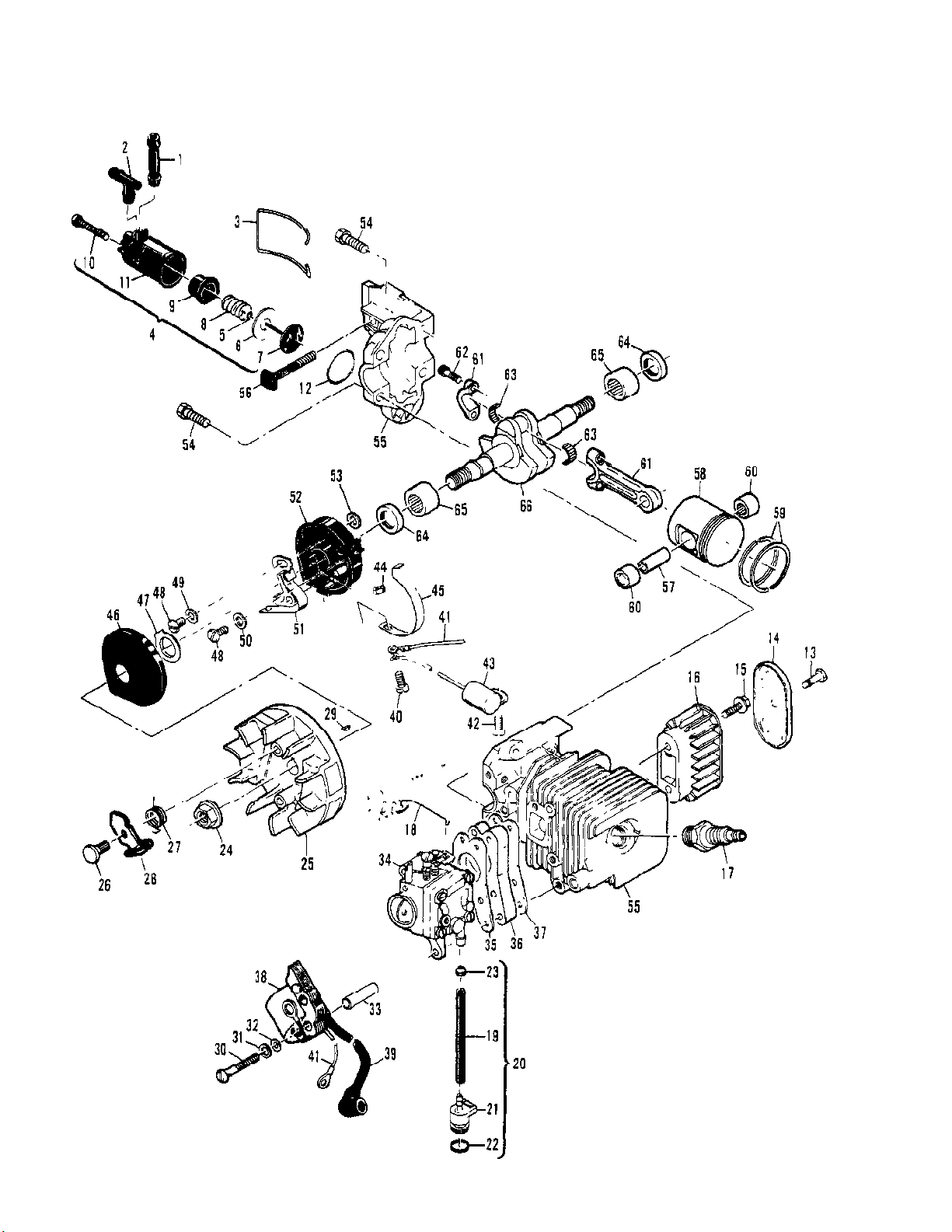

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600091U MINI-MAC 35 12/73 to 03/77 IPL 92327-R1 Page 11 of 12
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 83898 Connector-Outlet1
2 84613 Connector-Pump1
3 83896 Bail-Mounting1
4 83886 Pump Asy-Pulse1
5 105603 "O" Ring1
6 85769 Ring-Pump Piston1
7 92204 Piston Asy-Pump1
8 83891 Spring-Pump1
9 83890 Sleeve-Pump1
10 110651 Screw-Adjustment1
11 83887 Body Asy-Pump1
12 110653 "O" Ring1
13 110674 Screw-Hx hd 10-24 x 1/21
14 89684 Cover-Muffler1
15 110928 Screw-Hx hd 10-24 x 1/22
16 89682 Body-Muffler1
17 63097 Spark Plug1
18 89274 Rod-Throttle1
19 89059 Hose-Fuel1
20 90661 Kit-Fuel Hose1
19 90659 Hose-Fuel1
21 90660 Adaptor-Fuel Hose1
22 110908 "O" Ring1
23 87826 Clamp1
24 110970 Nut-Hx 5/16-241
24 110931 Nut-Hx 3/8-241
25 91961A Flywheel & Pawl Asy1
26 68796 Pin-Pawl2
27 67814 Spring-Pawl2
28 91872A Pawl-Starter2
25 69806 Flywheel & Pawl Asy1
26 68706 Pin-Pawl2
27 67814 Spring-Pawl2
28 69103 Pawl-Starter2
29 102164 Key-Woodruff1
29 100106 Key-Woodruff1
30 110586 Screw-Pan hd 8-32 x 1-3/43
31 105976 Washer-#83
32 67177 Washer-Insulator3
33 68198 Tube-Insulator3
34 Carburetor Asy See "Carburetor Assembly"
Illustration and parts list
35 68197 Gasket-Carburetor1
36 90713 Insulator-Carburetor1
37 90714 Gasket-Insulator1
38 84957 Coil & Lamination Asy1
39 50120 Wire Asy-Spark Plug1
40 110364 Screw-Pan hd 6-32 x 5/81
41 69344 Wire Asy-Primary1
42 110041 Screw-Pan hd 8-32 x 1/2 s/t1
43 85358 Condenser1
44 100035 Nut-Hx 6-321
45 84502 Connector-Stop switch1
46 67841 Cover-Breaker box1
47 69323 Seal-Breaker box1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600091U MINI-MAC 35 12/73 to 03/77 IPL 92327-R1 Page 12 of 12
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
48 110969 Screw-Hx hd 8-32 x 1/22
49 69322 Washer-Special1
50 105976 Washer-#81
51 88811 Breaker Asy1
52 84505A Kit-Breaker Box1
53 92037 Washer1
54 110639 Screw-Hx hd 12-24 x 14
55 90665B Cyl/C'Case Asy1
56 83856 Bolt-Bar mounting1
57 66867 Pin-Piston1
58 68098 Piston Asy1
59 87165 Ring Set-Piston1
60 110538 Bearing-Needle2
61 68097 Connecting Rod Asy1
62 66853 Screw-Special2
63 68095 Roller-Needle (Set of 20)1
64 83859 Seal-Oil2
65 66854 Bearing-Needle2
66 91932 Crankshaft1
66 86439A Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
